Formations of Robotic Swarm: An Artificial Force Based Approach

Abstract

Cooperative control of multiple mobile robots is an attractive and challenging problem which has drawn considerable attention in the recent past. This paper introduces a scalable decentralized control algorithm to navigate a group of mobile robots (swarm) into a predefined shape in 2D space. The proposed architecture uses artificial forces to control mobile agents into the shape and spread them inside the shape while avoiding inter-member collisions. The theoretical analysis of the swarm behavior describes the motion of the complete swarm and individual members in relevant situations. We use computer simulated case studies to verify the theoretical assertions and to demonstrate the robustness of the swarm under external disturbances such as death of agents, change of shape etc. Also the performance of the proposed distributed swarm control architecture was investigated in the presence of realistic implementation issues such as localization errors, communication range limitations, boundedness of forces etc.

Keywords

Cooperative systems distributed control Geometric pattern formation Multi-Agent System Swarms Stability analysis

1. Introduction

With recent advances in communication, networking and computing, multi-agent systems have generated a renewed interest among researchers across the world (Chaimowicz, Michael et al. 2005; Chao-xia, Bing-rong et al. 2007; De Gennaro, Iannelli et al. 2005; Desai, Ostrowski et al. 1998; Gazi & Passino 2002; Kwok, Ha et al. 2007; Ramani, Viswanath et al. 2008; Suzuki & Yamashita 1999; Xin & Yangmin 2008). Although swarm or multi-agent dynamic system concept, in general, is used in several disciplines, this work considers a multi-agent system as a collection of loosely coupled dynamic units moving in 2 or 3 dimensional space. In applications, the dynamic units can be robots, vehicles, UAVs, etc, where the motion dynamics is governed by a common control algorithm. These systems (robotic colonies/swarming robots) are fundamentally designed to perform a task in a cooperative fashion, requiring integrated decision making facilitated by effective peer-to-peer communication (Sycara 1998). Multi-agent systems (MAS) have distinct advantages and unique applications over single agent based systems due to reduced cost and unit size. In particular, defense applications employing disposable mobile sensory nodes for spying purposes have added advantages due to multiplicity and spacial diversity of agents.

Natural swarms or social foraging animal groups that perform extensive amounts of group work and survive as a powerful society (i.e. ant colonies, bees etc) provide convincing conceptual framework in the area of multi-agent systems. Autonomous behavior (without a central control) of natural swarms such as ant colonies (Gordon 2003) have motivated researchers to mimic natural systems. Many researchers studied group behavior of animals such as organization of work in ant colonies (Gordon 2003), social foraging models in fish (Hamilton & Dill 2003), navigation and signaling methods used by ants (Robinson, Jackson et al. 2005) and shoaling behavior of fish (Brown & Warburton 1999) with respect to performing an escape mechanism. Mathematical models for the group behavior developed by Inada in (Inada 2001) and algorithms governing schooling behavior of fish presented by Grunbaum et al. (Grünbaum 2004) etc, have inspired the robotics researchers into more refined approaches in swarming techniques (Krieger, Billeter et al. 2000; Kwok, Ha et al. 2007; Ramani, Viswanath et al. 2008).

Aggregation and formation are among the most important behaviors exhibited by biological swarms which enable them to protect against natural threats, strengthen them with sensing capabilities to locate food, resources, escape routes, etc (Brown & Warburton 1999). As the artificial swarms can gain similar benefits from such behavior, robotic and multi-agent system researchers have introduced various formation models. A formation strategy based on inter-agent attraction/repulsion function was proposed by Gazi et al in (Gazi & Passino 2003) and (Gazi & Passino 2002) together with a stability analysis of the flocking algorithm. Also Gazi proposed a multi-agent formation using a similar attraction/repulsion profile combined with artificial potentials in (Gazi 2005). Apart from the inter-agent forces, a behavior based formation model was introduced by Balch et al in (Balch & Arkin 1998). Soyal and Sahin (Soysal & Sahin 2005) also introduced a behavior based generic aggregation method using simple reactive behaviors of the agents. While a rather different approach was introduced by Naruse et al (Naruse, Yokoi et al. 2003) for aggregation of multi-agent systems; they used emotion-like two dimensional inner state and affection-like subjective evaluation of others to perform aggregation behavior. Olfati-Saber in (Olfati-Saber 2006) presented a comprehensive theoretical framework for a multi-agent aggregation. In his paper distributed algorithms for free-flocking (i.e. flocking where obstacles are not present) and constrained flocking (i.e. in presence of obstacles) are introduced and the behavior is analysed. Formation, where a specific shape is formed (Harry Chia-Hung & Liu 2005), is also a critical aspect in MAS research, because it facilitates easy maneuvering of the whole MAS when it comes to path planning and strategic positioning (especially in military applications). Many researchers developed and analyzed models for formation control and navigation of multi-agent systems. For example, in (Balch & Arkin 1998), the authors describe a behavior based formation and navigation method for autonomous land vehicles, whereas in (Kalantar & Zimmer 2004), the authors presented a contour shaped formation control method for autonomous underwater vehicles. Leader based pattern formation of a group of robots in (Desai, Ostrowski et al. 1998; Huang, Farritor et al. 2006; Tanner, Pappas et al. 2004; Yang & Gu 2007), Neural network based path planning and assembly (Xiaobu & Yang 2007), geometric pattern formation of multi-agent systems using a decentralized controller in (Bishop 2003; Lawton, Beard et al. 2003; Stilwell, Bishop et al. 2005; Suzuki & Yamashita 1999) and positioning strategies in pattern transitions of MAS described in (Spletzer & Fierro 2005) use a rather different approach to the artificial potential field based formation control model introduced in (Gazi 2005). In (Shuzhi Sam, Chency-Heng et al. 2004), the authors introduce generalized artificial potential functions for swarm shape formations. The stability analysis of swarms under formation algorithms were considered in (Gazi & Passino 2003; Gazi & Passino 2004; Tanner, Pappas et al. 2004; Yang, Passino et al. 2003; Yang, Passino et al. 2003), some providing bounds on swarm sizes, time of formation etc,. In (Antonelli & Chiaverini 2006) the authors present a centralized scheme for controlling a platoon of autonomous vehicles, which demonstrate abilities such as obstacle avoidance, target tracking etc.

In this paper we present a decentralized aggregation and shape formation scheme for a multi-agent society that will converge into a predefined shape in 2D space. Our approach is decentralized in the sense that mobile agents do not need constant communication with a base station, which does the path planning and send navigation commands (as in (Antonelli & Chiaverini 2006)). Instead we use communication between mobile agents, self localization capabilities, predetermined targets and parameters; which enable mobile agents to plan the path on their own. Under the proposed control architecture we populate a given shape (rather than the periphery as in (Chaimowicz, Michael et al. 2005; Hsieh & Kumar 2006; Suzuki & Yamashita 1999; Yang, Passino et al. 2003)) with the swarm without using predefined positions (unlike in (Desai, Ostrowski et al. 1998; Spletzer & Fierro 2005)). The shapes can be described by a mathematical function (contour). This paper is based on our previous work which appeared in (Ekanayake & Pathirana 2006), which introduces an aggregation algorithm for a swarm of robots. In (Ekanayake & Pathirana 2007; Ekanayake & Pathirana 2008), we present an application of the shape formation algorithm used for controlling an airborne weapon system. The formation algorithm uses inter-agent repulsion forces in order to avoid collisions between agents, global formation forces which converges the swarm into the predetermined shape and a friction-like damping force that brings the swarm to a halt once the swarm is distributed inside the shape.

An outline of the paper is as follows: In section 2 we introduce the swarm model and analyse the behavior with certain assumptions. Here the model assumes the agents as point objects with no physical dimensions but with identical physical properties (such as mass, mobility, etc,.). Also in order to reduce the system complexity and highlight the formation algorithm, we assume error free and instantaneous localization capabilities. Then in section 3 we discuss the implementation considerations of the proposed algorithm. Here we introduce a modified controller to avoid obstacles, facilitate agent size and actuator limitations. Also we discuss the additional constraints affecting the performance of the formation algorithm together with an implementation procedure. With the simulation case studies presented in section 4, we verify the claims proposed in section 2 and demonstrate the behavior with constraints and modified models discussed in section 3. Finally, with concluding remarks (section 5) we state directions to possible future work in this area.

2. Swarm Model and the Controller Analysis

The swarm model with basic artificial forces is introduced followed by a mathematical analysis of the swarm behavior. For the analysis, the following were assumed;

Agents/members have identical physical properties (such as mass, mobility etc.)

Agents/members are point masses i.e. without any physical dimensions and demonstrate point mass dynamics

Agents/members have instantaneous and error free localization capabilities

The communication network of the members can transmit data to all the members within the group instantaneously, i.e. without delay (see (Ekanayake, Pathirana et al. 2008))

Agents/members operate on a flat surface without obstacles

Basically the above assumptions were made in order to reduce the system complexity in the controller analysis phase and to highlight the basic formation algorithm. But in subsequent sections of the paper we relax these assumptions and use a swarm model which closely resembles a platoon of real world robotic vehicles.

Throughout this paper, the terms member or agent represent a member in the swarm, while the terms swarm or multi-agent system represents the complete swarm. Also, we use C to represent complex number, R for real number and R⁺ to represent positive real number. Further, we use ℑ(.) and ℛ(.) to represent imaginary and real component of a complex number respectively.

Remark: For easy representation of vector based force components with contour integrals and for ease of analysis we used the complex plane instead of the cartesian plane. But in implementing the algorithm in real robots, the cartesian vector based representations can be adopted.

2.1. Basic Aggregation and Shape formation Model

Consider a swarm or multi-agent system consisting of N number of identical members operating in two dimensional Euclidean space. In this context we consider the problem of controlling and positioning the above swarm into a shape bounded by a simple closed contour γ defined in the complex plane, while spreading members inside the contour uniformly.

The state of the member i is described by

X_{i} = [\begin{matrix} z_{i} \\ {\dot{z}}_{i} \end{matrix}],

(1)

where z_i ∈ C, represents the position of the i^th member in 2D complex plane. Let z be a point on γ, i.e. z ∈ γ. Before stating the swarm model, we define α = [1 0] and β = [0 1]. Then the state of the whole swarm, x = [X₁ X₂ X₃ … X_N]^T is determined by the continuous time dynamic model described by,

\dot{x} = A x + B u,

(2)

where

A = d i a g {(\hat{A})}_{N \times N},

(3)

B = \frac{1}{m} d i a g {(\hat{B})}_{N \times N}

(4)

with

\hat{A} = [\begin{matrix} 0 & 1 \\ 0 & 0 \end{matrix}], \hat{B} = [\begin{matrix} 0 \\ 1 \end{matrix}] .

(5)

In (4), m is the mass of a member. According to our assumptions, notice that each member's position information ([αX₁ αX₂ ‥ αX_N]) is available to the communication network. In other words, all the members know the location matrix without a delay. All-to-all network providing such connectivity is described in (Ekanayake, Pathirana et al. 2008).

The control input u in (2) consists of,

u = {[u_{1} u_{2} u_{3} \dots u_{N}]}^{T}

(6)

where

u_{i} = F_{i, a} + F_{i, r} + F_{i, m} - F_{i, f} .

(7)

The artificial formation forces are described as follows; F_i,a, attraction force on the i^th member from the shape,

F_{i, a} : = k_{a} (1 - n (y, α X_{i})) \int_{γ} (z - a X_{i}) | | d z | | .

(8)

F_i,r, artificial repulsion force on the i^th member from the shape,

F_{i, r} : = k_{r} n (γ, α X_{i}) \int_{γ} [\frac{(α X_{i} - z)}{| | α X_{i} - z | |^{3}}] | | d z | | .

(9)

In above equations, n(γ,z_i) represents the Cauchy Winding Number of γ about z_i ∈ C, having the following from,

n (y, z_{i}) = \frac{1}{2 π i} \int_{γ} \frac{d z}{z - z_{i}}

Remark: Clearly,

n (γ, α X_{i}) = {\begin{array}{l} 1 & when member i is inside γ \\ 0 & when member i is outside γ \end{array},

ensures that the term F_i,a in (7) vanishes only if the member is inside the contour and term F_i,r vanishes only if member is outside the shape.

F_i,m in (7) refers to the resultant force acting on the i^th member from the remaining members of the swarm (inter member repulsion force), i.e:

F_{i, m} : = k_{m} [\sum_{j = 1 j \neq i}^{N} \frac{(α X_{i} - α X_{j})}{| | α X_{i} - α X_{j} | |^{3}}] .

(10)

F_i,f in (7) is given by,

F_{i, f} = k_{f} β X_{i},

(11)

and k_a, k_r, k_m, k_f ∈ R⁺ are the weighing parameters on the respective artificial forces. Bounds for k_a, k_m and k_f with respect to stability and cohesion of the swarm are obtained in the analysis presented in section 2.2.

For notational simplicity, we use F_i,a, F_i,r, F_i,f and F_i,m terms instead of functional F_i,a (x_i, γ), F_i,r (x_i, γ), F_i,f (x_i) and F_i,m(x_i) respectively.

F_i,r and F_i,a in (7) are the artificial force fields on each member, forcing them towards the desired shape and evenly distributing them inside the contour. F_i,m term in the control function avoids the inter-member, collisions. The inter member interaction function looks similar to the repulsive term described in (Gazi 2005; Gazi & Passino 2003), etc. except that the problem of decreasing repulsion behavior for small inter member distances is avoided by our repulsion term; thus preventing collision among agents. F_i,f is the artificial friction force exerted on each member, forcing the member to a complete stop when the artificial formation forces are balanced. This is to ensure that the agents reach a desirable static equilibrium state.

2.2. Behavior Analysis of the Swarm

Total force acting on an individual member makes it travel toward the shape when it is outside the shape and will converge toward a stable position when it is inside the shape. As the formation force components (F_i,r and F_i,a) do not act simultaneously, we can analyze the behavior and the stability of the controller in each instance separately. In section 2.2.1, we first analyse the behavior of the complete swarm when all the members are outside the shape, i.e. when every member is subjected to F_i,a force. Next, we analyse the behavior of a member staying outside the shape, with claims on the direction of motion. With analysis of the behavior of a single member inside the shape contour, in section 2.2.2., we provide equilibrium position(s) inside a shape contour symmetrical over two or more axes. Then we discuss the results with logical explanations on the swarm behavior in specific situations (section 2.3.).

Before analysing the behavior of the swarm, we define the following;

z_{c m} = \frac{\sum_{i = 1}^{N} (z_{i})}{N} z_{c} = \frac{\int_{γ} z | | d z | |}{l (γ)} l (γ) = \int_{γ} | | d z | |,

(12)

where z_cm, z_c and l(γ) represent the center of mass of the swarm, the center of mass of the contour and length of the contour respectively.

2.2.1. Swarm and Members Outside the Shape:

Firstly, we examine the behavior of the swarm, when all the members are outside the contour. In our analysis, the swarm is considered as one object in which the motion is governed by the resultant artificial force (R),

R = R_{a} - R_{f} + R_{m} .

(13)

With this, the equation of motion of the whole swarm can be described by,

m \overset{..}{ε} + k_{f} \dot{ε} + k_{a} l (γ) ε = 0 .

(14)

where ε = (z_cm - z_c), with ε̇ = ż_cm, ε̈ = z̈_cm.

Notice that in (13); R_m, which represents the resultant inter member force is zero as,

R_{m} = \sum_{i = 1}^{N} \sum_{j = 1 j \neq i}^{N} \frac{(α X_{i} - α X_{j})}{| | α X_{i} - α X_{j} | |^{3}} = 0 .

R_a, the resultant artificial attraction force from the contour, is expressed as,

R_{a} = k_{a} \sum_{i = 1}^{N} \int_{γ} (z - a X_{i}) | | d z | |,

and using definitions for z_c, z_cm and l(γ), the above can be stated as:

R_{a} = l (γ) N k_{a} (z_{c} - z_{c m}) .

R_f, represents the resultant artificial damping (friction) force, and is in the form of,

R_{f} = N k_{f} ({\dot{z}}_{c m}) .

Therefore, the net resultant force on the swarm (this force is applied on the center of mass of the swarm) is,

R = N l (γ) k_{a} (z_{c} - z_{c m}) - N k_{f} ({\dot{z}}_{c m}),

and hence the motion dynamics of the swarm can be described by (14).

With the above motion dynamics of the whole swarm, we obtain our first result; the center of mass of the swarm (z_cm) moves towards the shape. This is given in the form of the following theorem.

Theorem 1: Consider the swarm model described by (14), motion of the center of mass of the swarm (z_cm) is in the direction of decreasing ε (i.e. toward the center of mass of the contour z_c).

Proof. If we select a Lyapunov function candidate as $V_{c m} = \frac{1}{2} m \dot{ɛ} {\dot{ɛ}}^{T} + \frac{1}{2} k_{a} l (γ) ɛ ɛ^{T}$ , then the derivative V_cm is bounded by,

{\dot{V}}_{c m} \leq - k_{f} | | \dot{ε} | |^{2}

Since k_f ||ε̇||² > 0, ∀ ||ε̇|| ≠ 0, the only invariant point is the origin (i.e. ε = ε̇ = 0), thus using extended version of Lyapunov's method proposed by LaSalle and Lefschetz (Theorems VI and VII in (La~Salle & Lefschetz 1967)) we can state that the system is asymptotically stable at the origin, which proves our assertion.

Basically, this theorem says that the motion of the center of mass of the complete swarm is toward the center of mass of the contour and this holds, regardless of the motions of members with respect to z_cm. Note that Theorem 1 does not hold, if any member of the swarm moves into the shape.

Remark: Using the properties of second order ODEs one can state that; smooth motion of the swarm (i.e. damped motion dynamics) towards the target contour (z_c) can be obtained if the conditions m, k_a, k_f > 0 and k_f ≥ 2√m k_a l(γ) are satisfied.

Theorem 1 shows only the behavior of the swarm, but it does not say anything about the behavior of an individual agent. Next we investigate the behavior of the members in a specific swarm, where the members have a predefined minimum spacing: “X Swarm”. Further, we introduce a condition for a “X Swarm” to be cohesive under F_i,a force in the theorem to follow.

Definition 1: A swarm S is defined as “X swarm”, if there exists positive constants Δ, δ that satisfy the following conditions simultaneously for all i, j ∈ S and i ≠ j.

• d_{i j} \geq δ + Δ,

• | | \frac{z_{i} - z_{c m}^{i}}{z_{i} - z_{c m}} | | < {(1 + \frac{Δ}{δ})}^{3},

where

d_{i j} = | | z_{i} - z | | a n d z_{c m}^{i} = \frac{\sum_{j = 1; j \neq i}^{N} z_{j}}{N - 1} .

(15)

In the above, zⁱ_cm is the center of mass of the swarm without the i^th member.

In the first condition of the “X Swarm” definition, we impose a constraint on the distance between robots in a group. That is the distance d_i,j is larger than a selected value (δ + Δ). From the second condition we set the ratio between δ and Δ, in which the ratio can be made to move toward zero with the increasing size of the swarm. Using the definition of “X Swarm” we derive that the inter member repulsion force (F_i,m) on any member of the swarm is bounded, as presented in following lemma.

Lemma 1: For a member of a “X Swarm”, the magnitude of the artificial inter-member repulsion force is less than

\frac{k_{m} (N - 1)}{δ^{3}} | | z_{i} - z_{c m} | | .

Proof.

F_{i, m} = k_{m} \sum_{j = 1, j \neq i}^{N} \frac{(z_{i} - z_{j})}{d_{i j}^{3}}

(16)

Using the condition 1 of the “X Swarm”, we have

| | F_{i, m} | | < \frac{k_{m} (N - 1)}{{(δ + Δ)}^{3}} | | z_{i} - z_{c m}^{i} | | .

(17)

Then using the condition 2, the following can be derived;

| | F_{i, m} | | < \frac{k_{m} (N - 1)}{δ^{3}} | | z_{i} - z_{c m} | | .

(18)

The above result is an upper bound for the magnitude of the inter member repulsion force F_i,m in a “X swarm”, which we use in the proceeding sections. Before investigating more into the behavior of a single member, we define the error between z_i and z as u_i = (z_i - z_cm); resulting v̇_i = (ż_i - ż_cm) and u_i = (z̈_i - z̈_cm). From the swarm model introduced in (2), the motion of any member outside the contour can be described by,

{\overset{..}{z}}_{1} = \frac{1}{m} (\begin{array}{l} k_{a} \times l (γ) (z_{c} - z_{i}) + \\ k_{m} \sum_{j = 1, j \neq i}^{N} \frac{(z_{i} - z_{j})}{| | z_{i} - z_{j} | |^{3}} - k_{f} {\dot{z}}_{i} \end{array})

(19)

in which we used,

F_{i, a} = k_{a} \int_{γ} (z - α X_{i}) | | d z | | = k_{a} \times l (γ) (z_{c} - z_{i}),

(20)

as n(γ, αX_i) = 0.

From (14) and (19),

m \overset{..}{υ} + k_{f} \dot{υ} + k_{a} l (γ) υ - k_{m} \sum_{j = 1, j \neq i}^{N} \frac{(z_{i} - z_{j})}{| | z_{i} - z_{j} | |^{3}} = 0,

(21)

which describes the motion of a single agent with respect to the center of mass of the swarm. In the following theorem we introduce a condition for a “X Swarm” to be cohesive under F_i,a with a member having motion dynamics given by (21). Also with this condition we can describe the direction of motion of any member of a “X Swarm” outside the shape.

Theorem 2: Consider a member i of a “X Swarm” staying outside the desired shape at any given time, if $\frac{k_{a}}{k_{m}} > \frac{(N - 1)}{δ^{3} \times l (γ)}$ , then the motion of that member is in the direction of decreasing ||v|| (i.e. toward the center of the swarm z_cm).

Proof. Choosing a Lyapunov function candidate for the member i as

V_{i} = \frac{1}{2} m {\dot{υ}}_{1} {\dot{υ}}_{i}^{T} + \frac{1}{2} υ_{1} υ_{i}^{T} (k_{a} l (γ) - \frac{k_{m} (N - 1)}{δ^{3}})

(22)

and taking derivatives, we can show that V_i is bounded by,

{\dot{V}}_{i} \leq - k_{f} | | \dot{υ} | |^{2} + (\begin{array}{l} | | k_{m} \sum_{j = 1, j \neq i}^{N} \frac{(z_{i} - z_{j})}{| | z_{i} - z_{j} | |^{3}} | | \\ - \frac{k_{m} (N - 1)}{δ^{3}} | | υ | | \end{array}) | | \dot{υ} | | .

(23)

Since we consider a member of a “X Swarm”, from Lemma 1,

| | \sum_{j = 1, j \neq i}^{N} \frac{(z_{i} - z_{j})}{| | z_{i} - z_{j} | |^{3}} | | < \frac{(N - 1)}{δ^{3}} | | z_{i} - z_{c m} | |

(24)

and hence,

{\dot{V}}_{i} < - k_{f} | | {\dot{υ}}_{i} | |^{2}

(25)

which proves the assertion.

This theorem describes the motion of a robot which is a member of a “X Swarm” and staying outside the shape. To satisfy the above conditions, there is no restriction on the positions of the other members of the swarm or the position of z_cm, i.e. they may either be inside or outside the target shape.

Remark: Consider a group of robots released far away from the desired shape, having an artificial force based controller described in (7) and satisfying “X Swarm” hypothesis. In general terms theorems 1 and 2 infer that the robots (members) move toward the shape.

2.2.2. Motion of the swarm/members inside the shape:

So far we have analyzed the behavior of the swarm and individual members staying outside the contour. In this section we investigate the behavior of F_i,r formation force acting on an agent, where the contour γ is symmetrical over one or more straight lines. Then we comment on the stable location of the swarm.

Remark: Since any 2D shape can be generated using several symmetrical shapes, we analysed the behavior only for symmetrical shapes. The analysis can easily be extended to non symmetric shapes, considering them as a collection of symmetric shapes.

In the following lemma, we use odd and even function properties to derive a property of a complex function which is symmetrical over real axis of the complex plane.

Lemma 2: For a closed contour γ(θ) and functionals f₁(θ) ∈ R⁺, f₂ (θ) ∈ C for θ ∈ [0,2π], with the following properties,

\begin{matrix} γ (θ) = γ^{*} (2 π - θ), f_{1} (θ) = f_{1} (2 π - θ), \\ f_{2} (θ) = γ (θ) - C_{R}, C_{R} \in R, \end{matrix}

the following statement holds,

ℑ (\int_{0}^{2 π} f_{1} (θ) f_{2} (θ) d θ) = 0

Proof. Let

P_{1} = ℑ (\int_{0}^{2 π} f_{1} (θ) f_{2} (θ) d θ),

(26)

as f₁(θ) ∈ R⁺

P_{1} = \int_{0}^{2 π} f_{1} (θ) ℑ (f_{2} (θ)) d θ .

(27)

Since f₁(θ) and ℑ(f₂(θ)) are even and odd around θ = π respectively,

P_{1} = 0,

(28)

Before stating our result about a member, we discuss the nature of the artificial formation force, F_i,r in detail. $F_{i, r} = k_{r} \int_{γ} \frac{(z_{i} - z)}{| | z_{i} - z | |^{3}} | | d z | |$ consists of two major components, $\frac{(z_{i} - z)}{| | z_{i} - z | |}$ defining the direction of the force component and $\frac{1}{| | z_{i} - z | |^{2}}$ determining the magnitude of the force. The expression for F_i,r is the contour integral representation of

\sum_{k = 1}^{K} \frac{(z_{i} - z_{k})}{| | z_{i} - z_{k} | |^{3}} w h e r e z_{k} \in γ

(29)

and

z_{k} - z_{k - 1} = z_{k + 1} - z_{k}, \forall k; w h e n K \to \infty

(30)

In our analysis we define,

f (z, z_{i}) = \frac{1}{| | z_{i} - z | |^{3}} .

(31)

Using polar coordinate representation for complex plane, we reformulate F_i,r as

F_{i, r} = k_{r} \int_{0}^{2 π} f (γ (θ), z_{i}) (z_{i} - γ (θ)) | | \dot{γ} (θ) | | d θ

(32)

which is used to prove our next results.

Theorem 3: Consider a member i inside a given contour γ(θ) with the following properties:

• γ (θ) = γ^{*} (2 π - θ),

• ℑ (z_{i}) = 0 .

Then,

ℑ (F_{i, r}) = 0 .

(33)

Proof. F_i,r in equation (32), have the following properties when ℑ(z_i) = 0,

f (γ (θ), z_{i}) | | \dot{γ} (θ) | | = f (γ (2 π - θ), z_{i}) | | \dot{γ} (2 π - θ) | |

(34)

(z_{i} - γ (θ)) = - (γ (θ) - z_{R}), z_{R} \in R

(35)

thus using Lemma 2,

ℑ (F_{i, r}) = 0 .

(36)

Above result say that for any member i staying on the real-axis and inside the shape, which is symmetrical around the real-axis, the component of F_i,r parallel to the imaginary axis is zero. In other words, the F_i,r force on that member is along the real axis. Further we extend the above result to a shape with an axis of symmetry other than the real-axis and then prove that the equilibrium point lies on the intersection of the symmetric axes, as shown in the following Theorem.

Theorem 4: Consider a given contour γ(θ) = r(θ)e^iθ with two symmetric axes. Then, for a member i staying on the intersection of the symmetrical axes, the artificial repulsion force from the contour (F_i,r) is zero.

Proof. Consider two symmetric axes (k,l) form α_k, α_l ∈ [0,2π] angles to the real axis. Assume the member is on the intersection of the symmetric axes. Then, from Theorem 3, F_i,r is in the form of:

F_{i, r} = μ_{k} e^{i α_{k}} = μ_{l} e^{i α_{l}}

(37)

where μ_k, μ_L ∈ R. As α_k ≠ α_l, this implies μ_k = μ_l = 0. Thus F_i,r = 0.

Above result states that, for a contour symmetrical over two intersecting straight lines, there exists a point, where F_i,r = 0. In other words, the intersection point of symmetric axes is a possible equilibrium point for the member moving under F_i,r artificial formation force. Our computer simulations confirm these assertions. (refer Fig. 1.)

Fig. 1.

Motion of a single agent under F_i,r force. (Dotted lines represent symmetical axes)

Remark: The analysis of the motion of a single member can be extended to determine the behavior of the complete swarm (when all agents are inside the shape). By considering the complete swarm as one object with the center of mass of the swarm being the center of the object, we can conclude that the swarm will have a stable equilibrium under F_i,r force, with 2the center of mass of the swarm moved to the center of mass of the contour which is symmetrical over a minimum of two intersecting straight lines (see Fig. 2.).

Fig. 2.

Motion of the whole swarm inside the contour. (The motion of the center of mass of the weapons is represented in black while red lines represent the motion path of individual members. The initial and final positions are represented by a cross and a dot respectively. Dotted lines represent symmetical axes)

2.3. Discussion on Analysis

In the previous sections the behavior of the swarm and individual members were analysed for the following cases (the summarized results are given below);

Center of mass of the swarm (z_cm): If all the members are outside the shape, the motion of the center of mass of the swarm (z_cm) is towards the center of mass of the contour (z_c).

A member outside the shape: With the “X Swarm” assumptions and conditions on theorem 2 remain true, the motion of an individual will be towards the center of mass of the swarm.

Inside a symmetrical shape :

A member will have a stable equilibrium point on the symmetrical axis. Further, if the shape has two or more intersecting axes, then the stable equilibrium point lies on the intersection of the axes.

When all the members are inside the shape, then the motion of the center of mass of the swarm (z_cm) will have a stable equilibrium point on the symmetrical axis. As in the previous case, this stable equilibrium point lies on the intersection of the symmetrical axes.

Next we focus our attention to the aspects which were not considered in the mathematical analysis provided in the previous sections. When a section of the swarm is inside the contour we can use theorem 2 to describe the motion of a member outside the contour, provided that the swarm behaves as “X Swarm”. A swarm which does not satisfy the condition; $\frac{k_{a}}{k_{m}} > \frac{(N - 1)}{δ^{3} \times l (γ)}$ means that, the inter-member repulsion term is dominating than the attraction towards the center of mass of the swarm. Thus members are more likely to have diverging behavior until the “X Swarm” conditions are satisfied. This behavior is basically to avoid inter-member collisions and by changing the parameters k_a, k_m and δ the cohesiveness of the swarm can be improved.

A major drawback of the controller is the discontinuous nature of the artificial formation forces (i.e. F_i,r and F_i,m), which may cause chattering effect at the boundary of, the shape. Since the term n(γ, αX_i) is not defined on the contour, the member will continue its motion using the previous motion dynamics until it passes the boundary. Since the boundary is a line without a thickness, this problem will not be a significant unless a member is on the boundary at the beginning. However, the inter member forces acting on such members does not allow them to be on the contour once the algorithm is initialized. Also, as shown in the Fig. 3., the formation forces (F_i,a and F_i,r) which drives the members into the contour has a significant variation at the boundary. Specially the decreasing magnitude of the driving force when a member is staying closer but outside of the contour, may result in the member to staying outside the contour at the equilibrium state. This happens only when the contour is not large enough to accommodate all the members, thus F_i,m becomes larger than F_i,a such that some members are not allowed in. This problem can be eliminated by carefully selecting k_a and k_m parameters which suit the application and the swarm size.

Fig. 3.

Behavior of “Artificial Formation Forces” at the contour boundary. The red and black lines represents the variation of F_i,a and F_i,r forces respectively. For better visualization of the changes in two forces, the F_i,r force is limited up to 5000N.

3. Implementation Considerations

In this section we discuss the issues to be considered when implementing the proposed architecture in a real world scenario. The shape formation algorithm can effectively be used in the navigation of air launched weapon systems (as in (Ekanayake & Pathirana 2007; Ekanayake & Pathirana 2008)), control of full sized wheeled/tracked robots in military operations, cooperative positioning of “de-mining robots” etc. However in this discussion, we are not considering a specific application, instead we present modifications and discuss other implications for the general case. First we discuss the modifications for the controller in order to compensate for the implications with practical implementation of (7). Further the implications due to the assumptions (in (7)) are discussed together with possible remedial approaches using realistic error models implemented in the simulation case studies.

3.1. Controller Modification for Practical Implementation

Upon the introduction of the controller and in the behavioral analysis of the multi-agent system, we considered the members as point masses (i.e. without any physical dimensions) and assumed that they can exert virtually any artificial force (i.e. unbound forces). Those assumptions alone degrades the applicability of the algorithm in real world situations. Also we did not accommodate obstacle (or ‘no entry’ areas) avoidance during the propagation toward the shape. Now we introduce the modifications to account for above deficiencies in the control algorithm.

Obstacle Avoidance: This is one of the most important aspects in real world implementation of the algorithm (see (Hattori, Ono et al. 2006; Hwang & Chang 2007; Hwang & Ahuja 1992; Khatib 1986; Park, Jeon et al. 2001)). Here we assume that the obstacle is previously identified and can be defined by a simple closed contour in the 2D plane. Then the artificial force acting on i^th member from the obstacle O is as follows;

F_{i, o} : k_{0} \int_{γ_{0}} [\frac{(α X_{i} - z_{0})}{| | α X_{i} - z_{0} | |^{4}}] | | d z_{0} | |,

(38)

where k_O is a weighing parameter determining the magnitude of the force. Terms γ_O ∈ C and z_O ∈ C are the contour (simple closed) defining the shape of the obstacle and a point on that contour respectively.

Remark: In defining the above artificial force for obstacle avoidance, we used $\frac{1}{| | z_{i} - z_{o} | |^{3}}$ as the magnitude of the force from each point, which enables the swarm to navigate closer to the obstacle boundary when deviating from the path. This form of a force function is specially useful for obstacles located closer to the target contours, such that the repulsion force from the obstacle do not prevent agents from converging into the shape. Also this definition allows us to include obstacles inside the target contour enabling the agents to acquire complex shapes.

Physical Size of Robots: For the general case we consider the swarm consists of members with physical dimensions, length (l_m) and width (w_m). Let l_m > w_m, then we define the operational diameter of a robot (d_v) as d_o = k_o x l_m (refer Fig. 4.); where k_o > 1 is considered as the safety factor for collision avoidance (similar to safety factor in mechanical/structural designs; k_o can be chosen to suite the maximum speed of motion and to adjust the clearance level). Then the modified artificial force for inter-member repulsion is as follows:

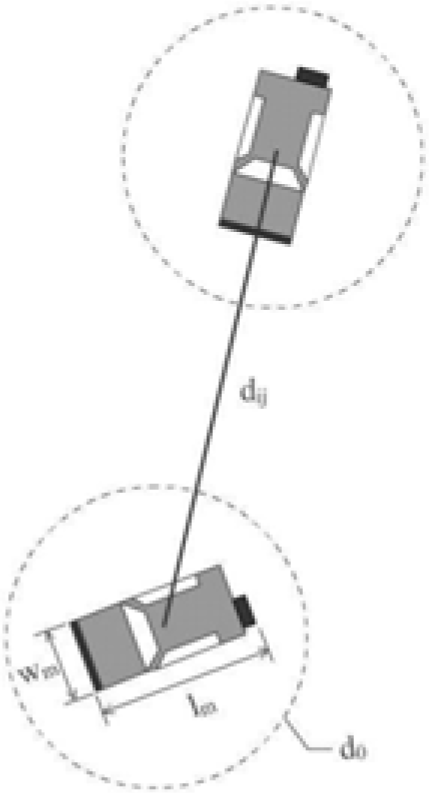

Fig. 4.

Car like robots with operational diameter

{\tilde{F}}_{i, m} : k_{m} [\sum_{j = 1 j \neq i}^{N} \frac{d_{i j}}{| | d_{i j} | |} (\frac{1}{{(| | d_{i j} | | - d_{0})}^{2}})],

(39)

where d_ij = (αX_i -αX_j).

Comparison of F͂_i,m and F_i,m is illustrated in Fig. 5.

Fig. 5.

Comparision of F͂_i,m and F_i,m

Chattering Effect: As discussed in the section 2.3, chattering effects due to the decreasing nature of the attraction force become a significant issue when a large number of robots are operating at low speeds. Lower momentum of the robots and higher F_i,m forces prevent some member from entering the shape. This problem can successfully be eliminated by modifying the F_i,a force as expressed in (40). In the modified function, an additional term is included which increases the attraction force as the member is approaching the contour. Also this addition improves the uniformity of the “Artificial Formation Forces” in either side of the contour.

\begin{matrix} F_{i, a} : = (1 - n (γ, α X_{i})) (k_{a} \int_{γ} (z - α X_{i}) | | d z | | + \\ k_{a c} \int_{γ} [\frac{(z - α X_{i})}{| | z - a X_{i} | |^{3}}] | | d z | |) \end{matrix}

(40)

In the above expression k_ac is the weighing parameter of the force component which dominates when the member is closer to the contour.

Actuator Limitations: Next, we modify the force function to eliminate the problem of unrealistic accelerations, by introducing maximum force parameters into the resultant force function. The controller (u_i) with modified force function is as follows,

u_{i} = {\tilde{F}}_{i}^{R}

(41)

where,

{\tilde{F}}_{i}^{R} = {\begin{array}{l} F_{i}^{R} & i f & F_{i}^{R} < F_{i, \max} \\ F_{i, \max} & i f & F_{i}^{R} \geq F_{i, \max} \end{array},

(42)

in which F_i^R is the desired resultant artificial force on i^th member of the swarm and F_i,max refers to the maximum possible force that can be exerted by the actuators.

Since the mechanical limitations and road/safety limits control the maximum speed that a mobile agent (e.g. ground vehicles traveling in rough terrains can achieve a maximum speed of about 120km/h), we introduce a velocity limiting function as follows,

| | {\dot{\tilde{z}}}_{i} | | = {\begin{array}{l} | | {\dot{z}}_{i} | | & i f & | | {\dot{z}}_{i} | | < v_{\max} \\ v_{\max} & i f & | | {\dot{z}}_{i} | | \geq v_{\max} \end{array}

(43)

Here the term v_max represents maximum velocity that the mobile agent can achieve. $| | {\dot{\tilde{z}}}_{i} | |$ and $| | {\dot{z}}_{i} | |$ are the acquired and the desired speeds of the agent respectively.

3.2. Implementation, Technologies and Error Models

The shape formation algorithm, ideally suited for outdoor deployment of a group of mobile robots, has two basic implementation stages; initial parameter selection (design) and deployment. Prior to the deployment, the target contours, obstacle contours are to be clearly defined and the corresponding contour functions relative to the robot coordinate system (e.g. GPS) are to be generated. Considering the weighing parameters of the artificial force functions (i.e. k_m, k_f, k_r etc.), the proper parameters have to be selected depending on the application and the constrains provided in the analysis sections. The next stage is to deploy the mobile agents programmed with designed contours and parameters. Indeed, the algorithm provides provisions to change the contour functions and parameters, and to add/remove agents in an already deployed group. But this needs effective communication between control center and the group. The behavior of the swarm for such situations are presented in the simulation section.

Remark: In the pre-deployment stage, the target and obstacles can effectively be identified using satellite maps. Also if we consider a military type deployment, the intelligence sources such as real-time satellite coverage, aerial video updated from UAV's etc, can be used to determine new obstacles, ‘no entry’ zones etc, for dynamic parameter modification of the robot group.

For successful implementation of the shape formation algorithm the ideal mobile robots need the following capabilities;

Instantaneous and error free self localization.

Knowledge of location of all other members of the group without delay. (using communication network)

Here we discuss the practical implementation issues and some technologies which provide near ideal capabilities to the robots.

Since we are mainly focusing on outdoor applications with this algorithm, self localization of robots can use Global Positioning System (GPS) technology. With modern developments in P-Code GPS receivers less than 5m horizontal accuracies can be achieved. And with Differential GPS technology, where a reference base station (a DGPS base station can be used effectively within 100 km range) is used to cancel out the atmospheric and data transmission errors, providing sub-meter accuracies (Bajaj, Ranaweera et al. 2002; http://www.Trimble.com) even for C/A Code civilian GPS receivers with instantaneous (1Hz) position updates. Further, recent advances in commercial GPS receivers an accuracy range within 1cm could be achieved, although this introduces an acquisition delay (typically 45min) thus suited for slow moving applications requiring higher accuracies.

Next we discuss the GPS localization errors. Due to delays in update rates, there will be positional errors when the agent is moving at a significant speed. For example, if the GPS receiver updates the position in 1Hz frequency, a robotic vehicle moving in 4 m/s can have 4m error due to the motion. But, using inertial navigating technologies, in which acceleration is used to calculate positions, together with GPS technology the short range errors in GPS can be eliminated (Caldwell 1988; Gamble & Jenkins 2000; Hyslop, Gerth et al. 1990; Loffler & Nielson 2003; Renfroe, McMinemon et al. 2000) leaving only the random measurement noise as errors.

In conclusion, the self localization of the mobile robots can be achieved to a desirable level, in which the error can be modeled as follows;

z_{i} = {\hat{z}}_{i} + ψ_{i}

(44)

where ẑ_i is the actual position and ψ refers to the random noise (σ = GPS error and μ = 0).

Positional information of members is a crucial aspect in the shape formation algorithm. This location information is sent through a wireless RF links (or communication network). The ability to communicate with each other at the same time can be restrictive in real world applications. Even with the CDMA technology (Schiller 2003) to communicate with many devices at once, due to high degree of interferences, the effectiveness of the communication will degrade with increasing number of members of the group. The interferences can be minimized using transmission power control, although it reduces the range of transmission. Wireless mesh networking technology (Bruno, Conti et al. 2005; Lee, Zheng et al. 2006) can be a better solution since it enables to handle larger data flows with increased number of nodes (Jun & Sichitiu 2003). However delays in data transmission (due to routing) and range limitations (Hincapie, Sierra et al. 2007) are common problems in mesh networks. Thus we can only achieve the instant communication capabilities within a certain radius from a robot, and the modified inter-member repulsion force can be given as follows;

{\tilde{F}}_{i, m} : = k_{m} [\sum_{j = 1 j \neq i}^{N} \frac{d_{i j}}{| | d_{i j} | |} (\frac{1}{{(| | d_{i j} | | - d_{0})}^{2}})], \forall j

(45)

where ||d_ij|| < d_c.

Here dc refers to the radius that a robot can transmit a signal without interfering with other communications within the group or in other words “effective range of communication”. For example, in the platoon of vehicles shown in Fig. 6., the vehicle A will have the position information of B,C,D and E; which are in close proximity to A.

Fig. 6.

Robots navigate using restricted inter-member force due to limited communication range.

Remark: The same artificial force as above can be used to model communication failures. In such situations the d_c become the range of the sonar/laser range and bearing finders which serve as backup devices to eliminate inter-member collisions.

4. Simulation Case Studies

The swarm shape formation algorithm and the controller behavior is simulated for two basic cases; with ideal conditions and under certain restrictions in the real world scenario. The controller used for the first set of cases has the basic swarm model introduced in (7). For the second set of cases, we used the modified controller components presented in the previous section. The main objective of these simulation case studies is to investigate the behavior of the swarm in relevant potential situations.

Remark: In the simulations, the shape contour was generated by the mathematical function described in Appendix I. Also the artificial friction force weighing parameter is selected such that k_f = 2√mk_al(γ) + 1, which ensures a stable convergence of the whole swarm toward the contour. The mass of the robot (m) is kept constant at 100kg for every simulation scenario.

4.1 Ideal Environment and Conditions

The simulation for ideal conditions are basically to demonstrate the shape formation algorithm and to evaluate some theoretical assertions presented in the previous sections. Initially, we demonstrate the behavior of the swarm in forming into different shapes using four cases. Next we present the swarming behavior and the validity of the “X Swarm” hypothesis. Here the assertions proved in theorems 1 and 2 are demonstrated using a visual representation. Finally we present the cases where the swarm is subjected to sudden change in the shape, loss of members and addition of new members.

4.1.1. Shape Formation:

The motion/behavior of the swarm is demonstrated for four cases; in all sub figures in Fig. 7., crosses represent initial positions and the dots represent final positions (after 100s) while the motion paths are represented by thin lines. In Fig. 7.(a) we demonstrate the motion of the swarm initially in a line formation and in the Fig. 7.(b), (c) and (d) the initial positions of the members are randomly selected. From these four cases it is evident that the swarm converges to the desired shape and distributes evenly, regardless of the initial positions, size of the swarm and the size/shape of the contour, provided that the necessary parameters are carefully selected. The shape generation parameters and the number of robots used in the four cases are listed in Table 1. For these simulations the weighing parameters were selected as: k_a = 4 × 10⁻³, k_r = 5 × 10³ and k_m = 6 × 10⁶.

Fig. 7.

Motion of the swarm to generate different shapes

Table 1.

Parameters in shape generation

Case	a	b	c	d	N
(a)	5	1	0.5	50	16
(b)	5	1	0.5	60	25
(c)	3	1	0.9	110	26
(d)	7	1	1	45	34

4.1.2. “X Swarm” Hypothesis:

In this section we demonstrate the validity of the “X Swarm” hypothesis in a simulated swarm, evaluating our results presented in theorems 1 and 2, i.e. motion of the center of mass of the swarm and the motion of an individual outside the swarm. Theorem 1 does not impose any restriction for convergence other than the selection of k_f for stability.

According to theorem 2, for a member of a “X Swarm”, staying outside the shape while satisfying $\frac{k_{a}}{k_{m}} > \frac{(N - 1)}{δ^{3} \times l (γ)}$ has a motion towards the center of mass of the swarm. Thus we have δ > 80m to satisfy the above condition, and Δ is selected as 2m. We select the initial positions with members spaced more than δ + Δ and simulate the motion for 100s in which the swarm motion is shown in Fig. 8.(a). Observing the Fig 8.(b) center error (ε), which is the error between center of mass of the swarm (z_cm) and the center of mass of the contour (z_c), continuously decrease even after the members are inside the shape.

Fig. 8.

Swarm motion and “X Swarm” hypothesis, for (δ + Δ) > 82m and N = 14. (Note: In figures (c) & (d), the regions “A” and “B” represents the regions where “X Swarm” conditions are satisfied. The dots represents the instance when that member enters the shape and the red line represents the average member error.)

Note that the center error rapidly decrease while the members are outside the shape, demonstrating the behavior predicted by theorem 1 and after moving into and (d) illustrate the behavior of member error (v) for three selected members and the average error. We have intentionally chosen the parameters such that “X Swarm” behavior is achieved only for a certain period. The regions “A” and “B” represents the time spans where “X Swarm” hypothesis is valid. Note that since the swarm expands after it reaches the shape, the “X Swarm” hypothesis is valid for all t > 100. In the zoomed view of the member error (Fig 8.(d)), one can notice that the members converge toward the center of mass of the swarm despite the invalidity of the “X Swarm” hypothesis and even after the member enters the shape.

Also from the figures it can be noticed that member error continuously decreases when the member is outside the shape and the swarm behaves as a “X Swarm”, demonstrating the validity of the assertions presented in Theorem 2. For this simulation we used the following parameters for shape generation: a=5, b=1, c=0.5 and d=80. The weighing parameters for the controller were selected as: k_a = 7 × 10⁻³, k_r = 5 × 10³ and k_m = 6 × 10⁶.

4.1.3. Shape Transitions:

Here we demonstrate the behavior of the swarm, when subjected to a sudden change in the contour shape. This kind of shape transitions are important in real world applications, specially in weapon deployment systems as presented in (Ekanayake & Pathirana 2007; Ekanayake & Pathirana 2008). From the computer simulation results Fig. 9. shows the initial positions of the swarm. In the Fig. 10., the motion paths of members and final positions after forming into the new shape is depicted. It is clear from this simulation, the members effectively maneuver themselves to form the new shape and redistribute themselves within that shape. The simulation used the parameters in Table 2. For this simulation we selected the weighing parameters for the controller as: k_a = 4 × 10⁻³, k_r = 5 × 10³ and k_m = 6 × 10⁶.

Fig. 9.

Shape transition - initial positions of the swarm (@t=0)

Table 2.

Parameters in shape generation

Case	a	b	c	d
Initial	7	1	1	45
Final	3	1	0.8	110

Fig. 10.

Shape transition - positions after reforming into the new shape (@t=50)

4.1.4. Addition/Removal of Agents:

Addition and removal of agents from a deployed swarm can be due to several reasons. In most applications, swarm robots are deployed in highly hostile environments (e.g. battle fields, de-mining, underwater data collection etc) which results in frequent failures in the robots and some times, loss of robots. In such circumstances the existing robots should re-organize (or redistribute) to cover the whole area of the target until reinforcements arrive, and once the reinforcements (or substitutes) arrived they should reorganize once again to include new members into the shape. In the simulation case studies presented in Fig. 11. and Fig. 12., we illustrate the behavior of the swarm upon removal of members and after the arrival of new members respectively. For the shape generation we used the parameters listed in Table 3. The weighing parameters for the controller were selected as: k_a = 4 × 10⁻³, k_r = 5 × 10³ and k_m = 6 × 10⁶.

Fig. 11.

Swarm behavior when a set of members removed from the swarm. (The red dots in (a) represent the member to be removed at t=0.)

Fig. 12.

Swarm behavior to include new members to the shape. (The red dots represent newly added members and the red lines represents their motion paths)

Table 3.

Parameters in shape generation

Case	a	b	c	d
Addition	3	1	0.8	110
Removal	6	1	0.5	55

4.2. Modified Controller and Real World Situations

For the case studies presented in this section we simulate some real world scenarios and the behavior of the swarm in such situations. For all the simulations in this section we include velocity and actuator limitations, such that the velocity is limited to 30m/s and acceleration is limited to 0.5G (4.9m/s²). Also the k_ac parameter (weighing parameter for close range attraction force) is selected as same as the k_r in each case.

4.2.1. Obstacle Avoidance:

Two cases are presented and in the first case (Fig. 13.(a)) the vehicles (mobile robots) are in a line formation (for example along a road or in a convoy) and the target contour is located beyond two obstacle contours. As illustrated in the figure, the mobile robots successfully avoid both obstacles and form the desired shape by t = 1000s.

Fig. 13.

Motion of the swarm in presence obstacles

In the second case, we consider a situation where mobile robots are randomly distributed around the target contour. Here we used two obstacles outside the target contour and one obstacle inside the target. Here also the mobile robots successfully maneuvered around the obstacles and moved into the desired shape. (The parameters listed in Table 4 an 5 were used for this simulation case.)

Table 4.

Parameters used in shape generation in Fig. 13.

Case	a	b	c	d
(a)-Target	5	1	0.5	80
(a)-Obstacle1	3	1	0.0	30
(a)-Obstacle2	4	1	0.0	70

(b)-Target	5	1	0.5	50
(b)-Obstacle1	3	1	0.0	30
(b)-Obstacle2	4	1	0.5	20
(b)-Obstacle3	4	1	0.2	20

Table 5.

Weighing parameters for artificial forces (Fig. 13)

Case	k _a	k _r	k _m
(a)	5 × 10⁻³	5 × 10³	7 × 10⁵
(b)	5 × 10⁻³	5 × 10³	5 × 10⁵

4.2.2. Vehicle Size, Localization Errors and Communication Limitations:

Assuming technologies and mathematical representations in section 3; the agent size compensation, localization errors and communication limitations are modeled using equations (44) and (45). In figures 14.(a) and 14.(b) we present the swarm behavior with real-world conditions (i.e. all the above included) and with ideal conditions respectively. In both cases, the weighing parameters for artificial forces and shape parameters are kept the same. The effective range of communication of 150m and a random localization error up to 5m are used in simulating non ideal effects. When comparing the two cases, no significant difference could be observed in the final formation, other than the more uniform distribution in the latter case. This is due to low F_i,m component since communication limitations do not permit inclusion of all the members in determining that force.

Fig. 14.

Motion of the swarm in a real-world environment

5. Concluding Remarks

In this paper, we presented an approach for formation of shapes for a swarm, which has many potential real-world applications. The stability of convergence, prospective stable points inside a given symmetric shape, have been analyzed; the effectiveness of the aggregation, theoretical assertions were confirmed using computer simulations. Also we ensure that the shape formation algorithm can effectively be used in real world applications using simulation case studies which models the constraints and errors encountered in real world scenarios.

Our approach of shape formation without nominating specific locations to each member, ensures that the shape/area of interest is completely covered by the swarm. This makes our algorithm applicable in many defense, land/space exploration systems.

Although, this algorithm can be used with non symmetric contours, the explicit stability point(s) inside such a contour is left for future work. This formation algorithm is easily extendable to complex contours that consists of several closed simple contours.

Footnotes

6. Appendix I - Mathematical Function for Contour Generation

For the simulation of the algorithm, the contour γ s are generated by a mathematical function in the following form,

(46)

\begin{array}{l} ℜ (γ (θ)) = d ((a - b) \cos (θ) + c \cos (\frac{(a - b) θ}{b})) \\ ℑ (γ (θ)) = d ((a - b) \sin (θ) + c \sin (\frac{(a - b) θ}{b})) \end{array}

The properties of the function varies with a,b,c and d as follows, i.e. parameter a ∈ determines the number of edges in the contour. Parameter b = 1 for a simple closed contour and c determines the smoothness of the edges (c > 1 makes the edges to wind, c = 1 makes sharp edges and c < 1 results in round edges with c = 0 making a circle). Parameter d > 0 determines the overall size of the shape.

References

Antonelli

and Chiaverini

(2006). Kinematic Control of Platoons of Autonomous Vehicles. Robotics, IEEE Transactions on [see also Robotics and Automation, IEEE Transactions on] 22 (6): 1285–1292.1552–3098

Bajaj

Ranaweera

S. L.

(2002). GPS: location-tracking technology. Computer 35 (4): 92–94.0018-9162

Balch

and Arkin

R. C.

(1998). Behavior-based formation control for multirobot teams. Robotics and Automation, IEEE Transactions on 14 (6): 926–939.1042–296X

Bishop

B. E.

(2003). On the use of redundant manipulator techniques for control of platoons of cooperating robotic vehicles. Systems, Man and Cybernetics, Part A, IEEE Transactions on 33 (5): 608–615.1083–4427

Brown

and Warburton

(1999). Social mechanisms enhance escape responses in schoals of rainbowfish. Environmental Biology of Fishes 56: 455–459

Bruno

Conti

(2005). Mesh networks: commodity multihop ad hoc networks. Communications Magazine, IEEE 43 (3): 123–131.0163-6804

Caldwell

W. C.

(1988). Analysis of mission computer utilization of the GPS navigation solution during a simulated fighter/attack scenario. Position Location and Navigation Symposium, 1988. Record. ‘Navigation into the 21st Century’. IEEE PLANS '88. IEEE.

Chaimowicz

Michael

(2005). Controlling Swarms of Robots Using Interpolated Implicit Functions. Proc. IEEE Int. Conf. Robotics Automation, Barcelona, Spain.

Chao-Xia

Bing-Rong

(2007). Cooperative Exploration by Multi-robots without Global Localization. International Journal of Advanced Robotic Systems 4 (3): 339–348

10.

De Gennaro

M. C.

Iannelli

(2005). Formation Control and Collision Avoidance in Mobile Agent Systems. Intelligent Control, 2005. Proceedings of the 2005 IEEE International Symposium on, Mediterrean Conference on Control and Automation.

11.

Desai

J. P.

Ostrowski

(1998). Controlling formations of multiple mobile robots. Robotics and Automation, 1998. Proceedings. 1998 IEEE International Conference on.

12.

Ekanayake

S. W.

and Pathirana

P. N.

(2006). Artificial Formation Forces for Stable Aggregation of Multi-Agent System. Information and Automation, 2006. ICIA 2006. International Conference on.

13.

Ekanayake

S. W.

and Pathirana

P. N.

(2007). Smart Cluster Bombs - Control of Multi-agent Systems for Military Applications. Networking, Sensing and Control, 2007 IEEE International Conference on.

14.

Ekanayake

S. W.

and Pathirana

P. N.

(2008). Two Stage Architecture for Navigating Multiple Guided Weapons into a Widespread Target. Aerospace Conference, 2008 IEEE.

15.

Ekanayake

S. W.

Pathirana

P. N.

(2008). Energy Efficient, Fully-Connected Mesh Networks for High Speed Applications. Vehicular Technology Conference, 2008. VTC Spring 2008. IEEE.

16.

Gamble

A. E.

and Jenkins

P. N.

(2000). Low cost guidance for the Multiple Launch Rocket System (MLRS) artillery rocket. Position Location and Navigation Symposium, IEEE 2000.

17.

Gazi

(2005). Swarm aggregations using artificial potentials and sliding-mode control. Robotics, IEEE Transactions on [see also Robotics and Automation, IEEE Transactions on] 21 (6): 1208–1214.1552–3098

18.

Gazi

and Passino

K. M.

(2002). A class of attraction/repulsion functions for stable swarm aggregations. Decision and Control, 2002, Proceedings of the 41st IEEE Conference on.

19.

Gazi

and Passino

K. M.

(2003). Stability analysis of swarms. Automatic Control, IEEE Transactions on 48 (4): 692–697.0018-9286

20.

Gazi

and Passino

K. M.

(2004). Stability analysis of social foraging swarms. Systems, Man and Cybernetics, Part B, IEEE Transactions on 34 (1): 539–557.1083–4419

21.

Gordon

D. M.

(2003). The organization of work in social insect colonies. Complexity 8 (1): 43–46

22.

Grünbaum

Viscido

and Parrish

J. K.

(2004). Extracting Interactive Control Algorithms from Group Dynamics of Schooling Fish. Cooperative Control. Berlin / Heidelberg, Springer. 309: 103–117.

23.

Hamilton

and Dill

(2003). Group Foraging by a kleptoparalastic fish: A strong inference test of social foraging models. Ecology 84 (12): 3349–3359

24.

Chia-Hung

H. Harry

and Liu

(2005). Applying a Taxonomy of Formation Control in Developing a Robotic System. Tools with Artificial Intelligence, 2005. ICTAI 05. 17th IEEE International Conference on.

25.

Hattori

Ono

(2006). Optimum Vehicle Trajectory Control for Obstacle Avoidance Problem. Mechatronics, IEEE/ASME Transactions on 11 (5): 507–512.1083–4435

26.

Hincapie

Sierra

(2007). Remote locations coverage analysis with wireless mesh networks based on IEEE 802.16 Standard. Communications Magazine, IEEE 45 (1): 120–127.0163–6804

27.

Hsieh

M.-Y. A.

and Kumar

(2006). Pattern Generation with Multiple Robots. Proc. IEEE Int. Conf. Robotics Automation, Orlando, Florida.

28.

http://www.Trimble.com GPS Pathfinder pro XRS.

29.

Huang

Farritor

S. M.

(2006). Localization and follow-the-leader control of a heterogeneous group of mobile robots. Mechatronics, IEEE/ASME Transactions on 11 (2): 205–215.1083–4435

30.

Hwang

C.-L.

and Chang

L.-J.

(2007). Trajectory Tracking and Obstacle Avoidance of Car-Like Mobile Robots in an Intelligent Space Using Mixed H2/H. Decentralized Control. Mechatronics, IEEE/ASME Transactions on 12 (3): 345–352.1083–4435

31.

Hwang

Y. K.

and Ahuja

(1992). A potential field approach to path planning. Robotics and Automation, IEEE Transactions on 8 (1): 23–32.1042–296X

32.

Hyslop

Gerth

(1990). GPS/INS integration on the Standoff Land Attack Missile (SLAM). Aerospace and Electronic Systems Magazine, IEEE 5 (7): 29–34.0885–8985

33.

Inada

(2001). Steering mechanisms in fish schools. Complexity International 8: 43–46

34.

Jun

and Sichitiu

M. L.

(2003). The nominal capacity of wireless mesh networks. Wireless Communications, IEEE [see also IEEE Personal Communications] 10 (5): 8–14.1536–1284

35.

Kalantar

and Zimmer

U. R.

(2004). Contour shaped formation control for autonomous underwater vehicles using canonical shape descriptors and deformable models. OCEANS '04. MTS/ IEEE TECHNO-OCEAN '04.

36.

Khatib

(1986). Real-time obstacle avoidance for manipulators and mobile robots. The International Journal of Robotics Research 5 (1): 90–98

37.

Krieger

M. J. B.

Billeter

(2000). Ant-like task allocation and recruitment in cooperative robots Nature 406: 992–995

38.

Kwok

N. M.

Q. P.

(2007). Motion coordination for contruction vehicles using swarm intelligence. International Journal of Advanced Robotic Systems 4 (4): 469–476

39.

LaSalle

and Lefschetz

(1967). Stability by Liapunov's Direct Method With Applications, Academic Press Inc (London) Ltd.

40.

Lawton

J. R. T.

Beard

R. W.

(2003). A decentralized approach to formation maneuvers. Robotics and Automation, IEEE Transactions on 19 (6): 933–941.1042–296X

41.

Lee

M. J.

Zheng

(2006). Emerging standards for wireless mesh technology. Wireless Communications, IEEE [see also IEEE Personal Communications] 13 (2): 56–63.1536–1284

42.

Loffler

and Nielson

(2003). International HARM precision navigation upgrade - a GPS/INS missile upgrade that improves effectiveness and minimizes friendly-fire accidents. Aerospace and Electronic Systems Magazine, IEEE 18 (5): 26–31.0885-8985

43.

Naruse

Yokoi

(2003). Group formation of agents with two-dimensional inner state and one-to-one subjective evaluation. Proceedings IEEE International Symposium on Computational Intelligence in Robotics and Automation.

44.

Olfati-Saber

(2006). Flocking for multi-agent dynamic systems: algorithms and theory. Automatic Control, IEEE Transactions on 51 (3): 401–420.0018-9286

45.

Park

M. G.

Jeon

J. H.

(2001). Obstacle avoidance for mobile robots using artificial potential field approach with simulated annealing. Industrial Electronics, 2001. Proceedings. ISIE 2001. IEEE International Symposium on.

46.

Ramani

R. G.

Viswanath

(2008). Ant Intelligence in Robotic Soccer. nternational Journal of Advanced Robotic Systems 5 (1): 49–58

47.

Renfroe

P. B.

McMinemon

J. D.

(2000). Test and evaluation of the Rockwell Collins GNP-10 for the precision kill and targeting (PKAT) missile system. Position Location and Navigation Symposium, IEEE 2000.

48.

Robinson

E. J. H.

Jackson

D. E.

(2005). Insect communication: ‘No entry’ signal in ant foraging. Nature 438 (7067): 442–442

49.

Schiller

(2003). Mobile Communications, Addison-Wesley.

50.

Sam

G. Shuzhi

Chency-Heng

(2004). Swarm formations using the general formation potential function. Robotics, Automation and Mechatronics, 2004 IEEE Conference on.

51.

Soysal

and Sahin

(2005). Probabilistic aggregation strategies in swarm robotic systems. Swarm Intelligence Symposium, 2005. SIS 2005. Proceedings 2005 IEEE.

52.

Spletzer

J. R.

and Fierro

(2005). Optimal Positioning Strategies for Shape Changes in Robot Teams. Proceedings of the 2005 IEEE International Conference on Robotics and Automation, 2005. ICRA 2005.

53.

Stilwell

D. J.

Bishop

B. E.

(2005). Redundant manipulator techniques for partially decentralized path planning and control of a platoon of autonomous vehicles. Systems, Man and Cybernetics, Part B, IEEE Transactions on 35 (4): 842–848.1083-4419

54.

Suzuki

and Yamashita

(1999). Distributed autonomous mobile robots: Formation of geometric patterns. SIAM J Comput 29 (4): 1347–1363

55.

Sycara

(1998). Multiagent Systems. AI Magazine: 79–92

56.

Tanner

H. G.

Pappas

G. J.

(2004). Leader-to-formation stability. Robotics and Automation, IEEE Transactions on 20 (3): 443–455.1042-296X

57.

Xiaobu

and Yang

S. X.

(2007). Multirobot-Based Nanoassembly Planning with Automated Path Generation. Mechatronics, IEEE/ASME Transactions on 12 (3): 352–356

58.

Xin

and Yangmin

(2008). Stability on Adaptive NN Formation Control with Variant Formation Patterns and Interaction Topologies. International Journal of Advanced Robotic Systems 5 (1): 69–82

59.

Yang

and Gu

(2007). Nonlinear Formation-Keeping and Mooring Control of Multiple Autonomous Underwater Vehicles. Mechatronics, IEEE/ASME Transactions on 12 (2): 164–178.1083-4435

60.

Yang

Passino

K. M.

(2003). Stability analysis of one-dimensional asynchronous swarms. Automatic Control, IEEE Transactions on 48 (10): 1848–1854

61.

Yang

Passino

K. M.

(2003). Stability analysis of M-dimensional asynchronous swarms with a fixed communication topology. Automatic Control, IEEE Transactions on 48 (1): 76–95
