A Combination of Terrain Prediction and Correction for Search and Rescue Robot Autonomous Navigation

Abstract

This paper presents a novel two-step autonomous navigation method for search and rescue robot. The algorithm based on the vision is proposed for terrain identification to give a prediction of the safest path with the support vector regression machine (SVRM) trained off-line with the texture feature and color features. And correction algorithm of the prediction based the vibration information is developed during the robot traveling, using the judgment function given in the paper. The region with fault prediction will be corrected with the real traversability value and be used to update the SVRM. The experiment demonstrates that this method could help the robot to find the optimal path and be protected from the trap brought from the error between prediction and the real environment.

Keywords

mobile robot image analyze terrain prediction/correction navigation

1. Introduction

Search and rescue robot is a special type of mobile robot, for its application in the search and rescue works after nature or man-made disasters such as earthquake, hurricane, debris and mine collapse. Most of search and rescue robots work under the remote way, and more and more researches have been focused on the autonomous navigation, which means running from the start point to the specified point autonomously and safely. It reflects the intelligence level of the search and rescue robot. Working in an unstructured environment, the robots have to detect the surroundings and make decision how to arrive the target safely, and the troubles are obstacles, like rocks and vegetations, and non-traveled regions. For this reason it is beneficial for a search and rescue robot to know which way is the safest.

For searching the safest path, ladar sensors were used to segment the ground surface from vegetation and from rocks and trunks (Talukder, A., Manduchi, R., Rankin, A., Matthies, L., 2002) (Hebert, M., Vandapel, N., 2003) (Vandapel, N., Huber, D., Kapuria, A., Hebert, M., 2004) (Manduchi, R., Castano, A., Taluker, A., Matthies, L., 2005). This method depends on the positions of the targets, in another word, the distance between the obstacles and the robot. It only can identify whether and where the obstacles are, but can not describe their types and have no consciousness about whether the obstacles are fatal or available to travel. Vision-based terrain classification and prediction receive more and more attentions of the researchers in last few years (Bellutta, P., Manduchi, L., Matthies, K., Owens, K., Rankin, A., 2000) (Castano, R., Manduchi, L., Fox, J., 2001). The approach using the nature feature, just like color, shape and texture, divides the terrain into two classes which are travelable and non-travelable (Angelova, A., Matthies, L., Helmick, D., Perona, P., 2007). Robot terrain interaction parameters associated with training images are used to visually forecast terrain traversability (Seraji, H., 1999) (Kim, D., Sang, M. O., James, M. R., 2007) (Poppingga, J., Birk, A., Pathak, K., 2008). All these methods are trying to build a perfect prediction of the terrain in front of robot, but it is hard to certificate the prediction always correct. For example, we hardly identify the road and water both covered with leaves just from the data of ladar sensors and visually images.

Some other mobile robot research groups focus on the methods based vibration. Vibration-based terrain classification was first suggested by Iagnemma and Dubowsky (Iagnemma, K., Dubowsky, S., 2002). The method collects the vibration data when the robot is running, and then they reduce the dimensionality of the data by Principal Component Analysis (PCA) and use Linear Discriminant Analysis (LDA) for classification (Brooks, C. A., Iagnemma, K., 2005). And Support Vector Machine (SVM) method is used to the classification of the terrain for the mobile robot (Weiss, C., Fröhlich, H., Zell, A., 2006). But all these methods just focus on the terrain style recognition thought the vibration data just when the robot covers on the interesting region. It means that the robot could just know the terrain styles of the region where he has passed through and where he is standing on, and he has no power to understand the future path.

We propose an alternative approach which includes two steps for the autonomous navigation of search and rescue robot. At first, the method based on the vision is proposed for terrain identification to give a prediction of the safest path. In an off-line training phase, the Support Vector Regression Machine (SVRM) is trained on a set of extracted features of images from our terrain database. Once the SVRM is trained, the newly collected images during the running of robot could be calculated online and we could resolve the optimal solution of the safest path. And then, running following the prediction, the robot collects the vibration data to make a judgment of the abovementioned prediction. If it displays the false from the result of the judgment, the robot has enough reasons to believe the pervious prediction incorrect and must stop. For the region with fault prediction, the features and the real traversability could be collected as a new data point added to the training database. The SVRM would be recalculated and updated. The robot would calculate the prediction with the up-to-date SVRM. The rest of this paper is organized as follows: In section 2, we describe our approach to terrain prediction. In section 3, the method of correction of prediction mentioned in section 2 is developed. Section 4 presents our experimental results. Section 5 concludes the paper and suggests future work.

2. Terrain prediction

As humans, we recognize the ways with our vision which means we find out the optimal path, from the images captured by our eyes, depending on the experience established past. Following this opinion, we extract several features from the images captured by the onboard camera, and the conformation of optimal path is calculated under a classification based on the extracted features. And the classifier is trained with the method of support vector regression.

2.1. Features Extraction

The color and texture features are thought significant for the images captured by the onboard camera. The entries of the feature representation are the following (Gonzales, R. C., Woods, R. E., Eddins, S. L, 2005):

The average value r of the red content in the image.

The average value g of the green content in the image.

The average value b of the blue content in the image.

The mean m of the gray image. The feature is a measurement of average intensity.

m = \sum_{i e H} z_{i} p (z_{i})

(1)

The standard deviation σ of the gray image. The feature is a measurement of average contrast.

σ = \sqrt{\sum_{i e H} (z_{i} - m)^{2} p (z_{i})}

(2)

The smoothness R of the gray image. The feature is a measurement of the relative smoothness of the intensity in a region. R ∈ [0, 1], and R is 0 for a region of constant intensity and approaches 1 for regions with large excursions in the values of its intensity levels.

R = \frac{\sum_{i e H} (z_{i} - m)^{2} p (z_{i})}{1 + \sum_{i e H} (z_{i} - m)^{2} p (z_{i})}

(3)

The third moment μ₃. The feature is a measurement of the skewness of a histogram. μ₃ is 0 for symmetric histograms, positive by histograms skewed to the right, about the mean, and negative for histograms skewed to the left.

μ_{3} = \sum_{i e H} (z_{i} - m)^{3} p (z_{i})

(4)

The uniformity U. The feature is a measurement of uniformity of intensity histogram and is the maximum when all the gray levels are equal.

U = \sum_{i e H} p^{2} (z_{i})

(5)

The entropy e. The feature is a measurement of randomness for the all gray levels of the intensity histogram.

e = - \sum_{i e H} p (z_{i}) \log_{2} p (z_{i})

(6)

In equations (1)∼(6), H is the intensity levels, z_i is random variable indicating intensity, and p(z_i) is histogram of the intensity levels.

Using these nine features, we create the training and test raw vector v of to describe the feature information of each image.

v = (r g b m σ R μ_{3} U e)

(7)

For describing the traversability of the terrain where the robot covers, standard deviations of angular accelerations of roll and pitch are adopted. Shown in fig. 1, φ is the roll and θ is the pitch. So the traversability is the following,

T = (\frac{1}{N} \sqrt{\sum_{i - 1}^{N} ({\ddot{φ}}_{i} - E (\ddot{φ}))^{2}} \frac{1}{N} \sqrt{\sum_{i - 1}^{N} (\ddot{θ_{i}} - E (\ddot{θ}))^{2}})

(8)

Fig. 1.

The coordinate of the robot

N is sample number. The traversability T represents the difficulty that robot pass through the region.

2.2. SVRM Training

Support Vector Regression Machine (SVRM) belongs to the family of kernel methods. The special idea is to transfer the nonlinear problem to some high dimensional feature space where could find the approximate linear relationship between inputs and targets, through the first mapping method based on kernel function. SVRM is a convex quadratic optimization, and the solution is global optimal.

Given the dataset points ${(v_{1}, ∥ T_{1} ∥), (v_{2}, ∥ T_{2} ∥), \dots \dots, (v_{n}, ∥ T_{n} ∥)}$ is the number of dataset points, such that v_i ∈ Rⁿ, i = 1, 2,…, n is the ith input and $∥ T_{i} ∥ \in R, i = 1, 2, \dots, n$ is the ith target output. The standard format of SVRM (Vapnik, V., 1998) is:

\begin{aligned} min_{w, b, ξ, ξ^{*}} \frac{1}{2} w^{T} w + C \sum_{i = 1}^{l} ξ_{i} + C \sum_{i = 1}^{l} ξ_{i}^{*} \\ w^{T} ϕ (v_{i}) + b - ∥ T_{i} ∥\leq ε + ξ_{i}, \\ Subject ∥ T_{i} - w^{T} ϕ () v_{i} - b \leq ε + ξ_{i}^{*}, \\ ξ_{i}, ξ_{i}^{*} \leq 0, i = 1, \dots, l . \end{aligned}

(9)

The dual is:

\begin{aligned} min_{α, α^{*}} \frac{1}{2} (α - α^{*})^{T} Q (α - α^{*}) + ε \sum_{i = 1}^{l} (α_{i} + α_{i}^{*}) + \sum_{i = 1}^{l} ∥ T_{i} ∥ (a l p h a_{i} - α_{i}^{*}) \\ Subject \sum_{i = 1}^{l} (α_{i} - a l p h a_{i}^{*}) = 0, 0 \leq α_{i}, α_{i}^{*} \leq C, i = 1, \dots, l \end{aligned}

(10)

Where Q_ij = K(v_i, v_j), the approximate function is:

\sum_{i = 1}^{l} (α_{i}^{*} - α_{i}) K (v_{i} v) + b

(11)

In off-line training the image of one region will be captured by the onboard camera and be extracted the features which shown in equation (7). Then the robot traverses this region and the Inertia Measurement Unit (IMU) on board would record the roll and pitch angular accelerations. The standard deviations of angular accelerations of roll and pitch, in another word meaning the real traversability of this region, are calculated with the equation (8). Following this method, the training dataset points (v,‖T‖) are collected for several different regions. And the result of the training will be used in the prediction of optimal path. As SVRM implementation we use LIBSVM (Chang, C.C., Lin C.J., 2009).

2.3. Optimal Path

The robot takes the photo in front and divides into M×N sub-regions. The features of each sub-region image are extracted with the abovementioned method, and then the trained SVRM is to calculate the traversability prediction with these features. When the traversability predictions of all of the sub-regions are received, the optimal regions are considered with the sub-regions which have the highest traversability prediction value in each row and the optimal path is that covering these optimal regions. It is shown in Fig.2.

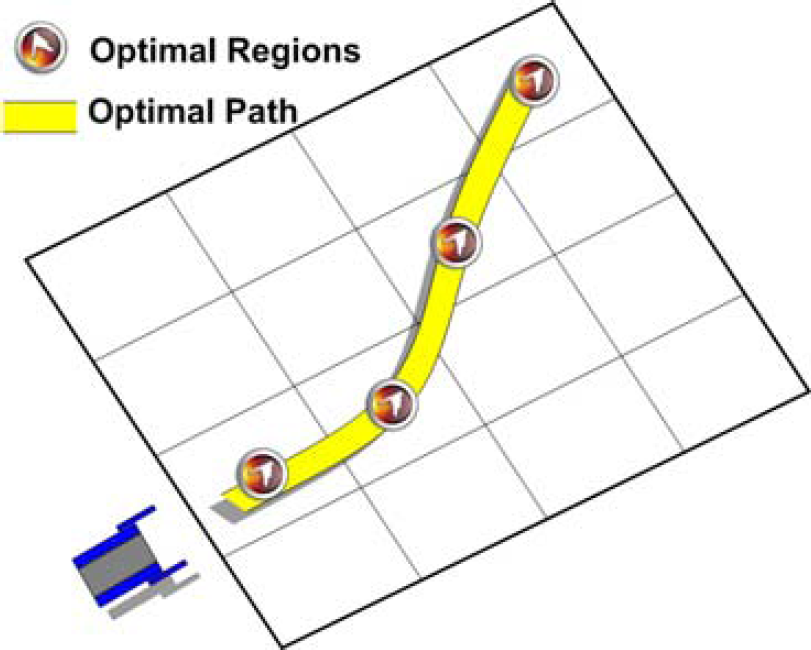

Fig. 2.

The optimal regions and path

3. Correction of prediction

The optimal path developed from the section 2 is the prediction of the terrain in direction, depending on the experience the robot received before, the off-line training. Obviously, the prediction could not match the real situation completely. For the limited of the experience of robot, some traps could not be identified just using the image features. So we develop the method to correct the error between the prediction and the real environment. The slip is one of the fatal situations for the search and rescue robot, and it would result to the loss of traveling ability and fail to complete the task. The slip is defined as following,

S (τ) = \frac{r ω - \int_{r} a_{Y} d t - v_{τ - 1}}{r ω}

(12)

r is the radius of the driving wheel, ω, is the angular velocity measured with the encoder on board, a_Y is the acceleration value in Y axis measured with IMU, τ is the sample time, and v_τ−1 is the actual velocity of the robot in last sample time. S ∈ [0, 1], S=0 means slip never occupied and S=1 means there is completely slip between the robot and ground.

We develop a judgment function which is used to judge the error between the prediction and real traversability, using the parameters X, X*, S, which donate real traversability measured with IMU on board, traversability prediction and the slip. The judgment function is as following,

f (X, X^{*} S) = - K (X, X^{*}) + β ϕ (S)

(13)

The K(X, X*) is kernel function, we use radial basis function exp(−‖X − X*‖/2σ²) here. And φ(S) is response function, β is scale coefficient. we use sign function sgn(S − α) here. The α is the threshold of slip.

f (X, X^{*}, S) = - \exp (- ∥ X - X^{*} ∥ / 2 σ^{2}) + β s g n (S - α)

(14)

The threshold of judgment function is consisted of kernel function threshold and response function threshold,

f_{t h r e s h o l d} (X, X^{*}, S) = - K_{t h r e o h o l d} (X, X^{*}) + β ϕ_{t h r e o h o l d} (S)

(15)

Because of the value of φ(S) is 1 and −1, in order to travel safely the φ(S) must be −1, and φ_threshold(S) = −1. The threshold of judgment function just depends on the threshold of kernel function and scale coefficient.

f_{t h r e s h o l d} (X, X^{*}, S) = - (K_{t h r e o h o l d} (X, X^{*}) + β)

(16)

When the robot travels following the optimal path, it is keeping measuring the slip and real traversability and calculates the error using the way of equation (14). If the result of judgment function is below the given threshold, that means the prediction and the real situation are matched. Otherwise, it means that the prediction could not describe the situation of the region and the prediction is inaccurate. In order to prevent the robot out of control in the dangerous terrain, our strategy is that the robot must stop and move to the block which is on the side of the current. And moving to left or right depends on the location of the next optimal region. We require minimizing the distance between the new block and the next optimal region. For the region with fault prediction, the features and the real traversability could be collected as a new data point added to the training database. The SVRM would be recalculated and updated. The robot would calculate the prediction with the up-to-date SVRM. It is shown in Fig. 3.

Fig. 3.

Error correction of the prediction

4. Experiment

The proposed method has been applied to field terrain test for the purpose of autonomous navigation. The search and rescue robot designed ourselves (Guo, Y., Bao, J.T., Song A.G., 2009), shown in Fig. 4, is used in the experiment. The robot is driven with tracks and carries a CCD camera on top and the IMU (Crossbow VG400) inside.

Fig. 4.

The picture of the search and rescue robot

4.1. Off-line Training

We use the on-board camera of the robot to take the photos of the terrain to extract the features abovementioned in section 2 to form the feature vectors. And then the robot traverses the terrain shown in the photos and collects the standard derivations of the angular acceleration of pitch and roll. The feature vectors and the standard derivations compose the training points. We collect 300 training points for the off-line training, part of them are shown in Tab.1.

Table 1.
The partial training points

No. r g b m a R μ3 U e ‖T‖

1 91.56 69.69 62.35 75.31 34.02 0.0175 0.515 0.00933 6.975 0.7812

2 104.70 84.37 77.11 89.78 40.42 0.0245 0.596 0.00778 7.240 0.7761

3 119.50 94.88 85.80 101.36 33.28 0.0167 0.424 0.0094 8.988 0.8977

4 121.44 98.72 90.76 104.55 33.71 0.0172 0.395 0.0091 7.019 0.9056

5 110.45 83.36 72.22 90.22 32.02 0.0155 0.388 0.0100 6.918 0.8813

6 97.28 69.67 58.53 76.89 30.42 0.0140 0.478 0.0113 6.787 0.8673

7 83.14 58.55 46.23 64.34 23.33 0.0083 0.164 0.0135 6.479 0.8096

8 71.19 51.79 41.33 56.33 22.24 0.0075 0.147 0.0143 6.400 0.7834

9 63.48 45.98 36.33 50.42 22.48 0.0077 0.209 0.0147 6.361 0.6897

10 58.19 48.48 43.31 51.29 26.50 0.0107 0.153 0.0112 6.6425 0.5485

… … … … … … … … … … …

No.	r	g	b	m	a	R	μ3	U	e	‖T‖
1	91.56	69.69	62.35	75.31	34.02	0.0175	0.515	0.00933	6.975	0.7812
2	104.70	84.37	77.11	89.78	40.42	0.0245	0.596	0.00778	7.240	0.7761
3	119.50	94.88	85.80	101.36	33.28	0.0167	0.424	0.0094	8.988	0.8977
4	121.44	98.72	90.76	104.55	33.71	0.0172	0.395	0.0091	7.019	0.9056
5	110.45	83.36	72.22	90.22	32.02	0.0155	0.388	0.0100	6.918	0.8813
6	97.28	69.67	58.53	76.89	30.42	0.0140	0.478	0.0113	6.787	0.8673
7	83.14	58.55	46.23	64.34	23.33	0.0083	0.164	0.0135	6.479	0.8096
8	71.19	51.79	41.33	56.33	22.24	0.0075	0.147	0.0143	6.400	0.7834
9	63.48	45.98	36.33	50.42	22.48	0.0077	0.209	0.0147	6.361	0.6897
10	58.19	48.48	43.31	51.29	26.50	0.0107	0.153	0.0112	6.6425	0.5485
…	…	…	…	…	…	…	…	…	…	…

For the parameters of SVRM, σ = 0.1, C ∈ [0.1, 1] and ɛ ∈ [0.01, 0.5]. Using the different C and ɛ, the figurer of mean squared error is developed and shown in Fig.5. In Fig.5, we get the optimal parameter of C and ɛ through search the mesh to find the parameter point that has the minimal mean squared error. The optimal parameter point is (C, ɛ) = (1, 0.5).

Fig. 5.

Mean squared error for different values of C and ɛ

4.2. Autonomous Navigation

The start point and man-specified goal points are signed in the picture of experiment filed, shown in Fig.6, which is covered with rubble and sand. The robot should travel from the start point to the first goal point and then travel to the second goal point.

Fig. 6.

The experiment filed

At first, the robot turn around face to the goal and the camera carried in the robot captures one image in front, shown in Fig.7. The image is linearly divided into 5×5 sub-images as the optimal region candidates. The noise points are removed from each sub-image through gauss filter.

Fig. 7.

The image in front of robot

Features are extracted from the sub-images using the abovementioned algorithm in section 2 and the feature vectors are sent to off-line trained SVRM to calculate the traversability prediction ‖T‖, the result is shown in Fig.8. Searching the mesh of prediction result, the sub-images which have the highest traversability prediction in each row are picked up as the optimal regions. All the optimal regions compose the optimal path. It is shown in Fig.9, and the regions in black box are the optimal regions.

Fig. 8.

The result of prediction

Fig. 9.

The optimal path based on prediction

From the optimal regions selected using the color and texture features, we could find that the result of this prediction algorithm is approximately identical compared with that found out using human experience. And this algorithm could avoid the interference of result from the obstacles that have different color or texture features from the terrain environment.

Receiving the optimal path, the robot could travel to the goal following this path through the method of inertia navigation. The process is shown in Fig.10. During the traveling, the accelerations of roll and pitch are measured by the onboard IMU and shown in Fig.11. The real traversability of the current region is developing based the data.

Fig. 10.

Navigation based on the optimal path including (a)(b)(c)(d)

Fig. 11.

The acceleration of roll and pitch measured by IMU

For the slip estimation, the real velocity is measured by the IMU and the real velocity is the actual speed of robot, shown in Fig.12 with blue line. The measured velocity is the calculated velocity based on the angular velocity measured with the coder in the robot, and it describes the actual speed of the driving trucks of robot. The measured velocity is shown in Fig.12 with red line. According to the definition in equation (12), the slip estimation could be received.

Fig. 12.

The real velocity and measured velocity

Judging the error between traversability prediction and real traversability, we use the judgment function in equation (14) with the parameters σ = 0.1, α = 0.2 and β = 0.2. The result of judgment function is shown in Fig.13.

Fig. 13.

The result of judgment function

For the safety of navigation, the K_threshold (X, X*) = 0.8 and f_threshold (X, X*, S) = −1 base on the value of K_threshold (X, X*) and β. From the result of judgment function, we could find that the judgment function value is under the threshold when the robot travels on the regions shown in Fig.10(a)(b)(c). That because the traversability prediction and real traversability is approximately identical. However, when the robot travel on the region shown in Fig.10(d), the sand in this region leads to the serious slip and the response function φ(S) is active. So the value of judgment function jumps over the threshold as soon as possible.

This region is that with fault prediction. The real traversability value and the features based on color and texture are collect as a new data point added to the training database. The SVRM is recalculated and updated.

Because of the threshold over, the robot stops and move to the right block. The camera recaptures one image and calculates optimal path with the up-to-date SVRM. The robot safely travels to the final goal with the new optimal path. It is shown in Fig.14.

Fig. 14.

Recaptured image and new optimal path

We repeat this experiment ten times in the same environment, and the success rate is up to 90%.

5. Conclusion

In this paper, we propose an alternative approach which includes two steps for the autonomous navigation of search and rescue robot. At first, for the purpose of finding the relative features with the difficulty of traveling, we pick up nine features of color and texture from the image as feature vectors. The Support Vector Regression Machine (SVRM) is trained to find the relationship between the traveling difficulty and the features. Using the off-line trained SVRM, the traversability prediction is calculated and the optimal path is developing. During the traveling following the optimal path, the real traversability based on the vibration information measured by onboard IMU is received. The slip of robot is recognized with the real velocity measured by IMU and the measured velocity calculated with the angular velocity got from the coder inside. We develop a judgment function with the traversability prediction, real traversability and slip to find the prediction fault. It could protect the robot from the trap caused by the prediction error. For the region with fault prediction, the features and the real traversability could be collected as a new data point added to the training database. The SVRM would be recalculated and updated.

Our method is to resolve the problem that the prediction algorithm can not check the prediction result during the traveling following the prediction. The experiment demonstrates that this method is effective. But limited with the performance of the embedded computer system in the robot, the process speed of the algorithm is not enough fast to allow the robot travel in the fast speed. In future, we will continue do some works to increase the algorithm efficiency and decrease the performance time.
