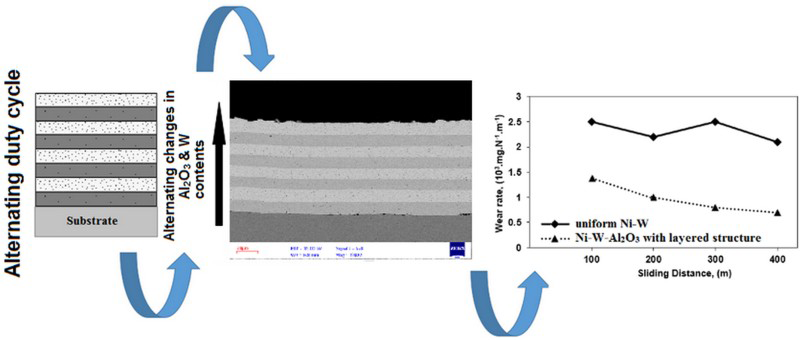

Multilayer Ni–W and Ni–W–Al2O3 coatings with intermittent low and high concentrations of tungsten and alumina were electrodeposited through alternative variation of pulse parameters. Microstructural studies and elemental analyses of the coatings were carried out using scanning electron microscopy and energy dispersive X-ray spectroscopy, respectively. Profilometry and atomic force microscopy were employed to investigate the surface roughness at two different scales. Pin-on-disc wear test was used to evaluate the tribological properties. The corrosion resistance was also studied using potentiodynamic polarisation and electrochemical impedance spectroscopy methods. Results revealed that at lower duty cycles, more incorporation of alumina and more co-deposition of tungsten are achieved. Results indicated variable and alternative microhardness values corresponding to the different concentrations of tungsten and alumina in each specific layers. Wear tests demonstrated the descending trend of the wear rate as a function of sliding distance. It was found that alumina nanoparticles enhanced the corrosion resistance.
TorabinejadV., AliofkhazraeiM., & Sabour RouhaghdamA. (2016). Ni–Fe–Mn–(nano) Al2O3 coating with modulated composition and grain size. T Indian I Metals. doi:10.1007/s12666-016-0913-9.
EbrahimiF., & KongD. (1999). Effect of microstructure on strength and fracture of electrodeposited Cu/Ni layered nano-composites. Scripta Mater. 40, (5), 609–616. doi: 10.1016/S1359-6462(98)00449-7
20.
EbrahimiF., LiscanoA., & KongD. (2003). Evolution of texture in electrodeposited Ni/Cu layered nanostructures. Philos Mag. 83, (4), 457–476. doi: 10.1080/0141861021000039455
21.
LandoltD. (2001). Fundamental aspects of alloy plating. Plat Surf Finish. 88, (9), 70–79.
22.
BrennerA. (2013). Electrodeposition of alloys: principles and practice. New York: Elsevier.
23.
LeeS., ChoiM., & ParkS. (2015). Mechanical properties of electrodeposited Ni-W thinfilms with alternate W-rich and W-poor multilayers. Electrochim Acta. 153, 225–231. doi: 10.1016/j.electacta.2014.11.190
24.
PapachristosV., PanagopoulosC., & WahlstromU. (2000). Effect of annealing on the structure and hardness of Ni–P–W multilayered alloy coatings produced by pulse plating. Mater Sci Eng: A. 279, (1), 217–230. doi: 10.1016/S0921-5093(99)00583-3
25.
AlimadadiH., AhmadiM., & AliofkhazraeiM. (2009). Corrosion properties of electrodeposited nanocrystalline and amorphous patterned Ni–W alloy. Mater Design. 30, (4), 1356–1361. doi: 10.1016/j.matdes.2008.06.036
26.
AliofkhazraeiM., AhangaraniS., & Sabour RouhaghdamA. (2010). Effect of the duty cycle of pulsed current on nanocomposite layers formed by pulsed electrodeposition. Rare Metals. 29, (2), 209–213. doi: 10.1007/s12598-010-0036-0
27.
AliofkhazraeiM., Sabour RouhaghdamA., & GhobadiE. (2010). Electrodeposition and mechanical and corrosion resistance properties of tertiary Ni-W/Al2O3/CNT nanocomposite coatings. Adv Mater Res. 89–91, Trans Tech Publ:12–16.
28.
ZhaoC., YaoY., & HeL. (2014). Electrodeposition and characterization of Ni-W/ZrO2 nanocomposite coatings. Bull Mater Sci. 37, (5), 1053–1058. doi: 10.1007/s12034-014-0044-z
29.
YaoY., YaoS., & ZhangL. (2007). Electrodeposition and mechanical and corrosion resistance properties of Ni–W/SiC nanocomposite coatings. Mater Lett. 61, (1), 67–70. doi: 10.1016/j.matlet.2006.04.007
30.
AuerswaldJ., & FechtH. -J. (2010). Nanocrystalline Ni–W for wear-resistant coatings and electroforming. J Electrochem Soc. 157, (4), D199–D205. doi: 10.1149/1.3291984
31.
MizushimaI., TangP. T., & HansenH. N. (2006). Residual stress in Ni–W electrodeposits. Electrochim Acta. 51, (27), 6128–6134. doi: 10.1016/j.electacta.2005.11.053
32.
PriyadarshanG. (2009). Electrodeposition of nickel-tungsten and nickel-molybdenum under ultrasonication. Ann Arbor
: University of Nevada.
33.
AllahyarzadehM., RoozbehaniB., & AshrafiA. (2011). Electrodeposition of high Mo content amorphous/nanocrystalline Ni–Mo alloys using 1-methyl-imidazolium chloride ionic liquid as an additive. Surf Coat Technol. 206, (1), 137–142. doi: 10.1016/j.surfcoat.2011.07.004
34.
AllahkaramS. R., GolrohS., & MohammadalipourM. (2011). Properties of Al2O3 nano-particle reinforced copper matrix composite coatings prepared by pulse and direct current electroplating. Mater Design. 32, (8), 4478–4484. doi: 10.1016/j.matdes.2011.03.042
LandoltD. (1994). Electrochemical and materials science aspects of alloy deposition. Electrochim Acta. 39, (8), 1075–1090. doi: 10.1016/0013-4686(94)E0022-R
37.
SharmaA., BhattacharyaS., & DasS. (2014). A study on the effect of pulse electrodeposition parameters on the morphology of pure tin coatings. Metall Mater Trans A. 45, (10), 4610–4622. doi: 10.1007/s11661-014-2389-8
38.
LajevardiS., & ShahrabiT. (2010). Effects of pulse electrodeposition parameters on the properties of Ni–TiO2 nanocomposite coatings. Appl Surf Sci. 256, (22), 6775–6781. doi: 10.1016/j.apsusc.2010.04.088
SriramanK., RamanS. G. S., & SeshadriS. (2006). Synthesis and evaluation of hardness and sliding wear resistance of electrodeposited nanocrystalline Ni–W alloys. Mat Sci Eng: A. 418, (1), 303–311. doi: 10.1016/j.msea.2005.11.046
41.
WangH. T., SheuH. H., & GerM. D. (2014). The effect of heat treatment on the microstructure and mechanical properties of electrodeposited nanocrystalline Ni-W/diamond composite coatings. Surf Coat Technol. 259, (PB), 268–273. doi: 10.1016/j.surfcoat.2014.03.064
42.
YaoY. W. (2008). Preparation, mechanical property and wear resistance of Ni-W/Al 203 composite coatings. Surf Eng. 24, (3), 226–229. doi: 10.1179/174329408X282613
WangJ. C., ChengX. D., & LiD. H. (2006). Study on Ni-W-SiC nanometer electrodeposition process. Cailiao Gongcheng/J Mater Eng. (3), 25–28.
45.
ZhangD. -W., LeiT., & LiF. -J. (2001). Laser cladding of stainless steel with Ni–Cr3C2 for improved wear performance. Wear. 251, (1), 1372–1376. doi: 10.1016/S0043-1648(01)00770-0
46.
SunwangN., WangyaoP., & BoonyongmaneeratY. (2011). The effects of heat treatments on hardness and wear resistance in Ni-W alloy coatings. Surf Coat Technol. 206, (6), 1096–1101. doi: 10.1016/j.surfcoat.2011.07.082
47.
UdompanitN., WangyaoP., & HenpraserttaeS. (2014). Wear response of composition-modulated multilayer Ni-W coatings. Adv Mater Res. Trans Tech Publ:302–309.
48.
ChianpairotA., LothongkumG., & SchuhC. A. (2011). Corrosion of nanocrystalline Ni-W alloys in alkaline and acidic 3.5wt.% NaCl solutions. Corros Sci. 53, (3), 1066–1071. doi: 10.1016/j.corsci.2010.12.001
49.
LeeH. B. (2013). Synergy between corrosion and wear of electrodeposited Ni–W coating. Tribol Lett. 50, (3), 407–419. doi: 10.1007/s11249-013-0134-x
50.
FengQ., LiT., & TengH. (2008). Investigation on the corrosion and oxidation resistance of Ni–Al2O3 nano-composite coatings prepared by sediment co-deposition. Surf Coat Technol. 202, (17), 4137–4144. doi: 10.1016/j.surfcoat.2008.03.001
51.
GoldastehH., & RastegariS. (2014). The influence of pulse plating parameters on structure and properties of Ni–W–TiO2 nanocomposite coatings. Surf Coat Technol. 259, 393–400. doi: 10.1016/j.surfcoat.2014.10.064
52.
WangL., LinY., & ZengZ. (2007). Electrochemical corrosion behavior of nanocrystalline co coatings explained by higher grain boundary density. Electrochim Acta. 52, (13), 4342–4350. doi: 10.1016/j.electacta.2006.12.009
53.
TianB., & ChengY. (2007). Electrolytic deposition of Ni–Co–Al2O3 composite coating on pipe steel for corrosion/erosion resistance in oil sand slurry. Electrochim Acta. 53, (2), 511–517. doi: 10.1016/j.electacta.2007.07.013
54.
AhmadZ.: Principles of corrosion engineering and corrosion control. Burlington (MA): Butterworth-Heinemann; 2006.
55.
SriramanK., RamanS. G. S., & SeshadriS. (2007). Corrosion behaviour of electrodeposited nanocrystalline Ni–W and Ni–Fe–W alloys. Mater Sci Eng: A. 460, 39–45. doi: 10.1016/j.msea.2007.02.055
56.
PanagopoulosC. N., PlainakisG. D., & TsoutsouvaM. G. (2015). Corrosion of nanocrystalline Ni-W coated copper. J Surf Eng Mater Adv Technol. 5, (02), 65.
