Multiparametric Magnetic Resonance Imaging and Image-Guided Biopsy to Detect Seminal Vesicle Invasion by Prostate Cancer

Introduction

Prostate cancer (PCa) is the most common nonskin cancer and the second most common cause of cancer-related death in American men. ¹ Seminal vesicle invasion (SVI) is the hallmark of stage T3b PCa and is associated with poor outcomes, including early biochemical recurrence. ^2,3 This is particularly true in patients with SVI and positive surgical margins after radical prostatectomy (RP). SVI is also relatively common, with recent large surgical series reporting rates of 4.5% to 12.7%. ^{4 –6} For all of these reasons, early knowledge of SVI is critical for appropriate patient counseling, treatment selection, and planning.

Historically, the preoperative assessment of SVI relied on various surrogates for definitive histologic staging. These techniques include the digital rectal examination (DRE), transrectal ultrasound (TRUS) and TRUS-guided biopsy, predictive nomograms, and MRI. However, each of these techniques suffers from significant limitations. In contemporary practice, most urologists utilize predictive models to counsel patients on the likelihood of SVI. However, these models do not incorporate advanced imaging, such as multiparametric MRI (MP-MRI), which is becoming an increasingly important part of PCa diagnosis. Moreover, predictive models provide population-based probabilities, rather than personalized results. A superior standard for preoperative staging would involve histologic confirmation in every patient; however, seminal vesicle (SV) biopsy is not routinely performed.

MRI/ultrasound (US) fusion-guided biopsy, utilizing software-based registration of diagnostic MRI and TRUS images, has been shown to accurately represent the tumor burden of PCa in a variety of settings. ^7,8 This technique combines the best features of two modalities: the high sensitivity and specificity of MRI for PCa and the real-time features of US, enabling accurate placement of biopsy needles for tissue diagnosis. ⁹ Although targeted prostate biopsy has been largely used for identifying primary prostate tumors, the potential for its use as a PCa staging modality, particularly with respect to the SVs, is under active investigation. At our institution, all patients with suspected PCa undergo MP-MRI followed by MRI/US fusion-guided biopsy. When a lesion that appears to invade an SV is identified on MP-MRI, its likelihood of representing PCa is recorded, and it is included as a target on subsequent MRI/US fusion-guided biopsy. In this study, we investigate the correlation between MP-MRI suspicion for SVI and pathology on MRI/US fusion-guided biopsy, as well as final pathology when available.

Materials and Methods

Imaging and biopsy protocol

Each patient initially underwent a diagnostic MP-MRI of the prostate at 3 Tesla (Achieva; Philips Healthcare, Best, The Netherlands) with a 16-channel cardiac surface coil (SENSE; Philips Healthcare) over the pelvis and an endorectal coil (BPX-30; Medrad, Pittsburgh, PA), as previously described. ¹⁰ MP-MRI sequences included tri-planar T2-weighted, dynamic contrast-enhanced (DCE), diffusion-weighted imaging (DWI), and magnetic resonance spectroscopy (MRS). MP-MRI data sets were prospectively evaluated by two radiologists (Peter L. Choyke, Baris Turkbey), who assigned a PCa suspicion level (low, moderate, or high) to each lesion using a system that has been previously validated (Fig. 1). ¹¹

OPEN IN VIEWER

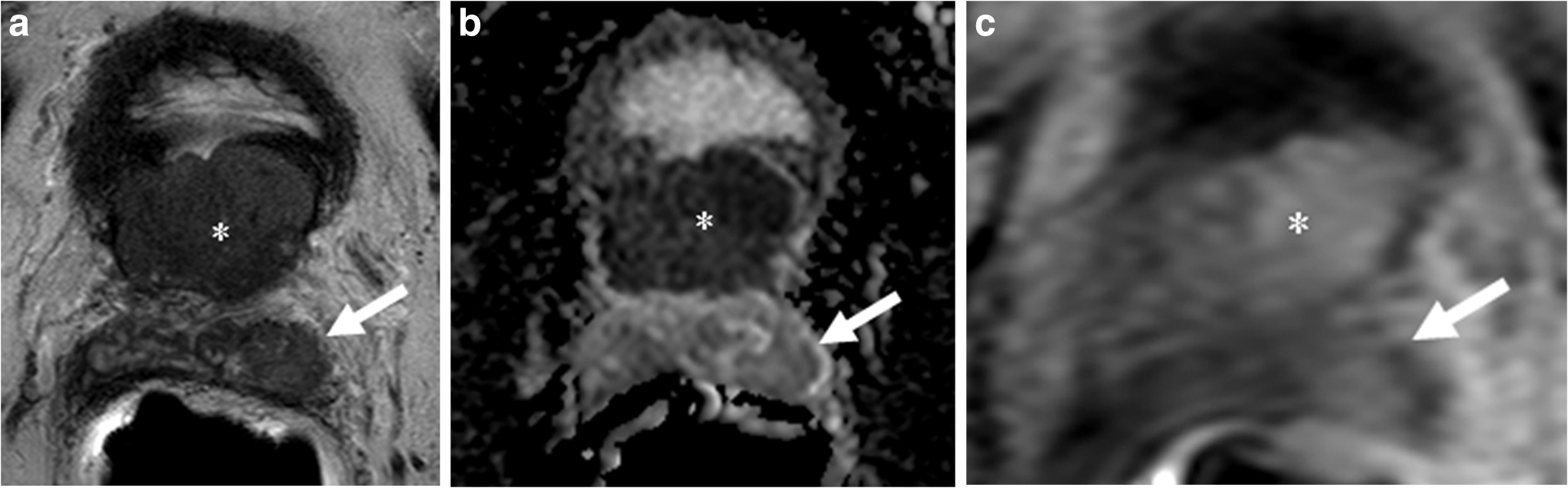

FIG. 1.

Seventy-four-year-old male with a prostate-specific antigen of 20.7 ng/mL and four prior negative biopsies. (a) Axial T2-weighted MRI demonstrates lesions in the base transitional zone (asterisk), with the latter demonstrating hypointense signal within the left seminal vesicles (SVs) (arrow). (b) ADC maps of DW MRI show restricted diffusion corresponding to hypointense signal intensity within the primary (asterisk) and the left SV (arrow) lesions. (c) Dynamic contrast-enhanced MRIs also localize both lesions (asterisk, arrow).

All patients in this study had lesions suspicious for PCa with SVI on MP-MRI and thus underwent prostate biopsy after MRI. This was done according to a protocol that has been previously described. ⁸ In short, systematic extended sextant 12-core biopsies as well as targeted biopsies of MRI-visible lesions were performed in the same biopsy session with a system utilizing an end-fire TRUS probe. At least two cores were obtained from each MRI visible lesion, from the axial and sagittal planes (Fig. 2).

OPEN IN VIEWER

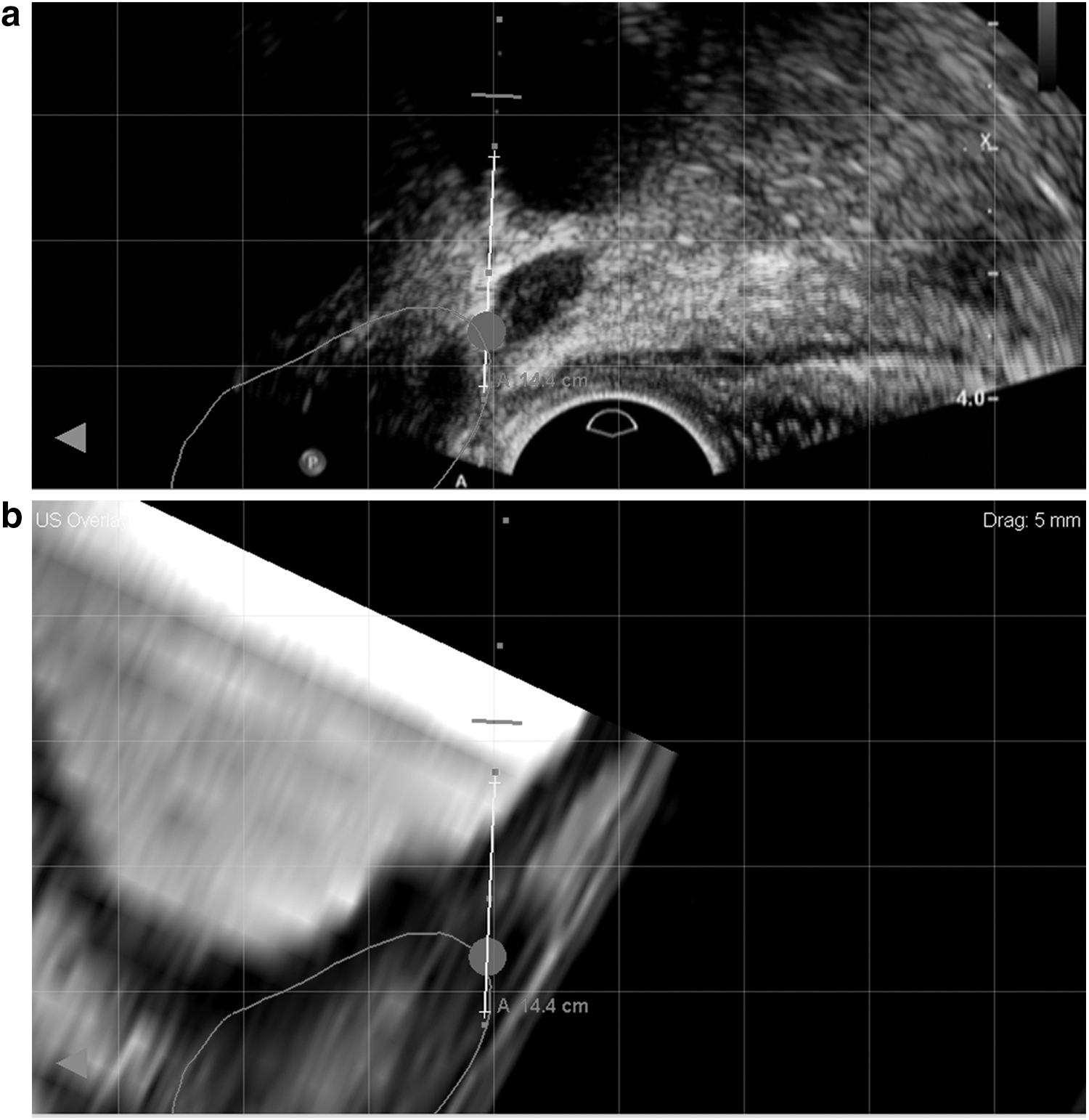

FIG. 2.

Representative images obtained during MRI/ultrasound (US) fusion-guided biopsy at sagittal plane, demonstrating the SV target (circle) on (a) real-time transrectal ultrasound and (b) fused diagnostic MRI. Biopsy pathology revealed Gleason 8 prostate cancer in the SV core.

Prostate biopsy results were then combined with clinical variables to determine treatment plans based on individual patient preferences in the setting of a multidisciplinary PCa clinic. When indicated, patients underwent robot-assisted radical prostatectomy (RARP) by a single surgeon (Peter A. Pinto). All biopsy and RP pathology were reviewed by a single genitourinary pathologist (Maria J. Merino).

Results

Demographic information for the 25 patients is presented in Table 1. The 25 patients had a median age of 64 years (interquartile range [IQR]: 57–68) and median prostate-specific antigen (PSA) of 10.74 ng/mL (IQR: 6.9–20.9). Fourteen of 25 (56%) had not been previously diagnosed with PCa. MP-MRI suspicion levels of low, moderate, and high for PCa were assigned to 3, 19, and 9 lesions, respectively. For those patients with MP-MRIs that were considered moderately or highly suspicious for PCa, extracapsular extension (ECE) at the site of the primary cancer was also seen in 42% and 67% of cases, respectively (Table 2).

Biopsy results are presented in Table 3. SV biopsies were classified as unknown when the SV cores contained fibroadipose tissue rather than SV tissue. Complete biopsy results are also presented, as both cores obtained by means of 12-core biopsy and MRI/US fusion-guided biopsy of visualized lesions. The overall SVI detection rate by MRI/US fusion-guided biopsy for the 31 lesions was 20/31 (65%). Age, race, PSA, clinical stage, number of past biopsies, and MRI suspicion levels were not significantly associated with SVI on targeted biopsy.

Eight of the 25 patients (32%) underwent RP with curative intent (Table 4). Of these, four patients had SV biopsy tissue that allowed for a preoperative determination of SVI. SV biopsy and final pathology were concordant in 4/4 (100%) of these cases. In addition, the highest biopsy Gleason grade was a significant predictor of SVI on final pathology (p=0.018).

MRI/US fusion-guided biopsy significantly decreased the preoperative staging of one patient. This patient was a 51-year-old African American male with a PSA of 8.18 ng/mL and no prior prostate biopsy. On MP-MRI, bilateral lesions within the prostate gland were visualized with a moderate likelihood for PCa but with no ECE. The left SV appeared to be involved by PCa. Extended sextant biopsy revealed PCa bilaterally in 6 of 12 cores with a highest Gleason grade of 3+4=7. This was confirmed on targeted biopsy of the intraprostatic lesions, but targeted biopsy of the SV revealed benign SV tissue. Thus, this patient's preoperative stage was reduced from T3b to T2c. This patient opted for surgical treatment with RARP. Final pathology confirmed pT2c PCa with a highest Gleason grade of 3+4=7 and no SVI or ECE.

In a separate analysis, we combined biopsy and final pathology findings to assess the performance of MP-MRI for detecting SVI. Overall, 0/3 (0%) patients with low suspicion, 15/19 (79%) patients with moderate suspicion, and 5/9 (56%) patients with high suspicion on MP-MRI proved to have documented SVI. Thus, moderate or high suspicion led to histologic confirmation of SVI in 20/28 (71%) of cases versus 0/3 (0%) for low suspicion. This difference was statistically significant (p=0.04).

Discussion

For patients with PCa, the diagnosis of SVI has significant prognostic implications. ^3,12 T3b disease is considered “very high risk” and can significantly alter treatment pathways, often resulting in multimodal therapy that exposes patients to associated risks and consequences that can affect quality of life. Furthermore, the presence of a very high-risk disease may steer more patients toward radiation therapy, if there is doubt regarding the ability to obtain surgical cure or a need for wide surgical margins that could affect postoperative potency and continence. ¹³

Despite all of these factors, the accurate preoperative assessment of SVI has remained a significant challenge. Historically, SVI was only detectable by DRE in cases of high-stage palpable diseases. However, DRE suffered from poor accuracy, leading to a shift toward imaging-based diagnosis. A number of studies have evaluated the performance of TRUS biopsy in detecting SVI. However, these studies are composed of a heterogeneous group of patients, limiting their generalizability. Nonetheless, in these carefully selected study populations, the sensitivity and specificity of TRUS biopsy for SVI range from 47.4% to 66.7% and 98.4% to 100%, respectively. ^14,15

This low sensitivity, in turn, led to the development of models used to predict SVI based on various clinical variables. ^16,17 Such models combine PSA, clinical stage, and biopsy findings, but may be further improved by the use of imaging. For example, Wang et al. recently demonstrated the incremental value of adding MRI to the Kattan nomogram for the prediction of SVI. ¹⁸ Utilizing a 1.5-Tesla scanner and relying solely on T1- and T2-weighted images, the authors found that combining the imaging findings with results from the Kattan nomogram produced the highest area under the curve for the prediction of SVI on final pathology (p<0.05). The authors identified SV biopsy as a particularly appealing additional tool, but felt that enthusiasm for the idea has been limited because of poor results with the TRUS-guided techniques.

In part, because MRI also provides anatomical information that may help guide surgery, it offers a useful new alternative to the existing methods of identifying T3 disease. ¹⁹ MP-MRI has become the de facto standard for how MRI should be performed and is generally based on a T2-weighted scan, a diffusion-weighted scan, and a DCE MRI. In a recent study, Soylu et al. retrospectively evaluated the performance of MP-MRI for the detection of SVI in patients who had undergone RP. ²⁰ This group utilized a 1.5-Tesla magnet and endorectal coil to perform MP-MRI. For the 23 patients with SVI on final pathology, MP-MRI had a specificity of 93.1% to 93.6% and sensitivity of 52% to 59%, depending on the radiologist's experience. The addition of DW imaging significantly improved detection of SVI, while the addition of DCE did not. In a separate study, Kim et al. assessed 30 patients with PCa and SVI using T2 and DW imaging on a 3-Tesla magnet. ²¹ The addition of sequenced imaging significantly improved SVI detection, particularly for the less experienced radiologist. However, this group did not utilize DCE, and neither study validated the findings with preoperative biopsy. This highlights the need for delineating the most accurate MP-MRI protocol for PCa diagnosis and staging. Most importantly, neither predictive models nor imaging alone is able to provide reliable SV tissue samples that can allow for appropriate data-driven patient counseling, treatment selection, and planning.

In this study, we demonstrate the feasibility of the preoperative detection of SVI with MRI/US fusion-guided biopsy. For the 31 lesions that were suspicious for SVI on MP-MRI, the overall SVI detection rate on MRI/US fusion-guided biopsy was 20/31 (65%) and 71% if low-suspicion lesions are not included. Targeted SV biopsies provide an improvement over the current standard of care. Patients with targeted biopsy-proven SVI can be definitively counseled as to the presence of T3b disease. This finding has a much greater utility to individual patients than would a population-based probability or the results of imaging alone without guided biopsy. In addition, a negative targeted SV biopsy may be helpful in the setting of an equivocal MRI suggesting SVI. The biopsy could impact the patient's choice of definitive therapy, particularly when surgical extirpation is being considered.

This study is the first description, to our knowledge, of the use of MRI/US fusion-guided biopsy to detect SVI. In select cases, these biopsies significantly altered treatment plans. In all cases, the biopsies allowed for increased confidence in preoperative patient counseling. Given the large number of recent studies that have demonstrated the utility of targeted biopsy for intraprostatic lesions, this technique is likely to become increasingly widespread. ^{8,10,22 –24} The present study supports targeted biopsy of the SVs when indicated by imaging. It should be noted that the targeted biopsies performed in this study were based on diagnostic MRIs obtained on a 3-Tesla magnet with an endorectal coil and MP-MRI sequences, including T2-weighted, DCE, DWI, and MRS. This is a particularly comprehensive approach to prostate imaging that has been validated in other studies. ^10,25 However, we and others do not believe that MRS contributes to the diagnosis of SVI because of the naturally occurring increase in choline and lowering of citrate in the SVs. Finally, this study provides a unique assessment of the positive predictive value (PPV) of MRI for SVI. While this PPV is thought to be high, the studies that established this relied on just the subset of patients who underwent prostate MRI and subsequent RP. In the present study, targeted biopsy allowed for the procurement of SV tissue preoperatively. In this overall cohort, 6/31 (19%) of the MRI lesions suspicious for SVI were benign on targeted biopsy. This suggests the possibility that MRI may, in fact, be less specific for SVI than previously thought. Given this possibility, it becomes even more critical for patients to undergo targeted biopsy of the SVs, when indicated.

This study has certain limitations. First, it is not possible to calculate a sensitivity or NPV of MP-MRI and MRI/US fusion biopsy for SVI, as we do not routinely biopsy the SVs of those patients with negative MRIs. We were not able to target the SVs with both positive and negative MRI findings, since SV biopsy is not routinely performed and can cause protracted hematospermia. Second, the majority of the patients in our study received systemic therapy and/or radiation rather than RP due to advanced disease. This limits our ability to verify SVI on final pathology. However, MRI/US fusion-guided biopsy appears to offer a useful surrogate for RP pathology. ²⁶ This is supported by the 100% concordance between biopsy and final pathology in the subset of patients who underwent surgery after a conclusive biopsy. Finally, in five cases, MRI/US fusion-guided biopsy failed to yield SV or PCa tissue. This may be a result of SV anatomy itself being distorted by the prostate nerve block, which is administered at the level of the junction between the prostate and SVs bilaterally. Because the resulting anatomic deformation was not present during the diagnostic MRI, accurate image registration on MRI/US fusion may be challenging. Finally, targeted biopsy of the SVs may be especially sensitive to motion artifact. Even in cases where the prostatic nerve blocks do not distort the anatomy, the SVs remain relatively mobile. The resulting inaccuracy may justify performing a repeat image registration immediately before SV biopsy.

Conclusions

MP-MRI and MRI/US fusion-guided biopsy offer a useful novel tool with which to detect SVI by PCa. Importantly, it provides a preoperative targeted tissue confirmation and accurate staging, thus allowing for appropriate data-driven patient counseling, treatment selection, and planning. As this technology becomes more available to physicians, MP-MRI and MRI/US fusion-guided biopsy may play a role in the preoperative staging for PCa. Future work will determine if improved preoperative staging leads to better surgical outcomes.
