Fifteen Years of Gene Therapy Based on Chimeric Antigen Receptors: “Are We Nearly There Yet?”

Abstract

“T-body” or chimeric antigen receptor (CAR) technology, which combines the specificity of an antibody with the homing, tissue penetration, and target cell destruction of T cells, was first described in 1993. After many years of unmet promise, significant improvements in gene transfer, including the development of efficient retroviral vectors for transduction of human T cells, and better understanding of immunological pathways and immune cell interactions, are allowing this technology to reach a critical phase of evaluation, in which we will learn whether the approach can truly meet expectations. In this review we summarize the concept of CAR-based immunotherapy, describe the steps accomplished, and outline the future progress we need to make if this approach is truly to improve cancer immunotherapy.

Introduction

Adoptive transfer of tumor-infiltrating T lymphocytes (TILs) or antigen-specific cytotoxic T lymphocytes (CTLs) induces objective clinical responses in patients with melanoma (Rosenberg et al., 2008) and Epstein-Barr virus (EBV)-related malignancies (Rooney et al., 1998; Bollard et al., 2004; Comoli et al., 2005; Straathof et al., 2005a). Gene transfer of peptide-specific native αβT cell receptor (TCR) and genetic transfer of chimeric antigen receptors (CARs) are two means by which we can redirect the specificity of polyclonal T lymphocytes and thus more broadly extend these beneficial effects of T cell therapies to other malignancies. Both strategies are appealing because they provide a means of generating large numbers of antigen-specific CTLs directed to otherwise weakly immunogenic tumor-associated antigens. Although compelling results using gene transfer of native αβTCRs have been obtained in patients with melanoma (Morgan et al., 2006), and the approach will likely be extendable to other malignancies, in this review we focus on the use of CARs for T cell-based cancer therapeutics.

The term “T-body” was coined in 1993 to define chimeric molecules composed of a specific antigen-binding domain encoding the variable regions of a monoclonal antibody, linked together as a single chain antibody (scFv), and a signaling moiety derived from either the ζ chain of the TCR/CD3 complex or the γ chain of the FcɛRI receptor (Eshhar et al., 1993). When expressed by T cells, the chimeric molecules bind the specific antigen expressed on the cell surface of the target cells through their antibody-binding moiety, and activate the lytic pathway of the T cells on cross-linking of the chimeric ζ or γ chains that form the receptor endodomains (Fig. 1). Many researchers now term these T-bodies “chimeric antigen receptors (CARs)” or “chimeric immune receptors (CIRs),” because these hybrid receptors can also include ligands that are not antibody derived (Stastny et al., 2007). Many different CARs have now been cloned, which target antigens expressed either by hematologic malignancies (Hombach et al., 1999; Cooper et al., 2003; Jensen et al., 2003; Vera et al., 2006) or solid tumors (Kershaw et al., 2006; Lamers et al., 2006; Ahmed et al., 2007), and a comprehensive list of these is provided by Sadelain and colleagues (2009). Many of the target antigens for these CARs have been validated in preclinical and clinical studies of the native monoclonal antibody or other ligand used, which facilitates early adoption of CARs in human subjects.

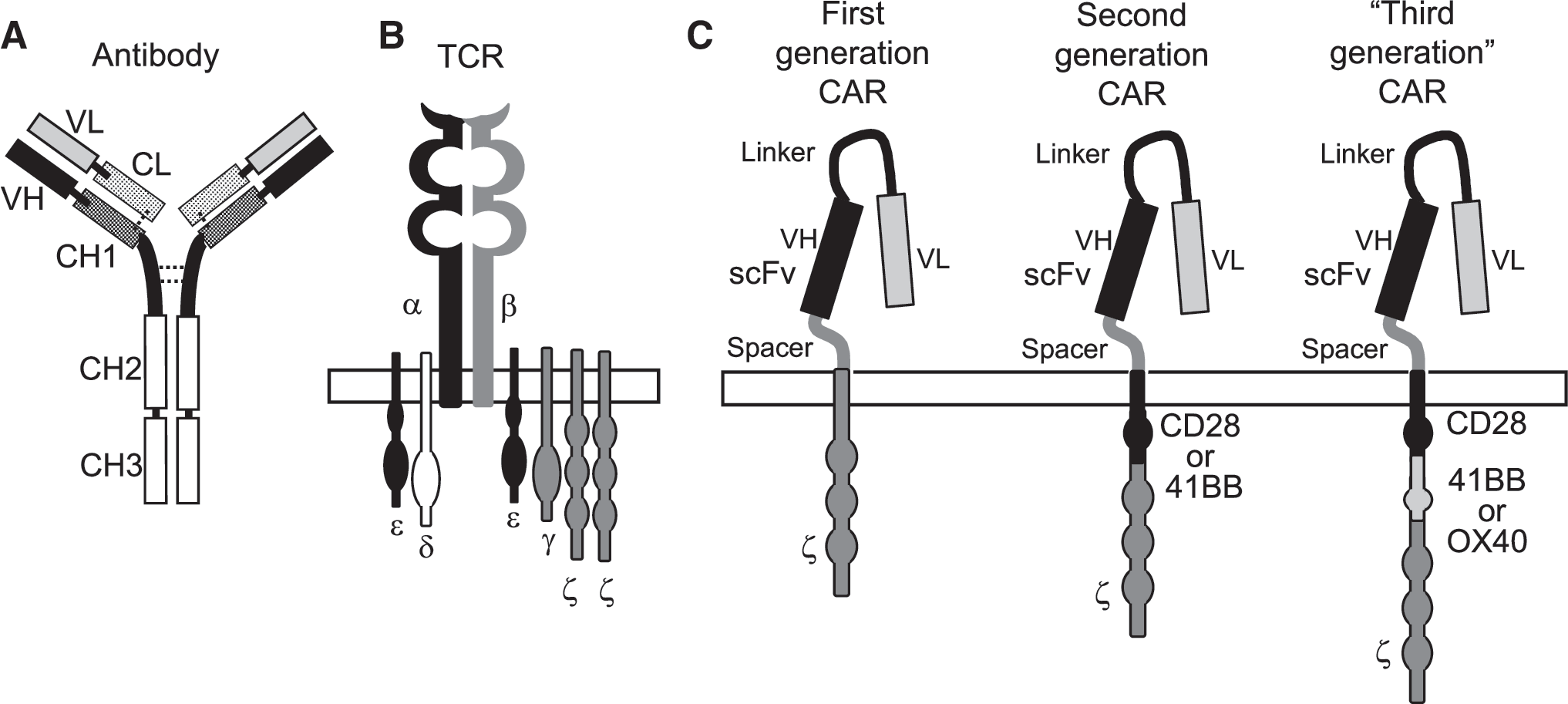

FIG. 1.

Chimeric antigen receptors (CARs). CARs are most commonly created by joining the heavy- and light-chain variable regions of a monoclonal antibody (A) that binds to a specific antigen to the intracellular portion of a T cell signaling molecule, such as components of the TCR-associated CD3 complex (ζ chain) (B). First-generation CARs only contain a T cell signaling domain that transmits the activation signal (C, left). Second-generation CARs incorporate in addition a single costimulatory molecule endodomain, such as the endodomain of CD28 or 41BB (C, middle). Third-generation CARs incorporate at least two costimulatory molecule endodomains, such as the endodomains of CD28 and 41BB (C, right).

Advantages of CAR-Based T Cell Immunotherapy

The advantages of CARs over the native antibodies or ligands from which they derive are a consequence of their physical association with effector T cells. Thus, CAR-modified T cells can have an active biodistribution, with migration through multiple tissue planes along chemokine gradients, and can recruit the multiple cytotoxic effector mechanisms available to a T cell, rather than the more restricted cytotoxic machinery associated with, for example, the Fc component of an antibody. CARs also offer advantages over transfer of native αβTCRs. Target cell recognition by αβTCRs is MHC restricted, precluding the design of a “universal” receptor for the treatment of patients with different HLA haplotypes. CARs, by contrast, like monoclonal antibodies, are essentially universal. Moreover, many tumors downmodulate MHC molecules and/or have dysfunctional antigen-processing machinery so that the target antigenic epitopes for αβTCR are simply not present. Because CAR-modified T cells bind directly to native proteins expressed on the surface of target cells without the need of antigen processing or MHC-restricted presentation, they are unaffected by this immune evasion strategy. Moreover, CARs can recognize nonprotein antigens, unlike conventional αβTCRs (Rossig et al., 2001). The major limitation of CARs versus αβTCRs is that they are generally unable to recognize antigens that are internal, even when these are processed to peptides presented by HLA molecules.

Expressing CARs in T Lymphocytes: Do We Need New Tools?

The major goal of adoptive T cell therapy in patients with cancer is to establish effective antitumor activity that can recognize and destroy malignant cells irrespective of their site in the body. Moreover, this activity should be persistent, so that there will be destruction of resurgent malignant cells, even if these arise from phenotypically distinct tumor progenitor cells that are not themselves effectively targeted. For these benefits to be produced, CAR-modified T cells need to have adequate trafficking to the tumor site, be resistant to tumor-related immunosuppressive factors, and have robust and stable expression of their transgenic CAR.

Several methods are currently used to express chimeric molecules in T lymphocytes, each with a different profile of efficiency, cost, and complexity. Because T lymphocytes are highly proliferative, most studies of CAR gene transfer have used vectors that integrate into the host cell DNA. Such vectors were typically based on gammaretroviruses or lentiviruses, but more recent advances in the development of integrating nonviral vectors are beginning to challenge this monopoly.

Viral vectors

Gammaretrovirus-mediated gene transfer to T cells has been tested in several clinical trials (Rosenberg et al., 1990; Bordignon et al., 1995; Heslop et al., 1996; Bonini et al., 1997). Such retroviruses integrate into the host genome (Miller et al., 1990; Hu and Pathak, 2000) and produce consistent gene expression in human T cells and their progeny. These vectors, however, have several limitations (Hu and Pathak, 2000). They can transduce only dividing cells (Miller et al., 1990), have limited cargo capacity (Hu and Pathak, 2000), can cause insertional mutagenesis (Hacein-Bey-Abina et al., 2008), and are expensive to produce and use clinically. Moreover, transgene expression tends to decline over time, although it can be increased after T cell activation through their CAR or native αβTCR (Pule et al., 2008). These limitations notwithstanding, retroviral gene transfer has shown an acceptable profile of efficacy and safety for expressing CAR and other transgenes in T lymphocytes (Bonini et al., 2003; Brenner and Heslop, 2003). Optimization of the vector cassette and advances in bicistronic and tricistronic vector design allow three or potentially more distinct cDNAs to be expressed by retrovirally transduced T cells (Quintarelli et al., 2007; Di Stasi et al., 2009). Most importantly perhaps, no adverse effects related to insertional mutagenesis of T lymphocytes by integrated provirus have been reported in any patient infused with retroviral gene-modified T cells during the past 20 years (Bonini et al., 2003; Brenner and Heslop, 2003). This observation markedly contrasts with experience in patients receiving hematopoietic stem cells (HSCs) that have been similarly modified with gammaretroviruses (Hacein-Bey-Abina et al., 2003, 2008). Such clinical observations parallel experimental data showing that retrovirally transduced T cells do not undergo malignant transformation in RAG1-deficient mice, unlike gene-modified HSCs (Montini et al., 2006). Overall, it seems likely that highly differentiated cells, such as mature T lymphocytes, are less likely to undergo malignant change associated with the genotoxicity of integrating gammaretroviruses.

Lentiviral vectors

Lentiviral vectors may offer certain advantages over gammaretroviral vectors. They can transduce nondividing or minimally proliferating T lymphocytes (Naldini et al., 1996; Hu and Pathak, 2000), and the reduced requirement for ex vivo activation before transduction may maximize long-term in vivo persistence of the transduced cells, by reducing activation-induced cell death or clonal exhaustion (Cavalieri et al., 2003). Compared with gammaretroviruses, lentiviruses also have enhanced cargo capacity, and reduced susceptibility to gene silencing. Although genotoxicity due to insertional mutagenesis may still occur, the frequency is apparently lower as there is a reduced probability of integration into transcriptionally sensitive sites (Montini et al., 2006). Modifications to lentiviruses to make them self-inactivating after integration may further lower this risk.

Nonviral vector gene transfer

Although DNA plasmid-based gene delivery has greatly reduced the cost of manufacturing and testing, the use of this approach for CAR gene transfer has been limited by the inefficiency of the process and the transience of expression due to lack of transgene integration—a lethal flaw for transduction of a rapidly dividing population such as T cells. Improvements in electroporation of T lymphocytes have significantly enhanced the efficiency of gene delivery, and reduced the toxicity of the procedure. Without a high rate of plasmid integration, however, investigators are compelled to extensively culture the transduced cells to expand the rare clones in which stable expression is achieved. Unfortunately, this often exhausts the T cells and renders them unfit to expand further and persist in vivo (Park et al., 2007; Till et al., 2008). Transposon-based gene delivery systems may overcome this limitation, by combining transposons and transposases with the gene of interest in the plasmid. Systems such as Sleeping Beauty (Huang et al., 2008; Singh et al., 2008) and PiggyBac (Wilson et al., 2007) are currently being considered to express CARs in T lymphocytes. It remains to be seen whether genomic integration mediated by transposon-based gene delivery is safe and efficient in vivo or whether insertional mutagenesis and transgene silencing will occur.

Other technologies have also been explored for gene transfer to T lymphocytes. In principle, for example, messenger RNA (Mitchell et al., 2008) or protein transfer can be used to force CAR expression in T lymphocytes. These approaches may be safe, but the transience of their effects means they are likely of limited clinical value for CAR transfer.

Initial Clinical Trials of CAR-Modified T Cells

Despite consistent and robust expression of CAR molecules in T cells, early clinical studies of the approach were disappointing. The first trials were in patients infected with HIV, who received T lymphocytes expressing a CAR (CD4ζ) binding to the HIV gp120 envelope expressed on the surface of infected cells. Infusions of syngeneic or autologous CD4ζ-modified CD4⁺ and CD8⁺ T cells were well tolerated but produced minimal antiviral activity. Although gene-modified T cells were detectable in the bloodstream for up to 1 year, and trafficked to the gut-associated HIV reservoir, the percentage of gene-modified cells was low and substantially declined with time (Mitsuyasu et al., 2000; Walker et al., 2000).

Initial studies in patients with cancer were equally discouraging. T cells with a CAR targeting the α-folate receptor (FR) were infused into patients with metastatic ovarian cancer. Fourteen patients received 3 × 10⁹ to 1.7 × 10¹² cells without toxicity. However, antitumor responses were not measurable and transgenic T cells were barely detectable in the circulation beyond 3 weeks after infusion, with only one exception of persistence 1 year after treatment, albeit at low levels (Kershaw et al., 2006). A second study was conducted in patients with neuroblastoma, using T cells electroporated with a plasmid encoding a CAR targeting the L1-cell adhesion molecule (L1-CAM) expressed by neuroblasts. A total of 6 patients with refractory neuroblastoma received up to 3 infusions of gene-modified T cells (10⁸ and/or 10⁹ cells). The toxicity was acceptable, although bone pain requiring narcotics was reported shortly after the infusion of T cells in a patient with extensive osseous metastases. Tumor responses were modest and incomplete, and again persistence of the infused cells was limited (Park et al., 2007). Finally, subjects with relapsed or refractory B cell lymphomas received T cells transfected by electroporation with a DNA plasmid encoding a CAR targeting the CD20 antigen. Seven patients were treated with multiple infusions and some also received subcutaneous injections of recombinant interleukin (IL)-2. No adverse events attributable to the T cell infusions were observed. T cells were documented to traffic to the bone marrow, although the number of circulating CD20⁺ B cells remained stable or slightly increased after treatment in all patients, with marginal antitumor effects. The administration of low-dose IL-2 prolonged the persistence of modified T cells but not beyond 9 weeks (Till et al., 2008).

CAR-Modified T Cells and Lack of Costimulation

Although the results of these studies were clinically disappointing, they proved instrumental in showing that a major problem of CAR-modified T cells is their lack of expansion and persistence in vivo, which is in sharp contrast with the behavior of adoptively transferred antigen-specific CTLs (Heslop et al., 1996). A number of factors likely contribute to these differences. Elimination of the cells by an immune response directed to the CAR can certainly occur (Lamers et al., 2006), and it is also true that the culture conditions used to generate T cells were suboptimal. Thus activation and expansion of naive T cells before gene transfer require optimal costimulation provided by CD28 and tumor necrosis factor (TNF) family members (Paulos et al., 2008; Boesteanu and Katsikis, 2009). Because the clinical-grade reagents for this costimulation are not readily available, investigators have cross-linked CD3 with monoclonal antibodies, with suboptimal consequences for T cell survival. More recently, activation with beads coexpressing OKT3 and CD28 has been used and may produce a more active and persistent product (Paulos et al., 2008). The substitution of cytokine cocktails such as IL-7, IL-15, and IL-21 for IL-2 alone also serves to better preserve the subset of T cells with a central-memory phenotype (T_CM), and thereby favor long-term persistence (Ma et al., 2006; Andorsky and Timmerman, 2008).

While the previously described mechanisms may help to explain the poor in vivo persistence and activity of CAR-modified T cells, it is increasingly apparent that a major factor is the inability of CAR engagement alone to recapitulate the costimulatory events that follow the physiologic engagement of the native αβTCR. Full activation and proliferation of T cells require not only TCR engagement (first signal) but also costimulation provided by antigen-presenting cells (APCs, second signal) and cytokines (third signal). A multiplicity of these costimulatory receptor–ligand and cytokine signals is required, in an optimal temporal and spatial sequence. CAR-redirected T cells lack any such costimulation when they engage tumor cells, because these target cells are deficient in costimulatory molecule expression (e.g., CD80 and CD86) and do not release helper cytokines. Moreover, CAR-modified T cells cannot receive activation through stimulation provided by professional APCs in secondary lymphoid organs because the native receptors on CAR-modified T cells are not specifically directed toward antigens on the hosts' APCs.

Two approaches have been adopted to compensate for the lack of costimulation after CAR engagement

Costimulatory endodomains

The first approach is to incorporate costimulatory signaling domains as part of the CAR itself. Thus, domains derived from CD28 (Finney et al., 1998; Maher et al., 2002; Kowolik et al., 2006; Vera et al., 2006), 4-1BB (Imai et al., 2004), or OX40 (Pule et al., 2005) molecules have been incorporated as single or multiple (Pule et al., 2005; Milone et al., 2009) endodomains in tandem in the CAR molecule to generate “second- and third-generation” CARs (Fig. 1). Antigen engagement of these CARs is followed by T cell activation, proliferation, and IL-2 secretion, even without cross-presentation by APCs (Maher et al., 2002; Vera et al., 2006). Experiments in severe combined immunodeficient (SCID) mice are being conducted to define the best combinations of costimulation required for CAR-modified T cells. So far the data seem to suggest that the optimal combination may depend on the affinity of the single-chain antibody, the level of CAR expression and its intrinsic structure (hinge region, spacer region, and transmembrane domain), as well as on the density of antigen expression by tumor cells and the tumor environment. It is difficult for a murine SCID system to accurately model all these variables, particularly because CAR-modified T cells also interact with other immune system cells in an immunocompetent individual. Because of these limitations, it is essential to validate any conclusions from animal models in small early-phase clinical trials. Such studies using polyclonal activated T lymphocytes expressing these novel “second-generation” CARs are currently open at several institutions. It will likely remain difficult to predict which costimulatory combination will be superior in any given setting, and a side-by-side comparison of CARs containing different costimulatory endodomains infused simultaneously in the same patient may be the most efficient way of optimizing the approach.

Antigen-specific CTLs

The second approach for providing costimulation is to express the CAR in antigen-specific CTLs, whose native αβTCR is targeting for an antigen known to be present on host professional APCs. In this way, native receptor engagement ensures all costimulation is received physiologically, and chimeric receptor engagement serves exclusively as a means of retargeting an already costimulated cell. This approach has been validated preclinically in vitro (Rossig et al., 2002; Landmeier et al., 2007) and in vivo (Duraiswamy et al., 2003; Savoldo et al., 2007), and we extended it to EBV antigen-specific CTLs redirected to the G_D2 antigen present on many human tumors including neuroblastoma (Pule et al., 2008) (Fig. 2). Adoptive transfer of EBV-specific CTLs effectively treats EBV-driven lymphomas after allogeneic hematopoietic stem cell (HSC) transplantation (Rooney et al., 1995, 1998). Studies using a “gene-marking” approach demonstrated the persistence in vivo of EBV-specific CTLs for more than 10 years after their adoptive transfer (Heslop et al., 1996). These clinical observations indicate that the infused CTLs, although phenotypically predominantly effector T cells (T_E) and effector-memory T cells (T_EM) (Pule et al., 2008), contain a fraction of cells that have functionally long-term memory properties and persist when receiving an efficient costimulation from latently EBV-infected APCs (Heslop et al., 1996). We therefore engrafted EBV-specific CTLs and primary T cells with distinguishable G_D2-specific CARs and infused both sets of autologous cells into patients with neuroblastoma. We found that CAR-modified EBV-specific CTLs had enhanced and prolonged survival compared with polyclonal activated T cells expressing the same CAR, and produced objective tumor responses including complete remission (Pule et al., 2008). We are now using this approach for patients with lymphoma, comparing the expansion and persistence of EBV-specific CTLs expressing a “first-generation” CAR targeting the CD19 molecule with that of polyclonal T lymphocytes expressing a “second-generation” CAR targeting the same CD19 molecule but also encoding the CD28 endodomain. This study will allow us to formally evaluate whether physiologic or synthetic costimulation is superior for CAR-modified human T cells in vivo. Finally, in addition to appropriate in vivo costimulation, expressing CARs on antigen-specific CTLs of defined specificity may allow the use of vaccination to boost CAR cellular immune responses.

FIG. 2.

CARs and costimulation. Several studies have demonstrated that first-generation CARs that transmit just a CD3-ζ signal fail to induce sustained T cell activation or division likely because CAR activation is not accompanied by the required sequence of costimulatory stimuli. To circumvent this limitation, CARs can be expressed in antigen-specific T cells, which will receive costimulation when their native receptor is engaged by the appropriate antigen on a professional antigen-presenting cell. In addition, cognate help can be provided by antigen-specific helper cells.

Does CAR Expression in Specific T Cell Subsets Matter?

In the previous section we discussed the potential advantages of expressing a CAR in a defined CTL population. There are, of course many other subsets of T cells in which CAR can be expressed, and some of these may have superior overall functionality to others. In addition to polyclonal activated T lymphocytes, other T cell subsets including γδT cells and natural killer (NK) cells have been used as platforms for CAR modification.

γδT lymphocytes

γδT lymphocytes represent less then 5% of human T cells, and are preferentially localized in organs containing epithelial cells (skin, lung, intestine, and genitourinary tract) (Nanno et al., 2007). They have MHC-unrestricted cytotoxic activity. Ex vivo-expanded human Vγ9Vδ2⁺ T cells have antitumor activity against several human malignancies and, when engineered to express CAR molecules, they acquire specific cytotoxic activity against other tumor cells (Rischer et al., 2004). Despite the scarcity of γδT cells in the peripheral blood, these cells can be expanded ex vivo and in vivo using a combination of IL-2 and zoledronate, a pharmacologic agent that promotes the accumulation of metabolites, such as isopentenyl pyrophosphate, which act as endogenous ligands to stimulate Vγ9Vδ2⁺ T cells (Dieli et al., 2007). Clinical trials using CAR-modified γδT cells are planned, although we know little about the likely persistence of these cells in vivo after adoptive transfer. However, their high tropism for epithelia may be useful for treating several types of carcinomas.

Natural killer cells

NK cells represent less than 15% of lymphocytes and are characterized by the expression of CD56 (bright or dim) and of Fcγ receptor III (FcγRIII, CD16) and by their lack of CD3 (Cooper et al., 2001). Although the mechanisms by which NK cells recognize target cells are complex and incompletely understood, NK receptors for MHC class I molecules are crucial for discriminating normal from pathogenic cells (Cooper et al., 2001). NK cells have long been considered as important for tumor immune surveillance (Cooper et al., 2001) and after HLA-haploidentical HSC transplantation for patients with myeloid malignancies recognition of killer-immunoglobulin receptors (KIRs) and MHC disparities may contribute greatly to the graft-versus-leukemia effect (Ruggeri et al., 2008). NK cells have been used as an alternative lymphocyte platform for the expression of CARs, and in preclinical studies they have potent antitumor activity (Imai et al., 2005). As for γδT cells, little is known of the survival and persistence of NK cells after adoptive transfer.

Central memory cells

Studies in nonhuman primates have shown that virus-specific CTLs reexpanded from the CD62L⁺ fraction have the highest capacity to persist in vivo after adoptive transfer (Berger et al., 2008). Preclinical evaluations of CAR-modified T cells obtained from the CD62L⁺ subpopulation will determined whether they are superior to unfractionated T lymphocytes in establishing a long-term memory pool.

Sustaining in Vivo Expansion of Adoptively Transferred CAR-Modified T Cells

Several studies of adoptive T cell therapy suggest that robust and sustained clinical responses are best obtained by ensuring in vivo expansion of adoptively transferred antigen-specific CTLs (Dudley and Rosenberg, 2003; Robbins et al., 2004). Although costimulation is undoubtedly one component of successful longevity, the contribution of exogenous cytokines is likely also to be considerable. These cytokines, including IL-2, IL-7 and IL-15, promote both T cell expansion and survival in vivo (Ma et al., 2006).

At the simplest level, systemic administration of recombinant IL-2 has been used to support adoptive T cell therapies, including gene-modified T cells by CAR or transgenic αβTCR expression (Yee et al., 2002; Dudley and Rosenberg, 2003; Rosenberg et al., 2008; Till et al., 2008). Unfortunately, prolonged administration is associated with significant toxicity (Dudley et al., 2005; Rosenberg et al., 1994, 2008) and the concomitant expansion of IL-2 receptor-positive regulatory T cells (Treg) may progressively impair the function of effector T cells (Ahmadzadeh and Rosenberg, 2006). One means of capturing the benefits of the other cytokines important in T lymphocyte expansion and survival is to produce lymphodepletion before T cell infusion (Gattinoni et al., 2005). This manipulation induces release of homeostatic cytokines such as IL-7 and IL-15, promoting expansion of adoptively transferred lymphocytes including CAR-modified T cells (Dudley et al., 2005). However, the toxicities of agents required to produce such profound lymphodepletion may be unacceptable in patients who have already endured multiple rounds of intensive chemotherapy, and may promote adverse effects mediated by abrupt cytokine release by infused T cells (Brentjens et al., 2009).

Administration of the relevant cytokines directly may obviate the requirement for lymphodepletion. Studies in nonhuman primates have shown the safety and clinical benefits of systemic administration of IL-15, and this cytokine will soon be tested in clinical trials (Berger et al., 2009). Transgenic production of IL-15 by CAR-modified T cells may also be an option (Quintarelli et al., 2007), with the advantage of providing the cytokine only where needed. Similarly, IL-7 is essential for homeostatic expansion of naive T cells (Schluns et al., 2000; Ma et al., 2006) and for maintaining the memory T cell population (Kaech et al., 2003; Nanjappa et al., 2008). Administration of IL-7 accelerates immune reconstitution in murine models (Alpdogan et al., 2003) and the cytokine has been well tolerated in early-phase clinical trials, in which it produced polyclonal expansion of naive CD4⁺ and CD8⁺ T lymphocytes and no evident Treg expansion (Rosenberg et al., 2006; Sportes et al., 2008). IL-7 administration could enhance the expansion of adoptively transferred T cells if they physiologically reexpressed the IL-7 receptor α chain (Powell et al., 2005) or if such expression were forced by genetic manipulation (Vera et al., 2009).

Rendering CAR-Modified T Cells Resistant to Tumor Immune Evasion

Although CAR-modified T cells need to be present in sufficient numbers and for long enough to eradicate resurgent tumor cells, achieving these end points will likely not, per se, be sufficient to eradicate tumors. CAR-modified T cells must also efficiently traffic to the tumor sites and, once there, sustain their effectiveness in the presence of an array of immune evasion strategies used by the tumor cells (Zou, 2005).

Many tumor cells or their associated stroma produce cytokines that attract inhibitory rather than effector T cells. Further genetic modification of T lymphocytes to express the relevant chemokine receptor can overcome this difficulty, and ensure that the CAR-modified T cell can efficiently arrive at the tumor. The feasibility of this approach has already been shown for melanomas, which produce Groα and for Hodgkin's lymphoma (HL), which produces TARC (thymus and activation regulated chemokine) (Poppema et al., 1998). T cells engineered to express CXCR2 will preferentially traffic to melanomas (Kershaw et al., 2002), whereas T cells expressing CCR4 will traffic to Hodgkin's lymphoma (Di Stasi et al., 2009). Thus, coexpression of a CAR targeting the CD30 antigen on HL and of CCR4 enhanced antitumor activity in vivo in an HL xenograft model (Di Stasi et al., 2009) (Table 1).

Table 1.

Methods to Overcome Tumor Immune Evasion

Immune evasion mechanism	Example	Overcoming strategy
Release of inhibitory molecules	TGF-β	Dominant negative TGF-β receptor (Bollard et al., 2002)
Release of inhibitory molecules	FasL	Downregulation of the receptor (Dotti et al., 2005)
Impaired tumor trafficking	TARC/Groα	Forced expression of the specific chemokine receptor (CCR4 [Di Stasi et al., 2009], CXCR2 [Kershaw et al., 2002])
Tumor infiltration by inhibitory cells	Th2 and Treg cells	Second-generation CAR (Loskog et al., 2006)
Limited in vivo T cell expansion	Lack of local cytokines	Infusion of exogenous cytokines (IL-2 [Rosenberg et al., 1994], IL-7 [Rosenberg et al., 2006; Sportes et al., 2008], IL-15 [Berger et al., 2009])
		Transgenic production of cytokines (IL-2 and IL-15) (Quintarelli et al., 2007; Liu and Rosenberg, 2001)
		Lymphodepletion (Dudley et al., 2008)
		Forced expression of IL-7 receptors (Vera et al., 2009)
Limited in vivo T cell persistence	Lack of local costimulation	Second- or third-generation CARs (Sadelain et al., 2009)
Limited in vivo T cell persistence	Lack of local costimulation	Expression of CAR on antigen-specific CTLs (Pule et al., 2008; Savoldo et al., 2007)

Abbreviations: CAR, chimeric antigen receptor; CTLs, cytotoxic T lymphocytes; FasL, Fas ligand; IL, interleukin; TARC, thymus and activation regulated chemokine; TGF, transforming growth factor; Th2, helper T cell type 2; Treg, regulatory T cells.

Once at the tumor site, countermeasures to more active immune evasion strategies can be implemented. Both the hypoxic environment, which accompanies large tumors, and the antiinflammatory cytokines they release normally impede T cell function. Inhibitory molecules such as transforming growth factor (TGF)-β, Fas ligand, IL-10, and indoleamine 2,3-dioxygenase (IDO) also attract cells with inhibitory function, such as Th2 cells, suppressor dendritic cells, or regulatory T cells (Zou, 2005). Genetic modification of the CAR itself (Loskog et al., 2006), or of CAR-redirected T cells can overcome all of these (Bollard et al., 2002; Dotti et al., 2005) (Table 1).

“On” and “Off” Target Toxicities

One potential concern about the clinical effects of CAR is toxicity related to the normal tissue distribution of the targeted antigen. Ideally, the targeted antigen should be chosen on the basis of its selective expression by malignant cells, but for many tumor antigens the target is expressed only at differential levels on the malignant cell. For example, carbonic anhydrase IX (CAIX) is frequently overexpressed by clear cell renal carcinoma (RCC) but is also expressed by bile duct epithelial cells. Cholangitis with periductal T cell infiltration was observed when patients with metastatic renal cell carcinoma were treated with autologous T lymphocytes expressing a CAR targeting CAIX (Lamers et al., 2006). One way to obviate this type of problem may involve selection of single-chain antibodies that have low target affinity, so that (normal) low-expressing cells are spared. Alternatively, an inducible system may be used to favor the expression of the transgene at the specific tumor site (Kim et al., 2008). For other tumors, the CAR is deliberately directed toward a lineage-restricted antigen present on both normal and malignant cells. For example, CARs targeting B lymphocyte self-antigens, such as CD19 and CD20, will inevitably target both leukemic cells derived from the B cell compartment and normal lymphocytes, with potential effects on humoral immunity. In this example, infusion of human gamma globulins may compensate for the deficit, which would be deemed acceptable if the approach treats an immediately life-threatening condition. As we increase the potency of CAR-modified T cells and enhance their ability to survive, function, and expand in vivo, it is likely that the adverse consequences of these “on and off” target effects will become more evident. For this reason, there is increasing interest in the possibility of including a suicide gene in the CAR-modified T cells so that progressive or unwanted “on and off” target effects could be more readily controlled (Bonini et al., 1997; Straathof et al., 2005b; Quintarelli et al., 2007).

Conclusion and Future Perspectives

Although a long stretch of CAR-modified T cell development lies ahead, the first glimmers of effectiveness are with us, and the signposts to future success are clearly illuminated. Although we are unfortunately not “nearly there” yet, the second half of the journey should be more clinically productive than the first. Imminent clinical trials will use T cells that have been more extensively engineered, to contain countermeasures to tumor immune evasion strategies such as production of inhibitory cytokines, and to incorporate more effective killing mechanisms such as immunotoxins. A broader range of solid tumors will also be targeted. But beyond these scientific developments, there will also be concomitant technical improvements in cell preparation and testing that will simplify and accelerate administration of these cells to patients with disease, and that will facilitate application outside the current limited number of highly specialized centers. These technological and distributive advances will themselves be driven by demonstrations of the incontrovertible effectiveness of CAR-modified T cells and by confirmation of their superior pharmaco-economics due to fewer adverse effects than conventional agents.

Footnotes

Acknowledgments

This work was supported in part by the Leukemia & Lymphoma Society Specialized Center of Research (SCOR; grant no. 7018) (M.K.B.), NIH RO1CA131027 (B.S.), Leukemia & Lymphoma Society Translational Research grants (G.D. and BS), and a Doris Duke Charitable Foundation/Clinical Scientist development award (G.D.). All authors contributed in writing the manuscript.

Author Disclosure Statement

The authors declare no competing financial interests.
