The Effect of Type 1 IFN on Human Aortic Endothelial Cell Function In Vitro : Relevance to Systemic Lupus Erythematosus

Abstract

Cardiovascular disease (CVD) is an important cause of morbidity and mortality in patients with systemic lupus erythematosus. The etiopathogenesis of premature CVD is not fully understood, but recently interferon-alpha (IFNα) has been implicated as a contributing factor. Since IFNα has been associated with both disease activity and endothelial dysfunction in lupus patients, we aimed to determine whether IFNα has direct effects on human aortic endothelial cell (HAoEC) function in vitro. We studied the function of IFNα2b-treated HAoECs in terms of cell proliferation, capillary-like network formation, and nitric oxide (NO) generation. Changes in gene expression were also analyzed using an exon gene array. IFNα2b regulated the expression of 198 genes, including recognized interferon-stimulated genes (ISGs). Gene ontology analysis showed over-representation of genes involved in antigen presentation and host response to virus but no significant changes in clusters of genes recognized as important in endothelial cell activation or dysfunction. HAoEC proliferation, tubule formation, and NO bioavailability were unchanged, suggesting that IFNα in isolation does not have a direct impact on aortic endothelial cell function.

Introduction

Patients with systemic lupus erythematosus (SLE) have a significantly increased risk of premature cardiovascular disease (CVD), which is not fully explained by traditional cardiovascular risk factors (Ward 1999). In addition to clinical cardiovascular events, there is an increased prevalence of subclinical CVD. We have previously demonstrated that lupus patients have endothelial dysfunction, when compared to age- and sex-matched healthy controls, even in the absence of clinical CVD (El-Magadmi and others 2004).

Interferon-alpha (IFNα) is an important pro-inflammatory cytokine in SLE, produced by activated plasmacytoid dendritic cells and neutrophils (Denny and others 2010; Trinchieri 2010). The expression of IFN-stimulated genes (ISGs) within blood mononuclear cells from lupus patients is associated with disease activity (Feng and others 2006; Hua and others 2006). The combination of genes reported as forming this “interferon-signature” is variable, but commonly contains MX1, PRKR, IFIT1, and IFI44. The expression of MX1 directly correlates with endothelial dysfunction in SLE, as measured by peripheral arterial tonometry (Lee and others 2007). Recently, in a principal component analysis of 5 commonly used ISGs, specific individual genes were associated with the different measures of subclinical CVD in lupus patients (Somers and others 2012).

The mechanism by which IFNα induces endothelial dysfunction is unknown. Pharmacological doses of IFNα2b rapidly result in the development of endothelial dysfunction and reduced exercise tolerance in patients with hepatitis C (Takase and others 2001). A direct effect of IFN on the endothelium is supported by the observation that endothelial cell biopsies from lupus patients strongly express ISGs (IFIT3, IFI44L, IFI6, MX2, IFIT1, OAS1, and OAS2) (Goldenberg and others 2011). This suggests a functioning IFN receptor in the endothelium, which is able to respond to circulating IFNα. Previous in vitro studies have demonstrated that IFNα induces cytokine expression, impairs tubule network formation and increases sensitivity to apoptosis in human venous endothelial cells (HUVECs) (Kaiser and others 2004; Tissari and others 2005; Cheng and others 2012). However, endothelial cell heterogeneity makes it difficult to extrapolate these results to cells derived from other vascular beds (Aird 2007). In terms of cellular proliferation, for example, IFNα has been shown to inhibit growth in dermal microvascular cells, while either increasing proliferation, or having no effect in HUVECs (Ruszczak and others 1990; Gomez and Reich 2003; Erdmann and others 2011). In studying the pathogenesis of CVD, the use of carotid, coronary, or aortic cells may be preferable as atherosclerosis develops in the arterial system in human subjects. Patients with SLE have a markedly increased prevalence of aortic atherosclerosis compared with healthy controls (Roldan and others 2010). Therefore, the aim of this study was to identify the effects of IFNα on arterial endothelial cells to determine whether IFN can directly contribute to endothelial dysfunction in patients with SLE.

Materials and Methods

Human aortic endothelial cells (HAoECs) from 2 individual donors (Promocell) were cultured in a humidified environment at 37°C, 5% CO₂ in EGM-MV2 (Promocell) supplemented with 5% foetal bovine serum (FBS), 100 U/mL penicillin, and 100 μg/mL streptomycin (Sigma-Aldrich). All proliferation and tubule formation experiments were carried out using HAoEC from >2 individuals. HUVEC (Promocell) from pooled donors [cultured in EGM (Promocell) supplemented with 5% (FBS) and antibiotics as above] were used as a comparator cell type in the proliferation/tubule formation studies. Experiments were conducted with cells at passages 3–9.

Reverse-transcription polymerase chain reaction and microarray analysis

Confluent HAoECs were serum-starved for 4 h and then fresh media (±10 ng/mL IFNα2b or vehicle) added for 6 h. Cells were lysed using TRI Reagent^® (Sigma-Aldrich) and RNA was extracted according to the manufacturer's protocol followed by treatment with DNase I (Ambion) at 37°C for 30 min, to ensure removal of residual genomic DNA. The RNA pellet was precipitated and quantified using a NanoDrop ND-1000 spectrophotometer (NanoDrop Technologies). Reverse transcription of 1 μg RNA was carried out using a Precision NanoScript Reverse Transcription kit (PrimerDesign) in a total volume of 20 μL.

Expression of the IFN-stimulated gene IFI44 and GAPDH (reference gene) was determined using 1 μL cDNA according to the following protocol: Denature at 94°C for 5 min, followed by 30 cycles of 94°C for 20 s, 59°C for 40 s, 72°C for 40 s; and a final elongation step at 72°C for 7 min. Primers used were IFI44 (Sense 5′-TTGGAGGGAAGCGGCTTAGCCT-3′; anti-sense 5′-TGGACCCAGCAGCAGAATTCGT-3′) and GAPDH (Sense 5′-CCACCCATGGCAAATTCCATG-3′; anti-sense 5′-TCTAGACGGCAGGTCAGGTCCACC-3′). Polymerase chain reaction products were run on a 1% agarose gel containing 0.05% (w/v) ethidium bromide at 100 V for 40 min. The result of this was used to identify a suitable concentration of IFNα2b for the genome wide analysis below.

For the exon gene array, the integrity and purity of the RNA was confirmed by RNA 6000 NanoAssay on an Agilent 2100 Bioanalyzer. All RNA samples had a RNA integrity number >9.90. An Affymetrix GeneChip Human Exon 1.0 ST Array (version 2.0) was performed using 50 ng RNA from IFN-treated (10 ng/mL IFNα2b for 6 h) or vehicle-treated HAoECs from 2 independent experiments. Microarray data quality, normalization, and expression analysis were assessed using Affymetrix GCOS software, dChip, and RMA (Li and others 2001). Further statistical analysis of the dataset, including Principal Components Analysis and t-tests, were performed using maxdView (available from http://bioinf.man.ac.uk/microarray/maxd/). Differentially expressed genes were defined as those with a fold-change ≥2 and a mean fluorescence signal intensity of >50 for at least 1 of the treatment groups. Significance was defined as a q≤0.2 (with Bonferroni correction to adjust for the effect of multiple comparisons). Gene ontology (GO) analysis was performed using the online DAVID Functional Annotation Tool (Huang and others 2009). Normalized data files are available on the ArrayExpress Website under the reference E-MEXP-3746 (www.ebi.ac.uk/arrayexpress/experiments/E-MEXP-3746/).

Proliferation studies

HAoECs were seeded at 1×10⁴/cm² into 24-well culture plates containing 9 mm diameter glass coverslips (Nunc) and allowed to adhere overnight. Cells were serum-starved for 4 h (EGM-MV2 with no FBS) and then cultured for up to 72 h in the presence of 10 ng/mL IFNα2b (Promokine) or vehicle control, in triplicate, in EGM-MV2 5% FBS. At each time point (0, 24, 48, and 72 h) triplicate coverslips were removed, fixed in 5% trichloracetic acid for 30 min, stained with Mayer's hematoxylin for 5 min, and rinsed for a further 5 min in running tap water. Coverslips were then mounted onto glass slides and 3 random fields per coverslip were visualized at × 100 magnification using a Leica CTR 5000 microscope and Leica DFC320 color camera. The number of nuclei per field was counted using ImageJ software (http://rsb.info.nih.goc/ij).

Cell proliferation and mitochondrial activity was also measured using Cell Proliferation Kit 1 (MTT) (Roche) according to the manufacturer's instructions. Briefly, 1×10⁴/cm² HAoECs or HUVECs were cultured in 96-well plates in the presence of IFNα2b (0.1–10 ng/mL) for up to 72 h. At each 24 h time point, triplicate wells were incubated with 50 μg 3-[4,5-dimethylthiazol-2-yl]-2,5-diphenyltetrazolium bromine (MTT) for 4 h at 37°C, and the resulting purple formazan crystals solubilized with 10% sodium dodecyl sulfate (SDS) in 0.01 M HCl overnight. Plates were then read at wavelength 570 and 750 nm (referent) using a BioTek EL800 plate reader running Gen5 software (BioTek Instruments). Vascular endothelial growth factor A (VEGF-A; 20 ng/mL) (Promokine) and the nitric oxide (NO) scavenger PTIO (as carboxy-PTIO potassium salt) (10 μM) (Sigma-Aldrich) were used as positive and negative controls respectively.

NO bioavailability

HAoECs were plated at 2.5×10⁴ cells/cm² in 24-well plates and cultured until 90% confluent. The media (500 μL) was replaced with fresh EGM-MV2 containing 0.1–10 ng/m IFNα2b in triplicate, and then removed at 6 or 24 h. Total nitrite concentration was determined using the nitrate/nitrite colorimetric assay kit (Cayman Chemical Company) according to the manufacturer's protocol and read at 550 nm. This assay contains nitrate reductase, which converts all available nitrate to nitrite and can detect nitrite concentration of 2.5 μM, providing an indirect measure of NO bioavailability.

Tubule formation assays

The ability of endothelial cells to form tubule networks on a gel matrix forms the basis of numerous in vitro angiogenesis assays. It is well recognized that the formation of these networks is dependent, at least in part, on the matrix used. It is recommended, therefore, that the effect of test substances is determined on more than 1 matrix (Staton and others 2009). We therefore investigated the effects of IFNα2b in both Matrigel [two-dimensional (2D) networks] and type 1 collagen [three-dimensional (3D) networks].

To assess 2D tubule formation, initially 6×10³ HAoECs in 100 μL EGM-MV2±10 ng/mL IFNα2b were placed onto 30 μL Matrigel™ (BD Biosciences), which had been allowed to polymerize in 96-well culture plates at 37°C for 30 min. Subsequent experiments used 3.5×10³ HAoEC or 5×10³ HUVEC in 50 μL media placed onto 10 μL Matrigel in Angiogenesis μ-Slides (IBIDI). Tubule network formation was observed at 16 h using an Olympus CKX41 microscope and Olympus C-7070 camera. Images were imported into ImageJ software and the density of the network was determined by the number of branch points/junctions in 3 random fields per well.

To examine 3D tubule formation, a collagen gel was prepared using a method adapted from Abaci and others (2011). Briefly, an alkaline solution [102.225 μL DMEM (1×), 9.75 μL DMEM (10×), and 0.525 μL 5 N NaOH] was carefully mixed with a gel solution [72.2 μL type 1 rat tail collagen (BD Biosciences) and 15.25 μL 0.1% acetic acid] on ice. HAoECs were resuspended in DMEM (1×) and added to the gel solution to make a final cell concentration of 1.1×10⁶ cells/mL and collagen concentration of 1.4 mg/mL. The cell suspension was added to 96-well plates (53.8 μL/well), incubated at 37°C for 10 min, and then 100 μL EGM-MV2±10 ng/mL IFNα2b added and tubule formation assessed at 48 h.

Statistical analysis

Data were analyzed using GraphPad Prism version 6.00. Differences in the functional assays were compared using paired t-tests (proliferation and tubule formation) and one-way ANOVA (NO assay).

Results

Transcriptional analysis of IFNα2b in HAoECs

Exposure of HAoECs to IFNα2b (0.1–10 ng/mL), but not tumor necrosis factor-alpha (TNFα) (10 ng/mL), for 6 h resulted in increased expression of the ISG IFI44 (Fig. 1A, B). The genome wide analysis by Affymetrix GeneChip Exon array showed that IFNα2b had a significant effect on gene expression in HAoECs. A total of 198 genes were significantly regulated by IFN (fold change ≥2; q<0.2) although of these only 5/198 (2.5%) were downregulated.

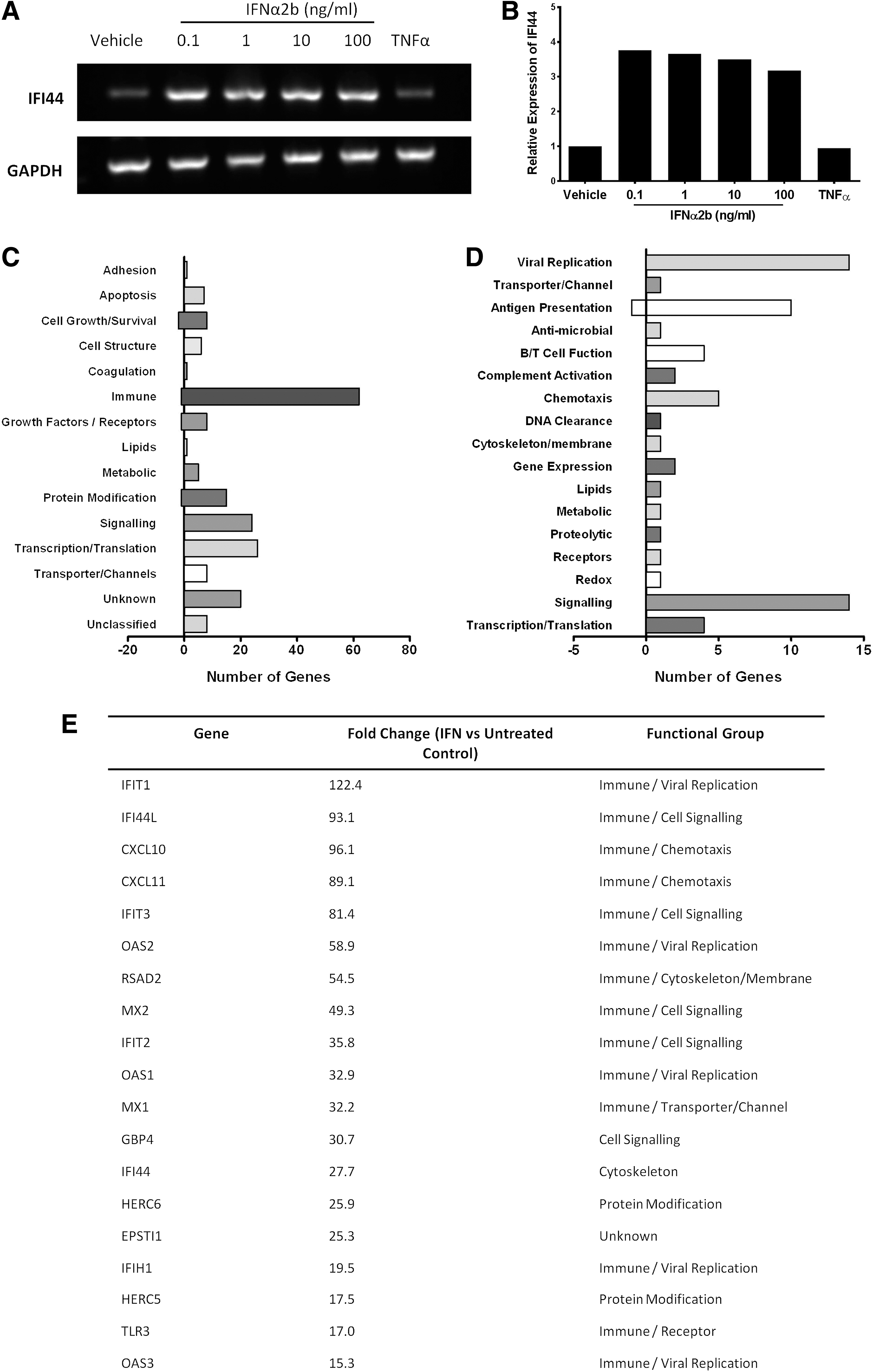

FIG. 1.

Gene expression in human aortic endothelial cell (HAoEC) in response to IFNα2b. (A) IFNα2b (0.1–100 ng/mL) but not tumor necrosis factor-alpha (TNFα) (10 ng/mL) increases expression of the interferon-sensitive gene IFI44. Reverse transcription-PCR products shown for IFI44 and the reference gene GAPDH. (B) The fold change in IFI44 was similar across doses of IFN. (C) Gene ontology (GO) analysis of 198 differentially expressed transcripts by IFNα2b (fold ≥2, q ≤0.2) according to biological function reveals over-representation of genes with immunoregulatory function. (D) A more detailed GO analysis of the 63 genes initially assigned to immune function group shows marked expression of genes involved in viral replication and antigen presentation. (E) Tabulation of genes upregulated by IFNα2b by ≥15-fold includes the recognized ISGs IFIT1, IFI44L, and MX1.

GO analysis was performed to classify the 198 genes according to their biological function. The largest group of transcripts regulated by IFNα2b were those involved in immune system function (62 genes) followed by genes related to transcription and translation (26 genes) and intracellular signaling pathways (24 genes) (Fig. 1C). Within the immune-related group, 14 genes were involved in inhibition of viral replication (Fig. 1D).

The ISGs IFIT1 and IFI44L were among the upregulated genes and expression was increased by 122.4- and 93.1-fold respectively. Genes upregulated by ≥15-fold are presented in Figure 1E and include recognized ISGs (IFIT1, IFI44L, IFIT3, MX1, MX2, OAS1, and OAS2).

To demonstrate that this endothelial model was robust an identical exon array was also performed using TNFα (10 ng/mL) (Heathfield and others 2012). In contrast to IFNα2b, TNFα differentially regulated 11,327 genes (q≤0.2) with ≥2-fold changes in 206 genes (Fig. 2A). Only 20 genes were upregulated by both TNFα and IFNα2b by ≥2-fold including recognized ISGs; MX1, IFIT3, and IFI30 (Fig. 2B).

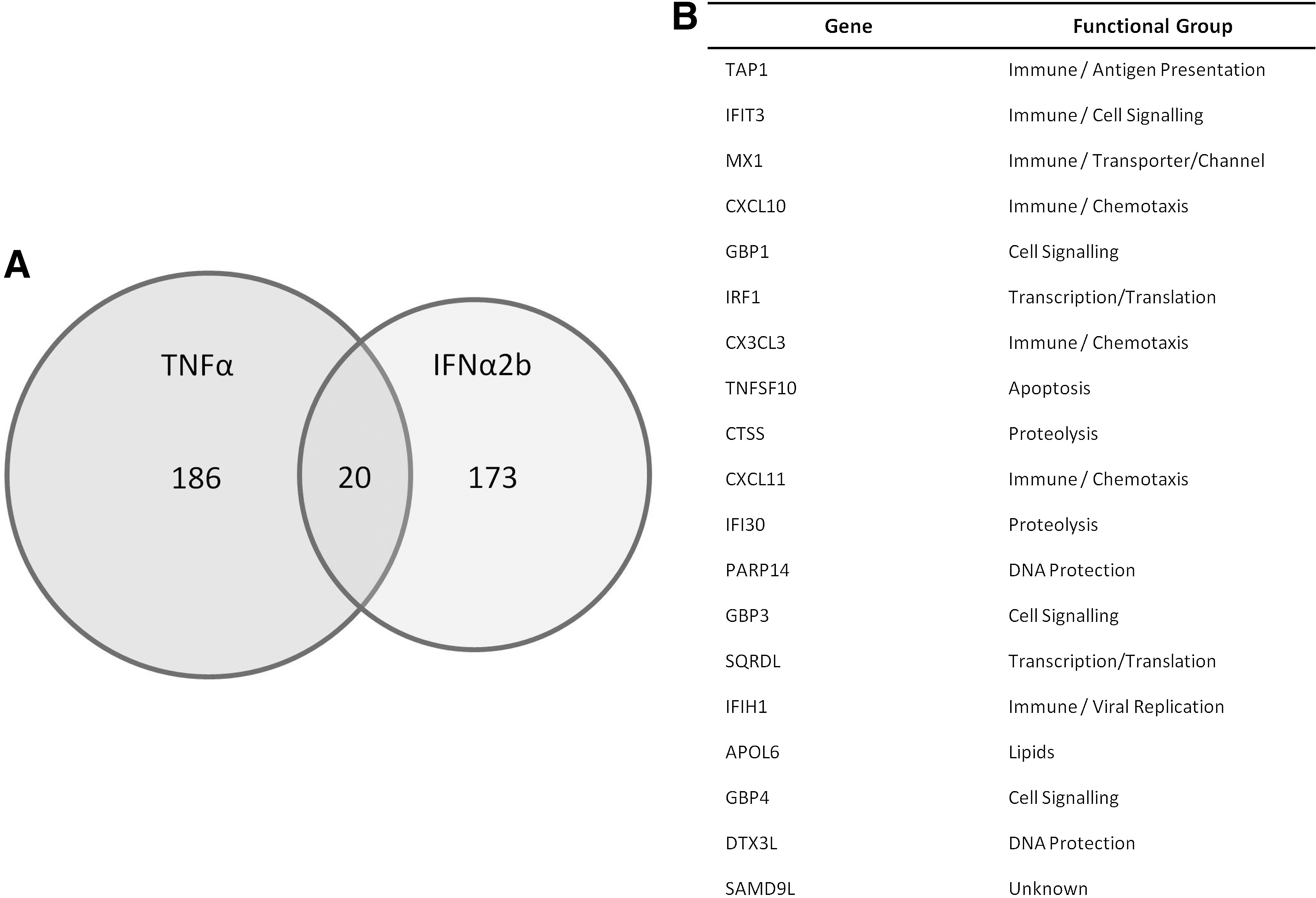

FIG. 2.

HAoEC gene expression in response to IFNα2b and TNFα. (A) Venn diagram to show number of genes significantly upregulated by both IFNα2b and TNFα in the exon gene arrays. (B) The expression of 20 genes is significantly upregulated by both cytokines.

Effect of IFNα2b on endothelial cell proliferation and NO availability

The number of HAoECs in random fields increased over the time course, demonstrating that the cell culture conditions were adequate for cellular proliferation. IFNα2b (10 ng/mL) had no effect on the number of cells counted at 24, 48, or 72 h (Fig. 3A), indicating no effect on HAoEC proliferation.

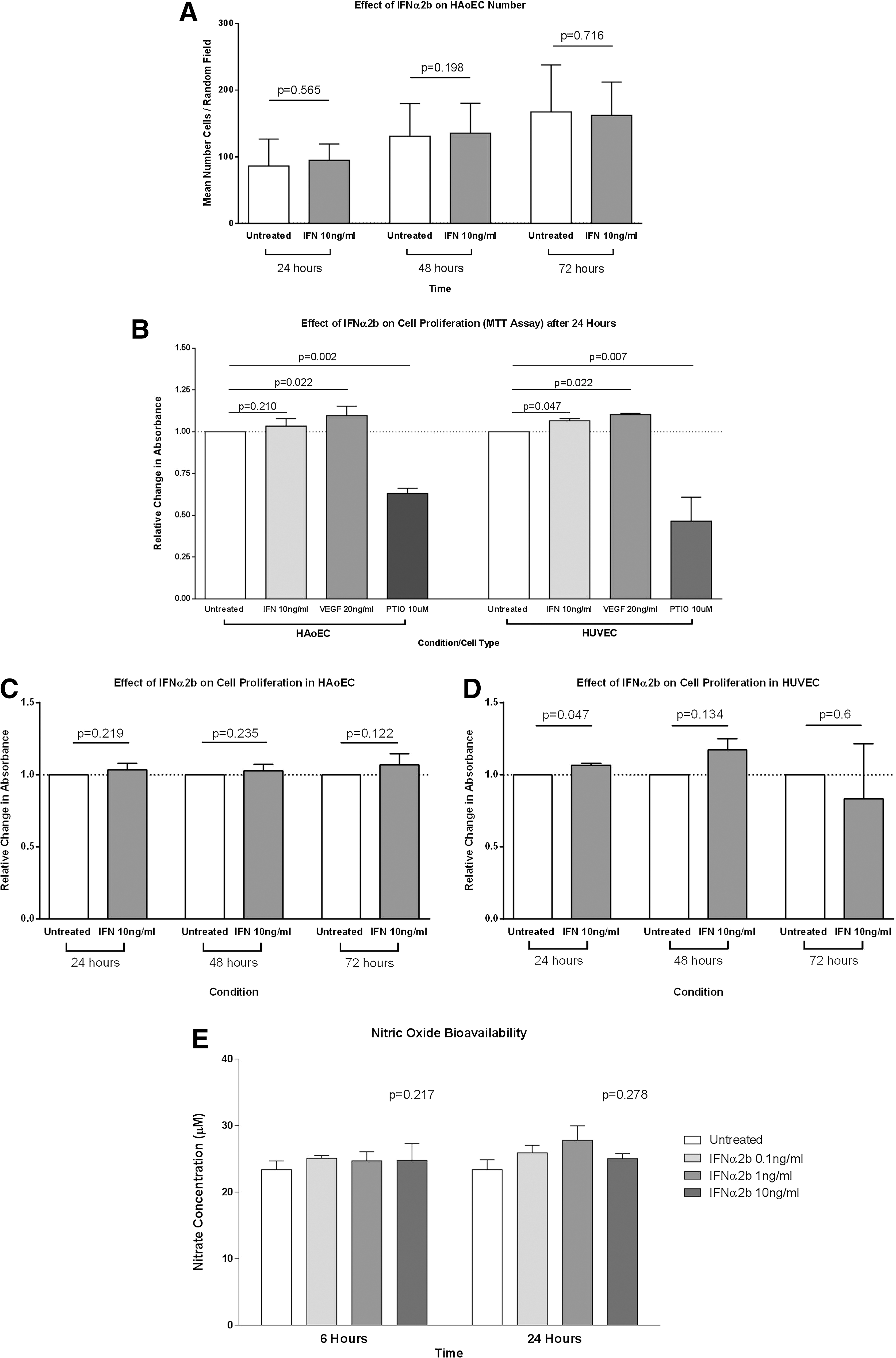

FIG. 3.

The effect of IFNα2b on endothelial cell proliferation and nitric oxide (NO) bioavailability. (A) IFNα2b had no effect on the number of HAoECs at 24, 48, or 72 h compared to vehicle control. Bars represent the mean and SE of the mean; combined results from n=3 independent experiments. (B) Cellular proliferation as measured by MTT assay shows a positive effect of vascular endothelial growth factor (VEGF) (20 ng/mL) and a negative effect of the NO scavenger PTIO (10 μM) on proliferation in both HAoEC and human venous endothelial cell (HUVEC) after 24 h. The absorbance values were normalized to vehicle-treated cells. (C) IFNα2b (10 ng/mL) had no effect on proliferation compared to vehicle control in HAoEC at 24, 48, or 72 h. (D) In contrast, IFNα2b significantly increased HUVEC proliferation at 24 h (P=0.047). This effect persisted to 48 h but was not statistically significant (P=0.134) at this time point. (E) The NO bioavailability (as measured by supernatant nitrite concentration) was not changed by IFNα2b (0.1–10 ng/mL) at either 6 or 24 h.

The effect of IFNα2b on HAoEC proliferation was also measured using an MTT assay. HUVECs were used as a comparator cell population. VEGF-A (20 ng/mL) and carboxy-PTIO (10 μM) were used as positive and negative control treatments respectively. After 24 h, in both HAoEC and HUVEC there was a significant increase in proliferation in VEGF-A-treated cells (P=0.022 for both cell types) and a significant decrease in PTIO-treated cells (P=0.002 and P=0.007, respectively) (Fig. 3B). IFNα2b (10 ng/mL) had no effect on HAoEC proliferation at 24 h (P=0.210) but resulted in a small but significant increase in HUVEC proliferation (P=0.047) at this time point. However, at 48 and 72 h IFNα2b had no significant effect on proliferation in either cell type (Fig. 3C, D), although the trend toward increased HUVEC proliferation was seen at 48 h.

NO bioavailability was measured in the cell culture supernatant from HAoECs treated with either IFNα2b (0.1–10 ng/mL) or vehicle control. IFNα2b had no effect on the total nitrate and nitrite concentration at either 6 or 24 h (P=0.217 and P=2.78 respectively) (Fig. 3E).

Effect of IFNα2b on endothelial tubule network formation

Both HAoECs and HUVEC spontaneously formed capillary-like tubule networks in Matrigel. The addition of IFNα2b (10 ng/mL) to the media did not have any significant effect on the density of HAoEC tubule network (P=0.371) (Fig. 4A, B). Similar to the proliferation studies above, VEGF-A significantly increased the network density (P=0.026) while carboxy-PTIO markedly impaired tubule formation by >50% (P=0.001) (Fig. 4B). IFNα2b also had no effect on the tubule-forming capacity of HUVEC (P=0.339) (Fig. 4C). HAoEC formed smaller, less well-connected tubules in a type 1 collagen matrix (Fig. 4D). These networks are more difficult to accurately quantify, although no effect of IFNα2b was seen.

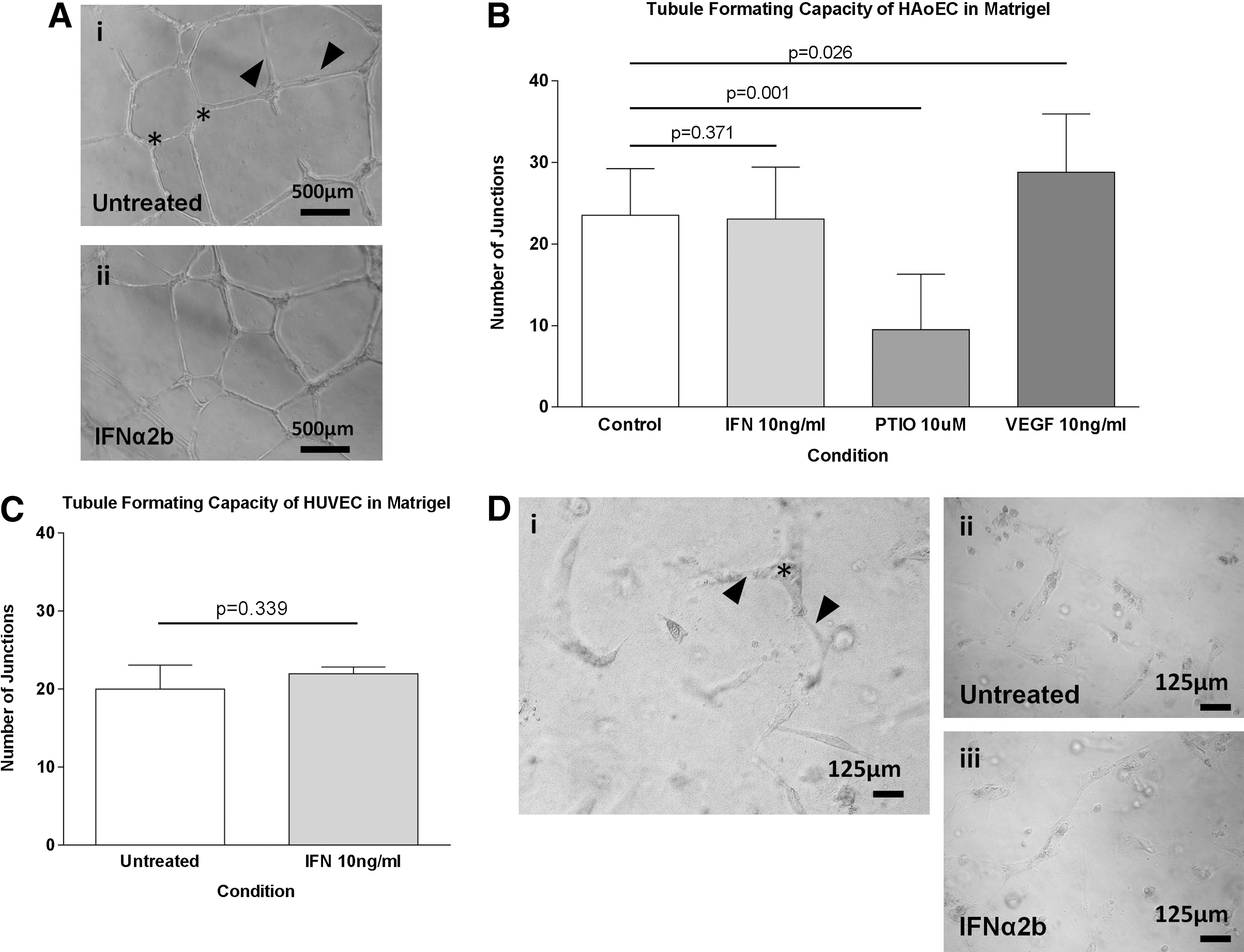

FIG. 4.

The effect of IFNα2b on endothelial cell tubule network formation. (A) HAoEC formed tubule networks in Matrigel with clear branches (arrowheads) and branch points/junctions (star). Network density was determined by the number of junctions in 3 random fields. Each experimental condition was conducted in triplicate and each graph represents n>3 independent experiments. Bars represent the mean (SE) number of junctions. (B) The density of the HAoEC network was significantly increased by 10 ng/mL VEGF-A (P=0.026) and decreased by 10 μM carboxy-PTIO (P=0.001). IFNα2b (10 ng/mL) had no effect on the HAoEC network density. (C) Similarly, the network density was not changed in HUVEC. Similar positive and negative effects of VEGF-A and PITO were seen in HUVEC (data not shown). (D-i) HAoEC tubule networks in three-dimensional (3D) type 1 collagen matrix were less complex than those on Matrigel. Representative image to show branch points/junctions (star) and branches (arrowheads). (D-ii, iii) Representative images of HAoEC networks in the presence of IFNα2b (10 ng/mL) or vehicle control show no difference in tubule network structure or density.

Discussion

IFNα induced the expression of known ISGs in aortic endothelial cells. This interferon signature was comparable to that seen in endothelial biopsies of lupus patients (Goldenberg and others 2011), in peripheral blood cells (Baechler 2003), and in epithelial cell lines following treatment with lupus patient serum (Hua and others 2006). The gene expression profile is dominated by genes involved in immune system regulation; particularly viral replication (IFIT1, OAS2, and OAS1), leukocyte chemotaxis (CXCL10 and CXCL11), and intracellular signaling (IFIT3, MX2, and IFIT2). These observations support the role of IFNα2b in the host response to viral infection. The principal component analysis by Somers and others (2012) showed that PRKR expression alone was associated with endothelial dysfunction, while components including IFIT1, IFI4, and MX1 were more strongly associated with carotid intima medial thickness and coronary calcification. Our transcriptional analysis did not show any direct regulation of PRKR expression in aortic endothelial cells. Similarly, lupus patient endothelial biopsies had downregulated genes in the TGFβ pathway, which again were not seen in our array. Our results suggest that these changes are not due to the direct effect of IFN on endothelial cells and may represent the effects of other cytokines.

Interestingly, some of the ISGs were also regulated by TNFα, although the fold expression changes were lower. The “IFN signature” itself may therefore not be exclusive to type 1 interferon and may be influenced by other inflammatory cytokines. In contrast to the effect of TNFα on HAoECs (Heathfield and others 2012), within the 198 genes significantly regulated by IFN, those associated with endothelial cell activation (eg, vascular cell adhesion molecules) were notably absent.

We found that despite significant upregulated expression of ISGs in HAoECs, IFNα had no significant effect on HAoEC function in an isolated culture system. We performed a comprehensive assessment of endothelial function in terms of proliferation, NO production and tubule forming capacity using multiple methodologies. It is possible that cellular response to IFNα is determined by the origin of the endothelial cell. For example, the induction of ISGs by IFNα2b, differs between lymphatic- and blood vessel-derived endothelial cells (Moll and others 2011). Previous studies in human cells have primarily focused on dermal microvascular cells (Ruszczak and others 1990; Sgonc and others 1998) or HUVECs (Eguchi and others 1992; da Silva and others 2002; Gomez and Reich 2003; Tissari and others 2005); however, these may be less relevant to models of endothelial dysfunction and atherosclerosis.

The effects of IFNα on HUVECs remains unclear; we found a small increase in proliferation at 24 h that persisted (although not significantly) at 48 h. This is consistent with a previous study (Gomez and Reich 2003), although others have shown no effect (Erdmann and others 2011), or even inhibition of proliferation (Wang and others 2008; Wada and others 2009). More intriguingly, our proliferation assay shows a difference in response to IFNα2b between HAoEC and HUVEC, while the effects of VEGF-A and PTIO were similar. It is well recognized that cells from different vascular beds exhibit marked differences in terms of function and gene expression in vitro (Craig and others 1998; Aitsebaomo and others 2008). Complicating matters further, molecular profiles may also differ between regions of the same vessel (Passerini and others 2004). Further discrepancies may be due to the use of fetal (HUVEC) and adult (HAoEC) cells. Transcriptomic analysis reveals differences in the expression profile between foetal and mature cells from the same vascular bed (Chen and others 2013). Our studies utilized HAoEC as this cell type is both arterial and mature adult is thus likely to most closely resemble those cells in which atherosclerosis develops in vivo.

Only the study by Gomez and Reich (2003) has investigated the effect of IFNα on human aortic cells. In these experiments IFNαA/D (∼4 ng/mL) increased HAoEC proliferation by around 3-fold after 72 h. However, in our experiments we did not see any effect on proliferation at concentrations of up to 10 ng/mL over the same time period. Possible explanations for this discrepancy include differences due to the splice variant of IFN used (IFNα2b versus IFNα2a), a potential interaction between IFNα and the components of FBS, or in the measurement of proliferation (MTT versus ³[H]-thymidine incorporation). Our studies used IFNα2b as it is considered the most pluripotent of the IFNα family and is associated with endothelial dysfunction at pharmacological doses in vivo (Takase and others 2001). In the studies by Gomez and Reich (2003), HAoECs were cultured in basic media containing high concentrations of FBS (20% compared to only 5% in our studies). Components of FBS are known to interact with test agents in experimental culture systems and so may positively modulate IFNα signaling when high concentrations of FBS are used (Ribereau-Gayon and others 1995; Ueyama and others 1995). Additionally, it is recognized that formazan-based assays (ie, MTT) reflect mitochondrial activity, while ³[H]-thymidine incorporation assays measure DNA replication, and that these 2 measures do not directly correlate with each other (Wittstock and others 2001).

Recently, others have shown that IFNβ but not IFNα impairs proliferation of microvascular lung endothelial cells and HUVECs by causing cell cycle arrest (Erdmann and others 2011).

We propose therefore that type 1 interferons can impair endothelial function via different mechanisms; either direct endothelial toxicity (IFNβ) or by inhibiting endothelial repair mechanisms (IFNα). Circulating angiogenic cells (CACs) and endothelial progenitor cells (EPCs) have important roles in the repair of damaged vasculature and participate in angiogenesis both in vitro and in vivo. The first observation was that early-EPC colony forming units (CFUs) were fewer in patients with SLE compared to healthy controls (Lee and others 2007) supported by data from our group (Haque and others 2009). This phenomenon was associated with the increased expression of the ISG MX1 and replicated by the addition of IFNα2b in vitro. Mixed CAC/EPC populations underwent apoptosis in the presence of IFNα and were driven toward a non-angiogenic phenotype (Denny and others 2007). Further, abnormal EPC function in lupus-prone NZB/NZW mice was replicated in control animals (BALB/c) by the addition of IFNα in vitro (Thacker and others 2010). The detrimental effects of IFNα on EPC function have recently been investigated in vivo by the generation of lupus-prone IFNαβ-receptor knockout mice. These animals have increased numbers of EPCs and improved endothelial function compared with lupus-prone mice with a functioning IFN pathway (Thacker and others 2012).

In summary, the effects of IFNα on the development of vascular dysfunction and CVD in patients with SLE do not appear to be due to a direct effect upon the mature endothelium. Further work should focus on the role of IFNα in vascular repair mechanisms and the development of relevant in vitro models should instead be based upon CAC/EPC function.

Footnotes

Acknowledgments

We thank the Genomic Technologies Core Facility in the Faculty of Life Sciences at the University of Manchester for providing technical support and advice with regard to Affymetrix arrays. J.A.R. received funding from a NIHR Manchester Biomedical Research Centre (BRC) Clinical Research Training Fellowship and is a MRC Clinical Training Fellow supported by the North West England Medical Research Council Fellowship Scheme in Clinical Pharmacology and Therapeutics, which is funded by the Medical Research Council (grant number G1000417/94909), ICON, GlaxoSmithKline, AstraZeneca, and the Medicines Evaluation Unit. I.N.B. is a National Institute for Health Research (NIHR) Senior Investigator and is supported by Arthritis Research UK, The Manchester Academic Health Science Centre, the NIHR Biomedical Research Unit Funding Scheme, The NIHR Manchester Wellcome Trust Clinical Research Facility and the NIHR Manchester Biomedical Research Centre. The views expressed in this publication are those of the authors and not necessarily those of the NHS, the National Institute for Health Research or the Department of Health.

Author Disclosure Statement

No competing financial interests exist.
