A Suggestion on How to Compare 2D and 3D Laparoscopy: A Qualitative Analysis of the Literature and Randomized Pilot Study

Abstract

Background and Aims:

The results of studies comparing two-dimensional (2D) and three-dimensional (3D) laparoscopy have shown variable results. We aimed to review the literature and develop an appropriate instrument to compare 2D and 3D laparoscopy. We further aimed to use the data extracted to perform a pilot study.

Methods:

Sixty-seven recent articles on 3D laparoscopy were reviewed and data extracted on factors influencing outcome variables. These variables were used to design a pilot study of 28 novices using a randomized crossover design. The results were analyzed using descriptive statistics and the Wilcoxon signed-rank tests.

Results:

Seven themes were identified to influence the outcome of 3D studies: applied technique (1), experience of subjects (2), study design (3), learning curve (4), subjective qualitative reports (5), laparoscopic tasks (6), and chosen outcome variables (7). The consecutively developed five laparoscopic simulation tasks contained placing a rubber band over hooks, ring and pearl transfer, threading a pipe cleaner through loops, and placing a suturise. The pilot study showed a primary benefit of 3D laparoscopy that was unrelated to repetition. Two tasks served well to assess first-time performance, and two tasks promise to serve well to assess a learning curve if performed repeatedly.

Conclusion:

We were able to identify important issues influencing the outcome of studies analyzing 3D laparoscopy. These may help evaluate future studies. The developed tasks resulted in meaningful data in favor of 3D visualization, but further studies are necessary to confirm the pilot test results.

Introduction

Experiments with three-dimensional (3D) laparoscopy have been carried out for approximately two decades. The results have been conflicting. This is true for the first generation of 3D visualization, where heavy battery-powered active shutter glasses were used, and the second generation that applied helmet-style head-mounted displays.^1–6 Data for the currently used third generation, applying passive polarizing 3D techniques, are less ambiguous. According to a recent review, ∼80% of the studies showed a benefit in the 3D visualization.⁷

Nevertheless, 3D systems have not been universally accepted and are not standard equipment at most hospitals. This is likely related to the high cost of these systems and absence of clear data supporting a benefit. The studies published to date have had variable study designs, small numbers, or subjective data. We aimed to perform a qualitative analysis of the available literature to create a tool to evaluate 3D laparoscopy studies. This tool would hopefully allow an objective evaluation of existing studies and allow for a high quality of future studies. We further aimed to perform a pilot study to compare two-dimensional (2D) and 3D laparoscopy.

Materials and Methods

The first part of our study was to perform a qualitative analysis of the literature to find factors influencing the outcome of 3D laparoscopy studies. We focused on recent reviews and the references contained within those reviews. A literature search (PubMed/MEDLINE and Google Scholar) with the search terms “Three-dimensional,” “3D,” “laparoscopy,” and “review” was used to identify relevant articles. The search was limited to articles published since 2014 and written in English. The “Preferred Reporting Items For Systematic Reviews and Meta-Analyses” (PRISMA) guidance were applied.⁸

Eligible reviews were identified and their references extracted. Doubles were removed. The abstracts of all references were scanned and checked for their relevance. Exclusion criteria were congress presentations, anecdotal reports about early experience, studies with a focus other than 3D laparoscopy, and studies analyzing robotic systems.

A qualitative study design was applied: full-text copies of all included articles were obtained. All articles were analyzed focusing on study design, considered or discussed influencing factors and confounders. This was done as an iterative process by two of the authors separately. Relevant issues were identified, then discussed, adjusted if necessary, cross-checked with the articles, and refined in the process. Disagreements about the themes were resolved by consensus. The process continued until all authors were satisfied that the themes summarized the published influences.

In the second part of our study, we developed a study design for a simulation setup for novices, taking the summarized influencing factors into account. In addition, Gray's considerations on simulated task environment were applied as a conceptual framework.⁹ Simulation tasks used in prior studies were reviewed according to Gray's dimensions: complexity, tractability, correspondence, and engagement, and the tasks were adjusted accordingly to suit our research question and focus on depth perception and varying levels of cognitive load. We further concentrated on keeping the simulation material low fidelity and cost conscience.

We then tested these five tasks on 28 novices using a randomized crossover design. Participants were laparoscopically naïve medical students doing an elective in either pediatric surgery or pediatrics at the children's hospital in Lucerne Switzerland. All participants signed an informed consent before starting the study. The tasks were done in pairs with one student working on the simulation and the other driving the camera. The participants were randomized to start the first task in either 2D (period 1) or 3D (period 2) by drawing sealed envelopes. Either S.Z. or M.H.P. supervised the experiments at all times. The time keeping and scoring was done on a grading form by S.Z. or M.H.P. or a supervised student. Each session took between 2 and 3 hours. The experiment was carried out between March 2017 and December 2017. All tasks were performed in a standard laparoscopic simulator. Imaging systems from Karl Storz, Tuttlingen, Germany were used. The 2D imaging system consisted of 2D/HD Hopkins^® 30° 10 mm diameter laparoscope, an Image1S™ camera head, and a 32″ full HD monitor. The 3D system consisted of the TIPCAM^®1 S 3D laparoscope and camera, 10 mm diameter, and 30° connected with a 32″ 3D monitor. Participants wore passive 3D glasses. Both monitors were mounted on adjustable racks to allow adjustment to participants' height.

The results were analyzed using descriptive statistics and graphical displays such as boxplots of time versus method and period. Wilcoxon signed-rank tests were performed to assess the effect of the method of laparoscopy or period on each of the exercises, making use of the advantages of intraindividual comparisons enabled by the crossover design. Due to the exploratory nature of the study, no adjustment for multiplicity has formally been applied, and a P value <.05 may be considered as significant. From a statistical point of view, it should be noted that findings generated from this study should be supported by both, a relevant difference in the descriptive statistics and a P value that preferably is substantially <.05 (indicating a potential effect even considering the conduct of multiple comparisons based upon a limited sample size).

Results

Factors influencing evaluation of 3D laparoscopy

Six relevant review articles were found during the initial literature search.^7,10–14 These articles had a total of 254 references. After deleting doubles and articles not meeting the inclusion criteria, 67 articles were analyzed. Seven influencing themes were identified by the iterative analysis:

Applied technique

The currently used 3D technique that applies binocular endoscopes and passive polarizing techniques allows for a better image than its predecessors, and is a lot more comfortable to use. Data from studies using the other techniques may reach different results, and should therefore not be used to predict the value of today's technique.

Experience of subjects

The experience of laparoscopic surgeons seems to have an impact on study results. There is some evidence on simulation and clinical settings that 3D visualization brings more benefit for less experienced surgeons.^6,15 Therefore, participants' prior experience in laparoscopic surgery should be evaluated, and authors should define whose performance they aim to assess. Generalizing results generated by novices to all laparoscopic surgeons is not viable.

Appropriate study design

A study design that eliminates bias related to repetition of tasks is essential. This is true for simulation settings and clinical studies. Comparing current 3D data with historic controls, small numbers, nonstandardized procedures, or procedures with a large variation of performance time are not clinically meaningful.^16–19 For clinical cases, the design needs to be prospective, randomized, and case controlled. For simulation studies, there needs to be a crossover design, and the change in performance in the repeated task needs to be analyzed. If two cohorts are created and each cohort is only tested on one modality, very large numbers are needed to extinguish individual aptitude and talent.

Taking single-repetition designs for an assessment of learning curve

Care should be taken that results from single-repetition studies are not used to draw conclusions on learning curves.^1,19–23 Some studies found the difference between the 2D and 3D performance indistinguishable after three²⁴ and four^25–27 repetitions. On the contrary, inexperienced laparoscopic surgeons who started a task in the 3D vision were better in performing the skill in 2D when compared with the participants who started with 2D vision.⁶ To answer the question of an accelerated learning curve with 3D, multiple-repetition studies need to be carried out.

Insufficient qualitative study designs

A number of studies report on participants' subjective preference of 3D laparoscopy.^15,18,27,28 Reliable data should be generated by using validated qualitative methods such as the NASA-TLX questionnaire.^20,22 In addition, fatigue can be measured by two different methods: the simulation sickness questionnaire (SSQ) and the critical flicker fusion (CFF) test.²⁹ Workload dimension ratings can be assessed with the National Aeronautics and Space Administration Task Load Index.³⁰

Selection of the right laparoscopic tasks

Using the right simulation tasks to assess 3D simulation is of central importance. A number of studies have used nonvalidated homemade tasks. Others have used tasks that have been validated to assess laparoscopic skills but were not validated to assess 3D performance. Furthermore, we believe that the use of tasks adapted from the “Fundamentals of laparoscopic surgery³¹” to assess the performance of novices is an often repeated mistake. From a medical education aspect, the “Fundamentals of laparoscopic surgery” combine tasks with a small cognitive load (transfer of elements, threading), and tasks that are much more difficult to accomplish and are not self-explaining. Tying a knot intracorporally without being taught to do so is an issue of trial and error. Mistry et al. have had similar thoughts when concluding that their applied MISTELS tasks may exceed a novice user's skill.³² We believe the issue of choosing the wrong tasks to be the main reason for the contradictory results of published data.^5,19,32–37 Exemplarily, Tanagho et al. found significantly better result in low cognitive load tasks with 3D but did not see any difference in knot tying.³⁵ Smith et al. used before assessment instruction, only one complex task, and issued ten repetitions,³⁸ and Mashiach et al. used low cognitive load tasks.³⁹ Both studies showed faster performance and fewer errors on 3D. Their data seem to be scientifically meaningful, and their study design should be repeated with larger cohorts.

Questionable outcome variables in clinical trials

For clinical trials, meaningful outcome criteria need to be defined. A lot of studies used clinical parameters to compare 2D and 3D laparoscopy. We believe these (e.g., early continence; a difference of 3 mL of blood loss, length of hospital stay, or mortality) to be neither dependent nor meaningful outcome parameters.^28,40–45 There is no evidence that the 3D technique is affecting these parameters. Instead, variables such as movement economy might be a much better outcome parameter.⁴⁶

One of the themes found in our qualitative analysis of the literature was not judged relevant for 3D studies: a number of studies emphasized that testing participants' stereoacuity is essential to interpret the data. Even though it is accepted that visual perception and stereoacuity vary significantly among individuals,⁴⁷ its impact on task performance is unclear. A number of practicing surgeons seem to have little stereoacuity without it effecting their career,⁴⁸ and Dion et al. found that individuals who took longer to discriminate how objects are positioned in relation to each other did not take longer fulfilling laparoscopic tasks. Even though their data rely on small numbers, they conclude that motor skills might be of more importance.⁴⁹ But most importantly, ∼2.7% of the population are believed to possess no wide-field stereopsis in one hemisphere.⁵⁰ Since the absence of stereopsis only occurs in a small percentage of individuals, we believe this issue can be neglected.

Simulation tasks for novices analyzing 3D performance

Table 1 displays the developed tasks, the focus of the exercise, the grading of performance, and photos of the simulator. Cutoff times for the rubber band exercise were 120 seconds, and for all the other tasks 300 seconds. Points from full score were taken off for nonachievement, lost objects, and lack of accuracy.

Table 1.

Simulation Tasks

Task	Description	Focus	Grading
No. 1 Rubber band Equipment: 2 Maryland dissectors	Placing a rubber band over two hooks, screwed on diagonal ends of a wooden board	Dominant hand dexterity Depth perception	Cutoff time: 120 seconds Score: 3: Rubber band straight over both loops 2: Rubber band twisted over both loops 1: only one loop 0: no loops
No.2 Ring transfer Equipment: 2 Maryland dissectors	Picking ring up with one hand, transferring it to the other hand and positioning it on a pegboard	Coordinated use of dominant and non-dominant hand Depth perception	Cutoff time: 300 seconds Score: Number of rings transfer 1 point taken off for each lost ring. Max: 6 Min: 0
No. 3 Pearl transfer Equipment: 2 Maryland dissectors	Picking pearl out of a bowl, transferring it to the other hand, and placing it into another bowl	Coordinated use of dominant and non-dominant hand Depth perception	Cutoff time: 300 seconds Score: Number of pearls transferred 1 point taken off for each lost pearl. Max: 6 Min: 0
No. 4 Threading Equipment: 2 needle drivers	Picking up a pipe cleaner and threading it through five loops	Spatial navigation, depth perception	Cutoff time: 300 seconds Score: Number of loops threaded
No. 5 Suture Equipment: 2 needle drivers	Placing a needle correctly into the needle holder, insert the needle at a set point into tissue, and bringing it out at another marked point	Maneuvering with both hands Spatial orientation, depth perception	Cutoff time: 300 seconds Score: 4: goal achieved 3: one stitch >2 mm off range 2: both stitches >2 mm off range 1: only one stitch 0: no stitch

Pilot test results

The performance of 28 laparoscopically naïve medical students was analyzed as a pilot test. Figures 1 and 2 display boxplots of median times needed for each task, differentiated for either method or period. Medians, quartiles, and P values are shown in Tables 2 and 3. As a rule, all five tasks were done faster and with fewer mistakes in 3D than in 2D. Considering both, the graphic and the P value data, this is least distinct in Task 1 and most distinct and significant in Tasks 2 and 3, where P values were <.001 and .002, respectively.

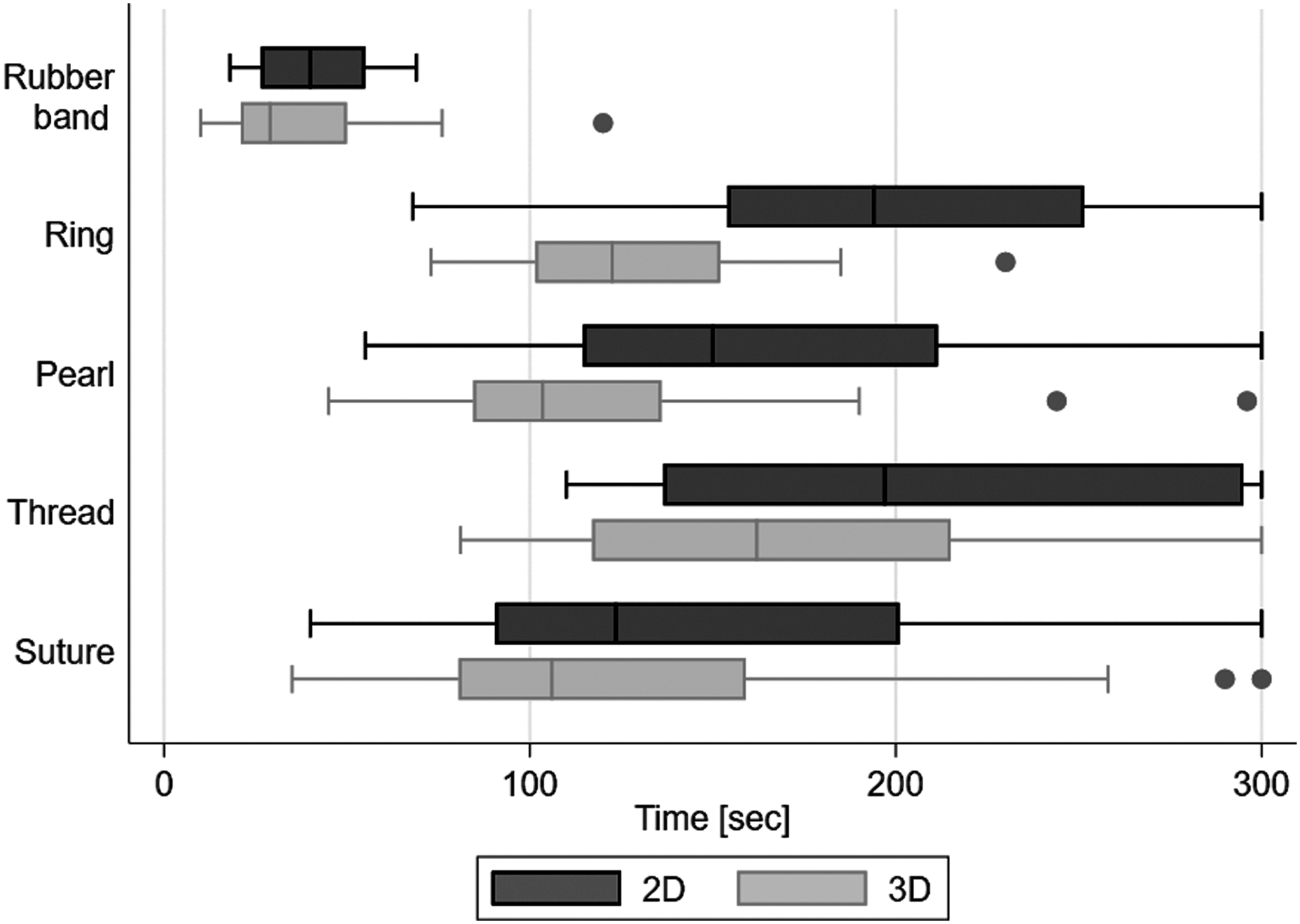

FIG. 1.

Median time differentiated by method (2D/3D). The boxplots show the times needed to complete the exercise carried out in either 2D (upper) or 3D (lower) boxplot. 2D, two dimensional; 3D, three dimensional.

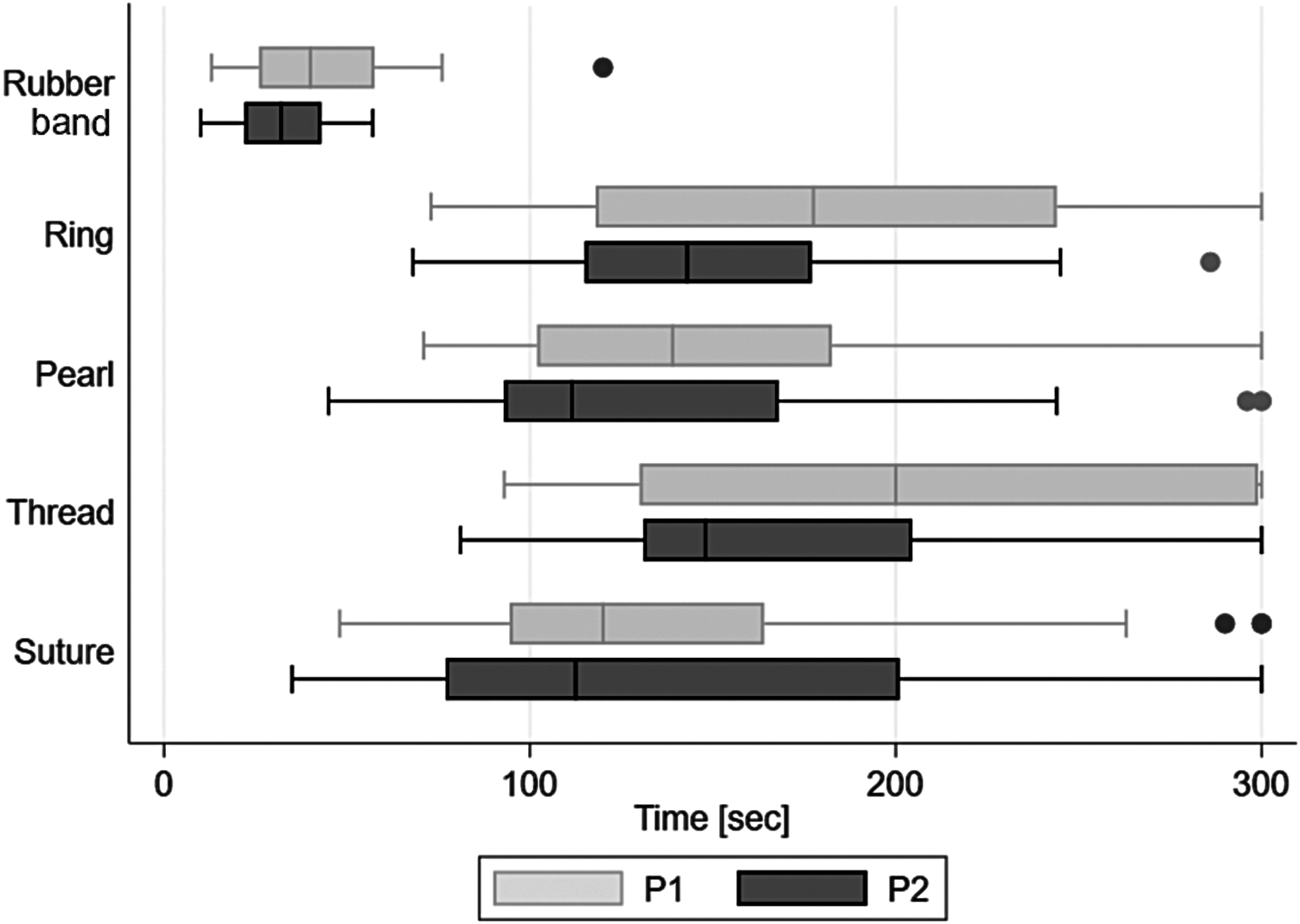

FIG. 2.

Median time differentiated by period (first attempt/second attempt). The boxplots show the times needed to complete the exercise carried out for either the first time (upper) or second time (lower) boxplot.

Table 2.

Time and Significance by Method (Accompanying Fig. 1)

Exercise	Method	n	Time			Wilcoxon signed-rank test (P)
Exercise	Method	n	25% Quartile	Median	75% Quartile	Wilcoxon signed-rank test (P)
Rubber band	2D	28	26.5	40.0	55.0	.045
Rubber band	3D	27	21.0	29.0	50.0	.045
Ring	2D	28	154.0	194.0	251.5	<.001
Ring	3D	28	101.5	122.5	152.0	<.001
Pearl	2D	28	114.5	150.0	211.5	.002
Pearl	3D	28	84.5	103.5	136.0	.002
Thread	2D	28	136.5	197.0	295.0	.023
Thread	3D	27	117.0	162.0	215.0	.023
Suture	2D	28	90.5	123.5	201.0	.381
Suture	3D	28	80.5	106.0	159.0	.381

2D, two dimensional; 3D, three dimensional.

Table 3.

Time and Significance by Period (Accompanying Fig. 2)

Exercise	Period	n	Time			Wilcoxon signed-rank test (P)
Exercise	Period	n	25% Quartile	Median	75% Quartile	Wilcoxon signed-rank test (P)
Rubber band	P1	28	26.0	40.0	57.5	.006
Rubber band	P2	27	22.0	32.0	43.0	.006
Ring	P1	28	118.0	177.5	244.0	.139
Ring	P2	28	115.0	143.0	177.0	.139
Pearl	P1	28	102.0	139.0	182.5	.381
Pearl	P2	28	93.0	111.5	168.0	.381
Thread	P1	27	130.0	200.0	299.0	.088
Thread	P2	28	131.0	148.0	204.5	.088
Suture	P1	28	94.5	120.0	164.0	.811
Suture	P2	28	77.0	112.5	201.0	.811

In addition, the tasks were predominantly done faster and better when performed for the second time but only Task 1 reached a P = .006, all other tasks had P values >.05. There was an interesting adverse effect noted in Task 5; a number of participants took longer when performing the task for the second time.

The quality was distinctly better when performed with 3D (full score n = 24 versus 17; 1 mistake n = 3 versus 4; 2 mistakes n = 1 versus 5; 3 and 4 mistakes only occurred in the 2D group). The number of mistakes made when comparing the first and second attempt was similar.

The robustness of the one-dimensional comparisons (3D versus 2D and period 2 versus period 1) has been assessed by some supportive, more advanced evaluations such as stratified descriptive statistics and graphs, time-to-event approaches or an ANOVA for a crossover design (with effects for method, period, sequence, and subject within sequence). These additional evaluations, even if the available data may not always fully comply with some of the underlying model assumptions, confirmed that the estimates and the main effects seen in the one-factor analyses are quite robust, and that other statistical approaches considering interactions, imbalances, or censoring would still lead into similar conclusions.

Next to this analysis allowing a comparison of 3D visualization and repetition, it allows for an assessment of the quality of the developed tasks. Task 1 shows an advantage in both 3D and repetition. Median times (graphic and P value) for Tasks 2 and 3 show a distinct difference between 3D and 2D, which exceeds the advantage of experience. The interquartile range, that is, the difference between the upper and lower quartiles, of median times is relatively small. In contrast, this range is stretched out in Task 4 for both 2D and the first attempt. The data from Task 5 are diverse, and statistical significance was not reached for method or period.

Discussion

The qualitative analysis of the literature resulted in relevant themes influencing the outcome of 3D laparoscopy studies, which then enabled the development of focused simulation tasks for our pilot study. Even though the analysis was done as an iterative process by two raters individually, some issues might have been missed and might therefore diminish the evidence of this analysis.

Carrying out the simulation with medical students performing the developed tasks proved feasible. Time proved to be a reliable and easily comparable parameter, which additionally allowed a comprehensible way to show the results.

The data and our observation during the simulation show that Task 1 is comparably easy to perform. Discrimination between repetitions, method, and aptitude is not possible since differences are too small to be meaningful. Therefore, we believe Task 1 to be useful to introduce novices to the simulation and the use of Maryland dissectors. We believe that it is not suitable to generate further evidence.

Tasks 2 and 3 are performed quicker and better when performed with 3D, and quicker and better when performed for the second time. The fact that the upper and lower quartiles are not spread out very far proves that both tasks are easily comprehendible and feasible for novices. Aptitude does not affect results strongly, and the cognitive load is not too high. We therefore believe these two tasks to be well suitable to assess first-time performance of novices.

Task 4 on the other hand, even though it shows a benefit for both 3D and experience, showed a wide spread of the upper and lower quartile. The task's cognitive load and required practical skill are high. This task is affected by talent much more than the previous tasks. Since it is more complex, it promises to allow an assessment of change due to repetition and therefore an assessment of the learning curve.

The data from Task 5 are more difficult to interpret because of its diversity. The median time participants needed to complete the task would suggest an easy task with a low cognitive load. The relatively high number of nonachievements and the fact that some participants took considerably longer the second time contradict this. We believe that the task should be altered: more precise suturing is required, and more stitches need to be performed in one task. With these alterations, Task 5 should contain a high cognitive load and skill level, and therefore be as good a parameter as Task 4 to assess the learning curve. After these adjustments, the tasks need to be further validated.

Conclusion

We were able to identify important issues influencing the outcome of studies analyzing 3D laparoscopy, and thus develop simulation tasks that resulted in meaningful data.

The trend of a benefit in 3D laparoscopy for novices, seen in our pilot study, needs to be verified in a study with a larger number of participants. Since the required time to finish our developed tasks proved to be such a veritable outcome variable, we believe limiting the assessment to this variable might be acceptable. In addition to our study, other more complex tasks to correctly assess the benefit of 3D laparoscopy for experienced surgeons need to be developed and tested.

Ethical Approval

According to the ethical committee of the Department of Medicine at the University of Tuebingen, ethical approval is granted for all studies with an exclusive educational focus.

Footnotes

Disclosure Statement

No competing financial interests exist.

References

Bhayani

, Andriole

. Three-dimensional (3D) vision: Does it improve laparoscopic skills? An assessment of a 3D head-mounted visualization system. Rev Urol, 2005; 7:211–214.

Hanna

, Shimi

, Cuschieri

. Randomised study of influence of two-dimensional versus three-dimensional imaging on performance of laparoscopic cholecystectomy. Lancet, 1998; 351:248–251.

Herron

, Lantis

2nd , Maykel

, Basu

, Schwaitzberg

. The 3-D monitor and head-mounted display. A quantitative evaluation of advanced laparoscopic viewing technologies. Surg Endosc, 1999; 13:751–755.

Kaufman

, Sharon

, Klein

, Spiegel

, Auslander

, Lissak

. The three-dimensional “insect eye” laparoscopic imaging system-a prospective randomized study. Gynecol Surg, 2007; 4:31–34.

Patel

, Ribal

, Arya

, Nauth-Misir

, Joseph

. Is it worth revisiting laparoscopic three-dimensional visualization? A validated assessment. Urology, 2007; 70:47–49.

Votanopoulos

, Brunicardi

, Thornby

, Bellows

. Impact of three-dimensional vision in laparoscopic training. World J Surg, 2008; 32:110–118.

Sorensen

, Savran

, Konge

, Bjerrum

. Three-dimensional versus two-dimensional vision in laparoscopy: A systematic review. Surg Endosc, 2016; 30:11–23.

Moher

, Liberati

, Tetzlaff

, Altman

. Preferred reporting items for systematic reviews and meta-analyses: The PRISMA statement. J Clin Epidemiol, 2009; 62:1006–1012.

Gray

. Simulated task environments: The role of high-fidelity simulations, scaled worlds, synthetic environments, and laboratory tasks in basic and applied cognitive research. Cogn Sci Q, 2002; 2:205–227.

10.

Cheng

, Gao

, Shuai

, Wang

, Tao

. Two-dimensional versus three-dimensional laparoscopy in surgical efficacy: A systematic review and meta-analysis. Oncotarget, 2016; 7:70979.

11.

Fergo

, Burcharth

, Pommergaard

H-C

, Kildebro

, Rosenberg

. Three-dimensional laparoscopy vs 2-dimensional laparoscopy with high-definition technology for abdominal surgery: A systematic review. Am J Surg, 2017; 213:159–170.

12.

Sakata

, Watson

, Grove

, Stevenson

. The conflicting evidence of three-dimensional displays in laparoscopy: A review of systems old and new. Ann Surg, 2016; 263:234–239.

13.

Schwab

, Smith

, Brown

, Whyte

, Jourdan

. Evolution of stereoscopic imaging in surgery and recent advances. World J Gastrointest Endosc, 2017; 9:368.

14.

Yim

, Lo

, Lau

, Fan

, Lai

, Foo

DCC

. Three-dimensional laparoscopy: Is it as good as it looks?—A review of the literature. Ann Laparosc Endosc Surg, 2017; 2:131.

15.

Cicione

, Autorino

, Breda

, et al. Three-dimensional vs standard laparoscopy: Comparative assessment using a validated program for laparoscopic urologic skills. Urology, 2013; 82:1444–1450.

16.

Bilgen

, Ustun

, Karakahya

, et al. Comparison of 3D imaging and 2D imaging for performance time of laparoscopic cholecystectomy. Surg Laparosc Endosc Percutan Tech, 2013; 23:180–183.

17.

Currò

, La Malfa

, Lazzara

, Caizzone

, Fortugno

, Navarra

. Three-dimensional versus two-dimensional laparoscopic cholecystectomy: Is surgeon experience relevant?. J Laparoendosc Adv Surg Tech, 2015; 25:566–570.

18.

Sahu

, Mathew

, Reddy

. 3D Laparoscopy-help or hype; initial experience of a tertiary health centre. J Clin Diagn Res, 2014; 8:NC01.

19.

Spille

, Wenners

, von Hehn

, et al. 2D versus 3D in laparoscopic surgery by beginners and experts: A randomized controlled trial on a Pelvitrainer in objectively graded surgical steps. J Surg Educ, 2017; 74:867–877.

20.

Gómez-Gómez

, Carrasco-Valiente

, Valero-Rosa

, et al. Impact of 3D vision on mental workload and laparoscopic performance in inexperienced subjects. Actas Urol Esp, 2015; 39:229–235.

21.

Guana

, Ferrero

, Garofalo

, et al. Skills comparison in pediatric residents using a 2-dimensional versus a 3-dimensional high-definition camera in a pediatric laparoscopic simulator. J Surg Educ, 2017; 74:644–649.

22.

Ozsoy

, Kallidonis

, Kyriazis

, et al. Novice surgeons: Do they benefit from 3D laparoscopy?. Lasers Med Sci, 2015; 30:1325–1333.

23.

Tung

, Yang

, Li

. Comparative study of 2‐D and bichanneled 3‐D laparoscopic images: Is there a difference?. Asian J Endosc Surg, 2015; 8:275–280.

24.

Jones

, Brewer

, Soper

. The influence of three-dimensional video systems on laparoscopic task performance. Surg Laparosc Endosc Percutan Tech, 1996; 6:191–197.

25.

Ashraf

, Collins

, Whelan

, O'Sullivan

, Balfe

. Three-dimensional (3D) simulation versus two-dimensional (2D) enhances surgical skills acquisition in standardised laparoscopic tasks: A before and after study. Int J Surg, 2015; 14:12–16.

26.

Kong

S-H

, Oh

B-M

, Yoon

, et al. Comparison of two-and three-dimensional camera systems in laparoscopic performance: A novel 3D system with one camera. Surg Endosc, 2010; 24:1132–1143.

27.

Lewis

, Zaritsky

, Heinrichs

, Santos

, Wang

, Nezhat

. O-194: Learning and perception differences in two dimensional versus three dimensional camera systems in laparoscopic surgery. Fertil Steril, 2006; 86:S83.

28.

Agrusa

, di Buono

, Chianetta

, et al. Three-dimensional (3D) versus two-dimensional (2D) laparoscopic adrenalectomy: A case-control study. Int J Surg, 2016; 28 Suppl 1:S114–S117.

29.

Kinoshita

, Nakagawa

, Usui

, et al. High-definition resolution three-dimensional imaging systems in laparoscopic radical prostatectomy: Randomized comparative study with high-definition resolution two-dimensional systems. Surg Endosc, 2015; 29:2203–2209.

30.

Smith

, Schwab

, Day

, et al. Effect of passive polarizing three‐dimensional displays on surgical performance for experienced laparoscopic surgeons. Br J Surg, 2014; 101:1453–1459.

31.

Peters

, Fried

, Swanstrom

, et al. Development and validation of a comprehensive program of education and assessment of the basic fundamentals of laparoscopic surgery. Surgery, 2004; 135:21–27.

32.

Mistry

, Roach

, Wilson

. Application of stereoscopic visualization on surgical skill acquisition in novices. J Surg Educ, 2013; 70:563–570.

33.

Noureldin

, Stoica

, Kaneva

, Andonian

. Impact of training on three-dimensional versus two-dimensional laparoscopic systems on acquisition of laparoscopic skills in novices: A prospective comparative pilot study. BioMed Res Int, 2016; 2016:4197693.

34.

Storz

, Buess

, Kunert

, Kirschniak

. 3D HD versus 2D HD: Surgical task efficiency in standardised phantom tasks. Surg Endosc, 2012; 26:1454–1460.

35.

Tanagho

, Andriole

, Paradis

, et al. 2D versus 3D visualization: Impact on laparoscopic proficiency using the fundamentals of laparoscopic surgery skill set. J Laparoendosc Adv Surg Tech, 2012; 22:865–870.

36.

Usta

, Ozkaynak

, Kovalak

, Ergul

, Naki

, Kaya

. An assessment of the new generation three-dimensional high definition laparoscopic vision system on surgical skills: A randomized prospective study. Surg Endosc, 2015; 29:2305–2313.

37.

Wilhelm

, Reiser

, Kohn

, et al. Comparative evaluation of HD 2D/3D laparoscopic monitors and benchmarking to a theoretically ideal 3D pseudodisplay: Even well-experienced laparoscopists perform better with 3D. Surg Endosc, 2014; 28:2387–2397.

38.

Smith

, Day

, Rockall

, Ballard

, Bailey

, Jourdan

. Advanced stereoscopic projection technology significantly improves novice performance of minimally invasive surgical skills. Surg Endosc, 2012; 26:1522–1527.

39.

Mashiach

, Mezhybovsky

, Nevler

, Gutman

, Ziv

, Khaikin

. Three-dimensional imaging improves surgical skill performance in a laparoscopic test model for both experienced and novice laparoscopic surgeons. Surg Endosc, 2014; 28:3489–3493.

40.

Aykan

, Singhal

, Nguyen

, et al. Perioperative, pathologic, and early continence outcomes comparing three-dimensional and two-dimensional display systems for laparoscopic radical prostatectomy—A retrospective, single-surgeon study. J Endourol, 2014; 28:539–543.

41.

Patankar

, Padasalagi

. Three-dimensional versus two-dimensional laparoscopy in urology: A randomized study. Indian J Urol, 2017; 33:226–229.

42.

Yang

, Mo

, Ma

, et al. A comparative analysis of lung cancer patients treated with lobectomy via three-dimensional video-assisted thoracoscopic surgery versus two-dimensional resection. J Thorac Dis, 2015; 7:1798–1805.

43.

Tao

, Liu

, Deng

, Shi

, Gao

. Three-dimensional against 2-dimensional laparoscopic colectomy for right-sided colon cancer. Surg Laparosc Endosc Percutan Tech, 2016; 26:324–327.

44.

, Zheng

C-H

, Zheng

H-L

, et al. Randomized, controlled trial comparing clinical outcomes of 3D and 2D laparoscopic surgery for gastric cancer: An interim report. Surg Endosc, 2017; 31:2939–2945.

45.

Velayutham

, Fuks

, Nomi

, Kawaguchi

, Gayet

. 3D visualization reduces operating time when compared to high-definition 2D in laparoscopic liver resection: A case-matched study. Surg Endosc, 2016; 30:147–153.

46.

Feng

, Rozenblit

, Hamilton

. A computerized assessment to compare the impact of standard, stereoscopic, and high-definition laparoscopic monitor displays on surgical technique. Surg Endosc, 2010; 24:2743–2748.

47.

Zaroff

, Knutelska

, Frumkes

. Variation in stereoacuity: Normative description, fixation disparity, and the roles of aging and gender. Invest Ophthalmol Vis Sci, 2003; 44:891–900.

48.

Biddle

, Hamid

, Ali

. An evaluation of stereoacuity (3D vision) in practising surgeons across a range of surgical specialities. Surgeon, 2014; 12:7–10.

49.

Dion

, Gaillard

. Visual integration of data and basic motor skills under laparoscopy. Influence of 2-D and 3-D video-camera systems. Surg Endosc, 1997; 11:995–1000.

50.

Richards

. Stereopsis and stereoblindness. Exp Brain Res, 1970; 10:380–388.
