Laminin-511 Activates the Human Induced Pluripotent Stem Cell Survival via α6β1 Integrin-Fyn-RhoA-ROCK Signaling

Reagents

StemFit AK03N was obtained from AJINOMOTO HEALTHY SUPPLY CO., INC. (Tokyo, Japan). The iMatrix-511 was obtained from Matrixome, Inc. (Osaka, Japan). A 10-mM Y-27632 Solution, D-PBS (−), and 0.5 M-EDTA Solution (pH 8.0) were obtained from Nacalai Tesque (Kyoto, Japan). TrypL™ Select Enzyme (1 × ) was obtained from Thermo Fisher Scientific K.K. (Kanagawa, Japan). Recombinant human MFGE8, Anti-Human E-Cadherin Affinity Purified Polyclonal Ab, and Goat IgG HRP-conjugated Antibody were purchased from R&D Systems (Minneapolis, MN). Anti-beta-actin (C4), Anti-Fyn (D-1), phospho Thr12, Anti-Rock-1 (B-1), and Anti-Rock-2 (D-11) were purchased from Santa Cruz Biotechnology, Inc., (Dallas, TX). GLS250 Gelatin Solution (1.0 mg/g) was purchased from Nitta Gelatin, Inc. (Osaka, Japan). Anti-Integrin α6-CD49f Antibody clone 5I3 ZooMAb(R), Anti-Integrin β1 Antibody clone 1A27 ZooMAb(R), and Anti-phospho-RAC1 (pSer71) antibody were purchased from Sigma-Aldrich Co. LLC (St. Louis, MO).

Fyn Antibody, p190-B RhoGAP Antibody and p190-A RhoGAP Antibody, Anti-rabbit IgG, HRP-linked Antibody, Anti-mouse IgG, and HRP-linked Antibody were purchased from Cell Signaling Technology, Inc., (Danvers, MA). Anti Rac1, Anti p120 Catenin, and Anti RHOA were purchased from Proteintech Group, Inc., (Rosemont, IL). Anti-PI3-kinase (p85α) mAb was purchased from Medical & Biological Laboratories Co., Ltd. (Tokyo, Japan). Anti-PI3 Kinase Antibody, p110α was purchased from Merck & Co., Inc. (Land Hessen, Germany). Goat Anti-Mouse IgM HRP Conjugate was purchased from Tokyo Chemical Industry Co., Ltd. (Tokyo, Japan).

Maintenance culture of human induced pluripotent stem cells

The hiPSC line 201B7 was established by Shinya Yamanaka (CiRA Foundation) and obtained from CiRA Foundation (Kyoto, Japan). To culture iPSCs, a publicly available method (CiRA_Ff-iPSC_protocol_Eng_v140310) was used (https://www.cira.kyoto-u.ac.jp/j/research/img/protocol/Ff-iPSC-culture_protocol_E_v140311.pdf). Collagen coating was performed by adding 200 μL of GLS250 Gelatin Solution (1.0 mg/g) and 100 μL (5 μg) of recombinant human MFGE8 (50 μg/mL) to one well of a six-well plate.

Real-time PCR

RNA was prepared using a SuperPREP II Cell Lysis & RT Kit for quantitative PCR (TOYOBO CO., LTD., Osaka, Japan) according to the manufacturer's instructions. Real-time PCR was performed using a StepOnePlus system (Life Technologies, Carlsbad, CA). Luna Universal qPCR Master Mix (New England Biolabs, Inc.) was used according to the manufacturer's instructions. For the design of human β-actin, human integrin α6, human integrin β1, and human cadherin 1 (CDH1) primers, the gene names were retrieved from the U.S. National Library of Medicine NIH website. The human β-actin, human integrin α6, human integrin β1, and human cadherin 1 (CDH1) primers were designed using the Primer 3 Plus application. Other primers were purchased from TaKaRa Bio, Inc. (Shiga, Japan). The primers used for PCR were as follows:

human integrin α6 (NM_000210.3) 195 bp

Western blotting

Western blotting analyses using ATTO Products, EzRIPA Lysis kit, EzSubcell Extract, cPAGE Twin, myPower II 300, HorizeBLOT 2M-R, EzApply, EzStandard PrestainBlue, c-PAGEL 10%, EzRun, P plus membranes, Filter paper, EzFastBlot, EzBlock Chemi, EzTBS, and EzWestBlue, were performed according to the manufacturer's instructions (ATTO, Tokyo, Japan). Blots were probed using specific antibodies for E-Cadherin, integrin α6, integrin β1, Fyn, phospho-Fyn, Rac1, phospho-Rac1, p120 catenin, PI3-kinase (p85α), PI3-kinase (p110α), p190-A RhoGAP, p190-B RhoGAP, RhoA, ROCK-1, ROCK-2, and β-actin.

Standard data-independent acquisition proteome analyses

The following sample preparation procedures were performed as pretreatment for the proteome analysis: (1) Add chloroform to the sample containing TRIzol, mix, and centrifuge (15,000g, 4°C, 15 min). (2) Remove the aqueous layer, add acetonitrile to the remaining TRIzol solution, and precipitate the protein. (3) Add 100 mM Tris-HCL pH 8.5, 2% SDS to the precipitate, and dissolve the protein using a sealed ultrasonic disruption machine. (4) Measure the protein concentration by a bicinchoninic acid (BCA) assay, adjusted with 100 mM Tris-HCL pH8.5, 2% SDS to make protein concentration 0.5 μg/μL. (5) Cleave the S-S bond of the protein by adding Tris(2-carboxyethyl)phosphine to the protein lysate (20 μg protein) to a final concentration of 20 mM, and then incubate at 80°C for 10 min. (6) Alkylate cysteine residues by adding iodoacetamide to a final concentration of 30 mM, and then incubate at room temperature (light shielded) for 30 min. (7) Mix Sera-Mag SpeedBead Carboxylate-Modified Magnetic Particles (Hydrophylic) from Cytiva and Sera-Mag Carboxylate-Modified Magnetic Particles (Hydrophobic) at a 1:1 (v/v) ratio and wash three times with distilled water to 15 μg solids/μL in distilled water (SP3 beads). (8) Put 20 μL of SP3 beads into the alkylated sample, add another 2.5 times the sample liquid volume of ethanol, and mix at room temperature for 20 min. (9) After washing the beads twice with 80% ethanol, add 100 μL of 50 mM Tris-HCL pH 8.0 and mix. (10) Add 500 ng of Trypsin/Lys-C Mix (Promega) for peptide fragmentation and incubate at 37°C overnight. (11) Add 20 μL of 5% trifluoroacetic acid (TFA) and process in a sample-sealing ultrasonic disruption machine. (12) Desalt using a reversed-phase spin column (GL-Tip SDD; GL Sciences) and dry using a centrifugal evaporator. (13) Add 2% acetonitrile (ACN)-0.1% TFA and dissolve the peptides in a sample sealed sonication system. (14) Measure the peptide concentration by a BCA assay and adjust with 2% ACN-0.1% TFA to reach 200 ng/μL peptide concentration. (15) Conduct an LC-MS analysis.

The prepared samples were subjected to nanoLC-MS/MS under appropriate analytical conditions, as follows: injected peptide volume, 300 ng; nanoLC used, UltiMate 3000 RSLCnano LC System (Thermo Fisher Scientific); Column size, 75 μm i.d. × 120 mm length (Nikkyo Technos); column temperature, 40°C; solvents, Solvent A, distilled water with 0.1% formic acid; Solvent B, 80% ACN with 0.1% formic acid.

The MS data obtained were analyzed using Scaffold data-independent acquisition (DIA) under the following conditions: software program used, Scaffold DIA (Proteome Software); Protein Sequence Database, Human UniProtKB/Swiss-Prot database (Proteome ID UP000005640, 20588 entries, downloaded on November 26, 2021); Spectral Library, created by Prosit (https://www.proteomicsdb.org/prosit/) from the above sequence database.

Data analyses were performed in Perseus (https://maxquant.net/perseus/). The quantitative values of the proteome analysis results were Log2 transformed and missing values (quantitative values of 0) were randomly assigned at low values that were below the detection limit.

Statistical analyses

Statistical analyses were performed using Student's t-test to compare two samples. P values of <0.05 were considered statistically significant for all tests.

Institutional review board

This research does not involve human subjects, and does not need to obtain Institutional Review Board (IRB).

Elucidation of the signaling pathways involved in the process of promoting iPSC viability in laminin-511 culture

Laminin-511, a scaffolding component composed of α5, β1, and γ1 chains [9], binds to integrins on the cell membrane (α3β1 [10], α6β1 [11], and α6β4 [12]), which induces the activation of the phosphatidylinositol 3-kinase (PI3K)/AKT-dependent [13] and Ras/MAPK-dependent signaling pathways [7]. In hiPSCs, the interaction between laminin-511/α6β1 integrin and E-cadherin (a cell–cell adhesion molecule) provides protection against apoptosis through the proto-oncogene tyrosine-protein kinase Fyn (Fyn)-RhoA-ROCK signaling pathway [7] and the Ras homolog gene family member A (RhoA)/Rho kinase (ROCK) signaling pathway, which is the major pathway for cell death [14] (Fig. 1). An older scaffold material that does not use iMatrix-511 is gelatin. Gelatin was used in the feeder culture method with mouse embryonic fibroblasts (MEFs) [14]. In addition, we have previously reported that MFGE8 (Milk Fat Globule EGF and Factor V/VIII Domain Containing), secreted by MEFs themselves, promotes the cellular adhesion of hiPSCs [15].

OPEN IN VIEWER

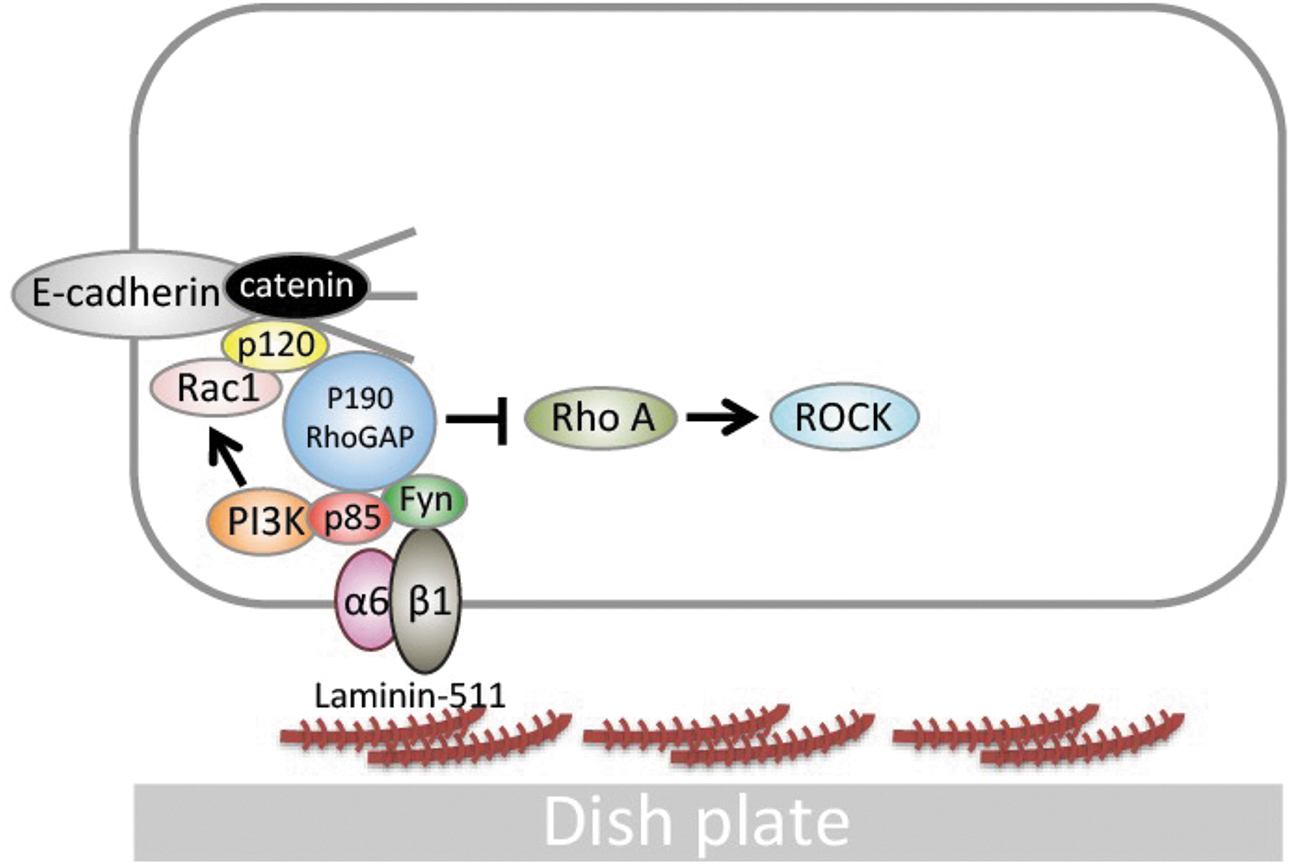

FIG. 1.

Fyn-RhoA-ROCK signaling (on laminin-511). In cultures using laminin-511 scaffolds, the E-cadherin-α6β1 integrin signaling pathway regulates hiPSC cell death. PI3K signaling promotes the expression of Rac1, which binds to cadherin, inhibiting cadherin endocytosis and increasing the expression of cadherin on the plasma membrane. When α6β1 integrin binds to laminin-511, Fyn-RhoA-ROCK signaling is induced. As a result, ROCK-induced hiPSC cell death is inhibited. This figure is a modified version of an illustration in our previous article [7]. hiPSC, human induced pluripotent stem cells; PI3K, phosphatidylinositol 3-kinase.

Therefore, we chose to use gelatin+MFGE8 as a scaffold material, which is the least likely to affect the intracellular signaling pathways, as a control for iMatrix-511 in this study. As a result, in comparison to iMatrix-511, colonies were observed in gelatin+MFGE8, similarly to the ES cells of iPSCs, but there were fewer colonies. This result indicates that iMatrix-511 has the effect of promoting cell survival activity (Fig. 2).

OPEN IN VIEWER

FIG. 2.

Cell observation. Photographs of hiPSCs taken by optical microscope at 6 days after seeding on each well coated with iMatrix511 (A) or collagen+MFGE8 (B). Scale bar = 500 μm.

Laminin receptors (integrin α6β1 and α6β4)

PSCs interact with laminin-511 through β1-integrins (predominantly α6β1). α6β1 has broad specificity and is capable of binding to a number of laminin isoforms. However, laminin-511 and laminin-521 are the only isoforms that maintain the pluripotency of hPSCs after α6β1 integrin signaling and thereby induce the PI3K/AKT signaling pathway [16,17]. In hPSCs, laminin-511 prevents the induction of apoptosis by ROCK in vitro. In cultures that utilize a laminin-511 scaffold, the interaction between laminin-511 and α6β1 integrin therefore partly compensates for Y-27632 (a ROCK inhibitor). A number of studies have indicated that α6β1-integrin is highly expressed and/or have described the role of this integrin in PSC adhesion [18 –21] and self-renewal [22]. We examined the mRNA levels of integrin α6 and β1 expressed by hiPSCs when iMatrix-511 and collagen+MFGE8 were used as scaffolds.

The results showed that the expression of integrin α6 was significantly decreased when collagen+MFGE8 was used as a scaffold material in comparison to iMatrix-511 (mean [standard deviation {SD}]: iMatrix-511 1.00 [0.42]; collagen+MFGE8, 0.23 [0.047]; **P < 0.01; n = 6) (Fig. 3A). On the other hand, the mRNA expression of integrin β1 was similar when iMatrix-511 and collagen+MFGE8 were used as scaffolds (mean [SD]: iMatrix-511, 1.00 [0.45]; collagen+MFGE8, 1.25 [0.57]; n = 6) (Fig. 3B). The α6β1 integrin on the cell membrane surface may decrease if trypsin is used to harvest cells.

OPEN IN VIEWER

FIG. 3.

mRNA expression analysis. (A) The integrin α6 and (B) integrin β1 mRNA expression from hiPSCs on iMatrix511 or collagen+MFGE8 was measured by real-time PCR. Values indicate the relative value obtained by converting the calculated value of iMatrix511 to 1 (n = 6). The data are presented as the mean ± SD: standard error. *P < 0.05, **P < 0.01. SD, standard deviation.

Fyn-p85-PI3K signaling

Fyn, a proto-oncogene tyrosine-protein kinase encoded by the FYN gene [23], is associated with the p85 subunit of PI3K. There are few reports on the role of FYN in hiPSCs. We first examined whether or not hiPSCs express FYN mRNA and confirmed that hiPSC expresses FYN mRNA. The Fyn-RhoA-ROCK signaling cascade [24] has received attention as Fyn is directly associated with α6β1-integrin [25,26]. We examined the mRNA levels of FYN expressed by hiPSCs when iMatrix-511 and collagen+MFGE8 were used as scaffolds. The results showed that the expression of FYN was decreased when collagen+MFGE8 was used as a scaffold material in comparison to iMatrix-511 (mean [SD]: iMatrix-511, 1.00 [0.73]; collagen+MFGE8, 0.32 [0.50]; n = 6) (Fig. 4A).

OPEN IN VIEWER

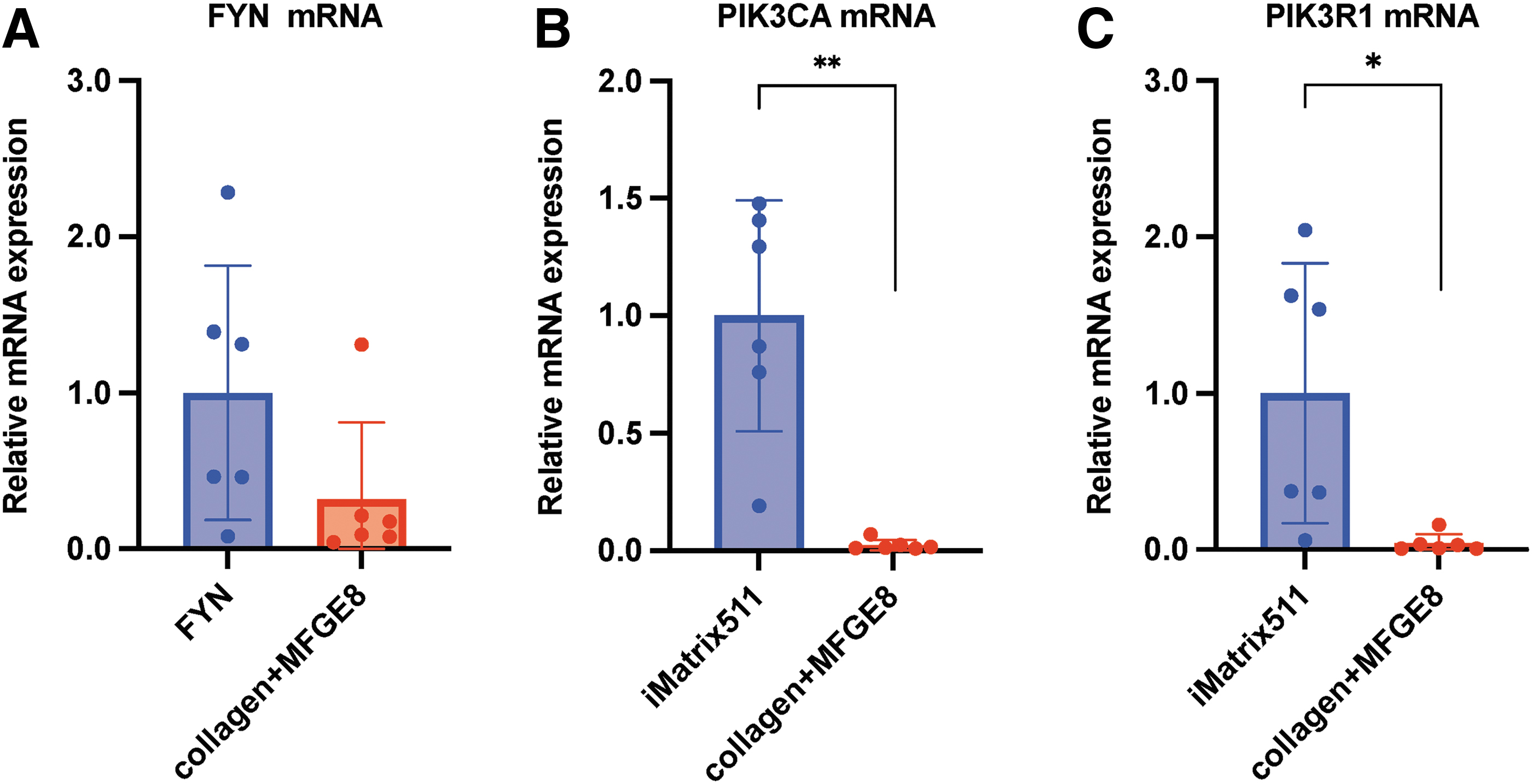

FIG. 4.

mRNA expression analysis. The (A) FYN, (B) PIK3CA, and (C) PIK3R1 mRNA expression from hiPSCs on iMatrix511 or collagen+MFGE8 was measured by real-time PCR. Indicates the relative value obtained by converting the calculated value of iMatrix511 to 1 (n = 6). The data are presented as the mean ± SD: standard error. *P < 0.05, **P < 0.01.

Previous reports have shown that the PI3K/AKT signaling pathway has an essential role in the survival of iPSCs [27]. PI3K is a heterodimer consisting of catalytic subunits (p110α, p110β, and p110δ) and regulatory subunits (p85α, p55α, p50α, p85β, and p55γ). The catalytic subunit p110α is encoded by PIK3CA, and the regulatory subunit p85α is encoded by PIK3R1. This means that a decrease in the expression of PIK3CA or PIK3R1 leads to a weakening of the PI3K/AKT signaling pathway. Furthermore, we previously reported that the reduced expression of PIK3CA makes it extremely difficult for hiPSCs to survive [15]. The results showed that the expression of PIK3CA (Phosphatidylinositol-4,5-Bisphosphate 3-Kinase Catalytic Subunit Alpha; also called the p110α protein), which is a class of PI3K catalytic subunit [28,29], was significantly decreased when collagen+MFGE8 was used as a scaffold material in comparison to iMatrix-511 (mean [SD]: iMatrix-511, 1.00 [0.61]; collagen+MFGE8, 0.024 [0.02]; **P < 0.01; n = 6) (Fig. 4B).

The results showed that the expression of PIK3R1 (Phosphoinositide-3-Kinase Regulatory Subunit 1) was significantly decreased when collagen+MFGE8 was used as a scaffold material in comparison to iMatrix-511 (mean [SD]: iMatrix-511, 1.00 [0.79]; collagen+MFGE8, 0.04 [0.06]; *P < 0.05, n = 6) (Fig. 4C). These results showed that the scaffold material iMatrix-511 enhanced the PI3K/AKT pathway of hiPSCs.

E-cadherin-catenin-Rac1-p120-P190 RhoGAP signaling

Cadherin-1, which is also known as CAM 120/80 or epithelial cadherin (E-cadherin) or uvomorulin, is a protein that is encoded by the CDH1 gene in humans. E-cadherin, a Ca²⁺-dependent cell–cell adhesion molecule [30,31], is stabilized at the cell surface through its link—through β-catenin and α-catenin—to the cytoskeleton of actin. It is essential for the intercellular adhesion and colony formation of PSCs [32 –35]. The loss of this E-cadherin-dependent intercellular adhesion can cause cell death [36]. The results showed that the expression of CDH1 was significantly decreased when collagen+MFGE8 was used as a scaffold material in comparison to iMatrix-511 (mean [SD]: iMatrix-511, 1.00 [0.38]; collagen+MFGE8, 0.16 [0.11]; **P < 0.01; n = 6) (Fig. 5A). The results showed that the scaffold material, iMatrix-511, significantly enhanced the E-cadherin expression of hiPSCs. Endocytosis and recycling regulate the level of E-cadherin at adherens junctions; activated Rac1 reduces E-cadherin endocytosis, thereby increasing the E-cadherin level on the cell surface and consequently promoting cell–cell adhesion.

OPEN IN VIEWER

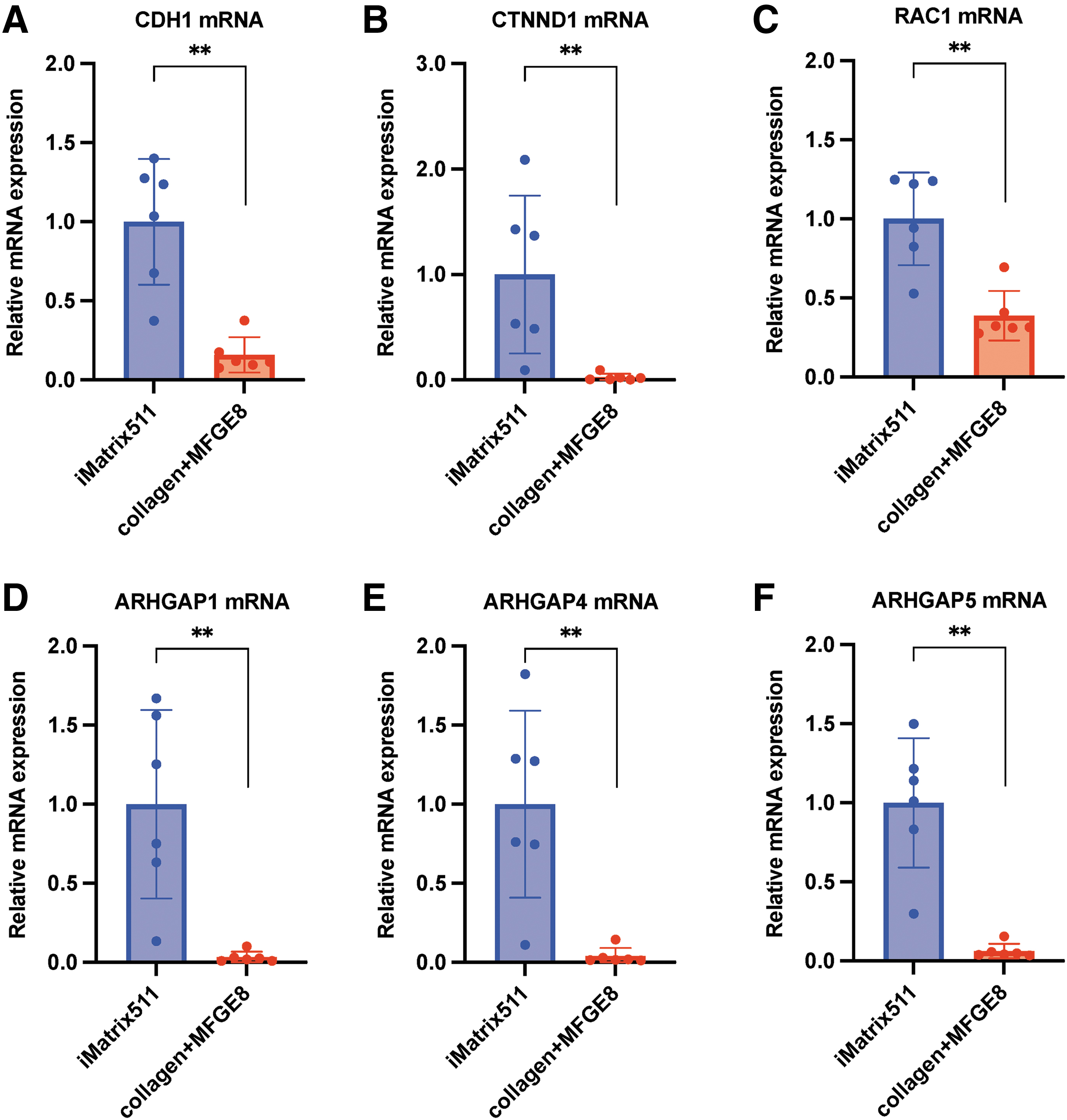

FIG. 5.

mRNA expression analysis. (A) CDH1, (B) CTNND1, (C) RAC1, (D) ARHGAP1, (E) ARHGAP4, and (F) ARHGAP5 mRNA expression from hiPSC on iMatrix511 or collagen+MFGE8 was measured using real-time PCR. Values indicate the relative value obtained by converting the calculated value of iMatrix511 to 1 (n = 6). The data are presented as the mean ± SD: standard error. *P < 0.05, **P < 0.01.

The ectopic overexpression of E-cadherin also increases the survival of dissociated hPSCs [37]. However, dissociated hPSCs grown on E-cadherin-coated plates form membrane protrusions and show a lower survival rate. Taken together, E-cadherin interactions are not the sole factor affecting cell survival [36]. It appears that transcription factors for the expression of E-cadherin act downstream in various signaling pathways [eg, TGF-β, FGF2, nuclear factor κB (NFκB), and integrin cascades] [35].

The CTNND1 gene provides instructions for making a protein called p120-catenin, also known as delta 1 catenin. E-cadherin-mediated adhesion has been reported to stimulate PI3K/AKT signaling and to have an association with β-catenin signaling [38,39]. The promotion of cell survival by the PI3K/AKT pathway indicates that the Rho family GTPases have a wider role through p120-catenin [40,41]. p120-catenin may also influence cytoskeletal organization in the cytoplasm through the regulation of the opposing activities of Rho and Rac GTPase organization [42]. The results showed that the expression of CTNND1 was significantly decreased when collagen+MFGE8 was used as a scaffold material in comparison to iMatrix-511 (mean [SD]: iMatrix-511, 1.00 [0.71]; collagen+MFGE8, 0.025 [0.03]; **P < 0.01; n = 6) (Fig. 5B). Many of the activities of p120-catenin are associated with increased cellular proliferation and alteration of the cell cycle [43]. As a result, the use of iMatrix-511 as a scaffold material accelerates the increase in cell proliferation through the activation of p120-catenin.

Rho-GTPases, small G-proteins that mediate cellular proliferation and motility [44], are involved in regulating cell survival or death decisions. Functional interaction between Rac1, a small Rho family GTPase, and E-cadherin have been demonstrated to be responsible for the regulation of hPSC self-renewal [45,46]. The results showed that the expression of RAC1 was significantly decreased when collagen+MFGE8 was used as a scaffold material in comparison to iMatrix-511 (mean [SD]: iMatrix-511, 1.00 [0.28]; collagen+MFGE8, 0.39 [0.15]; **P < 0.01; n = 6) (Fig. 5C). According to previous reports, cadherin engagement can inhibit RhoA activity and activate Rac1 [47].

P190 RhoGAP (GTPase-activating protein) was demonstrated to be an important binding partner of p120 [48]. The RhoGAP domain is located at the C-terminal end of p190RhoGAP proteins. Both p190A and B mainly have catalytic activity toward RhoA [49,50]. The inactivation of RhoA by p190 RhoGAP regulates the spreading and migration of cells through the promotion of membrane polarity and membrane protrusion [51]. ARHGAP1, also known as RhoGAP, RhoGAP1, CDC42GAP, and p50rhoGAP, is officially named Ras homology (Rho) GTPase-activating protein 1, which is one of the key members of the RhoGAPs [52]. The results showed that the expression of ARHGAP1 was significantly decreased when collagen+MFGE8 was used as a scaffold material in comparison to iMatrix-511 (mean [SD]: iMatrix-511, 1.00 [0.57]; collagen+MFGE8, 0.03 [0.03]; **P < 0.01; n = 6) (Fig. 5D).

Rho GTPase-activating protein p115 or ARHGAP4 is encoded by the gene ARHGAP4 and is a member of the RHO GTPase-activating proteins (rhoGAP) family of proteins. It has been reported that ARHGAP4 regulates the β-catenin pathway. The results showed that the expression of ARHGAP4 was significantly decreased when collagen+MFGE8 was used as a scaffold material in comparison to iMatrix-511 (mean [SD]: iMatrix-511, 1.00 [0.56]; collagen+MFGE8, 0.039 [0.049]; **P < 0.01; n = 6) (Fig. 5E).

The ARHGAP5 gene provides instructions for making a protein called Rho GTPase-activating protein 5 (Rho-type GTPase-activating protein 5) (p190-B). The results showed that the expression of ARHGAP5 was significantly decreased when collagen+MFGE8 was used as a scaffold material in comparison to iMatrix-511 (mean [SD]: iMatrix-511, 1.00 [0.39]; collagen+MFGE8, 0.06 [0.04]; **P < 0.01; n = 6) (Fig. 5F). These results showed that the expression of p190 RhoGAP, which deactivates RhoA, was significantly higher in hiPSCs cultured with iMatrix-511 as scaffold material.

RhoA-ROCK signaling

RhoA is a 22-kDa small GTPase, a member of the Ras superfamily and Rho subfamily of GTPases. The results showed that the expression of RhoA was significantly decreased when collagen+MFGE8 was used as a scaffold material in comparison to iMatrix-511 (mean [SD]: iMatrix-511, 1.00 [0.16]; collagen+MFGE8, 0.52 [0.11]; **P < 0.01; n = 6) (Fig. 6A).

OPEN IN VIEWER

FIG. 6.

mRNA expression analysis. The (A) RHOA, (B) ROCK1P1, (C) ROCK1, and (D) ROCK2 mRNA expression from hiPSCs on iMatrix511 or collagen+MFGE8 was measured by real-time PCR. Values indicate the relative value obtained by converting the calculated value of iMatrix511 to 1 (n = 6). The data are presented as the mean ± SD: standard error. *P < 0.05, **P < 0.01.

The effect of ROCK1P1 (Rho-associated coiled-coil containing protein kinase 1 pseudogene 1) on hiPSCs is unknown, but its mRNA expression was observed. The results showed that the expression of ROCK1P1 was significantly decreased when collagen+MFGE8 was used as a scaffold material in comparison to iMatrix-511 (mean [SD]: iMatrix-511, 1.00 [0.40]; collagen+MFGE8, 0.17 [0.13]; **P < 0.01; n = 6) (Fig. 6B).

The small molecule Rho-associated kinase (ROCK) proteins consist of two subunits, ROCK1 and ROCK2. Rho kinases (ROCK1 and ROCK2) function downstream of the small GTPase RhoA to drive actomyosin cytoskeletal remodeling [53]. Cell adhesion, cell morphology, and cytoskeletal tension regulate the activation of ROCK by RhoA [54]. The ROCK inhibitor Y-27632, or a combination of ROCK inhibitors, has been shown to enhance hPSC survival after passage as single cells [55,56]. The cell–cell interaction mediated by ROCK inhibitor seems to be associated with the stabilization of the cell surface by E-cadherin. The results showed that the expression of ROCK1 was decreased when collagen+MFGE8 was used as a scaffold material in comparison to iMatrix-511 (mean [SD]: iMatrix-511, 1.00 [0.35]; collagen+MFGE8, 0.59 [0.38]; n = 6) (Fig. 6C). The results showed that the ROCK1 mRNA expression of ROCK1 was similar when iMatrix-511 and collagen+MFGE8 were used as scaffolds.

In a prior experiment with n = 3 specimens, hiPSCs cultured on the scaffold material collagen+MFGE8 showed significantly higher ROCK1 mRNA expression than hiPSCs cultured on iMatrix-511 (data not shown). In this experiment conducted with n = 6 specimens, hiPSCs cultured on iMatrix-511 had their samples collected on day 5, whereas hiPSCs cultured on collagen+MFGE8 had their samples collected on day 8 due to slow cell growth. The expression of ROCK1 mRNA seems to be affected by the timing of sample collection after cell seeding.

The results showed that the expression of ROCK2 was significantly decreased when collagen+MFGE8 was used as a scaffold material in comparison to iMatrix-511 (mean [SD]: iMatrix-511, 1.00 [0.31]; collagen+MFGE8, 0.30 [0.16]; **P < 0.01; n = 6) (Fig. 6D). Since the ROCK inhibitor Y-27632 inhibits targets of both ROCK1 and ROCK2, it was assumed that the effect of iMatrix-511 would reduce the levels of both ROCK1 and ROCK2, but in fact, when the expression of ROCK2 mRNA was checked, iMatrix-511 was found to promote the expression of ROCK2 mRNA. This result suggests that only ROCK1—and not ROCK2—affects the cell death of hiPSCs.

Western blotting

Western blotting was performed for various factors involved in the Fyn-RhoA-ROCK signaling pathway. Unfortunately, no experimental results are available for integrin α6, ROCK-1, ROCK-2, PI3-kinase (p85α), P190-A RhoGAP, and P190-B RhoGAP because nonspecific bands were identified.

First, we investigated the mechanism by which iMatrix-511 activates PI3K through integrin α6β1 and Fyn for the Fyn-RhoA-ROCK signaling pathway. The integrin β1 band was detected in whole cell proteins of iPSCs cultured on iMatrix-511 and collagen+MFGE8 (Fig. 7A). When the proteins of iPSCs cultured on iMatrix-511 were fractionated into cytoplasm, plasma membrane, nucleus, and cytoskeleton, the integrin β1 band was detected in the plasma membrane. A narrow band of phosphorylated Fyn was detected in iPSCs cultured on iMatrix-511 in whole cells. In contrast, no band of phosphorylated Fyn was detected in iPSCs cultured on collagen+MFGE8 in whole cells (Fig. 7A). When proteins were fractionated into cytoplasm, plasma membrane, nucleus, and cytoskeleton, iPSCs cultured on iMatrix-511 showed thin bands of Fyn in the plasma membrane and nucleus, whereas thin bands of phosphorylated Fyn were detected in the plasma membrane, and thick bands were detected in the nucleus (Fig. 7B).

OPEN IN VIEWER

FIG. 7.

Western blotting. (A) Western blot assay image of E-Cadherin, integrin α6, integrin β1, Fyn, phospho-Fyn, Rac1, phospho-Rac1, p120 catenin, PI3-kinase (p85α), PI3-kinase (p110α), p190-A RhoGAP, p190-B RhoGAP, RhoA, ROCK-1, ROCK-2, and β-actin bands photosensitively detected on the membrane. (B) Proteins of iPSCs cultured on iMatrix-511 were fractionated into four groups (cytoplasm, plasma membrane, nucleus, and cytoskeleton). Western blot assay image of E-Cadherin, integrin α6, integrin β1, Fyn, phospho-Fyn, Rac1, phospho-Rac1, p120 catenin, PI3-kinase (p85α), PI3-kinase (p110α), p190-A RhoGAP, p190-B RhoGAP, RhoA, ROCK-1, ROCK-2, and β-actin bands photo-sensitively detected on the membrane of each lanes (fractionated into cytoplasm, plasma membrane, nucleus, and cytoskeleton). The samples flowed into each lane (10 μl) of the membrane.

The band of PI3-kinase (p110α) was detected as a thin band in both iPSCs cultured on iMatrix-511 and all protein samples obtained from iPSCs cultured on collagen+MFGE8 (Fig. 7A). The band of PI3-kinase (p110α) from iPSCs cultured on iMatrix-511 in whole cells showed a narrow band in the nucleus (Fig. 7B). In conclusion, iMatrix-511 phosphorylates Fyn on the cell surface through integrin α6β1. Phosphorylated Fyn is translocated to the nucleus, and nuclear translocation of PI3K seems to occur together with the phosphorylation of Fyn.

Both E-cadherin and P120 catenin bands were detected in total proteins of iPSCs cultured on iMatrix-511 and collagen+MFGE8 (Fig. 7A). When the proteins of iPSCs cultured on iMatrix-511 were fractionated into four groups (cytoplasm, plasma membrane, nucleus, and cytoskeleton), E-cadherin and P120 catenin were both detected in the plasma membrane and nucleus (Fig. 7B).

Rac1 bands were detected in total proteins of iPSCs cultured on iMatrix-511 and collagen+MFGE8 (Fig. 7A). No bands of phospho-RAC1 were detected in total protein of iPSCs cultured in collagen+MFGE8, and only in total protein of iPSCs cultured with iMatrix-511 was a thin band of phospho-RAC1 detected (Fig. 7A). When the proteins of iPSCs cultured on iMatrix-511 were fractionated into four groups (cytoplasm, plasma membrane, nucleus, and cytoskeleton), Rac1 and phospho-RAC1 were both detected in the cytoplasm. Given the above, it appears that iMatrix-511 promotes phosphorylation of RAC1 in the cytoplasm of iPSCs. In addition, E-cadherin and P120 catenin on the plasma membrane can be activated by phospho-RAC1.

RhoA bands were detected in total proteins of iPSCs cultured on iMatrix-511 and collagen+MFGE8 (Fig. 7A). When the proteins of iPSCs cultured on iMatrix-511 were fractionated into four groups (cytoplasm, plasma membrane, nucleus, and cytoskeleton), RhoA was detected in the membrane (Fig. 7B).

Proteome analyses

Proteins were extracted from samples of hiPSCs cultured on iMatrix-511 and collagen+MFGE8 scaffolds, fragmented into peptide fragments by digestive enzymes, and subjected to a DIA analysis by LC-MS. The obtained data were analyzed using the DIA proteome analysis software program (Scaffold DIA) to identify proteins and peptides with both Peptide false discovery rate (FDR) and Protein FDR <1% and to calculate quantitative values. The identification and quantification results from the analysis software program (Scaffold DIA) are shown. Protein quantification values were calculated from the DIA analysis data, with “0” meaning that the protein could not be detected (missing value). Normalization was performed based on the median of the quantitative values (Supplementary Table S1). The quantitative values of this DIA analysis datum were Log2 transformed, and missing values (quantitative values of 0) were randomly assigned at low values that were below the detection limit. A heatmap was created by determining the correlation coefficient (Pearson r) between samples from the overall quantitative values, and differences between samples were clustered (Fig. 8A). Next, proteins were selected that satisfied the following conditions: (1) the mean value of each group varied by a factor of ≥2, and (2) the difference between groups was P < 0.05 (two groups: T-test, ≥3 groups: analysis of variance).

OPEN IN VIEWER

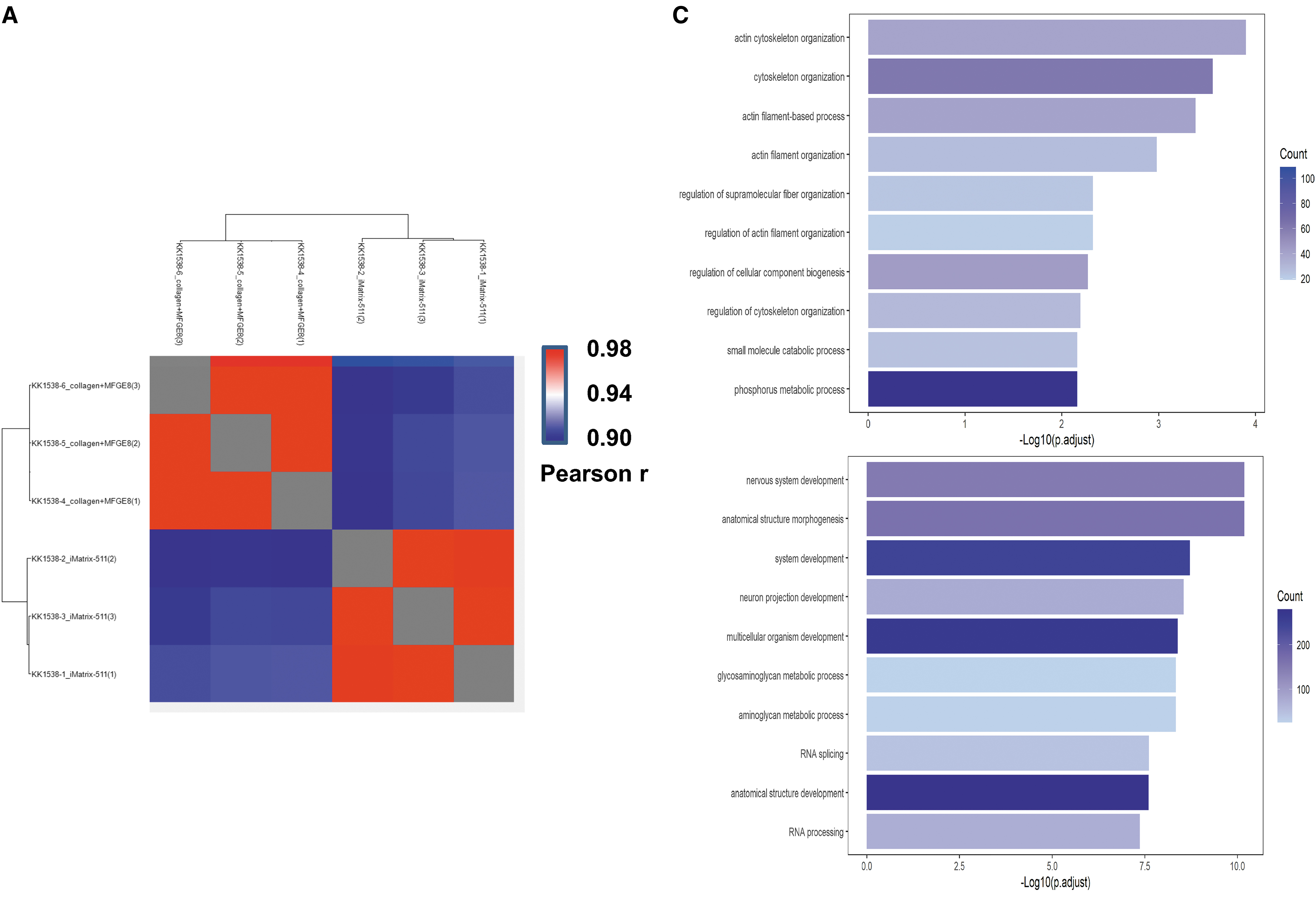

FIG. 8.

Standard DIA proteome analysis findings. (A) The correlation coefficient (Pearson r) between samples is calculated from the overall quantitative values, and a heatmap is created to cluster and present the differences between samples. (B) Proteins with P < 0.05 (two groups: T-test) were selected if the mean value of each group varied more than twofold, and the difference between groups were P < 0.05 (two groups: T-test). Each quantitative value was converted to a Z-score, and a heatmap was created. (C) The results of the GO analysis of increased protein groups in cluster 1 (upper panel) or increased protein groups in cluster 2 (lower panel), showing the bar graph of the top 10 in the result of Biological Process is shown. (D) The results of the Pathway analysis in the increased protein groups in cluster 1 (upper panel) or increased protein groups in cluster 2 (lower panel), showing the bar graph of the top 10 in the result of Pathway analysis is shown. DIA, data-independent acquisition.

OPEN IN VIEWER

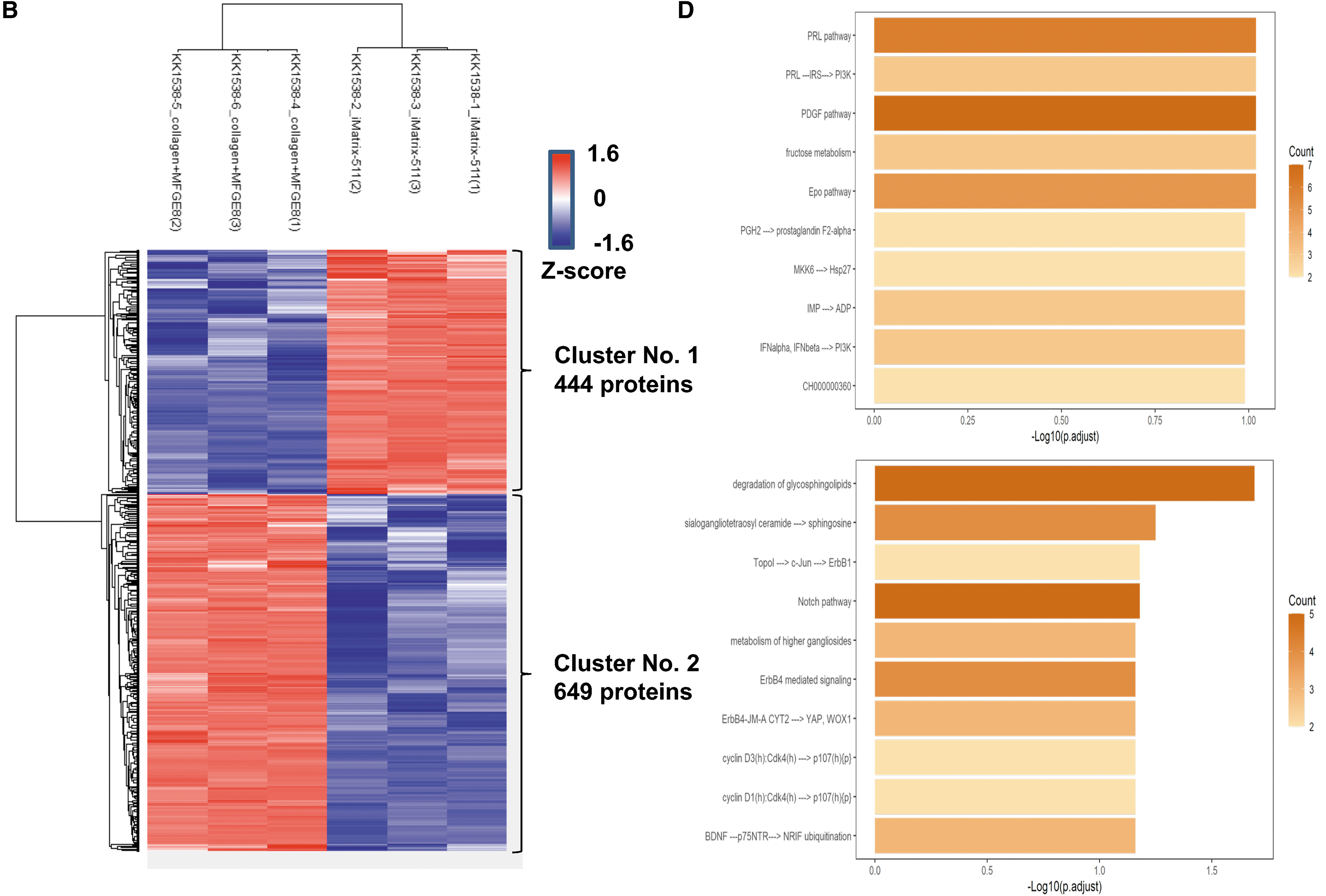

Each quantitative value was converted to a Z-score, and a heatmap was created (Fig. 8B). The 444 proteins in cluster 1 comprised a group in which the protein expression by iPSCs cultured on iMatrix-511 was higher than that by iPSCs cultured on collagen+MFGE8. A list of the 444 proteins in cluster 1 is shown in Supplementary Table S2. The 649 proteins in cluster 2 comprised group in which the protein expression by iPSCs cultured on collagen+MFGE8 was higher than that by iPSCs cultured on iMatrix-511. A list of the 649 proteins in cluster 2 is shown in Supplementary Table S3.

The protein groups with increased protein quantification in cluster 1 (average protein quantification in cluster 1) increased more than twofold compared with cluster 2, and the difference between the groups was P < 0.05 (two groups: T-test). Analyses by GO, Pathway, and an Upstream analysis of GeneXplain were performed. iPSCs cultured on iMatrix-511 showed a greater expression of a group of proteins related to the regulation of the cytoskeleton, mainly actin, than iPSCs cultured on collagen+MFGE8 (Fig. 8C, upper panel) (Supplementary Table S4). iPSCs cultured on iMatrix-511 showed a greater expression of a group of proteins related to the regulation of the PI3K signaling than iPSCs cultured on collagen+MFGE8 (Fig. 8D, upper panel) (Supplementary Table S6). These results indicate that iMatrix-511 activates PI3K signaling, which is reported to be essential for the survival [15] of iPSCs. In addition, the mechanism of actin, a cytoskeletal protein, was shown to be active.

The protein groups with increased protein quantification in cluster 2 (the average protein quantification in cluster 2) increased more than twofold compared with cluster 1 and the difference between the two groups was P < 0.05 (two groups: T-test), analyzed by GO and Pathway, and Upstream analysis of GeneXplain were performed. The iPSCs cultured in collagen+MFGE8 showed higher expression of a group of proteins related to neural differentiation, glycosaminoglycan metabolism, aminoglycan metabolism, RNA splicing, and RNA processing compared with iPSCs cultured in iMatrix-511 (Fig. 8C, lower panel) (Supplementary Table S5). The iPSCs cultured in collagen+MFGE8 showed a higher expression of a group of proteins related to degradation of glycosphingolipids, sialogangliotetraosyl ceramide, the Notch pathway, YAP, cyclin D3, and cyclin D1 than iPSCs cultured in iMatrix-511 (Fig. 8D, lower panel) (Supplementary Table S7).

These results indicate that Notch signaling of iPSCs and YAP are activated in the absence of iMatrix-511. They also indicate that neural developmental mechanisms are active. The iMatrix-511 has been previously reported to inhibit YAP [57]. Notch signaling is known to be involved in many differentiation processes, including neural, hematopoietic, vascular, and somatic differentiation.
