Functional Assessment of Skeletal Muscle Regeneration Utilizing Homologous Extracellular Matrix as Scaffolding

Introduction

Skeletal muscle injuries, including strains, contusions, and lacerations, are well documented.^1–3 Most of these injuries, if given sufficient time, will repair themselves with partial or total restoration of function. ² The repair of the muscular tissue is largely the result of proliferation of resident satellite cells and other progenitor cells, which are capable of moving to the injured area and differentiating into muscle, connective, and vascular tissues.^4,5

Severe skeletal muscle injuries, such as those involving the loss of a substantial portion of muscle, connective tissue, and blood vessels, however, are not capable of full regeneration on their own. These types of injuries are seen in military personnel wounded-in-action, car accident and gun shot victims, and patients having undergone surgeries where the debridement of muscle tissue was necessary. ⁶ In fact, injuries to the soft tissue of the extremities comprise the largest number of wounds received by U.S. military personnel in war-time activities, ⁷ and operations performed on the extremities after battlefield injuries make up the highest percentage of surgical procedures. ⁸ Even when the limb can be saved, the initial damage and loss of muscle and surrounding tissue will leave the soldier with a permanent physical handicap. ⁹ The current standard of care for these injuries is autologous tissue transfer (muscle flaps). Muscle flaps are used to improve esthetics and provide bony coverage. Although recent reports describe functional free muscle transplantation in the forearm ¹⁰ and elbow, ¹¹ these procedures are associated with significant donor-site morbidity and are not yet applicable to large muscle defects.

Complete surgical repair of a skeletal muscle defect is dependent on the ability of an implant to bridge the gap between the transected muscle segments and allow transmission of force between the two ends, as it is necessary for the proper orientation of regenerating muscle fibers and subsequent return of function. ¹² The tension developed in the regenerating muscle also stimulates local release of growth factors that enhance regeneration. ¹³ The implant should also serve as a scaffold and allow the incorporation of regenerating muscle, connective, nerve, and blood vessel tissues.

Several types of constructs suitable for skeletal muscle repair are commercially available. Materials such as Dacron, Silastic, Marlex, Vicryl, and others are often used to repair congenital muscular defects of the abdominal wall, but the success of these grafts varies due to issues with biocompatibility ¹⁴ and inability to allow for cell ingrowth. ¹⁵ The grafts are considered successful when they contain the bowels and look esthetically normal, but most do not allow for the full incorporation of the original tissue they replace. Natural materials for repair can be better for biocompatibility, host cell incorporation, and for reducing infection risks. These have been used successfully for repair of abdominal wall defects and may well be applied to load-bearing muscle grafts in the future.

In skeletal muscle the extracellular matrix (ECM) is an important structural component for the development of muscle fibers, ¹⁶ providing the proper mechanical and chemical environment for the proliferation and differentiation of myogenic progenitor cells^17–19 as well as releasing chemical signals to the surrounding environment that attract macrophages and progenitor cells that aid in the repair process.^20–22 Allografts and xenografts of ECM from the integument, urinary bladder and small intestine have been employed in research to repair tissues in the clinical setting (for review see Badylak ²³ ).

This study was designed to evaluate whether a homologous graft of ECM from skeletal muscle could be implanted into a large muscle defect, and could provide the tensile strength for muscular force transmission as well as the proper environment for growth and differentiation of regenerating muscle tissue. Although some researchers have studied ECM implantation into nonload-bearing, defected muscles such as those of the abdominal wall,^24–26 implantation and functional analysis of ECM into a skeletal muscle defect of an active, load-bearing muscle has not been attempted. Therefore, the purpose of this study was to develop a model to study the regeneration of a skeletal muscle defect involving replacement of lost tissue with a decellularized ECM that could be readily assessed functionally, morphologically, and histologically.

Materials and Methods

ECM isolation

GAS muscles were removed from a separate group of male Lewis rats and decellularized using a method similar to Borschel et al., ²⁷ but with several modifications. Upon extraction the muscles were placed in deionized water at 4°C for 1 day to cause cell swelling and membrane rupture. The muscle was placed in chloroform and continuously agitated for 4 to 5 days depending on its size. The muscle was rinsed with water and submerged in 2% sodium dodecyl sulfate (SDS) and agitated continuously. The SDS solution was changed twice per week until the cellular components were washed out. The remaining ECM was rinsed in a large volume of deionized water (10:1 v/w) over several days with solution changes each day to rid the ECM of SDS. To completely insure removal of SDS, the ECMs were rinsed for 4 h in a 0.1 M Tris buffer solution of pH 9.0. The ECM was then submerged in phosphate-buffered saline with 1% penicillin/streptomycin (Sigma-Aldrich, St. Louis, MO), exposed to ultraviolet light for at least 12 h, and stored at 4°C until ready for implantation. To insure complete decellularization, samples of prepared ECM were stained with Masson's trichrome and run on SDS–polyacrylamide gel electrophoresis gels. Portions of whole muscle and ECM were homogenized in a HEPES-containing buffer solution (pH 7.6) at equal mass to volume ratios, and were centrifuged at 1200 g. The resulting supernatants were boiled in Lameli's buffer. The blank samples contained only homogenization buffer boiled in Lameli's buffer. Equal volumes of each sample were loaded into a polyacrylamide gel consisting of a 5% stacking gel and a 12.5% running gel. The gel was run at constant current for 1 h. The gel was then was stained in biosafe Coomassie blue solution (Bio-Rad, Hercules, CA) for 30 min. The image was taken using the Chemidoc XRS system (Bio-Rad). Additionally, a scanning electron microscope (Zeiss Supra BP, Thornwood, NJ, at UT-Austin ICMB Core Facility) was used to obtain images of the ECM (Fig. 1). A colorimetric assay described by Arand et al. ²⁸ to measure the content of SDS was performed to insure complete removal of SDS from the ECM.

OPEN IN VIEWER

FIG. 1.

(A) Coomassie staining of sodium dodecyl sulfate–polyacrylamide gel electrophoresis gel. (B) Visual appearance of decellularized ECM. (C) Scanning electron micrograph of ECM before implant. (D, E) Masson's trichrome stain and hematoxylin and eosin stain of ECM before implant (scale bars = 100 μm). ECM, extracellular matrix. Color images available online at www.liebertonline.com/ten.

The ECM was implanted in the muscle with the defect using a modified Kessler stitch (5-0 Prolene; Ethicon) with simple interrupted sutures on each of the three borders to hold the cut ends together and serve as markers for later analysis. The modified Kessler stitch was used because it has been shown to be the most effective way to suture the transected muscle segments back together. ²⁹

Results

Immediately upon laceration, the transected myofibers retracted to form a small gap. In LAC, no sign of laceration was apparent macroscopically after 42 days of recovery. No significant difference in isometric tetanic force or muscle weight was apparent between lacerated and control muscles after 42 days of recovery (Table 1).

Immediately upon removal of the muscle defect, theremaining portions of the transected myofibers retracted forming a gap larger than the original defect (Fig. 2A). A gradual remodeling of the LGAS occurred such that at 28 days postdefect injury, little if any of the original defect wound was recognizable (Fig. 2B). Wet muscle weight of the defected LGAS was significantly decreased at all time points relative to the nonoperated contralateral LGAS (Table 2).

OPEN IN VIEWER

FIG. 2.

Defect LGAS morphology relative to contralateral LGAS at (A) defect creation, (B) 28 days postdefect, and (C) 42 days postdefect. (D) ECM repair 42 days postdefect (scale bars = 1.0 cm). LGAS, lateral gastrocnemius.

Maximal isometric, tetanic tension (P_o) of the whole GAS immediately after the defect injury was 88.3 ± 2.0% and 76.9 ± 3.2% of the contralateral limb for SDEF and LDEF, respectively. After 14 days of recovery P_o was 88.1 ± 5.6% (SDEF) and 80.7 ± 3.5% (LDEF) of the contralateral limb. Twenty-eight days postinjury P_o of LDEF was 79.4 ± 4.0% (Fig. 3, SDEF was not assessed at 28 days). The P_o of the SDEF group was significantly higher than that of the LDEF group at all recovery time points (p < 0.05). No significant difference was found at the different recovery time points within each group.

OPEN IN VIEWER

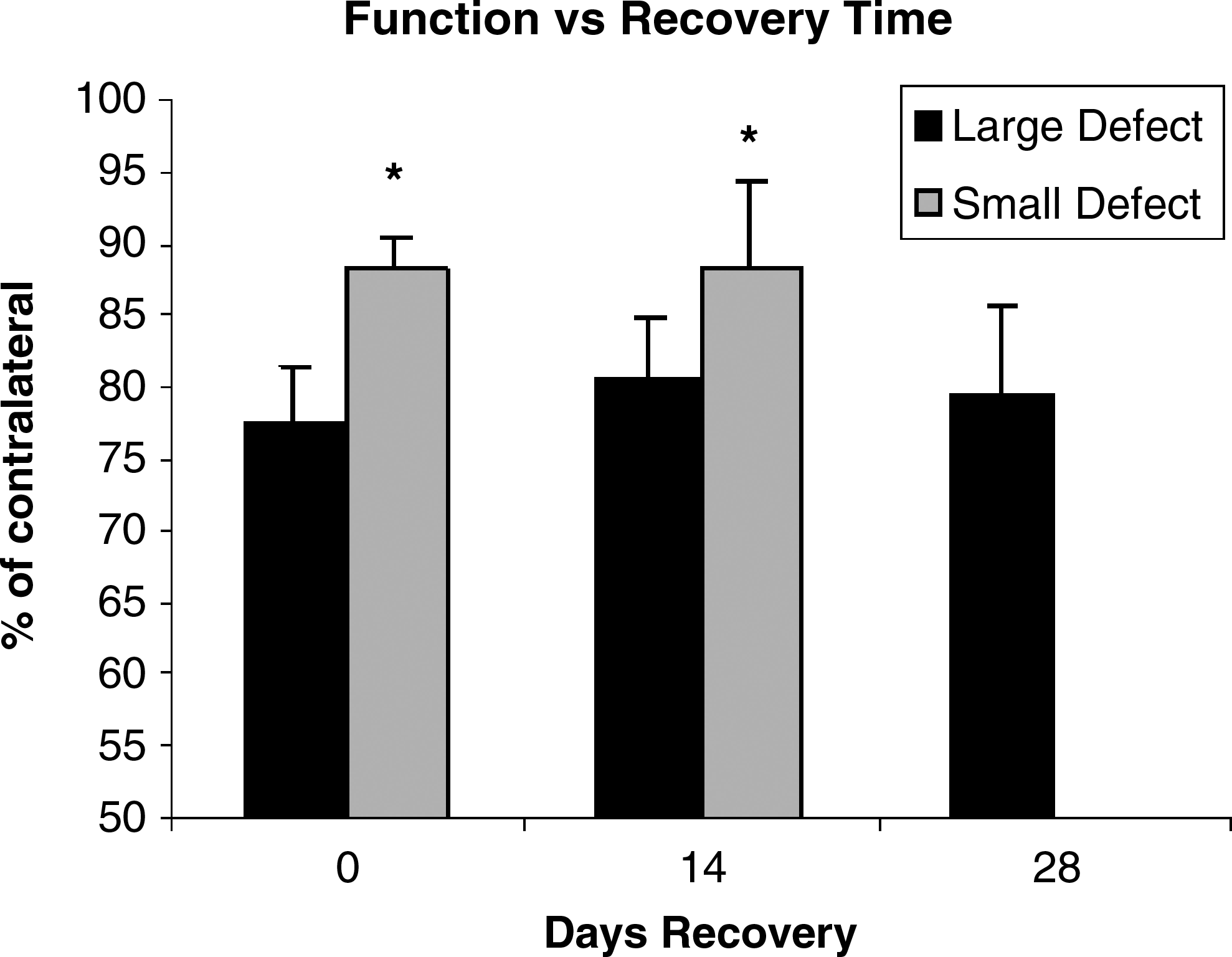

FIG. 3.

Sprague-Dawley rat functional data. Gastrocnemius muscles from the large defect group produced significantly less maximal isometric, tetanic tension than those from the small defect group as denoted by asterisks (p < 0.05). No data exist for the small defect group at 28 days of recovery.

As seen in the S-D rats, immediately upon removal of the defect, the transected myofibers retracted, and if the defect was not repaired, a gradual remodeling took place such that the original defect area was hard to define by 42 days (Fig. 2C). However, repair with the ECM maintained the overall morphology of the LGAS (Fig. 2D).

Before implant, no nuclei or cytoplasm were evident within the decellularized ECMs prior as evidenced by Masson's trichrome staining, and the decellularization protocol removed nearly all soluble proteins as determined by SDS–polyacrylamide gel electrophoresis analysis and Coomassie blue staining (Fig. 1). SDS levels within the ECM before implant were less than 1 μg/mg as determined by colorimetric assay described by Arand et al., ²⁸ which are well below reported cytotoxicity levels for SDS of 10 μg/mg. ³⁰

Functionally, the maximal isometric, tetanic tension produced by the LGAS of the DEF ONLY group was significantly lower than that of the nonoperated, contralateral limb at all recovery time points. No recovery of force occurred over the course of 42 days in either the DEF ONLY group, nor the ECM repair group (Table 3B and Fig. 4). A statistically significant difference between the DEF ONLY and DEF/REP groups was seen at 7 days postinjury, but not at any subsequent time point. As shown in Tables 3A and 4, the average mass of the defected LGAS with the exception of one was significantly lower than that of the nonoperated, contralateral LGAS. Although the mass of the DEF/REP LGAS tended to be higher relative to the contralateral limb than the mass of the DEF ONLY LGAS, the difference was not statistically significant.

OPEN IN VIEWER

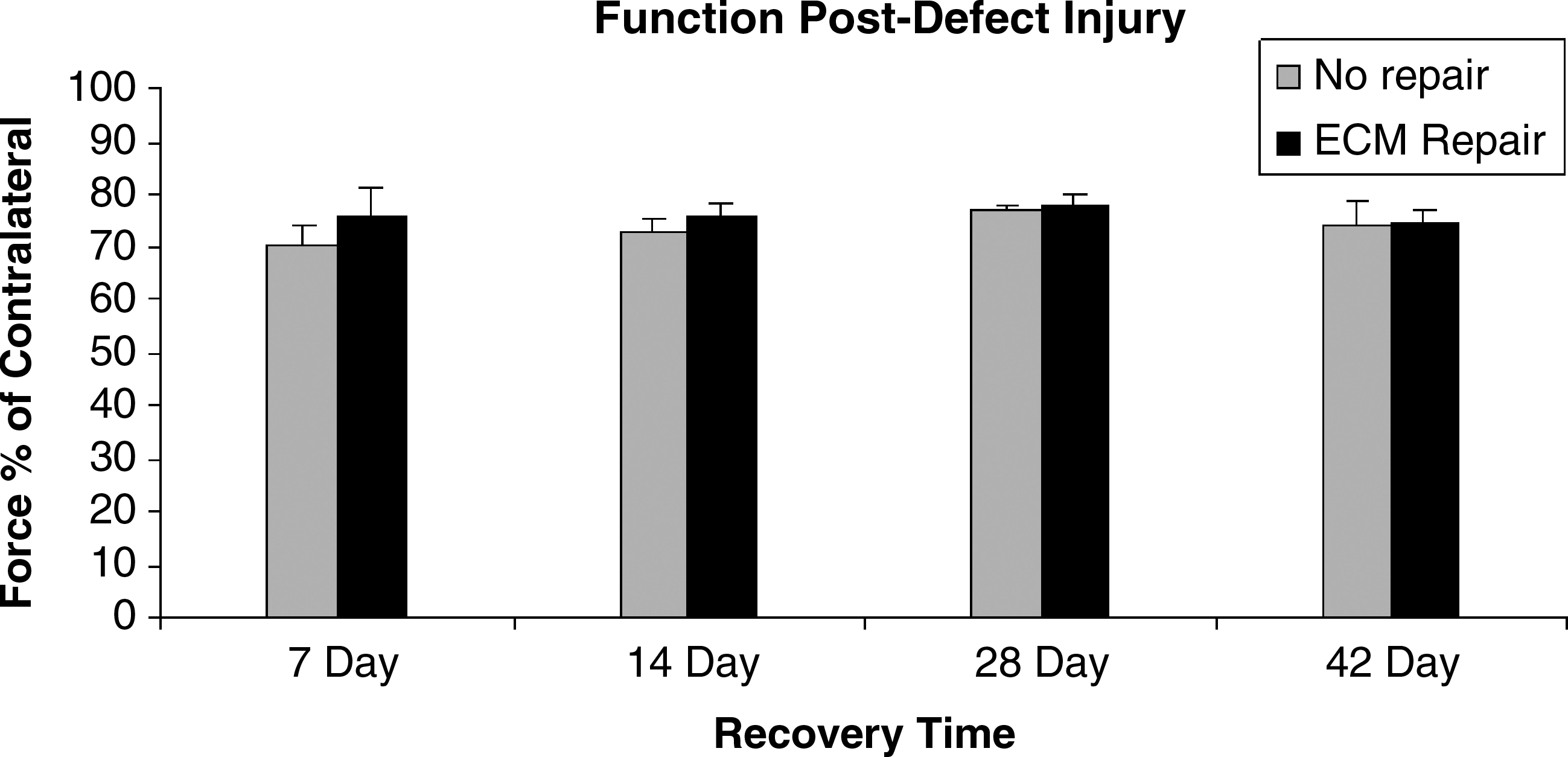

FIG. 4.

Maximal isometric, tetanic tension of defect LGAS relative to contralateral limb at 7, 14, 28, and 42 days postinjury. No significant difference between groups or time points.

Histological analysis of the defect area with ECM shows the histologic progression of the implanted ECM from 7 to 42 days of recovery (Fig. 5). Immunohistochemistry confirmed the presence of desmin-positive myofibers (Fig. 6) and vWF-positive endothelial cells (Fig. 7). Quantification of the desmin-positive area throughout the ECM determined that there were significantly higher numbers of myofibers within the ECM after 42 days of recovery compared to 7 days of recovery, and a significantly higher number of and vWF-positive blood vessels within the ECM at 28 and 42 days compared to 7 days (Table 4 and Fig. 8). Myofibers and blood vessels were found deeper in the ECM as recovery time increased. The area of ECM closest to the border with the transected myofibers appeared most dense with regenerating fibers and blood vessels indicating approximately 1 mm of growth (Fig. 9A). Fewer fibers and blood vessels were seen in the areas deeper into the ECM that were 2–3 mm from the cut muscle surface. Little to no evidence of regenerating fibers or blood vessels was apparent in the middle of the ECM greater than 3–4 mm from the cut muscle surface (Fig. 9B).

OPEN IN VIEWER

FIG. 5.

Masson's trichrome of ECM implant at (A) 7, (B) 14, (C) 28, and (D) 42 days of recovery. Note: Circular spaces are suture holes (scale bars = 100 μm). Color images available online at www.liebertonline.com/ten.

OPEN IN VIEWER

FIG. 6.

Masson's trichrome of ECM implant at 42 days of recovery (scale bar = 100 μm) with desmin & Hoescht immunofluorescent–stained inset (scale bar = 50 μm). Color images available online at www.liebertonline.com/ten.

OPEN IN VIEWER

FIG. 7.

Trichrome of ECM implant at 42 days of recovery (scale bar = 100 μm) with von Willebrand factor–stained inset identifying presence of blood vessels (scale bar = 50 μm). Color images available online at www.liebertonline.com/ten.

OPEN IN VIEWER

FIG. 8.

ECM implant after 7 days stained for von Willebrand factor and desmin (A, C) and after 28 days (B, D). Scale bar = 100 microns. Color images available online at www.liebertonline.com/ten.

OPEN IN VIEWER

FIG. 9.

Serial sections of ECM implant at 28 days of recovery stained with Masson's trichrome. (A) 1–2 mm from muscle/ECM border and (B) 2–3 mm from muscle/ECM border (scale bar = 100 μm). Color images available online at www.liebertonline.com/ten.

Discussion

Little to no regeneration occurs in skeletal muscle after a transection of the myofibers when a substantial amount of the tissue is lost. Regrowth across the muscle defect gap does not occur over the course of 42 days after injury. The remodeling process that takes place during this time makes it unlikely that the muscle would ever return to its original size and shape. Since the maximal isometric, tetanic force immediately postdefect injury is the same regardless of the recovery time allowed, it is likely that permanent functional damage was incurred. Without any significant functional recovery of the muscle and the morphological changes it undergoes, this muscle defect model is a suitable model for use in further investigations into skeletal muscle's regenerative capacity. Since the laceration-only injury showed no functional deficit after 42 days, and the defect injury had not recovered function after 42 days, the defect model presented here could be a better model for the study of skeletal muscle regeneration, and surgical and tissue engineering interventions aimed at regenerating significant amounts of skeletal muscle than a laceration injury model.

Researchers have used GAS laceration models that resulted in a more severe loss of function that, if left unrepaired, persisted for weeks.^31–33 Others, however, have seen functional recovery after only 25 days even in full transection laceration models of the soleus. ³⁴ The lack of an apparent functional deficit in this LGAS model after 42 days is likely due to the size and location of the laceration. The laceration was created only on the LGAS and did not transect the medial GAS, but for the laceration model, the mass and force measurements were performed on the whole GAS (medial and lateral together). Additionally, nerve and major blood vessels in the area were left intact, which when taken together with the measurements on the whole GAS likely explains the full functional recovery that occurs in this model, but does not occur in other models where a complete transection of the muscle is performed.^32,33 Further investigation is needed to determine if the LGAS has fully recovered function or if the medial GAS is compensating. However, in the context of our work, we were only attempting to create a laceration as a control injury that was at the same site and to the same depth as the muscle defect. Regardless, the lack of a functional deficit 42 days postlaceration injury underscores the importance of a defect model that demonstrates a functional deficit and has no functional improvement over the same timeframe.

During development of the muscle defect model, two defect sizes were utilized to determine the critical size for establishing significance of our treatment techniques. The 0.5 × 1.0 cm (∼150 mg) defect was not large enough to allow for easy determination of the effectiveness of surgical repair. Although there was a decrease in function that did not begin to return to normal by 14 days (28 days of recovery was not assessed), it was not a large enough functional deficit to allow for definitive evaluation of different repair techniques. The decrease in mass in the SDEF from 92% of contralateral weight to 82% of contralateral weight at day 14 might be explained by the potential for atrophy of the remaining transected myofibers in SDEF. A larger portion of the transected fibers remained in the SDEF and could subsequently experience more atrophy, whereas more mass was initially removed in the LDEF, so smaller portions of transected fibers remained and less mass could be lost due to atrophy. The superior and inferior portions of the LGAS (above and below the defect) were not assessed though. The 1.0 × 1.0 cm (∼306 mg) defect was the maximum size allowed by the rat's anatomy without cutting nerve or major blood vessels supplying distal portions of the limb. Since no functional recovery occurred over 28 days, it was determined that this was a suitable model to study the ability of muscle to regenerate and to evaluate subsequent repair techniques. After the development of the defect injury model in the S-D rats, further experiments were performed on the Lewis rat, an inbred strain of rat better suited for surgical implantation research. Defect surgeries were performed to confirm the lack of functional recovery seen in the S-D rats. Due to minor anatomical differences of the Lewis rat, the 300+ mg defect removed from the S-D rats could not be achieved, and the Lewis rat defect mass was approximately 230 mg. To better isolate the functional effect of the defect on the LGAS, the medial GAS was denervated immediately before force analysis, so that only the LGAS was contributing to force production.

To repair the muscle defect, an implantable material was needed that could bridge the gap between the transected ends of the myofibers and allow mechanical transduction of force. The material also needed to be capable of supporting the growth of myofibers and other muscle-associated cell types. Skeletal muscle ECM was chosen for this reason. The process of decellularizing skeletal muscle to obtain an ECM is possible. The decellularization process removes all cellular components from the tissue so that only the ECM scaffold is left. Acellular tissue is advantageous because the implanted ECM scaffold has physical properties similar to those seen by cells in vivo, and the ECM should naturally direct cells to orient in the proper direction. This is important for cells such as muscle progenitor cells activated in the repair process, because they develop best on substances that are most like muscle tissue. ¹⁷ Proper alignment of the scaffolding is also important for the transmission of force. A properly derived ECM scaffold is also nonimmunogenic. When implanted, the tissue did not elicit an immune response that would otherwise reject the implant and render it ineffective, because its immune reactive antigens were stripped off with the cells. ²⁷

Borschel et al. have had success growing viable muscle tissue in vitro on an ECM derived from decellularized skeletal muscle. ²⁷ Implantation of acellularized skeletal muscle into muscle defects of the abdominal wall has been performed by several groups with varying levels of success. Although the functional outcome was not assessed, evidence that the ECM is infiltrated by blood vessels is apparent and some researchers have seen infiltration of skeletal muscle fibers as well. ³⁵ Similar results occurred in the implantation of an acellular collagen sponge into defected rabbit vastus lateralis muscles. ³⁶ More successful repair with ECM occurs when myoblasts or satellite cells are seeded onto the ECM before implantation.^24,25,37 Acellular ECM has been successfully employed as a patch to repair defects in a number of tissues, including tendons and cardiac muscle. On their own, ECM scaffolds are effective at repairing tendon injuries of the rotator cuff and Achilles tendon.^38,39 The ECM scaffold bridges the gaps in the tendon and allows incorporation of cells from the native tissue. Similar results have been observed in cardiac muscle with ECM repair. A myocardial ventricular wall defect patched with ECM incorporated more myocardial tissue into the defected area than a synthetic expanded polytetrafluoroethylene (ePTFE) patch used clinically. ⁴⁰ Defects of the ventricular wall repaired with ECM also lead to increased functional improvements compared to Dacron. ⁴¹

As evidenced by this study, the muscle-derived ECM used here to repair defected skeletal muscle tissue is capable of supporting the growth of blood vessels and myofibers, and is a promising model for the study of muscle regeneration. ²⁷ As recovery time increased, an increase in the number of blood vessels and myofibers was apparent in the ECM at progressively deeper levels, suggesting that the fibers and vessels are growing into the ECM from the transected ends of the surviving myofibers. After 42 days, however, the middle of the ECM was not yet populated with myofibers or blood vessels. The ingrowth of blood vessels seen in the ECMs used in this study has been seen in studies performed on the repair of abdominal wall musculature with similarly derived ECMs.^26,35 Limited ingrowth of myofibers has been confirmed in some of the abdominal wall defect ECM implants, ³⁵ but not all.^24,26,37 The myofiber ingrowth observed in the present study might be due to the difference of the muscles chosen. Functionally, the LGAS is very active and is subjected to a relatively high amount of mechanical stress during normal activity, whereas the abdominal wall musculature does not see the same demands. An increase in the activity level of an injured muscle can expedite the healing process. ⁴² With the exception of the 7-day recovery time point, the function of the matrix-repaired muscle was not significantly different from the unrepaired muscle up to 42 days postinjury, although longer recovery times were not studied. The reason for the functional improvement of the matrix-repaired muscle compared to the unrepaired muscle after only 7 days of recovery but not at subsequent recovery times is not immediately apparent. The difference could be due to changes in the transected myofibers on the LGAS superior and inferior to the implanted ECM, but these regions of the LGAS were not analyzed. The lack of subsequent functional recovery could be due to the small size and limited number of fibers growing into the ECM, insufficient vasculogenesis throughout the ECM, and possibly incomplete nerve reinnervation of fibers.

In conclusion, the LGAS defect injury model allows for a uniform standard for the study of the regeneration potential after traumatic skeletal muscle injury. This model has tremendous potential to aid researchers in the best treatments to restore function and esthetics to severely damaged skeletal muscle. The muscle defect area could easily be replaced with any of a number of natural or engineered replacement tissues, and regeneration and function could be monitored in the in vivo environment as was done with the ECM in this study. The morphology of the repaired LGAS and esthetic appearance were well maintained over 42 days despite the fact that functional recovery did not occur. The possibility exists that longer recovery times greater than 42 days would have given time for better regeneration; however, the ECM provided a suitable environment for blood vessel and myofiber in-growth, which indicates that ECM is a suitable implant material. Further research should focus on increasing the number and size of myofibers throughout the ECM and improving the functional outcome.
