Extracellular-Matrix-Based and Arg-Gly-Asp–Modified Photopolymerizing Hydrogels for Cartilage Tissue Engineering

Isolation and culture of bovine chondrocytes

Bovine chondrocytes were isolated, cultured, and characterized as previously described. ¹⁴ Briefly, full-thickness bovine cartilage was obtained from the slaughterhouse. To isolate chondrocytes, the cartilage chunks were cut into small pieces and they were digested in Dulbecco's modified Eagle's medium (DMEM; Gibco), 5% fetal bovine serum (FBS; Cat. No. 10438-026; Gibco), and 0.2% collagenase (Worthington Biochemical Corporation) for 14–18 h. The resulting chondrocytes were then filtered with using 70-μm cell strainers and washed with phosphate-buffered saline (PBS). Isolated chondrocytes were maintained in chondrocyte culture medium containing DMEM (Gibco), 10% FBS (Cat. No. 10438-026; Gibco), 10,000 U/mL penicillin-streptomycin, 1 mM of 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES; Gibco), 100 μM of nonessential amino acid (NEAA; Gibco), 0.4 μM of proline, and 50 μg/mL of vitamin C. We have utilized the same batch of FBS throughout the experiments to minimize the FBS-dependent variations. Culture medium was changed every other day.

Methacrylation of chondroitin sulfate and HA

The hydroxyl function groups of chondroitin sulfate (CS; Sigma-Aldrich) and hyaluronic acid (HA; MW of 1.6×10⁷; Genzyme Corp.) were reacted with the glycidyl methacrylate (GMA; Sigma-Aldrich) for methacrylate group incorporations. ¹⁵ Briefly, for methacrylation of CS (MeCS), 1.0 g of CS dissolved in PBS (10%) was reacted with 1 mL of GMA (73 mM) for 11 days. For methacrylation of HA (MeHA), 1.0 g of HA dissolved in PBS (1%) was reacted with 2 mL of GMA (73 mM) for 8 days. After the reaction, MeCS and MeHA were purified for 48 h against 1000-MW dialysis membrane. The purified molecules were lyophilized and stored at −20°C until use.

Synthesis of RGD/RDG-modified poly (ethylene glycol) acrylate

Tyrosine-arginine-glycine-aspartate-serine (YRGDS) and tyrosine-arginine-aspartate-glycine-serine (YRDGS) were synthesized using solid-phase peptide synthesis (SPPS). High-performance liquid chromatography (HPLC) was performed to confirm RGD and RDG peptide purity (Supplementary Fig. S1; Supplementary Data are available online at www.liebertpub.com/tea). Sample purities were analyzed by RP-HPLC (Thermo Scientific Spectra System AS300; Thermo-Fisher) using C18 reverse-phase column (120 Å, 5 μm, 4.6×250 mm²; AAPPTec) using the following conditions: gradient elution with A: 0.1% TFA/water, B: 0.1% TFA/acetonitrile; from 10% to 90% over 30 min, a flow rate: 1.0 mL/min; detection: UV, 230 nm. For peptide-modified polymers, YRGDS and YRDGS were reacted with acrylate-PEG-N-hydroxysuccinimide-ester (acrylate-PEG-NHS, 3500 MW; Jenkem Technology) in 50 mM TRIS buffer (pH 8.2) for 2 h at room temperature. The product was lyophilized and stored at −20°C until use.

Photoencapsulation of bovine chondrocytes

Isolated primary bovine chondrocytes were encapsulated into (YRGDS)-modified poly (ethylene glycol)-diacrylate (PEGDA, MW 3400; SunBio, Inc.) or YRGDS-modified PEGDA, as previously described. ⁵ PEGDA solution (20% w/v) was mixed in 1:1 ratio with Acrylate-PEG-YRGDS or Acrylate-PEG-YRDGS in sterile PBS for 2.5 mM final peptide concentration. For RGD/RDG-modified ECM hydrogels, YRGDS-PEGDA or YRDGS-PEGDA solution was mixed with MeCS (10% w/v in PBS) and MeHA (1% w/v in PBS), respectively, in 1:1 ratio to formulate precursor solution. Cells were gently mixed with the polymer solution at a concentration of 2×10⁶ cells/construct and photopolymerized with photoinitiator (Igacure 2959, 0.05% w/v) using UV light (3.5 mW/cm²) for 5 min. The constructs (diameter=5 mm, height=2.3 mm, and total volume=75 μL) were maintained at 37°C with 5% CO₂ with chondrocyte culture medium for 3 weeks.

Swelling and mechanical properties of hydrogels

For each hydrogel, gel samples (n=3) were swollen and weighted in equilibrium swollen state. The gels were subsequently lyophilized to remove the water weight from the samples and the dry weight was measured. Swelling ratio (Q) was then calculated from the mass swelling ratio. ¹⁶ \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*} Swelling \ ratio , Q = \frac{weight \ of \ the \ equilibrated \ hydrogel \ in \ PBS}{weight \ of \ the \ dried \ hydrogel} \end{align*} \end{document}

Hydrogel degradation was examined by monitoring weight loss upon incubation in enzyme-containing solutions. Wet weight of hydrogels (W_t) was monitored as a function of incubation time in hyaluronidase (100 U/mL, H3506; Sigma-Aldrich) or chondrotinase ABC (1 U/mL, C3667; Sigma-Aldrich) solution at 37°C up to 4 days. The weight-loss-ratio percent was defined as the following equation, where W_t indicates initial weight of hydrogel. \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*} Weight \ loss \ ratio \ {\%} = \frac{W_{o} - W_{t}}{W_{o}} \times 100 \end{align*} \end{document}

For mechanical characterization, hydrogels were equilibrated in PBS for 24 h and compression tests were performed using Instron Model 5966 (Instron Corporation) with a 10-kN-load cell. The load, stress, and strain values recorded were used to calculate the stress and strain from the measured dimensions of each sample. Compressive modulus was calculated from the linear region of the stress–strain curve.

Cellular viability and morphological analysis

Cell viability in hydrogels was determined by live/dead cell viability/cytotoxicity kit (Molecular Probes; L-3224) that contains calcein-AM (“Live” dye) and ethidium homodimer-1 (EthD-1, “Dead” dye). Images were collected using CKS41 fluorescence microscope (Olympus). For cellular morphological analysis, cells were fixed at 4% paraformaldehyde and cut into 500-μm section. After permeabilized with 0.1% Triton X-100 for 30 min, sections were stained with 4′6-diamidino-2-phenylindole (DAPI; Sigma-Aldrich) for 10 min and Alexa Fluor^® 488 Phalloidin (A12379, 1:150 dilutions; Life Technologies) for 2 h. Images were obtained using LSM 510-Meta confocal microscope (Zeiss).

Biochemical analysis of hydrogels

Biochemical assays were performed on RGD/RDG-modified ECM-based hydrogel constructs. Constructs (n=3) were collected at 3 weeks, lyophilized, mechanically crushed, and digested in papainase solution (1 mL/construct; 125 μg/mL; Worthington Biomedical) for 16 h at 60°C. ¹⁴ DNA content was quantified using Quant-iT™ PicoGreen^®dsDNA assay kit (Invitrogen™) according to the manufacturer's instruction. The GAG content was quantified using dimethylmethylene blue (DMMB) spectrophotometric assay at A₅₂₅, as previously described. ¹⁷ For measurement of GAGs produced by cells in cell-laden PEG-CS hydrogels, we have subtracted off the GAG value of acellular PEG-CS hydrogels from the total value (i.e., GAG from CS-PEG+ cells). Total collagen content was determined by measuring the amount of hydroxyproline within the constructs after acid hydrolysis and reaction with p-dimethylaminobenzaldehyde and chloramine-T, as previously described. ¹⁸

Histological and immunostaining analyses

Cell-laden hydrogel constructs were fixed with 4% paraformaldehyde solution at 4°C for overnight. Prior to the embedding in optimal temperature cutting compound (OCT), samples were incubated in 20% sucrose solution for 2 h at room temperature, and OCT-embedded samples were placed in isopentane and frozen in liquid nitrogen. Using a cryostat (Leika; CM3050), sample was cryosectioned into 15-μm-thick slices. For H&E staining, frozen sections were rehydrated in PBS at room temperature for 10 min and stained with hematoxylin (Ricca Chemical Company; Gill 2, Cat. No. 3536-16) for 5 min. The stained sections were thoroughly rinsed with DI water. Sections were then stained with Eosin-Y (Richard-Allan Scientific; Cat. No. 7111) for 1 min, followed by multiple washes in DI water. For Safranin-O staining, the rehydrated sections were stained with 0.1% Safranin-O (ScholAR Chemistry) for 5 min at room temperature. The stained samples were gradually dehydrated in series of ethanol, followed by CitriSolv (Fisher Scientific; Cat. No. 22-143975). For immunofluorescence staining of collagen types I and II and F-actin, rehydrated sections were blocked and permeabilized in PBS containing 0.3% Triton X-100 and 3% bovine serum albumin (BSA; Sigma; Cat. No. A7906) for 1 h at room temperature. Next, the sections were incubated with primary antibodies against type I and type II collagens (1:200, rabbit polyclonal; Fitzgerald; Cat. No. 70R-CR007X and Cat. No. 70R-CR008X, respectively) at 4°C for overnight. After washing in PBS, sections were incubated with secondary antibodies (1:250; goat anti-rabbit Alexa-Fluor 488 and goat anti-rabbit Alexa-Fluor 546; Life Technologies) and Alexa-Fluor 488 Phalloidin (1:100; Life Technologies) for F-actin. The nuclei were stained with Hoechst 33342 (2 μg/mL; Life Technologies) for 5 min at room temperature, followed by mounting sections with Vectashield (Vector Laboratories). Imaging was performed using a fluorescence microscope (Carl Zeiss; Axio Observer A1).

Real-time PCR

Total RNAs were extracted from cell-laden hydrogel (n=6) with Trizol, and reverse transcribed into cDNA using the SuperScript Synthesis System (Invitrogen). Real-time PCRs were performed using the SYBR Green PCR Mastermix and the ABI StepOnePlus™ Real-Time PCR system (Applied Biosystems). cDNA samples (1 μL for total volume of 20 μL per reaction) were analyzed for the genes of interest, and GAPDH was used as a reference gene. The level of expression of each target gene was then calculated as −2^ΔΔCt. ¹⁹ Each sample was repeated at least three times for the gene of interest. The PCR primers are listed in Table 1.

Statistical analysis

All data are presented as mean±standard deviation (SD). Statistical significance was determined by analysis of variance (ANOVA single factor) with *p<0.05.

Synthesis and characterization of RGD/RDG-modified ECM-based hydrogels

ECM-based photopolymerizing hydrogels were fabricated by introducing methacrylated functional groups to CS and HA followed by copolymerizing modified CS or HA with PEGDA/Acrylate-PEG-RGD solution. CS and HA have hydroxyl functional group that can react with glycidyl methacrylate, resulting in incorporation of photoreactive groups to CS and HA (Fig. 1A). To confirm the incorporation of methacrylate functional group on CS and HA, we performed 1H-NMR analysis (Fig. 2). Two 1H-NMR peaks of MeCS representing vinyl protons at 6.207 ppm and 5.768 ppm and MeHA of 6.193 ppm and 5.771 ppm were observed in the 1H-NMR spectra. For further RGD/RDG incorporation into the ECM-based hydrogels, PEGDA with Acrylate-PEG-RGD or Acrylate-PEG-RDG was mixed 1:1 with MeCS or MeHA prior to photopolymerization (Fig. 1B).

OPEN IN VIEWER

FIG. 1.

Schematic illustration of RGD/RDG-modified extracellular matrix (ECM) hydrogels. (A) Chondroitin sulfate (CS) and hyaluronic acid (HA) were reacted with glycidyl methacrylate (GMA) to form methacrylated CS and methacrylated HA. (B) ACRL-PEG-RGD/RDG was mixed with MeCS and MeHA, respectively, to make different groups of hydrogel. Color images available online at www.liebertpub.com/tea

OPEN IN VIEWER

FIG. 2.

¹ H-NMR spectra image of CS, HA, MeCS, and MeHA. (A) ¹H-NMR spectra image of CS and HA before reacting with pGMA. (B) ¹H-NMR spectra image of acrylate peaks at ∼5.3 ppm to ∼6.2 ppm indicate the presence of methacrylation in MeCS. Acrylate peaks at ∼5.7 ppm to ∼6.2 ppm indicate the presence of methacrylation in MeHA.

Each type of acellular hydrogel formed into homogenous cylindrical shape (Fig. 3A). Swelling studies indicated that equilibrium swelling of the hydrogels had been reached after being immersed in PBS for 24 h. Swelling ratios of the hydrogels remained the same afterward for the 3 weeks of culture period (data not shown). The equilibrium swellings of acellular hydrogels are shown in Figure 3B. PEG-RGD had a swelling ratio of 15.01, which was higher than that of all the other hydrogel compositions. However, there was no statistical difference between PEG-RGD and PEG-RDG. The results indicated that exchange of RGD to RDG groups into the PEG-based hydrogel did not cause any change in swelling ratio. Further, among the ECM-based hydrogels, HA-RDG had a swelling ratio of 12.64, which was the lowest. However, swelling ratio differences among each ECM-based hydrogel were not statistically significant.

OPEN IN VIEWER

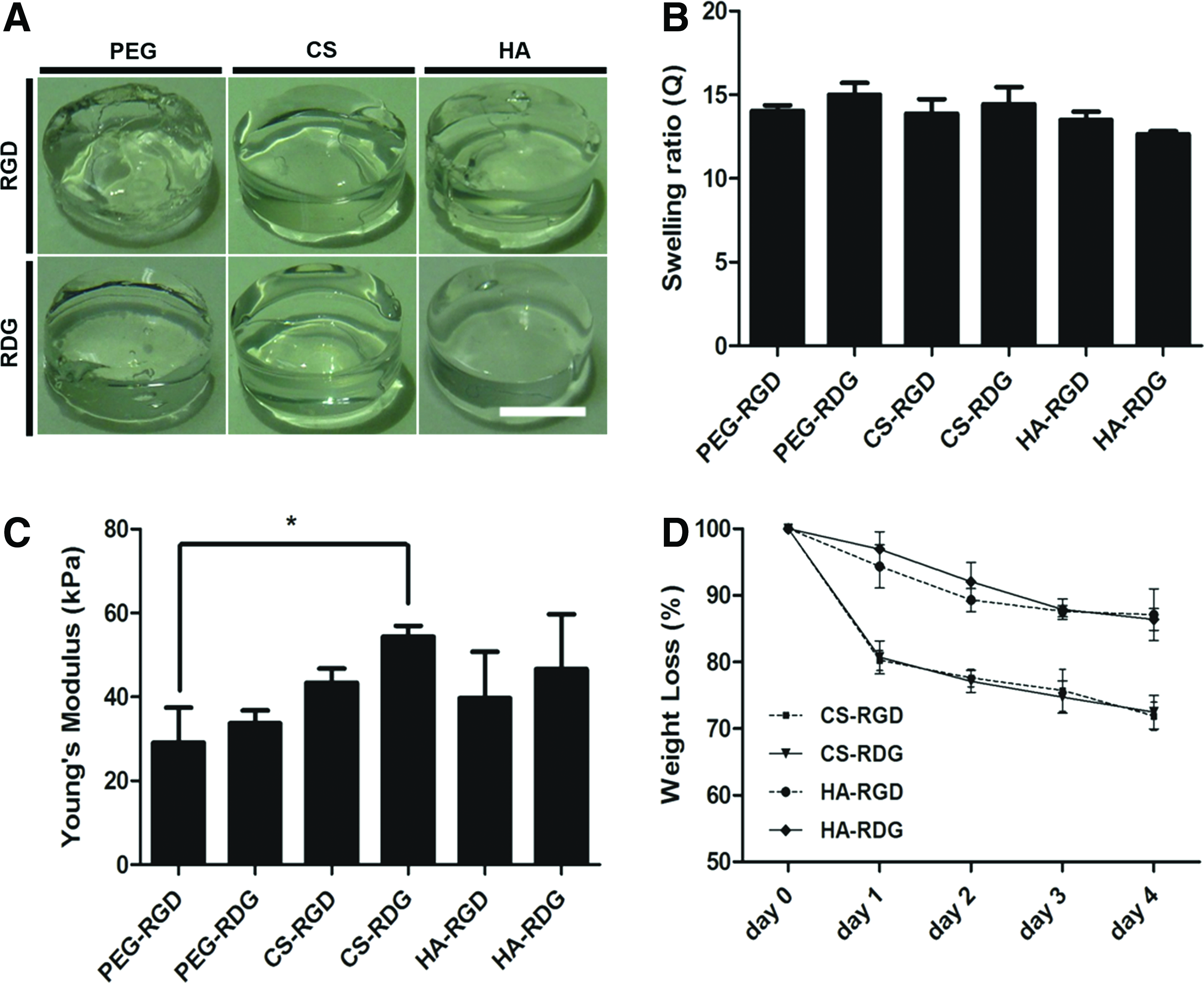

FIG. 3.

RGD/RDG-modified ECM-based hydrogel characterization. (A) Gross image of the acellular hydrogels. Scale bar=250 μm. (B) Swelling ratio of six hydrogel groups after swollen in PBS for 1 day. Similar swelling ratio was observed between hydrogel groups. Error bars represent the standard deviation on the mean for n=3. (C) Young's modulus values for six acellular hydrogel groups. Error bars represent the standard deviation on the mean for n=3: *p-value<0.05. (D) Degradation rate of each type of hydrogel material. Error bars represent the standard deviation of the mean for n=3. Viability test within hydrogel after cultured for 24 h. Color images available online at www.liebertpub.com/tea

For equilibrium Young's modulus of acelluar hydrogels, mechanical properties of CS-based hydrogels were statistically higher compared with other hydrogels. There was no significant difference between PEG-based and HA-based hydrogels. Negatively charged sulfate groups in CS may have increased in accumulation of water content. Further, compressive modulus of CS-based hydrogels may have increased due to electrostatic repulsive forces of charged CS at physiological pH (Fig. 3C). ²⁰

We further examined whether ECM-based hydrogels can degrade by ECM-specific enzymes. HA-based hydrogels and CS-based hydrogels were incubated in PBS with hyaluronidase and chondroitinase, respectively. HA-based hydrogels were degraded over time and 100 U/mL of hyaluronidase resulted in 12.91% mass loss in HA-RGD and 13.61% of mass reduction in HA-RDG after 4 days of incubation, respectively. The degradation of CS-RGD and CS-RDG hydrogels was comparable as 28.12% and 27.54% mass remained, respectively, in the presence of 1 U/mL chondroitinase over 4-days period (Fig. 3D). These results showed that ECM-based hydrogels have comparable swelling ratio characteristics, although CS-based hydrogels displayed higher young's modulus and faster enzyme-dependent degradation.

The cytotoxicity of the hydrogels was examined by a viability assay (Fig. 4A). All scaffold compositions supported cell viability over 2 days of cultivation. Quantitative analysis of cell viability showed that 86% of encapsulated cells were live, and the presence of RGD did not enhance the chondrocyte viability (Fig. 4B). These results indicate that ECM-based hydrogels can support the cell survival regardless of integrin engagement.

OPEN IN VIEWER

FIG. 4.

Analysis of chondrocyte viability in RGD/RDG-modified ECM hydrogels. (A) Live/dead viability cytotoxicity kit was used for viability test. Live cell was stained by Calcein AM and dead cell was stained by Ethd-1. Scale bar=200 μm. (B) Viability was measured by calculating the ratio of live cell and total cell number. Error bars represent the standard deviation on the mean for n=3. Color images available online at www.liebertpub.com/tea

Effect of ECM-based hydrogels on chondrocyte morphology, proliferation, and ECM synthesis

We further examined the ECM-hydrogel-dependent cellular morphology. Bovine chondrocytes were encapsulated in RGD/RDG-modified ECM-based hydrogels and maintained in chondrocyte culture medium for 7 days. Cell morphologies were evaluated by actin staining. F-actin staining revealed few microsize protrusions of the cells into the surrounding matrix (white arrows in Fig. 5A). All ECM-based hydrogels presented uniformly distributed viable cells that displayed a rounded morphology. However, some cellular extended feature morphologies were only present in RGD-modified groups. This extension was followed by interaction between cell and RGD peptide, which was incorporated within hydrogel. From the result, we confirmed that cell adhesion receptors (RGD) are involved in modulation of cellular phenotype by stress fiber formation within hydrogel independent of ECM microenvironment.

OPEN IN VIEWER

FIG. 5.

Morphological analysis of chondrocytes in RGD/RDG-modified ECM hydrogels. Each group of hydrogel was stained with phalloidin and DAPI to observe actin cytoskeleton and nucleus. White arrows are representing cellular sprouting within hydrogel. Scale bar=100 μm. Color images available online at www.liebertpub.com/tea

We next examined the proliferation of bovine chondrocytes within ECM-based hydrogels by quantifying the DNA content after 3 weeks of culture. All groups showed a trend of increasing DNA content over the 3-week period as compared with day 0 (data not shown). DNA content after 3 weeks of time point is depicted in Figure 6A. A significant increase in DNA content was seen in CS-RGD hydrogel compared with PEG-RGD and PEG-RDG. In addition, HA-based hydrogels were able to significantly improve proliferation of cells compared with PEG-based hydrogels. Interestingly, cellular proliferation was not affected by the presence of RGD peptide. Quantitative analysis of GAG indicated that chondrocytes in CS-RGD hydrogels produced the highest levels of GAG accumulation (0.72087% w/w). It was four times higher than GAG content observed in PEG-RGD hydrogels. Similar to DNA measurement result, greater amounts of sulfated GAGs were detected in CS-RGD hydrogels (Fig. 6B). Production of collagen was also quantified after 3 weeks of in vitro culture. Measured collagen content in CS-RGD hydrogels was 4.71% (w/w), which is statistically higher compared with 3.07% of PEG-RGD hydrogel. Interestingly, HA-RGD resulted in lowest collagen accumulation (Fig. 6C).

OPEN IN VIEWER

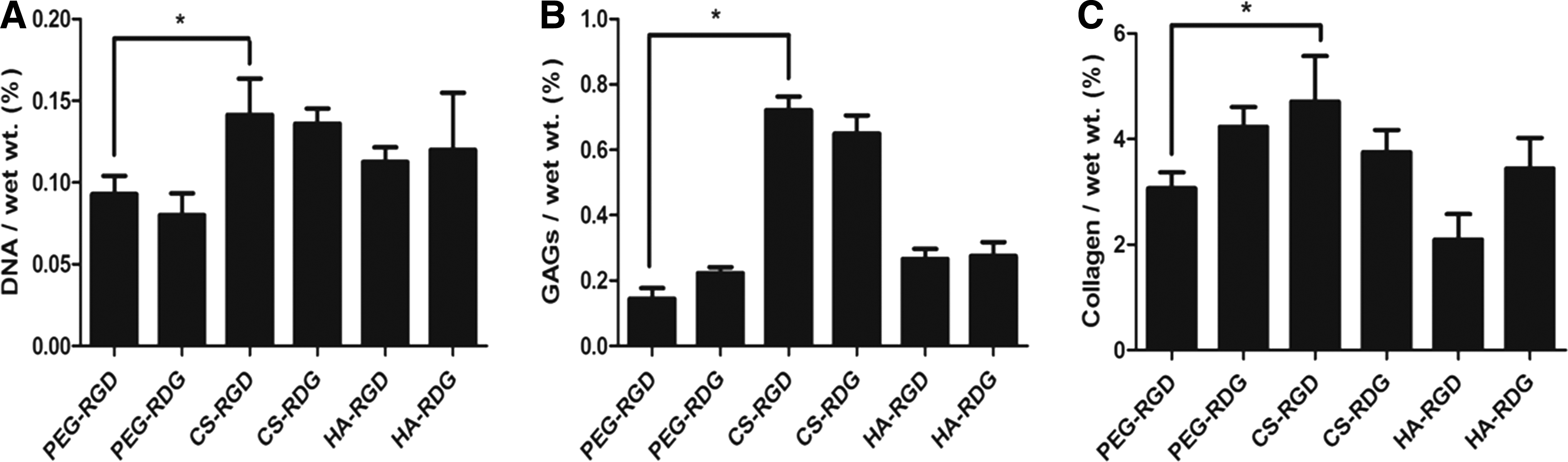

FIG. 6.

Biochemical analysis of chondrocytes in RGD/RDG-modified ECM hydrogels. (A) Quantification of cell proliferation (DNA) and matrix production of GAGs (B) and collagen (C) was determined by biochemical assays. Error bars represent the standard deviation on the mean for n=3: *p<0.05.

Histological and immunostaining analyses of engineered cartilage tissues

Histological evaluation of chondrocytes after 3 weeks of culture indicated that PEG-RGD, CS-RGD, and HA-RGD groups maintained higher GAG accumulation in the hydrogel (Fig. 7A). In addition, number of pericellular matrix visualized with H&E staining was higher in the RGD group compared with the RDG group (Fig. 7A, B). Moreover, the diameter of pericellular matrix visualized by Safranin-O staining (red) was larger and vivid in the PEG-RGD, CS-RGD, and HA-RGD groups of hydrogel, which demonstrates that accumulation of cell-secreted proteoglycan was more apparent in RGD-modified groups compared with RDG-modified groups of hydrogel. Even though CS-RGD and RDG hydrogels stained positive for Safranin-O due to CS content in the hydrogel, GAG contents around the cell appeared much intense in CS-RGD group. To determine the extent of background staining, acellular CS-RGD hydrogel was stained with Safranin-O (Supplementary Fig. S2). Immunostaining analysis for collagen types I and II demonstrated significant differences between RGD-modified hydrogels and RDG-modified hydrogels. Cells encapsulated in RGD-modified hydrogels produced concentrated and well-defined cartilaginous ECM in the periphery of the cells as indicated by staining with type II collagen antibody. Especially, CS-RGD group produced strong type II collagen network throughout the hydrogel, which closely mimics the natural tissue. Type I collagen, indicative of dedifferentiated chondrocytes, was not detected throughout the RGD/RDG-modified ECM-based hydrogels.

OPEN IN VIEWER

FIG. 7.

Chemical and immunostaining of RGD/RDG-modified ECM-based hydrogels encapsulated with chondrocytes at 3 weeks. Hematoxylin and eosin (H&E) staining demonstrates cellular morphology, Safranin-O staining (Saf-O) demonstrates deposition of GAGs, and collagen I staining (green) demonstrates dedifferentiation with Hoechst DNA staining (blue), and F-actin (green) and collagen type II (red) expression of RGD group (A) and RDG group (B). Scale bar=50 μm (20×). Color images available online at www.liebertpub.com/tea

Gene expression analysis of chondrocytes in RGD/RDG-modified ECM-based hydrogels

To determine the biological effects of ECM-based hydrogel with RGD, we investigated cartilage-specific gene expression, such as type II collagen, aggrecan, hyaluronan synthase 2 (HAS2), lubricin, and Link protein, in each hydrogel cultured for 3 weeks (Fig. 8A–E). All gene expression was normalized to PEG-RDG hydrogel for day-1 culture. The results showed that the expression of aggrecan, HAS2, and type II collagen genes was significantly upregulated in PEG-RDG compared with the PEG-RGD. On the contrary to this, incorporation of RGD into CS and HA, all three of chondrogenic (or cartilage-specific) markers were upregulated compared with its RDG groups. Thus, ECM production due to cell adhesion was activated only in the hydrogels containing cartilage-specific ECM molecules. Real-time PCR analysis of aggrecan also matches with GAG biochemical assays in Figure 6B. Also, other two markers, lubricin and link protein, are upregulated compared with other groups. These results propose that RGD modification of biomaterial will enhance the chondrocyte behavior in cartilage regeneration.

OPEN IN VIEWER

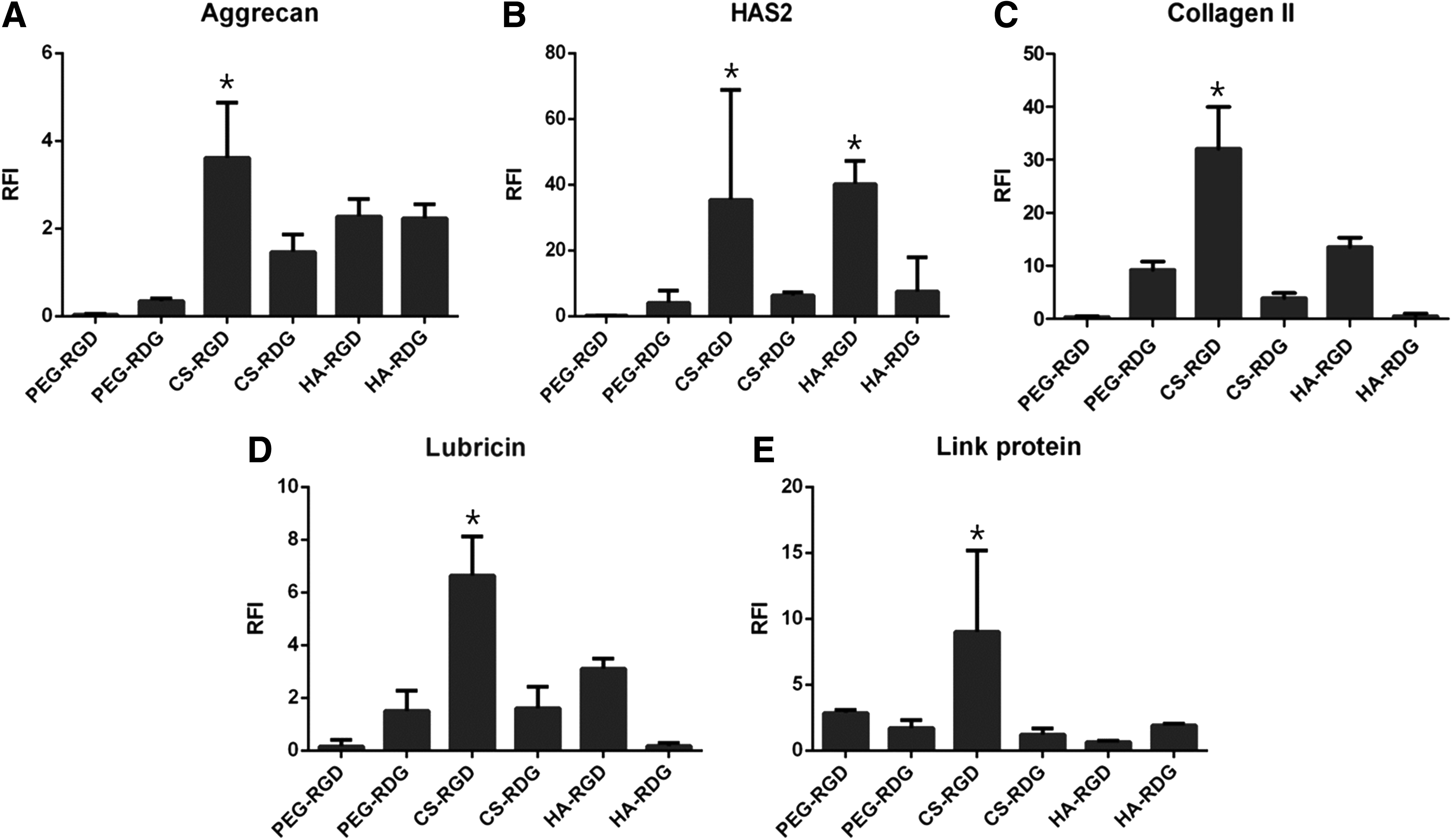

FIG. 8.

Analysis of gene expression level for aggrecan (A), HAS2 (B), collagen II (C), lubricin (D) and link protein (E) after cultured for 3 weeks. Gene expression was normalized by PEG-RDG hydrogel for 1-day culture and GAPDH was used for housekeeping gene: *p-value<0.05.
