Primary Human Hepatocytes Repopulate Livers of Mice After In Vitro Culturing and Lentiviral-Mediated Gene Transfer

Abstract

Cell-based therapies represent a promising alternative to orthotopic liver transplantation. However, therapeutic effects are limited by low cell engraftment rates. We recently introduced a technique creating human hepatocyte spheroids for potential therapeutic application. The aim of this study was to evaluate whether these spheroids are suitable for engraftment in diseased liver tissues. Intrasplenic spheroid transplantation into immunodeficient uPA/SCID/beige mice was performed. Hepatocyte transduction ability prior to transplantation was tested by lentiviral labeling using red-green-blue (RGB) marking. Eight weeks after transplantation, animals were sacrificed and livers were analyzed by immunohistochemistry and immunofluorescence. To investigate human hepatocyte-specific gene expression profiles in mice, quantitative real-time-PCR was applied. Human albumin and alpha-1-antitrypsin concentrations in mouse serum were quantified to assess the levels of human chimerism. Precultured human hepatocytes reestablished their physiological liver tissue architecture and function upon transplantation in mice. Positive immunohistochemical labeling of the proliferating cell nuclear antigen revealed that human hepatocytes retained their in vivo proliferation capacity. Expression profiles of human genes analyzed in chimeric mouse livers resembled levels determined in native human tissue. Extensive vascularization of human cell clusters was detected by demonstration of von Willebrand factor activity. To model gene therapy approaches, lentiviral transduction was performed ex vivo and fluorescent microscopic imaging revealed maintenance of RGB marking in vivo. Altogether, this is the first report demonstrating that cultured and retroviral transduced human hepatocyte spheroids are able to engraft and maintain their regenerative potential in vivo.

Introduction

Therapeutic application of primary human hepatocytes as an alternative to liver transplantation represents a promising model for patients with liver-based metabolic disorders or hepatic failure. Data from small animal models indicate that successful hepatocyte transplantation of 5–10% of liver cell mass is required to correct inherited metabolic diseases.¹ For liver regeneration in patients with fulminant hepatic failure it has been estimated that 1–5% of liver mass will be needed.² Furthermore, hepatocyte transplantation has been suggested as bridging therapy until a suitable donor organ becomes available in fulminant liver failure or in patients with metabolic disorders.^3,4 The excellent regenerative potential of the liver also supports the hope for native liver regeneration after clinical liver cell transplantation.⁵

Nevertheless, intraportal hepatocyte transplantation using freshly isolated cells has not yet been routinely established in clinical practice, but first clinical case reports demonstrated principle feasibility and safety of this technique.^6–9 Relatively small cell numbers could theoretically restore liver function in vivo. So far, the success of intraportal hepatocyte transplantation using single-cell suspensions has been limited by the low rates of cell engraftment achieved and marginal beneficial effects obtained,¹⁰ thus indicating that the development of new technologies enabling hepatocyte regeneration before transplantation may be required.

Another problem in cell transplantation includes the lack of storing opportunities for highly differentiated human hepatocytes due to the rapid loss of hepatocyte functions that is commonly observed under the currently used two-dimensional (2D) culture conditions.¹¹ Moreover, previous studies showed that cryopreserved hepatocytes are frequently not suitable for clinical cell transplantation due to their significantly reduced cell attachment.¹²

Hepatocyte morphology and function have been shown to be better maintained by tissue engineering methods using hepatocyte culture on three-dimensional (3D) scaffolds.^13–19 Alginate is a naturally occurring anionic biopolymer typically obtained from brown seaweed. It has been extensively investigated and used for a broad range of tissue engineering applications due to its biocompatibility, low toxicity, and relatively low cost.²⁰ Another advantage is that scaffolds based on alginate can be dissolved without any cytotoxicity to enable harvesting of cultured cells. We previously created functional human hepatocyte spheroids by preculturing the cells for 7 days on alginate bioscaffolds.¹⁹ We propose that this technique provide a means to enhance cell engraftment rates in the recipient liver by applying spheroid transplantation after scaffold dissolving as an alternative to single-cell application. Moreover, hepatocyte preculturing may offer opportunities for cell analysis, therapeutic gene manipulation, or simply to bridge the availability of highly differentiated hepatocytes from a donor liver if the recipient is temporary not available. To assess some of these possibilities, we now performed transplantation of precultured spheroids into uPA/SCID/beige (USB) mice. In this mouse model of liver regeneration, overexpression of the uPA transgene leads to liver damage, which turns into a cell growth advantage of xenotransplanted hepatocytes, while the SCID beige mutation ensures the necessary immunological tolerance.^21–23

In brief, the aim of our experiments was to determine whether ex vivo engineered and culture-derived human hepatocyte spheroids are suitable to reconstitute the diseased liver of recipient animals.

Materials and Methods

Full methods are available in the Supplementary Data section (Supplementary Data are available online at www.liebertpub.com/tea).

Bioscaffolds for 3D cell culture

Alginate bioscaffolds in 24-well plates (AlgiMatrix™ 3D Culture System, Cat. No. 12684–023) were purchased from Invitrogen (Carlsbad, CA). Directly before use, the scaffolds were transferred to a 24-well culture plate (Corning, Lowell, MA).

Isolation of primary human hepatocytes

The study was approved by the Ethical Review Committee of the Rheinische Friedrich-Wilhelms-Universität Bonn (021/12) and the committee of the Ärztekammer Hamburg (WF-021/11). Handling of the human material was performed in accordance with national guidelines, the 1975 Declaration of Helsinki, and after informed consent in writing from each patient's parents. Primary human hepatocytes were isolated from the liver tissue of five children. The first four children underwent liver transplantation due to metabolic diseases or hepatoblastoma, and hepatocytes from these donors were isolated from the explanted livers. One patient underwent size reduction due to relative liver hypertrophy in the context of omphalocele. Hepatocytes from this donor were isolated from the resected liver tissue. Table 1 displays the donor characteristics in details. Samples of organ tissues were flash frozen and stored at −80°C before starting the cell isolation procedure. Right after explantation/resection hepatocytes were isolated as described earlier.¹⁹ Samples of cells were flash frozen in liquid nitrogen immediately after the isolation procedure and stored at −80°C for further analysis.

Table 1.

Donor and Isolation Characteristics

Patient	Donor age/sex	Donor diagnosis	Time of cold ischemia (hours)	Cell viability (%)
A	18 years/m	Primary Oxalosis	48	95
B	4 months/m	Maple syrup urine disease	16	75
C	2 months/m	Maple syrup urine disease	7	99
D	2 years/m	Hepatoblastoma	21	70
E	14 days/w	Size reduction due to relative liver hypertrophy by omphalocele	18	98
Average viability ± Standard deviation (%)				87.4 ± 12.3

Cell seeding and culture conditions

The alginate bioscaffolds were seeded with 200 μL cell suspension per scaffold containing 1 × 10⁶ hepatocytes. Cells were cultured in 400 μL supplemented William's Medium E without L-Glutamine (Invitrogen) per well as described previously.¹⁹ Cell culture medium was furthermore supplemented from day 3 onward with 2% DMSO, 2 mM 3-methylcholanthrene, and 10 mM dexamethasone (Sigma Aldrich, St. Louis, MO) for cytochrome P450 (CYP) isoenzyme induction.¹¹ The scaffolds were incubated in a humidified atmosphere of 5% CO₂ and 95% air at 37°C during 7 days. Culture medium was changed every 24 h.

RGB marking and lentiviral transduction

In experiment C hepatocyte transduction ability was tested before transplantation using a principle named red-green-blue (RGB) marking.²⁴ Lentiviral Gene Ontology (LeGO) vectors each expressing one of the three fluorescent proteins (mCherry = red, Venus = green, Cerulean = blue) were designed as described.^24,25

Target cells were simultaneously transduced 24 h pretransplant with a multiplicity of infection (MOI) of 20 for each fluorescent protein achieving an overall MOI of 60 (given MOIs are calculated relatively to the titration cell line HEK-293T).

Spheroid harvesting and transplantation in USB mice

After 7 days of preculture the bioscaffolds were transferred to a centrifugation tube and dissolved as previously described.¹⁹ In experiment C, applying RGB marking, spheroids were analyzed by fluorescence microscopy before transplantation to estimate transduction efficiency.

USB mice were originally generated by crossing Alb-uPA mice (strain TgN(Alb1Plau)144Bri; The Jackson Laboratory, Bar Harbor, ME) with homozygous SCID/beige mice (strain C.b-17/GbmsTac-SCID/bgN7; Taconic Farms, New York, NY). USB mice were housed and maintained under specific pathogen-free conditions in accordance with institutional guidelines under approved protocols. The presence of the urokinase-type plasminogen activator (uPA) transgene and maintenance of the severe combined immunodeficiency (SCID/beige) phenotype were determined as reported.²⁶ All animal experiments were conducted in accordance with the European Communities Council Directive (86/EEC), and were approved by the city of Hamburg, Germany (47/11, 15/12, 66/12).

Three-week-old mice were anesthetized with isoflurane and injected intrasplenically with 1 × 10⁶ precultured human hepatocytes forming spheroids. After 8 weeks, animals were sacrificed, livers and spleens were explanted, and snap frozen in liquid nitrogen for RNA isolation. Livers from mice transplanted with RGB-marked human hepatocytes underwent treatment as described earlier.²⁴

Human albumin and alpha-1-antitrypsin assays

To verify repopulation of mouse livers with human hepatocytes, human albumin and alpha-1-antitrypsin (A1A) concentration in mouse serum was measured 8 weeks after transplantation by enzyme-linked immunosorbent assay (ELISA) using a human albumin or human A1A quantification kit (ICL, Newberg, OR), respectively.

Immunohistochemical analysis

To proof the presence of zonation immunohistochemical labeling of arginase 1 (ARG1) and glutamine synthetase (GLUL) was performed applying a periportal or perivenous marker, respectively. Furthermore, immunohistochemical labeling of the proliferating cell nuclear antigen (PCNA) and A1A was performed. To display human hepatocyte clusters in mouse livers cryosections (6 μm) were immunohistochemically stained with a mouse monoclonal antibody against human cytokeratin 18 (humCK18). All antibodies used for immunohistochemical stainings are listed in Supplementary Table S1. For visualization the EnVision G2 double-staining system (Dako) was applied in addition to hematoxylin background staining. All sections were analyzed by light microscopy.

Immunofluorescence analysis

Human-specific cytoskeletal marker cytokeratin 18 (humCK18) was stained as described¹⁹ to visualize human clusters in mouse livers and spleens. Furthermore, morphological characteristics and activity of hepatocyte-specific factors in livers were demonstrated as detailed in Supplementary Table S2. For the detection of bile canaliculi the sections were incubated with Alexa 488-labeled Phalloidin (Invitrogen; 1:50, 1 h) to stain actin filaments in green. Hoechst 33258 (Invitrogen) was used as counterstaining for viable cell nuclei (1:20,000, 1 min).

All sections were visualized by fluorescence microscopy.

RNA isolation and reverse transcription PCR

RNA isolation and reverse transcription were performed in three of the five experiments (patient A, B, and C). After harvesting at day 1 and 7 of cell culture the scaffolds were dissolved. The released cells/spheroids were incorporated into 350 μL RLT-buffer (Qiagen, Hamburg, Germany) and 3.5 μL β-mercaptoethanol (Sigma-Aldrich). The same process was performed with the native human tissue before cell isolation, the cells frozen directly after isolation and the humanized mouse livers after explantation. The total RNA was extracted from the lysate using RNeasy Mini Kit (Qiagen). For cDNA synthesis the First Strand cDNA Synthesis Kit for reverse transcription PCR (AMV) from Roche was used. The first strand cDNA synthesis reaction was performed under the following conditions: 25°C for 10 min, 42°C for 60 min, 99°C for 5 min, and cooling to 4°C.

Real-time PCR

Real-time PCR amplification was deployed to quantify the gene expression of liver cell-specific factors applying the QuantiTect SYBR Green PCR Kit (Qiagen) in combination with human gene-specific QuantiTect Primer Assays (Qiagen). The details for the target genes are listed in Supplementary Table S3. Primers were tested for their human specificity before use. The expression of hepatocyte-specific factors was quantified using the comparative C_T method. Human Beta-actin (ACTB) was used as internal control. All reactions consisted of 12.5 μL 2× QuantiTect SYBR Green PCR Master Mix, 2.5 μL 10× QuantiTect Primer Assay, and 1 μL cDNA as PCR template. The reactions were performed applying the StepOnePlus Real-time PCR System (Applied Biosystems, Foster City, CA). The cycling conditions were as follows: 95°C for 10 min followed by 45 cycles with 94°C for 15 s, 60°C for 30 s, and 72°C for 30 s. Melting curve analysis was performed routinely to verify the specificity of real-time PCR products. To further detect nonspecific amplifications real-time PCR products were transferred to a 2% agarose gel running in TRIS borate EDTA buffer at 80V/400 mA for 50 min.

Statistical analysis

Unpaired Student's t-test was used to compare the results of quantitative real-time PCR measurements. p < 0.05 was accepted as significant whereas p < 0.01 was considered as highly significant.

Results

Isolation and maintenance of primary human hepatocytes in 3D cell culture

A mean cell viability of 87.4% ± 12.3% (n = 5 isolations) was determined by Trypan blue test immediately after hepatocyte isolation (Table 1). Notably, isolation from a donor organ with 48 h of cold ischemia (Patient A) had an excellent outcome of 95% cell viability. Cell viabilities obtained from livers of metabolically disordered children were comparable with those achieved in hepatoblastoma or liver resection, respectively. All experimental steps involving liver cell isolation, in vitro spheroid formation, isolation, and transplantation in mice are summarized and displayed in Figure 1. In regard to the spheroid formation and as previously reported¹⁹ hepatocyte aggregation within the pores of the scaffold was already observed after 24 h in 3D culture. From day 3 onward formation of spheroids was observed, which reached their maximum diameter (about 100–150 μm) at day 7.

FIG. 1.

Experimental design. Human hepatocytes isolated from donor livers were cultured on alginate scaffolds. After 7 days of preculture hepatocytes forming spheroids were harvested and transplanted into uPA/SCID/beige mice to investigate engraftment. A representative section of a humanized mouse liver 8 weeks after spheroid transplantation is shown. HumCK18 immunohistochemical staining (red) demonstrates human hepatocyte clusters in mouse livers, hematoxylin was used as background staining (blue). Color images available online at www.liebertpub.com/tea

Human hepatocyte spheroids repopulate mouse livers after 7 days of preculture

Primary human hepatocyte spheroids were transplanted into mice after 7 days.¹⁹ Successful engraftment and in vivo expansion of precultured human hepatocytes could be demonstrated in 11/33 animals that had been sacrificed 8 weeks after spheroid transplantation by visualization of humCK18. As shown in Figures 1 and 2, immunohistochemical staining of humCK18 revealed that human hepatocyte spheroids successfully reconstituted the diseased mouse liver parenchyma, since a uniform distribution of human clusters with a diameter between 200 and 3000 μm was detected in all liver lobes. Human liver tissue was estimated to replace up to 30% of mouse liver tissue. No signs of tumor development, fibrosis, or cirrhosis were detected in mouse livers. HumCK18 staining of spleens revealed no evidence of remaining human hepatocytes (data not shown).

FIG. 2.

Results of transmission light microscopy. (A) HumCK18 immunohistochemistry (red) for detection of human clusters was applied together with alpha-1-antitrypsin staining (A1A, brown). Hematoxylin was used as background staining (blue). Nearly all human hepatocytes displayed positive signal for A1A demonstrating the presence of highly functional hepatocytes in human clusters. (B) PCNA (brown) immunohistochemistry was used to demonstrate proliferation activity in combination with humCK18 (red) staining for detection of human clusters in mouse livers. Hematoxylin was applied as background staining (blue). Almost all human hepatocytes stained positive for PCNA indicating strong proliferative activity. A1A, alpha-1-antitrypsin; PCNA, proliferating cell nuclear antigen. Color images available online at www.liebertpub.com/tea

Precultured human hepatocytes retain their in vivo proliferation capacity and differentiation status in vivo

To assess the presence of human hepatocyte-specific functions in mouse livers, we determined human serum albumin (HSA) concentration in mice 8 weeks after spheroid transplantation. Median HSA concentration was 576 μg/mL but varied between 3.5 to 1396 μg/mL in accordance with the repopulation rates achieved (Table 2). A1A production was demonstrated in human hepatocyte clusters as displayed in Figure 2A. We furthermore confirmed our histological results using a human A1A ELISA test. Values ranged between 0.6 to 498 μg/mL with a median human A1A concentration of 156 μg/mL (Table 2).

Table 2.

Transplantation Results

Patient	Transplanted mice	Mice positive for human hepatocytes	Human albumin in serum (μg/mL)	Human A1A in serum (μg/mL)
A	5	1	497	59.3
B	5	2	1312	498
			1396	485
C	5	4	Not analyzed	Not analyzed
D	6	1	782	47.7
E	12	3	27.9	3.2
			12.0	0.8
			3.5	0.6
Total animals	33	11

Successful human hepatocyte engraftment after spheroid transplantation could be demonstrated in 11/33 animals by visualization of the human cytoskeletal marker cytokeratin 18 (humCK18).

Loss of proliferative capacity is commonly observed during hepatocyte cell culture. PCNA staining of humanized mouse livers revealed that despite 7 days in culture human hepatocytes retained their proliferation capacity in vivo. Interestingly, many hepatocytes in the border area of human clusters stained positive for PCNA indicating that proliferation activity was still ongoing 8 weeks after spheroid transplantation (Fig. 2B).

The human cytoskeletal marker CK18 was applied to distinguish between human and mouse hepatic tissue (Fig. 3A). Visualization of hepatocyte nuclear factor 4 (HNF-4) alpha was performed to observe the state of cell differentiation. Nearly all human hepatocytes displayed positive nuclear transcription factor HNF-4, indicating that hepatocyte differentiation is highly retained in transplanted cells (Fig. 3B).

FIG. 3.

Immunofluorescence staining of humanized mouse livers 8 weeks after spheroid transplantation. (A) HumCK18 (green) staining was performed to distinguish between human and mouse hepatic tissue. Hoechst 33258 (blue) was used as background staining. Successful human hepatocyte engraftment could be achieved in 11/33 transplanted animals. Human hepatocytes in mouse livers revealed excellent viability with well-organized physiological cytoskeletal network. In the left picture the border between human and mouse liver tissue is marked by a white line. Numerous macrophages (white arrows) were noticed as typically observed in young mice in this animal model. (B) Double staining of hepatocyte-specific transcription factor HNF-4 (red) and humCK18 (green). Positive nuclear staining of HNF-4 indicates highly preserved hepatocyte differentiation. HNF-4, hepatocyte nuclear factor 4. Color images available online at www.liebertpub.com/tea

Phalloidin staining was established for detection of actin filaments that are localized in bile canaliculi. Bile canaliculi network embracing mouse and human hepatocytes was detected in chimeric livers displaying liver tissue-specific microstructure (Fig. 4A).

FIG. 4.

Immunofluorescence staining of hepatocyte-specific factors in chimeric livers 8 weeks after spheroid transplantation. (A) For detection of actin filaments in bile canaliculi Alexa 488-labeled Phalloidin (green) was used. Re-formation of bile canaliculi between bordering hepatocytes was observed displaying the physiological micro-structure of the liver. A cross-sectioned bile canaliculus is marked by the white arrow. (B) Von Willebrand factor (vWF, red) labeling was performed to demonstrate vascularization of human tissue in mouse livers. Large vessels (white arrow) of mouse origin spread out into human clusters providing nutritional and oxygen supply along with waste removal. (C) Immunofluorescent staining of cytochrome P450 (CYP, red) revealed positive human hepatocytes in mouse livers indicating the ability to metabolize toxic substances (white arrow). (D) Multidrug resistance-associated protein 2 (MRP2) is predominantly found in the canalicular membrane of polarized hepatocytes. In our mouse model MRP2 (red) is visible as stripe between adjacent hepatocyes (white arrow) as also observed in physiological hepatic tissue. (E) Immunofluorescent staining of the tight junction protein zonula occludens protein 1 (ZO-1, red) was performed to demonstrate bipolar hepatocyte configuration in human clusters with apical and basolateral membrane. In our chimeric livers, tight junctions were detected not only between hepatocytes of one species but also between mouse and human hepatocytes (white arrow). (F) Immunofluorescent staining of the gap junction protein Connexin 32 (Co32, red) revealed positive signaling not only between human hepatocytes, but also between hepatocytes of the two different species (white arrow) indicating highly differentiated hepatocyte interaction, enabling cell-to-cell communication. HumCK18 (green/red) labeling was applied in all of our immunofluorescent stainings to distinguish between human and mouse hepatic tissue. Hoechst 33258 (blue) was used as counterstaining for viable cell nuclei. Color images available online at www.liebertpub.com/tea

Von Willebrand factor (vWF) activity demonstrated vascularization of human clusters in mouse livers. Small capillaries, and large blood vessels, were detected both within human clusters and spread out from mouse liver areas into human clusters (Fig. 4B). As a result of species-specific CD31 staining it could be clarified that the vessels were of mouse origin (pictures not shown).

As displayed in Figure 4C, positive CYP2E1 staining of human hepatocytes in mouse livers indicated that precultured hepatocytes maintained their capability to metabolize potentially toxic compounds.

Multidrug resistance-associated protein 2 (MRP2) is predominantly found in the canalicular membrane of polarized hepatocytes and mediates biliary excretion of endogenous or exogenous substances.²⁷ Analysis of MRP2 localization in human clusters within the chimeric livers revealed not only positive staining but also a distribution resembling normal human liver tissues (Fig. 4D).

Zonula occludens protein 1 (ZO-1) is a marker for tight junctions that indicates bile canaliculi formation and bipolar hepatocyte configuration in liver tissue.^28,29 In our chimeric livers tight junctions were detected not only between hepatocytes of one species but also between mouse and human hepatocytes as displayed in Figure 4E. Moreover, positive staining of the gap junction protein connexin 32 (Co32) indicated intercellular communication.³⁰ Positive staining for this marker was also observed both between human hepatocytes and between hepatocytes of the two different species (Fig. 4F).

Altogether, no encapsulation and no strict border between the hepatocytes of the different species were observed, indicating excellent integration of human hepatocyte spheroids in mouse liver parenchyma. Moreover, humCK18 visualization and Hoechst 33258 nuclear counterstaining revealed that human hepatocytes in mouse livers were well organized with physiological cytoskeletal network (Figs. 3 and 4). Our results with ARG1/GLUL staining show that there was no structural heterogeneity relative to hepatocyte location in human clusters. Nearly all human hepatocytes in mouse livers stained slightly positive for both markers (Supplementary Figs. S2 and S3).

To investigate the gene expression profile of human hepatocytes in chimeric mouse livers, quantitative real-time PCR measurements were performed. Figure 5 summarizes results of liver-specific human genes obtained in mice in comparison with native human tissue, freshly isolated human hepatocytes, and cultured hepatocytes. Nearly constant Alb mRNA expression was observed in native tissue and freshly isolated cells, respectively, whereas Alb gene expression in cultured cells decreased as expected.

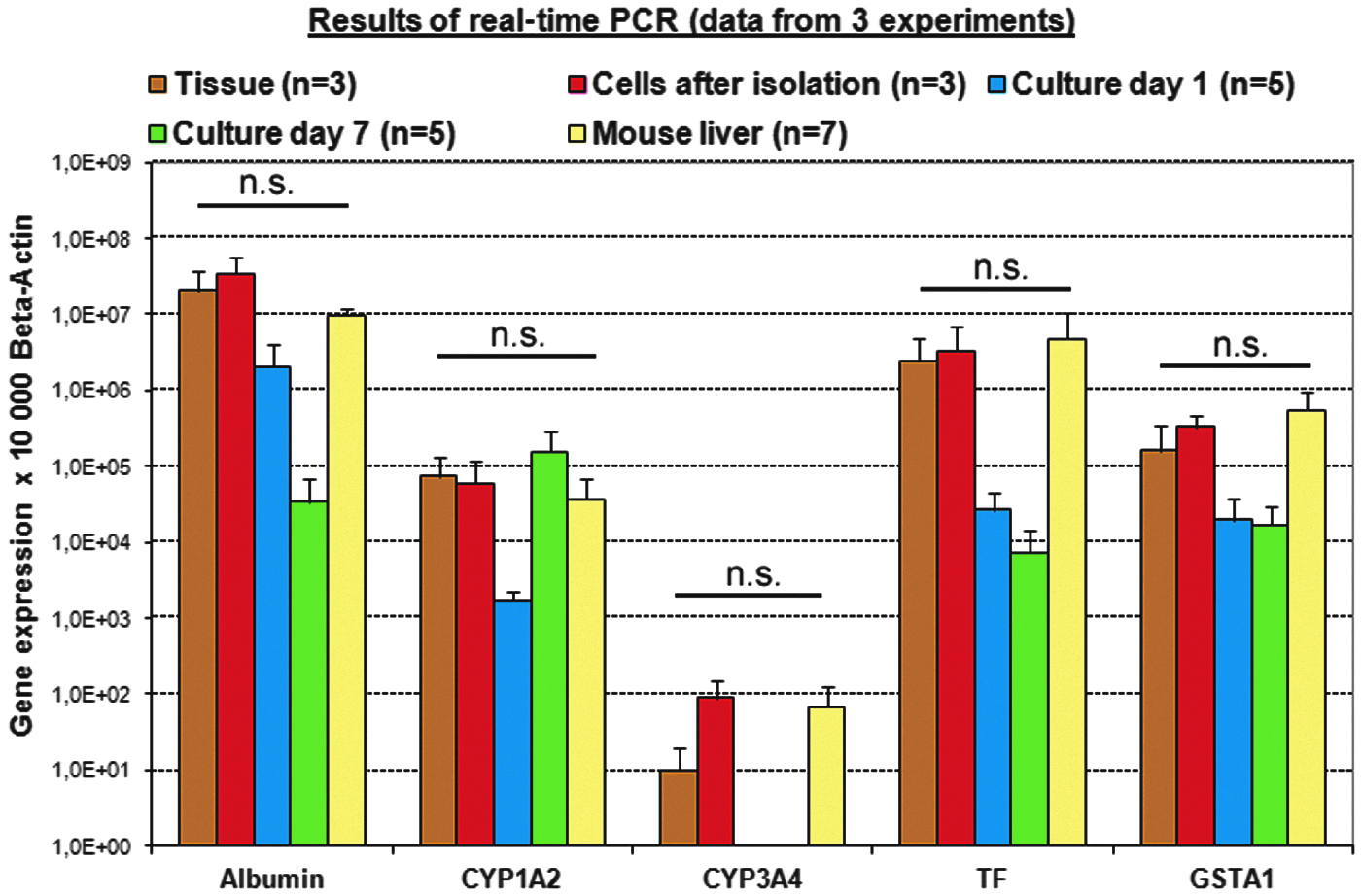

FIG. 5.

Results of real-time PCR. Gene expression pattern of human hepatocytes in native tissue before cell isolation compared to freshly isolated cells (three experiments), cells on alginate scaffolds after 1 and 7 days of culture (n = 5/t, three experiments) and in vivo expression of human hepatocytes in mouse livers (n = 7, three experiments). ACTB was used as internal control. The values are expressed as mean ± SD. In vivo expression levels of all analyzed human genes in mice were nearly identical compared to expression levels in native human tissue before cell isolation. Statistical analysis revealed no significant differences between these two groups. CYP, cytochrome P450; GSTA1, glutathione S- transferase; n.s., not significant; TF, transferrin. Color images available online at www.liebertpub.com/tea

CYP1A2 expression levels decreased at the beginning of the cell culture and increased thereafter as a result of CYP induction. CYP3A4 induction was already low in the basic tissue and below detection limit in the cultured cells. Copy numbers of transferrin and phase II enzyme glutathione S-transferase (GSTA1) decreased after cell isolation but remained constant during the entire culture period. Remarkably, in vivo expression levels of all human genes analyzed appeared almost identical in chimeric mouse livers compared to expression levels determined in native human liver tissue before cell isolation. Statistical analysis revealed no significant differences between these two groups. Melting curve analysis resulted in a single-specific peak for each amplified product demonstrating the specificity of real-time PCR (Supplementary Fig. S1A). To further validate real-time PCRs products were separated on 2% agarose gels. Only single specific bands were observed for each PCR indicating the absence of nonspecific amplification (Supplementary Fig. S1B).

Efficient engraftment of RGB-marked cells

Simultaneous hepatocyte transduction with three LeGO vectors encoding red, green, or blue fluorescent proteins was performed in experiment C after 6 days of preculture. Fluorescent imaging obtained right before spheroid transplantation into mice confirmed effective multi-color labeling of human hepatocytes. The three basic colors, but also numerous hues resulting from their mixtures can be distinguished (Fig. 6A). Fluorescent microscopic imaging of explanted livers demonstrated stable RGB marking of human hepatocyte clusters that originated upon multiple rounds of cell divisions (Figs. 6B–D). As previously reported,²⁴ we predominantly found clusters of human hepatocytes displaying the same RGB marking pattern, revealing monoclonal expansion of individual human hepatocytes that successfully engrafted the mouse livers at a given spot. Since the overall transduction rates were below 100% as expected, a few human clusters remained negative for RGB marking (Fig. 6E).

FIG. 6.

Results of in vitro lentiviral transduction. (A) Fluorescent imaging right before spheroid transplantation revealed high-rate lentiviral transduction of primary hepatocytes with the three LeGO vectors encoding mCherry (red), Venus (green) and Cerulean (blue). Simultaneous presence of these three basic colors in individual cells resulted in efficient RGB marking (merged image). (B–D) Fluorescent microscopic imaging of explanted livers showed stable in vivo red, green, and blue labeling in human clusters upon multiple rounds of cell divisions. (E) Just a few human clusters remained negative for RGB marking. LeGO, Lentiviral Gene Ontology; RGB, red-green-blue. Color images available online at www.liebertpub.com/tea

Discussion

Liver transplantation is the preferred therapy for patients with end-stage liver diseases or liver-based inherited metabolic disorders. Nevertheless, due to organ shortage alternative treatments such as hepatocyte transplantation have been developed and clinically applied in selected cases.^6–9 Unfortunately, the success of this treatment has been limited by low cell engraftment rates and the restricted sources of human hepatocytes. We previously showed that hepatocytes obtained from children with inherited metabolic disorders form highly differentiated human hepatocyte spheroids that preserved metabolic activities even after 7 days of culture.¹⁹ Herewith, we used the well-established uPA mouse model of liver regeneration to assess the regenerative potential of such precultured spheroids in vivo.

The levels of human liver chimerism commonly achieved in uPA mice are known to variate strongly among transplanted animals and depend both on the different rates of initially engrafted hepatocytes and on the capacities of these cells to expand in vivo. Although we observed a large but not unusual variety in human HSA and A1A concentrations and repopulation rates among transplanted mice, large human hepatocyte clusters were determined in mice that had been successfully engrafted with spheroid-derived primary human hepatocytes.

It is known that in vitro loss of proliferative capacity is one of the most restricting problems during hepatocyte culture. As determined by the presence of large human hepatocyte clusters and PCNA staining in transplanted mice, we demonstrated that the precultured hepatocytes could regain their proliferation capacity in vivo.

Extensive histological examinations were performed to confirm physiological morphology of human hepatocyte clusters in mouse livers. HNF-4 is one of the major liver-specific transcription factors and participates in the regulation of several genes involved in liver-derived metabolic pathways.³¹ In our model almost all human hepatocytes revealed positive staining 8 weeks after transplantation, indicating the maintenance of highly differentiated human hepatocytes forming human liver tissue within the mouse livers.

ZO-1 is known to be located in the intercellular tight junctions indicating maintenance of cell polarity. Positive staining of ZO-1 together with actin filament labeling by phalloidin revealed re-formation of bile canaliculi and bipolar configuration between adjacent human hepatocytes in mouse livers. Notably, tight junctions were not only detected between human hepatocytes but also between mouse and human hepatocytes. These findings are highly relevant, since isolated hepatocytes lose their polarized structure after dissociation from liver tissue.²⁸

To prove in vivo angiogenesis of human clusters vWF activity was analyzed. We observed both small capillaries and large vessels within human hepatocyte clusters providing nutritional and oxygen supply and waste removal.

One of the most important hepatocyte functions is their ability to metabolize drugs and toxic substances. We stained CYP2E1 as an important member of the CYP gene family enabling, for instance, ethanol and paracetamol detoxification in humans.³² The presence of positive human hepatocytes 8 weeks after spheroid transplantation suggests maintenance of detoxification capacity.

Moreover, the localization of MRP2 in the apical membrane of polarized epithelia favors a particular role of this isoform in detoxification pathway.³³ The presence of MRP2 with physiological distribution in our humanized livers indicates that efficient terminal excretion of conjugated drug metabolism products via bilious flow is possible.

In physiological liver tissue, there is a strong functional interaction between neighboring cells. It was therefore not surprising to identify Co32-positive junctional complexes between adjacent hepatocytes in human clusters maintaining cell-to-cell communication. However, gap junction re-formation between hepatocytes of the different species was surprising, since it has been described that for intercellular channel formation each cell should provide one hemi-channel.³⁴

Our histological investigations identified highly differentiated human liver areas within the mouse liver parenchyma, whereas gene expression analysis confirmed that human cells expressed typical hepatocyte-specific functions. Of note, a decreased gene expression was observed during the 7-day culture period, probably as a consequence of the isolation procedure and culture conditions. Nevertheless, the in vivo expression levels of all analyzed human genes increased to the basic levels determined in the native liver before cell isolation, thus demonstrating the regain of the hepatocyte-specific gene expression profile in vivo, upon transplantation in mice.

Several methods for gene transfer into hepatocytes have been developed, including ex vivo and in vivo approaches using viral or nonviral vector systems leading to transient, nearly stable or stable gene expression. The use of lentiviral vectors has several advantages in our setup and may serve as a proof-of-concept for the permanent genetic modification of hepatocytes ex vivo. Within the scaffolds, hepatocytes can be kept in culture for several days, allowing a quality check of the gene transfer before transplantation of the cells. The ex vivo gene transfer into purified cells allows a specific targeting of hepatocytes and in addition avoids any dissemination or transduction of any unwanted cell types like professional antigen-presenting cells, thereby helping to evade an immune response as compared to the in vivo application of the vectors. Since after transplantation the cells are dividing several times, their stable modification by the applied lentiviral vectors is a prerequisite for a sustained transgene expression in all daughter cells after engraftment and expansion. Recently, efficient tools for genome engineering, particularly as CRISPR/Cas9, have become available providing an alternative possibility for stable genome modifications.³⁵ However, efficient delivery of the required designer nucleases remains a challenge. Nonintegrating lentiviral vectors have been suggested as an efficient delivery vehicle for CRISPR/Cas9.³⁶

Altogether, this technique could be a promising option for patients with inherited metabolic disorders because their disease is mostly based on a single enzyme deficiency and their liver otherwise functions normally. The finding that RGB marked human hepatocytes engrafted and significantly expanded in vivo to form human clusters repopulating the diseased mouse liver thus represents an important step toward potential future therapeutic applications.

Recently, there has been a focus on deriving human hepatocytes from other sources than human donor livers, in particular human embryonic stem cells (ESCs) and human induced pluripotent stem cells (iPSCs) suggesting an application in the field of cell-based therapies and drug screening.^37–47 One of the advantages is that stem cell-derived cells may provide an unlimited supply of hepatocytes. Although there have been improvements increasing differentiation efficiency of stem cells to functional hepatocytes, current strategies still yield relatively heterogeneous populations.⁴⁰ However, there are efforts to develop a process for the manufacturing of iPSC master cell banks under current good manufacturing practice and such banks became already available.⁴⁸ One of the most important challenges of these new techniques is that tumor formation has been a concern associated with ESC- or iPSC-based cellular therapy.³⁷ A recently published in vivo study applying a mouse model of liver injury revealed that after transplantation of ESC-derived hepatocyte-like cells all murine recipients developed large splenic and liver tumors that contained endodermal and mesodermal cell types. Although such studies demonstrate that ESC-derived cells have the potential to play an important role in cell-based therapies, current methodologies and transplantation strategies require substantial refinement before they can be deployed safely.⁴² In contrast, no signs of tumor development were detected in our applied mouse model indicating that the use of primary human hepatocytes after preculture is with lower risk for the prospective recipient. But nevertheless, those stem cell-derived models hold great potential to develop a detailed understanding of human liver disease and metabolism including drug toxicity.⁴⁴

In summary, our results demonstrate successful liver repopulation with precultured human hepatocytes indicating that such procedures may offer new opportunities to bridge the availability of highly differentiated hepatocytes from a donor liver in anticipation of an appropriate recipient. Also, the possibility to obtain human hepatocytes directly from a patient and to transplant them back after therapeutic modification is very encouraging. On the other hand, in the applied mouse model, hepatic expression of the uPA transgene causes liver damage resulting in destruction of mouse endogenous hepatocytes and enhanced proliferation of transplanted hepatocytes. To this regard, the model strongly resembles toxic liver failure in humans. However, in livers of patients with inherited metabolic disorders preparative regimen such as partial hepatectomy might be necessary before transplantation to enhance engraftment of the transplanted spheroids.⁴⁹

In conclusion, this is the first report demonstrating that human hepatocyte spheroids obtained after 7 days preculture and in vitro lentiviral gene transfer are able to repopulate a recipient liver. In future, transplantation of these spheroids into a liver-diseased recipient could present a real alternative to liver transplantation.
