CRISPR/Cas9 Edited Induced Pluripotent Stem Cell-Based Vascular Tissues to Model Aging and Disease-Dependent Impairment

Abstract

The discovery of induced pluripotent stem cells (iPSCs) and advancements in genome editing technology introduced a new perspective to disease modeling as genetic factors can now be incorporated to mimic the pathology of interest. Ischemia and age-driven impairment of endothelium is one of the very important factors in the prognosis of many diseases as it leads to decreased angiogenic response and is shown to be related to age-dependent decrease in Hypoxia inducible factor 1α (HIF-1α) expression levels in endothelial cells. However, there are no models that show the characteristic age and ischemia-driven deterioration of the endothelium with both the functional and genetic mimicry. In this study, we developed a three dimensional (3D) in vitro tissue model composed of human-origin iPSC-derived endothelial cells (iECs), which were clustered regulatory interspaced short palindromic repeat (CRISPR)/Cas9 edited for HIF-1A knockout. Confirmed with a significant decrease in HIF-1α mRNA and protein content, our CRISPR/Cas9 edited tissue models showed disrupted oxygen-controlled stabilization of HIF-1α evidenced by decreased viability, two dimensional tube formation, and 3D lumen formation along with increased mitochondrial reactive oxygen species accumulation under ischemia, mimicking the age-driven impairment in endothelial function. hiPSC-based tissue and disease models such as the one presented in this study are promising to study human disease in a physiologically and pathologically-relevant manner and to develop new therapies.

Impact Statement

Modeling human disease as precisely as possible is of upmost importance in understanding the underlying pathology and discovering effective therapies. Therefore, disease models that are highly controlled and composed of human-origin cells that present the disease phenotype are crucial. The human induced pluripotent stem cell (hiPSC)-based tissue model we present in this study is an important example of human-origin tissue model with controlled gene expression. Through CRISPR/Cas9 editing of hypoxia inducible factor 1α in hiPSCs, we developed tissue models that show the age and disease-dependent endothelial deterioration. This model holds promise for various biomedical applications as more realistic disease phenotypes can be created using fully human-origin platforms.

Introduction

Development of effective treatments for human diseases is only possible through a detailed understanding of the genetic and environmental factors contributing to each disease condition precisely. Although animal models are inevitably essential for safety testing and understanding the systemic response, the evident differences between different species render it difficult to solely depend on these data for developing effective treatments. Hence, engineered tissue models using human cells have been investigated as an alternate and complementary platform. However, not all human cell types are readily available, and the human adult stem cells have limited differentiation potential. Luckily, reprogrammed cells, called induced pluripotent stem cells (iPSCs), carry the potential to form all three germ layers and can subsequently be directed to various lineages through manipulation of different molecular pathways.

Following their discovery, the iPSCs rapidly found many applications in tissue and disease modeling and the use of various genome editing technologies broadened their applications. Through genome editing, precise mutations can be introduced or can be corrected for understanding the function of a gene, as well as investigating potential therapies for genetic diseases. Clustered regulatory interspaced short palindromic repeat (CRISPR)/Cas9 endonuclease technology is one of the most preferred methods of gene editing of the iPSCs. The site recognition for DNA binding of this nuclease is guided by RNA sequences, avoiding the need for the nuclease itself to be redesigned for each target. Therefore, the ease of designing different RNA sequences, as well as the ability to target multiple sequences simultaneously, has led to the wide use of CRISPRs.^1,2 CRISPR/Cas9-mediated genome editing has been used in correcting or modeling various diseases in vivo³ and in vitro such as cataract,⁴ tyrosinemia,⁵ polycystic kidney disease,⁶ chronic granulomatous disease,⁷ Barth syndrome,⁸ and Huntington's disease.⁹

Ischemia is an important risk factor in development and prognosis of many diseases. Hypoxia inducible factor 1 (HIF-1), a heterodimeric transcription factor, is known to be a major player in oxygen homeostasis in cells and tissues.^10–12 It is composed of HIF-1α and HIF-1β subunits, which dimerize in the nucleus following the nuclear localization of HIF-1α subunit, under hypoxia. This oxygen-dependent regulation renders HIF-1α crucial for tissues' adaptation to ischemia and for induction of angiogenesis.¹³ Involvement of HIF-1 has been shown in various disease pathologies, including but not limited to myocardial ischemia,^14–17 cerebral ischemia,^18–20 renal ischemia,^21,22 and hind limb ischemia.²³ Importantly, impaired angiogenic response observed with age, as well as damage or ischemia-induced endothelial dysfunction, has been linked to HIF-1 activity. Ahluwalia et al. reported that the declined nuclear localization of HIF-1α in microvascular endothelial cells (ECs) leads to age-related impairment of angiogenesis.²⁴ In another study, Chang et al. used a murine skin flap model and showed that in aged animals, neovascularization was impaired due to significant decline in endothelial progenitor cell recruitment to the ischemic area. They showed that the age-dependent decrease in HIF-1α stabilization was involved in lower EC recruitment.²⁵ Therefore, HIF-1α expression, especially in ECs, is an important factor to consider when modeling ischemic diseases, most of which primarily affect the elderly population.

In this study, we developed human iPSC-based three dimensional (3D) tissue models showing the age and disease-dependent impaired endothelial function, represented with decreased viability, angiogenesis, and stress response through knocking out HIF1A. To do so, we used CRISPR/Cas9 editing to create HIF1A knockout hiPSC lines. We have successfully introduced homozygous and heterozygous deletions in HIF-1A and observed that these cell lines maintained their pluripotency and differentiation potential. Two cell lines with 19 (HIF-1α^Δ19) and 42 (HIF-1α^Δ42) base pair (bp) homozygous deletions in the second exon of HIF-1A were then differentiated to ECs. Both two dimensional (2D) culture and the 3D model tissues of the CRISPR/Cas9 edited iECs showed lower angiogenic potential and viability, as well as an increased mitochondrial reactive oxygen species (ROS) accumulation, showing similarities to functional deterioration observed in age-related and ischemia-induced vascular diseases. Overall, our results present that by combining iPSC technology with CRISPR/Cas9 editing, it is possible to develop tissue models with impaired angiogenic response through disrupting the oxygen-dependent stabilization of HIF-1α. Such tissue models are important for studying the aged vascular microenvironment and progress of ischemic diseases within, as well as for developing novel therapies for their treatment.

Materials and Methods

Cell culture

Human umbilical vein endothelial cells (HUVECs) (Lonza; CC-2935) were maintained in endothelial growth medium (EGM; Lonza, Endothelial Growth Medium Plus) with media changes every 2 days. HUVECs were used at passages 4–8 and passaged using 0.05% trypsin-EDTA as needed. For all experiments HUVECs were used as positive controls. DiPSC-1016SevA line of human iPSCs (hiPSCs), derived from skin fibroblasts, was kindly provided by Dr. K. Musunuru and Dr. C. Cowan, Harvard University. The cells were cultured on Geltrex (Life Technologies) coated tissue culture dishes in mTeSR-1 culture medium (Stemcell Technologies) with daily media changes. The cells were passaged every 3–4 days using Accutase (Stemcell Technologies). The undifferentiated phenotype of the hiPSCs was observed daily using a light microscope (Leica).

CRISPR/Cas9 editing of iPSCs for HIF1A knockout

The genetically edited cell lines were created using CRISPR/Cas9 genome-editing system, which is composed of the Cas9 nuclease and a guide RNA (17–20 nucleotide long) that has a 5′ NGG (PAM sequence). We designed CRISPR guide RNAs that target HIF-1A gene, in silico. The plasmids encoding the guide RNAs and Cas9 were then prepared using the established protocols.²⁶ The plasmids were then introduced to hiPSCs using electroporation. The cells with successful delivery of the plasmids were then enriched using fluorescence activated cell sorting making use of the GFP sequence in Cas9 plasmid. The enriched cells were then seeded as single cells and allowed to grow to form colonies. At least 192 colonies were picked from each electroporation and expanded with duplicates frozen for further expansion of the knockout clones. Next, genomic DNA was collected from all colonies and used for PCR amplification of the target DNA. The changes in the target DNA were assessed by gel electrophoresis. Then, by direct sequencing of the PCR products with altered genome the specific site and length of the deletion were determined using APE software.

Endothelial differentiation of HIF1A knockout iPSCs

We have selected two cell lines with 19 bp (HIF-1α^Δ19) and 42 bp (HIF-1α^Δ42) deletions in the second exon of HIF-1α. These cell lines are collectively referred to as HIF-1α knockout cell lines (HIF-1α^Δ) throughout the article. To differentiate the HIF-1α wild type (HIF-1α^WT) and knockout hiPSC lines to endothelial lineage, we used a previously established protocol.²⁷ Briefly, the hiPSCs were induced to differentiation by culturing in media supplemented with a glycogen synthase kinase 3β (GSK3β) inhibitor, CHIR, and bone morphogenic protein 4 (BMP4; R&D Systems). The media was replaced with StemPro-34 SFM medium (Life Technologies) (supplemented with 200 ng/mL vascular endothelial growth factor [VEGF] and 2 μM forskolin) after 3 days. At the end of day 6, the iPSC-derived endothelial cells (iECs) were sorted using fluorescence activated cell sorting (BD Biosciences, FACSAria III–Fluorescence Assisted Cell Sorter, IU School of Medicine, South Bend Imaging and Flow Cytometry Core facility) against vascular endothelial cadherin (VE-CAD). The sorted cells were seeded on fibronectin coated plates and maintained in EGM with media changes every 2 days. Cells were accepted to be passage 0 right after sorting. For all experiments iECs of passage 6–9 were used and they were collected for experiments using 0.05% trypsin-EDTA (Life technologies) at ∼80% confluency.

Quantitative real-time polymerase chain reaction

To determine the HIF-1α mRNA amount, RNA was collected from iPSCs and iECs maintained at normoxia (21% O₂, 5% CO₂ at 37°C) or hypoxia (1% O₂, 5% CO₂ at 37°C) for 24 h using a total RNA Isolation Kit (RNeasy; Qiagen). To determine the mRNA expression levels of endothelial markers CD31, endothelin 1 (EDN1), and von Willebrand factor (vWF), total RNA was collected from iECs maintained under normoxia. NanoDrop 2000 Spectrophotometer (Thermo Fisher Scientific) was used to determine the RNA purity and concentration. The respective cDNA was prepared using the iScript cDNA Synthesis Kit (Bio-Rad). Quantitative real-time polymerase chain reactions (qRT-PCRs) were run on CFX Connect 96 Real-Time PCR system (Bio-Rad) using iTaq SYBR Green Supermix (Bio-Rad). The primers used in these experiments are listed in Supplementary Table S1. The mRNA expression of target proteins was normalized to GAPDH expression, and the relative expression of genes was quantified by the ΔΔCt method through Bio-Rad CFX Manager software. All PCRs were run in triplicates (n = 3).

Enzyme-linked immunosorbent assay

Total protein was collected from iPSCs and iECs maintained at normoxia (21% O₂, 5% CO₂ at 37°C) or hypoxia (1% O₂, 5% CO₂ at 37°C) for 24 h using cell lysis buffer (CelLytic M; Sigma-Aldrich) supplemented with a protease inhibitor cocktail (10% v/v) (Sigma-Aldrich). HIF-1α protein quantification was done using HIF-1-alpha Human SimpleStep ELISA™ Kit (Abcam) using the protein extracts, following manufacturer's instructions. Total protein amount for each sample group was determined using BCA Assay (Pierce™ Rapid Gold BCA Protein Assay Kit; Thermo Fisher) for normalization. The respective blank measurements were subtracted from all BCA and enzyme-linked immunosorbent assay (ELISA) measurements, and the total protein and HIF-1α concentrations were calculated referring to the respective calibration curves (data not shown) (n = 3).

Immunostaining

iECs were fixed with 4% paraformaldehyde (10 min at RT) followed by washing with PBS thrice. The cells were then blocked using 10% goat serum (1 h at RT) and then incubated with rabbit anti-human VE-CAD antibody (Abcam; ab33168) at a 1:100 dilution, for 4 h at 4°C. The primary antibody was washed with PBS thrice, and the samples were incubated with the species-specific secondary antibody (goat anti-rabbit Alexa Fluor 594; Thermo Fisher) at a 1:200 dilution for 4 h at 4°C. The samples were washed until there was no background signal, and the nuclei were stained with DAPI (5 min, RT) (Life Technologies). The respective images were acquired using a fluorescence microscope (Zeiss; Hamamatsu ORCA flash 4.0) (n = 3).

Tube formation assay

Chilled 48-well plates were coated with a thick layer of Geltrex (Life Technologies) (100 μL/cm²) and incubated at 37°C for 30 min to achieve gelation. Then HUVECs and iECs were seeded on the Geltrex coated wells at a density of 40 × 10³ cells/well and incubated overnight under normoxia (21% O₂, 5% CO₂ at 37°C) or hypoxia (1% O₂, 5% CO₂ at 37°C) for tube formation. The samples were then stained with Calcein-AM (Thermo Fisher) for 15 min at 37°C and imaged at lowest magnification using a fluorescence microscope (Zeiss; Hamamatsu ORCA flash 4.0). Through using the lowest magnification, the whole wells were captured with five images and the number of tubes was determined by counting the fully-closed sections of ECs in each image using ImageJ software and represented as the average number of tubes per well (n ≥ 6).

Scratch assay

The HUVECs and iECs were seeded on 24-well plates at 100% confluency. Scratches were made using a 200 μL pipette tip, and the cells were washed with PBS to remove cell debris. Then the media was replaced with EGM without serum to avoid cell proliferation. The scratch area was imaged right after introducing the scratches (T = 0 h) and after 18 h of incubation (T = 18 h) at five different locations along the scratches. The cells were stained with Calcein-AM for 15 min at 37°C before each time point. The initial scratch positions were labeled by putting marks outside of the well plates, and at the end of 18 h the original scratch points were determined referring to the marks. The experiment was conducted under normoxia and hypoxia. Hypoxic conditions were created through incubation at 1% O₂ using an oxygen-controlled incubator. The EGM used with these samples was equilibrated to 1% O₂ through overnight incubation in the oxygen-controlled incubator, the night before the scratches were introduced (n = 6).

Ischemia treatment in 2D culture

To examine the ischemia response of HIF-1α^WT, HIF-1α^Δ19, and HIF-1α^Δ42 iECs on 2D the cells were seeded to 96-well plates in triplicates at a seeding density of 20 × 10³ cells/well. After overnight incubation to allow cell attachment, ischemia treatment was started by exchanging the media to hypoxia equilibrated media. The ischemia samples were then immediately placed in the hypoxic incubator and maintained there for 96 h. Media was changed after 48 h using hypoxia equilibrated media. The media exchange was done under normoxic conditions to preserve aseptic conditions and was completed within under 1 min, thus without exposing the cells to normoxia for prolonged time periods (n = 6).

Fabrication of 3D model tissues and ischemia treatment

Three dimensional model tissues were fabricated by encapsulating the iECs in methacrylated gelatin (GelMA) (10% w/v) supplemented with 0.05% photoinitiator (Irgacure2959; Sigma Aldrich). GelMA was synthesized following a previously established protocol.²⁸ iECs were mixed with GelMA at a 1:1 ratio and then sandwiched between a plastic surface and a glass slide and exposed to 6.9 mW/cm² UV irradiation for 30 s. The crosslinked constructs were washed with PBS once for 1 min and then thrice with culture media for 15 min each time. The ischemia treatment was then started by exchanging the media with hypoxia equilibrated media. The media was hypoxia equilibrated by incubating the media in hypoxic incubator (1% O₂) overnight. The media change was performed under normoxia then the tissues were maintained under hypoxia (1% O₂, 5% CO₂ at 37°C) for 96 h with media change at 48 h, as explained in the previous section. The normoxia controls were maintained under normoxic conditions (21% O₂, 5% CO₂ at 37°C) for 96 h and received media changes at the same time points (n = 3).

Live/dead assay and mitochondrial ROS assay

The 2D cultures and 3D tissues were stained with Live/Dead assay (Life Technologies) at the end of 96 h normoxia or hypoxia culture, following the manufacturer's instructions. The 2D cultures were imaged using a fluorescence microscope (Zeiss, Hamamatsu ORCA flash 4.0) at five different locations of each well. The 3D tissues were imaged using a fluorescence microscope (Zeiss, Hamamatsu ORCA flash 4.0) by taking z-stack images in at least three positions of each tissue. The z-stack images were projected to form the maximum projection at each field of view. A built-in optical sectioning tool (Apotome; Zeiss) was used during 3D imaging to remove background accumulation from different z-stack images when projected. The images of 2D cultures and the maximum projection images of 3D tissue constructs were analyzed using ImageJ software to determine the number of live and dead cells. Using these numbers, the live cell percentages were quantified for each well or tissue construct (n = 3).

Lumen number and diameter quantification

The 3D constructs were maintained under normoxia or hypoxia for 14 days with regular media changes every 3 days. The constructs were imaged using a light microscope (Leica) on days 1, 3, 5, and 9 to monitor the spreading and lumen formation. On day 14 the tissues were fixed and immunostained for CD31 following the immunostaining protocol (see “immunostaining”), using mouse anti-human CD31 antibody (BD Pharmigen) at a 1:100 dilution and the species-appropriate secondary antibody (goat anti-mouse Alexa Fluor 488; Life Technologies) at a 1:200 dilution. The tissues were then imaged using a fluorescence microscope (Zeiss; Hamamatsu ORCA flash 4.0) through the thickness by taking z-stack images with 2 μm z intervals. At least three z-stack images were taken from each construct. The z-stack images were used for 3D reconstruction of the tissues through ImageJ software volume viewer plugin. The reconstructed images were analyzed to determine lumen number and diameter by taking at least five slices per image. The number and diameter of lumens were calculated as the total number per construct, and average ± standard deviation (STD) of six constructs was represented (n = 3).

Statistical analysis

The results are represented as average ± standard deviation. The statistical analysis was carried out using one-way ANOVA analysis. Student's t-test was used for comparing two individual groups. All p-values reported were two sided, and statistical significance was defined as p < 0.05. Sample size (n) was equal to or larger than three for all individual experiments, and all experiments were repeated thrice.

Results

CRISPR/Cas9 genome editing yields successful knockout of HIF1A in hiPSCs

We aimed to knockout HIF1A using the CRISPR/Cas9 genome editing. We designed four different CRISPR guide RNAs all targeting the second exon of HIF1A which is the basic helix–loop–helix (bHLH) domain required for heterodimerization with HIF-1β and binding to DNA.²⁹ We used electroporation to introduce Cas9 plasmid, including a GFP reporter along with the CRISPR guide RNAs. We achieved an electroporation efficiency of ∼4% (Fig. 1A).

FIG. 1.

Characterization of CRISPR/Cas9 edited iPSCs. (A) FACS results of Cas9 plasmid transfection efficiency in hiPSCs. (B) The bright field images of iPSC colonies (left) and their expansion for genome screening (right). (C) The PCR results showing the homozygous and heterozygous colonies with genetic modification in HIF-1A. (D) The sequencing results showing the deletions in HIF-1A and the respective CRISPR cut sites. (E) The HIF-1α mRNA levels in WT and edited hiPSCs under hypoxia. (F) The HIF-1a protein concentration in WT and edited hiPSCs under hypoxia (*represents statistical significance [p < 0.05]). CRISPR, clustered regulatory interspaced short palindromic repeat; iPSC, induced pluripotent stem cell; FACS, fluorescence activated cell sorting; HIF-1α, hypoxia inducible factor 1α. Color images are available online.

Through screening the GFP positive colonies which were grown and expanded from single cells (Fig. 1B), we identified two homozygous hiPSC colonies with 19- and 42-bp deletions (Fig. 1C). We confirmed that the deletions created were on the second exon through sequencing (Fig. 1D). After expanding these colonies, we examined the effect of the deletions in mRNA expression levels in hiPSCs (Fig. 1E). We observed that the HIF-1α mRNA expression level was significantly lower in the HIF-1α^Δ hiPSC lines compared to HIF-1α^WT under hypoxia. We then determined the HIF-1α protein levels in these cell lines and observed that there was a significant decrease as a result of both 19- and 42-bp deletions (Fig. 1F). The HIF-1α^Δ19 cell line showed the lowest HIF-1α protein levels, being significantly lower than both the HIF-1α^WT and HIF-1α^Δ42 (Fig. 1F).

HIF1A knockout does not interfere with EC differentiation of hiPSCs

To examine the effect of HIF1A knockout in EC behavior, we differentiated the HIF-1α^WT, HIF-1α^Δ19, and HIF-1α^Δ42 hiPSC lines to ECs. The previously established protocol yielded ECs from the CRISPR/Cas9 edited hiPSCs that resemble HUVECs biochemically and functionally (Fig. 2A). The bright field images showed that both the WT and edited iECs had the characteristic morphology of ECs, as can be observed through their morphological resemblance to HUVECs (Fig. 2A, top). In addition, both WT and edited iECs showed significantly higher levels of CD31, EDN-1, and vWF mRNA expression (Fig. 2B) compared to undifferentiated hiPSCs and showed VE-CAD protein expression (Fig. 2A, middle).

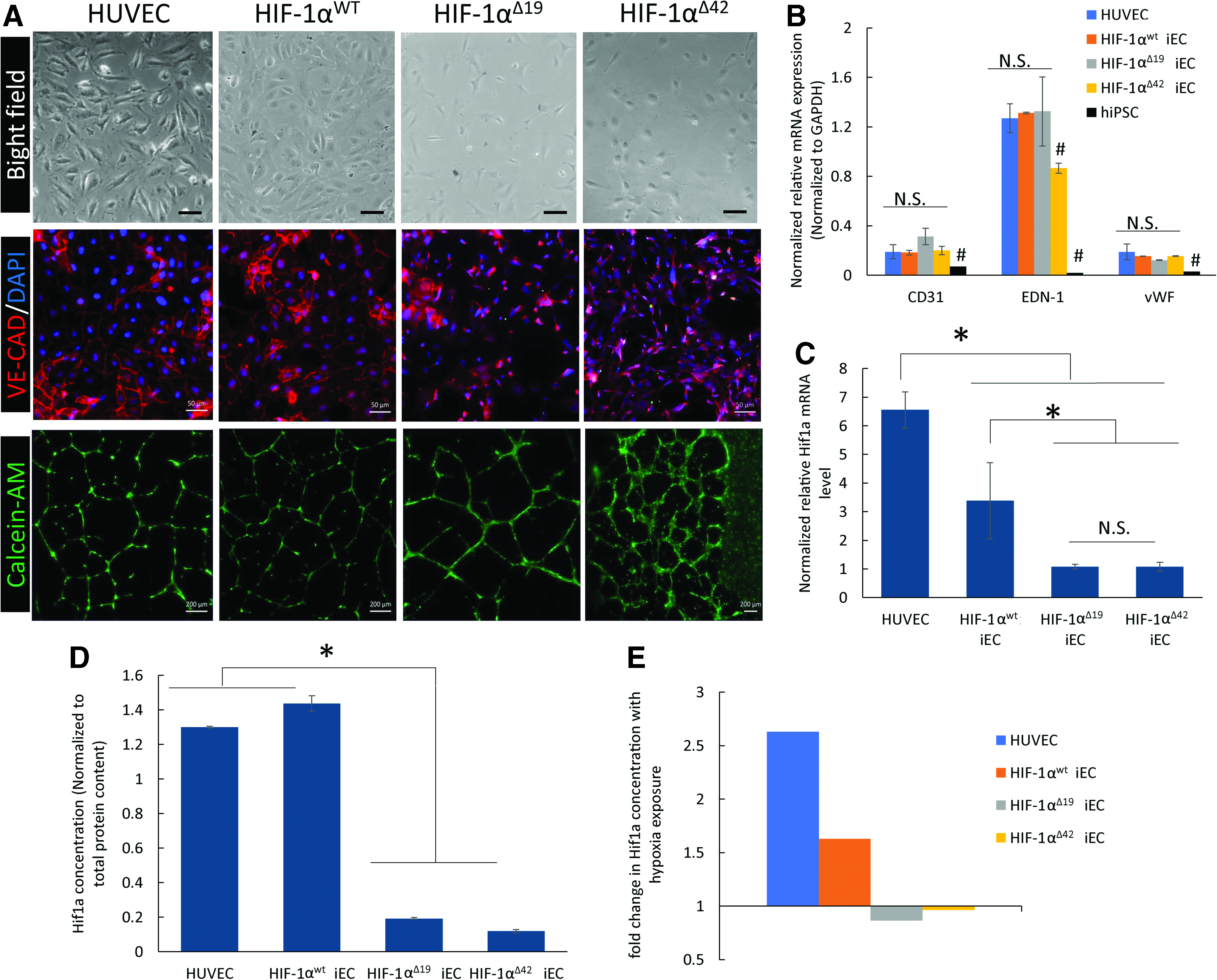

FIG. 2.

Biochemical characterization of HIF-1α knockout iECs. (A) Top: The bright field images of HUVECs and iECs (day after FACS) (Scale bars = 50 μm). Middle: Immunostaining of HUVECs and iECs against VE-CAD (the cell nuclei are labeled with DAPI) (Scale bars = 50 μm). Bottom: The tube formation by HUVECs and iECs under normoxia (cells are labeled with calcein-AM) (Scale bars = 200 μm). (B) The mRNA expression levels of endothelial markers CD31, EDN-1, and vWF in HUVECs, iECs, and undifferentiated iPSCs under normoxia. (C) The HIF-1α mRNA levels in HUVECs and iECs under hypoxia (the expression levels are normalized to the respective expression levels of the same cell line under normoxia) as determined by qRT-PCR. (D) The HIF-1α protein concentration in HUVECs and iECs under hypoxia. (E) The fold difference in HIF-1α protein concentration (hypoxia protein levels)/(normoxia protein level). (*represents statistical significance [p < 0.05]; ^#represents statistical significance when mRNA expression of a gene is compared to other cell lines [p < 0.05]; N.S. represents no statistical significance [p > 0.05]). HUVEC, human umbilical vein endothelial cell; iEC, iPSC-derived endothelial cell; VE-CAD, vascular endothelial cadherin; vWF, von Willebrand factor; qRT-PCR, quantitative real-time polymerase chain reaction. Color images are available online.

Importantly, the mRNA expression levels in HIF-1α^Δ19 of all markers tested were comparable to that of HUVECs and HIF-1α^WT. CD31 and vWF mRNA expression levels in HIF-1α^Δ42 were also comparable to HUVECs and HIF-1α^WT, indicating that differentiation to endothelial lineage is not hindered by the CRISPR/Cas9 editing used here. We also tested the endothelial specific functionality of WT and edited iECs. ECs form tube-like structures by stretching along and forming connections with their neighbors when seeded on a thick layer of extracellular matrix (ECM) gels. When cultured on a thick coating of Geltrex, both WT and edited iEC cell lines showed tube-like structure formation, resembling the structures formed by HUVECs (Fig. 2A, bottom).

It is important to determine if the HIF-1α mRNA or protein expression levels were affected by the differentiation process. To assess that we performed qRT-PCR and ELISA to WT and edited iECs that were cultured under normoxia and ischemia. We determined that HIF-1α mRNA expression levels are significantly lower in both HIF-1α^Δ19 and HIF-1α^Δ42 iECs (Fig. 2C). Similarly, under hypoxia, the HIF-1α protein levels were significantly lower compared to HUVECs and HIF-1α^WT iECs (Fig. 2D). Importantly, we determined that the increase in protein levels of HIF-1α under hypoxia was not observed in HIF-1α ^Δ19 and HIF-1α^Δ42 iECs (Fig. 2E) indicating that even if HIF-1α protein is present at very low levels in these cell lines, its levels do not increase when exposed to hypoxia. This suggests that our targeted CRISPR/Cas9 genome editing blocks the hypoxia induced accumulation of HIF-1α; thus, its nuclear localization and heterodimerization with HIF-1β are also hindered.

CRISPR/Cas9 editing of iECs for HIF1A knockout interferes with migration and tube formation

HIF-1 expression is known to drive angiogenesis under ischemic conditions and the age-dependent decrease in its expression is linked with deterioration in endothelial function. Therefore, we determined the migration and tube formation of HIF1A knockout iECs under ischemia. We observed that when we introduce a scratch in a confluent culture of iECs, regardless of oxygen concentration, HIF-1α knockout iECs covered less area compared to controls (Fig. 3A–C) at the end of 18 h. Strikingly, under ischemia, HIF1A knockout cell lines covered only 20% of the scratch area. Migration of HUVECs and HIF-1α^WT iECs was also affected by ischemia treatment as the approximate area covered decreased from 80% to 40%.

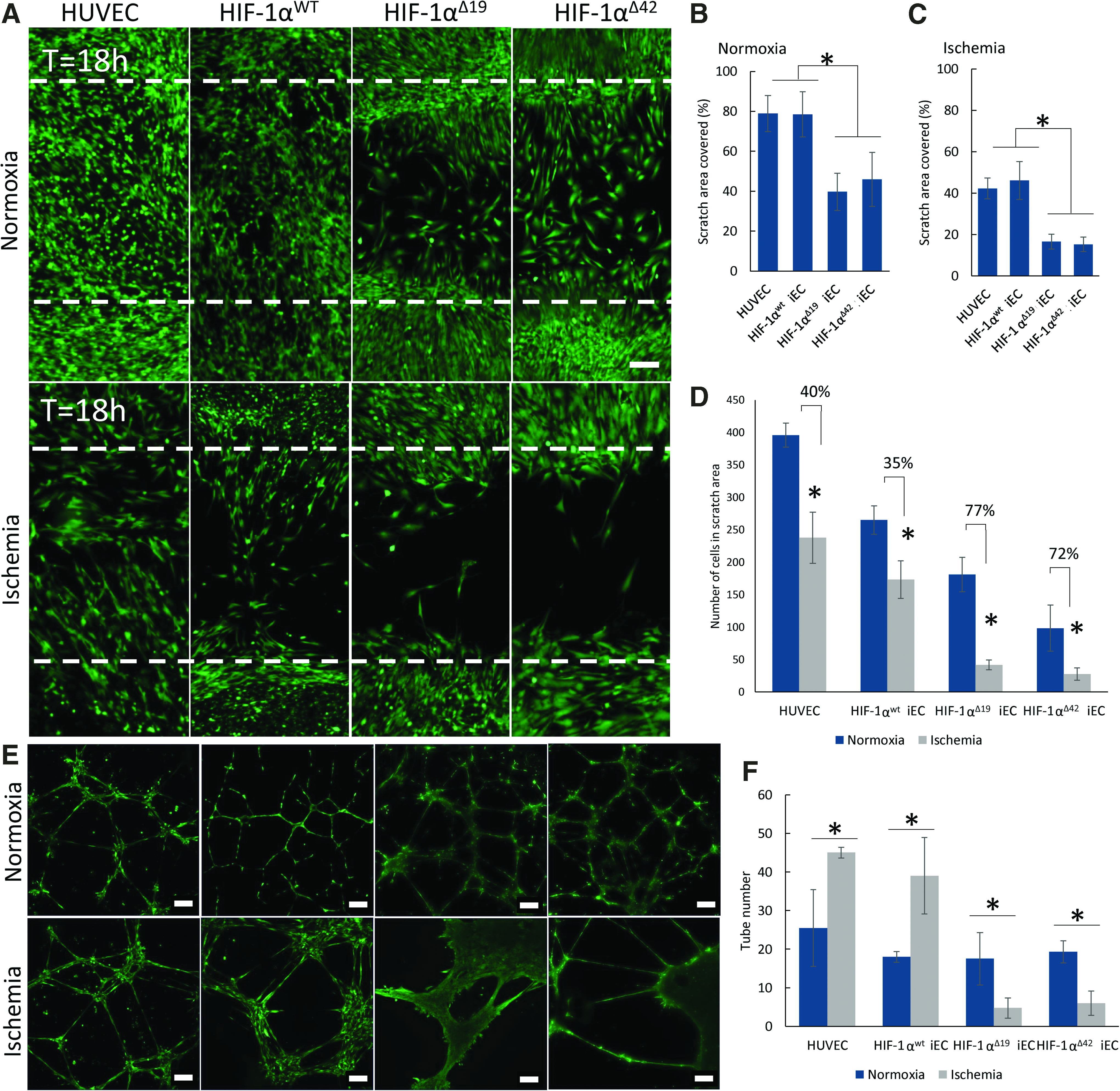

FIG. 3.

Migration and angiogenic potential of CRISPR/Cas9 edited iECs. (A) Fluorescent images showing the migration of HUVECs and iECs to the scratch area at the end of 18 h under normoxia (top) and ischemia (bottom). Cells are labeled with calcein-AM. (Scale bar = 200 μm) (B) The percentage of scratch area covered at the end of 18 h under normoxia and (C) ischemia. (D) The cell number in the scratch area under normoxia and ischemia. The percent difference in cell number under normoxia and ischemia for each cell line is represented on top of the respective bars. (E) The fluorescent images of HUVECs and iECs forming tube-like structures under normoxia and ischemia. (Scale bar = 100 μm) (F) The quantification of the tubing assay showing the number of complete tubes formed by HUVECs and iECs under normoxia and ischemia (*represents statistical significance [p < 0.05]). Color images are available online.

We also quantified the number of cells that migrated to the scratch area under both normoxia and hypoxia (Fig. 3D). We observed that for all cell lines there was a significant decrease in cell number migrated to scratch area under ischemic conditions, compared to normoxic conditions. When we determined the percent decrease in number of cells in scratch area caused by ischemia, however, we observed a significant difference in the percent decrease in HIF1A knockout iECs and controls, indicating that decreased expression of HIF-1α interferes with endothelial migration potential under ischemia.

Tube formation is another indicator of angiogenic potential of ECs. We investigated the number of complete tube-like structures formed by HUVECs, HIF-1α^WT iECs, and CRISPR/Cas9 edited iECs under normoxia and ischemia (Fig. 3E). When cultured under normoxic conditions, the number of tubes formed by HIF-1α^Δ19 and HIF-1α^Δ42 iECs was comparable to that of HUVECs and HIF-1α^WT iECs. At the end of 16-h long ischemia treatment, HUVECs and HIF-1α^WT iECs were induced to form a significantly higher number of tubes (Fig. 3E, F). Interestingly, tube number significantly decreased in both HIF-1α^Δ19 and HIF-1α^Δ42 iECs under ischemia, showing significant impairment in tube formation.

HIF-1α absence significantly affects the viability of iECs through increased mitochondrial ROS accumulation

Reduction in mitochondrial ROS has been shown to be regulated by HIF-1 through the induction of pyruvate dehydrogenase kinase-1 (PDK-1) under hypoxia^30–32 leading to decreased cell death. In addition, it is well documented that there is an age-dependent increase in susceptibility to stresses such as ischemia. Therefore, we characterized the functionality of our CRISPR/Cas9 edited iECs through investigating the accumulation of mitochondrial ROS and cell viability on 2D and 3D (Fig. 4A). At the end of 96 h ischemia treatment the HIF-1α knockout iECs cultured as 2D monolayers showed an increase in mitochondrial ROS levels compared to ones cultured in normoxia (Fig. 4B). However, the mitochondrial ROS levels did not change in HUVECs and HIF-1α^WT iECs whether they were cultured under normoxia or ischemia, suggesting that CRISPR/Cas9 edited iECs cannot maintain the HIF-1α regulated mitochondrial oxygen balance. We investigated the cell viability after 96-h ischemia treatment (Fig. 4C) and observed that all cell lines were over 90% viable under normoxia. However, in correlation with ROS accumulation, HUVECs, HIF-1α^WT iECs, and HIF-1α knockout cells showed a significantly lower viability under ischemia (Fig. 4D). Importantly, HIF-1α^Δ19 and HIF-1α^Δ42 iECs showed a more significant decrease in viability as a result of ischemia exposure: the viability of HUVECs and HIF-1α^WT remained above 75% after ischemia exposure, whereas viability of HIF-1α^Δ19 iECs decreased to 58% ± 7% and viability of HIF-1α^Δ42 iECs decreased to 56% ± 4% under ischemia.

FIG. 4.

Mitochondrial ROS accumulation and cell viability in CRISPR/Cas9 edited iECs in 2D. (A) The representative images and (B) quantification of mitochondrial ROS in HUVECs and iECs under normoxia and ischemia. (mitochondrial ROS is represented by fluorescence intensity, in arbitrary units [A.U.]). (Scale bars = 100 μm) (C) The representative images and (D) quantification of live/dead assay (represented as live cell percentage) of HUVECs and iECs under normoxia and ischemia. (Scale bars = 100 μm) (*represents statistical significance [p < 0.05]; N.S. represents no statistical significance [p > 0.05]). ROS, reactive oxygen species; 2D, two dimensional. Color images are available online.

We developed the 3D vascular tissues through encapsulating HIF-1α WT or knockout ECs in GelMA. We first investigated the stress response of our CRISPR/Cas9 edited vascular tissues under ischemia. We exposed the 3D tissues to ischemia for 96 h and observed a significant increase in mitochondrial ROS levels in HIF-1α^Δ19 and HIF-1α^Δ42 vascular tissues, while ROS levels did not change with ischemia in HUVECs and HIF-1α^WT vascular tissues (Fig. 5A, B) in consistence with the 2D cultures. The viability of the tissue models followed a different pattern upon ischemia in 3D compared to 2D culture conditions (Fig. 5C, D). The initial viability was over 80% for all tissues, and this viability level was maintained in HUVEC and HIF-1α^WT vascular tissue models following ischemia treatment (Fig. 5D). However, viability of HIF-1α^Δ19 and HIF-1α^Δ42 vascular tissues decreased significantly.

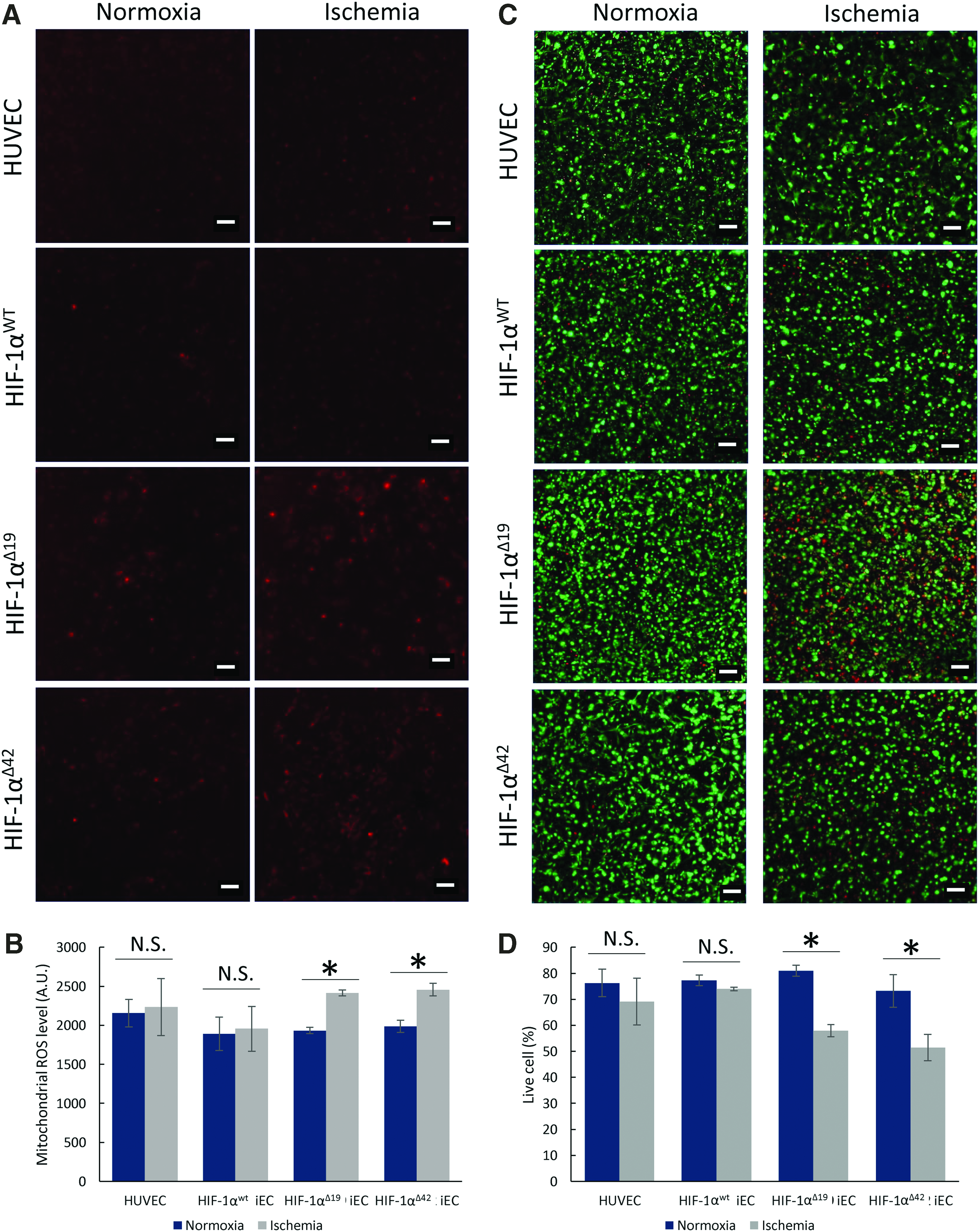

FIG. 5.

Mitochondrial ROS accumulation and cell viability in CRISPR/Cas9 edited iECs in 3D. (A) The representative images and (B) quantification of mitochondrial ROS in HUVECs and iECs encapsulated in GelMA under normoxia and ischemia. (mitochondrial ROS is represented by fluorescence intensity, in arbitrary units [A.U.]). (Scale bars = 100 μm) (C) The representative images and (D) quantification of live/dead assay (represented as live cell percentage) HUVECs and iECs encapsulated in GelMA under normoxia and ischemia. (Scale bars = 100 μm) (*represents statistical significance [p < 0.05]; N.S. represents no statistical significance [p > 0.05]) 3D, three dimensional. Color images are available online.

HIF1A knockout iECs are unable to form lumens mimicking angiogenic deterioration

We determined the 3D angiogenic potential of our CRISPR/Cas9 edited vascular tissues under normoxia and ischemia. We observed that both HUVECs and iECs could spread and form lumens under normoxia (Supplementary Fig. S1) and hypoxia (Fig. 6A) through 14 days of culture.

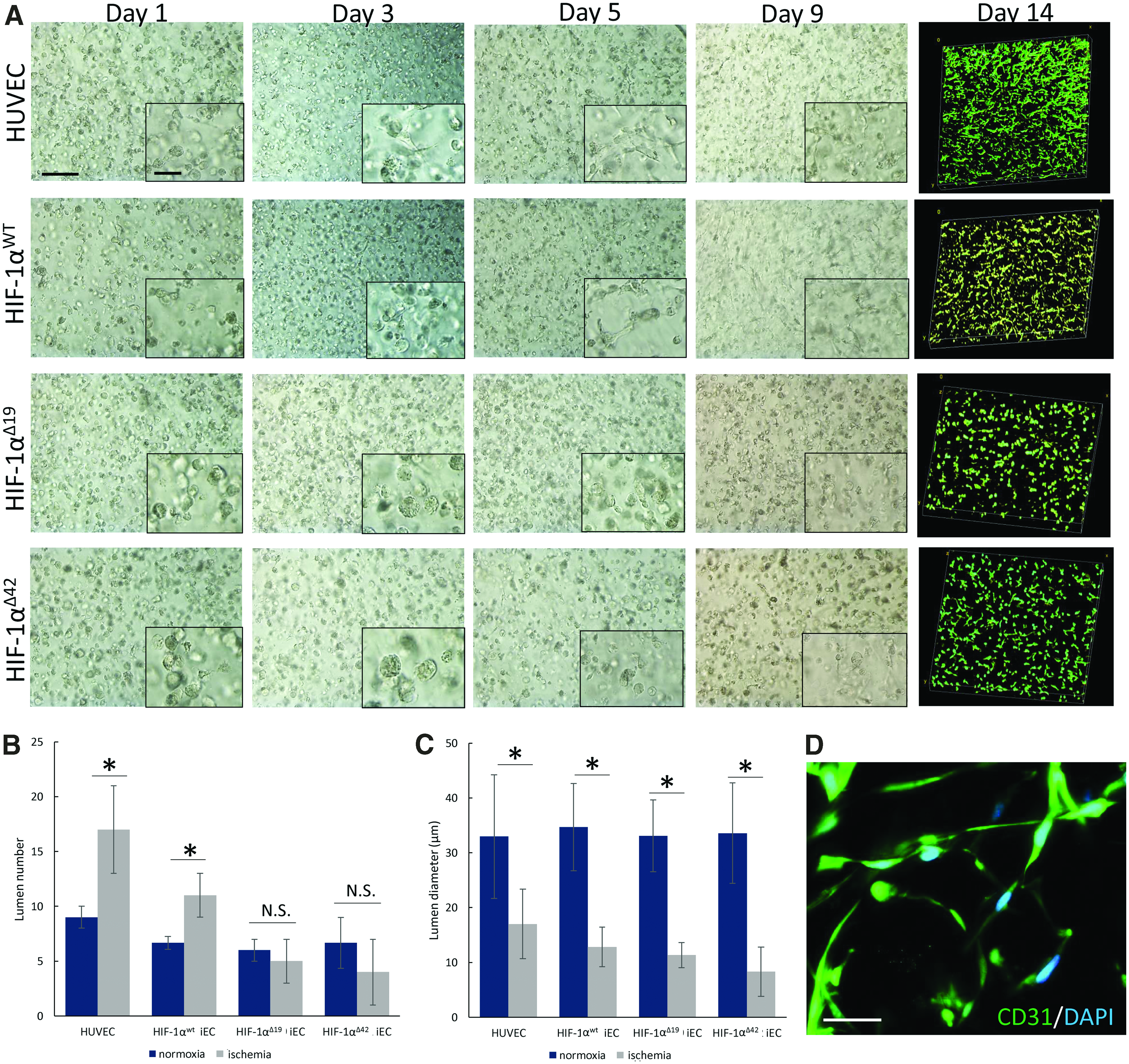

FIG. 6.

Lumen formation of CRISPR/Cas9 edited iECs under normoxia and ischemia. (A) Bright field (days 1, 3, 5, 9) and fluorescent images (day 14) of 3D lumen formation of HUVECs and iECs under ischemia. (Scale bar = 100 μm, inset scale bar = 50 μm) (B) The number of complete lumens formed per construct under normoxia and ischemia. (C) The diameter of lumens formed under normoxia and ischemia. (D) A close-up image of 3D lumen formation of HUVECs under ischemia. (Scale bar = 100 μm) (*represents statistical significance [p < 0.05]; N.S. represents no statistical significance [p > 0.05]). Color images are available online.

By day 14 completely connected lumen-like structures were formed regardless of HIF-1α expression (Supplementary Fig. S2). The quantification of lumen number (Fig. 6B, C) showed that a lower number of lumens were formed in HIF-1α^Δ19 and HIF-1α^Δ42 vascular tissues compared to HUVEC and HIF-1α^WT iEC tissues, but this difference was statistically insignificant (Fig. 6B). Under ischemia, the number of lumens formed in HUVEC and HIF-1α^WT vascular tissues significantly increased, compared to normoxia, whereas HIF-1α^Δ19 and HIF-1α^Δ42 vascular tissues had a lower number of lumens under ischemia, compared to normoxia. We also observed that the lumen diameter was smaller in all tissue models under ischemia, compared to normoxia (Fig. 6C). Taken together, our results show that a higher number of lumens with smaller diameter are formed in the HUVEC and HIF-1α^WT vascular tissue models under ischemia. Similarly, the lumen diameter significantly decreased in tissues composed of edited iEC under ischemia; however, the number of lumens formed remained the same.

Discussion

Construction of in vitro disease models using primary human cells is disadvantageous as these cells are not readily available, especially for vital organs such as heart and brain. The animal models provide a platform where the systemic effect of potential therapeutics can be assessed; however, the species-to-species differences and physiologically inaccurate methods often used to create the disease conditions hinder their translational value. The discovery of hiPSCs and the advancements in the past decade brought upon new possibilities for disease modeling while overcoming many of the disadvantages the preexisting methods have. With the use of hiPSCs many different cell types have been successfully derived to date.³³ Combined with the advancements in genome editing technology, it is now possible to model human diseases in a physiologically, pathologically, and genetically relevant manner.^6,8,34,35

Deterioration in angiogenesis is associated with many diseases such as arteriosclerosis, myocardial infarction, and limb ischemia.³⁶ The age-dependent impairment in angiogenesis and neovascularization, as well as an increased susceptibility to stress, have been reported to be directly correlated with a decrease in stabilization²⁵ or nuclear localization of HIF-1α.²⁴ Despite its great importance in age-related ischemic diseases, in vitro tissue models that mimic the impaired vascular tissues both on genetic and functional level were not reported. In this study, we developed hiPSC-based vascular tissues that show the functional impairment observed in an age-relevant manner through CRISPR/Cas9 editing of HIF1A.

We used CRISPR/Cas9 editing to knockout HIF-1α in ECs as it is shown to yield the highest efficiency in genome editing.^3,37,38 CRISPR/Cas9 genome editing yielded both homozygous and heterozygous deletions in the second exon of HIF-1A. The cell lines with homozygous deletions showed significantly decreased mRNA and protein levels of HIF-1α in hiPSCs. The respective iECs derived from the edited cell lines showed characteristic endothelial biochemical marker expression and functionality while maintaining the significant decrease in HIF-1α mRNA and protein levels, indicating no interference of genome editing with the differentiation potential of hiPSCs. HUVECs and HIF-1α^WT iECs showed the expected increase in HIF-1α protein expression under ischemia, while the genome edited iECs maintained the protein expression level that was observed under normoxia. This suggests that although mRNA and protein expression are not completely hindered due to the deletions introduced through CRISPR/Cas9 editing, the oxygen-dependent stabilization of HIF-1α expression is blocked, presenting edited iECs as a viable model of HIF-1α knockout. This could be due to the shift introduced by the deletion overall affecting the oxygen-dependent degradation domain of HIF-1α, which is located downstream of bHLH and PAS domains and mediates its oxygen-regulated stability.³⁹

We observed that CRISPR/Cas9 editing of iECs to knockout HIF1A resulted in a decrease in migration and tube formation, resembling the age-dependent impairment in angiogenesis²⁴ and recruitment of ECs under ischemia.²⁵ In line with other reports,^40,41 angiogenic response of HUVECs and HIF-1α^WT iECs was induced under ischemia as shown by increased number of tubes formed, while HIF1A knockout iECs formed lower number of tubes compared to normoxia. This strongly suggests that in the absence of HIF-1α expression, iECs have impaired functionality.

An important player in ischemia-related cell death is the mitochondrial ROS generation and accumulation.⁴² In correlation with decreased tube formation, we observed an increased accumulation of mitochondrial ROS in HIF-1α^Δ19 and HIF-1α^Δ42 iECs under ischemia in 2D cultures. HIF-1 expression is documented to improve survival under hypoxic conditions through induction of PDK-1, which blocks the entry of pyruvate into the tricarboxylic acid cycle and subsequently suppresses mitochondrial ROS production.³² Therefore, CRISPR/Cas9 knockout of HIF-1α in iECs lead to the accumulation of mitochondrial ROS and, subsequently, to a lower survival rate when cultured in 2D. Importantly, observing a decrease in tube formation in knockout iECs can be attributed to the accumulation of mitochondrial ROS and the correlated lower overall viability. In addition, the deletion we introduced targets the bHLH domain of HIF-1α, which regulates the dimerization with HIF-1β, thus the activity of HIF-1 as a transcription factor.³⁹ It is well documented that VEGF expression is regulated by HIF-1 under hypoxia to induce angiogenesis and tube formation of ECs.^43–45 Therefore, in addition to mitochondrial ROS accumulation, the transcriptional pathways activated by HIF-1 are impaired in CRISPR/Cas9 edited iECs, which collectively could lead to the observed decrease in migration, tube formation, and viability.

Although the conventional 2D cultures provide valuable information, cell-microenvironment interactions are overlooked in such platforms. To remedy this, 3D tissue and disease models have been developed over the years.⁴⁶ Cell-laden hydrogel-based tissue model fabrication is a common approach to create 3D tissue models, and collagen and gelatin-based hydrogels have been documented to support various cell types,^47–50 including EC culture and function in vitro.^47,51–54 We encapsulated the HIF-1α knockout and WT ECs in photocrosslinkable GelMA to provide cell–ECM interactions, as well as improving cell–cell interactions provided with the 3D architecture. The 3D tissue models comprising HUVECs and HIF-1α^WT iECs could survive the ischemia treatment, unlike observed in the 2D culture conditions. This can be explained by the well-documented effect of improved cell–ECM and cell–cell interactions provided in our 3D constructs.^14,55 However, when HIF-1α was knocked out in iECs, improved cell–cell and cell–ECM interactions provided by the 3D architecture were not enough to improve the survival of the tissue models under ischemia treatment. This is in line with our previous studies where HIF-1α knockdown iECs did not show the same cardioprotective effect as HIF-1α^WT iECs under oxidative stress.¹⁴ In addition, the mitochondrial ROS accumulation we observed under ischemia showed a similar pattern to viability of the tissues. HUVEC and HIF-1α^WT iEC-laden tissues maintained their mitochondrial ROS levels under ischemia, while HIF-1α knockout iEC tissues showed increased ROS accumulation. Thus, the lower viability of edited iECs under ischemia can be explained by the significant increase in ROS accumulation, linking the lack of HIF-1α directly to cell viability under ischemic stress.

Similar to the decreased tube formation on 2D, CRISPR/Cas9 edited iECs showed an impairment in 3D lumen formation resembling the age-dependent deterioration of angiogenic potential of several organs in vivo.^36,56 Overall, the increased mitochondrial ROS accumulation, decreased lumen formation, viability, tube formation, and cell migration show that the CRISPR/Cas9 edited iECs we present in this study are biochemically and functionally resembling the impaired endothelium phenotype that is observed in aged tissues and organs, as well as disease conditions.

Using CRISPR/Cas9 edited hiPSCs to develop both 2D and 3D vascular tissues, we have shown here the applicability of the combination of these two techniques in fabricating fully human-origin, physiologically and pathologically-relevant tissue and disease models. The model presented in this study can be further improved by integrating the parenchymal cells of the target tissue, and diseased and/or aged tissue models can be fabricated for various bioengineering and biomedical applications. Such tissues hold promise to provide more relevant information on tissue/organ pathology and eventually will lead to developing successful treatments.

Footnotes

Acknowledgments

This study is funded by NSF-CAREER Award No. 1651385, NSFCBET Award No. 1805157, and NIH Award No. 1 R01 HL141909-01A1.

Disclosure Statement

No competing financial interests exist.

Supplementary Material
