Vascularization Strategies in the Prevention of Nonunion Formation

Abstract

Delayed healing and nonunion formation are major challenges in orthopedic surgery, which require the development of novel treatment strategies. Vascularization is considered one of the major prerequisites for successful bone healing, providing an adequate nutrient supply and allowing the infiltration of progenitor cells to the fracture site. Hence, during the last decade, a considerable number of studies have focused on the evaluation of vascularization strategies to prevent or to treat nonunion formation. These involve (1) biophysical applications, (2) systemic pharmacological interventions, and (3) tissue engineering, including sophisticated scaffold materials, local growth factor delivery systems, cell-based techniques, and surgical vascularization approaches. Accumulating evidence indicates that in nonunions, these strategies are indeed capable of improving the process of bone healing. The major challenge for the future will now be the translation of these strategies into clinical practice to make them accessible for the majority of patients. If this succeeds, these vascularization strategies may markedly reduce the incidence of nonunion formation.

Impact statement

Delayed healing and nonunion formation are a major clinical problem in orthopedic surgery. This review provides an overview of vascularization strategies for the prevention and treatment of nonunions. The successful translation of these strategies in clinical practice is of major importance to achieve adequate bone healing.

Introduction

During the last decade, a considerable number of research studies have provided a fast-growing knowledge on the mechanisms of bone healing. However, despite increasing insights in the morphological and molecular basis of fracture repair, the causes of bone healing failure remain mostly unclear. In clinical practice up to 10% of all fractures still show delayed healing or nonunion formation.¹ Especially, segmental bone defects, infections and mechanical instabilities bear a high risk of nonunion formation and, thus, remain a major clinical problem.^2,3 For the patient, nonunions are associated with significant pain and loss of function, which requires additional surgical interventions. For the health care system, nonunions cause a substantial economic burden.⁴

There are variabilities in the definition of delayed healing and nonunion.⁵ The U.S. Federal Drug Administration council defines a nonunion as ‘failure to achieve union by 9 months since the injury, and for which there has been no signs of healing for 3 months'.⁶ In contrast, others define nonunion in long bones after a period of 6 months with no radiological signs of fracture healing.⁶ It should be noted that the diagnosis of nonunion should consider both the radiological and the clinical examination of the patient.⁷

Several treatment strategies have been studied to overcome nonunion formation, but, until today, no ideal management has been established. Autologous bone grafts can be considered the gold standard⁸; however, they are associated with a high donor site morbidity⁹ and they are restricted by a shortage of available bone graft material, in particular if previous harvests have been performed. The use of allografts is not restricted by shortage; however, this technique is limited due to large differences in the interindividual quality of the graft material and by a failure rate of up to 60%.¹⁰ Accordingly, substantial efforts have to be made during the next years to fully understand the pathophysiology of nonunion formation and to develop effective and safe treatment strategies for preventing the failure of bone healing.

Bone is a highly vascularized connective tissue that relies on an adequate spatial and temporal interaction between blood vessels and bone cells.¹¹ Therefore, angiogenesis and vascularization play a crucial role for successful bone healing, being among the first steps that occur during the physiological sequences of both endochondral and intramembranous fracture repair.¹¹ After the formation of an organized granulation tissue, newly formed blood vessels provide an adequate nutrient supply to the fracture area and allow the infiltration of cells vital for callus remodeling from avascular cartilage toward mineralized woven bone^12–14 (Fig. 1). The importance of this early vascularization for successful bone healing is clearly indicated by animal studies, which revealed that a blockade of angiogenesis by TNP-470, nonsteroidal anti-inflammatory drug, or fumagillin inhibits fracture repair and eventually leads to nonunion formation.^15–17 In a closed murine femoral fracture model, radiographical, histological, and biomechanical analyses have shown that the angiogenesis inhibitor TNP-470 completely prevents fracture healing, leading to a bone tissue that resembles an atrophic nonunion.¹⁸ Hence, a disturbed vascular supply must be considered a determinant for the failure of fracture healing, most probably due to hypoxia and a reduced nutrient supply to the site of injury.

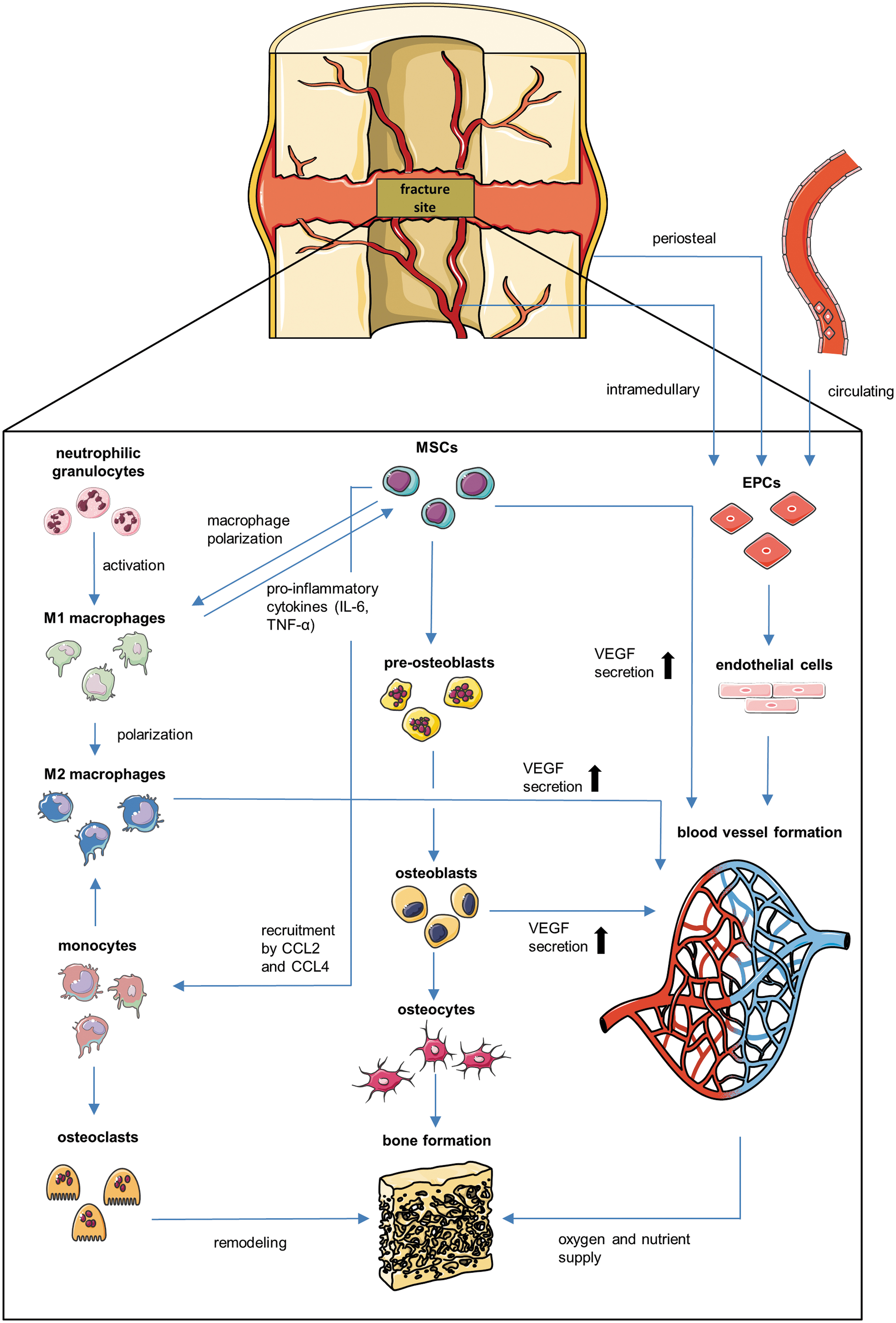

FIG. 1.

Cellular interactions and mechanisms during fracture healing. During the initial phase of fracture healing, the hematoma triggers an immune response. Neutrophilic granulocytes within the fracture site activate macrophages. Activated M1 macrophages promote the migration of MSCs to the fracture site by proinflammatory cytokines (IL-6 and TNF-α). In turn, MSCs initiate the polarization of macrophages into the M2 phenotype and mediate the recruitment of macrophages by the release of CCL2 and CCL4. Furthermore, MSCs differentiate into preosteoblasts, osteoblasts, and finally osteocytes, which form the bone tissue. In addition, monocytes differentiate into osteoclasts and enable bone remodeling. Blood vessel formation within the fracture callus is mediated by circulating EPCs as well as EPCs originating from the intramedullary and periosteal vasculature. These EPCs develop into endothelial cells and form the vascular network of the callus tissue. MSCs, M2 macrophages, and osteoblasts contribute to the formation of the vascular network by VEGF secretion. CCL2, chemokine ligand-2; CCL4, chemokine ligand-4; EPCs, endothelial progenitor cells; MSCs, mesenchymal stem cells; VEGF, vascular endothelial growth factor.

Based on these findings, the stimulation of vascularization is thought to be of major importance in both the prevention and treatment of nonunions. In this review, we provide an up-to-date overview of currently existing and emerging vascularization strategies to overcome nonunion formation, such as (1) biophysical applications, (2) systemic pharmacological treatment, and (3) tissue engineering, including new scaffold materials, growth factor delivery systems, and cell-based and surgical approaches.

Preclinical Nonunion Models

A large number of preclinical nonunion models are available to study the mechanisms and the treatment of nonunion formation. In the past, large animal models^19–21 have been popular to study delayed fracture healing. Today, rodent animal models are preferred. Distinct models in rats, including atrophic and hypertrophic nonunions, have been developed to study healing promoting treatment strategies.^22,23 The atrophic models can be categorized as either (1) defects with a size of 3–8 mm or (2) defects <3 mm with induction of additional periosteal or endosteal injury.²² Large segmental defects have the advantage of mimicking the resection of established nonunions in clinical practice and are especially suited for tissue engineering applications. However, they do not resemble the pathophysiology of trauma-induced fractures, because they are induced by osteotomy. This problem may be overcome by the use of a simple fracture model with additional periosteal injury.²⁴ The periosteal injury is thought to imitate the avascular and biologically inert environment of atrophic nonunions.

In mice, the development of an appropriate nonunion model is challenging because technically demanding. Accordingly, only few models are described.²² The first nonunion model in the mouse was developed by Choi et al.²⁵ It consisted of a tibia osteotomy, which was distracted by an external fixator. Because bone healing failure was observed in only 60%, it may not be acceptable for standardized analyses of nonunion formation.

A nonunion in the mouse can also be induced by osteotomy and periosteal cauterization.²⁶ This, however, results in a hypertrophic nonunion, which is not the primary interest of most of the researchers. In clinical practice, hypertrophic nonunions are regularly treated with a high success rate just by stable re-osteosynthesis, indicating that they do not represent a major challenge.²²

Because atrophic nonunions represent a critical challenge in orthopedic surgery, there is indeed a need for adequate mouse models to improve the understanding of the mechanisms of healing dysfunction and to develop novel treatment concepts. Today, two standardized atrophic nonunion models in the mouse femur are reported.^27,28 In the first, a 1.8-mm osteotomy is stabilized by a pin and a clip,²⁷ in the second, a 2-mm segmental defect is stabilized with an interlocking nail, comparable to a human intramedullary locking nail.²⁸ Both models demonstrate reliable atrophic nonunion formation and allow the implantation of new bone substitutes and tissue engineering constructs.

Biophysical Applications

Biophysical stimulation in orthopedic medicine represents a minimal-invasive therapeutic approach to enhance and improve reparative and anabolic tissue activities. Extracorporeal shock wave therapy (ESWT), low-intensity pulsed ultrasound (LIPUS), and hyperbaric oxygenation (HBO) are able to stimulate the upregulation of proangiogenic growth factors, and, thus, the process of vascularization, osteogenesis, and bone formation.^29–31

ESWT is based on the generation of shock waves that are focused on the diseased tissue area of the patient. The application of ESWT in orthopedics includes a large number of diseases, such as proximal plantar fasciitis,³² lateral epicondylitis of the elbow,³³ calcifying tendinitis of the shoulder,³⁴ and, also, nonunion formation. In a clinical study, Cacchio et al.³⁵ compared the outcome of ESWT to surgical treatment in the management of long-bone nonunions. Radiological analysis revealed a healing rate of 70–71% in nonunions treated with ESWT and 73% in nonunions treated surgically. Of note, the short-term clinical outcome showed even better results after shock wave treatment when compared to surgery.²⁴ However, taking other studies into account, it should be noted that the success rate of ESWT shows a great variability, ranging from 50% to 89%.^36–41 The exact mechanisms of the stimulatory activity of ESWT in the healing of nonunions are not fully understood. It is speculated that shock waves induce the growth and differentiation of bone marrow-derived osteoprogenitor cells. Interestingly experimental studies could demonstrate that these tissue responses trigger the release of vascular endothelial growth factor (VEGF),^42,43 indicating a proangiogenic mode of action in shock wave therapy. Moreover, it has been reported that ESWT enhances the transmembrane current and the voltage dependence of Ca-activated and K channels, and thereby affects ion transportation and positively influences cell proliferation.⁴⁴

LIPUS represents another noninvasive technique to stimulate bone formation by applying ultrasound waves on the fracture site. In vitro studies revealed that LIPUS promotes the differentiation of periosteal cells and mesenchymal stem cells (MSCs) into the osteogenic lineage.^29,45 Moreover, clinical studies showed an increased healing rate of delayed healing bones or nonunions in LIPUS-treated patients.^46–49 In a clinical study, Zura et al.⁵⁰ reviewed the outcome of 767 patients with established nonunions from 1 to more than 10 years. Patients treated with LIPUS showed a promising healing rate of 86.2%. Similar to ESWT, the beneficial effect of LIPUS in nonunions is thought to be mediated by the release of proangiogenic cytokines, an improvement of microvascular blood perfusion, and the promotion of the transport of nutrition and enzymes, including calcium ion transport-related proteins.^51,52 In contrast, in a recently published clinical statement, Poolman et al.⁵³ did not recommend the use of LIPUS in bone healing. This recommendation against the use of LIPUS was based on the negative findings of a systematic review of randomized controlled trials analyzing the outcomes of LIPUS on the healing of fresh fractures, in particular, operatively managed tibial and clavicle fractures.⁵⁴ In fact, Poolman et al.⁵³ stated that ‘if LIPUS on fresh fractures does not decrease the incidence of nonunions, it is unlikely to exert a beneficial effect in the conversion of nonunions into healed bones.’ Of interest, trials including patients with nonunions were either at high risk of bias or did not contribute sufficient outcome data to the systematic review. Thus, we feel that further appropriate clinical trials, studying LIPUS in nonunion healing, are necessary.

HBO defines the systemic application of pure oxygen in an elevated ambient pressure, resulting in a temporarily increased partial pressure (pO₂) of oxygen within the tissue or organism. As early as 1966, Coulson et al.⁵⁵ could prove a favorable effect of HBO on fracture healing in a rat femur. These initial findings were supported by further in vitro and in vivo studies exploring the impact of HBO on bone regeneration. Wu et al.⁵⁶ reported an increased alkaline phosphatase activity in human osteoblasts treated with HBO, which was associated with enhanced mineralization, bone nodule formation, and calcium deposition. In vivo, animal studies showed beneficial effects of HBO on bone mineral density and bone formation in distraction osteogenesis and critical-size defects.^57,58 Furthermore, hyperoxia is known to trigger tissue vascularization and improve bone repair in ischemia-induced delayed healing, indicating beneficial effects in the treatment of nonunions.⁵⁹ These results were confirmed by others in the treatment of bone defects, using a combination of autologous bone grafting and HBO without or with platelet-rich plasma (PRP). HBO resulted in a significantly enhanced angiogenesis, which was associated with an improved bone formation.^31,60 However, data on HBO treatment in clinical trials are sparse. Two Cochrane data base reviews analyzed the outcome of HBO treatment on osteonecrosis of the jaw and found no convincing evidence for beneficial effects of HBO. This may be due to a suboptimal reporting and insufficient sample sizes of the included studies. Hence, one of the major challenges will be the development of well-designed and conclusive clinical trials to prove the efficiency of HBO treatment in bone regeneration.^61,62 Moreover, HBO is associated with severe side effects, including visual changes, nausea, dizziness, convulsion as well as the formation of free oxygen radicals, which may have cytotoxic effects on cells and tissues.⁶³

Electric stimulation (EStim) is another biophysical application, which is used in the field of bone regeneration. In the clinical setting, EStim is administrated by using three different approaches: (1) direct current (DC), (2) pulsed electromagnetic field (PEMF), and (3) capacitive coupled (CC).⁶⁴ DC EStim is applied by a surgically implanted power source, which generates dosages between 10 and 100 μA. PEMF and CC, on the other hand, are both applied externally. PEMF current-carrying coils, placed on the skin over the fracture site, generate a PEMF ranging between 3 and 10 V peak-to-peak. EStim by CC generates an electrical field of 0.1–20 G by using an alternating voltage to cutaneous electrodes placed on the opposite site of the fracture.⁶⁴ For decades, the effect of EStim on bone regeneration has been studied in preclinical and clinical practice. Recent in vitro studies indicate that EStim promotes bone healing by influencing behavior and function of bone-forming stem cells, including migration, proliferation, differentiation, and mineralization.⁶⁵ In addition, Leppik et al.,⁶⁶ demonstrated that the combination of EStim and bone tissue engineering successfully promotes bone repair of large bone defects in a rat model. Moreover, the authors found an increased blood vessel formation in bone defects treated with EStim. This proangiogenic effect of EStim is most likely mediated by stimulating angiogenic responses of vascular endothelial cells and selectively regulating growth factors and cytokines, which are vital for angiogenesis through a VEGF receptor-dependent feedback loop.⁶⁵ In clinical practice, a variety of studies have shown the beneficial effect of EStim on bone healing, including the treatment of delayed healing and nonunions. Despite these positive results, EStim has not become a widespread, universally used clinical treatment approach in orthopedic surgery. This may be not only due to the considerable number of complications, such as damage or disconnection of the implanted stimulators, but also due to the great variations of application and the high costs associated with EStim.

Taken together, biophysical applications stimulate bone regeneration by triggering proangiogenic pathways and, thus, vascularization. Application of ESWT and LIPUS represents a noninvasive and practical alternative to the use of bone allografts in revision surgery; however, the success rates reported are highly variable between the different clinical studies. The promising results of HBO make this approach an appealing stand-alone treatment as well as a potential adjuvant therapeutic option in combination with autologous bone grafting. Nonetheless, the amount of existing data is limited to experimental studies, while data from clinical trials are still lacking. EStim has proven its efficiency in bone regeneration in preclinical and clinical trials, but its use is yet limited due to financial hurdles and the vulnerability of the applied stimulators and implants.

Systemic Pharmacological Treatment

Systemic pharmacological treatment to promote the process of vascularization in bone regeneration bears the advantage of being feasible and easy to perform. Erythropoietin (EPO) is the primary regulator of erythropoiesis, but may also be a promising candidate for the improvement of angiogenesis and vascularization in delayed bone healing and nonunion formation. EPO has been shown to exert cell protective, proangiogenic, and regenerative actions in a variety of tissues.^67,68 For instance, experimental studies in the dorsal skinfold chamber model reported that EPO successfully protects musculocutaneous tissue from ischemic damage and improves and accelerates skin wound healing.^69–71 In bone, EPO is capable of stimulating endochondral ossification and fracture repair.^72–74 In addition, Holstein et al.⁷⁵ could demonstrate that EPO promotes cell proliferation, angiogenesis, and bone formation in a nonunion model in mice. Their microcomputed tomography (μCT) and histomorphometric analysis revealed a significantly increased bone volume and bridging rate in EPO-treated animals. This was associated with a higher expression of VEGF and an increased density of blood vessels in the early phase of bone defect healing when compared to controls.⁵⁴ Therefore, it may be speculated that the improved bone regeneration observed in EPO-treated animals in this nonunion model is caused by an EPO-induced stimulation of vascularization. These findings were confirmed in subsequent experimental studies, revealing that both systemic as well as local EPO treatment trigger angiogenesis and promote bone regeneration in critical-sized bone defects.^76,77

Another systemically applied substance that may support bone healing is granulocyte colony-stimulating factor (G-CSF). G-CSF, an important mediator of granulopoiesis, can be used in the treatment of diseases, involving impaired vascularization^78–80 by mobilizing endothelial progenitor cells (EPCs) into the circulation.^81,82 Herrmann et al.⁸³ analyzed the effects of G-CSF treatment in a critical-size segmental femoral defect model in rats. Interestingly, they found an enhanced bone formation and a reduced gap size in G-CSF-treated animals, most likely caused by the induction of early neovascularization.⁶² These results are supported by Ishida et al.,⁸⁴ who found an increased capillary density in bone defects after local and systemic G-CSF treatment. Therefore, G-CSF represents a promising compound to enhance vascularization in bone regeneration.

Human parathyroid hormone (hPTH) (1–84) and the shortened recombinant peptide teriparatide (parathyroid hormone [PTH] 1–34) are main regulators of calcium metabolism. These days, PTH is the sole clinically approved drug with osteoanabolic properties and, thus, is well established in the treatment of osteoporosis.^85,86 Furthermore, PTH treatment is known to accelerate fracture healing^87–90 and to promote bone formation in segmental bone defects.^91,92 Of interest, the impact of PTH on vascular regeneration and proliferation may contribute to its anabolic properties in bone regeneration applications. Bone endothelial cells respond to PTH treatment by stimulation of cyclic adenosine monophosphate (cAMP)-related signal transduction⁹³ and, thereby, influence pathways regulating gene expression in cell proliferation and differentiation.⁹⁴ In addition, PTH enhances the migration of proangiogenic C45⁺/CD34⁺ cells as well as the upregulation of VEGF-A mRNA, resulting in an increased neovascularization and cell survival.⁹⁵ An experimental study by Xie et al.⁹⁶ demonstrated that systemic teriparatide treatment facilitates neovascularization, bone formation, and degradation of β-tricalcium phosphate (TCP) in critical-size bone defects. Moreover, teriparatide modulates angiogenesis in bone allografts, resulting in a higher number of blood capillaries, and, simultaneously, narrows blood vessel diameters, indicating a matured capillary network.⁹⁷ These findings support the view that PTH stimulates the process of bone regeneration by inducing new blood vessel formation.

The systemic pharmacological treatment with EPO, G-CSF, and PTH fosters bone regeneration by increasing the expression of proangiogenic factors as well as the mobilization of EPCs and immune cells in the circulation, resulting in an enhanced vascularization. EPO and PTH have even the advantage of acting both proangiogenic and pro-osteogenic. Hence, these compounds represent promising and simply applicable treatment strategies during a critical course of fracture healing to prevent nonunion formation. In contrast, VEGF, which is one of the most potent angiogenic factors and which may act also pro-osteogenic, may not be used for the systemic pharmacological treatment. This view is based on the fact that it is a key mediator of angiogenesis in cancer in which it is upregulated by oncogene expression.⁹⁸ Therefore, local as well as systemic treatment with VEGF may likely induce and promote malignant transformation.

Indeed, it has to be taken into account that all types of pharmacological treatment bear the risk of potential side effects. For instance, EPO increases systemic hematocrit levels, elevating the risk of thromboembolic events,^99,100 whereas possible side effects of GCS-F treatment include the promotion of tumor metastasis.¹⁰¹ Systemic PTH treatment may lead to a disturbance in calcium metabolism and high levels of PTH may even cause bone resorption, resembling the symptoms of hyperparathyroidism.¹⁰² Thus, despite the promising data achieved from experimental studies, systemic pharmacological treatment has to be carefully monitored when applied in the clinical setting.

Tissue Engineering

Scaffold-based vascularization strategies

Scaffolds for bone regeneration applications should (1) promote cell viability and proliferation, (2) exhibit osteoinductive and load-bearing properties, and (3) induce an angiogenic tissue response with ingrowth of newly developing microvessels. During the last decade, a variety of biomaterials was carefully investigated, including bone grafts, polymers, calcium phosphates, and ceramics. Each of these materials has a specified biocompatibility, osteoinductivity, and bioresorbability.¹⁰³ Besides these chemical characteristics, the three-dimensional (3D) architecture of the scaffolds is of major importance for the development of a suitable bone graft substitute. Porous architecture is a widely used scaffold design, because it mimics the natural structure of bone and allows the infiltration of osteoblasts and endothelial cells, thereby promoting vascularization and bone formation within the scaffold.¹⁰⁴ Interestingly, vascularization and bone formation are dependent on the scaffolds' pore size. In scaffolds with a pore size <100 μm, vascularization and bone formation are restricted to the border margin, resulting in a low perfusion of oxygen and nutrients throughout the material.¹⁰⁵ In contrast, scaffolds with a pore size >200 μm enable a high osteoinductivity and vascularization throughout the entire scaffold structure.^106,107 As an alternative to a porous architecture, several studies propose a tubular scaffold design to imitate the tubular structure of native bone with potential benefits on neovascularization and bone tissue infiltration.^108,109 Feng et al.¹¹⁰ compared β-TCP scaffolds with different porous and tubular architectures in a radius bone defect model in rabbits and found an enhanced neovascularization, mechanical strength, and defect healing in tubular scaffolds, indicating their superiority in bone tissue engineering applications.

Bioactive glass represents a promising compound for bone tissue engineering, as various studies demonstrated its proangiogenic^111–113 and pro-osteogenic properties.¹¹⁴ Scaffolds made of bioactive glass induce proliferation and cell growth of MG-63 osteoblast-like cells.¹¹⁵ Its potential to improve neovascularization and bone regeneration was confirmed in vivo by an experimental study using calvarial defects in rats.¹¹⁶ In clinical practice, however, it has received little attention as bone scaffold material, despite the excellent biological performance. This may be due to the limitations of the original 45S5 Bioglass^® to develop into porous constructs.^117,118 Of interest, this problem can be overcome using bioactive glass fabricated by 3D printing, which can be easily densified by viscous flow sintering to achieve a biomechanical strength similar to that of human cortical bone.¹¹⁹ Moreover, Jia et al.¹²⁰ demonstrated that bioactive glasses, consisting of silicate and borosilicate, induce a bridging rate and a mechanical function in bone defects comparable to those treated with autologous bone grafts. Of note, the borosilicate composites even showed an enhanced number of blood vessels 3 months after implantation, proving the competence of bioactive glass to induce vascularization at an early stage of defect repair. The ability of bioactive glass to promote angiogenesis was further confirmed in an in vitro study by measuring elevated VEGF levels in a MC3T3-E1 line of murine preosteoblastic cells seeded on glass scaffolds.¹²¹ In a recent study, Wu et al.¹²² developed an injectable hydrogel with copper-containing bioactive glass nanoparticles. The resulting gel triggered the growth of seeded MC3T3-E1 cells and human umbilical vein endothelial cells, and fully restored bone defects with the formation of vascularized bone tissue in a critical-size rat calvarial bone defect model.¹²² This underlines the potential of bioactive glass as a tool to promote vascularization in bone regeneration. By changing the bioglass composition and by addition of therapeutically active ions, such as boron, the biological characteristics of the bioglass scaffolds can be tailored toward specific needs and areas of application. This allows to further ameliorate the proangiogenic and pro-osteogenic properties of bioglass and develop innovative and powerful bone tissue engineering constructs.¹²³

The vasculature of the periosteum controls the blood perfusion of the bone. Bone defects caused by high-energy trauma are often associated with severe damage to the periosteum, leading to an increased risk of nonunion formation due to alteration of blood perfusion. Therefore, the generation of an artificial periosteum, which provides a sufficient microvascular network to deliver nutrients for osteogenesis, represents an interesting, but ambitious novel treatment strategy.^124,125 Xin et al.¹²⁶ designed a novel gelatin hydrogel membrane by an inorganic and organic co-cross-linked network, consisting of mesoporous bioactive glass nanoparticles and a photo-cross-linkable gelatin derivative. This hydrogel membrane demonstrated a considerable capacity to induce vascular regeneration and osteogenesis in a rat calvarial critical-size defect model, making it a promising approach in bone tissue engineering.

Current progress in nanotechnology also directs the attention on nanohydroxyapatite (nHA) for bone tissue engineering. Its chemical structure and size resemble native bone mineral crystals. Porous nHA presents with osteoinductive and osteointegrative properties, however, lacks a proangiogenic potential.¹²⁷ To overcome this limitation, that is, to enhance the vascularization potential of nHA scaffolds, the cell- and growth factor-free supplementation with trace elements like strontium (Sr), iron (Fe), and silicon (Si) represent an interesting and cost-effective approach. Nowadays, Si-substituted hydroxyapatite (HA) is approved in clinical practice and commercially available (Actifuse^®; Baxter GmbH, Unterschleißheim, Germany). In the attempt to mimic the needle-/rod-shaped structure of native bone, Anitha et al.¹²⁸ developed a nanocomposite matrix containing HA-silica core-shell nanorods. This improved (1) the viability, functionality, and proliferation of endothelial cells in vitro, (2) induced new blood vessel formation and vascularization in vivo, and (3) promoted new bone formation in a femoral critical-size defect in rats.⁹⁹

Other new nanomaterials, which are capable of stimulating angiogenesis and enhancing bone formation in critical-size defect models, include europium-doped mesoporous silica nanoshperes,¹²⁹ silicon oxynitrophosphide,¹³⁰ and collagen scaffolds incorporated with strontium-graphene oxide nanocomposites.¹³¹ These studies reflect the tremendous potential of sophisticated nanofabricated scaffolds as tools to increase the vascularization capacity in bone regeneration applications.

Local growth factor-based vascularization strategies

A powerful strategy to promote vascularization in bone defect healing is the use of scaffolds as growth factor delivery system (Table 1). Growth factors, such as VEGF, bone morphogenetic proteins (BMPs), and basic fibroblast growth factor (bFGF) regulate the various stages of angiogenesis and osteogenesis in the process of bone regeneration.^132–136

Table 1.

Local Growth Factor-Based Vascularization Strategies

Authors	Reference	Growth factor/compound	Animal	Bone	Fracture model
Street et al. (2002)	¹³³	VEGF	Mouse	Femur and tibia	Closed fracture model + periosteal stripping and segmental defect
Eckardt et al. (2005)	¹³⁷	VEGF	Rabbit	Tibia	Osteotomy + plating
Yonamine et al. (2010)	¹³⁸	VEGF	Rat	Calvaria	Osteotomy
Orth et al. (2019)	¹³⁹	VEGF	Mouse	Femur	Critical-sized segmental defect + periosteal stripping
Ogilvie et al. (2012)	¹⁴⁰	VEGF	Mouse	Tibia	Osteotomy
Ahlfeld et al. (2019)	¹⁴¹	VEGF	Rat	Femur	Segmental defect
Garcia et al. (2016)	¹⁶⁵	VEGF	Mouse	Radius	Critical-sized segmental defect
Donati et al. (2008)	¹³⁴	BMP-7 (OP-1)	Sheep	Metatarsal	Osteotomy
Nandi et al. (2013)	¹⁴⁵	IGF-1	Rabbit	Tibia	Segmental defect
Goshima et al. (2012)	¹⁴⁶	HGF	Rabbit	Tibia	Segmental defect
Sefcik et al. (2008)	¹⁴⁷	S1-P	Rat	Calvaria	Osteotomy
Das et al. (2014)	¹⁴⁸	FTY720	Rat	Calvaria	Osteotomy
Huang et al. (2012)	¹⁴⁹	FTY720	Rat	Calvaria	Osteotomy
Yin et al. (2018)	¹⁵⁰	Angiopoetin-2	Rabbit	Radius	Segmental defect
Kilian et al. (2005)	¹⁵¹	Plasma factor XIII	Rat	Tibia	Critical-sized segmental defect
Santos et al. (2013)	¹⁵²	Fibrinogen	Rat	Femur	Critical-sized segmental defect
Kim et al. (2010)	¹⁵³	Platelet-rich plasma	Rabbit	Radius	Segmental defect
He et al. (2015)	¹⁵⁶	Platelet-rich plasma	Rabbit	Femur and radius	Segmental defect and critical-sized segmental defect
Monjo et al. (2010)	¹⁵⁹	Rosuvastatin	Rabbit	Tibia	Critical-sized segmental defect
Fukui et al. (2012)	¹⁵⁷	Simvastatin	Rat	Femur	Fracture + periosteum cauterization
Allon et al. (2014)	¹⁵⁸	Simvastatin	Rat	Calvaria	Critical-sized segmental defect
Guzey et al. (2016)	¹⁶⁰	Deferoxamine	Rat	Zygomatic arch	Critical-sized segmental defect
Zhang et al. (2012)	¹⁶¹	Deferoxamine	Rabbit	Radius	Critical-sized segmental defect
Yan et al. (2019)	¹⁶²	Deferoxamine	Rat	Femur	Segmental defect + partial periosteal stripping
Donneys et al. (2015)	¹⁶³	Deferoxamine	Rat	Mandible	Osteotomy + external fixator + radiation
Ma et al. (2016)	¹⁶⁴	Minocycline	Rat	Calvaria	Osteotomy
Li et al. (2016)	¹⁶⁶	Lentiviral vectors (LV-pdgfb)	Mouse	Calvaria	Osteotomy
Li et al. (2013)	¹⁶⁷	microRNA-26a	Mouse	Calvaria	Osteotomy
Jia et al. (2014)	¹⁶⁸	siCkip-1 and siFLT-1	Rat	Calvaria	Osteotomy
Yoshizuka et al. (2016)	¹⁶⁹	microRNA-222 inhibitor	Rat	Femur	Fracture + periosteum cauterization
Geiger et al. (2005)	¹⁷⁰	VEGF165 plamsid-DNA	Rabbit	Radius	Critical-sized segmental defect
Mi et al. (2020)	¹⁷⁷	α-CGRP	Rat	Femur	Distraction osteogenesis
Patel et al. (2008)	¹⁷⁹	VEGF and BMP-2	Rat	Calvaria	Osteotomy
Bao et al. (2017)	¹⁸¹	VEGF165 and BMP-2	Rabbit	Tibia	Segmental defect
Choi et al. (2015)	¹⁸³	COMP-Ang1 and BMP-2	Mouse	Calvaria	Critical-sized osteotomy
Raftery et al. (2017)	¹⁸⁴	VEGF and BMP-2	Rat	Calvaria	Osteotomy
Lee et al. (2017)	¹⁸⁵	SAG and NELL-1	Mouse	Calvaria	Critical-sized osteotomy
Ratanavaraporn et al. (2011)	¹⁸⁶	SDF-1 and BMP-2	Rat	Ulna	Critical-sized segmental defect
Su et al. (2013)	¹⁸⁷	bFGF and BMP-2	Rabbit	Mandible	Segmental defect
Woo et al. (2015)	¹⁹⁰	DMOG and butyrate	Rat	Calvaria	Osteotomy
Hernandez et al. (2012)	¹⁹¹	VEGF and BMP-2	Rabbit	Femur	Osteotomy

α-CGRP, alpha-calcitonin gene-related peptide; bFGF, basic fibroblast growth factor; BMP-2, bone morphogenetic protein-2; BMP-7, bone morphogenetic protein-7; COMP-Ang1, cartilage oligomeric matrix protein-angiopoietin 1; DMOG, dimethyloxalylglycine; DNA, deoxyribonucleic acid; HGF, hepatocyte growth factor; IGF-1, insulin-like growth factor-1; microRNA, microribonucleic acid; NELL-1, Nel-like protein-1; OP-1, osteogenic protein-1; S1-P, sphingosine 1-phosphate; SAG, smoothened agonist; SDF-1, stromal cell-derived factor-1; siCkip-1, casein kinase 2 interaction protein-1; siFLT-1, soluble VEGF receptor-1; VEGF, vascular endothelial growth factor.

A considerable number of experiments studied the delivery of single growth factors, providing a distinct insight in their potential to promote angiogenesis in bone regeneration. VEGF, the most potent angiogenic factor, is well known to stimulate the formation of new blood vessels. Its local application in bone defects has already been shown to successfully increase vascularization and bone formation.^{133,137–141} BMP-2 on the other hand, despite its ability of inducing bone formation,¹⁴² lacks the capacity to initiate angiogenesis.¹⁴³ However, another protein from the BMP family, BMP-7, induces early graft remodeling by stimulating blood vessel formation and osteoclastic activity, as well as the expression of angiogenic and inflammatory cytokines.^134,144 Furthermore, proangiogenic growth factors and compounds, which may be used in bone tissue engineering applications, are insulin-like growth factor-1,¹⁴⁵ hepatocyte growth factor,¹⁴⁶ sphingosine 1-phosphate¹⁴⁷ and its receptor agonist FTY720,^148,149 angiopoietin-2,¹⁵⁰ plasma factor XIII,¹⁵¹ G-CSF,⁸⁴ the glycoprotein fibrinogen,¹⁵² and PRP, which contains a variety of cytokines (i.e., platelet-derived growth factor, TGF-β, and epidermal growth factor).^153–156 Of note, the local application of clinically approved drugs at the bone defect site, such as simvastatin,^157,158 rosuvastatin,¹⁵⁹ desferrioxamine,^160–163 and even antibiotics like minocycline,¹⁶⁴ has also beneficial effects on vascularization and bone formation.

The technique of the local delivery of those substances ranges from the direct injection into the fracture area,¹⁴⁰ the coating of scaffolds and bone allografts with growth factors,^134,135 the application of hydrogel formulations, microspheres, and microparticles loaded with specific cytokines^{137–139,157,165} to the transfection with proangiogenic gene vectors.^166–169 The gene-activated matrix concept, for instance, involves the preloading of matrices with gene vectors to guarantee a sustainable release of DNA to ingrowing cells at the fracture site.¹⁷⁰

Alpha-calcitonin gene-related peptide (α-CGRP), a 37-amino acid peptide transcribed from the same gene locus as calcitonin, has been shown to play a significant role in bone development and metabolism.¹⁷¹ Moreover, α-CGRP is known to possess a strong vasodilatory activity and to stimulate the proliferation of endothelial cells.¹⁷² Therefore, α-CGRP may be a promising candidate to regulate and promote bone regeneration and vascularization in preclinical and clinical applications. In fact, a variety of studies could demonstrate that α-CGRP induces the osteogenic differentiation of MSCs in vitro,^173,174 most likely by affecting a Hippo-Yes-associated protein (YAP) pathway.¹⁷⁵ In addition, in vivo animal studies suggest that α-CGRP induces angiogenesis and osseointegration of titanium implants,^171,176 as well as new blood vessel formation and bone regeneration at the defect site of a distraction osteogenesis model.¹⁷⁷ Interestingly, the pro-osteogenic effect of α-CGRP can be stimulated by magnesium-based implants, highlighting the significance of the interaction between specific materials and growth factor-mediated tissue regeneration.¹⁷⁸

Natural bone regeneration is a highly organized and complex process that requires the strict coordination of multiple growth factors influencing various cell types, which arrange the fracture callus and eventually resolve the callus, resulting in successful bone healing. Accordingly, just the release of individual proangiogenic growth factors from scaffold materials might be an oversimplified and, thus, insufficient approach to stimulate the regeneration of bone. In fact, several studies demonstrated that solely delivering angiogenic factors leads to an inability for controlled bone regeneration.^143,179 Therefore, it has been proposed to incorporate both an osteogenic factor, most commonly BMP-2, and an angiogenic factor, such as VEGF, into the scaffold material. The simultaneous release of two growth factors may have the advantage of mimicking the natural bone healing process more accurately. Indeed, several studies report the successful application of dual growth factor delivery to induce angiogenesis and bone formation.^180–185 Using a critical-size defect model, Ratanavarporn et al.¹⁸⁶ revealed that the dual release of stromal cell-derived fator-1 (SDF-1) and BMP-2 has superior effects on bone regeneration when compared to the application of BMP-2 alone. This is most probably due to a synergistic effect of SDF-1 to enhance angiogenesis as a result of the recruitment of hematopoietic stem cells and the BMP-2-induced differentiation of osteoprogenitor cells. Another study by Su et al.¹⁸⁷ explored the effects of the delivery of BMP-2 and fibroblast growth factor (FGF) in large-size mandibular defect regeneration in rabbits. Noteworthy, the authors observed a significant increase in bone formation after implantation of scaffolds loaded with BMP-2 and FGF when compared to scaffolds loaded with either BMP-2 or FGF alone.

As an alternative to growth factor delivery, some studies recently proposed the delivery of small molecules to induce bone regeneration.^188,189 Small molecules induce specific cellular responses by triggering signaling cascades. It is assumed that small molecules may avoid the potential side effects of high-dose growth factor delivery, while easily maintaining bioactivity in a biological environment. Woo et al.¹⁹⁰ examined the combined application of angiogenic and osteogenic small molecules on bone regeneration with α-calcium sulfate. The in vivo results in a critical-size bone defect model in rats showed a synergistic effect on blood vessel formation and bone regeneration,¹⁹⁰ highlighting the potential of small molecules as alternative to common growth factors.

Despite these promising results, there are also studies reporting that the dual delivery of growth factors fails to improve long-term results. By analyzing the impact of VEGF and BMP-2 delivery in rabbit femoral and cranial defects, experimental studies showed initial benefits on bone formation; however, at later time points, there were no significant differences between animals receiving two growth factors when compared to animals receiving BMP-2 alone.^179,191 These findings indicate that, although VEGF initially increases vascularization and tissue formation, a dual delivery in combination with BMP-2 does not always lead to a satisfying long-term outcome. Hence, efforts have to be made to fully understand the interaction of growth factors with the multiple cell types at the fracture site and to determine ideal release doses, time points, and kinetics of each individual factor.

To engineer delivery systems that allow the application of multiple growth factors, scaffold material properties and mechanisms of protein release are of utmost importance. Polymer encapsulation scaffolding allows distinct release profiles of growth factors by using polymers with different degradation behaviors. This method also includes growth factor-coated microspheres encapsulated within a second scaffold material.¹³² As an alternative, core-shell and layer-by-layer scaffolding offer the possibility to control the local spatial separation of growth factor release. In these scaffold architectures, growth factors are spatially separated into different layers of physical material to govern their individual release.^132,192 The next generation of bone scaffolds must address the incredible complex spatial and temporal growth factor presentation in the process of bone healing, while keeping in mind that the appropriate scaffold material should also provide the necessary mechanical properties and adjustable fabrication qualities.

Cell-based vascularization strategies

A further approach to improve vascularization in the prevention of nonunion formation represents the seeding of scaffolds with blood vessel-forming cells.¹⁹³ In a clinical setting these cells (1) should be easy to harvest with minimal risk for the donor, (2) should induce the generation of new blood vessels within the bone scaffold and its surroundings to allow an adequate vascular supply, (3) should have a low potential of an immunogenic response, and (4) should not induce malignancies. During the last decade, a variety of different cell-based vascularization strategies have been studied in the field of bone tissue engineering, ranging from EPCs to complex tissue constructs with an architecture similar to that of the periosteum (Table 2).

Table 2.

Cell-Based Vascularization Strategies

Authors	Reference	Cell-type	Animal	Bone	Fracture model
Rozen et al. (2009)	¹⁹⁶	EPCs	Sheep	Tibia	Critical-sized segmental defect
Atesok et al. (2010)	¹⁹⁷	EPCs	Rat	Femur	Segmental defect
Li et al. (2011)	¹⁹⁸	EPCs	Rat	Femur	Segmental defect
Chandrasekhar et al. (2011)	¹⁹⁹	EPCs	Rat	Femur	Fracture (osteotomy) and critical-sized segmental defect
Beger et al. (2018)	²⁰⁰	EPCs	Rat	Calvaria	Osteotomy
Eldesoqi et al. (2013)	²⁰¹	EPCs	Rat	Calvaria	Osteotomy
Li et al. (2012)	²⁰²	EPCs	Rat	Femur	Segmental defect
Li et al. (2014)	²⁰³	EPCs	Rat	Femur	Segmental defect
Giles et al. (2017)	²⁰⁵	E-EPCs and L-EPCs	Rat	Femur	Segmental defect
Bates et al. (2017)	²⁰⁷	EPCs (delayed application)	Rat	Femur	Segmental defect
Wang et al. (2018)	²⁰⁸	EPCs + BFP-1	Rabbit	Femur	Segmental defect
Matsumoto et al. (2006)	²¹¹	Peripheral blood CD 34⁺-cells	Rat	Femur	Closed fracture + periosteum cauterized
Fukui et al. (2015)	²¹³	Peripheral blood CD 34⁺-cells and PBMNCs	Rat	Femur	Closed fracture + periosteum cauterized
Mifuji et al. (2017)	²¹⁴	QQ-cultured PBMNCs	Rat	Femur	Closed fracture + periosteum cauterized
Shoji et al. (2010)	²¹⁶	Human multipotent adipose-derived stem cells	Rat	Femur	Closed fracture + periosteum cauterized
Zou et al. (2016)	²¹⁹	Bone marrow-derived mesenchymal stroma cells, human embryonic stem cells, PBMNCs, human umbilical cord CD34⁺-cells	Rat	Femur	Osteotomy + periosteum cauterized
Caetano et al. (2019)	²²¹	Human ADSCs	Rat	Calvaria	Osteotomy
Mousaei Ghasroldasht et al. (2019)	²²²	Human ADSCs	Rat	Femur	Osteotomy + periosteum cauterized
Ben-Ari et al. (2009)	²²³	Bone marrow-derived MSCs	Mouse	Calvaria	Osteotomy
Li et al. (2019)	²²⁴	Bone marrow-derived MSCs	Rat	Tibia	Segmental defect
Lee et al. (2011)	²²⁵	Autologous bone marrow-derived MSCs	Rabbit	Femur	Segmental defect
Xing et al. (2014)	²²⁶	Bone marrow-derived MSCs	Mouse	Femur	Segmental defect + periosteum stripped
He et al. (2007)	²²⁷	Autologous bone marrow stromal cells	Dog	Mandibular	Osteotomy
Zhang et al. (2010)	²²⁸	Human fetal MSCs	Rat	Femora	Critical-sized segmental defect
Maraldi et al. (2013)	²²⁹	Human amniotic fluid-derived and dental pulp-derived stem cells	Rat	Calvaria	Osteotomy
Burdette et al. (2018)	²³⁰	Amnion-derived multipotent progenitor cells	Rat	Calvaria	Osteotomy
Cheung et al. (2010)	²³⁴	Adipose stromal cells and SVF	Rat	Calvaria	Osteotomy + periosteum stripped
James et al. (2012)	²³⁷	Human PSCs and human SVF	Mouse	Calvaria	Osteotomy
Kargozar et al. (2017)	²³⁸	Human umbilical cord PVCs	Rabbit	Femur	Critical-sized segmental defect
Tawonsawatruk et al. (2016)	²⁴²	Human bone marrow-derived MSCs and human adipose-derived pericytes	Rat	Tibia	Osteotomy + periosteum stripped
Supakul et al. (2019)	²⁴³	Pericytes	Mouse	Femur	Closed fracture
Chen et al. (2016)	²⁴⁴	Bone marrow-derived MSCs + SDF-1	Rat	Tibia	Osteotomy + periosteum stripped
Kanczler et al. (2008)	²⁴⁵	Human bone marrow stromal cells	Mouse	Femur	Segmental defect
Heo et al. (2015)	²⁴⁷	Human ADSCs + periostin	Mouse	Calvaria	Osteotomy
Wang et al. (2016)	²⁴⁸	Bone marrow-derived MSCs + PRF	Rabbit	Calvaria	Osteotomy
Tee et al. (2016)	²⁴⁹	Bone marrow-derived MSCs	Pig	Mandibular	Critical-sized segmental defect
Carvalho et al. (2018)	²⁵⁰	Human MSCs	Rabbit	Tibia	Segmental defect
Jahangir et al. (2018)	²⁵¹	ADSCs + DMOG	Rat	Calvaria	Critical-sized osteotomy
Guo et al. (2006)	²⁵²	bFGF-transfected bone marrow-derived MSCs	Rabbit	Radius	Segmental defect + periosteum stripped
Kumar et al. (2010)	²⁵³	BMP-2 and VEGF expressing bone marrow-derived MSCs	Mouse	Tibia	Segmental defect
Geiger et al. (2012)	²⁵⁴	phVEGF165-transfected bone marrow-derived stromal cells	Rabbit	Radius	Critical-sized segmental defect
Kasten et al. (2012)	²⁵⁵	Bone marrow-derived stromal cells and phVEGF165-transfected bone marrow-derived stromal cells	Rabbit	Radius	Critical-sized segmental defect
Cao et al. (2012)	²⁵⁶	Angiopoetin-1-transfected bone marrow-derived MSCs	Rabbit	Radius	Segmental defect
Gao et al. (2014)	²⁵⁷	Murine muscle-derived stem cells and BMP-4 transduced murine muscle-derived stem cells	Mouse	Calvaria	Osteotomy
Lin et al. (2014)	²⁵⁸	BMP-2 and VEGF expressing ADSCs	Rabbit	Femur	Osteotomy
Kang et al. (2017)	²⁵⁹	VEGF-transfected human ADSCs and human bone marrow stromal cells	Rat	Calvaria	Critical-sized osteotomy
Huang et al. (2014)	²⁶⁰	Sonic hedgehog peptide-overexpressing periosteal-derived MSCs	Mouse	Femur	Segmental defect
Yu et al. (2008)	²⁶¹	Endothelial cells and osteoblasts	Mice	Femur	Segmental defect
Cornejo et al. (2012)	²⁶²	Endothelial cells and osteoblasts	Rats	Calvaria	Critical-sized osteotomy
Johari et al. (2016)	²⁶³	Osteoblast-like cells and umbilical vein endothelial cell	Rats	Calvaria	Osteotomy
Li et al. (2014)	²⁶⁴	Peripheral blood CD34⁺ cells and bone marrow-derived MSCs	Rabbit	Calvaria	Osteotomy + periosteum stripped
Wang et al. (2019)	²⁶⁵	Adipose-derived CD146⁺ pericytes and CD34⁺ adventitial cells	Mice	Calvaria	Osteotomy
Henrich et al. (2009)	²⁶⁶	EPCs and human bone marrow-derived MSCs	Mice	Femur	Critical-sized segmental defect
Seebach et al. (2012)	²⁶⁷	EPCs and human bone marrow-derived MSCs	Rat	Femur	Segmental defect
Eldesoqi et al. (2014)	²⁶⁸	EPCs and bone marrow-derived MSCs	Rat	Calvaria	Osteotomy
Amini et al. (2016)	²⁶⁹	Bone marrow-derived MSCs and peripheral blood EPCs	Rabbit	Ulna	Critical-sized segmental defect
Peng et al. (2019)	²⁷⁰	Bone marrow-derived MSCs and EPCs	Rabbit	Ulna	Segmental defect
Hoffman et al. (2013)	²⁷⁷	MSCs	Mouse	Femur	Segmental defect
Kim et al. (2014)	²⁷⁸	Preosteoblast bone marrow-derived stromal cells and C2C12 myoblast cells	Rat	Femur	Critical-sized segmental defect
Romero et al. (2017)	²⁸⁰	Adipose-derived MSCs + basic fibroblast growth factor 2 + transforming growth factor β1	Mouse	Femur	Critical-sized segmental defect
Wang et al. (2018)	²⁸¹	Bone marrow-derived stromal cells	Mice	Femur	Segmental defect
El Blackly et al. (2012)	²⁸²	Bone marrow-derived MSCs + PRP	Rabbit	Ulna	Segmental defect
Zhang et al. (2017)	²⁸³	Bone marrow-derived MSCs	Rat	Calvaria	Osteotomy
Wang et al. (2010)	²⁸⁶	Bone marrow-derived MSCs	Rabbit	Femur	Critical-sized segmental defect + periosteum stripped + vascular bundle
Han et al. (2013)	²⁸⁷	Adipose-derived MSCs	Rabbit	Radius	Critical-sized segmental defect + periosteum stripped + vascular bundle
Li et al. (2012)	²⁸⁸	Cbfa1-overexpressing adipose-derived MSCs	Rabbit	Radius	Segmental defect ± vascularized periosteal flap
Nau et al. (2016)	²⁸⁹	Bone marrow-derived mononuclear cells	Rats	Femur	Segmental defect critical sized ± vascularized periosteal flap
Nau et al. (2017)	²⁹⁰	MSCs/EPCs	Rats	Femur	Segmental defect critical sized ± vascularized periosteal flap

ADSCs, adipose-derived stem cells; BFP-1, bone forming peptide-1; BMP-4, bone morphogenetic protein-4; Cbfa1, core-binding factor a1; CD, cluster of differentiation; E-EPCs, early endothelial progenitor cells; EPCs, endothelial progenitor cells; L-EPCs, late endothelial progenitor cells; MSCs, mesenchymal stem cells; PBMNCs, peripheral blood mononuclear cells; PRF, platelet-rich fibrin; PRP, platelet-rich plasma; PVCs, perivascular cells; QQ, quality and quantity; SVF, stromal vascular fraction.

Endothelial progenitor cells

EPCs are bone marrow-derived cells that can be isolated from peripheral adult human blood and the umbilical cord.¹⁹⁴ They have a highly clonogenic potential and can, therefore, be rapidly expanded for use in patients. EPCs represent a somewhat heterogeneous cell type that is classified in early- and late-outgrowth EPCs, which differ in their culture times, proliferative potential, and gene expression.¹⁹⁵ Rozen et al.¹⁹⁶ implanted early-outgrowth EPCs locally within the fibrous scar tissue of a critical-size defect in sheep tibia and observed a significantly improved bone healing and defect bridging in most of the animals treated with EPCs, whereas the nontreated controls only showed minimal bone formation. In two similar studies, Atesok et al.¹⁹⁷ and Li et al.¹⁹⁸ transplanted a gel foam loaded with early-outgrowth EPCs within segmental bone defects in rats. The authors found an increased callus formation, a higher torsional strength, and stiffness in the EPC group when compared to controls. The local delivery of EPCs can be achieved by a variety of scaffold materials, including collagen sponges, ceramic scaffolds, and bioglasses.^199–201 In further experiments, Li et al.^202,203 demonstrated an elevated VEGF and BMP-2 expression in early-outgrowth EPC-treated bone defects. This indicates a paracrine mechanism of action in EPC therapy. Interestingly, these results are contradictory to the findings of Smadja et al.,²⁰⁴ who observed BMP-2 and BMP-4 expression selectively in late-outgrowth EPCs. Analysis of the therapeutic efficacy of early- and late-outgrowth EPCs showed an increased bone union and callus formation in animals treated with early-outgrowth EPCs when compared to animals treated with late-outgrowth EPCs and untreated controls.²⁰⁵ These findings indicate a superiority of early-outgrowth EPCs over late-outgrowth EPCs for the treatment of nonunions.

Apart from the type of cells, the timing of the intervention is thought to play a crucial role in the efficacy of cellular therapy of nonunions.²⁰⁶ In clinical practice, treatment of delayed unions or nonunions is indicated at late time points when final diagnosis is made. In contrast, most experimental studies apply EPCs, engineered tissues, or other types of treatment directly after creation of the bone defects. To more appropriately mimic the clinical situation in the design of the experimental study, Bates et al.²⁰⁷ evaluated the potential of a delayed EPC delivery in a segmental bone defect model. They found that EPCs enhance radiographic and morphometric bone repair when applied 3 weeks after the creation of a bone defect. Noteworthy, the healing response did not differ from the acute treatment with EPCs, indicating the potential of delayed onset of EPC treatment in bone defect healing.

To further expand the proangiogenic potential of EPCs, the combination with vessel-forming growth factors seems to be a promising approach. In the attempt to construct vascularized bone grafts, Wang et al.²⁰⁸ added EPCs to a β-TCP scaffold loaded with bone forming peptide-1 (BFP-1). Micro-CT analysis revealed a synergistic and vigorous effect of EPC- and BFP-1-loaded scaffolds not only on blood vessel formation but also on bone healing in segmental bone defects in rabbits. These findings indicate the potential of a combined cell- and growth factor-based therapy to promote vascularization in tissue-engineered bone.

Peripheral blood cells

Adult CD34⁺ human peripheral blood cells have been reported to contain a large number of EPCs and hematopoietic stem cells.¹⁹⁴ Accordingly, this cell population is capable of promoting vasculogenesis and participating in neovascularization.^209,210 Moreover, Matsumoto et al.²¹¹ demonstrated that intravenously injected CD34⁺ cells result in morphological and physiological healing of nonunions in rats. The enhanced bone healing was associated with an increased neovascularization and an improved blood perfusion within the fracture area. This makes CD34⁺ cells a potent cell population for therapeutic vasculo-osteogenesis in the healing of nonunions. In contrast to CD34⁺ cells, peripheral blood mononuclear cells (PBMCs) represent a more mixed cell population, also containing lymphocytes and monocytes.²¹² Therefore, their isolation does not require magnetic cell sorting, and can be performed in a shorter time and at a lower cost. Fukui et al.²¹³ treated nonhealing fractures in rats with the local transplantation of PBMCs and found an increase of angiogenesis and osteogenesis. However, in direct comparison to peripheral blood CD34⁺cells, PBMCs were less effective in promoting the healing of nonunions. To overcome this problem, Mifuji et al.²¹⁴ applied a so-called ‘quality and quantity culture’ (QQ-culture) to PBMCs, which increases the angiogenic cell fraction by adding cytokines and growth factors, like VEGF, interleukin-6. and thrombopoietin. As a result, the authors found an enhanced endochondral ossification and bridging rate in animals treated with QQ-cultured PBMCs, indicating an augmentation of the therapeutic potential of PBMCs.

Mesenchymal stem cells

MSCs are a multipotent cell type, which derives from numerous tissues in the body. They represent the precursors of bone-forming osteoblasts and are, therefore, a powerful tool to induce bone formation in critical healing conditions.¹² Besides, they can participate in the vascularization of tissues by various pathways.²¹⁵ Like any other cell line, MSCs suffer from hypoxia within scaffolds during the initial phase after implantation. This in turn leads to the expression of proangiogenic cytokines, such as VEGF and the hypoxia-inducible transcription factors, resulting in the stimulation of angiogenesis in the surrounding tissue.²¹⁶ In addition, multipotent MSCs are capable of differentiating into endothelial cells, which are directly integrated in the newly formed blood vessels.^217,218 In fact, Zou et al.²¹⁹ analyzed the efficiency of various stem cell-derived osteoprogenitor cell populations in healing nonunions in vivo and found that the cells' capabilities to stimulate fracture healing are directly dependent on their proangiogenic activity. These findings highlight the predominant role of the cell populations' proangiogenic potential when applied in cell-based bone tissue engineering.

MSCs are commonly isolated from adipose tissue^{216,220–222} and bone marrow,^223–227 but also from various other tissues, including fetal tissue,²²⁸ placental tissue, amniotic fluid,^229,230 the umbilical cord, cord blood, and the periosteum.^231,232 Adipose-derived stem cells (ADSCs), which are of special clinical interest, are easily accessible with a low donor site morbidity and allow the isolation of a vast amount of stem cells.²³³ However, ADSCs require a time-consuming in vitro culture and purification before they can be applied in vivo. Therefore, several studies investigated the potential of the freshly isolated stromal vascular fraction (SVF) from adipose tissue. The SVF consists of a heterogeneous cell population, including circulating blood cells, adipocytes, fibroblasts, macrophages, pericytes, and endothelial cells. Unfortunately, the SVF shows only minor bone formation and an inferior healing capacity when compared to cultured ADSCs,^234,235 indicating that without any in vitro procedures, additional pro-osteogenic stimulation is needed to significantly stimulate bone formation.

To gain an alternative source for cell-based tissue engineering, James et al.²³⁶ successfully purified the SVF and isolated perivascular stem cells (PSCs). This cell population can be found in every vascularized organ and is capable of inducing osteogenic differentiation and bone formation. Moreover, PSCs have been shown superior in bone healing of critical-size defects in mice when compared to animals treated with nonpurified SVF.²³⁷ Furthermore, Kargozar et al.²³⁸ seeded strontium- and cobalt-substituted bioglass with perivascular cells derived from the umbilical cord and found an enhanced expression of proangiogenic genes, resulting in an improved bone healing. These results underline the vast potential of combining advanced biomaterials with cell-based tissue engineering to generate vascularized bone substitutes.

Another source for cell-based tissue engineering represents pericytes. These cells surround the endothelial cells of capillaries and other microvessels and contribute to the stabilization and maturation of these blood vessels.^239,240 In addition, it has recently been shown that pericytes possess multilineage differentiation capacities similar to MSCs.²⁴¹ By injecting pericytes percutaneously into the fracture gap of an atrophic nonunion model in the rat tibia, Tawonsawatruk et al.²⁴² demonstrated that pericytes are capable of rescuing fractures from nonunion formation. These findings were supported by a study from Supakul et al.,²⁴³ which verified the ability of pericytes to differentiate into osteoblasts and osteoclasts, thereby contributing to the process of fracture healing (Fig. 2). In contrast to MSCs, pericytes can be abundantly isolated from adipose tissue without the need for culture expansion, making them an attractive alternative in cell-based bone tissue engineering.

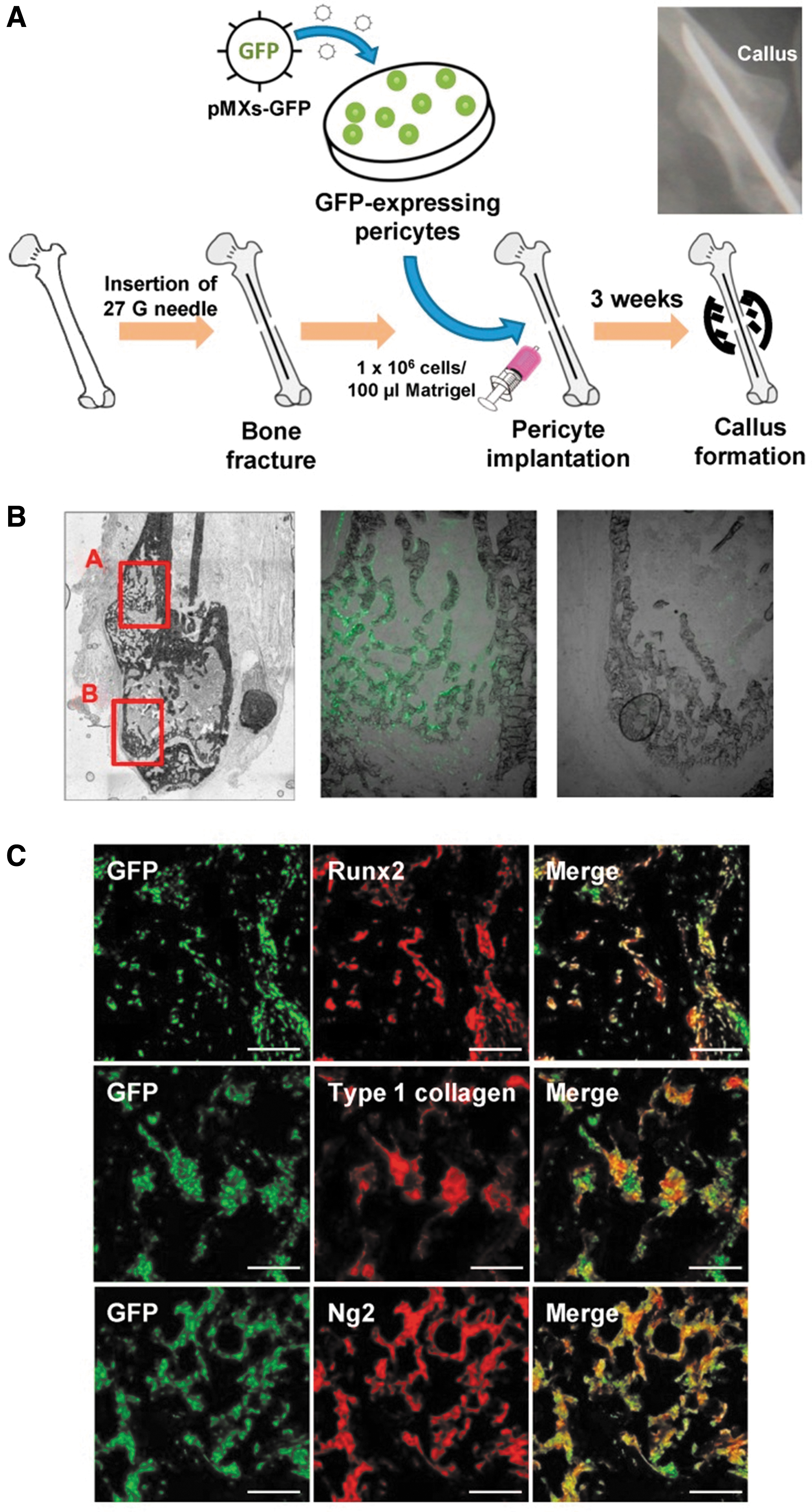

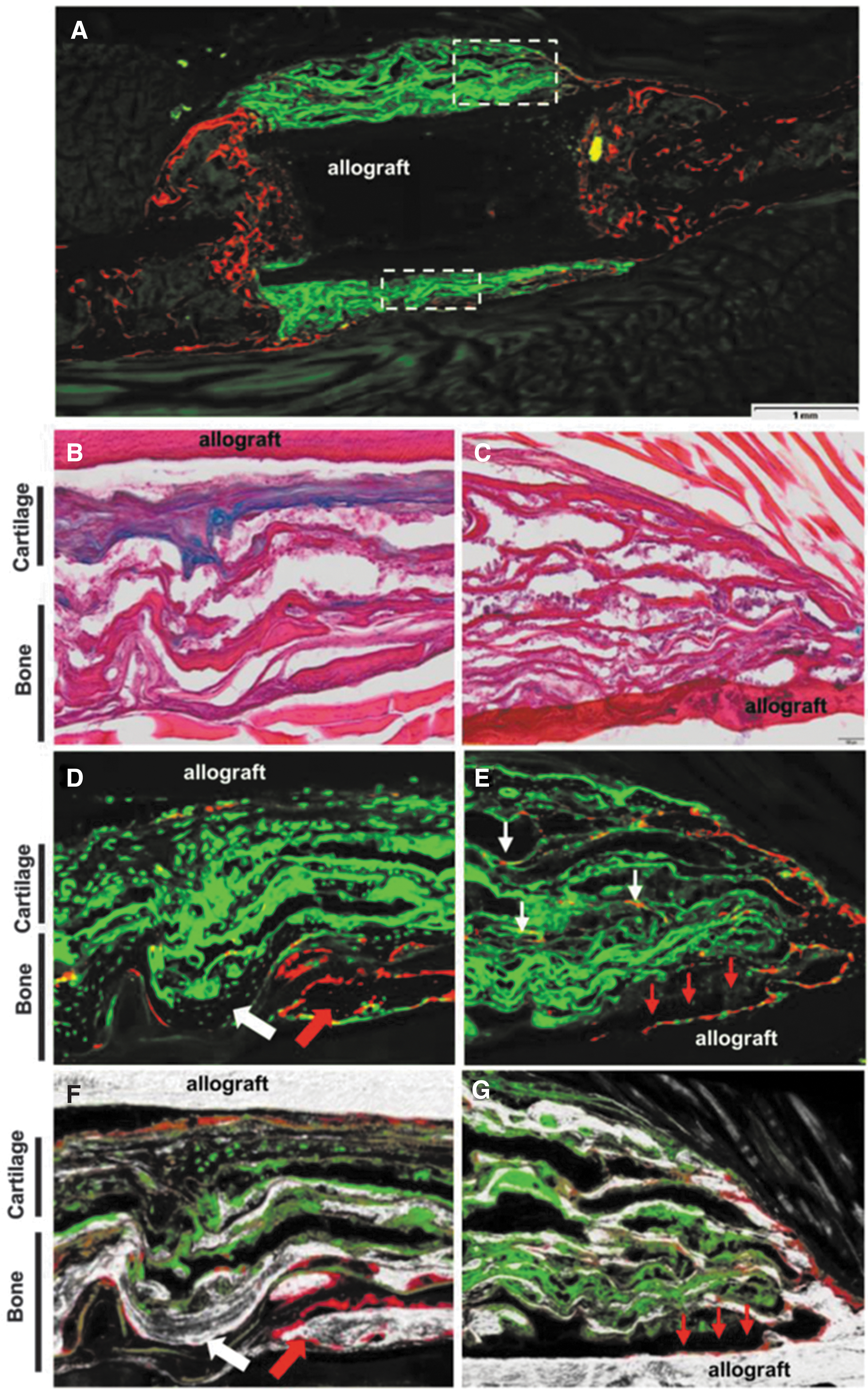

FIG. 2.

Contribution of implanted pericytes to callus formation during bone healing according to Supakul et al.²⁰⁶ (A) Green fluorescent protein (GFP)-labeled immortalized pericytes (1 × 10⁶ cells/100 μL Matrigel) were injected into the fracture site of the femurs of 12-week-old BALB/cAJcl-nu/nu nude mice. (B) Histological analysis showing that many GFP-positive cells existed around the newly developed bones. (C) Immunohistochemical analyses showing that these GFP-positive cells coexpressed osteoblast markers, RUNX-2, and type 1 collagen, as well as a pericyte marker, Ng2. Scale bars = 50 μm. (Reprinted with permission of Multidisciplinary Digital Publishing Institute (MDPI): [International Journal of Molecular Science],²⁴³ copyright [2019]).

The proangiogenic properties of MSCs may be further optimized by the combination of MSCs with growth factor delivery systems. Several studies describe promising results of this synergistic approach. Growth factors can be delivered by local application,²⁴⁴ by the incorporation within scaffold materials^245–251 or by genetically modified MSCs, which all provide a sustained release and concentration of growth factors within the bone defect.^252–260 Kumar et al.²⁵³ used an ex vivo approach to create genetically engineered MSCs expressing both VEGF and BMP-2 and transplanted them in a segmental bone defect in mice tibia. Animals treated with genetically modified MSCs showed an increased vascularity, osteoblastogenesis, and bone formation. However, despite these promising results, it should be kept in mind that gene therapy is associated with the risk of heterotopic bone formation and even of malignancies.

Combined cell-based therapy

Combined cell populations for vascularized bone tissue engineering allow the accumulation of proangiogenic and pro-osteogenic cell lines to facilitate bone formation in critical bone healing. Common combinations of cell types include endothelial cells and osteoblastic cells,^261–263 CD34⁺ peripheral blood cells and bone marrow-derived MSCs,²⁶⁴ pericytes, and adventitial cells,²⁶⁵ as well as EPCs and undifferentiated MSCs.^266–270 Moreover, Amini et al.²⁶⁹ established a double-tracked approach for bone regeneration in large defect areas in vivo, involving oxygen-controlled matrices and an optimal cell combination of MSCs and EPCs, which increases oxygen tension levels and cell viability. Scaffolds were co-cultured with MSCs and EPCs for 2 days and subsequently implanted in nude mouse subcutaneous tissue and a rabbit ulnar defect model. Interestingly, the authors found a ratio of 1:1 MSCs:EPCs as the most effective progenitor cell ratio to induce vascularized bone regeneration. These results indicate that not only the type of cells but also their ratio determines the success of inducing vascularization in segmental bone defects.

Periosteal substitutes

The periosteum is a highly vascularized tissue, being an essential factor in successful long bone repair by providing the cortical blood supply.²⁷¹ Moreover, it serves as a reservoir for osteoprogenitor cells, comparable to bone marrow-derived MSCs.²⁷² Therefore, a viable periosteum is a prerequisite to prevent nonunion formation. Masquelet et al.²⁷³ used a bioactive induced membrane (IM) as a novel concept for guided bone regeneration. The implantation of a cement spacer inside the critical-size defect induced a biological membrane surrounding the spacer. Subsequently, the spacer was removed with the remaining IM serving as a conduit for cells and bone grafts (Fig. 3). This biomembrane expressed genes critical for bone development and formation, including BMP-2, BMP-6, VEGF, and RUNX-2, an important regulator of osteoblast differentiation. Additional analyses of the cellular and molecular composition of the IM revealed a similar cellular and vascular architecture, as well as growth factor expression when compared to native periosteum. This includes the number of colony-forming unit-fibroblasts, the osteogenic potential of the expanded MSCs, and the histological composition of both tissues.²⁷⁴ As a result, the regenerative capacity of these tissues is most likely comparable and the IM may also be described as an “induced periosteum.”²⁷⁵ Of interest, Henrich et al.²⁷⁶ demonstrated the highest osteogenic and angiogenic activity of IMs at an early time point (2–4 weeks) after spacer implantation. To maximize bone regeneration, they proposed an early replacement of the spacer by an appropriate bone graft.²⁴⁴ The disadvantage of this approach is the necessity of two surgical interventions, increasing the risk of complications and elevating the costs. In contrast, the implantation of a bioresorbable scaffold that induces membrane formation without the need of removal later on may minimize patient morbidity and economic burden.

FIG. 3.

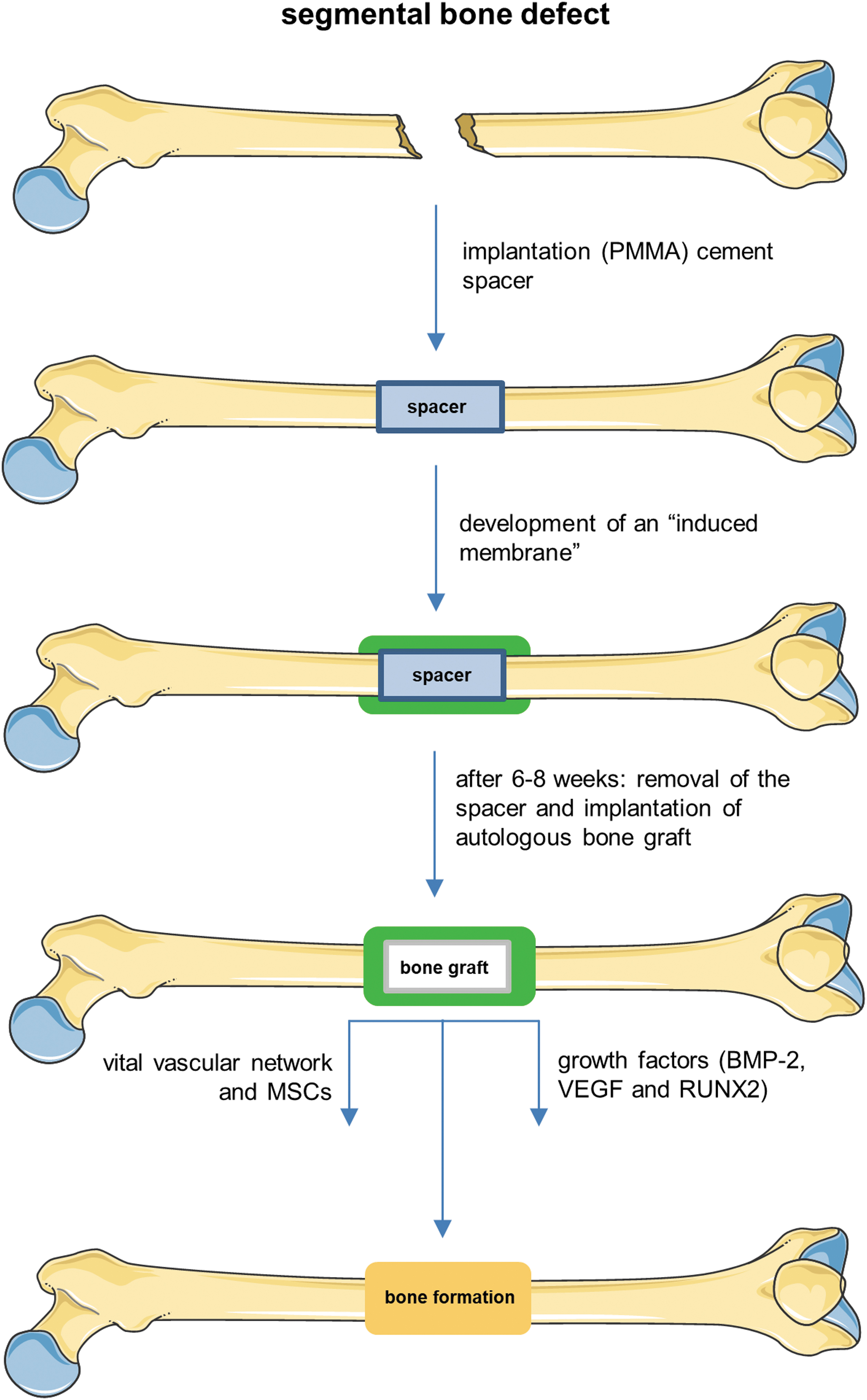

The IM technique for the healing of large bone defects as described by Masquelet et al.²⁴¹ In a first step, the fracture site is debrided and a PMMA cement spacer is implanted. This leads to the development of an IM, which surrounds the spacer. After 6–8 weeks, the spacer is removed and replaced by an autologous bone graft. The membrane provides a vital vascular network, MSCs, as well as growth factors like BMP-2, VEGF, and RUNX2 to facilitate bone healing and union formation. BMP-2, bone morphogenetic protein-2; IM, induced membrane; PMMA, polymethyl methacrylate.

An even more sophisticated approach to facilitate bone repair represents the construction of artificial cell-based periosteal substitutes. Suggested materials for tissue-engineered periosteum are synthetic polymers,^277,278 ceramics,²⁷⁹ and polysaccharides.²⁸⁰ Recent advancements in nanotechnology allow the fabrication of electrospun nanofiber sheets to mimic the highly organized architecture of the periosteum²⁸¹ (Fig. 4). To further improve the angiogenic potential of the periosteal substitutes, several studies also propose the addition of growth factors^278,280 and MSCs.^277,281,282 Moreover, the design of cell sheets consisting of MSCs and endothelial cells, which mimic the physiological architecture of the native periosteum, shows great potential in promoting vascularization in experimental studies.^283,284 Kang et al.²⁸⁴ developed a biomimetic periosteum, which contains a mineralized MSC-seeded cell sheet, resembling the cambium layer of native periosteum and a second vascularized cell sheet seeded with human umbilical endothelial cells and MSCs, mimicking the outer fibrous layer of the periosteum. This cell-engineered periosteum successfully promoted angiogenesis and ectopic osteogenesis of β-TCP scaffolds at a subcutaneous transplantation site in mice. These promising results have now to be transferred into the clinical setting.

FIG. 4.

Donor/host contribution to engineered periosteal callus in femoral allograft healing published by Wang et al.²⁴⁹ GFP-positive BMSC-seeded tissue-engineered periosteum was implanted into an immunodeficient NOD-OSX^RFPcherry mouse. Representative fluorescent images of the grafted femur at 7 weeks postimplantation (A). Scale bar = 1 mm. Boxed regions at mid-shaft (B, D, F) and cortical junction (C, E, G) are shown at a higher magnification without bone/SHG (D, E) or with bone/SHG (F, G). Chimeric bone derived from donor (green, white arrow) and host (red, red arrow) is illustrated (D, F). Note that host OSX-cherry-positive osteoblasts migrating along fiber layers (white arrows in E) and allograft surface (red arrows in E, G) at the cortical bone junction. (Reprinted with permission of Elsevier: [Biomaterials],²⁸¹ copyright [2018]).

Surgical approaches for vascularized bone tissue engineering

The principle of surgically delivered vascularization in bone tissue engineering is a promising approach to improve bone regeneration and to overcome nonunion formation. The common surgical technique for this purpose is the transplantation of vascularized bone grafts from unharmed areas of the body, including fibula, iliac crest, and radius, into the defect site. However, this procedure is associated with a considerable donor site morbidity such as pain, sensory abnormalities, and loss of function.²⁸⁵ Experimental approaches such as the implantation of scaffolds in combination with vascular bundles^286,287 or vascularized periosteal flaps^288–290 avoid these complications. In these scaffolds, the sprouting of a capillary networks can help to increase the initial survival and engraftment of transplanted MSCs, resulting in an improved blood vessel and bone formation.

The arteriovenous (AV)-loop model represents an even more sophisticated strategy. A superficial artery and vein are anastomosed to create the AV-loop. This AV-loop generates axially vascularized tissue by using the own body as a bioreactor. This allows the prevascularization of materials, scaffolds, and cell constructs. Subsequently, the prevascularized tissue can be transplanted with its vascular axis into the defect site, that is, large bone defects.²⁹¹ Mian et al.²⁹² were among the first to describe the AV-loop technique and designed an isolated chamber with highly vascularized fibrous tissue in rats suitable for microsurgical transplantation. During the last two decades, the AV-loop model was further developed, including the prevascularization of solid porous matrices²⁹³ as well as the combined application with growth factor- and cell-based strategies.^285,294

In 2018, Arkudas et al.²⁹⁵ successfully applied the AV-loop technique in a critical-size femoral defect model in rats by transplanting axially vascularized bone constructs into the defect site. The authors observed an increased vascularization and bone formation, leading to bone union in the long term. To pave the way toward clinical application, the function of AV-loop technique was tested in large animal models. These experiments demonstrated an axial prevascularization of bone substitutes and the successful formation of transplantable bone tissue.^296,297 In fact, experiments in large animals were the necessary step for the translation of those techniques into clinical practice.²⁹⁸

In 2004, Warnke et al.²⁹⁹ were among the first performing a successful human application of surgically delivered bone tissue engineering. To repair an extended mandibular discontinuity defect in an adult male patient, they grew a custom-made bone transplant inside the latissimus dorsi muscle. Seven weeks later, this bone transplant was transferred as a free bone-muscle flap into the mandibular defect site. Computer tomography and skeletal scintigraphy showed bone remodeling and mineralization inside the mandibular transplant both before and after transplantation.²⁹⁹ In a more recent study, Horch et al.³⁰⁰ demonstrated successfully axially vascularized in situ tissue-engineered bone regeneration within large bone defects in a clinical setting by using the AV-loop model. For osseus reconstruction, AV-loops were created as vascular axis and placed in the bony defects. Long-term follow-up showed patent AV-loops, completely healed bone defects with osseus regeneration as well as a satisfying clinical outcome without the creation of a significant donor site morbidity. Taken together, surgical approaches for vascularized bone tissue engineering, especially the AV-loop technique, have an enormous potential to successfully treat bone defects and established nonunions. In future, these techniques may set new standards in reconstructive surgery and open the door for custom-made prevascularized bone constructs in clinical practice.

Current clinical tissue engineering approaches

In clinical practice, the reconstructive treatment of established nonunions most frequently include the use of autologous bone grafts, bone allografts, and/or synthetic biomaterials. Autologous bone grafts, mostly harvested from the iliac crest of the patient, are still the gold standard for the treatment of nonunions. They provide ideal osteogenic, osteoinductive, and osteoconductive properties without the risk of viral transmission. Still, major drawbacks of this approach are the necessity of two surgical sites and the limited amount of graft material.³⁰¹ Bone allografts, harvested from living donors during joint replacement or from cadavers, may overcome these problems. They are immediately available in different sizes and shapes³⁰² and are especially suited for large bone defect reconstructions after nonunion resections.³⁰¹ On the other hand, allografts present a lower osteogenic potential compared to autografts³⁰³ and bear the risk of immune rejection and disease transmission.³⁰¹ The use of synthetic bone tissue substitutes represents another strategy in the clinical treatment of nonunion formation and bone reconstruction. Among the most common materials are biphasic calcium phosphate (BCP), TCP, calcium HA, and bioactive glass. These synthetic bone substitutes represent an excellent alternative to biological grafts in small bone defects.³⁰¹ However, due to their insufficient biomechanical strength and neovascular ingrowth, they are limited in the daily clinical use.³⁰⁴

Cell-based tissue engineering therapies may further improve the outcome of autograft, allograft, or synthetic biomaterial treatments. In recent years, substantial efforts have been made to understand the fundamental biological, material, and physical requirements of cell-based tissue-engineered bone substitutes. However, only a few approaches have successfully progressed from preclinical research to clinical trials.³⁰⁵ In a pilot study, including eight patients, Gianotti et al.³⁰⁶ implanted osteogenetically differentiated MSCs with a fibrin clot in nonunions of upper limb extremities after re-osteosynthesis. After an average follow-up of 6 years and 3 months, all patients showed radiological healing and recovered limb function with no evidence of tissue overgrowth or tumor formation. Although these results are encouraging, the study suffers from a limited number of cases and the lack of an appropriate control group. ORTHO-1, a European, multicentric clinical trial,³⁰⁷ has only recently proven in patients with long bone nonunions the safety and feasibility of the surgical implantation of commercially available BCP bioceramic granules in combination with mesenchymal stromal cells expanded from bone marrow. Moreover, the study demonstrated radiologically healing in 26 out of 28 treated patients. Future studies have now to determine the efficacy and the potential of this cell-based tissue engineering approach in comparison to the gold standard procedures with bone autografts and allografts.

Conclusion

During the last decade, there has been major progress in the development of novel vascularization strategies to prevent and treat nonunion formation. These include biophysical applications, systemic pharmacological interventions, and scaffold-, growth factor-, cell-, and periosteum-based techniques, as well as surgical tissue engineering approaches. To further improve the efficiency of these vascularization strategies, additional research should focus more detailed on their particular spatial and temporal requirements. Indeed, it has to be considered that in nonunions, the process of bone healing may only be supported ideally, if the vascularization is stimulated in the right dose to the right place at the right time. The major challenge for the future will then be the translation of these strategies into clinical practice to make them accessible for the majority of patients.

Footnotes

Acknowledgments

The authors thank Servier Medical Art for providing access to designed medical elements, supporting the generation of graphical items in this publication.

Disclosure Statement

No competing financial interests exist.

Funding Information

No funding was received for this article.

References

Einhorn

T.A.

, and Gerstenfeld

L.C.

Fracture healing: mechanisms and interventions. Nat Rev Rheumatol, 11, 45, 2015.

Gustilo

R.B.

, Gruninger

R.P.

, and Davis

Classification of type III (severe) open fractures relative to treatment and results. Orthopedics, 10, 1781, 1987.

Schmidmaier

, Capanna

, Wildemann

, Beque

, and Lowenberg

Bone morphogenetic proteins in critical-size bone defects: what are the options? Injury, 40 Suppl 3, S39, 2009.

Victoria

, Petrisor

, Drew

, and Dick

Bone stimulation for fracture healing: what's all the fuss? Indian J Orthop, 43, 117, 2009.

Bhandari

, Fong

, Sprague

, Williams

, and Petrisor

Variability in the definition and perceived causes of delayed unions and nonunions: a cross-sectional, multinational survey of orthopaedic surgeons. J Bone Joint Surg Am, 94, e1091, 2012.

Andrzejowski

, and Giannoudis

P.V.

The ‘diamond concept’ for long bone non-union management. J Orthop Traumatol, 20, 21, 2019.

Hak

D.J.

, Fitzpatrick

, Bishop

J.A.

, et al. Delayed union and nonunions: epidemiology, clinical issues, and financial aspects. Injury, 45 Suppl 2, S3, 2014.

Hayda

R.A.

, and Bosse

M.J.

Moderators' summary: management of segmental bone defects. J Am Acad Orthop Surg, 14, S142, 2006.

Laurie

S.W.

, Kaban

L.B.

, Mulliken

J.B.

, and Murray

J.E.

Donor-site morbidity after harvesting rib and iliac bone. Plast Reconstr Surg, 73, 933, 1984.

10.

Wheeler

D.L.

, and Enneking

W.F.

Allograft bone decreases in strength in vivo over time. Clin Orthop Relat Res 36, 2005.

11.

Kanczler

J.M.

, and Oreffo

R.O.

Osteogenesis and angiogenesis: the potential for engineering bone. Eur Cell Mater, 15, 100, 2008.

12.

Schlundt

, Bucher

C.H.

, Tsitsilonis

, Schell

, Duda

G.N.

, and Schmidt-Bleek

Clinical and research approaches to treat non-union fracture. Curr Osteoporos Rep, 16, 155, 2018.

13.

Medhat

, Rodriguez

C.I.

, and Infante

Immunomodulatory effects of MSCs in bone healing. Int J Mol Sci, 20, 5467, 2019.

14.

Bahney

C.S.

, Zondervan

R.L.

, Allison

, et al. Cellular biology of fracture healing. J Orthop Res, 37, 35, 2019.

15.

Fang

T.D.

, Salim

, Xia

, et al. Angiogenesis is required for successful bone induction during distraction osteogenesis. J Bone Miner Res, 20, 1114, 2005.

16.

Murnaghan

, Li

, and Marsh

D.R.

Nonsteroidal anti-inflammatory drug-induced fracture nonunion: an inhibition of angiogenesis? J Bone Joint Surg Am, 88 Suppl 3, 140, 2006.

17.

Fassbender

, Strobel

, Rauhe

J.S.

, Bergmann

, Schmidmaier

, and Wildemann

Local inhibition of angiogenesis results in an atrophic non-union in a rat osteotomy model. Eur Cell Mater, 22, 1, 2011.

18.

Hausman

M.R.

, Schaffler

M.B.

, and Majeska

R.J.

Prevention of fracture healing in rats by an inhibitor of angiogenesis. Bone, 29, 560, 2001.

19.

Volpon

J.B.

Nonunion using a canine model. Arch Orthop Trauma Surg, 113, 312, 1994.

20.

Oni

O.O.

A non-union model of the rabbit tibial diaphysis. Injury, 26, 619, 1995.

21.

den Boer

F.C.

, Patka

, Bakker

F.C.

, et al. New segmental long bone defect model in sheep: quantitative analysis of healing with dual energy x-ray absorptiometry. J Orthop Res, 17, 654, 1999.

22.

Garcia

, Histing

, Holstein

J.H.

, et al. Rodent animal models of delayed bone healing and non-union formation: a comprehensive review. Eur Cell Mater, 26, 1, 2013.

23.

Cullinane

D.M.

, Fredrick

, Eisenberg

S.R.

, et al. Induction of a neoarthrosis by precisely controlled motion in an experimental mid-femoral defect. J Orthop Res, 20, 579, 2002.

24.

Kokubu

, Hak

D.J.

, Hazelwood

S.J.

, and Reddi

A.H.

Development of an atrophic nonunion model and comparison to a closed healing fracture in rat femur. J Orthop Res, 21, 503, 2003.

25.

Choi

, Ogilvie

, Thompson

, Miclau

, and Helms

J.A.

Cellular and molecular characterization of a murine non-union model. J Orthop Res, 22, 1100, 2004.

26.

Oetgen

M.E.

, Merrell

G.A.

, Troiano

N.W.

, Horowitz

M.C.

, and Kacena

M.A.

Development of a femoral non-union model in the mouse. Injury, 39, 1119, 2008.

27.

Garcia

, Holstein

J.H.

, Maier

, et al. Development of a reliable non-union model in mice. J Surg Res, 147, 84, 2008.

28.

Garcia

, Herwerth

, Matthys

, et al. The LockingMouseNail—a new implant for standardized stable osteosynthesis in mice. J Surg Res, 169, 220, 2011.

29.

Kusuyama

, Bandow

, Shamoto

, Kakimoto

, Ohnishi

, and Matsuguchi

Low intensity pulsed ultrasound (LIPUS) influences the multilineage differentiation of mesenchymal stem and progenitor cell lines through ROCK-Cot/Tpl2-MEK-ERK signaling pathway. J Biol Chem, 289, 10330, 2014.

30.

Wang

C.J.

An overview of shock wave therapy in musculoskeletal disorders. Chang Gung Med J, 26, 220, 2003.

31.

Grassmann

J.P.

, Schneppendahl

, Hakimi

A.R.

, et al. Hyperbaric oxygen therapy improves angiogenesis and bone formation in critical sized diaphyseal defects. J Orthop Res, 33, 513, 2015.

32.

Weil

L.S.

Jr. , Roukis

T.S.

, Weil

L.S.

, and Borrelli

A.H.

Extracorporeal shock wave therapy for the treatment of chronic plantar fasciitis: indications, protocol, intermediate results, and a comparison of results to fasciotomy. J Foot Ankle Surg, 41, 166, 2002.

33.

Spacca

, Necozione

, and Cacchio

Radial shock wave therapy for lateral epicondylitis: a prospective randomised controlled single-blind study. Eura Medicophys, 41, 17, 2005.

34.

Cacchio

, Paoloni

, Barile

, et al. Effectiveness of radial shock-wave therapy for calcific tendinitis of the shoulder: single-blind, randomized clinical study. Phys Ther, 86, 672, 2006.

35.

Cacchio

, Giordano

, Colafarina

, et al. Extracorporeal shock-wave therapy compared with surgery for hypertrophic long-bone nonunions. J Bone Joint Surg Am, 91, 2589, 2009.

36.

Rompe

J.D.

, Rosendahl

, Schollner

, and Theis

High-energy extracorporeal shock wave treatment of nonunions. Clin Orthop Relat Res 102, 2001.

37.

Vogel

, Hopf

, Eysel

, and Rompe

J.D.

Application of extracorporeal shock-waves in the treatment of pseudarthrosis of the lower extremity. Preliminary results. Arch Orthop Trauma Surg, 116, 480, 1997.

38.

Wang

C.J.

, Chen

H.S.

, Chen

C.E.

, and Yang

K.D.

Treatment of nonunions of long bone fractures with shock waves. Clin Orthop Relat Res 95, 2001.

39.

Elster

E.A.

, Stojadinovic

, Forsberg

, Shawen

, Andersen

R.C.

, and Schaden

Extracorporeal shock wave therapy for nonunion of the tibia. J Orthop Trauma, 24, 133, 2010.

40.

Schaden

, Fischer

, and Sailler

Extracorporeal shock wave therapy of nonunion or delayed osseous union. Clin Orthop Relat Res 90, 2001.

41.

Haffner

, Antonic

, Smolen

, et al. Extracorporeal shockwave therapy (ESWT) ameliorates healing of tibial fracture non-union unresponsive to conventional therapy. Injury, 47, 1506, 2016.

42.

Wang

F.S.

, Yang

K.D.

, Chen

R.F.

, Wang

C.J.

, and Sheen-Chen

S.M.

Extracorporeal shock wave promotes growth and differentiation of bone-marrow stromal cells towards osteoprogenitors associated with induction of TGF-beta1. J Bone Joint Surg Br, 84, 457, 2002.

43.

Chen

Y.J.

, Wurtz

, Wang

C.J.

, et al. Recruitment of mesenchymal stem cells and expression of TGF-beta 1 and VEGF in the early stage of shock wave-promoted bone regeneration of segmental defect in rats. J Orthop Res, 22, 526, 2004.

44.

Martini

, Giavaresi

, Fini

, et al. Shock wave therapy as an innovative technology in skeletal disorders: study on transmembrane current in stimulated osteoblast-like cells. Int J Artif Organs, 28, 841, 2005.

45.

Leung

K.S.

, Cheung

W.H.

, Zhang

, Lee

K.M.

, and Lo

H.K.

Low intensity pulsed ultrasound stimulates osteogenic activity of human periosteal cells. Clin Orthop Relat Res 253, 2004.

46.

Gebauer

, Mayr

, Orthner

, and Ryaby

J.P.

Low-intensity pulsed ultrasound: effects on nonunions. Ultrasound Med Biol, 31, 1391, 2005.

47.

Jingushi

, Mizuno

, Matsushita

, and Itoman

Low-intensity pulsed ultrasound treatment for postoperative delayed union or nonunion of long bone fractures. J Orthop Sci, 12, 35, 2007.

48.

Mayr

, Frankel

, and Ruter

Ultrasound—an alternative healing method for nonunions? Arch Orthop Trauma Surg, 120, 1, 2000.

49.

Schofer

M.D.

, Block

J.E.

, Aigner

, and Schmelz

Improved healing response in delayed unions of the tibia with low-intensity pulsed ultrasound: results of a randomized sham-controlled trial. BMC Musculoskelet Disord, 11, 229, 2010.

50.

Zura

, Della Rocca

G.J.

, Mehta

, et al. Treatment of chronic (>1 year) fracture nonunion: heal rate in a cohort of 767 patients treated with low-intensity pulsed ultrasound (LIPUS). Injury, 46, 2036, 2015.

51.

Mishima

, Sugaya

, Yoshioka

, et al. 2. The effect of combined therapy, percutaneous autologous concentrated bone marrow grafting and low-intensity pulsed ultrasound (LIPUS), on the treatment of non-unions. J Orthop Trauma, 30, S2, 2016.

52.

Zuo

, Zhen

, Wang

, Li

, and Zhou

Effect of low-intensity pulsed ultrasound on the expression of calcium ion transport-related proteins during tertiary dentin formation. Ultrasound Med Biol, 44, 223, 2018.

53.

Poolman

R.W.

, Agoritsas

, Siemieniuk

R.A.

, et al. Low intensity pulsed ultrasound (LIPUS) for bone healing: a clinical practice guideline. BMJ, 356, j576, 2017.

54.

Schandelmaier

, Kaushal

, Lytvyn

, et al. Low intensity pulsed ultrasound for bone healing: systematic review of randomized controlled trials. BMJ, 356, j656, 2017.

55.

Coulson

D.B.

, Ferguson

A.B.

Jr ., and Diehl

R.C.

Jr . Effect of hyperbaric oxygen on the healing femur of the rat. Surg Forum, 17, 449, 1966.

56.

, Malda

, Crawford

, and Xiao

Effects of hyperbaric oxygen on proliferation and differentiation of osteoblasts from human alveolar bone. Connect Tissue Res, 48, 206, 2007.

57.

Wang

I.C.

, Wen-Neng Ueng

, Yuan

L.J.

, et al. Early administration of hyperbaric oxygen therapy in distraction osteogenesis—a quantitative study in New Zealand rabbits. J Trauma, 58, 1230, 2005.

58.

Jan

A.M.

, Sandor

G.K.

, Iera

, et al. Hyperbaric oxygen results in an increase in rabbit calvarial critical sized defects. Oral Surg Oral Med Oral Pathol Oral Radiol Endod, 101, 144, 2006.

59.

, Saless

, Wang

, et al. The role of oxygen during fracture healing. Bone, 52, 220, 2013.

60.

Schneppendahl

, Jungbluth

, Sager

, et al. Synergistic effects of HBO and PRP improve bone regeneration with autologous bone grafting. Injury, 47, 2718, 2016.

61.

Beth-Tasdogan

N.H.

, Mayer

, Hussein

, and Zolk

Interventions for managing medication-related osteonecrosis of the jaw. Cochrane Database Syst Rev, 10, CD012432, 2017.

62.

El-Rabbany

, Duchnay

, Raziee

H.R.

, et al. Interventions for preventing osteoradionecrosis of the jaws in adults receiving head and neck radiotherapy. Cochrane Database Syst Rev, 2019, CD011559, 2019.

63.

Elayan

I.M.

, Axley

M.J.

, Prasad

P.V.

, Ahlers

S.T.

, and Auker

C.R.

Effect of hyperbaric oxygen treatment on nitric oxide and oxygen free radicals in rat brain. J Neurophysiol, 83, 2022, 2000.

64.

Bhavsar

M.B.

, Han

, DeCoster

, Leppik

, Costa Oliveira

K.M.

, and Barker

J.H.

Electrical stimulation-based bone fracture treatment, if it works so well why do not more surgeons use it? Eur J Trauma Emerg Surg, 46, 245, 2020.

65.

Leppik

, Oliveira

K.M.C.

, Bhavsar

M.B.

, and Barker

J.H.

Electrical stimulation in bone tissue engineering treatments. Eur J Trauma Emerg Surg, 46, 231, 2020.

66.

Leppik

, Zhihua

, Mobini

, et al. Combining electrical stimulation and tissue engineering to treat large bone defects in a rat model. Sci Rep, 8, 6307, 2018.

67.

Arcasoy

M.O.

The non-haematopoietic biological effects of erythropoietin. Br J Haematol, 141, 14, 2008.

68.

Kimakova

, Solar

, Solarova

, Komel

, and Debeljak

Erythropoietin and its angiogenic activity. Int J Mol Sci, 18, 1519, 2017.

69.

Harder

, Amon

, Schramm

, et al. Erythropoietin reduces necrosis in critically ischemic myocutaneous tissue by protecting nutritive perfusion in a dose-dependent manner. Surgery, 145, 372, 2009.

70.

Rezaeian

, Wettstein

, Egger

J.F.

, et al. Erythropoietin-induced upregulation of endothelial nitric oxide synthase but not vascular endothelial growth factor prevents musculocutaneous tissue from ischemic damage. Lab Invest, 90, 40, 2010.

71.

Sorg

, Krueger

, Schulz

, Menger

M.D.

, Schmitz

, and Vollmar

Effects of erythropoietin in skin wound healing are dose related. FASEB J, 23, 3049, 2009.

72.

Holstein

J.H.

, Menger

M.D.

, Scheuer

, et al. Erythropoietin (EPO): EPO-receptor signaling improves early endochondral ossification and mechanical strength in fracture healing. Life Sci, 80, 893, 2007.

73.

Garcia

, Speidel

, Scheuer

, et al. Low dose erythropoietin stimulates bone healing in mice. J Orthop Res, 29, 165, 2011.

74.

Wan

, Zhang

, He

, et al. EPO promotes bone repair through enhanced cartilaginous callus formation and angiogenesis. PLoS One, 9, e102010, 2014.

75.

Holstein

J.H.

, Orth

, Scheuer

, et al. Erythropoietin stimulates bone formation, cell proliferation, and angiogenesis in a femoral segmental defect model in mice. Bone, 49, 1037, 2011.

76.

Diker

, Sarican

, Cumbul

, and Kilic

Effects of systemic erythropoietin treatment and heterogeneous xenograft in combination on bone regeneration of a critical-size defect in an experimental model. J Craniomaxillofac Surg, 46, 1919, 2018.

77.

Omlor

G.W.

, Kleinschmidt

, Gantz

, Speicher

, Guehring

, and Richter

Increased bone formation in a rabbit long-bone defect model after single local and single systemic application of erythropoietin. Acta Orthop, 87, 425, 2016.

78.

Yoshioka

, Takahashi

, Shiba

, et al. Granulocyte colony-stimulating factor (G-CSF) accelerates reendothelialization and reduces neointimal formation after vascular injury in mice. Cardiovasc Res, 70, 61, 2006.

79.

Capoccia

B.J.

, Shepherd

R.M.

, and Link

D.C.

G-CSF and AMD3100 mobilize monocytes into the blood that stimulate angiogenesis in vivo through a paracrine mechanism. Blood, 108, 2438, 2006.

80.

Jeon

, Hwang

K.C.

, Yoo

K.J.

, and Kim

B.S.

Combined sustained delivery of basic fibroblast growth factor and administration of granulocyte colony-stimulating factor: synergistic effect on angiogenesis in mouse ischemic limbs. J Endovasc Ther, 13, 175, 2006.

81.

Rehman

, Li

, Orschell

C.M.

, and March

K.L.

Peripheral blood “endothelial progenitor cells” are derived from monocyte/macrophages and secrete angiogenic growth factors. Circulation, 107, 1164, 2003.

82.

Meier

, Gloekler

, Oezdemir

, et al. G-CSF induced arteriogenesis in humans: molecular insights into a randomized controlled trial. Curr Vasc Pharmacol, 11, 38, 2013.

83.

Herrmann

, Zeiter

, Eberli

, et al. Five days granulocyte colony-stimulating factor treatment increases bone formation and reduces gap size of a rat segmental bone defect: a pilot study. Front Bioeng Biotechnol, 6, 5, 2018.

84.

Ishida

, Matsumoto

, Sasaki

, et al. Bone regeneration properties of granulocyte colony-stimulating factor via neovascularization and osteogenesis. Tissue Eng Part A, 16, 3271, 2010.

85.

Wronski

T.J.

, and Yen

C.F.

Anabolic effects of parathyroid hormone on cortical bone in ovariectomized rats. Bone, 15, 51, 1994.

86.

Neer

R.M.

, Arnaud

C.D.

, Zanchetta

J.R.

, et al. Effect of parathyroid hormone (1–34) on fractures and bone mineral density in postmenopausal women with osteoporosis. N Engl J Med, 344, 1434, 2001.

87.

Andreassen

T.T.

, Ejersted

, and Oxlund

Intermittent parathyroid hormone (1–34) treatment increases callus formation and mechanical strength of healing rat fractures. J Bone Miner Res, 14, 960, 1999.

88.

Komatsubara

, Mori

, Mashiba

, et al. Human parathyroid hormone (1–34) accelerates the fracture healing process of woven to lamellar bone replacement and new cortical shell formation in rat femora. Bone, 36, 678, 2005.

89.

Mognetti

, Marino

, Barberis

, et al. Experimental stimulation of bone healing with teriparatide: histomorphometric and microhardness analysis in a mouse model of closed fracture. Calcif Tissue Int, 89, 163, 2011.

90.

Aspenberg

, Genant

H.K.

, Johansson

, et al. Teriparatide for acceleration of fracture repair in humans: a prospective, randomized, double-blind study of 102 postmenopausal women with distal radial fractures. J Bone Miner Res, 25, 404, 2010.

91.

Andreassen

T.T.

, and Cacciafesta

Intermittent parathyroid hormone treatment enhances guided bone regeneration in rat calvarial bone defects. J Craniofac Surg, 15, 424, 2004.

92.

Kumabe

, Lee

S.Y.

, Waki

, et al. Triweekly administration of parathyroid hormone (1–34) accelerates bone healing in a rat refractory fracture model. BMC Musculoskelet Disord, 18, 545, 2017.

93.

Streeten

E.A.

, Ornberg

, Curcio

, et al. Cloned endothelial cells from fetal bovine bone. Proc Natl Acad Sci U S A, 86, 916, 1989.

94.

Della Fazia

M.A.

, Servillo

, and Sassone-Corsi

Cyclic AMP signalling and cellular proliferation: regulation of CREB and CREM. FEBS Lett, 410, 22, 1997.

95.

Zaruba

M.M.

, Huber

B.C.

, Brunner

, et al. Parathyroid hormone treatment after myocardial infarction promotes cardiac repair by enhanced neovascularization and cell survival. Cardiovasc Res, 77, 722, 2008.

96.

Xie

, Weng

, Li

, et al. Teriparatide promotes healing of critical size femur defect through accelerating angiogenesis and degradation of beta-TCP in OVX osteoporotic rat model. Biomed Pharmacother, 96, 960, 2017.

97.

Cohn Yakubovich

, Eliav

, Yalon

, et al. Teriparatide attenuates scarring around murine cranial bone allograft via modulation of angiogenesis. Bone, 97, 192, 2017.

98.

Carmeliet

VEGF as a key mediator of angiogenesis in cancer. Oncology, 69 Suppl 3, 4, 2005.

99.

Wolf

R.F.

, Peng

, Friese

, Gilmore

L.S.

, Burstein

S.A.

, and Dale

G.L.

Erythropoietin administration increases production and reactivity of platelets in dogs. Thromb Haemost, 78, 1505, 1997.

100.

Stohlawetz

P.J.

, Dzirlo

, Hergovich

, et al. Effects of erythropoietin on platelet reactivity and thrombopoiesis in humans. Blood, 95, 2983, 2000.

101.

Mouchemore

K.A.

, Anderson

R.L.

, and Hamilton

J.A.

Neutrophils, G-CSF and their contribution to breast cancer metastasis. FEBS J, 285, 665, 2018.

102.

Milstrey

, Wieskoetter

, Hinze

, et al. Dose-dependent effect of parathyroid hormone on fracture healing and bone formation in mice. J Surg Res, 220, 327, 2017.

103.

Velasco

M.A.

, Narvaez-Tovar

C.A.

, and Garzon-Alvarado

D.A.

Design, materials, and mechanobiology of biodegradable scaffolds for bone tissue engineering. Biomed Res Int, 2015, 729076, 2015.

104.

J.P.

, Habibovic

, van den Doel

, et al. Bone ingrowth in porous titanium implants produced by 3D fiber deposition. Biomaterials, 28, 2810, 2007.

105.

Karageorgiou

, and Kaplan

Porosity of 3D biomaterial scaffolds and osteogenesis. Biomaterials, 26, 5474, 2005.

106.

Klenke

F.M.

, Liu

, Yuan

, Hunziker

E.B.

, Siebenrock

K.A.

, and Hofstetter

Impact of pore size on the vascularization and osseointegration of ceramic bone substitutes in vivo. J Biomed Mater Res A, 85, 777, 2008.

107.

Druecke

, Langer

, Lamme

, et al. Neovascularization of poly(ether ester) block-copolymer scaffolds in vivo: long-term investigations using intravital fluorescent microscopy. J Biomed Mater Res A, 68, 10, 2004.

108.

Kokemueller

, Spalthoff

, Nolff

, et al. Prefabrication of vascularized bioartificial bone grafts in vivo for segmental mandibular reconstruction: experimental pilot study in sheep and first clinical application. Int J Oral Maxillofac Surg, 39, 379, 2010.

109.

Gerard

, and Doillon

C.J.

Facilitating tissue infiltration and angiogenesis in a tubular collagen scaffold. J Biomed Mater Res A, 93, 615, 2010.

110.

Feng

Y.F.

, Wang

, Li

, et al. Influence of architecture of beta-tricalcium phosphate scaffolds on biological performance in repairing segmental bone defects. PLoS One, 7, e49955, 2012.

111.

Day

R.M.

, Boccaccini

A.R.

, Shurey

, et al. Assessment of polyglycolic acid mesh and bioactive glass for soft-tissue engineering scaffolds. Biomaterials, 25, 5857, 2004.

112.

Day

R.M.

, Maquet

, Boccaccini

A.R.

, Jerome

, and Forbes

In vitro and in vivo analysis of macroporous biodegradable poly(D,L-lactide-co-glycolide) scaffolds containing bioactive glass. J Biomed Mater Res A, 75, 778, 2005.

113.

Leu

, and Leach

J.K.

Proangiogenic potential of a collagen/bioactive glass substrate. Pharm Res, 25, 1222, 2008.

114.

Morales-Hernandez

D.G.

, Genetos

D.C.

, Working

D.M.

, Murphy

K.C.

, and Leach

J.K.

Ceramic identity contributes to mechanical properties and osteoblast behavior on macroporous composite scaffolds. J Funct Biomater, 3, 382, 2012.

115.

Yao

, Nooeaid

, Detsch

, et al. Bioglass(R)/chitosan-polycaprolactone bilayered composite scaffolds intended for osteochondral tissue engineering. J Biomed Mater Res A, 102, 4510, 2014.

116.

Leu

, Stieger

S.M.

, Dayton

, Ferrara

K.W.

, and Leach

J.K.

Angiogenic response to bioactive glass promotes bone healing in an irradiated calvarial defect. Tissue Eng Part A, 15, 877, 2009.

117.

Hench

L.L.

, and Polak

J.M.

Third-generation biomedical materials. Science, 295, 1014, 2002.

118.

Rahaman

M.N.

, Day

D.E.

, Bal

B.S.

, et al. Bioactive glass in tissue engineering. Acta Biomater, 7, 2355, 2011.

119.

, Saiz

, Rahaman

M.N.

, and Tomsia

A.P.

Bioactive glass scaffolds for bone tissue engineering: state of the art and future perspectives. Mater Sci Eng C Mater Biol Appl, 31, 1245, 2011.

120.

Jia

, Lau

G.Y.

, Huang

, Zhang

, Tomsia

A.P.

, and Fu

Bioactive glass for large bone repair. Adv Healthc Mater, 4, 2842, 2015.

121.

Jia

, Lau

G.Y.

, Huang

, Zhang

, Tomsia

A.P.

, and Fu

Cellular response to 3-D printed bioactive silicate and borosilicate glass scaffolds. J Biomed Mater Res B Appl Biomater, 107, 818, 2019.

122.

, Zheng

, Huang

, et al. Thermally triggered injectable chitosan/silk fibroin/bioactive glass nanoparticle hydrogels for in-situ bone formation in rat calvarial bone defects. Acta Biomater, 91, 60, 2019.

123.

Westhauser

, Widholz

, Nawaz

, et al. Favorable angiogenic properties of the borosilicate bioactive glass 0106-B1 result in enhanced in vivo osteoid formation compared to 45S5 Bioglass. Biomater Sci, 7, 5161, 2019.

124.

Shi

, Fujie

, Saito

, et al. Periosteum-mimetic structures made from freestanding microgrooved nanosheets. Adv Mater, 26, 3290, 2014.

125.

Frohbergh

M.E.

, Katsman

, Botta

G.P.

, et al. Electrospun hydroxyapatite-containing chitosan nanofibers crosslinked with genipin for bone tissue engineering. Biomaterials, 33, 9167, 2012.

126.

Xin

, Gu

, Cheng

, et al. Inorganic strengthened hydrogel membrane as regenerative periosteum. ACS Appl Mater Interfaces, 9, 41168, 2017.

127.

Jin

, Li

, Lou

, et al. In vivo vascularization of MSC-loaded porous hydroxyapatite constructs coated with VEGF-functionalized collagen/heparin multilayers. Sci Rep, 6, 19871, 2016.

128.

Anitha

, Menon

, Sivanarayanan

T.B.

, et al. Bioinspired composite matrix containing hydroxyapatite-silica core-shell nanorods for bone tissue engineering. ACS Appl Mater Interfaces, 9, 26707, 2017.

129.

Shi

, Xia

, Chen

, et al. Europium-doped mesoporous silica nanosphere as an immune-modulating osteogenesis/angiogenesis agent. Biomaterials, 144, 176, 2017.

130.

Ilyas

, Velton

, Shah

, et al. Rapid regeneration of vascularized bone by nanofabricated amorphous silicon oxynitrophosphide (SiONP) overlays. J Biomed Nanotechnol, 15, 1241, 2019.

131.

Chen

, Zheng

, Zhou

, et al. Developing a strontium-releasing graphene oxide-/collagen-based organic-inorganic nanobiocomposite for large bone defect regeneration via MAPK signaling pathway. ACS Appl Mater Interfaces, 11, 15986, 2019.

132.

Bayer

E.A.

, Gottardi

, Fedorchak

M.V.

, and Little

S.R.

The scope and sequence of growth factor delivery for vascularized bone tissue regeneration. J Control Release, 219, 129, 2015.

133.

Street

, Bao

, deGuzman

, et al. Vascular endothelial growth factor stimulates bone repair by promoting angiogenesis and bone turnover. Proc Natl Acad Sci U S A, 99, 9656, 2002.

134.

Donati

, Di Bella

, Lucarelli

, et al. OP-1 application in bone allograft integration: preliminary results in sheep experimental surgery. Injury, 39 Suppl 2, S65, 2008.

135.

Lee

J.H.

, Lee

Y.J.

, Cho

H.J.

, Kim

D.W.

, and Shin

The incorporation of bFGF mediated by heparin into PCL/gelatin composite fiber meshes for guided bone regeneration. Drug Deliv Transl Res, 5, 146, 2015.

136.

Kigami

, Sato

, Tsuchiya

, et al. Effect of basic fibroblast growth factor on angiogenesis and bone regeneration in non-critical-size bone defects in rat calvaria. J Oral Sci, 56, 17, 2014.

137.

Eckardt

, Ding

, Lind

, Hansen

E.S.

, Christensen

K.S.

, and Hvid

Recombinant human vascular endothelial growth factor enhances bone healing in an experimental nonunion model. J Bone Joint Surg Br, 87, 1434, 2005.

138.

Yonamine

, Matsuyama

, Sonomura

, et al. Effectable application of vascular endothelial growth factor to critical sized rat calvaria defects. Oral Surg Oral Med Oral Pathol Oral Radiol Endod, 109, 225, 2010.

139.

Orth

, Shenar

A.K.

, Scheuer

, et al. VEGF-loaded mineral-coated microparticles improve bone repair and are associated with increased expression of epo and RUNX-2 in murine non-unions. J Orthop Res, 37, 821, 2019.

140.

Ogilvie

C.M.

, Lu

, Marcucio

, et al. Vascular endothelial growth factor improves bone repair in a murine nonunion model. Iowa Orthop J, 32, 90, 2012.

141.

Ahlfeld

, Schuster

F.P.

, Forster

, et al. 3D plotted biphasic bone scaffolds for growth factor delivery: biological characterization in vitro and in vivo. Adv Healthc Mater, 8, e1801512, 2019.

142.

Huang

Y.H.

, Polimeni

, Qahash

, and Wikesjo

U.M.

Bone morphogenetic proteins and osseointegration: current knowledge—future possibilities. Periodontol 2000, 47, 206, 2008.

143.

Kempen

D.H.

, Lu

, Heijink

, et al. Effect of local sequential VEGF and BMP-2 delivery on ectopic and orthotopic bone regeneration. Biomaterials, 30, 2816, 2009.

144.

Haubruck

, Kammerer

, Korff

, et al. The treatment of nonunions with application of BMP-7 increases the expression pattern for angiogenic and inflammable cytokines: a matched pair analysis. J Inflamm Res, 9, 155, 2016.

145.

Nandi

S.K.

, Kundu

, and Basu

Protein growth factors loaded highly porous chitosan scaffold: a comparison of bone healing properties. Mater Sci Eng C Mater Biol Appl, 33, 1267, 2013.

146.

Goshima

, Nakase

, Xu

, Matsumoto

, and Tsuchiya

Repair of segmental bone defects in rabbit tibia promoted by a complex of beta-tricalcium phosphate and hepatocyte growth factor. J Orthop Sci, 17, 639, 2012.

147.

Sefcik

L.S.

, Petrie Aronin

C.E.

, Wieghaus

K.A.

, and Botchwey

E.A.

Sustained release of sphingosine 1-phosphate for therapeutic arteriogenesis and bone tissue engineering. Biomaterials, 29, 2869, 2008.

148.

Das

, Barker

D.A.

, Wang

, Lau

C.M.

, Lin

, and Botchwey

E.A.

Delivery of bioactive lipids from composite microgel-microsphere injectable scaffolds enhances stem cell recruitment and skeletal repair. PLoS One, 9, e101276, 2014.

149.

Huang

, Das

, Barker

, et al. Local delivery of FTY720 accelerates cranial allograft incorporation and bone formation. Cell Tissue Res, 347, 553, 2012.

150.

Yin

, Gong

, Sun

, et al. Angiopoietin 2 promotes angiogenesis in tissue-engineered bone and improves repair of bone defects by inducing autophagy. Biomed Pharmacother, 105, 932, 2018.

151.

Kilian

, Fuhrmann

, Alt

, et al. Plasma transglutaminase factor XIII induces microvessel ingrowth into biodegradable hydroxyapatite implants in rats. Biomaterials, 26, 1819, 2005.

152.

Santos

S.G.

, Lamghari

, Almeida

C.R.

, et al. Adsorbed fibrinogen leads to improved bone regeneration and correlates with differences in the systemic immune response. Acta Biomater, 9, 7209, 2013.

153.

Kim

E.S.

, Kim

J.J.

, and Park

E.J.

Angiogenic factor-enriched platelet-rich plasma enhances in vivo bone formation around alloplastic graft material. J Adv Prosthodont, 2, 7, 2010.

154.

Zhang

Z.Y.

, Huang

A.W.

, Fan

J.J.

, et al. The potential use of allogeneic platelet-rich plasma for large bone defect treatment: immunogenicity and defect healing efficacy. Cell Transplant, 22, 175, 2013.

155.

Miyazono

, and Takaku

Platelet-derived growth factors. Blood Rev, 3, 269, 1989.

156.

, Chen

, Li

, et al. Improving bone repair of femoral and radial defects in rabbit by incorporating PRP into PLGA/CPC composite scaffold with unidirectional pore structure. J Biomed Mater Res A, 103, 1312, 2015.

157.

Fukui

, Ii

, Shoji

, et al. Therapeutic effect of local administration of low-dose simvastatin-conjugated gelatin hydrogel for fracture healing. J Bone Miner Res, 27, 1118, 2012.

158.

Allon

, Anavi

, and Allon

D.M.

Topical simvastatin improves the pro-angiogenic and pro-osteogenic properties of bioglass putty in the rat calvaria critical-size model. J Oral Implantol, 40, 251, 2014.

159.

Monjo

, Rubert

, Wohlfahrt

J.C.

, Ronold

H.J.

, Ellingsen

J.E.

, and Lyngstadaas

S.P.

In vivo performance of absorbable collagen sponges with rosuvastatin in critical-size cortical bone defects. Acta Biomater, 6, 1405, 2010.

160.

Guzey

, Aykan

, Ozturk

, Avsever

, Karslioglu

, and Ertan

The effects of desferroxamine on bone and bone graft healing in critical-size bone defects. Ann Plast Surg, 77, 560, 2016.

161.

Zhang

, Li

, Deng

, and Qiu

New bone formation in a true bone ceramic scaffold loaded with desferrioxamine in the treatment of segmental bone defect: a preliminary study. J Orthop Sci, 17, 289, 2012.

162.

Yan

, Chen

, Zhang

, et al. Vascularized 3D printed scaffolds for promoting bone regeneration. Biomaterials, 190–191, 97, 2019.

163.

Donneys

, Nelson

N.S.

, Page

E.E.

, et al. Targeting angiogenesis as a therapeutic means to reinforce osteocyte survival and prevent nonunions in the aftermath of radiotherapy. Head Neck, 37, 1261, 2015.

164.

, Adayi

, Liu

, et al. Asymmetric collagen/chitosan membrane containing minocycline-loaded chitosan nanoparticles for guided bone regeneration. Sci Rep, 6, 31822, 2016.

165.

Garcia

J.R.

, Clark

A.Y.

, and Garcia

A.J.

Integrin-specific hydrogels functionalized with VEGF for vascularization and bone regeneration of critical-size bone defects. J Biomed Mater Res A, 104, 889, 2016.

166.

, Xu

, Teng

, et al. Investigation of angiogenesis in bioactive 3-dimensional poly(d,l-lactide-co-glycolide)/nano-hydroxyapatite scaffolds by in vivo multiphoton microscopy in murine calvarial critical bone defect. Acta Biomater, 42, 389, 2016.

167.

, Fan

, Liu

, et al. The promotion of bone regeneration through positive regulation of angiogenic-osteogenic coupling using microRNA-26a. Biomaterials, 34, 5048, 2013.

168.

Jia

, Yang

, Song

, et al. Incorporation of osteogenic and angiogenic small interfering RNAs into chitosan sponge for bone tissue engineering. Int J Nanomedicine, 9, 5307, 2014.

169.

Yoshizuka

, Nakasa

, Kawanishi

, et al. Inhibition of microRNA-222 expression accelerates bone healing with enhancement of osteogenesis, chondrogenesis, and angiogenesis in a rat refractory fracture model. J Orthop Sci, 21, 852, 2016.

170.

Geiger

, Bertram

, Berger

, et al. Vascular endothelial growth factor gene-activated matrix (VEGF165-GAM) enhances osteogenesis and angiogenesis in large segmental bone defects. J Bone Miner Res, 20, 2028, 2005.

171.

Xiang

, Ma

, Wei

, et al. Effect of lentiviral vector overexpression alpha-calcitonin gene-related peptide on titanium implant osseointegration in alpha-CGRP-deficient mice. Bone, 94, 135, 2017.

172.

Haegerstrand

, Dalsgaard

C.J.

, Jonzon

, Larsson

, and Nilsson

Calcitonin gene-related peptide stimulates proliferation of human endothelial cells. Proc Natl Acad Sci U S A, 87, 3299, 1990.

173.

Liang

, Zhuo

, Tang

, Wei

, and Li

Calcitonin gene-related peptide stimulates proliferation and osteogenic differentiation of osteoporotic rat-derived bone mesenchymal stem cells. Mol Cell Biochem, 402, 101, 2015.

174.

Jia

, Zhang

S.J.

, Wang

X.D.

, et al. Calcitonin gene-related peptide enhances osteogenic differentiation and recruitment of bone marrow mesenchymal stem cells in rats. Exp Ther Med, 18, 1039, 2019.

175.

Wang

, Lin

, Zhang

, et al. alphaCGRP affects BMSCs' migration and osteogenesis via the Hippo-YAP Pathway. Cell Transplant, 28, 1420, 2019.

176.

Guo

, Chen

, Jiang

, et al. CGRP regulates the dysfunction of peri-implant angiogenesis and osseointegration in streptozotocin-induced diabetic rats. Bone, 2020 [Epub ahead of print]; DOI: 10.1016/j.bone.2020.115464.

177.

, Xu

, Yao

, et al. Calcitonin gene-related peptide enhances distraction osteogenesis by increasing angiogenesis. Tissue Eng Part A, 2020 [Epub ahead of print]; DOI: 10.1089/ten.TEA.2020.0009.

178.

Zhang

, Xu

, Ruan

Y.C.

, et al. Implant-derived magnesium induces local neuronal production of CGRP to improve bone-fracture healing in rats. Nat Med, 22, 1160, 2016.

179.

Patel

Z.S.

, Young

, Tabata

, Jansen

J.A.

, Wong

M.E.

, and Mikos

A.G.

Dual delivery of an angiogenic and an osteogenic growth factor for bone regeneration in a critical size defect model. Bone, 43, 931, 2008.

180.

Cai

W.X.

, Zheng

L.W.

, Li

C.L.

, et al. Effect of different rhBMP-2 and TG-VEGF ratios on the formation of heterotopic bone and neovessels. Biomed Res Int, 2014, 571510, 2014.

181.

Bao

, Zhu

, Huang

, et al. 3D biomimetic artificial bone scaffolds with dual-cytokines spatiotemporal delivery for large weight-bearing bone defect repair. Sci Rep, 7, 7814, 2017.

182.

Sharmin

, Adams

, Pensak

, Dukas

, Lieberman

, and Khan

Biofunctionalizing devitalized bone allografts through polymer-mediated short and long term growth factor delivery. J Biomed Mater Res A, 103, 2847, 2015.

183.

Choi

, Jeong

B.C.

, Hur

S.W.

, Kim

J.W.

, Lee

K.B.

, and Koh

J.T.

The angiopoietin-1 variant COMP-Ang1 enhances BMP2-induced bone regeneration with recruiting pericytes in critical sized calvarial defects. PLoS One, 10, e0140502, 2015.

184.

Raftery

R.M.

, Mencia Castano

, Chen

, et al. Translating the role of osteogenic-angiogenic coupling in bone formation: highly efficient chitosan-pDNA activated scaffolds can accelerate bone regeneration in critical-sized bone defects. Biomaterials, 149, 116, 2017.

185.

Lee

, Wang

, Pan

H.C.

, et al. Combining smoothened agonist and NEL-like protein-1 enhances bone healing. Plast Reconstr Surg, 139, 1385, 2017.

186.

Ratanavaraporn

, Furuya

, Kohara

, and Tabata

Synergistic effects of the dual release of stromal cell-derived factor-1 and bone morphogenetic protein-2 from hydrogels on bone regeneration. Biomaterials, 32, 2797, 2011.

187.

, Xu

, Sun

, Gong

, and Zhao

Dual delivery of BMP-2 and bFGF from a new nano-composite scaffold, loaded with vascular stents for large-size mandibular defect regeneration. Int J Mol Sci, 14, 12714, 2013.

188.

K.W.

, Jiang

, Gagnon

K.A.

, Nelson

, and Laurencin

C.T.

Small-molecule based musculoskeletal regenerative engineering. Trends Biotechnol, 32, 74, 2014.

189.

Segar

C.E.

, Ogle

M.E.

, and Botchwey

E.A.

Regulation of angiogenesis and bone regeneration with natural and synthetic small molecules. Curr Pharm Des, 19, 3403, 2013.

190.

Woo

K.M.

, Jung

H.M.

, Oh

J.H.

, et al. Synergistic effects of dimethyloxalylglycine and butyrate incorporated into alpha-calcium sulfate on bone regeneration. Biomaterials, 39, 1, 2015.

191.

Hernandez

, Reyes

, Sanchez

, Rodriguez-Evora

, Delgado

, and Evora

In vivo osteogenic response to different ratios of BMP-2 and VEGF released from a biodegradable porous system. J Biomed Mater Res A, 100, 2382, 2012.

192.

Perez

R.A.

, and Kim

H.W.

Core-shell designed scaffolds for drug delivery and tissue engineering. Acta Biomater, 21, 2, 2015.

193.

Rao

R.R.

, and Stegemann

J.P.

Cell-based approaches to the engineering of vascularized bone tissue. Cytotherapy, 15, 1309, 2013.

194.

Asahara

, Murohara

, Sullivan

, et al. Isolation of putative progenitor endothelial cells for angiogenesis. Science, 275, 964, 1997.

195.

Young

P.P.

, Vaughan

D.E.

, and Hatzopoulos

A.K.

Biologic properties of endothelial progenitor cells and their potential for cell therapy. Prog Cardiovasc Dis, 49, 421, 2007.

196.

Rozen

, Bick

, Bajayo

, et al. Transplanted blood-derived endothelial progenitor cells (EPC) enhance bridging of sheep tibia critical size defects. Bone, 45, 918, 2009.

197.

Atesok

, Li

, Stewart

D.J.

, and Schemitsch

E.H.

Endothelial progenitor cells promote fracture healing in a segmental bone defect model. J Orthop Res, 28, 1007, 2010.

198.

, Atesok

, Nauth

, et al. Endothelial progenitor cells for fracture healing: a microcomputed tomography and biomechanical analysis. J Orthop Trauma, 25, 467, 2011.

199.

Chandrasekhar

K.S.

, Zhou

, Zeng

, et al. Blood vessel wall-derived endothelial colony-forming cells enhance fracture repair and bone regeneration. Calcif Tissue Int, 89, 347, 2011.

200.

Beger

, Blatt

, Pabst

A.M.

, et al. Biofunctionalization of synthetic bone substitutes with angiogenic stem cells: influence on regeneration of critical-size bone defects in an in vivo murine model. J Craniomaxillofac Surg, 46, 1601, 2018.

201.

Eldesoqi

, Seebach

, Nguyen Ngoc

, et al. High calcium bioglass enhances differentiation and survival of endothelial progenitor cells, inducing early vascularization in critical size bone defects. PLoS One, 8, e79058, 2013.

202.

, Nauth

, Li

, Qamirani

, Atesok

, and Schemitsch

E.H.

Expression of VEGF gene isoforms in a rat segmental bone defect model treated with EPCs. J Orthop Trauma, 26, 689, 2012.

203.

, Nauth

, Gandhi

, Syed

, and Schemitsch

E.H.

BMP-2 mRNA expression after endothelial progenitor cell therapy for fracture healing. J Orthop Trauma, 28 Suppl 1, S24, 2014.

204.

Smadja

D.M.

, Bieche

, Silvestre

J.S.

, et al. Bone morphogenetic proteins 2 and 4 are selectively expressed by late outgrowth endothelial progenitor cells and promote neoangiogenesis. Arterioscler Thromb Vasc Biol, 28, 2137, 2008.

205.

Giles

E.M.

, Godbout

, Chi

, et al. Subtypes of endothelial progenitor cells affect healing of segmental bone defects differently. Int Orthop, 41, 2337, 2017.

206.

Dosier

C.R.

, Uhrig

B.A.

, Willett

N.J.

, et al. Effect of cell origin and timing of delivery for stem cell-based bone tissue engineering using biologically functionalized hydrogels. Tissue Eng Part A, 21, 156, 2015.

207.

Bates

B.D.

, Godbout

, Ramnaraign

D.J.

, Schemitsch

E.H.

, and Nauth

Delayed endothelial progenitor cell therapy promotes bone defect repair in a clinically relevant rat model. Stem Cells Int, 2017, 7923826, 2017.

208.

Wang

, Cheng

, Tang

, et al. The synergistic effect of bone forming peptide-1 and endothelial progenitor cells to promote vascularization of tissue engineered bone. J Biomed Mater Res A, 106, 1008, 2018.

209.

Takahashi

, Kalka

, Masuda

, et al. Ischemia- and cytokine-induced mobilization of bone marrow-derived endothelial progenitor cells for neovascularization. Nat Med, 5, 434, 1999.

210.

Kawamoto

, Tkebuchava

, Yamaguchi

, et al. Intramyocardial transplantation of autologous endothelial progenitor cells for therapeutic neovascularization of myocardial ischemia. Circulation, 107, 461, 2003.

211.

Matsumoto

, Kawamoto

, Kuroda

, et al. Therapeutic potential of vasculogenesis and osteogenesis promoted by peripheral blood CD34-positive cells for functional bone healing. Am J Pathol, 169, 1440, 2006.

212.

Sekiguchi

, Ii

, and Losordo

D.W.

The relative potency and safety of endothelial progenitor cells and unselected mononuclear cells for recovery from myocardial infarction and ischemia. J Cell Physiol, 219, 235, 2009.

213.

Fukui

, Mifune

, Matsumoto

, et al. Superior potential of CD34-positive cells compared to total mononuclear cells for healing of nonunion following bone fracture. Cell Transplant, 24, 1379, 2015.

214.

Mifuji

, Ishikawa

, Kamei

, et al. Angiogenic conditioning of peripheral blood mononuclear cells promotes fracture healing. Bone Joint Res, 6, 489, 2017.

215.

Hassan

W.U.

, Greiser

, and Wang

Role of adipose-derived stem cells in wound healing. Wound Repair Regen, 22, 313, 2014.

216.

Shoji

, Ii

, Mifune

, et al. Local transplantation of human multipotent adipose-derived stem cells accelerates fracture healing via enhanced osteogenesis and angiogenesis. Lab Invest, 90, 637, 2010.

217.

Laschke

M.W.

, Schank

T.E.

, Scheuer

, et al. Three-dimensional spheroids of adipose-derived mesenchymal stem cells are potent initiators of blood vessel formation in porous polyurethane scaffolds. Acta Biomater, 9, 6876, 2013.

218.

Laschke

M.W.

, Schank

T.E.

, Scheuer

, et al. In vitro osteogenic differentiation of adipose-derived mesenchymal stem cell spheroids impairs their in vivo vascularization capacity inside implanted porous polyurethane scaffolds. Acta Biomater, 10, 4226, 2014.

219.

Zou

, Chen

, Quanbeck

, Bechtold

J.E.

, and Kaufman

D.S.

Angiogenic activity mediates bone repair from human pluripotent stem cell-derived osteogenic cells. Sci Rep, 6, 22868, 2016.

220.

Levi

, Nelson

E.R.

, Hyun

J.S.

, et al. Enhancement of human adipose-derived stromal cell angiogenesis through knockdown of a BMP-2 inhibitor. Plast Reconstr Surg, 129, 53, 2012.

221.

Caetano

, Wang

, Murashima

, et al. Tissue constructs with human adipose-derived mesenchymal stem cells to treat bone defects in rats. Materials (Basel), 12, 2268, 2019.

222.

Mousaei Ghasroldasht

, Matin

M.M.

, Kazemi Mehrjerdi

, et al. Application of mesenchymal stem cells to enhance non-union bone fracture healing. J Biomed Mater Res A, 107, 301, 2019.

223.

Ben-Ari

, Rivkin

, Frishman

, Gaberman

, Levdansky

, and Gorodetsky

Isolation and implantation of bone marrow-derived mesenchymal stem cells with fibrin micro beads to repair a critical-size bone defect in mice. Tissue Eng Part A, 15, 2537, 2009.

224.

, Huang

, Li

, Zhang

, and Liu

Mobilization of transplanted bone marrow mesenchymal stem cells by erythropoietin facilitates the reconstruction of segmental bone defect. Stem Cells Int, 2019, 5750967, 2019.

225.

Lee

J.Y.

, Choi

M.H.

, Shin

E.Y.

, and Kang

Y.K.

Autologous mesenchymal stem cells loaded in Gelfoam((R)) for structural bone allograft healing in rabbits. Cell Tissue Bank, 12, 299, 2011.

226.

Xing

, Jin

, Hou

, et al. Establishment of a bilateral femoral large segmental bone defect mouse model potentially applicable to basic research in bone tissue engineering. J Surg Res, 192, 454, 2014.

227.

, Zhang

Z.Y.

, Zhu

H.G.

, Qiu

, Jiang

, and Guo

Experimental study on reconstruction of segmental mandible defects using tissue engineered bone combined bone marrow stromal cells with three-dimensional tricalcium phosphate. J Craniofac Surg, 18, 800, 2007.

228.

Zhang

Z.Y.

, Teoh

S.H.

, Chong

M.S.

, et al. Neo-vascularization and bone formation mediated by fetal mesenchymal stem cell tissue-engineered bone grafts in critical-size femoral defects. Biomaterials, 31, 608, 2010.

229.

Maraldi

, Riccio

, Pisciotta

, et al. Human amniotic fluid-derived and dental pulp-derived stem cells seeded into collagen scaffold repair critical-size bone defects promoting vascularization. Stem Cell Res Ther, 4, 53, 2013.

230.

Burdette

A.J.

, Guda

, Thompson

M.E.

, Banas

, and Sheppard

A novel secretome biotherapeutic influences regeneration in critical size bone defects. J Craniofac Surg, 29, 116, 2018.

231.

Bieback

, Wuchter

, Besser

, et al. Mesenchymal stromal cells (MSCs): science and f(r)iction. J Mol Med (Berl), 90, 773, 2012.

232.

van Gastel

, Torrekens

, Roberts

S.J.

, et al. Engineering vascularized bone: osteogenic and proangiogenic potential of murine periosteal cells. Stem Cells, 30, 2460, 2012.

233.

Fraser

J.K.

, Wulur

, Alfonso

, and Hedrick

M.H.

Fat tissue: an underappreciated source of stem cells for biotechnology. Trends Biotechnol, 24, 150, 2006.

234.

Cheung

W.K.

, Working

D.M.

, Galuppo

L.D.

, and Leach

J.K.

Osteogenic comparison of expanded and uncultured adipose stromal cells. Cytotherapy, 12, 554, 2010.

235.

Muller

A.M.

, Mehrkens

, Schafer

D.J.

, et al. Towards an intraoperative engineering of osteogenic and vasculogenic grafts from the stromal vascular fraction of human adipose tissue. Eur Cell Mater, 19, 127, 2010.

236.

James

A.W.

, Zara

J.N.

, Zhang

, et al. Perivascular stem cells: a prospectively purified mesenchymal stem cell population for bone tissue engineering. Stem Cells Transl Med, 1, 510, 2012.

237.

James

A.W.

, Zara

J.N.

, Corselli

, et al. An abundant perivascular source of stem cells for bone tissue engineering. Stem Cells Transl Med, 1, 673, 2012.

238.

Kargozar

, Lotfibakhshaiesh

, Ai

, et al. Strontium- and cobalt-substituted bioactive glasses seeded with human umbilical cord perivascular cells to promote bone regeneration via enhanced osteogenic and angiogenic activities. Acta Biomater, 58, 502, 2017.

239.

Crisan

, Yap

, Casteilla

, et al. A perivascular origin for mesenchymal stem cells in multiple human organs. Cell Stem Cell, 3, 301, 2008.

240.

Maisonpierre

P.C.

, Suri

, Jones

P.F.

, et al. Angiopoietin-2, a natural antagonist for Tie2 that disrupts in vivo angiogenesis. Science, 277, 55, 1997.

241.

Lin

C.S.

, and Lue

T.F.

Defining vascular stem cells. Stem Cells Dev, 22, 1018, 2013.

242.

Tawonsawatruk

, West

C.C.

, Murray

I.R.

, Soo

, Peault

, and Simpson

A.H.

Adipose derived pericytes rescue fractures from a failure of healing—non-union. Sci Rep, 6, 22779, 2016.

243.

Supakul

, Yao

, Ochi

, et al. Pericytes as a source of osteogenic cells in bone fracture healing. Int J Mol Sci, 20, 1079, 2019.

244.

Chen

, Fang

, Qi

, et al. Combined use of mesenchymal stromal cell sheet transplantation and local injection of SDF-1 for bone repair in a rat nonunion model. Cell Transplant, 25, 1801, 2016.

245.

Kanczler

J.M.

, Ginty

P.J.

, Barry

J.J.

, et al. The effect of mesenchymal populations and vascular endothelial growth factor delivered from biodegradable polymer scaffolds on bone formation. Biomaterials, 29, 1892, 2008.

246.

Smith

E.L.

, Kanczler

J.M.

, Gothard

, et al. Evaluation of skeletal tissue repair, part 2: enhancement of skeletal tissue repair through dual-growth-factor-releasing hydrogels within an ex vivo chick femur defect model. Acta Biomater, 10, 4197, 2014.

247.

Heo

S.C.

, Shin

W.C.

, Lee

M.J.

, et al. Periostin accelerates bone healing mediated by human mesenchymal stem cell-embedded hydroxyapatite/tricalcium phosphate scaffold. PLoS One, 10, e0116698, 2015.

248.

Wang

, Hu

, Li

, et al. Sheet of osteoblastic cells combined with platelet-rich fibrin improves the formation of bone in critical-size calvarial defects in rabbits. Br J Oral Maxillofac Surg, 54, 316, 2016.

249.

Tee

B.C.

, Desai

K.G.

, Kennedy

K.S.

, et al. Reconstructing jaw defects with MSCs and PLGA-encapsulated growth factors. Am J Transl Res, 8, 2693, 2016.

250.

Carvalho

M.S.

, Poundarik

A.A.

, Cabral

J.M.S.

, da Silva

C.L.

, and Vashishth

Biomimetic matrices for rapidly forming mineralized bone tissue based on stem cell-mediated osteogenesis. Sci Rep, 8, 14388, 2018.

251.

Jahangir

, Hosseini

, Mostafaei

, Sayahpour

F.A.

, and Baghaban Eslaminejad

3D-porous beta-tricalcium phosphate-alginate-gelatin scaffold with DMOG delivery promotes angiogenesis and bone formation in rat calvarial defects. J Mater Sci Mater Med, 30, 1, 2018.

252.

Guo

, Zheng

, Kulbatski

, et al. Bone regeneration with active angiogenesis by basic fibroblast growth factor gene transfected mesenchymal stem cells seeded on porous beta-TCP ceramic scaffolds. Biomed Mater, 1, 93, 2006.

253.

Kumar

, Wan

, Ramaswamy

, Clemens

T.L.

, and Ponnazhagan

Mesenchymal stem cells expressing osteogenic and angiogenic factors synergistically enhance bone formation in a mouse model of segmental bone defect. Mol Ther, 18, 1026, 2010.

254.

Geiger

, Beverungen

, Lorenz

, Wieland

, Fehr

, and Kasten

Bone substitute effect on vascularization and bone remodeling after application of phVEGF165 transfected BMSC. J Funct Biomater, 3, 313, 2012.

255.

Kasten

, Beverungen

, Lorenz

, Wieland

, Fehr

, and Geiger

Comparison of platelet-rich plasma and VEGF-transfected mesenchymal stem cells on vascularization and bone formation in a critical-size bone defect. Cells Tissues Organs, 196, 523, 2012.

256.

Cao

, Liu

, et al. Experimental repair of segmental bone defects in rabbits by angiopoietin-1 gene transfected MSCs seeded on porous beta-TCP scaffolds. J Biomed Mater Res B Appl Biomater, 100, 1229, 2012.

257.

Gao

, Usas

, Proto

J.D.

, et al. Role of donor and host cells in muscle-derived stem cell-mediated bone repair: differentiation vs. paracrine effects. FASEB J, 28, 3792, 2014.

258.

Lin

C.Y.

, Chang

Y.H.

, Sung

L.Y.

, et al. Long-term tracking of segmental bone healing mediated by genetically engineered adipose-derived stem cells: focuses on bone remodeling and potential side effects. Tissue Eng Part A, 20, 1392, 2014.

259.

Kang

M.L.

, Kim

J.E.

, and Im

G.I.

Vascular endothelial growth factor-transfected adipose-derived stromal cells enhance bone regeneration and neovascularization from bone marrow stromal cells. J Tissue Eng Regen Med, 11, 3337, 2017.

260.

Huang

, Tang

, Yehling

, and Zhang

Overexpressing sonic hedgehog peptide restores periosteal bone formation in a murine bone allograft transplantation model. Mol Ther, 22, 430, 2014.

261.

, Vandevord

P.J.

, Gong

, et al. Promotion of osteogenesis in tissue-engineered bone by pre-seeding endothelial progenitor cells-derived endothelial cells. J Orthop Res, 26, 1147, 2008.

262.

Cornejo

, Sahar

D.E.

, Stephenson

S.M.

, et al. Effect of adipose tissue-derived osteogenic and endothelial cells on bone allograft osteogenesis and vascularization in critical-sized calvarial defects. Tissue Eng Part A, 18, 1552, 2012.

263.

Johari

, Ahmadzadehzarajabad

, Azami

, et al. Repair of rat critical size calvarial defect using osteoblast-like and umbilical vein endothelial cells seeded in gelatin/hydroxyapatite scaffolds. J Biomed Mater Res A, 104, 1770, 2016.

264.

, Wang

, Cao

, et al. Coculture of peripheral blood CD34+ cell and mesenchymal stem cell sheets increase the formation of bone in calvarial critical-size defects in rabbits. Br J Oral Maxillofac Surg, 52, 134, 2014.

265.

Wang

, Xu

, Chang

, et al. Relative contributions of adipose-resident CD146(+) pericytes and CD34(+) adventitial progenitor cells in bone tissue engineering. NPJ Regen Med, 4, 1, 2019.

266.

Henrich

, Seebach

, Kaehling

, et al. Simultaneous cultivation of human endothelial-like differentiated precursor cells and human marrow stromal cells on beta-tricalcium phosphate. Tissue Eng Part C Methods, 15, 551, 2009.

267.

Seebach

, Henrich

, Wilhelm

, Barker

J.H.

, and Marzi

Endothelial progenitor cells improve directly and indirectly early vascularization of mesenchymal stem cell-driven bone regeneration in a critical bone defect in rats. Cell Transplant, 21, 1667, 2012.

268.

Eldesoqi

, Henrich

, El-Kady

A.M.

, et al. Safety evaluation of a bioglass-polylactic acid composite scaffold seeded with progenitor cells in a rat skull critical-size bone defect. PLoS One, 9, e87642, 2014.

269.

Amini

A.R.

, Xu

T.O.

, Chidambaram

R.M.

, and Nukavarapu

S.P.

Oxygen tension-controlled matrices with osteogenic and vasculogenic cells for vascularized bone regeneration in vivo. Tissue Eng Part A, 22, 610, 2016.

270.

Peng

, Chen

, Peng

, et al. Bone marrow mesenchymal stem cells and endothelial progenitor cells co-culture enhances large segment bone defect repair. J Biomed Nanotechnol, 15, 742, 2019.

271.

Squier

C.A.

, Ghoneim

, and Kremenak

C.R.

Ultrastructure of the periosteum from membrane bone. J Anat, 171, 233, 1990.

272.

Arnsdorf

E.J.

, Jones

L.M.

, Carter

D.R.

, and Jacobs

C.R.

The periosteum as a cellular source for functional tissue engineering. Tissue Eng Part A, 15, 2637, 2009.

273.

Masquelet

A.C.

, Fitoussi

, Begue

, and Muller

G.P.

[Reconstruction of the long bones by the induced membrane and spongy autograft]. Ann Chir Plast Esthet, 45, 346, 2000.

274.

Gruber

H.E.

, Gettys

F.K.

, Montijo

H.E.

, et al. Genomewide molecular and biologic characterization of biomembrane formation adjacent to a methacrylate spacer in the rat femoral segmental defect model. J Orthop Trauma, 27, 290, 2013.

275.

Cuthbert

R.J.

, Churchman

S.M.

, Tan

H.B.

, McGonagle

, Jones

, and Giannoudis

P.V.

Induced periosteum a complex cellular scaffold for the treatment of large bone defects. Bone, 57, 484, 2013.

276.

Henrich

, Seebach

, Nau

, et al. Establishment and characterization of the Masquelet induced membrane technique in a rat femur critical-sized defect model. J Tissue Eng Regen Med, 10, E382, 2016.

277.

Hoffman

M.D.

, Xie

, Zhang

, and Benoit

D.S.

The effect of mesenchymal stem cells delivered via hydrogel-based tissue engineered periosteum on bone allograft healing. Biomaterials, 34, 8887, 2013.

278.

Kim

, Bedigrew

, Guda

, et al. Novel osteoinductive photo-cross-linkable chitosan-lactide-fibrinogen hydrogels enhance bone regeneration in critical size segmental bone defects. Acta Biomater, 10, 5021, 2014.

279.

Chun

Y.Y.

, Wang

J.K.

, Tan

N.S.

, Chan

P.P.

, Tan

T.T.

, and Choong

A periosteum-inspired 3D hydrogel-bioceramic composite for enhanced bone regeneration. Macromol Biosci, 16, 276, 2016.

280.

Romero

, Travers

J.K.

, Asbury

, et al. Combined delivery of FGF-2, TGF-beta1, and adipose-derived stem cells from an engineered periosteum to a critical-sized mouse femur defect. J Biomed Mater Res A, 105, 900, 2017.

281.

Wang

, Zhai

, Nuzzo

, Yang

, and Zhang

Layer-by-layer nanofiber-enabled engineering of biomimetic periosteum for bone repair and reconstruction. Biomaterials, 182, 279, 2018.

282.

El Backly

R.M.

, Zaky

S.H.

, Muraglia

, et al. A platelet-rich plasma-based membrane as a periosteal substitute with enhanced osteogenic and angiogenic properties: a new concept for bone repair. Tissue Eng Part A, 19, 152, 2013.

283.

Zhang

, Gao

, Li

, et al. Engineering biomimetic periosteum with beta-TCP scaffolds to promote bone formation in calvarial defects of rats. Stem Cell Res Ther, 8, 134, 2017.

284.

Kang

, Ren

, and Yang

Engineering vascularized bone grafts by integrating a biomimetic periosteum and beta-TCP scaffold. ACS Appl Mater Interfaces, 6, 9622, 2014.

285.

Buehrer

, Balzer

, Arnold

, et al. Combination of BMP2 and MSCs significantly increases bone formation in the rat arterio-venous loop model. Tissue Eng Part A, 21, 96, 2015.

286.

Wang

, Fan

, Zhang

Z.Y.

, et al. Osteogenesis and angiogenesis of tissue-engineered bone constructed by prevascularized beta-tricalcium phosphate scaffold and mesenchymal stem cells. Biomaterials, 31, 9452, 2010.

287.

Han

, and Li

Repair of bone defect by using vascular bundle implantation combined with Runx II gene-transfected adipose-derived stem cells and a biodegradable matrix. Cell Tissue Res, 352, 561, 2013.

288.

, Zhao

, Wang

, Zhang

, Wang

, and Yuan

Transplantation of Cbfa1-overexpressing adipose stem cells together with vascularized periosteal flaps repair segmental bone defects. J Surg Res, 176, e13, 2012.

289.

Nau

, Henrich

, Seebach

, et al. Treatment of large bone defects with a vascularized periosteal flap in combination with biodegradable scaffold seeded with bone marrow-derived mononuclear cells: an experimental study in rats. Tissue Eng Part A, 22, 133, 2016.

290.

Nau

, Henrich

, Seebach

, et al. Tissue engineered vascularized periosteal flap enriched with MSC/EPCs for the treatment of large bone defects in rats. Int J Mol Med, 39, 907, 2017.

291.

Weigand

, Horch

R.E.

, Boos

A.M.

, Beier

J.P.

, and Arkudas

The arteriovenous loop: engineering of axially vascularized tissue. Eur Surg Res, 59, 286, 2018.

292.

Mian

, Morrison

W.A.

, Hurley

J.V.

, et al. Formation of new tissue from an arteriovenous loop in the absence of added extracellular matrix. Tissue Eng, 6, 595, 2000.

293.

Kneser

, Polykandriotis

, Ohnolz

, et al. Engineering of vascularized transplantable bone tissues: induction of axial vascularization in an osteoconductive matrix using an arteriovenous loop. Tissue Eng, 12, 1721, 2006.

294.

Arkudas

, Beier

J.P.

, Heidner

, et al. Axial prevascularization of porous matrices using an arteriovenous loop promotes survival and differentiation of transplanted autologous osteoblasts. Tissue Eng, 13, 1549, 2007.

295.

Arkudas

, Lipp

, Buehrer

, et al. Pedicled transplantation of axially vascularized bone constructs in a critical size femoral defect. Tissue Eng Part A, 24, 479, 2018.

296.

Beier

J.P.

, Hess

, Loew

, et al. De novo generation of an axially vascularized processed bovine cancellous-bone substitute in the sheep arteriovenous-loop model. Eur Surg Res, 46, 148, 2011.

297.

Boos

A.M.

, Loew

J.S.

, Weigand

, et al. Engineering axially vascularized bone in the sheep arteriovenous-loop model. J Tissue Eng Regen Med, 7, 654, 2013.

298.

Weigand

, Beier

J.P.

, Schmid

, et al. Bone tissue engineering under xenogeneic-free conditions in a large animal model as a basis for early clinical applicability. Tissue Eng Part A, 23, 208, 2017.

299.

Warnke

P.H.

, Springer

I.N.

, Wiltfang

, et al. Growth and transplantation of a custom vascularised bone graft in a man. Lancet, 364, 766, 2004.

300.

Horch

R.E.

, Beier

J.P.

, Kneser

, and Arkudas

Successful human long-term application of in situ bone tissue engineering. J Cell Mol Med, 18, 1478, 2014.

301.

Vidal

, Kampleitner

, Brennan

M.A.

, Hoornaert

, and Layrolle

Reconstruction of large skeletal defects: current clinical therapeutic strategies and future directions using 3D printing. Front Bioeng Biotechnol, 8, 61, 2020.

302.

Muscolo

D.L.

, Ayerza

M.A.

, Aponte-Tinao

, Ranalletta

, and Abalo

Intercalary femur and tibia segmental allografts provide an acceptable alternative in reconstructing tumor resections. Clin Orthop Relat Res, 97, 2004.

303.

Coquelin

, Fialaire-Legendre

, Roux

, et al. In vivo and in vitro comparison of three different allografts vitalized with human mesenchymal stromal cells. Tissue Eng Part A, 18, 1921, 2012.

304.

Stanovici

, Le Nail

L.R.

, Brennan

M.A.

, et al. Bone regeneration strategies with bone marrow stromal cells in orthopaedic surgery. Curr Res Transl Med, 64, 83, 2016.

305.

Markides

, McLaren

J.S.

, and El Haj

A.J.

Overcoming translational challenges—the delivery of mechanical stimuli in vivo. Int J Biochem Cell Biol, 69, 162, 2015.

306.

Giannotti

, Bottai

, Ghilardi

, et al. Treatment of pseudoarthrosis of the upper limb using expanded mesenchymal stem cells: a pilot study. Eur Rev Med Pharmacol Sci, 17, 224, 2013.

307.

Gomez-Barrena

, Rosset

, Gebhard

, et al. Feasibility and safety of treating non-unions in tibia, femur and humerus with autologous, expanded, bone marrow-derived mesenchymal stromal cells associated with biphasic calcium phosphate biomaterials in a multicentric, non-comparative trial. Biomaterials, 196, 100, 2019.
