Transportation Conditions for Prompt Use of Ex Vivo Expanded and Freshly Harvested Clinical-Grade Bone Marrow Mesenchymal Stromal/Stem Cells for Bone Regeneration

Abstract

Successful preliminary studies have encouraged a more translational phase for stem cell research. Nevertheless, advances in the culture of human bone marrow-derived mesenchymal stromal/stem cells (hBM-MSC) and osteoconductive qualities of combined biomaterials can be undermined if necessary cell transportation procedures prove unviable. We aimed at evaluating the effect of transportation conditions on cell function, including the ability to form bone in vivo, using procedures suited to clinical application. hBM-MSC expanded in current Good Manufacturing Practice (cGMP) facilities (cGMP-hBM-MSC) to numbers suitable for therapy were transported overnight within syringes and subsequently tested for viability. Scaled-down experiments mimicking shipment for 18 h at 4°C tested the influence of three different clinical-grade transportation buffers (0.9% saline alone or with 4% human serum albumin [HSA] from two independent sources) compared with cell maintenance medium. Cell viability after shipment was >80% in all cases, enabling evaluation of (1) adhesion to plastic flasks and hydroxyapatite tricalcium phosphate osteoconductive biomaterial (HA/β-TCP 3D scaffold); (2) proliferation rate; (3) ex vivo osteogenic differentiation in contexts of 2D monolayers on plastic and 3D HA/β-TCP scaffolds; and (4) in vivo ectopic bone formation after subcutaneous implantation of cells with HA/β-TCP scaffold into NOD/SCID mice. Von Kossa staining was used to assess ex vivo osteogenic differentiation in 3D cultures, providing a quantifiable test of 3D biomineralization ex vivo as a rapid, cost-effective potency assay. Near-equivalent capacities for cell survival, proliferation, and osteogenic differentiation were found for all transportation buffers. Moreover, cGMP-hBM-MSC transported from a production facility under clinical-grade conditions of 4% HSA in 0.9% saline to a destination 18 h away showed prompt adhesion to HA/β-TCP 3D scaffold and subsequent in vivo bone formation. A successfully validated transportation protocol extends the applicability of fresh stem cells involving multicentric trials for regenerative medicine.

Introduction

Human bone marrow-derived mesenchymal stromal/stem cells (hBM-MSC) can be isolated and expanded ex vivo under current Good Manufacturing Practice (cGMP) conditions¹ for clinical applications, including autologous treatment of large bone defects,² usually combining cells with biocompatible bone-like scaffold biomaterials.^3–7 To date, research has predominantly been focused on growth conditions for safe expansion of hBM-MSC ex vivo, with an emerging consensus that platelet lysate (PL) from whole blood-derived pooled platelet concentrates is a growth supplement of choice,^8–12 with growth-promoting properties exceeding combinations of its individual active components PDGF-BB, bFGF, and TGF-β1¹³ and consistency improved by pooling.¹⁴

In certain circumstances, the specialized cell production facility may be distant from the operating theater, necessitating transportation of the cGMP cellular therapy product and current standards for short-term shipment between laboratories vary.¹⁵ Specifically, the inherent osteogenic differentiation potential of the hMSC should be maintained beyond all processes, including isolation from tissues, cell expansion, transportation, seeding on biomaterial, and implantation. However, there is relatively little data regarding the influence of transportation on the results of the preclinical studies, especially with regard to functional outcomes in vivo. Although cryopreserved hBM-MSC may retain good bone-forming potential,^16,17 shipments of frozen cells would be impractical for operating theatre protocols involving short-term storage and prompt use. Furthermore, adverse reactions from cryoprotective reagents represent a complication,¹⁸ and freshly thawed hBM-MSC may have temporary impairment of function.¹⁹

With regard to nonfrozen cell transportation conditions, most studies assessed ex vivo viability and biomarker expression rather than in vivo function.^20,21 It has been shown that hMSC kept under brief cold storage maintained bone-forming potential,²² but the effects of storage and shipping under cGMP condition have not been evaluated. The viability of short-term liquid-stored hBM-MSC was enhanced by human serum albumin (HSA),²⁰ but considerable differences between HSA batches from different manufacturers were noted. We, thus, sought to compare transport buffers with or without HSA, measuring their effects on cell viability, adhesion to the scaffold, and ex vivo osteogenic differentiation. Positive early indications of competent cell performance justified subsequent implantation of xenografts to test bone-forming potential. Ultimately, our clinical-grade procedures for isolation, expansion, transportation, and seeding of cGMP-hBM-MSC on osteoconductive biomaterial with prompt implantation preserved good bone-forming potential.

Materials and Methods

Cell culture

hBM-MSCs from cGMP facilities; Etablissement Français du Sang, Toulouse (France), Institute of Clinical Transfusion Medicine and Immunogenetics Ulm (Germany), and Cell Factory (Fondazione IRCCS Ca’ Granda Ospedale Policlinico) in Milano (Italy) were isolated and expanded to single clinical doses of at least 100×10⁶ cGMP-hBM-MSC. The two-step protocol for unprocessed bone marrow cells involved seeding at an initial density of 50,000 white blood cells/cm² in 300 mL complete medium in CellStack™ (Corning) tissue culture vessels using PL-based, animal-serum free tissue culture medium.²³ Informed consent from all donors conformed to the Declaration of Helsinki, and project approval by local ethical committees included testing of BM donors according to the guidelines for preparation of blood products.

cGMP-hBM-MSCs passaged only once (p1) were shipped as live cells in a transportation syringe on ice or as frozen vials on dry ice. On arrival, live cells were used immediately, and frozen cells were stored in liquid nitrogen until required. Thawed cells were seeded at 6×10³ cells/cm² in T75 flasks (Greiner Bio-One) incubated at 37°C with 5% humidified CO₂ using maintenance medium (MM) consisting of α-minimum essential medium (MEM) without nucleosides (Gibco^® Invitrogen), supplemented with 8% PL,²⁴ 1% L-Glutamine (Gibco Invitrogen), 1 UI/mL heparin (Sigma-Aldrich), and 10 μg/mL ciprofloxacin (HIKMA). The cGMP-hBM-MSCs were replenished with fresh MM twice weekly and at 80–85% confluence, they were detached using trypsin 0.05%/EDTA 0.02% (PAA Laboratories) or TrypLE (Gibco Invitrogen). cGMP-hBM-MSCs were immunophenotypically and functionally characterized in the cGMP facilities ensuring high viability before shipping (data not shown).

Scaffold biomaterial

A biphasic composite calcium phosphate scaffold biomaterial made of 20% hydroxyapatite and 80% β-tri-calcium phosphate (HA/β-TCP) was supplied as granules of 1–2 mm diameter with an average pore size of 300 μm and manufactured according to ISO-13485 certification (Biomatlante SA).

Comparative analysis of transportation conditions

To pragmatically compare transportation buffers in a controlled environment, p1 cGMP-hBM-MSC were thawed and expanded in MM, harvested and re-suspended at 20×10⁶ cells/mL of transportation buffer in a 5 mL syringe with void air removed, and kept at 4°C for 18 h, mimicking transportation from cGMP facility to hospital. The transportation buffers tested were MM (control), 0.9% normal saline (NS) 308mOsm/L, and pH-7.0 (S.A.L.F. SpA; Laboratorio Farmacologico) with 4% v/v HSA or NS alone. The HSA concentration selected (4% w/v) was equivalent to 580 μM representing a mid-range value of albumin in plasma that typically ranges from 510 to 750 μM.²⁵ We compared HSA from two manufacturers: HSA#1 (Kedrion) and HSA#2 (CSL Behring). After the mimicked shipment, cells from the transportation syringe were portioned into aliquots for ex vivo and in vivo assays (Fig. 1i–v). For full-scale shipment, 100×10⁶ freshly harvested cGMP-hBM-MSC were washed in saline solution, suspended in 5 mL NS supplemented with 4% HSA solution, and packed in a sterile luer lock 20-mL syringe (B. Braun). Cells were shipped within 18 h from Ulm to Nantes via overnight express courier.

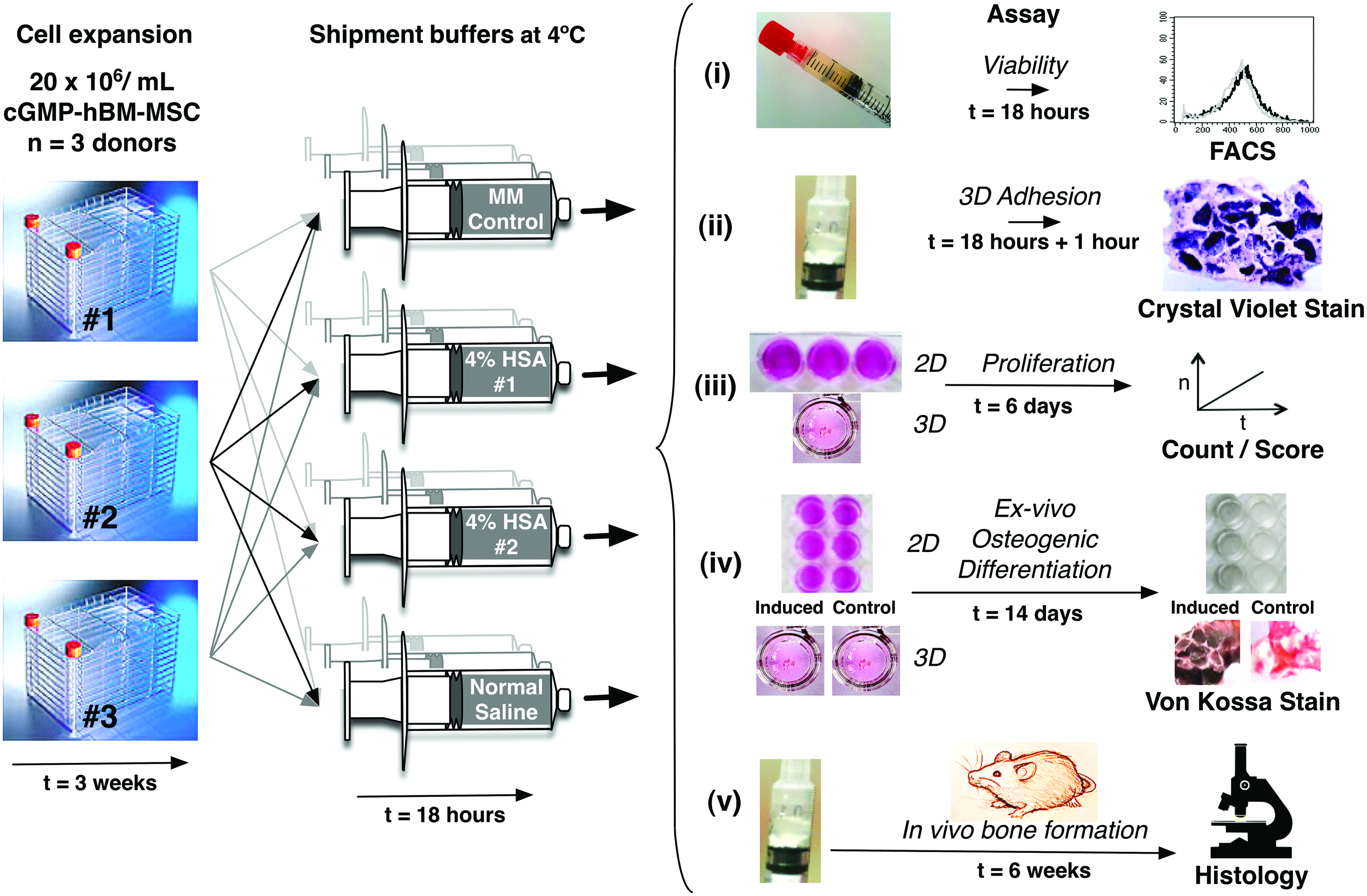

FIG. 1.

Overview of experiments. hBM-MSC harvested from three independent donors at the cGMP facilities were harvested and maintained for 18 h at 4°C in syringes according to the MM control and three transportation conditions shown. After 18 h, the cells from each syringe were analyzed to assess cell quality with regard to (i) viability; (ii) adhesion to a 3D scaffold; (iii) proliferation potential of cells kept as 2D monolayers or attached to 3D scaffold; (iv) ex vivo osteogenic differentiation potential of cells kept as 2D monolayers or cells attached to 3D scaffold; and (v) in vivo bone formation of cGMP-BM-MSC/HA/β-TCP xenografts analyzed after 6 weeks by histology. hBM-MSC, human bone marrow-derived mesenchymal stromal/stem cells; cGMP, current Good Manufacturing Practice; HA/β-TCP, 20% hydroxyapatite and 80% β-tri-calcium phosphate; MM, maintenance medium. Color images available online at www.liebertpub.com/tec

Viability

Cell viability before and after transportation conditions was assessed by propidium iodide (PI; Sigma-Aldrich) uptake and quantified by flow cytometry.²⁶ Briefly, 5×10⁴ cells were incubated with 50 μg/mL PI for 30 min on ice-determining positivity with an FACSCalibur™ (BD Biosciences) instrument according to manufacturer's instructions.

Cellular adhesion to 3D scaffold biomaterial

cGMP-hBM-MSC adhesion to HA/β-TCP scaffold was assayed by adding 8×10⁵ cells in 100 μL buffer within an upright 1-mL syringe preloaded with 20 scaffold granules (≈20 mg) (Fig. 1B) using an inverted sterile eppendorf tube lid during incubation at 37°C for 1 h in a humidified 5%-CO₂ incubator, whereby cells settled under gravity. Subsequently, the percentage of viable cells that remained suspended in the buffer was counted using 0.4% Trypan blue dye (Biochrom). Scaffold-bound cells were stained using crystal violet buffer (Sigma-Aldrich) (0.04% w/v in 100% methanol) and visualized under bright field illumination at 2.5× magnification with an Axioskop-Observer-1 microscope (Zeiss) using an Axiocam camera and Axiovision-4.8.2 software to evaluate the percentage of scaffold surface area covered by blue stained cGMP-hBM-MSC. Samples were scored according to a predetermined incremental scale (Fig. 2) ranging from 0=no adherent cells, to 5=over 70% covered. An adhesion assay control used freshly detached cGMP-hBM-MSC without previous exposure to transportation conditions. All experiments were performed in triplicate.

FIG. 2.

Adhesion score for cGMP-hBM-MSC on HA/β-TCP scaffold. Representative photomicrographs for scaffold granules scored according to a predetermined scale by which a score of 0 represented no adhered cells and higher scores represented an increased percentage of granule surface coverage by crystal violet stained cells: 1=less than 10%; 2=10–30%; 3=30–50%; 4=50–70%; 5=over 70%. The score range 0–2 was relevant for 1-h cell adhesion, and the score range 3–5 was relevant for cell coverage after 6 days. Scale bar=100 μm. Color images available online at www.liebertpub.com/tec

Three-dimensional scaffold repopulating potential of cGMP-hBM-MSC

Colonization of the scaffold by cells stored at 4°C in the various transportation buffers was measured by a one-step growth assay 6 days after keeping the scaffold under MM growth conditions at 37°C in a 5% CO₂ humidified incubator. For better details, 4×10⁴ cGMP-hBM-MSC cells suspended in 5 μL of transportation buffer were seeded per single scaffold granule in a 96-multiwell plate (MW) round-bottom ultra-low attachment (ULA) surface (Corning) and promptly incubated in a controlled atmosphere (5% CO₂, 37°C) for 1 h before adding 100 μL MM. Scaffold-bound cells were visualized using crystal violet stain and quantified according to the predetermined scoring reference (Fig. 2).

As a further control, the post-transportation proliferative potential of cGMP-hBM-MSC monolayers was assayed by seeding 6000 cells/cm² in MM into 12-well 12-MW (Greiner Bio-One) incubated at 37°C in a 5% CO₂ humidified incubator. Phase-contrast photomicrographs were taken 1 and 24 h after seeding. MM was refreshed every 2–3 days, discarding nonadherent cells, and a total viable cell count after 6 days was used to calculate the fold increase in cell number. All experiments were performed in triplicate.

Assessment of ex vivo osteogenic differentiation

Osteogenic differentiation potential in 2D monolayer culture and on 3D scaffold was assessed as shown (Fig. 1D). For 2D assays, hBM-MSCs were seeded at 1×10⁴ cell/cm² in MM in 24-MW plates. For 3D assays, 1.2×10⁵ BM-MSC in 15 μL of transportation buffer were seeded on three scaffold granules in 96-MW round-bottom ULA plates as described earlier for 1 h at 37°C, 5% CO₂ in a humidified atmosphere before adding 100 μL MM. After 3 days' equilibration, MM was changed to osteogenic medium (OM), composed of α-MEM-supplemented 8% PL with 10 mM β-glycerophosphate (Sigma-Aldrich), 0.1 mM ascorbic acid-2-phosphate (Sigma-Aldrich), and 10 nM Dexamethasone (Sigma-Aldrich), plus addition of 100 ng/mL rhBMP-2 (Peprotech) from the 7th day of induction.

After 2 weeks, osteogenically induced cultures in OM and parallel-control cultures in MM were fixed and used to compare three staining methods characterizing ex vivo osteogenic differentiation on 3D scaffolds: For alkaline phosphatase, cultures were fixed with acetone/citrate solution for 30 s and then rinsed gently with distilled water. After incubation with alkaline phosphatase staining solution (Sigma-Aldrich) for 15 min under dark, the cells were washed with distilled water. The acetone/citrate solution and alkaline phosphatase staining solutions were prepared as per manufacturer's instructions. Counterstaining with 0.04% crystal violet (Sigma-Aldrich) dissolved in water was as described.²⁷ For alizarin red, the cultures were washed at room temperature in PBS, fixed on ice-cold methanol (100%v/v), washed with distilled water, and stained with alizarin red S (1.5% v/v, pH-4.2; Sigma-Aldrich) for 15 min to detect calcium precipitation.²⁸ Stained monolayers were visualized at 10×magnification with an inverted Axioskop-Observer-1 microscope (Zeiss). For von Kossa staining, samples were fixed in ice-cold methanol for 2 min, then rinsed twice in distilled water, and were incubated under a ultraviolet (UV) lamp with silver nitrate (Sigma-Aldrich) in water.²⁹ After two further washes in distilled water, 3D culture samples were counterstained with 0.02% nuclear fast red (Sigma-Aldrich) in distilled water, rinsed, and then washed in water for 10 min. For each 2D sample, 10 high-power fields were observed using 10× magnification (Axioskop-Observer-1 inverted microscope; Zeiss); while for 3D cultures, 2.5× high-power fields were used to obtain three to six photomicrographs from each sample. Digitally recorded images analyzed by ImageJ software (National Institute of Health) selectively quantified dark positively stained areas of organic calcium deposits. Triplicate experiments were performed.

In vivo bone-formation assay in immune-deficient mice

After maintenance in transportation conditions for 18 h at +4°C, 1.6×10⁶ cGMP-hBM-MSCs in 80 μL of buffer were gently added to 40 mg of 1–2 mm diameter HA/β-TCP granules (≈40 granules) preloaded in an upright 1 mL tuberculin syringe. Before surgical subcutaneous implantation into dorsal sites of 8-week-old NOD.CB17^-Prkdcscid/J mice (Charles River),³⁰ cells were allowed to adhere to the scaffold in their respective transportation buffers for 1 h at 37°C, in 5% CO₂ humidified incubator. As a control, cells grown in MM not subjected to shipment conditions were similarly implanted in vivo. Negative controls consisted of implantations using 40 mg HA/β-TCP incubated with MM, but without cells. The Local Ethical Committee of the University of Modena and Reggio Emilia approved the protocols. Briefly, animals were anesthetized with 3.6% isofluorane (Abbott), and the dorsal skin was shaved and cleaned. Two incisions of ≈1 cm in length were performed on the opposite flanks of the back, a 3-cm-long pocket was formed by blunt dissection, and the xenograft was implanted. The incisions were sutured with ethicon vicryl rapide 35-0 (Johnson & Johnson). Six weeks post-transplantation, xenografts recovered from sacrificed animals were processed for histological studies.

Histology and immunohistochemistry

Explanted specimens were fixed with 10% buffered formalin for 2 days, decalcified in PBS-buffered EDTA (15%, pH 7.4; Carlo Erba) for 14 days, and then paraffin embedded, as similarly described for animal and human bone specimens.^31,32 Cut sections (3 μm-thick) were deparaffinized and stained with hematoxylin and eosin (H&E; Carlo Erba). To quantify bone formation, areas of osteogenesis were assessed as described.³³ For each donor, triplicate sections were H&E stained and visualized by an inverted microscope Axioskop (Zeiss) considering 10× high-power fields. Histological analyses considering bone matrix-containing embedded osteocytes were used to quantify the bone tissue percentage relative to the total area of tissue and scaffold on the slide.

Bone origin was detected by immunohistochemistry using human-specific osteocalcin and collagen 1A2 polyclonal antibodies.³¹ Paraffin sections (5-μm thick) were dehydrated and stained with mouse anti-human collagen type 1A2 (1:20; Novus Biological) and mouse anti-human osteocalcin (1:30; Abcam) using a goat anti–mouse biotinylated secondary Ab (1:200; Vector Laboratories) and an avidin-biotin-horseradish peroxidase detection system (Vector Laboratories). Antigen retrieval used proteinase k (Promega Corporation) for 30 min at room temperature, blocking nonspecific binding with 10% new-calf serum blocking reagent (Sigma-Aldrich). The primary antibody in 0.1% bovine serum albumin (Sigma-Aldrich) and 0.4% Triton-X (Sigma-Aldrich) was applied overnight. After Secondary Ab (Vector Laboratories) incubation and quenching, slides were incubated with Vectastain ABC (Vector Laboratories) as per manufacturer's instructions with color development using NovaRED (Vector Laboratories). Slides were counterstained with Harris hematoxylin (Bio Optica). Negative control specimens were stained with a mouse isotypic IgG primary Ab (Vector Laboratories). Stained slides were examined using a Zeiss Axioskop (Carl Zeiss) with either a 10/0.25NA or 40/0.6NA dry objective. Photomicrographs were acquired with an Axiocam-IcC3 color camera and Axiovision-4.8.2 software (Carl Zeiss).

Statistical analysis

All data collected were presented as means±standard error of the mean. Statistical analysis was performed using the paired Student's t-test. p-Values<0.05 were considered statistically significant.

Results

Transportation buffers preserve fresh cGMP-hBM-MSC viability

A direct comparison of four transport buffers with three independent donors cGMP-hBM-MSCs revealed that under control conditions using MM, cell death stained by PI was equivalent to 12.13%±1.58% of the population (Fig. 3A). Transportation buffers invoked significantly more cell death than MM (p<0.01), yet cell death remained below 20% without enhancement of cell viability from HSA (Fig. 3B). Given these initial viability data, we explored the interaction of the cells with the 3D scaffold.

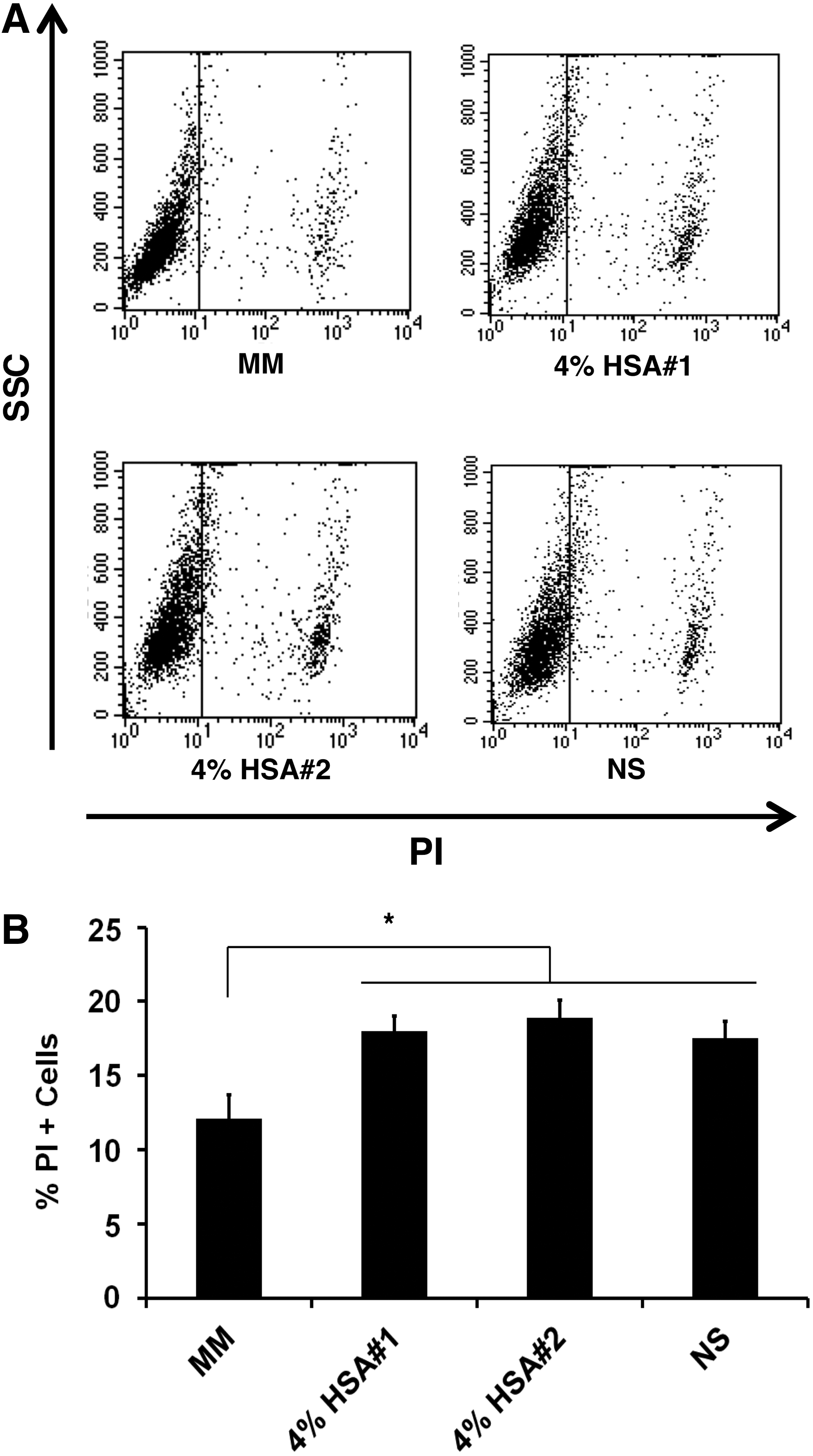

FIG. 3.

Viability after transportation conditions. (A) Flow cytometric analysis of PI positivity plotted against SSC for cells maintained under different shipment conditions, including MM, and transportation buffers containing 4% HSA or only NS. (B) Histogram derived from n=3 donors indicating the percentage of PI-positive dead cells after incubation for 18 h under each transportation buffer condition. (*p<0.05). HAS, human serum albumin; PI, propidium iodide; SSC, side scatter; NS, normal saline.

cGMP-hBM-MSC promptly adhered to the 3D scaffolds

After applying cGMP-hBM-MSC to scaffold biomaterial for 1 h at 37°C, cells shared two fractions: (1) nonadherent cells suspended in the shipment buffer and (2) scaffold surface-bound cells (Fig. 4A). When using MM control conditions, 19.8%±5% of the cells were in fraction (1) (Fig. 4B). More nonadherent cells were found when using the transportation buffers versus MM (p<0.01); ranging from 55.3%±5.8% to 61.7%±12.7% when using HSA#1 or HSA#2, respectively, and 44.5%±5.7% when using NS. The nonadherent cell viability after 1 h was highest for cells stored in MM (90.3%±1.9%). Notably, the corresponding nonadherent cell viability was significantly greater for the NS only transport buffer (86.4%±1.3%) than either NS+4% HSA#1 (76.2%±3%; p<0.05) or NS+4% HSA#2 (73.9%±3.4%; p<0.05).

FIG. 4.

Cell adhesion to a 3D scaffold under gravity for 1 h. Photomicrograph of upright 1 mL syringe containing scaffold granules seeded with cells in 200 μL of shipment buffer after 1 h. (A) The solid and liquid phases were co-analyzed for n=3 donors in each of the four shipment buffers to determine (B) the percentage of viable (shaded columns) or nonviable (unshaded columns) nonadherent cells in the supernatant and (C) the scaffold cell adhesion score (*p, **p, ^§p<0.05). (D–I) Representative photomicrographs comparing (D) unstained scaffold; (E) crystal violet stained scaffold; (F-I) scaffolds stained after 1 h to show attachment of cells that had been kept for 18 h at 4°C in shipment buffers consisting of (F) MM; (G) saline with 4% HSA#1; and (H) saline with 4% HSA#2, (I) NS. (D-I) Scale bar=100 μm. Color images available online at www.liebertpub.com/tec

The adhesion score was referenced to assess the fraction (2) viable cells stringently adhered to the 3D scaffold after 1 h of incubation and crystal violet staining. Under MM conditions, the adhesion score was 1.44±0.5. Significantly less cell adhesion was observed with NS-only transport buffer (1.16±0.1; p<0.01), nonetheless more than seen using either HSA#1 (0.91±0.1; p<0.01) or HSA#2 (0.82±0.1; p<0.05) (Fig. 4C). Compared with the faint HA/β-TCP scaffold background staining (Fig. 4D, E), dark blue-stained cells were clearly discernible for a reference-scale comparison. The average cell adhesion score obtained with HSA#1 (Fig. 4C, H) was only 57% (p<0.05) of that seen with MM (Fig. 4C, F), while the NS transportation buffer achieved 81% (Fig. 4C–I; p<0.01) of the MM adhesion score. Thus, with regard to a prompt and robust cGMP-hBM-MSC adhesion capacity, NS transport buffer conditions met the metrics desired for an operating theater context.

cGMP-hBM-MSCs proliferated in 2D culture and efficiently repopulated 3D scaffolds

Beyond viability and adhesion, post-transportation condition cells showed equivalent proliferative potential when seeded as 2D monolayers, averaging a 13.5-fold population increase in 6 days (Fig. 5A). Similarly, all cGMP-hBM-MSC seeded on HA/β-TCP granules colonize their surface. Control cells in MM reached a score of 3.32±04, similarly achieved using HSA-based buffers, while cGMP-hBM-MSC stored in NS transportation buffer had lower scores (Fig. 5B; 2.14±0.4; p<0.05). Thus, proliferative potential was maintained after early adhesion regardless of the shipment buffer used with cells repopulating over 50% of the scaffold surface (adhesion score 2) after 6 days in culture (Fig. 5C–F).

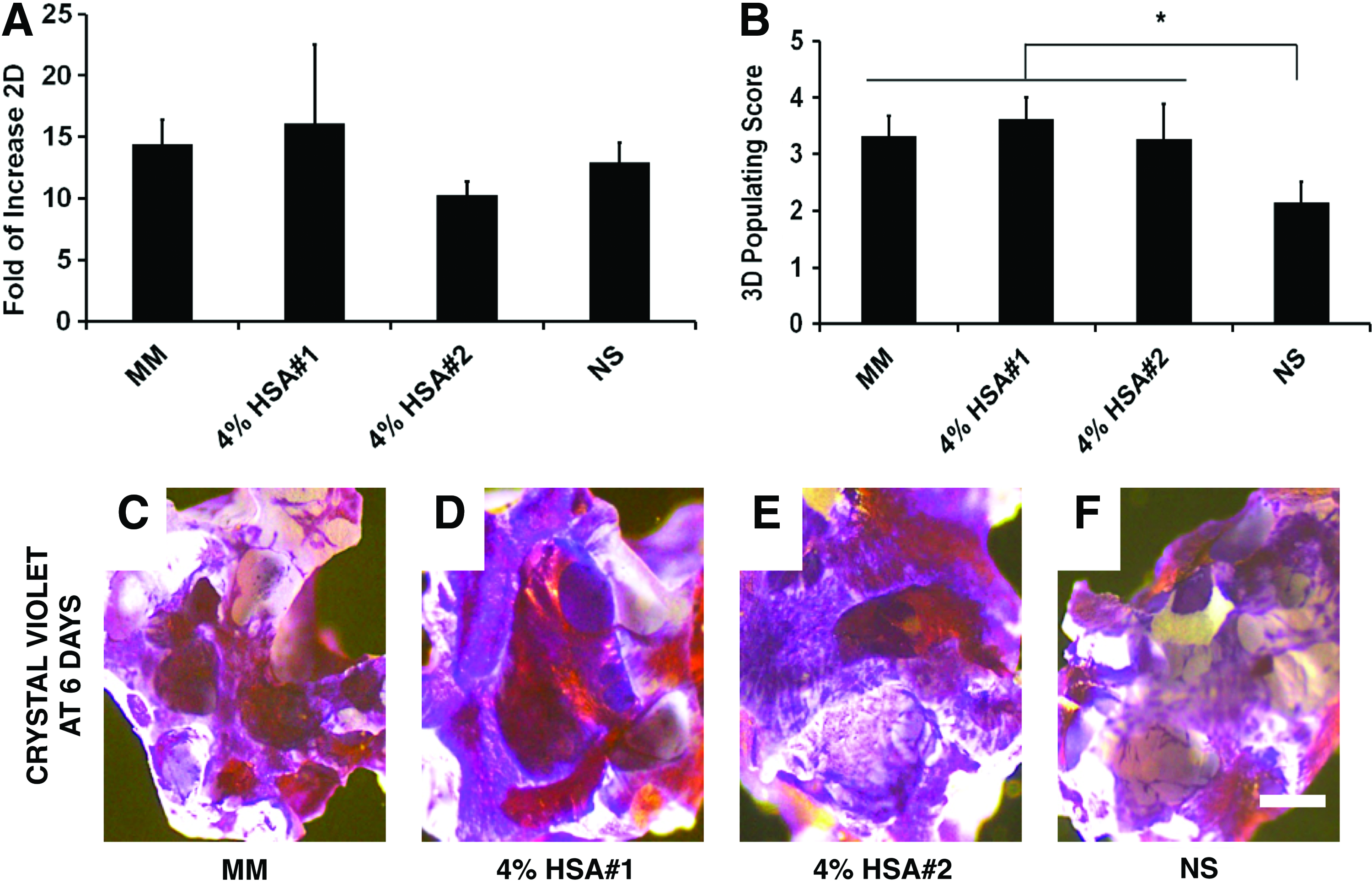

FIG. 5.

Proliferation potential of cells kept as 2D monolayers or attached to 3D scaffold. Histograms for the fold increase in cell number for one step time points determined for cells grown as (A) 2D monolayers on tissue culture plastic or (B) attached to the 3D scaffold. (C-F) Representative photomicrographs of scaffolds bearing crystal violet-stained hBM-MSC after cells had been kept for 18 h at 4°C in the different transportation buffers indicated seeded onto the scaffold for 1 h and then cultured for 6 days in MM. Scale bar=100 μm. Color images available online at www.liebertpub.com/tec

cGMP-hBM-MSC generated mineralized matrix on both plastic surface and 3D scaffolds

Extending 2D MSC-plastic monolayer ex vivo osteogenic potency assays to include consideration of 3D MSC-scaffold adhesion, we tested three histochemical stains for detecting the intrinsic osteogenic differentiation of 2D and 3D cultures.

Osteogenic matrix maturation-associated alkaline phosphatase staining was evidently more intense in differentiated cell monolayers regardless of transportation conditions (Fig. 6A, upper panel), but intense HA/β-TCP scaffold background staining precluded proper evaluation of 3D cultures (Fig. 6B, upper panel). Alizarin red S staining of calcium-rich deposits, though significant in all monolayer cultures (Fig. 6A, middle panel), also suffered from high HA/β-TCP scaffold background staining (Fig. 6B, middle panel). In contrast, von Kossa staining of calcium phosphate provided a clear black positive stain that was absent in control conditions (Fig. 6A, B lower panels), enabling clear threshold discrimination for image analysis software to semi-automate quantitation (Fig. 6B, lower panel inset). In 2D, von-Kossa-stained areas for osteogenically induced cGMP-hBM-MSC in 2D were equivalent for all transport buffers, regardless of HSA, and marginally greater than for cells stored in MM (p<0.04; Fig. 6C). For 3D osteogenically induced cGMP-hBM-MSC, von Kossa stained an average HA/β-TCP scaffold surface area of 17.6%±2.2% for MM, similar to the NS-based transportation buffers, except for HSA#2 having a reduced stained area of 9.7%±1.9% (p<0.05; Fig. 6D). Notably, von Kossa also revealed inter-donor heterogeneity, with donor#2 showing less scaffold surface area staining, 5.4%±1.5%, than the other two donors (24.6%±3.9% and 21.7±4.7%) (p<0.01; Fig. 6E, F). Thus, it was possible to measure MSC mineralized matrix production in both 2D and 3D culture systems, providing a more comprehensive ex vivo assay.

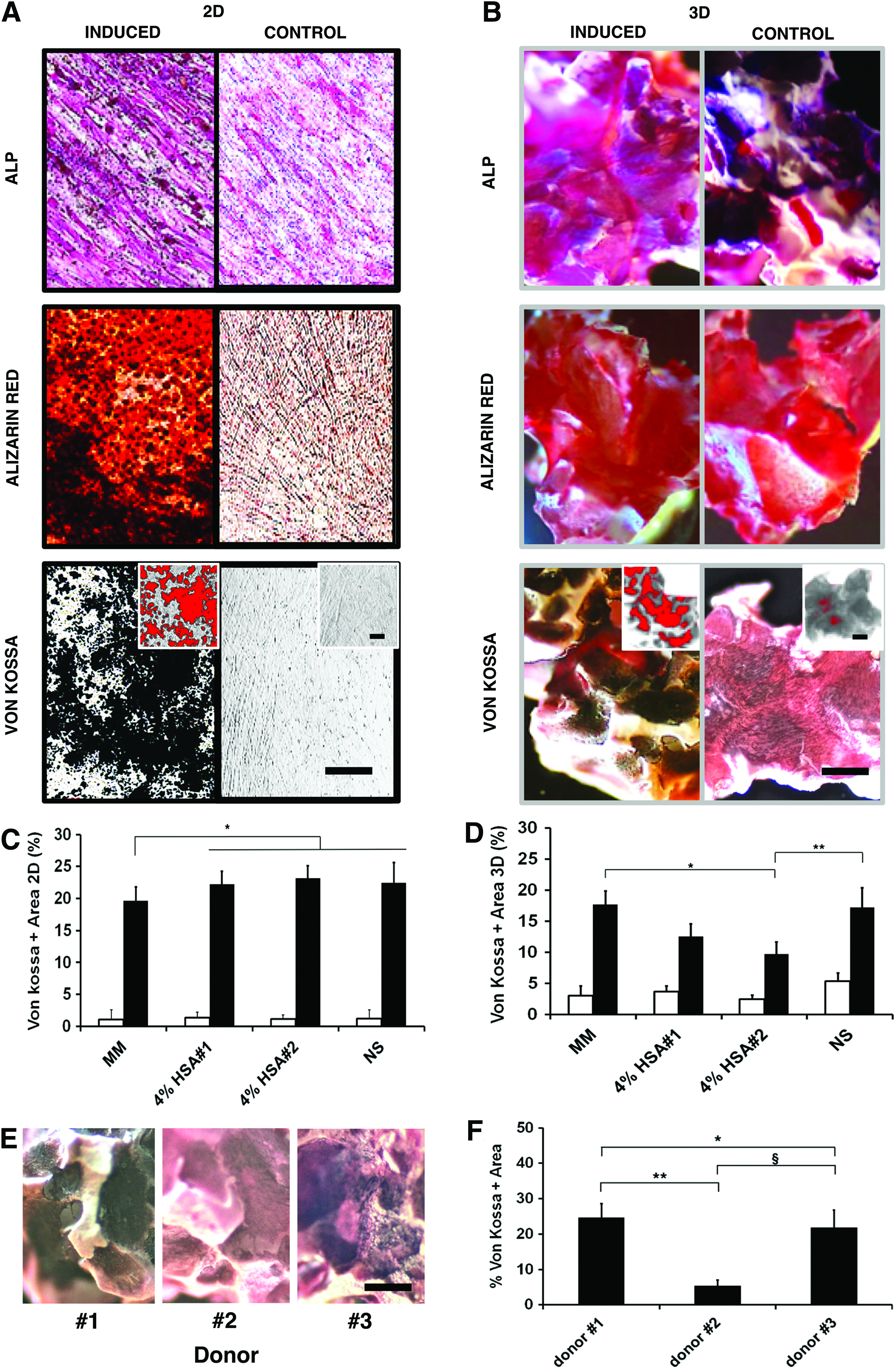

FIG. 6.

Ex vivo osteogenic differentiation potential. Representative photomicrographs comparing three osteogenic differentiation-staining methods, namely staining for ALP or calcium deposits with alizarin red or von Kossa based methods. cGMP-hBM-MSC osteogenically induced for 2 weeks were compared with uninduced control cells grown as (A) 2D monolayers on plastic or (B) attached to 3D scaffolds. Lower panel inset images show von Kossa staining highlighted in red to indicate ImageJ software processed quantifiable thresholds. (C, D) Comparing different transportation buffer conditions, the histograms show the percentage of von Kossa-positive staining of undifferentiated control cells (unshaded columns) or osteogenically differentiated cells (shaded columns) grown as (C) 2D monolayers on plastic or (D) adhered to 3D scaffolds. (E) Photomicrographs of von Kossa-stained scaffolds, showing donor heterogeneity for cGMP-BM-MSC osteogenically differentiated after exposure to normal saline for 18 h. (F) Histogram for percentage area of the scaffold surface positive for von Kossa staining as determined by ImageJ software (*^, **^, ^§p<0.05). Scale bar=100 μm. ALP, alkaline phosphatase. Color images available online at www.liebertpub.com/tec

Transported cGMP-hBM-MSC with HA/β-TCP scaffolds generated ectopic bone in vivo

An in vivo xenotransplant model using sub-cutaneously implanted cells and scaffold incontrovertibly tested the osteogenic potential of cGMP-hBM-MSC post-transportation conditions. HA/β-TCP scaffold implanted without cells controlled for any inherent osteoinductive effects, revealing no extensive bone formation, rather loosely woven extracellular matrix and stromal cells surrounding the scaffold, sometimes aligned adjacent to the scaffold surface to resemble the surface-lining cells of normal bone tissue sections (Fig. 7A). Using HA/β-TCP along with cGMP-hBM-MSC stored in transportation conditions, the scaffold surfaces were surrounded by large areas of pink-stained densely woven collagen fibrils typical of remodeled compact bone with interspersed lacunae containing mature bone osteocytes (Fig. 7B–E and inset). Moreover, the remodeled ectopic bone-enclosed regions were recognizable as hematopoietic territories (Fig. 7C, E and inset), a positive indication of good bone quality.³⁴ In vivo bone formation at 6 weeks, though not significantly influenced by transportation conditions (not shown), showed inter-donor heterogeneity for the amount of bone formed. Bone areas of dense, pink-stained osteoid-containing osteocytes were observed in tissue sections from donors #1 (28.5%±4.1%) and #3 (22.8%±4.5%) (Fig. 7F, H, I), while donor #2-derived MSC demonstrated less bone formation (8.1%±1.6%, p<0.01; Fig. 7G, I), concordant with less ex vivo mineralization.

FIG. 7.

In vivo bone-forming potential. Photomicrographs of decalcified paraffin-embedded sections under bright field illumination. (A) Comparing controls of scaffold (s) without cells versus (B) scaffold with cGMP-hBM-MSC previously maintained in culture medium. Regions adjacent to the scaffold containing newly formed bone osteoid matrix (b). Osteocytes were observed within lacunae (arrow). (C–E) 10×and corresponding 40×area enlargements. Photomicrographs of tissue sections from scaffolds implanted with cGMP-BM-MSC kept under shipment buffers with (C) 4% HSA#1; (D) 4% HSA#2; or (E) NS. Osteoid bone (b) formed on the scaffold (s) surrounded marrow-like regions (m). Representative sections (F–H) showed donor heterogeneity with regard to the relative amount of bone formed with (I) the corresponding histogram showing statistically significant differences (*^, **p<0.05). Scale bar=100 μm. Immunostaining with NOVA red chromogen-identified cells lining the newly formed bone matrix osteoid positive for (J) collagen type (I) A2 and (K) osteocalcin in contrast to the unstained (L) control. Color images available online at www.liebertpub.com/tec

To verify the ontogeny of the bone-forming cells, the presence of human bone-related proteins was investigated. A Collagen 1A2 human-specific antibody stained osteocytes and bone-lining cells (Fig. 7J), with the latter also showing positivity for a human-specific osteocalcin antibody (Fig. 7K), thus verifying a robust in vivo bone-forming potential when cGMP-hBM-MSC subjected to transportation conditions were combined with HA/β-TCP osteoconductive scaffold.

Discussion

From preclinical studies aimed at skeletal tissue regeneration,² to clinical studies involving the transplantation of MSC with or without biomaterials,⁷ bone tissue engineering shows promise. Early trials indicate that the translation of allogeneic and autologous cell therapeutics requires controlled manufacturing and delivery procedures. Given limited starting material for autologous hBM-MSC and the sub-optimal osteogenic performance of directly applied BM aspirates,³⁵ ex vivo hMSC population expansion is currently a favored procedure adopted by cGMP cell processing facilities. Here, we aim at verifying conditions for safe MSC transportation to a distant hospital for immediate clinical application, thus overcoming a need to co-localize surgical facilities with specialized cell expansion laboratories, thereby widening therapeutic scope.

Transportation per se is a challenging procedure requiring careful control of cell density and temperature to maintain integrity while conforming to important safety constraints. Use of a clinically approved, nontoxic, and low-cell adhesion disposable syringe as a disposable shipment tool was in compliance with regulatory-body guidelines, simultaneously providing a convenient vessel for immediate application of the cells on arrival.

Considering clinical need for a minimal cell infusion volume, we tested shipment in a small volume using a relatively high cell density suitable for promptly combining the cells with the biocompatible scaffold material. Keeping a cellular product at high cell density in the same buffer for a prolonged time may foster undesirable metabolic shifts, weakening stem cell performance.³⁶ However, hBM-MSC primary cultures may retain osteogenic functions more consistently when grown as dense aggregates with higher expression of alkaline phosphatase than dispersed single cells.³⁷ Furthermore, hBM-MSC ordinarily reside as cell aggregates in vivo, and MSC were well maintained as dense cell aggregates in bioreactors.^38,39 Under high cell density conditions in saline solution for 18 h, the hBM-MSC may advantageously undergo a mild stress similar to hypoxic preconditioning, which could improve the regenerative capacity of hBM-MSC.⁴⁰

Previous studies have indicated that cold storage of peripheral blood progenitor cells at 4°C for periods of approximately 96 h was significantly better for sustaining viability than higher ambient temperatures.⁴¹ This can also be said for hMSC viability,²⁰ which reportedly fell to 81% after 24 h at 4°C but was only 70% at 24°C and 62% at 37°C,²² thus from the outset, we chose to maintain shipment conditions at 4°C. Unlike this previous study, our cells originated in medium containing human PL rather than bovine serum; however, we also observed a 20% loss of viability after storing cGMP-hBM-MSC at low temperature for 18 h. With some concern for such storage-associated losses, it was important to explore the osteogenic function of the surviving cells.

Bioengineering modifications to scaffolds for enhanced bone formation is a rapidly evolving field,^42–44 however, for clinical-grade consistency throughout our procedures and comparison with previous studies,^45–47,34 we favored use of HA/β-TCP scaffold to test cell attachment as an early indicator of cell function. HA/β-TCP scaffold is a bioactive material, by which ion exchange reactions with surrounding body fluids form a biologically active carbonate apatite surface layer, equivalent to the mineral phase in bone, promoting collagen and mineral deposition from cells grown on the scaffold surface in vivo.⁴⁶ The interaction between implant material and osteogenic cells contributes to clinical success, and hBM-MSC show strong affinity for calcium phosphate scaffolds that are consequently highly osseoconductive.^48,49

We tested a “field scenario” that introduced the time constraints of an operating theater, by which cells needed to be seeded onto the scaffold for just 1 h before implantation. Impens et al. noted in cell-adhesion studies that although half the cells adhered to the biomaterial within 1 h, the plateau of maximum cell adhesion was reached after 4 h.⁵⁰ We also observed nonadhered viable cells in the supernatant after 1 h, but a 4-h adhesion period was deemed to be impractical for surgical procedures. For the in vivo bone-formation studies, the scaffold was implanted with accompanying supernatant; so feasibly, some cells could subsequently attach to the scaffold postimplantation or, nonetheless, contribute to the engraftment as nonattached cells. Considering the spatial uniformity of cells throughout the scaffold matrix,⁴⁸ it was important to determine whether passive rather than dynamic loading procedures sufficed for an efficient bone-forming outcome. For our chosen scaffold/cell ratios, microscopic analysis revealed broadly distributed stained cells on the seeded scaffold after 1 h. Uncomplicated loading under gravity was advantageously convenient for procedures within an operating theater.

In controls using MM, approximately 75% of the cells adhered to the scaffold within 1 h; whereas using transport buffers adhesion efficiency was about 50%. For HSA-containing transport buffer, our choice of albumin concentration reflected observations that 4% w/v HSA was more effective than 3% or lower doses for inhibiting human endothelial cell apoptosis⁵¹ and preliminary data that higher HSA concentrations (10% or 20%) reduced cell attachment to the β-TCP scaffold within 1 h (data not shown, Rojewski et al., in preparation). Notably, addition of just 4% HSA to the saline transport buffer already led to a small yet significant reduction in the 1-h cell adhesion score and increased the proportion of nonadhered cells, with one HSA source, in particular increasing the number of dead floating cells. This was contrary to expectation, as albumin, a nonglycosylated, negatively charged protein abundant in plasma, can beneficially maintain colloid osmotic pressure in plasma and sequester hormones, fatty acids, and metabolites having anti-inflammatory activity.⁵² In addition, HSA enhanced cell viability in primary cultures of neurons due to ascribed oxygen-scavenging activities,⁵³ and albumin-associated lipids positively influenced stem cell self-renewal.⁵⁴ Thus, our finding was surprising given that HSA could be expected to provide a protective effect. However, HSA may simply prevent nonspecific adsorption of dead cells on culture vessel surfaces, artefactually allowing more dead cells to be counted. Alternatively, it is possible that co-presenting cells with HSA in solution, which is readily adsorbed onto HA composites,⁵⁵ competetively interfered with cell attachment to the scaffold surface, disrupting anchorage-dependent integrin-mediated survival signals needed to prevent anoikis.^56,57 Similarly, Lane et al. also reported that in the context of hMSC in suspension, the effects of HSA from different sources varied considerably and could reduce cell viability.²⁰ Notably, although coating mineralized human bone allografts with freeze-dried HSA improved the adherence and proliferation of hBM-MSC, precoating with aqueous HSA was less effective.⁵⁸ In the context of our protocol, co-presenting aqueous HSA with cells onto fresh scaffolds may have caused competitive binding interference rather than enhanced adhesion. However, after 6 days ex vivo, the scaffold surface area covered by cells was greater when HSA was present; thus, over time, the beneficial effects of HSA in protecting cell functions may have predominated. Indeed, further studies would be needed to determine the molecular mechanisms underlying this observation.

With regard to testing the cGMP-hBM-MSC function of osteogenic differentiation, we obtained data from 2D and 3D cell culture contexts with the overall conclusion that transportation buffer differences were less apparent in 2D assays than in 3D assays. Assessment of osteogenic differentiation using alkaline phosphatase-specific or calcium-specific alizarin red S staining methods proved impractical due to a high background stain in unseeded scaffolds. Nonetheless, the differentiation-specific von Kossa staining method worked well, with very low background staining of unseeded scaffolds. The dark von Kossa staining of mineralized cells after osteogenic differentiation of the cells that had been maintained for 18 h in saline-based transportation buffers was equivalent to that of control cells in MM. Notably, for unseeded scaffolds, the low von Kossa background staining was very different from the relatively strong alizarin red S staining of the scaffold. This seemed counterintuitive, as the high calcium concentration of the HA/β-TCP scaffold might be expected to cause a high background stain in both cases. However, the two mineralization-staining methods react with the target calcium molecules differently. Alizarin red S impartially reacts with calcium via its sulfonic acid and/or OH groups to form a salt of a water-insoluble dye that selectively stains calcium deposits at pH ≈9.²⁸ In the von Kossa reaction, silver ions replace tissue calcium bound to phosphates, with subsequent visualization of silver ions by hydroquinone reduction to metallic silver. Puchtler et al. experimentally confirmed differences that von Kossa himself highlighted between the yellow stain of silver nitrate reacting with pure calcium phosphates versus black deposits in tissues, implying that the blackening of the silver salt-protein mixture was limited to a protein component.²⁹ Our finding, that the black von Kossa reaction enhanced the signal-to-noise ratio for scaffolds coated with the osteogenically differentiated cells, supported the view that the black stain, long considered diagnostic for calcium salts (phosphates and carbonates), is more likely an organically induced by-product that, nonetheless, reflects a high local calcium concentration.

Given that ex vivo von Kossa staining need not correlate with bone-forming potential,⁵⁹ the ultimate test for cGMP-hBM-MSC osteogenic function was to perform an in vivo bone formation assay.⁴⁵ Notably, we successfully obtained bone formation under procedures consistently appropriate for a clinical setting, and the cGMP-hBM-MSC were used either directly after experiments that compared suspension storage at 4°C with different transportation buffers or directly after a genuine shipment using full-scale conditions (data not shown, Brennan et al., in preparation). Others have already addressed the question of whether it would be beneficial to preincubate the cells with osteogenic factors before implantation. For the substantial majority of hBM-MSC strains cultured over 15 years, continuous exposure to osteogenic differentiation factors such as dexamethasone or ascorbic acid did not increase subsequent bone formation under circumstances in which cells were implanted after an equivalent adhesion to scaffold period of merely 90 min, emphasizing no need for a potentially inconvenient prior osteogenic induction of transplanted hBM-MSC.³⁴

In addition to bone formation in terms of dense pink-stained osteoid harboring osteocytes in lacunae, we were reassured that the transplanted hBM-MSC were able to support host hematopoietic territories. Thus, despite exposure to shipment conditions, the ectopically implanted cGMP-hBM-MSC retained a phenotype of bona fide multipotent skeletal stem cells with establishment of stroma and marrow-like cell populations alongside the new bone matrix.³³

An Occam's razor reductionist approach would suggest that, since HSA had little beneficial influence on ultimate outcome, 0.9%NS alone may suffice for cell shipment and bone formation in vivo and could be recommended as the transport medium of choice. However, the present study indicated potential cell loss associated with the key steps of cell transportation and predelivery attachment to the scaffold, with an estimate that only 50% of the initial cell number shipped overnight actually ended up attached to the scaffold at the time of implantation. There may be a compromise to be reached between procedural cell loss and maintenance of cell viability, as alternative shipment methods and more elaborate buffer formulations may introduce unwanted variability and additional safety concerns. Nonetheless, alternative procedures may enhance cell survival⁶⁰ and efficiency, leading to equivalent transplantation outcomes from fewer cells. Although the sample size of the present study was small, it was noteworthy that the inter-donor heterogeneity in osteogenic differentiation revealed by von Kossa staining of cells on 3D scaffolds correlated well with the subsequent inter-donor heterogeneity in bone formation. Our cost-effective test of shipping conditions, including quantifiable potency assay of 3D cell attachment and biomineralization ex vivo, may serve as a platform to explore procedures that further improve cGMP-hBM-MSC-mediated therapy. Principally, our clinically compliant experiments provided proof of concept for in vivo bone formation from shipped cells, broadening the scope for use of centrally produced cGMP-hBM-MSC in regenerative medicine involving multicentric clinical trials.
