Meta-analysis of All Immune Epitope Data in the Flavivirus Genus: Inventory of Current Immune Epitope Data Status in the Context of Virus Immunity and Immunopathology

Dengue virus

Associations have been made between protection from severe disease and the presence of neutralizing antibodies directed at the E protein, preM/M, and NS1 (48,52,83,86). However, neutralizing antibody and virus-specific T cells to these same antigens have also been associated with enhancement of disease (67). Indeed, while immunity to a homologous serotype can be achieved following primary infection, severe disease is most often observed following secondary, heterotypic infection. The mechanisms behind disease exacerbation are hypothesized to include antibody-mediated enhanced viral uptake and/or T-cell immunopathology.

Antibody-dependent enhancement (ADE) of infection describes the phenomenon of the dramatic increase in the infection of cells in the presence of non-neutralizing or sub-neutralizing levels of antibody. According to the ADE hypothesis, DENV-antibody complexes are formed and bind to the Fc receptors on cells such as macrophages, facilitating viral entry and replication. Increased viral loads resulting from ADE then drive the production of inflammatory mediators that increase vascular permeability. Increasing evidence supports a role for ADE in disease exacerbation following dengue infection (35); this phenomenon is proposed to occur following sequential infection with different dengue virus serotypes for which pre-existing immune sera is sub- or non-neutralizing for the heterologous virus. The phenomenon of more severe disease has also been observed in infants following passive transfer of maternally-derived antibodies, as the levels of DENV-specific antibodies wane with age, mimicking the sub-neutralizing situation. It has been proposed that ADE is one of the primary mechanisms leading to DHF and DSS in humans. However, the exact mechanisms involved in ADE have yet to be elucidated. To date, DHF/DSS has not yet been reported in an infant born to a DENV-naïve mother, providing the most compelling argument for the role of antibodies in DENV pathogenesis. Dengue-associated ADE has also been described after passive transfer of antibodies against YF virus and Langat encephalitis viruses (4,32,33,103). However, ADE was not observed after transfer of monoclonal or polyclonal antibodies against JEV or TBEV (45,47).

Similarly to the situation with the ADE, cross-reactive memory T cells have been studied intensively in recent years in order to understand their role in mediating protective versus immunopathological responses (5,40). In the phenomenon known as original antigenic sin, T cells generated during primary infection with one viral serotype, demonstrate low affinity to the secondary heterologous virus infection, leading to a suppression or delay of viral clearance. This, in turn, leads to higher viral loads and increased immunopathology caused by aberrant “hyperactive” T cells with associated cytokine storm (66). To date, variants of wild-type T-cell epitopes associated with low affinity and/or immunopathogenic effect have been identified in the NS3 and NS5 proteins (53,65,66,92).

It is important to note that the majority of published T-cell studies have focused predominantly on the role of T cells in DENV immunopathology. Few studies have examined the overall role of T cells in protection from disease. Therefore, the answer to the critical question of whether T cells contribute to protection against DENV infection, and/or to what extent, remains unknown. Such studies have largely been hampered by the lack of good in vitro and in vivo models of disease, and only recently have some potential models been developed. Animal models of DENV infection will be discussed further in a later section.

West Nile virus and Kunjin virus

Humoral immunity is considered an essential aspect of protective immunity (6,16,25,26,71). Passive transfer of immune sera can protect humans (hyperimmune globulin) (37), as well as B-cell-deficient mice from lethal infection (28). In mice, IgG has been shown to be protective through passive transfer studies, and IgM was shown to be critical for controlling initial infection and is predictive of disease outcome (26). While a majority of neutralizing antibodies are directed against regions of the WNV E protein, a subset recognizes the prM/M protein (29). Although neutralizing antibodies generated during WNV infection predominantly bind structural proteins, antibodies to the non-structural protein NS1 also protect mice against WNV infection (19). Antibody responses to NS3 and NS5 have also been observed during WNV infection (20,98,109); however, their functional significance is not fully understood. Antibody-mediated protection from WNV infection includes complement-dependent and independent, as well as Fc receptor-dependent and independent mechanisms (74).

Studies in humans and animal models have also demonstrated that T lymphocytes are an essential component of protection against WNV (16,44,54,90,91,105). Patients with hematologic malignancies or impaired T-cell function have been found to have an increased risk of neuroinvasive infection (70,76). Mice deficient in CD8⁺ T cells or MHC class I molecules have higher mortality rates due to sustained viral burdens in the spleen and CNS, despite a normal humoral response (90). Moreover, adoptive transfer of CD8⁺T cells decreased CNS viral burdens and enhanced survival. Studies in mice have shown that CD4⁺ T cells control WNV infection by priming B-cell and antibody responses, and by sustaining CD8⁺ T-cell activity. CD4⁺ T cells do not appear to be necessary for priming CD8⁺ T cells. Moreover, data suggest that CD4⁺ T cells restrict WNV pathogenesis in vivo, as CD4⁺ T-cell depletion or a genetic deficiency in MHC class II results in decreased WNV-specific antibody responses and increased lethality (93).

Yellow fever virus

A live-attenuated vaccine (YF strain 17D) was developed for yellow fever in the 1930s through serial passage of wild-type virus through chick embryos, inducing humoral immunity against the six currently known YF genotypes (64). The YF 17D vaccine has been one of the most successful vaccines developed to date, with an excellent safety record and conferring immunity for up to 35 years in as many as 99% of recipients (75,79). The effectiveness of this vaccine in humans and animal models has been attributed to the development of neutralizing antibodies against the E protein and complement-fixing antibodies against NS1 (9,75). In fact, active immunization with the E protein or NS1, or passive immunization using E- or NS1-specific monoclonal antibodies, was shown to protect mice and monkeys against lethal YF virus infection (9,78,89). Although it is known that the YF 17D vaccine induces long-lived humoral immunity, the exact immunological nature of this protection is not well understood. Similarly, while the nature and overall contribution of T-cell responses have yet to be fully elucidated, T cells have been shown to play a role in the protection generated after vaccination (21,80,100). Recent work using human volunteers showed a rapid primary CD8⁺ T-cell response following immunization with the YF 17D vaccine, which differentiated into a long-lived memory T-cell population (60).

Japanese encephalitis virus

A licensed vaccine has also been available for JEV since the 1950s. Developed in Japan, JE-VAX is an inactivated formulation prepared from whole virus grown on mouse brain (62). Again in the case of JEV, the E protein is the major target of neutralizing antibody (63), and protection is thought to be primarily antibody-mediated. Although neutralizing antibodies alone are sufficient to provide protection from infection (as seen by the killed vaccine), this observation does not rule out the potential importance of virus-specific T cells in immunity. Indeed, JEV-specific CTLs have been induced in mice following experimental infection (68), and the presence of T-helper, as well as regulatory T cells have been reported (49,58). The high serological cross-reactivity between JEV and DENV, as well as their overlap in global distribution, has significantly complicated diagnosis (15). At the amino acid level, 27–33% homology exists between the two viruses for the C protein, and 44–49% for the E protein. This level of homology suggests that group-specific determinants may exist that induce cross-reactive antibodies.

Tick-borne encephalitis virus, and Murray Valley, St. Louis encephalitis, and Louping ill viruses

Inactivated, whole-virus vaccines are currently produced in Russia, Austria, and Germany, covering the regions most greatly impacted by disease. Here again, the active immunological component of these formulations appears to be the E protein (3). And indeed, the E protein is believed to play a critical role in the induction of immunity to natural infection (38). Moreover, NS1 has also been shown to mediate protection against disease by inducing both humoral and cellular responses (41,96,97). Although there is no evidence that antibodies are associated with severe disease, non-neutralizing antibodies against E can enhance infectivity in mouse macrophages (72). Moreover, clinical studies of TBEV patients have revealed a correlation between low-level neutralizing antibodies and severe acute encephalitis (42).

Far less is known about MVEV and SLEV, despite the fact that before the introduction of WNV into North America, SLEV was the major cause of epidemic encephalitis in the U.S. (14). In addition, MVEV is endemic to Australia, causing sporadic epidemics of encephalitis in the heavily populated southeastern region. Instead, due to the relatedness among flaviviruses within the same antigenic group, much of what is understood about these viruses and their immunobiology appears to be extrapolated from more heavily studied viruses, like DENV, WNV, and JEV. However, two groups have identified MVEV peptides derived from the E protein that are recognized by CD4⁺ helper T cells, and elicit MVEV-specific antibody (55,84), suggesting a role for this antigen in MVEV immunity.

Flavivirus species and strain distribution

The IEDB contains data related to more than 1,900 structures derived from viruses within the Flavivirus genus, and were reported from more than 130 individual references. More than half of these structures (1,158 of 1,960) have been identified as either B- or T-cell epitopes defined in numerous host species (e.g., humans, mice, and non-human primates [NHP]). The remaining structures represent negative data relating to structures tested for reactivity and found to be non-immunogenic. Furthermore, it should be noted that in our analysis we have not included structures for which only MHC binding data in the absence of biological recognition is available, or structures in which synthetic peptides were used as both immunogen and antigen, and whole antigens/viruses were not utilized to either induce or detect responses.

To date, the IEDB houses immune epitopes from nine species within the Flavivirus genus: dengue viruses (DENV serotypes 1–4), JEV, WNV, KUN, YFV, MVEV, SLEV, TBEV, and LIV. Table 1 provides a summary breakdown of epitopes (total structures, positive structures, and negative structures) per group and/or serotype, and then classifies each of these as a B-cell or T-cell epitope.

Perhaps not surprisingly, the largest number of epitopes has been defined for DENV. Nearly 600 epitopes (593 positive structures) have been reported for all four DENV serotypes, including multiple strains within each serotype. Among the four serotypes, DENV 2 dominates the epitope literature. DENV is followed distantly in number by WNV, for which 303 epitopes have now been reported. Many fewer epitopes have been reported for YF (174), JEV (45), MVEV (19), TBEV (11), SLEV (9), KUN (3), and LIV (1). The prominence of dengue virus and West Nile virus data in the epitope literature is likely a reflection of their overall worldwide impact on human disease, and the lack of vaccines. Conversely, the relatively smaller number of epitopes defined for the other viruses within the genus most likely reflects the presence of established prophylaxis and/or their more modest impact on morbidity and mortality globally.

Phenotype categories of Flavivirus epitopes

All Flavivirus epitopes reported to date in the IEDB are peptidic in nature. While the IEDB can capture non-peptidic epitopes (e.g., carbohydrate and lipid), our literature searches for this genus have not yielded references defining such epitopes, even though the structural and non-structural proteins of Flaviviruses are known to be glycosylated (e.g., E, NS1, and preM), all of the determinants defined to date have been strictly peptidic in nature. The identification of epitopes from the glycolic moiety of the most prominent antigens would be of interest as an area of further study.

B-cell epitopes have been identified in eight of the nine species of Flavivirus represented in the IEDB; however, the overall number of antibody epitopes varies widely among the different species (Table 1). Thus far, the greatest number of B-cell epitopes has been defined in dengue virus type 2 (379). This is in sharp contrast to the paucity of B-cell epitopes defined for the other three DENV serotypes (5 epitopes for DENV1 and 6 for DENV3 and DENV4). The number of B-cell epitopes described for DENV is followed distantly by the other Flaviviruses: WNV (60), JEV (25),TBEV (11), and MVEV (13), and with only a small number of B-cell epitopes being described in SLEV, YF, and LIV (9, 4, and 1 epitopes, respectively). Interestingly, a total of 95 discontinuous antibody epitopes have been reported to date. This number is greater than what has been reported in the past for pathogens in other meta-analysis. Most of these have been identified for either DENV2 or WNV. Of the reported antibody reactivities, only a very small fraction has included isotype information. Total IgG is reported in the majority of cases (DENV, WNV, JEV, and TBEV), followed by IgG₁ and IgG_2a (DENV, WNV, and JEV). Only 3 epitopes have been defined for IgG_2b (WNV), and IgM (DENV, WNV, and JEV) (data not shown). These findings highlight a potential knowledge gap, as certain isotypes may be associated with protection from disease and others involved in, or associated with, immunopathology.

T-cell epitopes have been defined in six out of the nine Flaviviruses included in the IEDB (Table 1). The majority of T-cell epitopes have been identified for WNV (243), followed by DENV (197), again with DENV2 representing the largest proportion (122). Surprisingly, the dengue virus group did not represent the largest number of T-cell epitopes. Moreover, the overall distribution is somewhat skewed, with a disproportionate representation by the DENV 2 serotype. Yellow fever virus followed DENV with the greatest number of T-cell epitopes (170). Much smaller numbers have been reported for JEV (20), MVEV (6), and KUN (3). Thus far, no T-cell epitopes have been reported for SLEV, TBEV, or LIV.

For the Flavivirus T-cell epitopes currently recorded in the IEDB, we can also further specify the phenotype of the effector cell when provided by the authors or inferred from the assay used to measure the response (Table 2). The majority of DENV-specific T-cell epitopes are recognized by CD8⁺ T cells (97). This result is not surprising given the presumed role of CD8⁺ T cells in viral clearance and their potential role in immunopathology (although CD4⁺ T cells have also been implicated in the latter). Only 46 of the 197 T-cell epitopes described for DENV were recognized by CD4⁺, and another 54 were of an unspecified phenotype. Unspecified T-cell phenotype is a common finding in our meta-analyses, even among pathogens for which great attention has been paid to epitope mapping. This is due, in large part, to the routine use of peripheral blood mononuclear cells and/or splenocytes in assays in which the assignment of phenotype is ambiguous. This observation highlights a need for better resolution of effector cell phenotype and their role in viral clearance or immune pathogenesis.

Of the other Flaviviruses for which T-cell epitopes were described, a majority of CD4⁺ reactivity was reported for WNV (145); though numerous CD8⁺ epitopes were also described for this virus (96). A relatively unequal distribution of epitopes were reported for YFV (120 CD4⁺ and 50 CD8⁺), and 1 CD4⁺ and 4 CD8⁺ epitopes were described for MVEV. The small number of T-cell epitopes described for JEV was recognized by class II (13 CD4⁺ versus 5 CD8⁺). Only 3 CD8⁺ epitopes were reported for KUN.

MHC restriction (human and murine) of T-cell reactivity has also been captured by the IEDB for 6 of the 9 species within the Flavivirus genus (Table 3). The majority of MHC alleles that have been identified as binding Flavivirus peptides are associated with human infections from the dengue virus group (DENV 1, 2, 3, and 4), West Nile virus, and Yellow Fever virus, with a fairly broad distribution of human HLA-A and HLA-B alleles/serotypes represented. Human HLA-C alleles have not been identified, and class I alleles from several common laboratory mouse strains are also absent. While a few alleles/serotypes have been reported for JEV, KUN, and MVEV, these include only murine MHC types and no human data. No MHC restriction was reported for SLEV or TBEV T-cell epitopes. A broader distribution of class II alleles for either humans or rodents is also lacking. Thus far, only a small number of HLA-DR or -DP restricted epitopes have been defined. Defining the MHC restriction of T-cell epitopes in both humans and mice would facilitate a more detailed characterization of Flavivirus immunity and immunopathology.

Host distribution of the epitope reactivities

We investigated the overall distribution of Flavivirus epitopes among all relevant host species. For Flavivirus, these host species include: humans (from different geographic regions), mice, rabbits, horses, pigs, and NHP. The majority of epitopes reported for all viruses within this genus have been defined in either human or murine hosts (Tables 4a–d). For DENV, the majority of epitopes were derived from humans (445), followed by mice (294 from 9 strains), and then rabbits (15). Only two epitopes have been defined in a non-human primate species (both B-cell epitopes of the E protein). Given the genetic and immunological relevance of NHP species to humans, and therefore their potential utility as animal models of disease, a greater focus on Flavivirus epitope research using NHPs would be beneficial. Conversely, the majority of WNV epitopes have been defined in mice (321), followed closely by humans (227), with 34 epitopes defined in horses. The ratio of human to mouse epitope data is surprising, given the prevalence of this virus in human neuroinvasive disease in the Western hemisphere and the lack of a vaccine. However, a majority of the mouse data were generated in human HLA-transgenic mouse strains.

The relatively small number of human T- and B-cell epitopes described for JEV (8) was also unexpected. As mentioned above, this lack of data is likely due to the existence of the JEV vaccine, and therefore the relatively lower epitope-specific research effort for this particular pathogen. Moreover, while mouse data do exist for this species, the total numbers seem low given the overall significance of this virus. JEV shows a total of 40 murine epitopes (from 7 strains). The data for YF virus are a bit more impressive: a total of 131 epitopes have been defined in humans, and 179 epitopes have been identified using 10 murine strains (6 human HLA transgenic). For MVEV, TBEV, SLEV, and LIV, only B-cell epitopes defined in murine species have been reported to date (27, 11, 9, and 1, respectively). For KUN, all 3 T-cell epitopes were also defined in mice. Note that the total number of pathogen-specific epitopes per host will not necessarily equal those numbers generated in Table 1, as the same epitope (aa sequence) can be identified in multiple hosts, and is therefore counted more than once. In Table 1 unique molecular structures are counted only once.

Genomic distribution of defined epitopes

The Flavivirus genome is composed of a linear, single-stranded positive-sense RNA molecule. This genomic RNA is translated into a single polyprotein precursor comprising only one ORF, and containing approximately 3,400 amino acids. The polyprotein is co-translationally processed by host- and virus-specific proteases to yield 10 individual proteins: three structural proteins (capsid [C], membrane [prM/M], and envelope [E]); and seven non-structural proteins involved primarily in replication (NS1, NS2a, NS2b, NS3, NS4a, NS4b, and NS5).

We have mapped the reported epitope reactivity among the structural and non-structural proteins encoded by the Flavivirus genome (Table 5). Epitopes have been reported from all 10 of the Flavivirus virus proteins; however, comprehensive data for all 10 are not available for any one virus. The most comprehensive distribution of epitope data is for DENV and WNV. Not surprisingly, the greatest number of epitopes described for the genus as a whole has been derived from the E glycoprotein (576) (both B- and T-cell, mostly CD4⁺), followed by NS3 (almost exclusively CD4⁺ and CD8⁺ T cells) (209). These observations are in accordance with information regarding dengue immunobiology from the literature, suggesting that NS3 and E are major targets of immune responses to dengue virus (73).

Two Flaviviruses, DENV and WNV, dominate the epitope literature, and as noted above, only two of the 10 potentially antigenic proteins stand out prominently in the epitope data. While the emphasis on these two viruses was not unexpected given their impact on global disease burden and lack of vaccine, the narrow focus of epitope mapping was unexpected. Seemingly absent are T- and B-cell epitopes derived from the C and preM/M proteins. Indeed, these proteins represent conserved structural antigens involved in viral replication; moreover, the M protein, which is a glycoprotein known target of antibody responses, has been previously identified as a protective antigen in mice (102). Together, epitopes from C and prM/M were defined in less than half of the viruses. Of the non-structural proteins, more epitopes were expected to have been defined for NS1, as it has also been identified as a target of protective humoral responses (89). However, epitopes were mapped to this antigen in only 5 of the 9 species. While we did expect to find that viruses for which vaccines existed would have a lower number of reported epitopes, we did not anticipate the degree to which this would be true. Indeed, a fuller understanding of the mechanisms involved in vaccine-generated (active) immunity at the epitope level for these successfully managed viruses, may provide critical insights for the challenges facing DENV and WNV vaccine development.

Epitope data associated with different Flavivirus disease states

Clinical manifestations of Flavivirus infection in humans range from self-limiting febrile illness to hemorrhagic syndromes to severe neuroinvasive disease (34,85). The characterization of epitope reactivity in different disease states can be used to gain a better understanding of the mechanisms and players involved in protective versus pathological immunity. Such information may help distinguish reactivity consistent with severe disease from uncomplicated disease resolution, and help discern certain aspects of host- and pathogen-mediated outcome. When available, detailed information pertaining to clinical disease state (e.g., DF, DHF, and YF), and stage (acute, post, or chronic) is captured within the IEDB, along with other data detailing the target population (age, sex, geographic location, and MHC type). We have compiled data representing all Flavivirus epitopes associated with defined human disease states (Table 6). These disease states included: dengue fever (DF), dengue hemorrhagic fever (DHF), yellow fever (YF), Japanese encephalitis (JE), and West Nile fever (WNF).

Thus far, the vast majority of epitopes are defined for DF (305) versus DHF (91), in a ratio of approximately 3:1. The majority of epitopes defined for DF are B-cell epitopes (265), whereas the bulk of epitopes defined for DHF are T-cell epitopes (69, mostly CD8⁺ or unspecified T-cell). This finding is consistent with observations in the literature that suggest that neutralizing antibodies play a critical role in the normal course of DF disease, and further reflects the notion that T-cell dysfunction is thought to be responsible for the immunopathology leading to DHF. However, this does not mean that antibodies are not important in DHF, or that CD8⁺ T cells do not play a role in DF; it is just a reflection of the focus of the epitope literature to date. In addition, the overall role of T cells in DENV infection has not been fully examined. A total of 21 epitopes have been defined in individuals with Japanese encephalitis, the majority of which are B-cell epitopes. However, these epitopes were mapped to DENV using B cells taken from JEV-infected individuals (DENV exposure was not addressed), thus defining potential cross-reactivity. This study likely reflects the fact that several viruses within this genus are co-endemic for vast regions around the world, and that co-infection may be quite common. Surprisingly, only a relatively small number of epitopes have been reported for humans with West Nile fever (26), and none of these describe severe neuroinvasive disease. Another unexpected finding was that only one epitope has been defined for YF. To date, no epitopes have been described for SLEV, MVEV, or TBEV during clinical disease in humans. We conclude from these data that the mapping of epitope reactivity during clinical disease in humans should be a priority for future studies, with an emphasis on those viruses for which immunopathology may be manifested at the epitope level.

Epitope data from different geographic regions

The broad distribution of flaviviruses around the globe, genomic and protein sequence homology among viral species, and overlapping endemicities, are some of the greatest challenges to studying this group of viruses. Indeed, the insect vectors responsible for harboring Flavivirus disease are found on nearly every continent in the world. When available, the IEDB records the geographic residence of the sampled populations. This information can then be used to help gain insight into relative population coverage of epitope identification. Such information was collected for dengue virus epitopes, since detailed human data are available for this virus. Figure 1 shows the relative distribution of epitopes (B and T) defined from populations living in different geographical regions, including North America (U.S.), Europe, India, and countries in Southeast Asia. As shown in the figure, the vast majority of epitopes have been defined for populations (adults and children) living in Thailand, followed by Vietnam; and the number of T-cell epitopes far exceeds that of B-cell epitopes (data not shown). The largest number of B-cell epitopes has been defined in people living in Malaysia. Epitopes defined in Western populations (the U.S. and Europe) are all representative of experimental vaccine trials. The predominance of DENV epitopes defined in populations living in Southeast Asia is not surprising, as this was the first region in which severe disease due to dengue was reported.

OPEN IN VIEWER

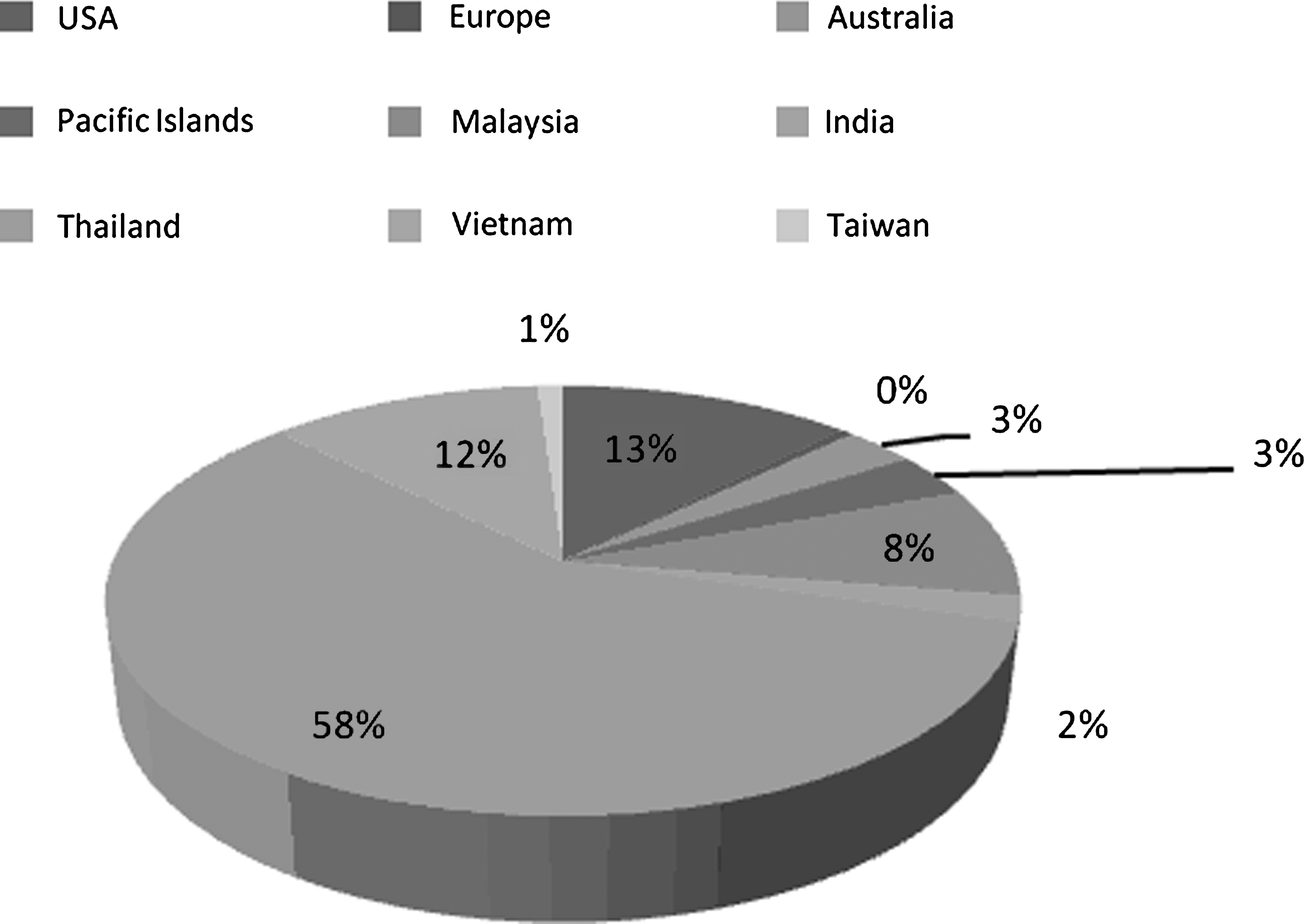

FIG. 1.

Epitope distribution among different geographic regions for dengue virus. Epitopes were reported from multiple endemic and non-endemic populations around the world, including the United States (13%), Europe (0%), Australia (3%), the Pacific Islands (3%), Malaysia (8%), India (2%), Thailand (58%), Vietnam (12%), and Taiwan (1%). This pie chart shows the relative percentage of regions explicitly stated in the patient histories (these data are not available in all references).

Epitopes associated with protection in animal models

In general, B- and T-cell epitopes associated with protection and/or protective immunity can be identified using animal models in which the epitopes are used to immunize against a pathogen challenge. These types of experiments are rarely feasible in humans. Therefore the identification of immune epitopes with protective activity in humans has to rely on animal models, including HLA transgenic mice; studies utilizing in vitro assays correlated with in vivo protection, such as neutralizing antibody titers, or correlated the pattern of epitope recognition with different clinical outcomes, which is discussed in the following section.

Animal models are essential for performing studies aimed at examining the mechanisms underlying immune protection and disease pathogenesis. A review of the literature shows that numerous animal models have been used to study different aspects of Flavivirus infection, including hamsters (YF, WNV, SLEV, and JEV), mice (all), rabbits (JEV), guinea pigs (JEV), piglets (JEV), dogs (TBEV), and NHP (DENV, YF, WNV, JEV, and SLEV) (17,95,110). However, to date, no one model adequately represents all manifestations of disease, making it difficult to fully characterize many aspects of immunobiology and pathogenesis. Much of this difficulty lies with the lack of host susceptibility to viral infection (replication), and the subsequent development of clinical disease.

While murine models manifest certain elements of Flavivirus disease (neuropathology, hematological changes, and even death), mice are in many cases resistant to infection and of limited value in the study of protective capacity, and conversely immunopathogenesis, for some flaviviruses. For example, wild-type mice (common lab strains) are susceptible to infection with WNV and develop neuropathology; however, most common lab strains are resistant to infection with DENV. Therefore researchers have made use of mouse-adapted or engineered virus strains in immunocompetent mice, chimeric mice transplanted with susceptible human cells (humanized), or severely immunocompromised mouse strains (7,17,18,88,100,111). Development of a genetically tractable murine model in which relevant immune parameters can be controlled would represent a key advance in the study of Flavivirus immunity and immune-mediated pathogenesis.

At the other end of the spectrum, NHPs (monkeys) are considered natural hosts for DENV (104) and YF (61) as part of the sylvatic cycle. Moreover, these animals, when experimentally infected, develop viremia and some degree of virus-specific immunity; however, results vary with the viral species used. Evidence of DENV-induced disease and demonstrable hematological changes are mostly lacking (36), and in the case of YF, viral pathogenesis is more severe than that seen in humans, with much higher mortality (62). So while NHP models represent genetically and immunologically relevant species, their use for studying Flavivirus immunobiology is limited.

Table 7 shows epitopes associated with protection as measured in vivo after live challenge in mice. For DENV, three B-cell epitopes have been associated with survival after lethal challenge with DENV 2 (A15 strain) in BALB/c mice (102). All of these epitopes were derived from the preM/M protein of DENV 2: preM (117–145), M (71–106), and M (183–207). These same epitopes/regions have not been identified in humans in the course of natural infection (see Table 9 below). For JEV, four B-cell and one T-cell epitope were reported. Antibody-mediated protection was observed using epitopes derived from the E protein [E (667–693), E (39–48), E (151–163), and E (334–343)] in BALB/c and FVB/J mice (24). T-cell-mediated protection was seen following immunization with M (17–26). Only one B-cell epitope has been defined as protective against TBEV challenge in mice: NS1 (813–831). As expected, no Flavivirus epitopes have been used to immunize humans. This analysis highlights a relative lack of protective epitope data in the current literature for all host species (natural and experimental), and suggests a need for further work in this area.

In addition to the in vivo protection data, epitopes have been associated with potentially protective responses in vitro. Here we define as protective those functional assays that define correlates of in vivo protection, namely viral clearance (i.e., TCID₅₀), reduction of viral titer, inhibition of infectivity (e.g., virus neutralization or inhibition assays), and cytolysis (CTL assays). Table 8 describes protective epitopes for dengue virus, West Nile virus, and Japanese encephalitis virus. Interesting observations include: (1) nearly all of the data were derived from mice, (2) nearly all of the epitopes defined are B-cell epitopes, and most of these are specific to the major envelope protein, (3) all of the epitopes defined for DENV come from serotype 2, and (4) all of the protective epitopes defined for WNV are non-linear, conformational (discontinuous) epitopes.

Epitope reactivity following natural infection in humans

Tables 9a–d provide lists of epitope reactivity following natural infection in humans by virus and/or serotype, and the type of immune response and phenotype if determined, for DENV (9a and b), WNV (9c), and JEV (9d). These data were not available for the other flaviviruses. For DENV, a large number of epitopes have been identified over the course of natural infection. For this, the data have been divided into T-cell reactivity (9a) and B-cell reactivity (9b). Thus far T-cell reactivity has been defined against 8 of the 10 antigens (excluding NS2a and NS1). While the vast majority of these T-cell epitopes were unclassified with regard to phenotype, for those that were reported, CD8⁺ T-cell epitopes (25) outnumber CD4⁺ T-cell (13) epitopes. We do see antibody reactivity against NS1 (9b); however, the vast majority of antibody reactivity defined to date is against the E protein. A total of 243 B-cell epitopes were identified alone for DENV2. Table 9b shows only a fraction of these in the interest of brevity.

Far fewer epitopes have been identified for WNV (all T-cell) and JEV (all B-cell); however, these include both major and minor antigens. The epitopes reported as recognized by JEV patients were all derived from DENV2, thus showing a significant degree of potential cross-reactivity. These data could be used in the clinical setting to compare reactivities among patients with different disease outcomes, or could be used analytically (or computationally) to evaluate sequence variations among DENV strains associated with more severe disease.

Epitopes identified during the course of natural infection can also help elucidate the issue of epitopes associated with immunopathology. For example, the epitopes from Tables 9a–d could be further evaluated for disease state in order to generate a subset of reactive peptides recognized only during severe disease (i.e., DHF). This subset could then be used to compare reactivity (by serotype) to individuals with less severe disease (i.e., DF). The current data are, however, limited in their capacity to adequately answer this basic question, as the vast majority of epitope mapping in humans with defined disease is not comprehensive (with each peptide tested in both DF and DHF). It is important to note that while studies to date have shown associations between certain epitopes (B- and T-cell) and different disease states, much more work remains to be done in order truly correlate particular peptides to immunopathology.

Zivna et al. have demonstrated that T-cell responses to an HLA-B07-restricted epitope (LAPTRVVAAEME) on DENV NS3 correlated with severe disease in Thai children; the frequency of responses to this peptide was higher for those with DHF than for those who had DF (113). Mongkolsapaya et al. analyzed CTL responses during acute dengue infection and found an association between DHF and the A11-restricted epitope (GTSGSPIIDKK) on NS3, for which there are at least six naturally-occurring variants among the four serotypes (66). Here as well, responses to the epitope were more frequent in individuals with more severe disease. Loke et al. found three epitopes from NS3 (TVWFVPSIK, NYADRRWCF, and EALRGLPIR), and two from NS5 (YILRDVSKK and DVFFTPPEK), that were recognized by the CD8⁺ T cells of DHF patients (53). Simmons et al. studied T-cell responses from DHF patients from Vietnam with secondary dengue infection, and found acute T-cell responses to natural variants of E (ILGDTAWDFGSL) and NS3 (GINYADRRWCF). Interestingly, they found that the overall breadth and magnitude of T-cell responses were not significantly related to disease severity (92), strengthening the argument for cross-reactivity leading to altered T-cell functionality. By contrast, very few antibody epitopes have been defined that are associated with severe disease. Falconar has studied antibody reactions in human patients with DF and DSS, and found that antibody responses to NS1 epitopes (RPQPTELRY, QPTELRYSW, and TELRYSWKT) sharing the ELR motif, were stronger in DSS patients than in those with DF (29). Finally, enhanced infectivity in mice was associated with antibody responses to the preM/M epitope (CPFLKQNEPEDIDCW) (39). Table 10 depicts those epitopes captured in the IEDB that have been associated with either ADE or T-cell immunopathology in the literature, and have been associated with different disease outcome; all but one of these epitopes were defined in humans.

Flavivirus cross-reactivity

The identification of cross-reactivity within Flavivirus species is now a major focus of research, as it is hypothesized to be one of the primary causes of B- and T cell-mediated immunopathology, and therefore the basis of severe disease. In general, antibody-mediated enhancement of disease is thought to result when neutralizing antibodies generated against the serotype of the primary infection fail to, or poorly, neutralize the serotype of the secondary infection, and lead to increased uptake of virus through Fcγ II-bearing cells (36,51). The surface-exposed structural proteins E and preM/M are thought to play a significant role in ADE; however, NS1 is also implicated (29). In the “original antigenic sin” model, T cells generated upon primary dengue infection are able to respond to variant epitopes during secondary heterologous infection. The selective expansion of these lower-avidity cross-reactive memory T cells from the initial infection may outcompete naïve T cells with higher avidity for the second serotype (56). It appears that more conserved, non-structural proteins play a dominant role in this phenomenon.

The characterization of the cross-reactivity of epitopes from different serotypes is highly relevant for vaccines or diagnostic applications. It is therefore critical that a broader understanding of the antigens and epitopes involved in these phenomena be more fully elucidated. Indeed, the development of an efficacious vaccine will require a better understanding of epitope cross-reactivity, as any candidate formulation will have to ensure a lack of potential disease enhancement. The identification of non-cross-reactive epitopes is therefore an area of keen interest going forward.

Table 11 shows serologically heterologous epitopes defined in human subjects following natural infection with DENV or JEV; similar cross-reactivity data are shown for experimental DENV immunization in human subjects (see Table 12 below). We see a fairly broad range of cross-reactivity with DENV 2 epitopes. Reactivity to these epitopes was observed following infection with all other DENV serotypes (1, 3, and 4), as well as JEV, KUN, and MVEV. JEV is known to be cross-reactive with DENV (see also Table 9d), making serodiagnosis difficult, and leaving the question open as to its possible role in dengue disease. The prominence of DENV 2 in these data may reflect some degree of experimental bias. Some studies have suggested that DENV 2 (especially Asian genotypes) is more often associated with more severe disease, and is therefore more heavily studied (50,106). However, the data collected here are mostly associated with DF. Interestingly, those cross-reactive epitopes defined for subjects with DHF were all identified from NS3, which is a known target of T-cell responses, and had been implicated in immunopathology (66) [see example peptide in bold Tables 10 and 11].

In addition to its potential role in disease exacerbation, cross-reactivity and sequence variation among Flavivirus species also contributes to difficulties in epidemiological surveillance. This is true in the human population, as well as in animal reservoirs (native or agricultural). The characterization of epitope reactivity for certain antigens routinely used for serodiagnosis between and among Flavivirus species may be useful to provide higher fidelity. Such data would allow researchers to make important distinctions between virus endemicities, which would then help the world community gain a greater understanding of the prevalence of specific flaviviruses in specific regions and which ones overlap. It may also help make distinctions among strains associated with higher virulence, and may help identify infected versus vaccinated individuals. To date, detailed analyses have been performed by other groups to investigate cross-reactivity between species within the Flavivirus genus (1,23,94), and these types of studies will be useful going forward for serodiagnosis, as well as vaccine development.

The potential utility of epitopes in Flavivirus vaccine development

Of the vaccines available for species in the Flavivirus genus, all are whole-organism formulations (YF, JEV, and TBEV), and indeed, these have demonstrated high levels of protective efficacy. Moreover, the vast majority of experimental vaccines tested in humans for dengue virus include whole-organism preparations. Here the epitope data can be queried to identify those epitopes found to be reactive following experimental immunization. Table 12 shows all epitope-specific reactivity in humans following active immunization (experimental or routine) with whole inactivated/attenuated dengue virus by serotype, as well as for the YF 17D vaccine and the JEV vaccine. These data show a broad array of antigen reactivity representing 7 of the 10 viral proteins, and also indicate a high degree of cross-reactivity among DENV serotypes. The ultimate goal would be to use this type of data, perhaps in concert with epitope data from natural infection, to help identify candidate antigens for those viruses lacking a vaccine, and to better define the components leading to the protection provided by the established vaccines YF 17D and JE-VAX.

The potential lack of YF vaccine coverage in certain areas may lead to disease re-emergence, and the lack of epidemiological understanding hinders surveillance and therefore predictability. For example, the epidemiology of YF has been well defined in West Africa, but not in East Africa, where the disease shows an unpredictable focal periodicity, long inter-epidemic periods, and the potential for large-scale epidemics (27). Indeed, the re-emergence of decades-old virus strains has been identified following outbreaks in Kenya in 1992–1993, as well as in the Sudan in 2003 and 2005. In addition, the current YF 17D vaccines essentially constitute quasi-species of closely related viral variants. Because neutralizing epitopes of YFV have not been fully mapped for humans, it cannot be ruled out that naturally-occurring neutralization escape variants might be present in 17D vaccine preparations (77). A greater understanding of the YF 17D vaccine at the molecular level is surely warranted, not only to uncover the underlying components of its success, but also to gain a better understanding of the interaction of this vaccine with its recipient's immune responses in the global setting.

What we have learned, knowledge gaps, and future directions

The Flavivirus genus consists of a complex group of antigenically-related pathogens with worldwide distribution. Disease sequelae of Flavivirus infection range from mild febrile illness to severe neuroinvasive disease or hemorrhagic syndromes. The viral genome consists of just 10 total proteins (structural and non-structural); however, the exact role of each protein in pathogenesis is not yet fully understood. Successful immunization strategies have existed for decades for some members, while vaccine development for other viral species remains problematic due to complexities of the immunobiology. The overall disease burden is therefore weighted more heavily upon those viral species lacking prophylaxis. While a broad array of animal models has been employed to study Flavivirus infection and immunity, none adequately represents all manifestations of disease; moreover, common laboratory animals are resistant to infection with some flaviviruses. Good human data exist for some flaviviruses; however, not all disease states are represented, and these data lack a broad global distribution among populations affected by viruses in this genus. And indeed, to a large extent we find that all of this complexity is reflected in the epitope literature.

Of the nearly 1,200 epitopes identified from viruses within the Flavivirus genus, the majority belong to the dengue virus group, followed by WNV and YFV. The prominence of DENV and WNV data in the epitope literature is likely a reflection of their overall worldwide impact on human disease, and the lack of vaccines. Conversely, the relatively smaller number of epitopes defined for the other viruses within the genus most likely reflects the presence of established prophylaxis, and/or their more modest impact on morbidity and mortality globally. All of the epitopes reported to date are peptidic in nature, raising the question of their overall role, and the relative interest in pursuing the identification of immunogenic carbohydrate moieties from prominent antigenic glycoproteins, such as the E protein.

Looking at the genus as a whole, there is a fairly even distribution of reported B-cell and T-cell epitopes. B-cell epitopes have been identified in 8 of 9 species of Flavivirus present in the IEDB. However, the overall number of B-cell epitopes varied greatly among the different virus species. For example, the greatest number of B-cell epitopes has been defined for dengue virus type 2, and these greatly outnumber the B-cell epitopes defined for all other species. The relative lack of B-cell epitopes defined for other viruses within this genus is somewhat surprising, given the overwhelming evidence demonstrating the importance of neutralizing antibodies in Flavivirus immunity. Whether the relative paucity of antibody data is due to experimental or biological factors (or a combination thereof ) cannot be determined from this analysis. Nevertheless, the identification of B-cell epitopes should be a priority for the future.

T-cell epitopes have been reported for all but 3 (TBEV, SLEV, and LIV) of the 9 flaviviruses captured in the IEDB. To date, DENV, WNV, and YFV represent the largest numbers of T-cell epitopes. The overall distribution for DENV is, however, somewhat skewed due to the disproportionate representation by the DENV 2 serotype, which highlights a need for better resolution of T-cell epitopes for the other three serotypes. Both CD4 and CD8 T-cell epitopes have been defined; however, dengue epitopes are predominantly CD8⁺ T-cell epitopes, whereas CD4 T-cell epitopes dominate the other viruses (WNV and JEV). Further identification of both CD4⁺ and CD8⁺ T-cell epitopes is certainly warranted given the putative role of these effector cells in both disease resolution and immunopathology. The MHC data reflect a need for the identification of more HLA-C alleles for humans and class I alleles for mice, as well a broader distribution of class II alleles for both humans and rodents.

Our analysis of host distribution of epitope reactivities showed, not surprisingly, that the majority of Flavivirus epitopes have been defined in either humans or mice. That the majority of DENV epitopes were defined in humans was not unexpected; however, the lack of human epitopes for JEV, and the lower numbers for WNV and YFV, was surprising. WNV has been responsible for a significant increase in neuroinvasive disease in the Western hemisphere since its introduction 1999, and millions of people worldwide have been vaccinated against JEV and YFV. Despite their high cost and limited availability, the identification of epitopes in NHP models remains of interest, because they represent natural hosts and have biological/immunological relevance to humans.

The genomic distribution of defined epitopes shows that structures have now been reported from all 10 of the Flavivirus viral proteins. However, comprehensive data for all 10 proteins have not been reported for any one virus. The best overall distribution of epitope data is for DENV and WNV (10 out of 10 for both), and the greatest number of epitopes described for the genus as a whole has been derived from E and NS3. The narrow focus of epitope mapping for this genus was somewhat surprising, as only two of the 10 potentially antigenic proteins are prominent in the epitope literature. Further epitope mapping is warranted for all other Flavivirus proteins.

The analysis of epitope data associated with different Flavivirus disease states identified both B- and T-cell epitopes recognized in patients with dengue fever, dengue hemorrhagic fever, yellow fever, Japanese encephalitis, and West Nile fever. A further category, “exposure without evidence of disease,” could be included to describe those individuals who have either been confirmed to have existing immunity (seropositive) or were assumed to have been exposed as a result of living in an endemic region. Most of the human epitope data were collected from populations living in Southeast Asia, a region highly endemic for several Flavivirus species. An overwhelming number of epitopes was defined for DF, and these were almost entirely antibody epitopes. A much smaller number of epitopes was defined for DHF, most of which were T-cell. These data highlight the need for additional epitope identification between the two primary DENV disease states, and for both effector types. Completely lacking are T-cell epitopes defined in WNF, JE, and YF infections in humans. While several groups have published well-controlled clinical studies in human Flavivirus patients, many of these have focused on DENV. Thus we conclude that the mapping of epitope reactivity during clinical disease in humans should be a priority in the future, at least for DENV, WNV, and YFV. Indeed, studies conducted in patients following mild and severe dengue virus infection suggest that the immune system is the critical component in determining disease outcome, and therefore the importance of expanded epitope mapping during clinical disease is clear.

To date, a small number of protective epitopes have been reported for some flaviviruses: DENV (3), JEV (5), and TBEV (1). This paucity of data is likely due to the lack of suitable animal models of infection and disease. While many models exist for studying different aspects of Flavivirus infection, the murine model is the standard for many. However, the use of mice to study certain flaviviruses is problematic due to this animal's relative resistance to infection and disease development, thereby making it difficult to use these animals to reliably define protective immunity. Progress is being made in the development of humanized and/or susceptible mouse models in which viral replication and disease symptoms more closely mimic those observed in humans. Until better models are found, the ability to define protective epitopes will be limited, and will mostly rely on extrapolation for clinical studies. Correlates of immunity defined by in vitro assays have identified potentially protective epitopes, and may therefore be useful to identify key antigens. However, these studies have almost exclusively focused on the E glycoprotein, and have been conducted in mice/rodents only.

A broad array of epitopes has been identified during natural infection in humans for DENV, WNV, and JEV, including both major and minor antigens (8 out of 10 Flavivirus proteins). However, the data are heavily weighted toward DENV. Nevertheless, the data may be useful for characterizing general antigenic reactivity during natural infection, and may further help elucidate the issue of variant (cross-reactive) epitopes responsible for immunopathology. The current data are somewhat limited in their capacity to adequately answer all questions related to natural infection and immunopathology, as the vast majority of epitope mapping in humans with defined disease is not comprehensive.

The identification of cross-reactivity within Flavivirus species is becoming a major focus of research, due to the association with cross-reactivity as the primary cause of B- and T-cell-mediated immunopathology. The characterization of the cross-reactivity of epitopes from different serotypes is therefore highly relevant for vaccines or diagnostic applications. Studies to date have shown correlations between certain epitopes (B- and T-cell) and more severe disease; however, the number of epitopes (or the amount of data on any one epitope) is thus far inadequate to begin a substantive discussion. Moreover, while certain epitopes have been associated with severe disease in humans, these same structures have not been evaluated in terms of cross-reactivity with other viral strains. The reason for this lack of information is that in the vast majority of clinical cases, the primary and secondary serotype is not determined or is unknown. Further work to define cross-reactivity is therefore of great interest, and much work is focused on the development of appropriate animal models for investigating this phenomenon.

Herein we have provided an overview of Flavivirus immunobiology and related immune epitope data. The aim of this meta-analysis was to offer a comprehensive inventory of all published epitope structures and associated immune reactivity in the context of the broader issues and challenges facing Flavivirus research. Through this work, we have tried to demonstrate the utility of epitope data for studying immunity and pathogenesis, uncovering critical knowledge gaps, and highlighting potential areas for further research. Ultimately, we hope that this information will be useful and meaningful to those working in the area of Flavivirus research, and seek to solicit valuable feedback from this scientific community.
