Measurement of Cortical Dopamine D 1 Receptor Binding with [ 11 C]SCH 23390: A Test–Retest Analysis

Subjects

The study was approved by the Ethical Committee of the Turku University/University Hospital, Turku, Finland. Five male volunteer subjects (age = 28.3 ± 3.2 years, height = 181 ± 4 cm, and weight = 78.6 ± 9.4 kg, mean ± SD) free of any psychiatric or somatic illness participated in the study. All subjects were right-handed, nonsmokers, and had normal 1.5 T magnetic resonance imaging scans of the brain. Written informed consent was obtained in all cases.

Preparation of [¹¹C]SCH 23390

The desmethyl precursor SCH 24518 and SCH 23390 were kindly supplied by Schering (Bloomfield, NJ, U.S.A.). [¹¹C]Methyl triflate was prepared as described previously (Jewett, 1992; Någren and Halldin, 1998). [¹¹C]Methyl triflate was reacted with SCH 24518 (0.3 mg) in acetone (100 μL) for 1 minute at 60°C. The reaction mixture was purified on a Waters μ-Porasil column (Milford, MA, U.S.A.) (300 mm × 7.8 mm, 10 μm) using a dichloromethane/methanol/triethylammonium acetate eluent, and a Pharmacia UV-1 UV-detector (Amersham Pharmacia Biotech, Uppsala, Sweden) (wavelength = 254 nm) in series with a coaxial type air ionization chamber (Sipilä and Saarni, 1984) for radioactivity detection. Propylene glucol/ethanol (7/3, 800 μL) was added to the eluent containing the purified product. After evaporation of the mobile phase, the residue was dissolved in 8 mL physiologic phosphate buffer (pH 7.4) and filtered through a Gelman Acrodisc (4192; Pall Gelman Laboratory, Ann Arbor, MI, U.S.A.) 0.22 μm sterile filter. The radiochemical purity and the specific radioactivity of the product were determined in analogy to the analysis of [¹¹C]FLB 457 (Vilkman et al., 2000) using high-performance liquid chromatography and UV-detection at 205 nm. At time of administration, the specific radioactivities were 60.39 ± 16.34 and 68.51 ± 16.10 MBq/nmol for test and retest scans, respectively (mean ± SD). Radiochemical purity of the tracer was 98.3% ± 1.0% and 98.1% ± 0.6% for test and retest scans, respectively (mean ± SD).

Positron emission tomography method

Positron emission tomography experiments were performed using a whole-body, three-dimensional PET scanner (GE Advance; GE, Milwaukee, WI, U.S.A.) with 35 slices (4.25-mm-thick) covering the whole brain. The basic performance characteristics tests on this camera indicated transaxial and axial spatial resolution (FWHM) of 4.3 mm and 4.3 mm, respectively. The camera was run in the three-dimensional mode using scatter correction (Vilkman et al., 2000). Before each experiment, a transmission scan was performed with⁶⁸ Ge filled rod sources. An intravenous rapid bolus of [¹¹C]SCH 23390 (200 to 300 MBq) was given and flushed with saline. The uptake of [¹¹C]SCH 23390 was measured for 51 minutes after injection using 13 time frames. The frame sequence consisted of three 1-minute frames followed by four 3-minute frames and six 6-minute frames. All subjects were scanned twice during the same day between 11.00 a.m. and 5.00 p.m. at least 1.8 hours apart. Two striatal (putamen and caudate) and five cortical—dorsolateral prefrontal (DLPFC), medial part of the superior gyrus of the frontal (MSFC), anterior cingulate (AC), posterior cingulate (PC), and temporal (TC) cortices—regions of interest (ROIs) were drawn on the magnetic resonance images resliced according to PET slices (Ardekani et al., 1995). Regular-shaped cortical ROIs were 6 to 7 mm in axial width. No gray/white matter segmentation was used for ROI definition. Regions of interest for cerebellum, as well as all other ROIs, were manually delineated based on visual inspection with reference to brain atlases. All structures were defined on 3 or 4 planes.

Quantification of [¹¹C]SCH 23390 binding

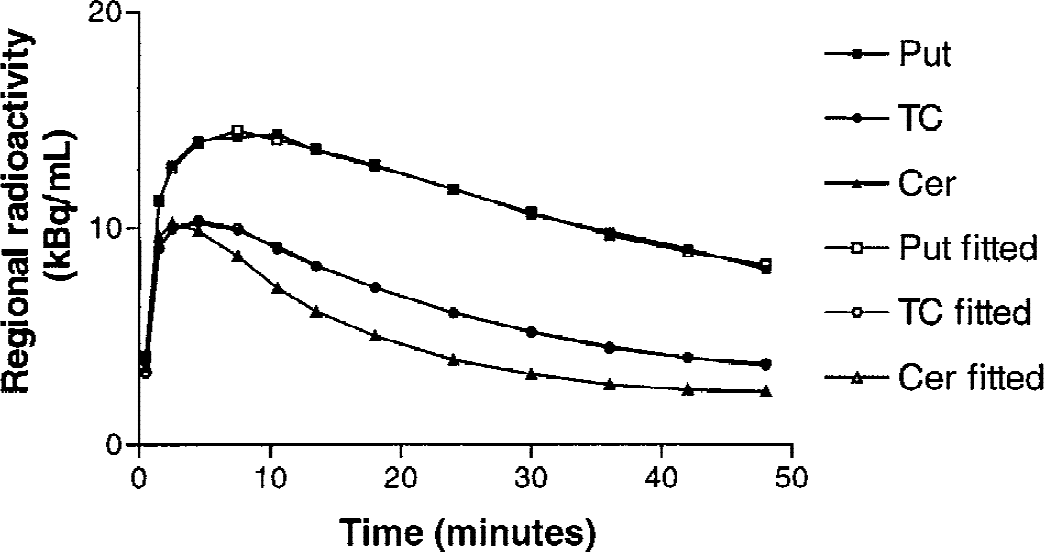

Binding potential (k₃ /k₄) values were calculated using the simplified reference tissue model. The applicability of the simplified reference tissue model to [¹¹C]SCH 23390 has been previously validated for ROI-based analysis by Lammertsma and Hume (1996). The authors also performed Logan analysis with reference tissue input to obtain distribution volume ratio (DVR) values (Logan et al., 1996). Data was weighted according to frame duration and total counts per frame, as described by Gunn et al. (1997), but the current data were decay-corrected. Cerebellum was used as a reference region in both analyses with negligible dopamine D₁ receptor density. As shorter scanning times for [¹¹C]SCH 23390 have been used, the authors also tested the effects of data collection time on the reproducibility of BP by calculating averages (±SD; n = 10) expressed as percentage of the reference (51 minutes) value for each data collection duration. Parameters were considered stable if means were within 10% of the reference value and standard deviations did not exceed 15% (Abi-Dargham et al., 2000). Times of transient equilibrium (dB/dt = 0) were achieved by defining the time point of maximal specific binding in each case.

Statistical analysis

The between-subject and within-subject variation were calculated and used in the determination of the intraclass correlation coefficient (ICC). ICC = (BSMS − WSMS)/(BSMS + [n − 1] WSMS), where BSMS is the between-subject mean square, WSMS is the within-subject mean square, and n is the number of repeated observations (in this case, n = 2). This coefficient can have values from −1 to 1 (where values close to 1 indicate that most variance is because of between-subject rather than within-subject variation). Also, the values for absolute variability were calculated as follows: |scan 2 − scan 1|/0.5 (scan 1 + scan 2) × 100%. Reliability coefficients (R) were calculated as described by Chan et al. (1998) for comparative purposes. Standard t-test of dependent samples was used for comparison of binding potential values between tests 1 and 2. P < 0.05 was considered statistically significant. Analyses were performed using SPSS for Windows (SPSS Inc., 1989–1999, Release 9.0.1.).

Distribution and specificity of the [¹¹C]SCH 23390 binding

The distribution of [¹¹C]SCH 23390 binding in the brain corresponded well with postmortem studies of dopamine D₁ receptors (De Keyser et al., 1988; Hall et al., 1988, 1994) and is also in line with the binding distribution of another D₁ ligand [¹¹C]NNC 112 (Abi-Dargham et al., 2000). The specific signal is likely to have a component of D₅ receptor binding because SCH 23390 has almost equal affinity for the D₁ and D₅ receptor subtypes (Sunahara et al., 1991) and because D₅ receptors are expressed in basal ganglia and cortex (Khan et al., 2000). There is currently no available data on the D₁ -like receptor subtype selectivity for NNC 112. A serotonin 5-HT₂ receptor component of the signal has been implicated based on in vitro affinity (Bischoff et al., 1986; Hall et al., 1988) but is unlikely because the D₁ /5HT₂ inhibition constant ratio of SCH 23390 is 0.0038 in rodents (Andersen et al., 1992) and because [¹¹C]SCH 23390 binding in vivo in cortical regions cannot be displaced by ketanserin, a 5-HT₂ antagonist in mice (Suhara et al., 1992). Roughly similar results have been obtained for [¹¹C]NNC 112 (Halldin et al., 1998) along with a D₁ /5-HT₂ inhibition constant ratio of 0.01 in rodents (Andersen et al., 1992).

Considerations on reproducibility and stability

The reproducibility of [¹¹C]SCH 23390 binding (DVR as outcome measure) in the striatum has been assessed by Chan et al. (1998) with a PET camera run in two-dimensional mode and with the use of reliability coefficients. For example, in caudate and putamen, DVR values were 2.20 ± 0.17 and 1.88 ± 0.19 (mean ± SD, respectively) obtained by Chan et al. (1998), whereas the authors observed slightly higher values in the current study, 2.34 ± 0.14 and 2.56 ± 0.12 (mean ± SD, respectively). Reproducibility was nearly similar, assessed by reliability coefficient (R) values of 84% and 94% for caudate and putamen compared with 86% and 93%, respectively, by Chan et al. (1998). The use of three-dimensional mode and a high-resolution PET camera increases sensitivity (about 10-fold) and reduces partial volume effects, thus improving the quantification of receptor binding. The current data indicate high ICCs for D₁ receptor binding potential measures in caudate and putamen with [¹¹C]SCH 23390. Comparable ICCs have been reported for striatal specific binding of [¹¹C]NNC 112 (Abi-Dargham et al., 2000).

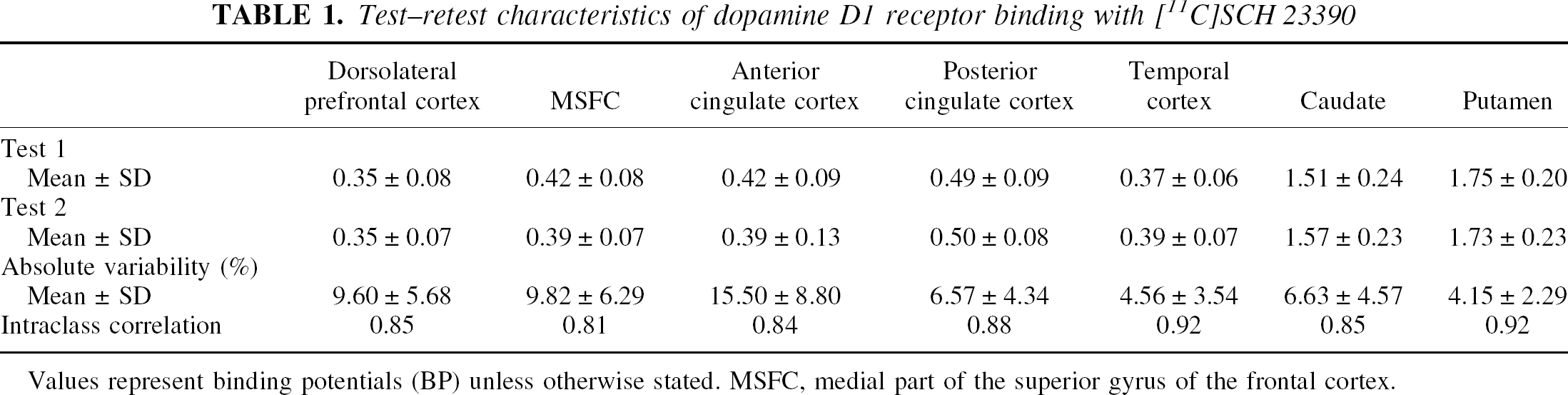

The authors observed high ICC values (0.81–0.92) for BP measurements in all studied cortical areas. Previous preliminary studies have reported a lower cortical/cerebellum ratio (approximately 1.5) for [¹¹C]SCH 23390 (Karlsson et al., 1993) than that observed with [¹¹C]NNC 112 (Foged et al., 1998). [¹¹C]NNC 112 also penetrates into the brain slightly better than [¹¹C]SCH 23390 (4.5% vs. 1.2%). However, these relative advantages of [¹¹C]NNC 112 as opposed to [¹¹C]SCH 23390 do not exclude good reproducibility for [¹¹C]SCH 23390. In fact, the reproducibility measures for [¹¹C]SCH 23390 are equally good or even slightly better than those reported for [¹¹C]NNC 112. In the recent study by Abi-Dargham et al. (2000), the variability values for k₃ /k₄ analysis with [¹¹C]NNC 112 were 20% ± 25%, 12% ± 11%, and 11% ± 14% for anterior cingulate, dorsolateral prefrontal, and temporal cortices, respectively, whereas the current data with [¹¹C]SCH 23390 indicate respective values of 15.5% ± 8.8%, 9.6% ± 5.7%, and 4.6% ± 3.5% for above mentioned brain areas.

Because of relatively fast kinetics of [¹¹C]SCH 23390 and because relatively short scanning times (40 minutes) have been used in previous studies with [¹¹C]SCH 23390 (Okubo et al., 1997), a scanning time of 51 minutes was chosen for the current study. The current results with shorter data collection times show excellent stability at 45 and 39 minutes and moderate stability at 33 minutes according to stability criteria by Abi-Dargham et al. (2000). This indicates that even a shorter scanning time may be sufficient for [¹¹C]SCH 23390, whereas [¹¹C]NNC 112 has slower kinetics and seems to require a data collection time of 90 minutes for reliable analysis (Abi-Dargham et al., 2000). The advantages of [¹¹C]SCH 23390 resulting from a shorter scanning time and no need for arterial input function are obvious and may offset the slightly lower specific/nonspecific binding ratio compared with [¹¹C]NNC 112. However, simplified methods free of the need of arterial blood sampling have not yet been tested on [¹¹C]NNC 112. SCH 23390 has two major metabolites that do not cross the blood–brain barrier and therefore do not interfere with quantification (Swahn et al., 1994). The use of arterial input data enables more detailed quantification but may also induce an additional source of error. The measurement of unchanged [¹¹C]SCH 23390 in arterial plasma was not attempted in this study, but should be tested in further studies. The results from this study with regard to statistical aspects demonstrated greater between-subject than within-subject variation. Keeping this in mind, intrasubject designs with paired samples analyses would be most suitable for future PET studies with [¹¹C]SCH 23390 and simplified reference tissue model (for a voxel-based approach see (Aston et al., 2000). Therefore, the choice of method (model) for quantification will be critically dependent on the study design.

In conclusion, the reproducibility of D₁ receptor binding potential measurements with [¹¹C]SCH 23390 is good to excellent in basal ganglia and also in cortical areas with a high-resolution scanner operated in three-dimensional mode. This assessment of [¹¹C]SCH 23390 is important for at least two reasons. First, the in vivo receptor imaging studies have directly used the in vitro binding principles to characterize ligand–receptor interaction. This assumption clearly represents an oversimplification. SCH 23390 is a standard D₁ -like receptor antagonist and is well characterized in in vitro/ex vivo studies, which will provide good basis for comparative studies and a more detailed understanding of the phenomena involved in receptor–ligand interaction in vivo (Laruelle, 2000). Second, recent reports using [¹¹C]SCH 23390 suggest that D₁ -like receptors in prefrontal cortex are decreased in schizophrenia and that this decrease may associate with negative symptoms (Okubo et al., 1997). The interpretation of this potentially important result will be dependent on the methodologic validity and reliability. The current results indicate good reproducibility of cortical D₁ receptor quantification with [¹¹C]SCH 23390.
