Delay-Modulated RF Tag System Concept Using Ultrawideband Noise Radar Waveforms

Abstract

Radio frequency (RF) tags have been widely used in inventory tracking, environmental monitoring, battlefield situational awareness, and combat identification due to their low cost, small size, and wireless functionality. This paper explores the application of active RF tags in outdoor environments responding to random noise radar interrogations with predetermined messages. A conceptual system design for communication between radar and RF tags using ultrawideband (UWB) noise waveforms is proposed and analyzed theoretically and via simulations. The tag structure comprises a sensing receiver and active receiver/transmitter. The sensing receiver senses the radar header consisting of a prearranged secret realization of the noise waveform. The active receiver/transmitter modulates the RF tag's message onto the radar interrogation signal through weighted tapped delays and reradiates the tag message back to the radar. System performance is evaluated in terms of symbol error probability in an additive white Gaussian noise (AWGN) channel. A technique to combat multipath interference is presented. It is shown that this system is capable of communicating a suite of messages from the tags to the radar.

1. Introduction and Background

RF tags, also known as radio frequency identification (RFID) tags, are small electronic devices typically adhering to objects of interest which can communicate with a tag interrogator through a wireless channel. They have the advantage of being read through a variety of visually and environmentally challenging conditions, such as building walls and foliage, where barcodes or other optically read technologies will not work [1, 2]. Their properties such as low cost, small size, and wireless functioning make them widely used in inventory tracking [3], object location [4], environmental monitoring [5], environmental management [6], personnel identification [7], and so forth. RF tags are also good candidate technologies for combat identification (CID), which provide the necessary awareness to identify friendly combat entities and avoid fratricide [8]. An RF tag can also operate as a data carrier, where information can be written to the tag. Radar-responsive tags have both military applications, such as battlefield situational awareness, combat identification, targeting, personnel recovery, and unattended ground sensing, as well as government applications, such as nonproliferation, counter-drug, search-and-rescue, and land mapping [9]. There are three types of RF tags based on the characteristics of the power source: passive, semipassive, and active. Passive tags use the energy from the incoming signal to power themselves and have practical read distances from about 10 cm up to a few meters. Semipassive and active tags require an internal power source, usually a small battery, and thus have longer operating distances up to hundreds of meters [10].

Using the reflected power for communications, dating back to the late 1940s, was an insightful exploitation of radar systems for multifunctional usage [11]. In [12], an electronic identification system which uses modulated backscatter from an RF beam-powered tag is described, where the reader transmits a single frequency RF signal, and a subcarrier is used in the return signal format for achieving clutter suppression. A controllable radar reflector consisting of an array of resonant dipoles or slots combined with a reflecting plate was used to establish passive telemetry system for transferring information from the site of a target to a radar station [13]. Backscatter modulation is a suitable modulation scheme for tagging because no RF source is needed for the remote devices. Such a tagging system has been proposed wherein frequency hopping combined with backscatter modulation is used for interrogating the tag [14].

A programmable covert radio tag able to communicate with a variety of RF pseudorandom modulated waveforms emitted from a source of interrogating energy was developed so that military troops wearing the RF tag could operate undetected [15]. A scheme to embed the communication signal within the radar backscatter using a tag/transponder on an intrapulse basis is proposed in [16]. Their approach is based upon eigen-decomposition of the collection of delay shifts of the incident radar waveform. Another scheme to ensure covertness is through the use of noisy tags, which are regular RFID tags that generate noise. These have been used to establish secret keys on-the-fly between the reader and the tag, so that an eavesdropper would only hear the noise, but the intelligent receiver could subtract the noise and recover the intended signal [17]. A technique to identify multiple tags simultaneously by weighting and combining the in-phase (I) and quadrature (Q) channel signals was implemented in [18]. The concept of orthogonal frequency coding (OFC) offers enhanced processing gain, lower interrogation power spectral density (PSD), and the possibility of adding pseudo-noise coding for covertness [19].

A general mathematical formulation of the intrapulse radar-embedded communication in the ambient radar scatter interference is provided in [20]. Linear frequency modulated (LFM) waveforms are also candidates for radar communications, which use signal processing rather than hardware to mitigate the interference problem [21]. Chirp waveforms are used in [22], wherein a multifunctional UWB communication and radar system has been designed and implemented. Other aspects of relevance to the radar communication system, such as the candidate radar types and sharing of resources. are discussed in [23]. As part of the Department of Defense Future Combat System (FCS) philosophy, each element of a network-centric force, for example, a radar sensor and an unmanned aerial vehicle (UAV), is expected to possess an embedded communications capability [24].

While narrow band noise radars have been proposed and refined over the past fifty years [25–31], the concept of UWB random noise radar has seen significant development more recently [32–37]. In contrast to conventional radar, the UWB noise radar transmits a noise or noise-like waveform having a fractional bandwidth of greater than 25%. The return from the target is cross-correlated with a time-delayed replica of the transmit waveform to determine the range to the target with a range resolution inversely proportional to the bandwidth. Noise radars satisfy important requirements for military systems, such as low probability of interception (LPI) and low probability of detection (LPD), owing to the featureless characteristics of its waveform [38]. Moreover, the aperiodicity of the waveform also causes the suppressed ambiguity in range/velocity [39]. Another advantage of UWB noise radars is their ability to efficiently share the frequency spectrum. A number of UWB noise radars can operate over the same frequency band with minimal cross-interference since each noise waveform is uncorrelated with the others.

In this paper, we propose a conceptual design of an RF tag responding system to assist a noise radar in collecting relevant information on slowly-moving assets and tracking their whereabouts in an outdoor environment, inspired by the results of recent research [40, 41]. In our scenario, the radar sends out interrogation signals to gather the assets' conditions and RF tags associated with assets in the field respond to the radar with appropriate messages. The proposed RF tag is able to send various kinds of messages from its associated asset. The maximum number of messages the tag is capable of conveying is determined by the length of its delay line. Furthermore, the proposed RF tag responding system is able to operate covertly in the sense that its symbol error rate (SER) is still small under very low channel signal-to-noise ratio (SNR). In our approach, a UWB noise waveform is chosen as the probing signal owing to its low probability of detection and interception capabilities as well as its immunity from interference and jamming. The waveform is generated by amplifying and bandpass filtering the thermal noise generated by a resistor; thus, the waveform is not to be considered to be pseudo-noise, the latter being generated deterministically and therefore possessing a cyclic autocorrelation function. Since the UWB noise signal used as the information carrier is easy to generate, it simplifies the system implementation while achieving a fair amount of covertness. It may certainly be possible to detect a true thermally-generated noise signal embedded in ambient noise, but only if adequate time and processing resources are available, which is unlikely in the scenarios considered in this paper.

This paper is organized as follows. The system model is described in Section 2, where the design of the RF tag and radar detector is illustrated. In Section 3, we demonstrate the operation of the proposed system in an AWGN channel. The system performance is evaluated in terms of the SER. An algorithm to reduce the interferences from multipath signals on the RF tag-to-radar link is presented in Section 4. Conclusions are presented in Section 5.

2. System Model

2.1. RF Tag Structure

The transmitted UWB noise radar signal has the form as shown in Figure 1, which is composed of two parts $h (t)$ and $x (t)$ . The first part of the signal $h (t)$ is the radar header appearing in time before the radar interrogation signal $x (t)$ . The radar header signal occupies a small fraction of the entire radar transmit signal. The interrogation signal $x (t)$ is a bandlimited UWB white Gaussian noise (WGN) radar waveform operating over the frequency range $[ω_{L}, ω_{H}]$ . The header signal $h (t)$ is a prearranged and secret noise waveform realization also known by the RF tag, and it exists over the same frequency band as $x (t)$ . The radar header $h (t)$ is used to trigger the RF tag. Once the RF tag detects the radar header, it starts to modulate its message onto the radar interrogation signal $x (t)$ . Since $h (t)$ is a noise signal only known to the radar and the RF tag, the adversary cannot detect or forge it easily. This guarantees that the communication between the radar and the tag is covert and also that the RF tag cannot be triggered by the adversary intentionally.

Figure 1

Radar transmitted signal: (a) signal format and (b) time (top) and frequency (bottom) domain representations.

The header of radar transmitted signal can be randomly selected from a suite of preassigned random headers to better protect it from detection by undesired parties. However, this increases the complexity of RFID tag's architecture and RFID tag's energy consumption during the detection of radar header. This is because the RFID tag in the system needs to store the entire suite of radar headers beforehand and correlate its received signal with each stored radar header to determine whether the incoming signal is from the radar. Furthermore, the RFID tag in our system is battery powered for longer range and advanced functionalities, and its energy consumption is also of concern in the system design. Instead, we propose that the radar header remain the same random waveform for each radar interrogation. Since this single radar header signal used in our system has randomness features, it is relatively difficult to be detected.

The RF tag functional block diagram is shown in Figure 2. It consists of two parts: a sensing receiver and an active receiver/transmitter. The sensing receiver is merely a listening device which uses moderate amounts of power and is used to sense the radar header. The active receiver/transmitter is turned on once it gets an indication signal from the sensing receiver output that the radar header is detected. Upon receiving this wake-up call, it begins to receive and process the rest of the incoming signal, embeds the appropriate RF tag message, and retransmits the message bearing RF tag signal back to the radar.

Figure 2

RF tag functional block diagram.

The RF tag operates in two modes: working mode and sleep mode. In the working mode, once the sensing receiver detects the radar header and sends a control signal to the active receiver/transmitter to turn on, the sensing receiver turns off. The active receiver/transmitter also turns off after completing the delay-modulation of the radar inquiry signal. Thus the entire RF tag goes into the sleep mode after it is triggered. It will stay in the sleep mode for a period which is longer than the maximum multipath delay. Then the sensing receiver turns on again, waiting for the next radar header to arrive. Now the entire RF tag is in the working mode again. This way, the RF tag will not be triggered by the multipath signals in the radar to tag link, and it will not miss the radar's inquiry. Besides, the RF tag is not always in working mode, and thereby improving its energy efficiency.

The sensing receiver functional block diagram is depicted in Figure 3. The bandpass-filtered received signal is cross-correlated with a replica of the radar header, which is saved at the RF tag a priori. The output of the correlator goes through a threshold detector whose output controls the RF tag's active receiver/transmitter. If the output of the correlator exceeds the threshold at some observing time, then the active transmitter/receiver is turned on.

Figure 3

RF tag sensing receiver block diagram.

The RF tag active receiver/transmitter functional block diagram is shown in Figure 4. If and only if the radar wake-up signal is detected by the RF tag passive receiver, then the RF tag active receiver/transmitter is enabled. The remaining portion of the radar signal, namely, the radar information bearing signal $x (t)$ , is intercepted at the RF tag. First this signal goes through a bandpass filter with bandwidth $Δ ω$ and center frequency $ω_{i}$ , which covers part of the entire bandwidth of radar signal $x (t)$ . This frequency index i represents the index of the ith RF tag. We assume that there is a fixed number of RF tags within the radar's range during one interrogation duration. Since the delayed transmitted signal by the RF tag does not contain the radar header, its sensing receiver will disregard it without further processing. Thus, loops causing chaotic or oscillatory behavior will be avoided in the tag's active receiver/transmitter circuit.

Figure 4

RF tag active receiver/transmitter architecture.

The entire bandwidth of the radar signal is divided into several subbands without mutual overlap by the RF tags, all of the same bandwidth $Δ ω$ , with center frequencies ranging from $ω_{1}$ to $ω_{N}$ , where N is the total number of RF tags, as shown in Figure 5. A guard band between adjacent bands of the RF tags is maintained in order to avoid interference between individual tags and to allow for the Doppler shifts associated with moving tags. The output of the bandpass filter at each RF tag can be shown to be uncorrelated with each other. The Doppler frequency shift of the RF tag is calculated as $f_{d} = 2 v_{r} / λ = 2 f_{0} v_{r} / c$ , where $v_{r}$ is the radial velocity and $f_{0}$ is the radar frequency. For an RF tag moving at the speed of 20 km/h and a radar operating over a frequency band of 1-2 GHz, the maximum Doppler shift is computed as 74 Hz. Since the RF tag is considered mainly for associating with slowly moving assets, as long as the guard band is designed to be large enough compared to the maximum expected Doppler shift, the effects of the Doppler shift can be neglected and there will arise no confusion for the detection of different RF tags.

Figure 5

Frequency band allocation for RF tags.

If the number of RFID tags in the radar's range is not fixed, the radar interrogation signal's frequency band can be divided into $N_{\max}$ subbands, where $N_{\max}$ is the maximum number of RFID tags attached to objects in the system. Each RFID tag occupies its distinct subband.

Next, one branch of the bandpass filter output $x_{i} (t)$ is passed through a weighted tapped delay line to embed the RF tag's message. It is first delayed by the time $τ_{g}$ , which is specifically designed such that it is longer than the radar interrogation signal duration, and not a multiple of $τ_{d}$ , the delay between adjacent taps. The length of the following tapped delay line L denotes the number of bits of the tag message. Each weight $a_{j}$ is chosen to be either 0 or 1, representing the digit of the bit. Thus the RF tag is able to transmit a total of $2^{L} - 1$ kinds of messages (the all 0-bit message is not used). The delay between adjacent taps $τ_{d}$ must satisfy the condition $τ_{d} ≫ (Δ ω)^{- 1}$ so as to reduce the interference between signals from adjacent delay taps. Delay $τ_{g}$ is applied for the reason that if the RF tag responds to the radar, the start bit (0th bit) of the RF tag's message always equals 1. Thus, the time interval between the start bit of the RF tag's message and Correlator 1's output peak at the radar detector is $τ_{g}$ , which can be used to verify and check the start of the RF tag's message. Since we have ensured that $τ_{g}$ is not a multiple of $τ_{d}$ , the 0th bit of the RF tag's message will not be mistaken to be part of the RF tag's actual message. Use of $τ_{g}$ also guarantees that the RF tag's message carrying the message sequence is distinct from the signal directly out of the bandpass filter, so that Correlator 2 of the radar detector can fully capture the RF tag's message sequence after Correlator 1 detects whether the RF tag responds or not.

The other branch of the bandpass filter output, which is used as the indicator of RF tag message's arrival, goes directly to the amplifier and is retransmitted to the radar. Following this signal is the output of the weighted tapped delay line, which also goes through the amplifier and is transmitted back to the radar. Thus, the retransmitted signal for the ith RF tag has the vector form $[x_{i} (t) x_{i} (t - τ_{g}) + \sum_{j = 1}^{L} a_{j} x_{i} (t - τ_{g} - j τ_{d})]$ .

2.2. Radar Detector Structure

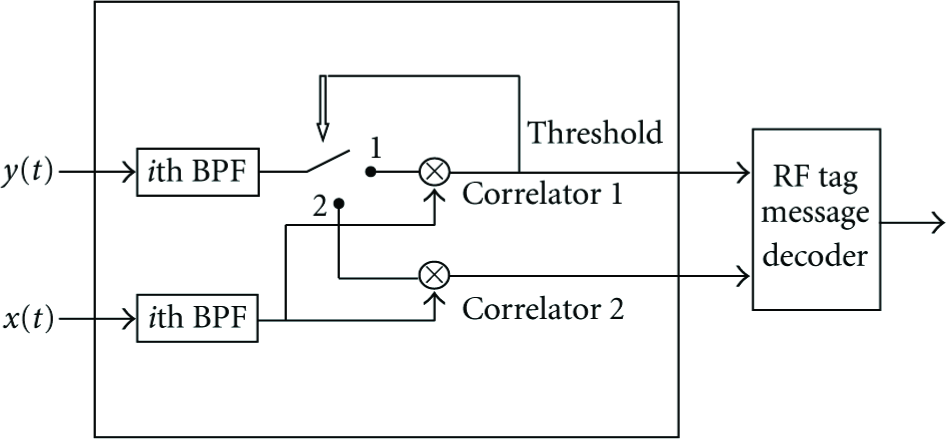

The radar detector functional block diagram is depicted in Figure 6. To detect the ith RF tag's message, the radar received signal $y (t)$ first goes through a bandpass filter whose frequency band corresponds to the ith RF tag. The bandpass filter selects the signal in the desired bandwidth, $y_{i} (t)$ , and thus enhances the signal-to-noise ratio by eliminating out-of-band energy. The electronically controlled single-pole double-throw (SPDT) switch is always connected to Terminal 1 if it is not enabled. It switches to Terminal 2 only if it is enabled by the output of the threshold detector. The output of the bandpass filter $y_{i} (t)$ then goes to Correlator 1 where it is correlated with $x_{i} (t)$ , a replica of the UWB noise radar signal saved at the radar filtered to the same band. Correlator 1 is used to detect $x_{i} (t)$ , which is the initial portion of the RF tag signal form. The integration time of Correlator 1 is $T_{1}$ . If its output exceeds a threshold at some time, then it determines that the ith RF tag's message is coming in and triggers the SPDT switch. The switch then switches to Terminal 2 and the remaining portion of the incoming signal $y_{i} (t)$ flows to Correlator 2.

Figure 6

Radar detector block architecture.

Correlator 2 is used to decode the RF tag's message. Compared to Correlator 1, Correlator 2 has a longer integration time, denoted by $T_{2}$ , that is, $T_{2} > T_{1}$ . The outputs of Correlator 1 and Correlator 2 both go to the RF tag message decoder, which knows the length of the weighted tapped delay line of the RF tag and the delay between its adjacent taps. By observing the amplitudes at different time lags, the RF tag message can be decoded. The output of Correlator 1 can help in decoding the RF tag message especially in the multipath channel case, which will be discussed in Section 4.

Delay $τ_{g}$ is applied in our RF tag design for the reason that if the RF tag responds to the radar, the start bit (0th bit) of the RF tag's message always equals 1. Thus, the time interval between the start bit of the RF tag's message and Correlator 1's output peak at the radar detector is $τ_{g}$ , which can be used to verify and check the start of the RF tag's message. Since clutter and RF tag platforms will simply reflect the radar signal without the delay $τ_{g}$ , reflections from these will be recognized as non-RF tag. This enables discrimination by the radar between the RF tag's signal and spurious reflections. Since we have ensured that $τ_{g}$ is not a multiple of $τ_{d}$ , the 0th bit of the RF tag's message will not be mistaken to be part of the RF tag's actual message. The delay $τ_{g}$ also guarantees that the RF tag's message carrying signal sequence is separate from the signal direct out of the bandpass filter, so that Correlator 2 of the radar detector can fully capture the RF tag's message sequence after Correlator 1 detects whether the RF tag responds or not.

Figure 7 illustrates the structure of the correlator. The received signal is mixed with a time delayed version of the filtered transmitted signal $x_{i} (t - τ)$ . The correlation integration is performed by the low-pass filter. The bandwidth of the low-pass filter determines the cross-correlation integration time.

Figure 7

Structure of correlator.

When there are multiple RF tags to be interrogated by the radar, several above detectors can be connected at the radar receiver in parallel, with each bandpass filter tuned to the corresponding RF tag's center frequency.

3. System Operation and Performance Analysis

We consider AWGN and propagation delays introduced by the channel. The internal thermal noise at the RF tag and radar is neglected since it is much lower than the channel noise. We consider the link between the radar and RF Tag 1 as an example to show the operation of the proposed system.

As stated before, to interrogate the RF tags, the radar transmits the header $h (t)$ followed by the interrogation signal $x (t)$ . If the RF tag sensing receiver successfully captures the radar header, then the RF tag responds to the radar with message modulated signals. Suppose the channel propagation delay is denoted by $τ_{0}$ and the channel additive noise in the radar-to-RF tag link is denoted by $n_{f 1} (t)$ , then the output of the bandpass filter of the RF tag is $x_{1} (t - τ_{0}) + n_{f 1} (t)$ . The output of the weighted tapped delay line after power compensation by the amplifier is $x_{1} (t - τ_{g} - τ_{0}) + \sum_{j = 1}^{L} a_{j} x_{1} (t - τ_{g} - j τ_{d} - τ_{0}) + n_{f 2} (t)$ , where $n_{f 2} (t) = n_{f 1} (t - τ_{g}) + \sum_{j = 1}^{L} a_{j} n_{f 1} (t - τ_{g} - j τ_{d})$ .

Tag 1 thus transmits the signal

[\begin{matrix} x_{1} (t - τ_{0}) + n_{f 1} (t) \\ x_{1} (t - τ_{g} - τ_{0}) + \sum_{j = 1}^{L} a_{j} x_{1} (t - τ_{g} - j τ_{d} - τ_{0}) + n_{f 2} (t) \end{matrix}]

(1)

back to the radar. Since the specific delay

τ_{g}

is only provided by the RF tag, radar returns from clutter and RF tag platforms will not introduce this delay, and thus their reflections will be discriminated from the RF tag's signal. In the following analysis, we ignore these unwanted radar returns assuming that they are fully separated from the RF tag's signal at the radar detector.

At the radar receiver, the received signal after the bandpass filter $y_{1} (t)$ is given by

\begin{matrix} y_{1} (t) \\ = [\begin{matrix} x_{1} (t - 2 τ_{0}) + n_{f 1} (t - τ_{0}) + n_{b 1} (t) \\ x_{1} (t - τ_{g} - 2 τ_{0}) + \sum_{j = 1}^{L} a_{j} x_{1} (t - τ_{g} - j τ_{d} - 2 τ_{0}) \\ + n_{f 2} (t - τ_{0}) + n_{b 2} (t) \end{matrix}  ] \\ = [\begin{matrix} x_{1} (t - 2 τ_{0}) + n_{1} (t) \\ x_{1} (t - τ_{g} - 2 τ_{0})  +  \sum_{j = 1}^{L} a_{j} x_{1} (t - τ_{g} - j τ_{d} - 2 τ_{0}) + n_{2} (t) \end{matrix}   ], \end{matrix}

(2)

where

n_{b 1} (t)

and

n_{b 2} (t)

are uncorrelated AWGN in the RF tag-to-radar link. We also define

n_{1} (t) = n_{f 1} (t - τ_{0}) + n_{b 1} (t)

and

n_{2} (t) = n_{f 2} (t - τ_{0}) + n_{b 2} (t)

The signals transmitted by other tags occupy different frequency bands, which do not overlap with the frequency band of the signal transmitted by the tag under consideration; thus the signals transmitted by other tags are uncorrelated with the desired signal. Therefore, the interference signals transmitted by other tags simply raise the noise floor at the radar detector corresponding to the tag under consideration. Furthermore, the guard band between individual tag frequency bands is designed to be much larger than the maximum Doppler frequency shift. The effect of such interferences on the system performance is equivalent that of a degraded channel SNR.

The output of Correlator 1 is derived as

\begin{matrix} c_{1} (τ) & = \int_{0}^{T_{1}} [x_{1} (t - 2 τ_{0}) + n_{1} (t)] x_{1} (t - τ) d t \\ = \int_{0}^{T_{1}} x_{1} (t - 2 τ_{0}) x_{1} (t - τ) d t + \int_{0}^{T_{1}} n_{1} (t) x_{1} (t - τ) d t . \end{matrix}

(3)

Since

x_{1} (t)

is uncorrelated with

n_{1} (t)

, the last term of (3) is a noise term. A peak whose magnitude is the energy of

x_{1} (t)

should be observed at time lag

τ = 2 τ_{0}

of the Correlator 1 output, if RF Tag 1's signal exists.

Similarly, the output of Correlator 2 is given by

\begin{matrix} c_{2} (τ) \\ = \int_{0}^{T_{2}} [  \begin{matrix} x_{1} (t - τ_{g} - 2 τ_{0}) \\ + \sum_{j = 1}^{L} a_{j} x_{1} (t  -  τ_{g}  -  j τ_{d}  -  2 τ_{0})  +  n_{2} (t) \end{matrix}  ] x_{1} (t - τ) d t \\ = \int_{0}^{T_{2}} x_{1} (t - τ_{g} - 2 τ_{0}) x_{1} (t - τ) d t \\ + \sum_{j = 1}^{L} a_{j} \int_{0}^{T_{2}} x_{1} (t - τ_{g} - j τ_{d} - 2 τ_{0}) x_{1} (t - τ) d t \\ + \int_{0}^{T_{2}} n_{2} (t) x_{1} (t - τ) d t . \end{matrix}

(4)

To retrieve the RF tag message, we need to observe the magnitude of the output of Correlator 2 at time lags $τ = 2 τ_{0} + τ_{g} + j τ_{d}$ for all $j = 1, \dots L$ . If a peak is observed at time lag when j equals l, then the lth bit is 1, otherwise it is 0.

To demonstrate on paper the operation of the RF tag responding system, we ran simulations on the following example.

A 4th-order bandpass Chebyshev filter with 0.5 dB ripple in the passband is used for the simulation, whose frequency response is shown in Figure 8. The radar transmits a 1-2 GHz noise signal to the RF tags. The ratio of the durations of the radar header to the radar inquiry signal part is 1 : 5. To illustrate the operation of the proposed system, suppose that there are three RF tags within the radar's range. The RF tags operating bandwidth is 320 MHz and their frequency band allocation is as follows: Tag 1 occupies 1–1.32 GHz, Tag 2 occupies 1.34–1.66 GHz, and Tag 3 occupies 1.68–2 GHz. The guard bandwidth is 20 MHz, which is much greater than what is needed to account for the tag's maximum possible Doppler shift. The channel SNR is −3 dB, and the channel round propagation delay is $1.6 \times 10^{4}$ time lags. The length of the weighted tapped delay line at the RF tag is 3. The delay between adjacent taps, $τ_{d}$ , is 90 time lags, and the delay before the tapped delay line, $τ_{g}$ , is 5030 time lags, which is longer than the radar interrogation signal duration of 5000 time lags. RF Tag 1 transmits message 101 to the radar, that is, using delays $τ_{d}$ and $3 τ_{d}$ .

Figure 8

Frequency response of bandpass filter at the radar transmitter output.

Figure 9 shows the simulation results of RF Tag 1's message decoding in the AWGN channel case in the example system. The output of Correlator 1 has a peak at the time lag of $1.6 \times 10^{4}$ , which indicates that a message from RF Tag 1 exists. In the output of Correlator 2, a peak occurs at the time lag around 21030, which indicates the start of the RF tag's message. Subsequent two peaks occur at 90 time lags and 270 time lags, which equal $τ_{d}$ and $3 τ_{d}$ , respectively, away from the start of the message. There is no peak occurring at 180 time lags corresponding to $2 τ_{d}$ . Thus, this RF tag's message is correctly interpreted as 101.

Figure 9

Example system RF tag message decoding in AWGN channel at an SNR value of −3 dB. The right plots are zoomed in at the peaks of the left plots.

The performance of the system is evaluated in term of the symbol error probability, also known as the symbol error ratio (SER) [42]. As stated above, interferences such as clutter reflections and other RF tags' transmitted signals can be either discriminated from the desired signals at the radar decoder or can be analyzed as being equivalent to a worse channel SNR. In the following analysis, we derive the SER of our system in an AWGN channel to give a theoretical bound that our system can best achieve. Whether the RF tag's message can be correctly decoded or not depends on the outputs of both the Correlator 1 and Correlator 2. The RF tag header has to be detected at first.

The output of Correlator 1 gives an indication whether this RF tag responds to the radar. As stated in Section 2, the zeroth bit of the RF tag's message (when it exists) is always 1, and since $τ_{g}$ is not a multiple of $τ_{d}$ , it will not be misconstrued as part of the tag message. If the peak of Correlator 1's output appears at time $τ_{x}$ , which may be different from $2 τ_{0}$ due to factors such as the delay caused by processing time of components in reality, and the first peak of Correlator 2's output appears at time $τ_{y}$ , then the time interval between $τ_{x}$ and $τ_{y}$ will equal $τ_{g}$ . This way, the start of the RF tag's message can be checked and verified.

The RF tag message decoding rule is that if no peak of Correlator 1's output appears at any time, then the RF tag's message is wrongly decoded; else if the peak of Correlator 1's output appears at some time $τ_{x}$ , then if no peak appears at time around $τ_{g}$ away from $τ_{x}$ , then the RF tag's message is wrongly decoded; else the RF tag's message is decoded by observing the magnitude of Correlator 2's output at time $τ_{g} + j τ_{d}$ for all $j = 1, \dots L$ away from $τ_{x}$ .

Therefore, the symbol error probability can be written as

\begin{matrix} p_{s} (e) & = p ({\overset{̅}{c}}_{1}) + p (c_{1}) \\ \times (p ({\overset{̅}{c}}_{2 g}) + p (c_{2 g}) (1 - \prod_{k = 1}^{L} (1 - p ({\overset{̅}{c}}_{2 k})))) \\ = p ({\overset{̅}{c}}_{1}) + (1 - p ({\overset{̅}{c}}_{1})) \\ \times (\begin{matrix} p ({\overset{̅}{c}}_{2 g}) \\ + (1 - p ({\overset{̅}{c}}_{2 g})) (1 - \prod_{k = 1}^{L} (1 - p ({\overset{̅}{c}}_{2 k}))) \end{matrix}), \end{matrix}

(5)

where

p ({\overset{̅}{c}}_{1})

is the probability that Correlator 1 gives a wrong decision,

p ({\overset{̅}{c}}_{2 g})

is the probability that a wrong decision is made at time

τ_{g}

away from

τ_{x}

of Correlator 2's output in case that Correlator 1 gives a correct decision, and

p ({\overset{̅}{c}}_{2 k})

represents the probability of the kth bit of RF tag's message decoded wrongly given that Correlator 1 gives a correct decision as well as the 0th bit is correctly decoded.

The probability $p ({\overset{̅}{c}}_{1})$ that Correlator 1 gives a wrong indication is calculated as follows. Although the peak may appear at time other than $2 τ_{0}$ , the derived result is still applicable since we use the ideal time $2 τ_{0}$ merely to show the calculation procedure for the time where the peak of Correlator 1's output should occur. The peak output is given by

\begin{matrix} c_{1} (2 τ_{0}) & = \int_{0}^{T_{1}} [a_{c 1} x_{1} (t - 2 τ_{0}) + n_{1} (t)] x_{1} (t - 2 τ_{0}) d t \\ = a_{c 1} \int_{0}^{T_{1}} x_{1}^{2} (t - 2 τ_{0}) d t \\ + \int_{0}^{T_{1}} n_{1} (t) x_{1} (t - 2 τ_{0}) d t \\ = a_{c 1} U_{x 11} + n_{e 1} (t), \end{matrix}

(6)

where the coefficient

a_{c 1}

is either 1 or 0 corresponding to whether the RF tag responds to the radar or not. Upon invoking the stationarity property for

x_{1} (t)

, we have

U_{x 11} = \int_{0}^{T_{1}} x_{1}^{2} (t - 2 τ_{0}) d t = \int_{0}^{T_{1}} x_{1}^{2} (t) d t,

(7)

while

n_{e 1} (t) = \int_{0}^{T_{1}} n_{1} (t) x_{1} (t - 2 τ_{0}) d t

(8)

represents the noise term. A simulation check confirms that we can approximate

n_{e 1} (t)

as Gaussian distributed.

Since $n_{1} (t) = n_{f 1} (t - τ_{0}) + n_{b 1} (t)$ , and $n_{f 1} (t - τ_{0})$ and $n_{b 1} (t)$ are uncorrelated Gaussian noise, both with zero mean and variance $σ_{n}^{2}$ , the mean of $n_{1} (t)$ is zero and its variance is $2 σ_{n}^{2}$ . The mean of $n_{e 1} (t)$ is zero, and its variance is computed as

\begin{matrix} Var {n_{e 1} (t)} \\ = E {n_{e 1} {(t)}^{2}} \\ = E {\int_{0}^{T_{1}} n_{1} (t) x_{1} (t - 2 τ_{0}) d t \int_{0}^{T_{1}} n_{1} (t^{'}) x_{1} (t^{'} - 2 τ_{0}) d t^{'}} \\ = \int_{0}^{T_{1}} \int_{0}^{T_{1}} E {n_{1} (t) x_{1} (t - 2 τ_{0}) n_{1} (t^{'}) x_{1} (t^{'} - 2 τ_{0}) d t d t^{'}} \\ = \int_{0}^{T_{1}} E {n_{1} {(t)}^{2}} \cdot E {x_{1} {(t - 2 τ_{0})}^{2}} d t \\ = T_{1} σ_{n 1}^{2} σ_{x 1}^{2} \\ = 2 T_{1} σ_{n}^{2} σ_{x 1}^{2} . \end{matrix}

(9)

Since

n_{1} (t)

and

x_{1} (t)

are white Gaussian noise signals, each is uncorrelated to its time delayed replica.

The signal component of $c_{1} (2 τ_{0})$ is either 0 or $U_{x 11}$ . The possibility whether the branch of signal out of the bandpass filter at the RF tag is sent out directly to the radar depends on many factors, such as whether it can successfully capture the radar header, its power condition since we use active RF tags in the system, and so forth. For simplicity, we assume that each value is equally probable. The optimal threshold can be shown to be

χ_{1} = \frac{1}{2} U_{x 11} .

(10)

The noise variance is

σ_{e 1}^{2}

, which can be shown to be equal to the power spectral density

N_{0} / 2

for a white Gaussian process. The distance

d_{12}

between the two signal values is

U_{x 11}

. The average probability of error is calculated to be [43]

P ({\overset{̅}{c}}_{1}) = Q [\sqrt{\frac{d_{12}^{2}}{2 N_{0}}}] = Q [\frac{1}{2} \frac{U_{x 11}}{σ_{e 1}}] = Q [\frac{1}{2} \frac{U_{x 11}}{\sqrt{2 T_{1}} σ_{n} σ_{x 1}}],

(11)

where the Q-function is given by

Q (x) = (1 / \sqrt{2 π}) \int_{x}^{\infty} e^{- t^{2} / 2} d t, x \geq 0

If Correlator 1 at the radar receiver correctly detects the existence of the RF tag signal, we need to check whether the 0th bit of RF tag's message exists or not. The output of Correlator 2 at the corresponding time is given by

\begin{matrix} c_{2} (2 τ_{0} + τ_{g}) \\ = \int_{0}^{T_{2}} [\begin{matrix} x_{1} (t - τ_{g} - 2 τ_{0}) \\ + \sum_{j = 1}^{L} a_{j} x_{1} (t - τ_{g} - j τ_{d} - 2 τ_{0}) + n_{2} (t) \end{matrix}] \\ \times x_{1} (t - 2 τ_{0} - τ_{g}) d t \\ = [  \begin{matrix} \int_{0}^{T_{2}} x_{1}^{2} (t - τ_{g} - 2 τ_{0}) d t \\ + \sum_{j = 1}^{L} a_{j} \int_{0}^{T_{2}} x_{1} (t  -  τ_{g}  -  j τ_{d}  -  2 τ_{0}) x_{1} (t - τ_{g} - 2 τ_{0}) d t \\ + \int_{0}^{T_{2}} n_{2} (t) x_{1} (t - τ_{g} - 2 τ_{0}) d t \end{matrix} ] \\ = \int_{0}^{T_{2}} x_{1}^{2} (t - τ_{g} - 2 τ_{0}) d t + n_{e g}, \end{matrix}

(12)

where

\int_{0}^{T_{2}} x_{1}^{2} (t - τ_{g} - 2 τ_{0}) d t = \int_{0}^{T_{1}} x_{1}^{2} (t) d t = U_{x 11}

(13)

is the signal component and

n_{e g} = [\begin{matrix} \sum_{j = 1}^{L} a_{j} \int_{0}^{T_{2}} x_{1} (t  -  τ_{g}  -  j τ_{d}  -  2 τ_{0}) x_{1} (t  -  τ_{g}  -  2 τ_{0}) d t \\ + \int_{0}^{T_{2}} n_{2} (t) x_{1} (t - τ_{g} - 2 τ_{0}) d t \end{matrix}]

(14)

denotes the noise term.

Since $τ_{d} ≫ (Δ ω)^{- 1}$ , the signals out of different delay taps at the RF tag can be considered as uncorrelated. Thus the components of $n_{e g} (t)$ are pairwise uncorrelated, and each component can be approximated as Gaussian distributed, so they are independent. Then, $n_{e g} (t)$ can be approximated as Gaussian distributed with mean zero and variance $σ_{e g}^{2}$ . The variance of $n_{e g} (t)$ is the sum of the variances of each component. Following the same procedure as in (9), its variance is calculated to be

σ_{e g}^{2} = \sum_{j = 1}^{L} a_{j} T_{2} σ_{x 1}^{4} + T_{2} σ_{n 2}^{2} σ_{x 1}^{2} .

(15)

Since

n_{2} (t) = n_{f 2} (t - τ_{0}) + n_{b 2} (t)

and

n_{f 2} (t) = n_{f 1} (t - τ_{g}) + \sum_{j = 1}^{L} a_{j} n_{f 1} (t - τ_{g} - j τ_{d})

, where

n_{f 1} (t - τ_{g})

is uncorrelated with

n_{b 2} (t)

, we have

σ_{n 2}^{2} = σ_{n}^{2} + σ_{n}^{2} (1 + \sum_{j = 1}^{L} a_{j}) .

(16)

Therefore,

\begin{matrix} σ_{e g}^{2} & = \sum_{j = 1}^{L} a_{j} T_{2} σ_{x 1}^{4} + T_{2} (σ_{n}^{2} + σ_{n}^{2} (1 + \sum_{j = 1}^{L} a_{j})) σ_{x 1}^{2} \\ = T_{2} σ_{x 1}^{2} [σ_{x 1}^{2} \sum_{j = 1}^{L} a_{j} + σ_{n}^{2} (2 + \sum_{j = 1}^{L} a_{j})] . \end{matrix}

(17)

Similarly as in the analysis for

p ({\overset{̅}{c}}_{1})

, the signal component of

c_{2} (2 τ_{0} + τ_{g})

which may be 0 or

U_{x 11}

is assumed to be equally probable, and so

\begin{matrix} p ({\overset{̅}{c}}_{2 g}) & = Q [\frac{1}{2} \frac{U_{x 11}}{σ_{e g}}] \\ = Q [\frac{1}{2} \frac{U_{x 11}}{\sqrt{T_{2}} σ_{x 1} \sqrt{σ_{x 1}^{2} \sum_{j = 1}^{L} a_{j} + σ_{n}^{2} (2 + \sum_{j = 1}^{L} a_{j})}}] . \end{matrix}

(18)

Given that Correlator 1 gives a correct decision as well as the 0th bit is correctly decoded, to determine the kth bit, we observe the amplitude of Correlator 2's output at time lag

2 τ_{0} + τ_{g} + k τ_{d}

. The output at the corresponding time lag is given by

\begin{matrix} c_{2} (2 τ_{0} + τ_{g} + k τ_{d}) \\ = \int_{0}^{T_{2}} {\begin{Bmatrix} [\begin{matrix} x_{1} (t - τ_{g} - 2 τ_{0}) \\ + \sum_{j = 1}^{L} a_{j} x_{1} (t - τ_{g} - j τ_{d} - 2 τ_{0}) + n_{2} (t) \end{matrix}] \\ \times x_{1} (t - 2 τ_{0} - τ_{g} - k τ_{d}) \end{Bmatrix}} d t \\ = [\begin{matrix} \int_{0}^{T_{2}} x_{1} (t - τ_{g} - 2 τ_{0}) x_{1} (t - 2 τ_{0} - τ_{g} - k τ_{d}) d t \\ + a_{k} \int_{0}^{T_{2}} x_{1}^{2} (t - 2 τ_{0} - τ_{g} - k τ_{d}) d t \\ + \sum_{j = 1, j \neq k}^{L} a_{j} \int_{0}^{T_{2}} x_{1} (t - 2 τ_{0} - τ_{g} - j τ_{d}) \\ \times x_{1} (t - 2 τ_{0} - τ_{g} - k τ_{d}) d t \\ + \int_{0}^{T_{2}} n_{2} (t) x_{1} (t - 2 τ_{0} - τ_{g} - k τ_{d}) d t \end{matrix}] \\ = a_{k} \int_{0}^{T_{2}} x_{1}^{2} (t - 2 τ_{0} - τ_{g} - k τ_{d}) d t + n_{e 2} (t), \end{matrix}

(19)

where

\int_{0}^{T_{2}} x_{1}^{2} (t - 2 τ_{0} - τ_{g} - k τ_{d}) d t = U_{x 11}

(20)

and

n_{e 2} (t)

represents the noise terms, given by

\begin{matrix} n_{e 2} (t) \\ = \int_{0}^{T_{2}} x_{1} (t - τ_{g} - 2 τ_{0}) x_{1} (t - 2 τ_{0} - τ_{g} - k τ_{d}) d t \\ + \sum_{j = 1, j \neq k}^{L} a_{j} \int_{0}^{T_{2}} x_{1} (t - 2 τ_{0} - τ_{g} - j τ_{d}) \\ \times x_{1} (t - 2 τ_{0} - τ_{g} - k τ_{d}) d t \\ + \int_{0}^{T_{2}} n_{2} (t) x_{1} (t - 2 τ_{0} - τ_{g} - k τ_{d}) d t . \end{matrix}

(21)

Similarly, we can show that

n_{e 2} (t)

can be approximated as Gaussian distributed with mean zero and variance

σ_{e 2}^{2}

. Following the same procedure as in (9), the variance of

n_{e 2} (t)

is calculated to be

\begin{matrix} σ_{e 2}^{2} & = T_{2} σ_{x 1}^{2} [σ_{x 1}^{2} + σ_{x 1}^{2} \sum_{j = 1, j \neq k}^{L} a_{j} + σ_{n 2}^{2}] \\ = T_{2} σ_{x 1}^{2} [σ_{x 1}^{2} + σ_{x 1}^{2} \sum_{j = 1, j \neq k}^{L} a_{j} + σ_{n}^{2} (2 + \sum_{j = 1}^{L} a_{j})] . \end{matrix}

(22)

The signal component of $c_{2} (2 τ_{0} + τ_{g} + k τ_{d})$ is either 0 or $U_{x 11}$ since the coefficient $a_{k}$ is either 0 or 1. Assuming that each value is equally probable, the optimal threshold in this case is then

χ_{2} = \frac{1}{2} U_{x 11} .

(23)

The average probability of error for the kth bit of the RF tag's message is given by

\begin{matrix} p ({\overset{̅}{c}}_{2 k}) \\ = Q [\frac{1}{2} \frac{U_{x 11}}{σ_{e 2}}] \\ = Q [ \frac{1}{2} \frac{U_{x 11}}{\sqrt{T_{2}} σ_{x 1} \sqrt{σ_{x 1}^{2}  +  σ_{x 1}^{2} \sum_{j = 1, j \neq k}^{L} a_{j}  +  σ_{n}^{2} (2  +  \sum_{j = 1}^{L} a_{j})}} ] . \end{matrix}

(24)

Substituting (11), (18), and (24) into (5), we derive the symbol error probability (SER) as

\begin{matrix} p_{s} (e) & = Q [\frac{1}{2} \frac{U_{x 11}}{\sqrt{2 T_{1}} σ_{n} σ_{x 1}}] + (1 - Q [\frac{1}{2} \frac{U_{x 11}}{\sqrt{2 T_{1}} σ_{n} σ_{x 1}}]) \\ \times (\begin{matrix} Q [\frac{1}{2} \frac{U_{x 11}}{\sqrt{T_{2}} σ_{x 1} \sqrt{σ_{x 1}^{2} \sum_{j = 1}^{L} a_{j} + σ_{n}^{2} (2 + \sum_{j = 1}^{L} a_{j})}}] \\ + (1 - Q [\frac{1}{2} \frac{U_{x 11}}{\sqrt{T_{2}} σ_{x 1} \sqrt{σ_{x 1}^{2} \sum_{j = 1}^{L} a_{j} + σ_{n}^{2} (2 + \sum_{j = 1}^{L} a_{j})}}]) \\ \times (1 - \prod_{k = 1}^{L} (1 - Q [\frac{1}{2} \frac{U_{x 11}}{\sqrt{T_{2}} σ_{x 1} \sqrt{σ_{x 1}^{2} + σ_{x 1}^{2} \sum_{j = 1, j \neq k}^{L} a_{j} + σ_{n}^{2} (2 + \sum_{j = 1}^{L} a_{j})}}])) \end{matrix}) \end{matrix} .

(25)

As can be seen from (14) and (21), when the RF tag transmits all 1-bit message, the noise floor is higher than when it transmits other kinds of messages. Thus, the worst SER is obtained for this case.

We ran simulations on the proposed system's SER using the same example system as that for system operation illustration. The RF tag has a 3-tapped delay line, where the delay between adjacent taps is 90 time lags, and the delay before the tapped delay line at the RF tag is 5030 time lags. The round propagation delay is 16000 time lags. Radar transmits a 1-2 GHz noise signal towards the RF tag, and the RF tag signal occupies the 1−1.32 GHz band. In Figure 10, simulation results of the SER are shown as a function of the channel signal-to-noise ratio (SNR), and it is compared to the theoretical result derived from (25). We note from Figure 10 that the simulation and theoretical results agree to within 0.5 dB. The simulation and theoretical results show that the proposed system is capable of covertly and securely communicating messages even under negative channel SNR conditions with tolerable symbol error probability. When the channel SNR is −2 dB, the SER of the system is at the 10⁻³ level, and the system still performs well at −4 dB channel SNR, where the SER is at the 10⁻² level. Figure 10 also reveals that the theoretical curve slightly overestimates the SER at a given channel SNR compared to the simulation results, but the agreement is within 0.7 dB over the range investigated. The simulated and theoretically derived SER curves do not match exactly due to the fact that in our SER derivation, we approximate the distribution of the noise term out of the correlator as Gaussian to obtain a closed form solution. However, since this noise term also contains products of Gaussian random variables, it is not strictly Gaussian distributed, according to [44].

Figure 10

Example system SER versus channel SNR for a 3-tap delay line at the RF tag.

4. Multipath Signal Reduction

The basic idea is that the signal from the branch directly out of the bandpass filter at the RF tag can also be used to sense the multipath channel on the RF tag-to-radar link during the detection by the radar when determining whether the corresponding RF tag is responding. The multipath channel information thus estimated is applied to the following sequence of signals to reduce the interferences brought about by the multipath signals, and to better decode the RF tag's message by the radar. Our simulation results show that this algorithm works for the proposed system. This algorithm is specifically designed for our system wherein we use random noise signal as the information carrier. We developed this algorithm considering both the complexity of the system, especially the simple architecture of the RF tag, and the fact that the system can work in real time, as long as assuming the multipath channel remains relatively constant over the duration of tag operation.

IEEE 802.15.4a has provided channel models describing signal propagation over 3.1–10.6 GHz for various environments, such as indoor residential, indoor office, industrial environments, and so forth. The set of IEEE multipath channel models is based on the Saleh-Valenzuela model, where the paths arrive at the receiver in clusters. To demonstrate how our proposed scheme combats multipath signal interference, we use a more simplified channel model.

Consider the RF tag-to-radar link. The multipath channel response is simply modeled by a finite set of delay and attenuation pairs ${α_{i}, τ_{m i}}$ , as follows:

h_{m} (t) = \sum_{i = 1}^{M} α_{i} δ (t - τ_{m i}) .

(26)

The radar received signal out of the bandpass filter which flows to Correlator 1 is given by

\begin{matrix} x_{1 c 1} (t) & = h_{m} (t) \otimes [x_{1} (t - 2 τ_{0}) + n_{f 1} (t - τ_{0})] + n_{b 1} (t) \\ = \sum_{i = 1}^{M} α_{i} x_{1} (t - 2 τ_{0} - τ_{m i}) \\ + \sum_{i = 1}^{M} α_{i} n_{f 1} (t - τ_{0} - τ_{m i}) + n_{b 1} (t) \\ = \sum_{i = 1}^{M} α_{i} x_{1} (t - 2 τ_{0} - τ_{m i}) + n_{m 1} (t), \end{matrix}

(27)

where

n_{m 1} (t) = \sum_{i = 1}^{M} α_{i} n_{f 1} (t - τ_{0} - τ_{m i}) + n_{b 1} (t)

represents the noise term of

x_{1 c 1} (t)

Similarly, the branch of the radar bandpass filter to Correlator 2 is given by

\begin{matrix} x_{1 c 2} (t) \\ = {  \begin{matrix} h_{m} (t) \otimes [  \begin{matrix} x_{1} (t - τ_{g} - 2 τ_{0}) \\ + \sum_{j = 1}^{L} a_{j} x_{1} (t  -  τ_{g}  -  j τ_{d}  -  2 τ_{0}) + n_{f 2} (t  -  τ_{0}) \end{matrix}  ] \\ + n_{b 2} (t) \end{matrix}  } \\ = [\begin{matrix} \sum_{i = 1}^{M} α_{i} x_{1} (t - 2 τ_{0} - τ_{g} - τ_{m i}) \\ + \sum_{j = 1}^{L} a_{j} \sum_{i = 1}^{M} α_{i} x_{1} (t - τ_{g} - 2 τ_{0} - j τ_{d} - τ_{m i}) \\ + \sum_{i = 1}^{M} α_{i} n_{f 2} (t - τ_{0} - τ_{m i}) + n_{b 2} (t) \end{matrix}] \\ = [\begin{matrix} \sum_{i = 1}^{M} α_{i} x_{1} (t - 2 τ_{0} - τ_{g} - τ_{m i}) \\ + \sum_{j = 1}^{L} a_{j} \sum_{i = 1}^{M} α_{i} x_{1} (t - τ_{g} - 2 τ_{0} - j τ_{d} - τ_{m i}) \\ + n_{m 2} (t) \end{matrix}], \end{matrix}

(28)

where

n_{m 2} (t) = \sum_{i = 1}^{M} α_{i} n_{f 2} (t - τ_{0} - τ_{m i}) + n_{b 2} (t)

represent the noise term of

x_{1 c 2} (t)

The output of Correlator 1 is calculated as

\begin{matrix} c_{1} (τ) & = \int_{0}^{T_{1}} x_{1 c 1} (t) x_{1} (t - τ) d t \\ = \sum_{i = 1}^{M} α_{i} \int_{0}^{T_{1}} x_{1} (t - 2 τ_{0} - τ_{m i}) x_{1} (t - τ) d t \\ + \int_{0}^{T_{1}} n_{m 1} (t) x_{1} (t - τ) d t . \end{matrix}

(29)

The output of Correlator 2 output is calculated as

\begin{matrix} c_{2} (τ) \\ = \int_{0}^{T_{1}} x_{1 c 2} (t) x_{1} (t - τ) d t \\ = \sum_{i = 1}^{M} α_{i} \int_{0}^{T_{2}} x_{1} (t - 2 τ_{0} - τ_{g} - τ_{m i}) x_{1} (t - τ) d t \\ + \sum_{j = 1}^{L} a_{j} \sum_{i = 1}^{M} α_{i} \int_{0}^{T_{2}} x_{1} (t  -  τ_{g}  -  2 τ_{0}  -  j τ_{d}  -  τ_{m i}) x_{1} (t  -  τ) d t \\ + \int_{0}^{T_{2}} n_{m 2} (t) x_{1} (t - τ) d t . \end{matrix}

(30)

If the output of Correlator 1 has a peak above the threshold at some time lag

τ^{*}

, then the radar starts to decode this RF tag's message with the outputs of Correlator 2,

c_{2} (τ)

, and Correlator 1,

c_{1} (τ)

The first step of tag message decoding is to suppress the noise floor of $c_{1} (τ)$ and $c_{2} (τ)$ . We denote $c_{1}^{'} (τ)$ and $c_{2}^{'} (τ)$ as the denoised versions of $c_{1} (τ)$ and $c_{2} (τ)$ , respectively. The noise can be reduced using the method of wavelets. The energy of a signal is often concentrated in a few coefficients, while the energy of noise is spread among all coefficients in the wavelet domain [45]. Wavelet denoising keeps strong wavelet components and removes the rest, and as a result, the noise is removed according to the signal [46]. Wavelet denoising has the merit of optimal resolution both in the time and the frequency domain compared to other methods [47], and it is therefore widely used for noise reduction purposes. The denoising procedure consists of three stages: (1) wavelet transformation of the signal; (2) thresholding of wavelet coefficients; (3) inverse wavelet transformation [48]. One threshold ξ that is easy to implement is given by [49]

ξ = σ \sqrt{\frac{(2 \log n)}{n}},

(31)

where n is the number wavelet coefficients to be thresholded and

σ = \tilde{m} / 0.6745

\tilde{m}

being the median of the wavelet transform coefficients.

The next step is to apply the information obtained from $c_{1}^{'} (τ)$ to $c_{2}^{'} (τ)$ in order to decode the RF tag message. The procedure is described as follows.

Step 1.

Intercept the part of $c_{1}^{'} (τ)$ from time lag $τ^{*}$ , which is denoted as $c_{1 r}^{'} (τ)$ .

Step 2.

Check the 0th bit of the RF tag's message by observing the magnitude of $c_{2}^{'} (τ)$ at time lag $τ^{*} + τ_{g}$ . If it is above the threshold, then go to (3), otherwise stop.

Step 3.

Intercept the part of $c_{2}^{'} (τ)$ beyond time lag $τ^{*} + τ_{g}$ , denoted as $c_{2_0}^{'} (τ)$ . Subtract $c_{1 r}^{'} (τ)$ from $c_{2_0}^{'} (τ)$ , and the remaining part is denoted as $c_{20}^{'} (τ)$ . Check the 1st bit of the RF tag's message by observing the magnitude of $c_{20}^{'} (τ)$ at time lag $τ_{g} + τ_{d}$ away from $τ^{*}$ . If it is above the threshold, then the first bit is decoded as 1, and go to Step 4. Otherwise the first bit is decoded as 0, and check from the next bit.

Step 4.

Intercept the part of $c_{20}^{'} (τ)$ beyond time lag $τ^{*} + τ_{g} + τ_{d}$ , denoted as $c_{2_1}^{'} (τ)$ . Subtract $c_{1 r}^{'} (τ)$ from $c_{2_1}^{'} (τ)$ , and the remaining part is denoted as $c_{21}^{'} (τ)$ .

Step 5.

Repeat the above operation on the resulting signal iteratively at time lag $τ^{*} + τ_{g} + i \cdot τ_{d}$ for all $i = 1,2, \dots, L$ .

The following is a simulation validation for this method. We use the same system example as that in Section 3, except that channel is changed. The channel impulse response used in the simulation is shown in Figure 11, which, although not a standard one, is used just for algorithm testing and validation purposes. The wavelet used in the test is the Daubechies-4 (db4) wavelet. The simulation results are shown in Figures 12(a)–12(h). Figures 12(a) and 12(b) show the correlator outputs wherein the multipath signals and significant amount of noise are shown. The correlator outputs after denoising as per the procedure outlined in (31) are shown in Figures 12(c) and 12(d), wherein we note that noise has significantly reduced. Figure 12(e) shows the output of Correlator 2 after the first multipath signal removal. An enlarged view of the Correlator 2's output after the first multipath signal removal is presented in Figure 12(f), which shows a high peak value at around 90 lags, which equals $τ_{d}$ away from where the 0th bit appears; thus the first bit is decoded as 1. In Figure 12(g), Correlator 2's output after the second multipath signal removal, shows that there is no high peak value observed at 180 lags which equals $2 τ_{d}$ away from where the 0th bit appears, so the second bit is decoded as 0. However, there exists a high peak value occurring at about 270 lags which equals $3 τ_{d}$ away from where the 0th bit appears, so the third bit is determined as 1. Since the length of the delay line at the RF tag is known by the radar, the message is interpreted as 101 by the radar. Figure 12(h) shows the output of Correlator 2 after three multipath signal removal iterations. It shows that the multipath interferences are reduced significantly.

Figure 11

Channel impulse response used for testing.

Figure 12

Example system multipath channel results. (a) Correlator 1 output in multipath channel case, (b) Correlator 2 output in multipath channel case, (c) Correlator 1 output after noise suppression, (d) Correlator 2 output after noise suppression, (e) RF tag message decoding after the 1st multipath signal removal iteration, (f) same as (e) with lag scale expanded, (g) RF tag message decoding after the 2nd multipath signal removal iteration, (h) RF tag message after the 3rd multipath signal removal iteration.

In the multipath channel, there will also be multipath from the radar to the RF tag. The radar-to-RF tag channel and the RF tag-to-radar channel are likely to be different given that both systems will have different antenna patterns. As stated in Section 2.1, our design of the sleep mode in the RF tag's operation assures that during one radar inquiry, once the RF is triggered, it will not be triggered by multipath signals.

5. Conclusions

This paper explores the application of active RF tags, affixed on friendly assets, operating in outdoor environments and responding to random noise radar interrogations with predetermined messages. A conceptual system design for communication between the tags and the radar using UWB noise waveforms is proposed and analyzed. The use of noise waveforms generally maintains covertness and immunity from interference, especially in electromagnetically dense applications. In the proposed design of the system, the RF tag functional block comprises two parts: the sensing receiver and the active receiver/transmitter considering the efficiency of energy consumption. The sensing receiver is designed to sense the radar header, which is a prearranged secret realization of the noise waveform for the purpose of covertness. The active receiver/transmitter modulates the RF tag's message onto the signal through weighted tapped delays considering the simplicity of the RF tag structure. The RF tag's ID is embedded through the frequency band of its transmitted signal. The operation of the system is demonstrated and the performance of the system is analyzed in an AWGN channel. A mechanism to combat the interferences caused by multipath signals is presented for the proposed system in the multipath channel case. In the example considered for the system design demonstration above, where the RF tag has a 3-tapped delay line, simulation results show that the RF tags are able to respond to the radar with various kinds of messages. The symbol error probability of the system in the example is at the 10⁻³ level when the channel SNR is as low as −2 dB, and it still performs well when the channel SNR is −4 dB. Since tag message detection is accomplished via cross-correlation with constantly varying transmit replicas known only to the radar that generates the noise waveform, the radar transmit signal can be maintained smaller and well-concealed within the ambient RF noise.

Possible future work for this proposed system includes the hardware implementation and testing over-the-air. Various mature technologies, for example, microwave, photonic, and acousto-optic, can be implemented to realize the switchable delay lines at the RF tag for transmitting different messages, as described in [50–54]. Compact wideband antennas suitable for RFID tags are discussed in many recent papers. In [55], a low-cost, wideband planar antenna for RFID tags mountable on metallic surfaces covering 57 MHz bandwidth at a 3-dB return loss has been presented. A wideband antenna for RFID tag that can process 1-2 GHz is also realizable. A UWB antenna operating over 300–2700 MHz with a size less than 15 cm square is reported in [56], while one operating over 400–800 MHz with a size of approximately 10 cm square is reported in [57]. Thus, we believe that suitable antennas are available for use with our proposed RF tag implementation.

Although noise waveforms are discussed and developed in this paper, constant envelope (CE) noise-like waveforms, such as clipped noise, chaos, code division multiple access (CDMA), and orthogonal frequency division multiplex (OFDM) waveforms, can also be used. While these may not possess as good LPI or LPD characteristics as pure noise waveforms, they are able to use power amplifiers in the saturated mode using as little DC power as possible.

Footnotes

Acknowledgments

The authors appreciate valuable comments and suggestions received from Dr. Jon Sjogren of the US Air Force Office of Scientific Research (AFOSR). This work is supported by the US Air Force Office of Scientific Research (AFOSR) Grant no. FA955006-1-0029.

References

Ranky

P. G.

An introduction to radio frequency identification (RFID) methods and solutions

Assembly Automation 2006 26 1 28 33

2-s2.0-33644636618

10.1108/01445150610645639

Want

An introduction to RFID technology

IEEE Pervasive Computing 2006 5 1 25 33

2-s2.0-32844471136

10.1109/MPRV.2006.2

Penttilä

K. M.

Engels

D. W.

Kivikoski

M. A.

Radio frequency identification systems in supply chain management

International Journal of Robotics & Automation 2004 19 3 143 151

2-s2.0-3242690760

Chen

L.-C.

Sheu

R.-K.

H.-C.

W.-T.

Chu

Y.-P.

Object finding system based on RFID technology

3842

Advanced Web and Network Technologies, and Applications

2006

383 396 Lecture Notes in Computer Science

Cho

Song

S.-J.

Kim

Yoo

H.-J.

A 5.1-μW UHF RFID tag chip integrated with sensors for wireless environmental monitoring

Proceedings of the 31st European Solid-State Circuits Conference (ESSCIRC '05)

September 2005

Grenoble, France

279 282

10.1109/ESSCIR.2005.1541614

Saar

Thomas

Toward trash that thinks: product tags for environmental management

Journal of Industrial Ecology 2002 6 2 133 146

2-s2.0-0242416563

10.1162/108819802763471834

Mawhinney

D. D.

Microwave tag identification systems

RCA Review 1983 44 4 589 610

2-s2.0-0020943914

Boyd

C. S.

Collyer

R. S.

Skinner

D. J.

Characterization of combat identification technologies

Proceedings of the IEEE International Region 10 Conference (TENCON '05)

November 2005

Melbourne, Australia

10.1109/TENCON.2005.301282

Ormesher

R. C.

Martinez

Plummer

K. W.

Erlandson

Delaware

Clark

D. R.

Current test results for the athena radar responsive tag

6210

Radar Sensor Technology X

May 2006

Orlando, Fla, USA

Proceedings of SPIE

10.1117/12.664623

10.

Dobkin

D. M.

Wandinger

A radio-oriented introduction to radio frequency identification

High Frequency Electronics 2005 4 6 46 54

11.

Stockman

Communication by means of reflected power

Proceedings of the IRE 1948 36 10 1196 1204

12.

Koelle

A. R.

Depp

S. W.

Freyman

R. W.

Short range radio telemetry for electronic identification, using modulated RF backscatter

Proceedings of the IEEE 1975 63 8 1260 1261

2-s2.0-0016543144

13.

One

Hasebe

Zama

Radar reflectors with controllable reflection

Electronics & Communications in Japan 1980 63 3 51 58

2-s2.0-0018986282

14.

Kossel

Benedickter

H. R.

Peter

Bachtold

Microwave backscatter modulation systems

Proceedings of the IEEE MTT-S International Microwave Symposium

June 2000

Boston, Mass, USA

1427 1430

2-s2.0-0033678369

15.

Komiak

J. J.

Barnum

D. A.

Maron

D. E.

Digital RF tag

US Patent no. 7,106,245, 2006

16.

Blunt

S. D.

Yantham

Waveform design for radar-embedded communications

Proceedings of the International Conference on Waveform Diversity and Design (WDD '07)

June 2007

Pisa, Italy

214 218

2-s2.0-44349129612

10.1109/WDDC.2007.4339413

17.

Castelluccia

Avoine

Noisy tags: a pretty good key exchange protocol for RFID tags

3928

Proceedings of the International Conference on SmartCard Research and Advanced Applications (CARDIS '06)

2006

289 299 Lecture Notes in Computer Science

10.1007/11733447_21

18.

Pillai

Martinez

Bleichner

Elliot

Ramamurthy

Rao

K. V. S.

A technique for simultaneous multiple tag identification

Proceedings of the 4th IEEE Workshop on Automatic Identification Advanced Technologies

October 2005

Buffalo, NY, USA

35 38

2-s2.0-33750943205

10.1109/AUTOID.2005.9

19.

Puccio

Malocha

D. C.

Saldanha

Gallagher

D. R.

Hines

J. H.

Orthogonal frequency coding for SAW tagging and sensors

IEEE Transactions on Ultrasonics, Ferroelectrics, and Frequency Control 2006 53 2 377 384

2-s2.0-33645303860

10.1109/TUFFC.2006.1593376

20.

Blunt

S. D.

Stiles

Allen

Deavours

Perrins

Diversity aspects of radar-embedded communications

Proceedings of the International Conference on Electromagnetics in Advanced Applications (ICEAA '07)

September 2007

Torino, Italy

439 442

10.1109/ICEAA.2007.4387332

21.

Roberton

Brown

E. R.

Integrated radar and communications based on chirped spread-spectrum techniques

Proceedings of the IEEE MTT-S International Microwave Symposium Digest (MTT-S '03)

June 2003

Philadelphia, Pa, USA

611 614

22.

Saddik

G. N.

Singh

R. S.

Brown

E. R.

Ultra-wideband multifunctional communications/radar system

IEEE Transactions on Microwave Theory and Techniques 2007 55 7 1431 1437

2-s2.0-34547291939

10.1109/TMTT.2007.900343

23.

Cantrell

B. H.

Coleman

J. O.

Trunk

G. V.

Radar communications

Report August 1981 8515

Washington, DC, USA

Naval Research Laboratory (NRL)

24.

Burbank

J. L.

Enabling the objective force: concepts, technologies, and challenges

Proceedings of the IEEE Military Communications Conference (MILCOM '03)

October 2003

Boston, Mass, USA

204 208

2-s2.0-3142744778

25.

Horton

B. M.

Noise-modulated distance measuring systems

Proceedings of the IRE 1959 47 5 821 828

26.

Craig

S. E.

Fishbein

Rittenbach

O. E.

Continuous-wave radar with high range resolution and unambiguous velocity determination

IEEE Transactions on Military Electronics 1962 6 2 153 161

27.

Grant

M. P.

Cooper

G. R.

Kamal

A. K.

A class of noise systems

Proceedings of the IEEE 1963 51 7 1060 1061

28.

Cooper

G. R.

McGillem

C. D.

Random signal radar

Final Report June 1967 TR-EE67-11

Lafayette, Ind, USA

Purdue University School of Electrical Engineering

29.

Smit

J. A.

Kneefel

W. B. S. M.

RUDAR. An experimental noise radar system

De Ingenieur 1971 83 32 99 110

2-s2.0-0015111650

30.

Forrest

J. R.

Meeson

J. P.

Solid-state microwave noise radar

Electronics Letters 1976 12 15 365 366

31.

Liu

Shi

Yang

Song

Design of noise FM-CW radar and its implementation

IEE Proceedings, Part F 1991 138 5 420 424

2-s2.0-0026241815

32.

Lukin

K. A.

Ka-band noise radar

Proceedings of the International Symposium on Physics and Engineering of Millimeter and Submillimeter Waves

June 1994

Kharkov, Ukraine

322 324

33.

Narayanan

R. M.

Hoffmeyer

P. D.

Curtis

J. O.

Design and performance of a polarimetric random noise radar for detection of shallow buried targets

2496

Detection Technologies for Mines and Minelike Targets

April 1995

Orlando, Fla, USA

20 30 Proceedings of the SPIE

34.

Walton

E. K.

Fillimon

Gunawan

ISAR imaging using UWB noise radar

Proceedings of the 18th Annual AMTA Symposium

September-October 1996

Seattle, Wash, USA

167 171

35.

Narayanan

R. M.

Hoffmeyer

P. D.

Curtis

J. O.

Design, performance, and applications of a coherent ultra-wideband random noise radar

Optical Engineering 1998 37 6 1855 1869

2-s2.0-0000350086

36.

Theron

I. P.

Ultrawide-band noise radar in the VHF/UHF band

IEEE Transactions on Antennas and Propagation 1999 47 6 1080 1084

2-s2.0-0032641873

10.1109/8.777135

37.

Stephan

Loele

Theoretical and practical characterization of a broadband random noise radar

Proceedings of the IEEE MTT-S International Microwave Symposium Digest

June 2000

Boston, Mass, USA

1555 1558

2-s2.0-0033709095

38.

Turner

The evolution of featureless waveforms for LPI communications

Proceedings of the IEEE National Aerospace and Electronics Conference (NAECON '91)

May 1991

Dayton, Ohio, USA

1325 1331

2-s2.0-0026397835

39.

Axelsson

S. R. J.

Random noise radar/sodar with ultrawideband waveforms

IEEE Transactions on Geoscience and Remote Sensing 2007 45 5 1099 1114

2-s2.0-34247543121

10.1109/TGRS.2007.893742

40.

Bidigare

Nayeri

RF tags: radar as a communications channel

Proceedings of the 10th Adaptive Sensor Array Processing (ASAP) Workshop

March 2002

Lexington, Mass, USA

41.

Bidigare

The Shannon channel capacity of a radar system

Record of the 36th Asilomar Conference on Signals, Systems, and Computers

November 2002

Pacific Grove, Calif, USA

113 117

42.

Pan

Narayanan

R. M.

An RF tag communication system model for noise radar

6980

Wireless Sensing and Processing III

March 2008

Orlando, Fla, USA

698007.1 698007.12 Proceedings of SPIE

10.1117/12.777394

43.

Proakis

J. G.

Digital Communications 2001 4th

New York, NY, USA

McGraw-Hill

44.

Aroian

L. A.

The probability function of the product of two normally distributed variables

Annals of Mathematical Statistics 1947 18 2 265 271

45.

Tianshu

Shuxun

Haihua

Yisong

Adaptive denoising based on wavelet thresholding method

Proceedings of the 6th International Conference on Signal Processing (ICSP '02)

August 2002

Beijing, China

120 123

46.

Nakhkash

Mirzaei

Wavelet denoising applied to free-space reflection measurements

Measurement Science and Technology 2008 19 11

2-s2.0-58149306134

10.1088/0957-0233/19/11/115706

115706

47.

Quiroga

R. Q.

Garcia

Single-trial event-related potentials with wavelet denoising

Clinical Neurophysiology 2003 114 2 376 390

2-s2.0-0037307515

10.1016/S1388-2457(02)00365-6

48.

Donoho

D. L.

De-noising by soft-thresholding

IEEE Transactions on Information Theory 1995 41 3 613 627

2-s2.0-0029307534

10.1109/18.382009

49.

Zhang

Zhao

X. H.

Wavelet thresholding using higher-order statistics for signal denoising

Proceedings of the International Conference on Info-Tech and Info-Net (ICII '01)

October-November 2001

Beijing, China

363 368

50.

Toughlian

E. N.

Zmuda

A photonic variable RF delay line for phased array antennas

Journal of Lightwave Technology 1990 8 12 1824 1828

2-s2.0-0025631106

10.1109/50.62877

51.

Cheston

T. C.

Coleman

H. P.

Rao

J. B. L.

Ultrawideband scanner array architecture

Report June 1995 MR/5310

Washington, DC, USA

Naval Research Laboratory (NRL)

52.

Loo

R. Y.

Tangonan

G. L.

Yen

H. W.

Lee

J. J.

Jones

V. L.

Lewis

5 bit photonic time shifter for wideband arrays

Electronics Letters 1995 31 18 1532 1533

2-s2.0-0029352974

10.1049/el:19951098

53.

Abele

Stephan

Birk

An electrically tunable true-time-delay line on Si for a broadband noise radar

Digest of the Topical Meeting on Silicon Monolithic Integrated Circuits in RF Systems

April 2003

Garmisch, Germany

130 133

54.

Pohvalin

A. A.

Krasilnikov

S. V.

Tunable delay line on quadrature bridge with digitally controlled group delay characteristic

Proceedings of the 15th International Crimean Conference Microwave and Telecommunication Technology (CriMiCo '05)

2005

Sevastapol, Ukraine

593 594

10.1109/CRMICO.2005.1565051

55.

Son

H. W.

Yeo

Choi

G. Y.

Pyo

C. S.

A low-cost, wideband antenna for passive RFID tags mountable on metallic surfaces

Proceedings of the IEEE Antennas and Propagation Society International Symposium (APS '06)

July 2006

Albuquerque, NM, USA

1019 1022

2-s2.0-34250841244

10.1109/APS.2006.1710706

56.

Adams

J. C.

Gregorwich

Capots

Liccardo

Ultra-wideband for navigation and communications

Proceedings of the IEEE Aerospace Conference

March 2001

Big Sky, Mont, USA

785 791

2-s2.0-0034855088

57.

Ren

Y. J.

Lai

C. P.

Chen

P. H.

Narayanan

R. M.

Compact ultrawideband UHF array antenna for through-wall radar applications

IEEE Antennas and Wireless Propagation Letters 2009 8 1302 1305

2-s2.0-77956212565

10.1109/LAWP.2009.2037985
