Sliding-Mode and Spring-Relaxation-Like Technique for Location Estimation in Wireless Sensor Networks

Abstract

In order to reduce the location estimation error in wireless sensor network (WSN), a localization algorithm is proposed combining sliding-mode and spring-relaxation-like techniques for wireless sensor networks in this paper. Our proposed method takes advantage of the spring-relaxation technique. The overall accuracy of the location estimations is improved by sliding-mode technique. The convergence of the proposed algorithm is proved using the convergence conditions of discrete sliding-mode. Moreover, it requires only a few beacons with known locations to compute the location estimations of all sensors. Simulation examples demonstrate the overall accuracy of the proposed method.

1. Introduction

In recent years, with the expanding applications of wireless ad hoc sensor networks, sensor positioning/localization and synchronization become more and more demanding research topics [1, 2]. The location methods can be divided into two categories: range-based and range-free schemes. The range-based schemes estimate locations on the basis of either node-to-node distances or angles [3, 4], which can be used in the applications involving the location estimation of a sensor based on its range measurements from beacon nodes. The first range-based scheme is time-based location estimation, for example, time of arrival (TOA) [5], time difference of arrival (TDOA) [6]. The second range-based scheme is direction-based location estimation, such as angle of arrival (AOA) or direction of arrival (DOA)[7]. The range-based schemes typically have higher location accuracy than the range-free schemes, but require additional hardware to obtain distances or angles and have weakness in the noisy environments.

The main advantage of a range-free scheme is that it does not need the distance or angle information from the beacon nodes to the sensor nodes for their localization [8, 9]. Because the range-free schemes provide more economic and simpler estimations than the range-based ones, they become more popular than the range-based methods. The problem of range-free positioning schemes is that their results are not as precise as those of the range-based methods. However, accurate and low-cost autonomous self-localization is a critical requirement of various applications of a distributed wireless sensor network [10]. In order to solve this problem, a lot of researches have been made [10–14]. In [10], a spring-relaxation technique is proposed for location estimation, which uses received signal strength (RSS, a measurement of the power presented in a received radio signal) indicators for ranging, light-weight distributed algorithms based on the spring-relaxation technique for location computation, and the cooperative approach to achieve certain location estimation accuracy with a low number of nodes with known locations, but it cannot alleviate the influence of noises and the convergence analysis is complicated. The two-step indoor location estimation method is presented based on RSS in a wireless sensor network [11] by using the first-order Taylor series expansion and calculating Jacobian matrix and pseudoinverse matrix, which results in low accuracy and high computation load. In [12], NN-based location method is proposed, which constructs a flexible model based on neural network and uses grid-sensor training phase for accurate localization of sensors. The NN is trained using the RSS values of the grid sensors. A soft computing technique is proposed for range-free location, in which lots of RSS samples are required. It approximates the entire mapping from the anchor node signals to the locations of sensor nodes by a neural network. Yun et al. propose a self-location estimation scheme using ROA for wireless sensor networks without any special device for location awareness [13]. In [14], a potentially nonconvex weighted cost function, whose global minimum estimates the location of the sensor one seeks, is proposed and the proposed algorithm guarantees the practical convergence. But the choice of the weights is difficult.

Aiming at getting more accurate location estimation without additional hardware, a sliding-mode and spring-relaxation-like technique is proposed. The main advantages of this paper are (1) the proposed method takes advantage of the spring-relaxation technique; (2) introducing the sliding-mode technique into location estimation for the first time, which makes the design and convergence analysis clear and simple, and the computation load low; (3) unlike [14], this paper does not need strict assumptions; (4) it can cope with noises explicitly and has strong robustness, namely, it shows graceful performance degradation in the presence of noise.

The rest of the paper is organized as follows. Section 2 presents our localization method in details. Section 3 provides the simulation results covering studies in system design and parameter design. Finally, Section 4 summarizes our conclusions.

2. Localization Algorithm

2.1. Range Measurement Scheme

The observation space shown in Figure 1 is a set of range measurements, and the parameters of location that need to be estimated are the geographical coordinates of the sensor node. We assume the random variation of RSS is a log-normal Gaussian random variable due to shadowing effect. Thus we can describe that RSS in dB is distributed with $X_{σ_{s}} = N (E, σ^{2})$ of E mean and $σ^{2}$ variance.

Figure 1

Referenced network topology. $R_{j}$ : reference node Beacon_j, $X_{i}$ : sensor node $Senso r_{i}$ .

In Figure 1, the reference nodes ( $R_{1}$ ~ $R_{4}$ ) are repeatedly broadcasting data involving their own location information to the sensor nodes ( $X_{1}$ and $X_{2}$ ). After receiving the signals from each reference node, the sensor node sorts the RSSs and estimates the average RSS. then the sensor node calculates average distances ( $d_{i, j}$ in Figure 1, $d_{i, j}$ is the estimated distance between $Senso r_{i}$ and $Beaco n_{j}$ ) from each reference node to the sensor node through RSS.

2.2. Sliding-Mode and Spring-Relaxation-like Technique for Localization

We assume that $(x_{i s}, y_{i s})$ is the estimated location of $Senso r_{i}$ , where $i \in S$ ; $(x_{j}, y_{j})$ is the location of $Beaco n_{j}$ , where $j \in B$ .

The term “sliding-mode” first appeared in the context of relay systems. It may happen that the control as a function of the system state switches at high frequency and results in the states moving along the “switching surface”, which is referred to as “sliding-mode”. Sliding-mode technique is a robust method and can be applied to drive control systems in the presence of model uncertainties and external disturbances. Define switching surfaces as

\begin{matrix} S_{i x} (k) = \sum_{j = 1}^{n} [x_{j} - x_{i s} (k) - d_{i j x} (k)], \end{matrix}

(1)

\begin{matrix} S_{i y} (k) = \sum_{j = 1}^{n} [y_{j} - y_{i s} (k) - d_{i j y} (k)], \end{matrix}

(2)

where $d_{i j x} (k) = d_{i j c} [x_{j} - x_{i s} (k)] / {\hat{d}}_{i j} (k)$ , $d_{i j y} (k) = d_{i j c} [y_{j} - y_{i s} (k)] / {\hat{d}}_{i j} (k)$ , n is the number of the visible beacons, and ${\hat{d}}_{i j} (k)$ is the distance between $(x_{i s}, y_{i s})$ and $(x_{j}, y_{j})$ .

The scalar quantities $x_{j} - x_{i s} (k) - d_{i j x} (k)$ and $y_{j} - y_{i s} (k) - d_{i j y} (k)$ are the displacements of the spring from natural length, which gives the magnitude of the force exerted by the spring between $Senso r_{i}$ and $Beaco n_{j}$ . To mimic the evolution of the spring network, our algorithm updates the locations of sensors in iterations. In each iteration, the algorithm moves $Senso r_{i}$ a small distance in the directions of x and y, then recomputes $S_{i x}$ and $S_{i y}$ .

In order to guarantee $S_{i x}$ and $S_{i y}$ moving along the switching surfaces $S_{i x} = 0$ and $S_{i y} = 0$ , we choose the updated laws of $Senso r_{i}$ as

\begin{array}{l} x_{i s} (k + 1) = x_{i s} (k) + \frac{η_{i x} S_{i x} (k)}{n} \\ + \frac{ε_{i x} | S_{i x} (k) | sign [S_{i x} (k)] / n}{(| S_{i x} (k) | + 1)}, \\ y_{i s} (k + 1) = y_{i s} (k) + \frac{η_{i y} S_{i y} (k)}{n} \\ + \frac{ε_{i y} | S_{i y} (k) | sign [S_{i y} (k)] / n}{(| S_{i y} (k) | + 1)}, \end{array}

(3)

where $η_{i x} > 0$ , $ε_{i x} > 0$ , $η_{i y} > 0$ and $ε_{i y} > 0$ . The terms $η_{i x} S_{i x} (k) / n$ and $η_{i y} S_{i y} (k) / n$ are used to guarantee convergence of the updated laws. The last terms in (3) and (4) are used to improve the robustness of the updated laws.

Firstly, we give the location estimation Algorithm 1 without the information about mean of measurement noise.

Algorithm 1: Location estimation.

INPUT: RSSs, estimated distances $d_{i, j}$ , beacon locations $(x_{j}, y_{j})$ , and initial guess of $(x_{i s}, y_{i s})$

OUTPUT: estimate of $(x_{i s}, y_{i s})$

For $k = 1$ to N

For ${Sensor}_{i}$ , $i \in S$

while $s_{i j} \geq τ$ do

for all ${Beacon}_{j}$ do

if ${Beacon}_{j}$ is visible to ${Sensor}_{i}$ then

$S_{i x} (k) = \sum_{j = 1}^{n} [x_{j} - x_{i s} (k) - d_{i j x} (k)]$

$S_{i y} (k) = \sum_{j = 1}^{n} [y_{j} - y_{i s} (k) - d_{i j y} (k)]$

$d_{i j x} (k) = d_{i j} (k) [x_{j} - x_{i s} (k)] / {\hat{d}}_{i j} (k)$

$d_{i j y} (k) = d_{i j} (k) [y_{j} - y_{i s} (k)] / {\hat{d}}_{i j} (k)$

end if

end for

$x_{i s} (k + 1) = x_{i s} (k) + η_{i x} S_{i x} (k) / n + ε_{i x} |S_{i x} (k)| sign [S_{i x} (k)] / n / (|S_{i x} (k)| + 1)$

$y_{i s} (k + 1) = y_{i s} (k) + η_{i y} S_{i y} (k) / n + ε_{i y} |S_{i y} (k)| sign [S_{i y} (k)] / n / (|S_{i y} (k)| + 1)$

end while

end for

In the algorithm, there are several design parameters that are used to adjust the algorithm behavior and control the algorithm execution. Threshold, τ, is a constant used to define the visibility or connectivity.

If the RSS $s_{i, j}$ from $Beaco n_{j}$ to $Senso r_{i}$ is no smaller than the threshold, then $Beaco n_{j}$ is visible to $Senso r_{i}$ The specific value of the threshold follows the specification for receiver sensitivity defined in [15].

Secondly, we give the location estimation Algorithm 2 with the information about mean of measurement noise, where $P L_{i j}$ (d) is the path loss for the distance between reference nodes and the sensor node. Now it is ready for us to analyze the convergence of the proposed algorithm.

Algorithm 2: Location estimation.

INPUT: RSSs and $E_{n j_{1} j_{2}}$ estimated distances $d_{i, j}$ , beacon locations $(x_{j}, y_{j})$ , and initial guess of $(x_{i s}, y_{i s})$

OUTPUT: estimate of $(x_{i s}, y_{i s})$

$E_{n j_{1} j_{2}} = \sum_{l = 1}^{N_{1}} ({\hat{d}}_{j_{1} j_{2} c} (l) / n) - d_{j_{1} j_{2}}$ , where $E_{n j_{1} j_{2}}$ is the mean of measurement noise, ${\hat{d}}_{j_{1} j_{2} c}$ is the measurement

distance between ${Beacon}_{j1}$ and ${Beacon}_{j2}$ , and $d_{j_{1} j_{2}}$ is the real distance between ${B e a c o n}_{j 1}$ and ${Beacon}_{j2}$ .

For $k = 1$ to N

For ${S e n s o r}_{i}$ , $i \in S$

while $s_{i j} \geq τ$ do

for all ${B e a c o n}_{j}$ do

if ${B e a c o n}_{j}$ is visible to ${S e n s o r}_{i}$ then

choose $E_{n j_{1} j_{2}}$

$S_{i x} (k) = \sum_{j = 1}^{n} [x_{j} - x_{i s} (k) - d_{i j x} (k)]$

$S_{i y} (k) = \sum_{j = 1}^{n} [y_{j} - y_{i s} (k) - d_{i j y} (k)]$

$d_{i j} (k) = 1 0^{({PL}_{i j} - 30 - E_{n j_{1} j_{2}}) / 21}$

$d_{i j x} (k) = d_{i j} (k) [x_{j} - x_{i s} (k)] / {\hat{d}}_{i j} (k)$

$d_{i j y} (k) = d_{i j} (k) [y_{j} - y_{i s} (k)] / {\hat{d}}_{i j} (k)$

end if

end for

$x_{i s} (k + 1) = x_{i s} (k) + η_{i x} S_{i x} (k) / n + ε_{i x} |S_{i x} (k)| sign [S_{i x} (k)] / n / (|S_{i x} (k)| + 1)$

$y_{i s} (k + 1) = y_{i s} (k) + η_{i y} S_{i y} (k) / n + ε_{i y} |S_{i y} (k)| sign [S_{i y} (k)] / n / (|S_{i y} (k)| + 1)$

end while

end for

From (1), we have

\begin{array}{l} S_{i x} (k + 1) - S_{i x} (k) \\ = \sum_{j = 1}^{n} [x_{j} - x_{i s} (k + 1) - d_{i j x} (k + 1)] \\ - \sum_{j = 1}^{n} [x_{j} - x_{i s} (k) - d_{i j x} (k)] \\ = n [x_{i s} (k) - x_{i s} (k + 1)] + Δ d, \end{array}

(4)

where

\begin{matrix} Δ d = \sum_{j = 1}^{n} [d_{i j x} (k) - d_{i j x} (k + 1)] . \end{matrix}

(5)

Let

\begin{array}{l} x_{i s} (k + 1) = x_{i s} (k) + \frac{η_{i x} S_{i x} (k)}{n} \\ + \frac{ε_{i x} | S_{i x} (k) | sign [S_{i x} (k)] / n}{(| S_{i x} (k) | + 1)} . \end{array}

(6)

For small $η_{i x}$ and $ε_{i x}$ , $Δ d$ will be very small. So we will neglect $Δ d$ in the following analysis.

Substituting (6) into (4), we have

\begin{matrix} S_{i x} (k + 1) - S_{i x} (k) = - η_{i x} S_{i x} (k) - \frac{ε_{i x} S_{i x} (k)}{(| S_{i x} (k) | + 1)}, \end{matrix}

(7)

Namely,

\begin{matrix} S_{i x} (k + 1) = [1 - η_{i x} - \frac{ε_{i x}}{(| S_{i x} (k) | + 1)}] S_{i x} (k) . \end{matrix}

(8)

Taking absolute value on both sides of (8) gives

\begin{matrix} | S_{i x} (k + 1) | = | [1 - η_{i x} - \frac{ε_{i x}}{(| S_{i x} (k) | + 1)}] | | S_{i x} (k) | . \end{matrix}

(9)

If we choose $1 - η_{i x} < ε_{i x} < 2 - η_{i x}$ , the following inequality can be obtained:

\begin{matrix} 0 < ε_{i x} / (| S_{i x} (k) | + 1) < ε_{i x} < 2 - η_{i x} . \end{matrix}

(10)

The inequality implies that

\begin{matrix} 1 - η_{i x} - \frac{ε_{i x}}{(| S_{i x} (k) | + 1)} < 1 - η_{i x} < 1, \end{matrix}

(11)

\begin{matrix} 1 - η_{i x} - \frac{ε_{i x}}{(| S_{i x} (k) | + 1)} > 1 - η_{i x} - ε_{i x} > - 1 . \end{matrix}

(12)

So we can obtain that

\begin{matrix} | 1 - η_{i x} - \frac{ε_{i x}}{(| S_{i x} (k) | + 1)} | < 1 \end{matrix}

(13)

holds. According to (9) and the inequality (13), one can conclude that

\begin{matrix} | S_{i x} (k + 1) | < | S_{i x} (k) | \end{matrix}

(14)

holds. So as $k \to \infty$ , $S_{i x} (k) \to 0$ with convergence rate $| 1 - η_{i x} - ε_{i x} / (| S_{i x} (k) | + 1) |$ .

In the following, we will prove the convergence of $S_{i y} (k)$ . Let

\begin{array}{l} y_{i s} (k + 1) = y_{i s} (k) + \frac{η_{i y} S_{i y} (k)}{n} \\ + \frac{ε_{i y} | S_{i y} (k) | sign [S_{i y} (k)] / n}{(| S_{i y} (k) | + 1)} . \end{array}

(15)

Following the process above, under the assumption that $1 - η_{i y} < ε_{i y} < 2 - η_{i y}$ , it is easy to show that (16) holds.

\begin{matrix} | 1 - η_{i y} - \frac{ε_{i y}}{(| S_{i y} (k) | + 1)} | < 1, \\ | S_{i y} (k + 1) | < | S_{i y} (k) | . \end{matrix}

(16)

Therefore, as $k \to \infty$ , $S_{i y} (k) \to 0$ with convergence rate $| 1 - η_{i y} - ε_{i y} / (| S_{i y} (k) | + 1) |$ . According to (6) and (15), $x_{i s} (k + 1) = x_{i s} (k)$ and $y_{i s} (k + 1) = y_{i s} (k)$ as $k \to \infty$ .

To show the effectiveness of the proposed method, we will analyze the robust performance in the following. If there exists noise, then (4) can be rewritten as

\begin{matrix} S_{i x} (k + 1) - S_{i x} (k) = n [x_{i s} (k) - x_{i s} (k + 1)] + d, \end{matrix}

(17)

where $d = Δ d + noise$ . Let $d_{m} = \max {| d |}$ .

Case 1.

$S_{i x} (k) > 0$ and $d < 0$ .

Substituting (6) into (17) yields

\begin{array}{l} [S_{i x} (k + 1) - S_{i x} (k)] S_{i x} (k) \\ = - S_{i x}^{2} (k) - [\frac{ε_{i x} S_{i x} (k)}{(| S_{i x} (k) | + 1) - d}] S_{i x} (k) < 0 . \end{array}

(18)

Case 2 ( $S_{i x} (k) > 0$ and $d > 0$ ).

If $S_{i x} (k) > d_{m} / (ε_{i x} - d_{m})$ and $ε_{i x} > d_{m}$ hold, substituting (6) into (17) yields

\begin{matrix} [S_{i x} (k + 1) - S_{i x} (k)] S_{i x} (k) < 0 . \end{matrix}

(19)

Case 3 ( $S_{i x} (k) < 0$ and $d < 0$ ).

If $S_{i x} (k) > d_{m} / (ε_{i x} + d_{m})$ holds, substituting (6) into (17) yields that the inequality (19) holds.

Case 4 ( $S_{i x} (k) < 0$ and $d > 0$ ).

It is easy to show that the inequality (19) holds.

From the analysis above, we know the inequality (19) holds. According to sliding-mode convergence condition, $S_{i x} (k)$ will converge to the region $| S_{i x} (k) | < d_{m} / (ε_{i x} - d_{m})$ , which gives the accuracy of the estimation.

3. Simulation Studies

The simulation model is shown in Figure 1. The simulation parameters and ranges for the performance evaluation and ranges are shown in Table 1.

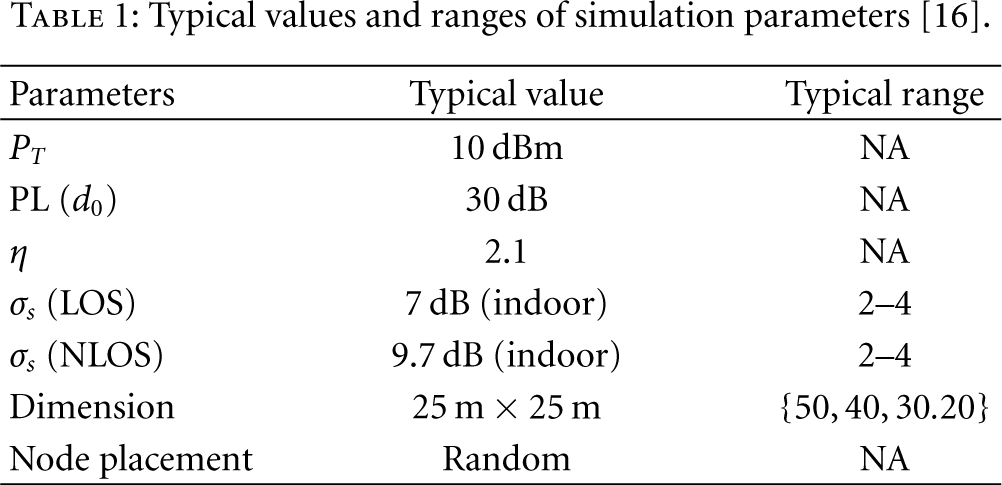

Table 1

Typical values and ranges of simulation parameters [16].

Parameters	Typical value	Typical range
$P_{T}$	10 dBm	NA
PL ( $d_{0}$ )	30 dB	NA
η	2.1	NA
$σ_{s}$ (LOS)	7 dB (indoor)	2–4
$σ_{s}$ (NLOS)	9.7 dB (indoor)	2–4
Dimension	25 m × 25 m	${50,40,30.20}$
Node placement	Random	NA

To generate RSS samples as a function of distance, the path loss model with the log-normal shadowing effects is used [7]:

\begin{matrix} PL (d) = 30 + 21 lo g_{10} (\frac{d}{d_{0}}) + X_{σ_{s}}, \end{matrix}

(20)

where PL(d) is the path loss for the distance between reference nodes and the sensor node. To consider indoor environment in the simulation, we assume that the value of $d_{0}$ is 1 m, the path loss exponent (η) is 21 and path loss for a reference distance is 30. And the transmit power (P_T) of reference nodes is fixed as 10 dBm. The random variation of RSS in dB is expressed as a Gaussian random variable of mean of E and variance of $σ^{2}$ . All powers are expressed in dBm and all distances in meter.

Let the initial conditions be $X_{1} = (x_{1}, y_{1}) = (17,12)$ , $X_{2} = (x_{2}, y_{2}) = (8,9)$ , $E = 2.2$ , $σ^{2} = 0.2$ , $R_{1} = (0,25)$ , $R_{2} = (0,0)$ , $R_{3} = (25,25)$ , $R_{4} = (25,0)$ , the initial guess ${\hat{X}}_{1} = (1,1)$ , and the initial guess ${\hat{X}}_{2} = (19,19)$ .

The parameters of the proposed algorithm are chosen as follows: $η_{1 x} = {η_{2}}_{x} = 0.003$ , $η_{1 y} = η_{2 y} = 0.003$ , $ε_{1 x} = ε_{2 x} = 0.0001$ , and $ε_{1 y} = ε_{2 y} = 0.0001$ .

Figures 2(a)–2(d) show the location estimations of the ${Sensor}_{1}$ and $Senso r_{2}$ in the case of Algorithm 1 without measurement noise. The true value of $X_{1}$ is $(17,12)$ , and the true value of $X_{2}$ is $(8,9)$ . The estimation value of $X_{1}$ is $(17,11)$ , and the estimation value of $X_{2}$ is $(8,9)$ .

Figure 2

Location estimations of the proposed method in this paper without measurement noise (Algorithm 1).

Figures 3(a)–3(d) show the average location estimations of 200 runs in the case of Algorithm 1 with measurement noise. The true value of $X_{1}$ is $(17,12)$ , and the true value of $X_{2}$ is $(8,9)$ . The estimation value of $X_{1}$ is $(19.113,11.726)$ , and the estimation value of $X_{2}$ is $(7.169,7.671)$ .

Figure 3

Location estimations of the proposed method in this paper with measurement noise (Algorithm 1).

Figures 4(a)–4(d) show the average location estimations of 200 runs in the case of Algorithm 2 with measurement noise. The true value of $X_{1}$ is $(17,12)$ , and the true value of $X_{2}$ is $(8,9)$ . The estimation value of $X_{1}$ is $(17.402,11.991)$ , and the estimation value of $X_{2}$ is $(7.111,9.151)$ .

Figure 4

Location estimations of the proposed method in this paper with measurement noise (Algorithm 2).

Figures 5(a)–5(d) show the average results of the method proposed by Zhang et al. in [10]. The true value of $X_{1}$ is $(17,12)$ , and the true value of $X_{2}$ is $(8,9)$ . The estimation value of $X_{1}$ is $(21.784,11.873)$ , and the estimation value of $X_{2}$ is $(9.741,10.938)$ .

Figure 5

Location estimations of the proposed method in [10] with measurement noise.

It is obvious that the overall accuracy of the proposed method is improved greatly. With the information about measurement noise, the accuracy of Algorithm 2 is better than that of the Algorithm 1. The accuracy of Algorithm 1 is better than that of the algorithm proposed by Zhang et al. [10].

4. Conclusions

In this paper, a localization algorithm is proposed combining adaptive estimation sliding-mode and spring-relaxation-like techniques for wireless sensor networks. Our proposed method takes the advantages of the spring-relaxation technique. We use the proposed method to obtain higher accuracy of location estimation through introducing sliding-mode technique. Moreover, it requires only a few beacons with known locations to compute the location estimations of all sensors. Simulation examples demonstrate the overall accuracy of the proposed method.

Even though the simulation studies show graceful performance degradation in the presence of noise, an explicit convergence analysis in the noisy case needs more attention in future research.
