A Review of IEEE 802.15.6 MAC,PHY,and Security Specifications

Abstract

IEEE 802.15.6 is the first international Wireless Body Area Network (WBAN) standard that supports communications in the vicinity of or inside a human body to serve a variety of medical and nonmedical applications. The standard defines a Medium Access Control (MAC) layer that supports several Physical (PHY) layers. In this paper, the key features of the IEEE 802.15.6 standard are presented. The MAC, PHY, and security specifications of the standard are explained in detail. Different communication modes and access mechanisms are presented. The Narrowband (NB), Ultra-wideband (UWB), and Human Body Communications (HBC) specifications are reviewed in terms of frame structure, modulation, and other important parameters. Finally, the security paradigm and services of the standard are highlighted.

1. Introduction

Wireless Body Area Networks (WBANs) are replacing conventional healthcare systems by enabling the ambulatory and continuous health monitoring of patients suffering from chronic diseases, such as heart disease [1–3]. The recent popularity of WBANs has attracted a number of researchers from academia and industry in the past few years. The heterogeneous WBAN requirements have allowed the realisation of a standard model that can support all of the relevant requirements. In November 2007, IEEE 802 established a task group for the standardisation of WBAN called IEEE 802.15.6 [4]. Earlier, IEEE 802 had several successful experiences in developing international standards for wireless communications [5–8], including the IEEE 802.11 [9], IEEE 802.15.1 [10], and IEEE 802.15.4 [11] standards. The aim of the IEEE 802.15.6 standard was to develop a communications standard for miniaturised low-power devices that are deployed on or implanted inside a human body to serve a variety of medical, consumer electronics (CE), and entertainment applications [12]. The standardisation body received a total of 34 proposals, which were later merged into a single proposal. In July 2011, the initial draft of the standard was approved to start a sponsor ballot. The final version of the standard was published in February 2012.

The IEEE 802.15.6 standard defines a Medium Access Control (MAC) layer that supports several Physical (PHY) layers, such as Narrowband (NB), Ultra-wideband (UWB), and Human Body Communications (HBC) layers, as illustrated in Figure 1. The proper selection of PHYs or frequency bands has remained one of the important issues to be considered in the development of WBANs [13]. Generally, the available frequencies for WBANs are regulated by communication authorities in different countries. Figure 2 shows the available frequency bands for WBANs [14]. The Medical Implant Communications Service (MICS) band is a licensed band used for implant communications and has the same frequency range of 402–405 MHz in most countries. Wireless Medical Telemetry Services (WMTSs) is a licensed band used for medical telemetry systems. The problems with the MICS and WMTS bands are their inability to support high-data-rate applications. The Industrial, Scientific, and Medical (ISM) and Ultra-wideband (UWB) bands support high-data-rate applications and are available worldwide. However, there is a high probability of interference because many wireless devices, including those using the IEEE 802.11 and IEEE 802.15.4 standards, operate in the 2.4 GHz band [15]. For efficient resource allocation on the channel, the standard allows the nodes and hubs (which are also known as coordinators) to establish a time reference base, where the time axis is divided into multiple superframes of equal length [16–18]. In this paper, we present the key features of the IEEE 802.15.6 standard. Starting from the fundamental details, we provide deep insight into the MAC and PHY layers and the security specifications of the standard. We review different communication modes and access mechanisms and explain the NB, UWB, and HBC specifications in detail. We also review the security paradigm and services of IEEE 802.15.6.

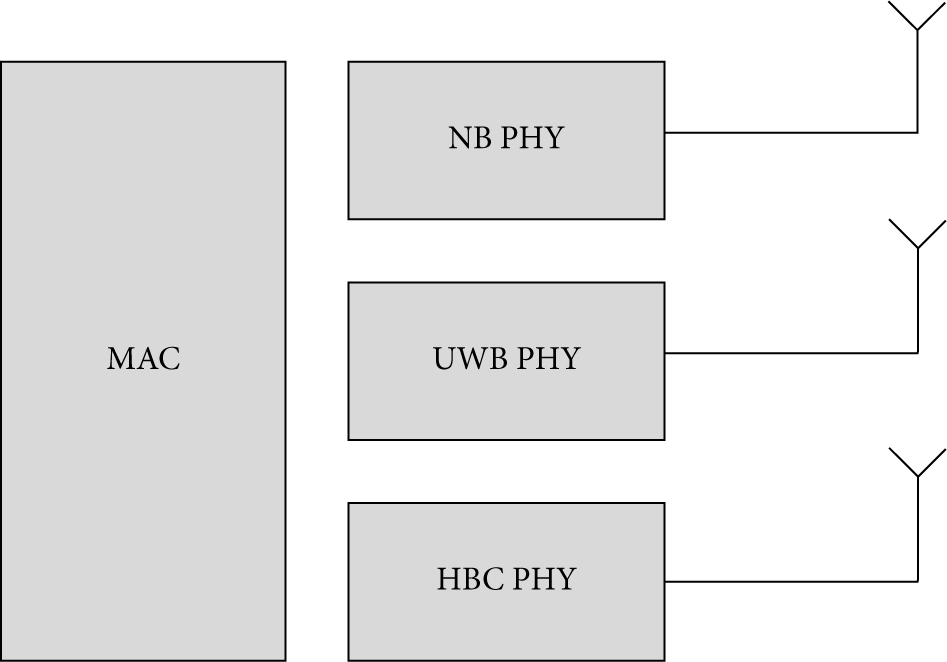

Figure 1

IEEE 802.15.6 MAC and PHY layers.

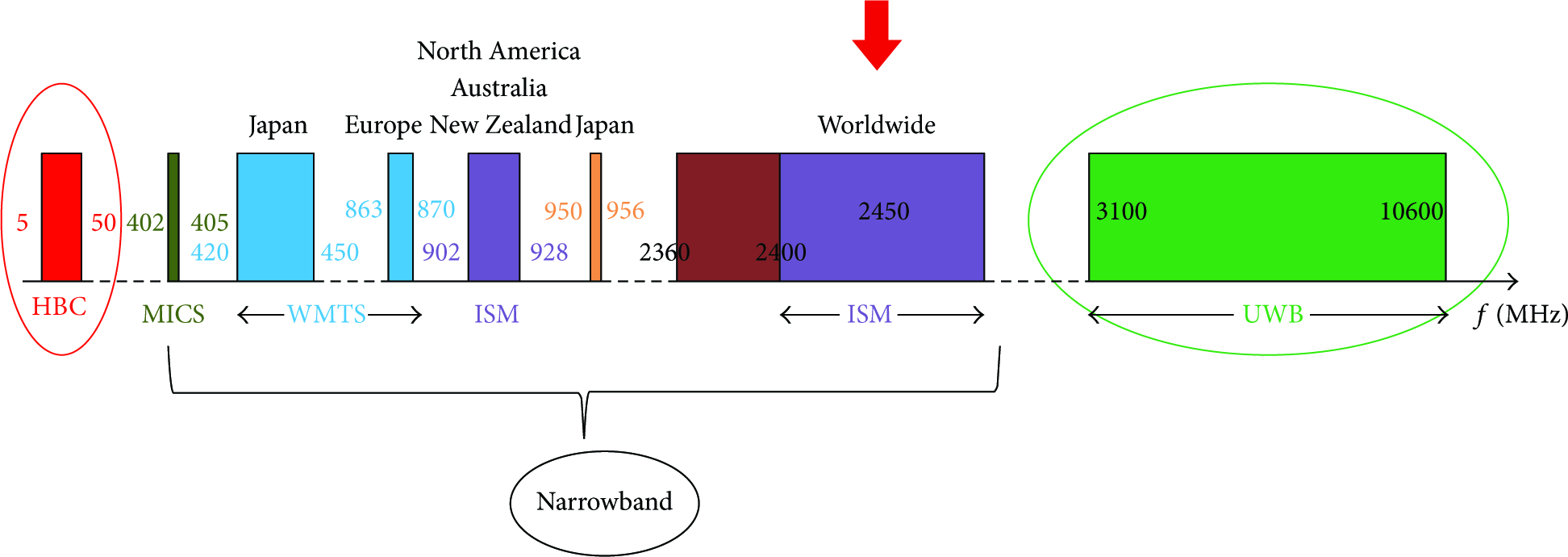

Figure 2

IEEE 802.15.6 frequency bands.

The remainder of this paper is organised into four sections. Sections 2 and 3 present the IEEE MAC and PHY specifications, respectively. Section 4 presents the security specifications, and Section 5 concludes our work.

2. IEEE 802.15.6 MAC Specifications

According to the IEEE 802.15.6 standard, the nodes are organised into one- or two-hop star WBANs. A single coordinator or hub controls the entire operation of each WBAN. The WBAN must have one hub and a number of nodes, ranging from zero to mMaxBANSize. In a two-hop start WBAN, a relay-capable node may be used to exchange data frames between a node and the hub. The standard divides the time axis or channel into beacon periods or superframes of equal length. Each superframe contains a number of allocation slots that are used for data transmission. These slots have equal duration and are numbered from 0 to s, where $s \leq 255$ . The hub transmits beacons to define the superframe boundaries and allocate the slots. For nonbeacon modes, the superframe boundaries where beacons are not used are defined by polling frames. Generally, the hub transmits beacons in each superframe except those that are inactive. The hub may shift or rotate the offsets of the beacon periods, thus shifting the schedule allocation slots. The following sections present the MAC frame format, communication modes, and access mechanisms defined in the IEEE 802.15.6 standard.

2.1. IEEE 802.15.6 MAC Frame Format

Figure 3 shows the general MAC frame format consisting of a 56-bit header, variable length frame body, and 18-bit Frame Check Sequence (FCS). The maximum length of the frame body is 255 octets. The MAC header further consists of 32-bit frame control, 8-bit recipient Identification (ID), 8-bit sender ID, and 8-bit WBAN ID fields. The frame control field carries control information including the type of frame, that is, beacon, acknowledgement, or other control frames. The recipient and sender ID fields contain the address information of the recipient and the sender of the data frame, respectively. The WBAN ID contains information on the WBAN in which the transmission is active. The first 8-bit field in the MAC frame body carries message freshness information required for nonce construction and replay detection. The frame payload field carries data frames, and the last 32-bit Message Integrity Code (MIC) carries information about the authenticity and integrity of the frame.

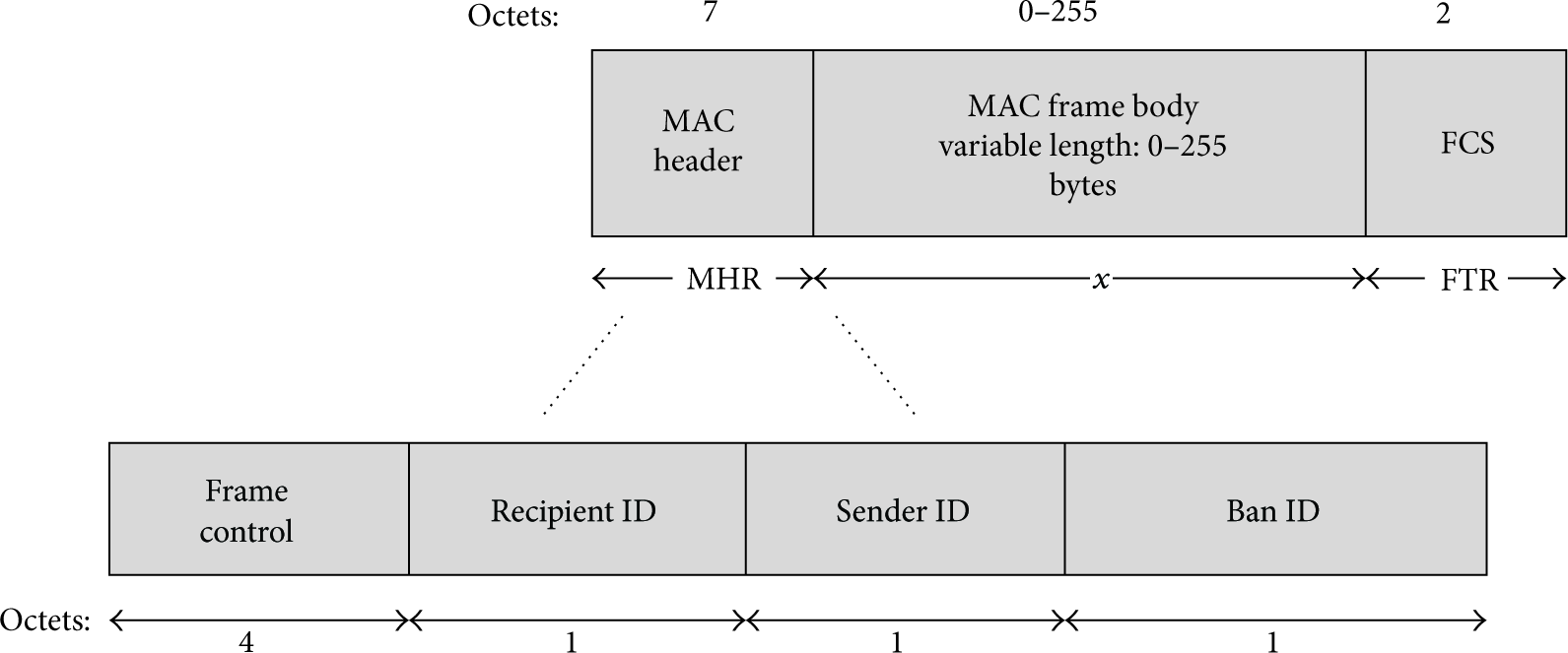

Figure 3

IEEE 802.15.6 MAC frame format.

2.2. IEEE 802.15.6 Communication Modes

The IEEE 802.15.6 supports the following communication modes.

2.2.1. Beacon Mode with Superframe Boundaries

In this mode, the hub transmits beacons in active superframes. The active superframes may be followed by several inactive superframes whenever there is no scheduled transmission. As illustrated in Figure 4(a), the superframe structure is divided into Exclusive Access Phases (EAP1 and EAP2), Random Access Phases (RAP1 and RAP2), a Managed Access Phase (MAP), and a Contention Access Phase (CAP). The EAPs are used to transfer high-priority or emergency traffic. The RAPs and CAP are used for nonrecurring traffic. The MAP period is used for scheduled and unscheduled bilink allocations, scheduled uplink and downlink allocations, and Type I (not Type II) polled and posted allocations. The length of Type I and Type II allocations is represented in terms of the transmission time and number of frames, respectively. A detailed discussion of these allocations is presented in Section 2.3.

Figure 4

IEEE 802.15.6 communication modes.

2.2.2. Nonbeacon Mode with Superframe Boundaries

In this mode, the hub operates during the MAP period only, as illustrated in Figure 4(b).

2.2.3. Nonbeacon Mode without Superframe Boundaries

In this mode, the hub provides unscheduled Type II polled or posted allocations or a combination of both, as depicted in Figure 4(c).

2.3. IEEE 802.15.6 Access Mechanisms

The IEEE 802.15.6 supports the following access mechanisms.

2.3.1. Random Access Mechanism

In EAP, RAP, and CAP periods, the hub may employ either a slotted ALOHA or Carrier Sensor Multiple Access/Collision Avoidance (CSMA/CA) protocol, depending on the PHY. The hub considers slotted ALOHA and CSMA/CA protocols for UWB and NB PHYs, respectively. To send high-priority data frames using CSMA/CA, the hub may combine EAP1 and RAP1 into a single EAP1 period and EAP2 and RAP2 into a signal EAP2 period. When using slotted ALOHA for high-priority traffic, EAP1 and EAP2 are not extended, but RAP1 and RAP2 are simply replaced by another EAP1 and EAP2 period. The following sections briefly describe the slotted ALOHA and CSMA/CA protocols.

(1) Slotted ALOHA Protocol. In the slotted ALOHA protocol, the nodes access the channel using predefined User Priorities (UPs), as given in Table 1. These priorities are used to classify the high- and low-priority traffic. Initially, the Collision Probability (CP) is selected according to the UPs. The nodes obtain contended allocation if $z \leq CP$ , where z is randomly selected from the interval $[0,1]$ . If the node fails to transmit, the CP remains unchanged into an odd number of failures and the node divides it equally for an even number of failures.

Table 1

Bounds for slotted-ALOHA and CSMA/CA protocols.

User Priorities	Slotted-ALOHA		CSMA/CA
User Priorities	CP_max	CP_min	CW_min	CW_max
0	0.125	0.0625	16	64
1	0.125	0.0937	16	32
2	0.25	0.0937	8	32
3	0.25	0.125	8	16
4	0.375	0.125	4	16
5	0.375	0.1875	4	8
6	0.5	0.1875	2	8
7	1	0.25	1	4

(2) CSMA/CA Protocol. In the CSMA/CA protocol, the node initially sets its backoff counter to a random integer that is uniformly distributed over the interval $[1, Contention Window (CW)]$ , where $CW \in {(CW}_{\min}, {CW}_{\max})$ . As given in Table 1, the values of ${CW}_{\min}$ and ${CW}_{\max}$ are selected according to the UPs. The high-priority traffic will have a small contention window compared to that of low-priority traffic, which increases the probability of accessing the channel to report emergency events. The node starts decrementing the backoff counter by one for each idle CSMA slot with a length equal to pCSMASlotLength. Particularly, the node considers a CSMA slot to be idle if it determines that the channel has been idle between the start of the CSMA slot and pCCATime. The node decreases the backoff counter pCCATime after the start of the CSMA slot. Once the backoff counter reaches zero, the node transmits the frame. If the channel is busy due to frame transmission, the node locks its backoff counter until the channel is idle. The $CW$ is doubled for an even number of failures until it reaches ${CW}_{\max}$ . Figure 5 shows an example of the CSMA/CA protocol. As shown in the figure, the node unlocks the backoff counter in RAP1. However, the contention fails and the value of $CW$ remains unchanged because $CW$ does not change for an odd number of failures. In the following CAP period, the backoff counter is set to five; however, it is locked at two because the time between the end of the slot and the end of the CAP is not sufficient to accommodate the data frame transmission and Nominal Guard Time ( ${GT}_{n}$ ). The backoff counter is then unlocked in the RAP2 period. This time, the value of $CW$ is doubled because there is an even number of contention failures. The backoff counter is set to eight and is unlocked. Once the backoff counter reaches zero, the data are transmitted and the value of $CW$ is set to ${CW}_{\max}$ .

Figure 5

IEEE 802.15.6 CSMA/CA protocol: slot = CSMA slot SIFS = Psifs, $D =$ frame transaction initiated by node 1 in a contended allocation (e.g., a data type frame and an I-Ack frame with pSIFS in between), $T_{D}$ = time required to complete D, $G T_{n} =$ nominal guard time.

We analysed the performance of an IEEE 802.15.6-based CSMA/CA for NB PHYs in terms of the theoretical throughput, delay and bandwidth efficiency, as presented in Table 2 [19–21]. The theoretical bounds are presented for No Acknowledgement (NACK) and Acknowledgement (ACK) policies. This analysis considers a single sender and single receiver with no collisions on the channel. The theoretical throughput and delay are bounded because of the additional overhead accumulated in each layer. These strict bounds cannot be achieved in a practical environment. However, these bounds can be used by the system designer for network provisioning and packet-size optimisation for different application scenarios.

Table 2

Theoretical limits of IEEE 802.15.6 for NB PHYs.

	420–450 MHz (PHY header rate = 57.5 kbps, PHY symbol rate = 187.5 kbps)							863–870 MHz (PHY header rate = 76.6 kbps, PHY symbol rate = 250 kbps)
Data rate (kbps)	Maximum Throughput (kbps)		Theoretical delay (ms)		Bandwidth efficiency (%)		Data rate (kbps)	Maximum Throughput (kbps)		Theoretical delay (ms)		Bandwidth efficiency (%)
							Data rate (kbps)
	NACK	ACK	NACK	ACK	NACK	ACK		NACK	ACK	NACK	ACK	NACK	ACK

75.9	70.45	67.5	28.34	29.63	92.82	88.9	101.2	93.87	89.7	21.31	22.29	92.75	88.6
151.8	134.8	129	14.79	15.45	88.8	85.2	404.8	329.9	315.5	6.06	6.33	81.5	77.9
187.5	163.2	156	12.21	12.75	87.03	83.6	607.1	457.8	437.9	4.36	4.56	75.4	72.1

2.3.2. Improvised and Unscheduled Access Mechanism

As discussed above, the hub may use improvised access to send poll or post commands without prereservation or advance notice in beacon or nonbeacon modes with superframe boundaries. These commands are used to initiate the transactions of one or more data frames by the nodes or hub outside the scheduled allocation interval. The polls are used to grant Type I or Type II polled allocation to the nodes, while the posts are used to send management frames. The Type I polled allocation starts after the duration of pSIFS and stops at the end of the allocated slot in the current superframe. Similarly, the Type II polled allocation starts after the duration of pSIFS and stops after all of the data frames are sent by the polled node. Figure 6 illustrates an example of immediate polled allocations.

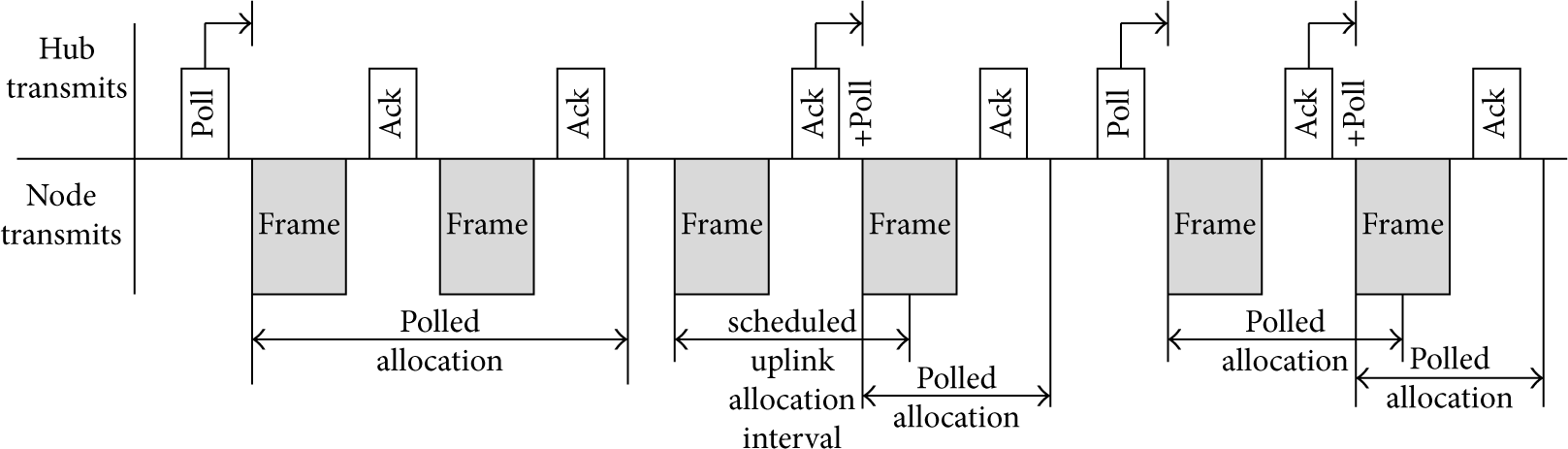

Figure 6

Immediate polled allocations.

The hub may also use an unscheduled access mechanism to obtain an unscheduled bilink allocation. The unscheduled bilink allocation may be (1) one-periodic, where frames are exchanged between the nodes and hub every superframe, or (2) multiple-periodic (m-periodic), where frames are exchanged every m superframes thus allowing the devices to sleep between m superframes. An m-periodic bilink allocation is suitable for low-duty cycle nodes because nodes in m-periodic allocation sleep between m superframes.

2.3.3. Scheduled and Scheduled-Polling Access Mechanisms

Unlike unscheduled allocation, the scheduled access mechanism is used to obtain scheduled uplink, downlink, and bilink allocations. In addition, the scheduled polling is used for polled and posted allocations. These allocations may be one-periodic or m-periodic; however, neither of these allocations is allowed in a single WBAN at the same time. The nodes consider the superframe periods (with allocated slots) as the wakeup periods. The uplink and downlink allocations are used to send management and data frames to and from the hub, respectively. Figure 7 illustrates an example of scheduled one-periodic allocations.

Figure 7

Scheduled one-periodic allocation.

3. IEEE 802.15.6 PHY Specifications

IEEE 802.15.6 supports three operational PHYs, two of which are mandatory and one of which is optional. The two mandatory PHYs are UWB and HBC PHYs, while the NB PHY is considered optional. In IEEE 802.15.6, PHY is responsible for (1) the activation and deactivation of the radio transceiver, (2) clear channel assessment, and (3) data reception and transmission. The following sections present the NB, HBC, and UWB PHY specifications of IEEE 802.15.6.

3.1. NB PHY Specifications

3.1.1. Operation Bands and Rate-Dependent Parameters

Table 3 summarises the supported frequency bands and corresponding PHY parameters, where WBAN devices must be able to support transmission on at least one of those frequency bands. Differential Phase Shift Keying (DPSK) is used except in the case of the 420 to 450 MHz frequency band, where Gaussian Minimum Shift Keying (GMSK) is employed. In some bands, several parameters have a set of values, where the underlined configurations in Table 3 are optional. Based on the table, the information data rate $R_{d}$ is given by

\begin{matrix} R_{d} = (\frac{R_{s} \cdot N}{S} \times \frac{k}{n}) (kbps), \end{matrix}

(1)

where

R_{s}

is the symbol rate, S is the spreading factor, k/n is the BCH coding rate, and M is the modulation order and is given by

M = 2^{N}

Table 3

Transmission parameters in NB PHY.

Frequency band	Packet component	Modulation	Modulation order (M)	Symbol rate ( $R_{s}$ ksps)	Code rate BCH ( $n, k$ )	Spreading factor (SF)
402–405 MHz	PLCP header	π/M-DPSK	2	187.5	(31, 19)	2
402–405 MHz	PSDU	π/M-DPSK	{2, 2, 4, 8}	187.5	(63, 51)	{2, 1, 1, 1}
420–450 MHz	PLCP header	GMSK	2	187.5	(31, 19)	2
420–450 MHz	PSDU	GMSK	2	187.5	{(63, 51), (63, 51), 1}	{2, 1, 1}
863–870 MHz	PLCP header	π/M-DPSK	2	250	(31, 19)	2
863–870 MHz	PSDU	π/M-DPSK	{2, 2, 4, 8}	250	(63, 51)	{2, 1, 1, 1}
902–928 MHz	PLCP header	π/M-DPSK	2	250	(31, 19)	2
902–928 MHz	PSDU	π/M-DPSK	{2, 2, 4, 8}	250	(63, 51)	{2, 1, 1, 1}
950–958 MHz	PLCP header	π/M-DPSK	2	250	(31, 19)	2
950–958 MHz	PSDU	π/M-DPSK	{2, 2, 4, 8}	250	(63, 51)	{2, 1, 1, 1}
2360–2400 MHz	PLCP header	π/M-DPSK	4	600	(31, 19)	4
2360–2400 MHz	PSDU	π/M-DPSK	{2, 2, 2, 4}	600	(63, 51)	{4, 2, 1, 1}
2400–2483.5 MHz	PLCP header	π/M-DPSK	2	600	(31, 19)	4
2400–2483.5 MHz	PSDU	π/M-DPSK	{2, 2, 2, 4}	600	(63, 51)	{4, 2, 1, 1}

3.1.2. NB PHY PPDU Structure

The Physical-layer Protocol Data Unit (PPDU) encapsulates the Physical-layer Service Data Unit (PSDU) in its frame and appends several control fields that are used to synchronise the transmission and identify the transmission parameters. Figure 8 depicts the structure of the NB PPDU, and we identify the goal of each field in the following clauses.

Figure 8

Standard PPDU structure for NB PHY (indicated lengths are in bits).

PLCP Preamble. The preamble of the Physical-layer Convergence Protocol (PLCP) is a concatenation of two sequences. The first sequence has a length of 63 bits and is used for coarse time synchronisation, carrier-offset recovery, and packet detection. This sequence has two patterns; one pattern is used with odd-indexed channels, and the other is used with even-indexed channels. The second sequence has a fixed pattern length of 27 bits. It is appended to the first sequence and used for fine timing synchronisation.

PLCP Header. The PLCP header consists of several fields that convey the PHY parameters to the receiver, which is referred to as the PHY header and has 16 parity check bits appended. The details of these fields are as follows. (1)

Rate: three bits are used to indicate the information data rate computed using (1), which implicitly indicates the modulation, modulation order, code rate, and spreading factor.

(2)

Length: eight bits are used to indicate the length of the MAC body in bytes (0–255 bytes).

(3)

Burst mode: one bit is used to indicate the burst transmission.

(4)

Scrambler seed: a 1-bit seed that identifies the initial state of the registers in the scrambler. It is initiated to zero and inverted after each PHY frame transmission.

(5)

HCS: the Header Check Sequence, which is used for error detection, consists of a 4-bit Cyclic Redundancy Check (CRC-4) that is used to protect the PHY header.

(6)

BCH parity check: the BCH field is computed for the concatenation of PHY header and HCS and is used for error correction. This check corrects up to two erroneous bits.

PSDU. As discussed above, the PSDU consists of a MAC header, a MAC frame body, and the FCS.

3.1.3. Other NB PHY Specifications

Pulse Shaping. Square-root Raised Cosine (SRRC) is used as the shaping filter in all bands except in the 420 to 450 MHz band, where the Gaussian filter with a bandwidth-time product of 0.5 is used because the latter pulse shaping is recommended for use with GMSK.

Spreading. Bits are spread using simple repetition coding.

Transmit Mask. The transmitter should keep its out-of-band radiations to −20 dBr at most.

Power-On and Power-Off Ramp. The transmit power-on to power-off (or vice versa) ramp should take the duration of five symbols at most.

Receiver Sensitivity. The receiver sensitivity depends on the frequency band and transmission rate, and it ranges from −95 dBm (low frequency and low data rate) to −83 dBm.

Scrambler. The PSDU is whitened using a scrambler with a polynomial of order 14.

3.2. HBC PHY Specifications

HBC PHY uses Electric Field Communication (EFC) technology with the band of operation centred at 21 MHz. Similar to the NB PHY, the HBC packet structure encapsulates the PSDU in the packet after adding control bits and error correction and detection bits, as depicted in Figure 9. In the following, we introduce details about the packet structure.

Figure 9

PPDU structure for HBC PHY.

PLCP Preamble. The initial preamble is generated as a 64-bit gold code sequence that is then repeated four times and spread using a Frequency Shift Code (FSC) with a Spreading Factor (SF) of eight to attain a chip rate of 42 Mcps, where cps denotes chips per second.

Start Frame Delimiter. The SFD indicates the starting point of the frame. Its sequence is generated using a 64-bit gold code generator, which is spread using an FSC with an SF of eight.

Rate Indicator. The SFD/RI field can be used to indicate the rate of transmission. In this case, the receiver does not need to read the PHY header to determine the data rate.

PHY Header. The PHY header is a 32-bit sequence, which is spread at a rate of 42 Mcps. The PHY header is composed of the following fields (we omit the fields already explained for the NB PHY). (1)

Pilot information: two bits indicate the length of the pilot insertion interval. The pilot sequence, which is the same as the SFD sequence, is periodically inserted in the PSDU to maintain synchronisation. If the PSDU is less than the pilot insertion interval, that is, short packet, the pilot is not needed.

(2)

CRC8: CRC value is calculated over the PHY header to detect errors at the receiver side.

Scrambler. The PSDU is whitened using a scrambler with polynomial of order 32.

3.3. UWB Specifications

Compared to the two preceding PHY specifications, UWB PHY aims to achieve high performance, low complexity, and low power consumption. In addition, this specification is robust and in compliance with the MICS power limits, which provide safe power levels for human body exposure. UBW PHY supports 11 channels; three in the low band (channels 0–2) and eight in the high band (channels 3–10), where the central frequencies range from 3,494.4 MHz for channel 0 to 9,984 MHz for channel 10, each with a 499.2 MHz bandwidth.

3.3.1. Supported Transceivers and Modes

UWB PHY supports Impulse Radio UWB (IR-UWB) and wideband Frequency Modulation UWB (FM-UWB) technologies. A hub can implement only one of these technologies, but a device can implement either IR- or FM-UWB or both technologies. Furthermore, UWB PHY supports two modes of operation, default mode and high Quality of Service (QoS) mode, where the latter is designated for high-priority medical applications and the default mode is used for medical and nonmedical applications.

3.3.2. Modulation

On-off modulation, Differential-BPSK (DBPSK) modulation, and Differential-QPSK (DQPSK) modulation schemes are supported for the IR-UWB, whereas Continuous Phase Binary FSK (CP-BFSK) is used for the FM-UWB, where the signal obtained from the CP-BFSK modulator is modulated again using wideband FM to create a constant-envelope UWB signal. The wideband FM increases the required transmission bandwidth by a factor of 256.

3.3.3. IR-UWB Symbol Structure

Each symbol time $T_{sym}$ consists of an integer number of pulse waveform positions $N_{w}$ , each of duration $T_{w}$ . In DPSK and on-off modulation, the $N_{w} - 1$ and ( $(N_{w} / 2) - 1$ ) waveform positions, respectively, are used for time hopping. As such, UWN PHY supports the coexistence of multi-BANs.

3.3.4. UWB PHY Frame Format

The PPDU for a UWB frame consists of the Synchronisation Header (SHR), Physical-layer Header (PHR), and PSDU.

PSDU. As shown in Figure 10, the content of the PSDU depends on the operation mode; in the default mode operation, the PSDU is the concatenation of the MAC Protocol Data Unit (MPDU) and the BCH parity bits, whereas it consists of either the MPDU or BCH parity bits when operated in high QoS mode. The data bits of the MPDU are scrambled to randomise the data stream, block encoded, and interleaved to generate the PDSU for transmission.

Figure 10

PPDU frame structure for UWB PHY.

BCH Encoder. The BCH (63, 51) and BCH (126, 63) are used in the default mode and high QoS mode, respectively. The BCH (126, 63) is used in accordance with the Hybrid Automatic Repeat Request (HARQ), which is explained below.

Bit Interleaving. Interleaving is applied to achieve robustness against error propagation; that is, multiple consecutive bits are erroneous at the receiver side. A simple modulus interleaver with a fixed size is used.

3.3.5. PHR Construction

The 24 PHR data fields shown in Figure 11 are appended with 4-bit CRC-4 ITU error detection before being encoded using BCH (40, 28) and are finally fed to the PPDU frame.

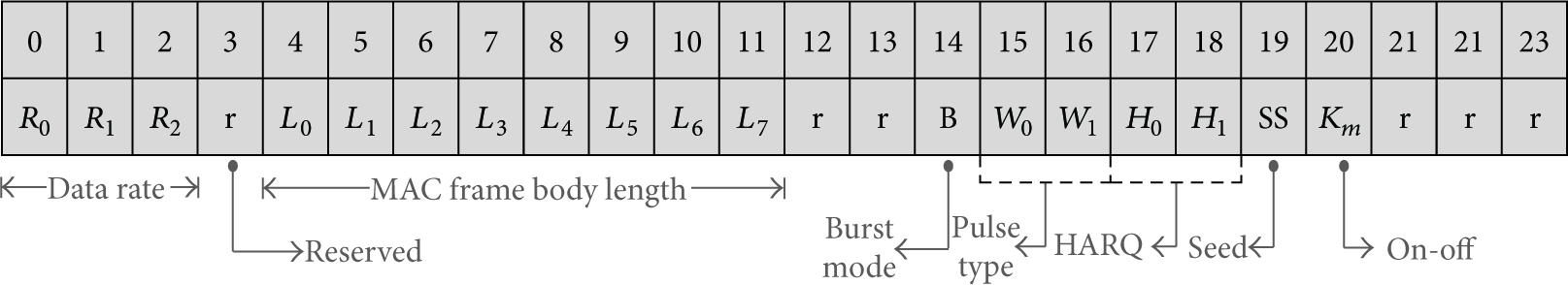

Figure 11

PHR frame structure.

Data Rate $(R_{0} - R_{2})$ . These three bits specify the data rate, the symbol duration, the BCH coding rate, and other modulation-related parameters. In the case of IR-UWB, five sets of parameters are defined in the case of on-off modulation, and eight sets are defined when any of the supported differential modulation schemes is used. In the case of FM-UWB, a single datum is defined by setting the three bits to zero, and the other options are reserved.

Pulse Shape $(W_{0} - W_{1})$ . UWB PHY supports three pulse shapes: chirp pulse, chaotic pulse, and short pulse shapes. The last option, that is, $W_{0} = W_{1} = 1$ , is reserved.

Hybrid Automatic Repeat Request $(H_{0} - H_{1})$ . HARQ is used to permit the repetition of the transmission of certain packets in case an error occurs during the transmission. In UWB PHY, the maximum number of retransmissions is set to four. In the default mode, the BCH parity bits are appended to the MPDU to form the PSDU without requiring the HARQ technique. In the high QoS mode, the transmitter encodes the systematic data D (the MAC header and MAC frame body) to obtain the parity sequence P of the same size. Both sequences are saved at the transmitter. First, D is appended with its FCS to form the transmitted PSDU. If an error occurs and thus no ACK is received, P is appended with its FCS and transmitted. At the receiver, both D and P are used to recover the original data using BCH decoding. This process is repeated until either a successful decoding is achieved or the maximum number of retransmissions is exceeded. In this algorithm, $(H_{0}, H_{1})$ = $(0, 0)$ , $(1, 0)$ , $(0, 1)$ , and $(1, 1)$ indicates that HARQ is disabled (default mode). BCH encoding is applied to D and P, and the algorithm sends D, D, and P.

Scrambler Seed (SS). This bit selects the initial state of the registers of the scrambler among the two available initial states.

Constellation Mapper for On-Off Modulation. The $K_{m} = 0$ and 1 refer to 16-ary (optional) and 2-ary (mandatory) waveform coding, respectively.

3.3.6. Synchronisation Header

The SHR consists of the preamble, which is used for timing synchronisation, packet detection, and carrier frequency offset recovery, and the start-of-frame delimiter (SFD), which is used for frame synchronisation.

Preamble. The preamble is a Kasami sequence of length 63, where eight sequences are available. The first four sequences are used for physical channels with an odd number, and the last four sequences are used for physical channels with an even number. The coordinator uses the preamble sequence with the minimum receiver power.

Start-of-Frame Delimiter. The SFD is the inversion of the Kasami sequence used (0 → 1 and 1 → 0.) This choice leads to a minimised correlation between the SFD and preamble such that the detection of the SFD becomes more accurate.

4. IEEE 802.15.6 Security Specifications

The IEEE 802.15.6 supports three security levels with different security properties, protection levels, and frame formats.

Unsecured Communication Level. This level is the lowest level of security, where data are transmitted in unsecured frames. This level has no mechanisms for data authentication and integrity, confidentiality, or privacy protection.

Authentication Level. This level is the medium level of security, where data are transmitted in secured authentication with no encryption. This level does not support confidentiality or privacy.

Authentication and Encryption. This level is the highest level of security, where data are transmitted in authenticated and encrypted frames. This level provides solutions to all problems that are not covered by the lowest and medium security levels.

One of the security levels above is selected during the association process. A Master Key (MK) is activated for unicast secured communication. The MK may be preshared or established using unauthenticated association. Then, a Pairwise Temporal Key (PTK) is created for a single session. For multicast secured communication, a Group Temporal Key (GTK) is shared with the corresponding group using the unicast method. Figure 12 illustrates the process of activating MK and establishing PK for secured communication.

Figure 12

IEEE 802.15.6 security structure.

4.1. Security Association and Disassociation Procedure

IEEE 802.15.6 security protocols are generally based on the Diffie-Hellman key exchange, which employs the elliptic curve public key cryptography. The private keys used in the association and disassociation processes should be independent and unique 256-bit integers. The Cipher-based Message Authentication Code (CMAC) is used to derive the Key Message Authentication Codes (KMAC) and MK [22–24]. Initially, the node and hub have a preshared MK, which is used for the security association procedure. The node initiates the process by sending a security association frame request to the hub, as illustrated in Figure 13(a). The hub responds by either joining or aborting the association procedure. If the node receives a respond indicating an abortion, it stops the current association procedure. If the node receives a joining response, the preshared MK is activated and shared between the node and hub upon mutual agreement, which is then used to generate a PTK.

Figure 13

Security association and disassociating procedures of IEEE 802.15.6.

The disassociation procedure can be initiated either by the node or hub. As illustrated in Figure 13(b), the sender sends a security disassociation frame request and eventually removes the MK and corresponding PTK from its storage. When the recipient receives the request, it also removes the aforementioned key information from its storage.

4.2. PTK and GTK Procedures

After the MK is shared using the association procedure above, the node or hub steps towards generating a PTK. The node (or hub) sends a PTK frame request to the hub (or node). The recipient responds by either joining or aborting the procedure using the PTK field in the frame payload. The sender stops the procedure if a negative response is received; otherwise, it continues to send PTK frame requests to the recipient. The second PTK request is sent only after the successful verification of the PTK field in the frame payload. Once the second PTK request is received, the sender and recipient generate a new PTK.

The GTK is distributed among the nodes using the PTK. The hub sends a GTK to the node to multicast secured frames to other nodes.

4.3. Message Security

The frames can be transmitted in both secured and unsecured communication modes. The nodes that do not require security receive all frames including beacons without validating the security information. The secured frames are authenticated and encrypted or decrypted using the AES-128 Counter (CCM) [25–27] mode. As illustrated in Figure 14, a 13-octet nonce is required for each instance of CCM frame authentication and encryption or decryption.

Figure 14

IEEE 802.15.6 nonce format.

The Low-order Security Sequence Number (LSSN) is set to zero if the frame is secured with a new PTK or GTK and is incremented by one if the frame is a retransmission of the last frame. The High-order Security Sequence Number (HSSN) is set to zero if the frame is secured with a PTK. The HSSN is incremented by one if the security sequence number of the current frame is less than that of the last frame.

5. Conclusions

This paper presented the most important features of the IEEE 802.15.6 standard. A deep explanation of MAC, PHY, and security specifications of the standard was presented. Different communication modes and access mechanisms were explained. The NB, HBC, and UWB PHY specifications were reviewed in terms of frame structure, modulation, and other key parameters. In addition, the security services, including key generation and message security, were discussed. We believe that this paper could be used to quickly understand the key features of the standard and to analyse its potential for different applications.

Footnotes

Abbreviations

Authors' Contribution

All of the authors contributed equally to this paper.

Acknowledgment

This work is supported by the Research Center of College of Computer and Information Sciences, King Saud University. The authors are grateful for this support.
