Indoor Mobile Localization in Mixed Environment with RSS Measurements

Abstract

Mobile localization is a significant issue for wireless sensor networks (WSNs). However, it is a problem for the indoor localization using received signal strength (RSS) measurements that the signal is contaminated by the anisotropy fading and interference due to walls and furniture. Standard schemes such as Kalman filter are inadequate as the random transition of line-of-sight (LOS)/non-line-of-sight (NLOS) conditions occurs frequently. This paper proposes an indoor mobile localization scheme with RSS measurements in a mixed LOS and NLOS environment. First, a new efficient composite measurement model is induced and validated, which approximates the complex effects of LOS and NLOS channels. Second, a greedy anchor sensor selection strategy is adopted to break through the constraints of hardware consistency and the multipath interference. Third, for the Markov transition between LOS and NLOS conditions, an effective unscented Kalman filter (UKF) based interactive multiple model (IMM) is proposed to estimate not only the posterior model probabilities but also a weighted-sum position estimation with the aid of likelihood function. To evaluate the proposed algorithm, a complete hardware and software platform for mobile localization has been constructed. The numerical study, relying on the actual experiments, illustrates that the proposed UKF based IMM achieves a substantial gain in precision and robustness, compared with other works.

1. Introduction

Mobile location estimation has already been a popular research topic for decades. Different solutions based on angle of arrival (AOA), time difference of arrival (TDOA), time of arrival (TOA), and received signal strength (RSS) have been reported in literature [1, 2]. Applications of these techniques arise, such as in emergency services, location-based billing, smart home, fleet management, and intelligent transportation systems (ITS) [2]. Here, we concentrate on mobile terminal tracking based on RSS measurements in wireless sensor networks (WSNs).

Accurate position estimation would be feasible using an efficient filtering, if a direct physical connection between the mobile terminal (MT) and the anchor sensor (AS) exists; that is, the channel can be considered as line-of-sight (LOS). However, in certain environments, especially in indoor areas, reflection and diffraction occur often between the MT and AS. The worsened propagation decay, corresponding to non-line-sight (NLOS), leads to a misestimated range. The erroneous position estimations would occur when using normal strategies. Meanwhile, the frequent transition between LOS and NLOS will cause a serious measurement error for the range estimation because the estimated covariance of the measurement noise is not adaptively to match the true covariance in the LOS and NLOS cases. So the estimators which are robust against a mixed LOS/NLOS environment are required.

This burning question has been of considerable interest for many years [3–14]. These localization algorithms can be grouped into two categories: detection-based approach and estimation-based approach. The detection-based localization algorithms rely on either the residual or the prior information of the NLOS error in the detection hypotheses on the basis of statistical decision theory [15–17]. One limitation of these algorithms is that it requires at least 3 measurements. Locating a MT in NLOS environments is also considered in [18, 19] to improve accuracy by smoothing the measurements or overweighting the LOS ASs. Another method based on modified probability data association (MPDA) is proposed in [14]. This method constructs different subgroups of measurements. Then intermediate results of the LOS subgroups are combined to reach the final estimated position of the moving target. However, in severe NLOS conditions, it is very likely that no subgroup is detected as LOS at many time instances. As a result, no new measurement is available to update the filtering.

While the estimation-based approaches utilize the statistical properties of the LOS and NLOS noises and reconstruct posterior estimated position [3–5, 19], they are robust in many NLOS conditions but are not efficient as the high computational cost and incomplete measurement models. As for frequent LOS/NLOS transition in a mixed environment, some good progress with interactive multiple model (IMM) has been made in this category. It [20–22] has been demonstrated as one of the most effective schemes for position estimation in a hybrid dynamic system under uncertain environments. Yang et al. [23] present a location estimation algorithm using fuzzy-based IMM estimator. In [24], IMM is adopted for the MT location estimation as well. However, the indoor environment is quite different from the urban structure in [24]. The system model and estimator seems to be an oversimplification for an indoor application, since it fails to consider the signal attenuated by walls or furniture.

Most existing research works on a localization algorithm under the assumption of different probability distribution functions of the LOS and NLOS noise. However, some other significant distinctions exist between LOS and NLOS propagation, resulting in various new measurement models.

In this paper, we present an efficient MT positioning algorithm using UKF based IMM with individual RSS measurements in a mixed LOS/NLOS indoor environment. In addition, the proposed framework has been evaluated on a practical platform in a real application situation. The main works are as follows. (i)

An effective measurement model is derived to describe the influence of fading caused by the indoor environment and defined as a superposition RIM and Gaussian noise. Furthermore, the model has been verified in an actual indoor building containing the LOS and NLOS channel conditions.

(ii)

A greedy AS selection strategy is introduced to choose the AS with the largest RSS measurement in each time instant. The proposed strategy is much easier to implement in the practical application, to reduce the communication traffic and lower the requirement of the hardware.

(iii)

The unscented Kalman filter (UKF) is employed to treat the estimator. The point of sampling conquers the severe nonlinear of the mapping of RSS to range. By integrating the filter into IMM, the model probabilities are updated according to the likelihoods of errors. A combination of the weighted respective estimations is achieved as the output result.

(iv)

A complete mobile localization platform, which works on STM32F107VCT and AT86RF231, is established by applying the algorithm into a real indoor scenario. The experiments illustrate that the proposed estimator outperforms some other localization methods [14, 24, 25].

The rest of this paper is organized as follows. Section 2 briefly states the problem of mobile localization in a time-variant environment. Section 3 derives a composite measurement model and validates it in a real application scenario. Section 4 presents the proposed UKF based IMM scheme, with both theoretical analysis and formula derivation. A numerical study relying on the practical experiment data is presented in Section 5 to illustrate the merits of the proposed algorithm and some deep analysis compared with other works. Finally, conclusions are drawn in Section 6.

2. Problem Statement

A synchronous network of N anchor sensors (AS) fixed at the known positions is assumed. Their positions are denoted by a set of m-dimensional vectors $A = [A_{1} A_{2} \dots A_{n}]$ , respectively. $m = 2$ is considered in this paper although $m = 3$ is also possible for a stereoscopic situation. Thus, for $i \in {1,2, \dots, N}$ , the ith AS is fixed at $A_{i} = [x_{i}^{s}, y_{i}^{s}]$ .

In order to state the problem, a corridor situation in our lab building is illustrated in Figure 1. The solid triangles represent the ASs; the dashed line represents the trace of a MT. All the ASs are located in the rooms along the corridor. Due to the doors, some ASs can be exposed to the MT at some certain locations.

Figure 1

A corridor situation with LOS and NLOS conditions.

The MT moves along the corridor. The unknown positions of the MT at time instant t are denoted by a $2 m$ -dimensional vector

\begin{matrix} X_{t} = [x_{t}, {\dot{x}}_{t}, y_{t}, {\dot{y}}_{t}], \end{matrix}

(1)

where

(x_{t}, y_{t})

denotes the coordinates of the MT and

({\dot{x}}_{t}, {\dot{y}}_{t})

denotes the velocity of the MT in x and y direction. The MT's state updates over time according to the random force model:

\begin{matrix} X_{t} = F X_{t - 1} + G ω_{t - 1}, \end{matrix}

(2)

where

\begin{matrix} F = [\begin{bmatrix} 1 & 0 & T & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & T \\ 0 & 0 & 0 & 1 \end{bmatrix}], G = [\begin{bmatrix} \frac{T^{2}}{2} & 0 \\ 0 & \frac{T^{2}}{2} \\ T & 0 \\ 0 & T \end{bmatrix}] . \end{matrix}

(3)

X_{t - 1}

represents the state of the MT at time instant

t - 1

. The process noise

ω_{t - 1}

is modeled as zero mean, i.i.d. Gaussian noise with covariance matrix Q.

When the MT moves, a discovery signal can be measured by the ASs. As the typical case in Figure 2 shows, the discovery signal sent by the MT at b transmits indirectly to the AS at c. The signal path between a and c is regarded as LOS propagation condition, while the one between b and c is regarded as NLOS propagation condition, due to the wall.

Figure 2

Propagating conditions alteration.

Because of the presence of the walls between the MT and the AS, the signal may be reflected, diffracted, and scattered. The signal path loss may be increased by the encountered objects and sharp corners. As a result of the absorption of the walls, the propagation medium is also normally different in diverse directions. On account of the complicated effects on the RSS measurement, the measurement model, a mathematical mapping of RSS to range, is hardly denoted by a single curve.

As a consequence, the measurement model $RSS = H (d)$ is illustrated as the superimposed effects on the path loss between the MT and the AS. In addition, the measurement model is time variant, altering between LOS and NLOS fading channel, which makes it difficult to estimate the range based on the RSS values. Some other works [24, 25] demonstrate the multiple measurement models in a mixed environment and estimate the locations in the time-dependent fading channels. However, the approximate description of the alternative measurement model is not complete, lack of the irregularity of a radio pattern. And the estimator is not robust enough especially when the ASs are not deployed densely, which indicates that the nonlinear mapping enlarges the filter errors.

From the above, an appropriate measurement model is an urgent issue to approximate the mapping of RSS to range. More importantly, it is essential to propose an adaptive localization estimator in order to accommodate the time-variant fading channels.

3. A Composite Measurement Model

In order to approximate the time-variant measurement model, especially the irregular effect on wireless signal fading caused by the obstacles, the RIM model has been introduced [26]. Furthermore, as a measurement, the power measurement $P_{i} (t)$ corresponding to the RSS value between the ${AS}_{i}$ and the MT at the time instant t can be modeled as

\begin{array}{l} P_{i} (t) = P_{T} - P L_{0} - 10 η \log_{10} {(\frac{d_{i}}{d_{0}})}^{1 + DOI} + ν (t), \\ i = 1,2, \dots, N . \end{array}

(4)

The parameter DOI (degree of irregularity) is defined as the maximum path loss percentage variation per unit degree change in the direction of the radio propagation [26]. As shown in Figure 3, when the DOI is set to 0, there is no range variation, and the communication range is a perfect sphere. However, when the DOI value increases, the communication range becomes more and more irregular.

Figure 3

RIM model with $DOI = 0,0.005,0.01,0.02$ .

For different fading channels of LOS and NLOS, there are various DOI values, respectively, marked as $DO I_{LOS}$ , $DO I_{NLOS}$ . To simplify model (4), a general expression for the LOS and NLOS channels is as follows:

\begin{array}{l} P_{i} (t) = P_{T} - P L_{0} - 10 η_{LOS} \log_{10} (\frac{d_{i}}{d_{0}}) + ν_{LOS} (t), \\ i = 1,2, \dots, N, \\ P_{i} (t) = P_{T} - P L_{0} - 10 η_{NLOS} \log_{10} (\frac{d_{i}}{d_{0}}) + ν_{NLOS} (t), \\ i = 1,2, \dots, N, \end{array}

(5)

where

ν_{LOS}

is the RSS measurement noise modeled as a white Gaussian with

N (μ_{LOS}, σ_{LOS}^{2})

and

ν_{NLOS}

is the RSS measurement noise modeled as a white Gaussian with

N (μ_{NLOS}, σ_{NLOS}^{2})

. The parameters of η,

P_{T}

d_{0}

, and

P_{0}

are channel attenuation coefficient, transmitting power of the RF model, reference distance between the MT and the AS, and the path loss at

d_{0}

d_{i}

is the Euclidean distance between the MT

(x_{t}, y_{y})

and the ith AS

(x_{i}^{s}, y_{i}^{s})

, which is defined as

\begin{matrix} d_{i} = \sqrt{{(x_{t} - x_{i}^{s})}^{2} + {(y_{t} - y_{i}^{s})}^{2}}, i = 1,2, \dots, N . \end{matrix}

(6)

To determine the key parameters above, we make an experiment of RSS measurements collection using 8 ASs and 1 MT over a set of distances ranging from 1 m to 28 m with LOS and NLOS conditions. The whole experiment takes more than 6 hours, with a sampling period 1 s. Figure 4 shows the anchor node and the mobile node. The node is composed of a STM32F107VCT MCU running with an embedded system μCOSII and a ATRF231 RF model working at 2.4 GHz.

Figure 4

Mobile node and anchor node.

The experiment dataset contains about 380 sets of measurements, and each set corresponds to a certain MT's location, namely, the sampling location. Each set of data contains more than 28800 pairs of RSSs and distances. For any pair of RSS measurement and the known distance, a constraint should be satisfied:

\begin{array}{l} \min_{η, μ} \sum_{i, j} ‍ |{RSS}_{j}^{i} - \\ [P_{T} - P L_{0} \\ - 10 η \log_{10} (\frac{\sqrt{{(x_{j} - x_{i}^{s})}^{2} + {(y_{j} - y_{i}^{s})}^{2}}}{d_{0}}) + μ]| \\ i = 1,2, \dots, N j = 1,2, \dots, M . \end{array}

(7)

N is the number of ASs, and M is the quantity of sampling locations.

{RSS}_{j}^{i}

indicates the mean of RSS measurements to ith AS

(x_{i}, y_{i})

at jth sampling location

(x_{j}, y_{j})

. For any pair of dataset, a “LOS” or “NLOS” indicator is given by using a laser rangefinder. Therefore, we get two categories of dataset: one is for LOS and the other is for NLOS. For either category, the best-fit η and μ are achieved, utilizing LS (least square) estimator as follows:

\begin{array}{l} P_{T} - P L_{0} - 10 η \log_{10} (\frac{d_{j}^{i}}{d_{0}}) + μ (j) = {RSS}_{j}^{i}, \\ i \in \{1, N\}, j \in \{1, M\} \end{array}

(8)

\begin{array}{l} [\begin{bmatrix} 1 & - 10 \log_{10} (\frac{d_{1}^{1}}{d_{0}}) \\ ⋮ & ⋮ \\ 1 & - 10 \log_{10} (\frac{d_{j}^{i}}{d_{0}}) \end{bmatrix}] [\begin{bmatrix} μ \\ η \end{bmatrix}] = [\begin{bmatrix} {RSS}_{1}^{1} - P_{T} + P L_{0} \\ ⋮ \\ {RSS}_{j}^{i} - P_{T} + P L_{0} \end{bmatrix}], \end{array}

(9)

where (9) is the matrix format of (8). For convenience, we define the left matrix of (9) as A and the right matrix of (9) as B. Then the optimal solution is given below:

\begin{matrix} [\begin{bmatrix} μ \\ η \end{bmatrix}] = {(A^{T} A)}^{- 1} A^{T} B . \end{matrix}

(10)

In order to validate the efficiency of the optimal μ and η for LOS or NLOS, we examine it in another experiment where 7 ASs and 1 MT are set at different positions. Figure 5 compares the fitting RSSs according to μ and η above with the real RSS measurements at a series of sampling positions in LOS and NLOS conditions, respectively. Figure 6 illustrates the approximation result in the form of logarithmic ranges. It is clear that the fitting curve can approximate the fading trend of RSS measurements along with the increasing ranges in both propagation conditions. The proposed composite measurement model makes a more complete description of the complex fading model for LOS and NLOS propagation channels.

Figure 5

Mapping of RSSI to range at various locations.

Figure 6

Mapping of RSSI to logarithmic range at various locations.

$Z_{i} (t)$ is the RSS measurement measured by the ith AS at time instant t, and $H (X_{t}, {AS}_{i})$ indicates the mathematical mapping of the RSS measurement and the MT's state $X_{t}$ .

As a consequence, the composite measurement model of a LOS/NLOS mixed fading channel is defined as follows:

\begin{array}{l} Z_{i} (t) = H (X_{t}, {AS}_{i}) \\ = \{\begin{cases} P_{T} - P L_{0} - 10 η_{LOS} \log_{10} (\frac{d_{i}}{d_{0}}) + ν_{LOS} (t) \\ for LOS \\ P_{T} - P L_{0} - 10 η_{NLOS} \log_{10} (\frac{d_{i}}{d_{0}}) + ν_{NLOS} (t) \\ for NLOS, \end{cases} \end{array}

(11)

where

η_{LOS} = 1.3063

η_{NLOS} = 1.9508

ν_{LOS} = N (- 0.591,36.7567)

, and

ν_{NLOS} = N (5.7512,44.7445)

. The definitions of

P_{T}

P L_{0}

d_{0}

, and

d_{i}

are identical to those in (5).

4. UKF Based IMM Localization Estimation

As mentioned above, since the signal propagation indoor is complicated, the fading condition alters between LOS and NLOS cases. The transmission channels between the AS and the MT are considered as a switching mode system. In other words, a LOS/NLOS transition occurs when the MT moves into an environment with the different properties of the propagation medium. A two-state Markov process in Figure 7 is employed to describe the switching system.

Figure 7

Markov switching system.

A single measurement model corresponding to one propagation condition cannot adjust to both LOS and NLOS situations. It is necessary to introduce a mixed and adaptive scheme against this challenge. Therefore, an UKF based IMM localization estimator is adopted for the LOS/NLOS environment.

4.1. General Concept

The flowchart of the UKF based IMM localization estimation is illustrated in Figure 8.

Figure 8

Flowchart of the UKF based IMM localization estimation.

First, as the MT moves, it broadcasts a discovery signal. Based on greedy anchor sensor selection, the AS with the largest RSS measurement $Z (t)$ is chosen from the candidates which have received the discovery signal. It should be noted that a larger RSS measurement indicates either a LOS propagation model or a shorter distance between the transmitter and receiver. It is instinctive and easy to implement.

Then, the state $X (t | t)$ for the ith AS is simultaneously estimated by two parallel UKFs according to the LOS and NLOS models, respectively. The mode probabilities of the present measurement model can be calculated and updated by a likelihood function via the respective estimation error. Afterwards, the IMM structure combines the independent estimation results with their different mode probabilities. For the next time instant, the prior state transition probabilities rely on a constant Markov switching matrix and the previous mode probabilities.

4.2. Greedy Anchor Sensor Selection

As the MT broadcasts the discovery signal in a constant transmitting power, each AS receives this singal and obtains a different RSS measurement due to the different distance. After that, each AS enables a timer with an initial $T_{i}$ , $i \in {1,2, \dots, N}$ :

\begin{matrix} T_{i} = \frac{T_{0}}{Z_{i} (t)}, \end{matrix}

(12)

where

Z_{i} (t)

is the RSS measured by the ith AS at time instant t.

T_{0}

is a constant to adjust each

T_{i}

to a practical value for the hardware clock. According to (12), a larger RSS measurement indicates a shorter

T_{i}

. Therefore, the AS with the largest RSS times out firstly, then it replies to the MT a message including its own coordinates and the largest RSS

Z_{i} (t)

. Once the MT received any reply, it broadcasts a stop-reply signal to all the ASs. The subsequent ASs abort their timers and return to the state of monitoring.

In this way, the largest RSS is collected to the MT. In (11), the RSS is related to $P_{T}$ . However, in [24, 25], $P_{T}$ is assumed to be identical and time-invariant for all the ASs. It is usually unpractical for most of the applications. On this view, the proposed anchor sensor selection ensures all RSS measurements are based on one $P_{T}$ which is emitted by the MT, rather than any AS, in each time instant.

Furthermore, in a practical system, it is hard to distinguish the ASs if a subtle difference between the first smallest $T_{i}$ and the second smallest $T_{j}$ happens. It is injudiciousness to enlarge $T_{0}$ , because it leads to a more significant delay. From this view, an improved scheme is presented in Figure 9.

Figure 9

The scheme of greedy anchor sensor selection.

4.3. UKF-IMM Algorithm

The proposed algorithm consists of three major stages: interaction, filtering, and combination.

4.3.1. Interaction

$i, j \in {1,2}$ , 1 for the LOS estimator and 2 for the NLOS estimator.

We suppose that the current multiple-mode states depend on the previous modes, and all the transition probabilities are known. The mixing probability from mode i to mode j can be denoted as

\begin{matrix} μ_{i | j} (t - 1 | t - 1) = \frac{p_{i j} μ_{i} (t - 1 | t - 1)}{{\bar{c}}_{j}}, \end{matrix}

(13)

where

p_{i j}

is the Markov transition probability from mode i to mode j,

μ_{i} (t - 1 | t - 1)

is the probability of mode i at time instant

t - 1

, and

{\bar{c}}_{j}

is a normalization factor for the prior mode and is expressed as

\begin{matrix} c_{j} = \sum_{i} ‍ p_{i j} μ_{i} (t - 1 | t - 1) . \end{matrix}

(14)

The mixed prior state

X_{0 j} (t - 1 | t - 1)

and covariance

P_{0 j} (t - 1 | t - 1)

for the jth mode-matched estimator at time instant

t - 1

can be obtained by

\begin{array}{l} X_{0 j} (t - 1 | t - 1) = \sum_{i} ‍ X_{i} (t - 1 | t - 1) μ_{i | j} (t - 1 | t - 1) \\ P_{0 j} (t - 1 | t - 1) \\ = \sum_{i} ‍ \{[X_{i} (t - 1 | t - 1) - X_{0 i} (t - 1 | t - 1)] \\ \times {[X_{i} (t - 1 | t - 1) - X_{0 i} (t - 1 | t - 1)]}^{T} \\ + P_{i} (t - 1 | t - 1)\} μ_{i | j} (t - 1 | t - 1), \end{array}

(15)

where

X_{i} (t - 1 | t - 1)

and

P_{i} (t - 1 | t - 1)

are the state estimation and covariance for the ith mode-matched estimator at time instant

t - 1

, respectively.

X_{i} (t - 1 | t - 1)

and

P_{i} (t - 1 | t - 1)

are prepared by the previous mode-matched unscented Kalman filtering stage.

4.3.2. Filtering

Based on the prior knowledge that the measurement models are quite different between LOS and NLOS conditions, two unscented Kalman filters are designed for these two measurement models.

Initializing. For either estimator, the initial state $X_{i} (0)$ and $P_{i} (0)$ are obtained from the system initialization.

Sampling. A set of sigma points $S_{j} = {χ_{j}, W_{j}}$ is generated so that the mean and the covariance of the samples are $X_{i} (t - 1 | t - 1)$ and $P_{i} (t - 1 | t - 1)$ . The samples are not drawn randomly but according to a specific, deterministic algorithm, as follows:

\begin{array}{l} χ_{i}^{0} (t - 1 | t - 1) = X_{i} (t - 1 | t - 1) \\ χ_{i}^{j} (t - 1 | t - 1) = X_{i} (t - 1 | t - 1) \\ + {(\sqrt{(n + κ) P_{i} (t - 1 | t - 1)})}_{j}, \\ j = 1, \dots, n \\ χ_{i}^{j} (t - 1 | t - 1) = X_{i} (t - 1 | t - 1) \\ - {(\sqrt{(n + κ) P_{i} (t - 1 | t - 1)})}_{j}, \\ j = n + 1, \dots, 2 n, \end{array}

(16)

\begin{array}{l} W_{0}^{m} = \frac{κ}{n + κ} \\ W_{0}^{m} = \frac{κ}{n + κ} \\ W_{j}^{m} = W_{j}^{c} = \frac{κ}{2 (n + κ)}, \end{array}

(17)

where n is the dimension of the state estimation

X_{i} (t - 1 | t - 1)

and κ is the scaling factor which determines the approximating precision. When the state estimation

X_{i} (t - 1 | t - 1)

is assumed Gaussian, an useful heuristic is to select

n + κ = 3

[27].

The weights $W_{j}^{m}$ , $W_{j}^{c}$ should also meet some constraint principles. Here, α determines the “size” of the sigma point distribution. It is recommended to be a small value to avoid sampling nonlocal effects when the system is nonlinear strongly. β in (17) is a nonnegative weighting term to incorporate knowledge of the higher order components of the distribution. For a Gaussian assumption, the optimal β is 2. This parameter can also control the deviation in the kurtosis which affects the “heaviness” of the tails of the posterior state distribution [28].

Time Update. Instantiate each point in (16) by the state update function and the measurement function to yield the set of transformed sigma points:

\begin{matrix} χ_{i}^{j} (t | t - 1) = F χ_{i}^{j} (t - 1 | t - 1), j = 0,1, \dots, 2 n, \\ ψ_{i}^{j} (t | t - 1) = H (χ_{i}^{j} (t | t - 1)), j = 0,1, \dots, 2 n . \end{matrix}

(18)

The mean is given by the weighted sum of the transformed points. And the covariance is the weighted outer product of the transformed sigma points:

\begin{array}{l} {\bar{X}}_{i} (t | t - 1) = \sum_{j = 0}^{2 n} ‍ W_{j}^{m} χ_{i}^{j} (t | t - 1) \\ {\bar{Z}}_{i} (t | t - 1) = \sum_{j = 0}^{2 n} ‍ W_{j}^{m} ψ^{j} (t | t - 1) \\ P_{i} (t | t - 1) = \sum_{j = 0}^{2 n} ‍ W_{j}^{c} [χ_{i}^{j} (t | t - 1) - {\bar{X}}_{i} (t | t - 1)] \\ \times {[χ_{i}^{j} (t | t - 1) - {\bar{X}}_{i} (t | t - 1)]}^{T} + Q, \end{array}

(19)

where Q is the covariance of Gaussian process noise as mentioned in (2).

Measurement Update. With the chosen RSS measurement $Z_{i} (t)$ , a measurement update is computed:

\begin{array}{l} P_{Z_{i} Z_{i}} = \sum_{j = 0}^{2 n} ‍ W_{j}^{c} [ψ_{i}^{j} (t | t - 1) - {\bar{Z}}_{i} (t | t - 1)] \\ \times {[ψ_{i}^{j} (t | t - 1) - {\bar{Z}}_{i} (t | t - 1)]}^{T} + R \\ P_{X_{i} Z_{i}} = \sum_{j = 0}^{2 n} ‍ W_{j}^{c} [χ_{i}^{j} (t | t - 1) - {\bar{X}}_{i} (t | t - 1)] \\ \times {[ψ_{i}^{j} (t | t - 1) - {\bar{Z}}_{i} (t | t - 1)]}^{T} \\ K_{i} = P_{X_{i} Z_{i}} P_{Z_{i} Z_{i}}^{- 1}, \end{array}

(20)

where K is the Kalman gain and R is the measurement noise. For a LOS model,

R = σ_{LOS}^{2}

; for a NLOS model,

R = σ_{LOS}^{2}

ν_{i} (t)

P_{i} (t | t)

, and

X_{i} (t | t)

should be substituted to the process of combination to derive the mode probabilities and the weighted estimation result:

\begin{matrix} ν_{i} (t) = Z_{i} (t) - {\bar{Z}}_{i} (t | t - 1), \\ P_{i} (t | t) = P_{i} (t | t - 1) - K_{i} P_{Z_{i} Z_{i}} K_{i}^{T}, \end{matrix}

(21)

\begin{matrix} X_{i} (t | t) = X_{i} (t | t - 1) + K_{i} ν_{i} (t) . \end{matrix}

(22)

4.3.3. Combination

When the estimated states are obtained by both estimators, respectively, the model likelihoods and probabilities are required to be calculated in the combination module.

Firstly, the model likelihood $Λ_{i} (t)$ is measured by a Gaussian density function of residual error $ν_{i} (t)$ in (21), with zero mean and covariance $S_{i} (t) = P_{Z_{i} Z_{i}}$ in (20). The updated $μ_{i} (t | t)$ is a normalized weighted sum of the model likelihoods and the previous prior mode probabilities in (14):

\begin{matrix} Λ_{i} (t) = N (ν_{i} (t); 0, S_{i} (t)), \\ μ_{i} (t | t) = \frac{Λ_{i} (t) {\bar{c}}_{i}}{c}, \\ c = \sum_{i} ‍ Λ_{i} (t) c_{i} . \end{matrix}

(23)

According to the posterior mode probability

μ_{i} (t | t)

, the combined estimation can be derived as

\begin{matrix} X (t | t) = \sum_{i} ‍ X_{i} (t | t) μ_{i} (t | t), \\ i = 1,2 respectively for LOS and NLOS model . \end{matrix}

(24)

Here, the combined result is exported in the form of

X (t | t) = ({\hat{x}}_{t}, {\hat{y}}_{t})

. For each estimator, the estimated

X_{i} (t | t)

and

P_{i} (t | t)

return to the interaction process at the next time instant.

5. Numerical Study

In this section, we use the experiment platform, which is mentioned in Section 3, to evaluate the performance of the proposed localization algorithm. Firstly, we describe our experiment environment and parameters. Then we define the performance metrics to compare the proposed algorithm with other works.

5.1. Experiment Environment

We set up an indoor wireless sensor network with N ASs to monitor a 50 m × 50 m arch field as shown in Figure 1. The total monitoring time is 88 s, and the sampling period T is 1 s. All the ASs within the monitoring region have the same structure. Each AS has the ability to obtain the RSS of the MT's signal. For the LOS propagation channel, $η_{LOS}$ is set to 1.3063 and the Gaussian noise $ν_{LOS}$ is set to $N (- 0.591,36.7567)$ ; for the NLOS propagation channel, $η_{NLOS}$ is set to 1.9508 and the Gaussian noise $ν_{NLOS}$ is set to $N (5.7512,44.7445)$ . The MT broadcasts its discovery signal at a power output of 3 dBm, and the $P L_{0}$ is 46 dBm. All the parameters are acquired from the experiment in Section 3. In both cases, the process noise ω, $e t a$ , $P_{T}$ , and $P L_{0}$ are illustrated in Table 1.

Table 1

The set of the experiment parameters.

Experiment parameters	Values
Monitoring region	50 m × 50 m
Monitoring time	88 s
Number of ASs N	14
AS deployment error	0.1 m
Sampling period T	1 s
η	1.3063 for LOS; 1.9508 for NLOS
Measurement noise ν	$N (- 0.591,36.7567)$ for LOS, $N (5.7512,44.7445)$ for NLOS
Process noise ω	$[\begin{bmatrix} 0.0 1^{2} & 0 \\ 0 & 0.0 1^{2} \end{bmatrix}]$
Transmitting power $P_{T}$	3 dBm
Path loss at $d_{0}$ ${PL}_{0}$	46 dBm

In order to describe the actual experiment, we set the initial states as follows. A MT starts to move along the corridor at $t = 0$ with an initial position and velocity $[0.226,0.6,12,0]^{T}$ . Then the MT makes a turn at the corner of the corridor and continues to move.

5.2. Performance Metrics

To evaluate the performance of the proposed algorithm and other frameworks, we calculate the root of mean square errors (RMSEs) of localization estimations at each time instant. The RMSE metric [14] is defined as follows:

\begin{matrix} RMSE (t) = \sqrt{{({\hat{x}}_{t} - x_{t})}^{2} + {({\hat{y}}_{t} - y_{t})}^{2}} . \end{matrix}

(25)

({\hat{x}}_{t}, {\hat{y}}_{t})

is the estimated coordinate of MT at t time instant, while

(x_{t}, y_{t})

is the true position at that time instant. A time series of RMSEs of positions and velocities will be given in the following subsection.

For the mixed and switching channel situation, an auxiliary but important issue should be observed. The posterior model probability $P (Model | Z (t))$ is also a major point. We also compare the estimated posterior probability with the actual model probability.

5.3. Results and Analysis

5.3.1. Performance of Localization

In order to validate the performance of localization accuracy, a comparison with an EKF based LOS model, an EKF based on NLOS model, IMM-EKF [24, 25], and MPDA [14] is carried out below. In Figure 10, the tracking trajectory obtained by the proposed algorithm is shown. Compared with the real trace, which is denoted by the solid line, the trajectory generated by the UKF based IMM algorithm is quite close and follows the moving trend although a maneuver turn happens at 48 s.

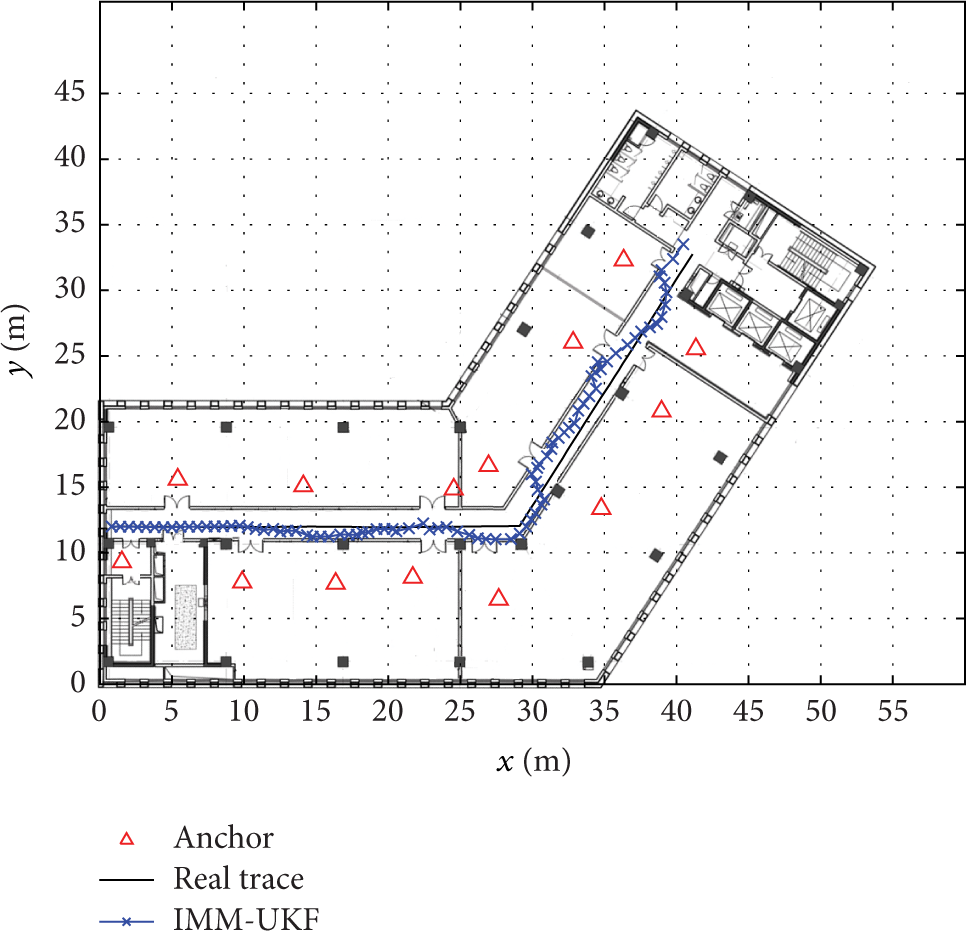

Figure 10

Tracking results of the proposed algorithm.

It is clear that the whole trajectory can be divided into two parts: one is from the starting position to the sudden turning point and the other is from the turning point to the end point. The trajectory estimated by UKF based IMM scheme has larger errors in the second part than in the first part. It is noticed that the parameters of the measurement model are obtained in a similar scenario to the first part. It is appreciable that the prior knowledge about the fading conditions fits the first part of the trace more precisely. On the other hand, the proposed algorithm is able to offset the errors produced by a biased measurement model in some degree.

As shown in Figure 11, the performance of UKF based IMM is obviously superior to other works. During the first 20 s, the fading channel is mainly LOS condition with a slight propagation variation. Then the channel condition changes to NLOS. The proposed algorithm remains a smaller RMSE during the next 20 s. In the rest of the monitoring time, the fading channel switchovers several times. The EKF based on LOS gradually diverges with accumulative errors due to an improper measurement model in some certain period. The EKF based on NLOS performs better than the EKF based on LOS because the channel remains in the state of NLOS much longer. Neither of the works relying on a single model or a single measurement reach a satisfactory level. The MPDA benefits from the multiple measurements but fails to adapt to the time-variant environment, especially when there is no subset of available measurements in some positions. It is the key for an estimator not only to update the prediction state with the current measurement but also to adjust to an actual-matched system model. The proposed algorithm also performs better than IMM-EKF, although the main ideas are the same. However, the UKF based IMM conquers a more serious nonlinear system, and the greedy $AS$ selection strategy weakens the influence of the poor-quality measurements.

Figure 11

RMSEs of positions estimated by UKF based IMM and other works.

In Figure 12, the comparison of the velocities of X and Y directions is summarized. Table 2 lists the time-averaging localization RMSEs of the proposed algorithm and other works. Considering the maximum velocity in X or Y direction during the maneuvering is about 0.6 m/s, the velocity errors estimated by MPDA and EKF based on LOS are sizable. It is obvious that the proposed UKF based IMM algorithm remains much smaller errors in velocities. At 47 s in Figure 12, the RMSEs of our algorithm undergoes a estimator transition, while some other works encounter the breaking points.

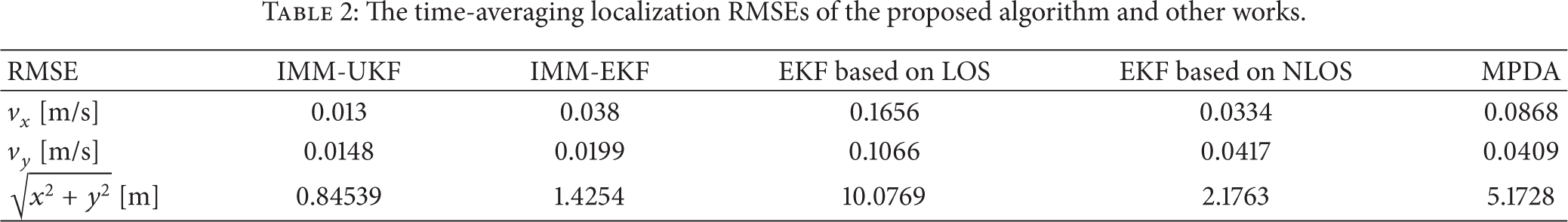

Table 2

The time-averaging localization RMSEs of the proposed algorithm and other works.

RMSE	IMM-UKF	IMM-EKF	EKF based on LOS	EKF based on NLOS	MPDA
$v_{x}$ [m/s]	0.013	0.038	0.1656	0.0334	0.0868
$v_{y}$ [m/s]	0.0148	0.0199	0.1066	0.0417	0.0409
$\sqrt{x^{2} + y^{2}}$ [m]	0.84539	1.4254	10.0769	2.1763	5.1728

Figure 12

RMSEs of velocity estimated by UKF based IMM and other works.

The model transition details are shown in Figure 13. The marked line depicts the posterior model probability $P (Model | Z (t))$ estimated by UKF based IMM, and the solid line indicates the real model probability. Noticing that 0 is for NLOS channel, 1 is for LOS channel. The proposed algorithm seizes most of the inflection points, and its estimated model probability approximates to the real situation. With the $P (Model | Z (t))$ , the efficient method can choose a matched measurement model and combine the filters with a set of reasonable weights.

Figure 13

Model probabilities of environment (estimated by UKF based IMM and the real situation).

5.3.2. Performance of Robustness

For the referenced works in [22, 24, 25], localization estimators using IMM and EKF with TOA or RSS measurements in a mixed propagation model were presented. The employed EKF achieves an acceptable performance in those cases. However, according to the fading channels and deployment environment, the quotative estimator encounters a performance degradation, especially when the distance between the MT and the AS increases. Table 3 also shows that as the numbers of AS decrease, the average RMSEs of other works increase obviously or remain as a larger level. Some discussion in detail comes below.

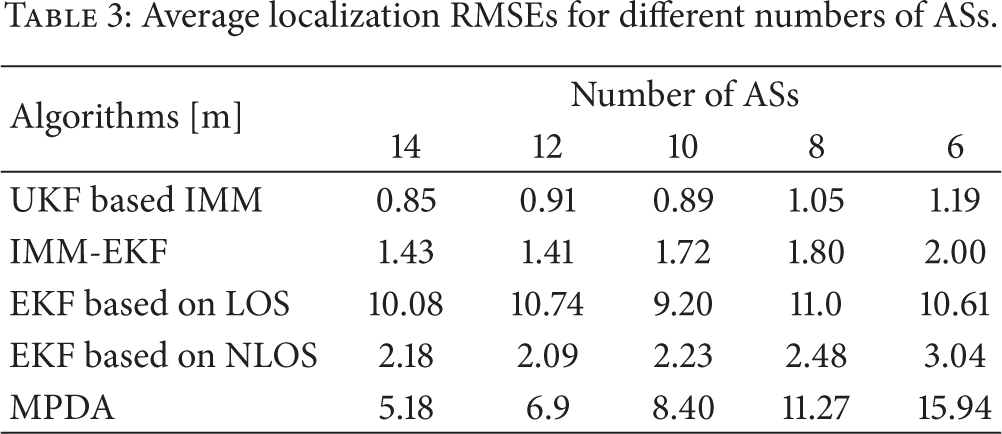

Table 3

Average localization RMSEs for different numbers of ASs.

Algorithms [m]	Number of ASs
Algorithms [m]	14	12	10	8	6
UKF based IMM	0.85	0.91	0.89	1.05	1.19
IMM-EKF	1.43	1.41	1.72	1.80	2.00
EKF based on LOS	10.08	10.74	9.20	11.0	10.61
EKF based on NLOS	2.18	2.09	2.23	2.48	3.04
MPDA	5.18	6.9	8.40	11.27	15.94

An UKF recommended by the proposed algorithm performs better than an EKF. It is proved that the approximation precision is closely 3rd-order of Taylor expansion at least, while an EKF depends on 1st-order of Taylor expansion. Besides that, UKF's computation complexity of $n^{2}$ is much easier to implement in a practical application, due to no explicit calculation of a Jacobians or Hessians like an EKF does. In Figure 14, each marker point represents an average localization RMSE during the monitoring time for a certain number of anchors. As the numbers of anchors decrease, the distance between the MT and any specific anchor increases. Then the referenced IMM-EKF decays rapidly, whereas the proposed UKF based IMM is hardly affected by the sparsity of anchors.

Figure 14

Comparison of the average RMSEs of UKF based IMM and IMM-EKF for different numbers of AS.

Through [29], let $X^{m}$ be a random variable with mean $\bar{X}$ and covariance $P_{X X}$ . Z is related to $X^{m}$ through the nonlinear transformation, namely, the measurement model (5),

\begin{matrix} Z (X^{m}) = H (X^{m}, {AS}_{i}) . \end{matrix}

(26)

The EKF used refers to the Taylor series expansion of this equation. Let

X^{m} = {\bar{X}}^{m} + δ_{X^{m}}

, where

δ_{X^{m}}

is a zero mean random variable with covariance

P_{X X}

. Expanding

H (\cdot)

about

{\bar{X}}^{m}

\begin{array}{l} H (X^{m}, {AS}_{i}) = H ({\bar{X}}^{m}, {AS}_{i}) + \nabla H δ_{X^{m}} + \frac{1}{2} \nabla^{2} H δ_{X^{m}}^{2} + \dots \\ = H ({\bar{X}}^{m}, {AS}_{i}) + \nabla H δ_{X^{m}} + \frac{1}{2} \nabla^{2} H P_{X X} + \dots, \end{array}

(27)

where the 1st-order term in the multidimensional is

\begin{array}{l} \nabla H = [\begin{bmatrix} \nabla H_{X} \\ \nabla H_{Y} \end{bmatrix}] \\ = [\begin{bmatrix} c \cdot \frac{x^{m} - x^{s}}{{(x^{m} - x^{s})}^{2} + {(y^{m} - y^{s})}^{2}} \\ c \cdot \frac{y^{m} - y^{s}}{{(x^{m} - x^{s})}^{2} + {(y^{m} - y^{s})}^{2}} \end{bmatrix}] . \end{array}

(28)

Here

X_{m} = (x^{m}, y^{m})

, and

(x^{s}, y^{s})

is the coordinate of the specific AS. c is a constant. Considering in (27), as the numbers of anchors decrease, the measurement range becomes larger, which leads to a nonignorable term. In consequence, an EKF estimator fails to approximate the higher order term in (27).

It is crucial for an UKF that it approximates an arbitrary nonlinear system with the weighted sigma points. These points are deterministically chosen so that certain properties match those of the prior distribution. With this set of points, an UKF guarantees the same performance as the truncated 3rd-order filter.

6. Conclusion

In this paper, we address the problem of robust positioning of a mobile terminal, using RSS measurements in a mixed LOS/NLOS environment. The original measurement models have been reformulated as nonlinear ones, which indicates the anisotropy caused by the indoor obstacles in a NLOS case. We construct the measurement models, which completely describe the differences between LOS and NLOS conditions for an indoor application, and validate our composite measurement model in a real scenario. In particular, the UKF based IMM localization estimator is proposed for mobile location estimation in a practical rough wireless environments. An UKF works better than an EKF, due to its superior ability to approximate the nonlinear system in a higher order. With the aid of the likelihood function to determine the mode probabilities in LOS and NLOS, the proposed UKF based IMM could accurately estimate range distance between the MT and the AS even with the channels switching randomly between LOS and NLOS conditions.

The real experiment results illustrate that the performance of our proposed algorithm achieves high accuracy even in a complex environment where the LOS and NLOS channel conditions switch frequently with obviously different fading. Furthermore, the UKF based IMM scheme manifests robustness against the sparse deployment of ASs. It makes it more practical to utilize a localization system widely.

Footnotes

Conflict of Interests

The authors declare that there is no conflict of interests regarding the publication of this paper.

Acknowledgments

This work is supported in part by the Strategic Priority Research Program of the Chinese Academy of Sciences (CAS) under Grant no. XDA06020300 and the IoT National Standards System Research and Industrial Application and Demonstration based on Information Perception and Identification Technology of Shanghai Science and Technology Commission (SSTC) research projects under Grant no. 12DZ0500100.

References

Gustafsson

Gunnarsson

Mobile positioning using wireless networks: possibilities and fundamental limitations based on available wireless network measurements

IEEE Signal Processing Magazine 2005 22 4 41 53

10.1109/MSP.2005.1458284

2-s2.0-22544466135

Sayed

A. H.

Tarighat

Khajehnouri

Network-based wireless location: challenges faced in developing techniques for accurate wireless location information

IEEE Signal Processing Magazine 2005 22 4 24 40

10.1109/MSP.2005.1458275

2-s2.0-22544485079

McGuire

Plataniotis

K. N.

Venetsanopoulos

A. N.

Robust estimation of mobile terminal position

Electronics Letters 2000 36 16 1426 1428

10.1049/el:20000960

2-s2.0-0034250095

Perälä

Piché

Robust extended Kalman filtering in hybrid positioning applications

Proceedings of the 4th Workshop on Positioning, Navigation and Communication (WPNC '07)

March 2007

Hannover, Germany

55 63

2-s2.0-36348960756

10.1109/WPNC.2007.353613

Sun

G.-L.

Guo

Bootstrapping M-estimators for reducing errors due to non-line-of-sight (NLOS) propagation

IEEE Communications Letters 2004 8 8 509 510

10.1109/LCOMM.2004.833831

2-s2.0-4444382252

Klukas

Lachapelle

A nonline-of-sight error-mitigation method for TOA measurements

IEEE Transactions on Vehicular Technology 2007 56 2 641 651

10.1109/TVT.2007.891439

2-s2.0-34147102756

Miao

Juntti

M. J.

Positioning for NLOS propagation: algorithm derivations and Cramer-Rao bounds

IEEE Transactions on Vehicular Technology 2007 56 5 2568 2580

10.1109/TVT.2007.899948

2-s2.0-35448940215

Bartelmaos

Abed-Meraim

Grosicki

General selection criteria for mobile location in NLoS situations

IEEE Transactions on Wireless Communications 2008 7 11 4393 4403

10.1109/T-WC.2008.070919

2-s2.0-57149143454

K. G.

Guo

Y. J.

Statistical NLOS identification based on AOA, TOA, and signal strength

IEEE Transactions on Vehicular Technology 2009 58 1 274 286

10.1109/TVT.2008.924975

2-s2.0-59649114039

10.

Cong

Zhuang

Nonline-of-sight error mitigation in mobile location

IEEE Transactions on Wireless Communications 2005 4 2 560 573

10.1109/TWC.2004.843040

2-s2.0-17144427652

11.

Hammes

Zoubir

A. M.

Robust mobile terminal tracking in NLOS environments based on data association

IEEE Transactions on Signal Processing 2010 58 11 5872 5882

10.1109/TSP.2010.2063425

MR2789625

2-s2.0-79953821903

12.

Quitin

Oestges

Horlin

de Doncker

Polarization measurements and modeling in indoor NLOS environments

IEEE Transactions on Wireless Communications 2010 9 1 21 25

10.1109/TWC.2010.01.081144

2-s2.0-74549142873

13.

Razul

S. G.

Lin

See

C.-M.

Road-constraint assisted target tracking in mixed LOS/NLOS environments based on TDOA measurements

Proceedings of the IEEE International Symposium on Circuits and Systems (ISCAS '12)

May 2012

Seoul, Republic of Korea

2581 2584

10.1109/ISCAS.2012.6271832

2-s2.0-84866617378

14.

Hammes

Wolsztynski

Zoubir

A. M.

Robust tracking and geolocation for wireless networks in NLOS environments

IEEE Journal on Selected Topics in Signal Processing 2009 3 5 889 901

10.1109/JSTSP.2009.2028383

2-s2.0-78650092466

15.

Wei

Jin-Yu

Zhong-Liang

A new NLOS error mitigation algorithm in location estimation

IEEE Transactions on Vehicular Technology 2005 54 6 2048 2053

10.1109/tvt.2005.858177

2-s2.0-30744473965

16.

Maranò

Gifford

W. M.

Wymeersch

Win

M. Z.

NLOS identification and mitigation for localization based on UWB experimental data

IEEE Journal on Selected Areas in Communications 2010 28 7 1026 1035

2-s2.0-77956215679

10.1109/jsac.2010.100907

17.

Razul

S. G.

Lin

See

C. M.

Target tracking in mixed LOS/NLOS environments based on individual measurement estimation and LOS detection

IEEE Transactions on Wireless Communications 2014 13 1 99 111

10.1109/TWC.2013.111313.121783

2-s2.0-84893738298

18.

Huerta

J. M.

Giremus

Vidal

Tourneret

J.-Y.

Joint particle filter and UKF position tracking under strong nlos situation

Proceedings of the IEEE/SP 14th Workshop on Statistical Signal Processing (SSP '07)

August 2007

IEEE

537 541

10.1109/SSP.2007.4301316

2-s2.0-47849085330

19.

Zhen

Zhang

Adaptive AR model based robust mobile location estimation approach in NLOS environment

Proceedings of the 59th IEEE Vehicular Technology Conference (VTC '04)

May 2004

2682 2685

2-s2.0-15344343711

10.1109/VETECS.2004.1391407

20.

Blom

H. A. P.

Bar-Shalom

Interacting multiple model algorithm for systems with Markovian switching coefficients

IEEE Transactions on Automatic Control 1988 33 8 780 783

10.1109/9.1299

ZBL0649.93065

2-s2.0-0024057021

21.

Mazor

Averbuch

Bar-Shalom

Dayan

Interacting multiple model methods in target tracking: a survey

IEEE Transactions on Aerospace and Electronic Systems 1998 34 1 103 123

10.1109/7.640267

2-s2.0-0031647084

22.

Liao

J.-F.

Chen

B.-S.

Robust mobile location estimator with NLOS mitigation using interacting multiple model algorithm

IEEE Transactions on Wireless Communications 2006 5 11 3002 3006

10.1109/TWC.2006.04747

2-s2.0-33846238588

23.

Yang

C.-Y.

Chen

B.-S.

Liao

F.-K.

Mobile location estimation using fuzzy-based IMM and data fusion

IEEE Transactions on Mobile Computing 2010 9 10 1424 1436

2-s2.0-77956041043

10.1109/TMC.2010.105

24.

Chen

B.-S.

Yang

C.-Y.

Liao

F.-K.

Liao

J.-F.

Mobile location estimator in a rough wireless environment using extended Kalman-based IMM and data fusion

IEEE Transactions on Vehicular Technology 2009 58 3 1157 1169

10.1109/TVT.2008.928649

2-s2.0-64049110860

25.

Zhang

Y. Z.

W. Y.

Wei

D. F.

Jiang

J. J.

Yang

Moving target localization in indoor wireless sensor networks mixed with LOS/NLOS situations

Eurasip Journal on Wireless Communications and Networking 2013 2013 1, article 291

10.1186/1687-1499-2013-291

2-s2.0-84894223327

26.

Zhou

Krishnamurthy

Stankovic

J. A.

Models and solutions for radio irregularity in wireless sensor networks

ACM Transactions on Sensor Networks 2006 2 2 221 262

10.1145/1149283.1149287

2-s2.0-33746895103

27.

Julier

S. J.

Uhlmann

J. K.

A new extension of the Kalman filter to nonlinear systems

Proceedings of the International Symposium on Aerospace/Defense Sensing, Simulation, and Controls

1997

Orlando, Fla, USA

3.2

28.

van der Merwe

Doucet

de Freitas

Wan

The unscented particle filter

Proceedings of the Neural Information Processing Systems Conference (NIPS '00)

2000

584 590

29.

Julier

S. J.

The scaled unscented transformation

Proceedings of the American Control Conference

May 2002

4555 4559

2-s2.0-0036060759

10.1109/ACC.2002.1025369
