Design and control of a passive compliant actuation with positioning measurement by LED and photodiode detector for medical application

Abstract

Control of assistive exoskeleton robot recently has to be crucial of development and innovation of medical application. To support daily motions for humans, control application of assistive exoskeleton robot allows for limb movement with increased strength and endurance during patient’s wearable exoskeleton robot application. The interaction between such exoskeleton device and the human body at the connecting joint, especially the knees, is the main interest of this design formation. The assistive device requires to design and to develop into innovation design aspect. This research presents the novel design of an active compliant actuation joint in order to increasing the higher torque of actuation than conventional actuation joint. Control design of the higher torque actuation usually difficult priori to conventional torque control. This will contributed to applying the supervisory control for compliant actuation that verified by experiment method. Then the hybrid Radial Basis Function neural network (RBFNN) and PID were proposed for actuating torque control methods. Experimental results show that the design of supervisory control is get better response, and higher producing torque output than the conventional design. Error of torque control of compliant actuation is not instead of $\pm 2$ N·m for applying supervisory control, RBFNN with PID controller. Indeed, the low electromagnetic interference (EMI) positioning system using LED and photodiode detector is proposed to be usable in medical application.

Keywords

Compliant joint actuation variable stiffness torque control supervisory control LED and photodiode position measurement

Introduction

The most substantial social transformation in the 21st century is the increase in aging population. Many countries around the world are currently facing a rapid growth in the number of aging citizens. According to World Health Organization (WHO), the number of senior populations aged 60 years or older is expected to increase at least by 3% per year. Combining with a number of people who has already suffers from amyotrophic lateral sclerosis (ALS), osteoporosis, and other handicaps that has inability of their daily motion, will be one of the main problems of human being. People that have problems with movement for his/her daily living life are needed the lower limb orthoses to help movement ability. Lower Limbs is the main interest of orthoses assisting actuating devices for support movement ability. Such actuating devices interacting with environment are concerned with more requirements of design than other regular operations of robots. The accuracy is essential for repeatability and adaptability for application purposes. Robustness and safety issues are also crucial in design process of robot system. Then propose of supervisory control with RBFNN and PID control methods gains a higher torque control performance than conventional control method. The verification would be done by experiment system for the propose control of compliant actuation design for exoskeleton robot application. The higher torque of knee joint is come from the high stiffness of spring, then this is a challenge to design high performance control effort.

The main concept of a passive orthoses assisting actuating devices is to store and generate back the energy that assist the muscles from motional load. The variable stiffness actuators (VSAs) has been proposed to design and implement with passive elastic elements for several years. The equilibrium control stiffness¹ was introduced because of zero generating force at home position of the actuator, illustrated in Figure 1.

Figure 1.

Force control with series elastic spring structure.¹

The VSA or adjustable compliant actuator was characterized by Ham et al.¹ and Wolf et al.² in different aspects point of views. The classification of design and component portion was proposed by Wolf et al.² The characterized for the design of control algorithms of stiff and soft joint has was also proposed by Calanca et al.³

The human robot interaction control of a series elastic actuator was presented by Yu et al.⁴ for gait rehabilitation. Their proposed controller with dynamic interacting and disturbance compensating observer was verified by ankle joint of robot. The mechanically adjustable compliance and controllable equilibrium position actuator (MACCEPA), was developed with experiment for biped robot application Ham et al.⁵ and Bacek et al.⁸ as illustrated in Figure 2.

Figure 2.

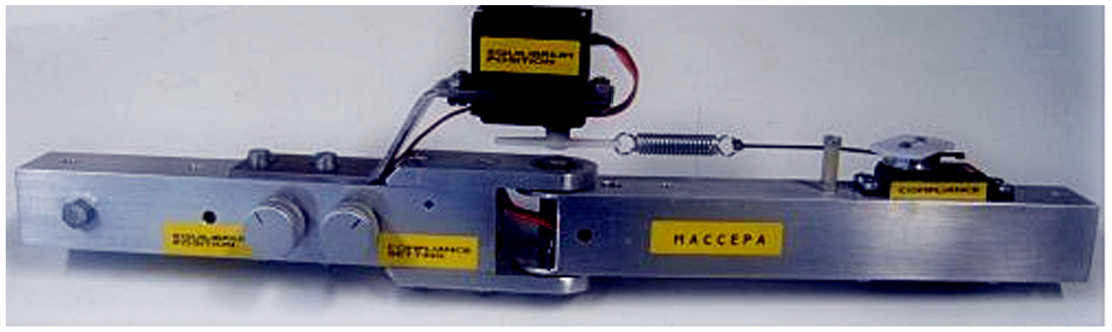

Prototype of MACCEPA system Ham et al.⁵ and Bacek et al.⁸

The extension of the current research has proposed by Bacek et al.,⁶ the design of torque control of knee joint actuator with the combination of VSA and parallel elasticity actuator (PEA). The results showed high torque gain compared to MACCEPA.

The design of variable stiffness control by back stepping control method was proposed by Petit et al.⁷ Position tracking of joint torque trajectory was obtained by torque control using back stepping control gain and PD⁺ laws control gain. By using time vary stiffness tracking control,⁹ this research presented the control design technique with LMI method using state space model. The design was verified by simulation method. Similarly, propose of novel variable stiffness actuator was discussed with variable impedance actuation (VIA) control technique.¹⁰ The result stated that VSA-II was enhanced the higher torque than the previous VSA-I prototype.

The new variables compliance actuator was proposed for prosthesis devices and exoskeleton systems by Tsagarikis et al.¹¹ The design concept is mainly using antagonistic-actuated variable stiffness joints. They proposed the stiffness regulation for tuning actuator to resist the force. The design of series elastic actuators (SEA) was presented the construction and working principle with dynamic modeling and analysis of the actuator for variables impedance control. The experimental results showed the validation the design concept and force control with specific ranges applied in a wearable exoskeleton rehabilitation robot.^12,13 The design and construction of a biped robot of joints with the control of stiffness and damping independent control variables was proposed by Enoch et al.¹⁴ Independent variable stiffness and damping are suitable for providing the required torque and stiffness during biped locomotion and can maintain the joint at high stiffness value.

In order to enhance with higher torque, the design of hybrid drive of a lower limb exoskeleton robot, XoR2 was proposed by Hyon et al.¹⁵ Hybrid drive of dc servomotor and pneumatic artificial muscle (PAM) has performed the control advantage for passive stability of joints. Research on improve balance control of biped exoskeleton robot was proposed the variable ankle stiffness technique.¹⁶ Balance control technique is adopted the zero moment point (ZMP) and ankle stiffness of joint with optimal constant stiffness methods. Additionally, the balance control technique was presented to apply the human inspire balancing assistance for assistive exoskeleton device.¹⁷ They investigated the correction technique of center of pressure and stiffness model of knee joint. Their results showed that the command of lower limb trajectory could be generalized effectively in balancing control of assistive exoskeleton device. In summary of literature survey, review references are summarized in Table 1.

Table 1.

Summary of literature review details.

References	Propose of study
Ham et al.¹	To review compliant actuator design in different techniques
Wolf et al.²	To review variable stiffness actuator
Calanca et al.³	To review compliant control technique
Yu et al.⁴	To design human-robot interaction control with series elastic actuator
Ham et al.⁵	To design prototype of adjustable compliance and position control of actuator
Bacek et al.⁶	To design of torque control of knee joint actuator
Petit et al.⁷	To design of control with back-stepping technique of variable joint robot
Bacek et al.⁸	To propose the conceptual design of variable stiffness actuator for lower limp rehabilitation robot
Ma et al.⁹	To design control of variable stiffness actuator tracking control
Schiavi et al.¹⁰ and Tsagarikis et al.¹¹	To propose a novel design of control of variable stiffness actuator
Yu et al.^12,13	To propose a novel design of compact compliant actuator design
Enoch et al.¹⁴	To design biped robot with variable stiffness and damping control
Hyon et al.¹⁵	To design the hybrid drive for lower limp rehabilitation robot
Ugurlu et al.¹⁶	To design variable angle stiffness control of balancing robot improvement
Karavas et al.¹⁷	To propose the design of EMG signal for balancing assistance of knee joint exoskeleton robot
Ullah et al.²⁰	To propose RBISMC technique for electromechanical system of a cart-pendulum system
Khan²¹	To propose RBISMC technique for electromechanical system of a cart-pendulum system
Ullah et al.²²	To propose RBISMC technique for fight control of a quadcopter

Most of research reviews have proposed several control and design methods for compliant joint actuation trying to improve the accuracy and high efficiency of motion control. In a different approach, this research is aiming to control torque of a compliant joint actuation of assistive robot in order to gain higher torque of a knee joint of assistive robot. This research has contributed by applying the supervisory control for compliant actuation that verified by experiment method. Indeed, the design and development of passive compliant actuation joint of assistive robot is described in section 2. Section 3 shows the Mathematic model and the design of torque control of compliant joint actuation system. The design of torque control with the technique of supervisory control technique of PID and RBFNN controls is verified by both simulation and experimental tests. The experiments are set up, as described in section 4, to verify the comparison between modes of control. (i.e. pure PID, pure RBFNN, and supervisory PID with RBFNN control.) The supervisory control of PID with RBFNN achieves the highest response and stability of torque control even with the nonlinear value of spring during the activating of robot joint.

Design and development of passive compliant actuator joint

A passive compliant actuation is an assistive device that designs for human movement amplification. The design is aimed at storing and releasing energy with high efficiency while providing controllability and keeping the weight and complexity small. The actuator provides a controllable joint torque by means of the variable stiffness. The device is normally interconnected links with conversion of spring stiffness to gain force and torque control methods. The wearer feels scaled-down loads while interacting with objects in the environment, while most of the load being carried by the exoskeleton or links.

This compliant actuation joint is designed with new concept to obtain higher torque generated by using mechanical spring stiffness varied with angular displacement of actuation joint. Measurement for angular displacement of joint and linear spring stiffness is conversely for force exertion and joint torque control vice versa.

Assuming two adjacent limbs connected with a rotary joint, two main pieces of mechanical ternary linkages are and connected with aligned axis of rotation. The system performs a planar motion. Three control linkages are connected together to perform another control pivot point. A control spring system is attached to the central control link, converting spring force to assisting torque. The angular displacement can be measured by photodiode positioning system.¹⁸ This measurement device is applied the visible light signal by using LED as a transmitter and using photodetector as a receiver between joint displacement and exerting force during motion. Such device emits very low electromagnetic interference (EMI) as proposed for using in medical application referred to CISPR 15 ed. 8.0 proposed.¹⁹

This passive compliant actuator joint is primarily designed as shown in its three-dimensional (3D) structure and assembly design in Figures 3 and 4, respectively. The test system is as depicted in Figure 5.

Figure 3.

3D design of a compliant actuation for medical application.

Figure 4.

Assembling design of a compliant actuation for medical application.

Figure 5.

The proposed overall hardware design of a compliant actuation for medical application.

Mathematic model of compliant joint actuation system

The displacement of spring generates force, converting to the acting torque around the joints. Geared DC motor is acting as a driving torque actuator. The control system was designed and developed by using MATLAB with Arduino software package. The new design of torque control for compliant joint actuation is proposed by using the hybrid between supervisory Radial Basis Function Neural Network (RBFNN) and PID control methods. The controller gains are adjusted by weight of Radial Basis Function Neural Network. The results of simulation and experiment are validated in control aspect.

A simple variable stiffness control with series actuation system is depicted in Figure 6. Then the mathematical model of VSC system is formulized as follows.

M (q) \overset{\cdot\cdot}{q} + C (q, \overset{\cdot}{q}) \overset{\cdot}{q} + g (q) - τ = τ_{ext}

(1)

τ = f (θ - q, σ)

(2)

B \overset{\cdot\cdot}{θ} + τ = τ_{m}

(3)

Assuming very low friction forces, equation (1) represents the dynamic equations of the system. Where $q$ , $g (q)$ , $τ$ , $q_{ext}$ are the joint variables of system. $M (q)$ is the Mass Matrix of the system. $C (q, \overset{\cdot}{q})$ is representing Coriolis-centrifugal force. $τ_{ext}$ is an external force or torque and initially is set to zero. For equation (3), when $q$ , $τ_{m}$ , $B$ are the coordinates of position, torque and polar moment of motor. Nonlinearity function of spring is $f (φ, σ) \in ℜ^{n}$ . where $φ = θ - q$ and $σ$ are additional input variables. Thus this input will not be effected to controller by equation (2). Then it can represent by following equation (4).

τ = f (θ - q)

(4)

Using model of strict feedback form of robot control system is following to by equations (5)–(7).

\overset{\cdot\cdot}{q} = - M (q)^{- 1} (C (q, \overset{\cdot}{q}) \overset{\cdot}{q} + g (q)) + M (q)^{- 1} τ

(5)

\overset{\cdot}{τ} = - c_{f} (τ) \overset{\cdot}{q} + - c_{f} (τ) \overset{\cdot}{θ}

(6)

\overset{\cdot\cdot}{θ} = - B^{- 1} τ + B^{- 1} τ_{m}

(7)

When $c_{f} (τ)$ is the stiffness function of spring with $φ$ value, value of $c_{f} (τ)$ is mostly depended on $q$ . It is not for $θ$ values. Then equations (4)–(7) can be rearranged by equation (8).

φ = f^{- 1} (τ)

(8)

Form Figure 7, the actual position $θ$ is regulated by the following dynamics equation:

I \overset{\cdot\cdot}{θ} = τ_{exos} + τ_{h} - mgL \cos θ

(9)

Where $τ_{h}$ is reacting torque from humans.

τ_{exos} = τ = K_{θ} (θ_{eq} - θ)

(10)

With equilibrium condition, joint variables can be defined by $\overset{\cdot\cdot}{θ}, \overset{\cdot}{θ}$ for passive compliance control.

τ_{exos} = τ = K_{θ} Δ θ = mgL \cos θ - τ_{h}

(11)

Figure 6.

Diagram of VSC system.

Figure 7.

Torque and characteristic of VSC system.

Kinematic model for passive compliant actuation joint

The actuation robot joint prototype with overall system configuration of the kinematic and free body diagram is illustrated in Figure 8.

Figure 8.

Kinematics model of joint.

Force derived by spring is illustrated by equation (12).

F_{s} = K_{S} Δ x

(12)

Thus the spring stiffness constant is calculated by equation (13).

K_{S} = \frac{F_{s}}{Δ x}

(13)

Then it can be obtained the stiffness by equation (14).

K_{S} = 0.1164 \frac{N}{mm}

(14)

Radial Basis Function Neural Network for control design

Radial Basis Function Neural Network (RBFNN) is implemented in design of control system for a passive joint actuation as the structure illustrated by Figure 9.

Figure 9.

Structure of RBF Neural Network.

Structure of RBFNN composes of input layer, output layer and hidden layer. Gaussian function is applied to estimate the relationship of output and input values in hidden layer defined as follows.

Input vector

x = [x_{i}]^{T}

(18)

Hidden layer

h_{j} = \exp (- \frac{{‖ x - c_{j} ‖}^{2}}{2 b_{j}^{2}})

(19)

When center vector $c = [c_{ij}] = [\begin{matrix} c_{11} & \cdot \cdot \cdot & c_{1 m} \\ \cdot & \cdot \cdot \cdot & \cdot \\ c_{n 1} & \cdot \cdot \cdot & c_{nm} \end{matrix}]$ is the centroid of Gaussian function of neural network at point $j$ for input vector at $i = 1, 2, . . ., n, j = 1, 2, . . ., m$ .

For width vector, $b = {[b_{1}, . . ., b_{m}]}^{T}$ , when $b_{j}$ is the width of Gaussian function of neural network at point $j$ for weight vector $w = {[w_{1}, . . ., w_{m}]}^{T}$ .

Output vector is calculated in equation (20)

y (t) = w^{T} h = w_{1} h_{1} + w_{2} h_{2} + \cdot \cdot \cdot + w_{m} h_{m}

(20)

Where the parameters is represented as follows.

$τ_{d}$ is actuator desire torque

$τ_{M}$ is real output torque of the actuator

$θ_{a}$ is level arm angle read by LED and photodiode

$F_{s}$ is spring force

$K_{S}$ is spring constant

From Figure 10, control signal is approximated by RBFNN is obtained by equation (21). RBFNN aims for adjusting the weight output of RBFNN output signal by modify for minimize cost function of square error signal between output signal $u_{n} (k)$ and summation output signal $u (k)$ . PD control is aimed to design for feedback control system.

u_{n} (k) = w^{T} h = w_{1} h_{1} + w_{2} h_{2} + \cdot \cdot \cdot + w_{m} h_{m}

(21)

Where $m$ is the number of hidden layers.

Figure 10.

Block diagram of control system design with RBFNN approach.

The condition of control signal of $u_{p} (k)$ is subjected to equation (22).

E (k) = \frac{1}{2} {(u_{n} (k) - u (k))}^{2}

(22)

The optimization approach is by weight adjustment by using steepest descent (gradient) method. Thus the learning algorithm is changed by calculating by equations (23) and (24), respectively.

Δ w_{j} (k) = - η \frac{\partial E (k)}{\partial w_{j} (k)} = η (u_{n} (k) - u (k)) h_{j} (k)

(23)

w (k) = w (k - 1) + Δ w (k) + α (w (k - 1) - w (k - 2))

(24)

When $η$ is the learning rate, $α$ is the momentum factor. The value of $η \in [0, 1]$ and $α \in [0, 1]$ are in the specified range.

Simulation and experiment results

Simulation results

Transfer function of system is represented by equations (25) and (26).

G (s) = \frac{τ_{M}}{τ_{d}}

(25)

G (s) = \frac{0.99406}{0.001121 s^{2} + 0.06696 s + 1}

(26)

Parameters for setting the control design for RBFNN approach for weight adjustment by using steepest descent (gradient) method. The structure of RBF neural network is designed for 1-4-1 RBFNN. The initial weight is randomly selected and specified the center and bias vector as $c = [- 5, - 3, 0, 3, 5]$ and $b = [0.5, 0.5, 0.5, 0.5, 0.5]$ with the value of $η = 0.3$ and $α = 0.05$ . From the result of control design is depicted in Figures 11 and 12, respectively. Figure 11 shows the response of torque control by using supervisory control structure as followed to Figure 10. Figure 12 illustrates the three portions of control signals. $u_{n}$ is control signal from RBF control. $u_{p}$ is control signal from PD control. Finally $u$ is the total control signal from PD and RBF control.

Figure 11.

Torque control design with spring reinforcement of knee joint for assistive exoskeleton robot.

Figure 12.

Each of control signals for supervisory RBF control.

Experiment results

The experiments are conducted to three types of torque control method for a passive compliant actuation of knee joint for assistive exoskeleton robot application as depicted in Figure 13. The system structure of electronic and device hardware component consists of computer notebook, Arduino mega 2560, LED and photodetector, DC motor driver with four quadrant with 80 Amperes, DC motor with 24 Volts, 2 Amperes. Arduino mega 2560 is applied for input and output signal. Input receives sensor signal as LED and photodiode, and output sends a controlling command PWM signal to actuating DC motor attached with knee joint of robot. The control algorithms have implement to verify the performance control method. Measurement data is received from sensory device such LED and photodetector, and manipulated signal by digital controller. The controller sends the command signal derived by each controller such as PID, RBFNN, and hybrid system to control a passive compliant actuation device. The results of control performance display on window GUI graphic using MATLAB software for system development. GUI interface is developed for assigning and receiving data between controller and computer. Start and stop control of compliant actuation joint commands on window including torque feedback data and graphic data display. Gains of controller are adjusted during experiment by tuning methods setting by Figure 15. Gains of PID controller and PID and RBFNN controller set values by Kp = 0.25, Ki = 0.12, and Kd = 0.1 in experiment investigation.

Figure 13.

GUI monitor for elastic actuating torque control system.

Photo of experiment setup. Operation and design of transmitter and receiver device, Light-Emitting Diode (LED) and photodetectors, was described by.¹⁸ Angular displacement of joint is measured by LED and converted signal to spring stiffness to gain force feedback. Conversion of force to torque is proposed for control design and implementation on these experiments.

Joint torque control is proposed to novel design of control technique. Force is generated by spring positioning that measure by LED and photodiode. Force is converted to torque variables for designing joint torque control mode of dc motor with gearheads. Innovative aspects of control strategy has adopted for supervisory control of PID and RBF control with a new measurement positioning technique by using LED and photodetector for medical application.

From experiment, results of control techniques are illustrated in Figures 13 to 18. Figures 13 and 14 were shown the hardware for experiments set up. Overall control result was depicted in Figure 15. Result of PID control was illustrated in Figure 16, and PID with RBFNN control was demonstrated in Figure 17. The result of supervisory control methods with PID and RBFNN control structure was presented by Figure 18. In conclusion, the high performance supervisory control of PID and RBFNN method was applied to control a passive compliant actuator joint of an assistive exoskeleton robot prototype.

Figure 14.

GUI monitor for elastic actuating torque control system.

Figure 15.

Results of all applied control techniques.

Figure 16.

Response of PID control.

Figure 17.

Response of RBFNN control.

Figure 18.

Response of supervisory control with PID and RBFNN control.

Verification of control parameters and variables from experiment

The verification of design control parameters and variables have extended to study effect of change control parameters and variables as following details. PID gain is set manually through GUI interface as shown in Table 2, and Table 3 shows the basis of changing RBFNN parameters and variables by experiment methods.

Table 2.

Setting PID control gains.

PID gain parameters	Values
Kp	0.25
Ki	0.12
Kd	0.1

Table 3.

Setting RBFNN parameters and variables.

parameters and variables	Values	Remarks
W	matrix weight size $4 \times 4$	Random Weight
Centroid of Gaussian function, C	[–1 1 1 1] with matrix size $1 \times 4$	Changing values
Learning rate, $η \in [0, 1]$	0.3	Changing values
momentum factor, $α$	0.05	Fixed for this experiment

Table 3 represents the setting of RBFNN parameters and variables through GUI interface done by several experiments. The most effects to control compliant actuation by using the technique of supervisory control, RBFNN and PID control method, are described. For RBFNN parameters and variables, the centroid of Gaussian function $(C)$ and learning rate $(η)$ are most affected to control signal. For PID gain adjustment, gain Kp is more affected to control signal due to force produce from compliant actuation. Error of torque control of compliant actuation is not instead of $\pm 2$ N·m with applying technique of supervisory control, RBFNN and PID control method, for this research. The achievement of experiment verification of the proposed algorithm and changing the effected parameters and variables is illustrated in Figures 19 and 20.

Figure 19.

Response of supervisory control with PID and RBFNN control with narrow centroid of Gaussian function (C) for [–3 1 1 3].

Figure 20.

Response of supervisory control with PID and RBFNN control with larger centroid of Gaussian function (C) for [–10 1 1 10].

This experiment can be concluded that the appropriate centroid of Gaussian function (C) is set as following; [–2 1 1 2], [–3 1 1 3], [–4 1 1 4], [–5 1 1 5] are good enough for control response for compliant actuation application, and learning rate is 0.2–0.5. Otherwise if setting the centroid of Gaussian function (C) is higher from those values about [–10 1 1 10], [–20 1 1 20], [–100 1 1 100], and learning rate is 0.2-0.5, the response of control signal output is lower than the former set variables.

Conclusion

In this research, a new design and control for a passive compliant actuation with controllable stiffness was presented. The proposed supervisory control technique by using RBFNN with PID controller has higher performance than conventional PID control or only RBFNN control method. Higher performance of joint torque control improves the ability of gait motion of at each joints that needs. The gait of motion requires the joint torque from motor power. The single support of legs during standing and swinging motion would require higher actuating joint torque. From the result of experiment, error of torque control of compliant actuation is not instead of $\pm 2$ N·m for applying supervisory control, RBFNN with PID controller. Also, the positioning measurement by LED and photodiode could be applied for the medical purpose when this signal spectrum will not harmful from EMI effect to other devices.

Footnotes

Appendix A. Function of PID and RBF control

function btStart_Callback(hObject,eventdata, handles)

% hObject handle to btStart (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returnstoggle state of btStart

global a;

global Volt0;

global Volt1;

global Volt2;

global Volt3;

global Volt4;

global Volt5;

global Volt6;

global Volt7;

global Volt8;

global Volt9;

global Volt10;

global Volt11;

global Volt12;

global Volt13;

global Volt14;

global Total;

global CG;

global Spring;

global Force;

global Torque;

global Min;

global Row;

global Buffer;

global Buffer2;

global start;

global loop;

global mtDuty;

mtDuty =

str2double(get(handles.DutyLimit,'String'));

global kp;

global ki;

global kd;

global e; %Declare variable for error

global ei; %Declare variable forintegral error memory

global ed; %Declare variable forderivative error memory

global pid;

global out;

global fb;

global sp;

u_1=0;u_2=0;

xi=0;

b=0.5*ones(4,1);

c=[-2 -1 1 2];

w=rands(4,1);

w_1=w;

w_2=w_1;

xite=0.30;

alfa=0.05;

sp = 600;

set(handles.slider1,'Value',sp);

set(handles.txSetpoint,'String',sp);

x = 0; %Initial variable for graph force feedback

y = 0; %Initial variable for graph force setpoint

z = 0; %Initial variable for graph output

t = 2; %Initial variable for time of graph

kp=str2double(get(handles.txKp, 'String'));

ki=str2double(get(handles.txKi,' String'));

kd=str2double(get(handles.txKd,' String'));

e = 0; %Initial error to 0

ei = 0; %Initial integral error memory to 0

ed = 0; %Initial derivative error memory to 0

if get(hObject,'Value') %If start button is check

cla; %Clear data for new loop

start = 1;

set(handles.btCloseLoop,'Value',0);

end

while get(hObject,'Value') %If close loop button is check

Volt0 = readVoltage(a,'A14');

Volt1 = readVoltage(a,'A13');

Volt2 = readVoltage(a,'A12');

Volt3 = readVoltage(a,'A11'); %A11 Problem

Volt4 = readVoltage(a,'A10');

Volt5 = readVoltage(a,'A9');

Volt6 = readVoltage(a,'A8');

Volt7 = readVoltage(a,'A7');

Volt8 = readVoltage(a,'A6');

Volt9 = readVoltage(a,'A5');

Volt10 = readVoltage(a,'A4');

Volt11 = readVoltage(a,'A3');

Volt12 = readVoltage(a,'A2');

Volt13 = readVoltage(a,'A1');

Volt14 = readVoltage(a,'A0');

Row = [Volt0, Volt1, Volt2, Volt3, Volt4,…

Volt5, Volt6, Volt7, Volt8, Volt9,…

Volt10, Volt11, Volt12, Volt13, Volt14];

Min = min(Row);

%Filter

if Volt0 - Min > 0.5

Volt0 = Volt0 - Min;

else

Volt0 = 0;

end

if Volt1 - Min > 0.5

Volt1 = Volt1 - Min;

else

Volt1 = 0;

end

if Volt2 - Min > 0.5

Volt2 = Volt2 - Min;

else

Volt2 = 0;

end

if Volt3 - Min > 0.5

Volt3 = Volt3 - Min;

else

Volt3 = 0;

end

if Volt4 - Min > 0.5

Volt4 = Volt4 - Min;

else

Volt4 = 0;

end

if Volt5 - Min > 0.5

Volt5 = Volt5 - Min;

else

Volt5 = 0;

end

if Volt6 - Min > 0.5

Volt6 = Volt6 - Min;

else

Volt6 = 0;

end

if Volt7 - Min > 0.5

Volt7 = Volt7 - Min;

else

Volt7 = 0;

end

if Volt8 - Min > 0.5

Volt8 = Volt8 - Min;

else

Volt8 = 0;

end

if Volt9 - Min > 0.5

Volt9 = Volt9 - Min;

else

Volt9 = 0;

end

if Volt10 - Min > 0.5

Volt10 = Volt10 - Min;

else

Volt10 = 0;

end

if Volt11 - Min > 0.5

Volt11 = Volt11 - Min;

else

Volt11 = 0;

end

if Volt12 - Min > 0.5

Volt12 = Volt12 - Min;

else

Volt12 = 0;

end

if Volt13 - Min > 0.5

Volt13 = Volt13 - Min;

else

Volt13 = 0;

end

if Volt14 - Min > 0.5

Volt14 = Volt14 - Min;

else

Volt14 = 0;

end

Total = (Volt0+Volt1+Volt2+Volt3+Volt4+…

Volt5+Volt6+Volt7+Volt7+Volt9+…

Volt10+Volt11+Volt12+Volt13+Volt14)/2;

Buffer = 0;

Buffer2 = 0;

for j = 0:14

switch j

case 0

Buffer = Buffer + Volt0;

case 1

Buffer = Buffer + Volt1;

case, 2

Buffer = Buffer + Volt2;

case, 3

Buffer = Buffer + Volt3;

case, 4

Buffer = Buffer + Volt4;

case, 5

Buffer = Buffer + Volt5;

case, 6

Buffer = Buffer + Volt6;

case, 7

Buffer = Buffer + Volt7;

case, 8

Buffer = Buffer + Volt8;

case, 9

Buffer = Buffer + Volt9;

case, 10

Buffer = Buffer + Volt10;

case, 11

Buffer = Buffer + Volt11;

case, 12

Buffer = Buffer + Volt12;

case, 13

Buffer = Buffer + Volt13;

case, 14

Buffer = Buffer + Volt14;

end

if Buffer >= Total

CG = 120-((j*8)+(((Total-Buffer2)/(Buffer-Buffer2))*8));

break

end

Buffer2 = Buffer;

end

Spring = ((CG-8)*0.175)+12;

Force = Spring*0.1164;

Torque = Force*300; %N-mm

fb = Torque;

set(handles.txDegree,'String',num2str(CG,3));

set(handles.txSpring,'String',num2str(Spring,3));

set(handles.txTorque,'String',num2str(Torque,3));

if loop == 1

e = (sp - fb); %Calculate error

e = e/30;

pid = ((kp*e)+(ki*ei)+(kd*ed)); %Calculate PID function

if ki > 0 %If ki value > 0 is true

ei = ei + e; %Update integral error

if ei > 10 %If ei value > 1 is true

ei = 10;%Set ei value to maximum

elseif ei < -10 %If ei value < -1 is true

ei = -10; %Set ei value to minimum

end

if kd > 0 %If kd value > 0 is true

ed = ed - e; %Update derivative error

if ed > 10 %If ed value > 1 is true

ed = 10; %Set ed value to maximum

elseif ed < -10 %If ed value < -1 is true

ed = -10; %Set ed value to minimum

end

if pid > 2 %If PID output > 1 is true

pid = 2; %Set PID output to maximum

elseif pid < -1 %If PID output < -1 is true

pid = -1; %Set PID output to minimum

end

up = pid;

xi=(sp-600)/150;

for j=1:1:4

h(j)=exp(-norm(xi-c(:,j))^2/(2*b(j)*b(j)));

end

un=w'*h';

u=up+un;

%Update NN Weight

d_w=-xite*(un-u)*h';

w=w_1+ d_w+alfa*(w_1-w_2);

w_2=w_1;

w_1=w;

u_2=u_1;

u_1=u;

out = u*mtDuty; %Calculate output by limit motor speed

if out > 1 %If output value > 1 is true

out = 1; %Set output to maximum

elseif out < -1 %If output value < -1 is true

out = -1; %Set output to minimum

end

else

out = 0;

end

x = [x,Torque]; %Add new force feedback value to graph variable

y = [y,sp]; %Add new force setpoint value to graph variable

z = [z,(out*10)+15]; %Add new output value to graph variable

save('LegSim2.mat','x','y');

plot(x,'r-'); %Plot force feedback to line graph red color

hold on;

plot(y,'b-'); %Plot force setpoint to line graph black color

hold on;

plot(z,'g-'); %Plot output to line graph green color

if t > 50 %If time of graph > 50 is true

axis([t-50,t,550,750]); %Display all graph by last 50 value

else

axis([0,50,550,750]); %Display all graph by all value

end

disp(pid)

if CG >= 110 %If photo 1 on or limit gripper positive

writeDigitalPin(a,'D11',0); %Set Arduino digital pin 37 off

writeDigitalPin(a,'D12',0); %Set Arduino digital pin 38 off

writePWMDutyCycle(a,'D13',0); %Set Arduino PWM pin 10 off

loop = 0; %Set close loop condition to false

elseif CG <= 8 %If photo 2 on or limit gripper negative

writeDigitalPin(a,'D11',0); %Set Arduino digital pin 37 off

writeDigitalPin(a,'D12',0); %Set Arduino digital pin 38 off

;writePWMDutyCycle(a,'D13',0); %Set Arduino PWM pin 10 off

loop = 0; %Set close loop condition to false

else %If Gripper position is into control range

if loop == 1 %If close loop condition is true

if out > 0 %If output value > 0 is true

writeDigitalPin(a,'D11',0); %Set Arduino digital pin 37 off

writeDigitalPin(a,'D12',1); %Set Arduino digital pin 38 on

writePWMDutyCycle(a,'D13',out); %Set Arduino PWM pin 10 output

elseif out < 0 %If output value < 0 is true

writeDigitalPin(a,'D11',1); %Set Arduino digital pin 37 on

writeDigitalPin(a,'D12',0); %Set Arduino digital pin 38 off

writePWMDutyCycle(a,'D13',(out * -1)); %Set Arduino PWM pin 10 output

elseif out == 0 %If output value = 0 is true

writeDigitalPin(a,'D11',0); %Set Arduino digital pin 37 off

writeDigitalPin(a,'D12',0); %Set Arduino digital pin 38 off

writePWMDutyCycle(a,'D13',0); %Set Arduino PWM pin 10 off

end

else %If close loop condition is false writeDigitalPin(a,'D11',0); %Set Arduino digital pin 37 off writeDigitalPin(a,'D12',0); %Set Arduino digital pin 38 off writePWMDutyCycle(a,'D13',0); %Set Arduino PWM pin 10 off

end

t = t+1; %Update time to plot graph

pause(0.35)

end
