Sustainable energy projects and the community: Mapping single-building use of microgeneration technologies in London

Introduction

A number of commentators have taken a positive view of the potential for urban sustainability, regeneration and transformation. For example, Girardet (1992) points out that profound change to urban environments has taken place in the recent past, which has shaped the current situation, particularly in post-war slum clearance programmes. This he takes as evidence that strong urban leadership and clear policy initiatives can effect far-reaching change, but also stresses the role of social inclusion, and co-operation to facilitate changing living and consumption practices (Girardet, 1992, 1999). Blassingame (1998) is also optimistic regarding the potential for cities to embrace radical socio-technical change, pointing out the past innovations in public health and environmental utilities such as the installation of sanitation systems, clean water supply and, more recently, recycling initiatives. In terms of the prospects for environmentally sustainable change, Brunet-Jailly (2008) reports on the success of Vancouver as a city committed to sustainable development through local participation and policies that are socially progressive but fiscally conservative, which he claims have given rise to an entrepreneurial civic culture. Hodson and Marvin (2009) assert the need to reconfigure resource use, infrastructure and services in a strategic manner to achieve urban sustainability. This, for example, would mean a reduction in dependence on large-scale energy generation from outside the city to smaller-scale internally generated power sources, echoing Girardet’s point that urban energy use is one system of production and consumption that needs reform, as ‘a combination of energy efficiency and clean energy technology is critical for the sustainability of our cities’ (Girardet, 1992: 23).

This paper questions whether such optimism is justified, especially in the larger cities and bearing in mind that energy used in existing buildings comprises almost half of the CO₂ emissions of the C40 group of cities (Arup, 2011). The C40 group includes megacities in countries having high GDP per capita, such as London, New York and Tokyo. It also includes megacities located in developing countries, such as Beijing, Mexico City, Mumbai and Rio de Janeiro and smaller cities in both developed and developing countries. The paper contributes to one of the concerns of the C40 group, which is to learn about what actions are being taken with what impact by cities to respond to the challenges of climate change. As well as climate change other important concerns for cities, and urban areas more generally, include economic development and ‘green growth’, social and economic inequality, health and community cohesion (UNEP, 2011). Crucially, celebrated successes have occurred in relatively small urban areas including less populated cities and towns (UNEP, 2011). Among these (and in relation to actions focused on energy and buildings) are Freiburg, Germany which has a population of less than 250,000 and Copenhagen which has a population of about 1.2 million.

The adoption of microgeneration systems providing on-site electricity using renewable and energy efficient technologies could contribute to this positive environmental impact at a local level in very large as well as the smaller urban locations typically invoked as examples of best practice. The role of local community actors is often considered to be a key factor in the adoption and institutionalisation of microgeneration. However, actors involved in microgeneration projects do not necessarily fit the traditional profile of community action groups. This paper raises the question of how far organisations involved in sustainable energy projects which have an impact at the local level can be considered as bona fide community actors. Furthermore, it questions whether existing conceptualisations of community actions should be extended to embrace a wider set of actors.

Some commentators argue that microgeneration is a particularly suitable means for reducing carbon dioxide emissions in urban environments (Blassingame, 1998), considering that energy use in domestic buildings represents up to half of the overall energy demand of cities (Kellert, 2007). Bergman and Eyre (2011) consider the potential role of microgeneration in the UK identifying advantages of small-scale on-site systems for domestic and community use. However, in the UK diffusion of microgeneration technologies is at an early stage, and a national policy to encourage adoption is a relatively recent development. At present, adoption of microgeneration technologies is dominated by solar panels, both in urban and rural areas. In 2013 there were an estimated 520,000 microgeneration installations in the UK, with photovoltaic panels contributing 400,000 of the total units. This capacity provides a miniscule 0.2% of energy supplied to households (Balcombe et al., 2014). Referring to the situation in Denmark, Marszal et al. (2012) suggest that, in dense urban areas, on-site use of renewable energy technologies may be limited to PV panels or micro-CHP. Hinnells (2008) also points particularly to the growth of micro-CHP units in urban areas, although there are as yet very few small installations based on biomass.

The paper undertakes analysis of a focal urban site, Greater London, to probe the nature of city-scale energy policies and community participation and how these are connected with the diffusion of sustainable technologies for energy generation and demand reduction. The study identifies and characterises urban energy projects therein and employs social network analysis to identify actors and relationships pertaining to the realisation of the projects. The resulting analysis gives an indication of the pattern of diffusion of these technologies and reveals the heterogeneity of actors involved. These results raise questions relating both to the nature of sustainable change in urban areas and to the particular contribution at the local level that can accrue from adoption and diffusion of microgeneration technologies.

Literature review

Community energy projects

A review of community projects undertaken between 2004 and 2006 indicated that representatives of different projects using the word community interpreted the term in different ways (Walker and Devine-Wright, 2008). Based on this data, the authors develop a classification of community energy projects according to two dimensions: process and outcome (see Figure 1). The process dimension refers to project management, what types of actors are involved and their influence. The outcome dimension considers both the spatial and social character of the results of the projects: To what extent do ‘community’ benefits associated with local energy projects actually accrue to ‘the community’?

OPEN IN VIEWER

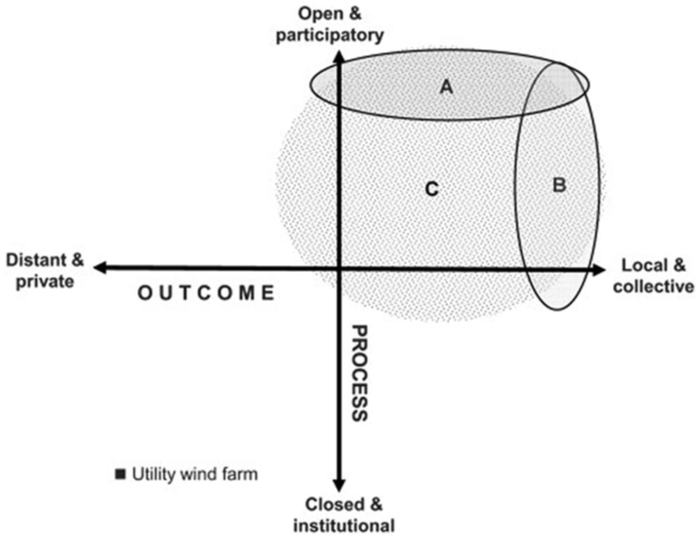

Figure 1.

A classification of community energy projects.

There are a number of observations to be made in relation to community energy projects and the Walker and Devine-Wright classification of them. First, as Walker and Devine-Wright (2008) say, the concept of ‘community’ should not be taken for granted. Rather, ‘community’ refers to ‘a network of people with common interests and the expectation of mutual recognition, support and friendship’ (Barton, 2000: 5). These interest communities often have little to do with locality (Barton, 2000). Further, energy projects may be distinguished as community ‘based’, ‘led’, ‘set up’ or ‘operated’. In NESTA’s ‘Big Green Challenge’, 320 ‘community-led’ applications included a number which were led by professionals, some that were geographically bounded, and projects with a variety of target audiences, young people for example, some of which were only indirectly connected with the applicant groups (NESTA, 2009).

Second, the participatory dimension of urban energy projects may be undermined by state and local government actions, as well as by the ‘local struggles’ that citizens have. Indeed, while the state may offer ‘structural’ (e.g. financial) incentives conducive to mobilisation of community energy, the effect of doing so may be ‘offset’ by entrenched political interests and ‘closed’ policy-making practices and processes (Bomberg and McEwen, 2012). Rather, greater attention to ‘symbolic resources’, such as the need for shared identity and community self-reliance, may provide a more effective basis for promoting community energy initiatives. Evans (2007) suggests the need for qualitative analysis of values and culture, which may be central to community identity, cohesion and action relevant to urban energy initiatives. Previous work indicates the need to identify social networks, social capital and capacity dimensions of community organisation (Peters and Jackson, 2008) and to specify what community energy and sustainability projects need to flourish and the relationship of this to agency (NESTA, 2009; Smith et al., 2005).

Third, it is assumed that ‘the public’ are necessarily interested in taking an active role in urban community energy projects. Rogers et al. (2008) found that members of the public perceived the benefits of community-based renewable energy in positive terms, connected with the conservation of natural resources and building of community spirit. However they also observed that, overall, citizens saw themselves as ‘consultees’ rather than ‘project leaders’ of community energy projects. In addition, the role of business actors in community energy should be considered: evidence from a research project in Scotland (Island of Lewis) suggests that the distinction between small-scale community-owned projects and those driven by private, corporate concerns is not clear (Murphy and Smith, 2013).

Finally, it should be noted that the dimensions included in Walker and Devine-Wright’s (2008) framework do not address the technical characteristics of community energy projects but the social arrangements regarding their ownership and management. However, the co-construction of the social and technical characteristics of community energy may need to be reconsidered, which is a core task of the paper.

Research methods

This section outlines the research methods employed in the present study. The study aims to identify patterns in the diffusion of community energy and microgeneration technology in urban locations. The site of Greater London is selected because its decentralised governance structure helps to examine how policy initiatives at different levels contribute to urban microgeneration viz national level policies, and policies developed at the metropolitan level and by individual boroughs. Furthermore, the plurality in fuel sources and energy conversion technologies found in London microgeneration projects makes it an interesting site to examine variation in urban community energy initiatives. Micro-focused engagement or project-specific case study approaches would not be suitable for meeting the project aim. Surveys of community energy actors may allow for comparisons between projects and point to factors affecting the success of renewable technologies. Unlike case studies, surveys may provide an overview of community energy in a particular geographical setting or focus on a particular renewable technology. However, unlike surveys (cf. Seyfang et al., 2012; Walker et al., 2005), this study adopts a relational perspective, employing social network analysis (SNA) to examine Greater London community energy projects and associated actors. Emphasis is placed on the links between technologies, projects and different types of organisational actors and how these enable knowledge sharing. The use of a relational, network approach bypasses the dichotomy between qualitative case studies and quantitative, survey-based methods (Cambrosio et al., 2004). The relational approach advocated is an alternative to both qualitative, ethnographic studies of community energy projects and to survey-based approaches.

Microgeneration projects may be supplemented by energy demand reduction initiatives at the community level (DECC, 2014). However, this study refers to energy demand reduction only in cases where such activities are combined with a microgeneration project. Data regarding the current status of community energy microgeneration projects in London were collected from publicly available sources, such as planning applications to local councils, company documents and the DECC website. Social network analysis methods were then applied to the visualisation and analysis of the data; large amounts of qualitative information about the actors and their relations were summarised in the graphical format of network maps.

Fundamentally, SNA is employed to address the following research questions:

The methodology includes the following stages:

According to the socio-spatial concept of an area (Murphy and Smith, 2013) the selected projects were Greater London-based: although some installations are not located physically within the Greater London geographical boundaries, their energy source may be a by-product of Greater London-based activities (as in the case of some waste management projects). Following Callon (1992) actors may be defined empirically. A database of projects was constructed using non-obtrusive methods of data collection relying mostly on publicly available data (e.g. from the Department of Energy and Climate Change, the Renewable Energy Association and local authorities). Information from planning applications was used to describe the current state of various projects. Organisational actors associated with the projects were subsequently identified on a basis similar to that of a snowball method (Heckathorn, 2002): organisations were included in the network only where there was a defined link with an already identified project. Hence, community energy projects are the primary units of analysis or the actors that one follows to map the Greater London community energy landscape.

Arguably, a different representation of the network may have emerged if organisations had been selected as the primary points of analysis instead of projects. Network boundaries are problematic to identify and there is inevitably a degree of subjectivity in their selection. Unlike systems, networks are in principle unbounded, yet it is necessary to specify limits for analytical purposes (Conway and Steward, 1998). First one has to decide the rules of inclusion in the network or as termed by Laumann et al. (1983) ‘the definitional focus’. In this case, projects were selected according to geographical location (Greater London), evidence of renewable energy use and their generating capacity (small to medium). Since the term community energy is subject to interpretation, projects were not included solely because they demonstrated evidence of community engagement. Indeed DECC (2014) suggests that the definition of community energy may be expanded to include projects instigated by local authorities, housing associations or local businesses. We would not claim that the aforementioned rules of inclusion provide a definitive account of community energy in Greater London. Adopting different criteria regarding the selection of projects would lead to the enactment of alternative realities: realities and their representations are not independent of the research process that generates these representations (Law, 2004). In that sense, interpretations of the term ‘community energy’ affect the definition of the questions, while the term itself is subject to redefinition in the light of analysis and findings produced.

Both the organisations and the projects were classified according to certain criteria. The organisations were categorised according to their organisational type (businesses, local or central government actors and civil society organisations such as community groups). In addition, organisations are classified in terms of their relation to the projects: they can be linked to a project as funders, as clients/users of the generated energy or as technology developers.

Information on the power generation capacity of the projects was added where available. However, information on the energy-generating capacity was in some cases either missing or unclear since different sources provided different estimations. Information is also available on the intended energy use (domestic or office use; heat, power or both). The projects are classified according to a combination of energy source and energy conversion technology. The classification leads to the following categories of projects:

SNA was employed to examine characteristics regarding technology diffusion. The concepts of homophily and heterophily were applied to demonstrate how the characteristics of network actors affect the potential for innovation. Homophilous networks where actors share the same attributes are more likely to lead to standardisation in technology choices, while participation in heterophilous networks is more likely to expose actors to new ideas. Ideally, a balance between homophily and heterophily should exist in order for a network to be effective in nurturing innovation (Callon, 1992; Granovetter, 1985), though increased homogeneity and standardisation are likely to exist in a denser, more cohesive network (Granovetter, 2005). Here the role of homophily versus heterophily in the network of organisations is evaluated by counting the number of external ties (between organisations of the same type) minus internal ties (between organisations of different types) as a proportion of all ties in the network (the E-I index measure by Krackhardt and Stern, 1988). Hence, the value of the E-I index is −1 in a network dominated by internal ties. In terms of the network of projects and actors involved in community energy in Greater London, the co-existence of multiple technologies and actors of different organisational characteristics is used to evaluate the level of heterogeneity; however, heterogeneity is not seen as an obstacle to the diffusion of sustainable energy technologies. SNA techniques were applied to identify potential sociotechnical trajectories by observing the structural pattern of network relations. Subsets of the aggregate network that are characterised by increased levels of cohesion suggest that actors within the same subset are more likely to share expertise and share similar views on the implementation of community microgeneration (Burt, 1992, 2004). The approach taken here identifies network ‘components’, in other words subsets of a network where there is at least one path of links that connects any two given nodes (de Nooy et al., 2005). Finally, network centrality measures are used to identify actors that hold more influential positions. These actors are positioned as gatekeepers in the flows of expertise and funding in the aggregate network, which can act as bridges between actors and effect collective action (Moss, 2009). Hargreaves et al. (2013) suggest that community energy intermediaries deploy diverse ways in diffusing generic lessons from projects developed in specific contexts. Betweenness centrality analysis was used to identify central actors as this centrality measure is more suitable to identify actors with the potential to act as mediators (Knoke and Yang, 2008).

Microgeneration and community energy projects in Greater London

Projects, networks and actors

The secondary research identified 93 microgeneration projects in Greater London (approximately within the area bounded by the M25 orbital motorway). Each project is linked to a number of organisational actors. Of the projects, 86 were included in the analysis; projects were excluded if proposers did not gain planning permission, withdrew their planning application or abandoned projects. The resulting database includes only operational projects and projects awaiting construction. Initially, a bipartite network was constructed that includes both projects and organisational actors: the bipartite network only includes links between organisations and projects. The visualisation does not distinguish between the types or strength of the linkages between organisations and projects; only the presence or absence of a linkage is indicated. For reasons of visual clarity, only network components with at least four nodes (organisations or projects) are included.

The network is divided into different components. A number of major actors in some components are highlighted in Figure 2. Communication and exchanges between organisations in the same component are possible even if the actors are not involved in the same projects. On the other hand, interaction between actors in different components is not possible on the basis of the linkages that have been mapped in this network. Yet, the network represents concrete evidence of involvement in particular renewable energy installations: there is the possibility that actors in different components may have forged looser, more informal linkages through alternative networks.

OPEN IN VIEWER

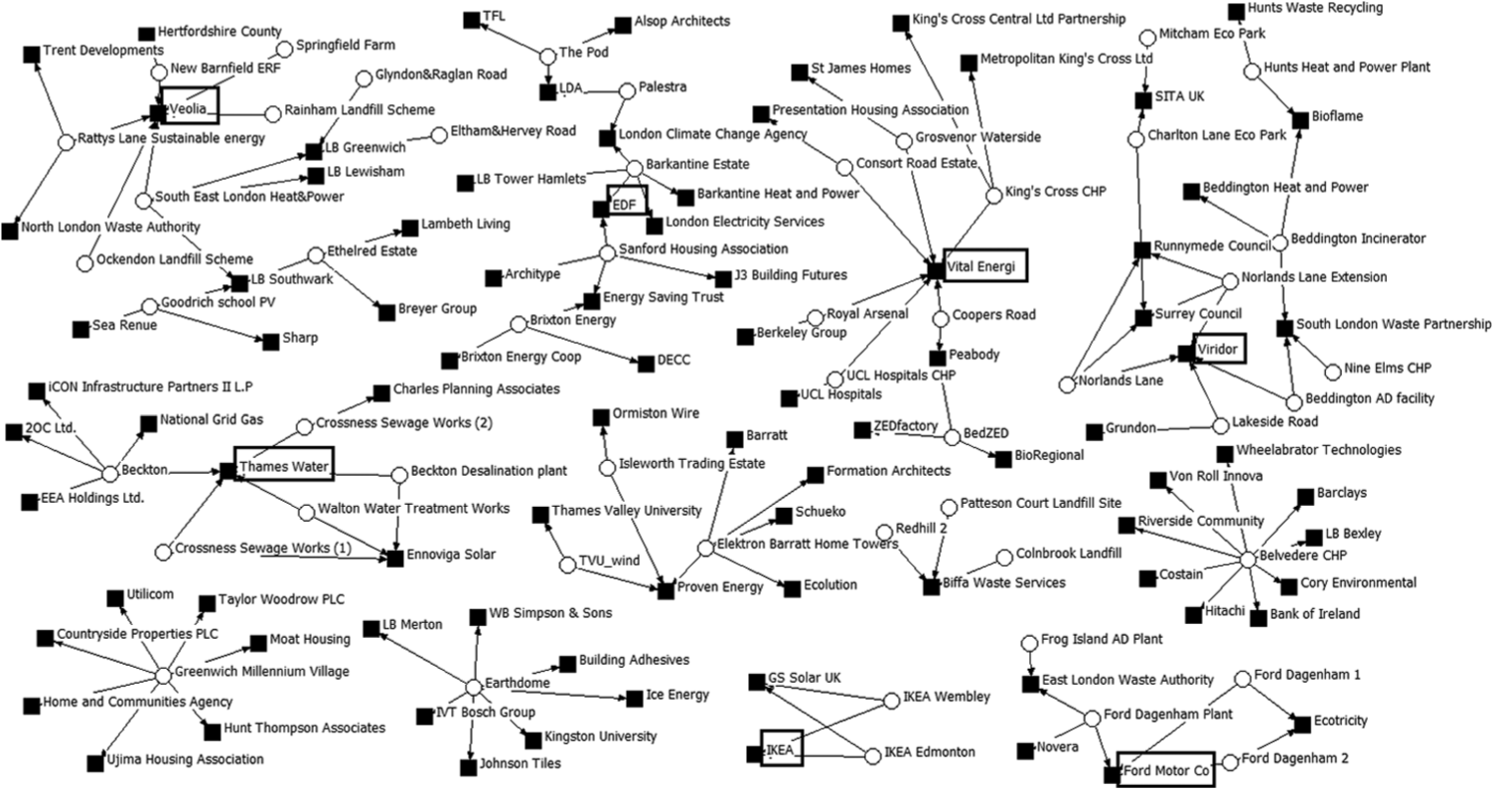

Figure 2.

London community energy projects and linked organisations. White circles = projects, black squares = organisations.

The participation of utility companies (Veolia, Thames Water) is observed in two of the components. These companies are involved in fairly large-scale projects in terms of capacity. The network component including Veolia (top left in Figure 2) demonstrates the company’s involvement in a number of projects (including landfill gas, energy from waste and CHP). Their involvement in the South East London Heat & Power (CHP) plant provides a bridging link to a number of projects involving boroughs in Southeast London. Thames Water (mid left side) is also involved in CHP, but also in solar and wind energy projects.

Other network components include retailers (IKEA, Sainsbury’s) and local councils, which have a strong presence. However, participation of Greater London-wide or central government organisations is more limited. Regarding the involvement of corporate actors, Ford has invested in wind turbines and biomass/waste incineration in its Dagenham plant in partnership with organisations that could provide technical expertise (lower right side in Figure 2).

The bipartite network provides more detailed information on the current state of community energy in London; however, the identification of patterns is better achieved through the examination of two separate one-mode networks: the network of projects and the network of organisations. In the visual representations of these networks the strength of the link between two organisations represents the number of projects they are jointly involved in. Similarly, projects are linked when they both have links to the same organisations. Figure 3 includes the network of organisations.

OPEN IN VIEWER

Figure 3.

London community energy actors. Circles = business actors, square = central government, boxes = local government, triangles = civil society.

There is a dominant presence of business actors in the network of organisations and very limited presence of civil society actors (Riverside community, Bioregional, Brixton Energy Coop), that one would expect to have a co-ordinating role in community energy projects. Businesses are involved both as technology developers (for instance, engineering and architecture firms) but also as users of community energy. There is a strong presence of local government actors (22 organisations); it is arguable that the presence of local government serves a function in promoting/financing community energy that one would expect community groups to fulfil. It is evident from the visualisation that particular actors/links play a mediating role in components of the network. Still, some components are too small to have any significant influence.

With regard to issues of homophily and heterophily the data indicate that there is a tendency towards internal ties (homophily) to a degree that is slightly higher than expected for a network of this size and group composition: the observed E-I index is nearer the value of −1 than would be expected in a random network. This results primarily because business organisations, which dominate the network, tend to link to other businesses. Government (national and local) and civil society associations are more likely to form out-group ties, usually with businesses. Although the network is fragmented into components there is evidence of cohesion at the local level as transitivity is high: when two actors are linked to the same third actor, they will be directly connected themselves in 67.43% of cases.

A number of actors with high betweenness centrality are identified (such as EDF, Vital Energi, LB Southwark) however their role is limited to their respective components. Hence, network centralisation (the dependence of the network on particular central actors) is very low.

Since the network is disconnected there is a lack of intermediaries at the global level. This observation is consistent with the view that there is a lack of centralised mechanisms for the implementation of community energy policies.

The network of projects is represented in Figure 4 but does not include isolated nodes (unconnected projects). Here, there is a strong presence of CHP technology (up triangles − 24 projects) and solar energy (PV panels) installations (circle nodes − 19 projects).

OPEN IN VIEWER

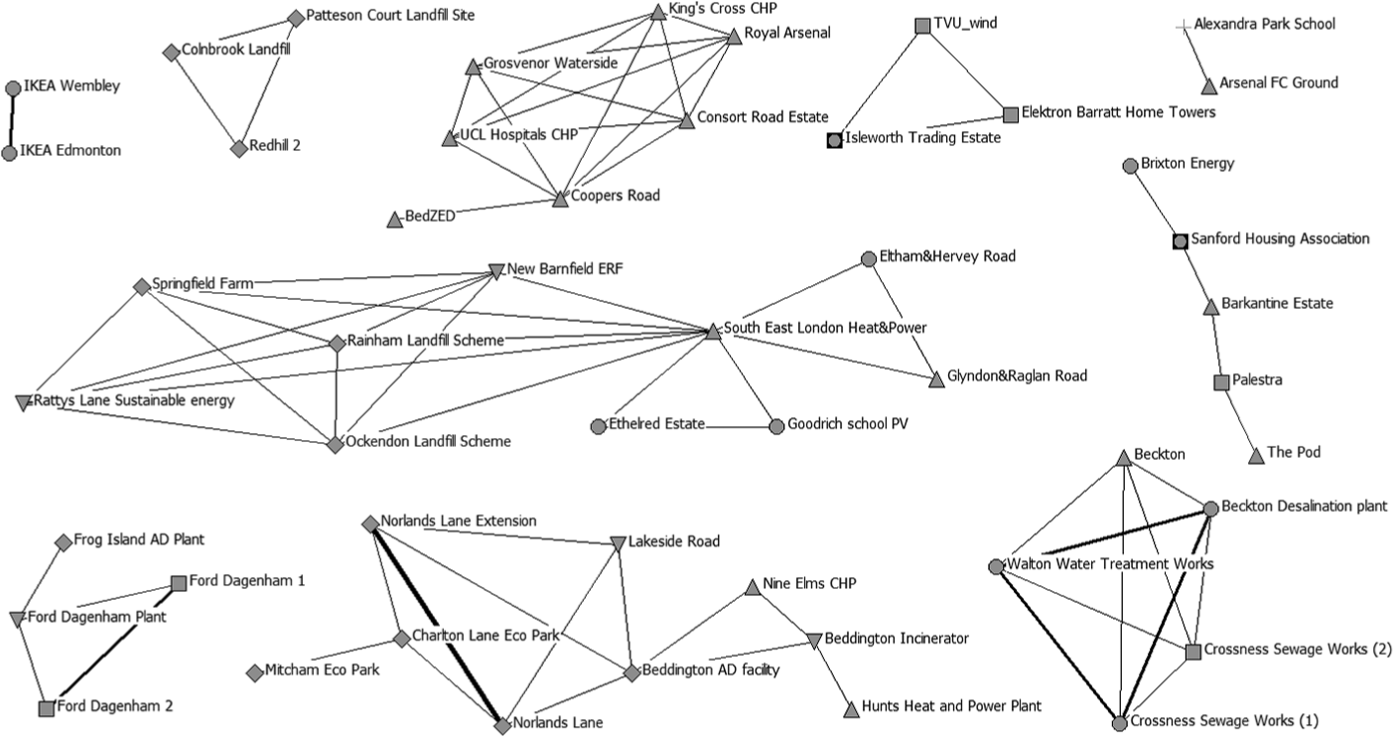

Figure 4.

London community energy projects featuring technologies. Inverted triangle = biomass/waste incineration, triangle = CHP, cross = geothermal, circle in a box = hybrid, diamond = landfill gas or AD, circle = solar, square = wind.

The number of CHP projects indicates a potential pathway towards this technology although there are limited links among projects of this type. One component of the network includes the projects financed by Thames Water. Another component includes a set of anaerobic digestion projects (diamond shaped nodes − 16 projects) using landfill gas. The literature review suggested limited uptake of biomass yet it appears that anaerobic digestion/biogas projects are more established than predicted. The incentives behind these projects may relate mostly to concerns about appropriate methods of waste disposal (other than landfill) than with energy issues.

Regarding the role of isolated projects these can only have limited effects on the evolution of the network since they lack links to other projects. Although the actors involved in such a project exchange expertise and resources, they cannot benefit from experience developed in other projects. It could be the case that some of these actors are involved in non-London-based projects. Even so, they would lack access to information about the particular requirements of microgeneration in Greater London. As outlined in earlier sections, there are particular policy issues regarding sustainable energy in an urban environment.

Like the network of organisations, the network of projects also indicates high transitivity (55.96%). Although the overall network is disconnected there is potential for knowledge exchange at the local level. In addition, analysis of the prevalence of in-group versus out-group ties shows that projects are more likely to be linked to projects of the same energy type to a greater extent than would be expected in a random network: considering that projects are linked through organisations this suggests that organisations are more likely to engage with a particular technology.

Discussion and conclusion

The section reflects on the findings of the study, as they pertain to the contribution to knowledge it makes regarding the nature of community energy or microgeneration projects and the specific research questions underpinning the project. Overall, the paper finds that the classification of ‘community’ urban energy projects is more complicated than was apparent in the earlier work of Walker and Devine-Wright (2008). For example, in relation to ‘process’ issues it is necessary to unpack notions of ownership of and involvement in local energy generation initiatives. There ‘are many forms of project being given the community label’ as Walker and Devine-Wright (2008: 499) recognised but this heterogeneity requires closer scrutiny.

The first research question concerns the content of microgeneration projects. On the basis of the analysis presented here, relating to selected microgeneration projects in Greater London, the content of initiatives varies widely in scale, technology and purpose. However, projects featuring combined heat and power technology dominate, a finding consistent with Hinnells’ (2008) remarks regarding the suitability of CHP in cities. Thus their popularity in London is expected. In relation to the second research question, the paper shows that in many projects the central actors are not residents, local activists or energy firms. In terms of ‘outcomes’, the accrual of benefits from the projects needs to be set in the light of the identity and interests of promoters, whose orientation had much to do with waste or water resource management, for example, rather than energy reduction or generation per se. Here one sees the centrality and motivation of specific non-energy focused firms and utilities, such as: Veolia (waste management), Viridor and Thames Water (which had land resources available and funding necessary to support Crossness and Beckton projects, for example). This is consistent with the observation that the development of anaerobic digestion is partly driven by the need to reduce waste sent to landfill (Levidow and Papaioannou, 2013). Projects run by non-energy corporations demonstrate how energy is linked to the provision of other public services such as waste management and sanitation, so that more integrated policies may be necessary. Recognising this, it appears that the social character of benefits to ‘the community’ connected with heat or electricity supply are by-products of project activities driven by other concerns. There is a spatial dimension in that the main promoters are organisations that are distant from the communities being served by the projects by dint of the international nature of their ownership and spread of activities.

The third research question related to the role of community and other actors, and to the relationships among actors and projects. Here, the paper showed that the LDA development agency and regional and borough councils assumed a more significant co-ordinating role than either central government or London-wide bodies such as the London Assembly or the Mayor of London’s office. Specific local initiatives are thus partly shaped by the activities of local councils and the business strategies of large national and international corporations, and much less by community organisations or private residents. Project-level learning is impaired since the network lacks actors that could play a central co-ordinating role and transfer expertise between projects in different boroughs. The isolated character of some projects further exacerbates this problem. It could be argued that local councils have a mediating but contradictory role in both representing and supporting but also silencing local communities.

The majority of the projects rely on more popular renewable energy technologies such as CHP and PV rather than more untested technologies such as heat pumps. The participation of local authorities in a substantial number of projects indicates a potential pathway of institutional arrangements for community energy where local authorities may substitute for the lack of London-wide co-ordinating actors. The engagement of large corporate actors suggests a pathway more compliant with the distant and private/closed and institutional quadrant in the Walker and Devine-Wright (2008) typology.

Our representation indicates a lack of actors that are conventionally classified as community (community groups, social enterprises, residents association). However, their paucity does not necessarily indicate that they bear no influence on community energy developments. As Rogers et al. (2008) note, community actors may not wish to take the initiative regarding the development of projects but retain a more discreet role. The strong presence of local government actors would suggest that they represent the local communities through the political and planning process. Energy utilities are an additional group of actors with minimal representation in the network. However, this may be attributed to the relatively small scale of the selected projects.

Reflecting on the above, it is apparent that in the future research should examine and categorise the different promoters of and motives for ostensibly community-driven initiatives, and tease out the various roles that they and other actors play in related projects, as well as interactions among them and the activities they perform. This will require scrutiny of the purposes, work and networking of (local) governmental organisations, waste, building and energy companies, and community groups and residents in urban energy and related community projects, as this relates to policy-making as well as to activities ‘on the ground’. A benefit of doing so could be to generate further insight into the relative merits or complementarity of micro-, meso- and macro-level studies of community energy, by examining the conventions, assumptions and practices which constitute behaviour of and relations among protagonists, or which leave others out, mindful of wider patterns of change. The accomplishment of the latter in terms of the adoption of more sustainable energy technologies is in itself only part of the story. Without attention to their effective use in practice mere installation of sustainable urban or microgeneration energy technologies will not make the required contribution to climate change targets. This aspect, too, requires further examination from the perspective of adopting a longitudinal approach tracing developments through from project gestation to post-adoption everyday use.
