An overview of optimized planning for multi-region integrated multi-energy systems

Abstract

Multi-region integrated multi-energy system (MES) combines electricity, heat, and hydrogen networks to improve energy efficiency and reduce carbon emissions. Planning such interregional systems remains difficult because of nonlinear energy interactions, spatial–temporal coupling, and various regulatory constraints. This paper reviews optimization-based planning methods for multi-region MES and explains how recent studies manage system coordination, uncertainty, and trade-offs among energy carriers. The reviewed literature was selected from major databases—Scopus, Web of Science, and IEEE Xplore—to reflect the development of optimization approaches such as mixed-integer programming (MILP/MINLP), metaheuristic algorithms, model predictive control, and data-driven frameworks. The literature spans from 2009 to 2025, capturing both early foundational studies and the most recent advances in optimization-based MES planning. The analysis summarizes the main progress, technical limitations, and remaining challenges related to policy integration, investment interaction, and regional coordination. The paper concludes that future research should establish scalable optimization methods that link technical design, economic performance, and policy goals in integrated energy planning.

Keywords

Interregional integration optimization strategies challenges multi-energy system energy integration

Introduction

As climate change intensifies environmental and economic pressures, decarbonization has become a major objective in the energy sector. Renewable energy is regarded as a practical pathway toward this goal, but sources such as solar and wind remain highly dependent on weather conditions, leading to variability and uncertainty in power generation (Liu et al., 2022). These fluctuations create operational and economic challenges that affect grid stability as renewable penetration increases. At the same time, industrialization and continuous growth in energy demand increase the strain on existing supply systems. Traditional fossil fuel-based infrastructures are limited in their ability to balance diverse and dynamic energy demands.

To address these issues, a multi-energy system (MES) integrates electricity, heat, and hydrogen networks for coordinated operation and efficient energy use. It supports flexible conversion among energy carriers, reduces dependence on a single source, and improves overall system stability and efficiency (Kang et al., 2022; Xu et al., 2024).

Figure 1 presents the interaction among these energy systems and depicts interregional exchanges, showing that network design and market coordination are necessary to maintain balance across regions. Effective MES planning requires both individual source analysis and an integrated approach that captures their interdependence. Interregional integration helps reduce supply–demand mismatches and enhances operational stability (Kaushik et al., 2022). This study examines technical and structural challenges in interregional MES development and proposes methods to improve efficiency and stability.

Figure 1.

Framework for multi-energy system integration and regional energy sharing.

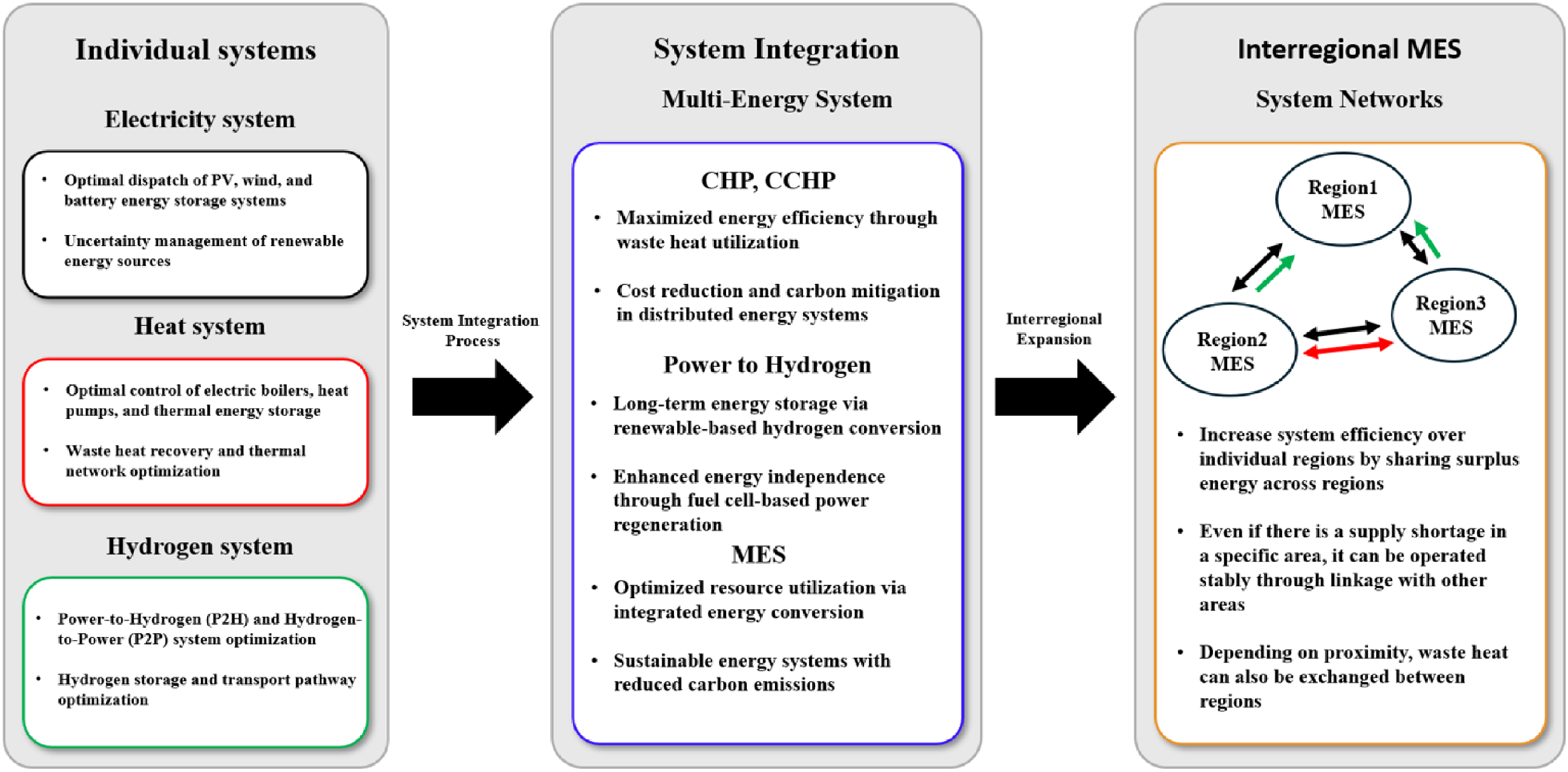

Figure 2 illustrates the transition from individual energy systems to an integrated MES and its interregional expansion. Traditional single-energy systems operate independently and are optimized for specific resources within each sector (Koirala et al., 2021). This isolated structure limits the ability to manage renewable fluctuations and often results in supply–demand imbalances. To address these challenges, MES integrates electricity, heat, and hydrogen systems to coordinate energy conversion and improve overall utilization. Technologies such as combined heat and power/combined cooling, heating, and power (CHP/CCHP), power-to-hydrogen (P2H), and power-to-gas (P2G) contribute to system stability by utilizing surplus renewable energy and reducing variability (Wang et al., 2023c). The operation and optimization of MES components, however, involve multiple variables and nonlinear interactions. A practical strategy is to optimize each MES regionally and then expand integration across regions to form an interregional MES. As shown in Figure 2, regional MES interconnections enhance grid stability, mitigate renewable generation variability, and lower operational costs. Studies such as Colbertaldo et al. (2023) demonstrate that integrated multi-energy coordination supports system-wide reliability and cost efficiency.

Figure 2.

The process of establishing linkages between regions of multi-energy systems.

In power systems, stable operation depends on renewable generation and energy storage systems (ESSs). Research has focused on integrating smart grids and distributed energy resources to improve flexibility and reliability.

In thermal systems, waste heat recovery and thermal energy storage (TES) help manage seasonal load variations and increase efficiency. In hydrogen systems, P2H conversion and storage contribute to carbon reduction and energy balance.

Optimizing these individual systems improves the performance of interregional MESs and forms a foundation for sustainable energy planning.

This study reviews optimization approaches for electricity, heat, and hydrogen systems. Ismail et al. (2014) applied a genetic algorithm (GA) to a hybrid renewable system but did not include battery operation or reliability analysis. El-Bidairi et al. (2018) incorporated battery sizing and operational costs to improve stability, while Barbaro and Castro (2020) used Monte Carlo simulations to account for uncertainty. Jamal et al. (2024) combined GA with rule-based control to enhance cost efficiency and reliability under variable conditions.

Bracco et al. (2013) and Li et al. (2020) analyzed CHP and district energy systems using static or region-specific models. Lv et al. (2025) extended this by integrating robust model predictive control (MPC) with deep learning to improve adaptability and reduce energy consumption in CHP, P2H, and P2G systems.

Kuby et al. (2009) and Lin et al. (2020) optimized hydrogen refueling networks using flow and GIS-based models but did not address long-term planning. Jiao et al. (2013) and Ding et al. (2011) examined hydrogen distribution feasibility through network modeling. Zhou et al. (2024) proposed a cost-minimizing model linking hydrogen sources and transport routes, and Steidl et al. (2024) demonstrated GIS-based multisector integration at the urban scale.

Collectively, these studies show a gradual shift from component-level optimization toward integrated, data-driven frameworks that account for temporal variability, operational uncertainty, and spatial interconnection. Earlier works mainly focused on improving subsystem efficiency within isolated domains, while recent research has emphasized coordination across electricity, heat, and hydrogen sectors. This transition reflects an evolution from deterministic and region-specific modeling to adaptive and predictive optimization strategies capable of supporting large-scale, interregional MES planning.

Table 1 summarizes and compares the objectives and primary focus areas for each energy type.

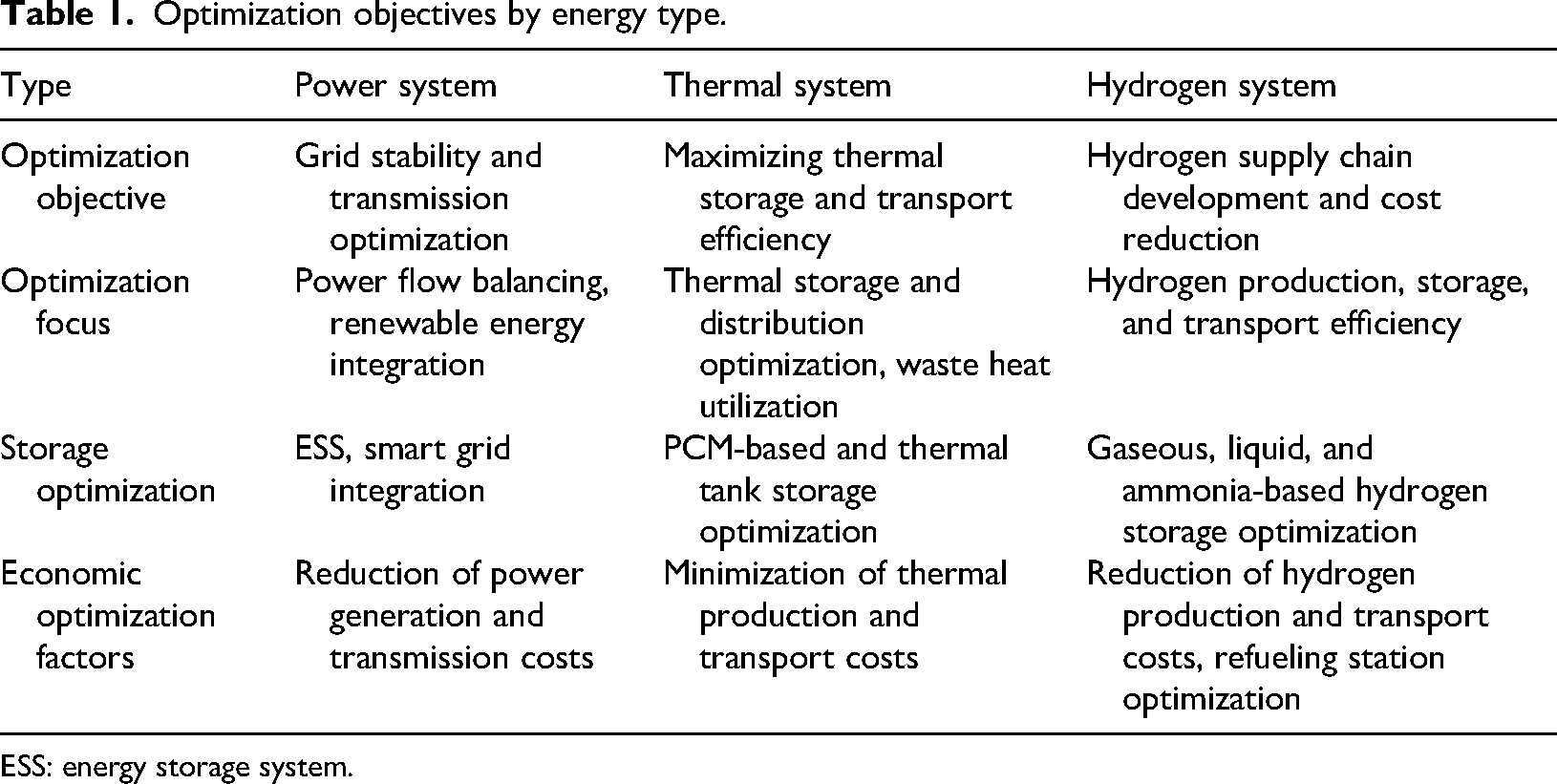

Table 1.

Optimization objectives by energy type.

Type	Power system	Thermal system	Hydrogen system
Optimization objective	Grid stability and transmission optimization	Maximizing thermal storage and transport efficiency	Hydrogen supply chain development and cost reduction
Optimization focus	Power flow balancing, renewable energy integration	Thermal storage and distribution optimization, waste heat utilization	Hydrogen production, storage, and transport efficiency
Storage optimization	ESS, smart grid integration	PCM-based and thermal tank storage optimization	Gaseous, liquid, and ammonia-based hydrogen storage optimization
Economic optimization factors	Reduction of power generation and transmission costs	Minimization of thermal production and transport costs	Reduction of hydrogen production and transport costs, refueling station optimization

ESS: energy storage system.

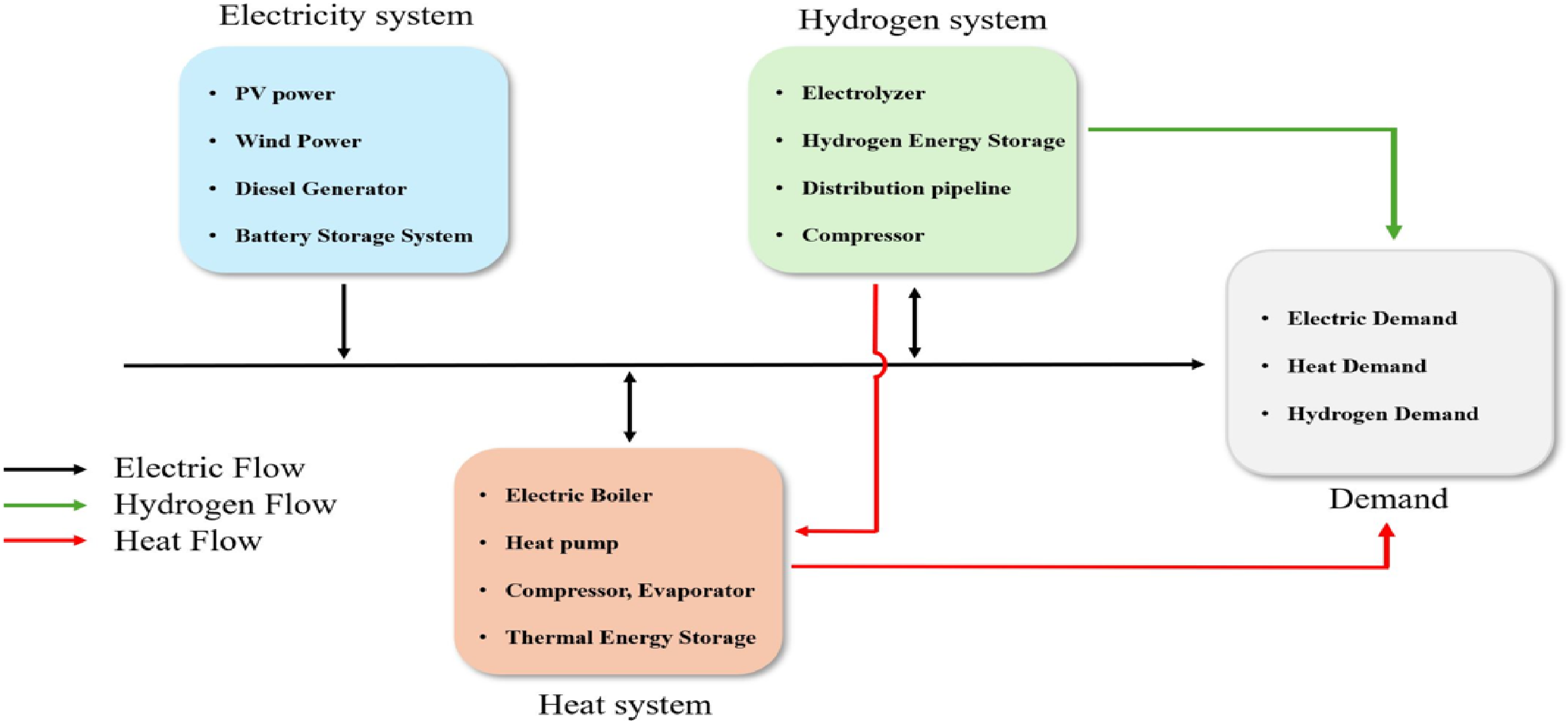

Figure 3 shows the structure of a regional MES integrating power, thermal, and hydrogen networks. The power system includes solar photovoltaic (PV), wind turbines, diesel generators, and battery storage, where the generated electricity is either used directly or converted to hydrogen through P2H electrolysis. The converted hydrogen is stored and distributed for later use in energy balancing and industrial applications.

Figure 3.

A schematic diagram of a single-region multi-energy system.

The thermal system uses electric boilers, heat pumps, and TES units to recover waste heat and meet heating demand. However, single-region optimization faces difficulties in addressing renewable variability, supply–demand imbalance, and large-scale scalability.

Energy storage technologies have complementary roles: ESS is suitable for short-term balancing, whereas P2H enables long-term storage by converting electricity into hydrogen for later use. A lack of interregional energy-sharing infrastructure further constrains system reliability and flexibility.

Earlier studies primarily optimized independent regional systems, which restricted scalability for integrated, cross-regional planning. Recent research has advanced MES optimization by incorporating interregional coordination of electricity, heat, and hydrogen flows. This integrated approach aims to optimize grid interconnection, thermal network coupling, and hydrogen storage and transport systems to enhance energy efficiency and system resilience.

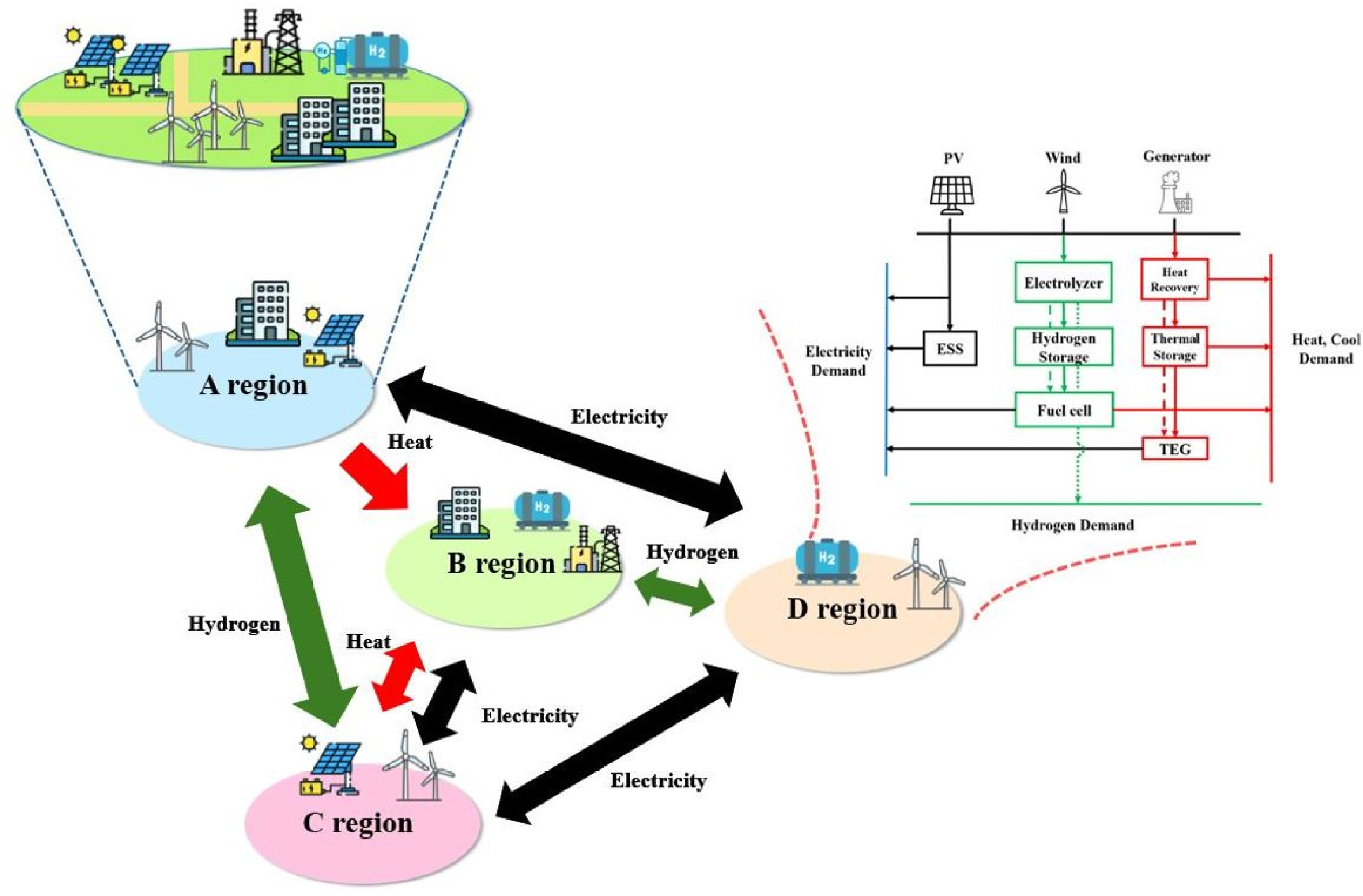

Figure 4 illustrates the conceptual framework of an interconnected MES. Electricity is transmitted through power lines, hydrogen through pipelines, and heat is mainly utilized within local areas because of transmission losses. Interconnection among regions mitigates renewable generation variability and improves both distribution efficiency and economic feasibility, overcoming the limitations of isolated regional systems and supporting a more stable energy network.

Figure 4.

Approximate composition of multi-energy optimization linked between regions.

Interregional MES studies have explored different approaches to address the limitations of single-region optimization. Zheng et al. (2012) developed an interregional power-trading model focused on economic analysis, while Yi et al. (2016) and Wu et al. (2021) considered long-term planning and cross-border grid connections but did not fully reflect real-time operation or technical constraints. Li et al. (2025) added congestion management and security checks to a market-based regional model, showing how interprovincial clearing affects grid stability under complex market structures.

In thermal networks, Tang et al. (2018) introduced interregional coordination to improve efficiency, and Chen et al. (2022) included temperature control, though both were limited to offline frameworks. Deng et al. (2023) advanced this line of research by applying deep reinforcement learning (DRL) and digital-twin modeling to district heating systems, achieving real-time adaptability and fuel-cost reduction beyond traditional optimization.

In hydrogen systems, Cho and Kim (2019) optimized production, storage, and distribution networks as a single framework, while Yang et al. (2025) developed a cross-regional hydrogen supply chain using mixed-integer programming to model hydrogen state transitions and storage flows, achieving both cost reduction and a 26.7% decrease in carbon emissions.

Overall, research has progressed from economic and planning-oriented analyses toward dynamic, data-driven optimization that considers real-time operations and sector interactions. Table 2 compares single-region and interregional approaches, highlighting the need for multi-region integration to enhance energy efficiency and system resilience.

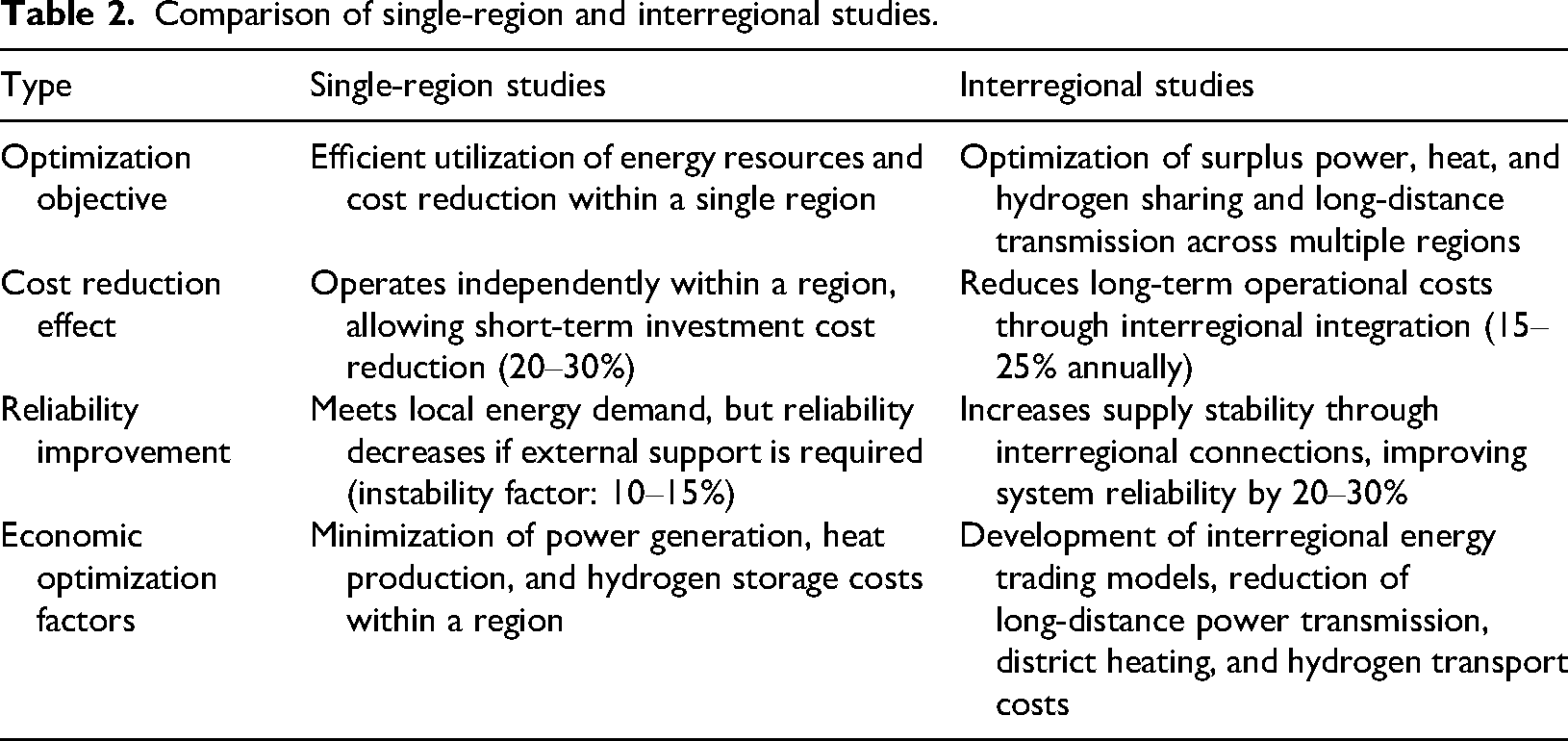

Table 2.

Comparison of single-region and interregional studies.

Type	Single-region studies	Interregional studies
Optimization objective	Efficient utilization of energy resources and cost reduction within a single region	Optimization of surplus power, heat, and hydrogen sharing and long-distance transmission across multiple regions
Cost reduction effect	Operates independently within a region, allowing short-term investment cost reduction (20–30%)	Reduces long-term operational costs through interregional integration (15–25% annually)
Reliability improvement	Meets local energy demand, but reliability decreases if external support is required (instability factor: 10–15%)	Increases supply stability through interregional connections, improving system reliability by 20–30%
Economic optimization factors	Minimization of power generation, heat production, and hydrogen storage costs within a region	Development of interregional energy trading models, reduction of long-distance power transmission, district heating, and hydrogen transport costs

Unlike previous reviews such as Xu et al. (2024), which focused on district-scale configurations and individual technologies, this study extends the analysis to multi-region energy networks that simultaneously consider electricity, heat, and hydrogen systems. It emphasizes real-time operational optimization under regional interconnection constraints and incorporates both economic feasibility and policy alignment. This cross-regional and cross-sectoral framework offers a system-level perspective on MES optimization that supports decision-making for large-scale decarbonization planning.

The structure of this paper is organized as follows. Methodology Section describes the optimization models and methodological approaches applied to MES. Optimization challenges in multi-energy system Section summarizes studies on individual MES optimization, interregional integration, and economic analysis. Advancement in multi-energy system research Section reviews the development and evolution of MES systems. Conclusion Section concludes the paper and outlines its main implications.

Methodology

MES optimization requires methods that consider interactions between different energy carriers. This section focuses on interregional optimization, comparing optimization techniques and evaluating their advantages, limitations, and applicability. It also defines the mathematical modeling components of MES, including parameters, objective functions, and constraints.

Optimization technique

Optimization methods for MES optimization are broadly categorized into linear and nonlinear approaches. Depending on the problem characteristics, mathematical optimization, AI-based methods, and metaheuristic algorithms are employed. Linear optimization techniques (LP, mixed-integer linear programming (MILP)) are suitable for relatively simple problems, while nonlinear methods (nonlinear programming (NLP), mixed-integer nonlinear programming (MINLP)) are applied to complex system modeling. Additionally, AI and metaheuristic algorithms (e.g. GA, PSO) effectively handle complex optimization problems but often involve high computational costs. The following section compares these optimization techniques and analyzes their applicability for interregional MES integration.

Linear optimization techniques (LP, MILP)

Zhang et al. (2019) optimized energy and power flows in MESs using MILP, achieving fast computation and feasible implementation. However, their model applied a single-objective formulation that excluded cost and environmental considerations. Sun et al. (2022) addressed this limitation by combining MILP with a multi-objective optimization algorithm (NSGA-II) to obtain more balanced operational strategies. Although the hybrid method improved optimization accuracy, its higher computational complexity limited real-time applicability. Overall, MILP-based models provide high computational efficiency, while multi-objective frameworks enhance system realism; the selection between them should be based on problem scale, objective structure, and operational requirements.

Nonlinear optimization techniques (MINLP, NLP)

Imeni et al. (2023) applied MINLP to optimize fuel-cell and energy-conversion systems, demonstrating its effectiveness for highly nonlinear MES problems. However, the increased computational complexity resulted in longer solution times. Wang et al. (2023b) addressed this issue by introducing a multi-objective MINLP framework that considered both integer and continuous variables, achieving greater solution precision but at a higher computational cost. Compared with Imeni et al. (2023), Wang et al. (2023b) offered a more refined optimization structure but required significantly greater processing effort.

In a Danish multi-energy integration project, MINLP-based optimization was successfully used to mitigate renewable variability, demonstrating feasibility in practical applications. Conversely, Marocco et al. (2022) employed NLP for off-grid renewable optimization but struggled to reach a global optimum. Xu et al. (2023) improved the heat-power coupling representation, enhancing realism over Marocco et al. (2022) while increasing computational burden and reducing real-time applicability. Mallégol et al. (2023) further advanced heat-power coupling optimization by introducing physical models that improved practical accuracy but also increased computational demand.

For multi-objective optimization, Wang et al. (2018) applied NSGA-II to optimize carbon emission reduction and resource allocation, effectively handling multiple objectives. However, the expanded search space led to a significant increase in computational complexity. Compared to Wang et al. (2018), Eriksson and Gray (2019) proposed an approach incorporating both environmental and economic factors, offering a more balanced optimization framework but suffering from slower convergence. Sun et al. (2022) improved computational efficiency by combining MILP with GA, outperforming Wang et al. (2018) and Eriksson and Gray (2019) in terms of solution speed and precision. Liu et al. (2021a) further refined optimization performance using NSGA-III, achieving faster convergence than NSGA-II while still facing high computational demands.

For global optimization, Tang et al. (2018) used GA to search for global optima but encountered slow convergence and sensitivity to initial conditions. Compared to Tang et al. (2018), Chen et al. (2021) adapted GA-based optimization for MESs, improving solution reliability. Sun et al. (2022) enhanced GA-based optimization by integrating GA with MILP, leading to higher precision in optimization results. Liu et al. (2021a) attempted to address GA's limitations by implementing NSGA-III, which improved convergence speed compared to traditional GA methods. However, the approach still faced difficulties in ensuring high-quality global solutions, similar to the limitations observed in Tang et al. (2018) and Chen et al. (2021).

Recent optimization studies show a clear shift from deterministic and single-objective models toward hybrid and multi-objective frameworks that integrate mathematical and heuristic methods.

While MILP and MINLP ensure structural accuracy, their scalability decreases with nonlinear or stochastic problems. Hybrid approaches combining MILP with metaheuristic algorithms improve solution realism but increase computational effort. Recently, AI-based and learning-assisted optimization methods, such as reinforcement learning and surrogate modeling, have emerged to enhance adaptability and enable real-time operation in MES management.

Stochastic optimization, game theory, and reinforcement learning

Fu et al. (2024) applied game-theoretic optimization for interregional electricity trading, improving market efficiency but requiring extensive data for real-time operation. Ye et al. (2020) implemented DDPG-based reinforcement learning for real-time control, managing uncertainty effectively but limited by long training and scarce initial data. A U.S. grid study applied DDPG to improve short-term demand forecasting and operational reliability. Ahmadi et al. (2022) adopted stochastic optimization to manage renewable variability through scenario modeling, improving flexibility but increasing simulation time. A German energy-network study confirmed this approach's adaptability by incorporating solar and windpower fluctuations into operational planning.

As optimization frameworks become more sophisticated, computational complexity and real-time implementation remain major challenges. MILP offers fast computation and global optimality but is limited in handling nonlinear interactions. Nonlinear programming (NLP/MINLP) captures system-level dynamics more accurately but requires substantial computation. Genetic and evolutionary algorithms, including GA and NSGA variants, are effective for global searches yet exhibit slow convergence and sensitivity to initial parameters. Game-theoretic and reinforcement learning approaches enable adaptive and market-responsive operation but rely on large datasets and face difficulties in real-time adaptation.

Therefore, selecting an optimization method should depend on the complexity, objective structure, and operational requirements of the MES. Integrating complementary techniques can improve accuracy, scalability, and adaptability. Table 3 summarizes the characteristics and applicability of each optimization method.

Table 3.

Characteristics of optimization methods.

Type	Characteristics	Strengths	Limitations	Applications
Mixed-Integer Linear Programming (MILP)	Combines linearity with integer variables for optimization	Fast computation, guarantees optimal solutions, applicable to various energy system models	Limited in handling nonlinear problems, computational burden increases with complexity	Large-scale system optimization, suitable when nonlinearity is minimal
Nonlinear Programming (NLP, MINLP)	Handles nonlinear constraints and interactions	Enables realistic modeling, effective for complex energy systems	Difficulty in ensuring global optimality, high computational cost	Fuel cell and heat-power coupling optimization
Multi-Objective Optimization (NSGA-II, NSGA-III, MOGA)	Simultaneous optimization of multiple objectives	Considers cost, environmental impact, and reliability	High computational cost, limited real-time applicability	Resource allocation, carbon emission reduction
Genetic Algorithm (GA, NSGA, MOGA)	Evolutionary algorithm for global optimization	Solves nonlinear problems, effective for global optimization	Slow convergence, sensitive to initial conditions	Multi-regional energy system optimization
Game Theory-Based Optimization	Consider interactions between multiple agents	Supports regional cooperation, market-based optimization	High data requirements, limited real-time adaptability	Regional cooperative energy operations
Deep Reinforcement Learning (DRL, Q-learning)	Real-time optimization via reinforcement learning	Enables real-time operation, manages uncertainty well	Requires long training time, needs initial data	Real-time optimization, predictive-based operation
Stochastic Optimization	Scenario-based modeling for uncertainty	Considering uncertainties, enhances reliability	High computational burden, dependent on data accuracy	Wind and solar variability management
Energy Hub Model-Based Optimization	Integrates multiple energy sources and storage systems	Holistic system optimization, supports multi-energy integration	Lacks detailed control modeling, limited real-time adaptability	Regional energy exchange models

NLP: nonlinear programming; MINLP: mixed-integer nonlinear programming.

System modeling

MES optimization requires mathematical modeling to describe energy interactions and apply optimization methods. This involves defining parameters, objective functions, and constraints.

System parameters

MES models include operational variables for electricity, heat, and hydrogen systems, as well as economic factors such as investment costs, operational expenses, and energy prices. Transmission capacity and hydrogen pipeline capacity are also considered for interregional integration. These parameters are input variables for MES optimization models and are essential for accurately representing energy flows. Table 4 summarizes the main parameters.

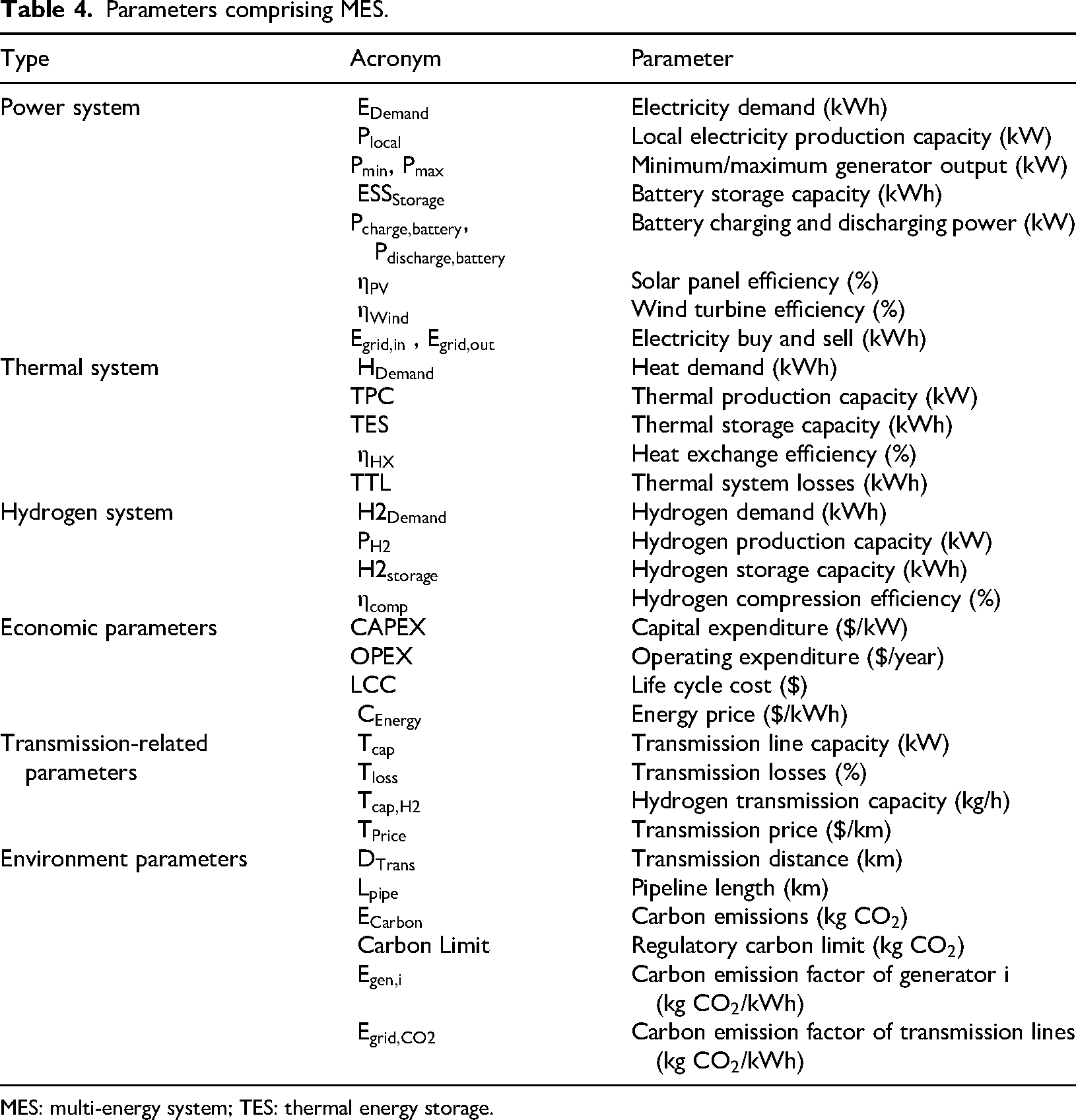

Table 4.

Parameters comprising MES.

Type	Acronym	Parameter
Power system	$E_{Demand}$	Electricity demand (kWh)
	$P_{local}$	Local electricity production capacity (kW)
	$P_{\min}$ , $P_{\max}$	Minimum/maximum generator output (kW)
	${ESS}_{Storage}$	Battery storage capacity (kWh)
	$P_{charge, battery}$ , $P_{discharge, battery}$	Battery charging and discharging power (kW)
	$η_{PV}$	Solar panel efficiency (%)
	$η_{Wind}$	Wind turbine efficiency (%)
	$E_{grid, in}$ , $E_{grid, out}$	Electricity buy and sell (kWh)
Thermal system	$H_{Demand}$	Heat demand (kWh)
	TPC	Thermal production capacity (kW)
	TES	Thermal storage capacity (kWh)
	$η_{HX}$	Heat exchange efficiency (%)
	TTL	Thermal system losses (kWh)
Hydrogen system	$H 2_{Demand}$	Hydrogen demand (kWh)
	$P_{H 2}$	Hydrogen production capacity (kW)
	$H 2_{storage}$	Hydrogen storage capacity (kWh)
	$η_{comp}$	Hydrogen compression efficiency (%)
Economic parameters	CAPEX	Capital expenditure ($/kW)
	OPEX	Operating expenditure ($/year)
	LCC	Life cycle cost ($)
	$C_{Energy}$	Energy price ($/kWh)
Transmission-related parameters	$T_{cap}$	Transmission line capacity (kW)
	$T_{loss}$	Transmission losses (%)
	$T_{cap, H 2}$	Hydrogen transmission capacity (kg/h)
	$T_{Price}$	Transmission price ($/km)
Environment parameters	$D_{Trans}$	Transmission distance (km)
	$L_{pipe}$	Pipeline length (km)
	$E_{Carbon}$	Carbon emissions (kg ${CO}_{2}$ )
	$Carbon Limit$	Regulatory carbon limit (kg ${CO}_{2}$ )
	$E_{gen, i}$	Carbon emission factor of generator i (kg ${CO}_{2}$ /kWh)
	$E_{grid, CO 2}$	Carbon emission factor of transmission lines (kg ${CO}_{2}$ /kWh)

MES: multi-energy system; TES: thermal energy storage.

These parameters serve as input variables in MES optimization models and are essential for accurately representing energy flows in interregional integration.

Objective function

MES optimization aims to reduce costs, lower carbon emissions, and enhance energy reliability.

\begin{matrix} m i n i m i z e C_{t o t a l} = C A P E X + O P E X + C_{O M} \end{matrix}

(1)

Equation (1) represents the total system cost ( $C_{t o t a l}$ ), which includes capital expenditure ( $C A P E X$ ), operational expenditure ( $O P E X$ ), and maintenance costs ( $C_{O M}$ ).

\begin{matrix} m i n i m i z e E_{C a r b o n} = \sum_{i = 1}^{n} \sum_{t = 1}^{T} (E_{g e n, i} \cdot P_{i} (t)) + \sum_{t = 1}^{T} (E_{g r i d, i n} (t) \cdot E_{g r i d, C O 2}) \end{matrix}

(2)

Equation (2) defines the total carbon emissions ( $E_{C a r b o n}$ ) as the sum of emissions from internal power generation and imported electricity, each weighted by their respective carbon emission coefficients. Specifically, $E_{g e n, i}$ represents the carbon emission coefficient of generator i, and $P_{i} (t)$ is the power output of generator i at time t, $E_{g r i d, C O 2}$ denotes the carbon intensity of purchased electricity, $E_{g r i d, i n} (t)$ is the imported electricity at time t.

\begin{matrix} m a x i m i z e S S R = 1 - \frac{\sum_{t = 1}^{T} E_{g r i d, i n} (t)}{\sum_{t = 1}^{T} E_{D e m a n d} (t)} \end{matrix}

(3)

Equation (3) maximizes self-sufficiency ratio to reduce dependence on external power grids.

These objective functions are designed to balance economic efficiency, environmental sustainability, and system stability in the optimization process.

Constraints

To ensure realistic operation, constraints are imposed on energy balance, generator output limits, conversion efficiency, and carbon emission regulations.

1) Energy Supply-Demand Balance

The total power generation, storage, and imported electricity must equal the total demand and exported power.

\begin{matrix} \sum_{\begin{matrix} j = 1 \\ j \neq k \end{matrix}}^{n} E_{g r i d, j k} (t) + P_{l o c a l, k} (t) + P_{d i s c h a r g e, b a t t e r y, k} (t) = \\ E_{D e m a n d, k} (t) + \sum_{\begin{matrix} j = 1 \\ j \neq k \end{matrix}}^{n} E_{g r i d, k j} (t) + P_{c h a r g e, b a t t e r y, k} (t) + P_{i n p u t_t h e r m a l, k} (t) + P_{i n p u t_H 2, k} (t) \end{matrix}

(4)

The subscript k indicates that the variable is applied within region k. Among the variables not listed in Table 4 $E_{g r i d, j k}$ refers to the electricity imported from region j to region k, and $E_{g r i d, k j}$ denotes the electricity exported from region k to region j, $P_{i n p u t_t h e r m a l, k} (t)$ is power input to thermal conversion units, and $P_{i n p u t_H 2, k} (t)$ is power input to hydrogen conversion units.

2) Generator Operational Limits

\begin{matrix} P_{m i n} \leq P_{i} (t) \leq P_{m a x} \end{matrix}

(5)

$P_{m i n}$ and $P_{m a x}$ denote the minimum and maximum power output for each generator, while $P_{i} (t)$ represents its generation at time t.

3) Energy Conversion Efficiency Constraints

Electricity-to-heat and electricity-to-hydrogen conversions follow efficiency constraints

\begin{matrix} Q (t) = η_{t h e r m a l} \cdot P_{i n p u t_t h e r m a l} (t) \end{matrix}

(6)

\begin{matrix} H_{2} (t) = η_{H 2} \cdot P_{i n p u t_H 2} (t) \end{matrix}

(7)

Equations (6) and (7) define the energy conversion process, where $η_{t h e r m a l}$ is the efficiency of electricity-to-heat conversion, and $η_{H 2}$ is the efficiency of electricity-to-hydrogen conversion. $Q (t)$ and $H_{2} (t)$ represent the generated heat and hydrogen, respectively.

4) Carbon Emission Limit

Total carbon emissions must not exceed the legal threshold:

\begin{matrix} \sum_{i = 1}^{n} \sum_{t = 1}^{T} (E_{g e n, i} \cdot P_{i} (t)) \leq C a r b o n L i m i t \end{matrix}

(8)

Equation (8) ensures compliance with emission regulations, where Carbon Limit is the maximum allowable emissions.

5) Renewable Energy Share Constraint

A minimum share $α$ of energy must be generated from renewable sources:

\begin{matrix} \frac{\sum_{i = r e n e w a b l e} P_{i} (t)}{\sum_{i = 1}^{n} P_{i} (t)} \geq α \end{matrix}

(9)

Equation (9) ensures a minimum renewable energy share, where $\sum_{i = 1}^{n} P_{i} (t)$ is the total power generation at time t, $\sum_{i = r e n e w a b l e} P_{i} (t)$ is the power generated from renewables, and $α$ is the minimum renewable share.

6) Transmission Line Constraint

The system must operate within the physical transmission limits:

\begin{matrix} 0 \leq P_{e x p o r t, e l e c t r i c, k} (t) \leq T_{c a p, m a x} \end{matrix}

(10)

Equation (10) enforces transmission constraints, where $T_{c a p, m a x}$ is the maximum transmission capacity and $P_{e x p o r t, e l e c t r i c, k} (t)$ represents power exported from region k at time t.

7) Energy Storage Constraint

ESSs must operate within capacity and charge/discharge limits:

\begin{matrix} E S S_{S t o r a g e} (t) = E S S_{S t o r a g e} (t - 1) + η_{c h a r g e} \cdot P_{c h a r g e, b a t t e r y} (t) - \frac{P_{d i s c h a r g e, b a t t e r y} (t)}{η_{d i s c h a r g e}} \end{matrix}

(11)

\begin{matrix} E S S_{m i n} \leq E S S_{S t o r a g e} (t) \leq E S S_{m a x} \end{matrix}

(12)

Equations (11) and (12) ensure feasible energy storage operation. $E S S_{S t o r a g e} (t)$ is the stored energy at time t, $P_{c h a r g e} (t)$ and $P_{d i s c h a r g e} (t)$ are the charging and discharging power, and $E S S_{m i n}$ and $E S S_{m a x}$ define the storage capacity limits, $η_{c h a r g e}$ and $η_{d i s c h a r g e}$ represent the charging and discharging efficiencies, respectively.

These constraints are essential for developing an optimization model that reflects practical operation. However, real-world conditions involve uncertainties, energy demand fluctuations, and renewable energy intermittency. To address these factors, stochastic and robust optimization models are also used.

Optimization challenges in multi-energy system

MESs integrate electricity, heat, and hydrogen for efficient resource utilization. However, optimizing real-time operation, managing uncertainties, and assessing economic feasibility present challenges. This section examines subsystem optimization, interregional integration strategies, and economic analysis.

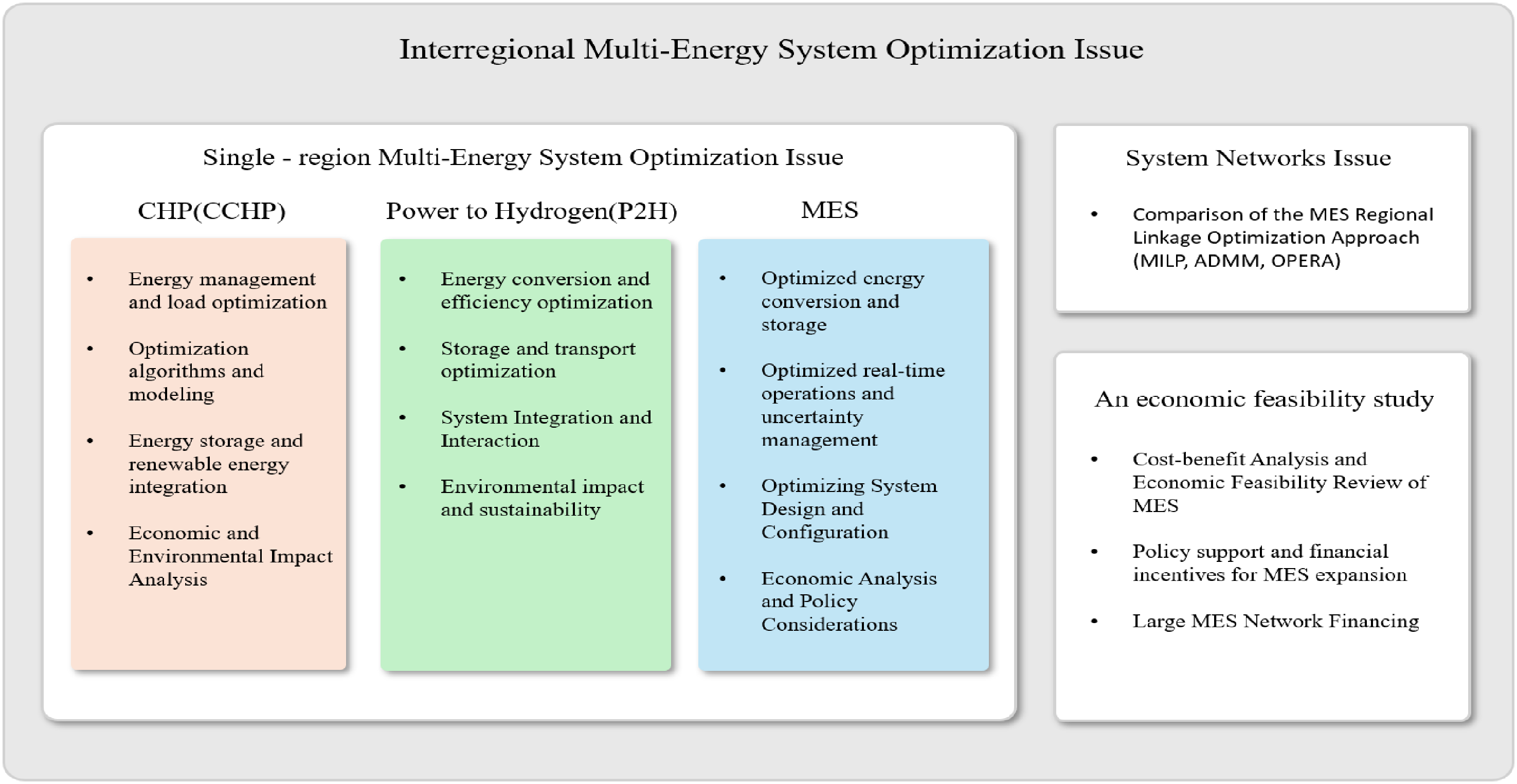

Figure 5 shows a conceptual diagram of MES optimization in single-region and interregional systems. It outlines subsystem challenges and regional integration strategies.

Figure 5.

Major optimization issues in MES subsystems. MES: multi-energy system.

Optimization issues in combined heat and power and combined cooling, heating, and power systems

CHP and CCHP systems produce electricity and heat simultaneously, thereby increasing overall energy utilization efficiency. CHP recovers waste heat from electricity generation to satisfy thermal demand, while CCHP extends this concept by using absorption chillers to convert part of the recovered heat into cooling energy.

Figure 6 illustrates the energy flow in CHP and CCHP systems. Fuel powers a generator to produce electricity, and the waste heat from this process is recovered through a heat recovery system. In CCHP systems, the recovered heat drives an absorption chiller to produce cooling energy, enabling tri-generation of electricity, heat, and cooling. These systems are applied across industrial plants, commercial buildings, and residential complexes to improve energy efficiency and reduce carbon emissions. Their integration within MESs supports real-time load balancing and waste-heat utilization, providing a practical path toward distributed low-carbon energy supply.

Figure 6.

Conceptual diagram of CHP and CCHP systems. CHP: combined heat and power; CCHP: combined cooling, heating, and power.

Energy management and load optimization

Jiang et al. (2016) analyzed how the placement of energy storage units influences the performance and energy savings of CCHP systems. Their work focused on static placement rather than operational optimization. Gong et al. (2020) addressed this limitation by developing a load-scheduling model that adjusted demand dynamically through schedulable loads, improving both economic and environmental outcomes. However, the approach was restricted to a single-region system without considering interregional coordination. Building on this, Zhou et al. (2020) extended the framework to multi-region load optimization and incorporated network constraints, enhancing overall system efficiency. Yet, dynamic operational variables were only partially represented. To overcome these gaps, Sun et al. (2022) proposed a multi-objective optimization model that jointly considered economic feasibility, energy efficiency, and emission reduction—factors often neglected in earlier studies. Using the BCS-GDE algorithm, the model outperformed GA and NSGA-II, achieving cost, primary-energy, and emission reductions of 72%, 73%, and 88%, respectively. Nevertheless, validation was confined to specific building types such as hotels, offices, and residential complexes, indicating the need for further testing under large-scale network conditions.

Optimization algorithms and modeling

Ji et al. (2020) developed an optimization framework for a hybrid ESS to enhance operational flexibility. Liu et al. (2021b) extended this work using MILP to improve optimization precision but encountered limitations in adapting to real-time load variations. Chen et al. (2021) addressed this issue by introducing a power flow coupling model, which improved adaptability under dynamic operating conditions. Sun et al. (2022) further enhanced computational performance by applying the BCS-GDE algorithm, achieving faster convergence and higher solution accuracy. Nan et al. (2024) advanced the framework by integrating the deep neural Gaussian optimization (DNGO) algorithm and incorporating a 4E evaluation—covering energy, exergy, economics, and environmental factors. However, the model was not validated under real-world conditions, indicating the need for further assessment of its practical applicability.

Energy storage and renewable energy integration

Wang et al. (2019) developed an optimization model integrating electricity, heat, and natural gas networks to coordinate complex energy flows. However, their model lacked real-time optimization, limiting flexibility in practical operations. To improve renewable energy utilization, Ji et al. (2020) introduced a new optimization model, but their study did not include a cost analysis, making performance evaluation in terms of cost-effectiveness difficult. Addressing this gap, Zhou et al. (2020) applied P2G technology to enhance renewable energy storage and utilization, mitigating the intermittency issue. However, their model also lacked a detailed economic analysis, limiting its cost-efficiency assessment. Yufeng et al. (2024) proposed a dynamic scheduling method that considers seasonal variations in renewable energy availability, enabling real-time load optimization. Despite this improvement, their study lacked validation using experimental data. Nan et al. (2024) further refined renewable energy optimization by integrating the DNGO algorithm and incorporating a 4E analysis. However, their model was not tested with real-world experimental data, raising concerns about its practical reliability.

Economic feasibility and environmental impact analysis

Sass et al. (2020) addressed this by providing benchmark data for evaluating the economic performance of various CCHP configurations, creating a reference for system comparison. While useful for analysis, their model lacked real-time optimization capability, reducing its relevance for operational decision-making. Zhou et al. (2020) enhanced the framework by integrating a tiered gas tariff into the optimization model to minimize energy costs and reflect price fluctuations. Although this approach identified cost-saving strategies, it did not include long-term price forecasting, reducing adaptability in volatile markets. To overcome these limitations, Nan et al. (2024) adopted a four-dimensional “4E” evaluation framework—covering energy, economy, environment, and efficiency—to promote sustainable operations beyond cost reduction. They also implemented the Developed Northern Goshawk Optimization (DNGO) algorithm, achieving higher economic efficiency than previous models. Despite these advances, their study lacked validation using real operational data, underscoring the need for experimental verification to confirm model robustness in practical applications.

Table 5 summarizes studies on CHP and CCHP system optimization. It highlights the technical challenges addressed in each study and provides an overview of the approaches used to resolve them.

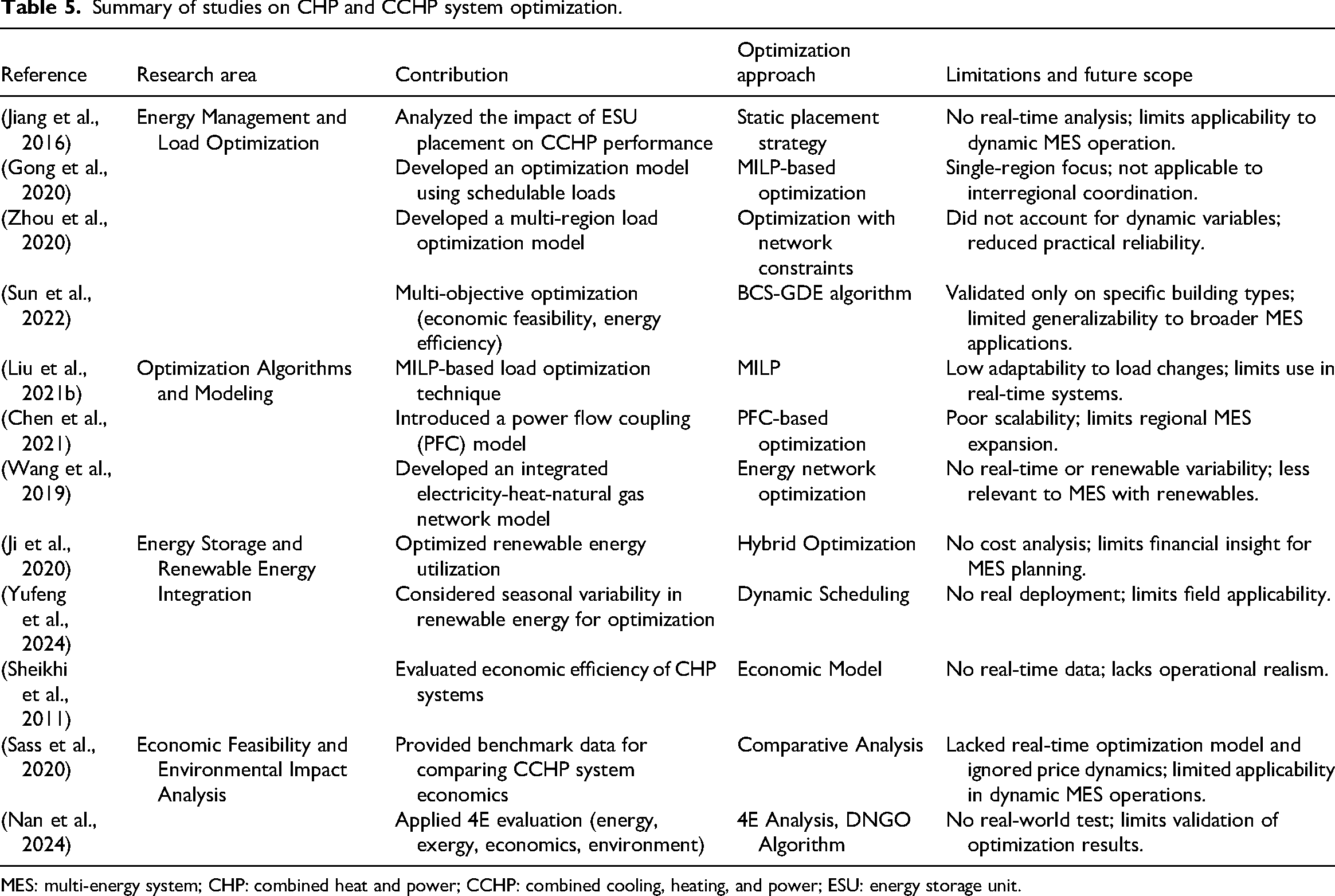

Table 5.

Summary of studies on CHP and CCHP system optimization.

Reference	Research area	Contribution	Optimization approach	Limitations and future scope
(Jiang et al., 2016)	Energy Management and Load Optimization	Analyzed the impact of ESU placement on CCHP performance	Static placement strategy	No real-time analysis; limits applicability to dynamic MES operation.
(Gong et al., 2020)		Developed an optimization model using schedulable loads	MILP-based optimization	Single-region focus; not applicable to interregional coordination.
(Zhou et al., 2020)		Developed a multi-region load optimization model	Optimization with network constraints	Did not account for dynamic variables; reduced practical reliability.
(Sun et al., 2022)		Multi-objective optimization (economic feasibility, energy efficiency)	BCS-GDE algorithm	Validated only on specific building types; limited generalizability to broader MES applications.
(Liu et al., 2021b)	Optimization Algorithms and Modeling	MILP-based load optimization technique	MILP	Low adaptability to load changes; limits use in real-time systems.
(Chen et al., 2021)		Introduced a power flow coupling (PFC) model	PFC-based optimization	Poor scalability; limits regional MES expansion.
(Wang et al., 2019)		Developed an integrated electricity-heat-natural gas network model	Energy network optimization	No real-time or renewable variability; less relevant to MES with renewables.
(Ji et al., 2020)	Energy Storage and Renewable Energy Integration	Optimized renewable energy utilization	Hybrid Optimization	No cost analysis; limits financial insight for MES planning.
(Yufeng et al., 2024)		Considered seasonal variability in renewable energy for optimization	Dynamic Scheduling	No real deployment; limits field applicability.
(Sheikhi et al., 2011)		Evaluated economic efficiency of CHP systems	Economic Model	No real-time data; lacks operational realism.
(Sass et al., 2020)	Economic Feasibility and Environmental Impact Analysis	Provided benchmark data for comparing CCHP system economics	Comparative Analysis	Lacked real-time optimization model and ignored price dynamics; limited applicability in dynamic MES operations.
(Nan et al., 2024)	Economic Feasibility and Environmental Impact Analysis	Applied 4E evaluation (energy, exergy, economics, environment)	4E Analysis, DNGO Algorithm	No real-world test; limits validation of optimization results.

MES: multi-energy system; CHP: combined heat and power; CCHP: combined cooling, heating, and power; ESU: energy storage unit.

Optimization challenges in power-to-hydrogen to power systems

P2H systems convert surplus electricity from renewable sources, such as solar and wind, into hydrogen for storage and later use. This process helps balance power supply, reduce grid stress, and extend renewable energy utilization beyond the electricity sector. Stored hydrogen can be reconverted into electricity through fuel cells or supplied directly to industrial, transportation, and residential applications. During periods of low demand, excess electricity is stored as hydrogen; when demand increases, it is reconverted to electricity or heat as needed. In addition, hydrogen pipeline networks enable direct distribution, supporting flexible energy exchange across multiple regions and sectors.

Figure 7 illustrates the P2H to power system, depicting the conversion, storage, and utilization of hydrogen. Electricity is converted into hydrogen through electrolysis and stored for later use. The stored hydrogen can be reconverted into electricity via fuel cells or directly supplied through pipelines.

Figure 7.

Conceptual diagram of a power to hydrogen to power system.

Energy conversion and efficiency optimization

Wang et al. (2018) analyzed hybrid-energy-system optimization under renewable integration through simulation. Their model was limited to specific climatic conditions, reducing general applicability. Zhang et al. (2019) improved conversion efficiency by combining P2G technology with reversible solid-oxide cells. The approach achieved higher energy-conversion efficiency but required high initial investment, limiting large-scale adoption. Imeni et al. (2023) shifted the focus from conversion to operation by applying a stochastic-optimization framework for hydrogen-based energy hubs. They evaluated economic feasibility and carbon reduction but did not include real-time data or renewable-generation variability. Yan et al. (2023) proposed a bi-level optimization model to reduce costs and improve practicality. Their method enhanced operational efficiency but faced scalability and real-time limitations. Jangir et al. (2024) improved proton-exchange-membrane fuel-cell modeling accuracy using an AI-based MNEARO algorithm. Computation time increased, however, due to model complexity. Aljaidi et al. (2025b) mitigated this issue with a differential-evolution algorithm that reduced computation cost while maintaining accuracy. Validation remained limited to a few fuel-cell configurations, indicating the need for broader testing across technologies.

Storage and transportation optimization

Marocco et al. (2021) evaluated the economic feasibility of battery and hydrogen storage systems, showing that hydrogen storage offers higher efficiency for long-duration applications. Their analysis, however, was limited to small-scale systems. Marocco et al. (2022) extended this work by incorporating environmental sustainability and assessing carbon-emission reduction benefits, but the model did not fully address emergency-power supply requirements. Kwon et al. (2024) shifted the research focus from evaluating individual storage technologies to developing an integrated framework that balances hydrogen and battery storage. This broader approach improved system coordination but lacked comparative validation against conventional storage methods, constraining practical assessment. Akarsu and Genç (2022) applied the HOMER platform to optimize hybrid energy systems, providing useful insights into storage configuration though the analysis was restricted to a single region, limiting scalability. Husarek et al. (2021) expanded the perspective by formulating hydrogen-supply-chain scenarios for Germany in 2050, aligning with national decarbonization goals yet omitting detailed economic evaluation. Jin et al. (2022) optimized electricity and hydrogen deployment in China under carbon-neutrality policies, highlighting policy applicability while remaining confined to a national context. Strömer et al. (2024) advanced this direction by designing hydrogen-infrastructure models that included electrolyzer and pipeline components, emphasizing implementation feasibility rather than solely technical optimization.

System integration and interaction

Li et al. (2018) optimized MESs using a standardized matrix modeling approach. However, the model's complexity made real-time operation challenging. To address this, Kamal et al. (2023) optimized the sizing of solar, hydropower, and hydrogen-based systems while incorporating methods to manage variability. Despite this improvement, their study lacked real-time operational data. Dong et al. (2016) took a more practical approach by determining the optimal size of battery and hydrogen storage-based hybrid systems. They applied an ant colony optimization algorithm, but high initial investment costs remained a limitation. Expanding on this, Qamar et al. (2024) focused on improving power quality in hydrogen-based microgrids—an aspect not covered by Dong et al. (2016). Their findings contributed to grid stability, but scalability for large systems was uncertain. Sanchez et al. (2014) optimized standalone renewable energy systems using a PSO-based approach but did not integrate real-time operational data. Similarly, Dokkar et al. (2013) proposed a GA-based optimization model for PV-hydrogen fuel cell systems yet lacked real-world implementation cases.

Environmental impact and sustainability

Eriksson and Gray (2019) developed a multi-objective optimization model integrating economic, technical, and environmental factors, but their analysis did not include detailed short-term cost assessment. Okundamiya (2021) extended this line of research by evaluating the environmental performance of a HOMER-based solar–fuel-cell–hydrogen storage system, although empirical validation was not performed. While most previous studies focused on operational optimization, Versaci et al. (2024) explored battery sustainability by improving lifespan and recyclability. Their model enhanced charge–discharge cycle stability but requires further verification before commercial deployment. Shifting from environmental to grid-level optimization, Aljaidi et al. (2025a) optimized the placement of flexible AC transmission system devices to increase grid efficiency. However, the absence of real-time operational testing limited assessment of its practical feasibility.

Table 6 summarizes optimization approaches for P2H systems that integrate electricity and hydrogen networks, highlighting the technical challenges and methods proposed in these studies.

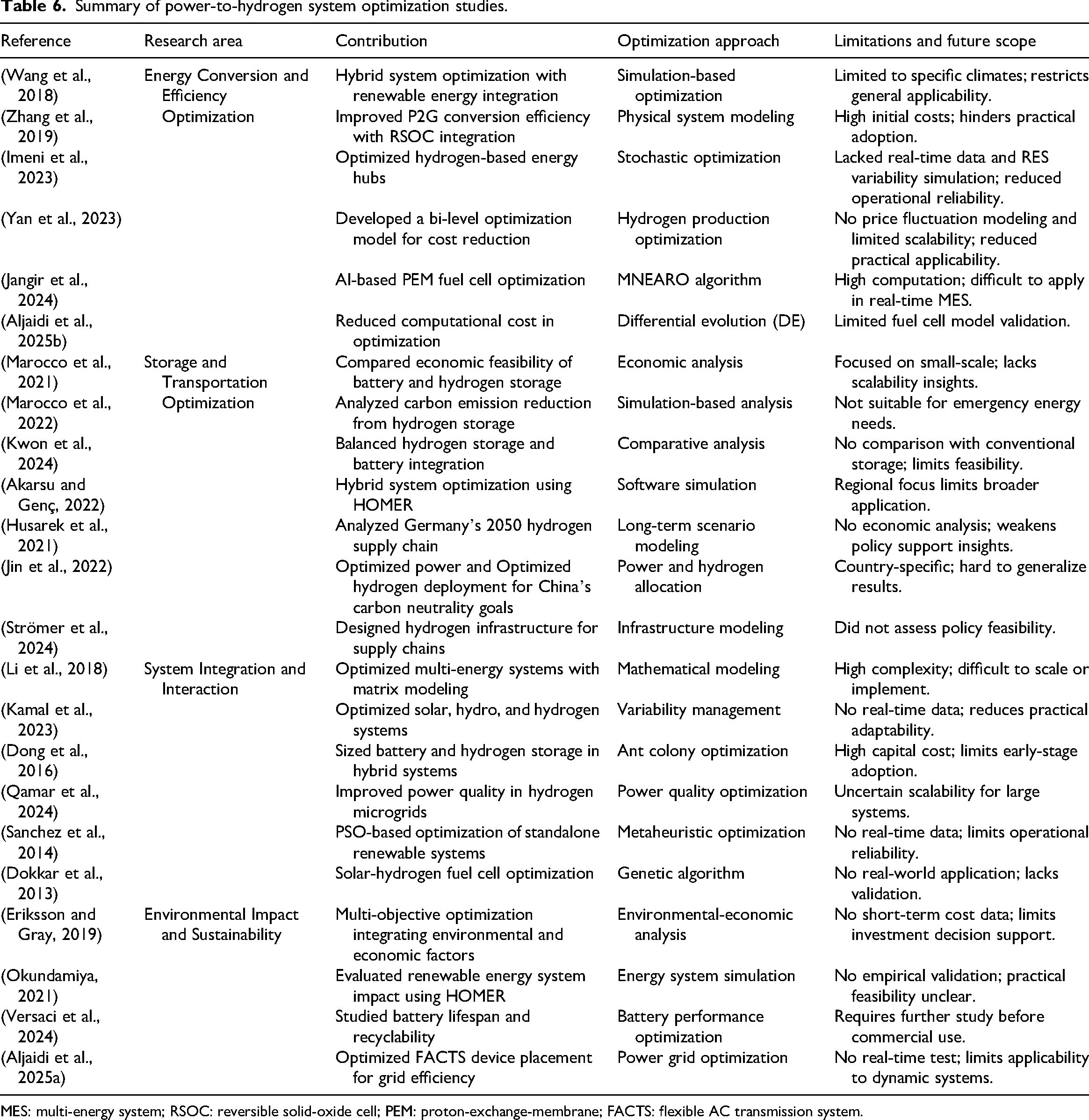

Table 6.

Summary of power-to-hydrogen system optimization studies.

Reference	Research area	Contribution	Optimization approach	Limitations and future scope
(Wang et al., 2018)	Energy Conversion and Efficiency Optimization	Hybrid system optimization with renewable energy integration	Simulation-based optimization	Limited to specific climates; restricts general applicability.
(Zhang et al., 2019)		Improved P2G conversion efficiency with RSOC integration	Physical system modeling	High initial costs; hinders practical adoption.
(Imeni et al., 2023)		Optimized hydrogen-based energy hubs	Stochastic optimization	Lacked real-time data and RES variability simulation; reduced operational reliability.
(Yan et al., 2023)		Developed a bi-level optimization model for cost reduction	Hydrogen production optimization	No price fluctuation modeling and limited scalability; reduced practical applicability.
(Jangir et al., 2024)		AI-based PEM fuel cell optimization	MNEARO algorithm	High computation; difficult to apply in real-time MES.
(Aljaidi et al., 2025b)		Reduced computational cost in optimization	Differential evolution (DE)	Limited fuel cell model validation.
(Marocco et al., 2021)	Storage and Transportation Optimization	Compared economic feasibility of battery and hydrogen storage	Economic analysis	Focused on small-scale; lacks scalability insights.
(Marocco et al., 2022)		Analyzed carbon emission reduction from hydrogen storage	Simulation-based analysis	Not suitable for emergency energy needs.
(Kwon et al., 2024)		Balanced hydrogen storage and battery integration	Comparative analysis	No comparison with conventional storage; limits feasibility.
(Akarsu and Genç, 2022)		Hybrid system optimization using HOMER	Software simulation	Regional focus limits broader application.
(Husarek et al., 2021)		Analyzed Germany's 2050 hydrogen supply chain	Long-term scenario modeling	No economic analysis; weakens policy support insights.
(Jin et al., 2022)		Optimized power and Optimized hydrogen deployment for China's carbon neutrality goals	Power and hydrogen allocation	Country-specific; hard to generalize results.
(Strömer et al., 2024)		Designed hydrogen infrastructure for supply chains	Infrastructure modeling	Did not assess policy feasibility.
(Li et al., 2018)	System Integration and Interaction	Optimized multi-energy systems with matrix modeling	Mathematical modeling	High complexity; difficult to scale or implement.
(Kamal et al., 2023)		Optimized solar, hydro, and hydrogen systems	Variability management	No real-time data; reduces practical adaptability.
(Dong et al., 2016)		Sized battery and hydrogen storage in hybrid systems	Ant colony optimization	High capital cost; limits early-stage adoption.
(Qamar et al., 2024)		Improved power quality in hydrogen microgrids	Power quality optimization	Uncertain scalability for large systems.
(Sanchez et al., 2014)		PSO-based optimization of standalone renewable systems	Metaheuristic optimization	No real-time data; limits operational reliability.
(Dokkar et al., 2013)		Solar-hydrogen fuel cell optimization	Genetic algorithm	No real-world application; lacks validation.
(Eriksson and Gray, 2019)	Environmental Impact and Sustainability	Multi-objective optimization integrating environmental and economic factors	Environmental-economic analysis	No short-term cost data; limits investment decision support.
(Okundamiya, 2021)		Evaluated renewable energy system impact using HOMER	Energy system simulation	No empirical validation; practical feasibility unclear.
(Versaci et al., 2024)		Studied battery lifespan and recyclability	Battery performance optimization	Requires further study before commercial use.
(Aljaidi et al., 2025a)		Optimized FACTS device placement for grid efficiency	Power grid optimization	No real-time test; limits applicability to dynamic systems.

MES: multi-energy system; RSOC: reversible solid-oxide cell; PEM: proton-exchange-membrane; FACTS: flexible AC transmission system.

Optimization challenges in multi-energy systems

CHP, CCHP, and P2H systems integrate electricity with heat or hydrogen, representing simpler forms of MES. However, real MES involve complex interactions among electricity, heat, hydrogen, and cooling, leading to more intricate optimization challenges.

Optimization of energy conversion and storage among electricity, heat, and hydrogen

Qiu et al. (2020) developed a long-term storage model based on underground hydrogen storage (UHS), optimizing seasonal storage and utilization rather than short-term balancing. While the approach captured seasonal variability, it did not incorporate real-time operation, limiting responsiveness to short-term fluctuations. Fu et al. (2020) optimized energy flows in a MES by integrating battery and thermal storage, which enhanced overall efficiency but excluded economic and policy factors, reducing practical applicability. To improve system feasibility, Zhang et al. (2022) proposed a capacity-planning model for wind, solar, battery, and hydrogen technologies. Unlike earlier studies, their framework strengthened the link between renewables and hydrogen storage, though it remained limited to a single region and thus had restricted scalability. Addressing this gap, Wang et al. (2023a) introduced an economic dispatch model incorporating electrolysis-based hydrogen production to balance technical and economic considerations. The model accounted for renewable fluctuations and real-time operation but could not fully eliminate forecasting uncertainty.

Optimization of real-time operation and uncertainty management

In integrated electricity–heat–hydrogen systems, renewable energy variability, market price fluctuations, and demand uncertainty strongly influence real-time operation and economic outcomes. To address these challenges, recent studies have employed probabilistic optimization, MPC, and multi-agent optimization frameworks. Renewable generation variability has been mitigated using Zhu et al. (2020)'s multi-energy coupling approach and Yi et al. (2023)'s hydrogen storage strategy. Zhu et al. (2020) enabled real-time responsiveness but required significant computational resources, whereas Yi et al. (2023) improved long-term operational stability without real-time adaptability. Osorio-Aravena et al. (2023) further applied probabilistic optimization to a multi-node energy system, enhancing uncertainty handling but lacking dynamic supply–demand coordination. Market price fluctuations were addressed through Coelho et al. (2023)'s real-time market optimization and Fu et al. (2024)'s cooperative game-theoretic approach. Coelho et al. (2023) effectively captured short-term price dynamics but increased computational costs, while Fu et al. (2024) balanced regional prices through coordinated trading, though data-sharing requirements limited scalability. Demand uncertainty was analyzed using Mei et al. (2021)'s probabilistic optimization and Ahmadi et al. (2022)'s multi-agent optimization. Mei et al. (2021) effectively modeled stochastic demand scenarios but lacked adaptability for real-time operation, whereas Ahmadi et al. (2022) enabled decentralized real-time control but provided limited economic assessment.

Overall, multi-energy coupling and multi-agent frameworks are effective for real-time coordination, while probabilistic optimization and energy-storage-based strategies are more suitable for maintaining long-term stability.

System design and configuration optimization

The design of integrated electricity, heat, and hydrogen systems can be broadly categorized into local (single-region) and interregional configurations. Early research primarily focused on optimizing local systems, while recent studies have expanded to enhance scalability and flexibility. Olympios et al. (2024) optimized electricity, heating, and hydrogen integration at the building scale, demonstrating practical feasibility for small-scale applications, but the approach was unsuitable for industrial-scale deployment. Erenoğlu (2024) linked energy systems with the transportation sector by optimizing electric and hydrogen vehicle charging stations, improving sectoral coordination yet lacking long-term investment analysis. Bahrami and Rosen (2024) investigated electricity, cooling, and hydrogen production from low-temperature geothermal energy, expanding renewable utilization. However, the absence of policy evaluation limited the applicability of their model for real-world energy planning.

Economic analysis and policy considerations

Teng et al. (2019) analyzed the costs of integrated electricity, heat, and hydrogen systems while incorporating policy considerations. Their work provided useful insights into system economics but lacked direct linkage to real-time operations. Wu et al. (2022) expanded this perspective through long-term cost assessments that clarified the economic contribution of hydrogen; however, policy incentives were not included in the analysis. Mancò et al. (2024) further broadened the discussion by comparing policy frameworks and optimization strategies across multiple energy sectors, identifying how regulatory structures influence system performance. Although their study offered valuable implications, empirical validation of policy effectiveness remains limited and requires additional investigation.

Table 7 summarizes the optimization challenges in MESs integrating electricity, heat, and hydrogen. It outlines the technical issues addressed by each study and presents an overview of the corresponding optimization approaches.

Table 7.

Summary of optimization studies in multi-energy systems.

Reference	Research area	Contribution	Optimization approach	Limitations and future scope
(Qiu et al., 2020)	Energy Conversion and Storage Optimization	Developed a long-term energy storage strategy using underground hydrogen storage (UHS)	Stochastic optimization	No real-time control; weak short-term responsiveness.
(Fu et al., 2020)		Optimized energy flow in MES with battery and thermal storage	Mixed-integer linear programming (MILP)	No policy or economic analysis; limits real-world application.
(Zhang et al., 2022)		Capacity optimization of wind, solar, battery, and hydrogen systems	Multi-objective genetic algorithm (NSGA-II)	Region-specific; limits scalability in interregional MES.
(Wang et al., 2023a)		Economic dispatch model for electrolysis-based hydrogen production	Model predictive control (MPC)	Limited forecasting accuracy; reduces reliability under uncertainty.
(Mei et al., 2021)	Real-Time Operation and Uncertainty Management	Integrated stochastic optimization for hydrogen-powered vehicles in MES	Stochastic optimization	Not real-time capable; weakens adaptability.
(Ahmadi et al., 2022)		Developed a multi-agent distributed optimization model for flexibility	Agent-based optimization	No market/economic factors; limited feasibility in market-based systems.
(Osorio-Aravena et al., 2023)		Applied stochastic optimization to a 100% renewable multi-node system	Stochastic optimization	Long-term focus; lacks real-time adaptability.
(Coelho et al., 2023)		Proposed an optimization model integrating real-time operations and market prices	Model predictive control (MPC)	High computational cost; difficult for large-scale systems.
(Zhu et al., 2020)	Renewable Energy Variability Management	Real-time variability response through multi-energy integration	Multi-energy optimization	Heavy computation; limits real-time scalability.
(Yi et al., 2023)	Renewable Energy Variability Management	Long-term energy stability using hydrogen storage	Hydrogen storage optimization	Not suitable for real-time operation.
(Fu et al., 2024)	Market Volatility Management	Balanced regional pricing using cooperative game theory	Cooperative game theory	Data-sharing challenges may limit collaboration.
(Olympios et al., 2024)	System Design and Configuration	Optimized electricity, heating, and hydrogen integration at the building level	Mixed-integer linear programming (MILP)	Not applicable to large-scale industrial MES.
(Erenoğlu, 2024)		Optimized EV and hydrogen refueling station operations, considering transportation integration	Metaheuristic optimization (Genetic Algorithm)	No investment analysis; weak for long-term planning.
(Bahrami and Rosen, 2024)		Optimized electricity, cooling, and hydrogen production using low-temperature geothermal energy	Multi-objective optimization	Lacked policy linkage; limits policy-driven feasibility.
(Teng et al., 2019)	Economic and Policy Considerations	Analyzed costs and policy aspects of integrated MES	Mixed-integer linear programming (MILP)	No real-time linkage; limits operational insight.
(Wu et al., 2022)		Assessed hydrogen's economic role through long-term cost analysis	Cost-benefit analysis	No incentive modeling; weakens policy relevance.
(Mancò et al., 2024)		Evaluated various policy frameworks and optimization strategies	Policy optimization	No empirical validation; limits policy effectiveness assessment.

MES: multi-energy system.

Network considerations in interregional multi-energy system integration

Interregional MES integration requires a more complex framework than local MES, as it involves optimizing interconnected networks of electricity, gas, and hydrogen across multiple regions. While local MES focuses on energy flow within a single area, interregional systems must also coordinate energy sharing and network interactions under varying operational and market conditions. Key factors include transmission capacity, network losses, and operating costs. Yi et al. (2023) compared centralized and decentralized optimization methods for interregional MES, showing that centralized control improves coordination, whereas decentralized schemes enhance local flexibility. They also emphasized that electricity and hydrogen can be transmitted efficiently over long distances, while heat remains best utilized locally due to high transmission losses. Elekidis et al. (2018) optimized grid expansion and interregional power trade using an MILP-based model. By including transmission capacity as a constraint, their approach maintained stable power flow while preventing overloads and minimizing energy losses. In contrast, Zhu et al. (2020) developed an alternating direction method of multipliers-based distributed optimization framework for electricity–gas–heat coupling. This decentralized method enabled regions to optimize independently while exchanging limited boundary information, improving resource allocation but increasing computational complexity as network size grew. Sahoo et al. (2022) optimized gas networks within a single region using techno-economic and physical constraints to enhance stability but did not address interregional coordination. Fu et al. (2024) expanded this scope by applying cooperative game theory to model interregional energy coordination, balancing local autonomy with regional collaboration. Their framework demonstrated potential for scalable energy-sharing applications.

Overall, studies such as Sahoo et al. (2022) and Zhu et al. (2020) contribute effective models for local or distributed MES optimization, whereas Elekidis et al. (2018) and Fu et al. (2024) provide practical strategies for large-scale interregional integration.

Economic feasibility analysis for optimal multi-energy system operation

MES expansion depends on economic feasibility, policy support, and funding. This section reviews studies by year and evaluates their viability.

Cost-benefit analysis and economic feasibility of multi-energy systems

Salinas-Herrera et al. (2022) evaluated the economic feasibility of MESs integrated with smart grid technologies. Their analysis used return on investment (ROI) and net present value to assess long-term profitability, indicating positive returns within 10 years. However, the omission of levelized cost of energy (LCOE) differences limited the model's regional applicability. Wang et al. (2023d) expanded the analysis by introducing a capacity–energy–information sharing model for optimizing MES operations. The results showed that interregional energy sharing reduced LCOE by more than 15%, though the requirement for high initial investment and technical collaboration affected feasibility. Kneiske (2024) applied Wang et al. (2023d)'s framework to low-voltage distribution networks, comparing economic outcomes in Germany and France. The study found a 15% increase in ROI for Germany, attributed to lower grid-connection costs, whereas France experienced over a 20% rise in initial investment due to higher renewable integration levels. Despite these findings, the analysis did not fully consider the economic impact of cross-border power trading.

Economic analysis and policy considerations

Ramsebner et al. (2021) analyzed how Feed-in Tariff (FIT) and the Emission Trading System (ETS) influence investment decisions in MES. Their findings indicated that FIT could shorten the payback period to 8 years, while a stronger ETS policy could increase the ROI by up to 25%. However, the study did not consider alternative financial mechanisms such as Power Purchase Agreements (PPAs) or green bond financing. Traupmann et al. (2023) expanded this analysis by examining how policy support affects MES investment costs and feasibility. They found that implementing a carbon tax could improve MES economics by 12%, whereas the absence of policy incentives could reduce ROI by 8%. In contrast to previous research focused solely on policy direction, they proposed repurposing coal-fired power plants as MES facilities, though financial models for private investment were not explored. Carmona et al. (2024) further advanced this field by evaluating real-world policy impacts using a solar-based green hydrogen facility in Antofagasta, Chile. Their analysis showed that carbon tax could reduce operating costs by 10%, and FIT adoption could shorten the payback period by approximately 20%. While earlier studies provided conceptual evaluations, this research presented empirical evidence of policy effectiveness. Nevertheless, its focus on a single country limits broader applicability.

Economic analysis and policy considerations

Traupmann et al. (2023) analyzed the financial challenges of expanding MES networks, focusing on the conversion of coal power plants into integrated energy hubs. They proposed policy-based financial mechanisms and public funding models but did not specify strategies for attracting private capital. Li et al. (2023) advanced this work by developing a comprehensive funding framework that quantified financial performance under different investment structures. Their analysis showed that reliance on government subsidies alone extended the payback period to more than 12 years, whereas incorporating PPAs shortened it to 7–9 years. They also identified green bond issuance as a potential tool to support MES development. Compared with Traupmann et al. (2023), Li et al. (2023) offered a more detailed quantitative perspective on private-sector participation and funding mechanisms, although empirical validation of PPAs and green bonds in actual MES projects was not included.

Sustainable MES expansion requires integrated economic assessment, policy coordination, and diversified financing strategies. While existing studies have highlighted these factors, they remain limited by regional scope and a lack of empirical verification. Future research should evaluate real-world MES projects to measure the effectiveness of policy instruments and financial models in accelerating system deployment.

Advancement in multi-energy system research

Early research on MESs primarily concentrated on optimizing single energy sources. Over time, the field evolved from isolated system optimization toward decentralized, renewable-integrated, and data-driven frameworks, reflecting a gradual transition from theoretical formulation to practical implementation.

Bottillo et al. (2013) optimized urban energy infrastructure to improve the efficiency of individual sources but did not include integrated electricity–heat operations or real-time responsiveness. Kitapbayev et al. (2013) advanced this by introducing a holistic optimization framework for MES design and operation, improving flexibility and cost efficiency though excluding economic and policy dimensions.

With the emergence of decentralized energy systems, research began to address real-time demand response and integrated electricity–heat operation (Mancarella and Chicco, 2013). However, energy storage and renewable variability were not fully considered. Gambarotta et al. (2015) and Di Somma et al. (2015) filled this gap by incorporating electrical, thermal, and hydrogen-based storage through dynamic programming, although uncertainty modeling remained limited.

Capuder and Mancarella (2014) combined renewable generation with energy storage to improve efficiency but did not fully account for long-term operational flexibility or scalability. Martínez Ceseña et al. (2015) later introduced probabilistic expansion planning under uncertainty, enhancing renewable variability management but still lacking real-time demand response. Yang et al. (2016) addressed this limitation by applying demand-response-based operational optimization, improving flexibility in real-time energy scheduling.

As multi-objective optimization became prominent, studies began integrating economic, environmental, and energy efficiency goals (Cheng et al., 2016). Yet, computational efficiency remained a challenge. Huang et al. (2018) employed game-theoretic optimization to coordinate multiple stakeholders, while Ye et al. (2020) advanced real-time decision-making using DRL, enhancing price response and energy storage scheduling.

Recent research has focused on scaling MES to smart cities and regional networks. Van Beuzekom et al. (2016) developed a real-time balancing strategy for urban MES but did not analyze multi-level integration between buildings and cities. Waibel et al. (2019) extended this by optimizing building- and city-scale interactions, while Gabrielli et al. (2020) incorporated seasonal geothermal storage to strengthen long-term flexibility and decarbonization.

More recent studies emphasize the interplay between technical optimization and policy frameworks. Mancò et al. (2024) reviewed optimization models reflecting carbon taxes, market volatility, and renewable subsidies but did not evaluate how these policies influence operational strategies. Wang et al. (2023b) addressed this through a MILP-based distributed MES model that integrated market mechanisms with policy incentives, demonstrating how policy-aligned optimization can accelerate practical deployment.

Overall, MES research has progressed from subsystem efficiency toward holistic, policy-aware, and adaptive optimization frameworks. This progression indicates a broader shift—from system modeling as an engineering challenge to system coordination as an interdisciplinary problem involving technology, economics, and governance. These developments are summarized in Table 8.

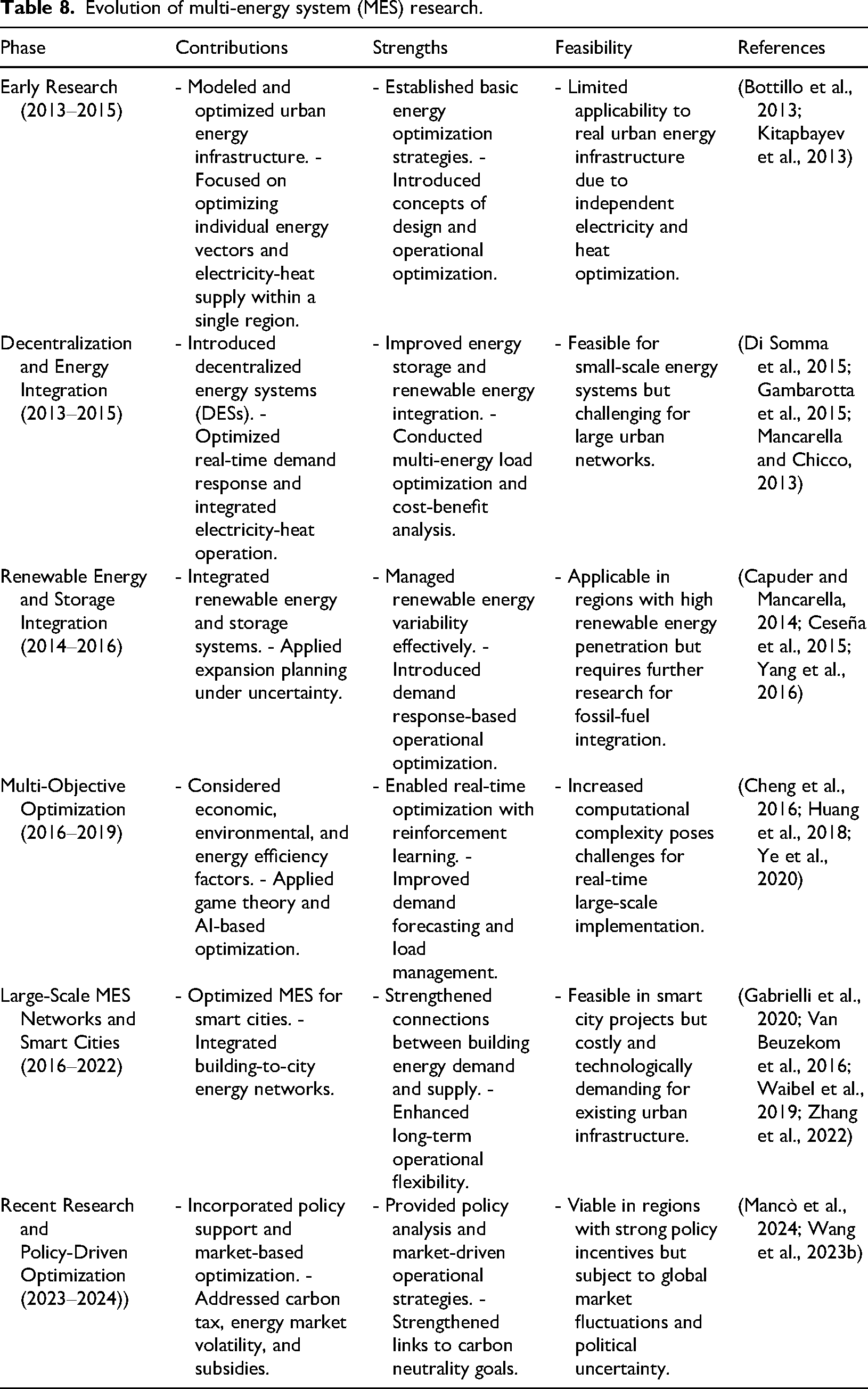

Table 8.

Evolution of multi-energy system (MES) research.

Phase	Contributions	Strengths	Feasibility	References
Early Research (2013–2015)	- Modeled and optimized urban energy infrastructure. - Focused on optimizing individual energy vectors and electricity-heat supply within a single region.	- Established basic energy optimization strategies. - Introduced concepts of design and operational optimization.	- Limited applicability to real urban energy infrastructure due to independent electricity and heat optimization.	(Bottillo et al., 2013; Kitapbayev et al., 2013)
Decentralization and Energy Integration (2013–2015)	- Introduced decentralized energy systems (DESs). - Optimized real-time demand response and integrated electricity-heat operation.	- Improved energy storage and renewable energy integration. - Conducted multi-energy load optimization and cost-benefit analysis.	- Feasible for small-scale energy systems but challenging for large urban networks.	(Di Somma et al., 2015; Gambarotta et al., 2015; Mancarella and Chicco, 2013)
Renewable Energy and Storage Integration (2014–2016)	- Integrated renewable energy and storage systems. - Applied expansion planning under uncertainty.	- Managed renewable energy variability effectively. - Introduced demand response-based operational optimization.	- Applicable in regions with high renewable energy penetration but requires further research for fossil-fuel integration.	(Capuder and Mancarella, 2014; Ceseña et al., 2015; Yang et al., 2016)
Multi-Objective Optimization (2016–2019)	- Considered economic, environmental, and energy efficiency factors. - Applied game theory and AI-based optimization.	- Enabled real-time optimization with reinforcement learning. - Improved demand forecasting and load management.	- Increased computational complexity poses challenges for real-time large-scale implementation.	(Cheng et al., 2016; Huang et al., 2018; Ye et al., 2020)
Large-Scale MES Networks and Smart Cities (2016–2022)	- Optimized MES for smart cities. - Integrated building-to-city energy networks.	- Strengthened connections between building energy demand and supply. - Enhanced long-term operational flexibility.	- Feasible in smart city projects but costly and technologically demanding for existing urban infrastructure.	(Gabrielli et al., 2020; Van Beuzekom et al., 2016; Waibel et al., 2019; Zhang et al., 2022)
Recent Research and Policy-Driven Optimization (2023–2024))	- Incorporated policy support and market-based optimization. - Addressed carbon tax, energy market volatility, and subsidies.	- Provided policy analysis and market-driven operational strategies. - Strengthened links to carbon neutrality goals.	- Viable in regions with strong policy incentives but subject to global market fluctuations and political uncertainty.	(Mancò et al., 2024; Wang et al., 2023b)

Conclusion

Optimizing interregional MESs requires balancing energy-supply stability, economic feasibility, real-time operability, and policy–market alignment. While earlier studies mainly addressed isolated subsystems or single-region optimization, this review emphasizes the need for integrated planning that reflects the interdependence among electricity, heat, and hydrogen networks. Drawing on prior work, it organizes optimization techniques, energy-integration models, and economic assessments to examine how energy sharing, grid interconnection, and policy incentives shape system resilience and cost efficiency, and it identifies gaps related to operational uncertainty and regulatory constraints. The evidence indicates that successful MES implementation depends on coordinated action between technology and policy. Government instruments (legal and financial) are most effective when accompanied by research practices that integrate technical, operational, and policy perspectives. In practice, planning approaches benefit from reflecting real system interactions and from being supported by quantitative analysis and verified case studies. By synthesizing methodologies and recurring challenges, this review distills a set of linkage principles connecting real-time operation with market and policy mechanisms. Looking ahead, research could develop multi-scale models that relate dynamic price signals, policy-driven dispatch, and investment-risk assessment. Greater attention to dynamic energy-trading mechanisms and uncertainty quantification is likely to enhance MES flexibility and adaptability in evolving energy markets. Beyond summarizing methodological advances, this review consolidates insights from technical and policy perspectives to indicate how integrated approaches can inform practical MES design and policy coordination. The findings offer guidance for policymakers and energy planners seeking to align decarbonization objectives with system reliability and investment feasibility. This synthesis provides a foundation for scalable, resilient, and policy-responsive MES development.

Footnotes

Acknowledgements

This work was supported by the Gwangju. Jeonnam Local Energy Cluster Human Resources Development of the Korea Institute of Energy Technology Evaluation and Planning (KETEP) grant funded by the Korea government Ministry of Trade, Industry and Energy (No. RS-2021-KP002519). This research was supported by Korea Electrotechnology Research Institute (KERI) Primary research program through the National Research Council of Science & Technology (NST) funded by the Ministry of Science and ICT (MSIT) (No. 25A01024).

ORCID iDs

Jeongsoo Kim

Byuk-Keun Jo

Sangwook Han

Dongho Lee

Author contributions

JK contributed to original draft preparation. TP contributed to review & editing; BJ contributed to review & editing; SH contributed to conceptualization and methodology; DL contributed to conceptualization and formal analysis.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the Korea Electrotechnology Research Institute, Korea Institute of Energy Technology Evaluation and Planning, (grant number 25A01024, RS2021-KP002519).

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Data availability

The data that support the findings of this study are available within the article.

References

Ahmadi

Sadeghi

Marzband

, et al. (2022) Decentralized bi-level stochastic optimization approach for multi-agent multi-energy networked micro-grids with multi-energy storage technologies. Energy 245: 123223.

Akarsu

Genç

(2022) Optimization of electricity and hydrogen production with hybrid renewable energy systems. Fuel 324: 124465.

Aljaidi

Jangir

Agrawal

, et al. (2025a) Optimizing FACTS device placement using the Fata Morgana Algorithm: a cost and power loss minimization approach in uncertain load scenario-based systems. International Journal of Computational Intelligence Systems 18(1): 12.

Aljaidi

Jangir

Agrawal

, et al. (2025b) A quasi affine transformation evolution algorithm with evolution matrix selection operation for parameter estimation of proton exchange membrane fuel cells. Scientific Reports 15(1): 1662.

Bahrami

Rosen

(2024) Exergoeconomic evaluation and multi-objective optimization of a novel geothermal-driven zero-emission system for cooling, electricity, and hydrogen production: capable of working with low-temperature resources. Geothermal Energy 12(1): 12.

Barbaro

Castro

(2020) Design optimisation for a hybrid renewable microgrid: application to the case of Faial Island, Azores archipelago. Renewable Energy 151: 434–445.

Bottillo

Cedola

de Lieto Vollaro

, et al (2013) Innovative strategies for energy optimization. International Journal of Research in Engineering and Technology 2(11): 462–468.

Bracco

Dentici

Siri

(2013) Economic and environmental optimization model for the design and the operation of a combined heat and power distributed generation system in an urban area. Energy 55: 1014–1024.

Capuder

Mancarella

(2014) Techno-economic and environmental modelling and optimization of flexible distributed multi-generation options. Energy 71: 516–533.

10.

Carmona

Miranda

Rodriguez

, et al. (2024) Assessment of the green hydrogen value chain in cases of the local industry in Chile applying an optimization model. Energy 300: 131630.

11.

Ceseña

EAM

Capuder

Mancarella

(2015) Flexible distributed multienergy generation system expansion planning under uncertainty. IEEE Transactions on Smart Grid 7(1): 348–357.

12.

Chen

Zhang

, et al. (2022) Hot spot temperature optimization of customized region in multi-region integrated system based on variational method. International Journal of Heat and Mass Transfer 193: 122964.

13.

Chen

Sun

Zhang

, et al. (2021) A feasible zone analysis method with global partial load scanning for solving power flow coupling models of CCHP systems. Journal of Modern Power Systems and Clean Energy 10(2): 371–377.

14.

Cheng

Liu

Huang

, et al. (2016) An optimal operating strategy for CCHP in multi-energy carrier system. In: 2016 IEEE power and energy society general meeting (PESGM), pp.1–5: IEEE. DOI: 10.1109/PESGM.2016.7741902.

15.

Cho

Kim

(2019) Multi-site and multi-period optimization model for strategic planning of a renewable hydrogen energy network from biomass waste and energy crops. Energy 185: 527–540.

16.

Coelho

Iria

Soares

, et al. (2023) Real-time management of distributed multi-energy resources in multi-energy networks. Sustainable Energy, Grids and Networks 34: 101022.

17.

Colbertaldo

Parolin

Campanari

(2023) A comprehensive multi-node multi-vector multi-sector modelling framework to investigate integrated energy systems and assess decarbonisation needs. Energy Conversion and Management 291: 117168.

18.

Deng

Eklund

Sierla

, et al. (2023) Deep reinforcement learning for fuel cost optimization in district heating. Sustainable Cities and Society 99: 104955.

19.

Ding

Feng

Chu

(2011) Optimization of hydrogen distribution systems with pressure constraints. Journal of Cleaner Production 19(2-3): 204–211.

20.

Di Somma

Yan

Bianco

, et al. (2015) Operation optimization of a distributed energy system considering energy costs and exergy efficiency. Energy Conversion and Management 103: 739–751.

21.

Dokkar

Negrou

Settou

, et al. (2013) Optimization of PEM fuel cells for PV-hydrogen power system. Energy Procedia 36: 798–807.

22.

Dong

Xiang

(2016) Optimal sizing of a stand-alone hybrid power system based on battery/hydrogen with an improved ant colony optimization. Energies 9(10): 785.

23.

El-Bidairi

Nguyen

Jayasinghe

SDG

, et al. (2018) A hybrid energy management and battery size optimization for standalone microgrids: a case study for Flinders Island, Australia. Energy Conversion and Management 175: 192–212.

24.

Elekidis

Koltsaklis

Georgiadis

(2018) An optimization approach for the assessment of the impact of transmission capacity on electricity trade and power systems planning. Industrial & Engineering Chemistry Research 57(30): 9766–9778.

25.

Erenoğlu

(2024) Real-time optimization for integrated R2 charging and refueling stations in a multi-carrier energy system considering hydrogen chain management. International Journal of Hydrogen Energy 85: 310–326.

26.

Eriksson

ELV

Gray

(2019) Optimization of renewable hybrid energy systems–a multi-objective approach. Renewable Energy 133: 971–999.

27.

Pudjianto

Zhang

, et al. (2020) Integration of hydrogen into multi-energy systems optimisation. Energies 13(7): 1606.

28.

Sun

Wennersten

, et al. (2024) Interactive scheduling optimization of regional multi-agent integrated energy systems considering uncertainties based on game theory. Journal of Cleaner Production 449: 141697.

29.

Gabrielli

Acquilino

Siri

, et al. (2020) Optimization of low-carbon multi-energy systems with seasonal geothermal energy storage: the Anergy Grid of ETH Zurich. Energy Conversion and Management: X 8: 100052.

30.

Gambarotta

Morini

Pompini

, et al. (2015) Optimization of load allocation strategy of a multi-source energy system by means of dynamic programming. Energy Procedia 81: 30–39.

31.

Gong

Sun

, et al. (2020) Collaborative optimization of multi-energy complementary combined cooling, heating, and power systems considering schedulable loads. Energies 13(4): 918.

32.

Huang

Chu

, et al. (2018) A novel optimization model based on game tree for multi-energy conversion systems. Energy 150: 109–121.

33.

Husarek

Schmugge

Niessen

(2021) Hydrogen supply chain scenarios for the decarbonisation of a German multi-modal energy system. International Journal of Hydrogen Energy 46(76): 38008–38025.

34.

Imeni

Ghazizadeh

Lasemi

, et al. (2023) Optimal scheduling of a hydrogen-based energy hub considering a stochastic multi-attribute decision-making approach. Energies 16(2): 631.

35.

Ismail

Moghavvemi

Mahlia

TMI

(2014) Genetic algorithm based optimization on modeling and design of hybrid renewable energy systems. Energy Conversion and Management 85: 120–130.

36.

Jamal

Pasupuleti

Ekanayake

(2024) A rule-based energy management system for hybrid renewable energy sources with battery bank optimized by genetic algorithm optimization. Scientific Reports 14(1): 4865.

37.

Jangir

Ezugwu

Saleem

, et al. (2024) A hybrid mutational Northern Goshawk and elite opposition learning artificial rabbits optimizer for PEMFC parameter estimation. Scientific Reports 14(1): 28657.

38.

Ding

Xia

, et al. (2020) System design and optimisation study on a novel CCHP system integrated with a hybrid energy storage system and an ORC. Complexity 2020(1): 1278751.

39.

Jiang

Zeng

, et al. (2016) Evaluation of combined cooling, heating and power (CCHP) systems with energy storage units at different locations. Applied Thermal Engineering 95: 204–210.

40.

Jiao

Hou

, et al. (2013) Design and optimization of flexible hydrogen systems in refineries. Industrial & Engineering Chemistry Research 52(11): 4113–4131.

41.

Jin

Xiao

Hou

, et al. (2022) Cross-regional electricity and hydrogen deployment research based on coordinated optimization: towards carbon neutrality in China. Energy Reports 8: 13900–13913.

42.

Kamal

Pecho

RDC

Fakhruldeen

, et al. (2023) Photovoltaic/hydrokinetic/hydrogen energy system sizing considering uncertainty: a stochastic approach using two-point estimate method and improved gradient-based optimizer. Sustainability 15(21): 15622.

43.

Kang

Yuan

, et al. (2022) Performance indices review of the current integrated energy system: from history and projects in China. Sustainable Energy Technologies and Assessments 53: 102785.

44.

Kaushik

Prakash

Mahela

, et al. (2022) Comprehensive overview of power system flexibility during the scenario of high penetration of renewable energy in utility grid. Energies 15(2): 516.

45.

Kitapbayev

Moriarty

Mancarella

, et al. (2013) A real options assessment of operational flexibility in district energy systems. In: 2013 10th international conference on the European energy market (EEM), pp.1–7: IEEE. DOI: 10.1109/EEM.2013.6607328.

46.

Kneiske

(2024) Impact of multi-energy system and different control strategies on a generic low-voltage distribution grid. Electronics 13(13): 2545.

47.

Koirala

Hers

Morales-España

, et al. (2021) Integrated electricity, hydrogen and methane system modelling framework: application to the Dutch Infrastructure Outlook 2050. Applied Energy 289: 116713.

48.

Kuby

Lines

Schultz

, et al. (2009) Optimization of hydrogen stations in Florida using the flow-refueling location model. International Journal of Hydrogen Energy 34(15): 6045–6064.

49.

Kwon

Lee

Kim

, et al. (2024) Integrated battery and hydrogen energy storage for enhanced grid power savings and green hydrogen utilization. Applied Sciences 14(17): 7631.

50.

Cui

, et al. (2020) Optimization configuration of regional integrated energy system based on standard module. Energy and Buildings 229: 110485.

51.

Ying

Lou

, et al. (2018) Integrated energy system optimization based on standardized matrix modeling method. Applied Sciences 8(12): 2372.

52.

Xiao

, et al. (2023) Hierarchical optimal scheduling method for regional integrated energy systems considering electricity-hydrogen shared energy. Applied Energy 349: 121670.

53.

Zhang

Cong

, et al. (2025) Operation optimization model of regional power grid considering congestion management and security check in complex market operation environment. Processes 13(2): 336.

54.

Lin

Guo

, et al. (2020) Hydrogen station location optimization based on multiple data sources. International Journal of Hydrogen Energy 45(17): 10270–10279.

55.

Liu

Wang

Tang

, et al. (2021a) Optimization of a multi-energy complementary distributed energy system based on comparisons of two genetic optimization algorithms. Processes 9(8): 1388.

56.

Liu

Gao

Qian

, et al. (2021b) Potential analysis and optimization of combined cooling, heating, and power (CCHP) systems for eco-campus design based on comprehensive performance assessment. Frontiers in Energy Research 9: 781634.

57.

Liu

Sun

Xing

, et al. (2022) Artificial intelligence powered large-scale renewable integrations in multi-energy systems for carbon neutrality transition: challenges and future perspectives. Energy and AI 10: 100195.

58.

Basem

Hasani

, et al. (2025) The potential of combined robust model predictive control and deep learning in enhancing control performance and adaptability in energy systems. Scientific Reports 15(1): 11187.

59.

Mallégol

Khannoussi

Mohammadi

, et al. (2023) Handling non-linearities in modelling the optimal design and operation of a multi-energy system. Mathematics 11(23): 4855.

60.

Mancarella

Chicco

(2013) Real-time demand response from energy shifting in distributed multi-generation. IEEE Transactions on Smart Grid 4(4): 1928–1938.

61.

Mancò

Tesio

Guelpa

, et al. (2024) A review on multi energy systems modelling and optimization. Applied Thermal Engineering 236: 121871.

62.

Marocco

Ferrero

Lanzini

, et al. (2021) Optimal design of stand-alone solutions based on RES+ hydrogen storage feeding off-grid communities. Energy Conversion and Management 238: 114147.

63.

Marocco

Ferrero

Lanzini

, et al. (2022) The role of hydrogen in the optimal design of off-grid hybrid renewable energy systems. Journal of Energy Storage 46: 103893.

64.

Mei

Zuo

Lee

, et al. (2021) Stochastic optimization of multi-energy system operation considering hydrogen-based vehicle applications. Advances in Applied Energy 2: 100031.

65.

Nan

Xiao

Teimourian

(2024) Gas engine CCHP system optimization: an energy, exergy, economic, and environment analysis and optimization based on developed northern goshawk optimization algorithm. Heliyon 10(11): e31208.

66.

Okundamiya

(2021) Size optimization of a hybrid photovoltaic/fuel cell grid connected power system including hydrogen storage. International Journal of Hydrogen Energy 46(59): 30539–30546.

67.

Olympios

Kourougianni

Arsalis

, et al. (2024) A holistic framework for the optimal design and operation of electricity, heating, cooling and hydrogen technologies in buildings. Applied Energy 370: 123612.

68.

Osorio-Aravena

Aghahosseini

Bogdanov

, et al. (2023) Synergies of electrical and sectoral integration: analysing geographical multi-node scenarios with sector coupling variations for a transition towards a fully renewables-based energy system. Energy 279: 128038.

69.

Qamar

HGM

Guo

Ghith

, et al. (2024) A novel approach to energy management with power quality enhancement in hydrogen based microgrids through numerical simulation. Applied Sciences 14(17): 7607.

70.

Qiu

Zhou

Wang

, et al. (2020) Feasibility analysis of utilising underground hydrogen storage facilities in integrated energy system: case studies in China. Applied Energy 269: 115140.

71.

Ramsebner

Haas

Ajanovic

, et al. (2021) The sector coupling concept: a critical review. Wiley Interdisciplinary Reviews: Energy and Environment 10(4): e396.

72.

Sahoo

van Stralen

Zuidema

, et al. (2022) Regionalization of a national integrated energy system model: a case study of the northern Netherlands. Applied Energy 306: 118035.

73.

Salinas-Herrera

Moeini

Kamwa

(2022) Survey of simulation tools to assess techno-economic benefits of smart grid technology in integrated T&D systems. Sustainability 14(13): 8108.

74.

Sanchez

Chavez-Ramirez

Duron-Torres

, et al. (2014) Techno-economical optimization based on swarm intelligence algorithm for a stand-alone wind-photovoltaic-hydrogen power system at south-east region of Mexico. International Journal of Hydrogen Energy 39(29): 16646–16655.

75.

Sass

Faulwasser

Hollermann

, et al. (2020) Model compendium, data, and optimization benchmarks for sector-coupled energy systems. Computers & Chemical Engineering 135: 106760.

76.

Sheikhi

Mozafari

Ranjbar

(2011) CHP Optimized selection methodology for a multi-carrier energy system. In: 2011 IEEE Trondheim PowerTech, pp.1–7: IEEE. DOI: 10.1109/PTC.2011.6019291.

77.

Steidl

Peer

Alhamwi

, et al. (2024) GIS-based modelling of hydrogen integration in urban energy systems–a systematic review. Current Sustainable/Renewable Energy Reports 11(4): 85–94.

78.

Strömer

Beck

Traninger

, et al. (2024) Transitioning to a renewable hydrogen system: optimal infrastructure for self-sufficient hydrogen supply in Austria by 2030. Smart Energy 15: 100151.

79.

Sun

Deng

, et al. (2022) A BCS-GDE multi-objective optimization algorithm for combined cooling, heating and power model with decision strategies. Applied Thermal Engineering 213: 118685.

80.

Tang

Gao

Xia

, et al. (2018) Integrated energy system configuration optimization for multi-zone heat-supply network interaction. Energies 11(11): 3052.

81.

Teng

Wang

, et al. (2019) Multi-energy storage system model based on electricity heat and hydrogen coordinated optimization for power grid flexibility. CSEE Journal of Power and Energy Systems 5(2): 266–274.

82.

Traupmann

Greiml

Steinegger

, et al. (2023) Analysing sector coupling technologies for re-purposing coal-fired power plants–case study for the ENTSO-E grid. IET Energy Systems Integration 5(1): 95–118.

83.

Van Beuzekom

Mazairac

LAJ

Gibescu

, et al. (2016) Optimal design and operation of an integrated multi-energy system for smart cities. In: 2016 IEEE international energy conference (ENERGYCON), pp.1–7: IEEE. DOI: 10.1109/ENERGYCON.2016.7514030.

84.

Versaci

Colombo

Montinaro

, et al. (2024) Tailoring cathode materials: a comprehensive study on LNMO/LFP blending for next generation lithium-ion batteries. Journal of Power Sources 613: 234955.

85.

Waibel

Evins

Carmeliet

(2019) Co-simulation and optimization of building geometry and multi-energy systems: interdependencies in energy supply, energy demand and solar potentials. Applied Energy 242: 1661–1682.

86.

Wang

Hsiao

Yang

(2018) The optimization of hybrid power systems with renewable energy and hydrogen generation. Energies 11(8): 1948.

87.

Wang

Pan

, et al. (2023a) Economic dispatch of integrated electricity–heat–hydrogen system considering hydrogen production by water electrolysis. Electronics 12(19): 4166.

88.

Wang

Ren

Zhang

, et al. (2023b) Co-optimization of configuration and operation for distributed multi-energy system considering different optimization objectives and operation strategies. Applied Thermal Engineering 230: 120655.

89.

Wang

Hou

Guo

, et al. (2023c) Enhancing energy transition through sector coupling: a review of technologies and models. Energies 16(13): 5226.

90.

Wang

Huang

, et al. (2019) Operation optimization of regional integrated energy system based on the modeling of electricity-thermal-natural gas network. Applied Energy 251: 113410.

91.

Wang

Zhou

, et al. (2023d) Coordinated configuration strategy of multi-energy systems based on capacity-energy-information sharing. Energy 277: 127699.

92.

Zhang

Sterling

(2021) Economic analysis of power grid interconnections among Europe, North-East Asia, and North America with 100% renewable energy generation. IEEE Open Access Journal of Power and Energy 8: 268–280.

93.

Wang

Yue

(2022) On the integration of hydrogen into integrated energy systems: Modeling, optimal operation, and reliability assessment. IEEE Open Access Journal of Power and Energy 9: 451–464.

94.

Zhao

, et al. (2023) Operation optimization of distributed energy systems considering nonlinear characteristics of multi-energy transport and conversion processes. Energy 283: 129192.

95.

Leonforte

Del Pero

(2024) District multi-energy systems: a comprehensive review of configurations, technologies, and performances. Building and Environment 253: 111318.

96.

Yan

Peng

Lai

, et al. (2023) Two-layer optimization planning model for integrated energy systems in hydrogen refueling original station. Sustainability 15(10): 7941.

97.

Yang

Xiong

Qiu

, et al. (2016) Optimal operation of DES/CCHP based regional multi-energy prosumer with demand response. Applied Energy 167: 353–365.

98.

Yang

Liu

(2025) Design of hydrogen supply chain networks for cross-regional distribution. Industrial & Engineering Chemistry Research 64(8): 4498–4515.

99.

Qiu

, et al. (2020) Model-free real-time autonomous control for a residential multi-energy system using deep reinforcement learning. IEEE Transactions on Smart Grid 11(4): 3068–3082.

100.

Fan

(2016) Inter-regional power grid planning up to 2030 in China considering renewable energy development and regional pollutant control: a multi-region bottom-up optimization model. Applied Energy 184: 641–658.

101.

, et al. (2023) Collaborative planning and optimization for electric-thermal-hydrogen-coupled energy systems with portfolio selection of the complete hydrogen energy chain. arXiv preprint arXiv:2311.07891. DOI: 10.48550/arXiv.2311.07891.

102.

Yufeng

Zhicheng

Xubing

, et al. (2024) Intelligent day-ahead optimization scheduling for multi-energy systems. Frontiers in Energy Research 11: 1349194.

103.

Zhang

Sun

Tan

, et al. (2022) Capacity configuration optimization of multi-energy system integrating wind turbine/photovoltaic/hydrogen/battery. Energy 252: 124046.

104.

Zhang

Zhou

Zong

, et al. (2019) Development and modelling of a novel electricity-hydrogen energy system based on reversible solid oxide cells and power to gas technology. International Journal of Hydrogen Energy 44(52): 28305–28315.

105.

Zheng

Yang

Zhang

, et al. (2012) The pattern comparison and optimization model of inter-regional transactions in Smart Grid. In: IEEE PES innovative smart grid technologies, pp.1–6: IEEE. DOI: 10.1109/ISGT-Asia.2012.6303342.

106.

Zhou

Liang

, et al. (2024) Hydrogen station location optimization coupling hydrogen sources and transportation along the expressway. International Journal of Hydrogen Energy 54: 1094–1109.

107.

Zhou

Zhuang

, et al. (2020) Optimized scheduling of multi-region gas and power complementary system considering tiered gas tariff. Energy 193: 116677.

108.

Zhu

Chen

, et al. (2020) Distributed optimal dispatching of interconnected electricity-gas-heating system. IEEE Access 8: 93309–93321.
