Fourth update on CT angiography of coronary stents: in vitro evaluation of 24 novel stent types

Abstract

Background

Non-invasive evaluation of coronary stent patency by coronary computed tomography angiography (cCTA) remains challenging. Multiple studies showed that CT technology but also individual stent design strongly influence the assessability of coronary stents by cCTA.

Purpose

To expand the available data on cCTA characteristics of coronary stents by 24 novel types to help interpreting examinations of patients after stent placement and selecting which stents are suitable for assessment by cCTA.

Material and Methods

Twenty-four novel coronary stents (17 cobalt–chromium, six stainless-steel, one platinum–chromium) were examined in a coronary phantom. Standard cCTA parameters with stent-specific algorithms were used. Image quality was quantified for each stent using established parameters (in-stent attenuation alteration and visible lumen diameter).

Results

Most stents (n = 14) showed lumen visibilities of 45–55%. No severe restriction of lumen visibility (>60%) was found. The majority of stents (n = 13) caused only small intraluminal attenuation deviations and no severe alterations (>20%) were found. When grouped by manufacturing material, no significant differences were found between cobalt–chromium and stainless-steel with identical mean visible diameters (1.52 ± 0.17 mm vs. 1.52 ± 0.13 mm) and comparable attenuation alterations (35.04 ± 16.56 HU vs. 21.25 ± 14.60 HU). The only platinum–chromium stent showed a smaller visible diameter (1.23 mm) and higher attenuation alteration (41.70 HU), but was also deemed to be assessable by cCTA.

Conclusion

All 24 novel evaluated stents are eligible for non-invasive evaluation by cCTA without significant differences between cobalt–chromium and stainless-steel stents. This updated catalogue of CT appearances of current coronary stents may serve as reference when taking care of patients with stents in need of coronary imaging.

Keywords

Cardiac computed tomography (CT)CT angiography coronary artery stent

Introduction

Percutaneous coronary interventions (PCI) are among the most frequently performed therapeutic procedures in medicine and, in most cases, include the deployment of a coronary stent (1,2). Despite continuous improvements in stent design and medical treatment, in-stent restenosis (ISR) still represents the main complication in these patients (2,3). Therefore, the accurate reassessment of the vessel lumen after stent placement continues to be a relevant task. If ISR is clinically suspected, usually an invasive coronary angiography is performed (4). Although non-invasive alternatives using computed tomography (CT) are desirable, coronary CT angiography (cCTA) continues to be partly impeded by beam-hardening and partial volume artifacts, due to the metallic composition of stents (5). Thereby, the ability to adequately visualize the stent lumen does not only depend on the used CT technology (6 –12), but also on the individual stent type, as various stent materials and designs lead to different levels of X-ray attenuation and subsequent artifacts (13 –15). These specific influences have been described in a catalogue of the CT appearance of coronary stents, which was first published in 2006 (13) and has been updated twice since (14,15). In the meantime, the stent market has expanded further and new types have become available of which the CT imaging properties have not been investigated yet. Therefore, the purpose of our study was to evaluate the stent lumen visualization in 24 novel coronary artery stent types.

Material and Methods

Evaluated stents and experimental set-up

Twenty-four coronary artery stents of different materials and designs were studied. Manufacturer, material, strut thickness, length, and nominal diameter of the stents are summarized in Suppl. Table 1.

Seventeen stents were made of a cobalt–chromium alloy, six of stainless surgical steel (316L), and one of a platinum–chromium alloy. All investigated stents are balloon-expandable.

Before imaging, each stent was placed into a plastic tube with an inner diameter of 3 mm, simulating a coronary artery. The plastic material had a thickness of 0.3 mm with a CT number comparable to that of a vessel wall (35 HU). The tube was filled with Iohexol (300 mg Iohexol/mL; Accupaque 300; GE Healthcare, Braunschweig, Germany), which was diluted with saline solution to a CT number of 260 HU at 120 kVp, and sealed at both ends. Finally, the tube was placed in a plastic container (36 × 24 cm) filled with vegetable oil to simulate epicardial fat. The density of the oil was calibrated to measure −95 HU at 120 kVp. The phantom was then positioned onto the CT scanner table in the gantry parallel to the z-axis and centered in the isocenter of the scanner.

CT acquisition parameters

CT data were acquired on a 128-row spectral detector CT scanner (IQon, Philips Healthcare, Best, The Netherlands) with a simulated electrocardiogram (ECG) signal at a heart rate of 60 bpm for prospectively ECG-triggered data acquisition. The following routine clinical cardiac scanning parameters were used for all scans without specific optimization (16,17): slice collimation = 128 × 0.625 mm, rotation time = 0.27 s, tube current-time product = 125 mAs, tube potential = 120 kVp and resulting CTDIvol = 11.3 mGy.

The reconstructed field of view was set to 250 mm with a pixel matrix of 512 × 512. From the acquired raw data, images were reconstructed using a slice thickness of 0.67 mm and an increment of 0.35 mm with a (statistical) hybrid iterative reconstruction algorithm (iDose⁴, Philips Healthcare) using the iteration level 4 and a dedicated cardiac stent convolution kernel (XCD).

All quantitative analyses were performed with a fixed window width of 1500 HU and a window center of 300 HU as previously recommended (8,11,14).

CT data analysis

Axial reformations of all stents were used for evaluation and secondary longitudinal multiplanar reformations (MPRs) were generated for demonstration purposes only. The visible lumen diameter is given as average of the measurements on three representative axial slices in the center of the stent using the electronic caliper tool provided with the scanner’s standard workstation (IntelliSpace Portal, Philips Healthcare).

Attenuation alteration inside the visible stent lumen was evaluated on the same three axial slices using a region of interest measurement as large as possible but excluding the stent strut artifacts. The average attenuation within the stent was compared to the attenuation in the tube outside of the stent. The difference was considered as stent-related attenuation.

The means of the visible stent lumen diameter as well as the in-stent attenuation alteration were calculated and compared grouped by the used manufacturing material.

Statistical analysis

Continuous variables were expressed as mean ± standard deviation (SD) and intra-measurement variability coefficient was calculated for repeated measurements. Mean differences in quantitative imaging parameters (visible stent lumen diameter and in-stent attenuation alteration) were tested using an unpaired student’s t-test for the cobalt–chromium and stainless-steel stents. A two-tailed P value <0.05 was inferred to indicate significance. All statistical analyses were conducted using commercially available software (SPSS, release 23.0; IBM, Armonk, NY, USA).

Results

The mean visible stent lumen diameters and attenuation values of all stents are presented in Table 1. Six stents showed a good lumen visibility of >55%, 14 stents gave results with visibilities of 45–55% and four stents exhibited limited visible lumen diameters of <45%. Among these contemporary stents there was no stent with severely restricted visibility of <40%.

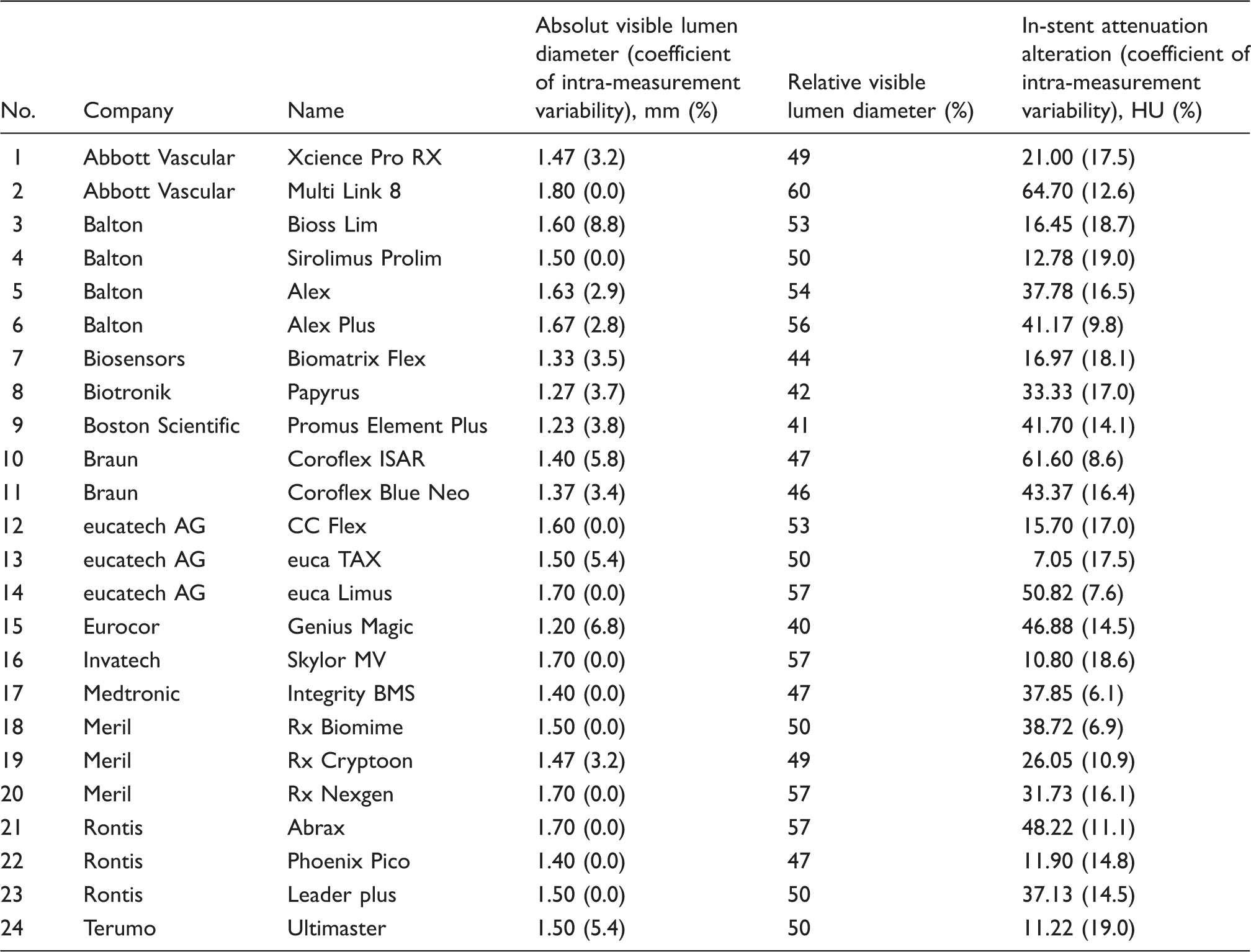

Table 1.

Visible lumen diameters and attenuation alterations of the examined stents.

No.	Company	Name	Absolut visible lumen diameter (coefficient of intra-measurement variability), mm (%)	Relative visible lumen diameter (%)	In-stent attenuation alteration (coefficient of intra-measurement variability), HU (%)
1	Abbott Vascular	Xcience Pro RX	1.47 (3.2)	49	21.00 (17.5)
2	Abbott Vascular	Multi Link 8	1.80 (0.0)	60	64.70 (12.6)
3	Balton	Bioss Lim	1.60 (8.8)	53	16.45 (18.7)
4	Balton	Sirolimus Prolim	1.50 (0.0)	50	12.78 (19.0)
5	Balton	Alex	1.63 (2.9)	54	37.78 (16.5)
6	Balton	Alex Plus	1.67 (2.8)	56	41.17 (9.8)
7	Biosensors	Biomatrix Flex	1.33 (3.5)	44	16.97 (18.1)
8	Biotronik	Papyrus	1.27 (3.7)	42	33.33 (17.0)
9	Boston Scientific	Promus Element Plus	1.23 (3.8)	41	41.70 (14.1)
10	Braun	Coroflex ISAR	1.40 (5.8)	47	61.60 (8.6)
11	Braun	Coroflex Blue Neo	1.37 (3.4)	46	43.37 (16.4)
12	eucatech AG	CC Flex	1.60 (0.0)	53	15.70 (17.0)
13	eucatech AG	euca TAX	1.50 (5.4)	50	7.05 (17.5)
14	eucatech AG	euca Limus	1.70 (0.0)	57	50.82 (7.6)
15	Eurocor	Genius Magic	1.20 (6.8)	40	46.88 (14.5)
16	Invatech	Skylor MV	1.70 (0.0)	57	10.80 (18.6)
17	Medtronic	Integrity BMS	1.40 (0.0)	47	37.85 (6.1)
18	Meril	Rx Biomime	1.50 (0.0)	50	38.72 (6.9)
19	Meril	Rx Cryptoon	1.47 (3.2)	49	26.05 (10.9)
20	Meril	Rx Nexgen	1.70 (0.0)	57	31.73 (16.1)
21	Rontis	Abrax	1.70 (0.0)	57	48.22 (11.1)
22	Rontis	Phoenix Pico	1.40 (0.0)	47	11.90 (14.8)
23	Rontis	Leader plus	1.50 (0.0)	50	37.13 (14.5)
24	Terumo	Ultimaster	1.50 (5.4)	50	11.22 (19.0)

Mean diameters of the visible stent lumen in mm and mean alterations of the in-stent attenuation values in Hounsfield units (HU) of the investigated stents using the described acquisition and reconstruction parameters. The coefficient of the respective intra-measurement variability is given in brackets.

Thirteen stents showed only small deviations of the in-stent lumen attenuation (≥10%), whereas the other 11 stents caused moderate alterations of the measured densities inside of the stent lumen (up to 20%). Again, no severe deviations of in-stent attenuation were observed in the examined set of stents. Intra-measurement variability coefficients for the mean visible stent lumen diameters were low (mean = 2.5%, range = 0.0–8.8%) while they were higher for in-stent attenuation alterations (mean = 14.3%, range = 6.1–19.0%).

For illustration, longitudinal MPRs were created of every stent and then composed to Fig. 1.

Fig. 1.

Longitudinal through-plane reformations of 24 different coronary stents numbered accordingly to Table 1 (slice thickness 0.67 mm, other acquisition and reconstruction parameters as previously described).

When grouped by manufacturing material, no significant differences in the measured stent imaging parameters were found between cobalt–chromium and stainless-steel stents. The mean visible lumen diameter was with 1.52 mm identical in both groups. The mean in-stent attenuation alteration tended to be greater in cobalt–chromium stents; however, these did not reach the level of significance (P = 0.09). The measured visible lumen diameter of the platinum–chromium was noticeably smaller than for the cobalt–chromium and stainless-steel stents and likewise the in-stent attenuation alteration was greater, but with just one stent in this group statistical comparisons were not feasible. The results are summarized in Table 2.

Table 2.

Visible lumen diameters and attenuation alterations grouped by different manufacturing materials.

	Cobalt–chromium (A; n = 17)	Stainless-steel (B; n = 6)	Platinum–chromium (C; n = 1)	P values for A vs. B
Mean visible lumen diameter (mm ± SD)	1.52 ± 0.17	1.52 ± 0.13	1.23	0.98
Mean in-stent attenuation alteration (HU ± SD)	35.04 ± 16.56	21.25 ± 14.60	41.70	0.09

Mean diameters of the visible stent lumen (in mm) and mean alterations of the in-stent attenuation values (in Hounsfield units [HU]) group by the different manufacturing materials (cobalt–chromium, stainless-steel, and platinum–chromium).

Discussion

In-stent lumen visibility in cCTAs is impaired by stent related artifacts, which depend on the individual characteristics of each stent (material composition, stent strut thickness, stent architecture). In previous studies, the imaging properties were evaluated for a wide range of coronary stents available at that time (13 –15). Since then, new stent types have been introduced, of which the imaging properties have not been investigated yet. In our present study we investigated 24 of these novel stent types using current CT acquisition and reconstruction technologies.

As reflected by the collection of these novel stents, cobalt–chromium has surpassed stainless-steel as the most frequent manufacturing material for coronary stents in the last decade (18). In former studies, stainless-steel stents always represented the largest share of evaluated manufacturing materials (9,13,14,19,20). A comparison of these two most frequent materials in our study gave similar results with respect to the visible lumen diameter as well as stent-related alterations of in-stent attenuation without significant difference between both subgroups. In line with our results, platinum-based stents are known to give rise to stronger artifacts due to the increased density of their manufacturing material (15). The specific imaging properties of the platinum stent tested in our series, however, were still acceptable (Promus Element Plus; Boston Scientific, Marlborough, MA, USA; visible lumen diameter 41%, in-stent attenuation alteration 13%). Among all investigated stents there was no stent with <40% of visible lumen and only five stents with restricted lumen visibility of 40–45%. In the absence of severe lumen narrowing due to blooming artifacts, there was also no stent with extensive artificial alterations of in-stent lumen density. Overall, there was a reasonable mean observed in-stent attenuation alteration of about 10% with a still acceptable maximum deviation of 20%. Therefore, all evaluated stents seemed eligible for non-invasive evaluation by cCTA.

This is a distinct improvement over the beginning of CT-aided coronary stent imaging when not a single evaluated stent showed a lumen visibility of >40% (20). This progress has been made possible by a combination of advances in stent design as well as CT technology. With respect to the stent materials used today, there is hardly any chemical element with higher atomic numbers being utilized. Even with the latest CT scanner technologies, chemicals with high atomic numbers, such as tantalum (atomic number (Z) 73), prevent sufficient lumen visualizations of stents (6). Conversely, the now widespread cobalt–chromium stents consist of chemical elements with only moderate atomic numbers (Z 27 and 24) and additionally allow a considerably thinner manufacturing of the stent struts, which translates into a markedly decreased mean strut thickness in our study of about 80 µm. This is about 40% less than what has been reported for stent designs in the initial CT stent imaging studies (∼115 µm), where artifacts were far more prevalent (20). Moreover, a thinner strut thickness has also been shown to be clinically beneficial as it lowers in-stent restenosis rates (21).

In addition, advances in CT technology have contributed to improved stent visualization. In comparison to the four-slice CT scanner used primarily in 2002 (20), stent imaging capabilities improved in later studies with the use of 16-slice (12) and 64-slice (8) CT scanners, eventually resulting in lumen visibilities comparable to the results of our current study (13).

Our study has several limitations. Due to the in-vitro approach, patient-specific influencing factors (BMI, contrast agent doses, heart function, etc.) were not considered. Additionally, cardiac motion was not simulated in our set-up, therefore possible motion artifacts, as they might occur in patients with higher heart rates or arrhythmia, are not taken into account. Also, the number of novel stainless-steel stents was limited, which therefore potentially restricted the capability to identify subtle statistical differences. However, relevant differences in CT imaging eligibilities between stainless-steel and cobalt–chromium stents seem unlikely based on our results. The intra-measurement variability coefficients for in-stent attenuation alterations were slightly elevated, though still in a clinically acceptable range. The observed variability is to be attributed to spatial variations in the severity of imaging artifacts along the extent of each stent. Conversely, intra-measurement variability coefficients for the mean visible stent lumen diameter were desirably low.

In conclusion, this study expands the catalogue of CT imaging characteristics of coronary stents, originally published in 2006 and updated in 2009 and 2014, by 24 novel, previously unavailable stents. In line with results of other recent studies showing continuously improved CT imaging capabilities of coronary stents, all of these novel stents appear eligible for evaluation by cCTA. This updated catalogue will help to decide which patients with coronary stents are eligible for coronary CT assessment and also prove valuable when interpreting the stented coronary vessel lumen.

Footnotes

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

References

Stefanini

Holmes

. Drug-eluting coronary-artery stents. N Engl J Med 2013; 368: 254–265.

Lagerqvist

James

Stenestrand

et al.

Long-term outcomes with drug-eluting stents versus bare-metal stents in Sweden. N Engl J Med 2007; 356: 1009–1019.

Dangas

Claessen

Caixeta

et al.

In-stent restenosis in the drug-eluting stent era. J Am Coll Cardiol 2010; 56: 1897–1907.

Levin T, Cutlip D. Intracoronary stent restenosis. UpToDate. Available at: http://www.uptodate.com/contents/intracoronary-stent-restenosis (accessed 24 June 2015).

Schroeder

Achenbach

Bengel

et al.

Cardiac computed tomography: indications, applications, limitations, and training requirements: report of a Writing Group deployed by the Working Group Nuclear Cardiology and Cardiac CT of the European Society of Cardiology and the European Council of Nuclear Cardiology. Eur Heart J 2008; 29: 531–556.

Hickethier

Baeßler

Kroeger

et al.

Monoenergetic reconstructions for imaging of coronary artery stents using spectral detector CT: In-vitro experience and comparison to conventional images. J Cardiovasc Comput Tomogr 2017; 11: 33–39.

Mangold

Cannaó

Schoepf

et al.

Impact of an advanced image-based monoenergetic reconstruction algorithm on coronary stent visualization using third generation dual-source dual-energy CT: a phantom study. Eur Radiol 2016; 26: 1871–1878.

Seifarth

Ozgün

Raupach

et al.

64- Versus 16-slice CT angiography for coronary artery stent assessment: in vitro experience. Invest Radiol 2006; 41: 22–27.

Ulrich

Burg

Raupach

et al.

Coronary stent imaging with dual-source CT: assessment of lumen visibility using different convolution kernels and postprocessing filters. Acta Radiol 1987 2015; 56: 42–50.

10.

von Spiczak

Morsbach

Winklhofer

et al.

Coronary artery stent imaging with CT using an integrated electronics detector and iterative reconstructions: first in vitro experience. J Cardiovasc Comput Tomogr 2013; 7: 215–222.

11.

Donati

Burg

Desbiolles

et al.

High-pitch 128-slice dual-source CT for the assessment of coronary stents in a phantom model. Acad Radiol 2010; 17: 1366–1374.

12.

Maintz

Seifarth

Flohr

et al.

Improved coronary artery stent visualization and in-stent stenosis detection using 16-slice computed-tomography and dedicated image reconstruction technique. Invest Radiol 2003; 38: 790–795.

13.

Maintz

Seifarth

Raupach

et al.

64-slice multidetector coronary CT angiography: in vitro evaluation of 68 different stents. Eur Radiol 2006; 16: 818–826.

14.

Maintz

Burg

Seifarth

et al.

Update on multidetector coronary CT angiography of coronary stents: in vitro evaluation of 29 different stent types with dual-source CT. Eur Radiol 2009; 19: 42–49.

15.

Gassenmaier

Petri

Allmendinger

et al.

Next generation coronary CT angiography: in vitro evaluation of 27 coronary stents. Eur Radiol 2014; 24: 2953–2961.

16.

Funabashi

Namihira

Irie

et al.

Optical stent-sizes in evaluating patency of coronary lumen surrounded by XIENCE of actual diameters 2.21-2.85mm in 1st-generation 320-slice-CT using Pulsating-Phantom XIENCE phantom study part 5. Int J Cardiol 2016; 202: 549–551.

17.

Funabashi

Namihira

Irie

et al.

Recommended acquisition-parameters in achieving successful evaluation of coronary lumen patency surrounded by XIENCE of diameters <3.0mm in 1st generation 320-slice CT. XIENCE Phantom Study Part 1. Int J Cardiol 2016; 202: 537–540.

18.

Iqbal

Gunn

Serruys

. Coronary stents: historical development, current status and future directions. Br Med Bull 2013; 106: 193–211.

19.

Mahnken

Buecker

Wildberger

et al.

Coronary artery stents in multislice computed tomography: in vitro artifact evaluation. Invest Radiol 2004; 39: 27–33.

20.

Maintz

Juergens

K-U

Wichter

et al.

Imaging of coronary artery stents using multislice computed tomography: in vitro evaluation. Eur Radiol 2003; 13: 830–835.

21.

Pache

Kastrati

Mehilli

et al.

Intracoronary stenting and angiographic results: strut thickness effect on restenosis outcome (ISAR-STEREO-2) trial. J Am Coll Cardiol 2003; 41: 1283–1288.
