Comparison of theoretical approaches to determine the stresses in surface mounted permanent magnet rotors for high speed electric machines

Abstract

High-speed electrical machines (HSEMs) are becoming more popular in applications such as air handling devices. Using surface-mounted permanent magnet (PM) rotors manufactured from rare earth metals, they provide benefits over their mechanical transmission counterparts. However, these PMs have low tensile strength and are prone to failure under large centrifugal loads when rotating. Therefore, retaining sleeves are used to hold the PMs in compression to eliminate tensile stress and reduce failure risk. The magnets are also often held on a back iron or carrier, forming an assembly of three cylinders. The ability to predict these stresses is extremely important to rotor design. Current published work shows a lack of exploration of analytical methods of calculating these stresses for three-cylinder assemblies. This paper shows the development of plane stress, plane strain and generalised plane strain (GPS) theories for three cylinders. For a range of rotor designs, these theories are compared with finite element analysis (FEA). GPS is shown to be more accurate than plane stress or plane strain for the central region of long cylinders. For short cylinders and for the ends of cylinders, all three theories give poor results.

Keywords

Permanent magnet motor high-speed electric machines stress analysis electromagnetic motor high-speed rotor

Introduction

HSEM usage has increased over the last 10 years due to the performance benefits over their mechanical counterparts.¹ Current literature discuss how HSEMs provide benefits in reliability and power density^1–3 while the reduced weight and size of HSEMs is also beneficial.^4,5 HSEMs rotate via electromagnetic forces which gives an improvement in reliability over rotors using parts in contact.^6,7 Sintered PMs such as Samarium Cobalt or Neodymium are used which provide high energy density to allow the reduction of rotor size,⁸ which leads to an increase in operating speed.⁹

‘Interior’ (IPM) and ‘surface-mounted’ (SPM) PM rotors are the two possible rotor configurations. IPM rotors have PMs buried within the shaft or rotor iron while SPM rotors have PMs bonded to the surface of the shaft or rotor iron.⁸ Due to the sintering process, the Samarium Cobalt and Neodymium magnets have low tensile strength. When the magnets are mounted to a shaft or carrier cylinder, a sleeve is required to keep them in compression to avoid tensile stresses. These stresses are critical to the rotor durability so they must be calculated accurately.^8,10 SPM rotors are recommended for high-speed operation despite often being constructed using three or more interfering cylinders. This is due to the stress concentrations generated within IPM rotors limiting operating speed. Whilst the sleeve in SPM rotors reduces efficiency, as it acts as an electromagnetic air gap, this is not as limiting as IPM stress concentrations.^10,11 Therefore, a reliable theoretical method of calculating stresses in a three-cylinder rotor during operation is required.

The current work done on this topic has shown a lack of investigation into theoretical analyses for three-cylinder rotors.¹² Accurate theoretical analysis enables the validation of FEA simulations and also provides a more efficient method of predicting rotor stresses than running FEA studies for multiple topologies. For the papers that have completed theoretical analysis, the majority use plane stress^13–15 or plane strain^9,16,17 theory methods.

For the plane stress analyses, Zhu and Chen¹⁴ state their model is not bound by an axial load, while Cheng et al.¹⁵ states their rotor is under a small axial load and therefore, both assume plane stress condition. Zhang et al.¹³ found little difference between the plane stress and plane strain approaches for their model and chose plane stress due to simplicity. All of these papers^13–15 discuss three-cylinder rotors, but all simplify the analytical model to calculate the stresses for two-cylinders.

For the plane strain theory approach, three-cylinder rotors are also discussed.^9,16 Burnand et al.⁹ provides equations for all three cylinders, however it is assumed that there is no interference present between the shaft and the magnets, leaving a two-cylinder approach with one interference location. Zhou and Fang¹⁶ also focus on three-cylinder rotors, but similarly the analysis equations only relate to two interfering cylinders. Papini et al.¹⁷ makes no discussion of any interfering surfaces within their models.

There has been a lack of investigation into alternative theoretical approaches, but none have developed a theoretical model taking three cylinders, with two interference locations, into account. The final recommendation, from Mallin and Barrans,¹² for the theoretical analysis was to use the GPS approach instead of plane strain or plane stress. This paper will develop the plane stress, plane strain and GPS theories for three-cylinder rotors, examine the differences between each theory for the same rotor design and will benchmark these results against FEA simulations.

Classical closed-form analysis techniques

Background

The analysis described here will be applicable to rotors constructed using three interfering cylinders, with the magnets being mounted on an inner carrier or back iron. It is assumed that this carrier does not interfere with the central shaft. Figure 1 shows how the rotor would be configured on a shaft in a HSEM.

Figure 1.

Three cylinder rotor set-up on a HSEM shaft.

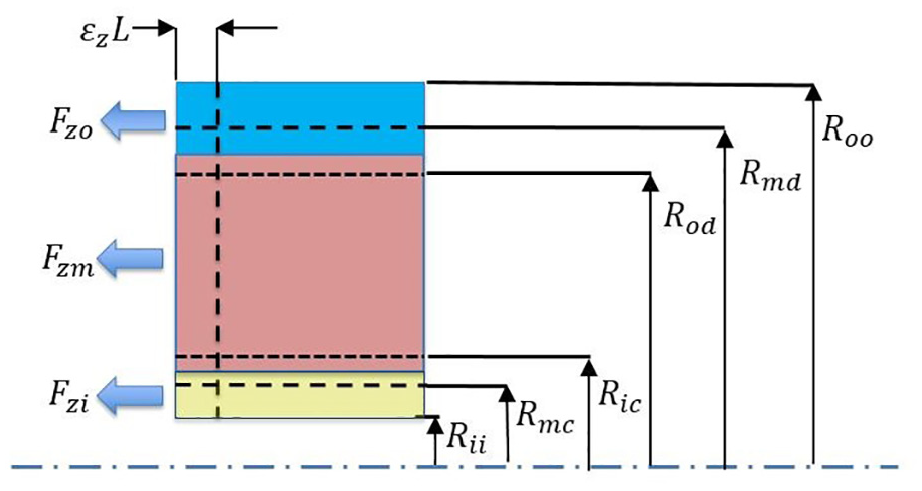

Figure 2 shows the configuration and corresponding location nomenclature. While each pair of interfering cylinders meets at a common radius, the initial radial dimensions, before assembly, are shown via the horizontal dashed lines. The overlap of cylinder diameters creates the necessary interference to keep the rotor together at all times. Therefore, $R_{ii}$ is the inner surface of the inner cylinder; $R_{ic}$ is the outer surface of the inner cylinder; $R_{mc}$ is the inner surface of the magnets; $R_{md}$ is the outer surface of the magnets; $R_{od}$ is the inner surface of the outer cylinder; $R_{oo}$ is the outer surface of the outer cylinder. The notation is based on the first subscript letter representing the cylinder (inner, middle or outer) and the second subscript letter representing the radial location within the compound cylinder. The inner and outer common radii are given the subscripts c and d respectively.

Figure 2.

Three cylinder axial cross-section.

For such three-cylinder rotor configurations: no radial stress is applied to $R_{ii}$ or $R_{oo}$ ; radial stress at $R_{ic}$ and $R_{mc}$ is equal to an interference shrinkage pressure, $S_{1}$ ; and radial stress at $R_{md}$ and $R_{od}$ is equal to an interference shrinkage pressure, $S_{2}$ .

From this, a set of boundary conditions are derived for each cylinder, where r is the variable radial dimension and $σ_{r}$ is the radial stress. Additional subscripts on $σ_{r}$ indicate firstly the part that the stress occurs in and secondly the radial position at which the stress occurs:

For the inner cylinder:

When r = R_{ii} then σ_{rii} = 0

(1)

When r = R_{ic} then σ_{ric} = - S_{1}

(2)

For the magnet cylinder:

When r = R_{mc} then σ_{rmc} = - S_{1}

(3)

When r = R_{md} then σ_{rmd} = - S_{2}

(4)

For the outer cylinder:

When r = R_{od} then σ_{rod} = - S_{2}

(5)

When r = R_{oo} then σ_{roo} = 0

(6)

The boundary conditions are then applied to the corresponding equations for each theoretical approach. The following assumptions are made for the theoretical analyses:

No load is applied to the rotor in the axial direction.

The radial and circumferential stresses are uniform along the length of the rotor.

No interactions with the surroundings for the inner and outer surfaces of the rotor.

The friction between the interfering cylinder surfaces is high enough to prevent slip.

Due to the cylinder interference, compatibility conditions must also be placed on the analyses. These compatibility conditions are:

At the inner common radius:

R_{ic} (1 + ε_{θ ic}) = R_{mc} (1 + ε_{θ mc})

(7)

At the outer common radius:

R_{md} (1 + ε_{θ md}) = R_{od} (1 + ε_{θ od})

(8)

Where $ε_{θ}$ is the circumferential strain at a specific rotor surface indicated by the notation related to Figure 2.

As shown by Mallin and Barrans,¹² SPM rotor designs often use segmented PMs. The theoretical approaches presented here assume the PM cylinder is a solid body and cannot predict the interactions between each magnet. Therefore, rotor designs with interpole gaps will not be suitable for the calculations. In these rotors, as shown by Chen et al.¹⁸ the stress in the sleeve spikes at the edges of the magnets. To accommodate this high stress, the sleeve has to be strengthened. However, designs without interpole gaps will be suitable for analysis using approaches presented here, despite using segmented magnets. As discussed by Barrans et al.,⁸ the magnets must always be held in compression; therefore, the PMs are always in contact and can be assumed to act as a solid body.

Plane stress

Plane stress is the simplest and most common theoretical approach to thick-walled cylinder stress approximation. It is a suitable approximation method for cylinders which are short relative to their diameter (i.e. disks). In a thin disk the resistance to change in thickness (the axial dimension) is insignificant. Hence, axial stress, $σ_{z}$ , cannot be generated due to rotation or pressure (e.g. due to interference) and is assumed to be zero. $S_{1}$ and $S_{2}$ are the independent variables that must be calculated before stresses can be calculated.

The radial ( $σ_{r}$ ) and circumferential ( $σ_{θ}$ ) stresses are given by the following equations from Barrans et al.⁸:

σ_{r} = A - \frac{B}{r^{2}} - \frac{3 + ν}{8} ρ ω^{2} r^{2}

(9)

σ_{θ} = A + \frac{B}{r^{2}} - \frac{1 + 3 ν}{8} ρ ω^{2} r^{2}

(10)

σ_{z} = 0

(11)

Where $ν$ is Poisson’s ratio, $ρ$ is material density, $ω$ is rotational velocity and A and B are constants.

Boundary conditions (1) to (6) are substituted in to (9) for each cylinder to eliminate constants A and B. For each cylinder, equations (9) and (10) can then be rewritten in terms of the shrinkage pressures, $S_{1}$ and $S_{2}$ as:

\begin{matrix} σ_{ri} = \frac{S_{1} R_{ic}^{2}}{(R_{ic}^{2} - R_{ii}^{2})} (\frac{R_{ii}^{2}}{r^{2}} - 1) \\ - \frac{ρ_{i} ω^{2}}{8} (ν_{i} + 3) (\frac{R_{ic}^{2} R_{ii}^{2}}{r^{2}} - R_{ic}^{2} - R_{ii}^{2} + r^{2}) \end{matrix}

(12)

\begin{matrix} σ_{θ i} = \frac{S_{1} R_{ic}^{2}}{(R_{ii}^{2} - R_{ic}^{2})} (\frac{R_{ii}^{2}}{r^{2}} + 1) \\ + \frac{ρ_{i} ω^{2}}{8} [(ν_{i} + 3) (\frac{R_{ic}^{2} R_{ii}^{2}}{r^{2}} + R_{ic}^{2} + R_{ii}^{2}) - r^{2} (3 ν_{i} + 1)] \end{matrix}

(13)

\begin{matrix} σ_{rm} = \frac{[S_{1} R_{mc}^{2} (\frac{R_{md}^{2}}{r^{2}} - 1) - S_{2} R_{md}^{2} (\frac{R_{mc}^{2}}{r^{2}} - 1)]}{(R_{mc}^{2} - R_{md}^{2})} \\ - \frac{ρ_{m} ω^{2}}{8} (ν_{m} + 3) (\frac{R_{mc}^{2} R_{md}^{2}}{r^{2}} - R_{mc}^{2} - R_{md}^{2} + r^{2}) \end{matrix}

(14)

\begin{matrix} σ_{θ m} = \frac{[S_{2} R_{md}^{2} (\frac{R_{mc}^{2}}{r^{2}} - 1) - S_{1} R_{mc}^{2} (\frac{R_{md}^{2}}{r^{2}} + 1)]}{(R_{mc}^{2} - R_{md}^{2})} \\ + \frac{ρ_{m} ω^{2}}{8} [(ν_{m} + 3) (\frac{R_{mc}^{2} R_{md}^{2}}{r^{2}} + R_{mc}^{2} + R_{md}^{2}) \\ - r^{2} (3 ν_{m} + 1)] \end{matrix}

(15)

\begin{matrix} σ_{ro} = \frac{S_{2} R_{od}^{2}}{(R_{od}^{2} - R_{oo}^{2})} (\frac{R_{oo}^{2}}{r^{2}} - 1) \\ - \frac{ρ_{o} ω^{2}}{8} (ν_{o} + 3) (\frac{R_{od}^{2} R_{oo}^{2}}{r^{2}} - R_{od}^{2} - R_{oo}^{2} + r^{2}) \end{matrix}

(16)

\begin{matrix} σ_{θ o} = \frac{S_{2} R_{od}^{2}}{(R_{oo}^{2} - R_{od}^{2})} (\frac{R_{oo}^{2}}{r^{2}} + 1) \\ + \frac{ρ_{o} ω^{2}}{8} [(ν_{o} + 3) (\frac{R_{od}^{2} R_{oo}^{2}}{r^{2}} + R_{od}^{2} + R_{oo}^{2}) \\ - r^{2} (3 ν_{o} + 1)] \end{matrix}

(17)

With the stress equations developed, the circumferential strains, $ε_{θ}$ , at common radii $R_{c}$ and $R_{d}$ can be found using Hooke’s law (18). Where $Δ T$ is the temperature change and $α$ is the coefficient of thermal expansion. It should be noted that, as given in equation (11), the axial stress for the plane stress case is zero.

ε_{θ} = \frac{1}{E} (σ_{θ} - ν σ_{r} - ν σ_{z}) + Δ T_{α}

(18)

Substituting the circumferential strain equations obtained into the compatibility conditions expressed in equations (7) and (8) allows $S_{1}$ and $S_{2}$ to be found. Stresses can then be determined at any point in the cylinders using equations (12)–(17).

Plane strain

Whereas plane stress assumes that there is no restriction to axial deformation, the plane strain assumption is that axial deformation is completely restrained. This modelling approach is used less frequently as discussed in Mallin and Barrans.¹² This method is more complex than plane stress as axial stress will not be zero. However, the assumption that axial strain is zero enables a simplified equation for axial stress.

As shown by Barrans et al.,⁸ plane strain follows the same method as plane stress but starts with the following equations for circumferential and radial stress, instead of equations (9) and (10).

σ_{r} = A - \frac{B}{r^{2}} - \frac{3 - 2 ν}{8 (1 - ν)} ρ ω^{2} r^{2}

(19)

σ_{θ} = A + \frac{B}{r^{2}} - \frac{1 + 2 ν}{8 (1 - ν)} ρ ω^{2} r^{2}

(20)

Constants A and B are found by introducing the boundary conditions (1) to (6) depending on the cylinder of interest. The radial and circumferential stresses at key points within the compound cylinder are then given by:

\begin{matrix} σ_{ri} = \frac{S_{1} R_{ic}^{2}}{(R_{ic}^{2} - R_{ii}^{2})} (\frac{R_{ii}^{2}}{r^{2}} - 1) \\ - \frac{ρ_{i} ω^{2}}{8 (ν_{i} - 1)} (2 ν_{i} - 3) (\frac{R_{ic}^{2} R_{ii}^{2}}{r^{2}} - R_{ic}^{2} - R_{ii}^{2} + r^{2}) \end{matrix}

(21)

\begin{matrix} σ_{θ i} = \frac{S_{1} R_{ic}^{2}}{(R_{ii}^{2} - R_{ic}^{2})} (\frac{R_{ii}^{2}}{r^{2}} + 1) \\ + \frac{ρ_{i} ω^{2}}{8 (ν_{i} - 1)} [(2 ν_{i} - 3) (\frac{R_{ic}^{2} R_{ii}^{2}}{r^{2}} + R_{ic}^{2} + R_{ii}^{2}) + r^{2} (2 ν_{i} - 1)] \end{matrix}

(22)

\begin{matrix} σ_{rm} = \frac{[S_{1} R_{mc}^{2} (\frac{R_{md}^{2}}{r^{2}} - 1) - S_{2} R_{md}^{2} (\frac{R_{mc}^{2}}{r^{2}} - 1)]}{(R_{mc}^{2} - R_{md}^{2})} \\ - \frac{ρ_{m} ω^{2} (2 ν_{m} - 3)}{8 (ν_{m} - 1)} (\frac{R_{mc}^{2} R_{md}^{2}}{r^{2}} - R_{mc}^{2} - R_{md}^{2} + r^{2}) \end{matrix}

(23)

\begin{matrix} σ_{θ m} = \frac{[S_{2} R_{md}^{2} (\frac{R_{mc}^{2}}{r^{2}} + 1) - S_{1} R_{mc}^{2} (\frac{R_{md}^{2}}{r^{2}} + 1)]}{(R_{mc}^{2} - R_{md}^{2})} \\ + \frac{ρ_{m} ω^{2}}{8 (ν_{m} - 1)} [(2 ν_{m} - 3) (\frac{R_{mc}^{2} R_{md}^{2}}{r^{2}} + R_{mc}^{2} + R_{md}^{2}) \\ + r^{2} (2 ν_{m} + 1)] \end{matrix}

(24)

\begin{matrix} σ_{ro} = \frac{S_{2} R_{od}^{2}}{(R_{od}^{2} - R_{oo}^{2})} (\frac{R_{oo}^{2}}{r^{2}} - 1) \\ - \frac{ρ_{o} ω^{2}}{8 (ν_{o} - 1)} (2 ν_{o} - 3) (\frac{R_{od}^{2} R_{oo}^{2}}{r^{2}} - R_{od}^{2} - R_{oo}^{2} + r^{2}) \end{matrix}

(25)

\begin{matrix} σ_{θ o} = \frac{S_{2} R_{od}^{2}}{(R_{oo}^{2} - R_{od}^{2})} (\frac{R_{oo}^{2}}{r^{2}} + 1) \\ + \frac{ρ_{o} ω^{2}}{8 (ν_{o} - 1)} [(2 ν_{o} - 3) (\frac{R_{od}^{2} R_{oo}^{2}}{r^{2}} + R_{od}^{2} + R_{oo}^{2}) \\ + r^{2} (2 ν_{o} + 1)] \end{matrix}

(26)

To be able to apply the compatibility conditions, the circumferential strain equations must be derived, as in the plane stress case. The circumferential and radial stress equations for each of the four cylinder surfaces at radii $R_{c}$ and $R_{d}$ , are determined from equations (21) to (26). However, axial stress is present under plane strain conditions and must be included. The axial stress can be determined using Hooke’s Law by imposing the zero axial strain condition to give:

σ_{z} = ν (σ_{θ} + σ_{r}) - E Δ T_{α}

(27)

The radial and circumferential stress equations for a specific surface are then substituted into equation (27) to derive the full axial stress equation. This is then used in (18) along with the circumferential and radial stress equations, to derive the full circumferential strain equation. This is completed for all four cylinder surfaces of interest where the example below, equation (28), shows the circumferential strain at $R_{md}$ .

\begin{matrix} ε_{θ_{md}} = \frac{1 + ν_{m}}{E_{m} (R_{mc}^{2} - R_{md}^{2})} (S_{2} (R_{mc}^{2} + R_{md}^{2} - 2 ν_{m} R_{md}^{2}) \\ + 2 S_{1} R_{mc}^{2} (ν_{m} - 1)) + \frac{ω^{2} ρ_{o}}{4 E_{m}} (R_{md}^{2} + 3 R_{mc}^{2} \\ + ν_{m} (R_{mc}^{2} - R_{md}^{2}) - 2 ν_{m}^{2} (R_{mc}^{2} + R_{md}^{2})) \\ + Δ T_{α_{m}} (1 + ν_{m}) \end{matrix}

(28)

The circumferential strain equations are then substituted into (7) and (8), to enforce the compatibility conditions and can be used to solve for $S_{1}$ and $S_{2}$ . Stresses can then be found using equations (21)–(26).

New theory: Generalised plane strain

Applying the GPS model to rotating thick walled cylinders, it is assumed that the axial strain does not vary with respect to radial or circumferential position. The application to an assembly of three cylinders presented here follows previous work in Barrans et al.⁸ for two interfering cylinders. It is assumed that there is a high enough level of friction between the cylinders to avoid slip. Similarly to the plane strain method, axial stress is not assumed to be zero. However, instead of assuming axial strain to be zero, GPS assumes axial strain is also present, but is constant through the wall of the cylinder. In the interest of brevity, an example derivation for the middle cylinder is shown below. The inner and outer cylinders follow a similar method.

GPS starts with the same initial equations as plane strain, equations (19) and (20), solving for A and B using the boundary conditions (3, 4). A and B are then substituted back into (19) and (20) to give the full radial and circumferential stress equations:

\begin{matrix} σ_{rm} = \frac{[S_{1} R_{mc}^{2} (\frac{R_{md}^{2}}{r^{2}} - 1) - S_{2} R_{md}^{2} (\frac{R_{mc}^{2}}{r^{2}} - 1)]}{(R_{mc}^{2} - R_{md}^{2})} \\ - \frac{ρ_{m} ω^{2} (2 ν_{m} - 3)}{8 (ν_{m} - 1)} (\frac{R_{mc}^{2} R_{md}^{2}}{r^{2}} - R_{mc}^{2} - R_{md}^{2} + r^{2}) \end{matrix}

(29)

\begin{matrix} σ_{θ m} = \frac{[S_{2} R_{md}^{2} (\frac{R_{mc}^{2}}{r^{2}} + 1) - S_{1} R_{mc}^{2} (\frac{R_{md}^{2}}{r^{2}} + 1)]}{(R_{mc}^{2} - R_{md}^{2})} \\ + \frac{ρ_{m} ω^{2}}{8 (ν_{m} - 1)} [(2 ν_{m} - 3) (\frac{R_{mc}^{2} R_{md}^{2}}{r^{2}} + R_{mc}^{2} + R_{md}^{2}) \\ + r^{2} (2 ν_{m} + 1)] \end{matrix}

(30)

To determine the axial stress the condition of constant axial strain is combined with equations (19) and (20) within Hooke’s law to give:

\frac{d σ_{z}}{dr} = \frac{- r ν ρ ω^{2}}{1 - ν}

(31)

Hence:

σ_{z} = \frac{- r^{2} ν ρ ω^{2}}{2 (1 - ν)} + C

(31b)

Where C is a constant. The axial force, $F_{zm}$ , in the cylinder can be determined from:

F_{zm} = 2 π \int_{R_{mc}}^{R_{md}} r σ_{z} dr

(32)

Using this, the constant C in equation (31b) can be determined and that equation can then be written as:

σ_{zm} = \frac{F_{zm}}{π (R_{md}^{2} - R_{mc}^{2})} + \frac{ν ρ ω^{2}}{4 (1 - ν)} (R_{md}^{2} + R_{mc}^{2} - 2 r^{2})

(33)

The GPS method has additional unknown values that must be solved to calculate cylinder stresses. These are the axial forces acting on each of the interfering cylinders. Therefore, GPS is subject to more compatibility conditions than plane stress or plain strain. These are:

There must be radial force equilibrium between the interfering cylinder surfaces. This is represented with $S_{1}$ and $S_{2}$ .

There must be circumferential compatibility between the interfering cylinders because in practice, the cylinder surfaces come together at a common radius. Represented by equations (7) and (8).

There must be axial strain compatibility due to the assumption of enough friction to avoid slip.

ε_{zi} = ε_{zm}

(34)

ε_{zm} = ε_{zo}

(35)

Where $ε_{zi}$ , $ε_{zm}$ and $ε_{zo}$ are the axial strains for the inner, middle or outer cylinder respectively.

There must be equilibrium between the axial forces within the three cylinders. This can be given by:

F_{zi} + F_{zm} + F_{zo} = 0

(36)

F_{zm} = - (F_{zo} + F_{zi})

(37)

Where $F_{zi}$ , $F_{zm}$ and $F_{zo}$ are the axial forces in the inner, middle and outer cylinders respectively.

Equations (29), (30) and (33) (and their equivalents for the inner and outer cylinders) and equation (18) can be used to determine the circumferential strains at each interfering surface. These can be combined with equation (37) and then substituted in equations (7) and (8) to enforce conditions B and D, giving:

\begin{matrix} S_{1} [R_{ic} E_{m} (R_{md}^{2} - R_{mc}^{2}) (R_{ic}^{2} (1 - ν_{i}) + R_{ii}^{2} (1 + ν_{i})) - \\ R_{mc} E_{m} (R_{ii}^{2} - R_{ic}^{2}) (R_{md}^{2} (1 + ν_{m}) + R_{mc}^{2} (1 - ν_{m}))] + \\ S_{2} [2 R_{md}^{2} R_{mc} E_{i} (R_{ii}^{2} - R_{ic}^{2})] - \frac{F_{zo}}{π} [R_{mc} E_{i} ν_{m} (R_{ii}^{2} - R_{ic}^{2})] \\ + \frac{F_{zi}}{π} [R_{mc} E_{m} ν_{i} (R_{md}^{2} - R_{mc}^{2}) - R_{mc} E_{i} ν_{m} (R_{ii}^{2} - R_{ic}^{2})] \\ = (R_{ii}^{2} - R_{ic}^{2}) (R_{md}^{2} - R_{mc}^{2}) [\frac{R_{mc} E_{i} ρ_{m} ω^{2}}{4} (R_{md}^{2} (3 + ν_{m}) + \\ R_{mc}^{2} (1 - ν_{m})) - \frac{R_{ic} E_{m} ρ_{i} ω^{2}}{4} (R_{ii}^{2} (3 + ν_{i}) + R_{ic}^{2} (1 - ν_{i})) \\ + E_{m} E_{i} (R_{mc} (1 + Δ T α_{m}) - R_{ic} (1 + Δ T α_{i}))] \end{matrix}

(38)

\begin{matrix} S_{2} [R_{md} E_{o} (R_{oo}^{2} - R_{od}^{2}) (R_{mc}^{2} (1 + ν_{m}) + R_{md}^{2} (1 - ν_{m})) \\ - R_{od} E_{m} (R_{mc}^{2} - R_{md}^{2}) (R_{od}^{2} (1 - ν_{o}) + R_{oo}^{2} (1 + ν_{o}))] \\ - S_{1} [2 R_{mc}^{2} R_{md} E_{o} (R_{oo}^{2} - R_{od}^{2})] - \frac{F_{zi}}{π} [2 R_{md} E_{o} ν_{m} (R_{oo}^{2} - R_{od}^{2})] \\ - \frac{F_{zo}}{π} [R_{md} E_{o} ν_{m} (R_{oo}^{2} - R_{od}^{2}) + R_{od} E_{m} ν_{o} (R_{mc}^{2} - R_{md}^{2})] \\ = (R_{oo}^{2} - R_{od}^{2}) (R_{mc}^{2} - R_{md}^{2}) [\frac{R_{od} E_{m} ρ_{o} ω^{2}}{4} (R_{oo}^{2} (3 + ν_{o}) \\ + R_{od}^{2} (1 - ν_{o})) - \frac{R_{md} E_{o} ρ_{m} ω^{2}}{4} (R_{mc}^{2} (3 + ν_{m}) + R_{md}^{2} (1 - ν_{m})) \\ + E_{m} E_{o} (R_{od} (1 + Δ T α_{o}) - R_{md} (1 + Δ T α_{m}))] \end{matrix}

(39)

To enforce condition C, axial strain equations for each cylinder are derived using Hooke’s law and are then substituted into (34) and (35) to give:

\begin{matrix} S_{1} [2 (ν_{i} E_{m} R_{ic}^{2} (R_{mc}^{2} - R_{md}^{2}) - ν_{m} E_{i} R_{mc}^{2} (R_{ic}^{2} - R_{ii}^{2}))] \\ + S_{2} [2 ν_{m} E_{i} R_{md}^{2} (R_{ic}^{2} - R_{ii}^{2})] - \frac{F_{zo}}{π} [E_{i} (R_{ic}^{2} - R_{ii}^{2})] \\ + \frac{F_{zi}}{π} [E_{m} (R_{mc}^{2} - R_{md}^{2}) - E_{i} (R_{ic}^{2} - R_{ii}^{2})] \\ = (R_{ic}^{2} - R_{ii}^{2}) (R_{mc}^{2} - R_{md}^{2}) [\frac{ω^{2}}{2} (ρ_{i} ν_{i} E_{m} (R_{ii}^{2} + R_{ic}^{2}) \\ - ρ_{m} ν_{m} E_{i} (R_{mc}^{2} + R_{md}^{2})) + E_{m} E_{i} Δ T (α_{m} - α_{i})] \end{matrix}

(40)

\begin{matrix} S_{2} [2 (ν_{m} E_{o} R_{md}^{2} (R_{od}^{2} - R_{oo}^{2}) + ν_{o} E_{m} R_{od}^{2} (R_{mc}^{2} - R_{md}^{2}))] \\ - S_{1} [2 ν_{m} E_{o} R_{mc}^{2} (R_{od}^{2} - R_{oo}^{2})] - \frac{F_{zi}}{π} [E_{o} (R_{od}^{2} - R_{oo}^{2})] \\ - \frac{F_{zo}}{π} [E_{m} (R_{mc}^{2} - R_{md}^{2}) + E_{o} (R_{od}^{2} - R_{oo}^{2})] \\ = (R_{od}^{2} - R_{oo}^{2}) (R_{mc}^{2} - R_{md}^{2}) [\frac{ω^{2}}{2} (ρ_{o} ν_{o} E_{m} (R_{od}^{2} + R_{oo}^{2}) \\ - ρ_{m} ν_{m} E_{o} (R_{mc}^{2} + R_{md}^{2})) + E_{m} E_{o} Δ T (α_{m} - α_{o})] \end{matrix}

(41)

The axial force for the magnet cylinder, $F_{zm}$ , has been eliminated through Condition D, leaving four unknown variables to determine: $S_{1}$ ; $S_{2}$ ; $F_{zi}$ and $F_{zo}$ . Equations (38)–(41) can thus be written as:

[\begin{matrix} F & G & H & I \\ K & L & M & N \\ P & Q & R & T \\ V & W & X & Y \end{matrix}] [\begin{matrix} F_{zo} \\ F_{zi} \\ S_{2} \\ S_{1} \end{matrix}] = [\begin{matrix} J \\ O \\ U \\ Z \end{matrix}]

(42)

Where:

F = - \frac{1}{π} [R_{mc} E_{i} ν_{m} (R_{ii}^{2} - R_{ic}^{2})]

(43)

G = \frac{1}{π} [R_{mc} E_{m} ν_{i} (R_{md}^{2} - R_{mc}^{2}) - R_{mc} E_{i} ν_{m} (R_{ii}^{2} - R_{ic}^{2})]

(44)

H = 2 R_{md}^{2} R_{mc} E_{i} (R_{ii}^{2} - R_{ic}^{2})

(45)

\begin{matrix} I = R_{ic} E_{m} (R_{md}^{2} - R_{mc}^{2}) (R_{ic}^{2} (1 - ν_{i}) + R_{ii}^{2} (1 + ν_{i})) \\ - R_{mc} E_{m} (R_{ii}^{2} - R_{ic}^{2}) (R_{md}^{2} (1 + ν_{m}) + R_{mc}^{2} (1 - ν_{m})) \end{matrix}

(46)

\begin{matrix} J = (R_{ii}^{2} - R_{ic}^{2}) (R_{md}^{2} - R_{mc}^{2}) [\frac{R_{mc} E_{i} ρ_{m} ω^{2}}{4} \\ (R_{md}^{2} (3 + ν_{m}) + R_{mc}^{2} (1 - ν_{m})) \\ - \frac{R_{ic} E_{m} ρ_{i} ω^{2}}{4} (R_{ii}^{2} (3 + ν_{i}) + R_{ic}^{2} (1 - ν_{i})) + \\ E_{m} E_{i} (R_{mc} (1 + Δ T α_{m}) - R_{ic} (1 + Δ T α_{i}))] \end{matrix}

(47)

\begin{matrix} K = - \frac{1}{π} [R_{md} E_{o} ν_{m} (R_{oo}^{2} - R_{od}^{2}) \\ + R_{od} E_{m} ν_{o} (R_{mc}^{2} - R_{md}^{2})] \end{matrix}

(48)

L = - \frac{1}{π} [2 R_{md} E_{o} ν_{m} (R_{oo}^{2} - R_{od}^{2})]

(49)

\begin{matrix} M = R_{md} E_{o} (R_{oo}^{2} - R_{od}^{2}) (R_{mc}^{2} (1 + ν_{m}) + R_{md}^{2} (1 - ν_{m})) \\ - R_{od} E_{m} (R_{mc}^{2} - R_{md}^{2}) (R_{od}^{2} (1 - ν_{o}) + R_{oo}^{2} (1 + ν_{o})) \end{matrix}

(50)

N = 2 R_{mc}^{2} R_{md} E_{o} (R_{oo}^{2} - R_{od}^{2})

(51)

\begin{matrix} O = (R_{oo}^{2} - R_{od}^{2}) (R_{mc}^{2} - R_{md}^{2}) [\frac{R_{od} E_{m} ρ_{o} ω^{2}}{4} \\ (R_{oo}^{2} (3 + ν_{o}) + R_{od}^{2} (1 - ν_{o})) \\ - \frac{R_{md} E_{o} ρ_{m} ω^{2}}{4} (R_{mc}^{2} (3 + ν_{m}) + R_{md}^{2} (1 - ν_{m})) \\ + E_{m} E_{o} (R_{od} (1 + Δ T α_{o}) - R_{md} (1 + Δ T α_{m}))] \end{matrix}

(52)

P = - \frac{1}{π} [E_{i} (R_{ic}^{2} - R_{ii}^{2})]

(53)

Q = \frac{1}{π} [E_{m} (R_{mc}^{2} - R_{md}^{2}) - E_{i} (R_{ic}^{2} - R_{ii}^{2})]

(54)

R = 2 ν_{m} E_{i} R_{md}^{2} (R_{ic}^{2} - R_{ii}^{2})

(55)

T = 2 [ν_{i} E_{m} R_{ic}^{2} (R_{mc}^{2} - R_{md}^{2}) - ν_{m} E_{i} R_{mc}^{2} (R_{ic}^{2} - R_{ii}^{2})]

(56)

\begin{matrix} U = (R_{ic}^{2} - R_{ii}^{2}) (R_{mc}^{2} - R_{md}^{2}) [\frac{ω^{2}}{2} (ρ_{i} ν_{i} E_{m} (R_{ii}^{2} + R_{ic}^{2}) \\ - ρ_{m} ν_{m} E_{i} (R_{mc}^{2} + R_{md}^{2})) + E_{m} E_{i} Δ T (α_{m} - α_{i})] \end{matrix}

(57)

V = - \frac{1}{π} [E_{m} (R_{mc}^{2} - R_{md}^{2}) + E_{o} (R_{od}^{2} - R_{oo}^{2})]

(58)

W = - \frac{1}{π} [E_{o} (R_{od}^{2} - R_{oo}^{2})]

(59)

X = 2 [ν_{m} E_{o} R_{md}^{2} (R_{od}^{2} - R_{oo}^{2}) + ν_{o} E_{m} R_{od}^{2} (R_{mc}^{2} - R_{md}^{2})]

(60)

Y = - 2 ν_{m} E_{o} R_{mc}^{2} (R_{od}^{2} - R_{oo}^{2})

(61)

\begin{matrix} Z = (R_{od}^{2} - R_{oo}^{2}) (R_{mc}^{2} - R_{md}^{2}) [\frac{ω^{2}}{2} (ρ_{o} ν_{o} E_{m} (R_{od}^{2} + R_{oo}^{2}) \\ - ρ_{m} ν_{m} E_{o} (R_{mc}^{2} + R_{md}^{2})) + E_{m} E_{o} Δ T (α_{m} - α_{o})] \end{matrix}

(62)

The unknown terms can then be found by inverting the matrix. Having determined these terms, stresses at any location can be found by referring back to equations (29), (30) and (33) and their equivalents for the inner and outer cylinders.

All rotors were simulated at four conditions:

Stationary and ambient temperature.

Maximum speed and ambient temperature.

Stationary at maximum temperature.

Maximum speed and temperature.

Finite element analysis

To investigate possible limitations of the theoretical approaches, a range of finite element analyses were carried out on rotors with the material properties and dimensions shown in Tables 1 and 2 respectively. These geometries were selected recognizing that, as demonstrated by Barrans et al.,⁸ the length to diameter ratio of the rotor can have a significant effect on the stress distribution. The rotors were defined as running at $60 - 80 krpm$ with a $100^{o} C$ temperature rise whilst both stationary and at full speed. Preliminary checks using the theoretical analysis developed in the previous section ensured that the selected rotors would operate over the speed and temperature range without failing due to excessive stress or cylinder separation. The material properties were taken from Burnand et al.⁹ and used in all cases.

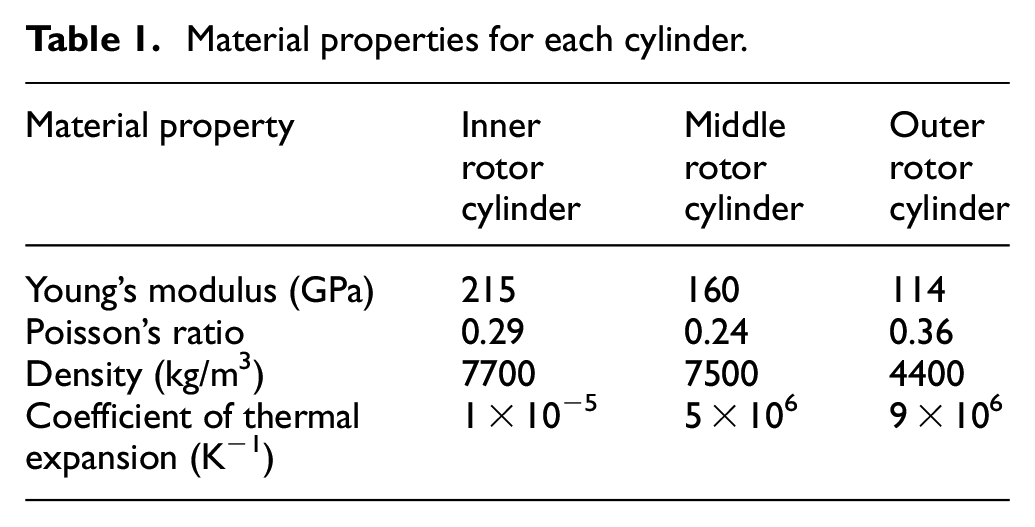

Table 1.

Material properties for each cylinder.

Material property	Innerrotorcylinder	Middlerotorcylinder	Outerrotorcylinder
Young’s modulus (GPa)	215	160	114
Poisson’s ratio	0.29	0.24	0.36
Density (kg/m³)	7700	7500	4400
Coefficient of thermalexpansion (K⁻¹)	1 × 10⁻⁵	5 × 10⁶	9 × 10⁶

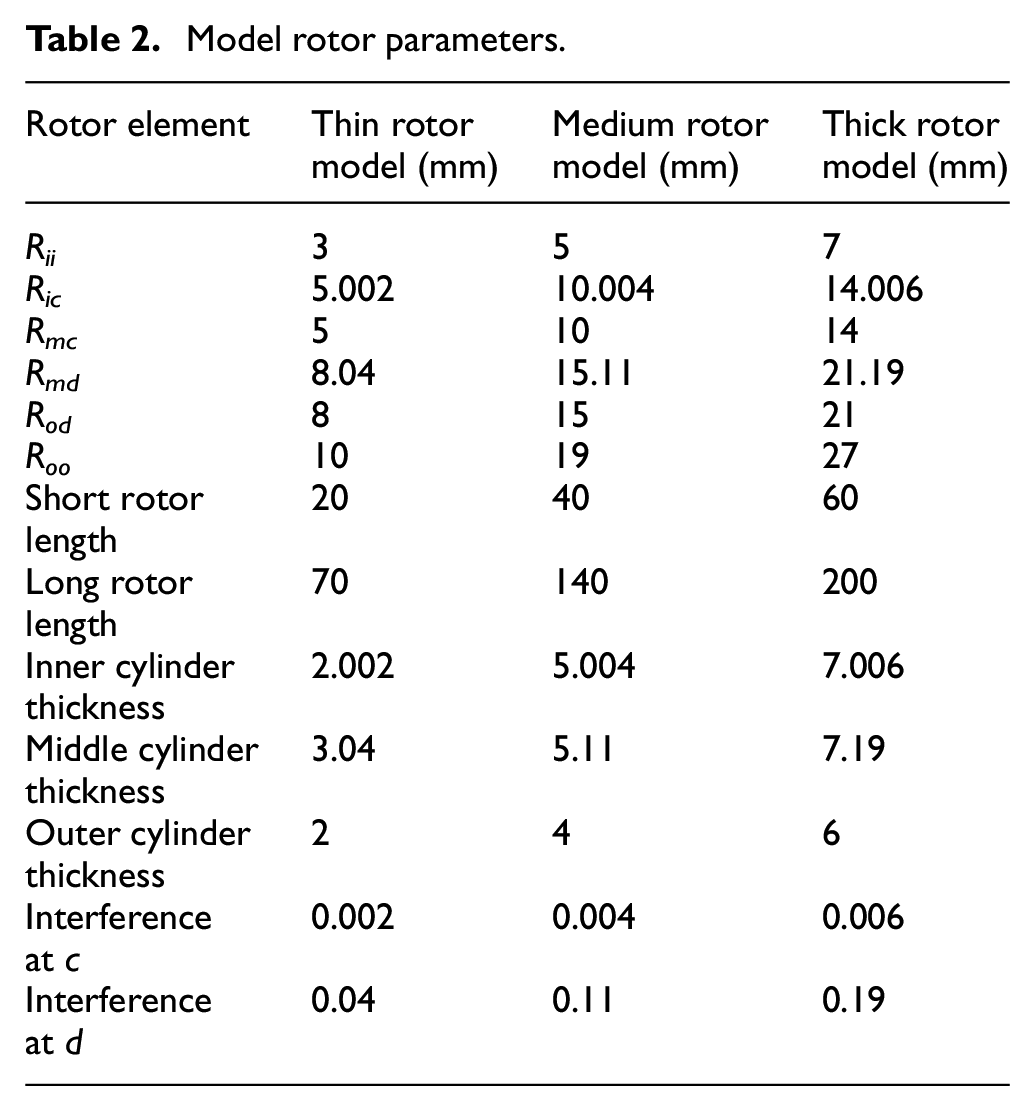

Table 2.

Model rotor parameters.

Rotor element	Thin rotormodel (mm)	Medium rotormodel (mm)	Thick rotormodel (mm)
R_ii	3	5	7
R_ic	5.002	10.004	14.006
R_mc	5	10	14
R_md	8.04	15.11	21.19
R_od	8	15	21
R_oo	10	19	27
Short rotorlength	20	40	60
Long rotorlength	70	140	200
Inner cylinderthickness	2.002	5.004	7.006
Middle cylinderthickness	3.04	5.11	7.19
Outer cylinderthickness	2	4	6
Interferenceat c	0.002	0.004	0.006
Interferenceat d	0.04	0.11	0.19

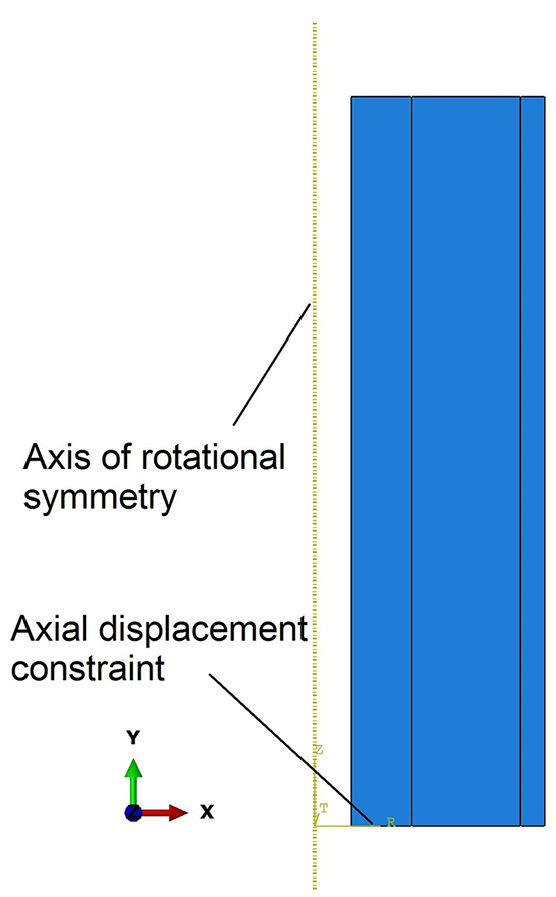

Based on the review by Mallin and Barrans,¹² an axisymmetric model was selected for the analysis. A 2D radial section analysis would not have been suitable as the change in stresses along the axis could not have been simulated to explore the ‘end-effect’. A full 3D FEA model would have yielded no further information regarding the stress and strain distribution and would therefore have been inefficient. Recognising the axial symmetry present, only half of the rotor length was modelled and an axial displacement constraint applied. Figure 3 shows one of the FEA models with three cylinders and the axial symmetry and displacement conditions in place. The dashed line represents the rotor axis.

Figure 3.

FEA model.

Once the rotor was created, the simulation conditions were specified. An interference fit with ‘small sliding’ condition was applied to interfaces c and d. The ‘small sliding’ formulation assumes that there is no significant tangential motion between the two surfaces and is appropriate in this case. During the first analysis step, the interfering surfaces were moved to a common radius. Since the surfaces cannot intersect, ‘hard’ contact was specified between the surfaces. In the tangential direction, a coefficient of friction of 1 was specified. Separation of the surfaces was allowed as this enabled the FEA to predict when the centrifugal force from rotation would become too large for the rotor to withstand.

Figures 4 and 5 show the axial stress results for the long and short thin-rotor simulations respectively at $80 krpm$ and $100^{o} C$ . The ‘end-effect’ can be seen clearly as the axial stress tends towards zero as the end of the rotor is approached. This results in the end of the rotor being in state of plane stress rather than GPS. This is highlighted in Figure 6 showing the axial strain results for the long rotor. The majority of the rotor has a constant axial strain, hence the GPS assumption is valid. However, towards the end, the axial strains vary through the rotor thickness and hence the GPS condition does not apply. The developed theory in the previous section will be representative of the majority of the rotor away from the ends but it will also be important to investigate the end conditions.

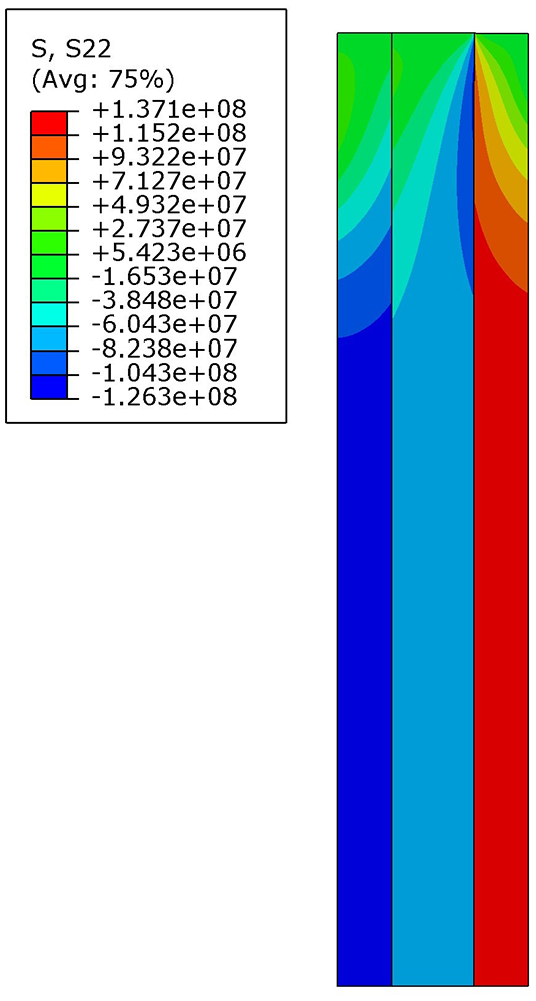

Figure 4.

Thin long rotor axial stress results.

Figure 5.

Thin short rotor axial stress results.

Figure 6.

Thin long rotor axial strain results.

Theoretical analysis results

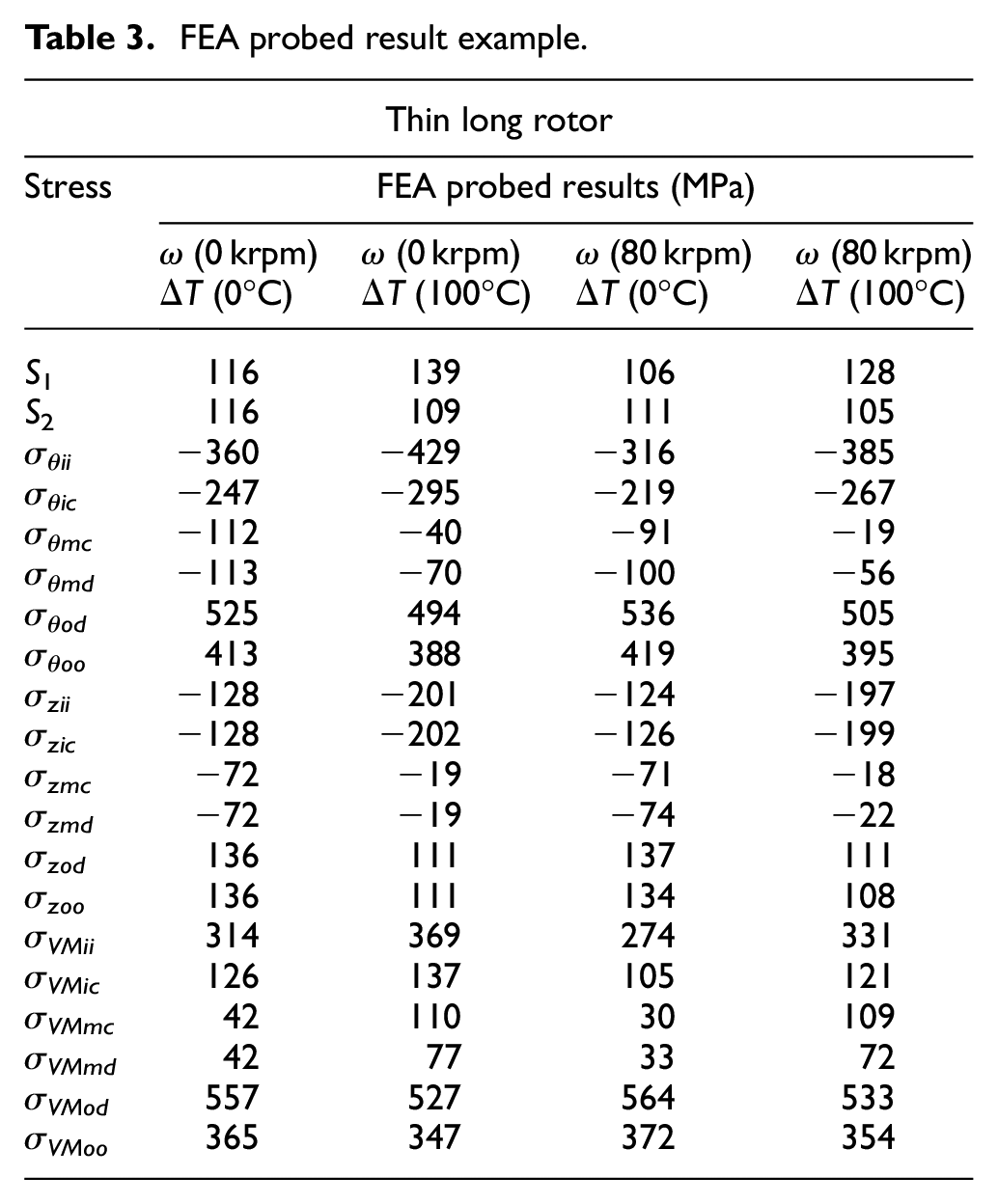

An example of the results gathered from the FEA simulations is shown in Table 3. The probed stress components were: contact pressures at c and d ( $S_{1}$ and $S_{2}$ ) circumferential stresses ( $σ_{θ}$ ); axial stresses ( $σ_{z}$ ) and Von Mises stresses ( $σ_{VM}$ ). The circumferential, axial and Von Mises stress were all probed at each cylinder surface and are notated using the surface notation from Figure 2.

Table 3.

FEA probed result example.

Thin long rotor
Stress	FEA probed results (MPa)
Stress	ω (0 krpm)ΔT (0°C)	ω (0 krpm)ΔT (100°C)	ω (80 krpm)ΔT (0°C)	ω (80 krpm)ΔT (100°C)
S ₁	116	139	106	128
S ₂	116	109	111	105
σ_θii	−360	−429	−316	−385
σ_θic	−247	−295	−219	−267
σ_θmc	−112	−40	−91	−19
σ_θmd	−113	−70	−100	−56
σ_θod	525	494	536	505
σ_θoo	413	388	419	395
σ_zii	−128	−201	−124	−197
σ_zic	−128	−202	−126	−199
σ_zmc	−72	−19	−71	−18
σ_zmd	−72	−19	−74	−22
σ_zod	136	111	137	111
σ_zoo	136	111	134	108
σ_VMii	314	369	274	331
σ_VMic	126	137	105	121
σ_VMmc	42	110	30	109
σ_VMmd	42	77	33	72
σ_VMod	557	527	564	533
σ_VMoo	365	347	372	354

These stresses were selected because: $S_{1}$ and $S_{2}$ show if the cylinder has remained in compression during the simulation; circumferential stresses are critical to magnet failure; axial stresses are calculated differently across theoretical methods and Von Mises stresses can be compared directly to the material yield stress to predict rotor failure due to excessive stress.

The FEA results presented in this section were compared against the results from each theoretical analysis. Results were probed from the plane of axial symmetry, where end effects not accounted for in the theoretical approaches will be minimal. A percentage difference to the FEA was calculated for each result, to enable easy comparison across analyses. Percentage difference results were also colour coded to highlight which results were close to the FEA using the scale shown in Figure 7.

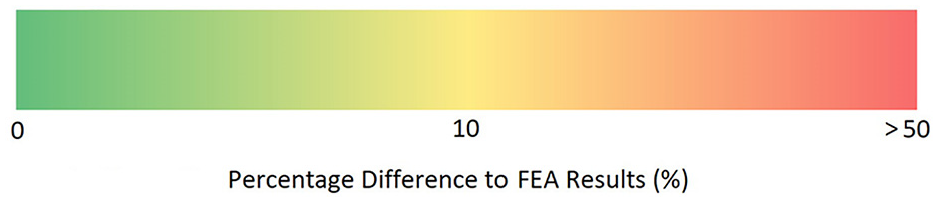

Figure 7.

Colour scale indicating the difference between the analytical and FEA results for Tables 4 to 19.

Long rotor results

Table 4 shows the GPS results for the thin long rotor. To present the results graphically, a histogram was plotted to display the frequency that a result occurred, shown in Figure 8. The range of results were split into bins and the number of results falling into each bin was tallied, showing how the differences to the FEA results are distributed. For the thin long rotor, 76% of the GPS results are within ±1% of the FEA results, while 86% fall within ±2% of the FEA. This accuracy is similar across all operating conditions, which shows it is a robust theoretical analysis method for thin long rotors. Tables 5 and 6 show the same results for the plane strain and plane stress respectively. They are then compared in Figure 9.

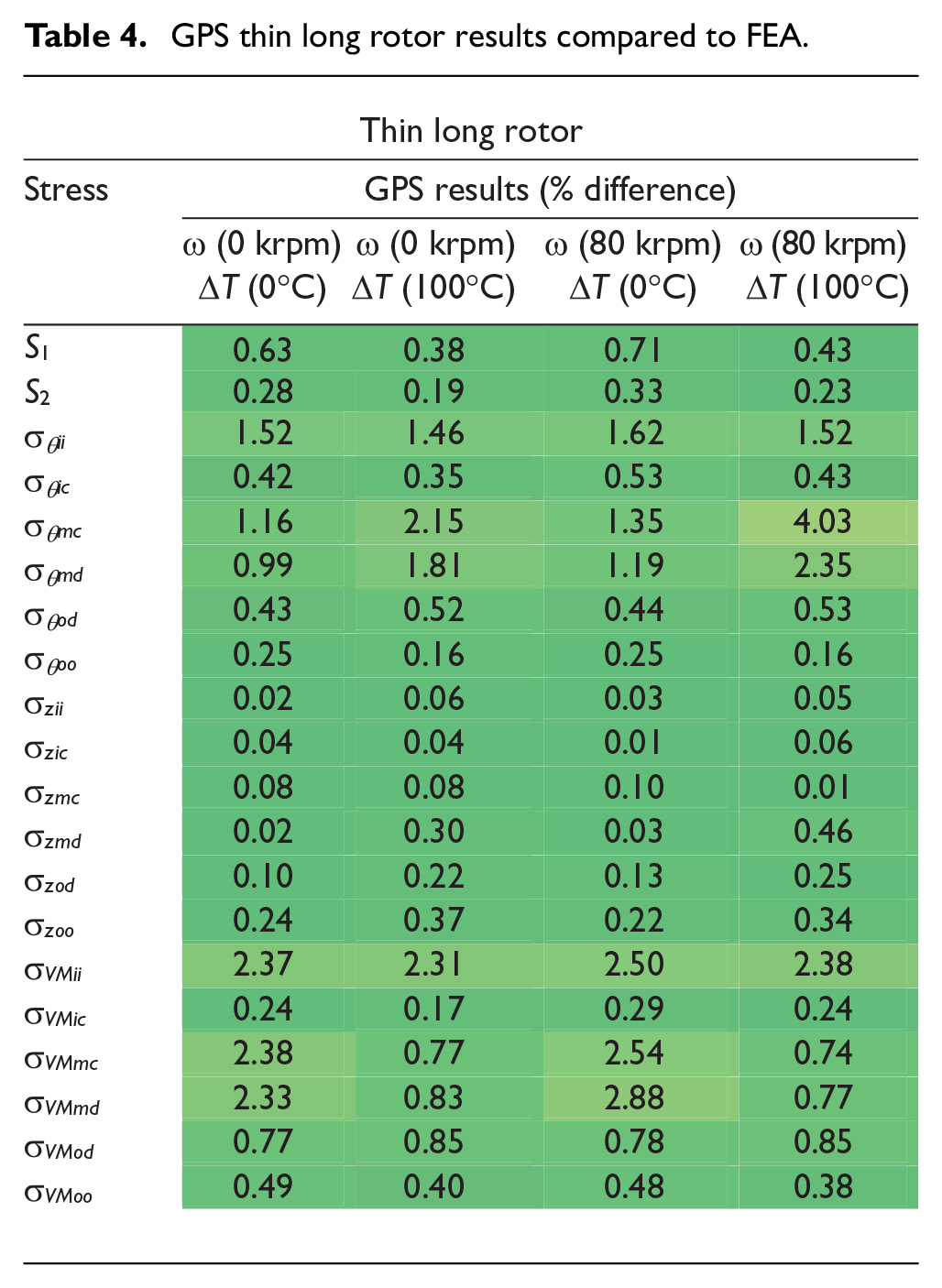

Table 4.

GPS thin long rotor results compared to FEA.

Thin long rotor
Stress	GPS results (% difference)
Stress	ω (0 krpm)ΔT (0°C)	ω (0 krpm)ΔT (100°C)	ω (80 krpm) ΔT (0°C)	ω (80 krpm)ΔT (100°C)
S ₁	0.63	0.38	0.71	0.43
S ₂	0.28	0.19	0.33	0.23
σ_θii	1.52	1.46	1.62	1.52
σ_θic	0.42	0.35	0.53	0.43
σ_θmc	1.16	2.15	1.35	4.03
σ_θmd	0.99	1.81	1.19	2.35
σ_θod	0.43	0.52	0.44	0.53
σ_θoo	0.25	0.16	0.25	0.16
σ_zii	0.02	0.06	0.03	0.05
σ_zic	0.04	0.04	0.01	0.06
σ_zmc	0.08	0.08	0.10	0.01
σ_zmd	0.02	0.30	0.03	0.46
σ_zod	0.10	0.22	0.13	0.25
σ_zoo	0.24	0.37	0.22	0.34
σ_VMii	2.37	2.31	2.50	2.38
σ_VMic	0.24	0.17	0.29	0.24
σ_VMmc	2.38	0.77	2.54	0.74
σ_VMmd	2.33	0.83	2.88	0.77
σ_VMod	0.77	0.85	0.78	0.85
σ_VMoo	0.49	0.40	0.48	0.38

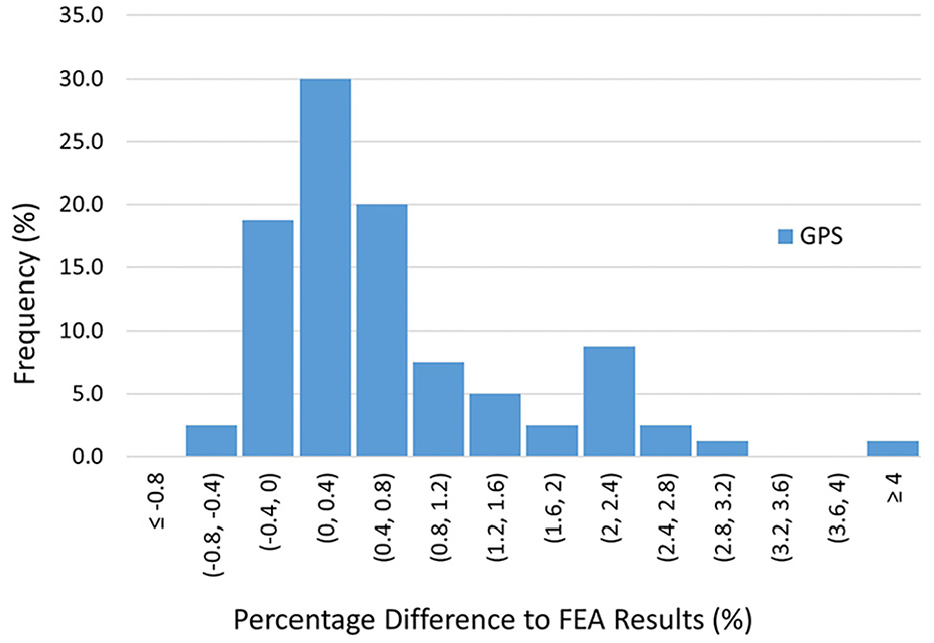

Figure 8.

Thin rotor – GPS results histogram.

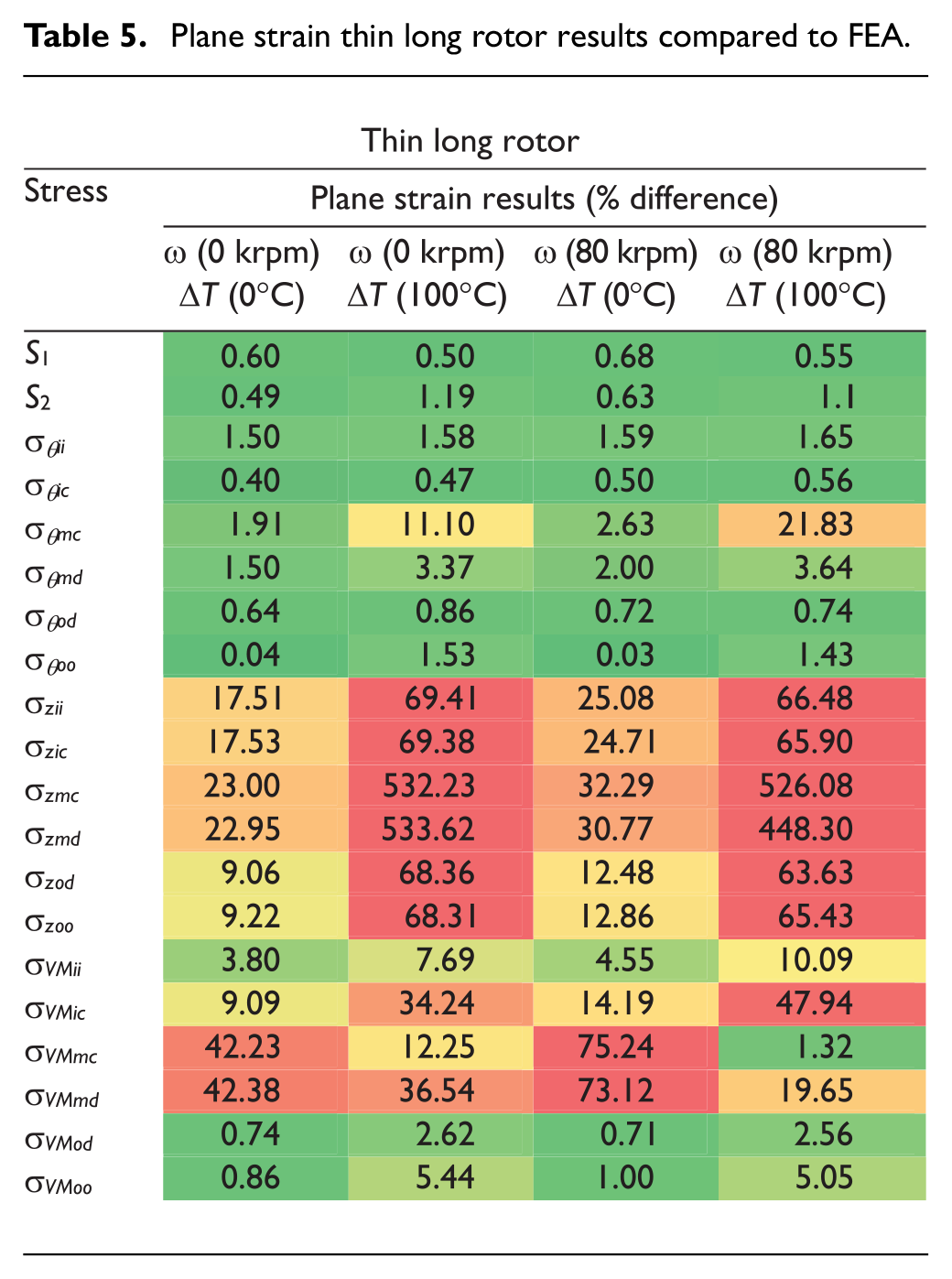

Table 5.

Plane strain thin long rotor results compared to FEA.

Thin long rotor
Stress	Plane strain results (% difference)
Stress	ω (0 krpm)ΔT (0°C)	ω (0 krpm)ΔT (100°C)	ω (80 krpm)ΔT (0°C)	ω (80 krpm)ΔT (100°C)
S ₁	0.60	0.50	0.68	0.55
S ₂	0.49	1.19	0.63	1.11
σ_θii	1.50	1.58	1.59	1.65
σ_θic	0.40	0.47	0.50	0.56
σ_θmc	1.91	11.10	2.63	21.83
σ_θmd	1.50	3.37	2.00	3.64
σ_θod	0.64	0.86	0.72	0.74
σ_θoo	0.04	1.53	0.03	1.43
σ_zii	17.51	69.41	25.08	66.48
σ_zic	17.53	69.38	24.71	65.90
σ_zmc	23.00	532.23	32.29	526.08
σ_zmd	22.95	533.62	30.77	448.30
σ_zod	9.06	68.36	12.48	63.63
σ_zoo	9.22	68.31	12.86	65.43
σ_VMii	3.80	7.69	4.55	10.09
σ_VMic	9.09	34.24	14.19	47.94
σ_VMmc	42.23	12.25	75.24	1.32
σ_VMmd	42.38	36.54	73.12	19.65
σ_VMod	0.74	2.62	0.71	2.56
σ_VMoo	0.86	5.44	1.00	5.05

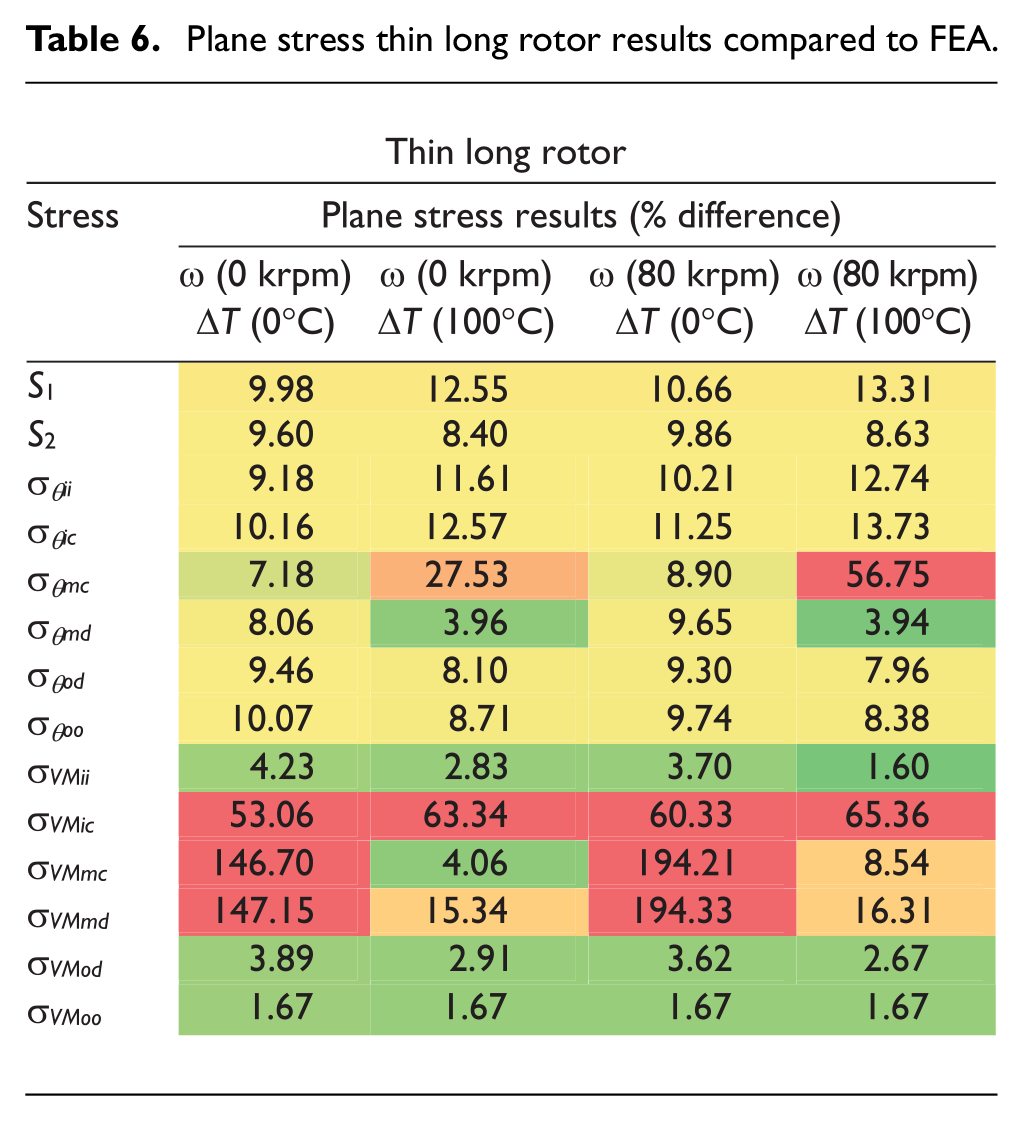

Table 6.

Plane stress thin long rotor results compared to FEA.

Thin long rotor
Stress	Plane stress results (% difference)
Stress	ω (0 krpm)ΔT (0°C)	ω (0 krpm)ΔT (100°C)	ω (80 krpm)ΔT (0°C)	ω (80 krpm)ΔT (100°C)
S ₁	9.98	12.55	10.66	13.31
S ₂	9.60	8.40	9.86	8.63
σ_θii	9.18	11.61	10.21	12.74
σ_θic	10.16	12.57	11.25	13.73
σ_θmc	7.18	27.53	8.90	56.75
σ_θmd	8.06	3.96	9.65	3.94
σ_θod	9.46	8.10	9.30	7.96
σ_θoo	10.07	8.71	9.74	8.38
σ_VMii	4.23	2.83	3.70	1.60
σ_VMic	53.06	63.34	60.33	65.36
σ_VMmc	146.70	4.06	194.21	8.54
σ_VMmd	147.15	15.34	194.33	16.31
σ_VMod	3.89	2.91	3.62	2.67
σ_VMoo	1.67	1.67	1.67	1.67

Figure 9.

Thin rotor – plane strain and plane stress results histogram.

Table 5 shows that the plane strain theory has similarly accurate results as GPS, for the circumferential stresses, when the rotor is stationary or at speed. However, the axial stress results are much less accurate and when temperature is increased, the accuracy is severely affected further. This is due to plane strain assuming there is no axial strain in the rotor. Effectively, this places the rotor between rigid bodies, inducing compressive stress, affecting the results. The inaccuracies with the axial stress are then carried over into the Von Mises stress. Figure 9 shows both plane stress and plane strain produce much larger differences than the GPS for thin long rotors. The axial stress results were not included for plane stress as the theory assumes axial stress to be zero.

The accuracy shown in Table 4 is closely replicated with the medium and thick versions of the long rotor when stationary. The results are shown in Tables 7 and 8. It is important to note that the FEA simulation for both the medium and thick long rotors, predicted the cylinders would separate at c. This only occurred at the rotor ends and only at full operating speed with no elevated temperature. At operating speed with elevated temperature, the pressure at c at the rotor ends was also significantly reduced. This appears to have affected the accuracy of $S_{1}$ and $S_{2}$ , causing the circumferential stresses to also lose accuracy, which then has a knock-on effect on the Von Mises stresses.

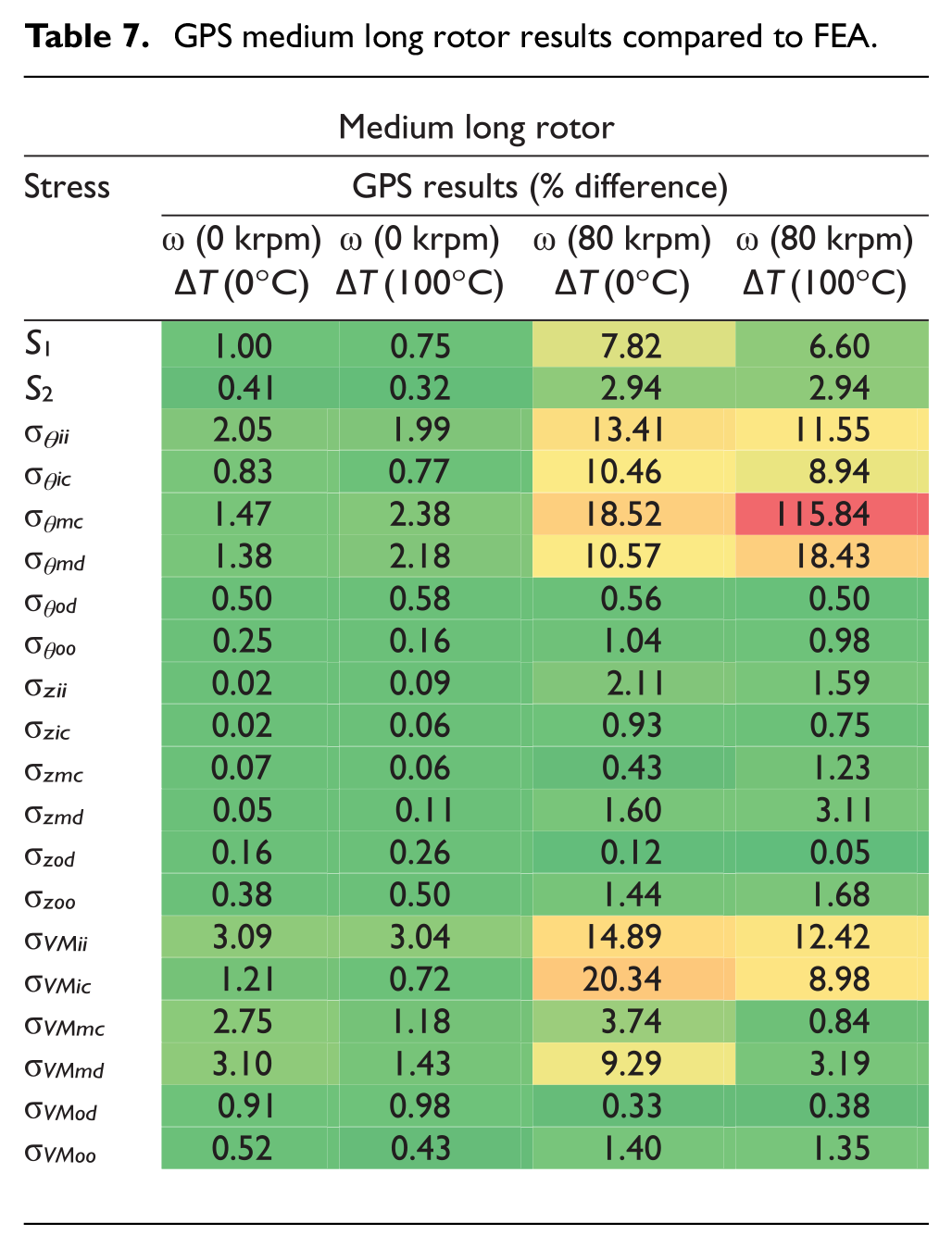

Table 7.

GPS medium long rotor results compared to FEA.

Medium long rotor
Stress	GPS results (% difference)
Stress	ω (0 krpm)ΔT (0°C)	ω (0 krpm)ΔT (100°C)	ω (80 krpm)ΔT (0°C)	ω (80 krpm)ΔT (100°C)
S ₁	1.00	0.75	7.82	6.60
S ₂	0.41	0.32	2.94	2.94
σ_θii	2.05	1.99	13.41	11.55
σ_θic	0.83	0.77	10.46	8.94
σ_θmc	1.47	2.38	18.52	115.84
σ_θmd	1.38	2.18	10.57	18.43
σ_θod	0.50	0.58	0.56	0.50
σ_θoo	0.25	0.16	1.04	0.98
σ_zii	0.02	0.09	2.11	1.59
σ_zic	0.02	0.06	0.93	0.75
σ_zmc	0.07	0.06	0.43	1.23
σ_zmd	0.05	0.11	1.60	3.11
σ_zod	0.16	0.26	0.12	0.05
σ_zoo	0.38	0.50	1.44	1.68
σ_VMii	3.09	3.04	14.89	12.42
σ_VMic	1.21	0.72	20.34	8.98
σ_VMmc	2.75	1.18	3.74	0.84
σ_VMmd	3.10	1.43	9.29	3.19
σ_VMod	0.91	0.98	0.33	0.38
σ_VMoo	0.52	0.43	1.40	1.35

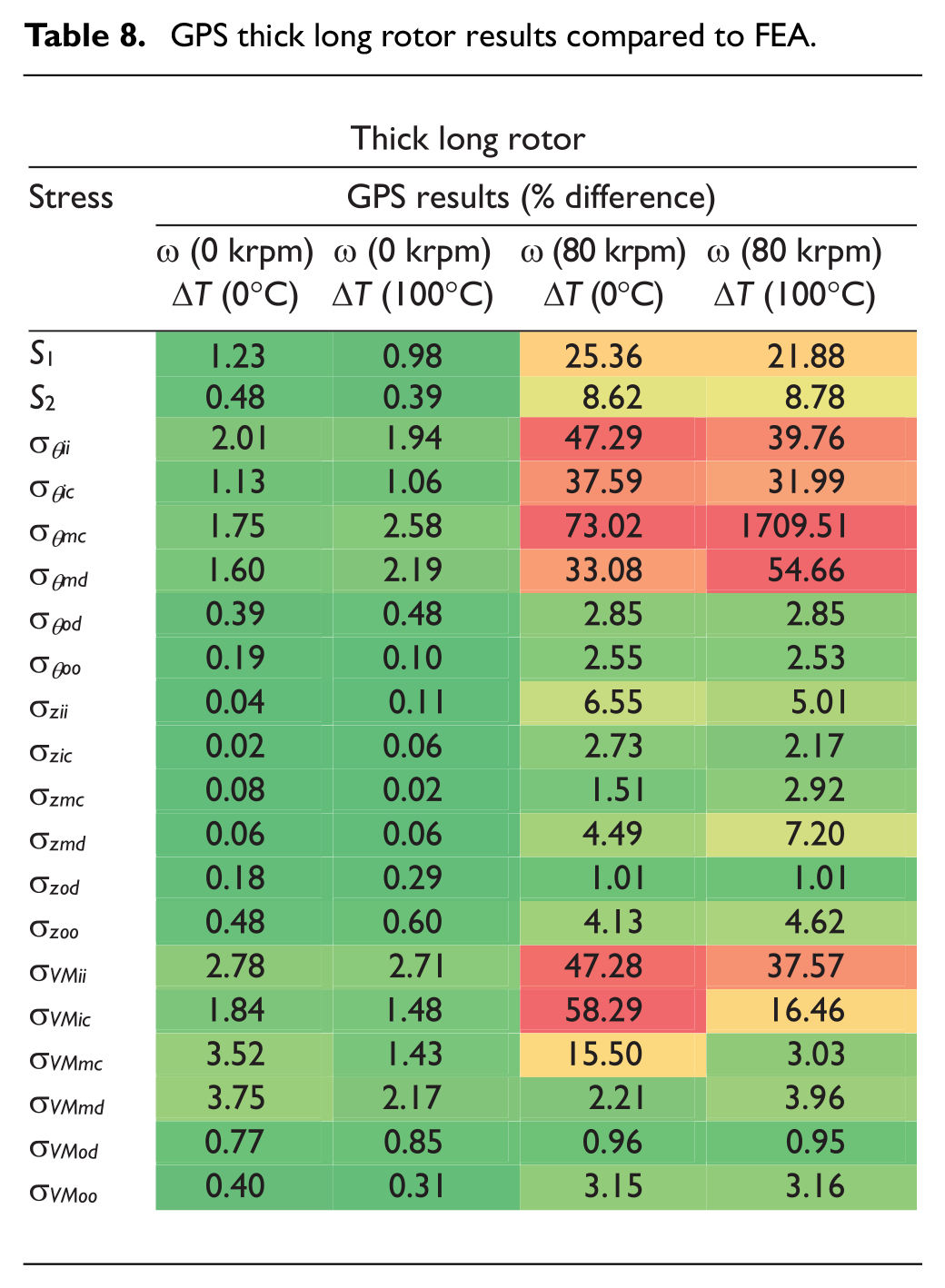

Table 8.

GPS thick long rotor results compared to FEA.

Thick long rotor
Stress	GPS results (% difference)
Stress	ω (0 krpm)ΔT (0°C)	ω (0 krpm)ΔT (100°C)	ω (80 krpm)ΔT (0°C)	ω (80 krpm)ΔT (100°C)
S ₁	1.23	0.98	25.36	21.88
S ₂	0.48	0.39	8.62	8.78
σ_θii	2.01	1.94	47.29	39.76
σ_θic	1.13	1.06	37.59	31.99
σ_θmc	1.75	2.58	73.02	1709.51
σ_θmd	1.60	2.19	33.08	54.66
σ_θod	0.39	0.48	2.85	2.85
σ_θoo	0.19	0.10	2.55	2.53
σ_zii	0.04	0.11	6.55	5.01
σ_zic	0.02	0.06	2.73	2.17
σ_zmc	0.08	0.02	1.51	2.92
σ_zmd	0.06	0.06	4.49	7.20
σ_zod	0.18	0.29	1.01	1.01
σ_zoo	0.48	0.60	4.13	4.62
σ_VMii	2.78	2.71	47.28	37.57
σ_VMic	1.84	1.48	58.29	16.46
σ_VMmc	3.52	1.43	15.50	3.03
σ_VMmd	3.75	2.17	2.21	3.96
σ_VMod	0.77	0.85	0.96	0.95
σ_VMoo	0.40	0.31	3.15	3.16

Figure 10 shows the end separation at c predicted by the FEA for the medium and thick rotors from Tables 7 and 8. The thick rotor separates more and this is shown by the larger difference in $S_{1}$ , compared to the FEA results. However, excluding the results from the maximum speed simulation, GPS still produces very accurate results for medium and thick long cylinders.

Figure 10.

Rotor end separation at c.

The medium and thick long rotor topologies were then run at a lower speed to avoid separation at the rotor ends and the results accuracy improved greatly. Tables 9 and 10 show the medium long rotor at $70 krpm$ and the thick long rotor at $60 krpm$ respectively. For both the medium and thick rotors, $S_{1}$ and $S_{2}$ became more accurate, causing the circumferential stresses to become accurate across all operating conditions. This led to very accurate results for all recorded stresses, across all operating ranges.

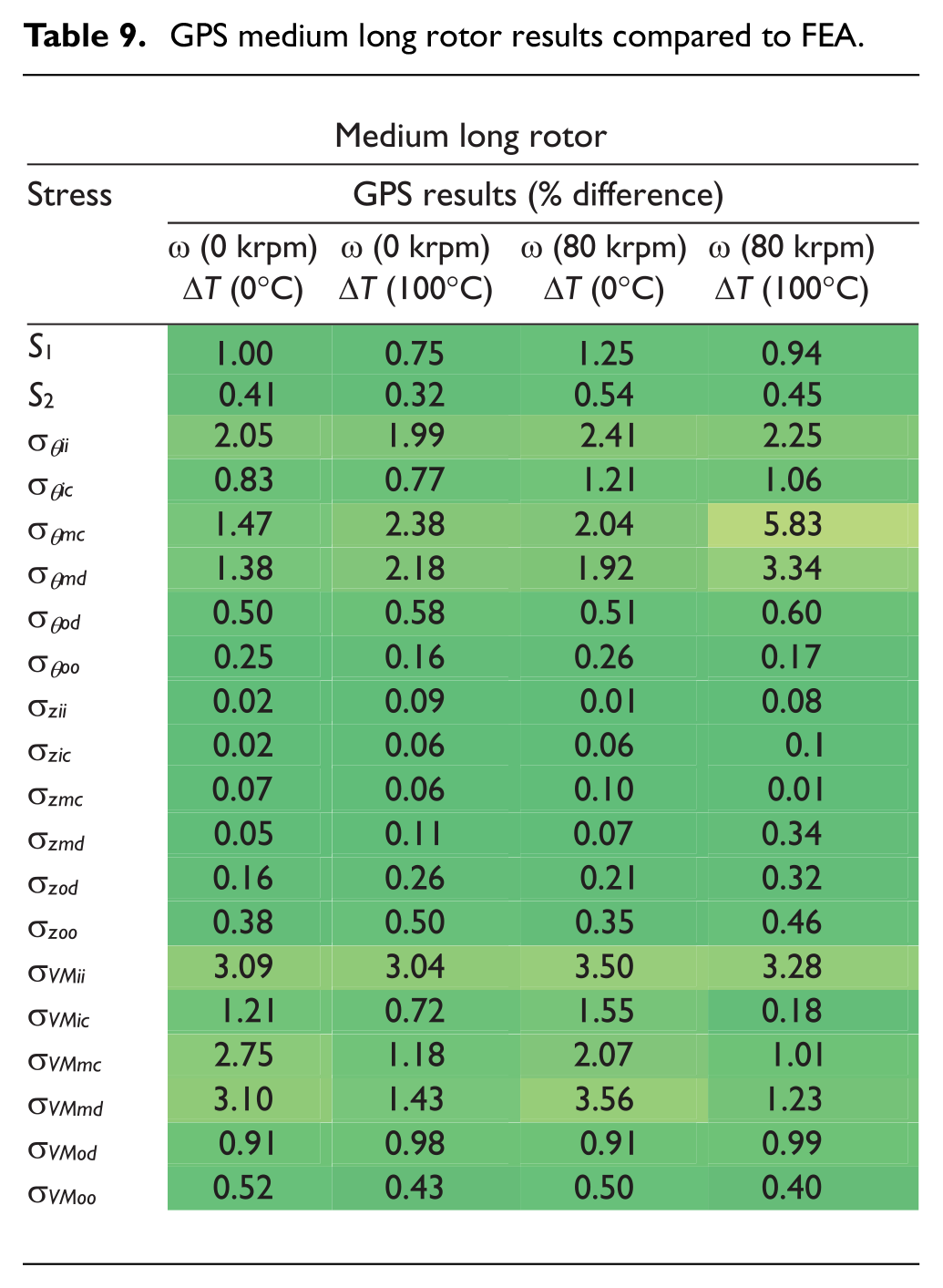

Table 9.

GPS medium long rotor results compared to FEA.

Medium long rotor
Stress	GPS results (% difference)
Stress	ω (0 krpm)ΔT (0°C)	ω (0 krpm)ΔT (100°C)	ω (80 krpm)ΔT (0°C)	ω (80 krpm)ΔT (100°C)
S ₁	1.00	0.75	1.25	0.94
S ₂	0.41	0.32	0.54	0.45
σ_θii	2.05	1.99	2.41	2.25
σ_θic	0.83	0.77	1.21	1.06
σ_θmc	1.47	2.38	2.04	5.83
σ_θmd	1.38	2.18	1.92	3.34
σ_θod	0.50	0.58	0.51	0.60
σ_θoo	0.25	0.16	0.26	0.17
σ_zii	0.02	0.09	0.01	0.08
σ_zic	0.02	0.06	0.06	0.11
σ_zmc	0.07	0.06	0.10	0.01
σ_zmd	0.05	0.11	0.07	0.34
σ_zod	0.16	0.26	0.21	0.32
σ_zoo	0.38	0.50	0.35	0.46
σ_VMii	3.09	3.04	3.50	3.28
σ_VMic	1.21	0.72	1.55	0.18
σ_VMmc	2.75	1.18	2.07	1.01
σ_VMmd	3.10	1.43	3.56	1.23
σ_VMod	0.91	0.98	0.91	0.99
σ_VMoo	0.52	0.43	0.50	0.40

Table 10.

GPS thick long rotor results compared to FEA.

Thick long rotor
Stress	GPS results (% difference)
Stress	ω (0 krpm)ΔT (0°C)	ω (0 krpm)ΔT (100°C)	ω (80 krpm) ΔT (0°C)	ω (80 krpm)ΔT (100°C)
S ₁	1.23	0.98	1.61	1.29
S ₂	0.48	0.39	0.68	0.59
σ_θii	2.01	1.94	2.55	2.37
σ_θic	1.13	1.06	1.65	1.48
σ_θmc	1.75	2.58	2.62	5.48
σ_θmd	1.60	2.19	2.25	3.35
σ_θod	0.39	0.48	0.41	0.50
σ_θoo	0.19	0.10	0.19	0.10
σ_zii	0.04	0.11	0.04	0.11
σ_zic	0.02	0.06	0.07	0.13
σ_zmc	0.08	0.02	0.09	0.02
σ_zmd	0.06	0.06	0.05	0.24
σ_zod	0.18	0.29	0.23	0.34
σ_zoo	0.48	0.60	0.47	0.59
σ_VMii	2.78	2.71	3.36	3.10
σ_VMic	1.84	1.48	2.41	0.88
σ_VMmc	3.52	1.43	2.80	0.96
σ_VMmd	3.75	2.17	4.63	1.96
σ_Vmod	0.77	0.85	0.78	0.86
σ_Vmoo	0.40	0.31	0.37	0.28

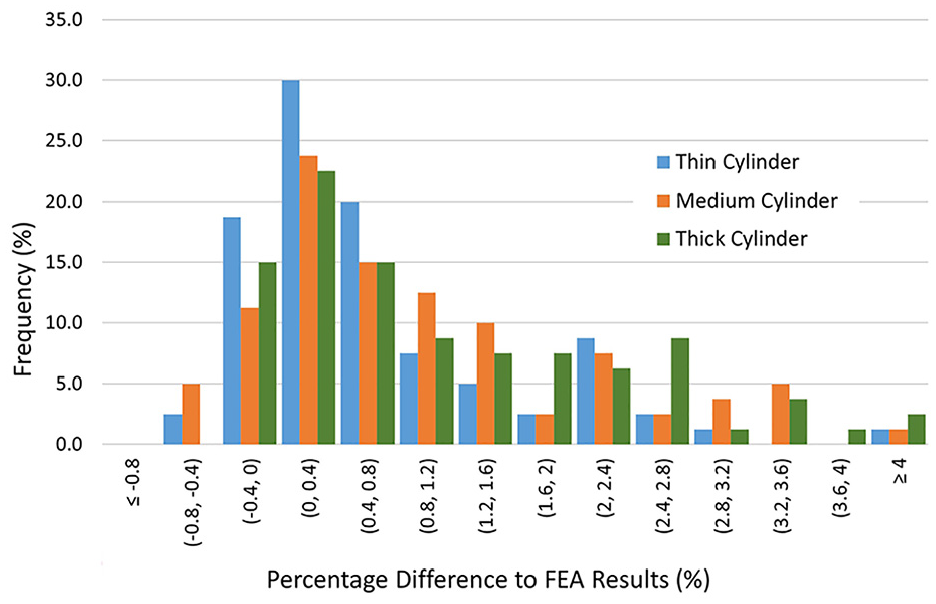

Figure 11 shows the histogram of the GPS results for each cylinder without separation at c. The thin cylinder has more results concentrated towards 0% and the accuracy then decreases slightly as the cylinder thickness increases. The average accuracy shifts further from 0% with each increase in cylinder thickness, reducing the probability of obtaining the most accurate results. However, even the thick cylinder still has 76% of results falling within a ±2% range and 91% within ±3% of the FEA results. This is far more accurate than the corresponding plane stress and plane strain results.

Figure 11.

Histogram of GPS long rotor results.

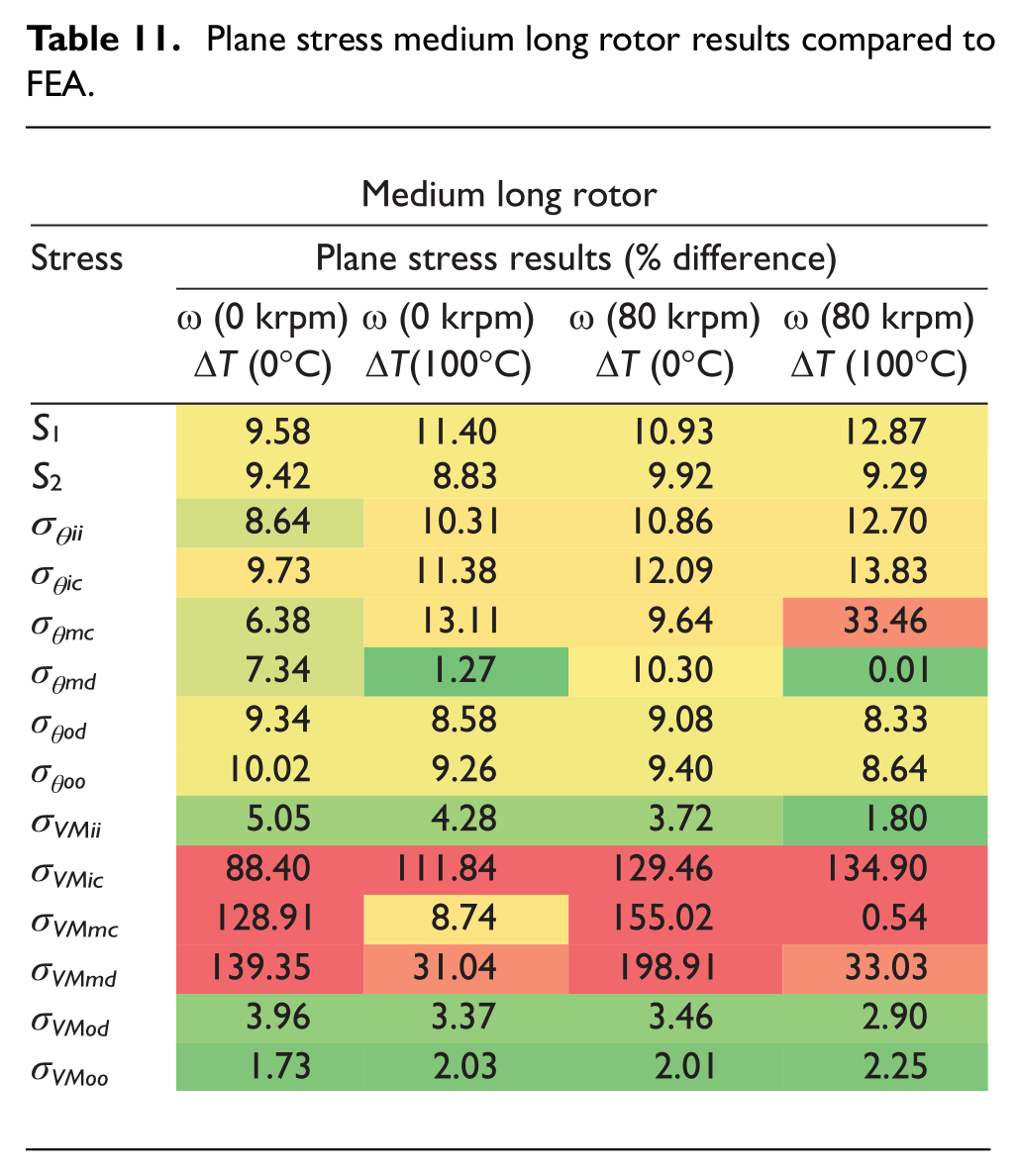

Tables 11 and 12 show the plane stress results for the medium and thick long rotors and Figure 12 compares those against the respective plane strain results from Tables 13 and 14. When comparing the GPS medium and thick long rotor results from Figure 11 to the plane stress, a similar pattern to the thin rotor results is formed. The medium and thick cylinders remaining close, but it appears that the thicker the rotor, the less accurate the results become as the thick rotor results have slightly more occurrences in the higher difference bins. The plane strain results also appear to be closely aligned, but do not follow this pattern as the thick cylinder produces a slightly more accurate result spread than the medium cylinder. This is because the inaccurate axial stress results produced by the plane strain theory, which fall in the highest difference bin, are less extreme for the thick cylinder.

Table 11.

Plane stress medium long rotor results compared to FEA.

Medium long rotor
Stress	Plane stress results(% difference)
Stress	ω (0 krpm)ΔT (0°C)	ω (0 krpm)ΔT(100°C)	ω (80 krpm)ΔT (0°C)	ω (80 krpm)ΔT (100°C)
S ₁	9.58	11.40	10.93	12.87
S ₂	9.42	8.83	9.92	9.29
σ_θii	8.64	10.31	10.86	12.70
σ_θic	9.73	11.38	12.09	13.83
σ_θmc	6.38	13.11	9.64	33.46
σ_θmd	7.34	1.27	10.30	0.01
σ_θod	9.34	8.58	9.08	8.33
σ_θoo	10.02	9.26	9.40	8.64
σ_VMii	5.05	4.28	3.72	1.80
σ_VMic	88.40	111.84	129.46	134.90
σ_VMmc	128.91	8.74	155.02	0.54
σ_VMmd	139.35	31.04	198.91	33.03
σ_VMod	3.96	3.37	3.46	2.90
σ_VMoo	1.73	2.03	2.01	2.25

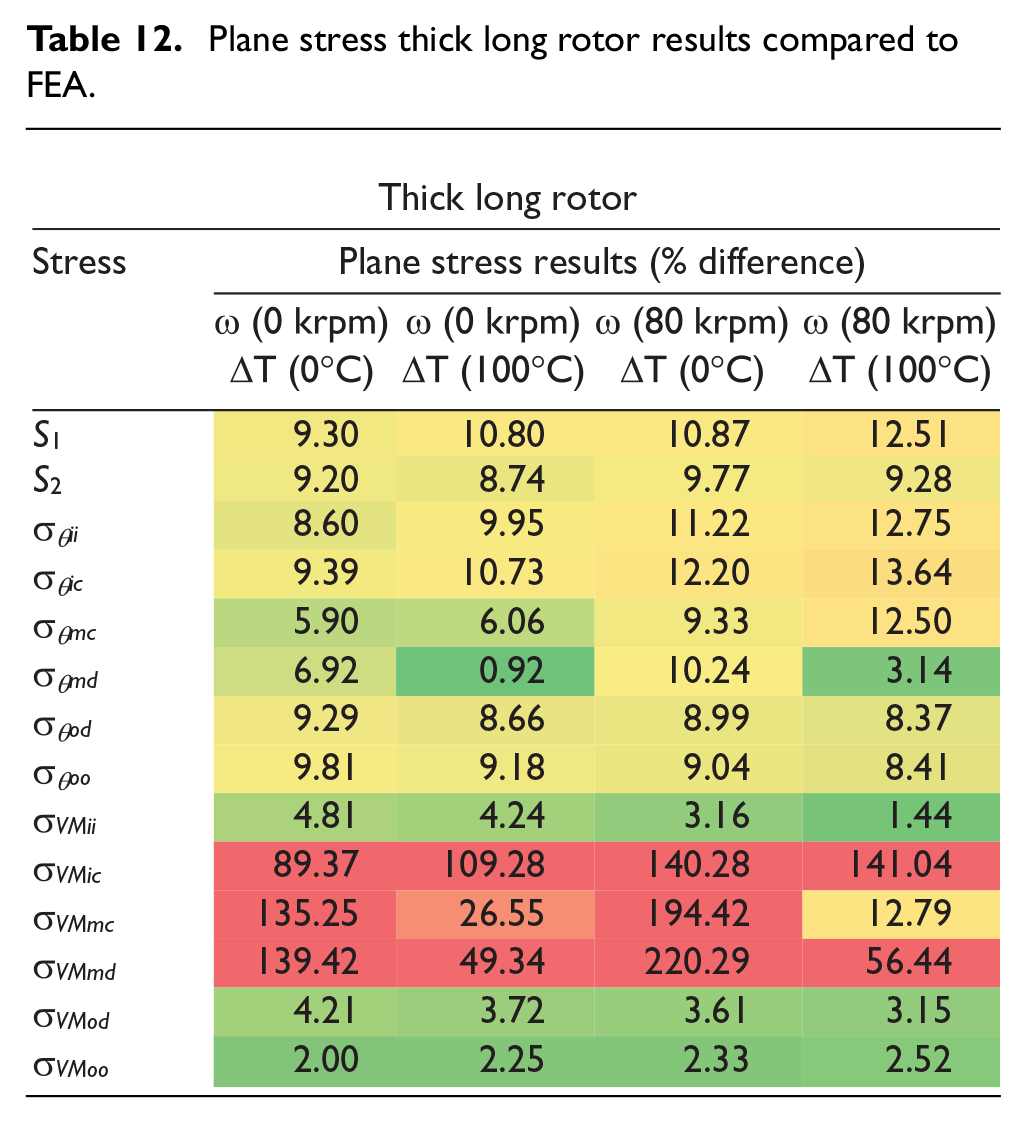

Table 12.

Plane stress thick long rotor results compared to FEA.

Thick long rotor
Stress	Plane stress results(% difference)
Stress	ω (0 krpm)ΔT (0°C)	ω (0 krpm)ΔT (100°C)	ω (80 krpm)ΔT (0°C)	ω (80 krpm)ΔT (100°C)
S ₁	9.30	10.80	10.87	12.51
S ₂	9.20	8.74	9.77	9.28
σ_θii	8.60	9.95	11.22	12.75
σ_θic	9.39	10.73	12.20	13.64
σ_θmc	5.90	6.06	9.33	12.50
σ_θmd	6.92	0.92	10.24	3.14
σ_θod	9.29	8.66	8.99	8.37
σ_θoo	9.81	9.18	9.04	8.41
σ_VMii	4.81	4.24	3.16	1.44
σ_VMic	89.37	109.28	140.28	141.04
σ_VMmc	135.25	26.55	194.42	12.79
σ_VMmd	139.42	49.34	220.29	56.44
σ_VMod	4.21	3.72	3.61	3.15
σ_VMoo	2.00	2.25	2.33	2.52

Figure 12.

Histogram for medium and thick rotor results – plane stress and plane strain.

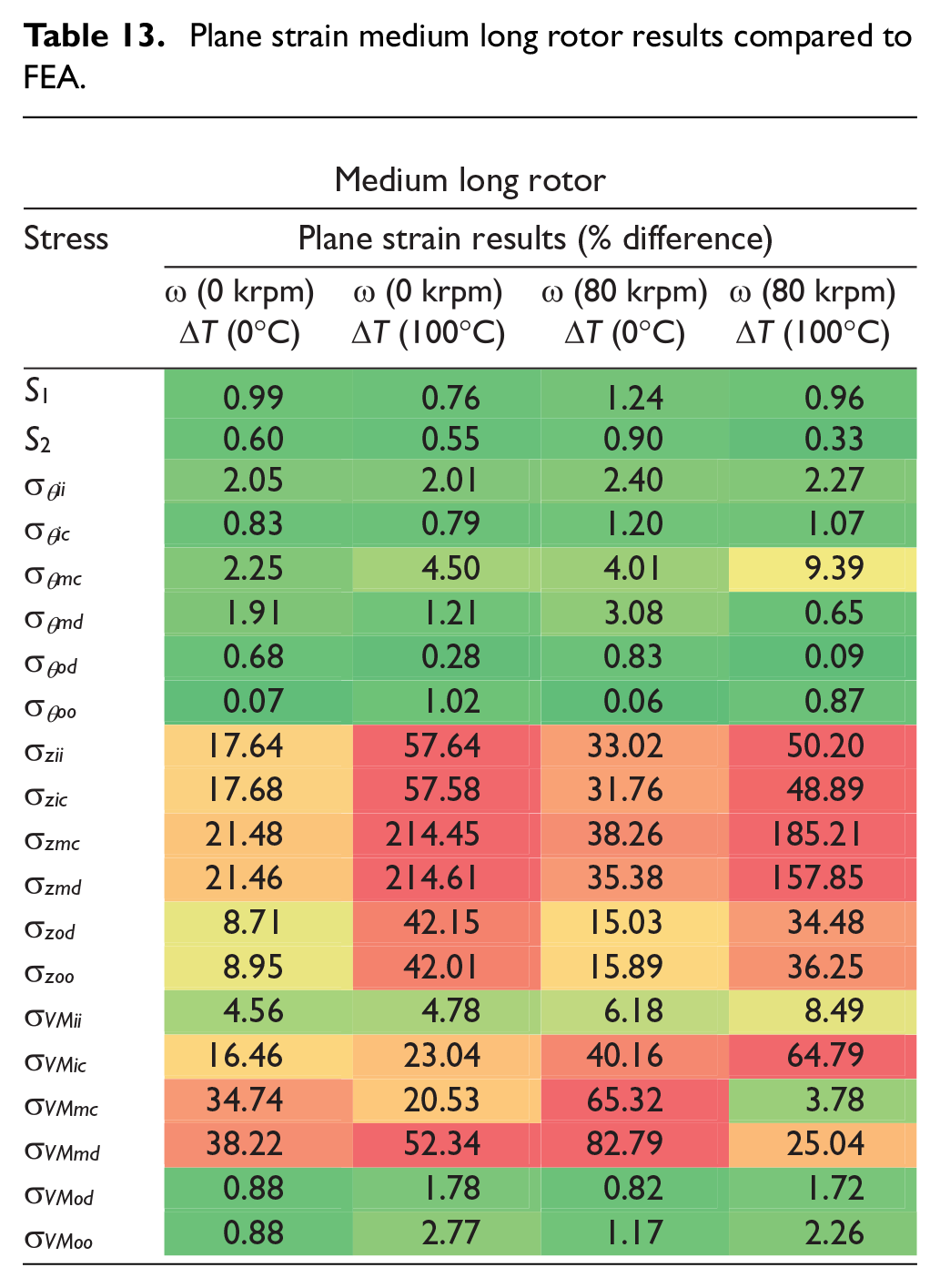

Table 13.

Plane strain medium long rotor results compared to FEA.

Medium long rotor
Stress	Plane strain results (% difference)
Stress	ω (0 krpm)ΔT (0°C)	ω (0 krpm)ΔT (100°C)	ω (80 krpm)ΔT (0°C)	ω (80 krpm)ΔT (100°C)
S ₁	0.99	0.76	1.24	0.96
S ₂	0.60	0.55	0.90	0.33
σ_θii	2.05	2.01	2.40	2.27
σ_θic	0.83	0.79	1.20	1.07
σ_θmc	2.25	4.50	4.01	9.39
σ_θmd	1.91	1.21	3.08	0.65
σ_θod	0.68	0.28	0.83	0.09
σ_θoo	0.07	1.02	0.06	0.87
σ_zii	17.64	57.64	33.02	50.20
σ_zic	17.68	57.58	31.76	48.89
σ_zmc	21.48	214.45	38.26	185.21
σ_zmd	21.46	214.61	35.38	157.85
σ_zod	8.71	42.15	15.03	34.48
σ_zoo	8.95	42.01	15.89	36.25
σ_VMii	4.56	4.78	6.18	8.49
σ_VMic	16.46	23.04	40.16	64.79
σ_VMmc	34.74	20.53	65.32	3.78
σ_VMmd	38.22	52.34	82.79	25.04
σ_VMod	0.88	1.78	0.82	1.72
σ_VMoo	0.88	2.77	1.17	2.26

Table 14.

Plane strain thick long rotor results compared to FEA.

Thick long rotor
Stress	Plane strain results (% difference)
Stress	ω (0 krpm)ΔT (0°C)	ω (0 krpm)ΔT (100°C)	ω (80 krpm)ΔT (0°C)	ω (80 krpm)ΔT (100°C)
S ₁	1.23	0.97	1.62	1.28
S ₂	0.67	0.27	1.07	0.05
σ_θii	2.01	1.93	2.56	2.36
σ_θic	1.13	1.05	1.66	1.48
σ_θmc	2.48	1.33	4.71	0.87
σ_θmd	2.10	0.04	3.50	1.01
σ_θod	0.58	0.18	0.75	0.03
σ_θoo	0.00	0.76	0.15	0.57
σ_zii	17.41	45.90	35.59	35.80
σ_zic	17.46	45.83	34.05	34.65
σ_zmc	20.75	123.07	40.00	93.78
σ_zmd	20.73	123.14	36.68	81.42
σ_zod	9.17	32.87	16.97	23.61
σ_zoo	9.50	32.66	18.30	25.08
σ_VMii	4.24	2.88	6.19	5.95
σ_VMic	16.96	3.86	46.42	39.48
σ_VMmc	36.10	28.48	86.84	6.73
σ_VMmd	37.55	57.88	95.27	28.10
σ_VMod	0.75	1.35	0.68	1.29
σ_VMoo	0.78	2.06	1.15	1.48

For the medium cylinders, only 25% of plane stress results fall within ±5% of the FEA, compared to only 53% of plane strain results falling within the same range. Neither method from Figure 12 compares to the accuracy of the GPS results shown in Figure 11, which shows 89% of results falling within ±2.5% of the FEA results.

Short rotor results

As described in the previous section, an ‘end-effect’ occurs at the rotor ends where axial stress tends to zero. This changes the rotor from a state of GPS to a state of plane stress. When analysing short rotors, it can be seen in Figure 5 that the ‘end-effect’ can affect the whole length of the rotor. The results from all analyses for the thin short rotor can be seen in Tables 15 to 17.

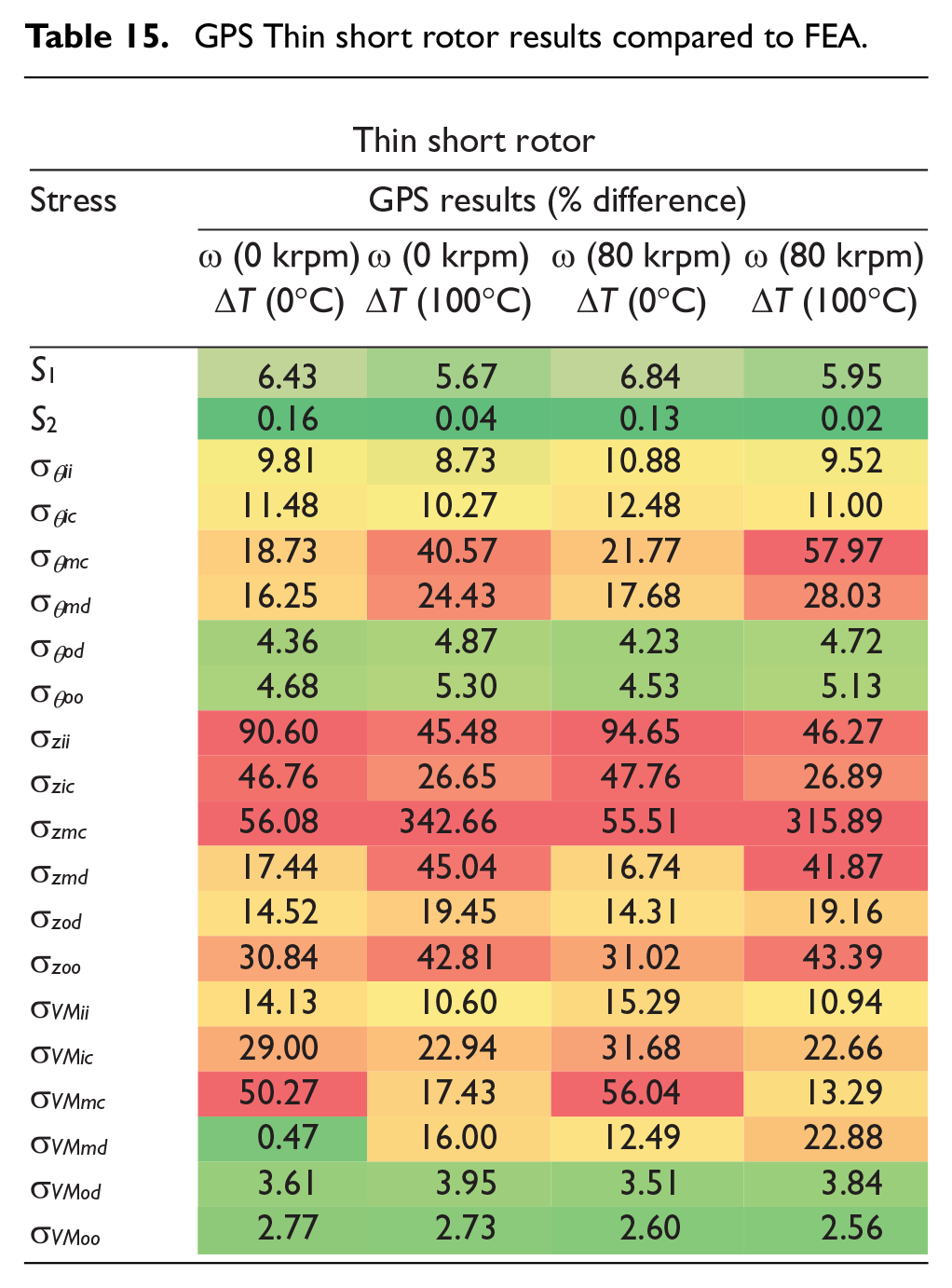

Table 15.

GPS Thin short rotor results compared to FEA.

Thin short rotor
Stress	GPS results (% difference)
Stress	ω (0 krpm)ΔT (0°C)	ω (0 krpm)ΔT (100°C)	ω (80 krpm)ΔT (0°C)	ω (80 krpm)ΔT (100°C)
S ₁	6.43	5.67	6.84	5.95
S ₂	0.16	0.04	0.13	0.02
σ_θii	9.81	8.73	10.88	9.52
σ_θic	11.48	10.27	12.48	11.00
σ_θmc	18.73	40.57	21.77	57.97
σ_θmd	16.25	24.43	17.68	28.03
σ_θod	4.36	4.87	4.23	4.72
σ_θoo	4.68	5.30	4.53	5.13
σ_zii	90.60	45.48	94.65	46.27
σ_zic	46.76	26.65	47.76	26.89
σ_zmc	56.08	342.66	55.51	315.89
σ_zmd	17.44	45.04	16.74	41.87
σ_zod	14.52	19.45	14.31	19.16
σ_zoo	30.84	42.81	31.02	43.39
σ_VMii	14.13	10.60	15.29	10.94
σ_VMic	29.00	22.94	31.68	22.66
σ_VMmc	50.27	17.43	56.04	13.29
σ_VMmd	0.47	16.00	12.49	22.88
σ_VMod	3.61	3.95	3.51	3.84
σ_VMoo	2.77	2.73	2.60	2.56

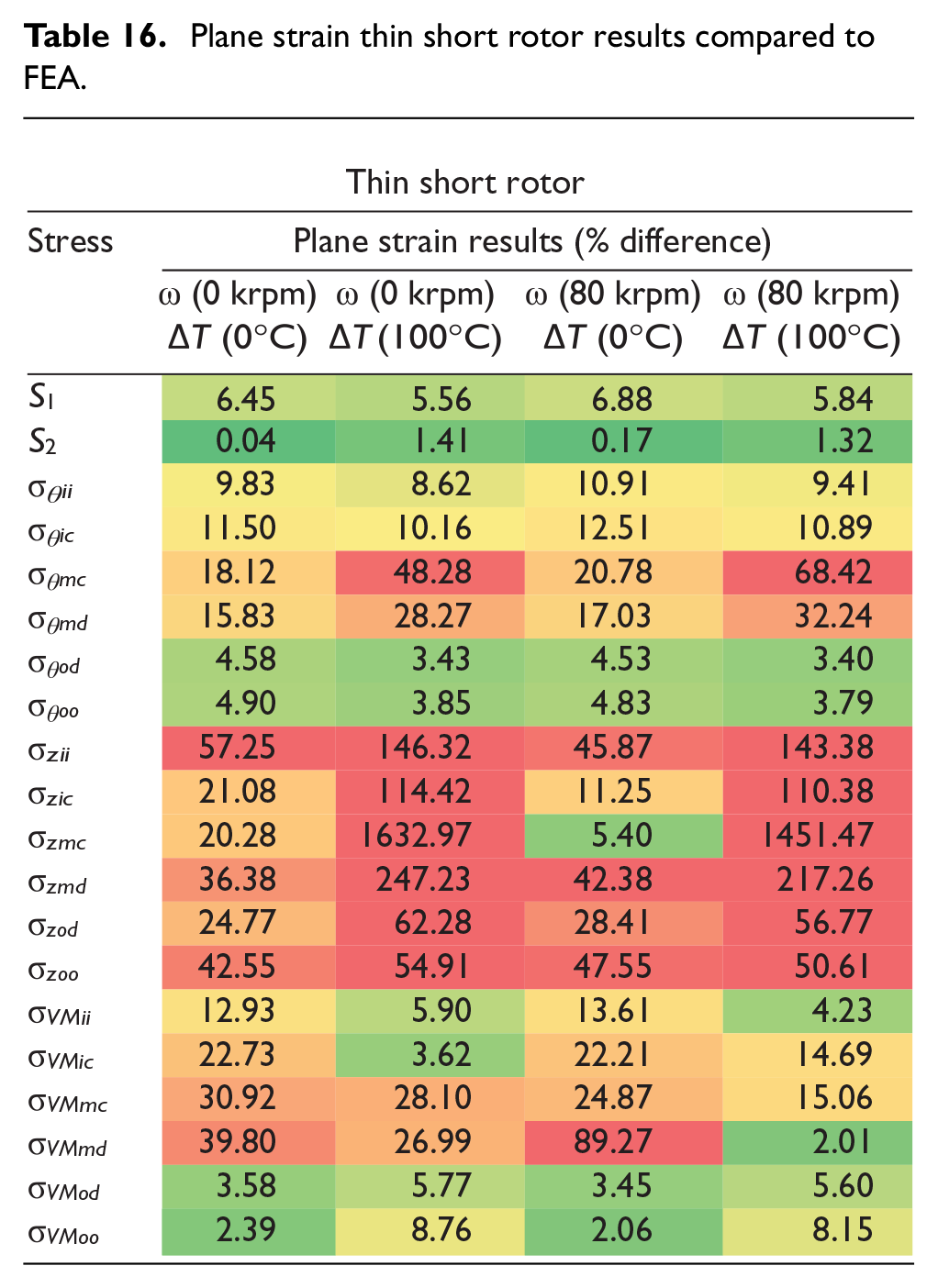

Table 16.

Plane strain thin short rotor results compared to FEA.

Thin short rotor
Stress	Plane strain results (% difference)
Stress	ω (0 krpm) ΔT(0°C)	ω (0 krpm)ΔT (100°C)	ω (80 krpm)ΔT (0°C)	ω (80 krpm)ΔT (100°C)
S ₁	6.45	5.56	6.88	5.84
S ₂	0.04	1.41	0.17	1.32
σ_θii	9.83	8.62	10.91	9.41
σ_θic	11.50	10.16	12.51	10.89
σ_θmc	18.12	48.28	20.78	68.42
σ_θmd	15.83	28.27	17.03	32.24
σ_θod	4.58	3.43	4.53	3.40
σ_θoo	4.90	3.85	4.83	3.79
σ_zii	57.25	146.32	45.87	143.38
σ_zic	21.08	114.42	11.25	110.38
σ_zmc	20.28	1632.97	5.40	1451.47
σ_zmd	36.38	247.23	42.38	217.26
σ_zod	24.77	62.28	28.41	56.77
σ_zoo	42.55	54.91	47.55	50.61
σ_VMii	12.93	5.90	13.61	4.23
σ_VMic	22.73	3.62	22.21	14.69
σ_VMmc	30.92	28.10	24.87	15.06
σ_VMmd	39.80	26.99	89.27	2.01
σ_VMod	3.58	5.77	3.45	5.60
σ_VMoo	2.39	8.76	2.06	8.15

Table 17.

Plane stress thin short rotor results compared to FEA.

Thin short rotor
Stress	Plane stress results (% difference)
Stress	ω (0 krpm)ΔT (0°C)	ω (0 krpm)ΔT (100°C)	ω (70 krpm)ΔT (0°C)	ω (70 krpm)ΔT (100°C)
S ₁	16.29	17.82	17.36	18.82
S ₂	10.00	8.61	10.27	8.83
σ_θii	19.32	20.49	21.25	22.23
σ_θic	20.81	21.83	22.73	23.55
σ_θmc	25.42	25.81	29.68	36.67
σ_θmd	23.76	22.84	26.50	26.91
σ_θod	5.91	4.12	5.88	4.12
σ_θoo	5.63	3.73	5.41	3.53
σ_VMii	12.57	10.15	14.30	11.62
σ_VMic	8.41	26.09	9.22	28.19
σ_VMmc	19.83	21.39	26.14	21.27
σ_VMmd	142.66	32.70	221.80	41.83
σ_VMod	1.19	0.08	1.00	0.22
σ_VMoo	5.00	5.30	4.97	5.20

None of the theoretical approaches can be reliably used for short rotors due to being affected by the ‘end-effect’. For thin short rotors, Figure 13 shows the plane stress approach appears to have the most consistent results with less extreme outliers. This is due to the ‘end-effect’ essentially creating a state of plane stress in the rotor. Comparing Figure 13 with Figure 9, the thin long rotor results are more accurate than the thin short rotor results for plane stress, with more results concentrated in the lowest difference bins. When also compared to Figure 12, it is clear that plane stress is consistent over all tested rotor topologies. However, there are still significant errors that make the results unreliable.

Figure 13.

Histogram for thin short rotor results.

Plane strain appears to have a comparable distribution to GPS in Figure 13, but the major axial stress inaccuracies shown in Table 16, are concealed in the highest difference bin. Taking this into account, the GPS distribution of Table 15 has fewer occurrences in the highest difference bin and is more accurate on average than plane strain, but less accurate than plane stress. Sixty-three percent of the GPS results fall within ±20% of the FEA, however there are axial stress calculations that are significantly more inaccurate and fall outside of this range. Each theory has circa 40% of results falling outside of ±20% of the FEA. There is also no clear pattern on which results may be accurate or inaccurate.

The unpredictability and unreliability in the results remains for the medium and thick short rotors, as shown by Figure 14 which uses the results data from Tables 15, 18 and 19. For the short rotors, GPS appears to increase in accuracy as the rotor thickness increases, with a higher frequency of the most accurate results and less extreme results. Mainly the axial stress results improved as rotor thickness increased.

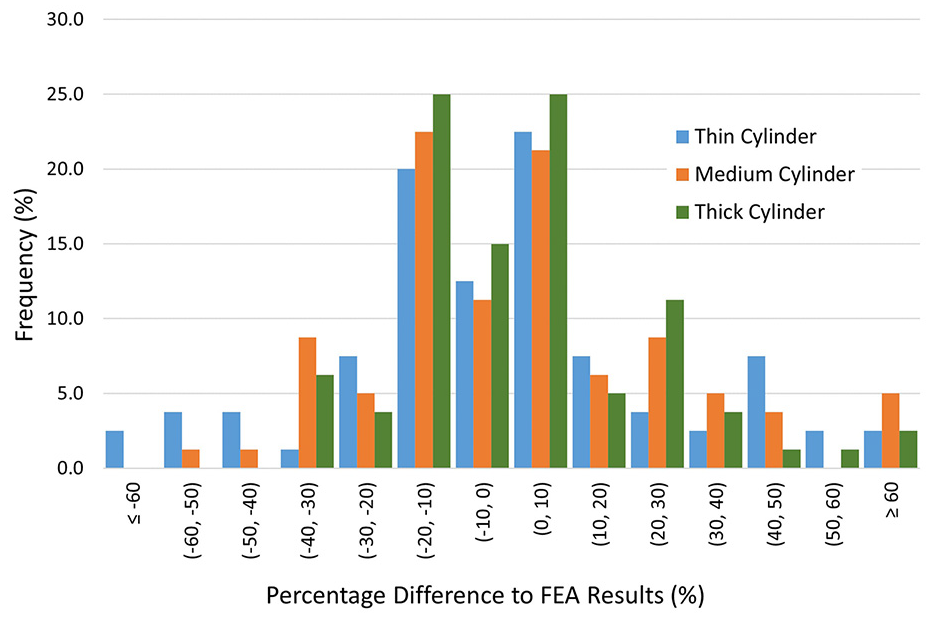

Figure 14.

Histogram of GPS short rotor results.

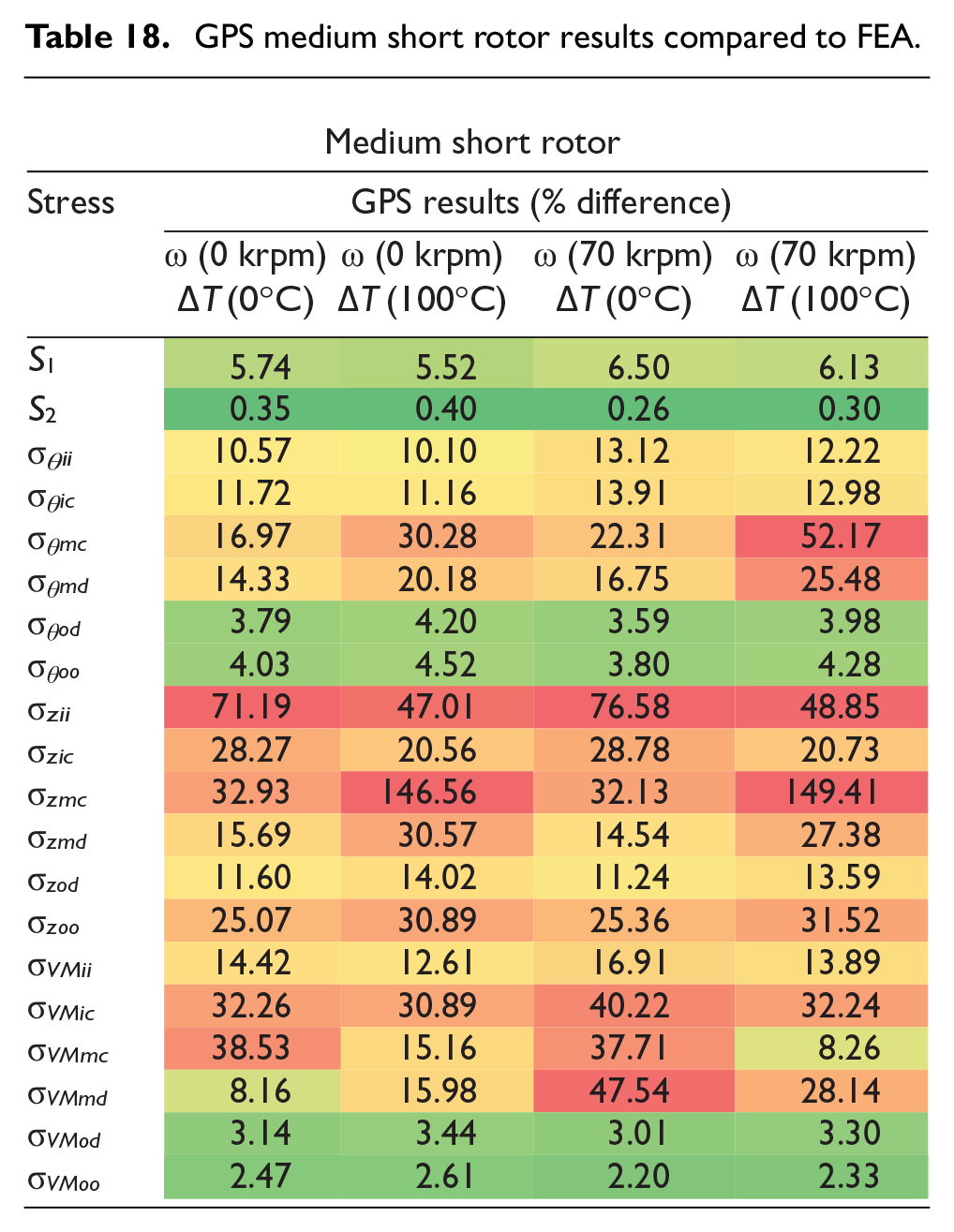

Table 18.

GPS medium short rotor results compared to FEA.

Medium short rotor
Stress	GPS results (% difference)
Stress	ω (0 krpm)ΔT (0°C)	ω (0 krpm)ΔT (100°C)	ω (70 krpm) ΔT (0°C)	ω (70 krpm)ΔT (100°C)
S ₁	5.74	5.52	6.50	6.13
S ₂	0.35	0.40	0.26	0.30
σ_θii	10.57	10.10	13.12	12.22
σ_θic	11.72	11.16	13.91	12.98
σ_θmc	16.97	30.28	22.31	52.17
σ_θmd	14.33	20.18	16.75	25.48
σ_θod	3.79	4.20	3.59	3.98
σ_θoo	4.03	4.52	3.80	4.28
σ_zii	71.19	47.01	76.58	48.85
σ_zic	28.27	20.56	28.78	20.73
σ_zmc	32.93	146.56	32.13	149.41
σ_zmd	15.69	30.57	14.54	27.38
σ_zod	11.60	14.02	11.24	13.59
σ_zoo	25.07	30.89	25.36	31.52
σ_VMii	14.42	12.61	16.91	13.89
σ_VMic	32.26	30.89	40.22	32.24
σ_VMmc	38.53	15.16	37.71	8.26
σ_VMmd	8.16	15.98	47.54	28.14
σ_VMod	3.14	3.44	3.01	3.30
σ_VMoo	2.47	2.61	2.20	2.33

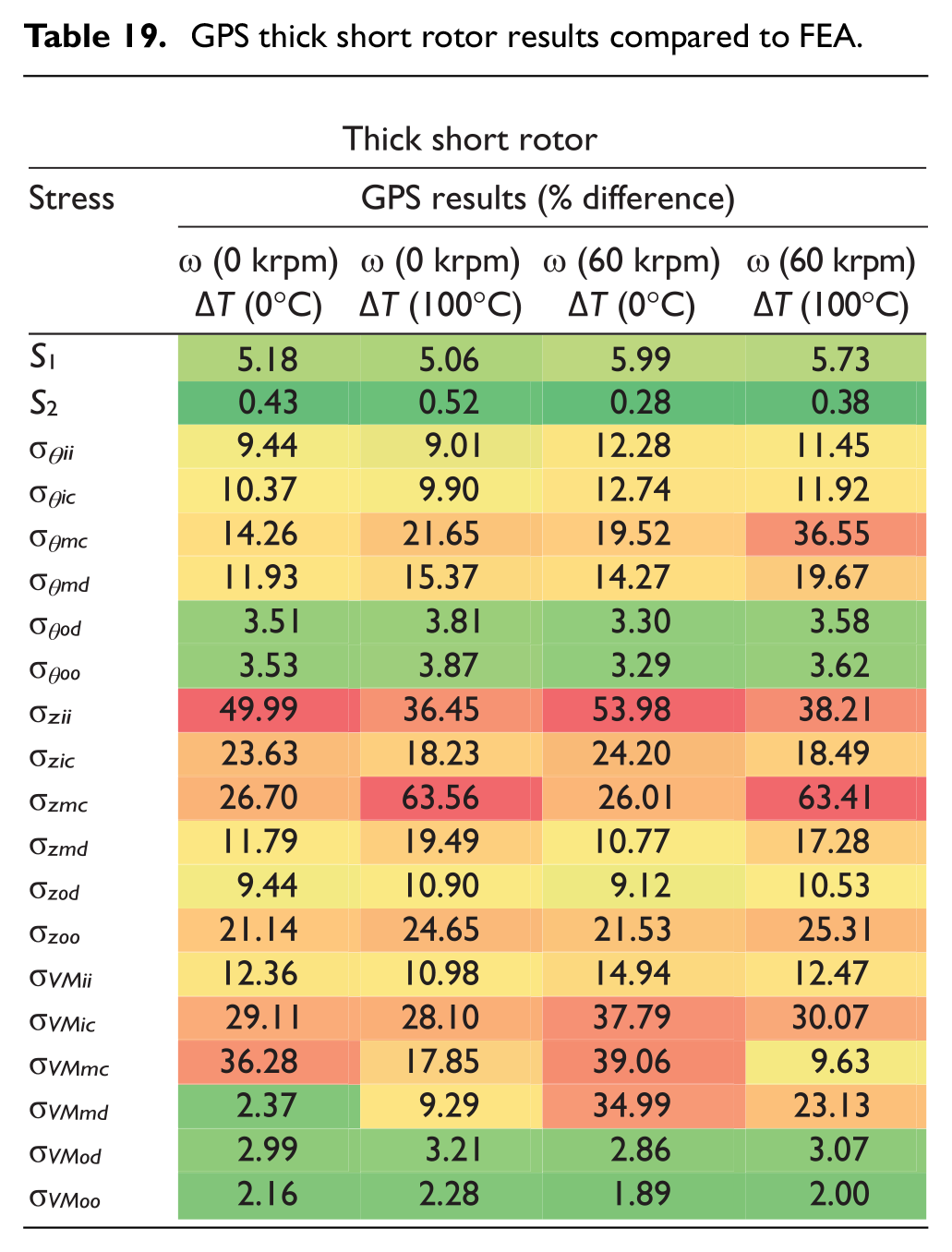

Table 19.

GPS thick short rotor results compared to FEA.

Thick short rotor
Stress	GPS results (% difference)
Stress	ω (0 krpm)ΔT (0°C)	ω (0 krpm)ΔT (100°C)	ω (60 krpm) ΔT (0°C)	ω (60 krpm)ΔT (100°C)
S ₁	5.18	5.06	5.99	5.73
S ₂	0.43	0.52	0.28	0.38
σ_θii	9.44	9.01	12.28	11.45
σ_θic	10.37	9.90	12.74	11.92
σ_θmc	14.26	21.65	19.52	36.55
σ_θmd	11.93	15.37	14.27	19.67
σ_θod	3.51	3.81	3.30	3.58
σ_θoo	3.53	3.87	3.29	3.62
σ_zii	49.99	36.45	53.98	38.21
σ_zic	23.63	18.23	24.20	18.49
σ_zmc	26.70	63.56	26.01	63.41
σ_zmd	11.79	19.49	10.77	17.28
σ_zod	9.44	10.90	9.12	10.53
σ_zoo	21.14	24.65	21.53	25.31
σ_VMii	12.36	10.98	14.94	12.47
σ_VMic	29.11	28.10	37.79	30.07
σ_VMmc	36.28	17.85	39.06	9.63
σ_VMmd	2.37	9.29	34.99	23.13
σ_VMod	2.99	3.21	2.86	3.07
σ_VMoo	2.16	2.28	1.89	2.00

Conclusion

From the results presented, it is clear that the new GPS theory is much more reliable and accurate than either plane stress or plane strain for longer rotors. It also remains accurate when temperature and or speed effects are incorporated into the calculations. The most successful GPS results were for the thin long rotor, but it was also close to the FEA results for the long medium and long thick rotors.

Most of the current research reviewed by Mallin and Barrans¹² used plane stress calculations, while a few used plane strain. Only Barrans et al.⁸ had explored GPS, for two-cylinder rotors. When comparing plane strain results to the FEA, it is clear there were significant discrepancies. The axial stress calculations were severely compromised compared to the FEA, by the assumption that there was no axial strain in the rotor. These errors were then carried into the Von Mises stress calculations causing significant errors. The importance of Von Mises stress (e.g. for predicting failure of the sleeve) renders this method unreliable for the types of rotor explored in this paper.

The plane stress results were more consistent when compared against the FEA results as they didn’t fluctuate like the plane strain results. However, there were still significant differences from the FEA across all rotor topologies. These were unpredictable and caused some unreliability with the plane stress method. For long rotors, it was found that only circa 60% of plane stress results fell within ±10% of the FEA values. A 10% difference can limit rotor design or optimisation. For the same long rotors, 59% to 76% of GPS results fell within ±1% of the FEA and over 90% of results within ±3% of the FEA. This accuracy was maintained throughout rotor operating conditions and would allow rotor designs to be optimised.

There are limitations with the GPS theory. GPS results are taken from the centre of the rotor length, where the rotor is in a state of GPS. However, the rotor changes to a state of plane stress at the rotor ends. This ’end-effect’ can generate unpredictable results affecting how the rotor operates. The separation at the rotor ends shown in Figure 10 was not predicted by the GPS theory as the centre of the rotor remained in compression. It is therefore necessary to explore the ‘end-effect’ when analysing stresses in rotors. However the GPS calculations can be relied upon for great accuracy through the majority of the rotor, throughout all operating conditions.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Levi Mallin

References

Tenconi

Vaschetto

Vigliani

. Electrical machines for high-speed applications: design considerations and tradeoffs. IEEE Trans Ind Electron 2014; 61(6): 3022–3029.

Rahman

Chiba

Fukao

. Super high speed electrical machines - summary. In: IEEE power engineering society general meeting, Denver, CO, 6–10 June 2004, vol. 2, pp.1272–1275. IEEE.

Fang

, et al. Rotor design for high-speed high-power permanent-magnet synchronous machines. IEEE Trans Ind Appl 2017; 53(4): 3411–3419.

Sarlioglu

. Assessment of high-speed multimegawatt electric machines. In: Electric machines and drives conference. 2015. IEEE.

Kolondzovski

Arkkio

Larjola

, et al. Power limits of high-speed permanent-magnet electrical machines for compressor applications. IEEE Trans Energy Convers 2011; 26(1): 73–82.

Gerada

Boglietti

Cavagnino

. High-speed electrical machines and drives. IEEE Trans Ind Electron 2014; 61(6): 2943–2945.

Gerada

Mebarki

Brown

, et al. High-speed electrical machines: technologies, trends and developments. IEEE Trans Ind Electron 2014; 61(6): 2946–2959.

Barrans

Al-Ani

Carter

. Mechanical design of rotors for permanent magnet high-speed electric motors for turbocharger applications. IET Electr Syst Transp 2017; 7(4): 278–286.

Burnand

Araujo

Perriard

. Very-high-speed permanent magnet motors: mechanical rotor stresses analytical model. In: Electric machines and drives conference, Miami, FL, 21–24 May 2017. IEEE.

10.

Smith

DJB

Mecrow

Atkinson

, et al. Shear stress concentrations in permanent magnet rotor sleeves. In: International conference on electrical machines, Rome, Italy, 6–8 September 2010. IEEE.

11.

Binder

Schneider

Klohr

. Fixation of buried and surface-mounted magnets in high-speed permanent-magnet synchronous machines. IEEE Trans Ind Appl 2006; 42(4): 1031–1037.

12.

Mallin

Barrans

. A review of the high-speed permanent magnet rotor stress analysis used for automotive air-handling machines. Eur J Eng Res Sci 2020; 5(4): 448–456.

13.

Zhang

Wang

, et al. Rotor retaining sleeve design for a 1.12-mw high-speed pm machine. IEEE Trans Ind Appl 2015; 51(5): 3675–3685.

14.

Zhu

Chen

. Rotor strength analysis for statorpermanent magnet machines. In: International conference on electrical machines and systems (ICEMS), Sydney, NSW, 11–14 August 2017, pp.1–6. IEEE.

15.

Cheng

Sun

, et al. Optimum design of ultra high speed hybrid rotor of pm machines. In: International conference on mechatronics and automation, 2014, pp.1388–1393. IEEE.

16.

Zhou

Fang

. Strength analysis of enclosure for a highspeed permanent magnet rotor. AASRI Procedia 2012; 3: 652–660.

17.

Papini

Gerada

, et al. High speed solid rotor induction machine: analysis and performances. In: International conference on electrical machines and systems (ICEMS), Hangzhou, China, 22–25 October 2014, pp.2759–2765. IEEE.

18.

Chen

Zhu

Zhong

, et al. Rotor strength analysis for high-speed segmented surface-mounted permanent magnet synchronous machines. IET Electr Power Appl 2018; 12(7): 979–990.
