An improved mixed distribution for estimating the wind potential in China

Abstract

This work uses the previously developed mixed distribution, however, with added a parameter and function. We introduce the improved mixed distribution model as an alternative wind speed distribution, which combines three distributions. Four extreme value distributions are considered to model mixed distribution, improved mixed distribution, and estimate wind speed. The efficiency of univariate, mixed, and improved mixed distributions on actual wind speed data from China’s diverse regions is estimated. Using the minimal standard error of fit (SEF) test, 65.5% of samples are better suitable for the improved mixed distribution. The best model’s return period is also calculated. Moreover, the addition of another parameter and function in mixed distributions has improved the results. This statistical analysis concluded that improved mixed distributions are more suitable and accurate for assessing wind speed data.

Keywords

China extreme value distributions mixed distribution parameter estimation wind speed wind energy

Introduction

Renewable energy accounted for 18.1% of the total energy consumption in 2017 (Nemitallah et al., 2020), and the market share is continuously growing and replacing fossil-based power generation, which is much needed to minimize climate change impacts and to accomplish United Nations’ sustainable development goal #7 (Affordable and Clean Energy) (Al Huneidi et al., 2022; Qadir et al., 2021). Solar and wind-based power generations are the primary renewable resources because of the significant advancements and the decreasing tariff in the past decade (Qadir et al., 2020; Tahir et al., 2022). China is amongst the economic hubs with a population exceeding 1.4 billion, and with the growing energy needs, further installation of 1000 GW is required in the coming decades. In addition, efforts are being made to reduce energy consumption per capita and to establish more renewable-based power plants to lower the environmental effects (Imteyaz et al., 2021; Sahu, 2018). It has been estimated that the wind power potential in China is around 4350 GW, out of which 1200 GW is commercially viable (Zhang and Li, 2012). In 2016, the installed capacity of wind power in China was 23.32 GW (Sahu, 2018). As more wind farms will be set up in the coming years, wind speed estimation with good accuracy is required for feasibility assessment and future forecasting. Furthermore, the wind speed analysis can also provide the likelihood of hurricanes/disasters (Cui et al., 2019).

Wind speed is an essential factor in determining a region’s wind energy capacity. Wind speed data is typically analyzed using statistical distributions (Holmes, 2019; Jung and Schindler, 2019). The wind power estimation is formulated as an explicit function of the calculated parameters of the wind speed distribution. As a result, the types of data, selecting a suitable distribution and estimating wind speed distribution are all critical for accurately estimating a region’s wind energy capacity (Tahir et al., 2020).

Numerous studies have been carried out to model wind speed distributions and variations (Carta et al., 2009; Perrin et al., 2006; Simiu et al., 2001). The wind speed’s probability density function (PDF) is also vital in many wind power generation applications. The published research in the literature for renewable energy suggests various PDFs to define the wind speed distribution. Different probability distributions such as Gumbel, Fréchet, Weibull, and Generalized extreme values have been used to fit the wind data (Jung and Schindler, 2019). Some studies (Dukes and Palutikof, 1995; Heckert et al., 1998; Simiu and Heckert, 1996; Simiu et al., 2001) were based on the epoch and peak threshold (POT) method for modeling extreme wind speeds, for which the Weibull distribution was considered better than the Gumbel distribution.

Pashardes and Christofides (1995) conducted a statistical study of Cyprus’ wind speed and path, which laid a meteorological basis for evaluating Cyprus’ wind energy resources and provided appropriate data estimation of potential wind energy. Carta et al. (2009) studied probability distributions for the wind speed analysis. The statistical examination was performed to see if the wind speed data sample originates from a population with a specific probability distribution. Dorvlo (2002) examined the wind speed data for four different Oman sites and used two parameters, Weibull distribution, for modeling. He evaluated the parameters by means of regression and moments method and found the Chi-square method suitable for improved approximations. Jung and Schindler (2019) carried out a comprehensive literature survey focusing on several statistical distributions for wind speed analysis. In their review, they studied distributions, parameter estimations, and goodness of fit metrics. They recommended that the available methods should be improved to accurately predict wind speeds.

Numerous studies have examined a variety of mixture distributions for the purpose of modeling wind speed data (Qin et al., 2012; Shi et al., 2015; Shin et al., 2016). Previously published research has used the Extreme value and Normal (N) distributions as density components of mixture distributions. These components’ mixture distributions resulted in a good fit to wind speed data.

Mood et al. (1974) presented mixed distribution to model data samples from two populations by:

P_{r} (X \leq ε) = F (x) = p F_{1} (x) + (1 - p) F_{2} (x)

(1)

Where $p$ is a parameter used to weight each population’s relative contribution $(0 < p < 1)$ . Carlos Agustín (2013) used mixed distribution to estimate extreme wind speeds by using extreme value distributions. It showed how to apply mixed distributions to the extreme wind speed models and produce better results than univariate distributions. Unfortunately, the mixed distribution method is insufficient and could be more fitting with three populations instead of two, which will refine the wind speed data and accurate results. Hence, the use of three populations is needed to be tested to evaluate the application of mixed distribution in wind speed analysis.

Furthermore, parameter estimation methodology for distributional models is one of the subjects discussed in conjunction with wind speed distribution determination. Since estimated wind energy is dependent on estimated distributional parameters, accurate estimation of distributional parameters is critical. Several estimation techniques were used and compared based on several parameters. The fmincon function in MATLAB, a function minimizer with linear and nonlinear constraints, is one of the most flexible parameter optimizations.

The improved mixed distribution, which is a combination of three distributions, is proposed for the first time in this study as an alternative to commonly used wind speed distributions and evaluated to demonstrate its capability in estimating wind speed data. The improved mixed distribution has more shape and scale parameters and rising, decreasing, and upside down hazard functions. The rest of this paper is laid out as follows. Section 2 presents commonly used Extreme Value distributions, and their mixed distribution estimation procedures are introduced for a description of wind speed distribution. Section 3 presents the analysis and results obtained from a MATLAB program. Finally, in Section 4, the investigation is concluded with various outcomes.

Materials and methods

Problem definition

This study modified the previous mixed distribution model (1) with one more function in order to generate the new, improved mixed distribution model. A relevant parameter is employed to model the data samples from the three populations to improve the effect and obtain better results.

P_{r} (X \leq ε) = F (x) = p F_{1} (x) + r F_{2} (x) + (1 - p - r) F_{3} (x)

(2)

Where $p$ and $r$ are associated parameters used to weight each population’s relative contribution $0 < p + r < 1 .$ Four extreme value distributions, such as Gumbel, Fréchet, Weibull, and Generalized Extreme Value distributions, are used to evaluate the wind speed data. To establish a comparison between 14 univariate and mixed distributions (a combination of two distributions and three distribution models) and examine which mixed distribution model will provide better results. Due to the complexity associated with the mathematical formulation with the partial derivatives relative to the unknown parameters, direct minimization will determine the unknown parameters. The best univariate or mixed distributions can be selected according to the minimum standard fitting error (SEF) criterion.

Data selection

The data used in this article mainly includes meteorological data. The meteorological data comes from “China Surface Meteorological Observation Monthly Data Set 3.0” collected by the National Meteorological Information Center of China Meteorological Administration (China Meteorological Data Service Center, n.d.). These data sets contain monthly observation data from 29 national weather stations from 1951 to 2015, including the capital, provincial capitals, municipalities, autonomous regions, and special administrative regions (SAR), as shown in Figure 1. These elements include maximum wind speed, monthly mean wind speed, monthly minimum wind speed, etc. Since most weather stations in China were built between 1951 and 1960, the data’s lengths vary from 11 to 64 years. The number of wind speed observations available varies from station to station. The missing data will be replaced with the average of adjacent years, as shown in Table 1.

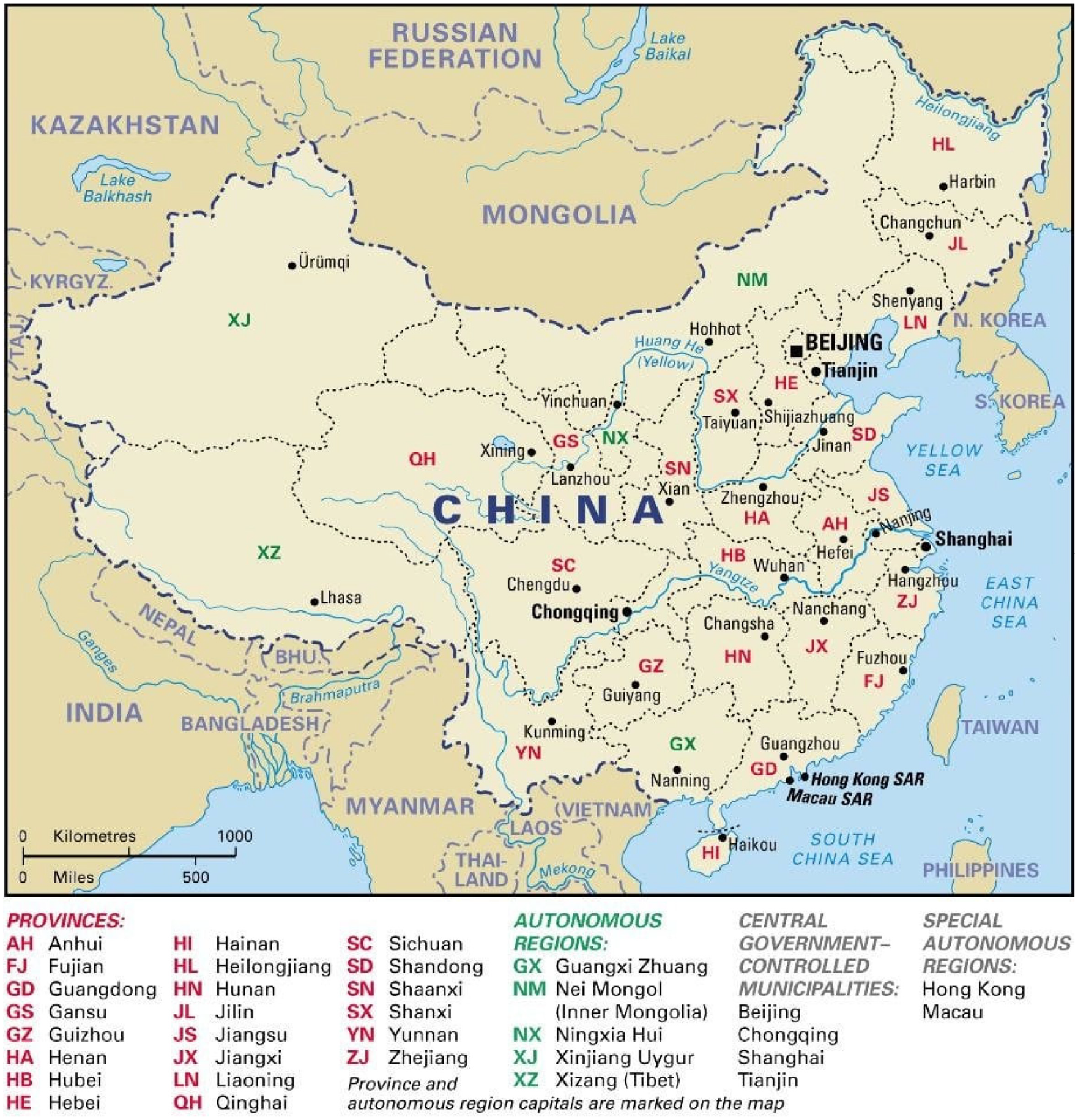

Figure 1.

Geographical area of study (China) (China Map, 2011).

Table 1.

Summary of wind speed data at different locations in China.

Station ID	Stationname	City	State	Period	Obs.	Lat.	Long.	Height abovesea level (m)	Mean	Std Dev.	Min.	Max.
58362	Baoshan	Shanghai	Municipality	1991–2015	294	31°24′N	121°27′E	5.5	3.07	0.39	1.7	4.4
54511	Beijing	Beijing	Capital	1951–2015	774	39°48′N	116°28′E	31.3	2.41	0.64	0.9	4.7
54161	Changchun	Changchun	Jilin	1951–2015	774	43°54′N	125°13′E	236.8	3.83	1.03	1.6	9
57687	Changsha	Changsha	Hunan	1951–2015	342	28°13′N	112°55′E	68	2.17	0.33	1.1	3.1
57516	Shapingba	Chongqing	Municipality	1951–2015	774	29°35′N	106°28′E	259.1	1.33	0.32	0.5	2.1
58847	Fuzhou	Fuzhou	Fujian	1953–2015	750	26°05′N	119°17′E	84	2.65	0.50	1.5	5.3
52884	Gaolan County	Lanzhou	Gansu	2004–2015	138	36°21′N	103°56′E	1668.5	1.73	0.28	1	2.5
59287	Guangzhou	Guangzhou	Guangdong	1951–2015	768	23°10′N	113°20′E	41	1.83	0.52	0.5	4
57816	Guiyang	Guiyang	Guizhou	1951–2015	774	26°35′N	106°44′E	1223.8	2.23	0.50	0.6	3.8
59758	Haikou	Haikou	Hainan	1951–2015	774	20°00′N	110°15′E	63.5	2.86	0.88	1.1	6
58457	Hangzhou	Hangzhou	Zhejiang	1951–2015	774	30°14′N	120°10′E	41.7	2.18	0.40	1	3.6
58321	Hefei	Hefei	Anhui	1953–2015	755	31°52′N	117°14′E	27.9	2.62	0.55	1.1	4.3
53463	Hohhot	Hohhot	Inner Mongolia	1951–2015	773	40°49′N	111°41′E	1063	1.85	0.65	0.6	4.5
54823	Jinan	Jinan	Shandong	1951–2015	774	36°36′N	117°03′E	170.3	3.08	0.76	1.4	6.5
56462	Kowloon	Hong Kong	SAR	1955–2015	756	29°00′N	101°30′E	7987.3	2.49	0.56	1.1	4.3
56778	Kunming	Kunming	Yunnan	1951–2015	774	25°01′N	102°41′E	1892.4	2.17	0.68	0.8	4.4
55591	Lhasa	Lhasa	Tibet	1955–2015	721	29°40′N	091°08′E	3648.7	1.9	0.46	0.8	3.6
58606	Nanchang	Nanchang	Jiangxi	1951–2015	762	28°36′N	115°55′E	46.7	2.67	0.98	1.1	7.2
58238	Nanjing	Nanjing	Jiangsu	1951–2015	774	32°00′N	118°48′E	7.1	2.6	0.65	1.1	5.3
59431	Nanning	Nanning	Guangxi	1952–2015	762	22°38′N	108°13′E	121.6	1.55	0.48	0.3	2.9
54342	Shenyang	Shenyang	Liaoning	1951–2015	774	41°44′N	123°31′E	49	3.02	0.83	1.4	6.7
53698	Shijiazhuang	Shijiazhuang	Hebei	1955–2015	726	38°02′N	114°25′E	81	1.69	0.46	0.6	3.4
53772	Taiyuan	Taiyuan	Shanxi	1951–2015	774	37°47′N	112°33′E	778.3	2.11	0.62	0.8	4.1
54527	Tianjin	Tianjin	Municipality	1954–2015	738	39°05′N	117°04′E	2.5	2.62	0.70	1.1	4.6
51463	Urumqi	Urumqi	Xinjiang	1951–2015	774	43°47′N	087°39′E	935	2.43	0.77	0.4	4.7
56187	Wenjiang District	Chengdu	Sichuan	2004–2015	138	30°42′N	103°50′E	539.3	1.23	0.22	0.8	1.9
57036	Xian	Xian	Shaanxi	1951–2008	684	34°18′N	108°56′E	397.5	1.74	0.54	0.4	3.6
52866	Xining	Xining	Qinghai	1956–2015	738	36°43′N	101°45′E	2295.2	1.52	0.61	0.3	3.7
53614	Yinchuan	Yinchuan	Ningxia	1953–2015	745	38°29′N	106°13′E	11114	2.01	0.55	0.6	3.7

Methodology

Jung et al. (2017) pointed out that accurate wind speed distribution modeling is a pivotal step in estimating the average wind power generation output. Thus, selecting the most appropriate distribution that best fits the wind speed data at a specific site is significant. For this reason, this study considered four extreme value distributions, including Gumbel, Fréchet, Weibull, and generalized extreme value distributions, to generate mixed distributions and simulate wind speed data. In this section, firstly, substitute equations (3)–(6) into equations (1) and (2) to produce mixed distributions. Secondly, a thorough explanation of the selected distribution functions and the associated parameter estimation method is discussed.

Univariable extreme value distributions

Extreme value distributions have been commonly employed to fit extreme wind speed distributions. These distributions are applied to the extreme values since they can be attained as the limit distribution (as $n \to \infty$ ) of the maximum value between $n$ independent random variables, each of which has the same continuous distribution.

The functional equation’s solution must satisfy extreme values is called the General Extreme Value (GEV) distribution. The shape parameter $β$ values are Gumbel distribution $β = 0$ , Fréchet distribution $β < 0,$ and Weibull distribution $β > 0$ .

Gumbel distribution

There is strong evidence in the literature survey that recommends using the Gumbel distribution to fit extreme events (Garciano and Koike, 2007; Kunz et al., 2010). For defining probabilistic properties, this distribution is useful (Hosking and Wallis, 1987). The probability density function (PDF) of the Gumbel distribution is:

f (x) = \frac{1}{α} ex p^{[- ex p^{(- \frac{x - v}{α})}]} ex p^{(- \frac{x - v}{α})}

(3)

Where $v and α$ are the location and scale parameters, and $α > 0,$ the Gumbel model’s shape is independent of the distribution parameters.

Fréchet distribution

The Fréchet distribution often provides the best approximation of the structure’s maximum load distribution (R, 1990; Van Den Brink and Können, 2008). The PDF of the Fréchet distribution is

f (x) = λ σ^{λ} x^{- (1 + λ)} ex p^{{- {(\frac{σ}{x})}^{λ}}}

(4)

Where $σ and λ$ are the scale and shape parameters, respectively, with $σ > 0 and λ > 0$ .

Weibull distribution

This distribution has been used to fit source data, that is, actual wind data, for many years. The probability distribution function can be used to analyze wind data characteristics in any area (Jaramillo and Borja, 2004; Ouarda et al., 2016). The PDF of the Weibull distribution is:

f (x) = \frac{k}{ϕ} {(\frac{x}{ϕ})}^{k - 1} ex p^{{- {[\frac{x}{ϕ}]}^{k}}}

(5)

Where $ϕ and k$ is the scale and shape parameters, with $ϕ > 0 and k > 0$ .

Generalized extreme value distribution (GEV)

Dukes and Palutikof (1995) employed the GEV to analyze extreme wind speeds as an alternative distribution to Weibull. This distribution incorporates the extreme value distributions of Gumbel, Fréchet, and Weibull. However, the best distribution for statistical extremes cannot be decided. The PDF of the GEV is:

f (x) = \frac{1}{η} {[1 - (\frac{x - ω}{η}) β]}^{\frac{1}{β} - 1} ex p^{{- {[1 - (\frac{x - ω}{η}) β]}^{\frac{1}{β}}}}

(6)

Where $ω, η and β$ are the location, scale, and shape parameters, with $- \infty \leq ω \leq \infty, η \geq 0 and - \infty \leq β \leq \infty$ .

Mixed distributions (with the combination of two distributions)

Mixed Gumbel and Weibull distributions (GW): If $F_{1} (x) and F_{2} (x)$ are the Gumbel and Weibull distributions than the corresponding mixed PDF is

F (x) = p \frac{1}{α} ex p^{[- ex p^{(- \frac{x - v}{α})}]} ex p^{(- \frac{x - v}{α})} + (1 - p) \frac{k}{ϕ} {(\frac{x}{ϕ})}^{k - 1} ex p^{{- {[\frac{x}{ϕ}]}^{k}}}

(7)

Where $v$ is location parameter, $α and ϕ$ are scale parameters, $k$ is shape parameter, and $p$ is the association parameter, with $α, ϕ, k > 0$ and $(0 < p < 1)$ .

Mixed Gumbel and Fréchet distributions (GF): If $F_{1} (x) and F_{2} (x)$ are the Gumbel and Fréchet distributions than the corresponding mixed PDF is

F (x) = p \frac{1}{α} ex p^{[- ex p^{(- \frac{x - v}{α})}]} ex p^{(- \frac{x - v}{α})} + (1 - p) λ σ^{λ} x^{- (1 + λ)} ex p^{{- {(\frac{σ}{x})}^{λ}}}

(8)

Where $v$ is location parameter, $α and σ$ are scale parameters, $λ$ is shape parameter, and $p$ is the association parameter, with $α, σ, λ > 0$ and $(0 < p < 1)$ .

Mixed Gumbel and Generalized Extreme Value (GEV) distributions (GGEV): If $F_{1} (x) and F_{2} (x)$ are the Gumbel and the Generalized Extreme Value (GEV) distributions than the corresponding mixed PDF is (Raynal-Villasenor, 2012):

F (x) = p \frac{1}{α} ex p^{[- ex p^{(- \frac{x - v}{α})}]} ex p^{(- \frac{x - v}{α})} + (1 - p) \frac{1}{η} {[1 - (\frac{x - ω}{η}) β]}^{\frac{1}{β} - 1} ex p^{{- {[1 - (\frac{x - ω}{η}) β]}^{\frac{1}{β}}}}

(9)

Where $v and ω$ are location parameters, $α and η$ are scale parameters, $β$ is shape parameter, and $p$ is the association parameter, with $α and η > 0$ and $(0 < p < 1)$ .

Mixed GEV and Fréchet distributions (GEVF): If $F_{1} (x) and F_{2} (x)$ are the GEV and Fréchet distributions than the corresponding mixed PDF is:

F (x) = p \frac{1}{η} {[1 - (\frac{x - ω}{η}) β]}^{\frac{1}{β} - 1} ex p^{{- {[1 - (\frac{x - ω}{η}) β]}^{\frac{1}{β}}}} + (1 - p) λ σ^{λ} x^{- (1 + λ)} ex p^{{- {(\frac{σ}{x})}^{λ}}}

(10)

Where $ω$ is location parameter, $α and η$ are scale parameters, $β$ is shape parameter, and $p$ is the association parameter, with $σ, λ, η > 0$ and $(0 < p < 1)$ .

Mixed Weibull and Fréchet distributions (WF): If $F_{1} (x) and F_{2} (x)$ are the Weibull and Fréchet distributions than the corresponding mixed PDF is:

F (x) = p \frac{k}{ϕ} {(\frac{x}{ϕ})}^{k - 1} ex p^{{- {[\frac{x}{ϕ}]}^{k}}} + (1 - p) λ σ^{λ} x^{- (1 + λ)} ex p^{{- {(\frac{σ}{x})}^{λ}}}

(11)

Where $ϕ and σ$ are scale parameters, $k and λ$ are shape parameters, and $p$ is the association parameter, with $σ, λ, ϕ, k > 0$ and $(0 < p < 1)$ .

Mixed Weibull and GEV distributions (WGEV): If $F_{1} (x) and F_{2} (x)$ are the Weibull and GEV distributions than the corresponding mixed PDF is:

F (x) = p λ \frac{k}{ϕ} {(\frac{x}{ϕ})}^{k - 1} ex p^{{- {[\frac{x}{ϕ}]}^{k}}} + (1 - p) \frac{1}{η} {[1 - (\frac{x - ω}{η}) β]}^{\frac{1}{β} - 1} ex p^{{- {[1 - (\frac{x - ω}{η}) β]}^{\frac{1}{β}}}}

(12)

Where $ω$ is location parameter, $ϕ and η$ are scale parameters, $k and β$ are shape parameters, and $p$ is the association parameter, with $ϕ, k, η > 0$ and $(0 < p < 1)$ .

Improved mixed distributions (with the combination of three distributions)

Mixed Gumbel, Fréchet, and Generalized extreme value (GEV) distributions (GFGEV): If $F_{1} (x), F_{2} (x) and F_{3} (x)$ are the Gumbel, Fréchet, and GEV distributions than the corresponding mixed PDF is:

F (x) = p \frac{1}{α} ex p^{[- ex p^{(- \frac{x - v}{α})}]} ex p^{(- \frac{x - v}{α})} + r λ σ^{λ} x^{- (1 + λ)} ex p^{{- {(\frac{σ}{x})}^{λ}}} + (1 - p - r) \frac{1}{η} {[1 - (\frac{x - ω}{η}) β]}^{\frac{1}{β} - 1} ex p^{{- {[1 - (\frac{x - ω}{η}) β]}^{\frac{1}{β}}}}

(13)

Where $v and ω$ are location parameters, $α, σ and η$ are scale parameters, and $λ and β$ are shape parameters, with $α, σ, λ, η > 0 .$

Mixed Gumbel, Fréchet, and Weibull distributions (GFW): If $F_{1} (x), F_{2} (x) and F_{3} (x)$ are the Gumbel, Weibull, and Fréchet distributions than the corresponding mixed PDF is:

F (x) = p \frac{1}{α} ex p^{[- ex p^{(- \frac{x - v}{α})}]} ex p^{(- \frac{x - v}{α})} + r λ σ^{λ} x^{- (1 + λ)} ex p^{{- {(\frac{σ}{x})}^{λ}}} + (1 - p - r) \frac{k}{ϕ} {(\frac{x}{ϕ})}^{k - 1} ex p^{{- {[\frac{x}{ϕ}]}^{k}}}

(14)

where $v$ is location parameters, $α, ϕ and σ$ are scale parameters, and $k and λ$ are shape parameters, with $α, σ, λ, ϕ, k > 0$

Mixed Gumbel, Weibull, and GEV distributions (GWGEV): If $F_{1} (x), F_{2} (x) and F_{3} (x)$ are the Gumbel, Weibull, and the GEV distributions than the corresponding mixed PDF is:

F (x) = p \frac{1}{α} ex p^{[- ex p^{(- \frac{x - v}{α})}]} ex p^{(- \frac{x - v}{α})} + r \frac{k}{ϕ} {(\frac{x}{ϕ})}^{k - 1} ex p^{{- {[\frac{x}{ϕ}]}^{k}}} + (1 - p - r) \frac{1}{η} {[1 - (\frac{x - ω}{η}) β]}^{\frac{1}{β} - 1} ex p^{{- {[1 - (\frac{x - ω}{η}) β]}^{\frac{1}{β}}}}

(15)

Where $v and ω$ is location parameters, $α, ϕ and η$ are scale parameters, and $k and β$ are shape parameters, with $α, ϕ, k, η > 0$ .

Mixed Weibull, Fréchet and GEV distributions (WFGEV): If $F_{1} (x), F_{2} (x) and F_{3} (x)$ are the Weibull, Fréchet, and GEV distributions than the corresponding mixed PDF is:

F (x) = p \frac{k}{ϕ} {(\frac{x}{ϕ})}^{k - 1} ex p^{{- {[\frac{x}{ϕ}]}^{k}}} + r λ σ^{λ} x^{- (1 + λ)} ex p^{{- {(\frac{σ}{x})}^{λ}}} + (1 - p - r) \frac{1}{η} {[1 - (\frac{x - ω}{η}) β]}^{\frac{1}{β} - 1} ex p^{{- {[1 - (\frac{x - ω}{η}) β]}^{\frac{1}{β}}}}

(16)

Where $ω$ is location parameters, $ϕ, σ and η$ are scale parameters and $k, λ and β$ are shape parameters, with $ϕ, k, σ, λ, η > 0$ .

Fourteen extreme univariate and mixed distributions have unknown parameters. Due to the mathematical expression’s complexity and the unknown parameters, the fmincon optimization technique will determine the unknown parameters. The best distributed univariate or mixed variable can be selected according to the minimum standard fitting error (SEF) criterion (Kite, 1988):

SE F_{j} = {[\frac{\sum_{i = 1}^{n} {(g_{i} - h_{i})}^{2}}{(n - q)}]}^{\frac{1}{2}}

(17)

where $j$ is the number of stations being analyzed, $g_{i}$ is the recorded event, $h_{i}$ is the event magnitude calculated from the mixed or univariate distribution of the probabilities estimated from the ranks of $g_{i}, q$ is the number of computed parameters for mixed or univariate distributions, and $n$ is the record’s length.

Parameters estimation

After selecting the main form of the model’s functional part, the next step in the model building process is to estimate the function’s unknown parameters. Usually, this is achieved by using an optimization method. An objective function associates the response variable with the functional part of a model comprising unknown parameters, resulting in parameter estimates. Close to the actual unknown parameter value. In general, terms, unknown parameters are regarded as variables to be calculated by optimization. At this step of the solving procedure, the data is used as the objective function’s known coefficients. One of the most versatile parameter optimizations is the fmincon function in MATLAB and a function minimizer with linear and nonlinear constraints. A nonlinear programming solver finds the minimum of a problem specified by:

mi n_{x} f (x) such that {\begin{matrix} c (x) \leq 0 \\ ceq (x) = 0 \\ A \cdot x \leq b \\ Aeq \cdot x = beq \\ lb \leq x \leq ub, \end{matrix}

(18)

Where $b$ and $beq$ are vectors, $A$ and $Aeq$ are matrices, $c (x)$ and $ceq (x)$ are functions that return vectors, and $f (x)$ is a function that returns a scalar. $f (x)$ , $c (x)$ , and $ceq (x)$ can be nonlinear functions. Where $x$ , $lb$ , and $ub$ can be passed as vectors or matrices (Coleman et al., 2009). Due to the difficulty of the mathematical expressions in (18) with respect to the parameters, MATLAB nonlinear optimization with the fmincon technique is used to determine the unknown parameters.

Recurrence interval

One of the essential goals of frequency analysis is to calculate the return period or recurrence interval. If the event with variable $(x)$ equal to or greater than $(x_{T}),$ occurs once in year $T$ , then the probability of $P (X \geq x)$ in the variable for a given year is:

P (x \geq x_{T}) = \frac{1}{T}

(19)

T = \frac{1}{1 - P (x \leq x_{T})}

(20)

The precipitation associated with the 50- or 100-year average payback period cannot be directly estimated from the data set. It must still be extracted from the 98th percentile and 99th percentile of the fitted distribution, respectively (i.e. $[1 - 0 . 98^{- year}]^{- 1} =$ 50 years and $[1 - 0 . 99^{- year}]^{- 1}$ = 100 years) (Wilks, 1993). Once the parameters are produced, it can determine the amounts of various return times by solving the equation (5). For the case of GW distribution:

pex p^{[- ex p^{(- \frac{{\hat{U}}_{T} - v}{α})}]} + (1 - p) (1 - ex p^{[- {(\frac{{\hat{U}}_{T}}{ϕ})}^{k}]}) - (1 - \frac{1}{T}) = 0

(21)

Where ${\hat{U}}_{T}$ is the maximum extreme wind speed associated with the return period of $T$ years.

Results and discussion

In this section, 14 univariates and mixed distributions have been used. The best univariate or mixed distribution will be selected by testing the minimum standard error of fit (SEF). This study discusses some stations and their parameters and finds out the suitable distributions along with their return period values. First, this section will discuss the big data station and its parameters. Also, find out their return values according to the best-fit models. Secondly, this study will also show the parameters and return values based on the best-fit models for the short sample data station. Finally, best-fit distributions and return values for all the stations are presented.

As it is known, the global optimum cannot be ensured in any multivariate constrained nonlinear optimization technique. Therefore, caution is needed to avoid local optima. It is always recommended to start with a set of initial parameters. The initial parameters can be computed with the Method of Moments (Bowman and Shenton, 1998). After obtaining initial values, the parameters were estimated for each univariate and mixed distribution by the nonlinear optimization fmincon technique. For example, in the Beijing station, for the case of the Weibull distribution, the mean is equal to 2.39 m/s and the standard deviation equal to 0.68 m/s. With these values and by using the Standard Deviation Method (STDM) (Shaban et al., 2020), in equations (22) and (23), the initial parameters for the Weibull distribution are computed $k = 3.91$ and $ϕ = 2.65$ .

k = {(\frac{s}{\bar{x}})}^{(- 1.086)}

(22)

ϕ = \frac{\bar{x}}{Γ (1 + \frac{1}{k})}

(23)

Where $\bar{x} and ϕ$ are the mean and standard deviation by the Weibull distribution.

Figure 2 is a graphical representation of data. The data represents the wind speed of the Beijing station. For instance, Beijing station (Table 2), China’s capital, with 64 years of record, from 1951 to 2015, and 774 observations are listed. The optimum univariate fit was found with the distribution of the Generalized Extreme value, SEF = 0.92 m/s and ${\hat{U}}_{50}$ = 6.03 m/s and the best-mixed fit was found with the GWGEV distribution with a SEF = 0.89 m/s, and the return level was reduced to ${\hat{U}}_{50}$ = 3.8 m/s.

Figure 2.

Annual mean wind speed series of Beijing station during 1961–2012 (China Meteorological Data Service Center, n.d.).

Table 2.

Parameters of the Beijing station.

Distributions	Parameters									SEF
	1	2	3	4	5	6	7	8	9
Weibull	2.65	3.93	—	—	—	—	—	—	—	0.938
Gumbel	2.74	0.71	—	—	—	—	—	—	—	1.0926
Fréchet	3.51	2.02	—	—	—	—	—	—	—	3.5385
GEV	−0.11	0.56	2.14	—	—	—	—	—	—	0.928
GW	4.34 $\times 10^{- 143}$	1.6 $\times 10^{7}$	3.79 $\times 10^{6}$	4.24	2.44	—	—	—	—	2.008
GF	2.13 $\times 10^{- 20}$	9.26 $\times 10^{7}$	−1.7 $\times 10^{7}$	4.12	2.16	—	—	—	—	1.823
GGEV	1.15 $\times 10^{- 91}$	1.32 $\times 10^{8}$	8.54 $\times 10^{7}$	0.53	2.13	–0.05	—	—	—	1.0435
GEVF	7.3 $\times 10^{- 125}$	5.09 $\times 10^{8}$	9.69 $\times 10^{6}$	2.28 $\times 10^{7}$	4.12	2.16	—	—	—	3.7207
WF	9.96 $\times 10^{- 137}$	2.42 $\times 10^{7}$	1.85 $\times 10^{7}$	4.1	2.16	—	—	—	—	1.9043
WGEV	1.61 $\times 10^{- 109}$	2.4 $\times 10^{8}$	6.82 $\times 10^{8}$	0.52	2.13	−0.05	—	—	—	0.9826
GFGEV	0.94	0.54	2.17	0.05	31	1.86	88.74	–76.82	19.04	0.9776
GFW	4.55 $\times 10^{- 06}$	3.78	1.3	0.5	5.49	2.07	3.54	2.68	—	1.1732
GWGEV	0.97	0.52	2.11	0.01	1049.94	2.36	792.41	80.29	223.45	0.8975
WFGEV	0.74	4.55	2.55	0.15	13.1	1.9	7.56	−2.27	1.2	4.5517

Figure 3 shows the PDF graph fitting capabilities of both univariate and mixed distributions, including Weibull, Gumbel, Fréchet, GEV, GW, GF, GGEV, GEVF, WF, WGEV, GFGEV, GFW, GWGEV, and WFGEV distributions on wind speed data measured in the Beijing station. It can be seen from Figure 3 that for the peak wind data, GWGEV shows a better fit than the widely accepted reference distribution in terms of wind speed characteristics. Besides, Figure 4(a) to (f) shows PDF graphs of actual and projected data for Weibull, Gumbel, Fréchet, GEV, GW, and GF distributions. Figure 5(a) to (f) shows PDF graphs of actual and projected data for GGEV, GEVF, WF, WGEV, GFGEV, and GFW distributions. Figure 6(a) and (b) shows PDF graphs of actual and projected data for GWGEV and WFGEV distributions. Each distribution was determined with the predicted values, and the SEF values were found.

Figure 3.

PDF graphs of all univariate and mixed distributions for Beijing station.

Figure 4.

PDF graphs of the actual and predicted data: (a) Weibull distribution, (b) Gumbel distribution, (c) Fréchet distribution, (d) GEV distribution, (e) GW distribution, (f) GF distribution.

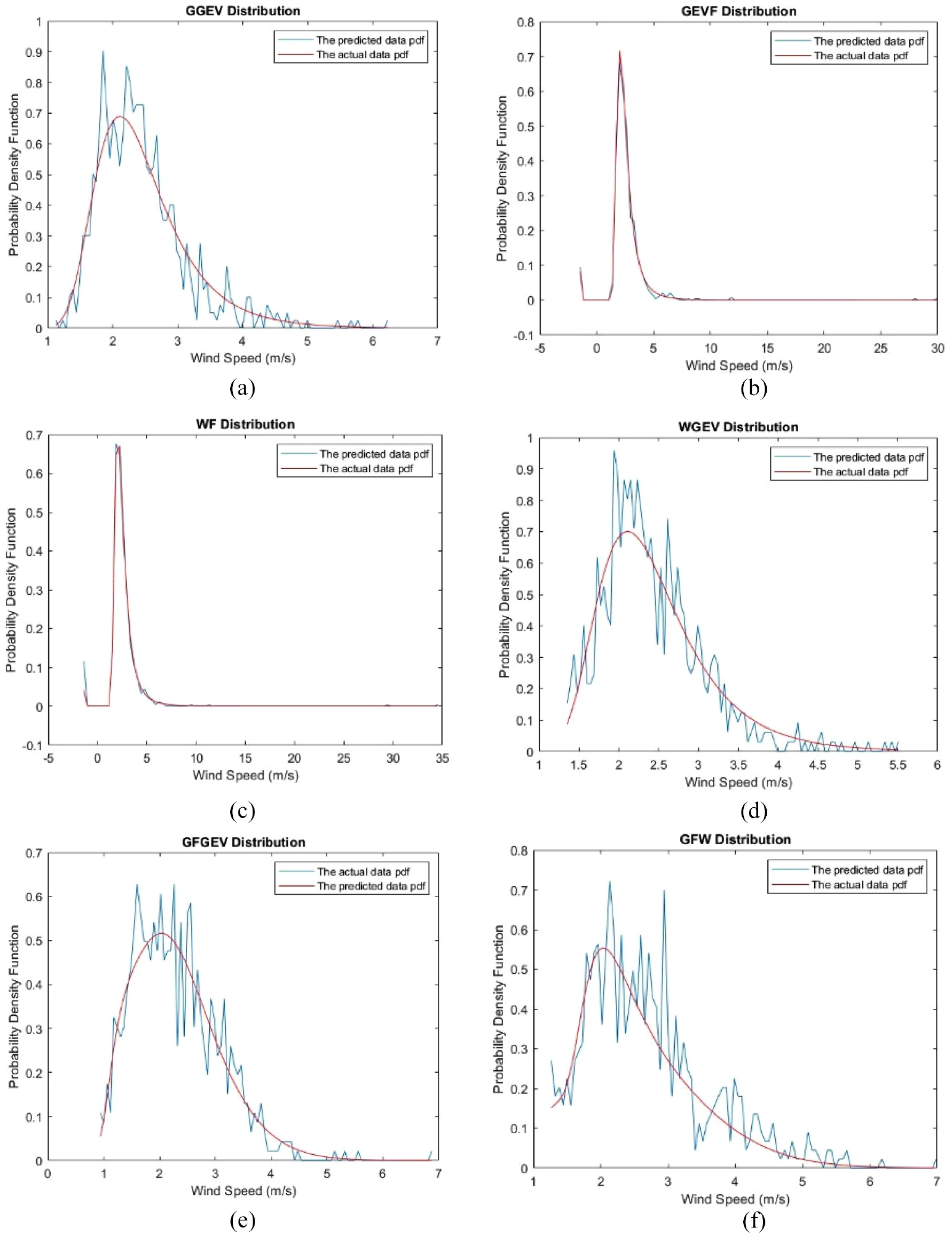

Figure 5.

PDF graphs of the actual and predicted data: (a) GGEV distribution, (b) GEVF distribution, (c) WF distribution,(d) WGEV distribution, (e) GFGEV distribution, and (f) GFW distribution.

Figure 6.

PDF graphs of the actual and predicted data: (a) GWGEV distribution and (b) WFGEV distribution.

The means and standard deviations of the Beijing station for 14 univariate and mixed distributions (combining two and three distribution models) are shown in Table 3. The GWGEV distribution in Beijing station has the lowest standard deviation, indicating that data is more closely clustered around the mean and hence more dependable. On the other hand, the Fréchet distribution exhibits a negative standard deviation since the data generated by it contains some negative values, indicating that the Fréchet distribution does not fit the data.

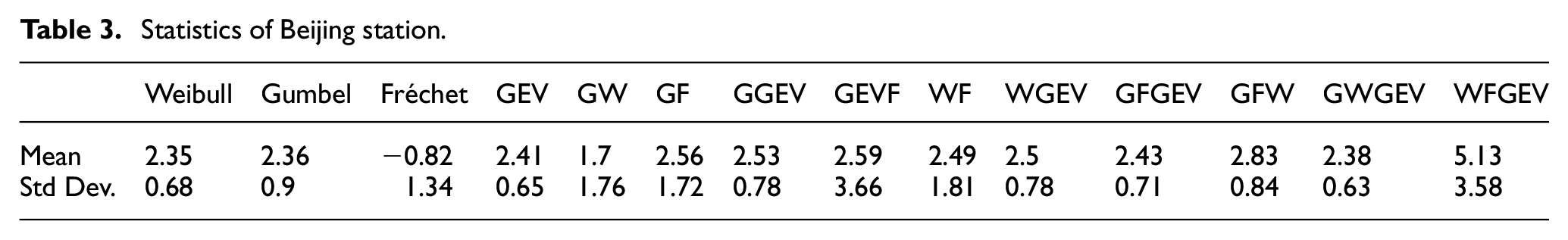

Table 3.

Statistics of Beijing station.

	Weibull	Gumbel	Fréchet	GEV	GW	GF	GGEV	GEVF	WF	WGEV	GFGEV	GFW	GWGEV	WFGEV
Mean	2.35	2.36	−0.82	2.41	1.7	2.56	2.53	2.59	2.49	2.5	2.43	2.83	2.38	5.13
Std Dev.	0.68	0.9	1.34	0.65	1.76	1.72	0.78	3.66	1.81	0.78	0.71	0.84	0.63	3.58

For another case, Wenjiang District station (Table 4) with 11 years of record and 138 observations. The better univariate fit was found with the GEV distribution, SEF = 0.32 m/s and ${\hat{U}}_{50}$ = 1.84 m/s and the most accurate mixed fit was obtained with the GWGEV distribution with a SEF = 0.31 m/s, and the return level was reduced to ${\hat{U}}_{50}$ = 1.44 m/s, which also represents a significant difference for design purposes. It can also be seen that the reduction of SEF is substantial when the record length of the analyzed sample is short. This fact represents the considerable advantage of mixed distribution over univariate distribution.

Table 4.

Parameters of Wenjiang District station.

Distributions	Parameters									SEF
	1	2	3	4	5	6	7	8	9
Weibull	1.33	6.01	—	—	—	—	—	—	—	0.3349
Gumbel	1.35	0.22	—	—	—	—	—	—	—	0.3454
Fréchet	5.15	1.1	—	—	—	—	—	—	—	0.5141
GEV	−0.23	0.22	1.154761	—	—	—	—	—	—	0.3289
GW	4.52 $\times 10^{- 146}$	5.24 $\times 10^{7}$	1.58 $\times 10^{7}$	5.59	1.3	—	—	—	—	1.7354
GF	6.92 $\times 10^{- 141}$	1.20 $\times 10^{9}$	−2.4 $\times 10^{7}$	5.46	1.18	—	—	—	—	0.4228
GGEV	9.02 $\times 10^{- 23}$	3.76 $\times 10^{6}$	3.79 $\times 10^{6}$	0.25	1.13	0.36	—	—	—	0.6426
GEVF	4.89 $\times 10^{- 123}$	4.79 $\times 10^{8}$	3.35 $\times 10^{7}$	3.31 $\times 10^{7}$	5.42	1.18	—	—	—	0.4661
WF	1.84 $\times 10^{- 34}$	1.54 $\times 10^{8}$	2.41 $\times 10^{8}$	5.66	1.18	—	—	—	—	1.3962
WGEV	1.47 $\times 10^{- 46}$	1.52 $\times 10^{8}$	62 $\times 10^{7}$	0.25	1.13	0.36	—	—	—	0.9675
GFGEV	1	0.22	1.16	7.57 $\times 10^{- 8}$	154	87.6	133.76	15.33	20.38	0.3585
GFW	0.83	0.2	1.12	0.01	130	186.03	93.23	1.39	—	0.3878
GWGEV	0.86	0.2	1.13	0.04	2327.97	1.39	3606.62	392.32	473.27	0.3183
WFGEV	1	5.55	1.3	6.23 $\times 10^{- 8}$	141	129.37	125.74	16.37	22.17	2.9255

Table 5 shows the final value of the return level. The return periods of 2, 5, 10, 20, 50, and 100 years are shown vertically from top to bottom. The return level of the best-fit distribution for each site is shown here. For example, for Beijing Station, which is best-fitted by GWGEV distribution, the return periods for wind speeds of 2, 5, 10, 50, and 100 years are 2.28, 2.84, 3.19, 3.49, 3.8, and 3.95 m/s respectively.

Table 5.

The return level of the best univariate or mixed distribution for each wind station (m/s).

Station name	Best-model	SEF	2 year	5 year	10 year	20 year	50 year	100 year
Baoshan Shanghai	WFGEV	0.58	3.2	3.5	3.66	3.79	3.94	4.06
Beijing	GWGEV	0.89	2.28	2.84	3.19	3.49	3.8	3.95
Changchun	GFW	1.52	3.74	4.61	5.17	5.77	6.54	7.12
Changsha	GFGEV	0.45	2.07	2.42	2.63	2.77	2.83	2.89
Shapingba	GFGEV	0.46	1.44	1.71	1.9	2.1	2.39	2.65
Fuzhou	GFGEV	0.69	2.59	3.05	3.35	3.63	3.99	4.23
Gaolan County	GFGEV	0.41	1.71	1.98	2.16	2.33	2.55	2.71
Guangzhou	GW	0.75	1.67	2.07	2.26	2.41	2.58	2.69
Guiyang	GWGEV	0.72	2.3	2.74	3.57	4.58	6.27	7.97
Haikou	GFW	1.24	2.73	3.61	4.16	4.57	5.21	5.7
Hangzhou	GWGEV	0.59	2.16	2.51	2.71	2.87	3.08	3.25
Hefei	GEV	0.78	3.11	3.47	3.66	3.81	3.96	4.06
Hohhot	GFGEV	0.89	1.73	2.25	2.58	2.86	3.15	3.29
Jinan	GFGEV	1.03	2.97	3.72	4.17	4.63	5.22	5.66
Kowloon	GEV	0.8	2.58	3.06	3.34	3.56	3.81	3.98
Kunming	GFW	0.92	2.45	2.98	3.2	3.37	3.62	3.89
Lhasa	WGEV	0.64	1.55	2.07	2.48	2.92	3.57	4.14
Nanchang	GEV	1.45	2.67	3.48	3.94	4.69	5.65	6.51
Nanjing	GFW	0.91	2.82	3.4	3.81	4.24	4.84	5.33
Nanning	GEV	0.69	1.55	2.01	2.2	2.33	2.57	2.72
Shenyang	GGEV	1.15	2.87	3.68	4.23	4.79	5.53	6.11
Shijiazhuang	GGEV	0.64	1.78	2.18	2.43	2.66	5.27	4.82
Taiyuan	GEV	0.92	2.11	2.85	3.03	3.21	3.78	4.07
Tianjin	GEV	1.02	2.58	3.2	3.56	3.88	4.24	4.48
Urumqi	GFW	1.07	2.5	3.14	3.48	3.75	4.05	4.25
Wenjiang District	GWGEV	0.31	1.08	1.29	1.39	1.4	1.44	1.45
Xian	GFW	0.74	1.69	2.15	2.37	2.55	2.73	2.85
Xining	GFGEV	0.79	1.47	2.28	2.55	2.91	3.51	3.52
Yinchuan	GFGEV	0.8	2.04	2.58	2.93	3.25	3.63	3.86

The presented methods have few restrictions, such as numerical complexity, and depend on the number of iterations. The drawbacks also included the parameters calculated when the collected wind data was not strong, which suffered from accuracy. The gaging instrument must be correctly calibrated before evaluating the data to obtain improved performance.

For each evaluated station, the mixed and univariate return level $U$ (m/s) for various return cycles (T, years) with the minimum value of the SEF were estimated. If only the univariate distribution was applied in the wind speed data analysis, 25 out of 29 stations, or 86.2% of the samples showed better fitting with the Generalized Extreme Value distribution, while 4 out of 29 stations, or 13.8% with the Weibull distribution.

For the case of mixed distributions with the combination of two distributions, 10 out of 29 stations, or 34.48% of the samples showed better fitting with the GGEV distribution, 9 out of 29 stations, or 31.03% with the GW distribution, 7 out of 29 stations, or 24.13% with the WGEV distribution, 2 out of 29 stations, or 6.9% with the GF distribution, and 1 out of 29 stations, or 3.44% with the WF distribution.

Mixed distribution with the combination of three distributions, in this case, 14 out of 29 stations, or 48.3% of the samples showed better fitting with the GFGEV distribution, 6 out of 29 stations, or 20.7% with GFW and GWGEV distributions each, while 3 out of 29 stations, or 10.3% with the WFGEV distribution.

As in the previous study (Carlos Agustín, 2013), the following results are obtained when only univariate and mixed distributions with the combination of two distributions are considered: 24 out of 29 stations, or 82.75% of the samples, showed fits better with univraite distributions, including 20 stations better fitting with the GEV distribution and 4 stations with the Weibull distribution. While the rest, 17.24% of samples, or 5 out of 29 stations, fit better with the mixed distributions with the combination of two distributions, including two stations with GW, two stations with GGEV, and one station with WGEV distibution.

This study made a comparison between univariate and mixed distributions (combining two and three distributions models). Due to mathematical formulas’ complexity and the unknown parameters, MATLAB nonlinear optimization with the fmincon technique is used to determine the unknown parameters. The best model selected based on a minimum fitted standard error (SEF). We found that the improved mixed distribution model with the mixture of three distributions is more accurate than univariate distributions and the previously mixed distribution model with the mixture of two distributions. This experiment shows that the improved mixed distribution model fitted better in 19 wind stations out of 29 wind stations. The rest four stations fitted with the previously mixed distribution model and six stations with univariate distributions. 65.5% of samples were fitted better for the improved mixed distributions model, 13.8% with the previous mixed distribution model, and 20.7% with the univariate distributions. The Observations from this experiment’s findings suggest that the GFGEV is the most fully fitted distribution with eight wind stations. However, GFW and GEV fitted with six stations, four stations fitted with GWGEV, two stations fitted with both GGEV, and the GW, WGEV, and WFGEV distributions fitted with one wind station.

Conclusion

In this study, the wind speed is estimated by using univariates and mixed distributions models. At first, the unknown parameters for each probability density function are evaluated by implementing the fmincon technique. Then, random numbers are generated by each distribution using parameters. After that, the SEF method was used to select the best models and found their return values.

The accuracy of 14 parametric distributions for analyzing the wind speed distribution was investigated at 29 locations in China, the capitals of different states of China. The monthly wind speed data from 1951 to 2015 is used for analysis. For this huge data set, the newly proposed mixed distribution model is found to be better than the other distributions for wind speed estimation. The results show that GFGEV is the most fitted distribution. However, this work also shows that it is challenging to identify a single distribution that can be fitted universally. GFGEV, GFW, GWGEV, and GEV distributions are the most commonly used evaluation and recommendation distributions in absolute terms. Overall, 65.5% of samples were fitted better for mixed distributions with a combination of three distributions. If just univariate distributions were applied to the study of wind speed data, 86.2% of the samples would be better fitted by the GEV distribution.

This study finds that the proposed mixed distribution model has accurate return values and the best fitted among other distributions by comparing 14 univariates and mixed distributions while using any data length. These results suggest that the improved mixed distribution (with three distributions or more) must be employed as an additional mathematical tool when analyzing extreme wind speeds.

Footnotes

Appendix

Authors contributions

All authors contributed to the study’s conception and design. Material preparation, writing-original draft preparation, investigation, data collection, and analysis were performed by Hassan Tahir. The visualization was done by Arsalan Ahmed. Supervision and writing-reviewing were performed by Weidong Zhao, and all authors commented on previous versions of the manuscript. All authors read and approved the final manuscript.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

Ethical Approval

All the ethics codes are observed carefully in this study.

ORCID iD

Hassan Tahir

Availability of data and materials

All the data is available at the China Meteorological Data Service Center.

References

Al Huneidi

Tahir

Al-Ghamdi

(2022) Energy modeling and photovoltaics integration as a mitigation measure for climate change impacts on energy demand. Energy Reports 8: 166–171.

Bowman

Shenton

(1998) Estimator: Method of moments. In: Kotz

Read

Banks

(eds) Encyclopedia of Statistical Sciences. New York, NY: Wiley, pp.2092–2098.

Carlos Agustín

E-S

(2013) Estimation of extreme wind speeds by using mixed distributions. Ingeniería, Investigación y Tecnología 14: 153–162.

Carta

Ramírez

Velázquez

(2009) A review of wind speed probability distributions used in wind energy analysis. Case studies in the Canary Islands. Renewable and Sustainable Energy Reviews 13: 933–955.

China Map (2011) Available at: https://www.china-mike.com/wp-content/uploads/2011/01/chinese_provinces_map1.jpg (accessed 26 December 2020).

China Meteorological Data Service Center (2020) Available at: http://data.cma.cn (accessed 2020).

Coleman

Branch

Grace

(2009) Optimization toolbox Matlab 7.8.0.

Cui

Zhao

, et al. (2019) Data-based wind disaster climate identification algorithm and extreme wind speed prediction. Available at: http://arxiv.org/abs/1908.11051 (accessed 2020).

Dorvlo

ASS

(2002) Estimating wind speed distribution. Energy Conversion and Management 43(17): 2311–2318.

10.

Dukes

MDG

Palutikof

(1995) Estimation of extreme wind speeds with very long return periods. Journal of Applied Meteorology 34(9): 1950–1961.

11.

Garciano

Koike

(2007) A proposed typhoon resistant design of a wind turbine tower in the Philippines. Doboku Gakkai Ronbunshuu F 63(2): 181–189.

12.

Heckert

Simiu

Whalen

(1998) Estimates of hurricane wind speeds by “Peaks Over Threshold” method. Journal of Structural Engineering 124(4): 445–449.

13.

Holmes

(2019) Extreme wind prediction – The Australian experience. In: Ricciardelli

Avossa

(eds) Proceedings of the XV Conference of the Italian Association for Wind Engineering. IN VENTO 2018. Lecture Notes in Civil Engineering, vol. 27. Cham: Springer, pp.365–375.

14.

Hosking

Wallis

(1987) Parameter and quantile estimation for the generalized Pareto distribution. Technometrics 29(3): 339–349.

15.

Imteyaz

Lawal

Tahir

, et al. (2021) Prospects of large-scale photovoltaic-based power plants in the Kingdom of Saudi Arabia. Engineering Reports 3(9): e12398.

16.

Jaramillo

Borja

(2004) Wind speed analysis in La Ventosa, Mexico: A bimodal probability distribution case. Renewable Energy 29(10): 1613–1630.

17.

Jung

Schindler

(2019) Wind speed distribution selection – A review of recent development and progress. Renewable and Sustainable Energy Reviews 114: 109290.

18.

Jung

Schindler

Laible

, et al. (2017) Introducing a system of wind speed distributions for modeling properties of wind speed regimes around the world. Energy Conversion and Management 144: 181–192.

19.

Kite

(1988) Frequency and Risk Analysis in Hydrology. Littleton, CO: Water Resources Publication.

20.

Kunz

Mohr

Rauthe

, et al. (2010) Assessment of extreme wind speeds from regional climate models – Part 1: Estimation of return values and their evaluation. Natural Hazards and Earth System Science 10(4): 907–922.

21.

Mood

Graybill

Boes

(1974) Introduction to the Theory of Statistics, 3rd edn. New York, NY: McGraw-Hill.

22.

Nemitallah

Abdelhafez

Habib

(2020) Global warming and emission regulations. In: Nemitallah

Abdelhafez

Habib

(eds) Approaches for Clean Combustion in Gas Turbines. Cham: Springer, pp.1–12.

23.

Ouarda

Charron

Chebana

(2016) Review of criteria for the selection of probability distributions for wind speed data and introduction of the moment and L-moment ratio diagram methods, with a case study. Energy Conversion and Management 124: 247–265.

24.

Pashardes

Christofides

(1995) Statistical analysis of wind speed and direction in Cyprus. Solar Energy 55(5): 405–414.

25.

Perrin

Rootzén

Taesler

(2006) A discussion of statistical methods used to estimate extreme wind speeds. Theoretical and Applied Climatology 85(3–4): 203–215.

26.

Qadir

Al-Motairi

Tahir

, et al. (2021) Incentives and strategies for financing the renewable energy transition: A review. Energy Reports 7: 3590–3606.

27.

Qadir

Tahir

Al-Fagih

(2020) Impact of fossil fuel subsidies on renewable energy sector. In: 12th international exergy, energy and environment symposium (IEEES-12), Doha, Qatar, 20–24 December 2020.

28.

Qin

Zhang

Yan

(2012) Two improved mixture Weibull models for the analysis of wind speed data. Journal of Applied Meteorology and Climatology 51(7): 1321–1332.

29.

Raynal-Villasenor

(2012) Maximum likelihood parameter estimators for the two populations GEV distribution. Ijrras 11(3): 350–357.

30.

Smith

(1990) Handbook of Applicable Mathematics. New York, NY: Wiley.

31.

Sahu

(2018) Wind energy developments and policies in China: A short review. Renewable and Sustainable Energy Reviews 81: 1393–1405.

32.

Shaban

Resen

Bassil

(2020) Weibull parameters evaluation by different methods for windmills farms. Energy Reports 6: 188–199.

33.

Shi

Zhang

Kong

, et al. (2015) Wind speed change regionalization in China (1961–2012). Advances in Climate Change Research 6: 151–158.

34.

Shin

Ouarda

TBM

Lee

(2016) Heterogeneous mixture distributions for modeling wind speed, application to the UAE. Renewable Energy 91: 40–52.

35.

Simiu

Heckert

(1996) Extreme wind distribution tails: A “Peaks over Threshold” approach. Journal of Structural Engineering 122(5): 539–547.

36.

Simiu

Heckert

Filliben

, et al. (2001) Extreme wind load estimates based on the Gumbel distribution of dynamic pressures: An assessment. Structural Safety 23(3): 221–229.

37.

Tahir

Baloch

AAB

Al-Ghamdi

(2022) Impact of climate change on solar monofacial and bifacial photovoltaics (PV) potential in Qatar. Energy Reports 8: 518–522.

38.

Tahir

Ahmed

Zhao

(2020) Wind speed analysis by using mixed extreme value distributions. In: 12th international exergy, energy and environment symposium (IEEES-12), Doha, Qatar, 2020, pp.94–97.

39.

Van Den Brink

Können

(2008) The statistical distribution of meteorological outliers. Geophysical Research Letters 35(23): 1–5.

40.

Wilks

(1993) Comparison of three-parameter probability distributions for representing annual extreme and partial duration precipitation series. Water Resources Research 29(10): 3543–3549.

41.

Zhang

(2012) Large scale wind power integration in China: Analysis from a policy perspective. Renewable and Sustainable Energy Reviews 16(2): 1110–1115.
