Study on failure characteristics of fiber reinforced composite structural connections

Abstract

In this paper, the three-dimensional progressive damage finite element models of composite bolted connection and adhesive-bolt hybrid connection were constructed, and the accuracy of the model is verified by comparing with the experimental results. The energy-based B-K criterion was used to simulate the damage and evolution of the adhesive layer, and the effects of bolt hole diameter, pre-tightening force and layup sequence on the failure characteristics of composite mechanical connections were analyzed. The results show that, in the bolted connection model, the final failure mode is typically extrusion damage near the bolt hole, with matrix failure being the primary form of failure. Appropriately increasing the diameter of the bolt hole or applying an appropriate pre-tightening force can both enhance the connection strength. Maximal strength of the connection structure is achieved when the first layer in the connection area is oriented at 0°, whereas if the first layer is oriented at 90°, the connection's bearing capacity is minimally reduced. In the adhesive-bolt hybrid connection model, the fiber and matrix damage of the four plies closest to the adhesive layer mainly spread along the 45°direction, and the damage is mainly matrix tensile damage.

Keywords

Composite bolt connection hybrid connection failure behavior matrix damage

Introduction

With the advantages of high specific strength, high specific stiffness, flexibility in material layup design and good fatigue resistance, carbon fiber composite materials have been widely used in aerospace with the in-depth research on composite materials.¹ In composite material applications, multiple components are joined together by some temporary or permanent bonding method.² At the same time, most of the failure and damage of composite material structures occur at the joints of composite materials. Therefore, it is of great importance to study the failure mechanism of composite mechanical connections.

Adhesive joints, bolted joints, and hybrid joints are widely used in the aerospace field.^3,4 The adhesive joint is simple, which can effectively reduce the weight and cost of composite material components. The connection performance of the adhesive joint depends largely on the mechanical properties of the adhesive, the connection load distribution is relatively uniform, and the main failure form is the peeling of the adhesive layer, which leads to the reduction of the connection strength until the final failure.

The connection strength of the adhesive joint is relatively low, therefore, the ability to resist damage is relatively limited, and it is not easy to disassemble. The bolted connection structure has stronger bearing capacity, higher connection reliability, and can well overcome the peeling during the bonding process. However, due to the existence of bolt holes in the bolt connection, there is a phenomenon of stress concentration, and its main failure mode is extrusion failure near the bolt hole. For the adhesive-bolt hybrid connection, in the load-bearing process, the adhesive layer bears the load firstly. When the adhesive layer fails, the damage of the adhesive layer expands from the surrounding to the bolt hole, which effectively reduces the stress concentration problem near the bolt hole. When the adhesive layer is damaged, it is carried by the bolts, and the hybrid connection combines the advantages of adhesive bonding and bolts.^5,6

The research on the failure characteristics of composite material connections mainly includes the following three methods: analytical method, experimental method, and finite element method. Among them, the analytical method calculates the load distribution of bolts by establishing a reasonable connection stiffness, and its form is often simple and efficient. The experimental research method has higher requirements on the performance of the equipment, and at the same time consumes a lot of time and cost. The finite element method can better predict the connection strength of composite materials and the damage evolution process of composite materials by establishing the constitutive and damage judgment criteria of composite materials, as well as the stiffness degradation rules.

In terms of composite bolted connections, Mccarthy et al.^7,8 established the finite element calculation model of composite material convex head bolt connection, and discussed the influence of bolt gap on the connection structure.Wang et al.⁹ prepared glass fiber (GF)/polypropylene (PP) thermoplastic composite rivets (GF/PP rivets), which improved the performance of thermoplastic composite joints and reduced the joint weight. Minnetyan et al.¹⁰ evaluated the structural durability, damage tolerance, and progressive fracture characteristics of bolted graphite/epoxy composite laminates through computational simulations. The results show the sequence of damage progression and structural fracture resistance at different degradation stages.

Mandal et al.¹¹ established a three-dimensional progressive damage model of composite multi-nail connection structure, and studied the influence of bolt hole diameter and pre-tightening force on connection strength. Huang et al.¹² Studied the extrusion of composite material single-nail bolt structure, and analyzed the influence of factors such as contact surface friction, bolt stiffness and metal plate stiffness on the load-carrying performance. He et al.¹³ verified the feasibility of the method for estimating the single shear connection strength of T800 type composite bolts by comparing with the experimental results. Jiang et al.¹⁴ discussed the effects of clearance and interference fits on the joint stiffness. The results showed that clearance fit would reduce the stiffness of composite single-bolt joints, while interference fit could increase the stiffness of bolted joints. Zhou et al.¹⁵ established the stiffness degradation model of composite resin matrix composites based on the finite element method. The finite element model was used to predict the tensile failure behavior of typical composite bolt structures, and the accuracy and feasibility of the model was verified. Hühne et al.¹⁶ adopt the three-dimensional Hashin failure criterion, the stiffness sudden drop method and the continuous degradation method. The calculation results of the stiffness sudden drop method are relatively conservative, and the continuous degradation model is closer to the experimental results.

Innovation and technology are required to create hybrid joints of metal and polymer. Due to its lightweight and corrosion-resistant properties, it is essential to develop welding techniques to join dissimilar materials and use them in engineered structures.¹⁷ In terms of composite hybrid connections, experiments and finite element analysis models are often used for investigation. Kelly et al.¹⁸ carried out experiments on hybrid joints, which showed that adhesive-bolt hybrid joints have higher strength and stiffness, and better fatigue life. The effect of adhesive properties and layup sequence on the performance and failure modes of hybrid joints was investigated. Hoang et al.¹⁹ established a finite element analysis model to discuss the distribution of stiffness and bond stress of adhesive and hybrid connections. Chowdhury et al.²⁰ carried out experiments on mechanical connection, adhesive bonding and hybrid connection of composite materials. The experimental results showed that there was no significant difference in the static strength of the three connection methods. Lopez-cruz et al.²¹ found that the connection strength of the hybrid connection is higher than that of adhesive and bolted connections. At the same time, the influence of the thickness of the laminate and the material properties of the adhesive on the strength of the hybrid connection was studied. For the study of the load-bearing mechanism and failure sequence in composite hybrid connections, Barut et al.²² established a semi-analytical solution for the stress analysis of single-lap joint hybrid structures. When the adhesive layer begins to wave and break, the bolt structure does not bear the load, and when the adhesive layer is degummed to a certain length, the bolt structure bears the load. Liu et al.²³ established a prediction model for the strength of the double-lap adhesive-bolt hybrid connection. The dip method was used to calculate the stiffness degradation. The numerical results showed that the failure of the adhesive layer occurs firstly, and the final failure form was the extrusion of the hole edge of the composite laminate, which indicated that hybrid joints are stronger than bolted and glued joints. Zhao et al.²⁴ studied the influence of the secondary bending effect on the mechanical behavior of the single lap bolt connection. The results showed that the secondary bending effect will cause the bolt to tilt and the laminated plate to warp, the local deformation caused by the secondary bending reduce the contact area, and accelerates the failure of single-lap bolted connections. Romanov et al.²⁵ conducted a parametric study on the single-lap double-bolt hybrid joint of composite laminates, and discussed the influence of geometric parameters on mechanical parameters such as joint strength, performance, and stiffness. Gamdanni et al.²⁶ carried out experiments on pure bolted joints and hybrid bolted joints, and the results showed that the fatigue life of hybrid joints was higher than that of pure bolted joints under the same conditions.

After the stress and strain distribution of the composite material is obtained, it is necessary to judge the damage mode of the composite material and simulate its stiffness reduction process. The progressive damage model (PDM) had been successfully applied to engineering calculations.^27,28 Composite damage criteria are used to determine the damage modes of fibers and matrix. Among many failure criteria, the 3D Hashin criterion has a simple form and considers the stress component $σ_{33}$ ²⁹ along the thickness direction in the matrix damage, which has better prediction accuracy. When the composite material is damaged, it is also necessary to define a damage evolution model to simulate the stiffness decrease process of the composite material. Compared with the predefined constant dip models^30,31 and exponential degradation models,^32,33 which is constructed based on empirical parameters and empirical formulas, respectively, the damage evolution model based on the fracture energy of composite fiber and matrix contains many mechanical performance parameters of composite materials, which has good physical meaning and can well describe the process of continuous decrease in stiffness of composite materials.^34,35

Based on the above, the direct sudden drop method has been used in the existing research on stiffness degradation, however, this method cannot describe the progressive damage process of composite materials well. The virtual crack method and cohesive force model are often used in failure analysis, which need to determine the initiation position and propagation path of the crack in advance, which does not meet the requirements of damage prediction. Existing studies generally analyze the mechanical properties of mechanical joints, glued structures, and hybrid connections, however, there are few related studies on the mechanical behavior of failure of adhesive-bolt hybrid connections. In this paper, the failure characteristics of bolted connection and adhesive-bolt hybrid connection are comprehensively analyzed, and a three-dimensional progressive damage finite element model of composite material bolted connection and adhesive -bolted hybrid connection is constructed. The effects of bolt hole diameter, pre-tightening force and layup sequence on the failure behavior of composite mechanical connections are discussed in the continuous degradation mode. The damage and evolution of the adhesive layer were simulated using the energy-based B-K criterion, and the damage initiation and evolution of composite bolted joints and hybrid joints were predicted.

Analysis method of mechanical properties of composite materials

Failure criteria and stiffness degradation model of composite materials

With the continuous increase of the external load of the composite material connection structure, material failure will inevitably occur. Due to the anisotropy of the material, different damage modes will appear inside the structure. In this paper, the stress-based three-dimensional Hashin failure criterion is used to predict the fiber and matrix damage of composite materials, and its expression is as follows:

Fiber failure in tension ( $σ_{11} \geq 0$ )

F_{f t} = {(\frac{σ_{11}}{X_{T}})}^{2} + {(\frac{σ_{12}}{S_{12}})}^{2} + {(\frac{σ_{13}}{S_{13}})}^{2} \geq 1

(1)

Fiber failure in compression ( $σ_{11} < 0$ )

F_{f c} = {(\frac{σ_{11}}{X_{C}})}^{2} \geq 1

(2)

Matrix failure in tension $(σ_{22} + σ_{33} \geq 0)$

F_{m t} = {(\frac{σ_{22} + σ_{33}}{Y_{T}})}^{2} + \frac{1}{S_{23}^{2}} (σ_{23}^{2} - σ_{22} σ_{33}) + {(\frac{σ_{12}}{S_{12}})}^{2} + {(\frac{σ_{13}}{S_{13}})}^{2} \geq 1

(3)

Matrix failure in compression $(σ_{22} + σ_{33} < 0)$

F_{m c} = {(\frac{σ_{22} + σ_{33}}{2 S_{23}})}^{2} + \frac{σ_{22} + σ_{33}}{Y_{C}} [{(\frac{Y_{C}}{2 S_{23}})}^{2} - 1] + \frac{1}{S_{23}^{2}} (σ_{23}^{2} - σ_{22} σ_{33}) + {(\frac{σ_{12}}{S_{12}})}^{2} + {(\frac{σ_{13}}{S_{13}})}^{2} \geq 1

(4)

Among them,

σ_{i j} (i, j = 1,2,3)

is the stress tensor on the element node;

X_{T}

and

X_{C}

are fiber tensile strength and fiber compressive strength, respectively;

Y_{T}

and

Y_{C}

are matrix tensile strength and matrix compressive strength, respectively;

S_{i j}

(i,j=1,2,3) is the shear strength on each surface.

For the progressive damage of composite materials, when the composite material unit satisfies one or more of the formulas (1–4), it indicates that the composite material has begun to damage, and the composite material unit enters the corresponding damage mode. At this time, the stiffness of the composite material begins to degrade, so it is necessary to define a stiffness degradation scheme to simulate the progressive damage process of the composite material. The expression of progressive damage degradation is as follows:³⁶

d_{I} = \frac{δ_{I}^{f} (δ_{I} - δ_{I}^{0})}{δ_{I} (δ_{I}^{f} - δ_{I}^{0})} \cdot (I = f t, f c, m t, m c)

(5)

δ_{I}^{0} = \frac{F_{I}}{E_{I}}

(6)

δ_{I}^{f} = \frac{2 G_{I}}{l_{c} F_{I}}

(7)

δ_{I} = \max (δ_{I}, δ_{I}^{0})

(8)

Where

δ_{I}

is the strain of the composite material in the current analysis step;

δ_{I}^{0}

is the initial damage strain of the composite material;

δ_{I}^{f}

is the ultimate failure strain of the composite material.

G_{I}

represents the fracture energy corresponding to each damage mode;

F_{I}

represents the ultimate strength corresponding to each damage mode,

l_{c}

represents the characteristic length of the unit. To degrade the stiffness of the failed unit, the stiffness matrix needs to be reduced, and the calculation expression of the damaged stiffness matrix

C^{d}

is as follows:

C^{d} = \frac{1}{Ω} [\begin{array}{l} C_{11}^{d} & C_{12}^{d} & C_{13}^{d} & 0 & 0 & 0 \\ C_{21}^{d} & C_{22}^{d} & C_{23}^{d} & 0 & 0 & 0 \\ C_{31}^{d} & C_{32}^{d} & C_{33}^{d} & 0 & 0 & 0 \\ 0 & 0 & 0 & C_{44}^{d} & 0 & 0 \\ 0 & 0 & 0 & 0 & C_{55}^{d} & 0 \\ 0 & 0 & 0 & 0 & 0 & C_{66}^{d} \end{array}]

(9)

{\begin{cases} d_{f} = (1 - d_{f t}) (1 - d_{f c}) \\ d_{m} = (1 - S_{m t} d_{m t}) (1 - S_{m c} d_{m c}) \\ Ω = 1 - d_{f} d_{m} v_{12} v_{21} - d_{m} v_{23} v_{32} - d_{f} v_{13} v_{31} - 2 d_{f} d_{m} v_{21} v_{32} v_{13} \end{cases}

(10)

Among them, $d_{f}$ and $d_{m}$ represent the damage variables of the fiber and matrix, respectively; $S_{m t}$ and $S_{m c}$ represent the matrix damage contribution, which are taken as 0.9 and 0.9 respectively in this paper. The calculation expressions of the parameters of the damage matrix are as follows:

{\begin{cases} C_{11}^{d} = d_{f} E_{11} (1 - d_{m} v_{23} v_{32}) \\ C_{12}^{d} = d_{f} d_{m} E_{11} (v_{12} + v_{32} v_{13}) \\ C_{13}^{d} = d_{f} E_{11} (v_{13} + d_{m} v_{12} v_{23}) \\ C_{22}^{d} = d_{m} E_{22} (1 - d_{f} v_{13} v_{31}) \\ C_{23}^{d} = d_{m} E_{22} (v_{23} + d_{f} v_{21} v_{13}) \\ C_{33}^{d} = E_{33} (1 - d_{f} d_{m} v_{12} v_{21}) \\ C_{44}^{d} = Ω d_{f} d_{m} G_{12} \\ C_{55}^{d} = Ω d_{f} d_{m} G_{23} \\ C_{66}^{d} = Ω d_{f} d_{m} G_{13} \end{cases}

(11)

Progressive damage model of cohesive force of adhesive layer

The Cohesive unit model based on cohesion is used to simulate the damage of the adhesive layer, and its bilinear constitutive model is shown in Figure 1.

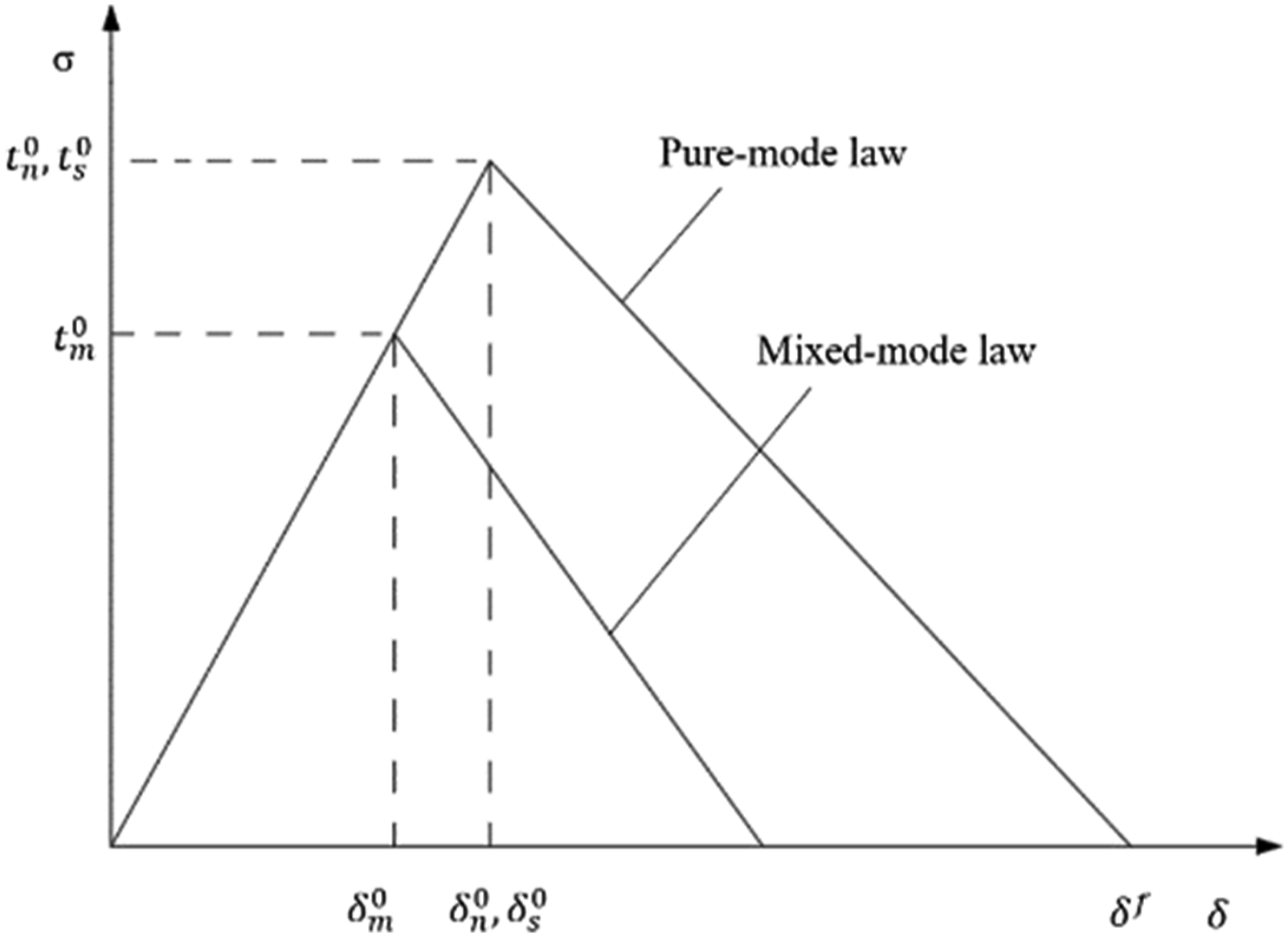

Figure 1.

Coheisve element bilinear constitutive model.

Its constitutive relation expression is as follows:

{\begin{cases} σ_{n} \\ σ_{s} \\ σ_{t} \end{cases}} = [\begin{array}{l} (1 - d) K_{n n} \\ (1 - d) K_{ss} \\ (1 - d) K_{tt} \end{array}] {\begin{cases} δ_{n} \\ δ_{s} \\ δ_{t} \end{cases}}

(12)

K_{nn} = \frac{E_{nn}}{T}, K_{ss} = \frac{E_{ss}}{T}, K_{tt} = \frac{E_{tt}}{T}

δ_{n}

δ_{s}

δ_{t}

represent the normal and tangential relative displacements of the adhesive layer unit, respectively; T represents the initial thickness of the adhesive layer unit.

d = {\begin{cases} 0 Undamaged; \\ 1 Completely damaged; \end{cases}

(13)

In the formula, d represents the damage evolution variable. When d=0, the adhesive layer has not failed, and when d=1, the adhesive layer has completely failed. In this paper, Quads (quadratic stress criterion) is used to judge whether the adhesive layer fails, and its expression is as follows:

F_{quads} = {(\frac{〈 σ_{n} 〉}{σ_{0, n}})}^{2} + {(\frac{σ_{s}}{σ_{0, s}})}^{2} + {(\frac{σ_{t}}{σ_{0, t}})}^{2} = 1

(14)

In the above expression,

F_{quads}

represents the damage initiation variable, and when

F_{quads}

=1, the damage begins, indicating that the pressure in the thickness direction will not cause damage. The energy-based B-K criterion is selected as the damage propagation criterion, and its calculation expression is as follows:

G_{c} = G_{c, n} + (G_{c, s} - G_{c, n}) {(\frac{G_{s} + G_{t}}{G_{n} + G_{s} + G_{t}})}^{η}

(15)

In the above formula:

G_{c}

represents the equivalent fracture toughness;

G_{c, n}

and

G_{c, s}

represents the fracture toughness of mode I and mode II cracks, respectively.

G_{n}

is the energy release rate of type I;

G_{s}

and

G_{t}

represents the energy release rate of type II. η represents the damage factor, it is 1.45. When the adhesive layer meets the secondary stress criterion, it is necessary to calculate the damage variable, and the calculation expression is as follows:

d = \frac{δ_{m}^{f} (δ_{m}^{\max} - δ_{m}^{0})}{δ_{m}^{\max} (δ_{m}^{f} - δ_{m}^{0})}

(16)

δ_{m}^{f} = \frac{2 G_{C}}{T_{eff}^{0}}

(17)

T_{eff}^{0} = {\sqrt{{〈 σ_{n} 〉}^{2} + {(σ_{s})}^{2} + {(σ_{t})}^{2}} |}_{F_{q u a d s} = 1}

(18)

In the formula:

δ_{m}^{0}

represents the equivalent displacement corresponding to the initiation of damage;

δ_{m}^{f}

represents the equivalent displacement corresponding to complete failure;

δ_{m}^{\max}

represents the maximum value of equivalent displacement during damage propagation;

T_{eff}^{0}

represents the equivalent stress corresponding to the damage initiation moment.

In the calculation of the progressive damage process of composite materials, the stiffness matrix of the material is calculated first, and the stress and strain of the material integration point unit are calculated according to the constitutive equation of the material. Then the updated stress tensor is brought into the Hashin criterion for failure judgment. If the element fails to meet the failure condition, continue to increase the displacement load, otherwise, reduce the stiffness, and use the strain-based damage evolution model to calculate the damage variable. If the stiffness matrix degenerates, the stresses are redistributed. Repeat the above process until the final failure of the composite material structure occurs, and the load-displacement curve of the composite material connection is obtained. The progressive damage of the adhesive layer was calculated using the cohesive force model.

Composite bolted connections

Finite element model of bolted connection

In order to verify the accuracy of the model, numerical results are compared with Riccio's experimental results³⁷ for bolted connections. The composite bolted connection model mainly includes three parts, aluminum plate, bolt and composite laminate, and its geometric model was shown in Figure 2. The material properties of composite laminate (HTA7/6376) are shown in Table 1, and the material properties of aluminum plate and bolt structures are shown in Table 2.

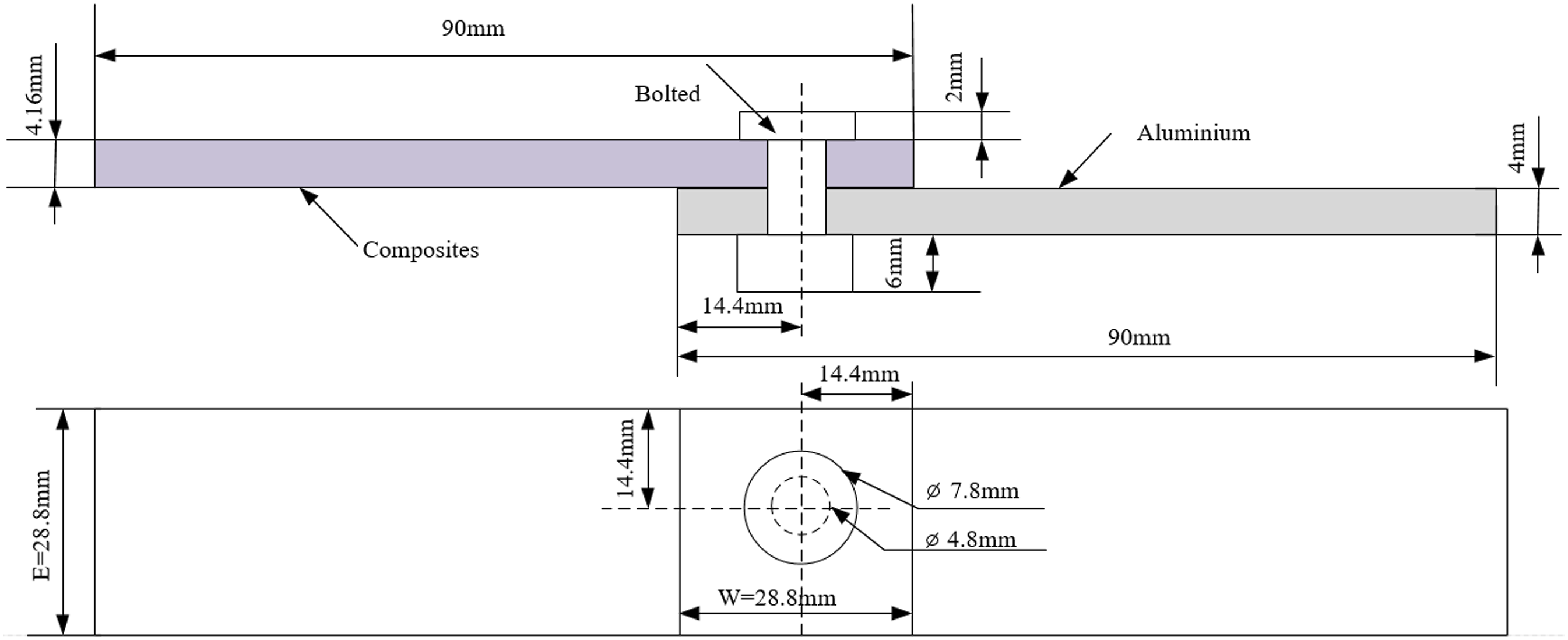

Figure 2.

Geometric model of bolted connection.

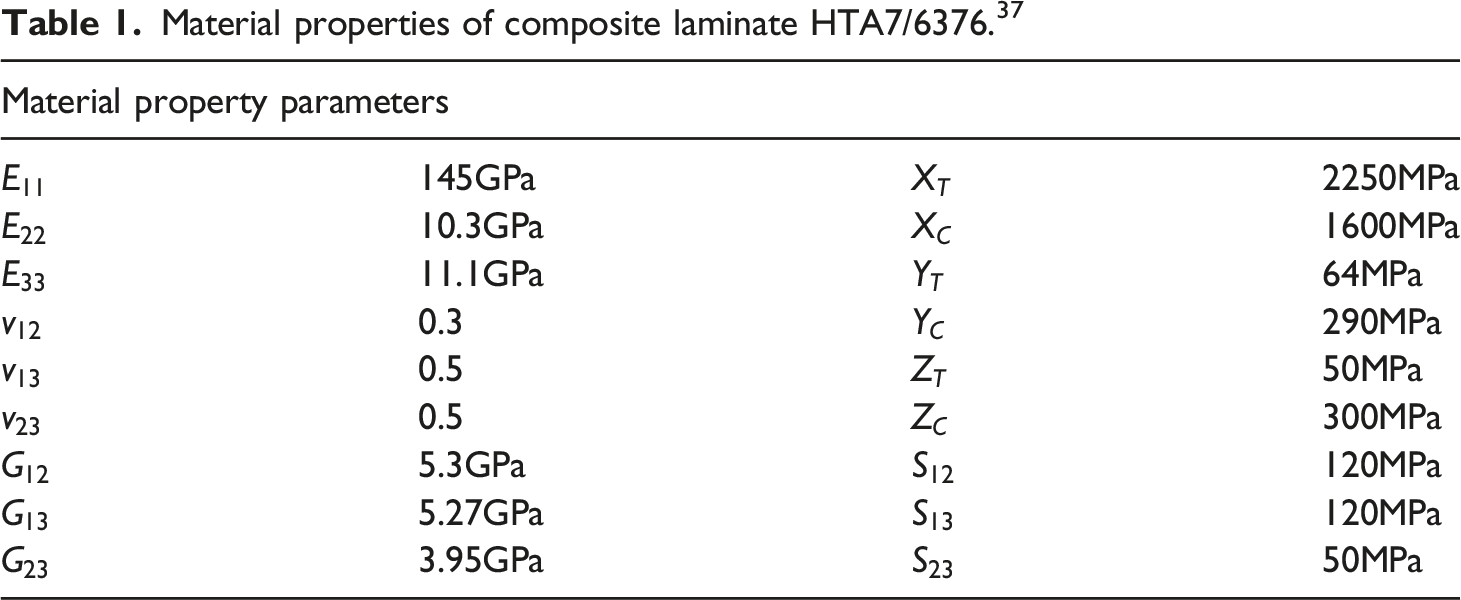

Table 1.

Material properties of composite laminate HTA7/6376.³⁷

Material property parameters
$E_{11}$	145GPa	$X_{T}$	2250MPa
$E_{22}$	10.3GPa	$X_{C}$	1600MPa
$E_{33}$	11.1GPa	$Y_{T}$	64MPa
$v_{12}$	0.3	$Y_{C}$	290MPa
$v_{13}$	0.5	$Z_{T}$	50MPa
$v_{23}$	0.5	$Z_{C}$	300MPa
$G_{12}$	5.3GPa	$S_{12}$	120MPa
$G_{13}$	5.27GPa	$S_{13}$	120MPa
$G_{23}$	3.95GPa	$S_{23}$	50MPa

Table 2.

Material properties of aluminum plate and bolt structures.³⁷

	Elastic modulus E/GPa	Poisson's ratio $μ$
Titanium	110	0.29
Aluminum plate	70	0.3

The layering method is ${[{(0 / 45 / - 45 / 90)}_{4}]}_{s}$ , a total of 32 layers, and the thickness of a single layer is 0.13 mm. In order to make the connection area have a better common node, the bolt structure is appropriately simplified in this paper, and the bolt and nut are integrated into the model. The element types of composite laminates, bolts, and aluminum plates were 8-node reduced integration element (C3D8R), and the number of meshes is 78,640. The bolted connection finite element analysis model includes five contact pairs, bolt head and laminated plate, bolt and laminated plate hole, bolt and aluminum plate hole, laminated plate and aluminum plate, aluminum plate and nut. The friction coefficient is defined as 0.3, and the normal behavior is calculated using hard contact. Considering the contact characteristics of the bolted connection, a general contact pair is established in this paper. The left end of the aluminum plate is restrained by a fixed support, and the displacement load in the X direction is applied to the reference point at the right end of the composite laminate, while the degrees of freedom in the Y and Z directions are restricted. At the same time, a reference point is established at the right end of the composite material to extract the displacement load curve. The grid division at the connection position is shown in Figure 3.

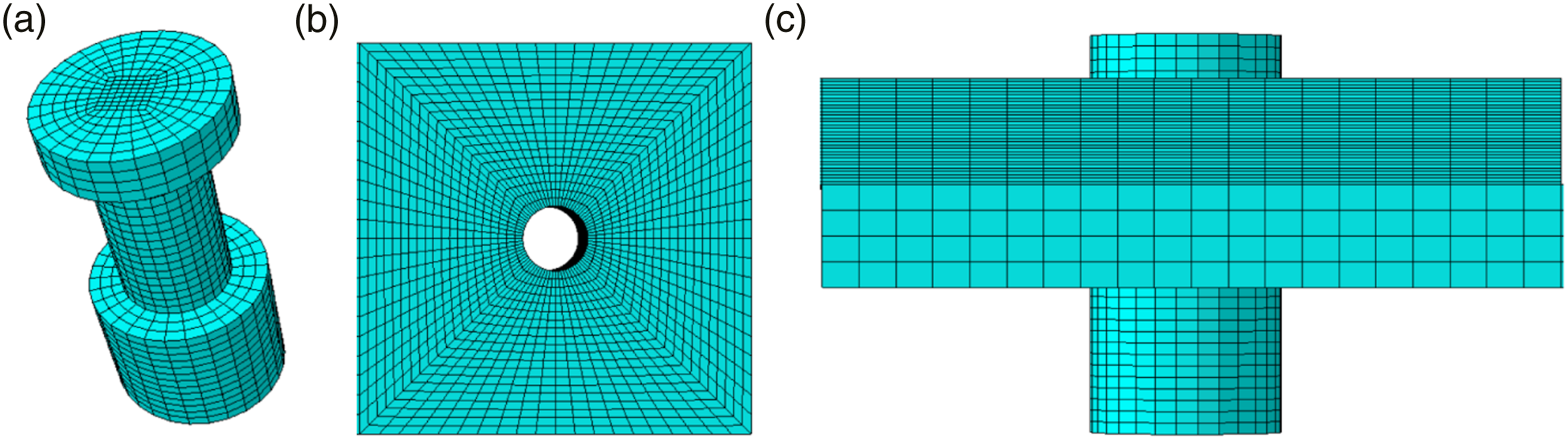

Figure 3.

Mesh division of joint area (a: bolt mesh; (b) contact area mesh; (c) thickness direction mesh).

Analysis of bolted connection stress and failure characteristics

The comparison between numerical simulation and experimental results of single-lap composite bolt connection is shown in Figure 4

Figure 4.

Comparison of displacement and load curve responses.

. It can be found that the simulated load-displacement curve is in good agreement with the experimental results. As the tensile load increases, the stiffness of the structure decreases continuously, and the load-displacement curve presents nonlinearity. During the loading process, the extrusion deformation and damage accumulation near the bolt hole lead to the decrease of the overall stiffness of the bolted connection structure, which in turn leads to the overall failure of the composite bolt structure. It can be seen from Figure 4 that the failure load calculated by the model in this paper is 11.42kN, and the error is only 1.9% compared with the experimentally measured result of 11.23kN. At the same time, the calculated failure displacement is about 1.08 mm, which is relatively close to the experimental results. This shows that the numerical model in this paper can better analyze the failure of composite bolted connections. In the latter part of the load-displacement curve of the composite bolt connection, as the tensile displacement continues to increase, the bolts continue to squeeze the composite material around the hole, resulting in extrusion damage to the composite material around the bolt hole. At this time, the stiffness of the composite material decreases gradually, and the slope of the load-displacement curve also decreases gradually. In the stage of damage to the composite material, there are several small fluctuations in the load-displacement curve, which can be identified as the damage of the screw extrusion composite material. Once the tensile load exceeds the ultimate strength of the composite bolted connection, the load-displacement curve drops rapidly. The composite bolt connection loses its bearing capacity, and the final failure form is extrusion failure near the composite bolt hole.

The overall failure characteristics of composite laminate structure are shown in Figure 5

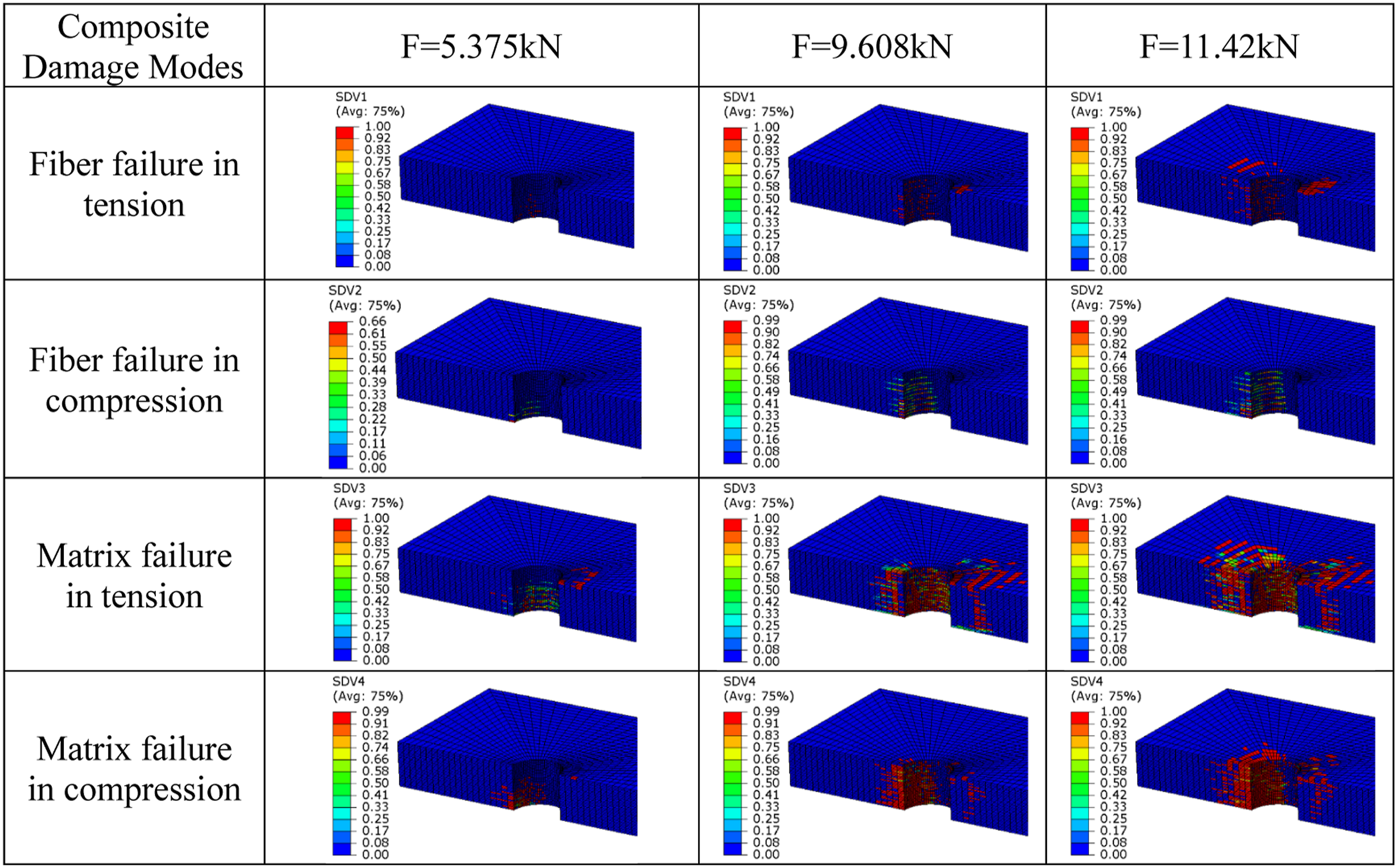

Figure 5.

Overall failure diagram of composite laminate structure.

. In the bolted connection model of composite material and aluminum plate, the damage evolution can be roughly divided into three stages. In the first stage, the pulling force is in the range of 0-5.375kN. As the load increases, there is no fiber damage inside the composite material, and a small amount of matrix damage appears. The connection structure is in the elastic stage, the slope of the entire load-displacement curve is the largest, and the load-displacement curve basically presents a linear relationship. When the load reaches 5.375kN, according to the contact relationship, the bolt squeezes the bolt hole of the composite material, causing damage to the composite material component, and a small amount of fiber damage and matrix damage appear inside it. When the force of the model is 5.375kN-9.608kN, it is the second stage. As the tensile load continues to increase, the bolts are in close contact with the bolt holes of the composite material, and the bolts continuously squeeze the inner wall of the bolt holes of the composite material. When damage occurs inside the composite material, the stiffness matrix is reduced, the stress is redistributed, and the damage begins to evolve. At this time, the fiber and matrix damage begin to expand, and the fiber tensile damage begins to expand from the initial bottom damage to the interior of the entire composite hole. The tensile/compression damage of the matrix also expanded rapidly, and more matrix damage appeared inside the composite. At the same time, as the load continues to increase, the bolted connection model has a secondary bending effect, and the bolt head begins to squeeze the upper surface of the composite material. At this time, a small amount of fiber and matrix damage begins to appear on the upper surface of the composite material. The load-displacement curve begins to appear non-linear.

In the third stage, as the displacement load continues to increase, the damage inside the composite material continues to accumulate, and the bolts continue to squeeze the composite material, resulting in a decrease in stiffness. The composite material loses its bearing capacity, and the bolted connection model eventually fails. According to the above analysis and discussion, as the displacement load continues to increase, fiber and matrix damage begins to occur inside the composite material, and the damage continues to evolve. At this time, the bolt holes of the composite material are severely crushed, which leads to a decrease in the bearing capacity of the composite material bolt structure. The final failure mode of composite bolted connection is the extrusion failure near the composite material hole. The composite material’s failure mode is mainly reflected in the damage of the matrix and fibers. At the same time, the damage of the matrix is greater than the fiber. When composite bolted connections fail, extensive matrix damage occurs inside the composite laminate.

Influencing factors of bolted connection

There are different types of bolt specifications in the project, and different bolt hole diameters will cause different damage to the continuity of the fibers, and have a certain impact on the strength of the bolt connection. Therefore, it is necessary to analyze the influence of different bolt hole diameters on the strength of composite bolted connections. In this paper, three types of bolts, M4.8, M6, and M8, are comprehensively analyzed, and their load-displacement curves are shown in Figure 6. It can be seen that as the bolt hole diameter increases, the contact area between the screw and the inner wall of the composite bolt hole increases, and the bearing capacity of the composite bolt connection also increases. However, with the increase of the bolt hole diameter, when the inflection point appears in the load-displacement curve, its limit displacement gradually decreases. Therefore, when designing a composite material bolted connection structure, within a certain range, selecting a larger bolt diameter can withstand a larger external load, and selecting a smaller bolt diameter can withstand a larger limit displacement.

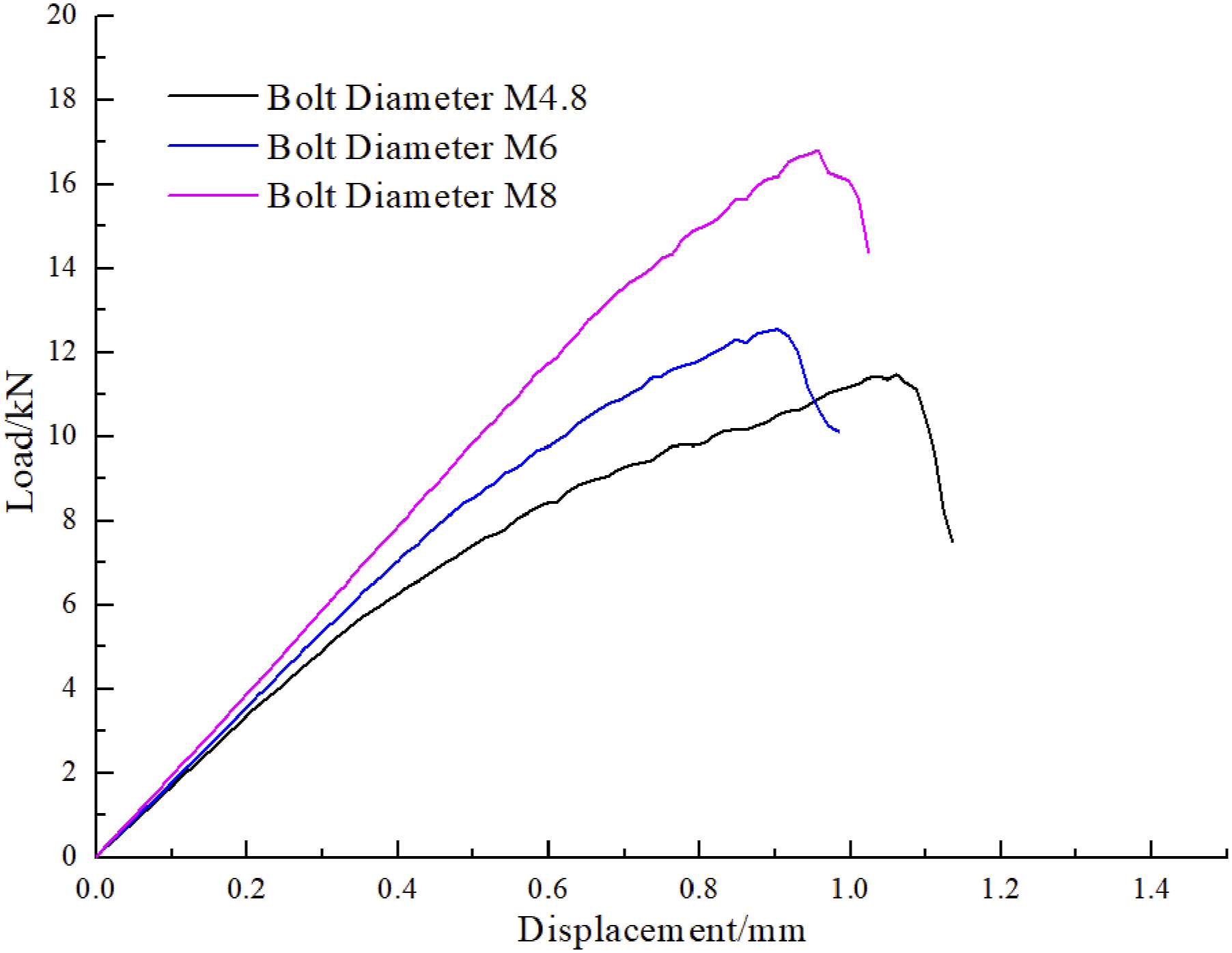

Figure 6.

Effect of bolt diameter on connection strength.

Commonly used ply angles in engineering are 0°, ±45°, 90°. Among them, the 0° layup bears the transverse tensile force, the ±45° layup mainly bears the extrusion and impact load of the material, and the 90° layup mainly bears the longitudinal shear force. Therefore, different layup sequences have certain influence on the overall performance of the composite material. This paper mainly studies the effects of four lay-up methods on the bolted connection strength, Layer method 1 ${[{(0 / 45 / - 45 / 90)}_{4}]}_{s}$ , Layer method 2 ${[{(45 / - 45 / 0 / 90)}_{4}]}_{s}$ , Layer method 3 ${[{(0 / 90 / - 45 / 45)}_{4}]}_{s}$ , Layer method 4 ${[{(90 / 0 / 45 / - 45)}_{4}]}_{s}$ . The load-displacement curves of composite bolts under different layup sequences are shown in Figure 7. It can be found that when the first layer of composite material in the connection area is at 0°, the tensile load is parallel to the fiber direction. At this time, the bolted connection strength of the composite material is the highest, and at the same time it can withstand a large failure displacement. When the first layer of composite material in the connection area is 45°, its bearing capacity and failure displacement are between 0° and 90° for the first layer. When the first layer of the composite laminate in the connection area is at 90°, the tensile load is perpendicular, and at this time the load-bearing capacity of the bolted structure is the weakest, and the failure displacement is also the smallest. Based on the above analysis, the lay-up method 1 has the best mechanical properties for composite bolted connections.·

Figure 7.

Effect of layup sequence on bolted connection strength.

According to the mechanical design manual, the calculation formula of the bolt Pre-tightening force is as follows:

F = \frac{τ}{k \times d}

(19)

In the above formula,

τ

is the bolt torque, and k is an empirical parameter, d is the bolt diameter.

In order to study the effect of pre-tightening force on the strength of composite bolted connection, three pre-tightening forces of 2kN,7.5kN, and 10kN were selected in this paper, and the strength of the bolted connection structure is shown in Figure 8. When the pre-tightening force is 2kN, the strength of the bolted connection structure increases. When the pre-tightening force is 7.5kN, the pre-tightening force has a small increase in the connection strength. When the bolt pre-tightening force is 10kN, the connection strength is reduced, because the excessive pre-tightening force will cause damage to the composite material near the bolt hole, which will lead to a decrease in the strength of the composite material bolted connection. Therefore, proper pre-tightening force can increase the strength of composite bolted connection, while excessive pre-tightening force will lead to a decrease in connection strength.

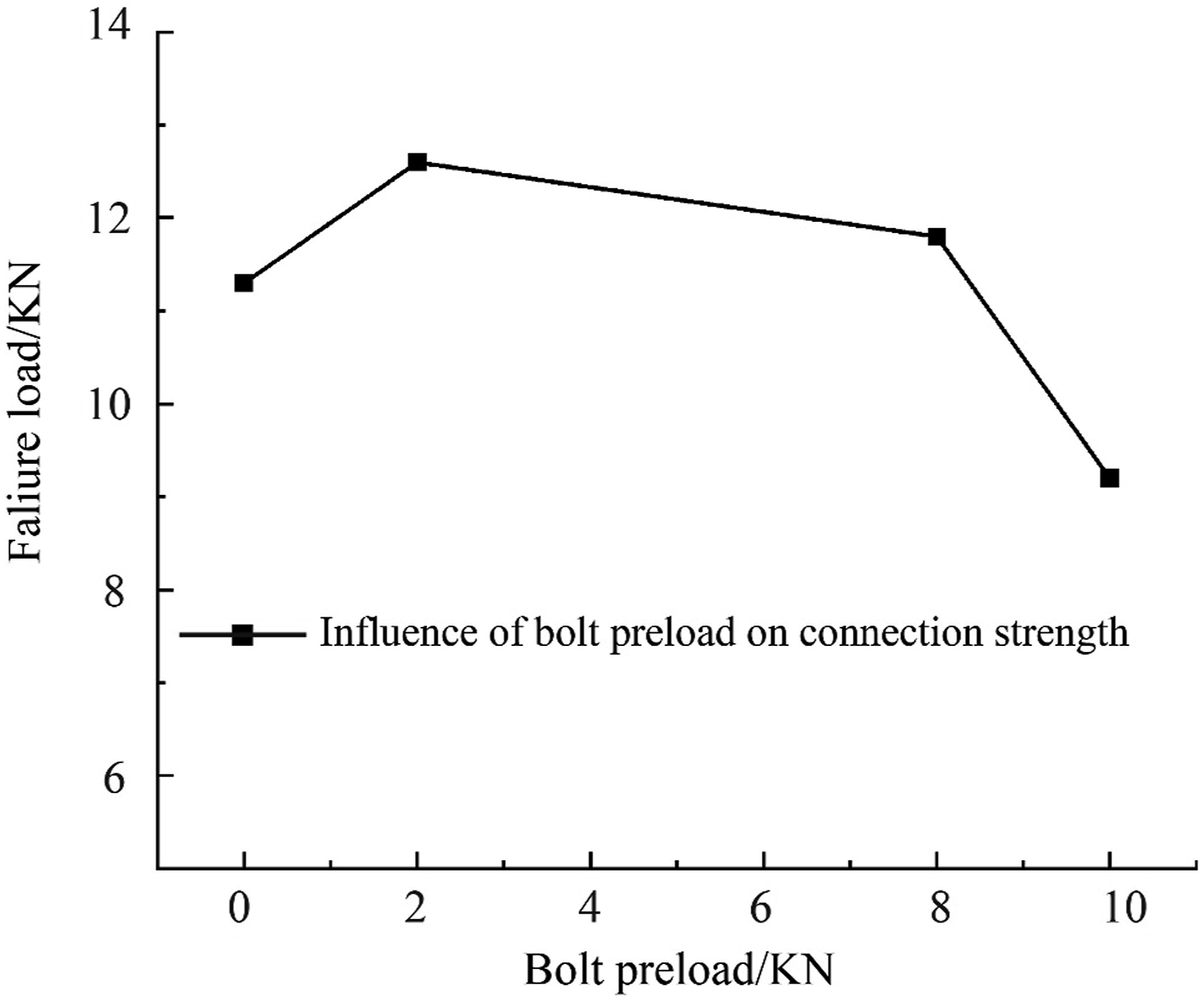

Figure 8.

Effect of pre-tightening force on bolted connection strength.

In order to study the effect of the width-diameter ratio and end-diameter ratio of composite materials on the bolt connection strength, this paper studies the four end-diameter ratios of E/d=4, E/d=5, E/d=6, E/d=7 on the bolts. The influence of connection strength, as can be seen from Figure 11, with the increase of the end-diameter ratio, the connection strength of the bolt increases. When the end-diameter ratio is in the range of 6-7, the strength of the bolt connection does not increase significantly, but the failure Movement has been increased. It can be seen from the load-displacement curve that the stiffness of the bolted connection is the smallest when E/d=4, and the stiffness of the other three bolted connections shows a high consistency, as shown in Figure 9.

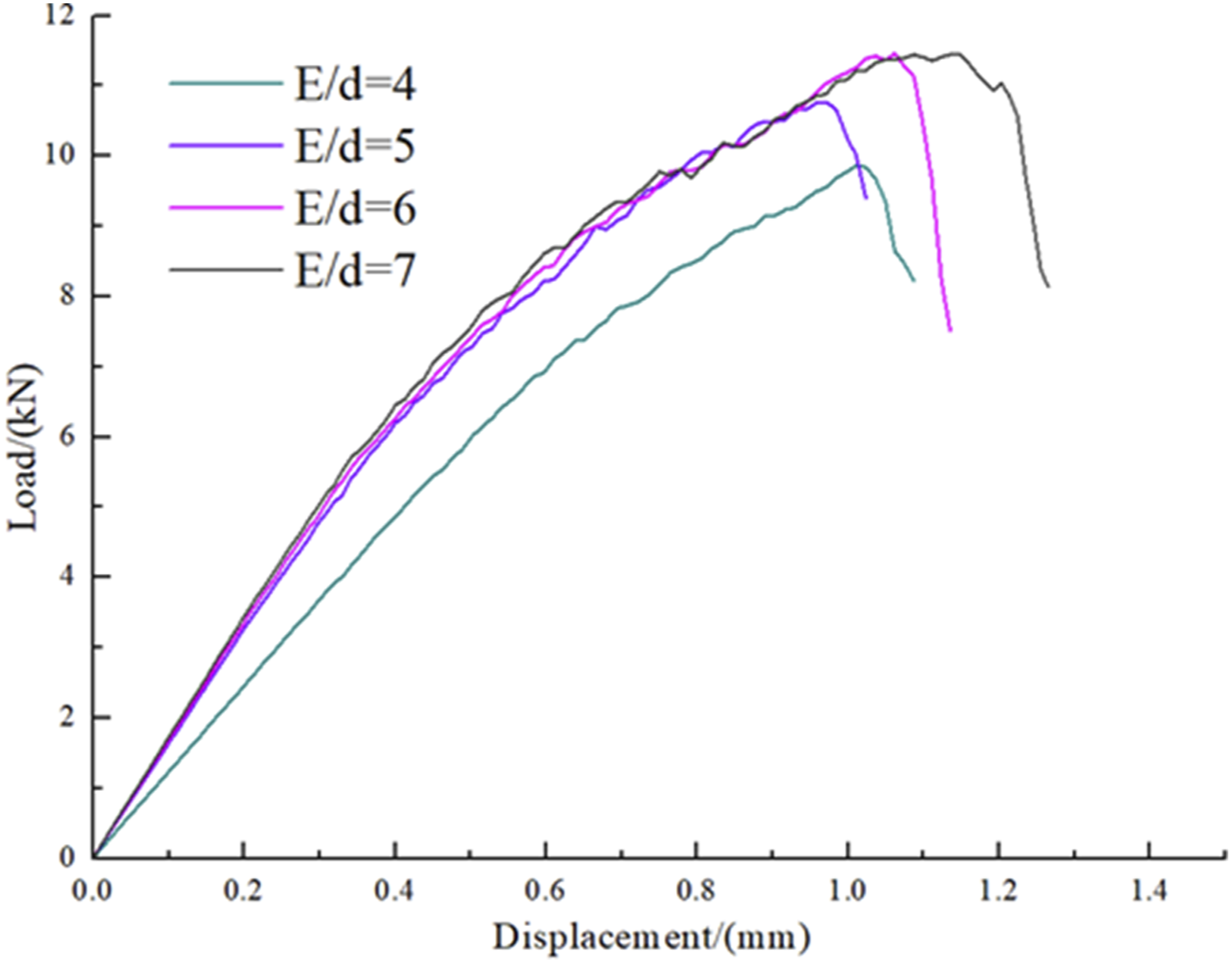

Figure 9.

Influence of end-to-diameter ratio on bolt connection strength.

In this paper, the effects of three width-to-diameter ratios w/d=4, w/d=5, and w/d=6 on the bolt connection strength are selected, and the displacement load curve is shown in Figure 10. It can be found that when w/d=4, the connection strength and failure displacement are the lowest. Among them, when w/d=6, the bolt connection strength is the highest. When w/d is in the interval,^4,5 the bolt connection strength does not increase significantly, and the failure displacement increases slightly.

Figure 10.

Effect of width-diameter ratio on bolt connection strength.

Failure characteristics of composite adhesive-bolt joints

In order to further analyze the failure characteristics of composite adhesive-bolt joints, on the basis of bolted joints, an adhesive layer was introduced between the aluminum plate and the composite material. Using the energy-based B-K criterion to simulate the damage and evolution of the adhesive layer, the mechanical properties of the adhesive layer are shown in Table 3³⁸ and the material properties of composite laminates (USN125)³⁹ are shown in Table 4.

Table 3.

Adhesive material properties adhesive hysol EA9394.³⁸

Failure mode	$E_{1}$ (MPa)	$σ_{u}$ (MPa)	$G_{1, C}$ (N/mm)
Ⅰ	4320	47	0.94
Ⅱ	1550	32	1.16

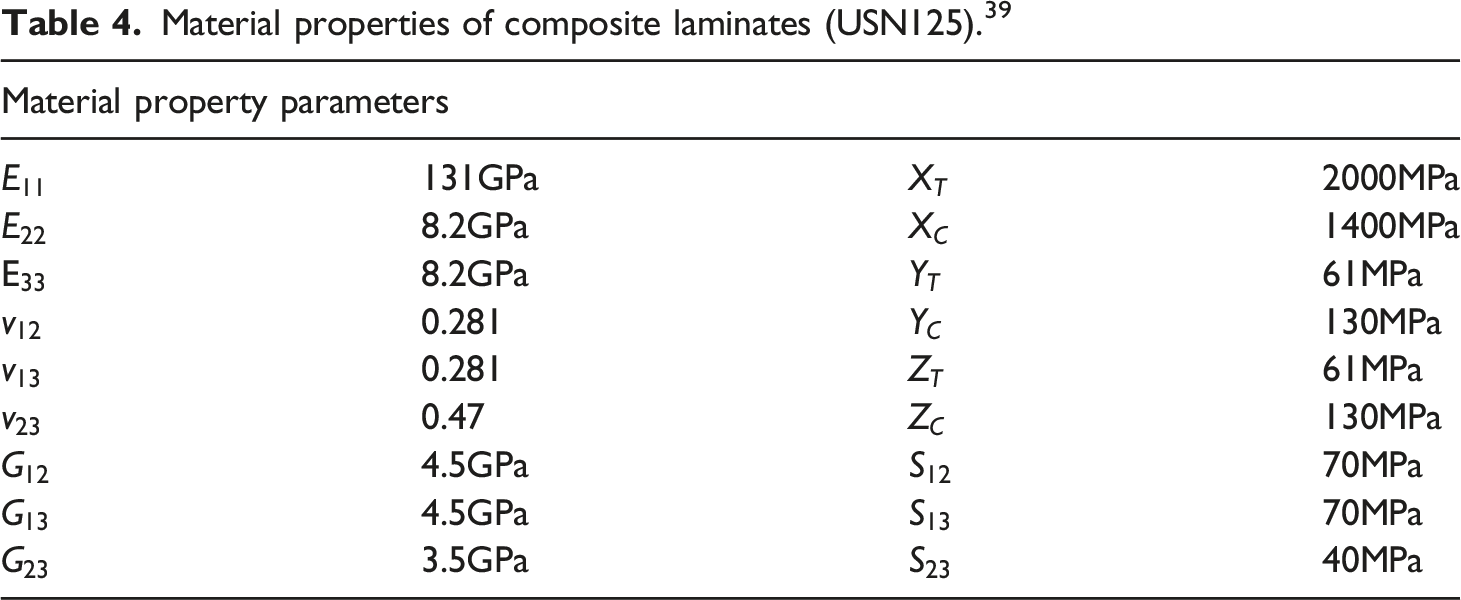

Table 4.

Material properties of composite laminates (USN125).³⁹

Material property parameters
$E_{11}$	131GPa	$X_{T}$	2000MPa
$E_{22}$	8.2GPa	$X_{C}$	1400MPa
$E_{33}$	8.2GPa	$Y_{T}$	61MPa
$v_{12}$	0.281	$Y_{C}$	130MPa
$v_{13}$	0.281	$Z_{T}$	61MPa
$v_{23}$	0.47	$Z_{C}$	130MPa
$G_{12}$	4.5GPa	$S_{12}$	70MPa
$G_{13}$	4.5GPa	$S_{13}$	70MPa
$G_{23}$	3.5GPa	$S_{23}$	40MPa

Verification of the finite element model of composite adhesive-bolt hybrid connection

The geometric dimensions of composite bonded-bolted hybrid connections³⁹ are shown in Figure 11. The model consists of four parts: composite laminates, bolts, aluminum plates, and adhesive layers. The sequence of composite layers is ${[\pm 45 / 0 / 90]}_{2 s}$ , and the thickness of a single layer is 0.114 mm.

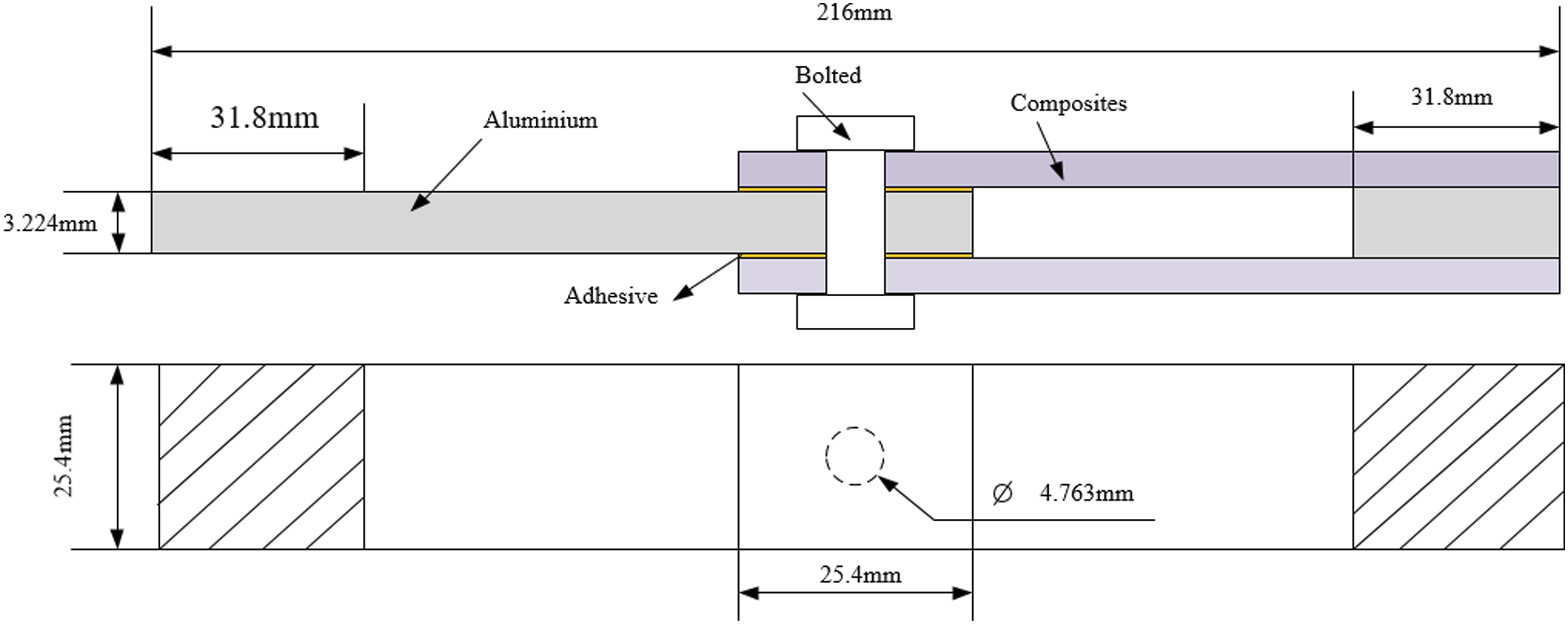

Figure 11.

Geometry model of hybrid connection.

Under the longitudinal tensile load, the mechanical properties of different materials present relatively complex mechanical behavior, and there are contact nonlinearities between bolts and laminates, laminates and adhesive layers, bolts and holes. As the displacement load increases, the stiffness gradually degrades, and the composite material and adhesive layer gradually fail. In the mixed connection finite element model, the grid type of composite laminates, aluminum plates and bolts adopts 8-node reduced integration element (C3D8R), and the adhesive layer element adopts 8-node three-dimensional viscous element (COH3D8), and the number of meshes is 164,160. Composite single plies and adhesive layers correspond to one layer of mesh in the thickness direction. In order to ensure that the contact area of the composite material and the glue line are at the same node, the laminate and the glue line are modeled integrally. The mesh is densified in the connection area between the bolt hole and the adhesive layer, and the gradual mesh transition is adopted near the bolt hole and the connection area, as shown in Figure 12.

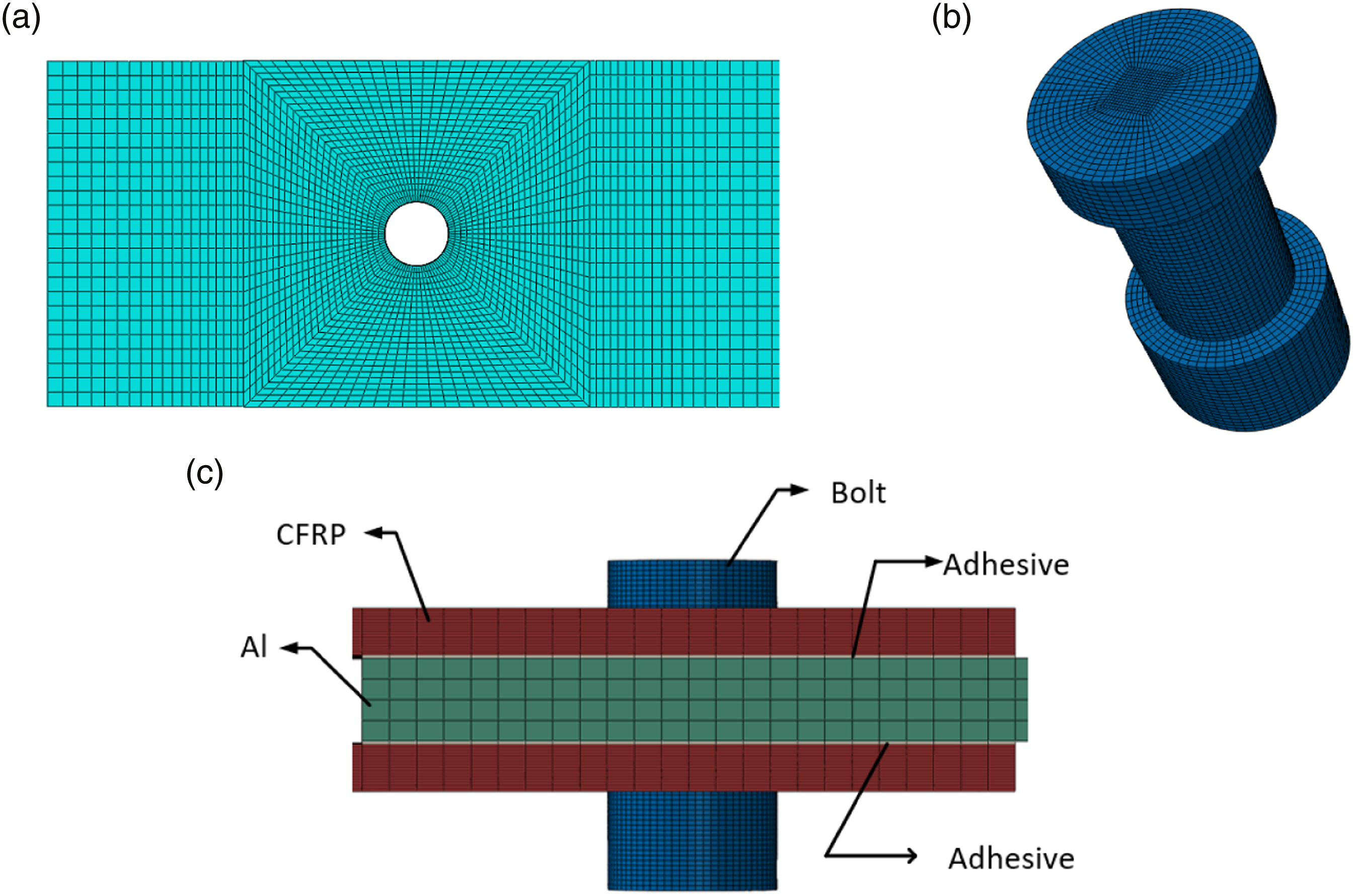

Figure 12.

Mesh division of joint area (a: Progressive mesh division near bolt holes; (b) Bolt mesh division; (c) Details of glued-bolt hybrid connection).

The right end of the Al plate adopts the fixed support boundary condition, and the displacement load along the X direction is applied to the left end of the composite laminate. The finite element model of the hybrid connection includes the contact between the bolt and the laminate, and the contact between the screw and the hole. The contact is realized by defining the friction of each contact surface, where normal is defined as hard contact and tangential is defined with a coefficient of friction of 0.3. The integrated modeling of the composite material and the adhesive layer does not involve the contact mechanical behavior between the adhesive layer and the plate, but the model also includes the contact between bolt head and the upper and lower composite laminates, the contact between the screw rod and the bolt hole. The contact type is surface-surface contact and the slip type is finite slip.

Figure 13

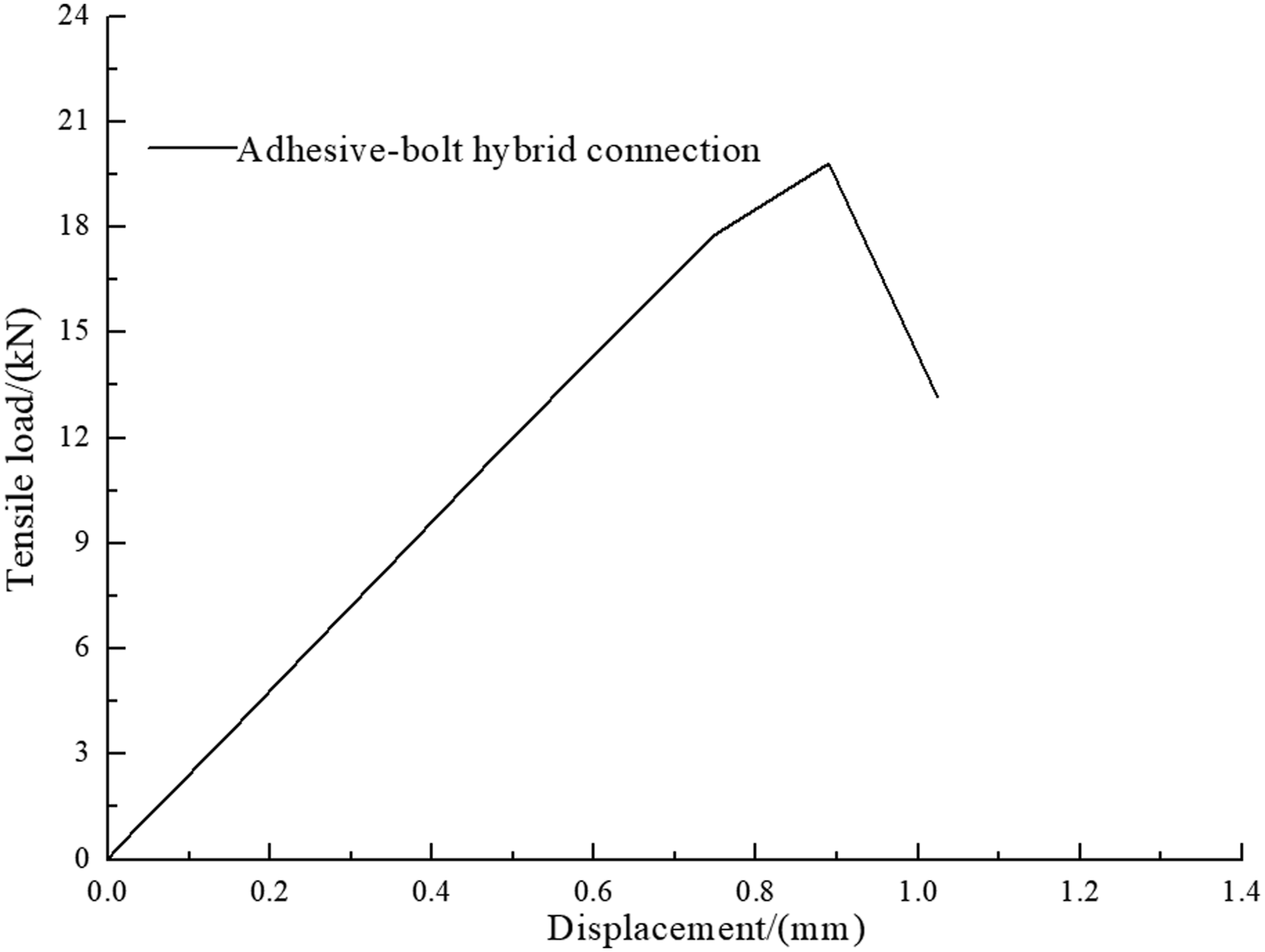

Figure 13.

Failure load-displacement curve of adhesive-bolt hybrid connection.

shows the failure load-displacement curves of the adhesive-bolt hybrid joints simulated. The average failure strength of composite bonding-bolt hybrid connection experiment is 192Mpa. The result calculated in this paper is S=

\frac{F_{\max}}{2 A} =

213.5Mpa, where A represents the cross-sectional area of the end of the composite material. The error is 11.1%, which shows the effectiveness of the hybrid connection model established in this paper.

Damage evolution of composite laminates and adhesive layers

The damage evolution of the adhesive layer is shown in Figure 14

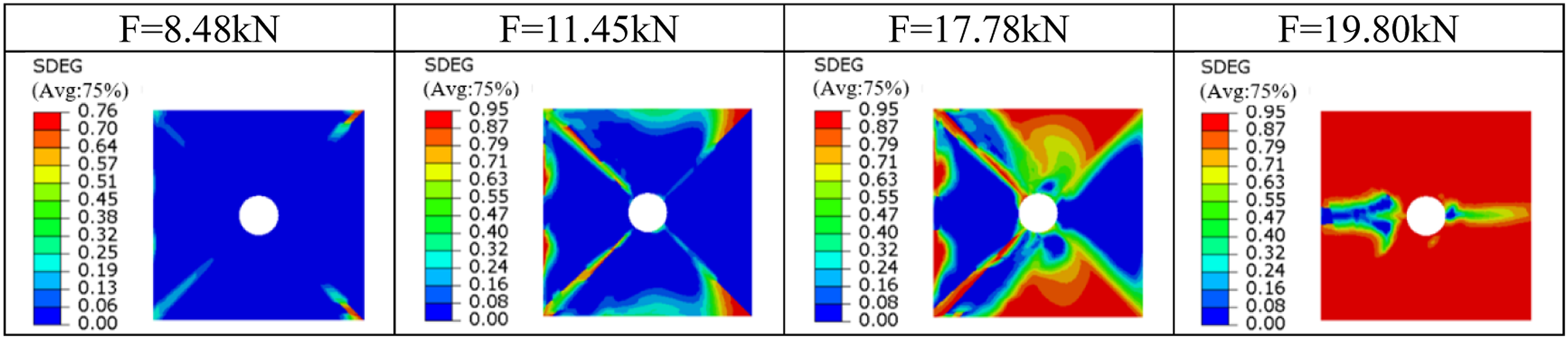

Figure 14.

The damage and evolution of the adhesive layer.

. SDEG represents the stiffness degradation rate of the adhesive layer. The maximum value given in this paper is 0.95. When the value is equal to 0.95, it means that the adhesive layer unit has failed. When the load reached 8.48KN, damage began to appear around the glue line. As the load displacement increases, the adhesive layer will accumulate damage. When the displacement load increases to 17.78kN, the two sides of the adhesive layer begin to expand near the bolt holes. When the load reaches 19.80kN, the adhesive layer fails completely, and the rubber screw is mixed. The load-carrying capacity of the connection drops rapidly, and an inflection point appears in the load-displacement curve.

The damage and evolution process of composite laminates are shown in Figure 15. When the tensile load is less than 5.88kN, there is no fiber or matrix damage in the composite laminates. With the increase of displacement load, when the load reaches 8.48kN, a small amount of damage begins to appear around the adhesive layer. When the displacement load curve is at 5.88kN-17.78kN, a small amount of fiber damage occurs inside the laminate, and a certain amount of matrix damage occurs near the bolt holes of the laminate. At this stage, the screw begins to squeeze the composite material, causing damage to the composite material, the adhesive layer and the bolt structure are jointly stressed. When the tensile load is 19.8kN, the adhesive layer has completely failed. With the increase of the displacement load, the damage inside the laminate continues to accumulate, the stiffness degrades, and the stress is redistributed. At this time, the fiber is mainly stretched, and the damage distributed near the bolt holes, the compression damage mainly occurs in the small area at the upper end of the bolt holes. The tensile damage of the matrix is more than the compressive damage of the matrix, and it is also distributed near the bolt holes. As the displacement load increases, the screw continuously squeezes the inner wall of the composite bolt hole. When the damage accumulates to a certain extent, the displacement load curve appears an inflection point, and the bonded-bolt hybrid connection rapidly loses its bearing capacity, and the overall structure fails.

Figure 15.

Composite laminate damage and its evolution.

The bonded area between the adhesive layer and the composite material may also lead to failure of the composite material due to damage to the adhesive layer. Therefore, this paper analyzes the four layups closest to the connection between the composite material and the adhesive layer. Laminate layers closest to the glue line are 45°, −45°, 0°, 90°. The fiber tensile damage is mainly distributed near the bolt holes, and expands along the 45° direction at the same time, and the fiber damage of the 45° ply and 0° ply is more serious, as shown in Figures 16

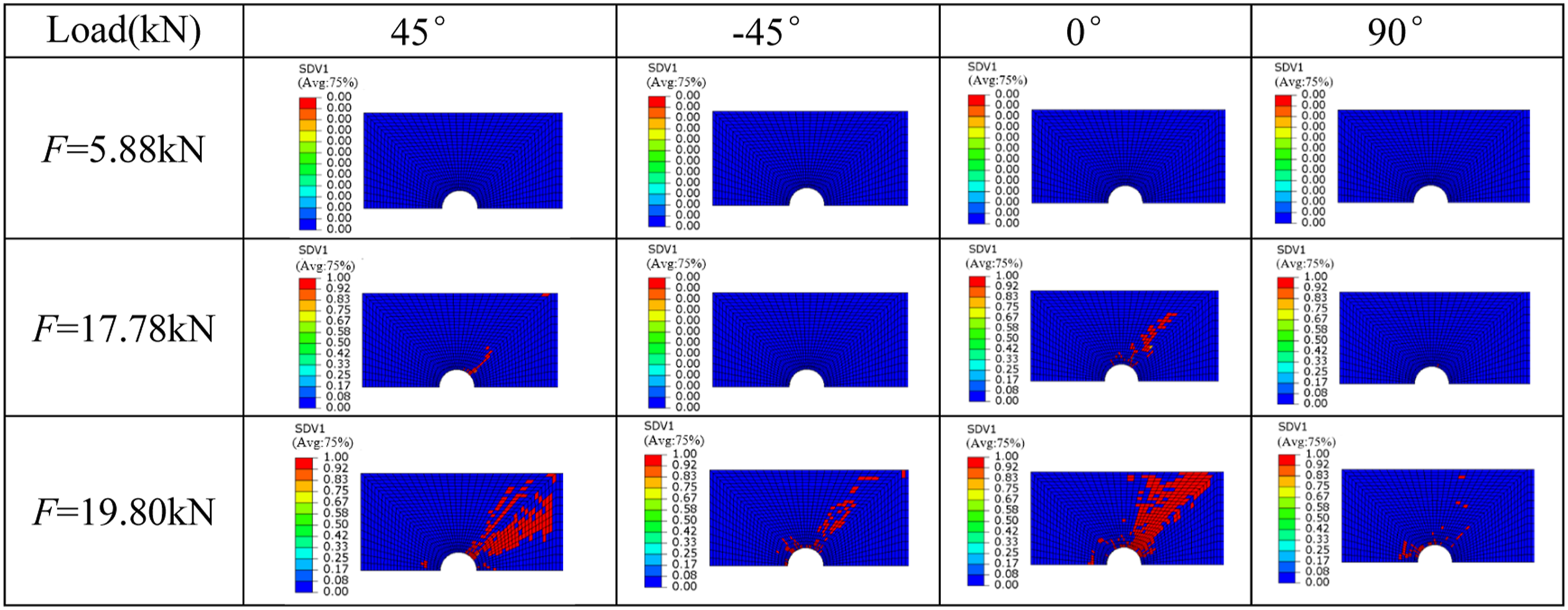

Figure 16.

Tensile damage of the first four laminated fibers in the joint area.

and 17

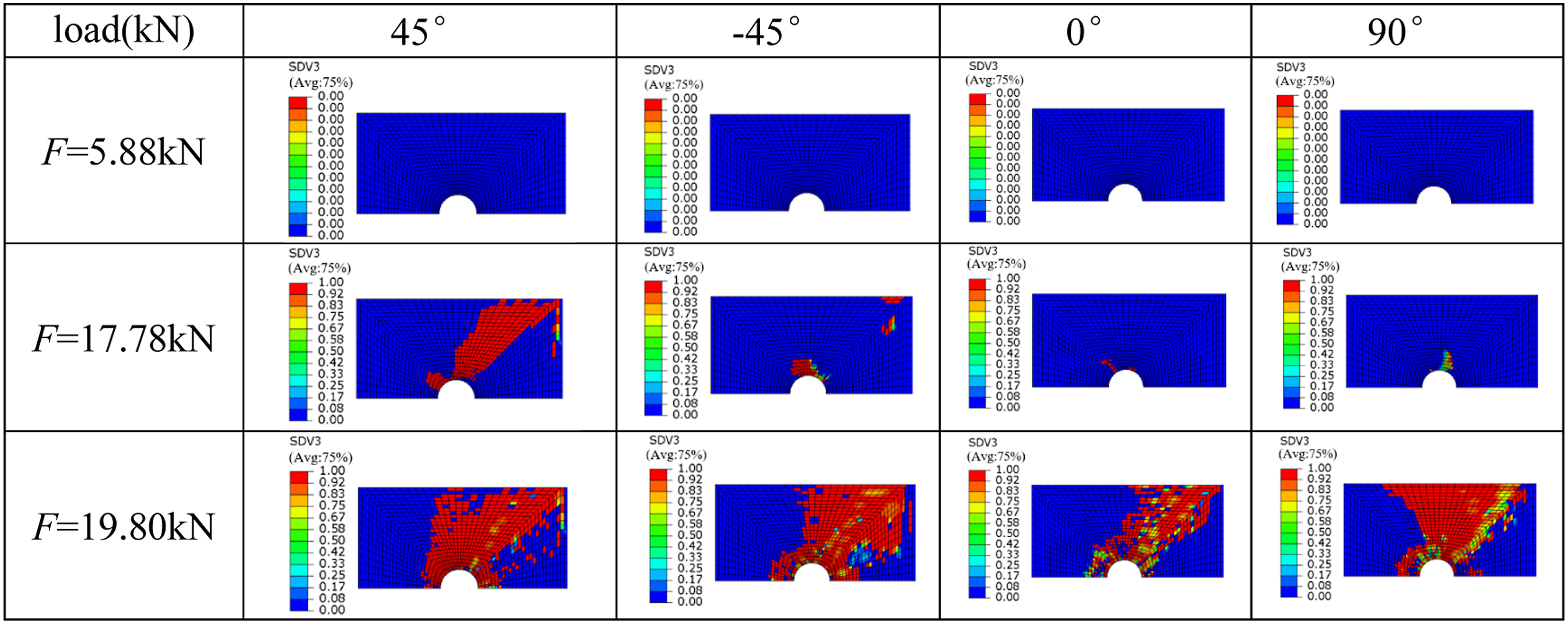

Figure 17.

Tensile damage of the first four plies in the joint area.

. The matrix tensile damage inside the laminate is higher than the matrix compressive damage. It can be found from Figures 16 and 18

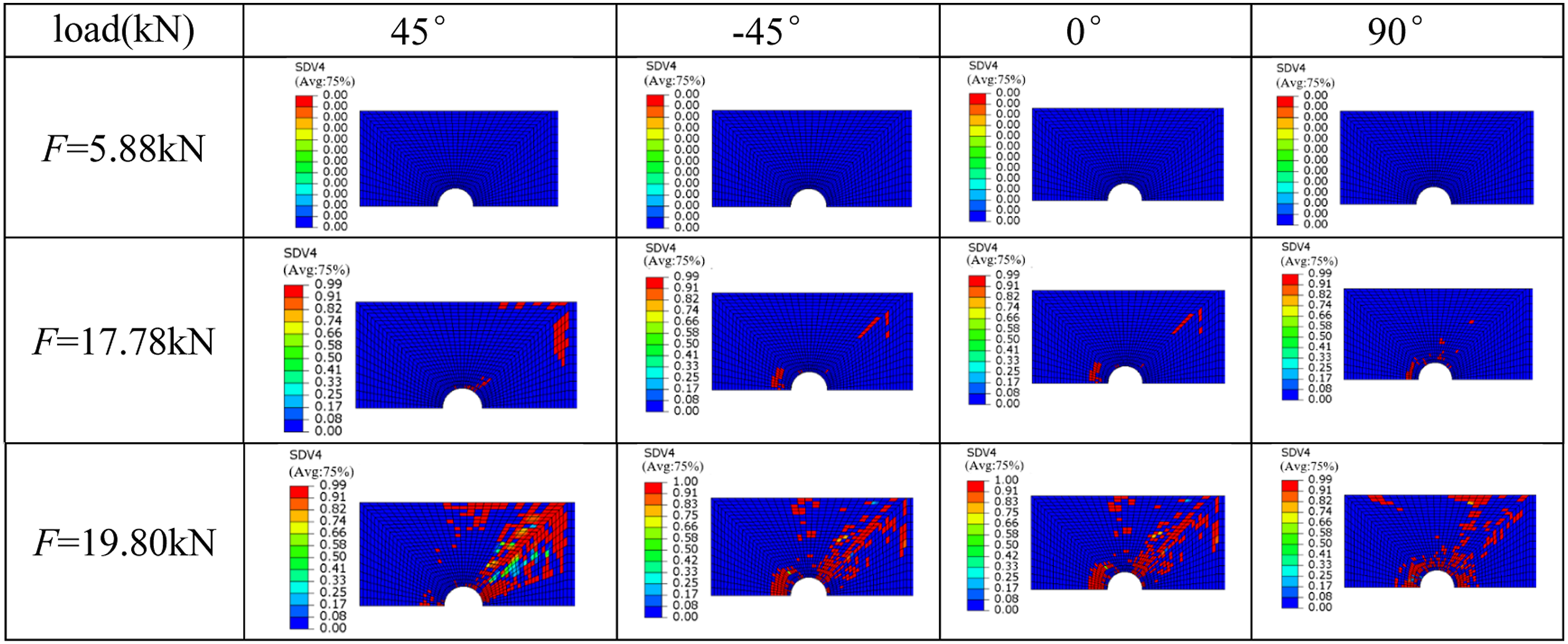

Figure 18.

Compression damage of the first four plies in the joint area.

, when the load is 17.78kN, the damage propagation of the first layer is relatively rapid, and the damage propagation of the second, third and fourth layers is relatively slow. When the load reaches 19.8kN, the matrix damage extends to the outside of the laminate along the direction of 45°. When the ply angled are ±45°, due to the damage of the adhesive layer, a certain amount of matrix damage occurred on its side. When the ultimate load of the adhesive-bolt hybrid connection is reached, the fiber and matrix damage of the four plies closest to the glue line basically extends to the outer edge of the laminate. For the hybrid connection structure, the adhesive layer bears the load first, which can better alleviate the stress concentration problem near the bolt hole.

Conclusions

In this paper, the models of composite bolted connection and adhesive-bolt hybrid connection are established. The correctness of the model is verified by comparison with the experiment, and the bolted connection and hybrid connection between the composite material and the aluminum plate can be well predicted. The parameters affecting the bolted connection strength were analyzed, and the load-bearing mechanism and damage evolution law of the connected parts were revealed. The conclusions are as follows:

(1) In the bolted connection model, an increase in displacement leads to internal fiber and matrix damage within the composite material, and the load-displacement curve shows nonlinear behavior. The final failure mode is typically extrusion damage near the bolt hole, with matrix failure being the primary form of failure.

(2) Appropriately increasing the diameter of the bolt hole or applying an appropriate pre-tightening force can both enhance the connection strength. However, it should be noted that excessive pre-tightening force may lead to the initial damage of the composite material, ultimately resulting in a reduction of the connection strength.

(3) The strength of the connection structure is maximized when the first layer in the connection area is aligned at 0°. Conversely, if the first layer is oriented at 90°, the connection's bearing capacity is reduced to its lowest level. The connection strength of the 45° ply falls between the strengths achieved at the 0° and 90° orientations.

(4) The adhesive layer fails first in the adhesive-bolt hybrid connection model, followed by joint load-bearing with the mechanical structure until complete adhesive layer failure. As the screw continuously squeezes the composite material's bolt hole, internal damage accumulates and suddenly decreases the connection's bearing capacity, leading to adhesive-bolt structure failure.

(5) In the adhesive-bolt hybrid connection model, the fiber and matrix damage of the four plies closest to the glue line mainly spread along the 45° direction, and the damage is mainly matrix tensile damage. When the load reaches the ultimate strength of the hybrid connection, the fiber and matrix damage of the four composite monolayers propagates to the outside of the plate.

Footnotes

Declaration of competing interest

The authors declare that they have no known competing finanical interests or personal relationships that could have appeared to influence the worked reported in this paper.

Funding

This work has been supported by the Natural Science Foundation of Chongqing (Grant No. CSTB2023NSCQ-MSX0802), the Science and Technology Research Program of Chongqing Municipal Education Commission (Grant No. KJQN20210117, KJQN202201105, KJQN202201113).

ORCID iD

Jiaru Shao

References

Rouhi

Ramantani

Tay

. 3D explicit simulation of bearing failure in metal–composite bolted joints. Compos Struct 2022; 284: 284.

Siddique

Iqbal

Nawab

, et al. A review of joining techniques for thermoplastic composite materials. J Thermoplast Compos Mater 2023; 36(8): 3417–3454.

Armstrong

. Cautionary tales from experiences when working with adhesively bonded composite and metal structures used in aircraft. J Adhes Sci Technol 2009; 23: 567–578.

Camanho

Matthews

. Stress analysis and strength prediction of mechanically fastened joints in FRP: a review. Compos Appl Sci Manuf 1997; 28: 529–547.

El Zaroug

Kadioglu

Demiral

, et al. Experimental and numerical investigation into strength of bolted, bonded and hybrid single lap joints: Effects of adherend material type and thickNess. Int J Adhesion Adhes 2018; 87: 130–141.

Bodjona

Fielding

Heidari-Rarani

, et al. Effect of adhesive layer compliance on strength of single-lap hybrid bonded-bolted joints. Compos Struct 2021; 261: 113324.

McCarthy

Lawlor

, et al. Three-dimensional finite element analysis of single-bolt, single-lap composite bolted joints: part I - model development and validation. Compos Struct 2005; 71: 140–158.

McCarthy

. Three-dimensional finite element analysis of single-bolt, single-lap composite bolted joints: Part II––effects of bolt-hole clearance. Compos Struct 2005; 71: 159–175.

Wang

Huan

, et al. Experimental study and finite element analysis on the joining performance of GF/PP rivets. J Thermoplast Compos Mater 2022; 35(10): 1683–1708.

10.

Minnetyan

Chamis

Gotsist

. Damage progression in bolted composites. J Thermoplast Compos Mater 1998; 11(3): 231–248.

11.

Mandal

Chakrabarti

. Numerical failure assessment of multi-bolt FRP composite joints with varying sizes and preloads of bolts. Compos Struct 2018; 187: 169–178.

12.

Huang

Sun

Cheng

, et al. Tensile property of single countersunk bolt composite laminate joints. J Mater Eng 2013; 3: 8–12.

13.

, et al. A continuum damage mechanics-based strength prediction strategy for single-lap, composite bolted joint. Acta Mater Compos Sin 2016; 33: 2918.

14.

Jiang

Zeng

, et al. Influence and mechanism of fitting mode on stiffness of single-bolt, single-lap composite bolted joint. Acta Mater Compos Sin 2016; 33: 589.

15.

Zhou

Zhao

. Failure mechanisms based degradation model of unidirectional fiber reinforced polymer composites. Acta Mater Compos Sin 2019; 36: 1389.

16.

Hühne

Zerbst

Kuhlmann

, et al. Progressive damage analysis of composite bolted joints with liquid shim layers using constant and continuous degradation models. Compos Struct 2010; 92: 189–200.

17.

Nagarajan

Manoharan

. Assessment of dissimilar joining between metal and polymer hybrid structure with different joining processes. J Thermoplast Compos Mater 2023; 36(5): 2169–2211.

18.

Kelly

. Quasi-static strength and fatigue life of hybrid (bonded/bolted) composite single-lap joints. Compos Struct 2006; 72: 119–129.

19.

Hoang-Ngoc

Paroissien

. Simulation of single-lap bonded and hybrid (bolted/bonded) joints with flexible adhesive. Int J Adhesion Adhes 2010; 30: 117–129.

20.

Chowdhury

Chiu

Wang

, et al. Static and fatigue testing thin riveted, bonded and hybrid carbon fiber double lap joints used in aircraft structures. Compos Struct 2015; 121: 315–323.

21.

Lopez-Cruz

Laliberte

Lessard

. Investigation of bolted/bonded composite joint behaviour using design of experiments. Compos Struct 2017; 170: 192–201.

22.

Barut

Madenci

. Analysis of bolted–bonded composite single-lap joints under combined in-plane and transverse loading. Compos Struct 2009; 88: 579–594.

23.

Liu

. Failure simulation of carbon fiber reinforced epoxy resin composite-aluminum bonded-bolted hybrid joint. Acta Mater Compos Sin 2019; 36: 2308.

24.

Zhao

Xin

Liu

, et al. Secondary bending effects in progressively damaged single-lap, single-bolt composite joints. Results Phys 2016; 6: 704–711.

25.

Romanov

Heidari-Rarani

Lessard

. A parametric study on static behavior and load sharing of multi-bolt hybrid bonded/bolted composite joints. Compos B Eng 2021; 217: 108897.

26.

Gamdani

Boukhili

Vadean

. Fatigue behavior of hybrid multi-bolted-bonded single-lap joints in woven composite plates. Int J Fatig 2022; 158: 106738.

27.

Fang

Liang

Wang

. Progressive damage and nonlinear analysis of 3D four-directional braided composites under unidirectional tension. Compos Struct 2009; 89: 126–133.

28.

Hashin

Rotem

. A fatigue failure criterion for fiber reinforced materials. J Compos Mater 1973; 7: 448–464.

29.

Hashin

. Failure criteria for unidirectional fiber composite[J]. J Appl Mech. 1980; 47: 3292334.

30.

Zhang

. An efficient approach for predicting low-velocity impact force and damage in composite laminates. Compos Struct 2015; 130: 85–94.

31.

Zhang

. Simulating low-velocity impact induced delamination in composites by a quasi-static load model with surface-based cohesive contact. Compos Struct 2015; 125: 51.

32.

Singh

Namala

Mahajan

. A damage evolution study of E-glass/epoxy composite under low velocity impact. Compos B Eng 2015; 76: 235–248.

33.

Yan

, et al. 3D explicit finite element analysis of tensile failure behavior in adhesive-bonded composite single-lap joints. Compos Struct 2018; 201: 261–275.

34.

Zhang

Wang

, et al. Progressive damage simulation of triaxially braided composite using a 3D meso-scale finite element model. Compos Struct 2015; 125: 104–116.

35.

Chen

. Micro–macro FE modeling of damage evolution in laminated composite plates subjected to low velocity impact. Compos Struct 2016; 147: 111–121.

36.

Bažant

. Crack band theory for fracture of concrete. Matériaux et construction 1983; 16: 155–177.

37.

Riccio

Marciano

. Effects of geometrical and material features on damage onset and propagation in single-lap bolted composite joints under tensile load: Part I – Experimental Studies. J Compos Mater 2005; 39: 2071–2090.

38.

Kim

Hong

. A study on mixed fracture characteristics of composite single lap joint (SLJ) combining mixed continuum damage model and critical zone size based approach. Int J Adhesion Adhes 2019; 95: 102447.

39.

Kweon

Jung

Kim

, et al. Failure of carbon composite-to-aluminum joints with combined mechanical fastening and adhesive bonding. Compos Struct 2006; 75: 192.
