Analysis of engineering performance of concrete comprising recycled crushed plastic waste and fly ash

Abstract

This study investigated the attributes of blending of recycled crushed polypropylene plastic coarse aggregates (PPCA) and fly ash (FA) towards the fresh and hardened properties of concrete. Natural coarse aggregate was partially replaced with PPCA at volumetric replacement levels up to 30% and cement was replaced with FA up to 20%. Initially, the performance of PPCA and FA in concrete was investigated distinctly. The incorporation of 30% of PPCA in concrete rather impaired the workability (from 95 mm – 50 mm: 47%) and the compressive strength (from 44.6 MPa to 31.4 MPa: 29.7%). By appropriate using of a superplasticizer, the loss in the workability could be recovered. Microstructural investigation was conducted employing scanning electron microscope analysis; it showed that the formation of a weak interfacial transition zone between PPCA and cement paste to be the reason for strength reduction in PPCA concrete. In contrast, the addition of 10 – 20% of FA in concrete improved the workability by 63.2% – 100%, but yet again, the 28-day compressive strength reduced by 15.8 – 35.6%. Meanwhile, thermal conductivity results and constitutive relationships proved that the use of PPCA enhanced the thermal insulation property and ductility of PPCA concrete, respectively. Eventually, a total of six concrete batches with binary blended PPCA and FA were cast to find the optimum replacement levels. The optimum binary combination with reasonable strength and workability at a minimal cost was achieved to be 10% PPCA and 20% FA.

Keywords

Polypropylene plastic coarse aggregates fly ash mechanical properties microstructural analysis thermal conductivity constitutive relationship

Highlights

• Thermal conductivity reduction of 39.4% was achieved with 30% polypropylene plastic coarse aggregate content compared to conventional concrete.

• Constitutive relationship showed that the ductile capacity increases as the polypropylene plastic coarse aggregate content increases.

• The addition of fly ash enhances the workability of polypropylene plastic coarse aggregate concrete.

• The optimum combination for sustainable concrete was 10% polypropylene plastic coarse aggregates and 20% fly ash.

Introduction

Worldwide growing need for concrete necessitates an annual requirement of 51.7 billion metric tons of natural aggregates in 2018,¹ and it is expected to reach 62.9 billion metric tons in 2024, consequently driving up the demand and cost of them.² In 2022, the total annual cement consumption reached 4.16 gigatons.³ Projections suggest that in 2050, cement demand will increase to 4.68 gigatons per year.⁴ Further, the primary challenge confronting the cement industry is to decrease CO₂ emissions while fulfilling global demand. Hence, the trend of utilizing waste materials instead of conventional concrete constituents is on the rise as it offers the dual benefit of mitigating environmental impact and lowering material scarcity and costs.

Currently, recycled crushed plastic waste aggregates are evolving as eco-friendly construction materials among researchers.^5–16 Global plastic production increased from about 348 million tons in 2017¹⁷ to about 400.3 million tons in 2022.¹⁸ Geyer¹⁹ estimated that the total plastic waste accumulation in landfills in 2050 will be about 12000 million metric tons. Therefore, utilizing plastic waste as aggregates through recycling presents a potential solution to address the natural aggregate scarcity and plastic waste management.²⁰ The primary benefits of using plastic waste in concrete include low unit weight, low cost, high sound insulation, and enhanced ductile behaviour.^21,22 Also, the thermal conductivity of concrete reduces as the plastic content increases.^23,24 In contrast, impaired compressive strength is the major drawback of plastic concrete. As per past studies, the reasons for impaired compressive strength are as follows:

• The bonding strength between plastic aggregate and cement paste is low.⁶

• The modulus of elasticity (MoE) of plastic aggregate is less than natural coarse aggregates (NCA).⁶

• The hydrophobic nature of plastic aggregate (causes for controlled cement hydration near the plastic aggregate’s surface).⁶

• Crack formation around plastic aggregates due to the variation of elastic modulus between plastic aggregates and surrounding cement paste.²⁵

The ability to use plastic aggregate concrete in structural applications decreases as the plastic replacement ratio increases.²⁶ Moreover, various types of plastic have a significant effect on the performance of concrete. For instance, different types of plastic resins have different densities which affect the unit weight of plastic concrete.^27,15 Additionally, the way plastic aggregates are produced, including both the direct utilization of shredded plastic and the altered plastic aggregates involving melting, cooling and crushing, has a substantial effect on concrete performance.⁷ Mohd Nasir²⁸ stated that the production of polymer concrete using modified waste plastic resin was uneconomical. Hence, shredding the plastic waste and directly adding it to concrete or mortar is an economical way of recycling.²⁹ Prior to its direct incorporation into concrete, plastic waste undergoes a recycling process comprising collection, cleaning, sorting, shredding, washing, and drying. According to Ono,³⁰ small-scale recycling centres in Sri Lanka recycle more polypropylene (PP) waste than other types of plastics because of the easiness during collection and availability of waste. In a global scale, PP plastic accounts for highest proportion in plastic waste accumulation among various plastic resins.⁷ Hence, the current study focused on PP plastic coarse aggregates (PPCA) for the investigation. Further, the current study examined the direct inclusion of shredded plastic waste as aggregates, acknowledging its potential environmental and cost benefits than altered plastic aggregates, i.e., the production of altered plastic aggregates may involve greenhouse gas emissions and energy consumption during the modification process.

On a global scale, coal-fired electricity production results in more than 500 million tons of fly ash (FA) annually, with just 25 to 30% being reused across various industries.³¹ Despite its existing usage in cement industries, there is a need to amplify its application. The environmental threats due to the dumping of FA in landfills include air pollution, water pollution and soil contamination.³² Reusing FA as cement replacement decreases the cement production, cost of concrete production and land space required for dumping.³³ Moreover, addition of FA in cement reduces the heat of hydration and increases the durability.³⁴ In this context, the current study utilizes pozzolanic material like FA as a partial replacement for cement in PPCA concrete (PPCAC) and evaluates the synergistic effect of PPCA and FA in concrete. Considerable attention was given towards PPCA, as there was sufficient study done for FA. The novelty of this research work lies in using FA to improve the workability which was adversely affected by the addition of PPCA in PPCAC. As such, this study will attempt to recommend an optimum combination for binary addition of PPCA and FA.

Research significance

This study utilizes two major solid wastes in Sri Lanka such as recycled plastic waste and industrial by-product – FA to produce sustainable concrete with the aim of mitigating the waste management problems and contributing to the economic development of the country. Researchers around the globe are actively pursuing ways to reduce the natural aggregate depletion and carbon footprint associated with concrete production. The current study also contributes significantly to these endeavours. Furthermore, existing past studies primarily highlight the benefits of individual incorporation of plastic aggregates and FA as concrete constituents. Only a few studies have addressed the synergistic effects of the binary addition of PPCA and FA,¹⁰ and none have explored the optimal combination for binary blended sustainable concrete (BBSC). Hence, the current study fills this significant research gap.

Experimental program

Methodology

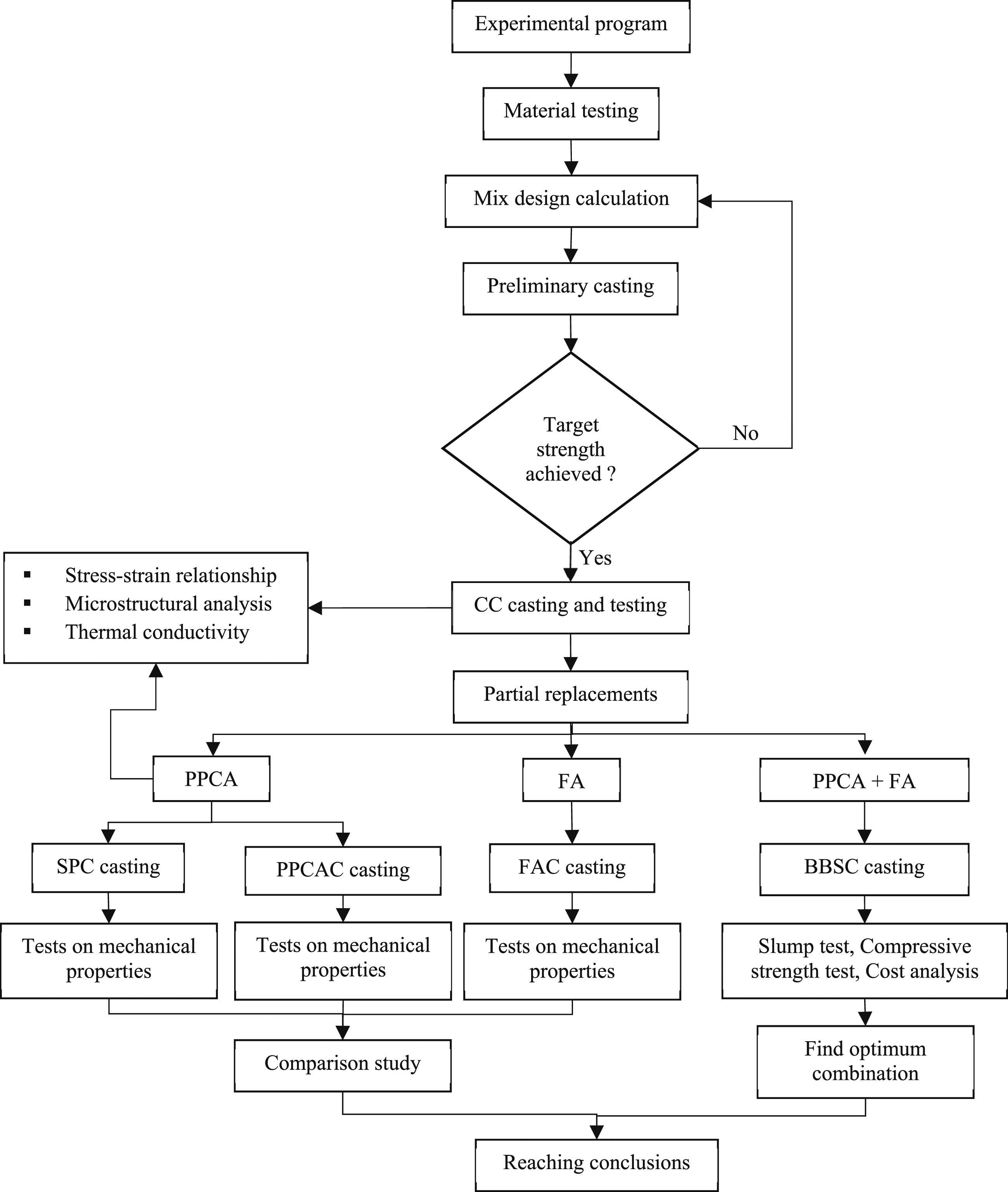

Figure 1 shows the adopted methodology. Initially, material collection, material testing, mix proportioning and preliminary castings for the selection of mix proportion were carried out. Material testing was carried out to find the suitability of the materials to use in concrete. Then, experimental work was carried out under two major categories such as PPCAC and FA concrete (FAC), on the impact of fresh and hardened properties of concrete. A major consideration was given to PPCAC by investigating thermal conductivity behaviour and stress–strain relationship, as its application is still questionable in the construction industry. The PPCA was used to partially replace the NCA volumetrically with replacement levels of 0%, 10%, 20%, and 30%. FA was used to replace 0%, 10%, and 20% of cement by weight. Here, a replacement level of 0% denotes the conventional concrete (CC) that was cast to compare the performance over PPCAC and FAC. Through this comparison study, possible improvements or reductions in the performance of concrete can be investigated. Further, the addition of superplasticizer (SP) in the performance of PPCAC was examined. Here, the homogeneous distribution of the PPCA in superplasticized concrete (SPC) is also discussed.

Figure 1.

Flowchart for the adopted methodology.

The combined addition of PPCA and FA was carried out to produce BBSC. After that, using mechanical performance and cost analysis, a suitable combination of PPCA and FA was proposed as sustainable concrete.

Materials

Cement

Ordinary Portland Cement of CEM I 42.5N classification was utilized for all the mixtures.

Fine aggregate

River sand was used as the natural fine aggregates. It had maximum particle sizes of 4.75 mm. Some important properties of river sand are presented in Table 1. The gradation curve for the sand is shown in Figure 2. It shows that the particles are well-graded to utilize in concrete satisfying the ASTM C33-18³⁵ standard limits.

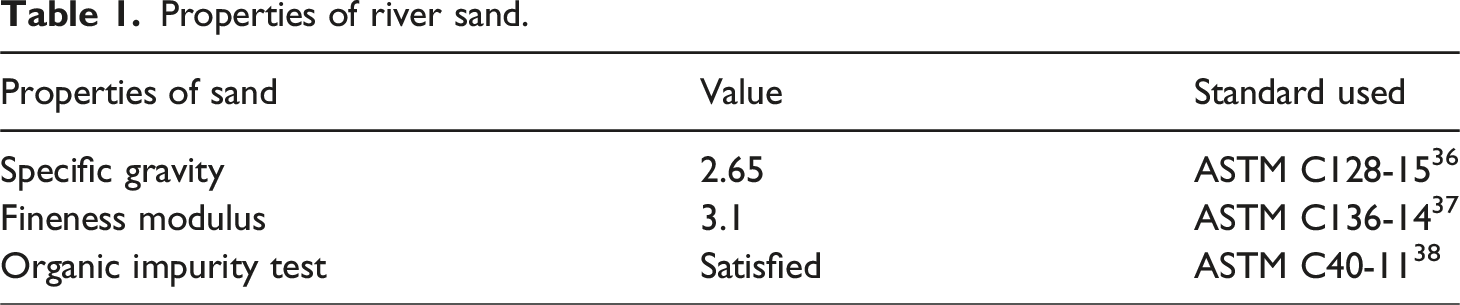

Table 1.

Properties of river sand.

Properties of sand	Value	Standard used
Specific gravity	2.65	ASTM C128-15³⁶
Fineness modulus	3.1	ASTM C136-14³⁷
Organic impurity test	Satisfied	ASTM C40-11³⁸

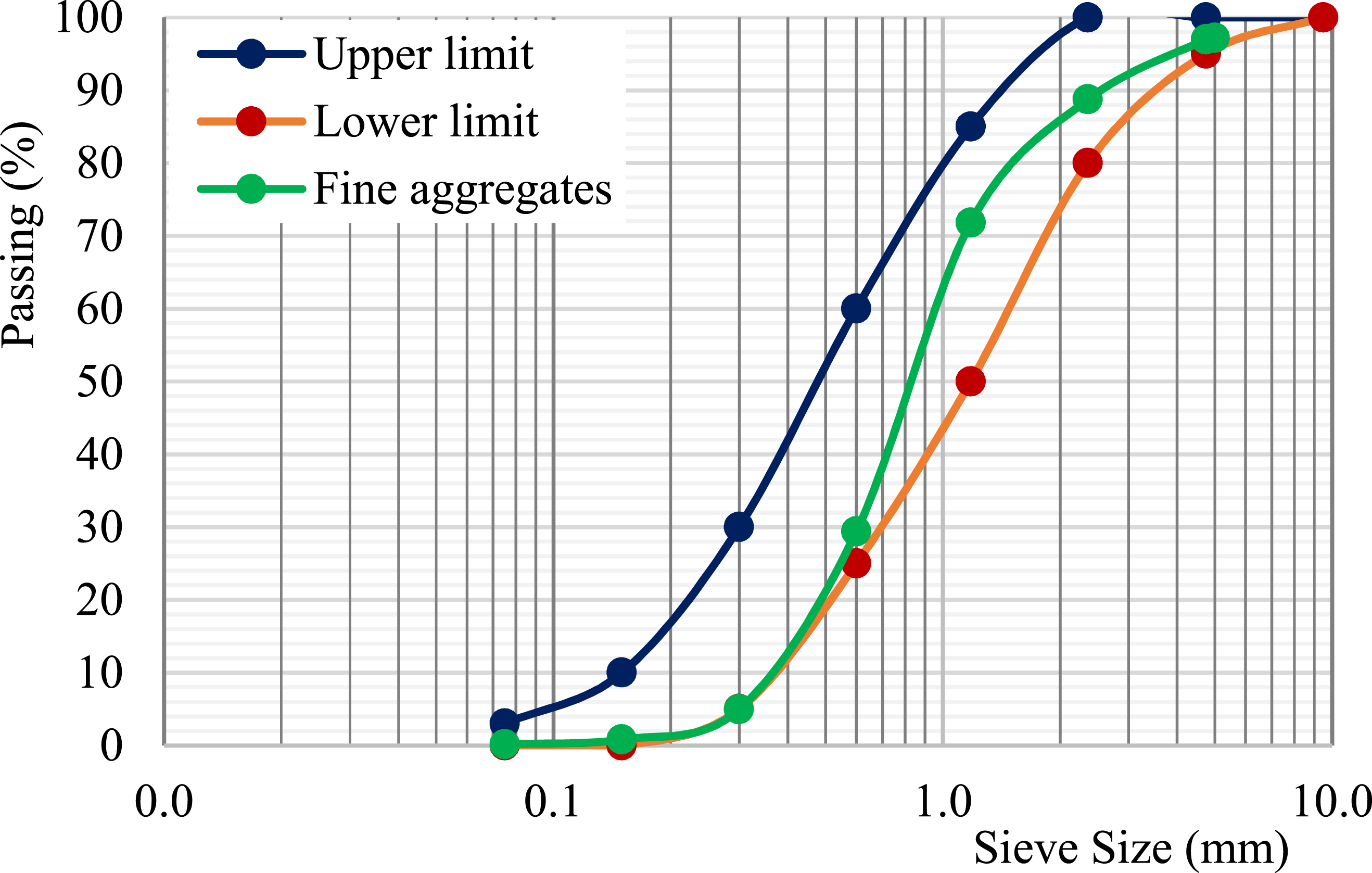

Figure 2.

Particle size distribution of fine aggregate.

Coarse aggregate

NCA: Crushed rock of nominal maximum size of 12.5 mm was used as NCA. The properties of coarse aggregates used are given in Table 2. Most of the tests were conducted conforming to ASTM standards. Further, these NCA were kept in saturated surface dry condition (SSD) during mixing.

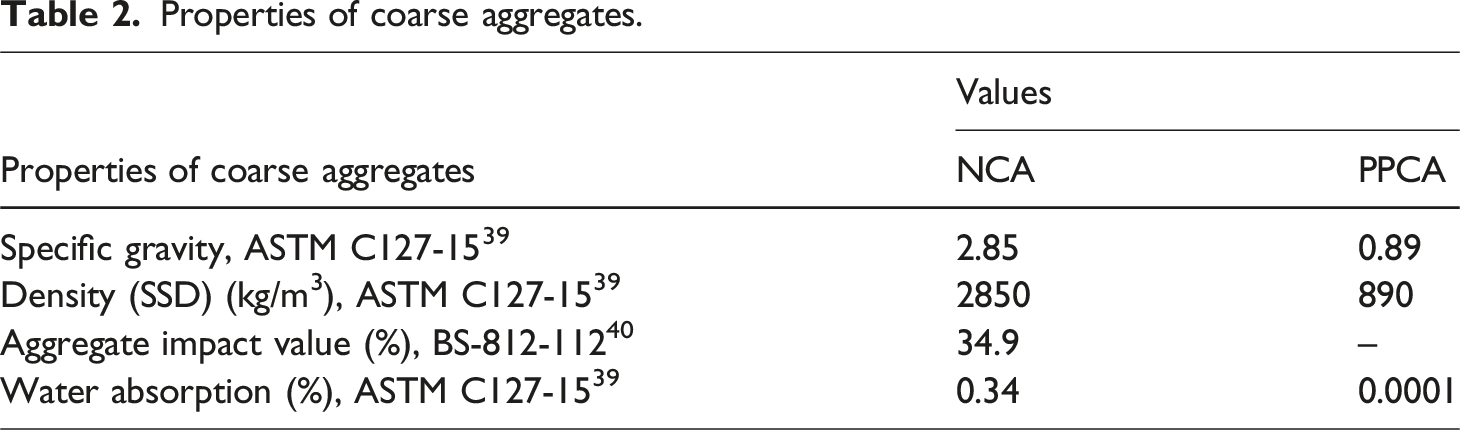

Table 2.

Properties of coarse aggregates.

Properties of coarse aggregates	Values
Properties of coarse aggregates	NCA	PPCA
Specific gravity, ASTM C127-15³⁹	2.85	0.89
Density (SSD) (kg/m³), ASTM C127-15³⁹	2850	890
Aggregate impact value (%), BS-812-112⁴⁰	34.9	–
Water absorption (%), ASTM C127-15³⁹	0.34	0.0001

PPCA: Recycled crushed plastic waste was utilized as coarse aggregate in this research work. These PPCAs as displayed in Figure 3 were acquired from the plastic and polythene waste recycling centre, Gohagoda, Kandy municipal council, Sri Lanka. PPCA was made by shredding waste plastic into small pieces using a mechanically operated plastic shredder. The physical properties of PPCA can be seen in Table 2. Most of these properties were evaluated in accordance with ASTM standards.

Figure 3.

Recycled crushed polypropylene plastic coarse aggregates.

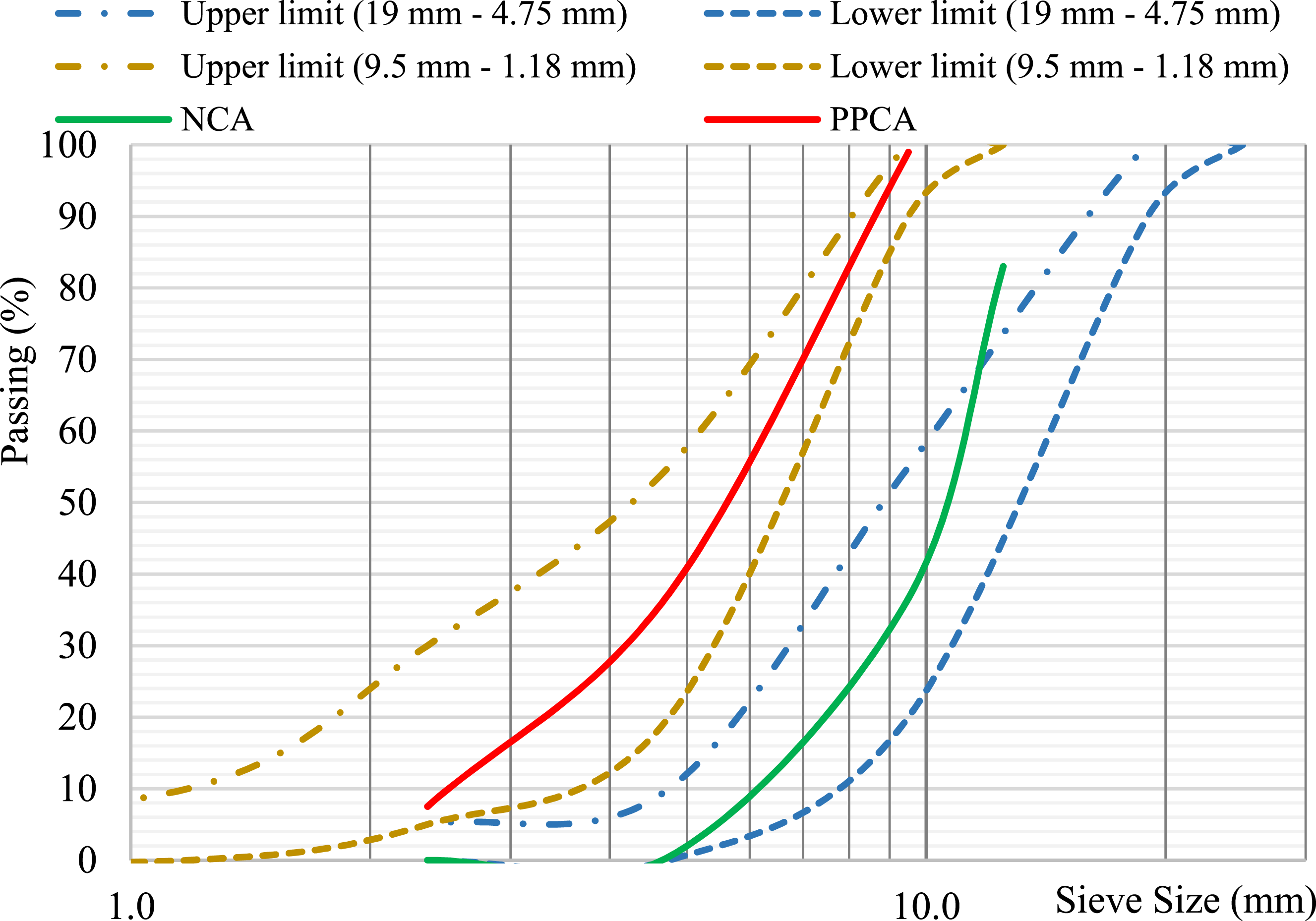

The particle size distribution of PPCA and NCA along with ASTM C33-18³⁵ standard limits are shown in Figure 4. Here, it should be noted that the gradation curves of PPCA and NCA lie within the coarse aggregate limits of 9.5 mm - 1.18 mm and 19 mm - 4.75 mm, respectively. Thereby, during the replacement more medium size PPCAs were added to concrete in place of regular size NCAs. In addition, PPCAs were sieved through a 4.75 mm sieve to eliminate the aggregates size less than 4.75 mm.

Figure 4.

Particle size distribution of coarse aggregates along with ASTM standard limits.

Fly ash

FA (Class F) having a specific gravity of 2.1 was collected from a cement manufacturer in Sri Lanka. The source of the raw FA is the Norochcholai Lakvijaya coal power plant in Puttalam, Sri Lanka. The chemical composition and particle size distribution of FA are shown in Table 3 and Figure 5, respectively.

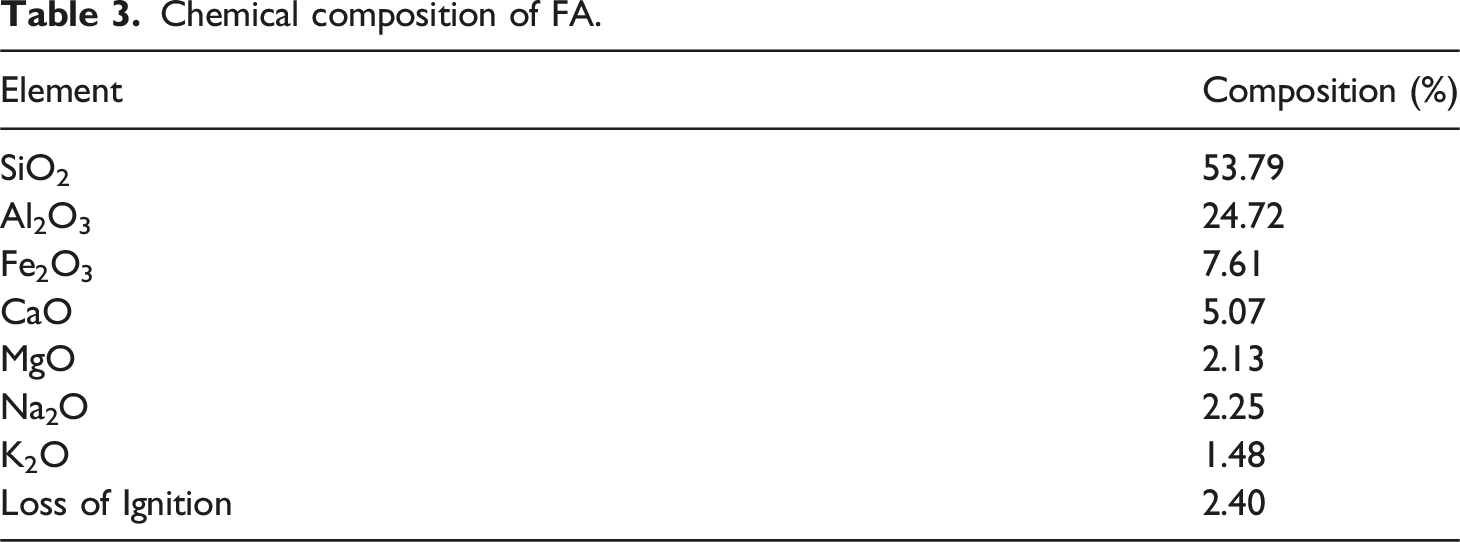

Table 3.

Chemical composition of FA.

Element	Composition (%)
SiO₂	53.79
Al₂O₃	24.72
Fe₂O₃	7.61
CaO	5.07
MgO	2.13
Na₂O	2.25
K₂O	1.48
Loss of Ignition	2.40

Figure 5.

Particle size distribution of fly ash.

Water

Regular portable water was used for the mixing and curing of concrete.

Superplasticizer

A high-range water-reducing Plastobuild ES type SP was used to evaluate the performance of PPCA in SPC. The SP met the requirements of the ASTM C494⁴¹ standard.

Mix proportioning

Concrete mix design was performed using ACI 211.1-91⁴² standard for normal strength concrete with mean target cube strength ranging from 40 to 45 MPa for CC. The water/binder (W/B) ratio was kept at 0.55. This mix design with traditional concrete constituents was considered as CC (PP0%). Here, 0%, 10%, 20%, and 30% of NCA were replaced with PPCA and the batches were named as PPX%, here the variable X indicates the replacement levels of PPCA, i.e. X: 0, 10, 20, 30. Likewise, another three batches (named as PPX%-SPY, the variable Y indicates the SP dosages in litres per 100 kg cementitious material, i.e. Y: 0.1, 0.2, 0.3, 0.4) were produced where Plastobuild ES type SP was added to see the performance of PPCA in SPC. For the FAC, two batches were made named as FAZ%, here variable Z indicates the replacement levels of FA, i.e. Z: 10, 20. Hence, a total of 10 batches were assessed and their mix proportions are presented in Table 4. The details related to the binary addition of PPCA and FA are presented in Section of Binary addition of PPCA and FA.

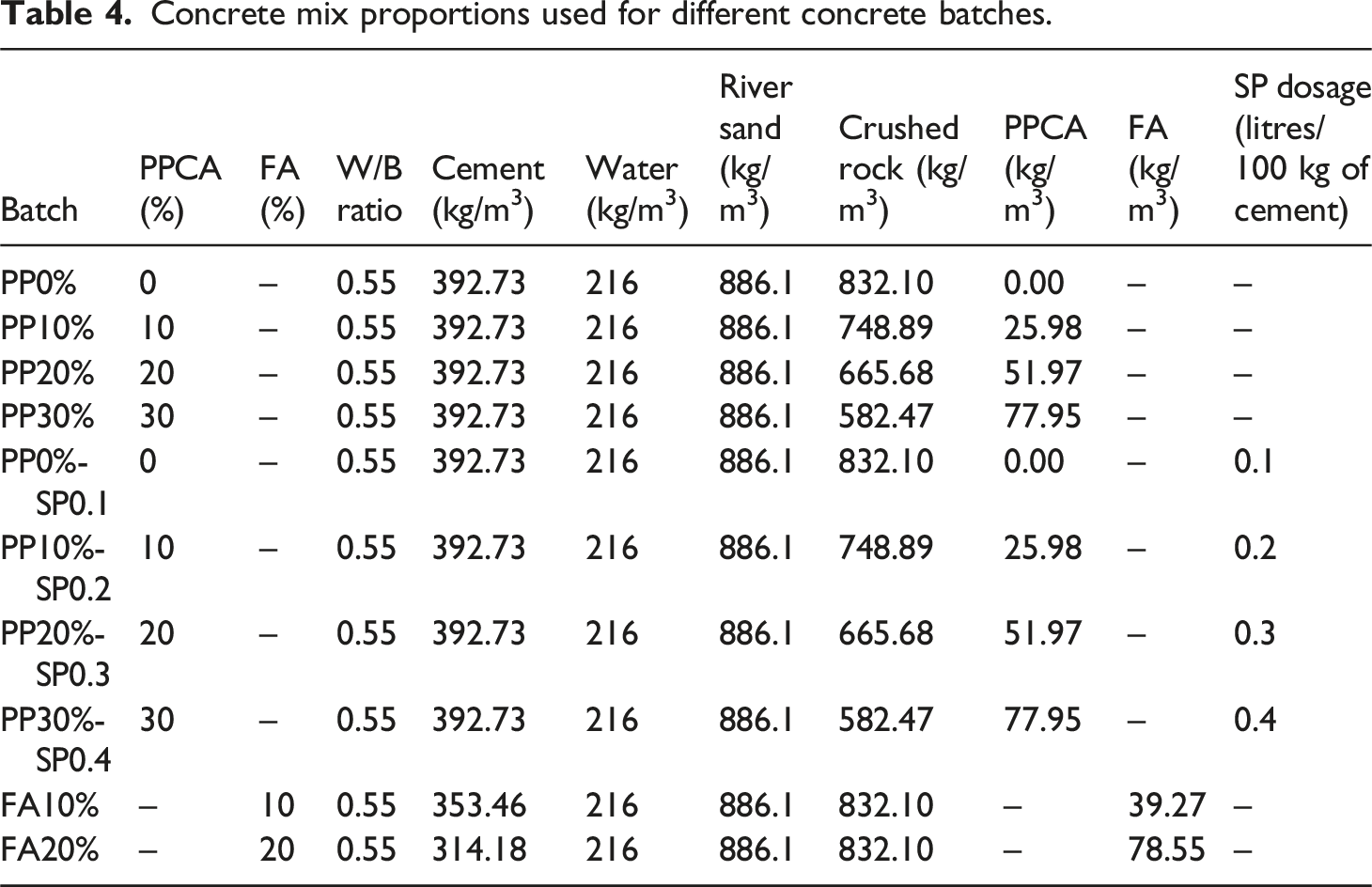

Table 4.

Concrete mix proportions used for different concrete batches.

Batch	PPCA (%)	FA (%)	W/B ratio	Cement (kg/m³)	Water (kg/m³)	River sand (kg/m³)	Crushed rock (kg/m³)	PPCA (kg/m³)	FA (kg/m³)	SP dosage (litres/100 kg of cement)
PP0%	0	–	0.55	392.73	216	886.1	832.10	0.00	–	–
PP10%	10	–	0.55	392.73	216	886.1	748.89	25.98	–	–
PP20%	20	–	0.55	392.73	216	886.1	665.68	51.97	–	–
PP30%	30	–	0.55	392.73	216	886.1	582.47	77.95	–	–
PP0%-SP0.1	0	–	0.55	392.73	216	886.1	832.10	0.00	–	0.1
PP10%-SP0.2	10	–	0.55	392.73	216	886.1	748.89	25.98	–	0.2
PP20%-SP0.3	20	–	0.55	392.73	216	886.1	665.68	51.97	–	0.3
PP30%-SP0.4	30	–	0.55	392.73	216	886.1	582.47	77.95	–	0.4
FA10%	–	10	0.55	353.46	216	886.1	832.10	–	39.27	–
FA20%	–	20	0.55	314.18	216	886.1	832.10	–	78.55	–

Mixing of concrete

Mixing was done using a pan type of concrete mixer and the procedure given in ASTM C192/C192M-02⁴³ standard was adopted with slight modifications. Initially, all dry constituents such as NCA (PPCA was added for PPCAC batches), river sand and cement (FA was added for FAC batches) were thoroughly mixed. Then, half of the mixing water was added and mixed for 3 min (SP was dispersed in the mixing water at this stage for SPC batches). After that, the rest of the water was added and mixed for another 3 min. Finally, the mixer was stopped, and remixing was carried out by trowel for 2 min to ensure uniform mixing of concrete. Here, the fine aggregate was kept in dry condition during mixing and the coarse aggregate was maintained under the SSD condition (pre-soaked in water for 24 h and surface water was removed just before mixing).

Specimen fabrication

Upon mixing of concrete, workability and fresh density were measured. In each batch, nine concrete cube specimens of size 100 mm × 100 mm × 100 mm for cube compressive strength test and dry density test; one additional cube specimen was cast to observe the PPCA arrangement inside the specimen; four cylinder specimens of diameter 150 mm and height 300 mm for MoE test and splitting tensile strength (STS) test; three prisms of size 100 mm × 100 mm × 500 mm for flexural strength test; and six cylinder specimens of diameter 100 mm and height 200 mm to obtain stress–strain relationship and to get samples for microstructural and thermal analysis were cast into respective steel moulds as shown in Figure 6. During the casting freshly mixed concrete was poured layer by layer into steel moulds. Standard hand compaction was applied for each layer because, during the trial preliminary castings of highly workable concrete it was observed that the PPCA tended to float when applying compaction using a vibrating table and resulted in a nonuniform distribution of PPCA as per Figure 7. Therefore, hand compaction was done carefully to produce a uniform mix and SP dosage was limited to prevent the segregation of PPCA.

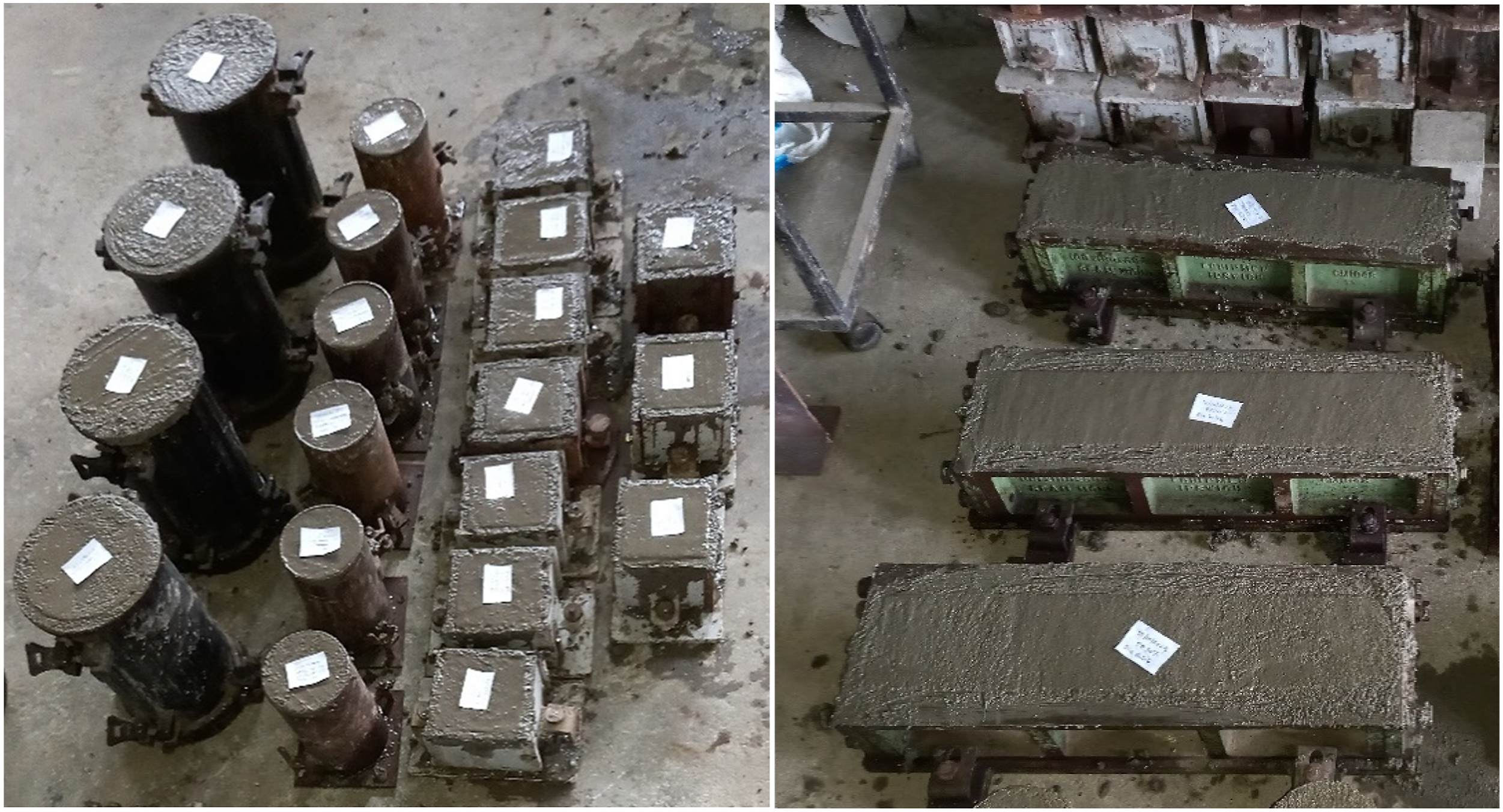

Figure 6.

Fabricated specimens for PP30% batch.

Figure 7.

Top surface of cube specimen with floated PPCA after compaction using a vibrating table.

After that, the specimens were covered using a polythene sheet, and to maintain the humidity, a bowl with water was placed inside the cover. Then, the samples were allowed to harden for 24 h in the laboratory environment before demoulding. Next, curing was done by submerging the hardened concrete specimens in the water tank until the day of testing. For each test, three specimens were cast and tests on these specimens were carried out at 28-days. Additionally, 7-days test was carried out for the compressive strength test.

Binary addition of PPCA and FA

A total of six concrete batches were made with various replacement levels of PPCA and FA as shown in Table 5. Further, workability and compressive strength were investigated in each batch and no SP was used. The nomenclature for each batch was used as PPX%-FAZ%.

Table 5.

Combinations used for binary addition.

		FA replacement level (%)
		10	20
PPCA replacement level (%)	10	PP10%-FA10%	PP10%-FA20%
	20	PP20%-FA10%	PP20%-FA20%
	30	PP30%-FA10%	PP30%-FA20%

Testing of concrete

The method of testing and respective standards to find short-term mechanical performance of concrete batches are presented in this section.

Fresh concrete properties

The consistency of freshly mixed concrete was assessed through the standard slump cone test conforming to ASTM C143/C143M⁴⁴ standard. Figure 8(a) and (b) show the slump measurements of PPCAC (PP30%) and FAC (FA20%), respectively. In addition, wet density was measured conforming to ASTM C138/C138 M⁴⁵ standard.

Figure 8.

Slump of (a) Polypropylene plastic coarse aggregate concrete, (b) Fly ash concrete.

Hardened concrete properties

The dry density of concrete was measured as per the ASTM C642-13⁴⁶ standard using the 100 mm cube specimens. The compressive strengths of the cube specimens were determined at 7 and 28 days using a 3000 kN universal compressive testing machine at a loading rate of 2.5 kN/s conforming to EN 12 390-3⁴⁷ standard. STS tests for all concrete batches were performed as per ASTM C496/C496M⁴⁸ standard. A centre point loading test of simple beams as per ASTM C293/C293M⁴⁹ standard was conducted to assess the flexural strength. ASTM C469/C469M⁵⁰ standard was followed to find the MoE of concrete.

Microstructural analysis was performed to investigate the bond strength of the interfacial transition zone (ITZ) between cement paste and coarse aggregates. Scanning electron microscopical (SEM) analysis was used for this purpose. Additionally, SEM images of FA and cement particles were examined. During the sample preparation of solid concrete, a sample size of less than 10 mm × 10 mm × 5 mm was obtained due to the restriction of the electron microscope chamber of the SEM machine. These samples were exposed to an oven temperature of about 50°C for at least 1 h to remove moisture from them before the SEM analysis. However, powder samples such as FA and cement were employed directly without any alternation. Afterwards, samples were mounted securely on a holder with carbon tape and dried using an air dryer. Then, they underwent vacuum treatment to remove moisture and received a gold-palladium coating with sputter coater for conductivity and imaging enhancement. Eventually, coated samples were transferred to the SEM chamber for imaging with electron beams by adjusting magnification for analysis.

Thermal conductivity analysis

The thermal conductivity of the composites was measured using THERMTEST TLS 100 transient thermal conductivity meter with a 50 mm needle probe, based on the ASTM D5334–14⁵¹ standard. For the sample preparation, 100 mm concrete cubes were cut using a diamond blade concrete saw, to make small cubes with the size of 50 mm × 50 mm × 60 mm. Then, a 4 mm diameter with a 50 mm length hole was made at the centre of the face of the 50 mm × 50 mm side. Afterwards, a probe was inserted in the hole and thermal conductivity was measured following the standard procedure.

Stress–strain relationship

The stress–strain variations of CC and PP30% concrete batches were assessed using three replicates of 100 mm × 200 mm concrete cylinders. Two strain gauges, each with a length of 90 mm, were externally mounted in pairs at equal intervals along the mid-height and opposite ends of the specimen’s surface, aligned with its longitudinal direction. The compressive loading test using ASTM C39/C39 M-09a⁵² standard was conducted with a constant load rate of 0.25 MPa/s.

Results and discussion

The results obtained from experimental work are shown in Table 6 for PPCAC, Table 7 for SPC and Table 8 for FAC in comparison with CC (PP0%). Additionally, the mean, standard deviation (SD), and coefficient of variation (COV) are displayed in the tables to assess the material variability statistically. They show that the material property differences between PP0% batch and other sustainable concrete batches are larger than the SD except for fewer batches. Therefore, the property variation due to the addition of sustainable alternatives are statistically significant for most of the batches. When considering 7-days and 28-days compressive strength, the COV limit of about 15% is typical for strength.⁵³ However, none of the sustainable concrete batches satisfy the limit. Therefore, 7-days and 28-days compressive strengths are not identical. They depend on the variables such as PPCA, PPCA with SP and FA.

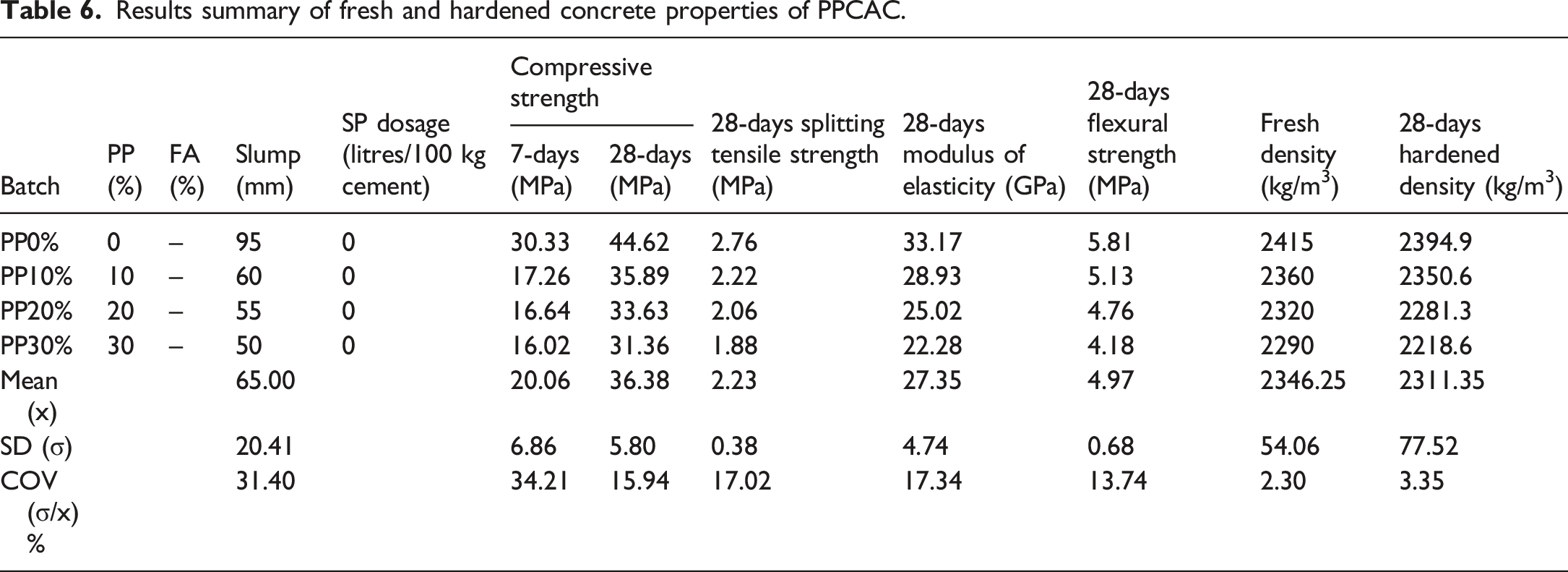

Table 6.

Results summary of fresh and hardened concrete properties of PPCAC.

Batch	PP (%)	FA (%)	Slump (mm)	SP dosage (litres/100 kg cement)	Compressive strength		28-days splitting tensile strength (MPa)	28-days modulus of elasticity (GPa)	28-days flexural strength (MPa)	Fresh density (kg/m³)	28-days hardened density (kg/m³)
Batch	PP (%)	FA (%)	Slump (mm)	SP dosage (litres/100 kg cement)	7-days (MPa)	28-days (MPa)	28-days splitting tensile strength (MPa)	28-days modulus of elasticity (GPa)	28-days flexural strength (MPa)	Fresh density (kg/m³)	28-days hardened density (kg/m³)
PP0%	0	–	95	0	30.33	44.62	2.76	33.17	5.81	2415	2394.9
PP10%	10	–	60	0	17.26	35.89	2.22	28.93	5.13	2360	2350.6
PP20%	20	–	55	0	16.64	33.63	2.06	25.02	4.76	2320	2281.3
PP30%	30	–	50	0	16.02	31.36	1.88	22.28	4.18	2290	2218.6
Mean (x)			65.00		20.06	36.38	2.23	27.35	4.97	2346.25	2311.35
SD (σ)			20.41		6.86	5.80	0.38	4.74	0.68	54.06	77.52
COV (σ/x) %			31.40		34.21	15.94	17.02	17.34	13.74	2.30	3.35

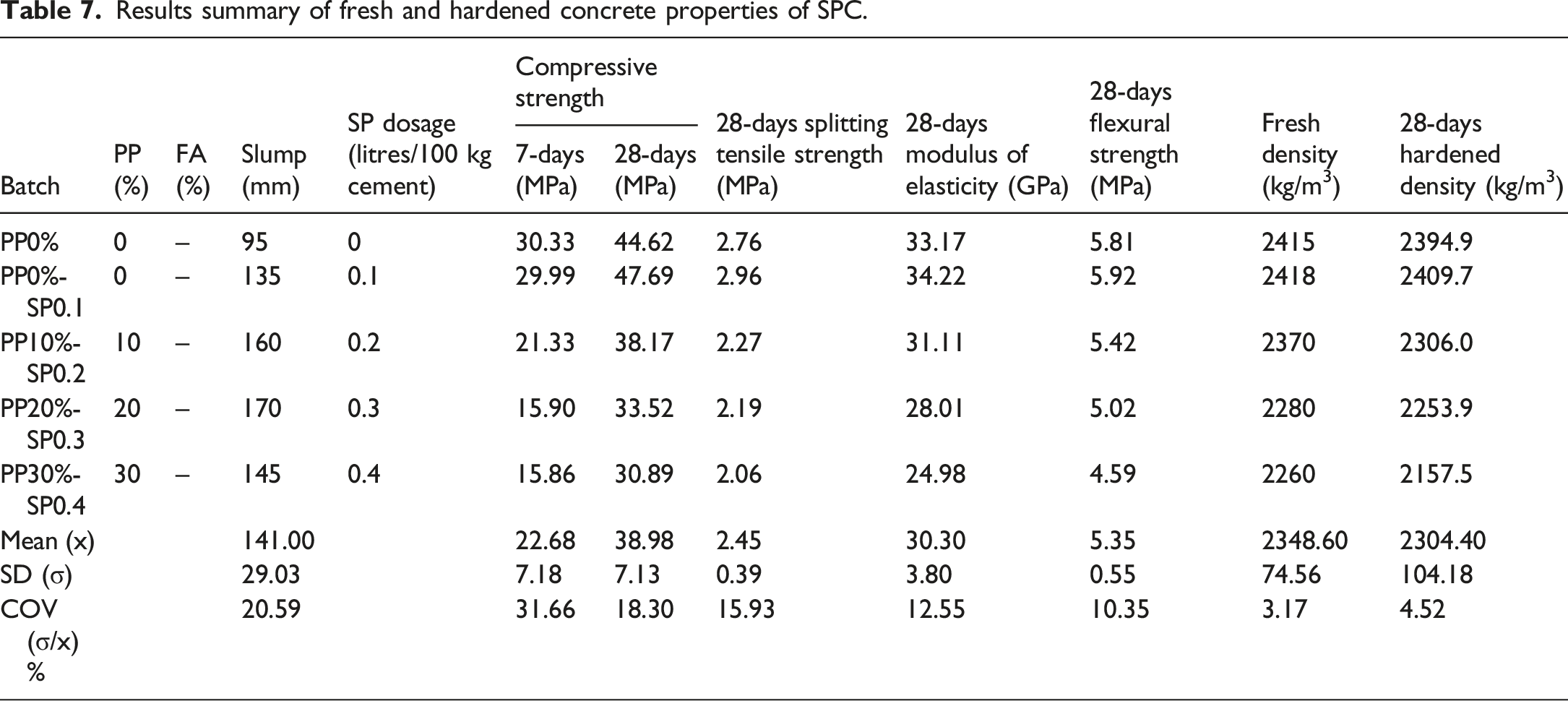

Table 7.

Results summary of fresh and hardened concrete properties of SPC.

Batch	PP (%)	FA (%)	Slump (mm)	SP dosage (litres/100 kg cement)	Compressive strength		28-days splitting tensile strength (MPa)	28-days modulus of elasticity (GPa)	28-days flexural strength (MPa)	Fresh density (kg/m³)	28-days hardened density (kg/m³)
Batch	PP (%)	FA (%)	Slump (mm)	SP dosage (litres/100 kg cement)	7-days (MPa)	28-days (MPa)	28-days splitting tensile strength (MPa)	28-days modulus of elasticity (GPa)	28-days flexural strength (MPa)	Fresh density (kg/m³)	28-days hardened density (kg/m³)
PP0%	0	–	95	0	30.33	44.62	2.76	33.17	5.81	2415	2394.9
PP0%-SP0.1	0	–	135	0.1	29.99	47.69	2.96	34.22	5.92	2418	2409.7
PP10%-SP0.2	10	–	160	0.2	21.33	38.17	2.27	31.11	5.42	2370	2306.0
PP20%-SP0.3	20	–	170	0.3	15.90	33.52	2.19	28.01	5.02	2280	2253.9
PP30%-SP0.4	30	–	145	0.4	15.86	30.89	2.06	24.98	4.59	2260	2157.5
Mean (x)			141.00		22.68	38.98	2.45	30.30	5.35	2348.60	2304.40
SD (σ)			29.03		7.18	7.13	0.39	3.80	0.55	74.56	104.18
COV (σ/x) %			20.59		31.66	18.30	15.93	12.55	10.35	3.17	4.52

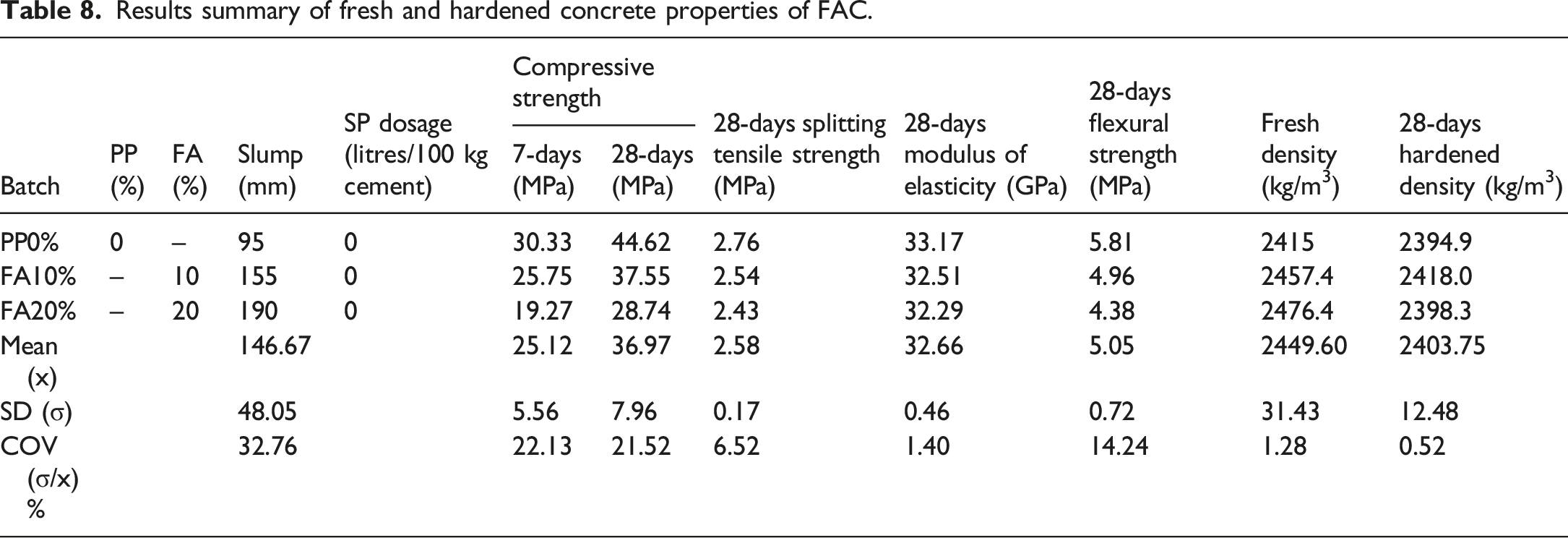

Table 8.

Results summary of fresh and hardened concrete properties of FAC.

Batch	PP (%)	FA (%)	Slump (mm)	SP dosage (litres/100 kg cement)	Compressive strength		28-days splitting tensile strength (MPa)	28-days modulus of elasticity (GPa)	28-days flexural strength (MPa)	Fresh density (kg/m³)	28-days hardened density (kg/m³)
Batch	PP (%)	FA (%)	Slump (mm)	SP dosage (litres/100 kg cement)	7-days (MPa)	28-days (MPa)	28-days splitting tensile strength (MPa)	28-days modulus of elasticity (GPa)	28-days flexural strength (MPa)	Fresh density (kg/m³)	28-days hardened density (kg/m³)
PP0%	0	–	95	0	30.33	44.62	2.76	33.17	5.81	2415	2394.9
FA10%	–	10	155	0	25.75	37.55	2.54	32.51	4.96	2457.4	2418.0
FA20%	–	20	190	0	19.27	28.74	2.43	32.29	4.38	2476.4	2398.3
Mean (x)			146.67		25.12	36.97	2.58	32.66	5.05	2449.60	2403.75
SD (σ)			48.05		5.56	7.96	0.17	0.46	0.72	31.43	12.48
COV (σ/x) %			32.76		22.13	21.52	6.52	1.40	14.24	1.28	0.52

Workability

The workability of PPCAC decreased with the increased content of PPCA (Figure 9). The loss of workability was mainly attributed to the presence of irregular shape PPCA with considerably sharp edges. When 10% of PPCA was added to CC, workability reduced drastically by about 37%. Succeeding PPCA additions however resulted in relatively lower reduction of slump: about 5% for each 10% PPCA increment. This particular scenario was observed to coincide with many of the past studies that used irregular shapes and sharp PPCA.^6,11,54 In contrast, some other studies observed an opposite behaviour between the workability and the addition of PPCA when compared to CC. The literature has attributed such behaviour to the presence of excess water in the matrix of PPCAC, resulting from the hydrophobic nature of PPCA which led to a nearly zero water absorption capacity.^11,13 In the current study, the effects on workability by the irregular shape/sharp PPCA should have dominated over the hydrophobicity property of PPCA.

Figure 9.

Slump variation with increasing PPCA and FA replacement levels.

On the other hand, the addition of FA from 10% to 20% increased the workability considerably as per Figure 9. It was attributed to the spherical shape and fine size of FA particles when compared to cement particles. It can be validated using the microstructural analysis as presented in Section of Microstructural analysis. When considering SPC with PPCA, the slump was maintained at 150 mm ± 25 mm for all batches by adjusting the SP dosages as shown in Figure 9. Therefore, the use of SP has a notable positive effect on the workability of PPCAC, making it possible to maintain the slump value within a target range. A small SP dosage of 0.4 L per 100 kg of cement, improved the workability of PP30% concrete from 50 mm to 145 mm. Thus, the challenge of reduced workability from the inclusion of PPCA can be overcome by incorporating SP. However, overdosage of SP was not advisable, as discussed in Section of Specimen fabrication.

In BBSC batches, the results from the slump test for various combinations of PPCA and FA batches are given in Table 9. It indicates that the workability increases as the FA content increases. Further, workability of all PPX%-FAZ% batches are higher than the respective PPX% batches. Therefore, the addition of SP to enhance the workability can be prevented during the binary addition. Furthermore, binary addition of 30% of PPCA and FA increased the workability by 50% and 90% for FA replacement levels of 10% and 20% respectively when compared with PP30% batch.

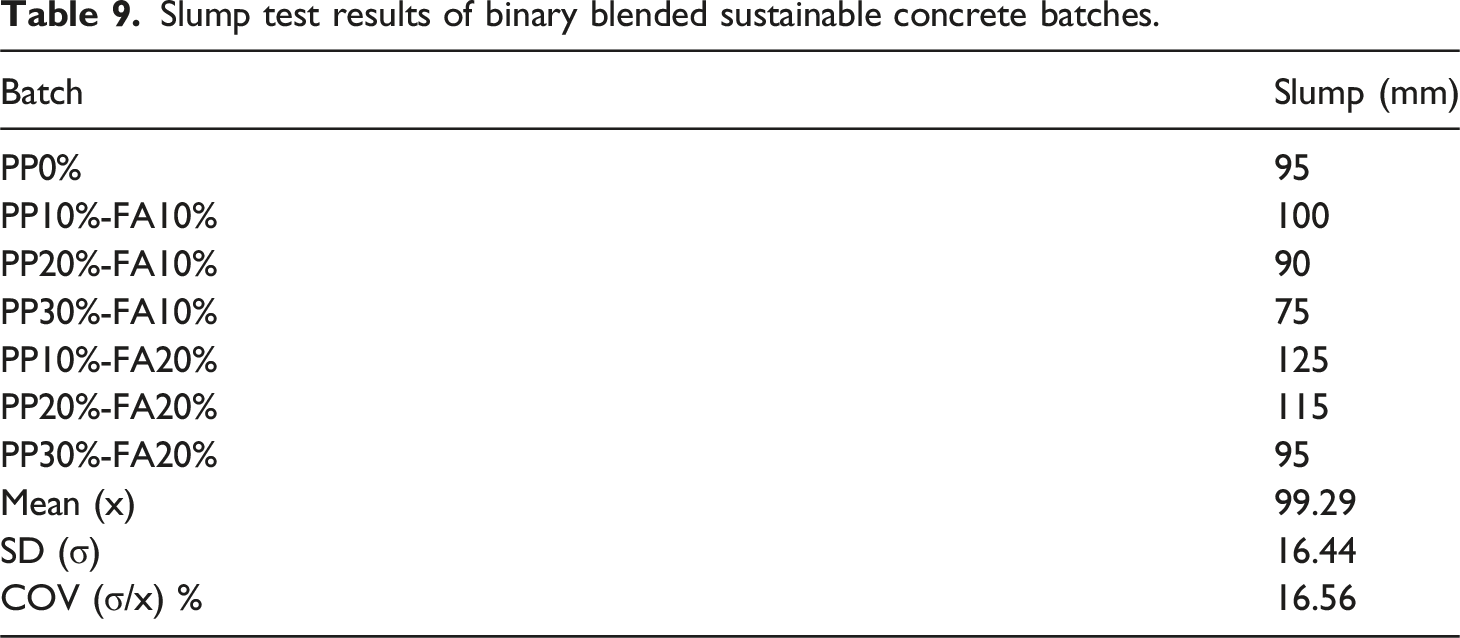

Table 9.

Slump test results of binary blended sustainable concrete batches.

Batch	Slump (mm)
PP0%	95
PP10%-FA10%	100
PP20%-FA10%	90
PP30%-FA10%	75
PP10%-FA20%	125
PP20%-FA20%	115
PP30%-FA20%	95
Mean (x)	99.29
SD (σ)	16.44
COV (σ/x) %	16.56

Concrete density

The behaviours over PPCA content on the density properties of CC and SPC are reported in Figure 10 for the wet and dry densities. When using 10%, 20%, and 30% of PPCA, 2.1%, 3.7%, and 5% of wet density reduction and 1.8%, 4.7%, and 7.4% of dry density reduction from CC were obtained. It was attributed to the low unit weight and specific gravity of PPCA when compared to NCA.^6,8,20,13 Here, the maximum hardened density reduction was achieved at a high replacement level of 30% and the value of density was 2218.6 kgm⁻³. Possibilities for the application of PPCAC as lightweight concrete should be considered to make use of the density reduction. According to EN 206-1: 2014,⁵⁵ a bulk density of less than 2000 kgm⁻³ can be classified as lightweight concrete. Hence, the density reductions up to 30% replacement levels were not adequate to be taken as lightweight concrete. To obtain lightweight concrete, the PPCA replacement level should be approximately more than 75% and further research is needed in this area. For the FAC, the wet density increases continuously as the FA content increases from 0% to 20%. But there is not much difference in the dry density with the addition of FA in concrete as displayed in Figure 10.

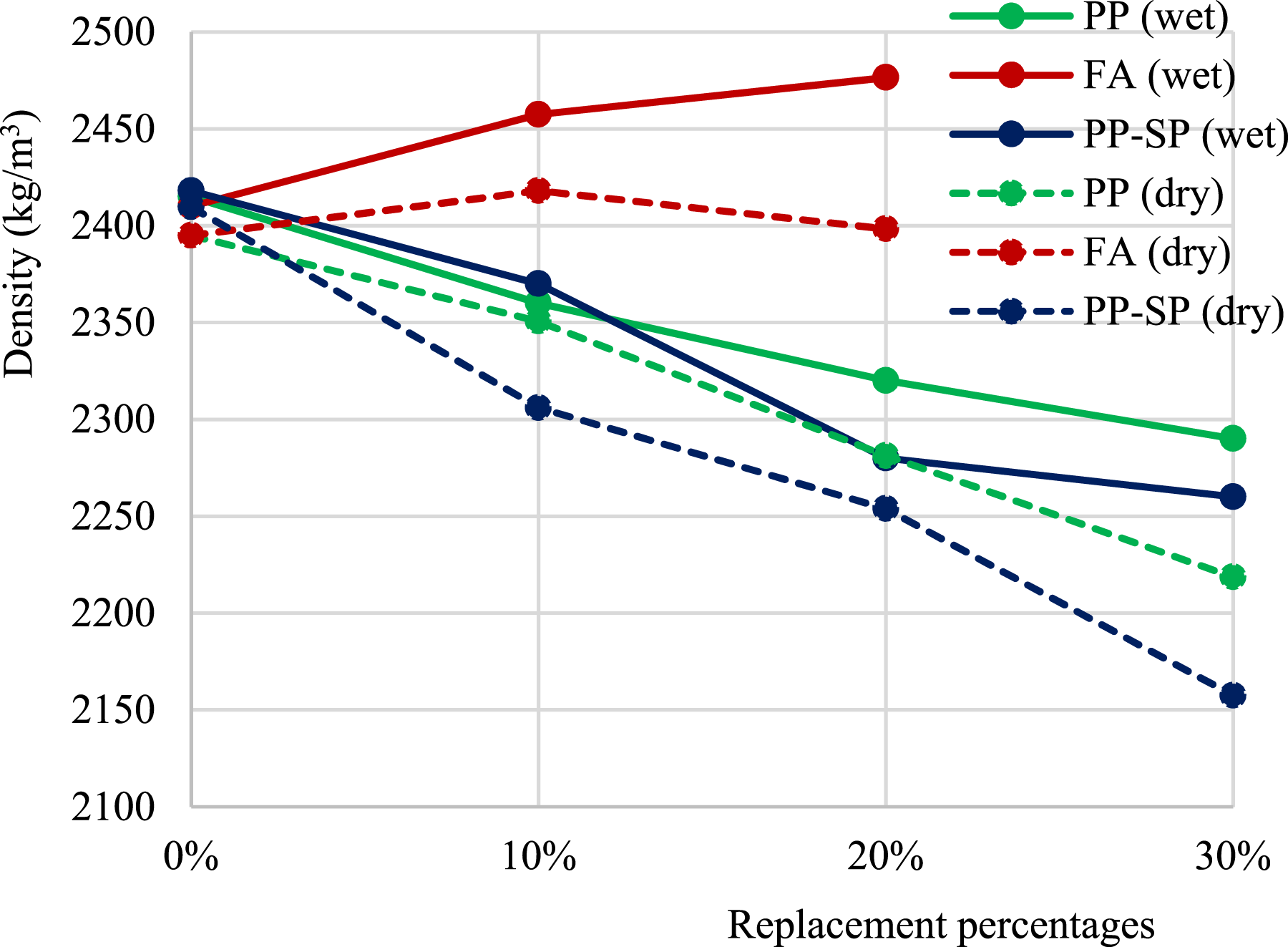

Figure 10.

Wet and dry density variations with increasing PPCA and FA replacement levels.

Compressive strength

Regardless of the concrete type (CC or SPC), increasing replacement levels of PPCA reduced the 7-days and 28-days cube compressive strength as shown in Figure 11. It was mainly attributed to the weak bonding between PPCA, and cement paste as there was not any chemical reaction. Most of the past studies also reported similar behaviour.^{6,56,8,11,10,13,56,16} The 28-days compressive strength of CC came out to be 44.6 MPa (average of three cube specimens). In relation to CC, 28-days compressive strength exhibited a reduction of 19.6%, 24.6%, and 29.7% at 10%, 20%, and 30% replacement levels of PPCA, respectively. The performance of PPCA within the SPC closely resembled that of CC.

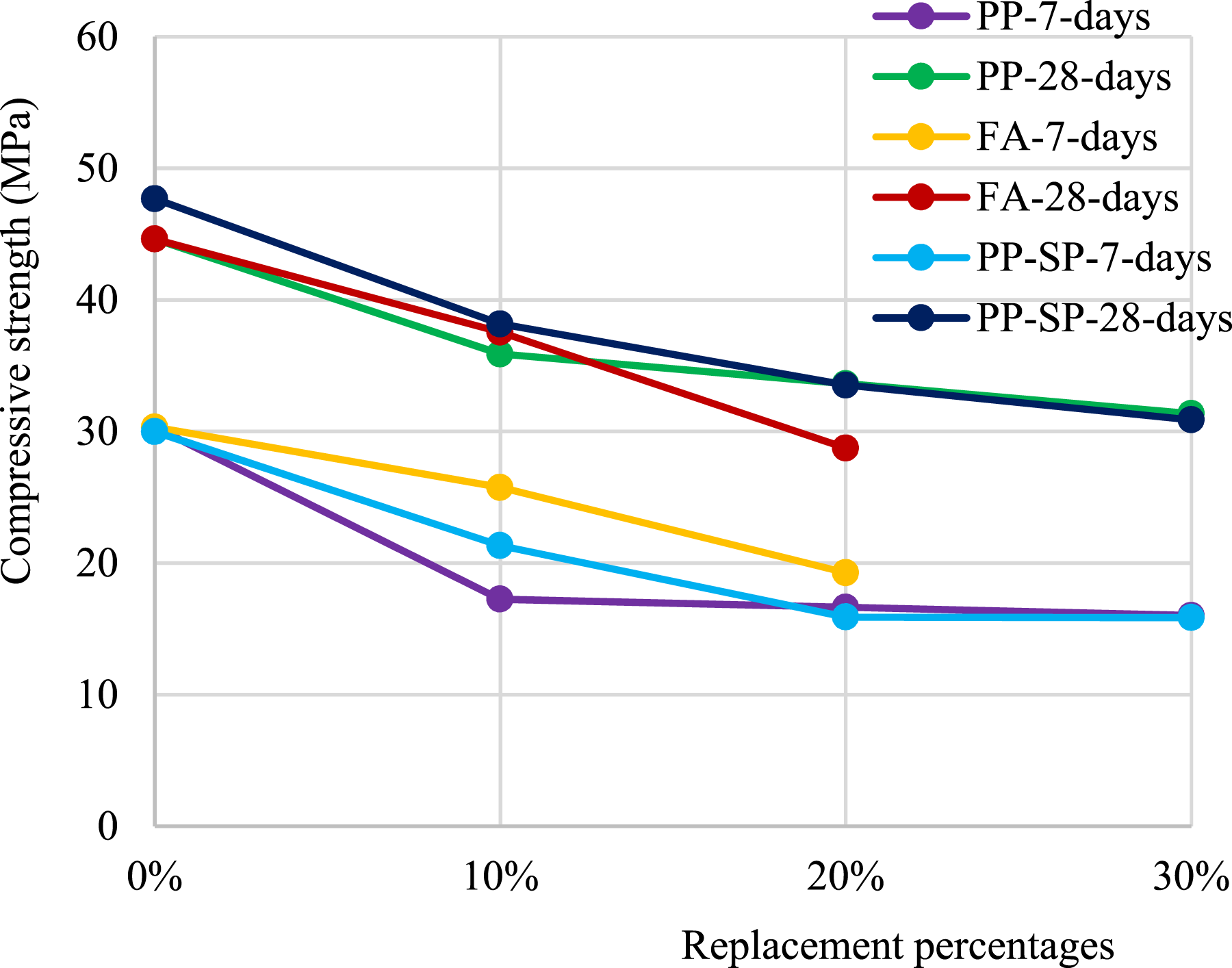

Figure 11.

Cube compressive strength variation with increasing PPCA or FA replacement levels.

Further, 7-days and 28-days compressive strength declines as the FA content increases in the FAC as per Figure 11. At 10% and 20% replacement levels of FA, there was a 15.8% and 35.6% decrease in the 28-days compressive strength. It was attributed to the low calcium oxide (CaO) content in class F type FA. Hence, the contribution of FA in strength development was low when compared with cement.³²

The 7-day and 28-day compressive strength test results of binary blended PPCA and FA are presented in Table 10. Here, no apparent reductions were noticed between the batches and when compared to the batches with single addition. It can be due to the fact that the use of fine FA particles filled the gap between PPCA and cement paste and improved the microstructure of BBSC. Moreover, all the six batches satisfied the 28-days target normal strength requirement of concrete. Generally, the 28-days compressive strength required for structural construction application is around 30 MPa.⁵⁸ It was achieved in most of the BBSC batches (PP10%-FA10%, PP20%-FA10%, PP30%-FA10%, PP10%-FA20%). Depending on the workability and compressive strength values, each batch can be employed for diverse construction applications. However, it is vital to perform further investigations on durability properties. Furthermore, from an ecological point of view, utilizing 30% of PPCA as volumetric replacement for NCA and 20% of FA as weight replacement for cement is advantageous. Using this PP30%-FA20% concrete in building construction could substantially decrease the volume of waste directed to landfills, dumpsites and other waste streams compared to PP10%-FA20% concrete.

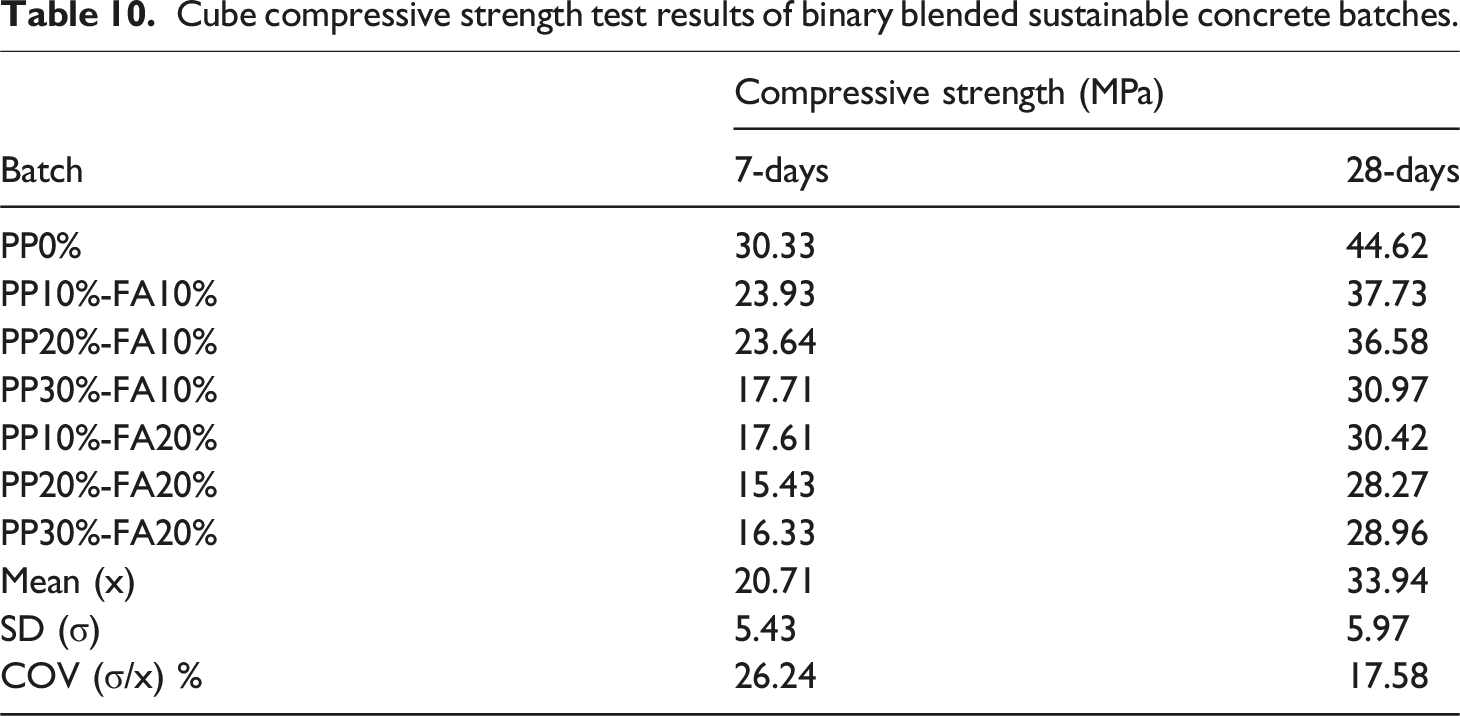

Table 10.

Cube compressive strength test results of binary blended sustainable concrete batches.

Batch	Compressive strength (MPa)
Batch	7-days	28-days
PP0%	30.33	44.62
PP10%-FA10%	23.93	37.73
PP20%-FA10%	23.64	36.58
PP30%-FA10%	17.71	30.97
PP10%-FA20%	17.61	30.42
PP20%-FA20%	15.43	28.27
PP30%-FA20%	16.33	28.96
Mean (x)	20.71	33.94
SD (σ)	5.43	5.97
COV (σ/x) %	26.24	17.58

Specific strength

Specific strength refers to the strength-to-weight ratio of concrete, helps to examine the performance in relation to the reduced density. Table 11 shows the specific strength values of PPCAC batches which were calculated using 28-days cube compressive strength divided by hardened density at 28-days. The PP0% batch without PPCA has the highest strength-to-weight ratio. As the PPCA content increases to 10%, the specific strength showing a decrease of about 17.8% compared to PP0%. When the PPCA content reaches 20%, the specific strength further reduces by 4% from PP10%. It shows that the reduction in specific strength continues, but at a slower rate than from PP0% to PP10%. Addition of 30% PPCA, marking a decrease of about 4.1% compared to PP20%, while the overall reduction is about 24.2% compared to PP0%. Therefore, it can be summarized that the decrease in specific strength from PP0% to PP10% is more significant compared to the gradual decrease from PP10% to PP30%. It illustrates that the initial incorporation of PPCA has a stronger impact on reducing strength-to-weight ratio. Moreover, the ranking of the concrete batches remains consistent, as the batches with high percentages of PPCA consistently show lower specific strength values.

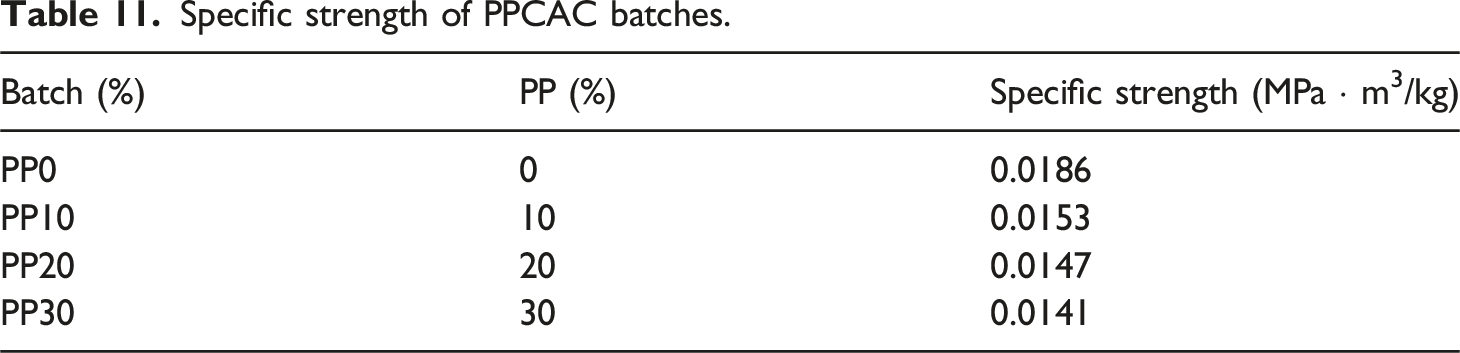

Table 11.

Specific strength of PPCAC batches.

Batch (%)	PP (%)	Specific strength (MPa $\cdot$ m³/kg)
PP0	0	0.0186
PP10	10	0.0153
PP20	20	0.0147
PP30	30	0.0141

Splitting tensile strength

Figure 12 shows the 28-days STS variation with increasing PPCA and FA. STS reductions in PPCAC when compared to CC were noted in all PP10%, PP20%, and PP30% batches, with decreases reaching up to 19.6%, 25.4%, and 31.9%, respectively. Most of the previous research also observed the same performance.^{6,59,20,13,57,60} These reduction percentages are almost closer to those observed in compressive strength variation. Hence, it can be concluded that the compressive strength variation with increasing PPCA content is approximately linearly proportional to that of STS. Islam and Shahjalal,²⁰ and Naveen⁵⁷ also observed a similar trend in their study.

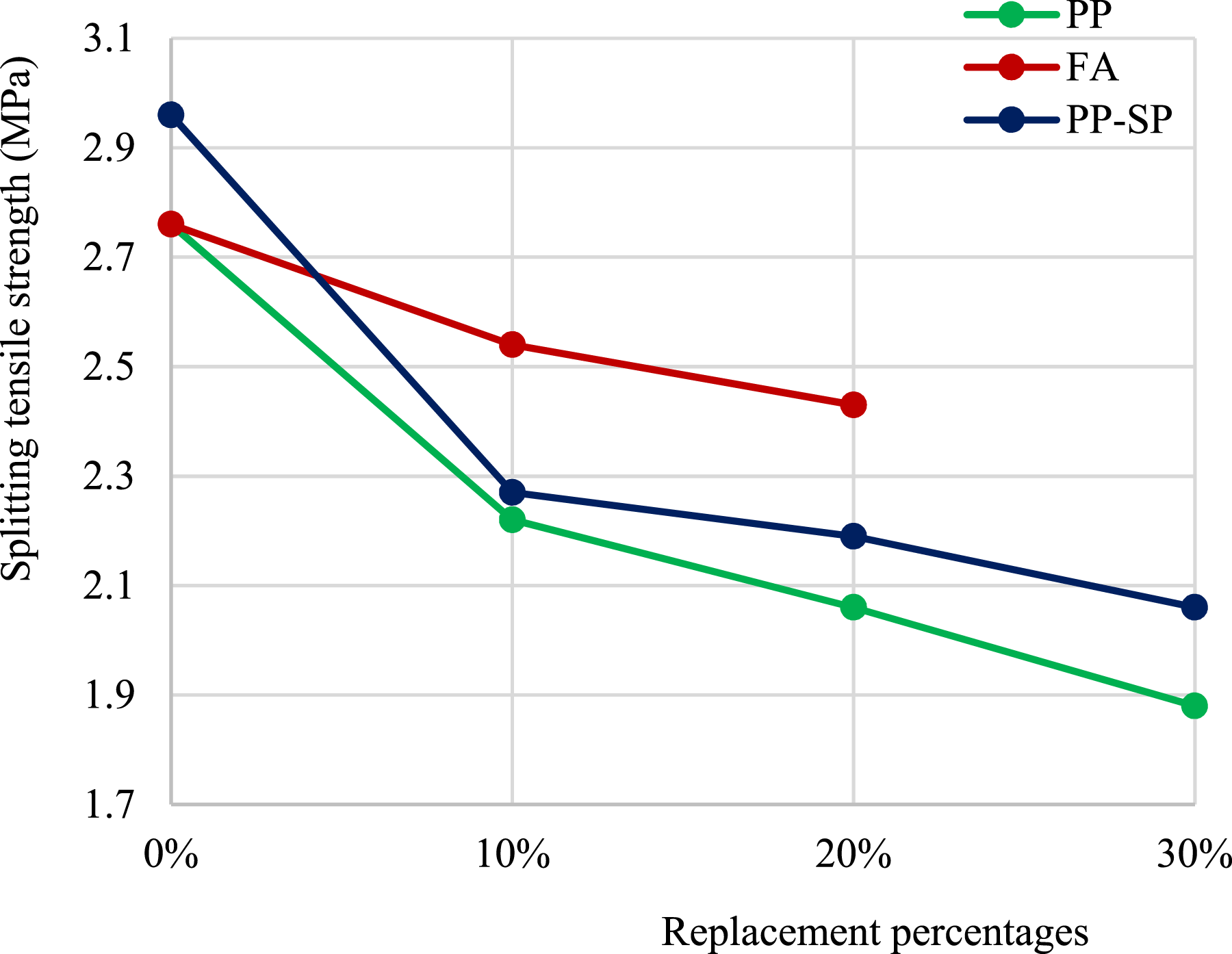

Figure 12.

STS variation with increasing PPCA or FA replacement levels.

The addition of FA in concrete showed impaired STS values and further increasing the FA replacement levels continuously reduced the STS. Increasing the FA content from 0% to 20% declined the STS from 2.76 MPa to 2.43 MPa. Moreover, the performance of PPCA in SPC also resulted in reduced strength properties as per Figure 12.

Flexural strength

The flexural strength of PPCAC, FAC, and SPC showed a decrease as the replacement levels increased (Figure 13). Adding 10%, 20%, and 30% of PPCA led to flexural strength reduction of 11.7%, 18.1%, and 28.1%, respectively, in comparison with CC. This variation trend matches with several past studies.^6,56,13 When considering PP10% and PP20% batches, the flexural strength performance is better than compressive strength and STS as the flexural strength reduction percentages are lower. However, the reduction percentage of flexural strength in the PP30% batch closely resembles the behaviour of compressive strength. Here, the PP30% replacement level achieved the lowest flexural strength of 4.18 MPa. In FAC, there was a reduction of 14.6% and 24.6% were obtained for 10% and 20% substitution levels of FA, respectively.

Figure 13.

Flexural strength variation with increasing PPCA or FA replacement levels.

The SPC exposed linear reduction in flexural strength when increasing the PPCA replacement levels. Flexural strength values of 5.42 MPa, 5.02 MPa, and 4.59 MPa were gained at 10%, 20%, and 30% of PPCA replacement levels, for SP dosages of 0.2, 0.3, and 0.4 L per 100 kg of cement, respectively. Also, all the strength values were higher when compared with corresponding PPCAC and FAC batches.

Modulus of elasticity

MoE values from 22 MPa to 34 MPa were reached in this study. The highest MoE value was gained from SPC which was 34.22 MPa. Results presented in Figure 14 display that the MoE decreases with the increasing replacement levels of PPCA in CC and SPC. The major reason behind this reduction was the low MoE value of PPCA than that of NCA. Similar observations were seen elsewhere.^6,56,20 For 10%, 20%, and 30% of PPCA replacement levels, 12.8%, 24.6%, and 32.8% of MoE reductions were observed, respectively. When comparing FAC with CC a slight reduction in MoE was observed as the FA content increases. Moreover, linear MoE reduction was observed in SPC as the PPCA content increased.

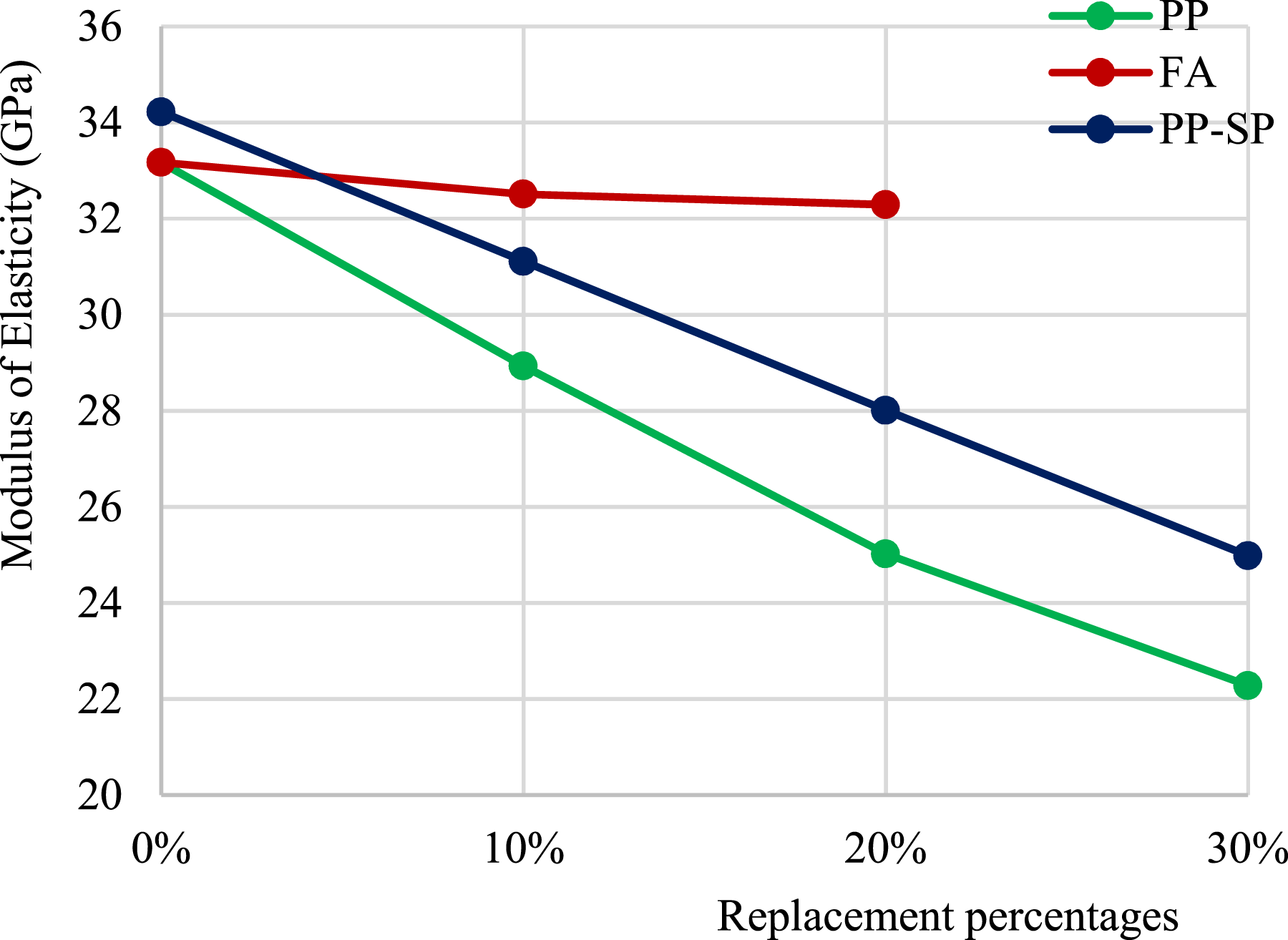

Figure 14.

MoE variation with increasing PPCA or FA replacement levels.

Stress–strain relationship

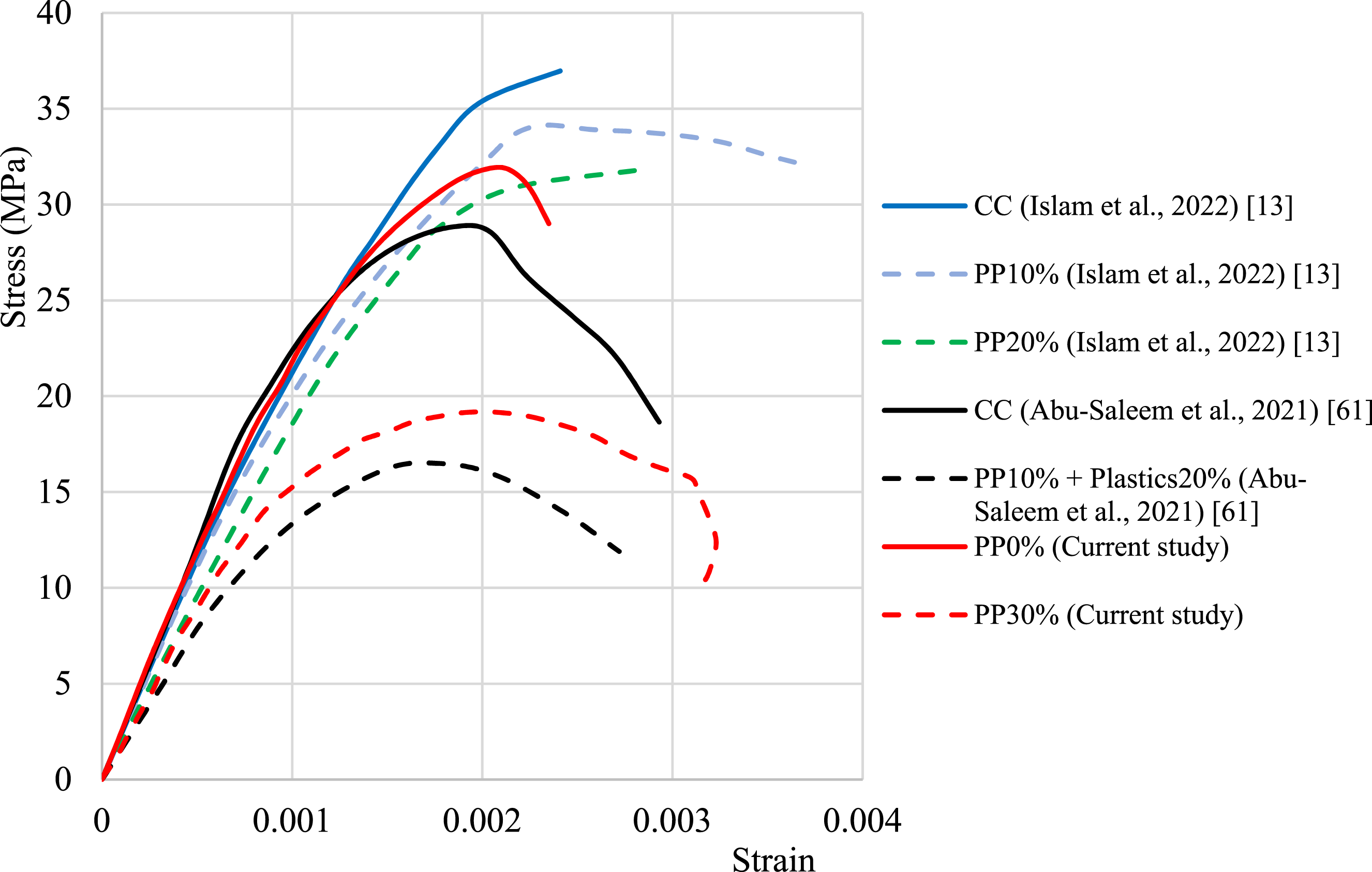

Figure 15 displays the 28-day cylinder compressive stress–strain behaviours of conventional and plastic aggregate concrete obtained from current experimental work in comparison with past studies. In the current study, CC and PP30% concrete specimens failed at ultimate stains of 0.00235 and 0.00314, respectively. Similarly, the strain at peak stresses were 0.00205 and 0.00314, respectively. Here, the addition of PPCA increased the ductile capacity of concrete by about 38.3% after the peak stress. Similar behaviour was observed by Islam.¹³ However, Abu-Saleem⁶¹ did not observe such behaviour, where they utilized the combined addition of 10% of PPCA and 20% of other types of plastic aggregates such as polyethylene terephthalate and high-density polyethylene. According to the current study, an ultimate strength reduction of 12.9 MPa was observed in PP30% concrete when compared to CC. This result is in good agreement with the result obtained by Abu-Saleem⁶¹ where the reduction was 11 MPa.

Figure 15.

Compressive stress–strain variations at 28-days: in current and past studies.

Microstructural analysis

In this study, SEM images of ITZ between coarse aggregates (NCA, PPCA) and cement paste were obtained to examine the bonding between them. Figure 16 shows the SEM image of ITZ between NCA, and cement paste where a clear ITZ could not be identified due to the proper bonding between NCA, and cement paste through hydration. On the other hand, a wide ITZ with an average thickness of 7 μm was identified between PPCA, and cement mortar as displayed in Figure 17. It reveals that there is a weak adhesion between PPCA, and cement mortar when compared to NCA and cement mortar. Also, it is obvious that the plastics are unable to chemically interact with cement paste. Hence, it can be concluded that one of the key contributing factors for strength reduction in PPCAC when compared to CC was attributed to weak ITZ between PPCA and cement paste. Moreover, when increasing the PPCA replacement levels, the weak bonding formation also increases, and the strength property reduces. The aforementioned findings were observed by some of the authors in the past.^8,9,11

Figure 16.

ITZ between NCA and cement paste at a magnification of 5000 $\times$ .

Figure 17.

ITZ between PPCA and cement paste at a magnification of 5350 $\times$ .

Further, the microstructural properties of cement and FA particles were investigated through SEM images. Figures 18 and 19 show the SEM images of cement and FA particles, respectively at a magnification level of 2000 $\times$ . From these figures, it is apparent that most of the FA particles are spherical in shape and finer in size than cement particles. Therefore, the addition of FA in concrete enhanced the workability of concrete.

Figure 18.

SEM image of cement particles at a magnification of 2000 $\times$ .

Figure 19.

SEM image of fly ash particles at a magnification of 2000 $\times$ .

Thermal performance

Figure 20 shows the thermal conductivity variation of concrete with different PPCA replacement levels. It clearly expresses that all concrete batches having PPCA underwent a decline in thermal conductivity in comparison with CC. The thermal conductivity reduced continuously as the PPCA content increased from 0% to 30%. The reductions of 15.2%, 27%, and 39.4% were achieved at 10%, 20%, and 30% replacement levels of PPCA respectively in contrast to the CC. These reductions were attributed to the fact that the PPCA has lower thermal conductivity than that of NCA⁸ and the formation of more pores with the addition of PPCA.

Figure 20.

Variation of thermal conductivity with increasing PPCA replacement levels.

The lowest thermal conductivity was 0.98 W/mK with the use of 30% PPCA. It satisfies the standard thermal conductivity requirement for lightweight structural concrete ranging from 0.4 to 1 W/m/K.⁶² Therefore, PPCAC can be used as a green building material in partition wall panels, façade cores, and insulation boards, where lightweight and thermal insulation performance is highly required.⁹ Also, the reduced thermal conductivity can lead to significant energy savings for heating and cooling from room temperature, resulting in lower operational costs for buildings.

Statistical variations in the material properties

The aim of this section was to analyse the variability of material properties with the addition of sustainable material PPCA. Student’s t-test was performed to compare the mean values of various PPCAC batches, and the results are shown in Table 12. The Student’s t-test revealed that the PPCAC batches have lower compressive strength than CC. There were no statistically significant differences between concrete batches PP20% & PP10% and PP30% & PP20%, as the p-values were above 0.05.⁶³ However, all other batches showed statistically significant variation due to the addition of PPCA.

Table 12.

Student's t-test compressive strength results.

Batch type 1 (%)	Batch type 2 (%)	Student's t-test (7-days)		Student's t-test (28-days)
Batch type 1 (%)	Batch type 2 (%)	p-value	Statistically significant differences	p-value	Statistically significant differences
PP10	PP0	0.0029	Yes	0.0086	Yes
PP20	PP0	0.0041	Yes	0.0017	Yes
PP30	PP0	0.0046	Yes	0.0018	Yes
PP20	PP10	0.3573	No	0.1059	No
PP30	PP10	0.0494	Yes	0.0242	Yes
PP30	PP20	0.3633	No	0.1190	No

Correlation between mechanical properties

Major scope of this section was to predict the splitting tensile strength, flexural strength and modulus of elasticity from compressive strength results using available past equations and then, compare the predicted values with current experimental results. Hence, the applicability of the past equations to current study was investigated. Previously proposed equations in past literatures and well-established standards were used for this purpose. In addition, it solely considers the PPCAC without SP and FA. When considering the few available empirical equations to predict the mechanical properties based on the compressive strength, the research team of Islam^20,60 incorporated the effect of PPCA in those equations. They used experimental results and regression analysis to find the mechanical properties where compressive strength and PPCA contents were considered as predictors. All other equations only considered compressive strength as predictors.

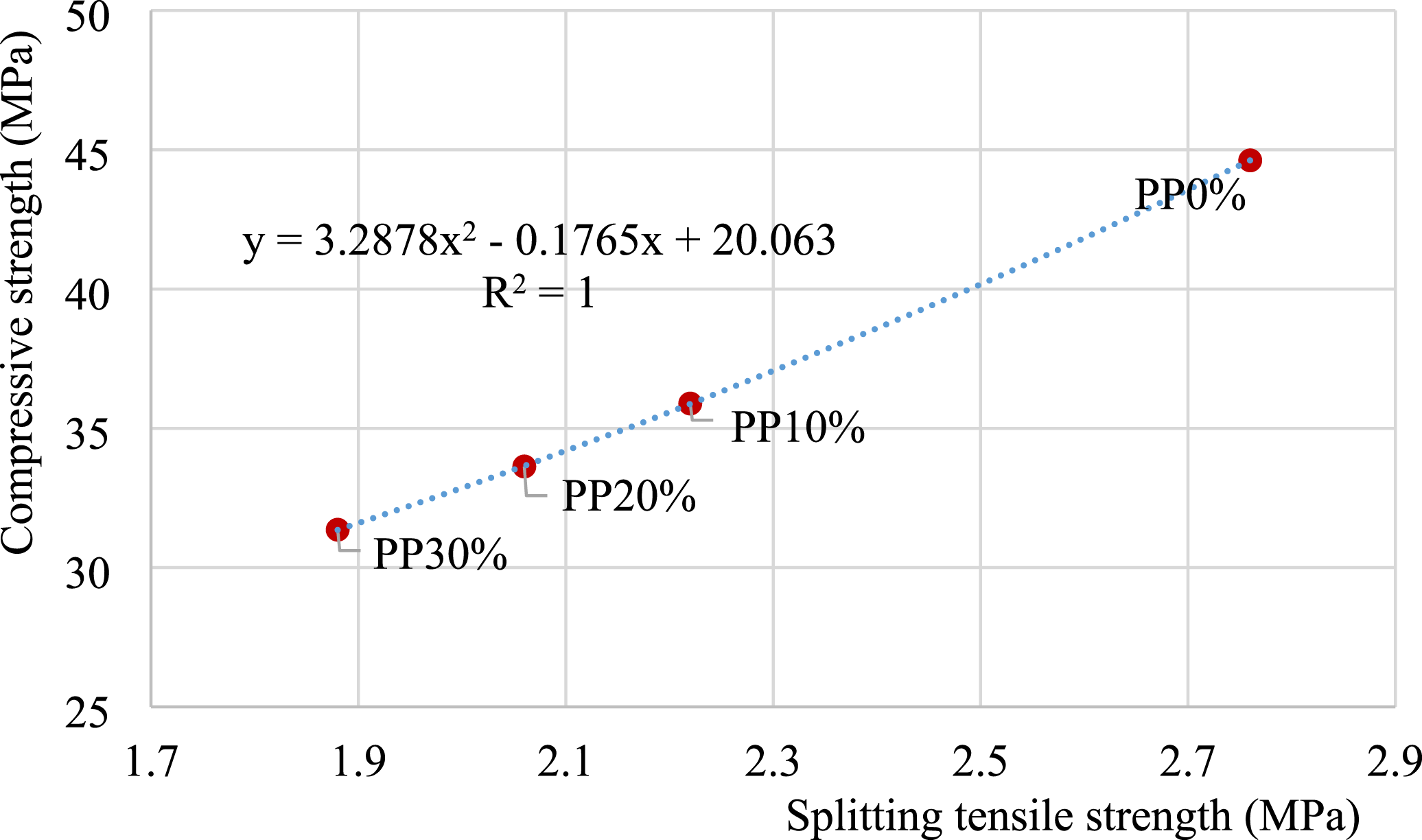

Correlation between compressive strength and splitting tensile strength

The proposed relationships by Islam & Shahjalal²⁰: equation (1), Islam⁶⁰: equation (2), Purnomo⁵⁹: equation (3) and standard code of practices such as ACI 318-14⁶⁴: equation (4), EC2⁶⁵: equation (5), and AS 3600⁶⁶: equation (6) were used for the prediction of 28-days STS where 28-days compressive strength and PPCA replacement levels (in few equations) of current study were used as input parameters. The current STS results are plotted against predicted STS results from various past equations as shown in Figure 21 for PP0%, PP10%, PP20%, and PP30% batches. It clearly shows that all equations except equation (6) overestimate the current STS results. The percentage of overestimation increases in the order of equations (1), (5), (4), (3), and (2). The AS3600⁶⁶ standard accurately predicts the experimental STS values of PP10% and PP20% batches. However, the predictions underestimate the STS of PP0% and overestimate the STS of PP30%. In summary none of the past equations accurately predict the STS values for all four batches.

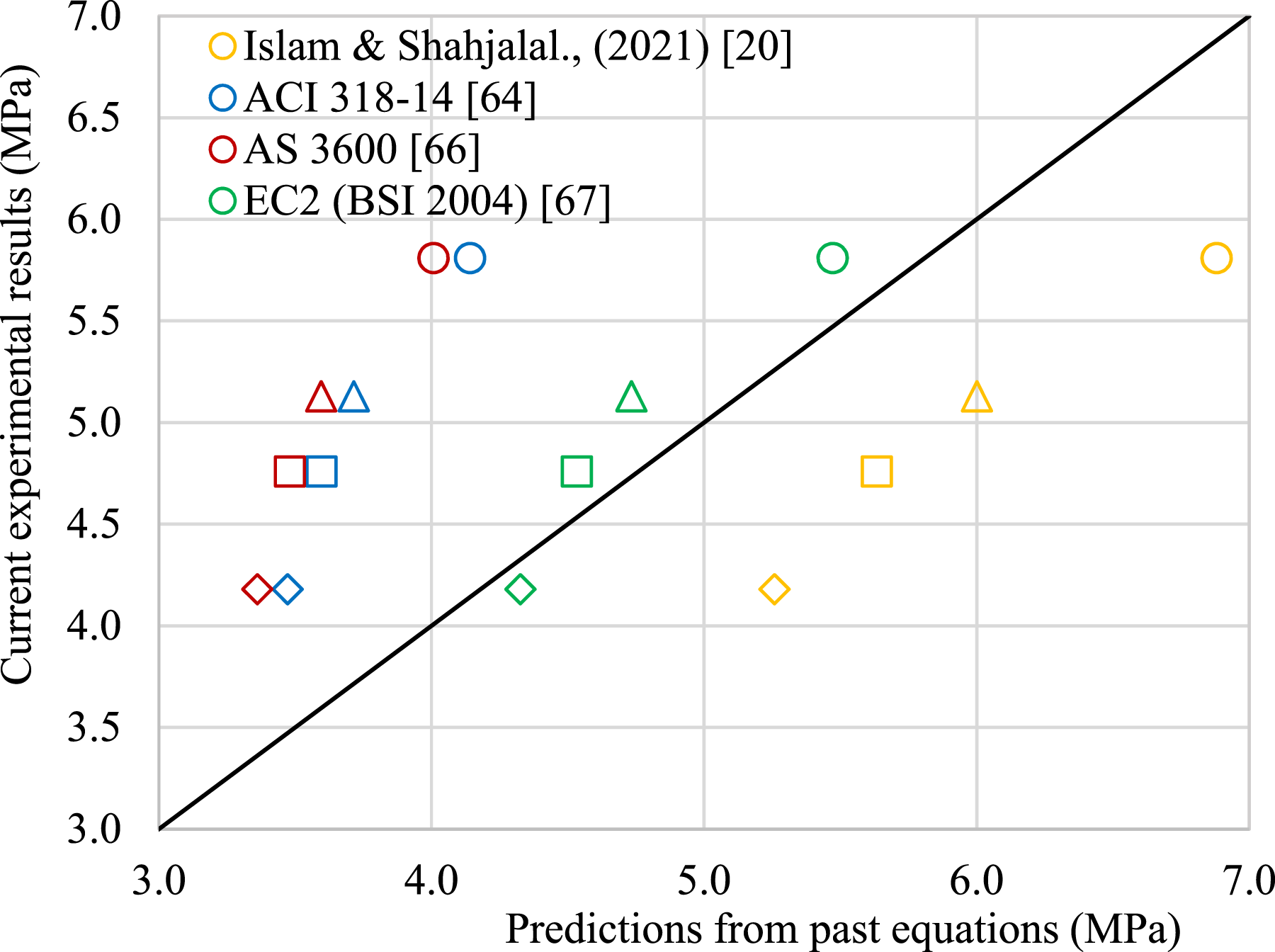

Figure 21.

Experimental splitting tensile strength results comparison with predictions from past studies and standard codes (♢: PP30%, ☐: PP20%, Δ: PP10%, о: PP0%).

In addition, correlation between 28-days compressive strength and 28-days STS of current study is shown in Figure 22, which displays a strong proportional relationship with almost linear trend and correlation coefficient (R²) of 1. Out of various forms of relationships, the second order polynomial function well suited for the comparison when analysing the R².

f_{s t} = 0.50 \sqrt{f_{c}^{'}} - 0.0029 P P

(1)

f_{s t} = 0.701 \sqrt{f_{c}^{'}} - 0.020 P P

(2)

f_{s t} = 0.0997 f_{c}^{'}

(3)

f_{s t} = 0.556 \sqrt{f_{c}^{'}}

(4)

f_{s t} = 0.556 α_{st} \sqrt{f_{c}^{'}}

(5)

f_{s t} = 0.36 \sqrt{f_{c}^{'}}

(6)

where

f_{s t}

= STS in MPa,

f_{c}^{'}

= compressive strength in MPa, α_st = 0.9, and PP represents the percentage of PPCA.

Figure 22.

Correlation between 28-days compressive strength and 28-days splitting tensile strength.

Correlation between compressive strength and flexural strength

The suggested relationships by Islam & Shahjalal²⁰: equation (7) and standard code of practices such as ACI 318-14⁶⁴: equation (8), EC2 (BSI 2004)⁶⁵: equation (9), and AS 3600⁶⁶: equation (10) were utilized for the prediction of 28-days flexural strength based on 28-days compressive strength and PPCA replacement levels (in some equations). The variation of current flexural strength results plotted against predicted values of flexural strength are shown in Figure 23. It shows that the equation (7) provided by Islam & Shahjalal²⁰ overestimates the flexural strength of PP0%, PP10%, PP20%, and PP30% batches. On contrary, the proposed equations of ACI 318-14⁶⁴ and AS 3600⁶⁶ underestimate the current flexural strength values. In EC2 (BSI 2004)⁶⁷ prediction, the flexural strength of PP30% was overestimated and PP0%, PP10% and PP20% were underestimated.

Figure 23.

Experimental flexural strength results comparison with predictions from past studies and standard codes (♢: PP30%, ☐: PP20%, Δ: PP10%, о: PP0%).

Further, Figure 24 displays the correlation between 28-days compressive strength and flexural strength. The variation is not linear, and the value of R² is 0.9984.

f_{f s} = 1.03 \sqrt{f_{c}^{'}} - 0.017 P P

(7)

f_{f s} = 0.62 \sqrt{f_{c}^{'}}

(8)

f_{f s} = 0.435 {(f_{c}^{'})}^{\frac{2}{3}}

(9)

f_{f s} = 0.6 \sqrt{f_{c}^{'}}

(10)

where

f_{f s}

= flexural strength in MPa,

f_{c}^{'}

= compressive strength in MPa, and PP represents the percentage of PPCA.

Figure 24.

Correlation between 28-days compressive strength and 28-days flexural strength.

Correlation between compressive strength and modulus of elasticity

The suggested relationships by Islam & Shahjalal²⁰: equation (11) and standard code of practices such as ACI 318-14⁶⁴: equation (12), AS 3600⁶⁶: equation (12), and CSA A23.3-14⁶⁸: equation (13) were used for the prediction of 28-days MoE using 28-days compressive strength, density of concrete and PPCA replacement levels (in some equations). The MoE results of current study plotted against predicted MoE values are presented in Figure 25. Similar to STS and flexural strength, the equation (11) proposed by Islam & Shahjalal²⁰ overestimates the experimental MoE values. Further, the ACI 318-14⁶⁴ and AS3600⁶⁶ standards overestimate the MoE of PP20% and PP30% batches, whereas closely predicts the PP0% and PP10% batches. The CSA A23.3-14⁶⁸ standard overestimates the MoE of PP20% and PP30% batches. In contrast, underestimates the MoE of PP0% and PP10%.

Figure 25.

Experimental modulus of elasticity results in comparison with predictions from past studies and standard codes (♢: PP30%, ☐: PP20%, Δ: PP10%, о: PP0%).

Figure 26 shows the correlation between 28-days compressive strength and 28-days MoE. It displays a non-linear second order polynomial function with R² value of 0.9836.

f_{M o E} = 3.43 \sqrt{f_{c}^{'}} - 0.46 P P + 0.01 w_{c}

(11)

f_{M o E} = w_{c}^{1.5} 0.043 \sqrt{f_{c}^{'}}

(12)

f_{M o E} = (3300 \sqrt{f_{c}^{'}} + 6900) {(\frac{w_{c}}{2300})}^{1.5}

(13)

where

f_{M o E}

= MoE in MPa,

f_{c}^{'}

= compressive strength in MPa,

w_{c}

= density of concrete in 10⁻³ kg/m³, and PP represents the percentage of PPCA.

Figure 26.

Correlation between 28-days compressive strength and modulus of elasticity.

Economical aspects

Cost analysis is useful for assessing the sustainability of concrete.^20,60 There was no raw material cost for both PPCA and FA as they were waste. However, the collection, cleaning, categorization, preparation and shredding of PPCA needed a cost of 160 LKR/kg (in 2024). Figure 27 illustrates the unit cost for different concrete batches with various replacement levels of PPCA and FA. This bar graph shows that the addition of FA reduces the cost of BBSC batches. Here, unit cost was considered as cost per m³ of concrete. The unit cost reductions of 3.5% and 7% were achieved with 10% and 20% replacement levels of FA, respectively in PP10% concrete while reductions of 3.3% and 6.6% were achieved with the same replacement levels in PP30% concrete. Out of all BBSC batches PP10%-FA20% can be considered as cost-effective and eco-friendly concrete with optimum replacement levels. Further, the expenses for PPCA can be minimized by large-scale production. Moreover, cost-saving techniques can be implemented in the future if the industries get on board with this kind of novel material by improving the collection and recycling rate of plastic waste. When assuming the processing cost of PPCA is similar to NCA, the maximum cost reduction will be achieved in PP30%-FA20% batch. This offers benefits not only from an economic perspective but also from an environmental point of view. Because more solid waste can be managed when using 30% of PPCA and 20% of FA.

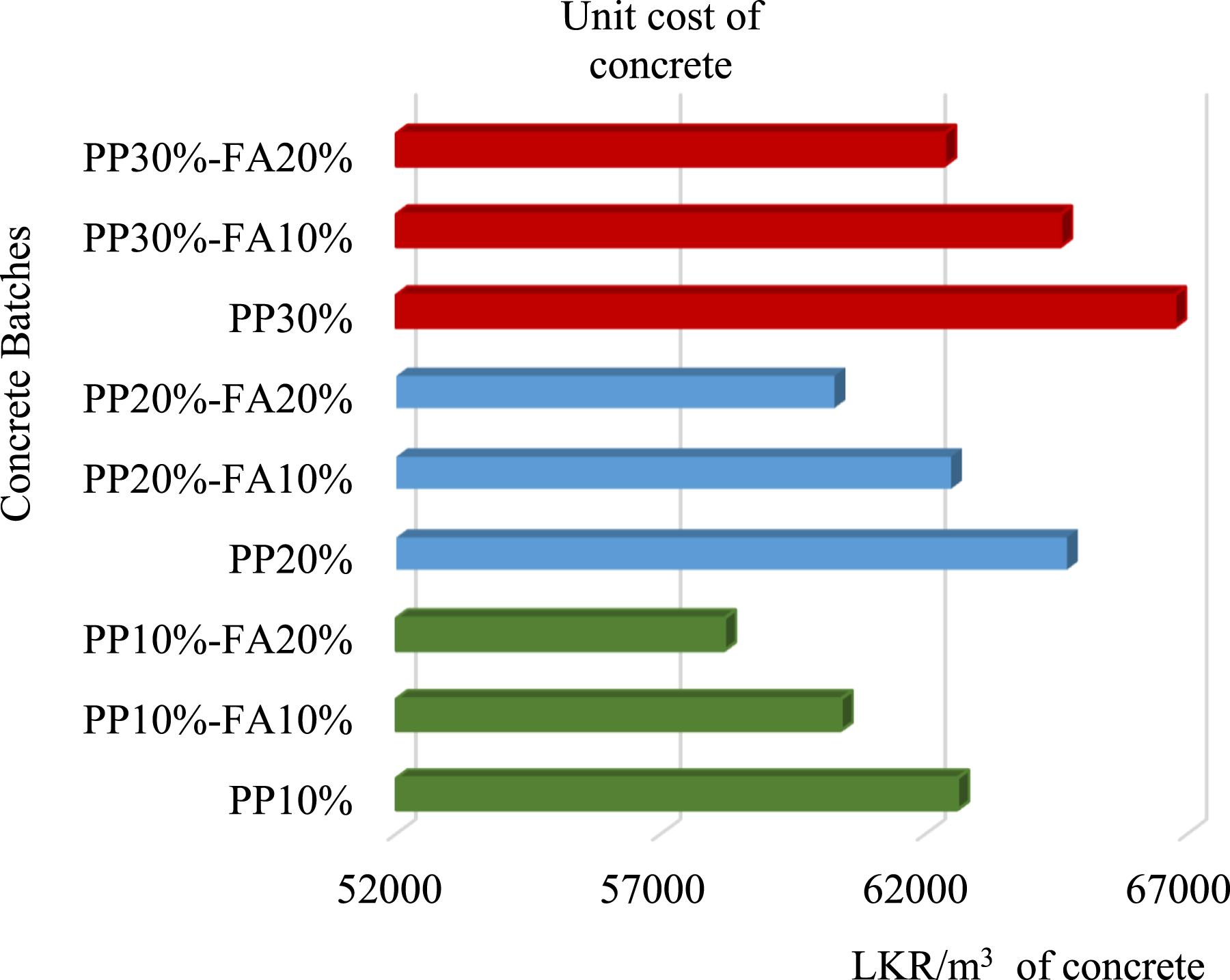

Figure 27.

Unit cost for concrete batches (2024).

The above analysis focused on material costs but noted other factors affecting sustainable concrete’s overall cost, such as mixing time, weight reduction savings, and long-term durability concerns. When considering concrete mixing, FA blends well with other materials, while PPCA may reduce efficiency due to its low weight and irregular shape. Although increased mixing time could raise labor and energy costs, the current study found no additional time required for PPCA replacement up to 30%, maintaining 8 min of mixing time across all batches without extra cost. Concrete weight reduction is vital in construction.⁶⁹ Using PPCA reduced concrete density, leading to lower transportation costs and improved handling efficiency.⁷⁰ Further studies are recommended to fully quantify these cost savings. Regarding durability, PPCAC showed mixed results: improved chloride ion penetration but inferior water absorption, carbonation depth, and permeability. Some contradictory results were observed for shrinkage. The plastic degraded faster than NCA. Thus, weight reduction savings may be offset by maintenance costs. However, adding FA could mitigate this effect, as its durability benefits are well-documented.^34,71 Current study recommended to do Long-term durability performance to develop accurate life-cycle cost analyses of PPCAC and BBSC.

Binary blended sustainable concrete and its benefits

The mechanical performance results from the binary addition of PPCA and FA, and cost analysis show that the best combination for BBSC can be taken as the batch that contains 10% PPCA and 20% FA (PP10%-FA20%). Utilizing BBSC in the construction industry would remove tons of solid waste from open dumping and landfills, thereby minimizing environmental problems. The usage of FA prevents the addition of SP by increasing the workability of concrete. Further, FA not only enhances the workability but also increases the durability properties.^72,34,73

Homogeneity of PPCA in SPC

Even though there are a number of studies related to the addition of SP in PPCAC, none of the studies have considered sufficiently the homogeneity of PPCA in concrete. It is important to take into account that the specific gravity of PPCA is lower than water. As mentioned in Section of Specimen fabrication, the PPCA tended to float to the top surface of the specimen when highly workable PPCAC was produced using SP and compaction was given using a vibrating table. Hence, the current study avoided these factors in all batches to maintain the homogeneity of PPCA in concrete. Figure 28 presents a cut surface of a cube specimen where the alignments of PPCA among NCA can be seen.⁷⁴ Here, the PPCA distribution is almost similar to NCA. Furthermore, this study recommends the use of PPCAC more in precast construction than in in-situ construction, for instance, in precast lightweight lintel beams, kerbs, and wall panels. Because, a high level of quality control can be deployed during precast work, and that will enable to maintain uniform distribution of PPCA in the concrete. The use of PPCAC will make the precast elements lightweight; that will be highly desirable. Also, such use plays a role in preventing plastic waste from re-entering into the environment.

Figure 28.

Cut surface of cube specimen belonging to PP30%-SP0.4 batch.⁷⁴

Conclusions

The major conclusions drawn upon this study are as follows.

1. The workability of concrete reduced by 37 – 47% when natural coarse aggregate (NCA) was replaced with polypropylene plastic coarse aggregate (PPCA) in the range of 10 – 30%. The irregular shape and sharp edges in PPCA should have contributed mostly to the loss in workability. The loss could easily be recovered by adding of a superplasticizer. In contrast, the partial replacement of cement with fly ash (FA) increased the workability.

2. The compressive strength of the concrete reduced progressively with the incorporation of PPCA. The strength was 29.7% lower in 30% PPCA concrete than that of a conventional concrete mix. Similarly, the splitting tensile strength and the flexural strength of concrete reduced up to 31.9% and 28.1% respectively when the NCA was replaced up to 30% by PPCA. The main reason for the strength reduction could be attributed to the weak bond developed between PPCA and cement paste. The microstructural analysis indicated clearly the presence of a considerable separation between PPCA and the cement paste.

3. A major attribute resulted from the use of 30% of PPCA in concrete was 38.3% increase in the ductility of the material after the peak stress. When compared with conventional concrete, the thermal conductivity of the material also declined by 15.2%, 27%, and 39.4% as the PPCA content increased by 10%, 20%, and 30% respectively. Similarly, the material weight reduced gradually up to 7.4% when PPCA content was increased towards 30%.

4. In contrast to the single addition, the binary addition of 30% of PPCA and FA to the concrete increased the workability by at least 50% and 90% for FA replacement levels of 10% and 20% respectively, when compared with PPCA concrete. The resulting products could attain the strength and workability required by structural concrete applications. Overall, the binary addition of 10% PPCA and 20% FA was identified to be an eco-friendly and economically feasible concrete. It is of note that the optimum combination identified herein was based predominantly on short-term mechanical performance. Therefore, the investigation of long-term durability performance and behaviour under elevated temperatures before implementing the material in real-world applications is an important matter for future work.

5. In terms of homogeneity, the dosage of superplasticizer should be limited, and appropriate compaction should be given to maintain the uniform distribution of PPCA in the concrete matrix.

Footnotes

Acknowledgements

The support given by the State Ministry of Skills Development, Vocational Education, Research, and Innovation of the Government of Sri Lanka under grant number MSVRI/RES/03/07-12/2021 was highly appreciated. Experimental facilities were gained from the Materials Laboratory, Department of Civil Engineering, University of Peradeniya.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was funded by the State Ministry of Skills Development, Vocational Education, Research, and Innovation of the Government of Sri Lanka under grant number MSVRI/RES/03/07-12/2021.

ORCID iD

Thuraisingam Abirami

Appendix

References

Bekkeri

Shetty

Nayak

. Synthesis of artificial aggregates and their impact on performance of concrete: a review. J Mater Cycles Waste Manag 2023; 25(4): 1988–2011. DOI: 10.1007/s10163-023-01713-9.

Amjad

Shah Zeb

Khushnood

, et al. Impacts of biomimetic self-healing of Lysinibacillus boronitolerans immobilized through recycled fine and coarse brick aggregates in concrete. J Build Eng 2023; 76: 107327. DOI: 10.1016/j.jobe.2023.107327.

IEA . Global cement production in the net zero scenario, 2010-2030. Paris: IEA, 2023. https://www.iea.org/data-and-statistics/charts/global-cement-production-in-the-net-zero-scenario-2010-2030-5260, Licence: CC BY 4.

Schneider

. The cement industry on the way to a low-carbon future. Cement Concr Res 2019; 124: 105792. DOI: 10.1016/j.cemconres.2019.105792.

Islam

Meherier

Islam

. Effects of waste PET as coarse aggregate on the fresh and harden properties of concrete. Construct Build Mater 2016; 125: 946–951. DOI: 10.1016/j.conbuildmat.2016.08.128.

Ozbakkaloglu

Gholampour

. Short-term mechanical properties of concrete containing recycled polypropylene coarse aggregates under ambient and elevated temperature. J Mater Civ Eng 2017; 29(10): 04017191. DOI: 10.1061/(ASCE)MT.1943-5533.0002046.

Pavlík

Pavlíková

Záleská

. Properties of concrete with plastic polypropylene aggregates. Use of Recycled Plastics in Eco-Efficient Concrete. Woodhead Publishing Series in Civil and Structural Engineering, Elsevier, 2019, pp. 189–213. DOI: 10.1016/b978-0-08-102676-2.00009-8.

Belmokaddem

Mahi

Senhadji

, et al. Mechanical and physical properties and morphology of concrete containing plastic waste as aggregate. Construct Build Mater 2020; 257: 119559. DOI: 10.1016/j.conbuildmat.2020.119559.

Basha

Ali

Al-Dulaijan

, et al. Mechanical and thermal properties of lightweight recycled plastic aggregate concrete. J Build Eng 2020; 32: 101710. DOI: 10.1016/j.jobe.2020.101710.

10.

Faraj

Sherwani

AFH

Jafer

, et al. Rheological behavior and fresh properties of self-compacting high strength concrete containing recycled PP particles with fly ash and silica fume blended. J Build Eng 2021; 34: 101667. DOI: 10.1016/j.jobe.2020.101667.

11.

Abu-Saleem

Zhuge

Hassanli

, et al. Evaluation of concrete performance with different types of recycled plastic waste for kerb application. Construct Build Mater 2021; 293: 123477. DOI: 10.1016/j.conbuildmat.2021.123477.

12.

Faraj

Ahmed

Hama ali

, et al. Fresh and mechanical properties of concrete made with recycled plastic aggregates. Handbook of Sustainable Concrete and Industrial Waste Management. Woodhead Publishing Series in Civil and Structural Engineering, Elsevier, 2022, pp. 167–185. DOI: 10.1016/B978-0-12-821730-6.00023-1.

13.

Islam

Shahjalal

Haque

NMA

. Mechanical and durability properties of concrete with recycled polypropylene waste plastic as a partial replacement of coarse aggregate. J Build Eng 2022; 54: 104597. DOI: 10.1016/j.jobe.2022.104597.

14.

Bamigboye

Tarverdi

Adigun

, et al. An appraisal of the mechanical, microstructural, and thermal characteristics of concrete containing waste PET as coarse aggregate. Cleaner Waste Systems 2022; 1: 100001. DOI: 10.1016/j.clwas.2022.100001.

15.

Ponmalar

Revathi

. Waste recycled plastic granules substitute for aggregate in concrete – Review. Mater Today Proc 2022; 65: 1441–1448. DOI: 10.1016/j.matpr.2022.04.405.

16.

Jayasinghe

Herath

Abeyrathna

, et al. Strength properties of recycled waste plastic and quarry dust as substitute to coarse aggregates: an experimental methodology. Mater Circ Econ 2023; 5(5): 5. DOI: 10.1007/s42824-023-00077-7.

17.

PlasticsEurope . Plastics - the facts 2018. https://www.plasticseurope.org/.

18.

PlasticsEurope . Plastics - the facts 2023. https://www.plasticseurope.org/.

19.

Geyer

Jambeck

Law

. Production, use, and fate of all plastics ever made. Sci Adv 2017; 3(7): e1700782. DOI: 10.1126/sciadv.1700782.

20.

Islam

Shahjalal

. Effect of polypropylene plastic on concrete properties as a partial replacement of stone and brick aggregate. Case Stud Constr Mater 2021; 15: e00627. DOI: 10.1016/j.cscm.2021.e00627.

21.

Cotto-Ramos

Dávila

Torres-García

, et al. Experimental design of concrete mixtures using recycled plastic, fly ash, and silica nanoparticles. Construct Build Mater 2020; 254: 119207. DOI: 10.1016/j.conbuildmat.2020.119207.

22.

Zulkernain

Gani

Chuck Chuan

, et al. Utilisation of plastic waste as aggregate in construction materials: a review. Construct Build Mater 2021; 296: 123669. DOI: 10.1016/j.conbuildmat.2021.123669.

23.

Akçaözoğlu

Atiş

. Thermal conductivity, compressive strength and ultrasonic wave velocity of cementitious composite containing waste PET lightweight aggregate (WPLA). Compos B Eng 2013; 45(1): 721–726. DOI: 10.1016/j.compositesb.2012.09.012.

24.

Ahmed

Sor

Ahmed

, et al. Thermal conductivity and hardened behaviour of eco-friendly concrete incorporating waste polypropylene as fine aggregate. Mater Today Proc 2022; 57: 818–823. DOI: 10.1016/j.matpr.2022.02.417.

25.

Kou

Lee

Poon

, et al. Properties of lightweight aggregate concrete prepared with PVC granules derived from scraped PVC pipes. Waste Manag 2009; 29: 621–628. DOI: 10.1016/j.wasman.2008.06.014.

26.

Choi

Moon

Chung

, et al. Effects of waste PET bottles aggregate on the properties of concrete. Cement Concr Res 2005; 35(4): 776–781. DOI: 10.1016/j.cemconres.2004.05.014.

27.

Pablo Ojeda

. A meta-analysis on the use of plastic waste as fibers and aggregates in concrete composites. Construct Build Mater 2021; 295: 123420. DOI: 10.1016/j.conbuildmat.2021.123420.

28.

Mohd Nasir

Usman

Saggaf

, et al. Development of composite material from Recycled Polyethylene terephthalate and fly ash: four decades progress review. Curr Res Green Sustain Chem 2022; 5: 100280. DOI: 10.1016/j.crgsc.2022.100280.

29.

Akçaözoğlu

Atiş

Akçaözoğlu

. An investigation on the use of shredded waste PET bottles as aggregate in lightweight concrete. Waste Manag 2010; 30(2): 285–290. DOI: 10.1016/j.wasman.2009.09.033.

30.

Ono

Hewage

HTSA

Visvanathan

. Towards plastic circularity: current practices in plastic waste management in Japan and Sri Lanka. Sustainability 2023; 15: 7550. DOI: 10.3390/su15097550.

31.

Mathapati

Amate

Durga Prasad

, et al. A review on fly ash utilization. Mater Today: Proceedings 2022; 50(Part 5): 1535–1540. DOI: 10.1016/j.matpr.2021.09.106.

32.

Nayak

Abhilash

Singh

, et al. Fly ash for sustainable construction: a review of fly ash concrete and its beneficial use case studies. Clean Mater 2022; 6: 100143. DOI: 10.1016/j.clema.2022.100143.

33.

Herath

Gunasekara

Law

, et al. Performance of high volume fly ash concrete incorporating additives: a systematic literature review. Construct Build Mater 2022; 258: 120606. DOI: 10.1016/j.conbuildmat.2020.120606.

34.

Uysal

Akyuncu

. Durability performance of concrete incorporating Class F and Class C fly ashes. Construct Build Mater 2012; 34: 170–178. DOI: 10.1016/j.conbuildmat.2012.02.075.

35.

Standard specification for concrete aggregates. West Conshohock-en, PA: ASTM C33/C33M-18, ASTM International, 2018.

36.

Standard test method for density, relative density (specific gravity) and absorption of fine aggregate. West Conshohock-en, PA: ASTM C128-15, ASTM International, 2015.

37.

Standard test method for sieve analysis of fine and coarse aggregates. West Conshohock-en, PA: ASTM C136/C136M-14, ASTM International, 2014.

38.

Standard test method for organic impurities in fine aggregates for concrete. West Conshohock-en, PA: ASTM C40/C40M-11, ASTM International, 2011.

39.

Standard test method for density, relative density (specific gravity), and absorption of coarse aggregate. West Conshohock-en, PA: ASTM C127-15, ASTM International, 2015.

40.

Testing aggregates-part-112: method of determination of aggregate impact value (AIV). UK: BS-812-112, British Standards Institution, 1990.

41.

Standard specification for chemical admixtures for concrete. West Con-shohocken, PA: ASTM C494-19, ASTM International, 2019.

42.

Standard practice for selecting proportions for normal, heavyweight, and mass concrete. ASTM International West Conshohocken, PA: American Concrete Institute, ACI, 2002, pp. 1–91.

43.

Standard practice for making and curing concrete test specimens in the laboratory. West Conshohock-en, PA: ASTM C192/C192M-02, ASTM International, 2002.

44.

Standard test method for slump of hydraulic-cement concrete. West Conshohock-en, PA: ASTM C143/C143M-15, ASTM International, 2015.

45.

Standard test method for density (unit weight), yield, and air content (gravimetric) of Concrete1. West Conshohock-en, PA: ASTM C138/C138M-17, ASTM International, 2017.

46.

Standard test method for density, absorption, and voids in hardened concrete. West Conshohock-en, PA: ASTM C642/C642M-13, ASTM International, 2013.

47.

European committee for standardization . Test for hardened concrete – Part 3: compressive strength of test specimens, EN 12 390-3, 2003.

48.

Standard test method for splitting tensile strength of cylindrical concrete specimens. West Conshohock-en, PA: ASTM C496-17, ASTM International, 2017.

49.

Standard method of test for flexural strength of concrete (using simple beam with center-point loading). West Conshohock-en, PA: ASTM C293/C293M-02, ASTM International, 2002.

50.

Standard test method for static modulus of elasticity and Poisson’s ratio of concrete in compression. West Conshohock-en, PA: ASTM C469/C469M-02, ASTM International, 2002.

51.

Standard test method for determination of thermal conductivity of soil and soft rock by thermal needle probe procedure. West Conshohock-en, PA: ASTM D5334-14, ASTM International, 2014.

52.

Standard test method for compressive strength of cylindrical concrete specimens. West Conshohock-en, PA: ASTM C39/C39M-09a, ASTM International, 2009.

53.

Badr

Ashour

Platten

. Statistical variations in impact resistance of polypropylene fibre-reinforced concrete. Int J Impact Eng 2006; 32(11): 1907–1920.

54.

Abu-Saleem

Zhuge

Hassanli

, et al. Microwave radiation treatment to improve the strength of recycled plastic aggregate concrete. Case Stud Constr Mater 2021; 15: e00728. DOI: 10.1016/j.cscm.2021.e00728.

55.

Concrete – Part 1: specification, performance, production and conformity. EN 206-1, European Committee for Standardization, 2014.

56.

Faraj

Sherwani

AFH

Daraei

. Mechanical, fracture and durability properties of self-compacting high strength concrete containing recycled polypropylene plastic particles. J Build Eng 2019; 25: 100808. DOI: 10.1016/j.jobe.2019.100808.

57.

Naveen

Naresh

Keerthi Gowda

, et al. Effects of polypropylene waste addition as coarse aggregates in concrete: experimental characterization and statistical analysis. Adv Mater Sci Eng 2022; 2022: 1–11. DOI: 10.1155/2022/7886722.

58.

Hemalatha

Ramaswamy

. A review on fly ash characteristics – towards promoting high volume utilization in developing sustainable concrete. J Clean Prod 2017; 147: 546–559. DOI: 10.1016/j.jclepro.2017.01.114.

59.

Purnomo

Putri

Perdani

. Splitting tensile strength of lightweight concrete using polypropylene coarse aggregate coated with sand. IOP Conf Ser Mater Sci Eng 2019; 625: 012008. DOI: 10.1088/1757-899x/625/1/012008.

60.

Islam

. Comparative study of concrete with polypropylene and polyethylene terephthalate waste plastic as partial replacement of coarse aggregate. Adv Civ Eng 2022; 2022(1): 1–13. DOI: 10.1155/2022/4928065.

61.

Abu-Saleem

Zhuge

Hassanli

, et al. Stress-strain behaviour and mechanical strengths of concrete incorporating mixed recycled plastics. J Compos Sci 2021; 5(146): 146. DOI: 10.3390/jcs5060146.

62.

Krakowiak

Nannapaneni

Moshiri

, et al. Engineering of high specific strength and low thermal conductivity cementitious composites with hollow glass microspheres for high-temperature high-pressure applications. Cement Concr Compos 2020; 108: 103514. DOI: 10.1016/j.cemconcomp.2020.103514.

63.

Salesa

Jose

Perez-Benedicto , et al. Physico e mechanical properties of multi e recycled concrete from precast concrete industry. J Clean Prod 2017; 141: 248e255.

64.

Building code requirements for structural concrete and commentary. ASTM International West Conshohocken, PA: ACI 318-14, American Concrete Institute, 2014.

65.

Eurocode 2., EN 1992-1-1, Design of concrete structures – Part 1–1: general rules and rules for buildings. London, UK: Thomas Telford, 2005.

66.

Concrete structures, Standards Australia, AS 3600, 20018.

67.

Eurocode 2: Design of concrete structures. Part 1-1: general rules and rules for buildings. London: EN 1992-1-1, British Standards Institution (BSI), 2018.

68.

Design of concrete structures. Canada: CSA A23.3-14, Canadian Standards Association, 2014.

69.

Almeshal

Tayeh

Alyousef

, et al. Use of recycled plastic as fine aggregate in cementitious composites: a review. Construct Build Mater 2020; 253: 119146.

70.

Siddique

Khatib

Kaur

. Use of recycled plastic in concrete: a review. Waste Manag 2008; 28(10): 1835–1852.

71.

Saha

. Effect of Class F fly ash on the durability properties of concrete. Sustain Environ Res 2017; 28(1): 25–31.

72.

Nath

Sarker

. Effect of fly ash on the durability properties of high strength concrete. Procedia Eng 2011; 14: 1149–1156. DOI: 10.1016/j.proeng.2011.07.144.

73.

Sathyan

Anand

. Influence of superplasticizer family on the durability characteristics of fly ash incorporated cement concrete. Construct Build Mater 2019; 204: 864–874. DOI: 10.1016/j.conbuildmat.2019.01.171.

74.

Abirami

Thilakarathna

KGDIH

Weragama

WARU

, et al. Mechanical properties of green concrete containing polypropylene plastic waste. In: Dissanayake

Mendis

De Silva

Fernando

Konthesingha

Attanayake

Gajanayake

(eds) Lecture Notes in Civil Engineering. Singapore: Springer, 2024, 517, pp. 117–130. DOI: 10.1007/978-981-97-3737-6_10.
