Frames Beyond Words

The Nuclear Power Debate

Our study addresses emphasis framing (e.g., Chong & Druckman, 2007)—a rather broad form of news framing, which is particularly prominent in the field of communication science. Throughout this article, we define framing as emphasis in salience of some elements of a story above others (e.g., De Vreese, 2005; Nelson, Clawson, & Oxley, 1997). In order to investigate the application of cluster and sentiment analysis to framing research, we must choose an issue to study. Ideally, this would be an issue that has created ample (controversial) news coverage in the past and which has been extensively studied in framing research before. Such a case would allow us to compare the frames we find by means of cluster analysis to frames that have been identified in previous studies, by means of different methods. The nuclear power debate provides such a case. Various studies have analyzed the nuclear power debate in the past 50 years (e.g., Bickerstaff, Lorenzoni, Pidgeon, Poortinga, & Simmons, 2008; Gamson & Modigliani, 1989; Nisbet, 2009). In Table 1, we provide an overview of nuclear power frames. To create this overview, we reviewed the most-cited journal articles ¹ that study and/or discuss the media framing of nuclear power.

OPEN IN VIEWER

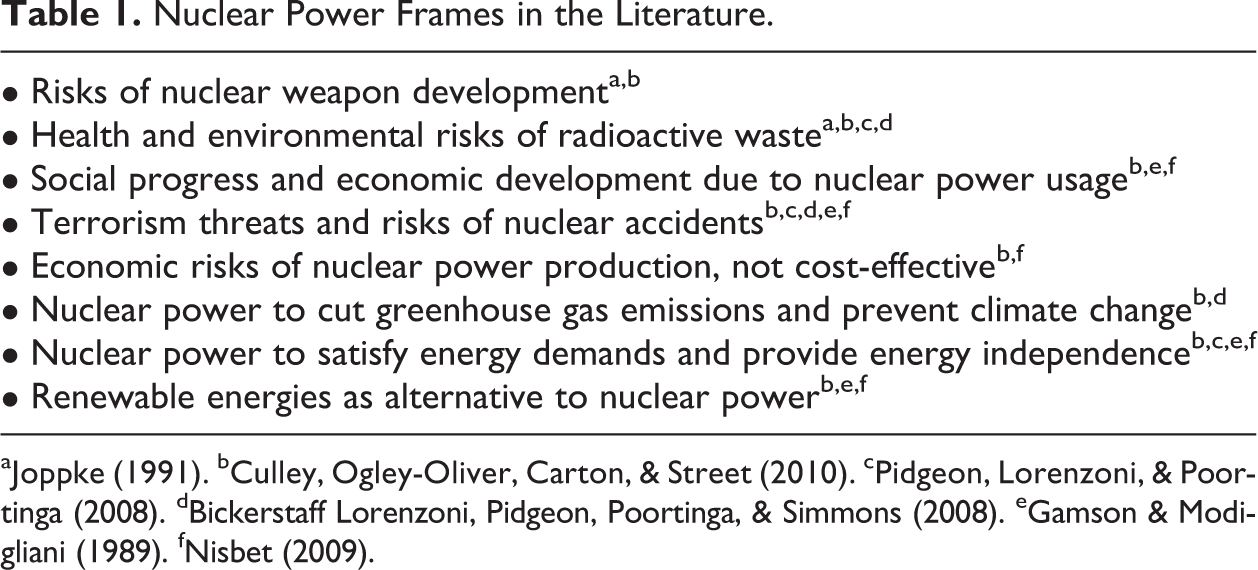

Table 1.

Nuclear Power Frames in the Literature.

• Risks of nuclear weapon developmenta,b

• Health and environmental risks of radioactive wastea,b,c,d

• Social progress and economic development due to nuclear power usageb,e,f

• Terrorism threats and risks of nuclear accidentsb,c,d,e,f

• Economic risks of nuclear power production, not cost-effectiveb,f

• Nuclear power to cut greenhouse gas emissions and prevent climate changeb,d

• Nuclear power to satisfy energy demands and provide energy independenceb,c,e,f

• Renewable energies as alternative to nuclear powerb,e,f

^a Joppke (1991). ^b Culley, Ogley-Oliver, Carton, & Street (2010). ^c Pidgeon, Lorenzoni, & Poortinga (2008). ^d Bickerstaff Lorenzoni, Pidgeon, Poortinga, & Simmons (2008). ^e Gamson & Modigliani (1989). ^f Nisbet (2009).

Frame Analysis

Frame analysis requires (1) the identification of frames that news media focus on when covering an issue and (2) coding the presence of these frames in news articles (e.g., Jasperson et al., 1998). Traditionally, scholars identify emphasis frames by qualitatively analyzing rather small samples of articles (e.g., Simon & Xenos, 2005). Afterward, to measure their usage, each frame is operationalized—either in the form of indicator questions in manual content analysis (Semetko & Valkenburg, 2000) or search strings in automatic content analysis (Shah et al., 2002; Ruigrok & Van Atteveldt, 2007).

Alternatively, frames can be identified by means of statistical analysis. The most basic approach is to interpret word co-occurrences. Hellsten, Dawson, and Leydesdorff (2010), for example, plotted cosine distances between words in a network graph and then interpreted agglomerations of words within the network as frames. More sophisticated approaches applied either factor analysis (Motta & Baden, 2013; Van der Meer & Verhoeven, 2013) or cluster analysis (Matthes & Kohring, 2008; Miller, 1997). Factor analysis describes variability among observed variables in terms of a potentially lower number of unobserved variables, which can be interpreted as frames.

Cluster analysis groups a set of articles in such a way that articles in the same group are more similar to each other than to those in other groups (Kaufman & Rousseeuw, 2009). In other words, based on the similarity of articles, a number of clusters are created and each article is assigned to one cluster. The clusters present groups of articles with a different framing. By interpreting the most prototypical words of articles from each cluster, one can infer frames. Cluster analysis results in a classification model, which can be used to automatically code future articles according to the created cluster structure. The method can thus be used for further analyses: One can, for example, easily compare the popularity of different frames over time and across news sources. The assignment of articles to clusters is a critical difference between factor analysis and cluster analysis. Factor analysis reduces the dimensionality of a data set and provides information about how each factor corresponds to the original variables (e.g., words in the corpus) but does not classify the articles into groups.

In this study, we use cluster analysis to identify and code emphasis frames in news coverage about nuclear power from the past 20 years. Furthermore, we apply automatic sentiment analysis to analyze the tone of coverage. This allows us to study dynamics in the prevalence of different frames as well as dynamics in the tone of news articles containing a specific frame over time. So far, scholars have not combined cluster analysis and sentiment analysis to identify frames. We expect that the analysis of tone improves the interpretation of clusters as emphasis frames, because earlier research has shown that news coverage of nuclear power generally focuses on benefits or risks of its usage (Gamson & Modigliani, 1989). Moreover, frames often contain moral evaluations of policy issues (Semetko & Valkenburg, 2000). All in all, we present a method to show how the portrayal of an issue changes over time—in terms of topical elements that are emphasized and in terms of their valence.

To validate this automatic analysis, we conduct a manual content analysis for a sample of articles and compare automatic codings to manual codings. In addition, we compare outcomes of the cluster analyses to outcomes of previous studies that investigated the framing of the nuclear power debate (e.g., Gamson & Modigliani, 1989). This leads to the following research question: To what extent can cluster analysis be used to infer emphasis frames from a collection of issue-specific news articles?

By answering this question, we can determine the ability of cluster and sentiment analysis to identify and code emphasis frames in future research and we can draw conclusions about whether cluster analysis leads to similar frames as manual approaches. To our knowledge, previous studies have not explicitly cross-validated the use of statistical frame identification with manual approaches.

Building Blocks of Frames

In cluster analysis, the quality of resulting clusters depends on the selection of document features (Kaufman & Rousseeuw, 2009). There are various document features that might be used to compare two texts—but not all are important for the classification of interest. Some features may be redundant or irrelevant and others can misguide results of the cluster analysis. Various articles (e.g., Dy & Brodley, 2004; Gnanadesikan et al., 1995; Hatzivassiloglou, Gravano, & Maganti, 2000) have studied the question of which set of document features is most useful for several classification tasks (e.g., topic or sentiment). Among others, scholars selected words based on their frequency, part of speech, or position in the document. Furthermore, word features have been enriched by adding semantic features using Wikipedia (Hu, Zhang, Lu, Park, & Zhou, 2009) or WordNet (Sedding & Kazakov, 2004).

In statistical frame analysis, in order to find clusters (or factors) that discriminate between different frames, one must represent documents in terms of features that are indicative of such frames. According to Entman (1993, p. 52), news frames manifest themselves in certain text attributes as “the presence or absence of certain keywords, stock phrases, (and) stereotyped images.” Therefore, we used word frequencies as features in our cluster analyses, which is called the “bag-of-words” approach (e.g., Hellsten, Dawson, & Leydesdorff, 2010; Miller, 1997). This has two advantages: First, using words is highly reliable, because words are manifest features (Riff, Lacy, & Fico, 2014) and consequently, frame analysis becomes a replicable process that is unlikely to be biased by the subjective input of individual researchers. Second, it is cost-efficient, because no manual analysis is involved.

The key issue, however, is construct validity: To what extent do word-based clusters actually reflect different emphasis frames? In the literature, this is a highly debated question. On the one hand, words are widely used as features in statistical frame analysis. On the other hand, critiques have repeatedly objected to its use (Carragee & Roefs, 2004; Hertog & McLeod, 2001). The main point of criticism is that not all words are equally important to a news frame. As Cappella and Jamieson (1997) put it, considering any production feature of verbal or visual texts as a candidate for news frames is a too broad view. As a response, scholars started using higher level frame elements as features (e.g., Matthes & Kohring, 2008; Motta & Baden, 2013). Matthes and Kohring (2008), for example, used Entman’s popular operational definition of news frames and manually coded all articles for problem definitions, causal interpretations, moral evaluations, and/or treatment recommendations (Entman, 1993). Afterward, the authors used these frame elements as features in a cluster analysis.

Using higher level frame elements as features has brought significant advancements to statistical frame analysis, because such features are generally more conclusive building blocks of frames and, consequently, lead to a higher construct validity when identifying frames. However, as the used frame elements are usually issue-specific, they must be defined and coded individually before each analysis. Our aim, in contrast, is to explore a way in which we can improve statistical frame analysis but keep the analysis as inductive as possible without relying on a priori made decisions on the side of researchers or human coders. For doing so, we apply natural language processing to select such parts of a news article, which we consider highly relevant to capture the meaning of emphasis frames and only use these parts as features.

First, we only use words from the headline and the lead as features. Generally, news stories present information in terms of relative importance (Poettker, 2003). This structure is called the inverted pyramid style. We infer from this style that the article’s dominant perspective on the issue is presented at the beginning. Pan and Kosicki (1993) argued the following: “A headline is the most salient cue to activate certain semantically related concepts in readers’ minds; it is thus the most powerful framing device of the syntactical structure. A lead is the next most important device to use. A good lead will give a story a newsworthy angle” (p. 59). Similarly, Tankard (2001) counts headline and lead as two important framing mechanisms. We expect that only using headline and lead as features leads to clusters that more clearly differentiate between distinct emphasis frames. This is because other elements in the remaining paragraphs of an article, which do not address the dominant frame, would act as noise in the analysis.

Related research on topic clustering has shown that giving higher weight to the title of a news article can increase the accuracy of topic clusters, because the title is more representative of the topic than the main text. In their experiments, Banerjee et al. (2007) obtained best results by doubling the weights of the terms appearing in the title of a given news article. Similarly, Bouras and Tsogkas (2012) increased the weights of terms that also appeared in the title of an article when analyzing topic clusters of news articles. We expect similar effects for frame clusters.

Second, we conduct part-of-speech tagging (Toutanova, Klein, Manning, & Singer, 2003) to select words that are a noun, an adjective, or adverb. In linguistics, part-of-speech tagging is the process of marking up a word in a text as corresponding to a particular part of speech. We believe that words from the selected classes (nouns, adjectives, and adverbs) are most indicative of frames. This is because other word classes, like verbs, conjunctions, or pronouns, are much less likely than the selected classes to add meaning to a frame. Previous research has shown that giving higher weights to nouns than other word classes can increase the quality of topic clusters (e.g., Bouras & Tsogkas, 2012; Hatzivassiloglou, Gravano, & Maganti, 2000).

Third, we apply named-entity recognition (Nadeau & Sekine, 2007) to remove all names of persons, organizations, and locations as well as times and dates. Names of countries and organizations, for example, refer to very specific events, while frames are more abstract semantic concepts. Therefore, it is more likely to get clusters, which actually discriminate between emphasis frames, when we remove named entities from the feature space. To our knowledge, this has not been tested before in document clustering.

When representing articles in the cluster analysis, we only use the above-mentioned parts of each article as features and ignore all other words. We call this the selection approach. In order to see whether this way of selecting features improves the validity of the cluster analysis, we conduct a baseline analysis where we use all words from each article as features (baseline approach). We compare cluster centers in the selection approach with clusters centers in the baseline approach. Furthermore, we conduct a manual content analysis to compare the accuracy of frame codings in both approaches. This leads to the following research question: To what extent does selecting frame-related document features improve the construct validity and coding accuracy of statistical frame analysis?

In sum, contrasting the approaches aims at finding a way of representing news articles in terms of features that are highly indicative of frames. We expect that selecting frame-specific features (selection approach) does a better job in discriminating between emphasis frames than using all words as features (baseline approach).

Data

Our data consisted of English-language news articles covering the issue of nuclear power, which were published in The New York Times, The Washington Post, or The Guardian between 1992 and 2013. We used LexisNexis to search all three sources for articles that contain the key words “nuclear power” or “nuclear energy” at least 2 times in total and at least once in the headline or lead. By applying these rather strong restrictions, we made sure that nuclear power actually is the main topic of the article. This led to 4,286 articles, which we used in the analyses.

Automatic Content Analysis

Based on this collection of news articles, we created two data sets—one for the baseline approach and one for the selection approach. In both data sets, we used all 4,286 articles and applied the following preprocessing steps. We converted all words to their lemmas (Bird, 2006) and removed numbers and common English stop words. Furthermore, we removed words that appeared in less than five documents or in more than 40% of all documents. Due to their frequency of use (very high or very low), such words do not differentiate well between clusters of news articles. As explained in the previous section, in the selection approach data set, we also removed (a) words that did not appear in the title or lead; (b) words with a part-of speech other than noun, adjective, or adverb; and (c) names of persons, organizations, and countries. For all of the above-mentioned steps, we used the Python natural language toolkit (Bird, 2006).

Afterward, we created document vectors with TF.IDF weighted word frequencies (Manning, Raghavan, & Schütze, 2008) for news articles in both data sets. Each word was assigned the number of times it occurs in the document (TF), weighted by the inversed frequency of articles in the data set containing the word (IDF). The idea behind TF.IDF weighting is to evaluate the power of a word to discriminate between articles. Rare words are assumed to be more discriminating and, therefore, are assigned higher weight. We standardized the document vectors using L2 normalization (Ng, 2004).

To reveal clusters from our data sets, we applied k-means clustering—a centroid-based clustering technique, where the number of clusters (k) must be specified a priori (Hartigan & Wong, 1979). Given a set of articles (x₁, x₂, … , x_n), where each article is a d-dimensional vector, k-means clustering separates the n articles into k (≤n) clusters S = {S₁, S₂, …, S_k} so as to minimize the within-cluster sum of squares. More formerly, it aims at finding:

argmin S ∑ i = 1 k ∑ x ∈ S i x − μ i 2

Each cluster is represented by a cluster center, which is described by the mean of the articles in the cluster. The algorithm defines the cluster centers and assigns each article to the cluster for which its distance to the cluster center is the smallest. We conducted separate cluster analyses for the baseline and the selection approach and used the cluster center vectors in order to identify emphasis frames in both approaches. In doing so, we listed for each cluster center the 15 document features with the highest means, that is, the most prototypical words for the cluster. Then, we gave each cluster center a frame label based on these 15 words.

A common technique to select the number of clusters (k) is the “elbow method.” We repeatedly run the analysis with different numbers of clusters (1–15) and added the amount of explained variance for each value to a scree plot (see Figure 1). Because the scree plot depicted an elbow at seven clusters in the baseline approach analysis, we decided to use a seven-cluster solution. In order to make both analyses more comparable, we also used a seven-cluster solution in the selection approach analysis. Our implementation of k-means clustering makes use of the mini-batch k-means algorithm (Sculley, 2010) and the k-means++ optimization (Arthur & Vassilvitskii, 2007). ² We used the scikit-learn machine learning library in Python for document vectorization and the cluster analyses (Pedregosa et al., 2011).

OPEN IN VIEWER

Figure 1.

Scree plot of explained variance for baseline approach.

Finally, we applied the SentiWords ³ tool to automatically code the tone of articles in the selection approach data set. SentiWords is a lexical resource containing roughly 155,000 words associated with a sentiment score between −1 (negative) and 1 (positive). Scores are learned from SentiWordNet and represent state-of-the-art computation of words’ prior polarities (Baccianella, Esuli, & Sebastiani, 2010). See Guerini, Gatti, and Turchi (2013) for information about the method used to build SentiWords and Warriner, Kuperman, and Brysbaert (2013) for a detailed description of the used data set. We annotated each word from the title and lead of all articles with the corresponding sentiment scores from the SentiWords lexicon. Then, we computed the mean of sentiment scores over all annotated words in each article and used it as a summary score for the article’s tone. Words from the articles, which were not included in SentiWords, received a sentiment score of zero.

Manual Content Analysis

We also conducted a manual content analysis to test whether the articles in each frame cluster actually contained the predicted frame. For the baseline and the selection approach, we sampled a random subset of 15 articles from each cluster and asked human coders to indicate the most relevant emphasis frame per article. Because we had two approaches with seven clusters each, 210 articles were manually coded. Per article, coders could choose one frame from a list containing all unique frames that we identified for the corresponding approach. In the Results section, we describe these sets of frames more closely. Additionally, coders could code an article as “containing none of the listed frames/not primarily dealing with nuclear power.” We used two trained coders, who were fluent in English. In order to assess intercoder reliability, both coders coded 15% of the articles (N = 32). Krippendorff’s α for intercoder agreement is equal to .82.

Baseline Approach

We performed two k-means cluster analyses: one in which we used all words of each article as features (baseline approach) and one in which we used selected parts (selection approach) of each article as features. Per analysis, we looked at the 15 features with the highest means for each of the seven cluster centers to infer emphasis frames. See Tables 2 and 3 for an overview of the cluster centers for each approach.

OPEN IN VIEWER

Table 2.

Clusters Baseline Approach.

B1	B2	B3	B4	B5	B6	B7
British	Commission	Indian	Carbon	Iran	Japan	India
Company	Chernobyl	Point	Gas	Iranian	Fukushima	Korea
Pound	Safety	Entergy	Emission	Russia	Tokyo	North
EDF	Waste	County	Wind	Weapon	Radiation	Treaty
Station	Company	Emergency	Climate	Uranium	Tepco	Weapon
Industry	Station	Westchester	Electricity	Program	Japanese	China
Price	Utility	Buchanan	Coal	Tehran	Water	Test
Cost	Official	Plan	Industry	Enrichment	Tsunami	Pakistani
Share	Site	Commission	Oil	Bushehr	Daichi	United
Million	Fuel	Siren	Station	Russian	Accident	Korean
Billion	Radiation	Steets	Renewable	United	Earthquake	Ban
Electricity	People	Federal	Cost	Sanction	Disaster	Official
Britain	Million	Evacuation	Waste	International	Safety	Agreement
BNFL	Industry	Official	Fuel	Official	Radioactive	Administration
Market	Public	Hudson	Renewables	Ahmadinejad	Worker	South
N = 558	N = 1,918	N = 250	N = 648	N = 233	N = 383	N = 296

OPEN IN VIEWER

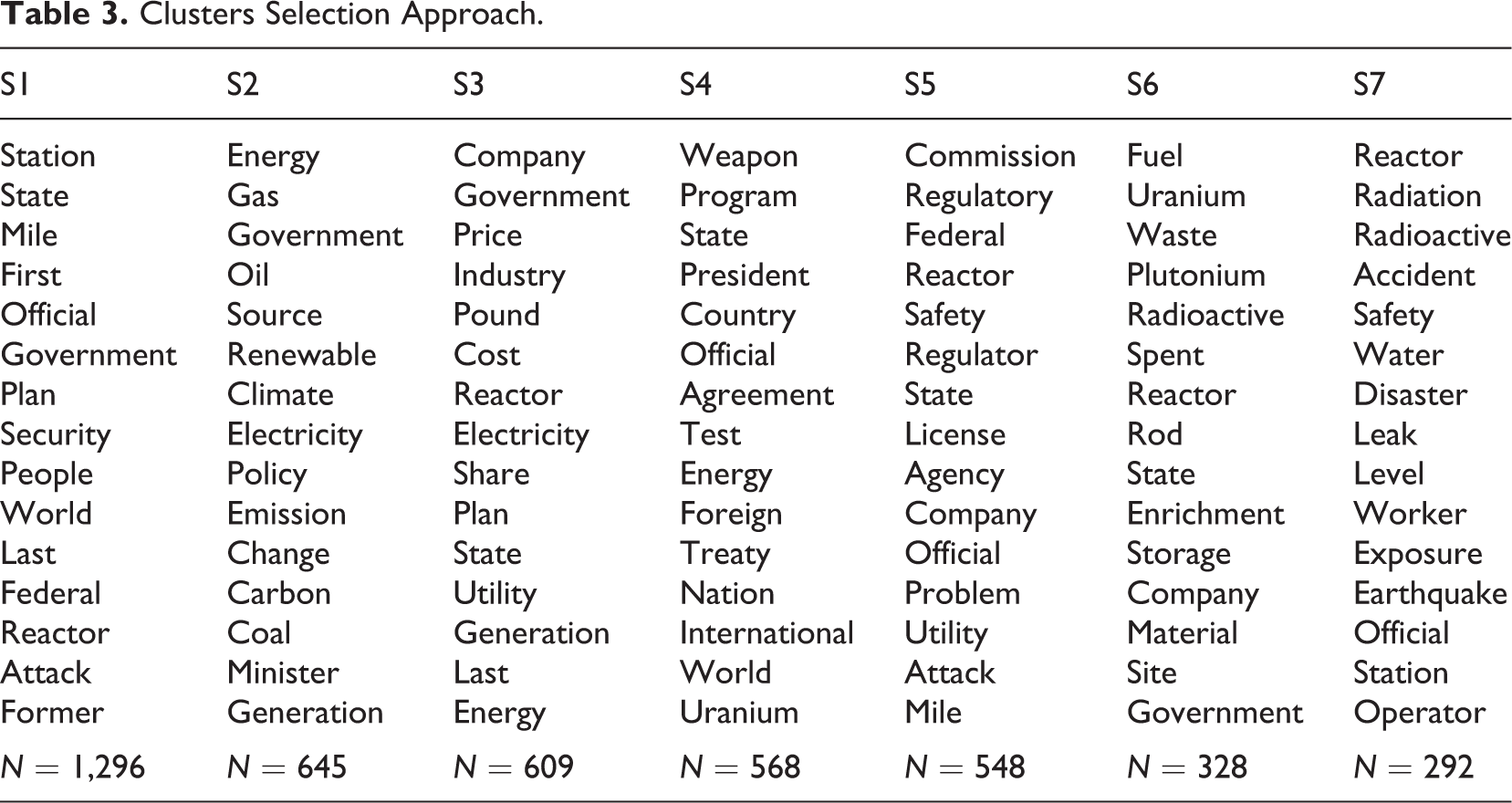

Table 3.

Clusters Selection Approach.

S1	S2	S3	S4	S5	S6	S7
Station	Energy	Company	Weapon	Commission	Fuel	Reactor
State	Gas	Government	Program	Regulatory	Uranium	Radiation
Mile	Government	Price	State	Federal	Waste	Radioactive
First	Oil	Industry	President	Reactor	Plutonium	Accident
Official	Source	Pound	Country	Safety	Radioactive	Safety
Government	Renewable	Cost	Official	Regulator	Spent	Water
Plan	Climate	Reactor	Agreement	State	Reactor	Disaster
Security	Electricity	Electricity	Test	License	Rod	Leak
People	Policy	Share	Energy	Agency	State	Level
World	Emission	Plan	Foreign	Company	Enrichment	Worker
Last	Change	State	Treaty	Official	Storage	Exposure
Federal	Carbon	Utility	Nation	Problem	Company	Earthquake
Reactor	Coal	Generation	International	Utility	Material	Official
Attack	Minister	Last	World	Attack	Site	Station
Former	Generation	Energy	Uranium	Mile	Government	Operator
N = 1,296	N = 645	N = 609	N = 568	N = 548	N = 328	N = 292

When using the baseline approach, we found multiple clusters that refer to the same element of the nuclear power controversy but relate to different geographical contexts. Clusters B5 and B7 are good examples of this phenomenon. Cluster B5 refers to nuclear power and the issue of weapon development in Iran. Cluster B7 also refers to nuclear power and weapon development, but in India and North Korea. B2 and B6 are another pair of examples, both clusters refer to safety issues and radiation risks of nuclear accidents. However, Cluster B2 does so in the context of the Chernobyl catastrophe and Cluster B6 in the context of the Fukushima disaster. Furthermore, Cluster B3 refers to a very specific incident, instead of a more general emphasis frame—emergency evacuations of the Indian Point nuclear plant in Buchanan, New York. We can explain this clustering around specific events by the fact that the centers of the mentioned clusters mainly contain names of countries and organizations (e.g., Iran, Bushehr, India, and Fukushima). This indicates that the clusters do not primarily discriminate between distinct emphasis frames but between geographic contexts and particular incidents.

Nonetheless, several clusters uniquely refer to general elements of the nuclear power controversy. Cluster B4, for example, clearly refers to the impact of nuclear power on the climate and Cluster B1 refers to economic aspects of nuclear power usage. Cluster sizes are fairly unequally distributed (SD = 552.5) with Cluster B2 as big as all other clusters combined, suggesting a residual category that includes articles not be properly assigned to other clusters. Overall, we identified five unique frames here, which are listed in Table 4. We collapsed Clusters B5 and B7 (weapon development) as well as Clusters B2 and B6 (nuclear safety and accidents), because they referred to identical frames.

OPEN IN VIEWER

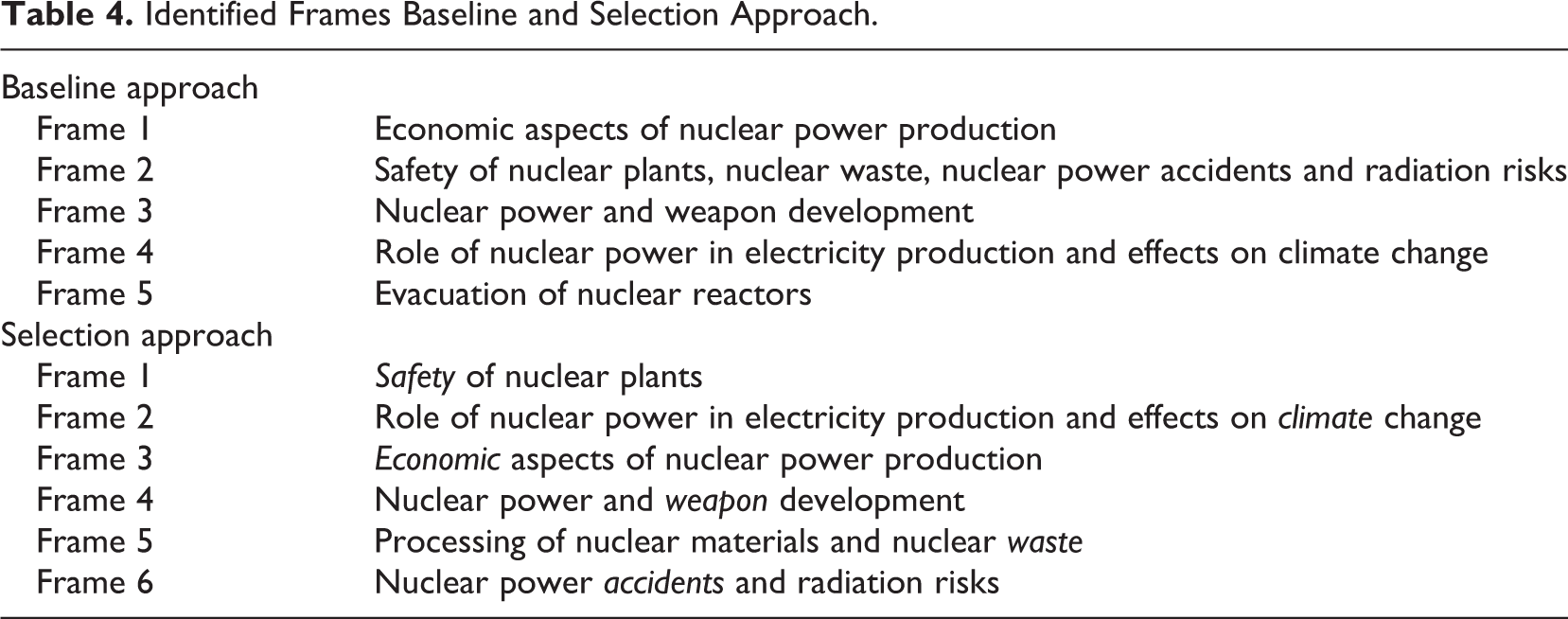

Table 4.

Identified Frames Baseline and Selection Approach.

Baseline approach
Frame 1	Economic aspects of nuclear power production
Frame 2	Safety of nuclear plants, nuclear waste, nuclear power accidents and radiation risks
Frame 3	Nuclear power and weapon development
Frame 4	Role of nuclear power in electricity production and effects on climate change
Frame 5	Evacuation of nuclear reactors
Selection approach
Frame 1	Safety of nuclear plants
Frame 2	Role of nuclear power in electricity production and effects on climate change
Frame 3	Economic aspects of nuclear power production
Frame 4	Nuclear power and weapon development
Frame 5	Processing of nuclear materials and nuclear waste
Frame 6	Nuclear power accidents and radiation risks

Selection Approach

When using the selection approach, we got a clearer cluster structure (see Table 3). Six of the seven clusters have coherent and unique cluster centers, all of which refer to distinct elements of the nuclear power controversy. There is little overlap as regards content between the clusters, which means that different clusters do not refer to the same emphasis frame. The cluster centers are, furthermore, easy to interpret, because they contain mostly substantial words and no names of places, persons, or organizations.

The primary question is whether we found different frames with this representation. On the one hand, some clusters are exactly the same as in the baseline approach. Two examples are Cluster S3, which deals with economic aspects of nuclear power, and Cluster S2, which deals with the effects of nuclear power on the climate.

On the other hand, we also found clusters that did not appear in the baseline approach. In the baseline approach, Cluster B2 refers to safety issues, nuclear accidents, and nuclear waste altogether. In contrast, in the selection approach, we found separate clusters for safety issues (S5), nuclear accidents (S7), and nuclear waste processing (S6). This might be explained by the fact that we only used the title and lead of each news article as features here. When different elements of an issue are often referred to in the same article and one uses all parts of the article as features, it is likely that the elements are grouped together in one cluster. However, it is less likely that all elements are mentioned together in the title or lead. The selection approach thus provides a more nuanced grouping of articles around unique elements of the controversy.

Furthermore, compared to the baseline approach, clusters are more equally distributed with regard to size (SD = 306.6). Again, one cluster (S1) is significantly larger than the average cluster size. Overall, we identified six unique frames here, which are listed in Table 4. We collapsed Clusters S1 and S5, which both refer to safety issues of nuclear power.

Validation Analysis

We conducted three additional analyses. First, we calculated Krippendorrf’s α as a measure of agreement between computer-based and human frame codings. Higher values of Krippendorrff’s α indicate higher agreement between humans and the computer. As shown in Table 4, Krippendorrff’s α is equal to .52 for the baseline approach and .71 for the selection approach. This shows that when using the selection approach, significantly more articles actually contained the predicted emphasis frame. The selection approach thus leads to more accurate codings of frames.

Second, we plotted the prevalence of frames from the selection approach over time. Figure 2 shows that frame prevalence varies considerably over time. Several peaks in the graph correspond to real-life events. We see, for example, a peak in the weapon development frame (Frame 4) around 1998, when the Indian government conducted the Pokhran 2 nuclear bomb tests. Moreover, we see a peak in the prevalence of the accidents and radiation risks frame (Frame 6) around 2011, followed by a peak in the safety frame (Frame 1) shortly afterward. This is most probably related to the Fukushima disaster and debates about the safety of nuclear power it caused in the media. All in all, these findings confirm our conclusion that we identified a valid set of emphasis frames.

OPEN IN VIEWER

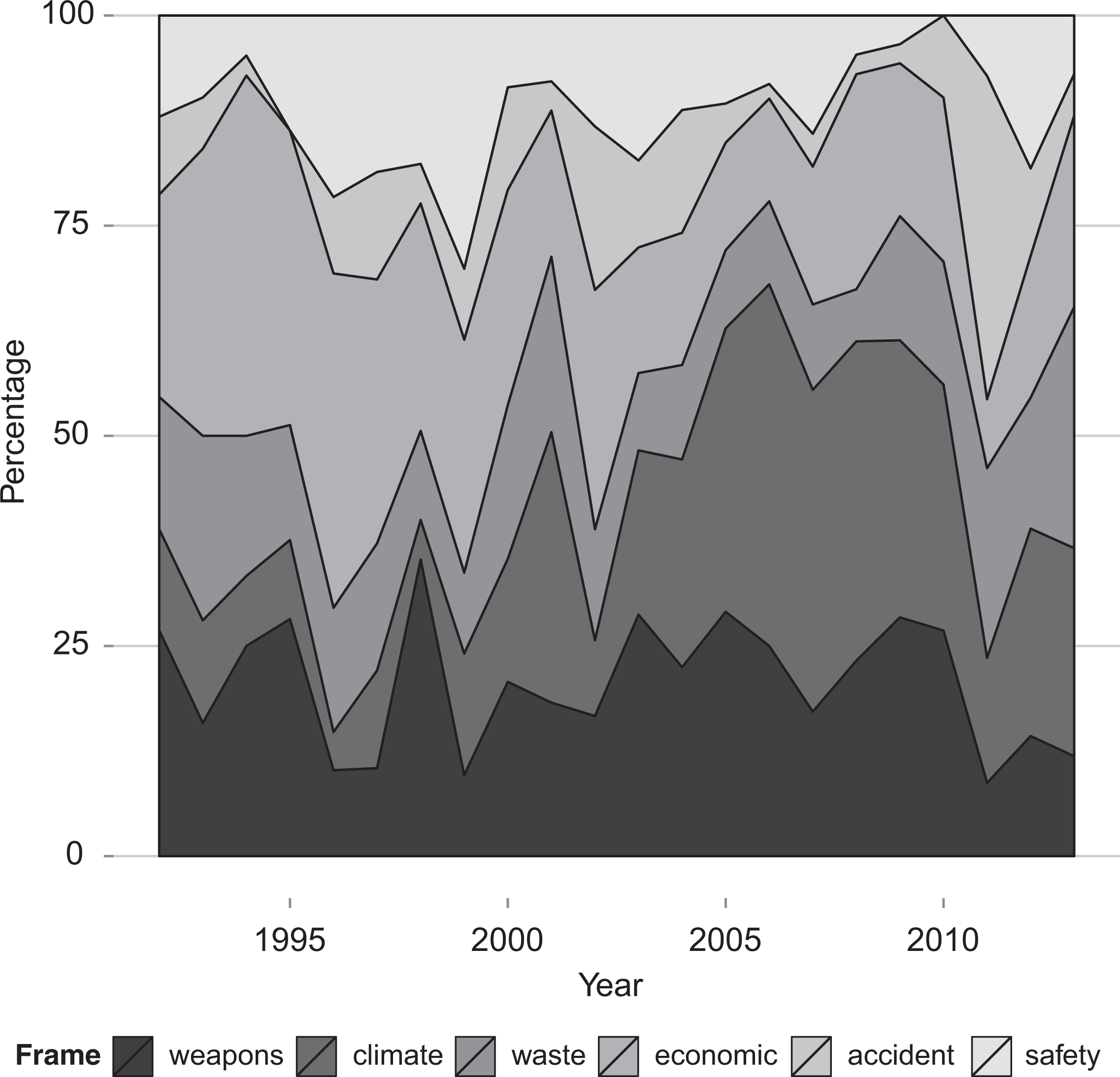

Figure 2.

Stacked area plot of frame prevalence between 1990 and 2013.

Third, we analyzed the tone of articles in the selection approach data set. In Figure 3, we show overtime variation in tone for articles from each frame cluster. The graph indicates clear differences in tone across clusters. Articles focusing on the processing of nuclear waste and materials (Frame 5) or accidents and radiation risks (Frame 6), for example, are much more negative than articles that focus on the effects of nuclear power on climate change (Frame 2) or economic aspects of nuclear power (Frame 3). This is in line with the literature, where the former two frames are depicted as risk frames and the latter as opportunity frames (Gamson & Modigliani, 1989). Furthermore, we also see within-cluster variation in tone. Articles in the weapon development cluster (Frame 4) as well as articles in the economic aspects cluster (Frame 3) become much more positive over time. Again, the patterns of variation correspond to actual events. In the aftermath of the Fukushima disaster, news coverage not only focused much more on safety issues (Frame 1) of nuclear plants, but articles focusing on safety issues also became more negative.

OPEN IN VIEWER

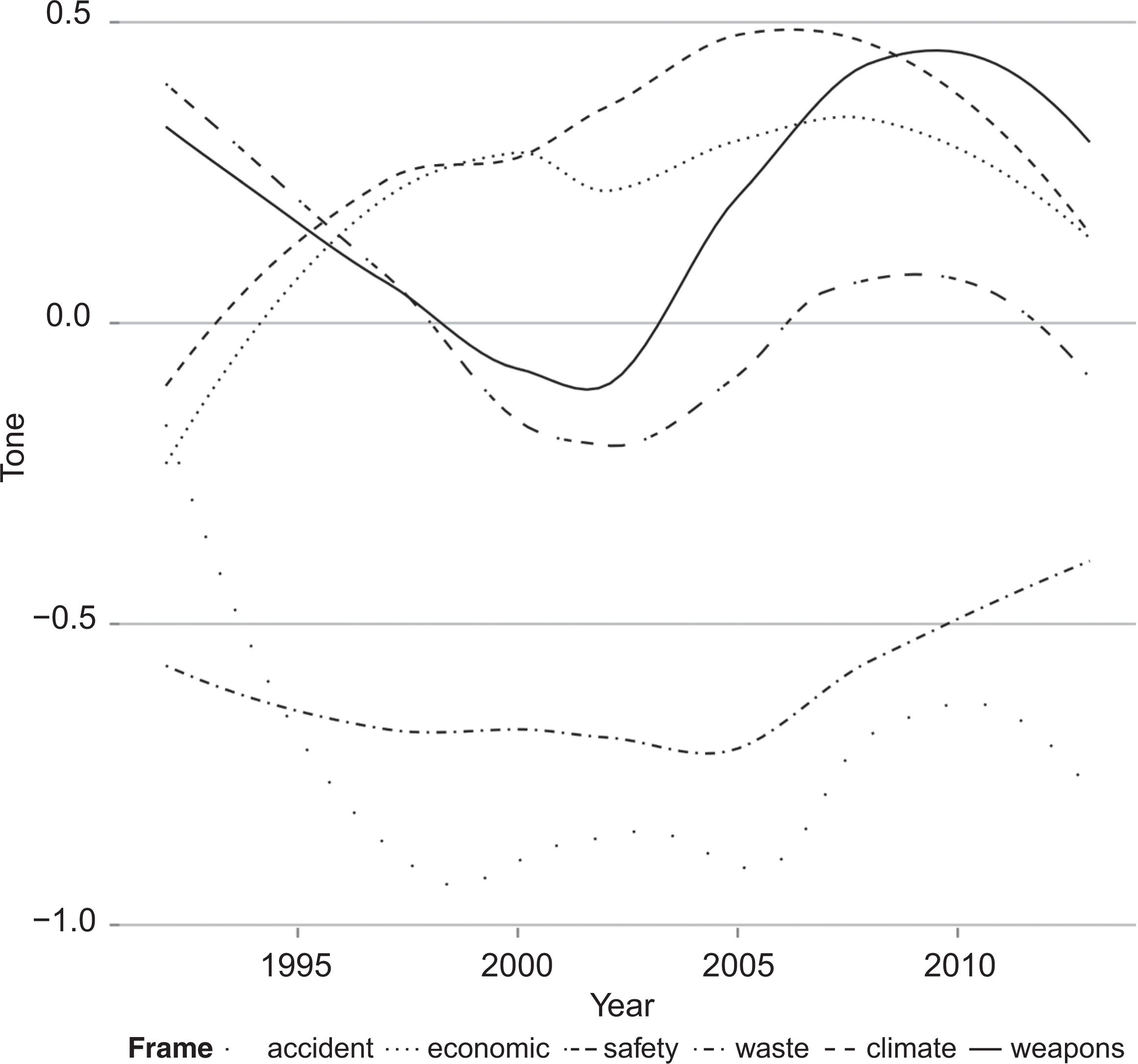

Figure 3.

Tone of articles from each frame cluster between 1990 and 2013.
