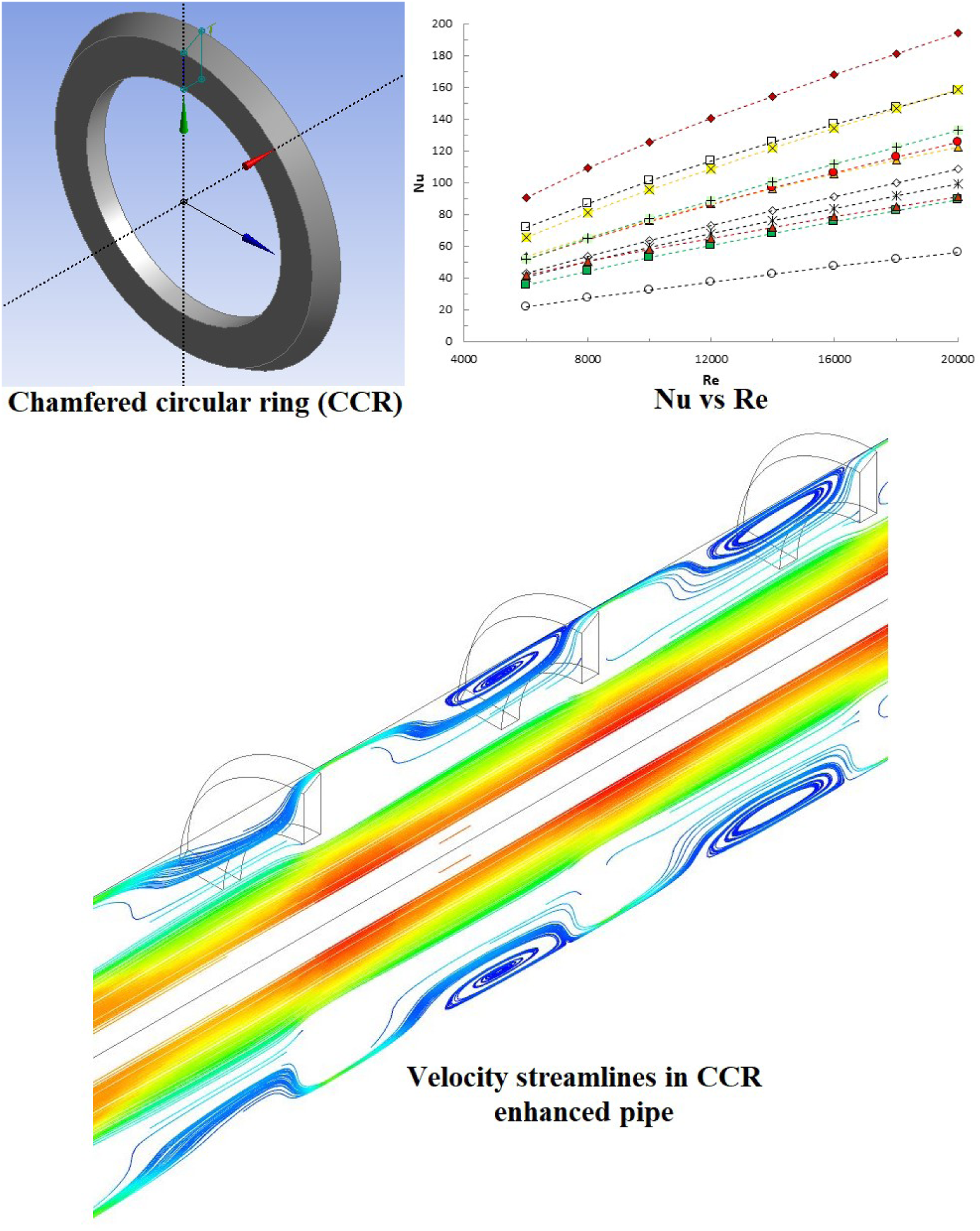

Chamfered circular ring (CCR) innovated from conventional circular ring by introducing chamfered surface on its periphery at 30o attack angle is numerically investigated to study its effect on fluid flow characteristics, heat transfer enhancement, and friction factor in a heat exchanger pipe. In order to study flow blockage effect on overall performance of device, three diameter ratios (DR = Di/Do = 0.6, 0.7 and 0.8) with three spacing ratios (SR = s/D = 1, 2 and 3) are used. Turbulent model k – ε, RNG with enhanced wall treatment is used to solve governing equations. Results showed that CCR chamfered surface produced nozzle jet effect on pipe wall surface through clearance of 1 mm, which further induced turbulent and recirculating flow effect near pipe wall area. This resulted into higher heat transfer rate. All the diameter ratios with SR = 1 showed thermal performance factor value more than unity at most of the lower Reynolds number. The range of TPF shown by DR = 0.6, 0.7 and 0.8 with SR =1 is 1.21–0.93, 1.23–0.97, and 1.19–0.99, respectively. Compromised results of TPF are shown by DR = 0.7 and DR = 0.8 at SR = 1. Chamfered circular ring has shown better results over circular ring, perforated conical ring, short length twisted tape, twin co-twisted tape, wire rod bundles, and perforated twisted tape. Numerical results showed better agreement with predicted results within the range of 10%. Highest TPF of 1.23 is shown by DR = 0.7 and SR = 1 at Re 6000.
Eiamsa-ardSPromvongeP. Experimental investigation of heat transfer and friction characteristics in a circular tube fitted with V-nozzle turbulators. Int Commun Heat Mass Transfer2006; 33: 591–600.
2.
TandirogluA. Effect of flow geometry parameters on transient heat transfer for turbulent flow in a circular tube with baffle inserts. Int J Heat Mass Transfer2006; 49: 1559–1567.
3.
PromvongeP. Heat transfer behaviors in round tube with conical ring inserts. Energy Convers Manag2008; 49: 8–15.
4.
PromvongePEiamsa-ardS. Heat transfer behaviors in a tube with combined conical-ring and twisted-tape insert. Int Commun Heat Mass Transfer2007; 34: 849–859.
5.
KongkaitpaiboonVNananKEiamsa-ardS. Experimental investigation of convective heat transfer and pressure loss in a round tube fitted with circular-ring turbulators. Int Commun Heat Mass Transfer2010; 37: 568–574.
6.
ThianpongCYongsiriKNananK, et al.Thermal performance evaluation of heat exchangers fitted with twisted-ring turbulators. Int Commun Heat Mass Transfer2012; 39: 861–868.
7.
PromvongePKoolnapadolNPimsarnM, et al.Thermal performance enhancement in a heat exchanger tube fitted with inclined vortex rings. Appl Therm Eng2014; 62: 285–292.
8.
PromvongePTamnaSPimsarnM, et al.Thermal characterization in a circular tube fitted with inclined horseshoe baffles. Appl Therm Eng2015; 75: 1147–1155.
9.
SripattanapipatSTamnaSJayranaiwachiraN, et al.Numerical heat transfer investigation in a heat exchanger tube with hexagonal conical-ring inserts. Energ Proced2016; 100: 522–525.
10.
KumarAChamoliSKumarM. Experimental investigation on thermal performance and fluid flow characteristics in heat exchanger tube with solid hollow circular disk inserts. Appl Therm Eng2016; 100: 227–236.
11.
KumarAChamoliSKumarM, et al.Experimental investigation on thermal performance and fluid flow characteristics in circular cylindrical tube with circular perforated ring inserts. Exp Therm Fluid Sci2016; 79: 168–174.
12.
SkullongSPromvongePThianpongC, et al.Heat transfer and turbulent flow friction in a round tube with staggered-winglet perforated-tapes. Int J Heat Mass Transfer2016; 95: 230–242.
13.
ChingtuaythongWPromvongePThianpongC, et al.Heat transfer characterization in a tubular heat exchanger with V-shaped rings. Appl Therm Eng2017; 110: 1164–1171.
14.
RuengpayungsakKWongchareeKThianpongC, et al.Heat transfer evaluation of turbulent flows through gear-ring elements. Appl Therm Eng2017; 123: 991–1005.
15.
SkullongSPromvongePThianpongC, et al.Thermal behaviors in a round tube equipped with quadruple perforated-delta-winglet pairs. Appl Therm Eng2017; 115: 229–243.
16.
XuYIslamMDKharouaN. Experimental study of thermal performance and flow behaviour with winglet vortex generators in a circular tube. Appl Therm Eng2018; 135: 257–268.
17.
PiriyarungrodNKumarMThianpongC, et al.Intensification of thermo-hydraulic performance in heat exchanger tube inserted with multiple twisted-tapes. Appl Therm Eng2018; 136: 516–530.
18.
HongYDuJWangS, et al.Heat transfer and fluid flow behaviors in a tube with modified wire coils. Int J Heat Mass Transfer2018; 124: 1347–1360.
19.
NakhchiMEEsfahaniJA. Numerical investigation of different geometrical parameters of perforated conical rings on flow structure and heat transfer in heat exchangers. Appl Therm Eng2019; 156: 494–505.
20.
YaningsihIWijayantaATMiyazakiT, et al.Thermal hydraulic characteristics of turbulent single-phase flow in an enhanced tube using louvered strip insert with various slant angles. Int J Therm Sci2018; 134: 355–362.
21.
OzceyhanVGunesSBuyukalacaO, et al.Heat transfer enhancement in a tube using circular cross sectional rings separated from wall. Appl Energ2008; 85: 988–1001.
22.
ZhangXLiuZLiuW. Numerical studies on heat transfer and friction factor characteristics of a tube fitted with helical screw-tape without core-rod inserts. Int J Heat Mass Transfer2013; 60: 490–498.
23.
ZhangCWangDZhuY, et al.Numerical study on heat transfer and flow characteristics of a tube fitted with double spiral spring. Int J Therm Sci2015; 94: 18–27.
24.
LiPLiuZLiuW, et al.Numerical study on heat transfer enhancement characteristics of tube inserted with centrally hollow narrow twisted tapes. Int J Heat Mass Transfer2015; 88: 481–491.
25.
ChamoliSLuRXieJ, et al.Numerical study on flow structure and heat transfer in a circular tube integrated with novel anchor shaped inserts. Appl Therm Eng2018; 135: 304–324.
26.
LiuPZhengNShanF, et al.Heat transfer enhancement for laminar flow in a tube using bidirectional conical strip inserts. Int J Heat Mass Transfer2018; 127: 1064–1076.
27.
NakhchiMEHatamiMRahmatiM. Experimental investigation of performance improvement of double pipe heat exchangers with novel perforated elliptic turbulators. Int J Therm Sci2021; 168: 1–10.
28.
NakhchiMEHatamiMRahmatiM. Effects of CuO nano powder on performance improvement and entropy production of double-pipe heat exchanger with innovative perforated turbulators. Adv Powder Technol2021; 32: 3063–3074.
29.
NakhchiMEEsfahaniJA. Numerical investigation of rectangular-cut twisted tape insert on performance improvement of heat exchangers. Int J Therm Sci2018; 138: 75–83.
30.
Nouri-BorujerdiANakhchiME. Prediction of local shear stress and heat transfer between internal rotating cylinder and longitudinal cavities on stationary cylinder with various shapes. Int J Therm Sci2019; 138: 512–520.
31.
NakhchiMERahmatiMT. Entropy generation of turbulent Cu-water nanofluid flows inside thermal systems equipped with transverse-cut twisted turbulators. J Therm Analy Calori2020; 143: 2475–2484.
32.
FanAWDengJJNakayamaA, et al.Parametric study on turbulent heat transfer and flow characteristics in a circular tube fitted with louvered strip inserts. Int J Heat Mass Transfer2012; 55: 5205–5213.
33.
FanADengJGuoJ, et al.A numerical study on thermo-hydraulic characteristics of turbulent flow in a circular tube fitted with conical strip inserts. Appl Therm Eng2011; 31: 2819–2828.
34.
Córcoles-TenderoJIBelmonteJFMolinaAE, et al.Numerical simulation of the heat transfer process in a corrugated tube. Int J Therm Sci2018; 126: 125–136.
35.
KongkaitpaiboonVNananKEiamsa-ardS. Experimental investigation of heat transfer and turbulent flow friction in a tube fitted with perforated conical-rings. Int Commun Heat Mass Transfer2010; 37: 560–567.
36.
Eiamsa-ardSThianpongCEiamsa-ardP, et al.Convective heat transfer in a circular tube with short-length twisted tape insert. Int Commun Heat Mass Transfer2009; 36: 365–371.
37.
Eiamsa-ardSThianpongCEiamsa-ardP. Turbulent heat transfer enhancement by counter/co-swirling flow in a tube fitted with twin twisted tapes. Exp Therm Fluid Sci2010; 34: 53–62.
38.
NananKPimsarnMJedsadaratanachaiW, et al.Heat transfer augmentation through the use of wire-rod bundles under constant wall heat flux condition. Int Commun Heat Mass Transfer2013; 48: 133–140.
39.
ThianpongCEiamsa-ArdPEiamsa-ArdS. Heat transfer and thermal performance characteristics of heat exchanger tube fitted with perforated twisted-tapes. Heat Mass Transfer2012; 48: 881–892.
