A Review of Neurofeedback Treatment for Pediatric ADHD

Established Txs for ADHD and Need for Additional Txs

The best documented, most successful, and most widely used Tx for ADHD is catecholaminergic (mainly dopaminergic) stimulant medication (methylphenidate and amphetamine). These show a robust effect in group data, with placebo-controlled effect sizes (ESs; Cohen’s d, Cohen, 1988) from 0.7 to 1.5 on parent and teacher ratings of attention and behavior (e.g., Arnold, 2004). Another Food and Drug Administration (FDA)-approved Tx for ADHD is atomoxetine, a noradrenergic reuptake inhibitor, for which one study reported an ES of 0.7 (Michelson et al., 2002). Despite the impressive group data, the response rate at the individual patient level is often less than completely satisfactory. Many of those usually counted as responders in the typically quoted response rate of 66% to 75% have considerable room for improvement.

A better grasp of the actual clinically satisfactory success rate for stimulants can be gleaned from the 579-participant National Institute of Mental Health Multimodal Treatment Study of Children With ADHD (MTA; MTA Cooperative Group, 1999). This study randomly assigned rigorously diagnosed 7- to 9-year-olds with combined type ADHD to one of four Tx conditions, one of which was carefully crafted, intensive medication management (MedMgt) by study staff and another of which was community-care comparison (CC), 66% of whom obtained stimulant medication from their community physician. Swanson et al. (2001) reanalyzed the MTA data to determine the percentage with satisfactory (near-normal) outcome, defined as a mean rating ≤1.0 on ADHD symptoms on a 0 to 3 metric, after 14 months of Tx. Even with the carefully crafted MTA MedMgt, the success rate was only 56%, and for the CC group only 25%. Thus, a conservative estimate of the proportion for whom stimulant medication by itself is less than completely satisfactory as currently used would be almost half.

A final problem with pharmacotherapy is that an unknown proportion of families refuse to try the approved medications, even though some of their children might benefit. Results from a 2003-2004 national survey of 100,000 U.S. 4- to 17-year-olds estimated that the lifetime prevalence of ADHD was 7.8% with only 4.3% (55% of those with the diagnosis) ever treated with medication for this condition (Centers for Disease Control and Prevention, 2005). This proportion is likely to increase with the negative publicity about these FDA-approved drugs and their boxed warning about cardiovascular effects.

Another established Tx for ADHD is behavioral Tx, which is less effective than well-managed medication (MTA Cooperative Group, 1999) but can sometimes help those who cannot tolerate, fail to respond to, or refuse to try stimulants or atomoxetine. In the MTA, the addition of carefully crafted, intensive behavioral Tx to well-managed medication boosted the percentage with near-normalization (symptom rating of ≤1.0 on 0-3 metric) to 68%. It also reduced the amount of medication required for optimal effect by 20%, thus reducing the risk of side effects. However, even this premium combination Tx, with its intensive MTA behavioral component not available in most communities, still left almost 33% with less than completely satisfactory results. A third of the ADHD population constitutes a considerable public health issue.

In sum, almost a third of children with ADHD do not fully benefit from optimal established Txs and an unknown proportion will not even consider the most effective standard Tx (medication). Therefore, additional complementary and/or alternative interventions are greatly needed.

Background on NF

NF, formerly called electroencephalographic biofeedback and occasionally referred to as neurotherapy, extends to the training of the brain’s electrical activity the biofeedback concepts, strategies, and techniques previously established as useful in some medical disorders, especially cardiovascular. Both bio- and NF are thought to work via the classical/operant conditioning mechanisms of learning that train the body/brain to improve its regulation of itself by providing it with real-time video/audio/tactile information about its electrical activity measured from electrodes placed on the surface of the body (biofeedback) or head (NF). For NF, electrodes are placed using the International 10-20 System incorporating a code of letters and numbers to identify the lobe and hemisphere location, respectively (e.g., Cz, a common placement for NF for ADHD, refers to the site over the central lobe [C] at the top of the head [Z = Mid-line]).

First measured in 1924 by Austrian psychiatrist Hans Berger, the brain’s electrical activity, shown as brain waves on the electroencephalogram (EEG), was hypothesized to change according to the functional state of the brain while awake or asleep, or in brain diseases such as epilepsy (Berger, 1929). EEG is described in terms of rhythmic activity measured in hertz (Hz), the number of waves per second. It is now known that most of the electrical activity from scalp EEG falls in the range of 1 to 20 Hz. EEG activity is typically divided into specifically named frequency bands (see Figure 1). Up to 4 Hz is called delta (e.g., slow-wave sleep state), 4 to 8 Hz is theta (e.g., drowsy/inattentive state), 8 to 12 Hz is alpha (e.g., relaxed/wakeful state), and 12 to 30 Hz is beta (e.g., active/attentive state). A specific type of low beta activity (12-15 Hz) seen over the sensorimotor cortex, particularly relevant to ADHD, is sensorimotor rhythm (SMR). SMR amplitude is higher when the corresponding sensory-motor areas are idle (e.g., during states of immobility) and decreases when corresponding sensory-motor areas are activated (e.g., during motor tasks). In this manner, SMR is a measure of motor inhibition, strongest when the “brake is on” and weakest when the “brake is off” in these areas.

OPEN IN VIEWER

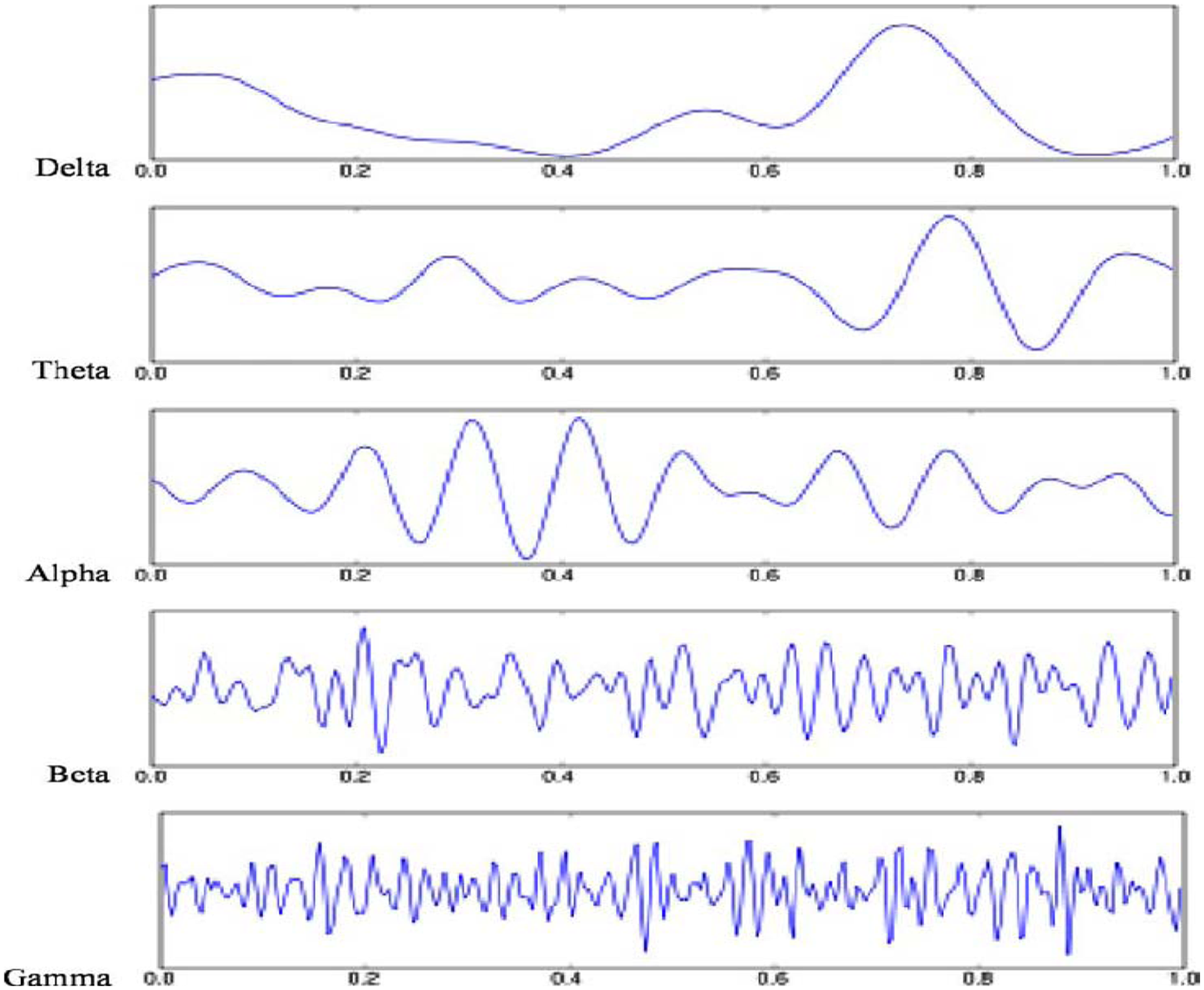

Figure 1.

EEG bands by hertz

In addition to these global spontaneous rhythmic activities, other more specific wave patterns (event-related potentials [ERPs]) can be seen in the EEG. ERPs are electrical representations of underlying sensory and cognitive processing occurring in the brain in response to a stimuli or event (Barry et al., 2003). One specific group of ERPs are slow cortical potentials (SCPs), which were first observed by Walter, Cooper, Aldridge, McCallum, and Winter (1964). SCPs are slow event-related direct-current shifts of the EEG that reflect the excitation threshold of large cortical cell assemblies (Leins et al., 2007; Strehl et al., 2006). Shifts in the negative direction, called the contingent negative variation (CNV), indicate a reduction of the excitation threshold and are thought to be related to cognitive preparation and increased cortical activation of a network, whereas shifts in the positive direction reflect an increase of the excitation threshold and a corresponding inhibition of activation (Drechsler et al., 2007; Leins et al., 2007).

It was first demonstrated that human EEG could be classically conditioned in the mid-1930’s (Durup & Fessard, 1935; Loomis, Harvey & Hobart, 1936). However, the actual training of human EEG was not attempted until 1958 when Joe Kamiya, a psychologist at the University of Chicago, began experimenting with teaching an adult to alter his brain-wave frequencies, which were previously thought to be beyond voluntary control. Kamiya’s work and NF itself was later popularized by a 1968 Psychology Today article (Kamiya, 1968). In 1973, Nall conducted the first outcome study of NF on 48 children with hyperactivity and learning disorders but found no significant academic or behavioral differences between a group receiving alpha NF and a no-Tx control group. However, three years later, Lubar and Shouse (1976) became the first to report on EEG and behavioral changes in a hyperkinetic child following theta/beta NF, which targeted the reduction of theta waves associated with an inattentive state and increased beta waves associated with an attentive state. Initial methods of giving the brain feedback were, like Kamiya’s, via an auditory tone or a visual display of the patient’s EEG. More engaging methods were later developed by using visual animation (e.g., simple hands-free video games) and “Go-No-Go” approaches, and more recent technological advances have led to interactive methods using off-the-shelf video games.

Since Kamiya’s original work, there has been a significant increase in the clinical application of NF to several psychiatric and medical conditions and, to a lesser degree, a dramatic rise, particularly in the 21st century, in the number of published research and dissertation studies (e.g., PsychInfo/Medline journal searches for title terms, neurofeedback, electroencephalographic/EEG biofeedback, or neurotherapy: pre-1970 = 9 studies, 1970-1979 = 19 studies, 1980-1989 = 20 studies, 1990-1999 = 14 studies, 2000-2010 = 79 studies). In 1995, the International Society for NF and Research (ISNR; www.isnr.org) and accompanying Journal of Neurotherapy were founded, with annual ISNR conferences since 1993. More recently, the field of NF was introduced to the general public by Jim Robbins’s (2008) informal and engaging review of the history of the field, A Symphony in the Brain: The Evolution of Brain Wave Biofeedback.

Theoretical Basis for NF in the Tx of ADHD

In terms of NF’s relevance for ADHD, neuroimaging studies suggest that ADHD is associated with smaller and possibly underaroused frontal lobes and other brain regions responsible for sustained attention and behavioral planning and motor control (Swanson & Castellanos, 2002). Positron emission tomography and single-photon emission computed tomography studies have reported reduced blood flow and metabolism suggesting electrophysiologic underarousal over frontal and central-midline cortical regions in approximately 80% to 90% of patients with ADHD (Chabot, Merkin, Wood, Davenport, & Serfontein, 1996; Clarke, Barry, McCarthy, & Selikowitz, 2001; Mann, Lubar, Zimmerman, Miller, & Muenchen, 1992; Monastra et al., 1999).

Research has also demonstrated that many patients with ADHD have more slow-wave (especially theta, 3.5-8 Hz) power in their resting EEG spectral analysis than normal controls, and conversely less beta (12-20 Hz) power especially in central and frontal regions, most probably reflecting underarousal of the central nervous system (see review by Barry et al., 2003). The lower beta frequencies (12-15 Hz, SMR) have been found to be associated with calm immobility in experimental animals, whereas the higher beta frequencies (>15 Hz) are associated with focusing on a task or other situation requiring attention. Research on ERPs associated with ADHD has also identified deviant sensory and cognitive processing for early and late stages of the evoked response (see review by Barry et al., 2003). Research on SCPs has shown that children with inattention and hyperactivity have reduced cortical negativity (i.e., a deviant CNV) during cognitive preparation (e.g., Banaschewski et al., 2004; Rockstroh, Elbert, Lutzenberger, & Birbaumer, 1990), suggesting that “failure to engage specific cortical networks contributes to the performance decrement” (Strehl et al., 2006, p. 1532). Theoretically, this slow-wave activity/reduced cortical negativity or underarousal is associated with the core ADHD symptoms of inattention, hyperactivity, and impulsivity.

Furthermore, methylphenidate, a proven Tx for ADHD, affects the EEG frequencies. For example, Song, Shin, Jon, and Ha (2005) reported that during a continuous performance test (CPT), methylphenidate increased alpha in frontal and occipital areas, increased beta in almost all areas, decreased theta in occipital and right temporal–parietal areas, and mildly decreased delta in the occipital–parietal areas. Loo and Barkley (2005) reported that, compared with placebo, methylphenidate increased alpha activity in central and parietal regions, and, in clinical medication responders, it increased the frontal beta activity whereas in clinical nonresponders, it decreased frontal beta activity. The increase in frontal beta significantly correlated with improvement on CPT and parent ratings of attention and behavior. Decreased right frontal theta correlated with parent ratings of improved attention. Thus, it appears that changes in brain-wave frequencies are associated with stimulant medication response.

In sum, research on the physiological basis of ADHD, EEG dysfunctions and their relationship to underlying thalamocortical mechanisms, changes associated with a positive medication response, and the idea that brain waves can be consciously learned has formed the theoretical and evidence-based foundation of NF in the Tx of ADHD.

Research on the NF Tx of ADHD

In a recent review of the literature, Monastra (2005) noted that, over the past 25 years, numerous studies have reported benefit from NF in ADHD, leading him to conclude that NF is “probably efficacious” for ADHD, the middle level on a five-level grading of evidence base used by the APA. Hirshberg, Chiu, and Frazier (2005), editors of the special EEG issue of Child and Adolescent Psychiatric Clinics of North America, in which Monastra’s review appeared, were more enthusiastic. They first stated, “EBF [i.e., NF] meets the AACAP [American Academy of Child and Adolescent Psychiatry] criteria for ‘Clinical Guidelines’ for Treatment of ADHD” (p. 12), the third level of four, which is based on limited evidence such as open trials/case studies and/or strong clinical consensus and should always be considered by the clinician. Hirshberg et al. also stated that “the use of EBF [i.e., NF] for ADHD will (with the publication of the second RCT) meet the most stringent APA criterion of efficacious and specific, which requires two independent RCT’s, among other factors” (p. 13). The second randomized controlled trial (RCT; the first by Linden, Habib, & Radojevic, 1996) refers to the Levesque, Beauregard, and Mensour study published in a peer-reviewed journal in 2006. Therefore, in contrast to Monastra, Hirshberg et al. believed that, by APA’s criteria, NF is now an “efficacious treatment.”

Monastra’s (2005) review identified four controlled (i.e., with a non-NF comparison group) studies of NF for pediatric ADHD (Fuchs, Birbaumer, Lutzenberger, Gruzelier, & Kaiser, 2003; Linden et al., 1996; Monastra, Monastra, & George, 2002; Rossiter & La Vaque, 1995), with only Linden’s study involving randomization of participants to groups. Until their publication, the literature contained only case studies and open or nonrandomized trials. This is problematic as without randomization, results are difficult to interpret as they may in fact be due to the specific effects of NF; or due to selection effects and associated expectations because of participants/parents choosing their preferred Tx group, nonrandom participant experiences (i.e., participant history), regression to the mean, maturation, or practice with assessment measures; or due to the interaction of any of the above factors. Due to these problems with nonrandomized studies, the remainder of this review will only consider randomized studies.

Another threat to the internal validity of NF research is that of nonspecific Tx effects defined as “outcomes that are a result of intervention components or processes that are not currently specified in the intervention theory” (Donovan, Kwekkeboom, Rosenzweig, & Ward, 2009, p. 986). Nonspecific Tx factors can include attention by the experimenter/trainers, practice paying attention/sitting still/inhibiting responses, provider qualities, Tx structures, therapeutic alliance, participants’ motivation for improvement, and participations’/experimenters’/trainers’/raters’ (i.e., parents, teachers, and clinicians) expectations (positive and negative) regarding study outcome (Donovan et al., 2009). People’s expectations about Tx outcome are ideally controlled in Tx outcome research by methodology preventing participants/experimenters/trainers/raters from knowing which condition the participant has been randomly assigned (so-called blinding). Other nonspecific Tx effects can be controlled by using a “fake” Tx (sham/placebo) Tx or another Tx that is practically identical to the target Tx except for the specific active Tx component, in this case feedback contingent on the person’s EEG. For example, a sham-NF condition might give inaccurate feedback not contingent on the person’s EEG. Without Tx control groups matched in duration, intensity, and apparatus and blinding of participants/experimenters/raters, it is impossible to separate specific effects from nonspecific effects of Tx. Only a few NF studies have used such features as sham NF to control for nonspecific Tx effects.

Since Monastra’s (2005) review of nonrandomized and randomized published studies, an additional seven studies (identified by September 2010 PsychInfo and Medline searches and contacts with researchers in the NF field) have been published using randomization (Levesque et al., 2006; Drechsler et al., 2007; Leins et al., 2007; Gevensleben, et al 2009a; Gevensleben et al 2009b; Holtmann et al., 2009; Perreau-Linck, Lessard, Levesque, & Beauregard, 2010; deBeus & Kaiser, 2011) and one meta-analysis of randomized and nonrandomized published and unpublished trials (Arns, de Ridder, Strehl, Breteler, & Coenen, 2009). As Drechsler et al.’s (2007) randomization was incomplete and without any indication of how many participants were correctly randomized, their study is not considered further. In addition, deBeus and Kaiser’s study was a reanalysis of their 2006 conference presentation and is henceforth considered as one study rather than two studies. In addition to these published studies, via references within the preceding publications, the ISNR website (www.isnr.org), and contacts with researchers in the NF field, eight unpublished studies presented at conferences were identified (Fine, Goldman, & Sandford, 1994; Palsson et al., 2001; Orlandi & Greco, 2004; deBeus, 2006; Picard, Moreau, Guay, & Achim, 2006 [included two randomized studies]; McGrady, Prodente, Fine, & Donlin, 2007; Urichuk et al., 2009). Although unpublished studies suffer from not meeting the same scientific standards of peer-review, we have included them to examine the research on this topic as thoroughly as possible, document information that may be eventually lost over time and because conference presentations have inserted them into the public nowledge base via their presentations at conferences. Authors of the unpublished studies were contacted via email on several occasions to provide specific information regarding their studies, but where information was not provided or available, “data unavailable” is noted. Therefore, to date, there have been 14 randomized studies of NF on youth with ADHD, 6 published and 8 unpublished (including 2 studies by Picard et al. [2006]).

The majority of these studies used traditional NF, which typically induced beta-band EEG rhythms, either SMR (12-15 Hz) or higher (15-18 Hz), and suppressed theta rhythms (4-8 Hz), by visual and auditory feedback (subsequently referred to as theta/beta and, when specified, SMR). More recently, some researchers have examined NF of SCPs, which involves training children to increase their cortical negativity to mobilize attentional resources and self-regulatory capacities (Strehl et al., 2006). In 2004, Heinrich, Gevensleben, Freisleder, Moll, and Rothenberger were the first to successfully use SCP NF to change the polarity of the EEGs (i.e., positivity vs. negativity) of a group of children with ADHD. Although Heinrich and colleagues did not use randomization, there have since been three studies of SCP NF with pediatric ADHD using randomization (Drechsler et al., 2007; Gevensleben, et al., 2009b; Gevensleben, 2009a; Leins et al., 2007), with the latter using a control group whereas the other two used a theta/beta NF comparison group.

Following, in chronological order, are summaries and critiques of the 14 randomized studies of NF on pediatric ADHD. Due to the limitations of null-hypothesis significance testing for interpreting social science data (Ferguson, 2009), we follow the recommendations of the Wilkinson Task Force (Wilkinson and Task Force on Statistical Inference, 1999) and, wherever possible, calculate and report ESs for each reported marginally significant and significant result using Cohen’s d (Cohen, 1988). Assuming randomization controls for any pre-Tx differences between groups, we based our ES estimate on post-Tx means (M) and standard deviations (SD), where given, of the Tx and control groups. For reference, ds between 0.2 and 0.4 are considered small ESs, 0.5 and 0.8 medium, and >0.8 large.

CRITIQUE: Being the first RCT of NF for pediatric ADHD, this was a very important study for the field and more convincing than all previous uncontrolled studies because of randomization (to control for selection effects, participant history, regression to the mean, maturation, and practice with assessment measures), a Tx control condition (to control for nonspecific Tx effects), multidomain assessments, and standard Tx outcome measures used in ADHD trials. Unfortunately, the use of a cognitive-training control group to teach attention skills may have made it more challenging to obtain significant comparative results for the NF group. Although two of the three core symptom clusters of ADHD (i.e., hyperactivity and impulsivity) improved relative to the untreated control condition, they did not differ significantly from the comparison Tx. Study limitations included the few significant results for both Tx groups (12 of 51 variables), the fewer observed improvements for the NF group alone (n = 6), and the lack of follow-up (FU) data to examine long-term effects. In addition, as participants, parents, and experimenters were not blind to study condition, participant-, parent-, and experimenter-expectancy effects were not controlled. Finally, because comorbidity and the presence of and change in any concomitant Txs were not identified, these confounds pose additional potential threats to internal validity.

CRITIQUE: As the first published randomized study of NF for pediatric ADHD, this study was a crucial step forward for the field. Study strengths included randomization, an untreated control group, DSM diagnoses, multidomain assessments, standard Tx outcome measures, and control of concomitant Tx. Study limitations included the lack of participant-, parent-, and experimenter blinding, a Tx or sham-control condition, and FU data. In addition, although the core ADHD symptoms of inattention showed significant results, hyperactivity-impulsivity did not.

CRITIQUE: This study is important as it introduced a new NF technology using off-the-shelf video games to try to make NF more interactive, engaging, and familiar to children. This was supported by the results showing that parents and children enjoyed the video game–NF modality more, parents considered it as more effective, and it was associated with more positive QEEG changes than standard NF. Study strengths included randomization, DSM diagnoses, control of comorbidity, multidomain assessments, standard Tx measures, satisfaction ratings, and an alternative NF condition. This study also found significant pre–post improvements for the core symptoms of ADHD. Study limitations included the absence of a sham-NF condition, blinding and FU data, and no statistical between-group comparisons of the two Txs, only within-group comparisons.

CRITIQUE: This study advanced the field by being the first randomized study of NF for pediatric ADHD to use blinding. Additional strengths included standard Tx outcome measures, DSM diagnoses, control of comorbidity, medication and psychotherapy, and a control condition. The use of a cognitive-training video game control group may have made it more challenging to obtain significant comparative results for the NF group. Study limitations included the absence of a blind for children and Tx staff, sham-NF condition, and FU data. The two Tx groups did not actually separate significantly (a possible power problem) on the critical blinded-parent ratings; it was just that NF showed significant improvement and the control improvement failed to reach significance. The failure of the control group to reach significance could also be a power problem with such a small sample. As Orlandi and Greco (2004) reported a significant global change for CPRS ADHD items, it is difficult to know whether there were significant changes for all three core ADHD symptoms of inattention, hyperactivity, and impulsivity. Finally, although educational services continued, because they were not monitored, it is not known whether those services changed during the study and were a possible confound.

CRITIQUE: Although a small sample, this study was important because it was the first to show pre–post Tx neurophysiological changes in brain areas reported to be smaller/hypoactive in ADHD by numerous reputable investigators. Additional study strengths included randomization, a control group, control of comorbidity, DSM diagnoses, multidomain assessment, standard Tx outcome measures, and significant results for objective measures and parent ratings of the core ADHD symptoms of inattention, hyperactivity, and impulsivity. It is also notable that this study used thrice-weekly Tx in contrast to most previous studies, which used twice weekly Tx, which suggests that more frequent NF may be a viable option to speed up improvement over time. Unfortunately, there was no blinding of participants, raters, and experimenters; a sham-NF condition; or FU data. However, it seems unlikely (though possible) that expectancy biases would activate those particular brain areas in all those receiving NF. Finally, Levesque et al.’s (2006) statistical comparisons are questionable as they did not use the standard statistical method of directly comparing change scores between two groups (i.e., a 2 × 2 ANOVA of the NF and WLC groups’ pre- and post-Tx scores). Instead, they initially used a between-group t test to compare the two groups’ pre-Tx scores and, after finding no significant differences, used separate within-group t tests to examine pre- to postchanges separately for the NF and WLC, which is not a direct or valid comparison and effectively neutralizes the use of a WLC.

A reanalysis of this data was recently published by deBeus and Kaiser (2011) including only the participants who completed all 40 Tx sessions of real and sham NF (42/53). This reanalysis involved 42 American 7- to 11-year-olds (31% males, 90% White) diagnosed with DSM-IV ADHD (43% inattentive type, 57% combined; 40% comorbid with ODD, 33% anxiety spectrum, and 17% dysthymic disorders), 57% of whom were on medication. After all 40 sessions, “NF learners” (NF-L, that is, children whose beta/theta + alpha [Engagement Index] EEG improved 1 SD pre–post active-NF Tx, n = 31) and “NF nonlearners” (NF-NL, that is, children who did not meet criterion, n = 11) were identified. Compared with the sham sessions, during active NF, NF-L had significantly better scores on the CTRS-R (Conners, 2002b) ADHD Total (p < .005, ES = 0.50), Inattentive (p = .01, ES = 0.41), and Hyperactive-Impulsive (p = .02, ES = 0.37) Scales and on the IVA (Sandford & Turner, 1995) response control (p = .003, ES = 0.63) and attention (p = .002, ES = 0.60) tasks. No Tx effects were found for the CPRS-R (Conners, 2002a).

CRITIQUE: Along with the following study by Picard et al. (2006), deBeus’ (2006) study was an essential development in the evolution of NF research as it used a sham-NF condition and triple-blind design. Along with the 2010 NF-L data reanalysis, deBeus’ study is the most sophisticated to date. Other study strengths include randomization, a reasonable sample size, multidomain assessment, standard Tx outcome measures, DSM diagnoses, and measurement of comorbidity. In addition, deBeus found significant results for objective measures and teacher ratings of the core ADHD symptoms of inattention, hyperactivity, and impulsivity. However, instead of a comparison of sham versus active conditions for the NF-L, it would have been statistically more appropriate to run a 2 × 2 analysis comparing the NF-L versus NF-NL in active versus sham. In addition, as is required of all crossover designs, there was no examination of a possible order effect, and there were possible carryover and learning effects (K. Conners, personal communication, February 15, 2011). Other limitations include the absence of a validity check on the blind, presence of or change in concomitant Txs during the study not being monitored and there were no FU data. Although published in an edited book, the details have not undergone peer-reviewed journal publication.

CRITIQUE: Similar to the deBeus’s (2006) study, Picard et al.’s (2006) use of a sham-NF condition and triple-blind design made a major contribution to the field. Other study strengths included randomization, multidomain assessment, standard Tx outcome measures, DSM diagnoses, and significant results for objective measures and ratings of the core ADHD symptoms of inattention and hyperactivity. Unfortunately, there were no validity check of blinding, FU data, and this study has not undergone peer-reviewed publication.

Outcome variables were examined between baseline, post-Tx (post), and at 6-month FU, and the following ESs (d) were reported by the authors. No time-by-Tx effects were significant, but the size of changes in the two groups are of interest. On parent ratings of DSM-IV ADHD symptoms, significant improvements on attention (baseline-post: p = .009, d = 0.80; baseline-FU: p = .026, d = 0.78) and hyperactivity (baseline-post: p = .006, d = 0.34; baseline-FU: p = .002, d = 0.61) were found for theta/beta NF. On teacher ratings of DSM-IV ADHD symptoms, significant improvements for hyperactivity were reported for both SCP (baseline-FU: p = .003, d = 0.56) and theta/beta (post-FU: p = .015, d = 0.50), impulsivity for theta/beta alone (post–FU: p = .006, d = 0.56), and social behavior for SCP alone (baseline-FU: p = .015, d = 0.59). Interestingly, hyperactivity and impulsivity of the theta/beta group deteriorated from baseline-post, before improving significantly post-FU. Parent ratings of the frequency of problems at home (Eyberg Child Behavior Inventory; Eyberg & Pincus, 1999) decreased significantly for SCP (baseline-post: p = .033, d = 0.43; baseline-FU: p = .048, d = 0.45) but not for theta/beta. CPRS-R (Conners, 2002a) parent ratings showed a significant improvement for theta/beta (baseline-FU: p = .009, d = 1.02) but not for SCP. Between baseline-FU, both theta/beta and SCP had significant (p < .001 and p = .008, d = 0.82 and 0.54, respectively) increases in performance IQ (Hamburg Wechsler Intelligenztest fur Kinder–Dritte Auflage [HAWIK-III]; Tewes, Rossmann, & Schallberger, 1999) but only theta/beta had significant (p = .015) increases in full-scale IQ (d = 0.62). Attention, as measured by a German version of a standardized computer battery, significantly improved for both SCP (baseline-post: p < .001, d = 0.92; baseline-FU: p < .001, d = 1.09) and theta/beta (baseline-FU: p = .021, d = 0.66). Leins and colleagues (2007) concluded that “this is the first time that stability of clinical effects after a neurofeedback treatment is demonstrated six months after the treatment” (p. 86).

CRITIQUE: This study is notable for being the first randomized examination of SCP NF, the first comparison of SCP NF to theta/beta NF, the first to intersperse 4- to 6-week breaks during NF training, and the first to conduct a 6-month post-Tx FU. It also had the strengths of blinding children, parents, and teachers; examining NF 5 times per week, DSM diagnoses, measurement of comorbidity, multidomain assessment, standard Tx outcome measures; and finding significant pre–post results for the core ADHD symptoms of parent-rated inattention and hyperactivity and teacher-rated inattention and impulsivity. Unfortunately, there was no blinding of NF trainers (and possibly assessment examiners) and no sham-Tx condition. The authors acknowledged such limitations and noted a double-blind design was not feasible because the trainer had to adjust the feedback parameters and because a placebo condition or wait-list for a Tx of 30 sessions was ethically incompatible with the Declaration of Helsinki (World Medical Association, 2000). As several other NF researchers and practitioners over the years have cited ethical issues with using a placebo condition, we will return to a discussion of this topic later on in the article.

A final criticism of this study is the lack of control or measurement of potential confounds related to changes assessed 6 months after the last NF session, which means that any changes at FU may have been due to NF and/or non-NF factors such as nonrandom participant experiences (e.g., beginning medicine, psychotherapy, or school services); regression to the mean; maturation; practice with assessment measures; participant-, observer-, and experimenter-expectancy effects; or a combination of any of the preceding factors. This is particularly problematic for this study as only 4/17 significant results occurred between baseline and post-Tx (i.e., parent ratings of DSM-IV attention and hyperactivity, parent ratings of problems at home, and computerized measures of attention). The remaining 13 significant results occurred between baseline and FU and post-Tx and FU, which could indicate either a “sleeper effect” of NF and/or the post-Tx effect of nonspecific factors. Therefore, this casts serious doubt on their conclusion that “this is the first time that stability of clinical effects after a neurofeedback treatment is demonstrated six months after the treatment” (p. 86). The study results are in fact hard to interpret because the design and results, with no non-NF comparison group and no significant differences between groups, do not allow a conclusion of controlled efficacy for either NF Tx. Although this was a randomized trial, the results essentially amount to parallel open trials of two NF approaches, with some pre–post significant measures and a good many pre-FU significant measures for each approach. The most solid conclusion is that there was no deterioration for 6 months after Tx ended, but this must be tempered by uncertainty regarding intervening Tx. Finally, Leins et al.’s (2007) significant results are questionable as they were based on post hoc paired sample t tests performed after finding no significant Group × Time interactions, which is not standard statistical practice.

CRITIQUE: This was the first study in the field to include a majority (68%) non-White sample. Other study strengths include randomization, significant pre–post Tx changes on teacher-rating scales, and a computer-based test of attention. Unfortunately, there was no statistical analysis reported for FU, there was no blinding or sham-NF condition, the sample was not reliably diagnosed with ADHD, change in concomitant Txs during the study was not reported, and pre- and post-Tx assessments were not given immediately before and after Tx, which are all potential threats to the internal validity of the reported results.

The following ESs were reported by the authors. Compared with the control group, the NF group improved significantly more pre- to post-Tx for parent- and teacher-rated DSM-IV total ADHD (p < .005, d = 0.60; p < .01, d = 0.64, respectively) and inattentive symptoms (p < .005, d = 0.57; p < .05, d = 0.50, respectively) and for parent-rated hyperactive/impulsive (p < .05, d = 0.45), oppositional (p < .05, d = 0.38), and delinquent/physically aggressive (p < .05, d = 0.37) symptoms. On the parent- and teacher-rated Strengths and Difficulties Questionnaire (Woerner, Becker, & Rothenberger, 2004), the NF group had significantly greater decreases than the control group on hyperactivity (p < .005, d = 0.60; p < .05, d = 0.48, respectively) and on parent-rated overall scores (p < .01, d = 0.51). The responder rate (i.e., improvement >25% on parent-rated DSM-IV ADHD scale) in the NF group was significantly (p < .05) superior to the control group (51.7% vs. 28.6%). Regarding any differences between the two NF protocols, both theta/beta and SCP had comparable improvements on the parent-rated DSM-IV ADHD scale. In terms of parental evaluation of the NF and control Txs, there was no significant difference between groups in their attitude toward Tx effectiveness (p = .77) and their ratings of their child’s motivation (p = .71).

That same year, Gevensleben, et al. (2009b) also reported distinct EEG effects from this study with combined theta/beta and SCP NF training producing significant (p < .001) reductions in theta activity in centro-parietal regions compared with control. More specifically, for theta/beta NF decreases of theta activity over parietal-midline sites was significantly associated (R = .465, p = .016) with decreases in parent-rated DSM-IV ADHD total scores accounting for 20% of the variance. For SCP, NF increases of alpha over central-midline area was significantly associated (R = 0.644, p < .001) with decreases in parent-rated DSM-IV hyperactive/impulsive scores accounting for 40% of the variance. One year later, Gevensleben et al. (2010), published 6-month FU data on 61 (65%) of the participants who had not dropped out or been excluded because they had begun some other Tx. Overall, the NF group continued their pre–post Tx improvements over the control group on parent-rated (other measures not reported) DSM-IV ADHD total scores (p < .005, d = 0.71), inattentive scores (p < .05, d = 0.73), hyperactive/impulsive scores (p < .01, d = 0.35), and delinquent/aggressive scores (p < .01, d = 0.52), and on Strengths and Difficulties Questionnaire hyperactive scores (p < .005, d = 0.49). The NF group also improved on its pre–post Tx improvements at FU for homework problems (p < .005, d = 0.60). Finally, as only 50% of children were classified as responders (i.e., 25% reduction in parent-rated DSM-IV ADHD scores) and 19% of the NF group started medication during FU, Gevensleben et al. (2010) concluded that NF does not work for all children with ADHD and recommended it as one module in a multimodal Tx program rather that as a stand-alone Tx.

CRITIQUE: This study was significant in being the first to find distinct EEG effects related to two different types of NF, the first multisite study, and the largest randomized sample to date (n = 94). Other study strengths included DSM diagnoses, control of concomitant medication and psychotherapy, measurement of comorbidity, multidomain assessment, standard Tx outcome measures, EEG Tx outcome, examination of parental expectations and knowledge of Tx assignment, semiblind parents and teacher blindness, an examination of blinding validity, a comparison Tx, and FU. In fact, the use of a control group to teach attention skills may even have made it more challenging to obtain comparative significant results for NF group. Nevertheless, this study found significant results across multiple domains of assessments, including the core symptoms of ADHD at home and school, changes in the centro-parietal regions of the brain, and maintenance of parent-rated improvements at 6-month FU. Limitations included the confounding of both theta/beta training and SCP training in the same participants and lack of complete blinding. Yet, as we noted for Levesque et al. (2006), it seems unlikely (though possible) that expectancy biases would activate those particular brain areas in those receiving NF. Thus, this study, while an important advance, still leaves some uncertainty.

Children were randomly assigned (3:2 ratio) to twenty 30-min sessions, twice a week, over 2 weeks, of theta/beta (unipolar, Cz) NF (N = 20) or to a cognitive-training control condition (Captain’s Log program, n = 14). There was no attempt to blind. Both groups showed improvement on a Stop-Signal test, but only NF had a significant (p = .001) reduction of impulsivity errors, which was significantly better than control (p = .018, d = 0.91). On an event-related neurophysiologic measure of response inhibition (NoGo-N2), the NF group had a marginally significant (p = .070) increase in N2-amplitude (an indicator of NoGo-N2 normalization). Parent-rated SNAP-IV (Swanson, 1992) inattention, hyperactivity, and impulsivity showed improvements over time for both groups but no significant differential effects.

CRITIQUE: This study was important because it found that NF led to normalization of a key neurophysiologic correlate of response inhibition. Study strengths included randomization, DSM-compatible diagnoses, multidomain assessment, standard Tx outcome measures, measurement of comorbidity, and a control Tx. Like Gevensleben, et al.’s (2009a) study, the use of a control group to teach attention skills may have made it more challenging to obtain comparative significant results for the NF group. The challenge was further complicated by both groups receiving intensive all-day behavior therapy, which may have preempted some of the variance available to show a Tx group difference. Unfortunately, this study lacked a triple-blind, sham control and FU. A final limitation is that only one significant result was reported for the core ADHD symptom of impulsivity.

CRITIQUE: This study is significant in its use of a triple-blind and sham-NF condition, an examination of blinding validity, the lack of any significant differences between the NF and sham groups and the monitoring and reporting of adverse effects. Unfortunately, children, parents, raters, and NF trainers were not adequately blinded so their expectations could have affected the results. Additional limitations included lack of information on the presence of and change in concomitant Txs and the lack of FU data. Finally, like the preceding two randomized, triple-blind sham-NF studies (deBeus & Kaiser, 2010; Picard et al., 2006), this study has not undergone peer-reviewed publication.

CRITIQUE: This study is an important contribution to the field because of its use of a sham-NF group and triple blinding of children, parent raters, and NF trainers, and the lack of any significant differences between the NF and sham groups, Additional strengths include use of a reliable and valid diagnostic instrument, control of comorbidity and medication, and use of standard ADHD Tx outcome measures. However, the sample size was very small, there was no validity check of blinding, no FU data, and the results could have been affected by the assessment examiner not being blind and the presence of and change in concomitant Tx. In addition, the sham-NF condition may not have been completely inert and may have accidentally given active and effective feedback to participants.

Meta-Analysis of Published and Unpublished Trials

In 2009, Arns et al. published the first meta-analysis of 15 studies (6 from Germany and 5 from the United States, N = 1,194), 10 of which were prospective controlled studies (n = 476) and 5 pre–post design studies (n = 718). Among those 15, 4 were labeled as RCTs (Bakhshayesh, 2007; Gevensleben, Holl, Albrecht, Vogel, et al., 2009a; Holtmann et al., 2009; Levesque et al., 2006), and one other study included randomization to either theta/beta or SCP NF (Leins et al., 2007 & Strehl et al., 2006). In contrast to our review, Arns and colleagues included the study by Bakhshayesh (2007), an unpublished doctoral dissertation, but omitted the following 6 studies from their meta-analysis: Linden et al. (1996) because SD required for the meta-analysis were unavailable, and Fine et al. (1994), Palsson et al. (2001), Orlandi and Greco (2004), deBeus (2006), and Picard et al. (2006) because they were not published or part of a doctoral dissertation.

Pre- and post-Tx data used for the meta-analyses included rating scale information for inattention and hyperactivity and computerized tests (CPT, Go-No-Go test) for impulsivity. For the 10 controlled between-participant design studies, Arns and colleagues calculated mean ESs using Hedges D and fail-safe numbers (FSN), which are the number of unpublished null findings needed to render an effect nonsignificant to control for “file-draw” bias. They reported the following ESs and FSNs for inattention (0.81, 52.1), hyperactivity (0.40, 15.4), and impulsivity (0.69, 37.7). Within-participant ESs were also calculated for the controlled and within-participant (pre–post) design studies. For these, Arns et al. reported the following pre-post (uncontrolled) mean ESs and FSNs for inattention (1.02, 508.6), hyperactivity (0.71, 320.3), and impulsivity (0.94, 511.7).

Arns et al. (2009) also examined several additional post hoc questions including a comparison of NF and methylphenidate via three studies (none of which used randomization) and reported a mean ES for impulsivity of −0.034 with an FSN of 0 (there was not enough data to examine inattention or hyperactivity), suggesting to Arns and colleagues that NF may have similar effects to stimulant medication but because self-selection may have artificially inflated NF outcomes relative to medication, randomized comparisons (measuring all 3 ADHD symptom clusters) are needed before concluding relative effectiveness. (p. 5). For older (<2006) versus more recent studies (>2006), one-way ANOVA post hoc analyses of ESs did not reveal any significant differences nor were there any significant differences between the various NF protocols used. However, a significant correlation was reported for the average number of study sessions and improvement for attention (p = .04; r = .550) but not for impulsivity and hyperactivity, indicating more NF sessions lead to greater reductions in inattention. ESs for randomized (n = 6) and nonrandomized (n = 7) studies were also compared. They found the ES for hyperactivity in randomized studies (0.54) was marginally significantly (p = .080) lower than for nonrandomized studies (ES = 0.80) but no significant differences for inattention (randomized ES = 0.87, nonrandomized ES = 1.24) or impulsivity (randomized ES = 0.75, nonrandomized ES = 0.99; randomized and nonrandomized inattention and impulsivity ESs shared by M. Arns in a personal communication, June 29, 2010). These results suggested to Arns and colleagues that hyperactivity is more susceptible than inattention and impulsivity to nonspecific effects.

Arns et al. (2009) summarized their results by noting that “both prospective controlled studies and studies employing a pre- and post-design found large effects sizes (ES) for neurofeedback on impulsivity [d = 0.69] and inattention [d = 0.81] and a medium ES for hyperactivity [d = 0.40]” (p. 180). They concluded, “Neurofeedback treatment for ADHD can be considered ‘Efficacious and Specific’ (Level 5) with a large ES for inattention and impulsivity and a medium ES for hyperactivity” (p. 180).

CRITIQUE: This first meta-analysis of NF for pediatric ADHD was a timely and significant addition to the field. Arns and colleagues’ approach to the meta-analyses, including their study search procedure, inclusion criteria, pre- and post-measure data identification, use of between-participant and within-participant ESs, FSNs, and post hoc analyses were all systematic, comprehensive, and informative. However, their use of both randomized and nonrandomized studies in their main meta-analyses is questionable because results from studies without randomization and control groups are difficult to interpret as they may be due to the specific effect of NF, and/or nonspecific Tx effects, selection effects, participant history, regression to the mean, placebo response, maturation, practice with assessment measures, and/or participant–rater–experimenter expectancies. Admirably, Arns and colleagues ran post hoc analyses to compare the ESs from randomized and nonrandomized studies but only one of the six randomized studies (Gevensleben, et al., 2009a) used data from partially blind raters (i.e., 37%-43% of parents who could not reliably identify Tx assignment). Without such blinding, participant–rater–experimenter expectancy effects may have contributed to the ESs reported by Arns et al. Therefore, due to the lack of controls, it is unclear as to whether the large ESs for impulsivity and inattention and the medium ES for hyperactivity are due to the active component of NF and/or nonspecific Tx factors.

We also question Arns et al.’s (2009) consideration of the semiactive control groups used in Bakhshayesh (2007), Gevensleben et al. (2009a), and Holtmann et al. (2009) as a “credible sham control providing an equal level of cognitive training and client-therapist interaction” (p. 180). A “sham” by definition entails a “fake” element imitating another condition such as an inactive substance (placebo) emulating a medication or a procedure/device made to appear like a known Tx. Bakhshayesh used an electromyograph biofeedback control condition, whereas the other two studies used a computerized attention training control condition that did not involve placement of electrodes on participants’ heads. Because all three studies used informed consent of the participants regarding the different procedures, it is doubtful any of the participants thought they were getting a “fake” form of NF. Hence, none of these procedures really can be considered as credible sham controls. However, these active-control conditions, which use interventions with assumed pre–post Tx gains, are theoretically a more stringent test of NF because they are able to subtract from the NF pre–post benefit whatever pre–post benefit the control Tx yielded, assuming that the control Txs are proven Txs. They should also theoretically control for a nonspecific placebo effect, provided the participants and investigators believe that they are as good as NF. However, it is doubtful that the investigational team believed they are as good; whether the parents, had similar effects to teachers, and other nonblind raters believed this depended heavily on the orientation and “sales pitch” given to them at the beginning and whether they believed this, the details of which are not presented. Furthermore, because the control apparatus and procedure are overtly different from those of NF, blinding was not possible. It is doubtful that any of the children, raters, or experimenters thought the control children were getting NF (i.e., “a credible placebo control”) and so these studies could not have controlled for child-, rater-, and experimenter-expectancy effects.

Therefore, due to the inclusion of nonrandomized studies and the absence of studies with blinding and sham-NF designs, we disagree with Arns et al.’s (2009) conclusion that NF for pediatric ADHD be considered “efficacious and specific” (Level 5 of the AAPB, ISNR, and APA guidelines) as NF has NOT been “shown to be statistically superior to credible placebo therapies or to actual treatments . . . in two or more independent studies.”
