Seismic analysis of a I-sectioned steel frame based on an improved time-domain spectral element method

Abstract

An improved time-domain spectral element method (ITSEM) is developed for seismic analysis of I-sectioned steel structures in this paper. The developed method considers the effect of section type on spectral stiffness using shear correction coefficient. In the calculation process of the time-domain spectral stiffness and mass matrices, the invariant integral operations of the element matrices are extracted and saved in advance. Thus, the global mass and stiffness matrices of the structures can be obtained only by simple addition, subtraction, multiplication and division operations, which greatly improves computational efficiency. Next, the natural frequencies of a I-sectioned beam are computed and compared with the finite element method (FEM) and analytical results to validate the ITSEM. Then, the seismic responses of a ten-story steel frame using ITSEM are obtained and compared with those by FEM, which proves the effectiveness, accuracy and high efficiency of ITSEM in elastic seismic analysis.

Keywords

Improved time-domain spectral element method steel structure I-sectioned frame seismic analysis computational efficiency

Introduction

In the process of structural numerical analysis, the key is usually to choose the appropriate solution method between the balance of computational time and complexity.¹ To satisfy the calculation precision in practical engineering, a large number of elements are needed to be divided when the finite element method (FEM) is used to analyze the actual structure, which leads to a great increase in computational costs.² Patera first proposed the time-domain spectral element method (TSEM) in 1984 to solve the fluid dynamic problems.³ TSEM is a calculation method based on FEM and spectral method. It fully combines the high-order convergence of spectral method, namely the p convergence property, with the h convergence property of FEM, which is easy to adapt to complex geometric region and converges with element encryption. This combination makes TSEM not only have the high precision and convergence characteristics of the spectral method, but also have the good adaptability of FEM in the complex geometric region. It also adjusts the shortcoming that finite element calculated amount is too large due to dense space-time discretization. The method defines shape functions on specific nodes of basic structural elements and describes the distribution of physical properties in the elements and at the boundaries. The main difference between TSEM and FEM is that the former uses Chebyshev-Gauss-Lobatto (CGL) points as the element nodes, whose coordinate set is equivalent to the zero coordinate of the first derivative of the N-order Chebyshev polynomial adding the coordinates of the two endpoints of the element. In this way, the significant shortcoming of the high-order FEM with uniform distribution of nodes in solving vibration problems, namely Runge phenomenon,⁴ can be effectively suppressed, high precision numerical interpolation can be realized, and convergence speed can be accelerated.

Since the TSEM was proposed, it has aroused the research interest of many researchers. So far, TSEM has successfully simulated wave propagation in one-dimensional, two-dimensional and three-dimensional structures.^5–8 Zak and Krawczuk studied TSEM for one-dimensional rod structures in combination with the well-known rod theory in the field of material strength. They compared the different rod theories used in TSEM, and studied the influence of the appropriate theory choice on the reliability of the results,⁹ and discussed the precision of wave propagation analysis using TSEM.¹⁰ Wang et al. developed a spectral element for the concrete-steel contact surface to study the propagation of guided waves along the steel bar in concrete.¹¹ Bonfiglio et al. used the spectral FEM to study the dynamic response of the vibrating structure and predicted the transmission acceleration of a steel beam and two sandwich plates, which was compared with the measured data in the laboratory test.¹² Rucka established the time-domain spectral element of frame structure based on the Mindlin-Herrmann rod and Timoshenko beam theory, which was used for experimental and numerical research on damage detection of L-shaped steel joints.¹³ To find a feasible method for damage identification of steel structures, Wang and Hao developed a spectral element modeling method that could simulate both wave propagation and structural vibration characteristics.¹⁴ Rekatsinas et al.¹⁵ improved the numerical simulation efficiency of guided waves in laminated composite strips by TSEM. Raja and Gopalakrishnan¹⁶ proposed a new time-domain spectral element of 9 degrees of freedom per node based on the high-order sandwich plate theory and combined with the flexible behavior of composite panel cores. The damping effects of different core types were studied in detail, which could be effectively applied to the design of sandwich beams. Yeung and Ng¹⁷ proposed a TSEM with high computational efficiency and a crack model considering the propagation, scattering and mode transformation of guided waves in the pipeline. The proposed TSEM coupling the torsional and bending motions of guided waves can accurately predict the propagation, scattering, and mode transformation of torsional guided waves. Yu et al.¹⁸ proposed an effective TSEM to simulate wave propagation in crack structures and adopted spectral gap element to model respiratory cracks. Compared with the traditional FEM, the TSEM proposed by them has higher accuracy and efficiency.

At present, although there are a lot of researches on spectral element method,^19–26 most of them are applied to high-frequency dynamic researches on one-dimensional axial stress rods, two-dimensional plates and shells, and three-dimensional solid structures. These researches mostly aim at the basic members with rectangular section and are focused on their high-frequency dynamics, and few researches on the seismic analysis of actual steel structures in low frequency range were addressed using TSEM. Therefore, it is very necessary to extend TSEM to actual steel structures to improve the accuracy and efficiency of seismic analysis of steel structures commonly used in civil engineering.

Beam components in actual steel structures are seldom rectangular cross-sections, mostly I-section or T-section, which are medium thin long beams. The influence of shear deformation of the structure cannot be ignored, and the Euler-Bernouli beam theory is no longer applicable. Therefore, this paper proposes an improved time-domain spectral element method (ITSEM) for I-sectioned steel structures based on Timoshenko beam theory. In this method, the CGL points are taken as the element nodes of the Timoshenko beam, and Lagrange interpolation is used to expand the spectral element approximation of the displacement functions of the vertical and rotational displacements of beam, and the corresponding displacement shape functions are obtained. Based on the displacement shape functions obtained, the stiffness and mass matrices of the time-domain spectral elements in the I-sectioned beam are derived by using a method similar to FEM, considering the inertial action of the transverse displacement and the rotational inertial action of the rotation angle. Combined with the time-domain spectral element matrix of the rod, the seismic analysis of plane I-sectioned steel frame structure suffered from different earthquake excitations are carried out to verify the effectiveness, accuracy, and high efficiency of ITSEM. In the process of seismic analysis, the invariant integral operations of the element matrices are extracted and saved in advance. Thus, the global mass and stiffness matrices of the structures can be obtained only by simple addition, subtraction, multiplication, and division operations, which greatly improves the computational efficiency of ITSEM.

ITSEM

Spectral element approximation

Assuming that p_n is an orthogonal polynomial function on [c, d] with t as the independent variable, then

(p_{i}, p_{j}) = \int_{c}^{d} p_{i} (t) p_{j} (t) w (t) d t = {\begin{matrix} C_{i}, i = j \\ 0, i \neq j \end{matrix}

(1)

Divide the computational domain V into N_e non-overlapping elements V_e, that is,

V = \cup_{e = 1}^{N_{e}} V_{e}, and \cap_{e = 1}^{N_{e}} V_{e} = ϕ

(2)

where V means the computational domain, V_e means non-overlapping elements, N_e is the number of V_e, and

φ

means empty set.

The displacement function is expanded by spectrum on each element V_e, in which the unknown function is approximately expanded to a linear combination of orthogonal function system. The original domain of function spectral expansion is the standard element V_st. The definition domain of the unknown function can be transformed from the general element V_e to the standard element V_st by the transformation of the function definition domain, so that the unknown function on any element can be approximately expanded by spectrum, and then the shape function on any element can be constructed. By interpolating the nodal basis functions, the spectral element approximation of the displacement function can be expressed in a form similar to the finite element. These nodal basis functions depend on their nodal values, and the functions that describe the distribution of the internal physical properties of the spectral finite element are some orthogonal polynomials, so the non-uniform distribution of the nodes in the element is determined by the distance between the zeros of some orthogonal polynomials, which avoids the Runge phenomenon. These orthogonal polynomials are usually Lobatto, Chebyshev or Laguerre polynomials. Because of the uniqueness of the interpolation polynomial of the unknown function, as long as the values of the nodes are the same, whether the orthogonal polynomial or the Lagrange interpolation basis function is regarded as the shape function, the spectral element approximation expansion polynomial of the unknown function formed by their linear combination is the same. Here, the interpolation node basis function on the element is regarded as the shape function, and the CGL node is taken as the interpolation node. The spectral element approximation ${\tilde{u}}^{e}$ of the function u on any element V_e can be written as

u^{e} (r) \approx {\tilde{u}}^{e} (r) = \sum_{i = 1}^{n} u_{i}^{e} N_{i}^{e} (r)

(3)

where

u_{i}^{e}

represents the value of the function u at the i-th node on the element V_e,

N_{i}^{e} (r)

is the interpolating node basis function or node shape function on the element V_e, and n represents the number of summary nodes on the element.

Axial rod time-domain spectral element

The n-1th order Chebyshev polynomial is

T_{n - 1} (ξ) = c o s ((n - 1) a r c c o s (ξ))

(4)

whose CGL nodes is

ξ_{i} = c o s (\frac{i - 1}{n - 1} π), i = 1,2, ..., n, n \geq 2

(5)

It is also the zeros of $(1 - ξ^{2}) T_{n - 1}^{'} (ξ)$ or the second kind of complete Chebyshev polynomials of n order, where the second kind of complete Chebyshev polynomial of n order is

{\tilde{U}}_{n} (ξ) = (1 - ξ^{2}) U_{n - 2} = \sqrt{1 - ξ^{2}} s i n ((n - 1) a r c c o s (ξ)), n \geq 2

(6)

A I-sectioned axial rod time-domain spectral element is shown in Figure 1, the axial displacement u(x) of the rod on the general element coordinate system $x \in [0, L]$ is transformed into the standard coordinate system $ξ \in [- 1, 1]$ by $x = \frac{1 + ξ}{2} L$ and expressed as u(ξ) = u(x(ξ)). The following equation is obtained by Lagrange interpolation on CGL nodes

u (ξ) = \sum_{i = 1}^{n} u (ξ_{i}) N_{i} (ξ) = \sum_{i = 1}^{n} u_{i} N_{i} (ξ) = N δ^{e}

(7)

where N_i(ξ) is the nodal shape function, N is the standard rod element shape function matrix, which is only related to the independent variable

ξ \in [- 1, 1]

, and δ ^e is the nodal displacement

N = [N_{1} (ξ), N_{2} (ξ), ..., N_{i} (ξ), ..., N_{n} (ξ)]

(8)

δ^{e} = {[u_{1}, u_{2}, ..., u_{i}, ..., u_{n}]}^{T}

(9)

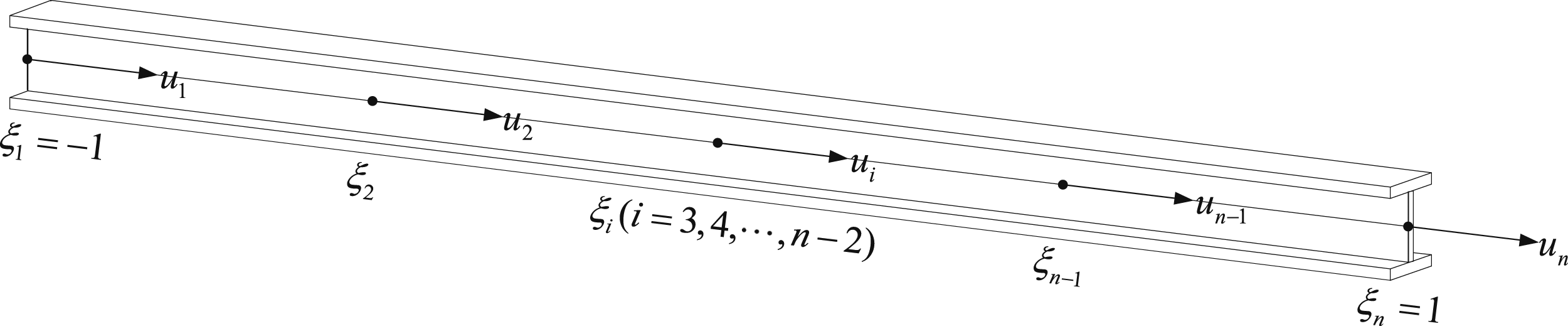

Figure 1.

A I-sectioned axial rod time-domain spectral element.

The axial strain of the axial deformed rod element is

ε = \frac{\partial u}{\partial x} = \frac{\partial N}{\partial x} δ^{e}

(10)

Then, its strain matrix is

B = \frac{\partial N}{\partial x} = \frac{2}{L} \frac{\partial N}{\partial ξ} = \frac{2}{L} B_{s t}

(11)

where B _st is the strain matrix of standard rod element, which is only related to the independent variable

ξ \in [- 1,1]

The stiffness matrix and mass matrix of axial rod element could be derived according to the principle of minimum potential energy and D' Alembert principle, written as

K_{r}^{e} = \int_{- 1}^{1} B^{T} E B x^{'} (ξ) A d ξ = \int_{- 1}^{1} \frac{2 E A}{L} B_{s t}^{T} B_{s t} d ξ

(12)

M_{r}^{e} = \int_{- 1}^{1} ρ N^{T} N x^{'} (ξ) A d ξ = \int_{- 1}^{1} \frac{ρ A L}{2} N^{T} N d ξ

(13)

where E, ρ, A and L represent elastic modulus, density, cross-section area and element length, respectively.

After, the global stiffness matrix and mass matrix of the structure can be assembled through the element stiffness matrix and mass matrix. Finally, the vibration governing equation of TDSEM can be written as

M \ddot{δ} + Kδ = F (t)

(14)

where M , K, and F(t) represent the global mass matrix, stiffness matrix, and node force vector of the structure, respectively, and δ represents the global displacement of the structure.

I-sectioned beam time-domain spectral element

Based on the generalized displacement theory of Timoshenko beam, considering the shear deformation of the structure, the CGL point is used as the element node of the I-sectioned beam. According to the Hughes element model, the spectral element approximation of the displacement function of the vertical displacement and the rotational displacement of the beam is expanded by Lagrange interpolation, and the corresponding displacement shape functions were obtained. Finally, the stiffness and mass matrices of the time-domain spectral elements in the I-sectioned beam are derived by using a method similar to FEM, considering the inertial action of the transverse displacement and the rotational inertial action of the rotation angle.

The displacement and rotation angle of any point in the I-sectioned beam along the x and y axis are

u (x, y) = - y ϕ (x) v (x, y) = v (x) ϕ (x, y) = ϕ (x)

(15)

A I-sectioned beam time-domain spectral element is shown in Figure 2. The transverse displacement v(x) and rotation angle φ(x) in the general element coordinate system $x \in [0, L]$ are expressed as v(ξ) = v(x(ξ)) and φ(ξ) = φ(x(ξ)) in the standard coordinate system $ξ \in [- 1,1]$ by the transformation of $x = \frac{1 + ξ}{2} L$ , respectively. The following equations can be obtained by Lagrange interpolation on CGL nodes, respectively.where N_i(ξ) is the nodal shape function, N _v and N _φ are, respectively, the shape function matrices of the transverse and rotational displacements of the standard Timoshenko beam element, which are only related to the independent variable $ξ \in [- 1,1]$ , and δ ^e is node displacement

N_{v} = [N_{1} (ξ), 0, N_{2} (ξ), 0, ..., N_{i} (ξ), 0, ..., N_{n} (ξ), 0]

(18)

N_{ϕ} = [0, N_{1} (ξ), 0, N_{2} (ξ), ..., 0, N_{i} (ξ), ..., 0, N_{n} (ξ)]

(19)

δ^{e} = {[v_{1}, ϕ_{1}, v_{2}, ϕ_{2}, ..., v_{i}, ϕ_{i}, ..., v_{n}, ϕ_{n}]}^{T}

(20)

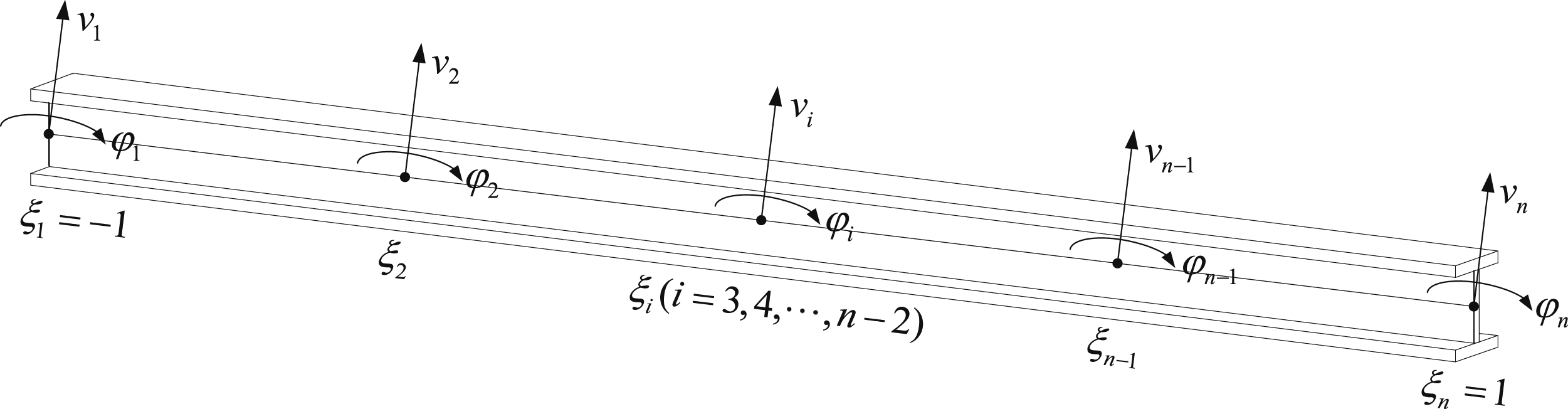

Figure 2.

A I-sectioned beam time-domain spectral element.

Correspondingly, the bending strain and shear strain corresponding to the bending deformation and shear deformation of the I-sectioned beam element are as follows

ε_{b} = \frac{\partial u}{\partial x} = - y \frac{\partial ϕ}{\partial x} = - y \frac{\partial N_{ϕ}}{\partial x} δ^{e}

(21)

γ = \frac{\partial v}{\partial x} + \frac{\partial u}{\partial y} = \frac{\partial v}{\partial x} - ϕ = (\frac{\partial N_{v}}{\partial x} - N_{ϕ}) δ^{e}

(22)

Their strain matrices are, respectively

B_{ε} = - y \frac{\partial N_{ϕ}}{\partial x} = - y \frac{2}{L} \frac{\partial N_{ϕ}}{\partial ξ} = - y \frac{2}{L} B_{ε s t}

(23)

B_{γ} = \frac{\partial N_{v}}{\partial x} - N_{ϕ} = \frac{2}{L} \frac{\partial N_{v}}{\partial ξ} - N_{ϕ} = \frac{2}{L} B_{γ s t 1} - N_{ϕ}

(24)

where B _εst and B _γst1 are the bending strain matrix and shear strain matrix of the standard Timoshenko beam element, respectively, which are only related to the independent variable

ξ \in [- 1,1]

So that, the stiffness matrix of I-sectioned beam element could be derived according to the principle of minimum potential energy, written as

\begin{array}{l} K_{b}^{e} = \int_{- 1}^{1} \int_{A} B_{ε}^{T} E B_{ε} x_{ξ} d A d ξ + \int_{- 1}^{1} B_{γ}^{T} κ G A B_{γ} x_{ξ} d ξ \\ = \int_{- 1}^{1} \int_{A} E \frac{2}{L} y^{2} B_{ε s t}^{T} B_{ε s t} d A d ξ + \int_{- 1}^{1} κ G A \frac{L}{2} B_{γ}^{T} B_{γ} d ξ \\ = E I \frac{2}{L} \int_{- 1}^{1} B_{ε s t}^{T} B_{ε s t} d ξ + κ G A \int_{- 1}^{1} (\frac{2}{L} B_{γ s t 1}^{T} B_{γ s t 1} - N_{ϕ}^{T} B_{γ s t 1} - B_{γ s t 1}^{T} N_{ϕ} + \frac{L}{2} N_{ϕ}^{T} N_{ϕ}) d ξ \end{array}

(25)

where I, G, and κ represent cross-sectional moment of inertia, shear modulus, and shear correction coefficient, respectively. The shear modulus is taken as

G = \frac{E}{2 (1 + μ)}

and μ is Poisson’s ratio. In this paper, the shear correction coefficient κ is calculated according to Cowper’s theory.²⁷ For the thin-walled I-sectioned beam, it is calculated according to the following equation

κ = \frac{10 (1 + μ) {(1 + 3 m)}^{2}}{a}

(26)

where,

a = 12 + 72 m + 150 m^{2} + 90 m^{3} + μ (11 + 66 m + 135 m^{2} + 90 m^{3}) + 30 n^{2} (m + m^{2}) + 5 μ n^{2} (8 m + 9 m^{2})

m = \frac{2 b t_{2}}{h t_{1}}, n = \frac{b}{h}

, they are parameters used to calculate the shear correction coefficient. b, h, t₁, and t₂ are the width, height, upper and lower flange thickness, and web thickness of I-section, respectively.

The element mass matrix of I-sectioned Timoshenko beam takes into account not only the inertial action of transverse displacement but also the rotational inertial action of rotation angle. The element mass matrix of I-sectioned beam could be obtained according to D'Alembert principle, which are presented as follows:

(1) Inertial action of transverse displacement

The transverse acceleration of the element is

\ddot{f} = N_{v} {\ddot{δ}}^{e}

(27)

The element equivalent node force of the transverse inertia force is

F_{ρ 1}^{e} = - \int_{V} N_{v}^{T} ρ N_{v} {\ddot{δ}}^{e} d V

(28)

(2) Rotational inertia action of the angle

The rotational acceleration of the element is

\ddot{ϕ} = N_{ϕ} {\ddot{δ}}^{e}

(29)

The element equivalent node force of the rotational inertia force is

F_{ρ 2}^{e} = - \int_{V} N_{ϕ}^{T} ρ y^{2} N_{ϕ} {\ddot{δ}}^{e} d V

(30)

So that, the element mass matrix of I-sectioned beam is obtained, written as

\begin{array}{l} M_{b}^{e} = \int_{- 1}^{1} \int_{A} (ρ N_{v}^{T} N_{v} + ρ y^{2} N_{ϕ}^{T} N_{ϕ}) x_{ξ} d A d ξ \\ = \int_{- 1}^{1} (ρ A \frac{L}{2} N_{v}^{T} N_{v} + ρ I \frac{L}{2} N_{ϕ}^{T} N_{ϕ}) d ξ \end{array}

(31)

After $M_{b}^{e}$ and $K_{b}^{e}$ of I-sectioned beam are assembled, the global mass matrix M and stiffness matrix K of the structure in equation (14) can be obtained.

I-sectioned plane frame time-domain spectral element

The plane frame time-domain spectral element has axial deformation and bending deformation at the same time, and these two deformations are independent of each other, as shown in Figure 3. Therefore, the dynamic responses of the I-sectioned plane frame cannot be analyzed only by using the time-domain spectral beam element. The time-domain spectral elements of the plane frame can be assembled from the time-domain spectral elements of the beam and the rod in the same way as FEM. The nodal displacement δ ^e of the plane frame consists of the nodal displacements of rods and beams, as shown below

δ^{e} = {[u_{1}, v_{1}, ϕ_{1}, u_{2}, v_{2}, ϕ_{2}, ..., u_{i}, v_{i}, ϕ_{i}, ..., u_{n}, v_{n}, ϕ_{n}]}^{T}

(32)

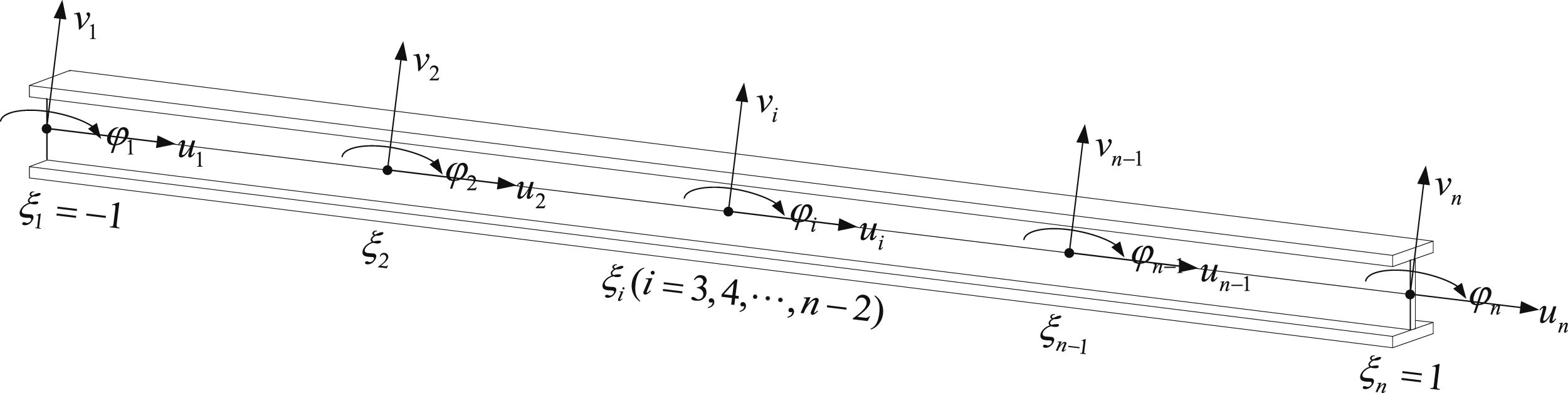

Figure 3.

A I-sectioned plane frame time-domain spectral element.

According to the assembly order of nodal displacements, the stiffness matrix, mass matrix, and nodal force vector of the time-domain spectral element of the I-sectioned plane frame can be assembled by the stiffness matrix, mass matrix, and nodal force vector of the time-domain spectral elements of the beam and rod, respectively. Finally, the global stiffness and mass matrixes and nodal force vector of the plane frame structure are obtained, respectively.

Structural damping

Structural damping is divided into classical damping and non-classical damping.²⁸ In this paper, the damping of steel structures is considered by Rayleigh damping, one of classical damping, and its element damping matrix c can be expressed as

C^{e} = α_{1} M^{e} + α_{2} K^{e}

(33)

where, C ^e, M ^e, and K ^e represent the damping, mass, and stiffness matrices of the time-domain spectral element, respectively, α₁ and α₂ are the damping coefficients, specifically as

{\begin{matrix} α_{1} \\ α_{2} \end{matrix}} = \frac{2 ω_{i} ω_{j}}{ω_{j}^{2} - ω_{i}^{2}} [\begin{matrix} ω_{j} & - ω_{i} \\ - 1 / ω_{j} & 1 / ω_{i} \end{matrix}] {\begin{matrix} ξ_{i} \\ ξ_{j} \end{matrix}}

(34)

where, ω_i and ω_j represent the natural frequencies of the structural order i and j, respectively, and i ≠ j, ξ_i and ξ_j are the damping ratios of the i and j order structural mode shapes, respectively.

Fast calculation process of stiffness and mass matrix

To improve the computational efficiency of ITSEM, the invariant integral operation part of the element matrix can be extracted from the element mass and stiffness matrices, since they can be calculated and saved in advance. The global mass and stiffness matrices of the structure can be obtained by simple addition, subtraction, multiplication, and division operations, which greatly improves the computational efficiency of ITSEM. When the number of CGL nodes n+1 is constant, the matrix variable expressions $N, N_{v}, N_{ϕ}, B_{s t}, B_{ε s t}, B_{γ s t 1}$ are also fixed and only related to the independent variable $ξ \in [- 1,1]$ . Therefore, the invariant integral operations of the time-domain spectral element matrix are shown as follows

H_{1} = \int_{- 1}^{1} B_{s t}^{T} B_{s t} d ξ

(35)

H_{2} = \int_{- 1}^{1} B_{ε s t}^{T} B_{ε s t} d ξ

(36)

H_{3} = \int_{- 1}^{1} B_{γ s t 1}^{T} B_{γ s t 1} d ξ

(37)

H_{4} = \int_{- 1}^{1} N_{ϕ}^{T} B_{γ s t 1} d ξ

(38)

H_{5} = \int_{- 1}^{1} B_{γ s t 1}^{T} N_{ϕ} d ξ

(39)

H_{6} = \int_{- 1}^{1} N_{ϕ}^{T} N_{ϕ} d ξ

(40)

A_{1} = \int_{- 1}^{1} N^{T} N d ξ

(41)

A_{2} = \int_{- 1}^{1} N_{v}^{T} N_{v} d ξ

(42)

A_{3} = \int_{- 1}^{1} N_{ϕ}^{T} N_{ϕ} d ξ

(43)

where H ₁ and A ₁ are n × n matrices, the size of other matrices is 2n × 2n, H ₆ and A ₃ is equal.

Substituting equations (35) and (41) into (12) and (13) to obtain the time-domain spectral element mass and stiffness matrices of the rod

K_{r}^{e} = \frac{2 E A}{L} H_{1}

(44)

M_{r}^{e} = \frac{ρ A L}{2} A_{1}

(45)

Substituting equations (36)–(40) into (25) to obtain the time-domain spectral element stiffness matrix of I-sectioned beam

K_{b}^{e} = \frac{2 E I}{L} H_{2} + κ G A (\frac{2}{L} H_{3} - H_{4} - H_{5} + \frac{L}{2} H_{6})

(46)

Substituting equations (42) and (43) into (31) to obtain the time-domain spectral element mass matrix of I-sectioned beam

M_{b}^{e} = \frac{ρ A L}{2} A_{2} + \frac{ρ I L}{2} A_{3}

(47)

The stiffness matrices and mass matrices of the time-domain spectral element of the I-sectioned plane frame can be assembled by $K_{r}^{e}, K_{b}^{e}$ , and $M_{r}^{e}, M_{b}^{e}$ , respectively.

Method validation

Dynamic characteristic analysis of an I-sectioned simply supported beam

Applying the principle of minimum complementary energy to obtain the theoretical calculation formula of the natural frequency of the Timoshenko simply supported beam^29,30

ω_{i} = ω_{E u l e r, i} [1 - \frac{i^{2} π^{2} I}{2 L^{2} A} (1 + \frac{E}{κ G})], where ω_{E u l e r, i} = {(\frac{i π}{L})}^{2} \sqrt{\frac{E I}{ρ A}}

(48)

where ω_Euler,i is the natural frequency of simply supported Euler-Bernoulli beam without considering shear deformation and moment of inertia.

To verify the correctness of the developed method in this paper, the ITSEM program calculating natural frequency is compiled. The number of spectral element is set as 1, and each spectral element has seven nodes. The natural frequency of the I-sectioned simply supported beam is calculated and compared with the FEM calculation results with different division of elements and its exact solution. The simply supported beam model and its cross-section dimensions are shown in Figure 4. Q235 steel is employed, and its elastic modulus E = 210 GPa, density ρ = 7800 kg/m³, Poisson’s ratio μ = 0.3, I-sectioned width B = 100 mm, and wall thickness is 10 mm. Shear correction coefficient κ is calculated according to equation (28). With the changed beam height h and span L, the natural frequencies of the beam are calculated by ITSEM, FEM, and theoretical formula (48), respectively. In addition, an error function is also defined in equation (49) to reflect the computational accuracy of ITSEM and FEM

e_{ω, r} = \frac{| ω_{M} - ω_{E} |}{ω_{E}} \times 100 %

(49)

where ω_M represents the natural frequency of simply supported beam calculated by ITSEM or FEM, ω_E represents the exact solution of the natural frequency of the simply supported beam.

Figure 4.

A I-sectioned simply supported steel beam (Unit: mm).

Table 1 lists the first-order natural frequencies of the simply supported beam with different beam heights h and spans L by different methods. Figure 5 shows the convergence of the first natural frequencies to the number of the elements considered in FEM with different heights h and spans L. It is found that when the simply supported beam is divided into one element, the maximum error of the natural frequency calculated by the FEM is 11.496%, which differs greatly from the exact solution. However, as can be seen from Figure 5, with the increase of the number of division elements, the calculation result of the first natural frequency by FEM will gradually approach the exact solution. When the beam is divided into eight elements, the maximum error decreases to 0.012% and the calculation results are almost the same as the exact solution. In contrast, ITSEM only needs to divide one element to close to the exact solution. This not only proves the effectiveness of ITSEM in calculating the dynamic characteristics of I-sectioned beams, but also indicates that ITSEM has higher computational accuracy in analyzing the dynamic characteristics of I-sectioned beam.

Table 1.

The first natural frequencies of beam with different heights h and spans L.

Number of element	h = 0.1 m, L = 5 m		h = 0.15 m, L = 5 m		h = 0.2 m, L = 10 m		h = 0.3 m, L = 10 m
Number of element	ω(rad/s)	e_ω,r(%)	ω(rad/s)	e_ω,r(%)	ω(rad/s)	e_ω,r(%)	ω(rad/s)	e_ω,r(%)
FEM1	91.0498	11.302	134.9789	11.496	44.1368	11.172	63.6992	11.300
FEM2	82.1705	0.447	121.6447	0.482	39.8702	0.425	57.4882	0.447
FEM4	81.8385	0.041	121.1255	0.053	39.7152	0.035	57.2560	0.042
FEM8	81.8102	0.007	121.0758	0.012	39.7031	0.004	57.2362	0.007
ITSEM1	81.8059	0.002	121.0669	0.005	39.7017	0.001	57.2333	0.002
Exact solution	81.8046	—	121.0612	—	39.7014	—	57.2321	—

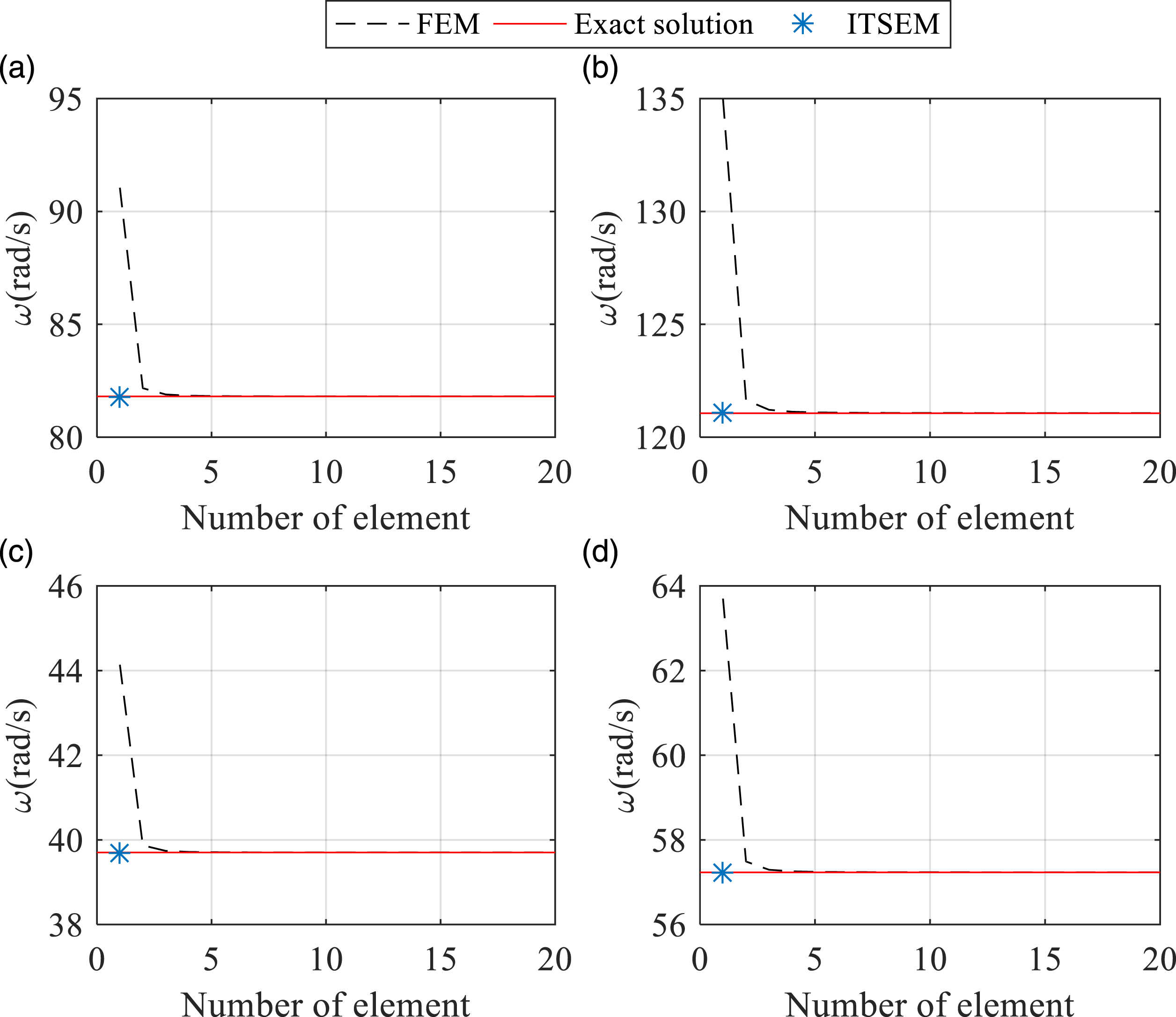

Figure 5.

Convergence of the first natural frequency to the number of the elements considered in the finite element method. (a) h = 0.1 m, L = 5 m, (b) h = 0.15 m, L = 5 m, (c) h = 0.2 m, L = 10 m, and (d) h = 0.3 m, L = 10 m.

Seismic analysis of a ten-story I-type steel frame

Descriptions of steel frame model

To validate ITSEM in steel structure for multi-story buildings, we implement the seismic response analysis of a ten-story steel frame model under different seismic excitations and validate its feasibility and computational efficiency. The ten-story steel frame model is shown in Figure 6. Q235 steel is employed, and its elastic modulus, density, and Poisson’s ratio are same as the previous section, the damping ration is 0.03. The I-shape section is employed, and the sectional dimensions of the lower 5th story columns, the upper 5th story columns and all beams are I500 mm × 300 mm × 12 mm × 15 mm, I300 mm × 300 mm × 10 mm × 15 mm and I350 mm × 175 mm × 8 mm × 12 mm, respectively, and their yield moments are 595.2527 kN·m, 312.2798 kN·m and 192.1682 kN·m, respectively. The beam length is 5 m, and height for each story is 4 m. Each beam or column component was taken as one spectral element by the ITSEM, and each time-domain spectral element has five nodes.

Figure 6.

A ten-story steel frame with I-sectioned (Unit: mm).

Seismic response analysis and results

Different seismic waves are selected^31,32 as shown in Figure 7, where, El-Centro (Imperial Valley Earthquake of 1940) and LianZhou1 (Lanzhou Earthquake of 1995) are seismic waves applicable to class II sites, and their PAG is adjusted to 0.35 g. In addition, in order to reflect the randomness of seismic waves, white noise was selected as the artificial wave with a PAG of 0.35 g and a maximum frequency of 10 Hz. These three different seismic excitations are horizontally imposed on the column foot of the ten-story steel frame, respectively. ITSEM and FEM are used to calculate the dynamic responses of the ten-story steel frame by Newmark method, the time step is set to 0.02 s. The maximum bending moment of each element of the structure under different horizontal seismic excitations is calculated by ITSEM, and then the ratio of the maximum bending moment of each element to the yield bending moment is calculated and shown in Figure 8.

Figure 7.

Three different seismic waves with a peak value of 0.35 g. (a) El-Centro, (b) LianZhou1, and (c) Artificial seismic wave.

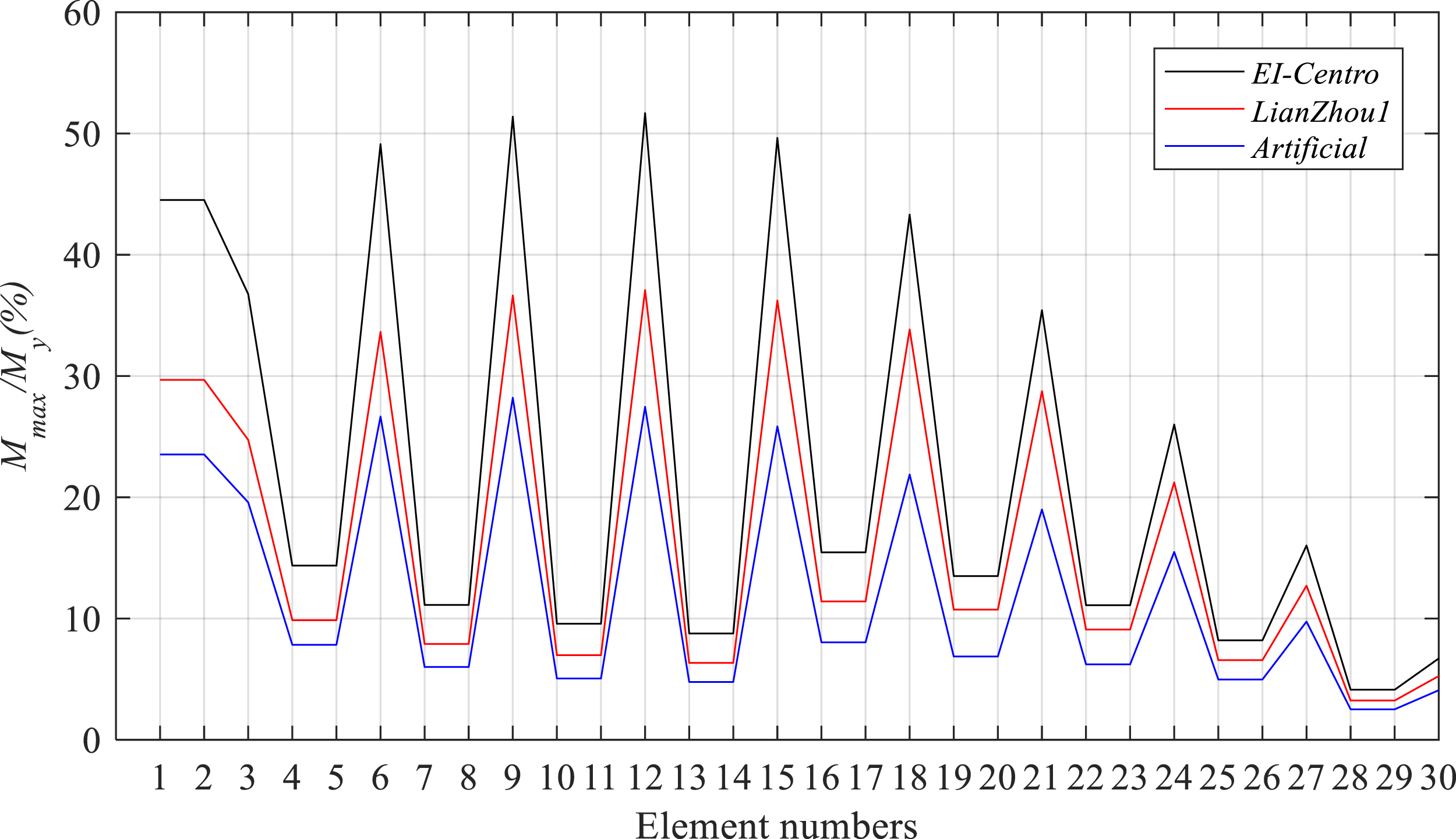

Figure 8.

The ratio of the maximum bending moment of each element to the yield bending moment.

Next, FEM is used to calculate the dynamic responses of the structure, and the calculated results are compared with those of ITSEM. Each beam and column component in Figure 6 is divided into 1, 2, 5, and 10 finite elements by FEM, and the total number of elements are 30, 60, 150, and 300 elements, respectively. Table 2 lists the maximum bending moment M_max at the position of maximum ratio, the maximum shear force Q_max at the bottom of the structure, and the maximum horizontal displacement UX_max of the node 22, and compares the calculated relative errors e_R of FEM and ITSEM.

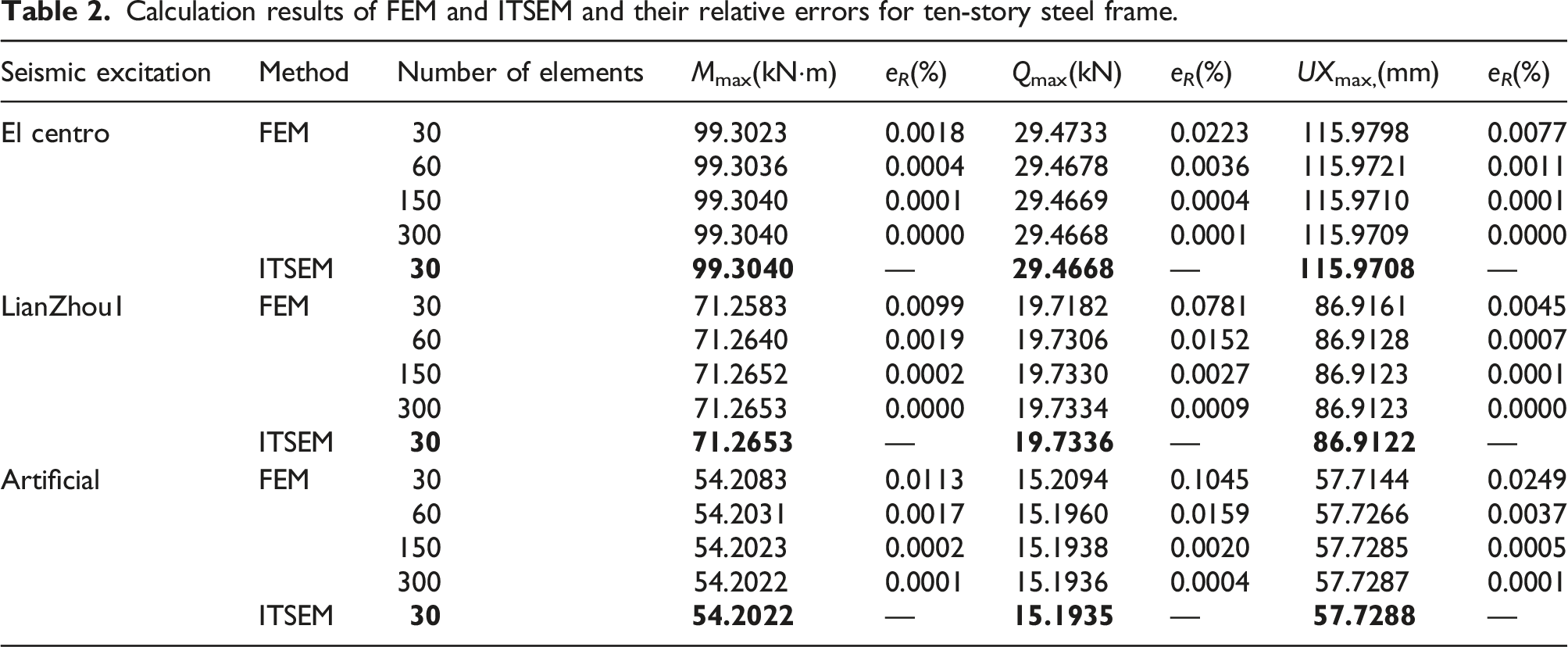

Table 2.

Calculation results of FEM and ITSEM and their relative errors for ten-story steel frame.

Seismic excitation	Method	Number of elements	M_max(kN·m)	e_R(%)	Q_max(kN)	e_R(%)	UX_max,(mm)	e_R(%)
El centro	FEM	30	99.3023	0.0018	29.4733	0.0223	115.9798	0.0077
		60	99.3036	0.0004	29.4678	0.0036	115.9721	0.0011
		150	99.3040	0.0001	29.4669	0.0004	115.9710	0.0001
		300	99.3040	0.0000	29.4668	0.0001	115.9709	0.0000
	ITSEM	30	99.3040	—	29.4668	—	115.9708	—
LianZhou1	FEM	30	71.2583	0.0099	19.7182	0.0781	86.9161	0.0045
		60	71.2640	0.0019	19.7306	0.0152	86.9128	0.0007
		150	71.2652	0.0002	19.7330	0.0027	86.9123	0.0001
		300	71.2653	0.0000	19.7334	0.0009	86.9123	0.0000
	ITSEM	30	71.2653	—	19.7336	—	86.9122	—
Artificial	FEM	30	54.2083	0.0113	15.2094	0.1045	57.7144	0.0249
		60	54.2031	0.0017	15.1960	0.0159	57.7266	0.0037
		150	54.2023	0.0002	15.1938	0.0020	57.7285	0.0005
		300	54.2022	0.0001	15.1936	0.0004	57.7287	0.0001
	ITSEM	30	54.2022	—	15.1935	—	57.7288	—

It can be seen from Table 2 that as the number of finite elements increases, the results of M_max, Q_max, and UX_max calculated by FEM will be approaching those calculated by ITSEM. When the structure is divide into 300 finite elements, the calculation results of FEM are the closest to those of ITSEM. At this time, in the case of El-Centro wave excitation, the relative errors of M_max, Q_max, and UX_max calculated by FEM and ITSEM are 0.0000%, 0.0001%, and 0.0000%, respectively. In the case of LianZhou1 wave excitation, the relative errors of M_max, Q_max, and UX_max calculated by FEM and ITSEM are 0.0000%, 0.0009%, and 0.0000%, respectively. In the case of Artificial wave excitation, the relative errors of M_max, Q_max, and UX_max calculated by FEM and ITSEM are 0.0001%, 0.0004%, and 0.0001%, respectively.

In order to compare the structural time history response results calculated by FEM and ITSEM, Figure 9 shows the displacement time history diagram at the top node 22 of the ten-story steel frame under El-Centro ground motion. Table 3 lists the root-mean-square index (RMSD)³³ values of displacements of the top node 22 of the frame under different seismic excitations calculated by FEM while displacements calculated by ITSEM as baseline. The explicit expression for RMSD is as follows:

R M S D = \sqrt{\frac{\sum_{i = 1}^{N} {(d_{i}^{I T S E M} - d_{i}^{F E M})}^{2}}{\sum_{i = 1}^{N} {(d_{i}^{I T S E M})}^{2}}} \times 100 %

(50)

where

d_{i}^{I T S E M}

is the displacement calculated by ITSEM,

d_{i}^{F E M}

is the displacement calculated by FEM, and i represents the i-th discrete time point.

Figure 9.

Displacements at node 22 of the ten-story steel frame under El-Centro ground motion.

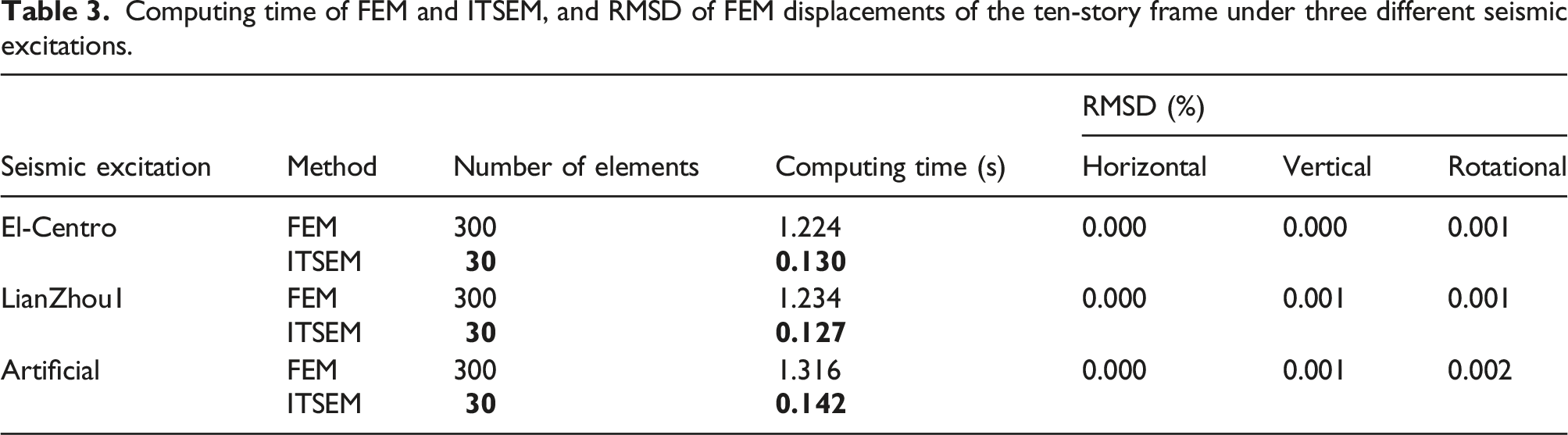

Table 3.

Computing time of FEM and ITSEM, and RMSD of FEM displacements of the ten-story frame under three different seismic excitations.

Seismic excitation	Method	Number of elements	Computing time (s)	RMSD (%)
Seismic excitation	Method	Number of elements	Computing time (s)	Horizontal	Vertical	Rotational
El-Centro	FEM	300	1.224	0.000	0.000	0.001
El-Centro	ITSEM	30	0.130	0.000	0.000	0.001
LianZhou1	FEM	300	1.234	0.000	0.001	0.001
LianZhou1	ITSEM	30	0.127	0.000	0.001	0.001
Artificial	FEM	300	1.316	0.000	0.001	0.002
Artificial	ITSEM	30	0.142	0.000	0.001	0.002

It can be found that when FEM divides the ten-story steel frame into 300 elements, the displacement curves agree well with those calculated by ITSEM. In the three cases of horizontal seismic excitations of El-Centro, LianZhou1, and Artificial waves, the RMSD values of horizontal displacements are 0.000%, 0.000%, and 0.000%, respectively, the RMSD values of vertical displacements are 0.000%, 0.001%, and 0.001%, respectively, and the RMSD values of rotational displacements are 0.001%, 0.001%, and 0.002%, respectively. This shows that ITSEM only needs 30 spectral elements to achieve the calculation accuracy of FEM using 300 elements.

The computing time for FEM and ITSEM in the same computer is also collected and listed in Table 3. In the three cases of horizontal seismic excitation, the computing time of ITSEM with 30 spectral elements are 0.130 s, 0.127 s, and 0.142 s, respectively, but those of FEM are 1.224 s, 1.234 s, and 1.316 s, respectively. The computing time of ITSEM in each case is about 1/10 to 1/9 of FEM. It not only proves the effectiveness of ITSEM in the calculation of dynamic response of I-sectioned multi-story steel frame subjected to seismic excitation, but also indicates that ITSEM has much higher computational efficiency than FEM in the seismic response analysis.

Conclusion

This paper proposes an ITSEM for seismic analysis of I-sectioned steel frame structures. The developed method is based on Timoshenko beam theory, the CGL points are taken as the element nodes of the Timoshenko beam, and Lagrange interpolation was used to expand the spectral element approximation of the displacement functions of the vertical and rotational displacements of the beam. Based on the displacement shape function obtained, the stiffness and mass matrices of time-domain spectral elements for I-sectioned beam are derived by using a method similar to FEM, considering the inertial action of the transverse displacement and the rotational inertial action of the rotation angle.

The dynamic characteristics of an I-sectioned simply supported beam are computed and compared with the FEM and analytical results to validate the ITSEM. Then, combined with the time-domain spectral element matrix of the rod, the seismic response analysis is carried out for a ten-story steel frame under three different earthquake excitations, respectively. In the process of calculation, the invariant integral operation part, which calculating the element mass matrix and element stiffness matrix, is extracted and the integral operation part is calculated and saved in advance. Thus, the global mass matrix and stiffness matrix of the structure can be obtained by simple addition, subtraction, multiplication and division operations, which greatly improves the computational efficiency of ITSEM. The calculation results by ITSEM are compared with those of FEM, which proves the effectiveness, accuracy, and high efficiency of ITSEM in elastic seismic analysis for plane steel frame structures. The developed ITSEM displays potential to apply to the seismic analysis of actual steel structures. In the future, we will further focus on the steel structural dynamic analysis considering the variable cross-section component spectral element and incomplete rigidity joint connect.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Dansheng Wang

References

Palacz

. Spectral methods for modelling of wave propagation in structures in terms of damage detection—a review. Appl Sci 2018; 8(7): 1124.

Doyle

Farris

. A spectrally formulated finite element for flexural wave propagation in beams. Int J Anal Exp Modal Anal 1990; 5(2): 13–23.

Patera

. A spectral element method for fluid dynamics: Laminar flow in a channel expansion. J Comput Phys 1984; 54(3): 468–488.

Boyd

. Chebyshev and Fourier spectral methods. Mineola, NY, USA: Dover Publications, Inc, 2000.

Kudela

Zak

Krawczuk

, et al. Modelling of wave propagation in composite plates using the time domain spectral element method. J Sound Vibration 2007; 302(4–5): 728–745.

Ostachowicz

Kudela

Krawczuk

, et al. Guided waves in structures for SHM: the time-domain spectral element method. West Sussex, UK: Wiley and Sons, 2012.

Kim

Chang

F K

, et al. Time-domain spectral element method for built-in piezoelectric-actuator-induced lamb wave propagation analysis. AIAA J 2008; 46(3): 591–600.

Chang

. Optimizing a spectral element for modeling PZT-induced Lamb wave propagation in thin plates. Smart Mater Struct 2009; 19(1): 015015.

Zak

Krawczuk

. Assessment of rod behaviour theories used in spectral finite element modelling. J Sound Vibration 2010; 329(11): 2099–2113.

10.

Zak

Krawczuk

. Certain numerical issues of wave propagation modelling in rods by the spectral finite element method. Finite Elem Anal Des 2011; 47: 1036–1046.

11.

Wang

Zhu

Hao

, et al. Guided wave propagation and spectral element method for debonding damage assessment in RC structures. J Sound Vibration 2009; 324(3–5): 751–772.

12.

Bonfiglio

Pompoli

Peplow

A T

, et al. Aspects of computational vibration transmission for sandwich panels. J Sound Vibration 2007; 303(3–5): 780–797.

13.

Rucka

. Experimental and numerical study on damage detection in an L-joint using guided wave propagation. J Sound Vibration 2010; 329(10): 1760–1779.

14.

Wang

Hao

. Damage identification of steel beams using local and global methods. Adv Struct Eng 2012; 15(5): 807–824.

15.

Rekatsinas

Nastos

Theodosiou

, et al. A time-domain high-order spectral finite element for the simulation of symmetric and anti-symmetric guided waves in laminated composite strips. Wave Motion 2015; 53: 1–19.

16.

Sekhar

Gopalakrishnan

Murthy

MVVS

, et al. Wave transmission characteristics for higher-order sandwich panel with flexible core using time-domain spectral element method. J Sandwich Struct Mater 2017; 19(3): 364–393.

17.

Yeung

. Time-domain spectral finite element method for analysis of torsional guided waves scattering and mode conversion by cracks in pipes. Mech Syst Signal Process 2019; 128: 305–317.

18.

, et al. Time-domain spectral finite element method for wave propagation analysis in structures with breathing cracks. Acta Mechanica Solida Sinica 2020; 33: 812–822.

19.

Rucka

. Experimental and numerical studies of guided wave damage detection in bars with structural discontinuities. Archive Appl Mech 2010; 80(12): 1371–1390.

20.

Zak

Krawczuk

. Assessment of flexural beam behaviour theories used for dynamics and wave propagation problems. J Sound Vibration 2012; 331(26): 5715–5731.

21.

Wang

Song

Zhu

, et al. Electromechanical impedance analysis on piezoelectric smart beam with a crack based on spectral element method. Math Probl Eng 2015; 2015: 713501–713513.

22.

. Numerical simulation of elastic wave propagation in functionally graded cylinders using time-domain spectral finite element method. Adv Mech Eng 2017; 9(11): 1–17.

23.

Zak

Krawczuk

. A higher order transversely deformable shell-type spectral finite element for dynamic analysis of isotropic structures. Finite Elem Anal Des 2018; 142: 17–29.

24.

Bottero

Cristini

Komatitsch

, et al. An axisymmetric time-domain spectral-element method for full-wave simulations: Application to ocean acoustics. J Acoust Soc Am 2016; 140(5): 3520–3530.

25.

Rucka

Witkowski

Chróścielewski

, et al. A novel formulation of 3D spectral element for wave propagation in reinforced concrete. Bull Polish Acad Sci –Technical Sci 2017; 65(6): 805–813.

26.

Abad

Rouzegar

. Exact wave propagation analysis of moderately thick Levy-type plate with piezoelectric layers using spectral element method. Thin-Walled Struct 2019; 141: 319–331.

27.

Cowper

. The shear coefficient in Timoshenko's beam theory. J Appl Mech 1966; 33(2): 335–340.

28.

Jangid

Datta

. Spectral analysis of systems with non-classical damping using classical mode superposition technique. Earthquake Eng Struct Dyn 1993; 22(8): 723–735.

29.

Gong

. Influence of geometric parameter on natural frequency of Timoshenko beam. J Wuhan Univ Technol 2005; 29(3): 473–475. (in Chinese).

30.

Liu

. Study on natural frequency computation for different slenderness ratios by Timoshenko beam and Euler-Bernoulli beam formulas. World Earthquake Eng 2008; 24(2): 158–160. (in Chinese).

31.

Ozturk

. Seismic behavior of two monumental buildings in historical Cappadocia region of Turkey. Bull Earthquake Eng 2017; 15(7): 3103–3123.

32.

Kassem

Nazri

Farsangi

, et al. Development of a uniform seismic vulnerability index framework for reinforced concrete building typology. J Building Eng 2022; 47: 103838.

33.

Zhou

Wang

Zhu

, et al. A novel damage indicator based on the electromechanical impedance principle for structural damage identification. Sensors 2018; 18(7): 2199.
