Effects of the angle of impact on the aeroacoustic feedback mechanism in supersonic impinging planar jets

Abstract

Three planar impinging supersonic jets of infinite extent are simulated using compressible large eddy simulations in order to study the effects of the angle of impact on the flow and acoustic fields of the jet. At the exit of a nozzle of height h, they are ideally expanded and have an exit velocity u_j, yielding a Mach number of 1.28 and a Reynolds number of 5 × 10⁴. They impinge on a flat plate at a distance 5.5h from the nozzle lips with angles of 60°, 75°, and 90° between the jet direction and the plate. Mean velocity flows and snapshots of density, pressure, and vorticity are first shown. The mean convection velocity of the turbulent structures in the jet shear layers is then determined. The sound pressure levels are computed, and several tones due to the presence of a feedback mechanism are found to establish between the nozzle lips and the flat plate. They agree well with the corresponding measurements and with the classical model of the feedback mechanism. Moreover, when the angle of impact deviates from 90° to 75°, a jump from the third to the fourth mode of the feedback mechanism and a reduction in intensity are noted. By applying a Fourier decomposition to the near pressure fields, hydrodynamic–acoustic standing waves are found for each dominant tone frequency. Moreover, as suggested by amplitude fields and velocity spectra in the jet shear layers, the feedback mechanism seems to establish mainly along the lip that is farther away from the plate when the impact angle is not normal. This jump from the third to the fourth mode is similar to the jump observed experimentally for an angle of impact of 90° when the nozzle-to-plate distance increases from 5.5h to 5.85h. Finally, for an angle of impact of 60°, it is seen that none of the modes of the feedback persists in time, but that several modes randomly establish during short periods of time. These rapid switches between different modes lead to several tones that are less energetic on average and centered on St = 0.25.

Keywords

Impingement tones large eddy simulation supersonic flow

Introduction

In the acoustic field of high-subsonic and supersonic impinging jets, intense acoustic tones have been observed by many authors. Powell¹ suggested, in 1953, that these tones are due to a feedback mechanism establishing between the nozzle lips and the plate. This mechanism consists of two steps. First, in the shear layer, a turbulent structure is convected downstream from the nozzle to the plate. The structure impinges on the plate and generates an acoustic wave propagating upstream towards the nozzle. This wave is then reflected by the nozzle lip, excites the shear layer, and leads to the formation of a new turbulent structure.

Round subsonic and supersonic jets impinging normally on a flat plate have been studied by numerous researchers. Subsonic jets were notably studied by Ho and Nosseir² and Nosseir and Ho³ who always observed intense acoustic tones for exit Mach numbers ranging from 0.3 to 0.9. Supersonic jets were analyzed by Henderson and Powell,⁴ Krothapalli et al.,⁵ Risborg and Soria,⁶ Buchmann et al.,⁷ and Weightman et al.⁸ A feedback mechanism similar to those in subsonic jets was found. This mechanism appears very often when the jet is ideally expanded but only for some nozzle-to-plate distances when the jet is imperfectly expanded.⁹ More recently, the authors studied in depth the tone production mechanisms in underexpanded and ideally expanded impinging round jet using compressible large eddy simulation (LES).^10–12 Planar jets impinging on a flat plate normally also produce intense tone frequencies. However, compared to round jets, Arthurs and Ziada¹³ noted that tones are visible at lower flow velocities. Planar supersonic jets impinging on a flat plate normally have been studied notably by Norum¹⁴ and Tam and Norum¹⁵ in the 1990s. Often, two emerging tones were observed in the acoustic spectra of the jets. The lower tone frequency was found to be associated with a symmetric oscillation mode of the jet and the upper one, with an antisymmetric oscillation mode of the jet. Using a simple two-dimensional (2D) simulation by Hourigan et al.¹⁶ was able to recover these tones. To explain this phenomenon, Tam and Norum¹⁵ proposed that the upstream propagating waves of the feedback mechanism are neutral acoustic wave modes of the jet. Using a vortex sheet jet model, allowable frequency ranges were found for upstream propagating neutral acoustic wave mode of the jet, depending on their symmetric or antisymmetric nature. These allowable ranges were in agreement with the tones observed in the experiment of Norum.¹⁴ This model has been used by the authors in combination with the classical aeroacoustic feedback model in order to predict, for a given ideally expanded planar impinging jet, the most likely tone frequency and the associated jet oscillation.¹⁷ A generalization to the case of ideally expanded round impinging jets has later been proposed in Bogey and Gojon.¹¹ In this paper, using a space–time Fourier transform on the fluctuating pressure inside the jet, upstream propagating waves with a group velocity and a phase velocity very close to the ambient speed of sound have been observed. They correspond to neutral acoustic wave modes of the jet and can be found using a vortex sheet model. Recently,¹⁸ the same decomposition has been applied to screeching jets. It is shown that the feedback loop, responsible for dominant modes A and C and secondary mode u, is closed by acoustic upstream propagating waves in the jet which belongs to the neutral acoustic wave modes of the equivalent ideally expanded jet.

For non-normal impingement angles, the intensity of the feedback mechanism decreases because of the loss of symmetry. For instance, for a supersonic ideally expanded planar jet impinging on an inclined flat plate, Norum¹⁴ noted experimentally that the amplitude of the strongest impingement tone decreases when the angle of impact deviates from 90°. In order to understand the lift-off phase of a space launcher, Nonomura et al.^19,20 performed the simulation of a 2D jet impinging on a inclined plate and the LES of a three dimensional (3D) supersonic ideally expanded round jet impinging on a inclined plate. They obtained three types of waves in the acoustic field, namely, the Mach waves generated in the jet shear layers, the Mach waves from the shear layer of the supersonic flow on the inclined flat plate, and the waves coming from the impingement region. These three types of waves were analyzed by Tsutsumi et al.²¹ using a snapshot proper orthogonal decomposition combined with Fourier transform.

In the present work, the LESs of three planar supersonic jets of infinite extent are carried out for different angles of impact in order to investigate the feedback mechanism between the nozzle lips and the flat plate. This work follows a previous study¹⁷ in which planar supersonic jets impinging normally on a flat plate were simulated. More precisely, a case from the previous study for a normal impingement angle is considered, and two others are considered for angles of impact of 60° and 75°. The paper is organized as follows. The main characteristics of the jets and the simulations are presented in the following section. Next, mean fields, snapshots, and fluctuating fields are shown and compared with experimental data. Furthermore, the acoustic results are then shown where the tone frequencies of the feedback mechanism are studied. Finally, concluding remarks are given.

Parameters

Jets parameters

Three planar jets impinging on an inclined flat plate are computed using compressible LES. The different cases referred to as JetL5-60d, JetL5-75d, and JetL5-90d are presented in Table 1: the three angles of impact of θ = 60, θ = 75, and θ = 90° between the jet axis, and the flat plates are considered. The case JetL5-90d was simulated in a previous study.¹⁷ In all cases, the nozzle-to-plate distance along the jet axis is equal to L = 5.5h, where h is the height on the nozzle, whereas the nozzle-to-plate distance increases from 5.5h to 5.79h along the upper lip line at $y = h / 2$ and decreases from 5.5h to 5.21h along the lower lip line at $y = - h / 2$ when the angle of impact deviates from 90° to 60°. The jets originate from a planar nozzle of height h and width $l = 3.25 h$ in the spanwise direction. The lip thickness is $e = 0.5 h$ . Periodic conditions are imposed in the spanwise direction, permitting to simulate a planar jet of infinite extent. The jets are ideally expanded and have a Mach number of $M_{j} = u_{j} / a_{j} = 1.28$ where u_j is the jet exit velocity and a_j is the speed of sound in the jet. Their Reynolds is $R e_{j} = u_{j} h / ν = 5 \times 10^{4}$ , where ν is the kinematic molecular viscosity. The ejection conditions of the jets and the nozzle-to-plate distances are similar to the parameters in the experimental study of Thurow et al.²²

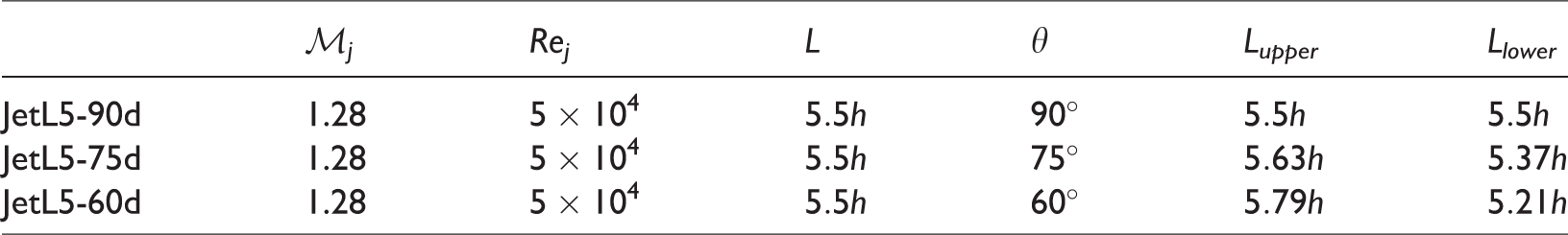

Table 1.

Jet parameters: Mach number $M_{j} = u_{j} / a_{j}$ , Reynolds number $R e_{j} = u_{j} h / ν$ , nozzle-to-plate distance L, angle θ between the jet direction, and the flat plate and nozzle-to-plate distances along the upper and the lower lip lines L_upper and L_lower.

	$M_{j}$	Re_j	L	θ	L_upper	L_lower
JetL5-90d	1.28	$5 \times 10^{4}$	$5.5 h$	90°	$5.5 h$	$5.5 h$
JetL5-75d	1.28	$5 \times 10^{4}$	$5.5 h$	75°	$5.63 h$	$5.37 h$
JetL5-60d	1.28	$5 \times 10^{4}$	$5.5 h$	60°	$5.79 h$	$5.21 h$

Numerical parameters

For the case where the angle between the jet axis and the flat plate is 90°, the unsteady compressible Navier–Stokes equations are solved on a Cartesian mesh for which x, y, and z denote the longitudinal, lateral, and spanwise directions, respectively. An explicit six-stage Runge–Kutta algorithm is used for time integration, and low-dispersion 11-point explicit finite differences are used for spatial derivation.^23,24 At the end of each time step, a relaxation filtering is applied to the flow conservative variables in order to remove grid-to-grid oscillations and to dissipate subgrid-scale turbulent energy. The radiation conditions of Tam and Dong²⁵ are implemented at the inflow and lateral boundaries of the computational domain. A sponge zone combining grid stretching and Laplacian filtering is also employed to damp the turbulent fluctuations before they reach the lateral boundaries. Adiabatic no-slip conditions are imposed to the nozzle wall and the flat plate. Examples of 3D subsonic jets simulated using the present solver can be found in Bogey et al.^26,27 A shock-capturing filtering is applied in order to avoid Gibbs oscillations near shocks. It consists in applying a conservative second-order filter at a magnitude determined each time step using a shock sensor.²⁸ This method was successfully used by de Cacqueray et al.²⁹ for the LES of a non-ideally expanded jet at an equivalent Mach number $M_{j} = 3.3$ and later by Gojon and Bogey³⁰ for a supersonic screeching jet with $M_{j} = 1.56$ . Finally, at the nozzle exit, a Blasius boundary-layer velocity profile is imposed with a boundary-layer thickness of 0.075h, and vortical disturbances not correlated in the spanwise direction²⁶ are added in the boundary layer in the nozzle at $x = - 0.5 h$ in order to generate velocity fluctuations at the nozzle exit. The strength of the forcing is chosen in order to obtain peak turbulent intensities higher than 4% of the jet exit velocity u_j at the nozzle exit. More precisely, they are equal to 7.3%, 5.2%, and 4.3% of u_j for JetL5-90d, JetL5-75d, and JetL5-60d, respectively. The jets are thus highly disturbed at the nozzle exit.

For the two cases where θ = 60° and θ = 75°, two Cartesian meshes are used. The meshes as represented in Figure 1 for the JetL5-75d. The mesh containing the nozzle is referred to as the primary grid, and the mesh close to the flat plate as the secondary grid. The two meshes are identical in the spanwise direction z, allowing the flow variables to be transferred from one grid to another using a 2D interpolation in the (x, y) plane. Optimized interpolation centered schemes for computational aeroacoustics were developed by Tam and Hu³¹ and by Chicheportiche and Gloerfelt,³² for instance. They are developed from Lagrangian polynomial, minimizing the error in the wave number space. However, for a centered 2D interpolation, the improvement relative to the Lagrangian 2D interpolation is weak.³² Thus, in the present work, a high-order Lagrangian 2D interpolation is used in each direction. A 10-point stencil is chosen for the interpolation as it is the best compromise between accuracy and computational time, as suggested by Marsden et al.³³ and Chicheportiche and Gloerfelt.³² Therefore, the formal order of the interpolation is 10. In practice, the value of the variable u of the receiving point (x_l, y_l) is computed from the 10 × 10 = 100 giving points $(x (i), y (j))$ as

u (x_{l}, y_{l}) = \sum_{i, j = 1}^{N} S_{i j} u (x (i), y (j))

(1)

where the coefficients S_ij are the N² interpolation coefficients. As reported earlier, the Lagrangian polynomials were chosen, giving

S_{i j} = \prod_{k = 1, k \neq i}^{N} \frac{x_{l} - x (i)}{x (k) - x (i)} \prod_{l = 1, l \neq j}^{N} \frac{y_{l} - y (j)}{y (l) - y (j)}

(2)

Figure 1.

Representation of the two Cartesian meshes for JetL5-75d; (a) sketch of the two meshes, with the primary grid in dark gray, the secondary grid in light gray, and the nozzle and flat plate in black and (b) representation of the grids; every 15 points is shown.

The simulations are carried out using an OpenMP-based in-house solver, and a total of 200,000 iterations are made in each case after the transitional period. The simulation time is equal to $500 h / u_{j}$ . The Cartesian meshes contain between 191 and 210 million points for the primary grids and between 38 and 46 million points for the secondary grids, as noted in Tables 2 and 3, respectively.

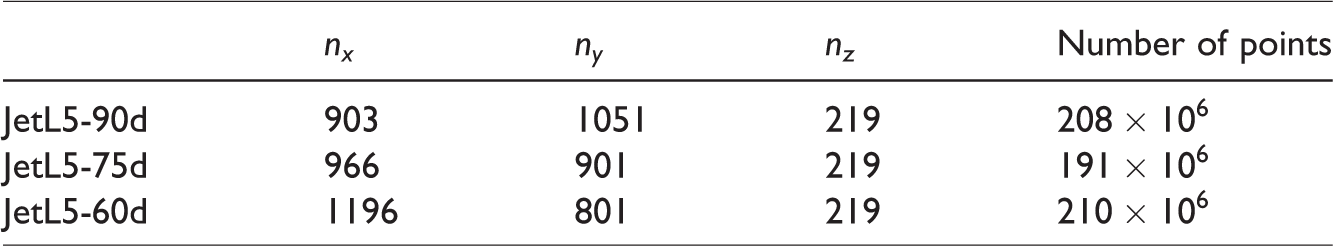

Table 2.

Parameters of the primary grids containing the jets.

	n_x	n_y	n_z	Number of points
JetL5-90d	903	1051	219	$208 \times 10^{6}$
JetL5-75d	966	901	219	$191 \times 10^{6}$
JetL5-60d	1196	801	219	$210 \times 10^{6}$

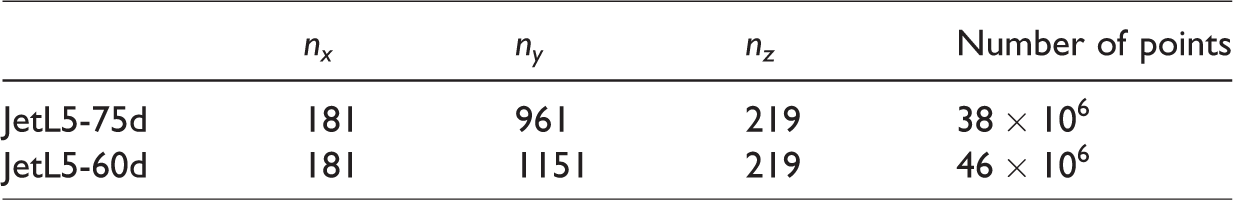

Table 3.

Parameters of the secondary grids close to the plate.

	n_x	n_y	n_z	Number of points
JetL5-75d	181	961	219	$38 \times 10^{6}$
JetL5-60d	181	1151	219	$46 \times 10^{6}$

The variations of the axial and lateral mesh spacings in the grid used for JetL5-90d are presented in a previous paper.¹⁷ The minimal axial mesh spacing, near the nozzle lips and the flat plate, is equal to $Δ x = 0.00375 h$ , and the maximal axial mesh spacing, in the jet, is $Δ x = 0.015 h$ . The lateral mesh spacings are equal to $Δ y = 0.00375 h$ at $y = \pm h / 2$ and to $Δ y = 0.03 h$ for $2.5 h \leq y \leq 8.5 h$ . In the spanwise direction, the mesh spacing is equal to $Δ z = 0.015 h$ . In the primary grids used for JetL5-60d and JetL5-75d, the minimal axial mesh spacing near the nozzle lip is equal to $Δ x = 0.00375 h$ , and the maximal axial mesh spacing, downstream from the nozzle, is $Δ x = 0.015 h$ . The lateral and spanwise mesh spacings are identical to those for JetL5-90d. For the secondary meshes, they have a minimal axial mesh spacing of $Δ x = 0.00375 h$ close to the plate and a maximal axial mesh spacing of $Δ x = 0.015 h$ upstream from the plate. Again, the lateral and spanwise mesh spacings are the same as those for JetL5-90d. They are chosen to minimize the difference in mesh size between the two grids as illustrated in Figure 1(b). Furthermore, the maximum mesh spacing of 0.03h allows acoustic waves with Strouhal numbers up to $S t = f h / u_{j} = 5.6$ to be well propagated, where f is the frequency.

After the jet impact, wall jets develop on the flat plate. Their discretizations are discussed by considering the mesh spacings at the wall at $y = 2 h$ , given in Table 4 in wall units. In the four LES, values of about $Δ y^{+} = 65$ and $Δ z^{+} = 45$ are obtained in the streamwise and the spanwise directions, and $Δ x^{+} ≃ 12$ is found in the wall-normal direction. Given that the mesh spacings necessary to compute turbulent wall-bounded flows using LES^34–37 are about of $Δ^{+} = 30$ in the streamwise direction, $Δ^{+} = 10$ in the spanwise direction, and $Δ^{+} = 1$ in the wall-normal direction, the meshes appear slightly too coarse to accurately compute the turbulent wall jets. However, this is not the main objective of the present simulations.

Table 4.

Mesh spacings on the plate at $y = 2 h$ , in wall units.

	$Δ x^{+}$	$Δ y^{+}$	$Δ z^{+}$
JetL5-90d	10.1	55	40
JetL5-75d	13.2	68	47
JetL5-60d	14.7	70	49

Aerodynamic results

Flow snapshots

Snapshots of the vorticity norm obtained in the (x, y) plane for JetL5-90d, JetL5-75d, and JetL5-60d are represented in Figure 2. For the three cases, the two mixing layers exhibit large-scale structures, of typical size 0.5h. This result is similar to the experimental results provided by Thurow et al.²² for a rectangular supersonic jet impinging on a flat plate normally. Moreover, for JetL5-60d, the shear layers may not interact between each other near the region of impact, which seems to be the case for JetL5-90d and JetL5-75d.

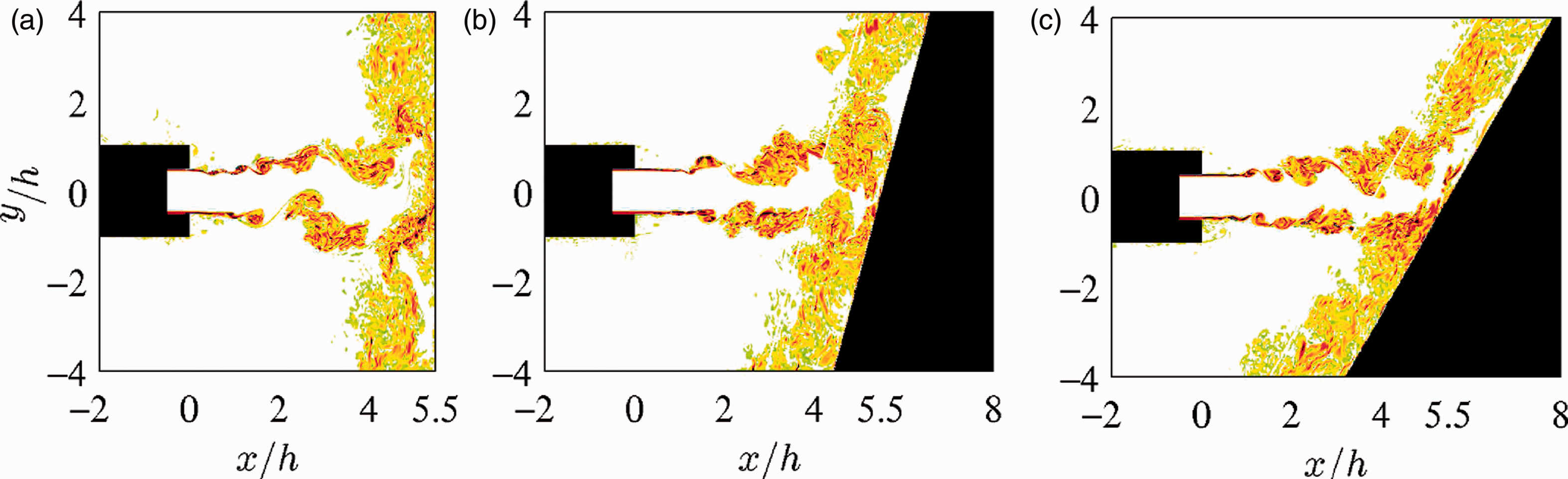

Figure 2.

Snapshots obtained in the (x, y) plane of vorticity norm $| ω | = \sqrt{ω_{x}^{2} + ω_{y}^{2} + ω_{z}^{2}}$ for (a) JetL5-90d, (b) JetL5-75d, and (c) JetL5-60d. The color scale ranges up to the level of $10 u_{j} / h$ . The nozzle and the plate are in black.

In order to visualize the flow and acoustic fields of the jets, snapshots in the (x, y) plane of the density and the fluctuating pressure are provided in Figure 3 and in a movie available online. In all cases, large-scale structures in the jet shear layers and upstream-propagating sound waves are observed. These waves appear to be generated in the region of jet impact and to have amplitudes decreasing significantly as the angle of impact deviates from 90°.

Figure 3.

Snapshots obtained in the (x, y) plane of density in the jet axis and close to the flat plate and of pressure fluctuations for (a) JetL5-90d, (b) JetL5-75d, and (c) JetL5-60d. The color scale ranges from 1 to 2 kg.m^– ³ for density and from −7500 to 7500 Pa for fluctuating pressure. The nozzle and the plate are in black.

Mean flow fields

The mean total velocity fields obtained in the (x, y) plane are shown in Figure 4. Very small variations of about 3% of the jet exit velocity are found near the jet axis, indicating that the jets are almost ideally expanded, as desired. In all cases, a stagnation point is visible on the flat plate at y = 0, and plane wall jets form on the plate on both sides of the jet. The important scaling factors of plane wall jets are the maximum velocity u_m, the distance x_m from the wall at which the velocity reaches u_m, and the distance $x_{1 / 2}$ from the wall at which the mean velocity has dropped to $u_{m} / 2$ .^38,39 For the present jets, these factors are given in Table 5 along the lines $y = \pm 2 h$ .

Figure 4.

Mean velocity field obtained in the (x, y) plane for (a) JetL5-90d, (b) JetL5-75d, and (c) JetL5-60d. The color scale ranges from 0 to 400 m.s⁻¹. The nozzle and the flat plate are in black.

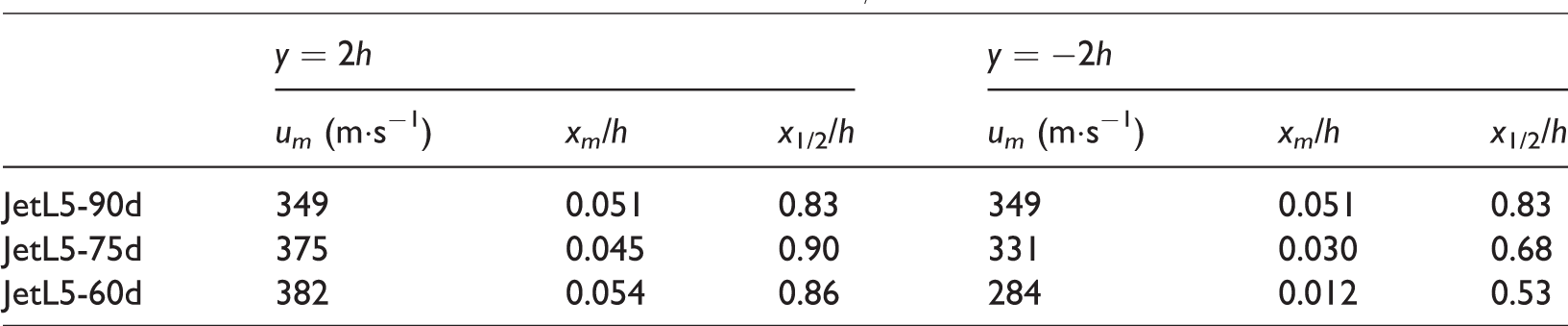

Table 5.

Maximum velocity u_m and distances $x_{m} / h$ and $x_{1 / 2} / h$ of the wall jet at $y = \pm 2 h$ .

	$y = 2 h$			$y = - 2 h$
	u_m (m·s⁻¹)	x_m/h	x_1/2/h	u_m (m·s⁻¹)	x_m/h	x_1/2/h
JetL5-90d	349	0.051	0.83	349	0.051	0.83
JetL5-75d	375	0.045	0.90	331	0.030	0.68
JetL5-60d	382	0.054	0.86	284	0.012	0.53

When the angle of impact is not normal, the developments of the top and bottom plane wall jets differ, as expected. For the top plane wall jets, the maximum velocity increases, but the length scales x_m and $x_{1 / 2}$ remain nearly constant. Shock cells are also visible in these jets in Figure 4(b) and (c). For the bottom plane wall jets, the maximum velocity and the length scales x_m and $x_{1 / 2}$ all decrease significantly when the angle of impact deviates from 90°.

Convection velocity

In order to describe the feedback mechanism, the convection velocity u_c of the turbulent structures along the lip lines $y = h / 2$ and $y = - h / 2$ is calculated from cross-correlations of axial velocity fluctuations $u_{x}'$ . The results are shown in Figure 5 for the three simulated jets.

Figure 5.

Convection velocity of the turbulent structures as a function of the axial coordinate in (a) the upper jet shear layer at $y = h / 2$ and (b) the lower jet shear layer at $y = - h / 2$ for —–JetL5-90d, - - - JetL5-75d, and -.- JetL5-60d.

For all jets, the convection velocities are approximately of $0.45 u_{j}$ at x = h. Farther downstream, for JetL5-90d, the convection velocity increases and reaches a maximal value of $0.63 u_{j}$ at $x = 2.5 h$ .¹⁷ For JetL5-75d and JetL5-60d, similar behaviors are found along the lower jet shear layer, where maximal values of $0.63 u_{j}$ at $x = 3.75 h$ are noted. However, along the upper jet shear layer, the increase in the convection velocity is slower, and maximal values of $0.63 u_{j}$ are also reached but further downstream, at $x = 3.35 h$ . Overall, the mean convection velocity of the large-scale structures along the lip line is of $< u_{c} > ≃ 0.55 u_{j}$ . This result is in agreement with the experimental results of Panda et al.⁴⁰ who measured a mean convection velocity of $0.60 u_{j}$ for an ideally expanded rectangular supersonic jet with an exit Mach number of $M_{e} = 1.3$ . Moreover, for two pressure-matched parallel streams with equal specific heats, the convection Mach number $M_{c}$ was defined by Papamoschou and Roshko⁴¹ as

M_{c} = \frac{u_{1} - u_{2}}{a_{1} + a_{2}} = \frac{u_{1} - u_{c}}{a_{1}} = \frac{u_{c} - u_{2}}{a_{2}}

(3)

where u₁ and u₂ are the high-speed and low-speed free-stream velocities, a₁ and a₂ are the speeds of sound, and u_c is the theoretical isentropic convection velocity. For the present planar jets, u₁ is the jet velocity at the nozzle exit and u₂ is the velocity outside the jet, hence u₁=u_j and

u_{2} = 0

, and

a_{1} = a_{j}

and a₂ = a₀. Thus, the theoretical convection velocity for the planar jet is

< u_{c} > = \frac{u_{j}}{a_{j} / a_{0} + 1}

(4)

yielding

< u_{c} > = 0.57 u_{j}

, in agreement with the simulation results.

Overall sound pressure levels

The overall sound pressure levels (OASPLs) obtained in the plane (x, y) are represented for the three jets in Figure 6. Isocontours are added in order to improve the readability. The OASPLs, in dB, are computed from the rms fluctuating pressure fields as

OASPL = 10 \log (\frac{p_{r m s}^{' 2}}{p_{r e f}^{2}})

(5)

where

p_{r e f} = {2.10}^{- 5}

Pa.

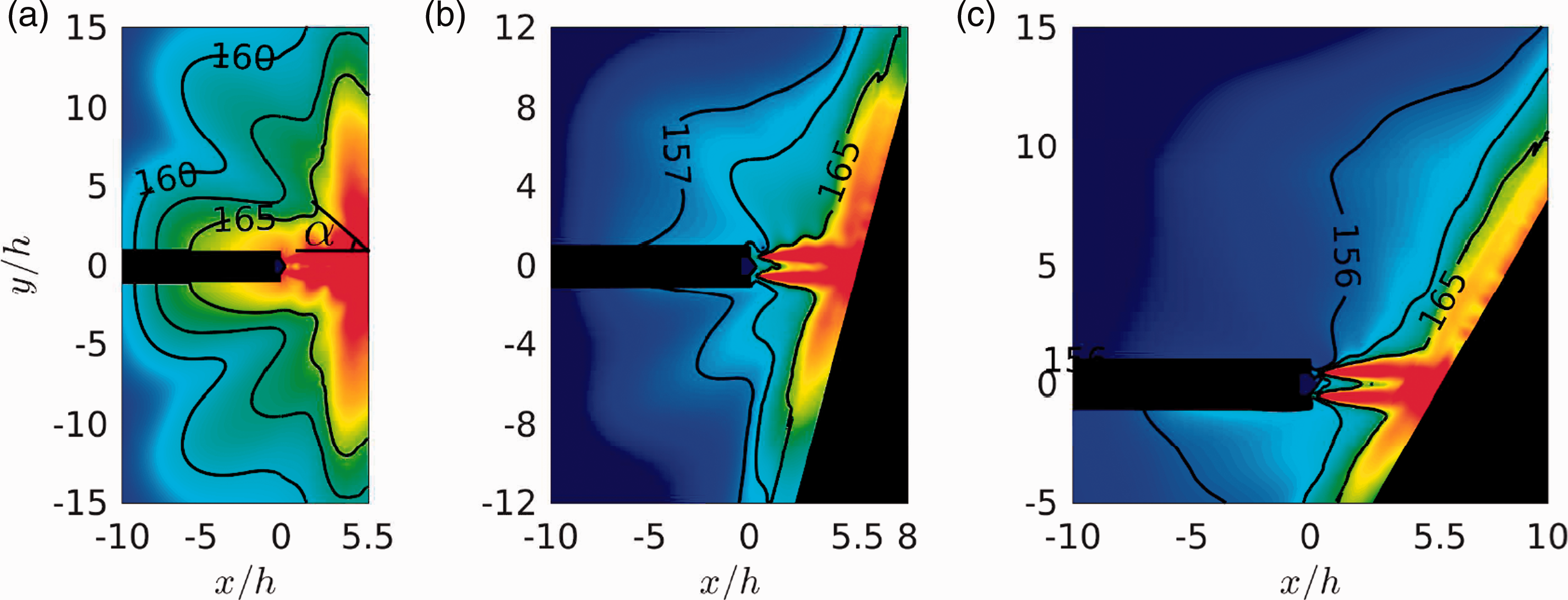

Figure 6.

OASPL obtained in the (x, y) plane for (a) JetL5-90d, (b) JetL5-75d, and (c) JetL5-60d. The color scale ranges from 150 to 175 dB. The nozzle and the plate are in black.

For JetL5-90d, in Figure 6(a), two acoustic components emerge. Let α be the angle at the impingement region between the upstream direction and the waves propagating from the flat plate, as illustrated in Figure 6(a). The first acoustic component can be seen for $0 ° \leq α \leq 30 °$ and is therefore due to acoustic waves propagating in the upstream direction, closing the aeroacoustic feedback loop. The second acoustic contribution appears for $α ≃ 50 °$ and seems to come from a region located near the plate, at $y ≃ 3.5 h$ . For JetL5-75d, in Figure 6(b), the same two acoustic components are visible. The second acoustic component is here characterized by an angle of $α ≃ 35 °$ in the upper side and $α ≃ 30 °$ in the lower side. For JetL5-60d, in Figure 6(c), the acoustic radiation does not have a marked directivity. However, the presence of a supersonic top plane wall jet apparently leads to an additional acoustic component in the upper side, as observed numerically by Nonomura et al.²⁰ for a round ideally expanded supersonic jet impinging on a flat plate with an angle of 45°.

Acoustic results

Sound pressure levels

The sound pressure levels computed at x = 0 and $y = 1.5 h$ are shown in Figure 7 as a function of the Strouhal number. They are computed using the Welch method with a 50% overlapping in time and by performing spectral averaging over the periodic direction z. Several tone frequencies emerge and those whose levels are at least 10 dB higher than the broadband noise level are given in Table 6. For JetL5-90d, in Figure 7(a), a dominant tone frequency at St = 0.19 and its first six harmonics can be seen. Another tone frequency at $S t_{1} = 0.12$ is visible. The agreement is excellent with the experimental data of Thurow et al.²² who obtained a fundamental tone frequency at St = 0.20 for a similar jet. For JetL5-75d, in Figure 6(b), two emerging tone frequencies are found at $S t_{1} = 0.19$ and $S t_{2} = 0.25$ . The first one is the same one as for the case JetL5-90d in Figure 7(a), but the latter one does not exist for JetL5-90d. Finally, for JetL5-60d, in Figure 7(c), there is no clear tone frequency. However, the maximum sound pressure level seems to be found around St = 0.25.

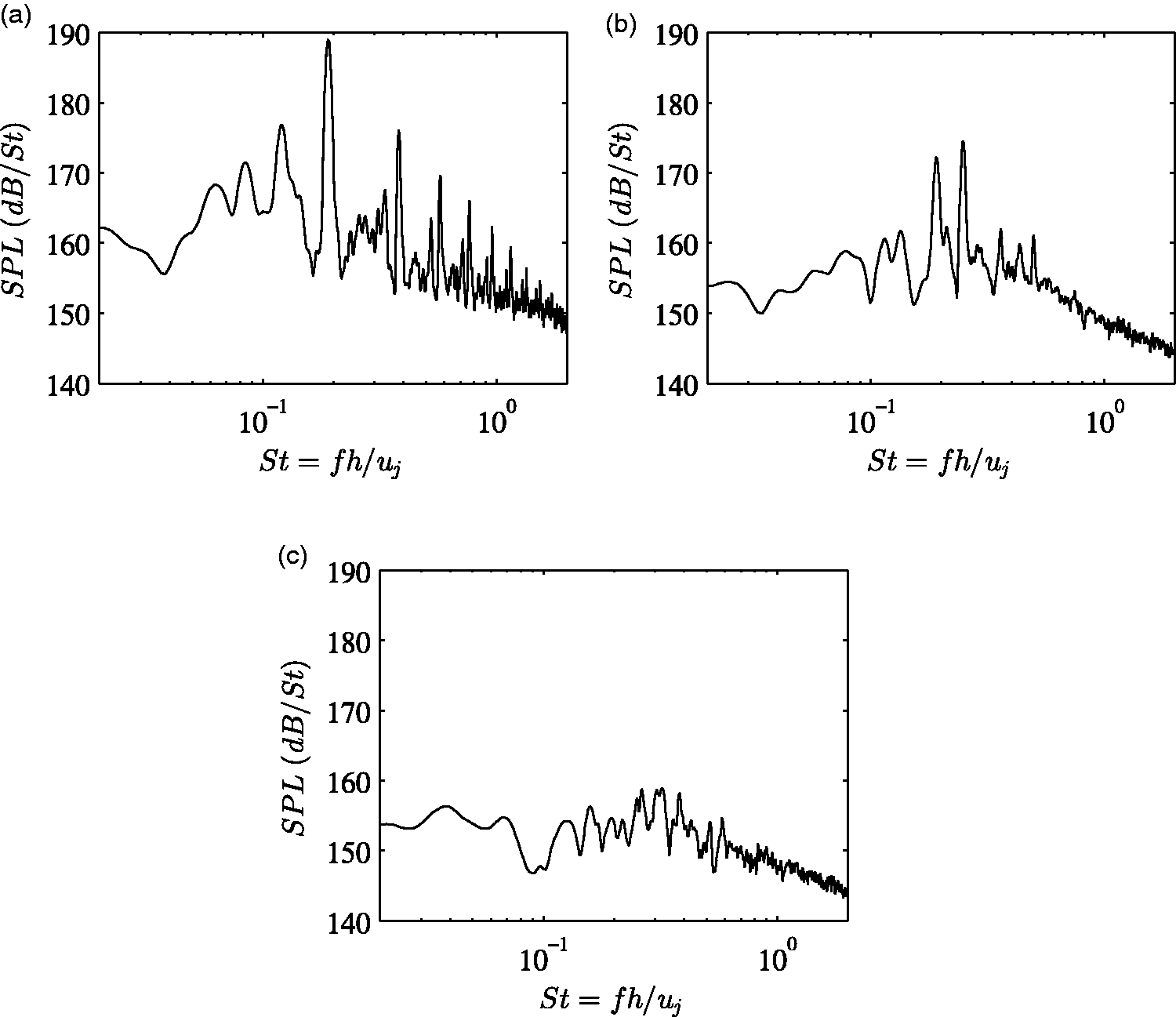

Figure 7.

SPLs obtained at x = 0 and $y = 1.5 h$ as a function of the Strouhal number St for (a) JetL5-90d, (b) JetL5-75d, and (c) JetL5-60d. SPL: sound pressure level.

Table 6.

Tone Strouhal numbers in the spectra of Figure 7.

	St ₁	St ₂	St ₃	S ₄	St ₅	St ₆	St ₇
JetL5-90d	0.12	0.19	0.38	0.57	0.76	0.95	1.14
JetL5-75d	0.19	0.25	–	–	–	–	–
JetL5-60d	$(0.25)$	–	–	–	–	–	–

The Strouhal numbers of the dominant tones for JetL5-90d and JetL5-75d are in boldface. The Strouhal number at the maximum sound pressure level for JetL5-60d is between brackets.

Table 7.

Maximal levels obtained in the sound spectra of Figure 7, skewness, and kurtosis factors of the fluctuating pressure at x = 0 and $y = 8.5 h$ .

	JetL5-90d	JetL5-75d	JetL5-60d
${SPL}_{m a x} (d B / S_{t})$	188	175	160
Skewness	0.57	0.25	0.19
Kurtosis	3.87	3.2	3.49

SPL: sound pressure level.

Tone frequencies

In order to explain the origin of tone frequencies, Powell¹ suggested that a feedback mechanism establishes between the nozzle lips and the flat plate. Similarly, Ho and Nosseir² and Nosseir and Ho³ constructed a simple model in order to predict the frequencies of the feedback mechanism, providing the relation

\frac{N}{f} = \frac{L}{< u_{c} >} + \frac{L}{c_{0}}

(6)

where

< u_{c} >

is the mean convection velocity of the large-scale structures in the shear layers and N is the number of time the feedback mechanism occurs during one period of the feedback.

The Strouhal numbers of the tone frequencies obtained for the present jets in Figure 7 are plotted in Figure 8 as a function of the nozzle-to-plate distance L/h. For the three computed jets, the value $L = 5.5 h$ at the center of the jet is used. Only the fundamental tone frequencies, which are not harmonics of other tone frequencies and which are called source tone frequencies in the following, are represented. The tone frequencies measured by Thurow et al.,²² as well as those predicted using equation (6) with a mean convection velocity equal to $< u_{c} > = 0.55 u_{j}$ , are also displayed. A good agreement is found between the simulation and the experimental data. Moreover, the tone frequencies seem to be well predicted by the model.

Figure 8.

Strouhal numbers of the tone frequencies obtained $•$ for JetL5-90d, □ for JetL5-75d, and × experimentally by Thurow et al.²² as a function of the nozzle-to-plate distance. The gray lines show the values predicted by equation (6) using $< u_{c} > = 0.55 u_{j}$ .

For JetL5-90d, where $L / h = 5.5$ , the two source tone frequencies at $S t_{1} = 0.12$ and $S t_{2} = 0.19$ can be associated with the second mode and the third mode of the feedback mechanism. For JetL5-75d, the two observable tones at $S t_{1} = 0.19$ and $S t_{2} = 0.25$ correspond to the third and the fourth modes. Finally, for JetL5-60d, no tones are represented in Figure 8, as they do not stand out clearly in the spectra. The maximum sound pressure level is, however, reached around St = 0.25. Therefore, when the angle of impact deviates from 90°, there is a jump from the third mode to the fourth mode of the feedback mechanism. A similar jump is observed in the experiments of Thurow et al.²² when the nozzle-to-plate distance increases from 5.5h to 5.85h. Indeed, as visible in Figure 8, they found dominant tone frequencies of St = 0.20 and St = 0.245 for $L = 5.5 h$ and $L = 5.85 h$ , respectively.

Skewness and kurtosis factors

In order to investigate the non-linear features of the acoustic waves generated by the impingement, the statistical properties of the pressure are examined at x = 0 and $y = 8.5 h$ . They are computed using the Welch method with a 50% overlapping in time and by performing statistical averaging over the periodic direction z. This point is located the furthest possible in the acoustic region where the mesh size is smaller than 0.03h. This position permits to resolve the acoustic spectrum up to a Strouhal numbers of $S t = f h / u_{j} = 5.6$ . It has been chosen in order to allow non-linear propagation effects to possibly affect the acoustic waves coming from the region of impact. Figure 9(a), (c), and (e) displays the fluctuating pressure at this point for the different jets. For JetL5-90d, in Figure 9(a), weak shock waves and N-shaped waves showing sharp compressions associated with gradual expansions appear. These shapes are similar to those obtained by de Cacqueray and Bogey⁴² in the acoustic field of an overexpanded jet²⁹ at $M_{j} = 3.3$ . Moreover, at some times, the fluctuating pressure exceeds $0.15 P_{a m b}$ . This is the case at $t_{1} = 10 h / u_{j}$ and $t_{2} = 20 h / u_{j}$ , where two strong shock waves are noticed. As the angle of impact changes, the amplitude of the pressure fluctuation decreases. N-shaped waves are still visible for JetL5-75d in Figure 9(c) at $t_{1} = 38 h / u_{j}$ but not for JetL5-60d in Figure 9(e).

Figure 9.

Left views: Fluctuating pressure at x = 0 and $y = 8.5 h$ over a short period, and right views: —– PDFs (- - - PDF of a Gaussian distribution) for (a and b) JetL5-90d, (c and d) JetL5-75d, and (e and f) JetL5-60d. PDF: probability density function.

In order to be more quantitative, Figure 9(b), (d), and (f) shows the probability density functions of the fluctuating pressure normalized by the standard deviation as well as the skewness and kurtosis factors for JetL5-90d, JetL5-75d, and JetL5-60d. For JetL5-90d, a skewness factor of S = 0.57 and a kurtosis factor of K = 3.87 are obtained, indicating strong non-linearity and intermittency of the signal. These properties correspond to those of the crackle noise first defined by Ffowcs-Williams et al.,⁴³ who identified this specific noise when the skewness factor of the pressure field exceeds 0.4. As the angle of impact deviates from 90°, the skewness factor decreases down to S = 0.25 for JetL5-75d and to S = 0.19 for JetpL5-60d. This result is in agreement with the weakening of the N-shaped waves in the fluctuating pressure signals in Figure 9(c) and (e). Moreover, the kurtosis factor also decreases from K = 3.87 for JetL5-90d down to K = 3.2 and K = 3.49 for JetL5-75d and JetL5-60d. This result indicates that the fluctuating pressure is not strongly intermittent for lower angles of impact.

For the three jets simulated, the peak values in the sound spectra at x = 0 and y = 1.5h of figure 7, and the skewness and kurtosis factors of the fluctuating pressure at x = 0 and y = 8.5h, are collected in Table 7. The maxima in the spectra and the skewness factors appear to be correlated. Moreover, the highest values of skewness and kurtosis factors are obtained for JetL5-90d, supporting that the most resonant case is also the case where non linearity and intermittency are the strongest.

Fourier decomposition of the pressure field

For each jet, the pressure field in one (x, y) plane has been recorded every 50th time step, at a sampling frequency of St = 8. A Fourier decomposition is then applied. In this way, for a given frequency, the amplitude and phase fields can be displayed.

The amplitude and phase fields obtained for the source tone frequency of JetL5-90d at $S t_{2} = 0.19$ , and the two tone frequencies at $S t_{1} = 0.19$ and $S t_{2} = 0.25$ of JetL5-75d are displayed in Figure 10. The amplitude fields are shown in the top views and the phase fields in the bottom views. The latter fields enable to identify the nature of the modes. The source tone frequencies of JetL5-90d and the secondary tone frequency of JetL5-75d at $S t_{1} = 0.19$ can be associated to antisymmetric oscillation modes because there is a 180° phase shift with respect to the jet axis in Figure 10(d) and (e). However, for the dominant source tone frequency of JetL5-75d at $S t_{2} = 0.25$ , a clear pattern of a symmetric or antisymmetric oscillation mode of the jet does not appear in Figure 10(c).

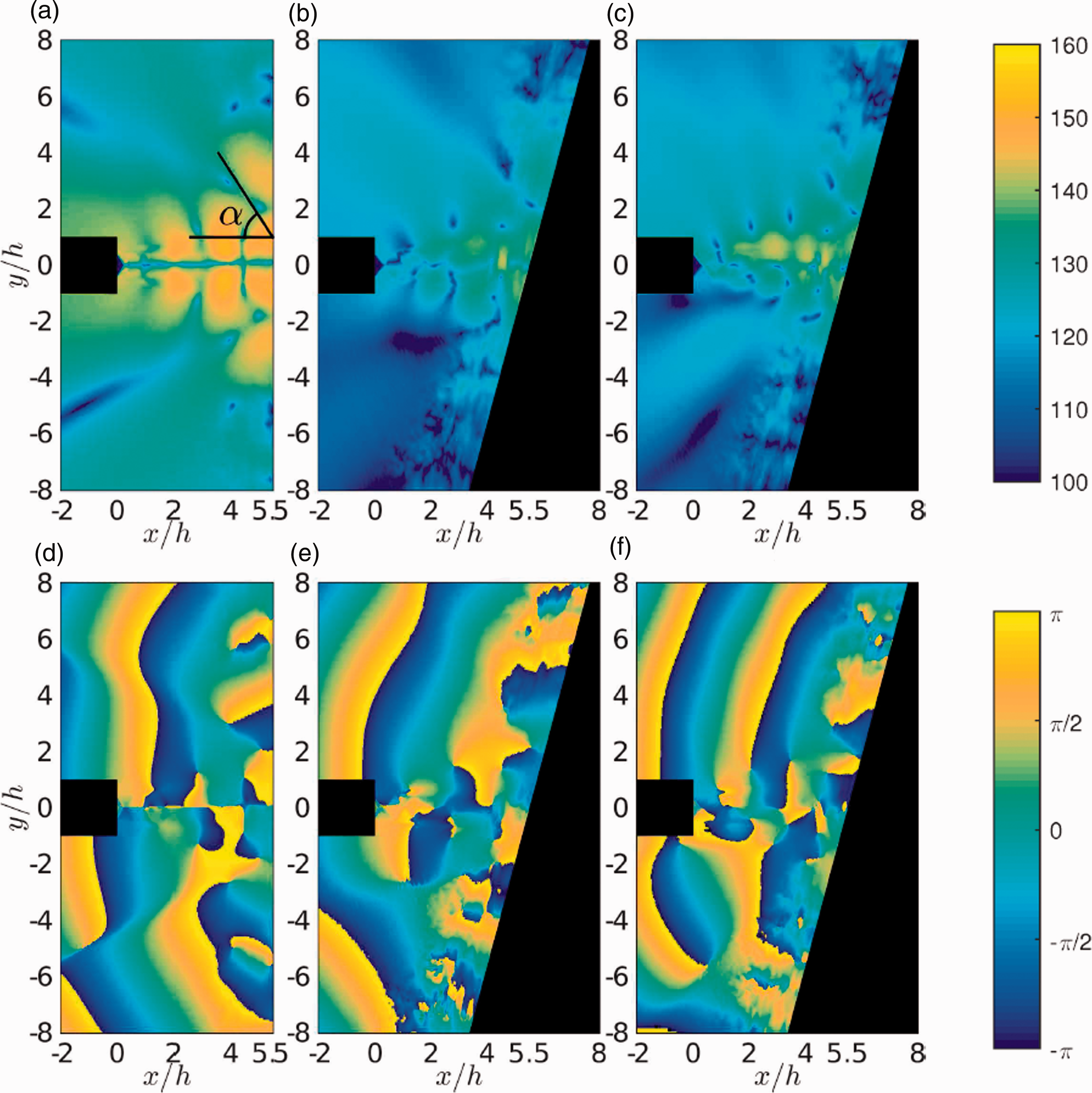

Figure 10.

Amplitude (top) and phase (bottom) obtained for the pressure fields for (a and d) JetL5-90d at $S t_{2} = 0.19$ , (b and e) JetL5-75d at $S t_{1} = 0.19$ , and (c and f) JetL5-75d at $S t_{2} = 0.25$ . The nozzle and the plate are in black. The color ranges range over 60 dB for the amplitude fields and from $- π$ to π for the phase fields.

The amplitude fields of the three tone frequencies represented in the top views of Figure 10 all exhibit a cell structure between the jet nozzle and the plate. By considering the two semi-cells near the nozzle and the plate as one cell, the cell structures contain three cells for JetL5-90d at $S t_{2} = 0.19$ and for JetL5-75d at $S t_{1} = 0.19$ in Figure 10(a) and (b) and four cells for JetL5-75d at $S t_{1} = 0.25$ in Figure 10(c). Thus, the number of cells corresponds to the mode number predicted by the model of Ho and Nosseir² and Nosseir and Ho³ identified in Figure 8. Those cells are due to the formation of hydrodynamic–acoustic standing waves. Such waves have been observed experimentally by Panda et al.⁴⁰ in supersonic screeching jets and numerically by Gojon et al.¹⁷ and Bogey and Gojon¹¹ in ideally expanded planar impinging jets, among others. Moreover, for JetL5-75d, in the amplitude fields of Figure 10(b) and (c), higher amplitudes are found in the upper shear layer than in the lower shear layer. This suggests that the feedback mechanism establishes mainly in the upper jet shear layer for JetL5-75d. This observation is consistent with the switch from the third mode to the fourth mode reported in the previous section. The nozzle-to-plate distance along the upper jet shear layer L_upper increases from 5.5h for JetL5-90d to 5.63h for JetL5-75d. Therefore, it is not surprising that the same mode jump has been observed experimentally when the nozzle-to-plate distance is increased from 5.5h to 5.85h for normal impinging jets.

Those results are in agreement with the combination of models proposed in Gojon et al.¹⁷ Indeed, for this jet configuration, the tone Strouhal number St = 0.19 and the antisymmetric oscillation mode of the jet at this frequency are predicted. The tone at St = 0.25 is also predicted with an antisymmetric oscillation mode of the jet. This oscillation mode is not clearly recovered in the phase field in Figure 10(c). It is probably due to the fact that almost only the upper jet shear layer maintains the aeroacoustic feedback mechanism, with phase contours that all seem to come from the upper jet shear layer region of impact in Figure 10(c), even in the region where y < 0.

Velocity spectra

The spectra of axial velocity fluctuations calculated in the lower and upper jet shear layers are presented in Figure 11 as functions of the Strouhal number and the axial distance. They are computed using the Welch method with a 50% overlapping in time on one point in the spanwise direction. For JetL5-90d, a very similar behavior can be noted on both sides of the jet in agreement with the symmetry. A dominant tone at St = 0.19 is visible from the nozzle exit to the plate. Its first three harmonics are also seen, mainly near the nozzle exit. For JetL5-75d, different results are obtained in the two jet shear layers, as expected. In the lower shear layer, in Figure 11(e), a low-amplitude tone at St = 0.19 only appears near the nozzle exit, whereas in the upper shear layer, in Figure 11(b), a dominant tone at St = 0.25 and a secondary tone at St = 0.19 emerge. This result is consistent with the observation made in the previous section that the feedback mechanism establishes mainly in the upper jet shear layer in this case. For JetL5-60d, several tones of low amplitude can be identified around St = 0.25 in the upper shear layer, but they are less marked in the lower shear layer.

Figure 11.

Power spectral densities of axial velocity fluctuations $u_{z}'$ obtained along the (a to c) upper jet shear layer and (d to f) lower jet shear layer as functions of the Strouhal number and the axial coordinate for (a and d) JetL5-90d, (b and e) JetL5-75d, and (c and f) JetL5-60d. The color scale ranges over 50 dB from blue to red.

Tone intermittency

In order to determine whether the jets produce alternatively or simultaneously the different tones emerging in the spectra of Figure 7, a Fourier decomposition is applied to the pressure signal at x = 0 and $y = 1.5 h$ using a sliding window in time of size $35 u_{j} / h$ . The results for the three jets are displayed in Figure 12 as functions of time and Strouhal number.

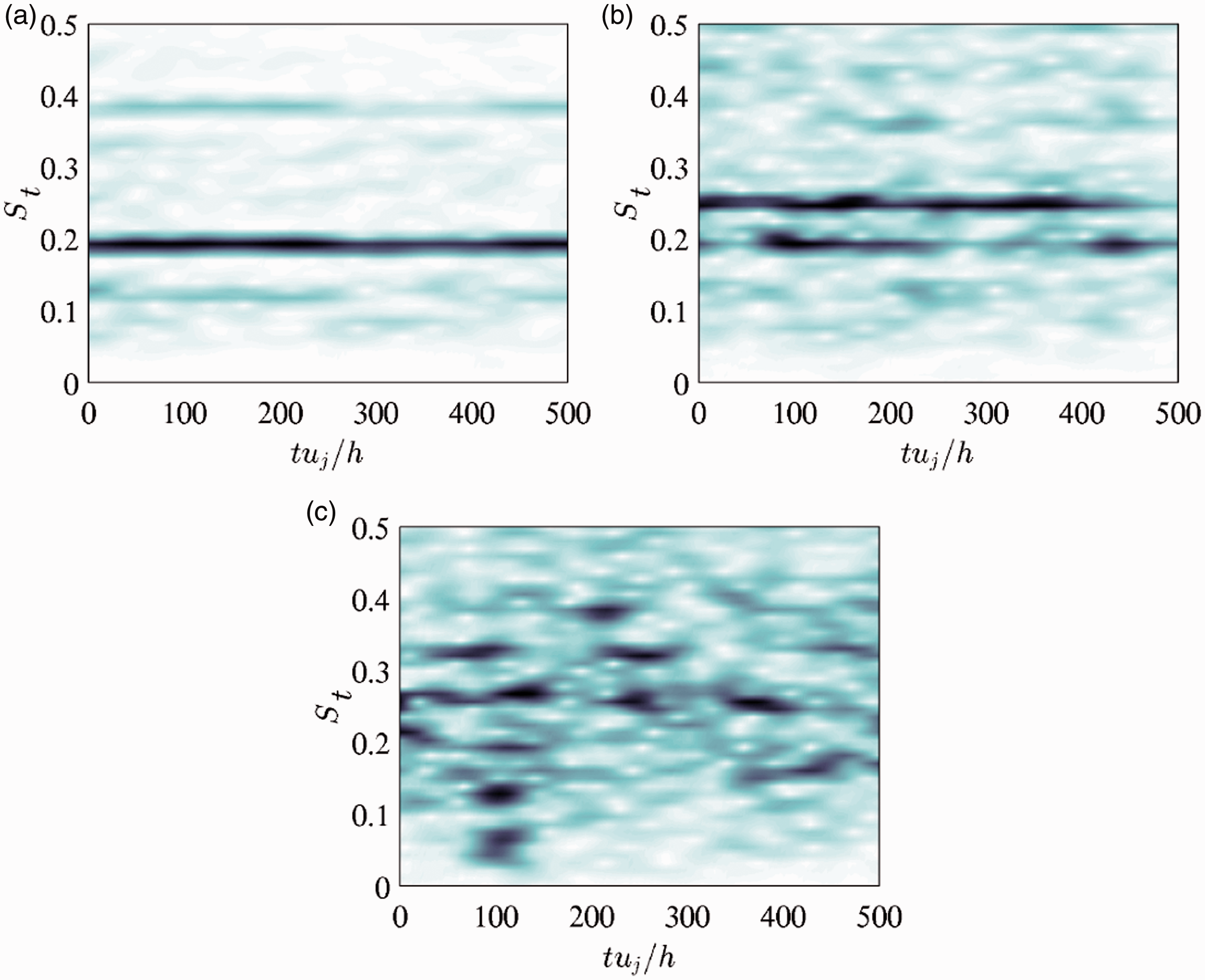

Figure 12.

Sound pressure levels obtained at x = 0 and $y = 1.5 h$ as functions of time and Strouhal number for (a) JetL5-90d, (b) JetL5-75d, and (c) JetL5-60d. The color scales have been chosen arbitrarily and range over 30 dB for JetL5-90d, 15 dB for JetL5-75d, and 10 dB for JetL5-60d.

For JetL5-90d, in Figure 12(a), the contribution of the dominant tone frequency at $S t_{2} = 0.19$ is clearly visible and coexists in time with those of its harmonic at $S t_{3} = 0.38$ and of the secondary tone frequency at $S t_{1} = 0.12$ . For JetL5-75d, in Figure 12(b), the tone at $S t_{1} = 0.19$ and a second tone at $S t_{2} = 0.25$ appear simultaneously. Finally, for JetL5-60d, in Figure 12(c), the tone at St = 0.25 can still be noticed and varies over time. Besides, several other tones, at St = 0.08, 0.13, 0.19, 0.32, and 0.385, stand out over short periods of time of about $50 u_{j} / h$ . These tones can be linked to the modes N = 1, 2, 3, 5, and 6 of the aeroacoustic feedback mechanism. Thus, for an angle of impact of 60°, it seems that none of the modes of the feedback persists in time, but that several modes randomly establish during short periods of time. These rapid switches between different modes lead to several tones that are less energetic on average and centered on St = 0.25 for JetL5-60d in Figure 7(c).

Conclusion

In this paper, the hydrodynamic and acoustic properties of three planar supersonic jets computed by compressible LESs are presented. The jets are ideally expanded, and have a Mach number $M_{j}$ of 1.28, and a Reynolds number Re_j of $5 \times 10^{4}$ . One jet impinging on a flat plate normally, and two other impinging jets with angles of impact of 60° and 75° are considered. Mean velocity flows and snapshots of density, fluctuating pressure, and vorticity are described. The mean convection velocity of the turbulent structures in the jet shear layers is determined. The results are consistent with theoretical models and with experimental values. The near pressure fields are then detailed. Several tones emerge in the pressure spectra in the vicinity of the nozzle. The frequencies associated with these tones compare well with measurements and with the classical model of the feedback mechanism. Besides, a jump from the third to the fourth mode and a reduction in intensity are observed, as the angle of impact deviates from 90° to 75°. A reduction in the amplitude of the acoustic waves coming from the region of jet impact is also noticed. A Fourier decomposition is then applied to the near pressure fields in the (x, y) plane. Hydrodynamic–acoustic standing waves are found in the amplitude fields of some tone frequencies. Moreover, for an angle of impact of 75°, higher amplitudes are found in the upper shear layer than in the lower shear layer, indicating that the feedback mechanisms establish mainly along the lip that is farther away from the plate when the impact angle is not normal. Velocity spectra in the jet shear layers also support this result. Indeed, the dominant tone frequency is only visible in the velocity spectra of the upper jet shear layer for an angle of impact of 75°. This observation is consistent with the jump observed from the third mode to the fourth mode. In this case, the nozzle-to-plate distance along the upper jet shear layer increases from 5.5h for JetL5-90d to 5.63h for JetL5-75d. Therefore, it seems natural that the present jump is similar that observed experimentally when the nozzle-to-plate distance is increased from 5.5h to 5.85h for normal impinging jets. Finally, using a Fourier decomposition over a sliding window in time, it is observed, for an angle of impact of 60°, that none of the modes of the feedback persists in time, but that several modes randomly establish during short periods of time. These rapid switches between different modes lead to several tones that are less energetic on average and centered on St = 0.25 for this impact angle.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was performed using HPC resources of Pôle de Calcul Hautes Performances Dédiés and CNRS on Turing, Occigen (GENCI-IDRIS grant x2016a7178 and GENCI-CINES grant A0022A07178) and Eos (CALMIP, grant 2017-p1425).
