Light positioning: A high-accuracy visible light indoor positioning system based on attitude identification and propagation model

Abstract

With the booming development of green lighting technology, visible light-based indoor localization has attracted a lot of attention. Visible light-based indoor positioning technology leverages a light propagation model to pinpoint target location. Compared with the radio localization technology, visible light-based indoor positioning not only can achieve higher location accuracy, but also no electromagnetic interference. In this article, we propose LIPOS, a three-dimensional indoor positioning system based on attitude identification and visible light propagation model. The LIPOS system takes advantage of the existing lighting infrastructures to localize mobile devices that have light-sensing capabilities (e.g. a smartphone) using light emitting diode lamps as anchors. The system can accurately identify the attitude of a smartphone using its integrated sensors, distinguish different light emitting diode beacons using the fast Fourier transform algorithm, construct a position cost-function based on a visible light radiative decay model, and apply a nonlinear optimizing method to acquire the optimal estimation of final location. We have implemented the LIPOS system and evaluated it with a small-scale hardware testbed, as well as moderate-sized simulations. Extensive experiments are performed in three representative indoor environments—open-plan office, cubicle, and corridor, which not only demonstrate that the LIPOS can effectively avoid the negative effects of dynamic change of a smartphone’s attitude angle, but also show better locating accuracy and robustness, and obtain sub-meter level positioning accuracy.

Keywords

Visible light light emitting diode indoor position attitude identification radiative decay model sub-meter level

Introduction

A recent survey by Pew Research Center’s Internet Project indicates that 74% of adult smartphone owners are adults who aged 18 or older use their phones to get directions or other information based on their current location.¹ On one hand, users can find their targets quickly, for example, rescuers can quickly find people who need to be rescued in emergency circumstances. On the other hand, service providers can benefit from users’ location information in facilitating precision advertising, personalized recommendations, and proximity notification using location-based services (LBS). LBS is expected to support the core critical demands for resource and personnel tracking, anti-terrorism action, emergency rescue, and exploration missions. Accurate location awareness is an essential step in LBS. The global positioning system (GPS) is well established and has been extensively used in outdoor environments, such as car navigation. However, GPS needs a line of sight (LoS) connection with the satellite to determine the position of a person or object. GPS accuracy drops when it is used in indoor environment because the signal from GPS satellites is blocked by walls or tall buildings.^2,3 At the same time, GPS is associated with higher power consumption, slow-response, and inefficiency problems. Researchers have proposed many alternatives, which are divided into two typically types. One type leverages pre-deployed additional positioning infrastructure to realize precise positioning, such as radio frequency identification (RFID),⁴ ultra-wideband (UWB),⁵ ultrasonic sensors,⁶ Bluetooth,^7,8 and ZigBee.⁹ Accuracy can be increased by increasing the number of reference nodes with known positions. However, it will lead to increased installation and material costs, exclusively for positioning purposes. The ubiquity of a positioning system is constrained by the problem of difficult deployment and high equipment costs. The other type of positioning system is sampling signal fingerprints first and then achieving a user’s position by comparing the on-line signal’s fingerprint with the pre-generated signal fingerprints model, such as wireless local area network (WLAN)^10–14 and magnetic.^15–19 Wi-Fi-based communication systems suffer from multi-path propagation due to the environment, and the signals can be received in nearby rooms. Collecting signal fingerprints is time-consuming and labor-intensive, and disk space is required to store the signal fingerprints. These properties specifically make it very difficult to realize accurate positioning. Moreover, positioning technology based on radio frequency (RF) cannot be used in electromagnetically sensitive environments due to the radiation hazard for health and interference between electromagnetic waves.

In recent years, lighting devices are undergoing a revolution transformation from fluorescent lamps or tubes to light emitting diodes (LEDs) because of the energy efficiency for the delivered light output, and the low cost and long lifetime of the LED. Visible light has the double functions of the dominant illumination source and indoor positioning. Visible light positioning (VLP) system can overcome several known problems with the RF-based indoor positioning system. A receiver cannot receive signals from nearby rooms. Therefore, the positioning algorithm will only use information that is transmitted inside the room in which it needs to calculate its position. Due to the local character of light, the LoS component of the signal will be presented in most cases and the multi-path propagation, which becomes a problem in RF systems, will be negligible for visible light communication (VLC).^20,21 Compared with the above-mentioned positioning technologies, VLP has the advantages of higher localization accuracy, lower deployment cost, stronger anti-interference ability, and not need deploying additional positioning infrastructure, no electromagnetic interference, and access authentication. Besides, VLP system has been designed for RF- or electromagnetic-sensitive areas like hospitals and airports, and areas without RF signal coverage, such as tunnels and underground mines. The local character of VLP is the main reason why VLP is a good candidate for indoor positioning purposes.

In this article, we propose a high precision indoor positioning system that uses LEDs as transmitters, a smartphone with a light sensor as receiver to realize location accuracy. The steps of this system are shown as follows. First, the transmitter transmits the three-dimensional (3D) coordinate information of itself. Second, the receiver receives the information from all the reference LEDs. Moreover, the receiver demodulates the received information in order to find out the coordinates and light intensity information for each LED. Finally, the coordinates of receiver, which are unknown, and are calculated using the coordinate information of the transmitters and the received signal strength indicator (RSSI) of each LED light. The main contributions of this article are summarized as follows:

This article proposes a high-accuracy indoor positioning system with a single LED, which merely rotates a mobile device by a small angle several times. Light positioning (LIPOS) achieves localization by slightly changing the roll angle or pitch angle four times instead of the measurements of multiple LEDs at the same time and same position. To reduce the heading direction errors caused by surrounding steel building materials, electrical equipment, or other sensor noises, we leverage indoor paths and user’s treading tracks to calibrate the heading direction. The proposed method obtains desirable performance and stability in LED beacon sparse environments, such as corridors, and has advantages of low cost.

By achieving the cosine of the incidence angle by the method of vector dot product, the positioning system supports a 3D positioning under various attitudes. The smartphone can sense self-attitude by a built-in accelerometer and magnetic sensor. Thus, the smartphone’s normal vector can be obtained. Combined with the light vector determined by the coordinate of the sender–receiver (LED and smartphone), pointing out from the LED and into the smartphone, the cosine of the incidence angle of the smartphone is obtained by the method of vector dot product between the smartphone’s normal vector and the light vector. This method can effectively avoid the restriction of the coplanarity of irradiation ray, incidence ray, and normal ray in incidence angle using irradiation angle and smartphone attitude. Therefore, the proposed positioning system can support pervasive 3D positioning.

Our proposed system requires neither knowledge of the receiver’s height nor the transmitter and receiver be aligned to the ceiling. In addition, our proposed system does not require all the lamps fixed at the same height.

The remainder of this article is organized as follows. In section “Related work,” the related work is introduced. The system overview is described in section “System overview.” The detail of the positioning system is proposed in section “3D positioning algorithm.” The experimental results and analysis are presented in section “Experiments and analysis.” The conclusion of this article is made in section “Conclusion.”

Related work

VLP system mostly uses a light sensor at the receiver to extract distance information based on the received signal strength (RSS),^22–25 time-of-arrival (ToA),^26,27 the time-difference-of-arrival (TDoA),²⁸ or angle-of-arrival (AoA)^29,30 of the incoming optical signals and then achieves the unknown location coordinates of the receiver by a position determination algorithm, such as trilateration and triangulation. Compared with RSS-based VLP, TDoA (or ToA)-based VLP can achieve better performance. However, to distinguish between the time-arrived signals of different LEDs, the LEDs must transmit signals that do not overlap in time, which will not only cause flicker, but also require accurate time synchronization at the transmitters. The cost of deployment or practicality of the VLP system based on TDoA (or ToA) will be a daunting task. In the work of Lou et al.,³¹ a positioning approach based on attaching each LED with an identification, namely the LED-identification (LED-ID) technology, was proposed. An improved positioning method of LED-ID was proposed, which combines the location code and the RSS.²² However, a LED-ID-based VLP system cannot provide accurate positioning. MT Taylor and S Hranilovic³² propose an angular diversity approach, which provides location information without relying on signal intensity measurements, time-of-flight data, or complex imaging approaches. MS Rahman et al.³³ exploit image approach to solve unknown position using the position information of the reference LEDs and the geometric relationship of the images on the image sensor. Some approaches exploit image sensors to locate the surrounding light sources based on the ray projection model.^34,35 Another approach attempts to estimate the distances to multiple light sources by varying the transmitting power, which leads to unstable illumination.³⁶ Pharos describes a positioning approach based on building an accurate optical channel model applicable to localization with practical considerations like dimming and flickering avoidance, and working with multiple light sources.³⁷ The authors in Steendam et al.,³⁸ according to the aperture-based receiver and measurements of RSS to design a VLP system, assess the performance of positioning algorithms by the Cramer–Rao lower bound. The above-mentioned image-based VLP system that achieves the unknown location coordinates of the receiver by the charge coupled device (CCD) camera extracts accurate information about the direction of arrival of the light. However, the graphics processing of a large number of pixels quickly drains the battery of a mobile phone.

In contrast to the aforementioned VLP methods, our proposed VLP method introduces single LED location and attitude identification, which can effectively avoid the negative effects of a smartphone’s attitude angle dynamically changing, and has better locating accuracy and robustness.

System overview

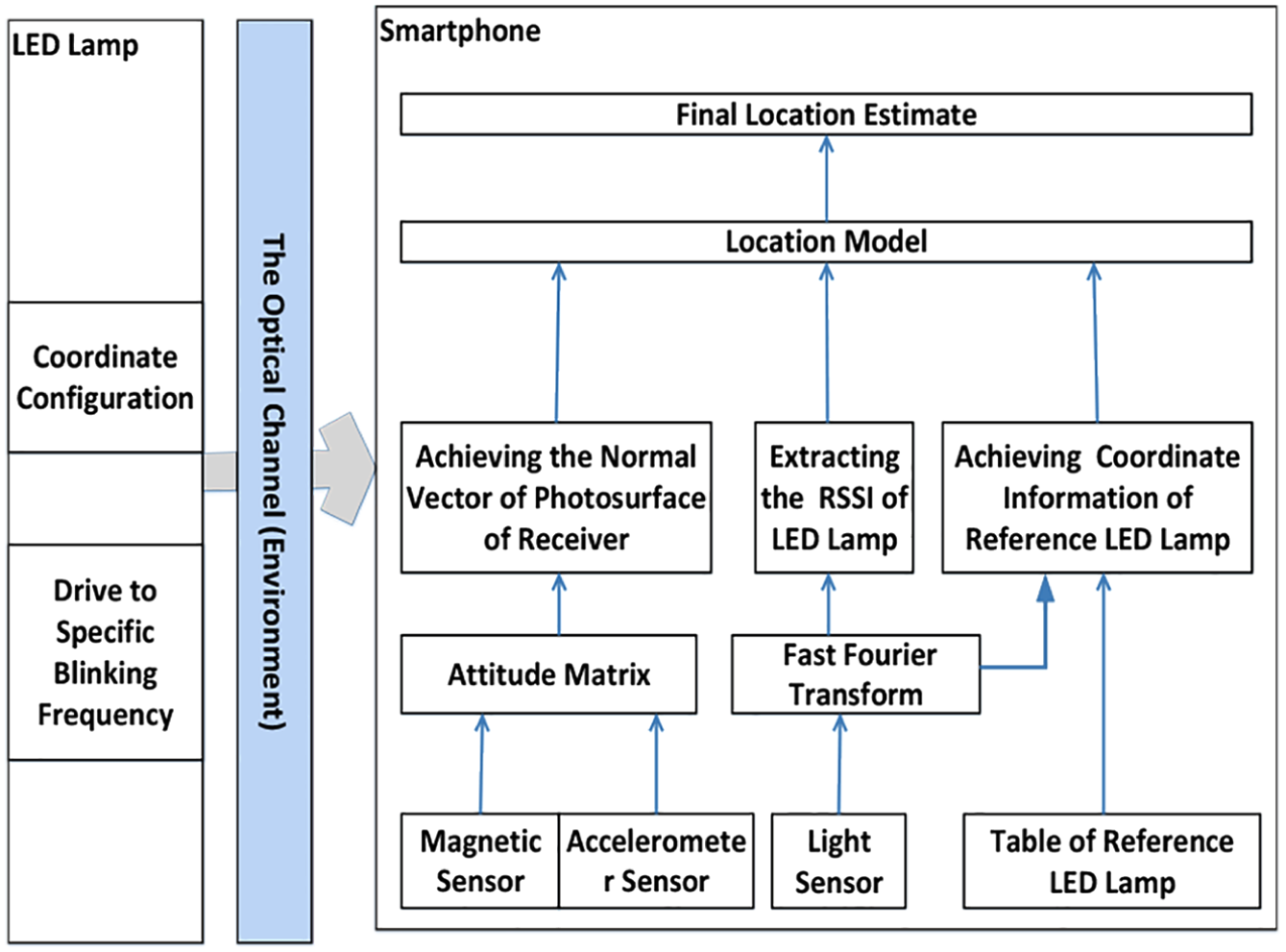

Figure 1 plots the overview of the system architecture of LIPOS. It consists of two parts, the LED lamps as transmitters and the smartphone as receiver. On the LED side, the 3D coordinate information associated with each LED light is driven at a specific blinking frequency. On the smartphone side, the normal vector of the receiver photosurface is found by the dot product of the normal vector of smartphone plane in the body frame and the attitude matrix obtained from inertial measurement unit (IMU) sensors (accelerometer, magnetometer, and gyroscope). The RSSI and blinking frequency of each LED lamp are extracted via a fast Fourier transform (FFT). A lookup table may be consulted to convert blinking frequency of LED lamp into the corresponding 3D coordinate information. The precise location of the smartphone is obtained via a location model according to the normal vector of the receiver, the RSSI, and the coordinate information for each LED lamp.

Figure 1.

LIPOS VLP system architecture.

3D positioning algorithm

There are k LED lamps, with positions $(x_{i}, y_{i}, z_{i}), i = 1, \dots, k$ , on the ceiling of the room, which can be modeled as transmitters. Different lamps flash at different rates, so they can be distinguished in the frequency domain. The VLP system is shown in Figure 2. The goal of this article is to estimate the position of $R (x, y, z)$ , which is a reference point of the receiver.

Figure 2.

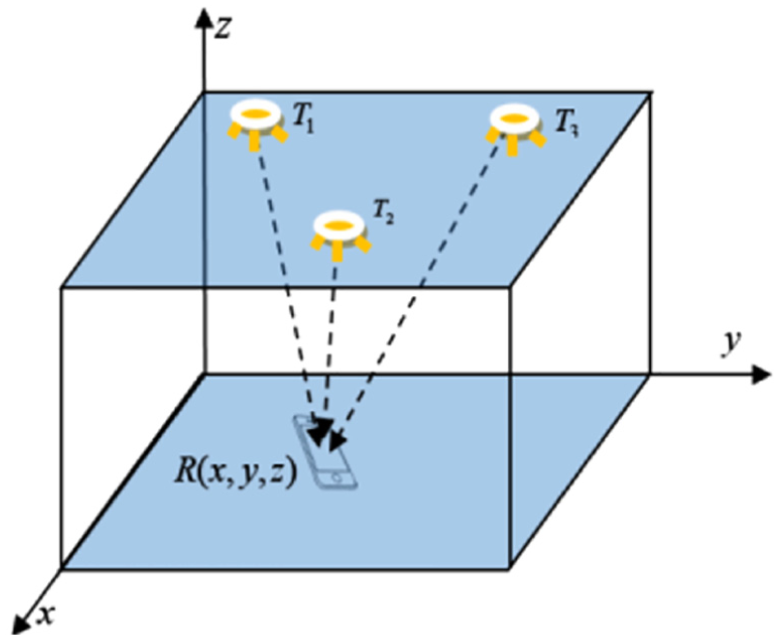

Visible light positioning.

We propose an indoor 3D positioning system based on attitude identification and visible light radiative decay position model. The optical signal is usually assumed to follow a Lambertian radiation pattern.³⁹ The receiver’s position is obtained by at least three measurements using three distinct orientations of the terminal. The terminal’s attitude is obtained using the accelerometer sensor, compass, and indoor paths. The pseudo-code of LIPOS system is shown in Figure 3.

Figure 3.

The pseudo-code of LIPOS algorithm.

Definition

To illustrate the positioning system presented in this article, we define the symbols in Table 1.

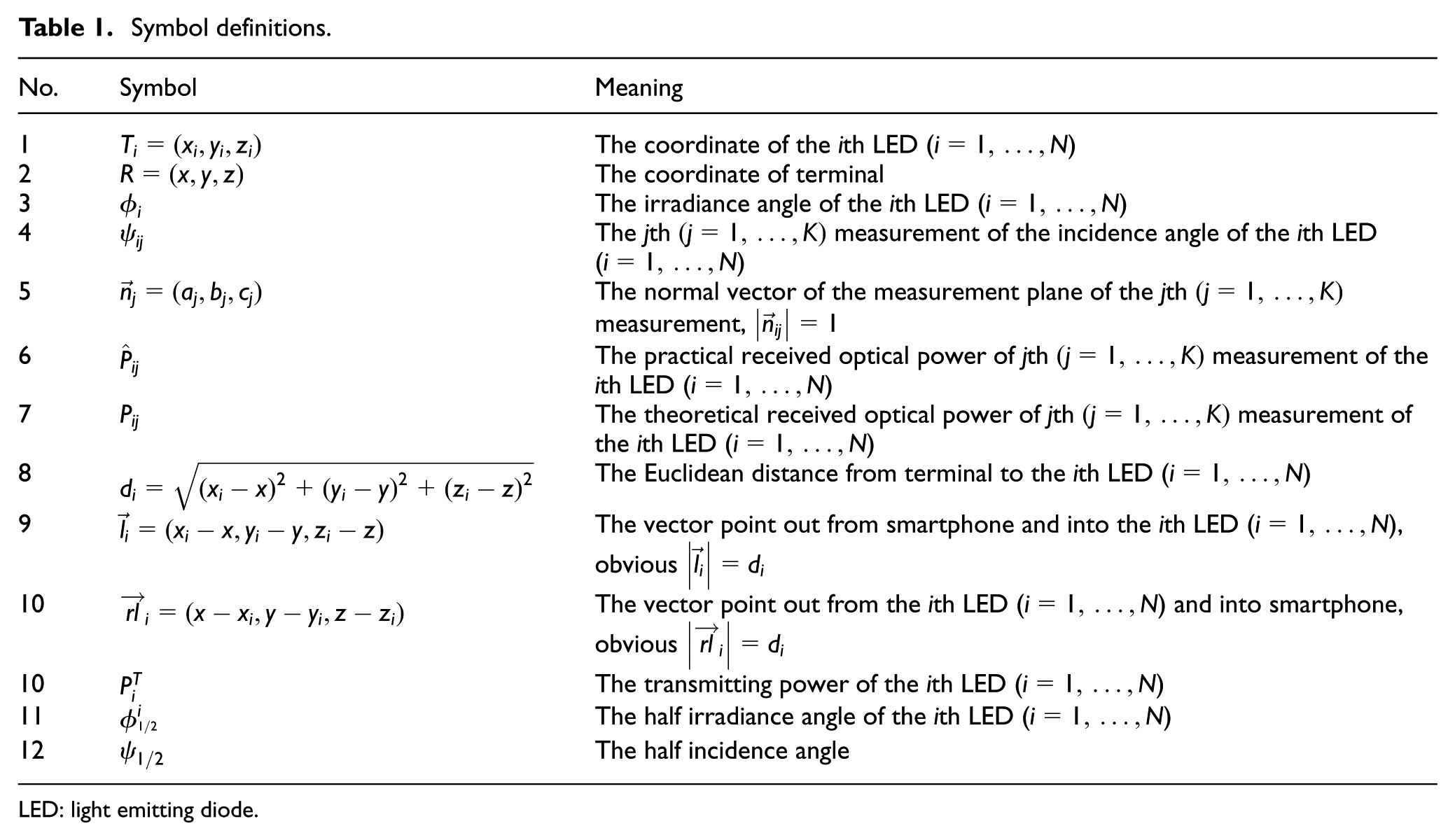

Table 1.

Symbol definitions.

No.	Symbol	Meaning
1	$T_{i} = (x_{i}, y_{i}, z_{i})$	The coordinate of the $i th$ LED ( $i = 1, \dots, N$ )
2	$R = (x, y, z)$	The coordinate of terminal
3	$ϕ_{i}$	The irradiance angle of the $i th$ LED ( $i = 1, \dots, N$ )
4	$ψ_{ij}$	The $j th$ $(j = 1, \dots, K)$ measurement of the incidence angle of the $i th$ LED ( $i = 1, \dots, N$ )
5	${\vec{n}}_{j} = (a_{j}, b_{j}, c_{j})$	The normal vector of the measurement plane of the $j th$ $(j = 1, \dots, K)$ measurement, $\| {\vec{n}}_{ij} \| = 1$
6	${\hat{P}}_{ij}$	The practical received optical power of $j th$ $(j = 1, \dots, K)$ measurement of the $i th$ LED ( $i = 1, \dots, N$ )
7	$P_{ij}$	The theoretical received optical power of $j th$ $(j = 1, \dots, K)$ measurement of the $i th$ LED ( $i = 1, \dots, N$ )
8	$d_{i} = \sqrt{{(x_{i} - x)}^{2} + {(y_{i} - y)}^{2} + {(z_{i} - z)}^{2}}$	The Euclidean distance from terminal to the $i th$ LED ( $i = 1, \dots, N$ )
9	${\vec{l}}_{i} = (x_{i} - x, y_{i} - y, z_{i} - z)$	The vector point out from smartphone and into the $i th$ LED ( $i = 1, \dots, N$ ), obvious $\| {\vec{l}}_{i} \| = d_{i}$
10	${\vec{rl}}_{i} = (x - x_{i}, y - y_{i}, z - z_{i})$	The vector point out from the $i th$ LED ( $i = 1, \dots, N$ ) and into smartphone, obvious $\| {\vec{rl}}_{i} \| = d_{i}$
10	$P_{i}^{T}$	The transmitting power of the $i th$ LED ( $i = 1, \dots, N$ )
11	$ϕ_{1 / 2}^{i}$	The half irradiance angle of the $i th$ LED ( $i = 1, \dots, N$ )
12	$ψ_{1 / 2}$	The half incidence angle

LED: light emitting diode.

Constructing beacon database

We define the beacon information as $BI = (x_{i}, y_{i}, z_{i}, f_{i}, p t_{i})$ where $x_{i}, y_{i}, and z_{i}$ are the positions of the $i th$ LED lamp, and $f_{i}$ is the floor no of the $i th$ LED lamp placed, the transmission power over a certain channel of the $i th$ LED lamp. Then, we construct the beacon database as Table 2, which establishes a relationship between frequency and beacons information. On the receiver side, the beacons information can be obtained by consulting this database.

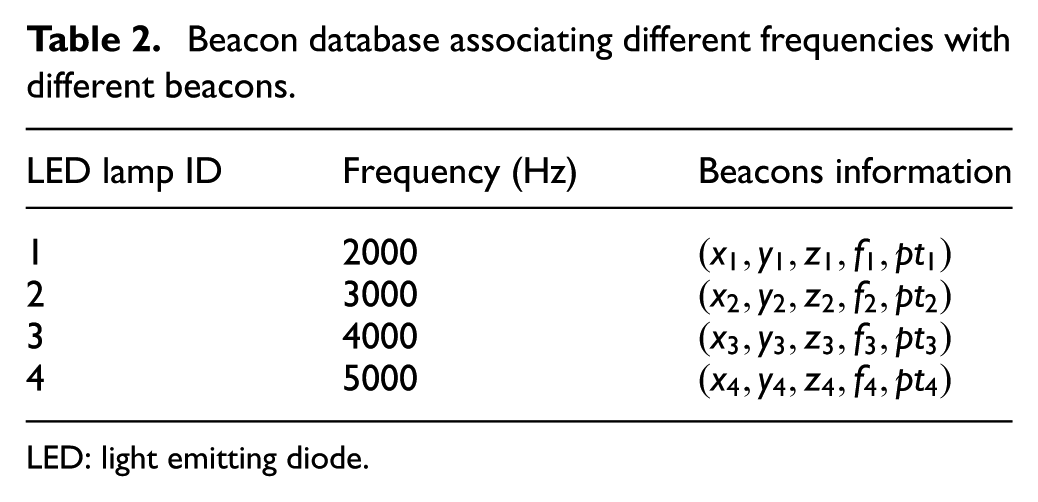

Table 2.

Beacon database associating different frequencies with different beacons.

LED lamp ID	Frequency (Hz)	Beacons information
1	2000	$(x_{1}, y_{1}, z_{1}, f_{1}, p t_{1})$
2	3000	$(x_{2}, y_{2}, z_{2}, f_{2}, p t_{2})$
3	4000	$(x_{3}, y_{3}, z_{3}, f_{3}, p t_{3})$
4	5000	$(x_{4}, y_{4}, z_{4}, f_{4}, p t_{4})$

LED: light emitting diode.

Optical channel model

The radiant intensity of a LED chip is usually assumed to follow a Lambertian radiation pattern.³⁹ The theoretical received optical power of $j th (j = 1, \dots, K)$ measurement of the $i th$ ( $i = 1, \dots, N$ ) is calculated as in equation (1), based on the Lambertian radiation pattern

P_{ij} = P_{i}^{T} \frac{(m + 1) A}{2 π d_{i}^{2}} \cos^{m} (ϕ_{i}) T (ψ_{ij}) g (ψ_{ij}) \cos^{M} (ψ_{ij})

(1)

where Lambertian parameters $m_{i} = - \log 2 / (\log (\cos (ϕ_{1 / 2}^{i})))$ and $M = - \log 2 / (\log (\cos (ψ_{1 / 2})))$ are determined by the physical aspects of the LED and the photodiode, $ϕ_{1 / 2}^{i}$ and $ψ_{1 / 2}$ are the half-power angles of LED and receiver photodiode, respectively. For typical LED bulbs with limited illumination range like ±60°, we have m = 1.³⁹A is the effective area of the photodiode at the receiver. $T (ψ_{ij})$ and $g (ψ_{ij})$ are the filter gain and concentrator gain, respectively. In this article, we assume that no filter or concentrator is used at the receiver (T(ψ) = g(ψ) = 1). Hence, we may assume that the received light intensity on the receiver is

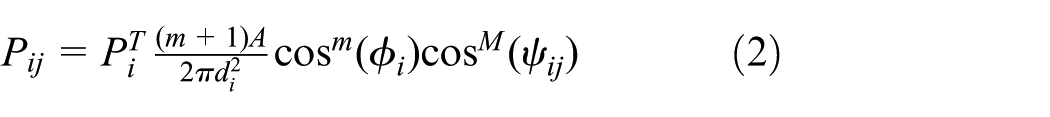

P_{ij} = P_{i}^{T} \frac{(m + 1) A}{2 π d_{i}^{2}} \cos^{m} (ϕ_{i}) \cos^{M} (ψ_{ij})

(2)

The received light intensity is not merely a function of the distance d between the light source and the sensor, but also depends on the irradiation angle $ϕ$ and the incidence angle $ψ$ .

Achieving the normal vector of photosurface of receiver

The received power given by equation (1) depends on not only the distance, but also the irradiance and incidence angles. The irradiance angle $ϕ$ is determined by the receiver’s position. If we fix the receiver’s position and only change the receiver’s attitude, the received power is determined only by the incident angle $ψ$ . The receiver’s attitude (azimuth $α$ , pitch $γ$ , and roll $β$ ) can be obtained by the built-in accelerometer sensor, and eventually, the incidence and irradiance angles are also obtained.

According to the definition of the attitude angle, the receiver frame is obtained by three rotations of the East-North-Up reference frame round z-, y-, and x-axes for $(α, β, γ)$ . For convenience, we use multiple coordinate frames to describe the process of rotation, including the “inertial frame,” the “vehicle-1 frame,” the “vehicle-2 frame,” and the “body frame.” The inertial frame axes are Earth-fixed, and the body frame axes are aligned with the sensor. The vehicle-1 and vehicle-2 are intermediary frames used for convenience when illustrating the sequence of operations that take us from the inertial frame to the body frame of the sensor.

The yaw angular represents rotation about the inertial frame z-axis by an angle $α$ . The yaw rotation produces a new coordinate frame where the z-axis is aligned with the inertial frame and the x- and y-axes are rotated by the yaw angle $α$ . We define this new coordinate frame as the vehicle-1 frame. The rotation matrix for moving from the inertial frame to the vehicle-1 frame is given by

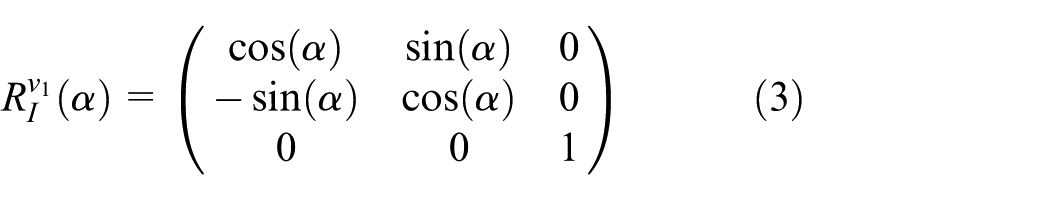

R_{I}^{v_{1}} (α) = (\begin{matrix} \cos (α) & \sin (α) & 0 \\ - \sin (α) & \cos (α) & 0 \\ 0 & 0 & 1 \end{matrix})

(3)

Pitch represents rotation about the vehicle-1 y-axis by an angle $β$ . The rotation matrix for moving from the vehicle-1 frame to the vehicle-2 frame is given by

R_{v_{1}}^{v_{2}} (β) = (\begin{matrix} \cos (β) & 0 & - \sin (β) \\ 0 & 1 & 0 \\ \sin (β) & 0 & \cos (β) \end{matrix})

(4)

Roll represents rotation about the x-axis of vehicle-2 by an angle $γ$ . The rotation matrix for moving from the vehicle-2 frame to the body frame is given by

R_{v_{2}}^{B} (γ) = (\begin{matrix} 1 & 0 & 0 \\ 0 & \cos (γ) & \sin (γ) \\ 0 & - \sin (γ) & \cos (γ) \end{matrix})

(5)

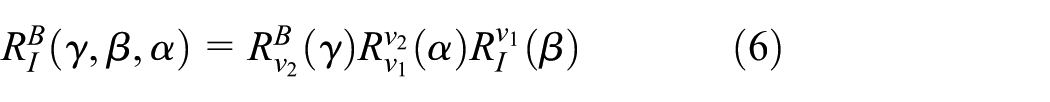

The complete rotation matrix for moving from the inertial frame to the body frame is given by

R_{I}^{B} (γ, β, α) = R_{v_{2}}^{B} (γ) R_{v_{1}}^{v_{2}} (α) R_{I}^{v_{1}} (β)

(6)

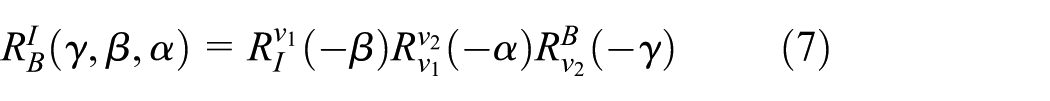

The rotation matrix for moving the opposite direction from the body frame to the inertial frame is given by

R_{B}^{I} (γ, β, α) = R_{I}^{v_{1}} (- β) R_{v_{1}}^{v_{2}} (- α) R_{v_{2}}^{B} (- γ)

(7)

In the body frame, the normal vector of smartphone plane $N_{B} = {(0, 0, 1)}^{T}$ and the normal vector of smartphone plane in the inertial frame are given by

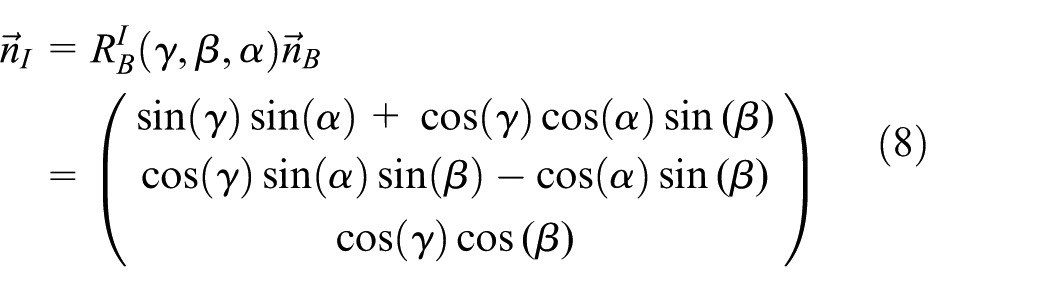

\begin{array}{l} {\vec{n}}_{I} = R_{B}^{I} (γ, β, α) {\vec{n}}_{B} \\ = (\begin{matrix} \sin (γ) \sin (α) + \cos (γ) \cos (α) \sin (β) \\ \cos (γ) \sin (α) \sin (β) - \cos (α) \sin (β) \\ \cos (γ) \cos (β) \end{matrix}) \end{array}

(8)

Achieving the irradiance and incident angles

As depicted in Figure 4, the distance between the LED $T_{i}$ and the receiver is $d_{i} = \sqrt{{(x_{i} - x)}^{2} + {(y_{i} - y)}^{2} + {(z_{i} - z)}^{2}}$ . Note that the irradiation angle $ϕ$ is between the light vector and central ray, and $\cos (ϕ_{i}) = (z_{i} - z) / d_{i}$ . The incidence angle $ψ_{ij}$ is between sensing face’s normal vector and the reverse light vector, and

\cos (ψ_{ij}) = \frac{\vec{r l_{i}} • \vec{n_{ij}}}{| \vec{r l_{i}} | | \vec{n_{ij}} |} = \frac{a_{j} (x_{i} - x) + b_{j} (y_{i} - y) + c_{j} (z_{i} - z)}{d_{i}}

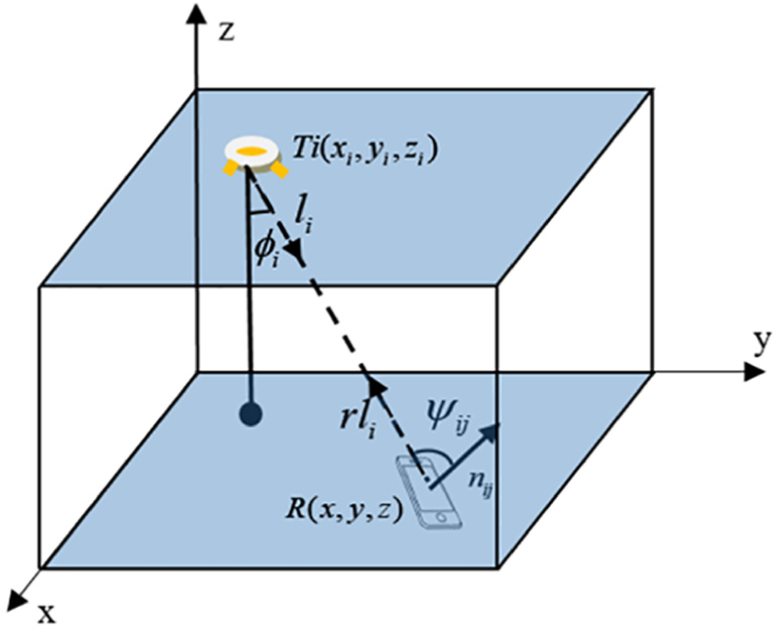

Figure 4.

The irradiation angle $ϕ$ , incidence angle $ψ$ , and the distance between a light source and the receiver d.

Extracting RSSI and coordinates information of LED lamp

The received power is the superposition of the light signals from all LED lamps, daylight, and other lights in the LoS area. The ambient light could be so strong that the useful signals are completely overwhelmed. Therefore, the received power cannot be directly applied to calculate the position estimate of the receiver, and a LED distinguish mechanism based on FFT is used to extract the RSSI of each LED with a particular frequency from the superposition of light signals.

The RSSI of each LED with a specific blinking frequency is obtained from multi-frequency composite signal by performing a FFT, as shown in equation (9)

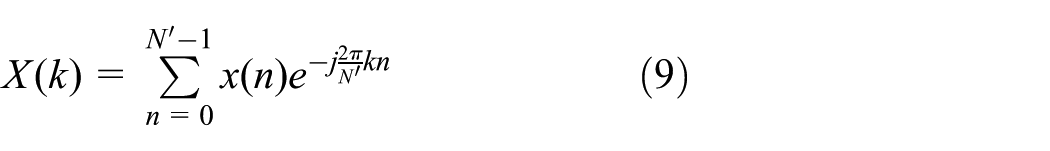

X (k) = \sum_{n = 0}^{N' - 1} x (n) e^{- j \frac{2 π}{N'} kn}

(9)

where $x (n) (n = 0, \dots, N' - 1)$ multi-frequency composites of received power sampled by the terminal, $N'$ is the number of samples. The amplitude of the FFT coefficient $X (k)$ divided by $N' / 2$ corresponding with the RSSI of $(k - 1) * f_{s} / N'$ (sample rate $f_{s}$ is double times more than the maximum blinking frequency f of LED, according to Nyquist’s theorem).

As shown in Figure 5(a), the visible light mixed-signal is produced by 2000, 3000, and 4000 Hz lamps. As shown in Figure 5(b), we can distinguish each LED by performing an FFT. We not only obtain the RSSI of the LED lamp, but also obtain the coordinate information of the reference LED by consulting a beacons database base on blinking frequency.

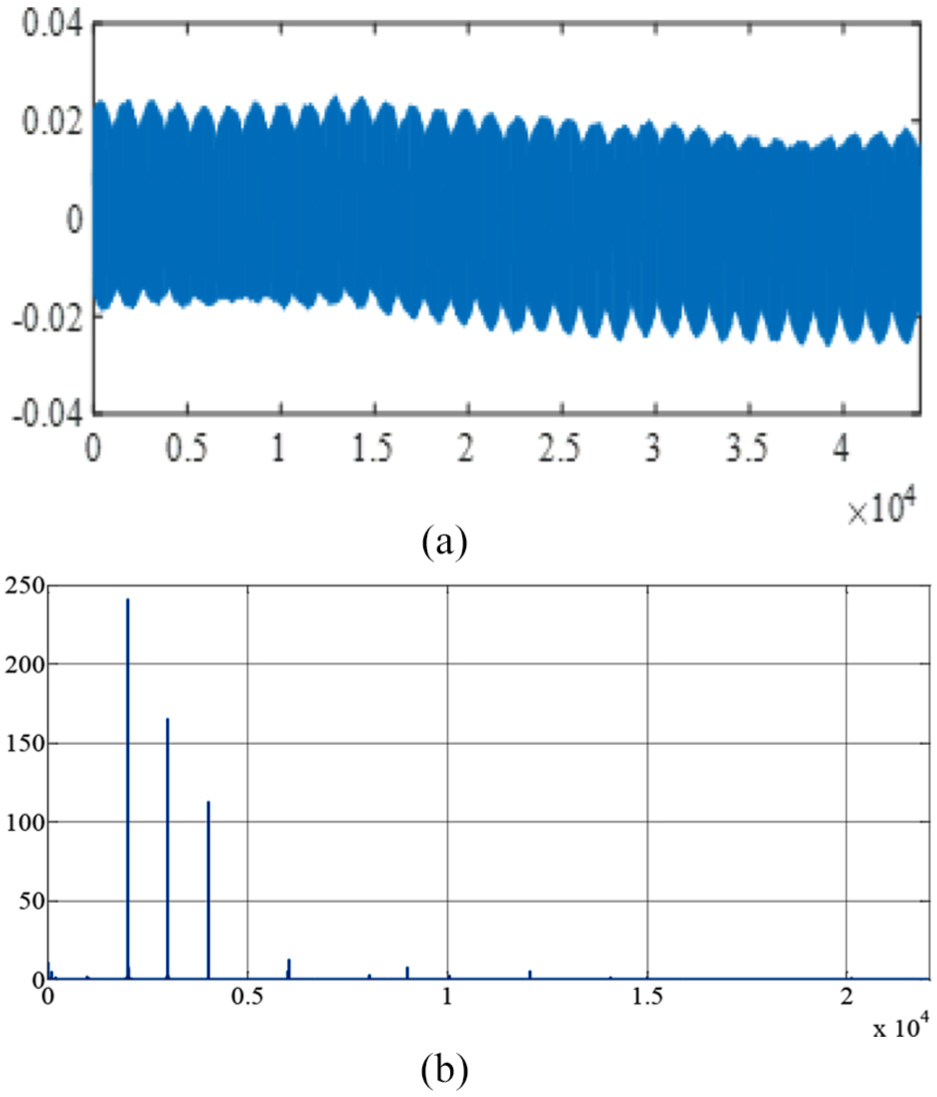

Figure 5.

Time domain and frequency domain signals of three LEDs with different frequencies: (a) time domain signal of three LEDs with different frequencies and (b) signal amplitude of three LEDs in the frequency domain.

Received light intensity

As shown in Figure 6, the red line indicates the theoretical received illuminance based on the Lambertian radiation pattern. The black line shows the real illuminance measurements Pi measured by a light intensity instrument. They are still extremely similar and illustrate that the distribution of the received real illuminance is consistent with the Lambertian radiation pattern.

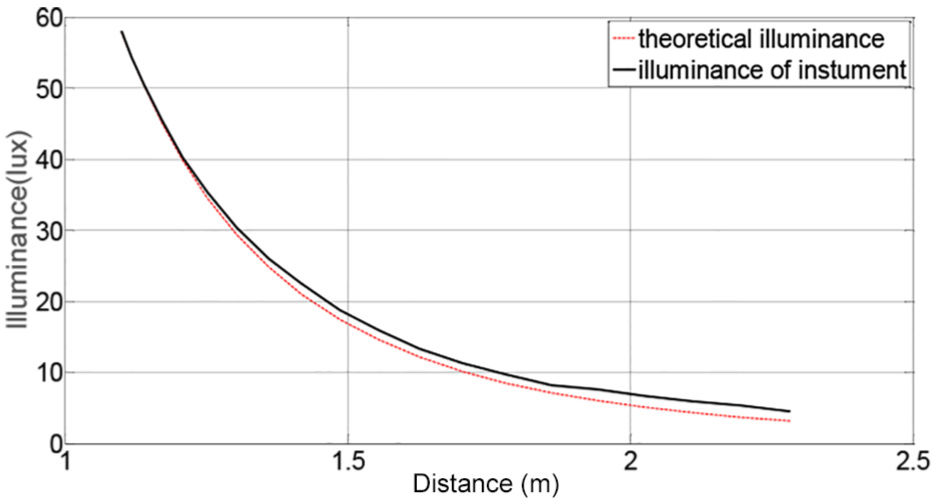

Figure 6.

The illuminance of theoretical and instrument.

Because the sensitivity and range of additional photodiode are unknown, we need a fitting function to matching the observed value and real value of light intensity. A higher polynomial function can achieve better fitting results, but bring more complex computing. In our experiment, the fitting results are extremely similar to theoretical received illuminance according to the quadratic polynomial

P_{i} = a_{1} * RSS i^{2} + a_{2} * RSSi + a_{3}

where $a_{1}, a_{2}, a_{3}$ depending on the physical nature of the LED lamp (at the transmitter side).

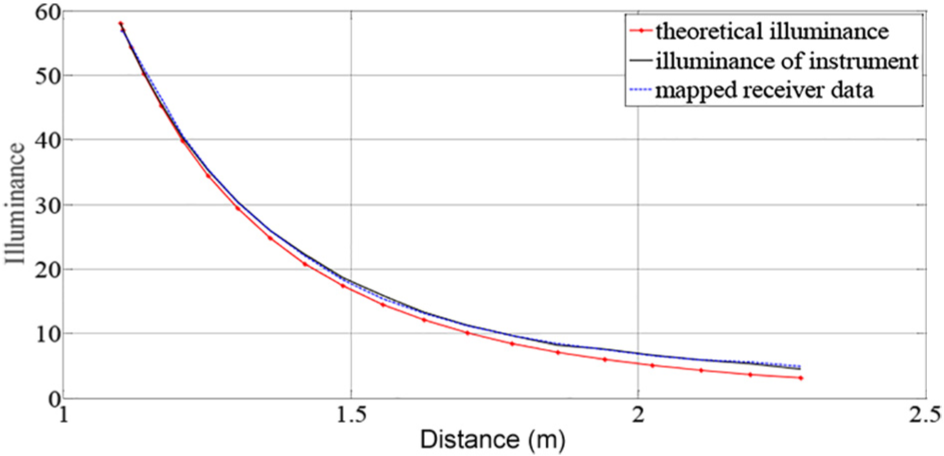

As shown in Figure 7, we can see that the mapped received data are still extremely similar with theoretical received illuminance and real illuminance measurements, and the mapped received data can be considered as real illuminance of a light sensor model.

Figure 7.

The illuminance of theoretical, instrument, and mapped.

Solving unknown location coordinates of the receiver

Under measurement noise conditions, the experimental value that deviates from theoretical value is found by measuring the received optical power. In order to realize precise indoor positioning, this article establishes a positioning model as equation (10)

(x, y, z) = \underset{(x, y, z) \in R^{3}}{arg min} \sum_{i = 1}^{N} \sum_{j = 1}^{K} {[{\overset{⌢}{P}}_{i j} - P_{i}^{T} \frac{(m + 1) A}{2 π d_{i}^{2}} \cos^{m} (ϕ_{i}) \cos^{M} (ψ_{i j})]}^{2}

(10)

where

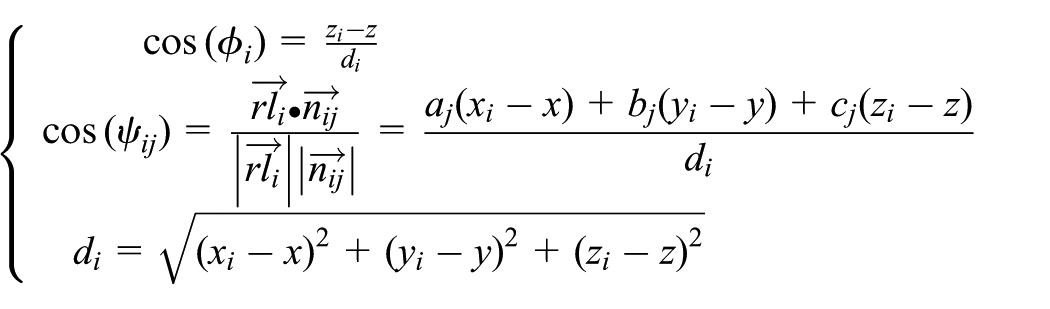

{\begin{matrix} \begin{matrix} \cos (ϕ_{i}) = \frac{z_{i} - z}{d_{i}} \\ \cos (ψ_{ij}) = \frac{\vec{r l_{i}} • \vec{n_{ij}}}{| \vec{r l_{i}} | | \vec{n_{ij}} |} = \frac{a_{j} (x_{i} - x) + b_{j} (y_{i} - y) + c_{j} (z_{i} - z)}{d_{i}} \end{matrix} \\ d_{i} = \sqrt{{(x_{i} - x)}^{2} + {(y_{i} - y)}^{2} + {(z_{i} - z)}^{2}} \end{matrix}

The positioning model is shown in equation (10) becomes an optimization problem of nonlinear function which contains only an unknown variable $R = (x, y, z)$ . Many alternative nonlinear optimization algorithms have been proposed for solving the unknown position estimation. In this article, to alleviate the weakness of numerical optimization techniques suffering from local optimal solutions, we adopt a genetic algorithm (GA)⁴⁰ that searches for global optimal solutions. GA has a higher efficiency computing capability and the time complexity is $O (n^{2})$ . In addition, GA does not need to assign the initial position. First, generate a set of 3D points randomly. Then recombine the gene to retain the high-quality gene. Meanwhile, carry on the gene variation in a certain proportion, in order to guarantee the algorithm not to fall into the local optimum. After many iterations, the final population is gathered near the optimal solution. The computational performance of the GA and other algorithms is shown in Figure 15.

The cosine of the incidence angle of smartphone is obtained by the method of vector dot product between the smartphone’s normal vector and the light vector, which points out from the receiver R to transmitter (LED). This method can effectively avoid the restriction of coplanarity of irradiation ray, incidence ray, and normal ray in solving the incidence angle with geometric relations using irradiation angle and smartphone attitude. When N = 1, the localization model in equation (10) becomes a single-point positioning problem.

Positioning with single LED lamp

For the LED beacon sparse environment, such as corridor, we design a positioning principle called multi-rotation light positioning (MRLP). The basic idea of MRLP is to collect multiple signal strengths from a single LED lamp by slightly changing the roll angle or pitch angle several times instead of the measurements of multiple LEDs at the same time and the same position. Along with the pre-defined RSS model, the measured data provide sufficient spatial constraints to locate the receiver.

Experiments and analysis

We present our results in three parts. We first describe the experimental setup and next present a section with simulation results to evaluate the positioning performance of different signal-to-noise ratios (SNRs) or different deployment schemes and then analyze the distribution of localization error. Finally, we present the results that are purely from our experimental setup, and we focus on the location accuracy in this part.

Hardware design

It is reported that low-frequency (less than 120 Hz⁴¹ or 160 Hz⁴²) flickers make people feel uncomfortable or even sick. Although there is no widely accepted criterion for the safe flicker frequency, it is generally thought that a frequency higher than 200 Hz is safe. In order to avoid the flickering problem and distinguish the LED signal from ambient light such as sunlight and fluorescent lights, the minimum blinking frequency was higher than 200 Hz. Note that Nyquist’s theorem limits the communication band to half of the audio chip’s sampling rate that up to 44.1 kHz. Therefore, the blinking frequency of LED lamps from 200 Hz to 22.05 kHz is suitable.

Considering that the sensor quickly drains the battery of a mobile phone and its low refresh rate (up to 100 Hz), the light should be modulated at a low frequency, resulting in flicker. Therefore, we adopt a photodiode connected to the smartphone with audio jack instead of the light sensor of smartphone to obtain light information.

The LIPOS consists of commercial LED lamps, peripheral control circuit that is used to drive each LED lamp with different blinking frequencies, smartphone that connects with a light sensor module through its audio jack, as shown in Figure 8.

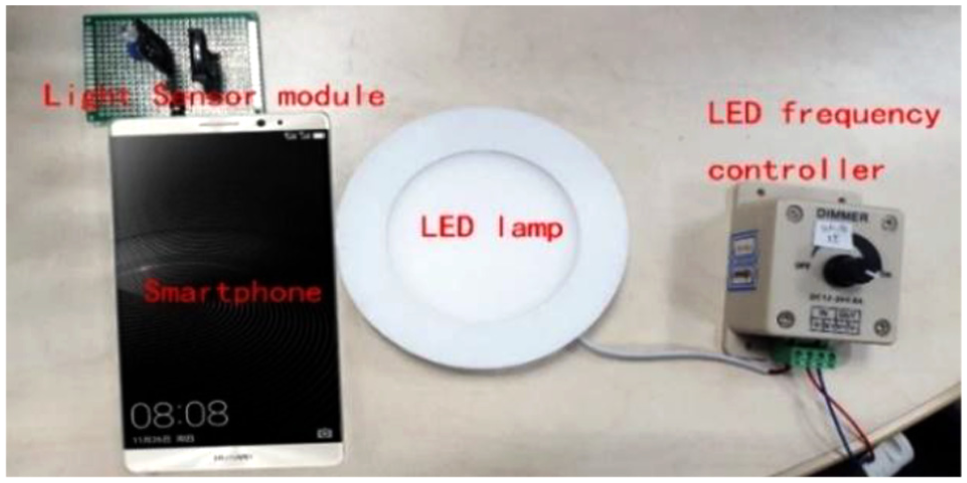

Figure 8.

Hardware of the LIPOS system.

Typical scenarios

In this section, we perform experiments in three representative indoor scenarios—open-plan offices, cubicle, and corridor to evaluate the proposed system:

The first scenario, open-plan offices, is a crowded office environment with dense cubicles, which provides complex conditions for light reflection and obstruction. 100 points, both on the floor and on the desk, are selected for positioning.

The second scenario, cubicle, is a small closed room that has only a LED lamp fixed on the ceiling of the room center. We select 50 points with uniformity across the sensing area for positioning.

The third scenario, corridor, is an elongated ambient space that all the LEDs are placed in nearly a straight line. In this scenario, 50 points are chosen for positioning.

Simulation results

We perform model-based simulation for three reasons. First, our practical results have demonstrated that the optical channel model fits our measurements quite well. That is to say, the real distribution of illuminance can be modeled by the optical channel model. Second, we explore the distribution of localization error and analyze the positioning performance of different SNRs and different deployment schemes, because the number and position of LED lamps can be changed easily. Third, continuous and massive data set be achieved in simulation, while only limited discrete data set is measured in practical experiment. Hence, it makes sense to use optical channel model-based simulation.

Simulation environment

The MATLAB 8.3 tool and a laptop (Windows 10, Intel Core i5 CPU, 8 bytes memory) are used in the simulation. All the simulation data were produced with the optical channel model. The produced received signal is affected by shot noise and thermal noise. Shot noise is the fluctuations due to the incident optical powers of desired and ambient light sources. Thermal noise is the fluctuations of the photodiode due to the changes in temperature of the receiver’s electric circuit. The total noise variance is $σ_{noise}^{2} = σ_{thermal}^{2} + σ_{shot}^{2}$ . SNR is related to $σ_{shot}^{2}$ , and the relationship is

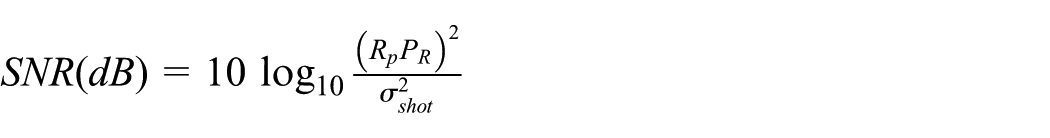

SNR (dB) = 10 \log_{10} \frac{{(R_{p} P_{R})}^{2}}{σ_{shot}^{2}}

where $R_{p}$ is the responsivity of the photodiode, $σ_{shot}^{2}$ is the variance of the shot noise, and $P_{R}$ is the theoretical value of the received light intensity at the receiver.

During the simulation, three Euler angles are also changed because of the existence of noise, which is defined as normal distribution noise, and the variance is different. In this article, the variance, expressed as $σ_{α}^{2}$ , is defined as 0.001. We usually defined the positioning error as

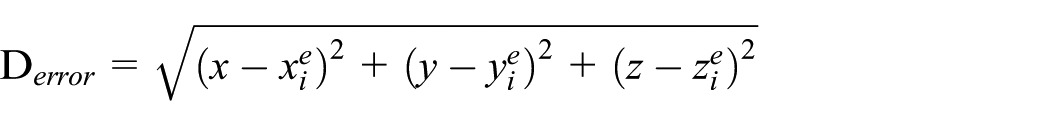

D_{error} = \sqrt{{(x - x_{i}^{e})}^{2} + {(y - y_{i}^{e})}^{2} + {(z - z_{i}^{e})}^{2}}

where (x, y, z) and ( $x_{i}^{e}$ , $y_{i}^{e}$ , $z_{i}^{e}$ ) are the coordinates of reference and estimated points, respectively.

Positioning performance of different SNRs

The SNR influences the positioning performance greatly and depends on the orientation, the receiver location, and the transmitter. As shown in Figure 9, positioning error can be reduced by increasing the SNR of each LED lamp. When SNR is greater than 15, the positioning error tends to be stable.

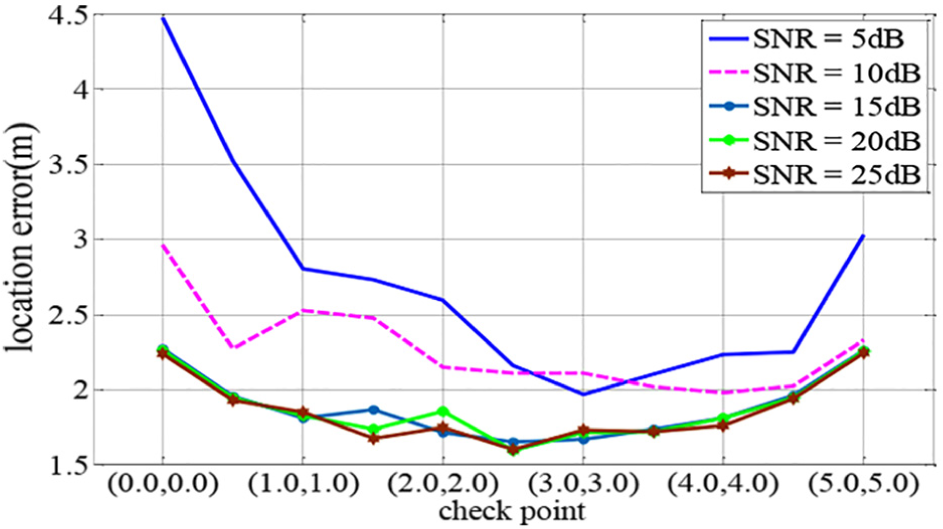

Figure 9.

Positioning performance of different signal-to-noise ratios.

The distribution of localization error

We also explore the distribution of localization error for typical application scenarios. For the open-plan offices of multiple LED lamps and cubicle of single LED lamp environment. As shown in Figure 10, we find that the positioning error of margin area is greater than the central area (the area surrounded by lamps). This is due to the high SNRs of the signals from each beacon, because the distance from each LED lamp is smaller here than when the receiver is in a corner of the room, at the same time the receiver at center area has a better chance to observe light sources with small incidence angle which is more robust to measurement noise. For the corridor environment, we find those positions with the largest errors which are exactly the positions at the two edges of the corridor, as shown in Figure 11. The result suggests that deploying scheme of LED lamps has a significant impact on location accuracy, and we will discuss the optimal deploy scheme in follow-up section.

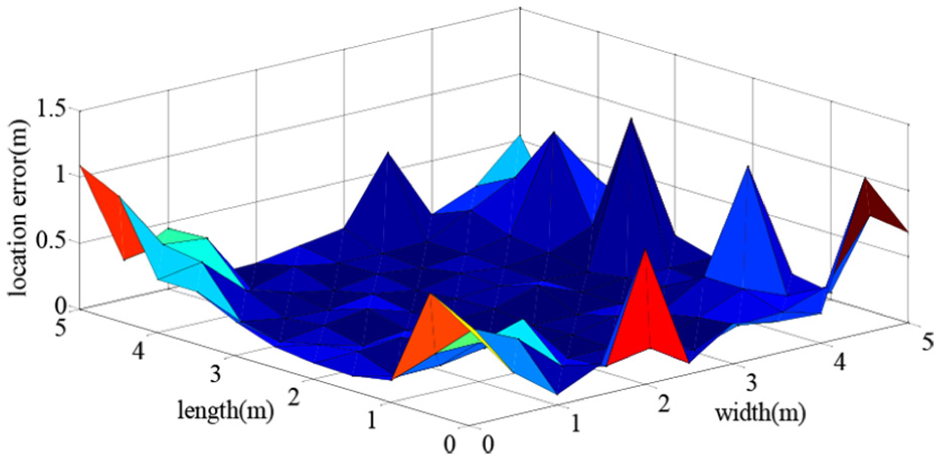

Figure 10.

The distribution of the open-plan offices.

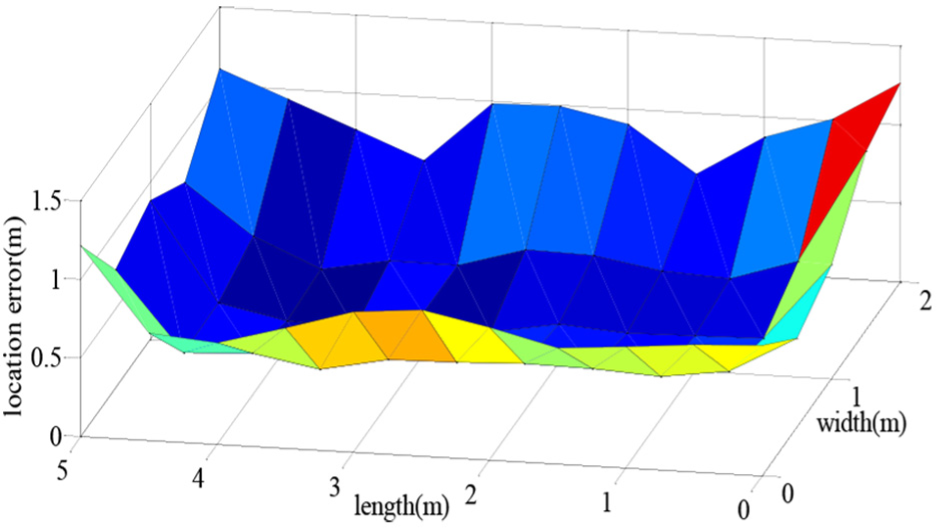

Figure 11.

The distribution of the corridor.

Positioning performance of different deployment schemes

In this section, we explore the positioning performance of different deployment schemes. As shown in Figure 12, we perform experiments in five representative deployment cases.

Figure 12.

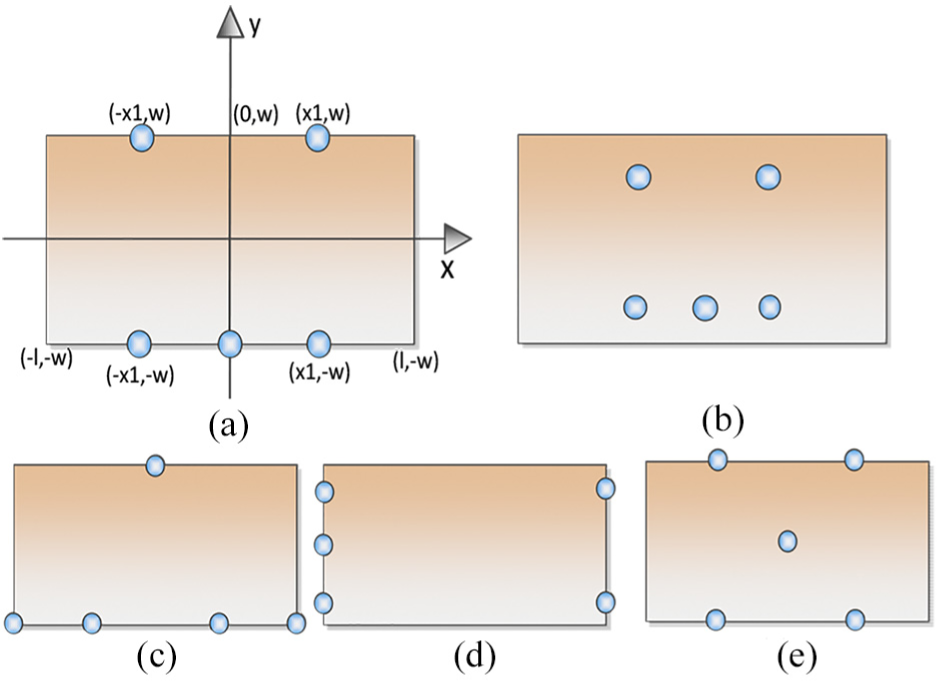

Five representative deployment cases: (a) Case 1, (b) Case 2, (c) Case 3, (d) Case 4, and (e) Case 5.

The positioning performance of different deploy schemes can be visualized in Figure 13. The deployment topology of LED beacon node shows important effects on the positioning performance. Excellent beacon deployment topology can not only make the user obtain a better positioning performance, but also offer a higher localization coverage, while terrible beacon deploy topology always leads to a lower positioning accuracy, and cannot even provide location service.

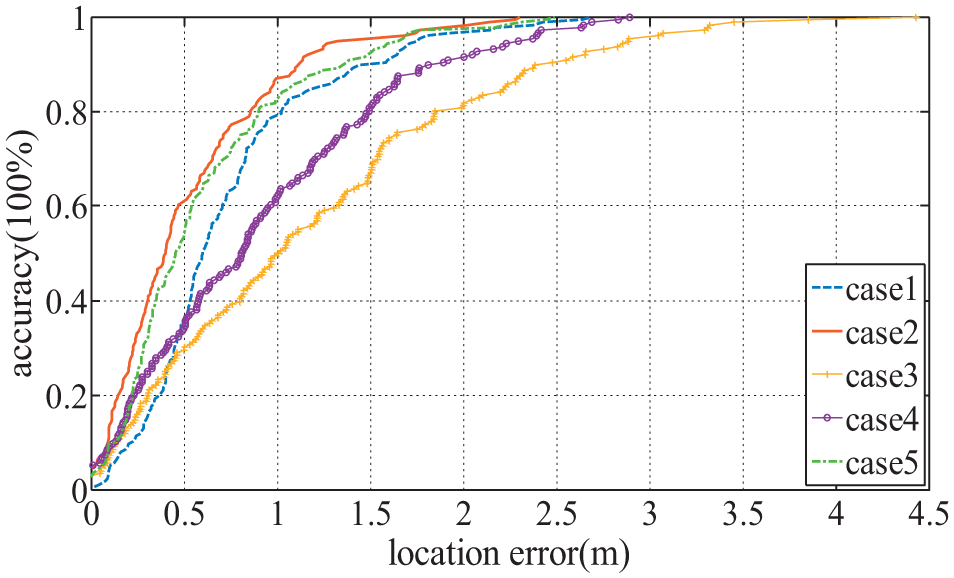

Figure 13.

Positioning performance of different deployment schemes.

Experimental results

Positioning performance of typical scenarios

In our experiments, we define the position error as the Euclidean distances between the estimated position and the actual position. Figure 14 shows the cumulative distribution function (CDF) of localization errors in three scenarios where the receiver is put at various locations in the area of interest. It shows that the LIPOS yields high accuracy for all the three scenarios. The medium error is about 0.22 m and the 90th percentile errors are 0.9, 1.1, and 1.8 m in the open-plan offices, the cubicle, and the corridor, respectively. Even in the extreme situation with a single light, the 90th percentile accuracy is 1.8 m.

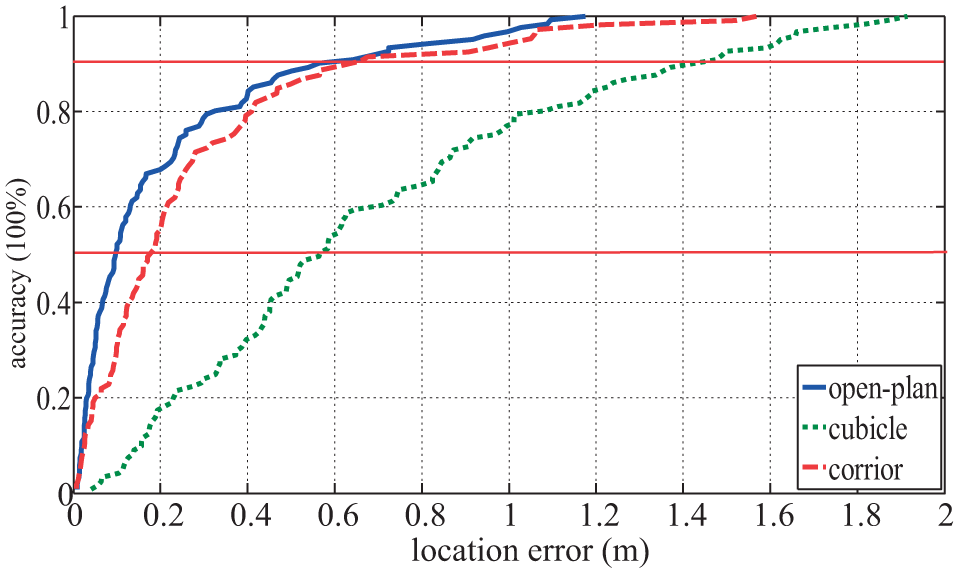

Figure 14.

Location accuracy in three scenarios.

Positioning performance of different optimization algorithms

To ensure optimal positioning performance, different nonlinear optimization algorithms have been used for solving the positioning model defined by equation (10). Figure 15 shows the CDF of localization errors in open-plan office scenarios where the receiver is put at various locations in the interested area, using the Davidon-Fletcher-Powell algorithm (DFP) quasi-Newton method,^43,44 GA,⁴⁰ and steepest-descent method.⁴⁵ It is obvious that the positioning error is different with different nonlinear optimization algorithms, and the location performance of GA is better than the other nonlinear optimization algorithms.

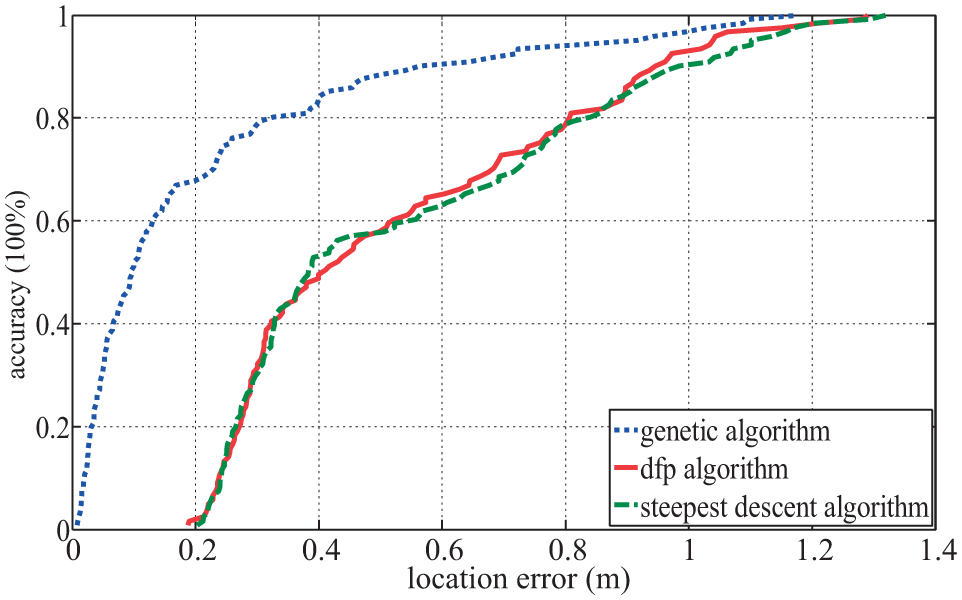

Figure 15.

Location accuracy using different optimization algorithms.

Positioning performance of different light source numbers

As we can see in Figure 16, with the increasing number of LED lights, the positioning accuracy increases when the rotation number is fixed to 1 and the positioning environment is 5 × 5 × 3(m) cubicle.

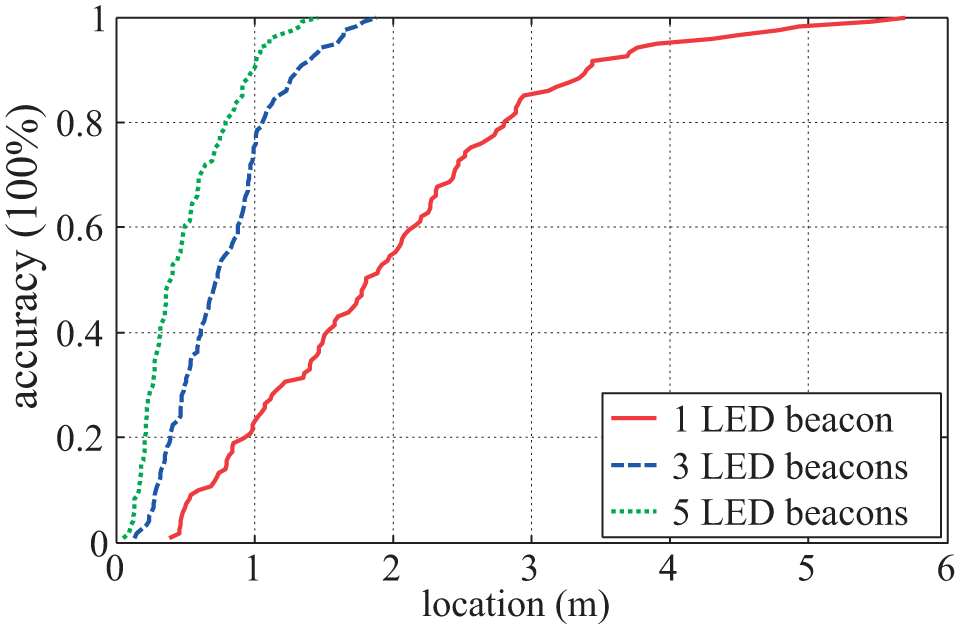

Figure 16.

Localization performance under different numbers of LED lamps.

It is obvious that the positioning error of single LED lamp is increased when compared with the multiple LED lamps. But it can still meet the requirements of indoor positioning.

Enhance positioning performance by rotating receiver

Our proposed MRLP principle provides sufficient spatial constraints to locate the receiver. MRLP effects on positioning accuracy can be visualized in Figure 17(a) and (b). In LED beacon sparse environment, with the increasing of the rotation times, the positioning performance is significantly improved. In LED beacon dense environment, positioning performance improvement is not obvious, and all of them have a perfect positioning accuracy.

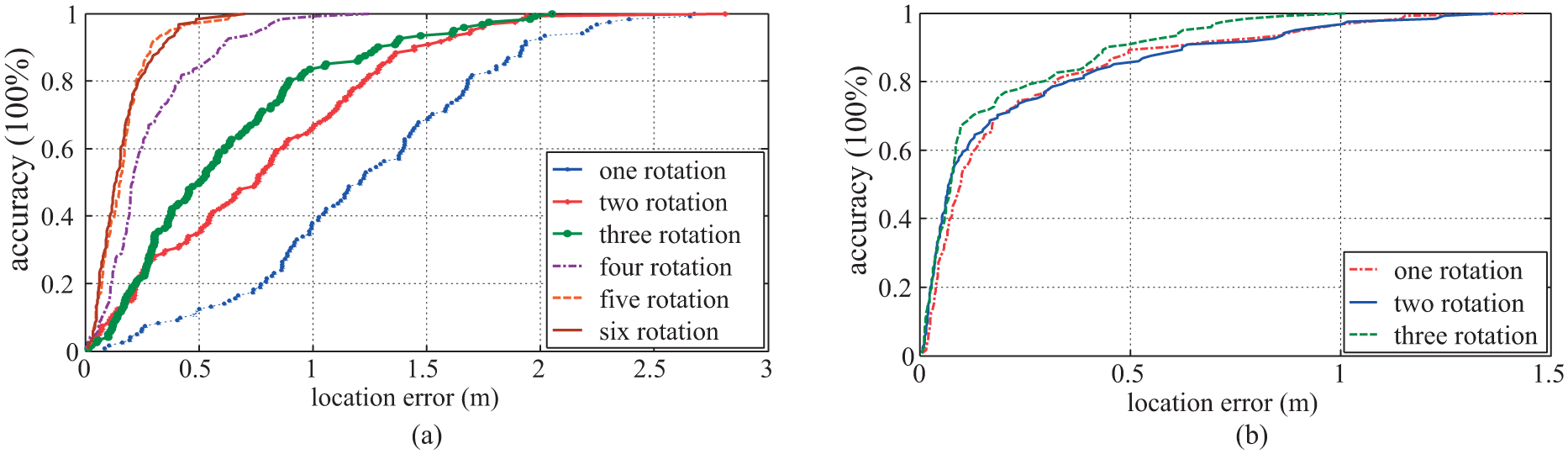

Figure 17.

Enhance positioning performance by rotating: (a) LED beacon sparse environment and (b) LED beacon dense environment.

Performance comparison with other VLC-based localization systems

In this section, we discuss the advantages of our proposed system LIPOS. We compare LIPOS with the state of the art of positioning systems based on the RSSI of visible light.

Some major features of the VLC-based positioning system are listed in Table 3. The work of Kim et al.²⁵ reports a good positioning accuracy of up to a few centimeters by assuming knowledge of the height of the receiver from the ground, except for required the transmitter and receiver axes are both aligned and normal to the ceiling. The work of M Yasir et al.⁴⁶ requires that all the transmitters are fixed at almost the same height from the ground. Epsilon required users to perform special gestures.⁴⁷ In Xie et al.⁴⁸ requires that the receiver is placed horizontally. In contrast, our proposed system shows obvious advantages as follows. It does not need the height information and orientation constraint of the receiver. Moreover, it supports multi-story 3D positioning, which is rarely mentioned in previous works. Finally, the position is calculated from the attitude identification and visible light propagation model. Hence, the positioning error is significantly reduced.

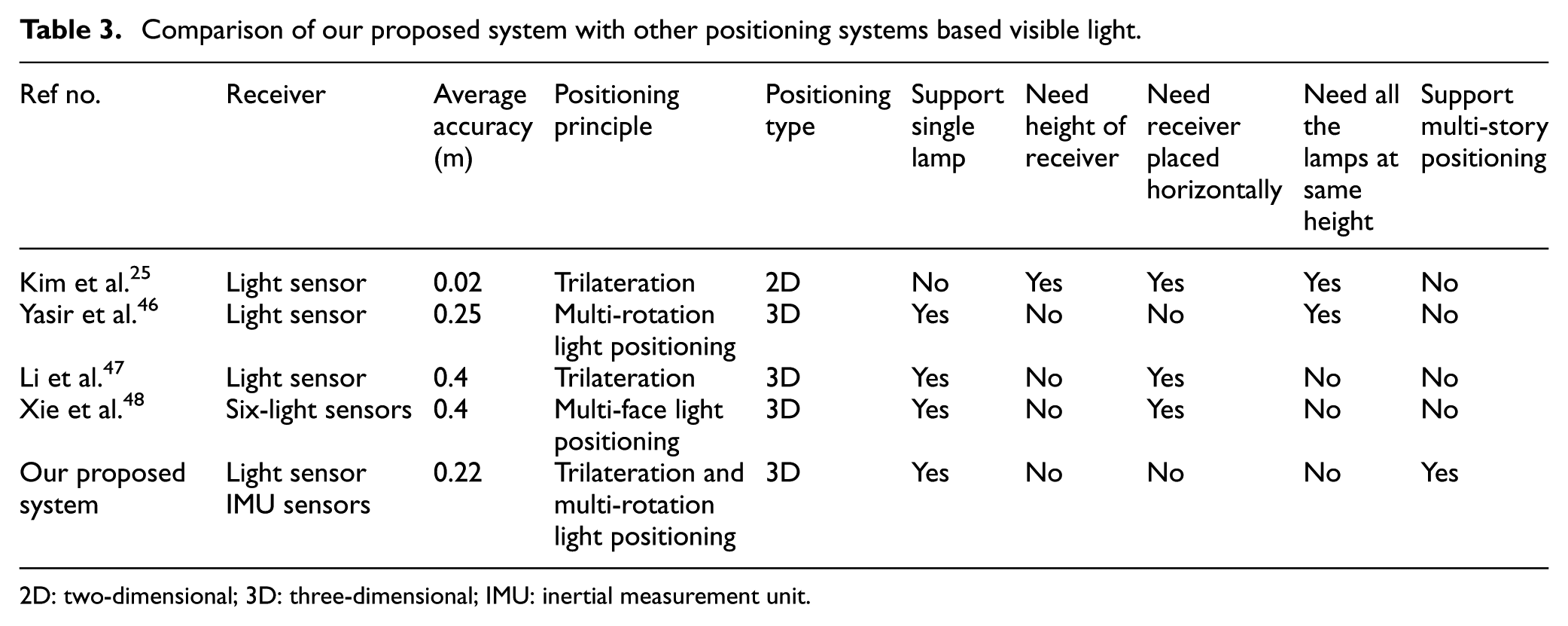

Table 3.

Comparison of our proposed system with other positioning systems based visible light.

Ref no.	Receiver	Average accuracy (m)	Positioning principle	Positioning type	Support single lamp	Need height of receiver	Need receiver placed horizontally	Need all the lamps at same height	Support multi-story positioning
Kim et al.²⁵	Light sensor	0.02	Trilateration	2D	No	Yes	Yes	Yes	No
Yasir et al.⁴⁶	Light sensor	0.25	Multi-rotation light positioning	3D	Yes	No	No	Yes	No
Li et al.⁴⁷	Light sensor	0.4	Trilateration	3D	Yes	No	Yes	No	No
Xie et al.⁴⁸	Six-light sensors	0.4	Multi-face light positioning	3D	Yes	No	Yes	No	No
Our proposed system	Light sensor IMU sensors	0.22	Trilateration and multi-rotation light positioning	3D	Yes	No	No	No	Yes

2D: two-dimensional; 3D: three-dimensional; IMU: inertial measurement unit.

Computational complexity

We performed the proposed LIPOS system 200 times with different rotation times in open-plan office, cubicle, and corridor, respectively (Table 4). For most of the time, receiver was placed in a LED beacon dense indoor environment, precise positioning result can be obtained without rotating the receiver, and the average time of once positioning is less than 0.58 s. Rotated the receiver several times is necessary, in order to meet the needs of precise positioning when user occasional stay in the LED beacon sparse environment. The average time of once positioning with three rotations is less than 1.14 s.

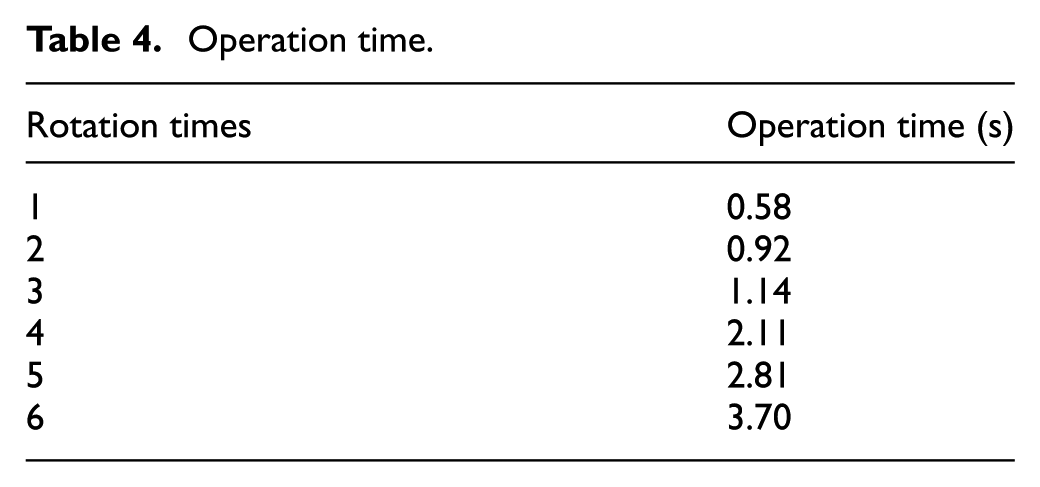

Table 4.

Operation time.

Rotation times	Operation time (s)
1	0.58
2	0.92
3	1.14
4	2.11
5	2.81
6	3.70

Conclusion

In this article, an indoor 3D positioning system based on attitude identification and visible light propagation model is proposed by constructing a pervasive loss function. It not only supports localization with multiple LEDs but also supports localization with one single LED, which fits for the sparse LED environments. There are no special gesture limits on the receiver. By obtaining the cosine of incidence angle with the vector dot product of the terminal normal and the vector from the target to the LED beacon, LIPOS system does not require the coplanar of the irradiation ray, incidence ray, and normal ray, which is more pervasive in the 3D localization. Extensive experiment and simulation results demonstrate that the proposed system can achieve sub-meter level positioning accuracy.

Footnotes

Handling Editor: Kaikai Liu

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported in part by the National Key Research and Development Program (2016YFB0502 04), the National Natural Science Foundation of China (61374214, 61671264, and 61671077), the International S&T Cooperation Program of China (2015DFG12520), and the Open Project of the Beijing Key Laboratory of Mobile Computing and Pervasive Device.

ORCID iD

Qu Wang

References

Location-based services reports, http://www.pewinternet.org/2013/09/12/location-based-services/

Mai

Alhadhrami

Alsalman

et al . Comparative survey of indoor positioning technologies, techniques, and algorithms. In: Proceedings of the 2014 international conference on cyberworlds, Santander, 6–8 October 2014, pp.245–252. New York: IEEE.

Al Nuaimi

Kamel

. A survey of indoor positioning systems and algorithms. In: Proceedings of the 2011 international conference on innovations in information technology, Abu Dhabi, United Arab Emirates, 25–27 April 2011, pp.185–190. New York: IEEE.

Liu

Lau

et al . LANDMARC: indoor location sensing using active RFID. Wirel Netw 2004; 10(6): 701–710.

Monica

Ferrari

. UWB-based localization in large indoor scenarios: optimized placement of anchor nodes. IEEE T Aero Elec Sys 2015; 51(2): 987–999.

Schweinzer

Syafrudin

. LOSNUS: an ultrasonic system enabling high accuracy and secure TDoA locating of numerous devices. In: Proceedings of the 2010 international conference on indoor positioning and indoor navigation, Zurich, 15–17 September 2010, pp.1–8. New York: IEEE.

Zhu

Luo

Chen

et al . RSSI based Bluetooth low energy indoor positioning. In: Proceedings of the international conference on indoor positioning and indoor navigation, Busan, South Korea, 27–30 October 2014, pp.526–533. New York: IEEE.

Zhuang

Yang

et al . Smartphone-based indoor localization with Bluetooth low energy beacons. Sensors 2016; 16(5): E596.

Lee

Kim

et al . Inertial sensor-based indoor pedestrian localization with minimum 802.15.4a configuration. IEEE T Ind Inform 2011; 7(3): 455–466.

10.

Priyantha

Chakraborty

Balakrishnan

. The Cricket location-support system. In: Proceedings of the international conference on mobile computing and networking, Boston, MA, 6–11 August 2000, pp.32–43. New York: ACM.

11.

Youssef

Agrawala

. The Horus WLAN location determination system. In: Proceedings of the international conference on mobile systems, applications, and services, Seattle, WA, 6–8 June 2005, pp.205–218. New York: ACM.

12.

Bahl

Padmanabhan

. RADAR: an in-building RF-based user location and tracking system. In: Proceedings of the 19th joint conference of the IEEE computer and communications societies (INFOCOM 2000), Tel Aviv, Israel, 26–30 March 2000, vol. 2, pp.775–784. New York: IEEE.

13.

Liu

Darabi

Banerjee

et al . Survey of wireless indoor positioning techniques and systems. IEEE T Syst Man Cy C 2007; 37(6): 1067–1080.

14.

Luo

Zhao

et al . Dynamic indoor localization techniques based on RSSI in WLAN environment. In: Proceedings of the 2011 6th international conference on pervasive computing and applications, Port Elizabeth, South Africa, 26–28 October 2011, pp.417–421. New York: IEEE.

15.

Chung

Donahoe

Schmandt

et al . Indoor location sensing using geo-magnetism. In: Proceedings of the 9th international conference on mobile systems, applications, and services, Bethesda, MD, 28 June–1 July 2011, pp.141–154. New York: ACM.

16.

Shu

Shen

et al . Magicol: indoor localization using pervasive magnetic field and opportunistic WiFi sensing. IEEE J Sel Area Comm 2015; 33(7): 1443–1457.

17.

Xie

Tao

et al . A reliability-augmented particle filter for magnetic fingerprinting based indoor localization on smartphone. IEEE T Mobile Comput 2016; 15(8): 1877–1892.

18.

Wang

Luo

Zhao

et al . An indoor self-localization algorithm using the calibration of the online magnetic fingerprints and indoor landmarks. In: Proceedings of the 2016 international conference on indoor positioning and indoor navigation, Alcala de Henares, 4–7 October 2016, pp.1–8. New York: IEEE.

19.

Guo

Shao

Zhao

et al . WiMag: multimode fusion localization system based on magnetic/WiFi/PDR. In: Proceedings of the 2016 international conference on indoor positioning and indoor navigation, Alcala de Henares, 4–7 October 2016, pp.1–8. New York: IEEE.

20.

Komine

Nakagawa

. Fundamental analysis for visible-light communication system using LED lights. IEEE T Consum Electr 2004; 50(1): 100–107.

21.

Kim

Lee

Park

. Power efficient visible light communication systems under dimming constraint. In: Proceedings of the 2012 IEEE 23rd international symposium on personal indoor and mobile radio communications, Sydney, NSW, Australia, 9–12 September 2012, vol. 11, pp.1968–1973. New York: IEEE.

22.

Wang

Luo

Gao

et al . An indoor three dimensional positioning algorithm based on attitude identification and visible light propagation model. In: Proceedings of the China satellite navigation conference (CSNC), Shanghai, China, 23–25 May 2017, vol. 1. Singapore: Springer.

23.

Hann

Kim

Jung

et al . White LED ceiling lights positioning systems for optical wireless indoor applications. In: Proceedings of the 2010 36th European conference and exhibition on optical communication, Torino, 19–23 September 2010, pp.1–3. New York: IEEE.

24.

Panta

Armstrong

. Indoor localisation using white LEDs. Electron Lett 2012; 48(4): 228–230.

25.

Kim

Han

et al . An indoor visible light communication positioning system using a RF carrier allocation technique. J Lightwave Technol 2012; 31(1): 134–144.

26.

Akiyama

Sugimoto

Hashizume

. Time-of-arrival-based indoor smartphone localization using light-synchronized acoustic waves. IEICE Trans Fund Electron Comm Comput Sci 2017; E100.A(9): 2001–2012.

27.

Nadeem

Hassan

Pasha

et al . Highly accurate 3D wireless indoor positioning system using white LED lights. Electron Lett 2014; 50(11): 828–830.

28.

Jung

Hann

Park

. TDOA-based optical wireless indoor localization using LED ceiling lamps. IEEE T Consum Electr 2011; 57(4): 1592–1597.

29.

Arafa

Jin

Klukas

. Wireless indoor optical positioning with a differential photosensor. IEEE Photonic Tech L 2012; 24(12): 1027–1029.

30.

Kim

Han

Yang

et al . Three-dimensional visible light indoor localization using AOA and RSS with multiple optical receivers. J Lightwave Technol 2014; 32(14): 2480–2485.

31.

Lou

Zhang

et al . Fundamental analysis for indoor visible light positioning system. In: Proceedings of the 2012 1st IEEE international conference on communications in China workshops, Bejing, China, 15–17 August 2012, vol. 13, pp.59–63. New York: IEEE.

32.

Taylor

Hranilovic

. Angular diversity approach to indoor positioning using visible light. In: Proceedings of the 2013 IEEE GLOBECOM workshops, Atlanta, GA, 9–13 December 2013, pp.1093–1098. New York: IEEE.

33.

Rahman

Haque

Kim

. Indoor positioning by LED visible light communication and image sensors. Int J Electr Comput Eng 2011; 1(2): 420–431.

34.

Rahman

Haque

Kim

. High precision indoor positioning using lighting LED and image sensor. In: Proceedings of the 2011 14th international conference on computer and information technology, Dhaka, Bangladesh, 22–24 December 2011, pp.309–314. New York: IEEE.

35.

Yoshino

Haruyama

Nakagawa

. High-accuracy positioning system using visible LED lights and image sensor. In: Proceedings of the 2008 IEEE radio and wireless symposium, Orlando, FL, 22–24 January 2008, vol. 107, pp.439–442. New York: IEEE.

36.

Zhang

Kavehrad

. A 2-D indoor localization system based on visible light LED. In: Proceedings of the 2012 IEEE photonics society summer topical meeting series, Seattle, WA, 9–11 July 2012, pp.80–81. New York: IEEE.

37.

Peng

et al . Pharos: enable physical analytics through visible light based indoor localization. In: Proceedings of the 12th ACM workshop on hot topics in networks, College Park, MD, 21–22 November 2013, p.5. New York: ACM.

38.

Steendam

Wang

Armstrong

. Theoretical lower bound for indoor visible light positioning using received signal strength measurements and an aperture-based receiver. J Lightwave Technol 2017; 35(2): 309–319.

39.

Kahn

Barry

. Wireless infrared communications. P IEEE 1997; 85(2): 265–298.

40.

Goldberg

. Genetic algorithms in search, optimization and machine learning, vol. 8, no. 7. Boston, MA: Addison-Wesley Longman Publishing Co., Inc., 1989, pp.2104–2116.

41.

Star

. Energy Star^® program requirements for residential, 2010, https://www.energystar.gov/ia/partners/prod_development/archives/downloads/windows_doors/WindowsDoorsSkylightsProgRequirements7Apr09.pdf

42.

Giustiniano

Tippenhauer

Mangold

. Low-complexity visible light networking with LED-to-LED communication. In: Proceedings of the 2012 wireless days, Dublin, 21–23 November 2012, pp.1–8. New York: IEEE.

43.

Davidon

. Variable metric method for minimization. SIAM J Optimiz 1959; 1(1): 1–17.

44.

Hennig

Kiefel

. Quasi-Newton methods: a new direction. J Mach Learn Res 2013; 14: 843–865.

45.

Chatterjee

. Steepest descent method. New York: Springer, 2013.

46.

Yasir

Vellambi

. Indoor positioning system using visible light and accelerometer. J Lightwave Technol 2014; 32(19): 3306–3316.

47.

Peng

et al . Epsilon: a visible light based positioning system. In: Proceedings of the USENIX conference on networked systems design and implementation, Seattle, WA, 2–4 April 2014, pp.331–343. Berkeley, CA: USENIX Association.

48.

Xie

Chen

Tan

et al . LIPS: a light intensity based positioning system for indoor environments. ACM T Sensor Network 2014; 12(4): 28.
