Payload location for JPEG image steganography based on co-frequency sub-image filtering

Abstract

In digital steganography, due to difficulties estimating the JPEG cover image, it is still very hard to accurately locate the hidden message embedded in a JPEG image. Therefore, this study proposes a payload location method for a category of pseudo-random scrambled JPEG image steganography. In order to estimate the quantized discrete cosine transform coefficients in the cover JPEG image, a cover JPEG image estimation method is proposed based on co-frequency sub-image filtering. The proposed payload location method defines a general residual, uses the estimated cover JPEG image to compute the residuals, and then employs the mean residuals of multiple stego images embedded along the same path to distinguish the stego positions. The proposed cover JPEG image estimation method constructs 64 co-frequency sub-images, and then filters the sub-image to estimate the cover JPEG image. Finally, using these methods, payload location algorithms are designed for two common JPEG image steganography algorithms: JSteg and F5. Experimental results show that the proposed location algorithms can effectively locate the stego positions in both JSteg and F5 steganography when the investigator possesses multiple stego images embedded along the same path. In addition, the location results can also be used to recover the steganography key to extract the embedded secret messages.

Keywords

Steganography steganalysis payload location cover estimation JPEG image co-frequency sub-image wavelet filter

Introduction

Digital steganography is a technique that embeds hidden information, known as the payload, in redundant parts of multimedia data such as digital images, video, audio, and text, termed the cover, in order to conceal secret communications. In the past 30 years, many steganography algorithms have been proposed for different applications.^1,2 These algorithms can be used not only to ensure communication security but also to steal private data such as trade secrets. For example, in September 2011, the Laboratory of Cryptography and Systems Security at Budapest University discovered the worm Duqu, which was closely related to Stuxnet but designed to gather information on the infected system, hide the information in seemingly innocent images, termed stego images, and then transfer the obtained data to command and control centers.³

At present, a series of steganalysis algorithms exhibiting excellent performance have been proposed for image steganography. These steganalysis algorithms can not only accurately detect the stego images of traditional steganography⁴ but can also effectively distinguish the stego images of new adaptive steganography^5–7 and even estimate the ratio of the payload.^8,9 In addition, some steganalysis algorithms can also estimate the capacity of hidden information in the cover.^10,11 However, investigators are typically more focused on correctly extracting the hidden message. Compared with the detection of stego objects, extraction of the payload is much more difficult. Previous research has demonstrated that, when the mechanism of stego position selection is known, if the probability of the investigator locating the stego positions is higher than that achieved by random guessing, the stego key will likely be recovered by collision attack and the secret message will be extracted.¹²

Early payload location algorithms predominantly located the stego positions in sequential steganography, such as sequential spatial least significant bit (LSB) replacement steganography, sequential spread spectrum steganography, and sequential JSteg steganography.^13–19 This is because the message is embedded sequentially in a partial region of the cover, resulting in the statistical properties of the stego region differing significantly from those of the other regions. In contrast, random steganography randomly distributes hidden message over the entire cover and does not generate a partial area with clearly abnormal statistical characteristics. Thus, it is difficult to locate the payload and early payload location methods, which typically perform poorly against random steganography. For example, Davidson and Paul²⁰ analyzed the payload location as an energy-based image anomaly detection problem and proposed a spatial payload location algorithm based on outlier detection. Ambalavanan and Chandramouli²¹ used a Markov random field to model the image and proposed a spatial payload location algorithm based on a Bayesian method. These algorithms, such as LSB replacement and LSB matching, can locate stego positions in a smooth area or where pixels exhibit large amplitude changes; however, they cannot correctly locate stego positions in complex texture areas nor distinguish pixels that only exhibit small changes.

To locate stego positions in spatial LSB replacement steganography, Ker²² proposed a payload location algorithm based on weighted stego residuals under the condition that the investigator possesses a number of stego images, each containing the payload at the same position. Under this condition, a variety of more accurate payload location algorithms were proposed. For example, Chiew and Pieprzyk²³ improved Ker’s method²² by adding the local entropy of a pixel block for binary image replacement steganography. Ker and Lubenko²⁴ proposed a payload location algorithm for spatial LSB matching based on a wavelet filtering residual, which filters the stego image by a high-pass wavelet filter and inversely transforms the obtained wavelet residual into a spatial residual. Quach^25,26 proposed several payload location algorithms for LSB replacement and LSB matching, which use a hidden Markov model or Markov random field model to model the cover image, then employ the Viterbi decoding algorithm or Quadratic Pseudo-Binary Optimization (QPBO) algorithm to find the optimal estimate of the cover image. Gui et al.²⁷ proposed a payload location algorithm based on a combination of multiple cover estimates for LSB matching steganography; the algorithm estimates nine cover images for each stego image in order to calculate the residuals and then combines them to improve the accuracy of payload location. Liu et al.²⁸ proposed a payload location method for spatial LSB replacement and LSB matching based on JPEG re-compression, which more accurately estimates JPEG-compressed spatial cover images by compressing and decompressing the stego image, and locates stego pixels with high accuracy. Yang et al.²⁹ proposed a payload location algorithm based on an optimal stego subset for multiple least significant bits (MLSBs) replacement steganography, which uses the wavelet filter to estimate the cover image.

The above algorithms have greatly improved the location accuracy of random steganography. Under certain specific conditions, these algorithms have been used to estimate groups in group parity steganography,³⁰ determine the stego pixel order in random steganography,³¹ and even restore the stego key and extract the hidden message.^12,29 However, these algorithms are only suitable for spatial LSB replacement, LSB matching, and MLSB replacement steganography.

In practice, JPEG images are more widely used on the Internet. Steganography and steganalysis of JPEG images have therefore become a hotspot in the field of information hiding. A number of effective JPEG image steganalysis algorithms have been designed for various steganography algorithms using JPEG images as the cover. However, due to the weak correlation between adjacent discrete cosine transform (DCT) coefficients in JPEG images, it is difficult to accurately estimate the cover image. As a result, no payload location algorithm currently exists for JPEG steganography. Therefore, this study analyzes the payload location for JPEG image steganography. The main contributions of this article are as follows:

A general payload location method is proposed for a category of pseudo-random scrambled JPEG image steganography. This method defines a general residual, and then uses the cover JPEG image estimation method to estimate the cover coefficients and calculate the mean residual of each position in multiple stego images embedded along the same path, thereby locating the stego positions.

A method based on co-frequency sub-image filtering is proposed to estimate the cover JPEG image. This method combines the coefficients at the same positions of all 8 × 8 blocks in a JPEG image to obtain 64 co-frequency sub-images, and then filters each sub-image using a low-pass filter to estimate the cover JPEG image.

The specific payload location algorithms are designed for two common JPEG image steganography algorithms: JSteg and F5. Experimental results show that the proposed algorithms can effectively locate the stego positions, and the location results can also be used to recover the stego key to extract the embedded message, even if the investigator only possesses 10 stego images embedded along the same path.

The structure of this article is as follows. The “Random JPEG image steganography” section briefly introduces the random JPEG steganography algorithm analyzed in this study. The “Payload location method for random JPEG image steganography” section describes the proposed payload location method for JPEG image steganography. The “Cover JPEG image estimation based on co-frequency sub-image filtering” section proposes a cover JPEG image estimation method based on co-frequency sub-image filtering. The “Payload location algorithm for JPEG image steganography based on co-frequency sub-image filtering” section presents specific payload location algorithms for JSteg and F5 steganography. The “Experimental results and analysis” section provides the experimental results and analysis, and the “Conclusion” section presents the conclusions of the study.

Random JPEG image steganography

JPEG is the first and most widely used digital image compression standard in the world. The main process of JPEG compression is shown in Figure 1. First, the spatial image is converted to YCbCr color space. Second, the Cb and Cr components are down-sampled according to the sampling mode. If the sampling mode is YCbCr 411 or YCbCr 422, the ratio of Y, Cb, and Cr pixels is 4:1:1 or 4:2:2. Then, each component is divided into non-overlapping blocks with a size of 8 × 8 after sampling. Third, the pixels in each block are subtracted by 128 and transformed by DCT. Then, the obtained DCT coefficients are quantized using quantization tables. Finally, the quantized DCT coefficients are encoded by Huffman encoding to obtain the JPEG image. JPEG decompression is the inverse process of JPEG compression.

Figure 1.

Key processes of JPEG image compression.

Random JPEG image steganography randomly selects quantized DCT coefficients from a JPEG image, and then embeds message bits into the coefficients. The coefficient selection procedure involves pseudo-random scrambling of the quantized DCT coefficients in the cover JPEG image according to a given stego key, and then selecting a certain number of coefficients from the scrambled sequence of coefficients to embed message bits sequentially. Because some JPEG image steganography algorithms cannot embed message bits into coefficients in certain specific positions or into coefficients with specific values, they may only scramble the available coefficients. Therefore, according to whether the unavailable coefficients are eliminated during pseudo-random scrambling, the stego coefficient selection methods in random JPEG image steganography can be classified into two main categories (Figure 2): pseudo-random scrambling of available coefficients and pseudo-random scrambling of all coefficients.

Figure 2.

Comparison of two major stego coefficient selection methods in random JPEG image steganography: (a) original coefficients, (b) coefficients after pseudo-random scrambling of available coefficients, and (c) coefficients after pseudo-random scrambling of all coefficients.

This study employs a JPEG image steganography algorithm that pseudo-randomly scrambles all coefficients to select the embedding positions. The corresponding embedding process is as follows:

Obtain the quantized DCT coefficients by Huffman decoding of the given JPEG image or JPEG compression of the given spatial image.

Scramble all quantized DCT coefficients in the entire JPEG image according to the given stego key to generate the scrambled DCT coefficient matrix.

Sequentially select the coefficients from the scrambled DCT coefficient matrix and embed the secret message bits into the selected coefficients in sequence.

Inversely scramble the coefficient matrix containing the stego coefficients.

Encode the inversely scrambled coefficient matrix by Huffman encoding to generate the stego JPEG image.

Payload location method for random JPEG image steganography

When the embedding positions are selected by pseudo-randomly scrambling all coefficients as described in the “Random JPEG image steganography” section, if the investigator possesses T stego images $S_{1}, S_{2}, \dots, S_{T}$ embedded along the same path, then either of the following two cases may occur with coefficients $S_{1} (i, j), S_{2} (i, j), \dots, S_{T} (i, j)$ in the same position (i, j) in the stego images (Figure 3).

If the position $(i, j)$ is a stego position, the steganographer will determine whether to embed the message bit according to whether the coefficient is available. Thus, any coefficient of $S_{1} (i, j), S_{2} (i, j), \dots, S_{T} (i, j)$ is either an unavailable coefficient or a stego coefficient containing a message bit.

If the position $(i, j)$ is a non-stego position, the steganographer will not embed the message in it regardless of whether the coefficient is available; thus, no coefficients of $S_{1} (i, j), S_{2} (i, j), \dots, S_{T} (i, j)$ contain a message bit.

Figure 3.

T stego images embedded along the same path. Black squares represent unavailable coefficients, white squares represent available coefficients not containing the message, and the grid squares represent available coefficients containing the message. Numbers in circles indicate the positions of the coefficients before scrambling.

Let $C_{1}, C_{2}, \dots, C_{T}$ denote the corresponding cover images of the stego images $S_{1}, S_{2}, \dots, S_{T}$ . The residual $r_{t} (i, j)$ of the coefficient in the position $(i, j)$ of the tth stego image is defined as

r_{t} (i, j) = [S_{t} (i, j) - {\tilde{S}}_{t} (i, j)] [S_{t} (i, j) - C_{t} (i, j)]

(1)

where ${\tilde{S}}_{t} (i, j)$ indicates the coefficient value obtained by changing the coefficient value $S_{t} (i, j)$ in the direction opposite to that of the embedding change. That is, when embedding the message bit into a coefficient whose value is ${\tilde{S}}_{t} (i, j)$ , if this coefficient must be changed, then the coefficient value should be changed to $S_{t} (i, j)$ . Here, ${\tilde{S}}_{t} (i, j)$ is the inverse changed coefficient value of $S_{t} (i, j)$ . For example, in the stego image of JSteg, the inverse changed coefficient value of the coefficient value 2 is 3, whereas that of −2 is −1. Moreover, in the stego image of F5, the inverse changed coefficient value of the coefficient value 2 is 3, whereas that of −2 is −3.

Let $p_{0}$ and $p_{1}$ denote the ratios of the unchanged and changed coefficients in $S_{1} (i, j), S_{2} (i, j), \dots, S_{T} (i, j)$ , respectively. It is assumed that the secret message is pseudo-random and the change amplitude of each available coefficient is $α$ . If the position $(i, j)$ is a stego position, then the mean of the residuals in this position of the T stego images is $R_{1} (i, j)$

\begin{matrix} R_{1} (i, j) = \frac{1}{T} \sum_{t = 1}^{T} [S_{t} (i, j) - {\tilde{S}}_{t} (i, j)] \\ [S_{t} (i, j) - C_{t} (i, j)] = p_{1} α^{2} \end{matrix}

(2)

If the position $(i, j)$ is a non-stego position, the mean of the residuals in this position of the T stego images is $R_{0} (i, j)$

R_{0} (i, j) = 0

(3)

According to formulae (2) and (3), the means of the residuals in the stego position and non-stego position differ significantly; therefore, it is theoretically possible to distinguish them.

In practice, however, the investigator often does not possess a cover image; only an estimated version of the cover image can be obtained. Therefore, one can simply obtain the mean of the estimated residuals as follows

\hat{R} (i, j) = \frac{1}{T} \sum_{t = 1}^{T} [S_{t} (i, j) - {\tilde{S}}_{t} (i, j)] [S_{t} (i, j) - {\hat{C}}_{t} (i, j)]

(4)

Let $Δ_{t} (i, j)$ denote the estimation error of the cover coefficient value $C_{t} (i, j)$ . Then, formula (4) can be converted into

\begin{matrix} \hat{R} (i, j) = \frac{1}{T} \sum_{t = 1}^{T} [S_{t} (i, j) - {\tilde{S}}_{t} (i, j)] \\ [S_{t} (i, j) - C_{t} (i, j) - Δ_{t} (i, j)] \\ = R (i, j) - \frac{1}{T} \sum_{t = 1}^{T} [S_{t} (i, j) - {\tilde{S}}_{t} (i, j)] Δ_{t} (i, j) \end{matrix}

(5)

Thus, when position $(i, j)$ is a stego position, the mean of the estimated residuals in position $(i, j)$ is

{\hat{R}}_{1} (i, j) = p_{1} α^{2} - \frac{1}{T} \sum_{t = 1}^{T} [S_{t} (i, j) - {\tilde{S}}_{t} (i, j)] Δ_{t} (i, j)

(6)

When position $(i, j)$ is a non-stego position, the mean of the estimated residuals in the position $(i, j)$ is

{\hat{R}}_{0} (i, j) = - \frac{1}{T} \sum_{t = 1}^{T} [S_{t} (i, j) - {\tilde{S}}_{t} (i, j)] Δ_{t} (i, j)

(7)

When the mean of the estimation error $Δ_{t} (i, j)$ of T stego images is 0, the expected mean of the estimated residuals in the stego position is

E {{\hat{R}}_{1} (i, j)} = p_{1} α^{2}

(8)

and the expected mean of the estimated residuals in the non-stego position is

E {{\hat{R}}_{0} (i, j)} = 0

(9)

Therefore, even when the cover image is not possessed, as long as the mean of the estimation errors of the cover coefficients of T stego images is 0, and there are sufficient stego images embedded along the same path, it is also possible to distinguish the stego positions and non-stego positions.

Based on the mean of the estimated residuals in formula (4), a payload location method is proposed for JPEG image steganography, which selects the embedding positions by pseudo-randomly scrambling all coefficients. The main procedure is shown in Figure 4 and is described as follows:

For the T given stego images, $S_{1}, S_{2}, \dots, S_{T}$ , embedded along the same path, estimate the corresponding cover JPEG images ${\hat{C}}_{1}, {\hat{C}}_{2}, \dots, {\hat{C}}_{T}$ .

Calculate the estimated residual ${\hat{r}}_{t}$ between coefficients in the same position in the stego image and the estimated cover image

{\hat{r}}_{t} (i, j) = [S_{t} (i, j) - {\tilde{S}}_{t} (i, j)] [S_{t} (i, j) - {\hat{C}}_{t} (i, j)]

(10)

Compute the mean of the estimated residuals in the same position of different stego images using formula (4).

Sort all positions in descending order according to the mean of the estimated residuals in each position.

Select the first positions as the estimated stego positions, where M can be obtained by quantitative steganalysis.

In a possessed stego image, if the coefficient in an estimated stego position is available for steganography, then it is judged that this coefficient contains a secret message bit.

Figure 4.

Procedure for the payload location method for JPEG image steganography.

Cover JPEG image estimation based on co-frequency sub-image filtering

According to the “Payload location method for random JPEG image steganography” section, accurate estimation of the cover image is directly related to the accuracy of payload location. However, existing cover image estimation algorithms are predominantly designed to estimate the spatial cover image. Thus, it is difficult to accurately estimate the quantized DCT coefficients in the cover JPEG image. JPEG image calibration in existing JPEG image steganalysis methods can only estimate the statistical characteristics of the cover JPEG image and cannot estimate the coefficients in cover JPEG image. Therefore, it is necessary to design a cover JPEG image estimation algorithm to accurately estimate the cover coefficients.

This section proposes a cover JPEG image estimation method based on co-frequency sub-image filtering. According to the JPEG image compression process described in the “Random JPEG image steganography” section, the JPEG image is stored in the form of some non-overlapping quantized DCT coefficient blocks with a size of 8 × 8. The different positions in the coefficient block represent different frequency spectra, and the coefficient in each position represents the energy in the corresponding frequency spectrum. Therefore, if the pixels over two blocks are similar or have a strong positive correlation, the DCT coefficients in the same position of these two blocks (i.e. the energy in the same spectrum) should also be similar or have a strong positive correlation. Because the content of adjacent blocks in a JPEG image is typically similar and has a strong correlation, quantized DCT coefficients in the same position in these blocks may also have a strong correlation. Thus, it should be feasible to combine the quantized DCT coefficients in the same position of all blocks to obtain 64 co-frequency sub-images, and then estimate the cover JPEG image by low-pass filtering of each co-frequency sub-image.

The main procedure of the proposed cover JPEG image estimation method is shown in Figures 5 and described as follows:

1. Decode the input stego JPEG image by Huffman decoding to obtain the quantized DCT coefficient matrix $S_{t}$

S_{t} = (\begin{matrix} S_{t} (0, 0) & S_{t} (0, 1) & \dots & S_{t} (0, N - 1) \\ S_{t} (1, 0) & S_{t} (1, 1) & \dots & S_{t} (1, N - 1) \\ ⋮ & ⋮ & ⋱ & ⋮ \\ S_{t} (M - 1, 0) & S_{t} (M - 1, 1) & \dots & S_{t} (M - 1, N - 1) \end{matrix})

(11)

where M and N represent the height and width of the input image, respectively, and both are integral multiples of 8.

2. Combine coefficients in the same position $(i, j)$ of all coefficient blocks to generate a stego co-frequency sub-image $S_{t}^{(i, j)}$ , as shown in formula (12) and in Figure 6.

\begin{matrix} S_{t}^{(i, j)} = \\ (\begin{matrix} S_{t} (i, j) & S_{t} (i, j + 8) & \dots & S_{t} (i, j + 8 n) \\ S_{t} (i + 8, j) & S_{t} (i + 8, j + 8) & \dots & S_{t} (i + 8, j + 8 n) \\ ⋮ & ⋮ & ⋱ & ⋮ \\ S_{t} (i + 8 m, j) & S_{t} (i + 8 m, j + 8) & \dots & S_{t} (i + 8 m, j + 8 n) \end{matrix}) \end{matrix}

(12)

where $0 \leq i \leq 7$ , $0 \leq j \leq 7$ , $m = (M / 8) - 1$ , and $n = (N / 8) - 1$ . Then, a total of 64 stego co-frequency sub-images are obtained for 64 different positions.

3. Low-pass filter each stego co-frequency sub-image $S_{t}^{(i, j)}$ to estimate the corresponding cover co-frequency sub-image ${\hat{C}}_{t}^{(i, j)}$ as follows

\begin{matrix} {\hat{C}}_{t}^{(i, j)} = F_{low} (S_{t}^{(i, j)}) = \\ (\begin{matrix} {\hat{C}}_{t} (i, j) & {\hat{C}}_{t} (i, j + 8) & \dots & {\hat{C}}_{t} (i, j + 8 n) \\ {\hat{C}}_{t} (i + 8, j) & {\hat{C}}_{t} (i + 8, j + 8) & \dots & {\hat{C}}_{t} (i + 8, j + 8 n) \\ ⋮ & ⋮ & ⋱ & ⋮ \\ {\hat{C}}_{t} (i + 8 m, j) & {\hat{C}}_{t} (i + 8 m, j + 8) & \dots & {\hat{C}}_{t} (i + 8 m, j + 8 n) \end{matrix}) \end{matrix}

(13)

4. Combine 64 estimated cover co-frequency sub-images to form the cover JPEG image

{\hat{C}}_{t} = (\begin{matrix} {\hat{C}}_{t} (0, 0) & {\hat{C}}_{t} (0, 1) & \dots & {\hat{C}}_{t} (0, N - 1) \\ {\hat{C}}_{t} (1, 0) & {\hat{C}}_{t} (1, 1) & \dots & {\hat{C}}_{t} (1, N - 1) \\ ⋮ & ⋮ & ⋱ & ⋮ \\ {\hat{C}}_{t} (M - 1, 0) & {\hat{C}}_{t} (M - 1, 1) & \dots & {\hat{C}}_{t} (M - 1, N - 1) \end{matrix})

(14)

Figure 5.

Cover JPEG image estimation method based on co-frequency sub-image filtering.

Figure 6.

Co-frequency sub-image division of the JPEG image.

When embedding the message into an image, any changes to the cover are reduced as much as possible, resulting in only slight noise. Among existing low-pass filters, the wavelet filter has good multi-directional and multi-resolution analysis capabilities and can capture subtle details in the image. Thus, the wavelet filter is very suitable for capturing stego noise and has exhibited excellent performance in JPEG image steganalysis.⁵ Correspondingly, the low-pass wavelet filter can also effectively remove stego noise in the stego image. In view of this, the low-pass wavelet filter is applied to filter the stego co-frequency sub-images and the following cover JPEG image estimation algorithm is proposed based on co-frequency sub-image wavelet filtering as follows.

Algorithm 1: Cover JPEG image estimation algorithm based on co-frequency sub-image wavelet filtering.
Input: Stego JPEG image, stego noise variance $δ_{0}^{2}$ .
Output: Estimated cover JPEG image.
Steps:
1. Decode JPEG image.
2. Divide co-frequency sub-images according to formula (12).
3. Estimate the cover co-frequency sub-images. Perform the following operations for each stego co-frequency sub-image to estimate the corresponding cover co-frequency sub-image.
(a) Wavelet decomposition. Decompose each stego co-frequency sub-image using an 8-tap Daubechies filter to obtain four sub-bands: low-frequency sub-band L, horizontal sub-band H, vertical sub-band V, and diagonal sub-band D. $L (x, y), H (x, y), V (x, y), D (x, y)$ represent the coefficient values in the position $(x, y)$ of the corresponding sub-band, $1 \leq x \leq height, 1 \leq y \leq width$ , and height and width represent the height and width of the sub-band.
(b) Estimate the local variance. In three sub-bands H, V, and D, use the maximum a posteriori (MAP) estimate to determine the local variance in each position $(x, y)$ , based on windows of four different sizes d = 3, 5, 7, and 9, as follows
${\begin{matrix} {\hat{δ}}_{H}^{2} (x, y) = max (0, min ({\hat{δ}}_{H, 3}^{2} (x, y), {\hat{δ}}_{H, 5}^{2} (x, y), {\hat{δ}}_{H, 7}^{2} (x, y), {\hat{δ}}_{H, 9}^{2} (x, y)) - δ_{0}^{2}) \\ {\hat{δ}}_{V}^{2} (x, y) = \max (0, \min ({\hat{δ}}_{V, 3}^{2} (x, y), {\hat{δ}}_{V, 3}^{2} (x, y), {\hat{δ}}_{V, 3}^{2} (x, y), {\hat{δ}}_{V, 3}^{2} (x, y)) - δ_{0}^{2}) \\ {\hat{δ}}_{D}^{2} (x, y) = \max (0, \min ({\hat{δ}}_{D, 3}^{2} (x, y), {\hat{δ}}_{D, 3}^{2} (x, y), {\hat{δ}}_{D, 3}^{2} (x, y), {\hat{δ}}_{D, 3}^{2} (x, y)) - δ_{0}^{2}) \end{matrix}$ (15)
where $δ_{0}^{2}$ represents the stego noise variance, and ${\hat{δ}}_{H, d}^{2} (x, y)$ , ${\hat{δ}}_{V, d}^{2} (x, y)$ , and ${\hat{δ}}_{D, d}^{2} (x, y)$ represent the means of the squares of the wavelet coefficients in the window of size $d \times d$ centered at the $(x, y)$ position of three sub-bands H, V, and D.
(c) Wiener filter. Low-pass filter with the wavelet coefficients of the three sub-bands H, V, and D using a Wiener filter is as follows
${\begin{matrix} H_{low} (x, y) = H (x, y) \frac{{\hat{δ}}_{H}^{2} (x, y)}{{\hat{δ}}_{H}^{2} (x, y) + δ_{0}^{2}} \\ V_{low} (x, y) = V (x, y) \frac{{\hat{δ}}_{V}^{2} (x, y)}{{\hat{δ}}_{V}^{2} (x, y) + δ_{0}^{2}} \\ D_{low} (x, y) = D (x, y) \frac{{\hat{δ}}_{D}^{2} (x, y)}{{\hat{δ}}_{D}^{2} (x, y) + δ_{0}^{2}} \end{matrix}$ (16)
(d) Inverse wavelet transform. The low-frequency sub-band L and the three low-pass filtered sub-bands $H_{low}$ , $V_{low}$ , and $D_{low}$ are inverse wavelets transformed to obtain the estimated cover coefficients in the cover co-frequency sub-image.
4. Recombine the filtered co-frequency sub-images to generate the estimated cover JPEG image.

Similarly, the 4-neighborhood average filtering method commonly used in steganalysis can also be used to low-pass filter each stego co-frequency sub-image. Then, the cover JPEG image estimation algorithm based on co-frequency sub-image 4-neighborhood filtering is derived.

Payload location algorithm for JPEG image steganography based on co-frequency sub-image filtering

To date, multiple JPEG image steganography algorithms have been proposed. However, JSteg and F5 remain popular with steganalysts because of their simplicity and excellent visual invisibility. Therefore, in this section, the proposed methods are applied to payload location for these two common JPEG image steganography algorithms.

Payload location algorithm for JSteg steganography

The JSteg steganography applies the spatial LSB replacement to the JPEG image and processes each selected coefficient as follows:

If the selected coefficient is a direct current (DC) coefficient or alternating current (AC) coefficient with a value of 0 or 1, it is considered that the selected coefficient is not available for JSteg steganography and is skipped to select the next coefficient.

If the selected coefficient is available for JSteg steganography, replace the LSB of the selected coefficient with the current bit in the secret message, then select the next coefficient along the embedding path, and read the next bit from the secret message.

When the last bit in the secret message has been embedded or the ratio of selected coefficients to all coefficients exceeds a certain threshold, finish the embedding.

DC coefficients and AC coefficients with values of 0 and 1 have certainly not been changed. Therefore, when estimating the residuals, we can obtain their extract residual values as 0 instead of the estimated value. Thus, the residual estimation formula can be improved as follows

\begin{matrix} {\hat{r}}_{JS teg, t} (i, j) = {\begin{matrix} 0, & S_{t} (i, j) = 0, 1 \\ 0, & \mod (i, 8) = 0 and \mod (j, 8) = 0 \\ [S_{t} (i, j) - {\tilde{S}}_{t} (i, j)] [S_{t} (i, j) - {\hat{C}}_{t} (i, j)], & others \end{matrix} \end{matrix}

(17)

where ${\tilde{S}}_{t} (i, j)$ denotes the coefficient value obtained by flipping the LSB of the available coefficient $S_{t} (i, j)$ . This section applies the improved residual estimation formula (17) and the cover JPEG image estimation algorithm in the “Cover JPEG image estimation based on co-frequency sub-image filtering” section to the payload location method proposed in the “Payload location method for random JPEG image steganography” section, and then derives the payload location algorithm for JSteg steganography based on co-frequency sub-image wavelet filtering, as follows.

The cover JPEG image estimation algorithm used in Algorithm 2 can also be replaced with the cover JPEG image estimation algorithm based on co-frequency sub-image 4-neighborhood average filtering. Then, the payload location algorithm for JSteg steganography based on co-frequency sub-image 4-neighborhood average filtering (CS4-JSteg) can be obtained.

Algorithm 2: Payload location algorithm for JSteg steganography based on co-frequency sub-image wavelet filtering (CSW-JSteg).
Input: T stego images (size of $M \times N$ ) embedded along the same path, embedding ratio q, and stego noise variance. Output: Estimated stego positions of JSteg steganography. Steps: 1. Estimate the cover JPEG images. Algorithm 1 is used to estimate the quantized DCT coefficient ${\hat{C}}_{t} (i, j)$ in the cover JPEG image corresponding to each stego image. 2. Flip LSB of available coefficients in each stego image to obtain ${\tilde{S}}_{t} (i, j)$ . 3. Estimate the coefficient residual ${\hat{r}}_{JS teg, t} (i, j)$ in each position of each stego image according to formula (17). 4. Compute the mean of the estimated coefficient residuals in the same position of T stego images. 5. Chose qMN positions with the largest residuals as the estimated stego positions of JSteg steganography.

Algorithm 2: Payload location algorithm for JSteg steganography based on co-frequency sub-image wavelet filtering (CSW-JSteg).

Input: T stego images (size of

M \times N

) embedded along the same path, embedding ratio q, and stego noise variance.
Output: Estimated stego positions of JSteg steganography.
Steps:
1. Estimate the cover JPEG images. Algorithm 1 is used to estimate the quantized DCT coefficient

{\hat{C}}_{t} (i, j)

in the cover JPEG image corresponding to each stego image.
2. Flip LSB of available coefficients in each stego image to obtain

{\tilde{S}}_{t} (i, j)

.
3. Estimate the coefficient residual

{\hat{r}}_{JS teg, t} (i, j)

in each position of each stego image according to formula (17).
4. Compute the mean of the estimated coefficient residuals in the same position of T stego images.
5. Chose qMN positions with the largest residuals as the estimated stego positions of JSteg steganography.

Payload location algorithm for F5 steganography

F5 steganography introduces matrix encoding and uses almost all available coefficients to carry the message when the embedding ratio is no larger than 2/3. Therefore, in this case, it is meaningless to locate the stego positions. However, when the embedding ratio is larger than 2/3, the matrix encoding will degenerate to ordinary random embedding. Therefore, this section proposes a payload location algorithm for F5 steganography without matrix encoding.

F5 steganography uses the quantized DCT coefficient whose value is either a positive odd number or negative even number to represent 1, and then uses the quantized DCT coefficient whose value is either a positive even number and negative odd number to represent 0 and does not use DCT coefficients with a value of 0 to carry message bits. It processes each selected coefficient as follows:

When the selected coefficient is a DC coefficient or AC coefficient with a value of 0, it is considered that the selected coefficient is not available for F5 steganography and is skipped to select the next coefficient.

When the selected coefficient is available for F5 steganography, if the bit represented by the selected coefficient is the same as the message bit to be embedded, the selected coefficient is not changed; if the bit represented by the selected coefficient is different from the message bit to be embedded, the absolute value of the selected coefficient is subtracted by 1. If the available coefficient is changed to 0, the embedding is regarded as invalid embedding and the message bit should be re-embedded into the next coefficient. The next coefficient along the embedding path is then selected.

When the last bit in the secret message has been embedded or the ratio of selected coefficients to all coefficients exceeds a certain threshold, the embedding is finished.

According to the embedding rules of F5 steganography, the specific residual estimation for F5 steganography is

\begin{matrix} {\hat{r}}_{F 5, t} (i, j) = \\ {\begin{matrix} \begin{matrix} 0, & \mod (i, 8) = 0 and \mod (j, 8) = 0 \end{matrix} \\ \begin{matrix} [S_{t} (i, j) - {\tilde{S}}_{t} (i, j)] [S_{t} (i, j) - {\hat{C}}_{t} (i, j)], & otherwise \end{matrix} \end{matrix} \end{matrix}

(18)

where

{\tilde{S}}_{t} (i, j) = {\begin{matrix} \begin{matrix} - 1, & S_{t} (i, j) = 0 and Rand \geq 0.5 \end{matrix} \\ \begin{matrix} 1, & S_{t} (i, j) = 0 and Rand < 0.5 \end{matrix} \\ \begin{matrix} \begin{matrix} S_{t} (i, j) + 1, & S_{t} (i, j) > 0 \end{matrix} \\ \begin{matrix} S_{t} (i, j) - 1, & S_{t} (i, j) < 0 \end{matrix} \end{matrix} \end{matrix}

(19)

and Rand is a random number between 0 and 1. This section applies the improved residual estimation formula (18) and the cover JPEG image estimation algorithm in the “Cover JPEG image estimation based on co-frequency sub-image filtering” section to the payload location method proposed in the “Payload location method for random JPEG image steganography” section, and then derives the payload location algorithm for F5 steganography based on co-frequency sub-image wavelet filtering, as follows.

The cover JPEG image estimation algorithm in Algorithm 3 can also be replaced with the cover JPEG image estimation algorithm based on co-frequency sub-image 4-neighborhood average filtering. Then, the payload location algorithm for F5 steganography based on co-frequency sub-image 4-neighborhood average filtering (CS4-F5) can be obtained.

Algorithm 3: Payload location algorithm for F5 steganography based on co-frequency sub-image wavelet filtering (CSW-F5).
Input: T stego images (size of $M \times N$ ) embedded along the same path, embedding ratio q, and stego noise variance. Output: Estimated stego positions of F5 steganography. Steps: 1. Estimate the cover JPEG images. Algorithm 1 is used to estimate the quantized DCT coefficient ${\hat{C}}_{t} (i, j)$ in the cover JPEG image corresponding to each stego image. 2. Calculate the inverse changed coefficient value ${\tilde{S}}_{t} (i, j)$ according to formula (19). 3. Calculate the coefficient residual ${\hat{r}}_{F 5, t} (i, j)$ in each position of each stego image according to formula (18). 4. Compute the mean of the estimated coefficient residuals in the same position in T stego images. 5. Chose qMN positions with the largest residuals as the estimated stego positions of F5 steganography.

Algorithm 3: Payload location algorithm for F5 steganography based on co-frequency sub-image wavelet filtering (CSW-F5).

Input: T stego images (size of

M \times N

) embedded along the same path, embedding ratio q, and stego noise variance.
Output: Estimated stego positions of F5 steganography.
Steps:
1. Estimate the cover JPEG images. Algorithm 1 is used to estimate the quantized DCT coefficient

{\hat{C}}_{t} (i, j)

in the cover JPEG image corresponding to each stego image.
2. Calculate the inverse changed coefficient value

{\tilde{S}}_{t} (i, j)

according to formula (19).
3. Calculate the coefficient residual

{\hat{r}}_{F 5, t} (i, j)

in each position of each stego image according to formula (18).
4. Compute the mean of the estimated coefficient residuals in the same position in T stego images.
5. Chose qMN positions with the largest residuals as the estimated stego positions of F5 steganography.

Experimental results and analysis

Experimental setup

In total, 10,000 PGM images with a size of 512 × 512 were downloaded from the BOSSbase1.01 and converted to cover JPEG images with a quality factor of 75. Then, 1000 cover images each containing 30,000 to 50,000 non-zero quantized DCT coefficients were randomly selected from 10,000 cover JPEG images. Next, a pseudo-random path was generated by using the MATLAB function “randperm” to scramble the integer sequence in the range between 1 and 512 × 512. Finally, 20 test stego image sets were generated by selecting the coefficients with a ratio of $q \in {0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9}$ from the 1000 cover JPEG images along the pseudo-random path and embedding pseudo-random message bits into the selected coefficients by JSteg steganography and F5 steganography without matrix encoding.

Currently, there is still no payload location algorithms for JPEG image steganography because it is difficult to precisely estimate the cover JPEG image. All of the existing payload location algorithms were designed for spatial image steganography. The intuitive idea is to adapt the payload location algorithms to locate the payload of JPEG image steganography. Therefore, the payload location algorithms in Ker and Lubenko²⁴ and Gui et al.²⁷ are adapted for JPEG image steganography as follows:

CSW-JSteg: This payload location algorithm performs wavelet filtering on co-frequency sub-image to estimate the cover JPEG image, and then calculates the JSteg residuals between the given image and the estimated cover image of it to locate the payload of JSteg steganography.

CS4-JSteg: This payload location algorithm performs 4-neighborhood average filtering on co-frequency sub-image to estimate the cover JPEG image, and then calculates the JSteg residuals between the given image and the estimated cover image of it to locate the payload of JSteg steganography.

WIW-JSteg: This payload location algorithm performs wavelet filtering on all pixels in the whole image to estimate the cover JPEG image, and then calculates the JSteg residuals between the given image and the estimated cover image of it to locate the payload of JSteg steganography.

CSW-F5: This payload location algorithm performs wavelet filtering on co-frequency sub-image to estimate the cover JPEG image, and then calculates the F5 residuals between the given image and the estimated cover image of it to locate the payload of F5 steganography.

CS4-F5: This payload location algorithm performs 4-neighborhood average filtering on co-frequency sub-image to estimate the cover JPEG image, and then calculates the F5 residuals between the given image and the estimated cover image of it to locate the payload of F5 steganography.

WIW-F5: This payload location algorithm performs wavelet filtering on all pixels in the whole image to estimate the cover JPEG image, and then calculates the F5 residuals between the given image and the estimated cover image of it to locate the payload of F5 steganography.

The filter used in the above algorithms can be seen from Table 1. Then the algorithm proposed in this article is compared with above payload location algorithms originated from Ker and Lubenko²⁴ and Gui et al.²⁷

Table 1.

Filters and applicable steganography algorithms used by these payload location algorithms.

	4-neighborhood average filtering²⁴	Wavelet filtering²⁷
F5	CS4-F5	CSW-F5, WIW-F5
JSteg	CS4-JSteg	CSW-JSteg, WIW-JSteg

Validity of payload location algorithms

Figure 7 shows the histogram of the estimated residual means computed by the CSW-JSteg algorithm (CSW-JSteg residual means) for 1000 stego images of JSteg steganography with an embedding ratio of $q = 0.5$ . The orange bins in Figure 7 are the CSW-JSteg residual mean bins in the non-stego positions, whereas the blue bins are the CSW-JSteg residual mean bins in the stego positions. The number of zero-valued CSW-JSteg residual means exceeds the vertical coordinates in the middle of the graph, so the top of this bin is marked as the intermittent bin. A significant difference is observed between the CSW-JSteg residual means in the stego positions and the CSW-JSteg residual means in the non-stego positions. The latter are predominantly less than or equal to 0, whereas the former are predominantly greater than 0. Therefore, according to the CSW-JSteg residual means, it is feasible to distinguish the stego positions in multiple stego images embedded along the same path. Moreover, the CSW-JSteg residual means of many stego positions and non-stego positions are equal to 0. This is because a large number of middle- and high-frequency quantized DCT coefficients in the JPEG image are equal to 0 and 1, and their CSW-JSteg residual values are equal to 0. Therefore, it is highly probable that the CSW-JSteg residual means in these positions equal 0.

Figure 7.

Histogram of the CSW-JSteg residual means for 1000 stego images embedded by JSteg steganography along the same path with an embedding ratio of 0.5.

Figure 8 shows a histogram of the estimated residual means computed by the CSW-F5 algorithm (CSW-F5 residual means) for 1000 stego images of F5 steganography with an embedding ratio of $q = 0.5$ . Although the bins of CSW-F5 residual means in the non-stego positions exhibit a greater overlap with the bins of CSW-F5 residual means in the stego positions, there is still a significant difference between bins in non-stego positions and stego positions. Therefore, the proposed CSW-JSteg residual means and CSW-F5 residual means can be used to effectively distinguish non-stego and stego positions.

Figure 8.

Histogram of the CSW-F5 residual means for 1000 stego images embedded by F5 steganography along the same path with an embedding ratio of 0.5.

Performance of payload location algorithms

In order to test the performance of the proposed JSteg steganography payload location algorithm CSW-JSteg, the cover JPEG image estimation algorithm in CSW-JSteg was replaced by the estimation algorithms based on co-frequency sub-image 4-neighborhood average filtering and whole-image coefficient wavelet filtering, respectively, resulting in corresponding payload location algorithms termed CS4-JSteg and WIW-JSteg.

Table 2 shows the location accuracy of the payload location algorithms CSW-F5, CS4-F5, and WIW-F5 with possession of different numbers of stego images embedded by JSteg with an embedding ratio of 0.5. Table 3 shows the payload location accuracy of the three payload location algorithms for 1000 stego images embedded by JSteg along the same path with an embedding ratio of 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, and 0.9. According to Tables 2 and 3, all three payload location algorithms can locate the stego positions more accurately than random guessing (a correct rate equal to 50% is equivalent to a random guess). Furthermore, with an increase in the number of stego images and embedding ratio, the location accuracy of the stego positions increases significantly. The two payload location algorithms based on co-frequency sub-image filtering have significantly higher accuracy than the payload location algorithm based on whole-image coefficient wavelet filtering. The payload location algorithm CSW-JSteg exhibits the best performance. This is because the weak correlation between adjacent coefficients in JPEG images causes poor estimation accuracy of the cover image coefficients by wavelet filtering of coefficients in the entire image.

Table 2.

Payload location accuracy of three payload location algorithms for JSteg steganography for different numbers of stego images.

T	CSW-JSteg		CS4-JSteg		WIW-JSteg
T	NSPC	Accuracy (%)	NSPC	Accuracy (%)	NSPC	Accuracy (%)
10	72,967	55.67	71,853	54.82	70,778	54.00
50	82,601	63.02	79,534	60.68	75,694	57.75
100	88,709	67.68	85,301	65.08	79,350	60.54
300	99,300	75.76	96,849	73.89	87,438	66.71
500	103,009	78.59	101,436	77.39	91,488	69.80
1000	108,553	82.82	108,271	82.62	97,727	74.56

NSPC: number of stego positions located correctly.

Bold-faced values indicate the best experimental results.

Table 3.

Payload location accuracy of three payload location algorithms with 1000 stego images of JSteg and an embedding ratio of $0.1, 0.2, \dots, 0.9$ .

q	CSW-JSteg		CS4-JSteg		WIW-JSteg
q	NSPC	Accuracy (%)	NSPC	Accuracy (%)	NSPC	Accuracy (%)
0.1	19,285	73.57	18,937	72.24	13,959	53.25
0.2	38,624	73.67	38,037	72.55	31,488	60.06
0.3	60,264	76.63	59,643	75.84	50,850	64.66
0.4	83,508	79.64	82,847	79.01	72,897	69.52
0.5	108,533	82.82	108,271	82.62	97,727	74.56
0.6	135,816	86.35	135,738	86.30	125,278	79.65
0.7	165,481	90.18	165,095	89.97	155,645	84.82
0.8	195,936	93.43	195,496	93.22	187,737	89.52
0.9	228,309	96.77	228,167	96.71	223,732	94.83

NSPC: number of stego positions located correctly.

In order to test the performance of the proposed F5 steganography payload location algorithm CSW-F5, the cover JPEG image estimation algorithm in CSW-F5 was replaced by the estimation algorithms based on co-frequency sub-image 4-neighborhood average filtering and whole-image coefficient wavelet filtering, respectively, resulting in corresponding payload location algorithms termed CS4-F5 and WIW-F5.

Table 4 shows the payload location accuracy of the payload location algorithms CSW-F5, CS4-F5, and WIW-F5 for the 1000 stego images embedded by F5 along the same path with an embedding ratio of 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, and 0.9. When the embedding ratio is greater than or equal to 0.2, the payload location algorithm CSW-F5 can locate the stego positions with a higher probability of success than achieved by random guessing. Moreover, the location accuracy is significantly higher than the other two algorithms. However, when the embedding ratio is equal to 0.1, all three location algorithms fail. A comparison with Table 3 indicates that, under various embedding ratios, the payload location accuracies for F5 steganography are always lower than those for JSteg steganography. This could be due to the following two reasons:

F5 steganography may change the coefficients of values 1 and −1 to 0; thus, the estimation errors of the residuals of many unchanged zero-valued coefficients cannot be eliminated.

F5 steganography subtracts the absolute value of the changed coefficient by 1, causing a large number of coefficients with values of 1 and −1 to become 0. This can be viewed as the denoising process. However, JSteg steganography is equivalent to adding noise to the image, and the cover JPEG image estimation process in the above location algorithm is essentially a denoising filter. Therefore, this process is more suitable for estimating the cover JPEG image from the stego images of JSteg steganography.

Table 4.

Payload location accuracy of three payload location algorithms possessing 1000 stego images of F5 with an embedding ratio of $0.1, 0.2, \dots, 0.9$ .

q	CSW-F5		CS4-F5		WIW-F5
q	NSPC	Accuracy (%)	NSPC	Accuracy (%)	NSPC	Accuracy (%)
0.1	11,833	45.14	10,425	39.77	5198	19.83
0.2	30,225	57.65	27,656	52.75	16,646	31.75
0.3	69,950	66.71	48,963	62.26	33,187	42.20
0.4	77,070	73.50	73,631	70.22	54,400	51.88
0.5	103,494	78.96	100,112	76.38	79,298	60.50
0.6	131,979	83.91	128,502	81.70	108,669	69.09
0.7	162,141	88.36	159,021	86.66	141,442	77.08
0.8	191,952	91.53	187,359	89.34	174,147	83.04
0.9	220,924	93.64	216,960	91.96	207,688	88.03

NSPC: number of stego positions located correctly.

Applicability of payload location results

According to Table 3, when there are few stego images embedded along the same path, the payload location accuracy is low. For example, when there are only 10 stego images embedded by JSteg along the same path, the best CSW-JSteg algorithm can only locate the stego position with an accuracy of 55.67%, which is close to that of random guessing. In order to test the applicability of the location results, this section applied the location result to the collision attack algorithm proposed in formula,¹² as follows:

Randomly select 10 cover images from the 1000 cover images.

Randomly select a number from 1 to 65,535 as a stego key, use the “randperm” function in MATLAB to generate an embedding path, and embed a pseudo-random message by JSteg with a ratio of 0.5 in the selected 10 cover images along the embedding path.

Estimate the stego positions in the 10 stego images using the CSW-JSteg algorithm.

Respectively feed $1, 2, \dots, 65, 535$ as seeds to the “randperm” function to generate 65,535 test paths.

Count the number of estimated stego positions in the first 50% of positions along each test path.

Take the seed corresponding to the larger number of estimated stego positions as the recovered stego key.

Figure 9 shows the number of estimated stego positions in the first 50% of positions along each path. The number of estimated stego positions corresponding to the correct stego key is clearly larger than that corresponding to the pseudo-stego keys. That is, even when there are only 10 stego images embedded by JSteg along the same path, the payload location result of the proposed CSW-JSteg algorithm can still be used to effectively recover the stego key. A previous study³¹ also reported that a higher payload location accuracy will enable the stego key to be recovered with higher accuracy and efficiency, and allow the stego key recover algorithm to be used for smaller and larger embedding ratios. Therefore, it is still necessary to improve the payload location accuracy as much as possible.

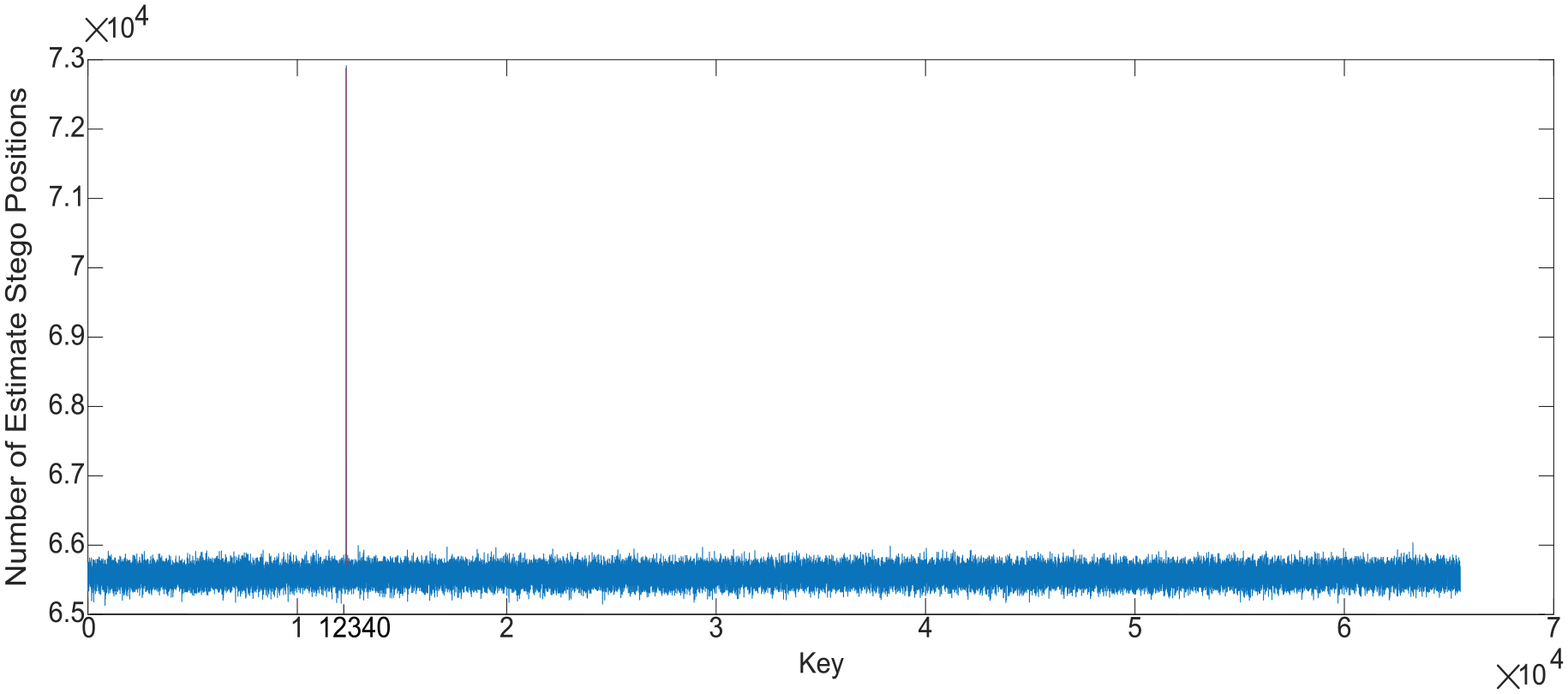

Figure 9.

Number of estimated stego positions in the first 50% of positions along each test path, when 10 stego images embedded by JSteg along the same path are possessed (the correct stego key is “12340”).

Conclusion

Because the quantized DCT coefficients in the cover JPEG image are difficult to accurately estimate, there is still no effective payload location algorithm for JPEG image steganography. Thus, this study proposed a payload location method for pseudo-random scrambled JPEG image steganography and a cover JPEG image estimation method based on the co-frequency sub-image filtering. Then, specific payload location algorithms were designed for the common JSteg and F5 steganography algorithms. The experimental results showed that, when possessing multiple stego images embedded by JSteg or F5 along the same path, the proposed payload location algorithms can effectively locate the stego positions, and the location result can be used to effectively recover the stego key.

However, if the steganography algorithm embeds the message using certain encoding algorithms, such as matrix code or Syndrome-Trellis Codes, the above method will fail because it is difficult to obtain multiple stego images embedded along the same path. Moreover, because audio, video, and other media have different characteristics from JPEG images, it is necessary to explore the payload location for steganography with audio, video, and other media types as covers.³² It may be a potential idea to search similar cover media³³ and apply the data learning³⁴ to recognize the stego positions.

In future work, we will try to use the existing quantitative steganalysis methods^10,11 to estimate the embedding ratio when the embedding ratio is unknown, and then use the method proposed in this article to perform payload location.

Footnotes

Acknowledgements

The authors would like to thank Dr. Zhenyu Li for his help improving the English of the article.

Handling Editor: Yee Wei Law

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (Grant Nos 61872448, U1804263, 61772549, U1736214, 61602508, and 61601517) and the Science and Technology Research Project of Henan Province, China (Grant No. 152102210005).

ORCID iD

Chunfang Yang

References

Zhang

Qin

Zhang

, et al. On the fault-tolerant performance for a class of robust image steganography. Signal Process 2018; 146: 99–111.

Xiang

Hao

, et al. Reversible natural language watermarking using synonym substitution and arithmetic coding. CMC: Comput Mater Con 2018; 55(3): 541–559.

Zielińska

Mazurczyk

Szczypiorski

. Trends in steganography. Commun ACM 2014; 57(3): 86–95.

Luo

Wang

, et al. A review on blind detection for image steganography. Signal Process 2008; 88(9): 2138–2157.

Song

Liu

Yang

, et al. Steganalysis of adaptive JPEG steganography using 2D Gabor filters. In: 4th ACM workshop on information hiding and multimedia security, Portland, OR, 17–19 June 2015, pp.15–23. New York: ACM.

Luo

, et al. Selection of rich model steganalysis features based on decision rough set α-positive region reduction. IEEE T Circ Syst Vid 2019; 29: 336–350.

Wang

Liu

Yang

. Towards feature representation for steganalysis of spatial steganography. Signal Process 2020; 169: 107422.

Yang

Liu

Luo

, et al. Steganalysis frameworks of embedding in multiple least-significant bits. IEEE T Inf Foren Sec 2008; 3(4): 662–672.

Yang

Liu

Luo

, et al. Pixel group trace model-based quantitative steganalysis for multiple least-significant bits steganography. IEEE T Inf Foren Sec 2013; 8(1): 216–228.

10.

Yang

Wang

, et al. TS-RNN: text steganalysis based on recurrent neural networks. IEEE Signal Proc Let 2019; 26(12): 1743–1747.

11.

Yang

Guo

Chen

, et al. RNN-stega: linguistic steganography based on recurrent neural networks. IEEE T Inf Foren Sec 2018; 14(5): 1280–1295.

12.

Liu

Tian

Han

, et al. Stego key searching for LSB steganography on JPEG decompressed image. Sci China Inform Sci 2016; 59: 32105.

13.

Westfeld

Detecting low embedding rates. In: Proceedings of the 5th international workshop on information hiding (LNCS, vol. 2578), Noordwijkerhout, 7–9 October 2002, pp.324–339. Berlin: Springer.

14.

Westfeld

Pfitzmann

. Attacks on steganographic systems. In: Proceedings of the 3rd international workshop on information hiding (LNCS, vol. 1768), Dresden, 29 September–1 October 1999, pp.61–75. Berlin: Springer.

15.

Kong

Liu

You

. Secret message location steganalysis based on local coherences of hue. In: Proceedings of the Pacific Rim conference on multimedia part II (LNCS, vol. 3768), Jeju, South Korea, 13–16 November 2005, pp.301–311. Berlin: Springer.

16.

Trivedi

Chandramouli

. Secret key estimation in sequential steganography. IEEE T Signal Proces 2005; 53(2): 746–757.

17.

Ker

Böhme

Revisiting weighted stego-image steganalysis. In: Proceedings of the SPIE security, steganography and watermarking of multimedia contents X, vol. 6819, San Jose, CA, 27–31 January 2008, pp.27–31. Bellingham, WA: SPIE.

18.

Ker

. A weighted stego image detector for sequential LSB replacement LSB replacement. In: Proceedings of the 3rd international symposium on information assurance and security, Manchester, 29–31 August 2007, pp.453–456. New York: IEEE.

19.

Chen

Liu

Zhu

, et al. Extracting attack to DCT domain sequential LSB steganography. Pattern Recogn Artif Int 2011; 24(4): 484–491.

20.

Davidson

Paul

Locating secret messages in images. In: Proceedings of the 10th ACM SIGKDD international conference on knowledge discovery and data mining, Seattle, WA, 22–25 August 2004, pp.545–550. New York: ACM.

21.

Ambalavanan

Chandramouli

. A Bayesian image steganalysis approach to estimate the embedded secret message. In: Proceedings of the 7th ACM workshop on multimedia and security, New York, 1–2 August 2005, pp.33–38. New York: ACM.

22.

Ker

AD.

Locating steganographic payload via WS residuals. In: Proceedings of the 10th Workshop on multimedia and security, Oxford, 22–23 September 2008, pp.27–31. New York: ACM.

23.

Chiew

Pieprzyk

Identify steganographic payload location in binary image. In: Proceedings of the Pacific Rim conference on multimedia part I (LNCS, vol. 6297), Shanghai, China, 21–24 September 2010, pp.590–600. Berlin: Springer.

24.

Ker

Lubenko

Feature reduction and payload location with WAM steganalysis. In: Proceedings of the SPIE, media forensics and security, vol. 7254, San Jose, CA, 18–22 January 2009, pp.72540A-1–72540A-13. Bellingham, WA: SPIE.

25.

Quach

T-T.

Optimal cover estimation methods and steganographic payload location. IEEE T Inf Foren Sec 2011; 6(4): 1214–1222.

26.

Quach

T-T.

Cover estimation and payload location using Markov random fields. In: Proceedings of the SPIE-IS&T electronic imaging, media watermarking, security, and forensics (ed Alattar

Memon

Heitzenrater

), vol. 9028, San Francisco, CA, 2–6 February 2014, p.90280H. Bellingham, WA: SPIE.

27.

Gui

Yang

. Improved payload location for LSB matching steganography. In: Proceedings of the 19th IEEE international conference on image processing, Orlando, FL, 30 September–3 October 2012, pp.1125–1128. New York: IEEE.

28.

Liu

Tian

Han

, et al. LSB steganographic payload location for JPEG-decompressed images. Digit Signal Process 2015; 38: 66–76.

29.

Yang

Luo

, et al. Extracting hidden messages of MLSB steganography based on optimal stego subset. Sci China Inform Sci 2018; 61: 119103.

30.

Quach

T-T.

Locating payload embedded by group-parity steganography. Digit Invest 2012; 9(2): 160–166.

31.

Quach

T-T.

Extracting hidden messages in steganographic images. Digit Invest 2014; 11(Suppl. 2): S40–S45.

32.

Weng

Chi

, et al. Convolutional video steganography with temporal residual modeling. arXiv:1806.02941, 2018.

33.

Xiang

Zhao

, et al. TUMK-ELM: a fast unsupervised heterogeneous data learning approach. IEEE Access 2018; 6: 35305–35315.

34.

Xiang

Shen

Qin

, et al. Discrete multi-graph hashing for large-scale visual search. Neural Process Lett 2019; 49: 1055–1069.
