Enhancing agent sociability by extending interaction protocols using machine learning

Abstract

Interaction protocols are commonly used in agent-based systems. They ensure good coordination between agents by proposing a specific message exchange pattern. However, these interaction protocols are not perfect; they need more extensions to offer, among others, better performance and scalability, mainly when tight deadlines are involved. In this case, participants often fail to answer some requests before their deadlines due to overload, bottlenecks, slow network, or being busy or blocked. Designing agents without considering this issue may decrease their sociability, which wastes valuable chances to obtain the best goals. The proposed approach uses the participant's experience to train supervised learning models to predict if the replies will reach initiators before deadlines or not, thereby enabling a prioritization mechanism for handling interaction requests more effectively. The proposed approach has been evaluated using multiple Contract Net interaction scenarios of two case studies under the JADE platform. The promising results show a significant increase in agents’ sociability measured by a new metric that we have proposed called Sociability Degree via Interaction Protocols (SD_IP) where it was maintained even when systems scale up in term of number of agents and initiated interactions.

Keywords

interaction protocol sociability perfective maintenance multiagent systems machine learning performance and scalability

1 Introduction

Agent oriented paradigm offers a great solution to solve problems that cannot be handled by monolithic systems. Developing multiagent systems (MAS) was the interest of many researchers in various domains. In consequence, several multiagent systems development methodologies and platforms have been proposed in the literature^1,2 to facilitate and support their design and implementation. However, maintenance support for these systems has not been sufficiently addressed.^3,4

Every system has to be maintained at some point, whether for corrective, perfective, preventive or adaptive purposes. Software maintenance and evolution in general still a hard, complex and costly phase of the agent-based application life cycle.⁵ However; it is more economical to maintain current code than substitute it with a new one.^6-9 Enhancing multiagent systems¹⁰ has been the interest of many researchers even recently by focusing on changing agents’ architectures, protocols¹¹ and organizations or improving agent properties like deliberation,^12-14 cooperation,¹⁵ matchmaking,¹⁶ communication,¹⁷ interaction protocols,¹⁸ reactivity,¹⁹ etc.

In multiagent systems, agents interact to solve problems. For better interactions, a variety of protocols are usually used. These interaction protocols have some limitations which appear under different circumstances whether because of an increased number of agents,^20-23 slow or overloaded network, blocked or busy agent states.

When an agent receives multiple interactions’ requests in a short time, it may not be able to answer some of them before reaching the specified deadlines. By default, the agent does not have any responding policy which prioritizes certain messages than the others. This means that the requests are served based on their receiving order (FIFO), which can be a cause for many interaction failures.²⁴

The proposed approach for enhancing the agent's sociability through interaction protocols consists on ordering the received requests according to their deadlines. Participants use supervised learning models trained using past data, to predict if the received request has a chance to be responded before reaching its deadline. Therefore, the requests can be classified into three categories: (i) requests without deadlines, (ii) requests with deadlines which are predicted to be failed interactions, and (iii) requests with deadlines which are predicted to be successful interactions. The suggested solution has been validated with several scenarios on two case studies under JADE.²⁵ The results which are very promising show a great agent's sociability enhancement via the Sociability Degree via Interaction Protocols (SD_IP) metric that we have proposed.

The remaining of this paper is structured as follows. In section 2, a brief overview of major related work is given. The problem statement and the proposed approach to enhance agent sociability are introduced in section 3. Section 4 validates and discusses the proposed approach. Section 5 gives some conclusions and future work directions.

2 Literature review

Multiagent systems’ evaluation and enhancement has been the topic of many researches. Recent works have proposed methodologies and approaches to evaluate them,^26-28 while others proposed approaches to enhance some of their properties.^29-35 Integrating machine learning algorithms in these systems to enhance agents has been proposed even recently.^36-42 Unfortunately, none of them addresses the agents’ sociability.

This study is about enhancing the agents’ sociability when it is implemented using interaction protocols. This exact topic has received little attention. Therefore, to remain within the scope of this study, only the researches related to enhancing interaction protocols in terms of their performance and scalability will be examined.

In,¹⁸ authors proposed a semi-centralized protocol, which uses a dedicated central agent with specific roles. The proposed protocol extends the well-known Contract Net Protocol (CNP) to be used for efficient and trusted negotiation task in multiagent systems with low communication overhead. They introduced a new agent that plays the role of the system manager. Initiators ask the manager for a list of participants with good reputations only, to reduce the possibility of failing while implementing the task assigned. Their proposed protocol shows significant improvement in time and communication overhead under various conditions. This enhancement was not addressed for a scalability study; therefore, their proposal needs to be verified with large scale systems, especially when there is a centralized manager agent that can be a cause for bottlenecks.

In,⁴³ the authors have proposed and implemented an updated version of CNP called updated-CNP in order to save the overhead of restarting the process of CNP execution between a set of agents willing to coordinate with each other. They have added an additional step into a conventional CNP. As long as the final report is not sent yet, any changes are allowed during the interaction. They justified their approach using a case study of predator-prey system produced with platforms JADE and JATLite. The updated-CNP results were compared with the conventional one by using three parameters, updated tasks, task repetitions and communication overhead. Performance was enhanced in terms of reaching agreements when modifications are requested during the interaction, without repeating the whole process.

In,⁴⁴ the authors have proposed an improvement to Contract Net with Confirmation Protocol (CNCP). A procedure was developed for determining the participant's bidding threshold. The authors have specified a general description formula of participants’ DoA (Degree of Availability) and its weight coefficient with an enhanced function for bids evaluation. The results of their simulations show that the proposed improvement can enhance the performance of CNCP in large scale multiagent systems effectively.

To make Contract Net scalable in large grid resource allocation, the authors of⁴⁵ have suggested several methods: (i) to handle increased number of resources, a queue length based announcement strategy was proposed. (ii) In order to handle increased number of users, a decentralized broker system in which the brokers communicate with each other was proposed. The two strategies are combined to show that the resulting combined strategy can handle both large number of users and resources. They presented detailed simulation results to show that their approach significantly improves the scalability of the system.

To solve Contract Net protocol's scalability issue, the authors in⁴⁶ suggested an instance-based learning system (IBL) that would use previously stored instances to pick a target agent. It avoids the expensive bidding task. The strategy was applied in a virtual centralized healthcare network that uses the Contract Net protocol for the distribution of services across hospitals. Experimental tests show that the machine performance was substantially increased with the use of the IBL. In regards to the number of tasks the system is more scalable.

The authors in²⁴ have extended the Contract Net protocol to: (i) allow parallel negotiations, (ii) optimize negotiation time, (iii) reduce the contractors’ decommitment situations, (iv) detect failures and prevent negotiations with blocked agents. The first CNP limit they described is when concurrent CFPs are received which will be answered sequentially. Adding their deadlines with the participant's possible blocked state will waste some contracts for them. The authors have introduced new communications primitives to the Contract Net protocol, in order to create interactions’ states which prevent the agent from facing faulty situations. The proposed approach was evaluated using four experimental groups. Each one has two sub experiments with different number of initiators and participants. The used performance metric is the negotiation time which was indeed reduced using the proposed approach. Their work addresses the task allocation problem where participants propose their availability times to initiators. Their availability can be changed depending on the response of the initiators and the pre-scheduled tasks. The context of our study is much wider than theirs, and addresses any interaction protocol which has deadline constraints in large scale systems.

In,⁴⁷ the authors have proposed a formal model which can handle temporal aspects in a CNP interaction. In their study, CFPs’ deadlines have been taken into consideration in order to prevent failures during interactions by using Timed Colored Petri Nets to model the CNP process. The authors have distinguished three possible situations for proposals’ arrival: (1) all the proposals have been received before the deadline, (2) some of the proposals have been received after the deadline, and (3) all the proposals have been received after the deadline. According to these situations, initiators and participants can change their states by canceling and exiting the interaction to avoid blocking situations. This study is the only one that focused on the temporal aspect of the CNP along with²⁴ and,⁴⁵ unfortunately, the authors did not intend to increase the number of proposals received before the deadlines but only to manage agents’ states.

The presented researches have not investigated the sociability property of the agents during their interactions. In our knowledge, this paper is the first investigating the problem and showing the capability of a participant agent to respond to several incoming Contract Net interaction requests (initiations) before their deadlines. Based on previous interactions, the participant will be able to prioritize the received initiations using machine learning algorithms to maximize the number of interactions which are successfully established.

Table 1 provides a synthesized overview of the literature review, structured around ten carefully defined evaluation criteria aimed at facilitating a deeper understanding and comparison of the various studies.

Does the study consider CFP deadlines by analyzing potential consequences of deadline violations and suggesting preventive measures?

Does the proposed enhancement require changes in the structure of the original Contract-Net protocol?

Can the participant participate to multiple interactions simultaneously in the study?

Does the participant receive a large number of CFPs in the study?

Does the proposed approach increase or decrease the number of participants for a given CFP in order to enhance the CNP?

Does the proposed approach increase or decrease the chance to obtain a better proposal?

Does the proposed approach have mechanisms to manage blocked or failure situations during the interaction?

Does the proposed approach allow the initiator to avoid repeating task announcement if it fails to reach an agreement?

Does the proposed approach reduce the CNP interaction time?

Does the proposed approach increase the agent's sociability by regaining the lost initiations due to CFP's deadlines or other causes?

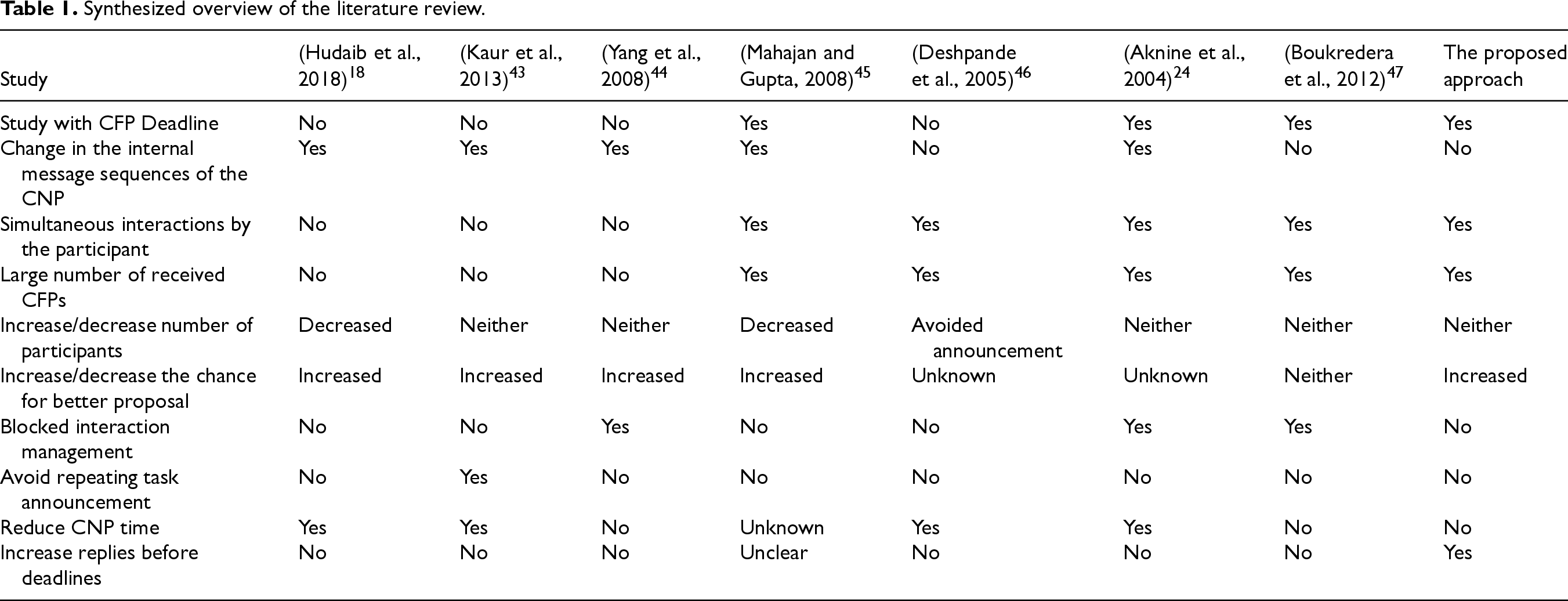

Table 1.
Synthesized overview of the literature review.

(Hudaib et al., (Kaur et al., (Yang et al., (Mahajan and (Deshpande (Aknine et al., (Boukredera The proposed

Study 2018)¹⁸ 2013)⁴³ 2008)⁴⁴ Gupta, 2008)⁴⁵ et al., 2005)⁴⁶ 2004)²⁴ et al., 2012)⁴⁷ approach

Study with CFP Deadline No No No Yes No Yes Yes Yes

Change in the internal message sequences of the CNP Yes Yes Yes Yes No Yes No No

Simultaneous interactions by the participant No No No Yes Yes Yes Yes Yes

Large number of received CFPs No No No Yes Yes Yes Yes Yes

Increase/decrease number of participants Decreased Neither Neither Decreased Avoided announcement Neither Neither Neither

Increase/decrease the chance for better proposal Increased Increased Increased Increased Unknown Unknown Neither Increased

Blocked interaction management No No Yes No No Yes Yes No

Avoid repeating task announcement No Yes No No No No No No

Reduce CNP time Yes Yes No Unknown Yes Yes No No

Increase replies before deadlines No No No Unclear No No No Yes

	(Hudaib et al.,	(Kaur et al.,	(Yang et al.,	(Mahajan and	(Deshpande	(Aknine et al.,	(Boukredera	The proposed
Study with CFP Deadline	No	No	No	Yes	No	Yes	Yes	Yes
Change in the internal message sequences of the CNP	Yes	Yes	Yes	Yes	No	Yes	No	No
Simultaneous interactions by the participant	No	No	No	Yes	Yes	Yes	Yes	Yes
Large number of received CFPs	No	No	No	Yes	Yes	Yes	Yes	Yes
Increase/decrease number of participants	Decreased	Neither	Neither	Decreased	Avoided announcement	Neither	Neither	Neither
Increase/decrease the chance for better proposal	Increased	Increased	Increased	Increased	Unknown	Unknown	Neither	Increased
Blocked interaction management	No	No	Yes	No	No	Yes	Yes	No
Avoid repeating task announcement	No	Yes	No	No	No	No	No	No
Reduce CNP time	Yes	Yes	No	Unknown	Yes	Yes	No	No
Increase replies before deadlines	No	No	No	Unclear	No	No	No	Yes

3 The agent's sociability enhancement approach

This section introduces the problem of using a basic FIFO strategy to handle interaction initiations in multiagent systems, which often leads to delayed or failed responses due to deadline constraints. To address this, a machine learning-based approach is proposed to prioritize interaction initiations based on their probability of success. The goal is to enhance agent sociability by allowing agents to intelligently select and respond to initiations that are more likely to result in successful interactions.

3.1 Problem statement

Multiagent systems offer distributed solutions to various problems, in where, agents can accomplish their goals by coordinating and interacting through interaction protocols like Contract Net (CNP), request, etc. Conventional interaction protocols are not perfect and need to be extended to better handle some systems’ situations.⁴⁸

Initiators can send initiations to a number of participants, like requests or call for proposals (CFP). These initiations may be bounded to a limited time called deadline, which is the waiting time before starting responses’ evaluation. Participants must answer before the deadline reaches, where sometimes, they do not have enough time to do that. Initiations can be delayed due to network problems or posted in the participant message queue for a long time if it was busy or blocked.²⁴

Participants respond to initiations based on their receiving order. In this case, they can serve an initiation without deadline, an expired deadline or with a deadline that is going to be expired before the answer reaches the initiator. In all these situations, valuable responding times have been wasted that could be used to serve other initiations when they still have enough time. In this case, both initiators and participants have lost possible interactions which might give the best offers (Figure 1).

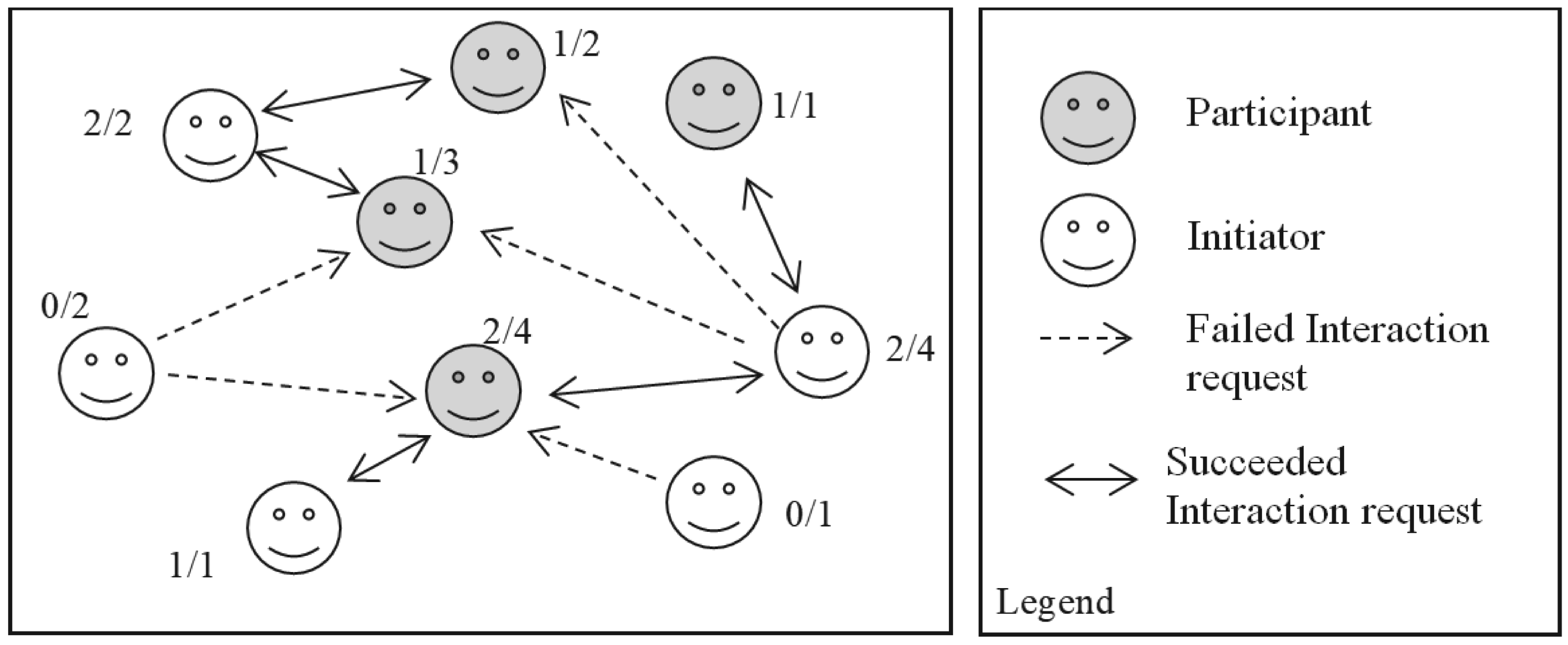

Figure 1.

Failed and succeeded interactions between initiators and participants.

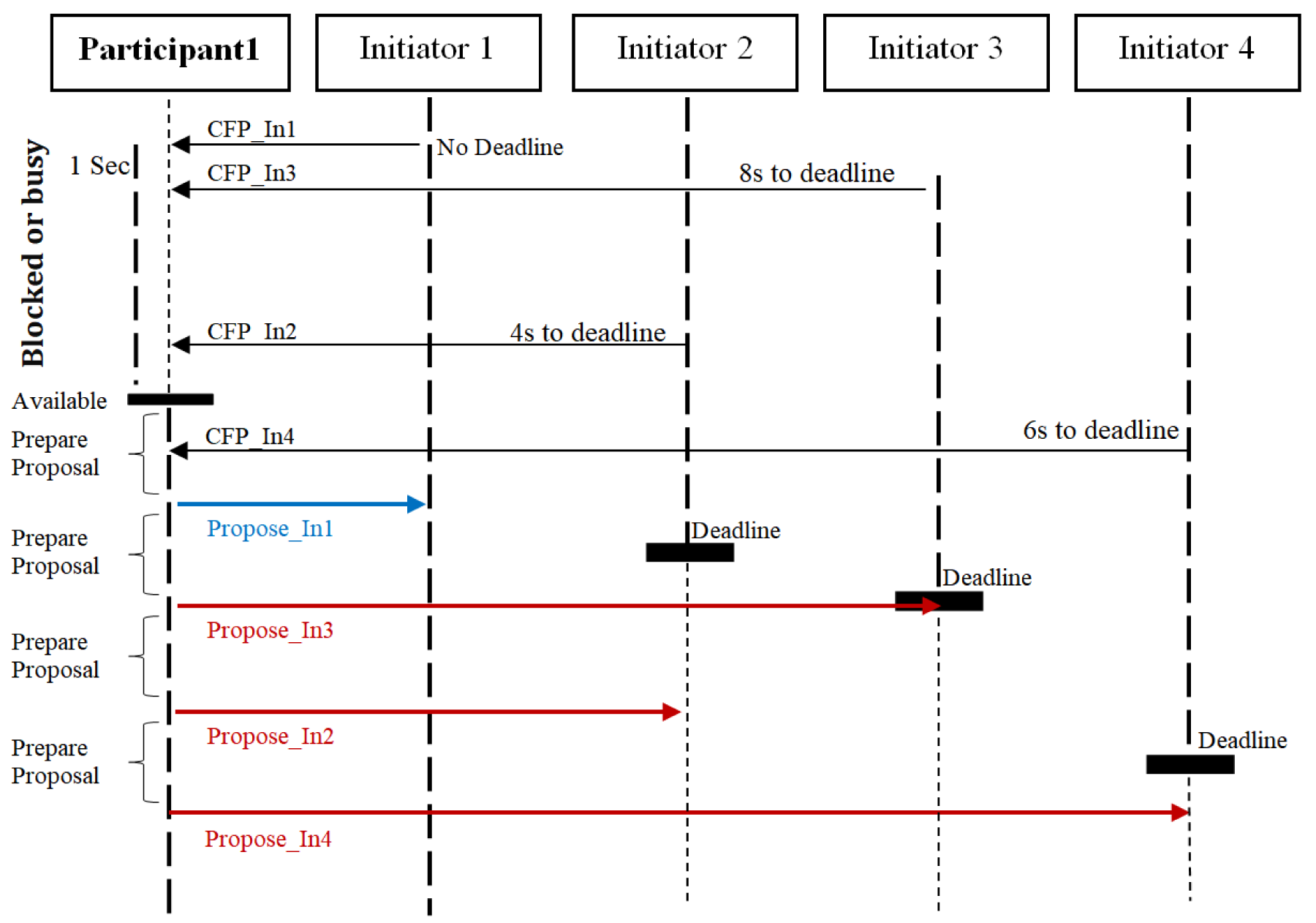

A possible interaction scenario is presented in Figure 2. A participant agent receives four CFPs from different initiators to initiate their interactions. The participant can participate to one or multiple interactions simultaneously. In both cases, it cannot prepare proposals at the same time.

Figure 2.

A possible interaction scenario with decreased agent sociability.

The CFPs are received at different times with different deadline constraints. The participant which has been unavailable during the reception of the first three CFPs decreases the remaining times for CFP_In2 and CFP_In3, where CFP_In1 has no time limit. The CFP_In4 arrives last during proposal creation for Initiator1, so it waits until the participant answers all the previous messages.

In the presented scenario, we suppose that there is no network delay and the CFPs are delivered quickly to the participant which can prepare one proposal in about 2 s. The remaining time to the deadline for each CFP is when the participant starts to serve it until the deadline reaches. Therefore, the more the CFP waits in the queue the less are the chances to reply before the deadline and to initiate a successful interaction. Increased numbers of CFPs affect others as well because more proposing times for some CFPs are more waiting times for others. If the network is slow then it already has taken some of the deadline constraints which make it even worse.

The participant in the presented scenario was able to answer to the first CFP_In1 which does not have any deadline constraint. This increased the waiting time of the CFP_In3 from 4 s when the participant was unavailable to 6 s after preparing a proposal for the previous CFP, adding 2 s to prepare its proposal makes it 8 s. Even if the delivery time is ignored, the deadline is still reached. So, in this case, it may or may not be succeeded. For the remaining CFPs, it was too late for the participant to respond to them, because their waiting time has exceeded the deadline.

In such scenarios, it is impossible to answer to all the CFPs in time, but managing them at first can increase interaction's initiation chance, which means more successful interactions and better agent sociability.

3.2 Extending interaction protocols using machine learning

Many tools and methodologies have been proposed in the literature to support the development of multiagent systems. However, maintenance of existing multiagent systems, which is an important research area, is not explored enough.^3,19,49

The proposed approach enhances agent sociability through interaction protocols and machine learning algorithms. The proposed approach allows the participant agent to avoid responding to three initiation cases while its message queue is not empty: (i) the initiation has no deadline, (ii) the initiation with an expired deadline, or (iii) the initiation with an expiring deadline before the response reaches the initiator.

The proposed approach's goal is to prioritize the received interactions requests based on their probability of success (Figure 3). According to the initiations types (CFPs), three priority levels have been proposed.

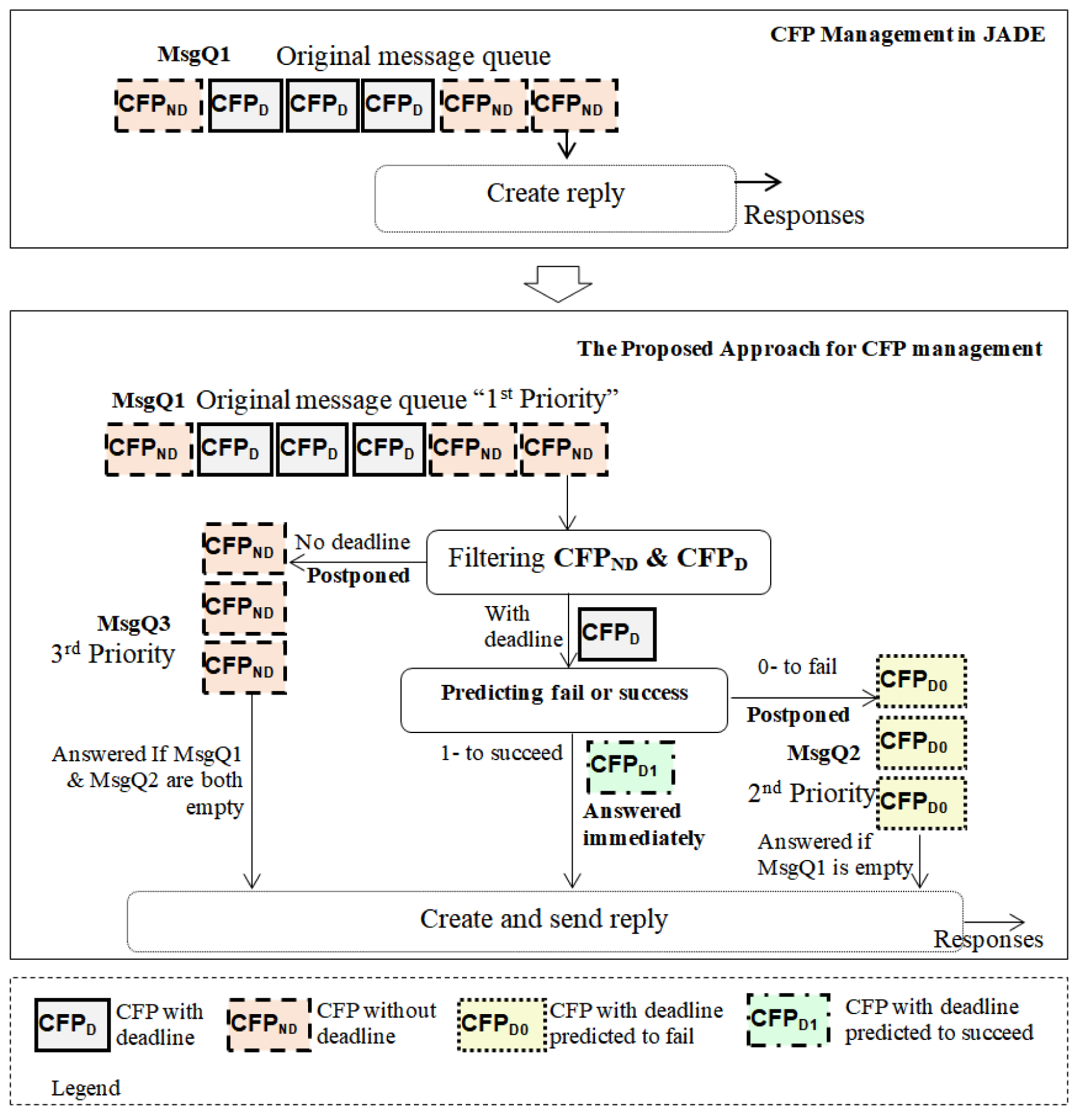

Figure 3.

CFP message handling in the participant agent side using the proposed approach.

At first, two types of CFPs can be categorized in the agent default message queue (MsgQ1): (i) CFPs with deadlines called “CFP_D”, and (ii) CFPs with no deadlines called “CFP_ND”. In the proposed approach, CFP_ND without deadlines are the last served ones in the 3^rd priority, so they must be postponed in another message queue (MsgQ3) and answered when all the CFP_D with deadlines are served. The CFP_D with deadlines can be categorized into two categories as well using a prediction process, which are: (a) “CFP_D1” which their replies may reach initiators before the deadlines (successful reply) and (b) “CFP_D0” which their replies may not reach before the deadline (failed reply). The CFP_D0 which have low chance to be replied in time are postponed for later in another message queue in the 2^nd priority (MsgQ2). Therefore, the remaining CFP_D1 types which have a higher chance to successfully initiate an interaction are in the 1^st priority, so they must be answered immediately.

To predict if a CFP_D has a chance to be replied before its deadline or not, the participant agent must save the history of its interactions. The saved data are used as training set for several machine learning algorithms. Next, these algorithms are validated to be able to select the best model for the prediction process (enhanced mode). While the interaction is in the enhanced mode, the participant keeps registering its history to retrain the algorithms afterwards (Figure 4).

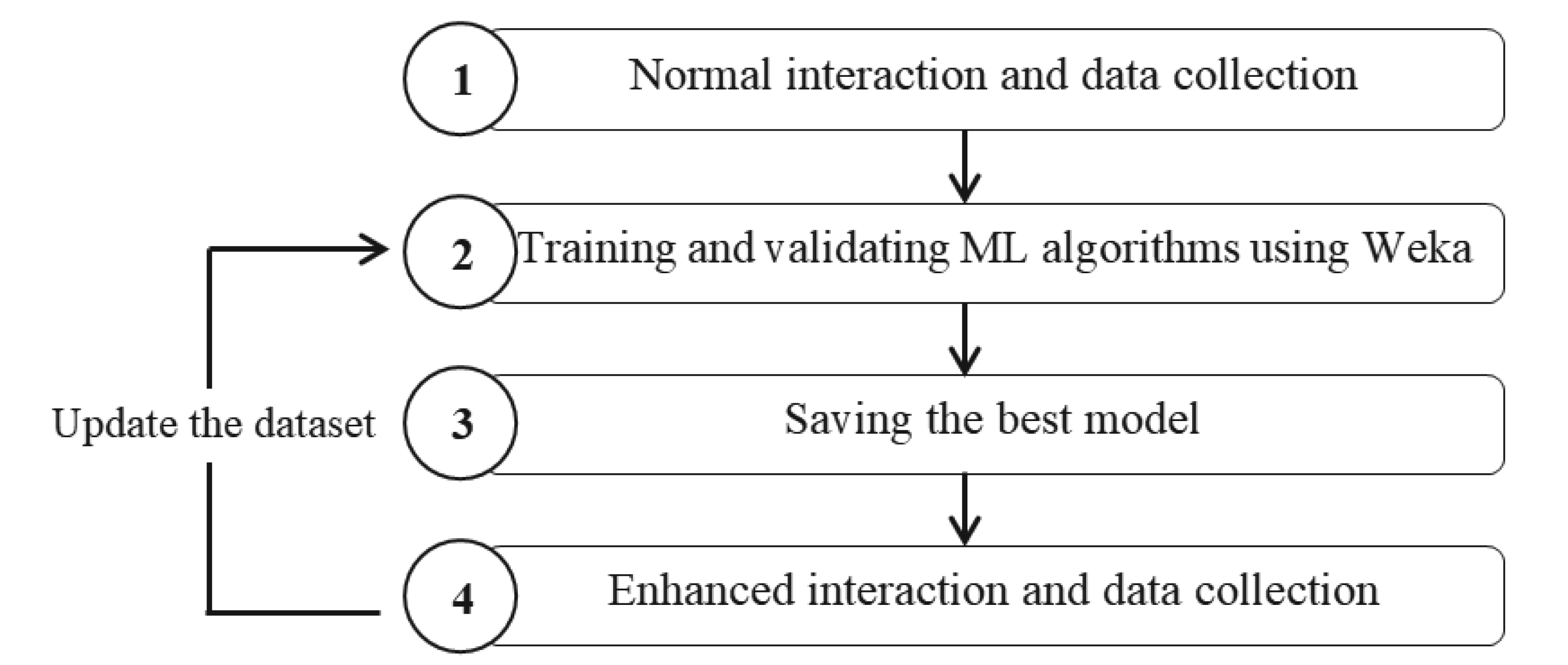

Figure 4.

Global overview of the proposed approach for continuous dataset updating.

3.2.1 Normal interaction and data collection

The proposed approach consists of predicting if the current interaction initiation is going to be successful or not based on three attributes: Remaining_time, Reply_time and a class attribute called outcome.

The first attribute is the Remaining_time (Figure 5), which is the difference between the deadline time and the message's read time (when it is extracted from the message queue) as calculated in equation (1). If the system under enhancement is distributed on different machines, then these machines must have a synchronized time, which can be easily done using a unique time server.

\begin{aligned} R e m a i n i n g_t i m e = D e a d l i n e_t i m e - R e a d_t i m e \end{aligned}

(1)

Figure 5.

The proposed attributes.

The second attribute is the Reply_time (Figure 5), which is the sum of two times “equation (2)”: (a) the proposing time, which is the necessary time to prepare only one proposal. It can be variable because it depends on the executed task and the used environment. Therefore, the mean of proposing times is calculated after each proposal to be used as the proposing time. (b) The second time is the delivery or the transmission time, which is also estimated. It represents the necessary time to deliver the proposal to the initiator. If the MAS platform does not record the delivery time like in the case of JADE then it can be obtained by calculating the time difference between the time of a message posting in the participant message queue and its sending time from the initiator by embedding this later in the sent CFP. For real distributed MAS over LAN or WAN a synchronized clock is required to obtain accurate timestamps in UTC (Coordinated Universal Time).

For distributed MAS over WAN where multiple networks can be deployed like GSM, satellite, wired…etc., where networks may suffer from perturbations, more attributes can be beneficial which describes the network state more efficiently. Using the external IP address and the initiator's AID can provide many possible new features via an API like container name, country, location, distance, ISP, network type…etc. Therefore, the features selection is what adapts the proposed approach to WAN distributed MAS with variable networks’ capabilities.

In this study, we already have many concerns to put together in order to validate the proposed approach. In consequence, only local interactions are considered, therefore the Reply_time attribute will not be as effective as the Remaining_time, unless the participant offers different services with different proposing times.

\begin{aligned} R e p l y_t i m e = P r o p o s i n g_t i m e + D e l i v e r y_t i m e \end{aligned}

(2)

The third attribute is the class named outcome initialized with “0”. When the initiator responds back to the participant's proposal with an accept or a reject, this means that the interaction was successful and the outcome attribute gets updated with “1”.

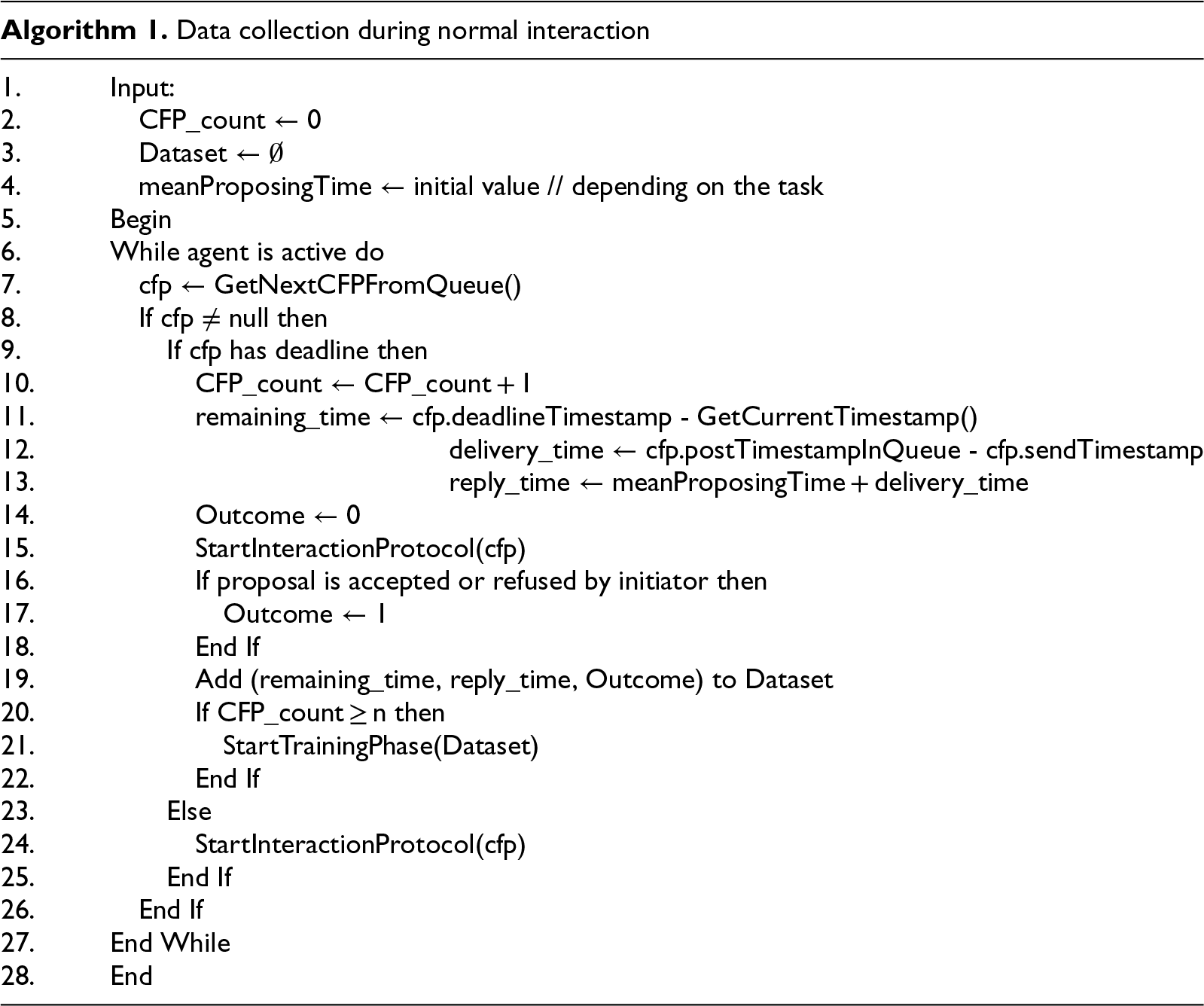

The training set is collected during a normal interaction (Algorithm 1) where only initiations with deadline constraints are committed at this stage (Filtering step). For every initiation, the participant creates a data instance containing the calculated remaining time, reply time and the outcome of the received initiation (Figure 6). When the desired training set size is achieved then the participant starts the training phase.

Figure 6.

The data collection phase of the participant agent.

Depending on the executed scenario and the stress of the MAS in term of CFP frequencies, the number of collected instances needed to trigger the training phase (“n”) may not provide high model's performance at this initial stage with normal interaction, because the dataset will inevitably exhibit a large class imbalance where the failure class dominates. This imbalance resulted from the FIFO policy in queue management on the participant side. Therefore, we either have to collect data with less stressed scenarios with logical CFPs frequencies or allow continuous dataset and model retraining during the enhanced mode. Even if the agent starts using a model with moderate performance, it continues to collect data, updates the dataset with more successful instances, and retrains the model. This iterative process progressively enhances the model's performance over time. Either ways, the circumstances of the scenarios will be replicated for the normal interaction and the proposed approach.

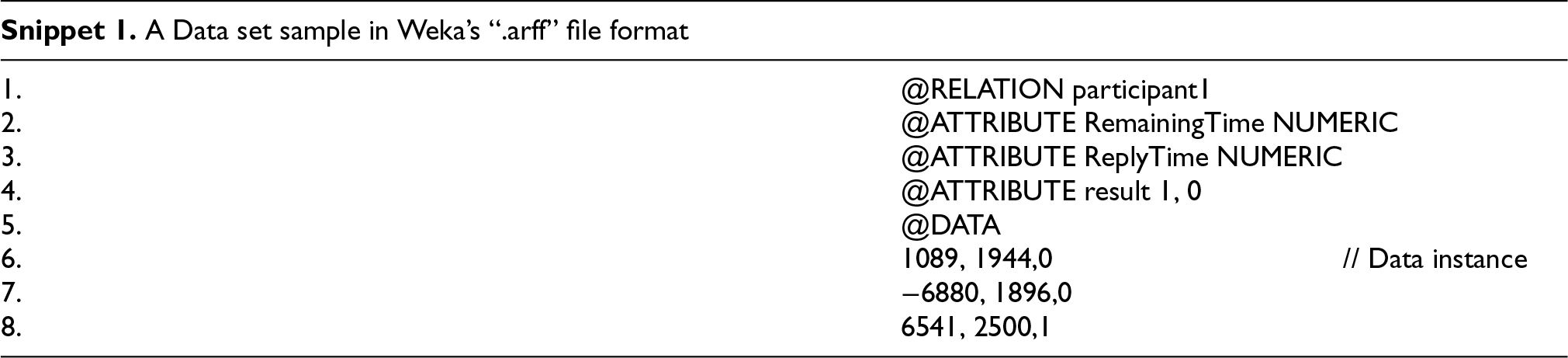

The ARFF file in Snippet 1 defines the dataset used in Weka⁵⁰ for training and evaluating a classification model. It includes the @RELATION tag which refers to the name of the dataset, two numeric attributes: RemainingTime and ReplyTime defined by the @ATTRIBUTE tag and a categorical attribute named result with two possible values {1, 0} for success and failure respectively. Each data row under @DATA corresponds to an individual interaction instance, with the calculated feature values and the actual outcome label.

3.2.2 Training and validating machine learning algorithms using Weka

The training phase is presented in Algorithm 2 where the dataset is used to train and validate several machine learning algorithms (binary classifiers). The used classifiers are: voted perceptron,⁵¹ logistic regression,⁵² multilayer perceptron, stochastic gradient descent (SGD),⁵³ simple logistic,^54,55 random forest,⁵⁶ random tree,⁵⁷ support vector machine using sequential minimal optimization (SMO),^58,59 naïve Bayes⁶⁰ and Bayes networks⁶¹ are validated using the 10 fold cross-validation method. The participant selects and saves the best model to be used later for predicting interactions’ outcomes.

The 10 fold cross-validation technique is used to obtain an estimate of the classifier's performance, by exploiting the entire dataset. This is achieved by doing several test iterations on different training and test sets, then averaging the results. The validation consists of randomly segmenting the initial data set into 10 disjoint subsets numbered from 1 to 10. At every test's iteration, only one subset is used as a test set while the other 9 subsets are used as a training set.

3.2.3 The enhancement phase

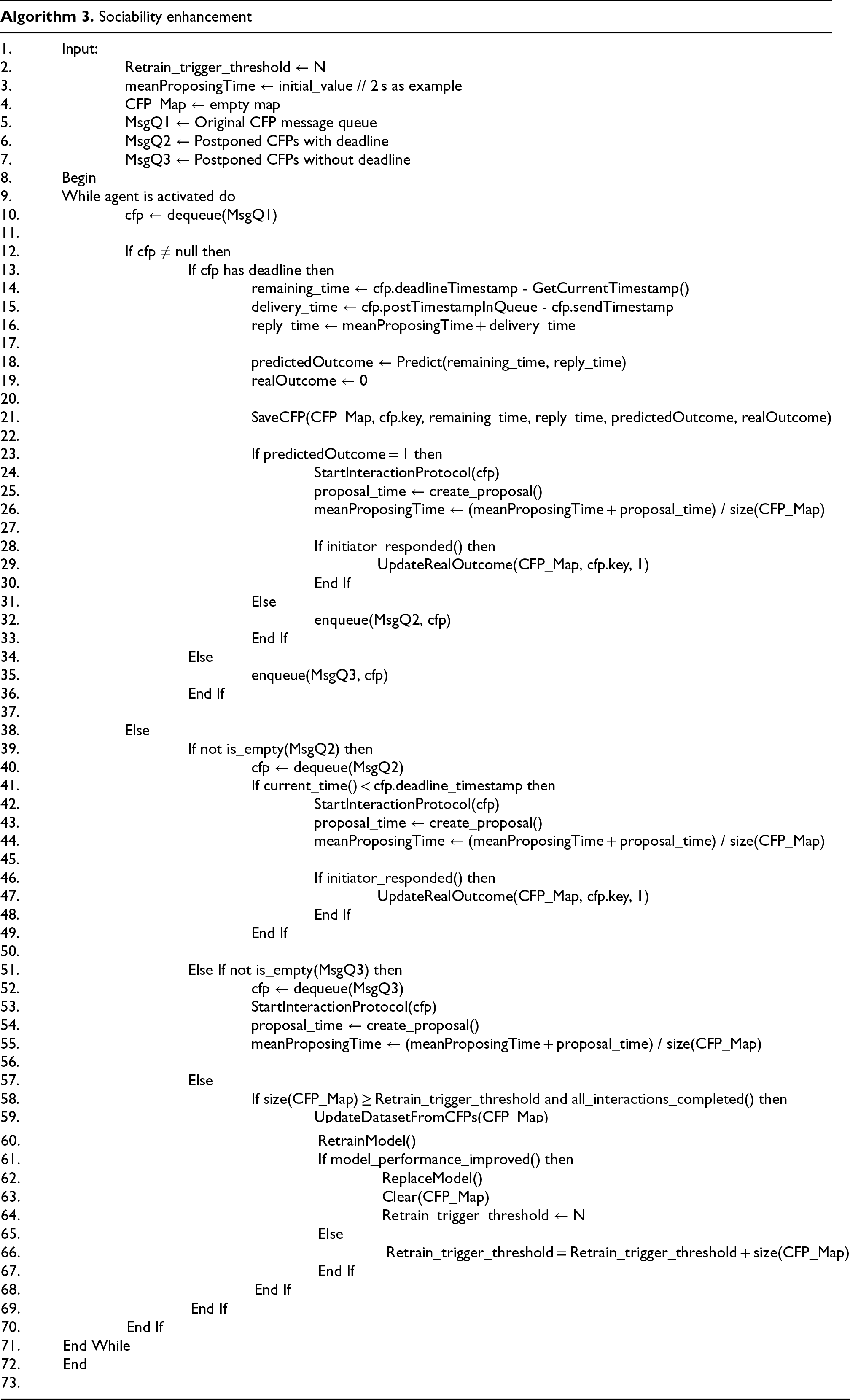

Algorithm 3 implements the sociability enhancement process. As mentioned previously, two types of CFP messages can be received by the participant: CFP_D (with deadlines) and CFP_ND (without deadlines).

When a CFP_D is received, the participant calculates the followings:

–
The remaining_time by subtracting the current timestamp from the CFP's deadline timestamp.
–
The delivery_time is computed as the difference between the CFP's post timestamp in the queue and its original send timestamp.
–
The reply_time is estimated as the sum of the meanProposingTime and delivery_time.

The participant predicts the outcome of this CFP_D using the Predict() function with the computed remaining_time, reply_time and the saved model. Each interaction is stored in CFP_Map by calling SaveCFP(), which records the CFP key, remaining_time, reply_time, the predictedOutcome, and an initial realOutcome set to 0.

If predictedOutcome equals 1, the participant starts the interaction immediately by calling StartInteractionProtocol(). Once the proposal is created (via create_proposal()), the actual proposal time is used to update the meanProposingTime dynamically, reflecting recent interaction speeds. If the initiator responds (checked via initiator_responded()), the realOutcome is updated to 1 using UpdateRealOutcome().

If the predictedOutcome is 0, the CFP_D is postponed by enqueuing it into MsgQ2 (the postponed CFPs with deadlines queue). Any CFP_ND (without deadline) is directly enqueued into MsgQ3.

When the main queue MsgQ1 becomes empty, the participant starts handling postponed CFP_Ds from MsgQ2. Before responding, it verifies whether each CFP_D's deadline has not yet passed (current_time() < cfp.deadline_timestamp). If valid, it proceeds similarly by starting the interaction, creating the proposal, updating meanProposingTime, and possibly updating the realOutcome.

If no CFP_D remain and MsgQ1 stills empty, the participant processes CFP_ND from MsgQ3. These are handled without deadline constraints but still update meanProposingTime based on actual proposal times.

When all queues are empty, and the number of entries in CFP_Map exceeds or equals Retrain_trigger_threshold, and no ongoing interactions exist (all_interactions_completed()), the participant updates the dataset using UpdateDatasetFromCFPs(). Then it retrains the model via RetrainModel(). If the new model outperforms the previous one (model_performance_improved()), it replaces the model by calling ReplaceModel(), clears CFP_Map, and resets the Retrain_trigger_threshold to its original value N. Otherwise, the threshold is increased by the current size of CFP_Map, delaying retraining until more data is collected.

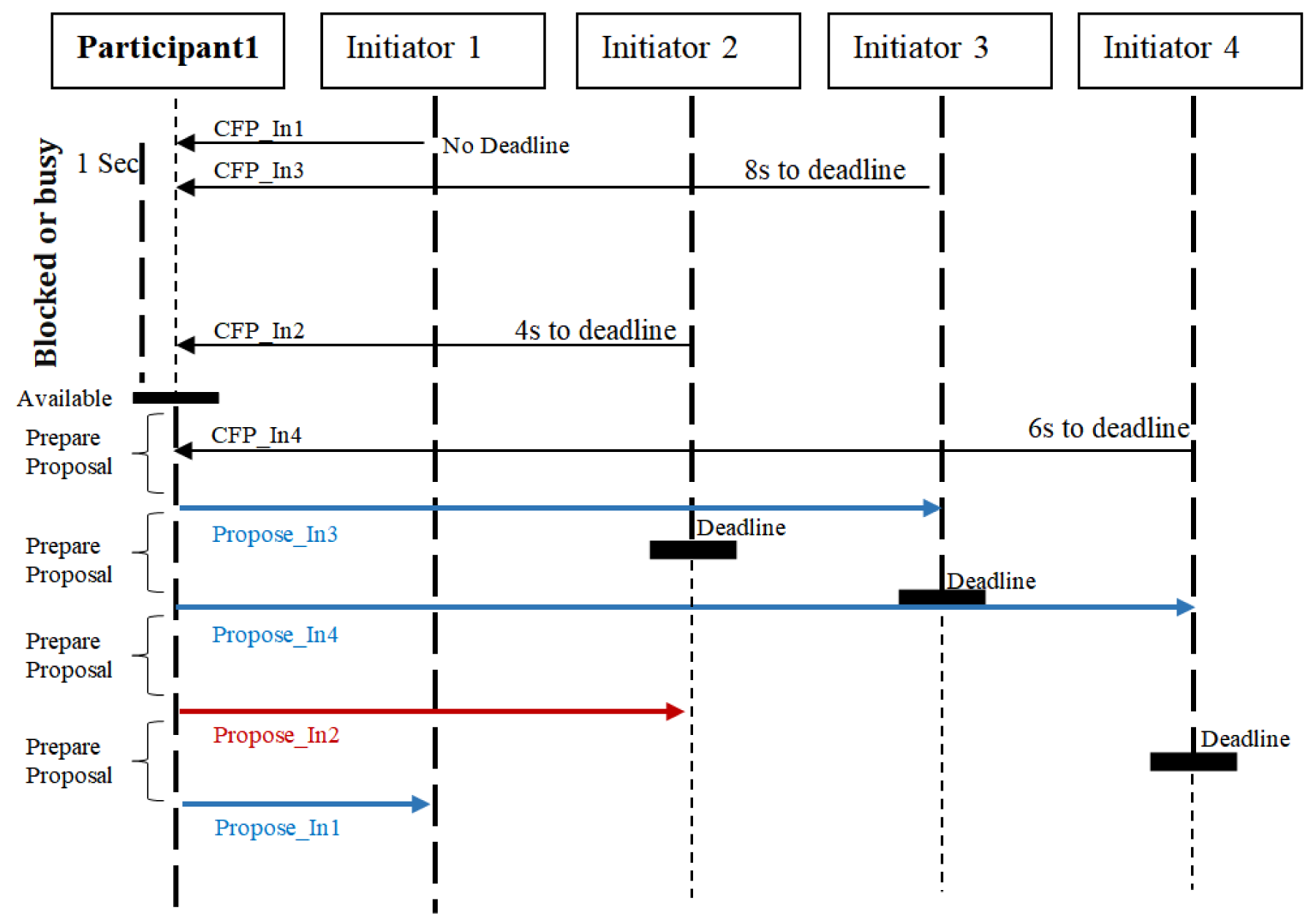

The following sequence diagram (Figure 7) shows the same scenario presented in the problem statement's section (Figure 2) but performed using the proposed approach. The participant agent begins to reply to the received CFPs when it is available. The participant replies to the CFP_In3 first, instead of the CFP_In1 which was filtered as a CFP_ND type and postponed for last. The CFP_In3 has 8 s before its deadline, where 4 s of them was wasted while the participant was blocked; this leaves only 4 s until the deadline as a remaining time. During this remaining time, the participant will spend approximately 2 s to send a reply leaving extra 2 s.

Figure 7.
The previous interaction scenario using the proposed approach.

Based on agent history and the two attributes (Remaining_time and Reply_time), the participant has predicted that the reply to this CFP_In3 has a high chance of success and replies to it immediately. Using the same process for the next CFP_In2 in message queue, gives a remaining time of 1 s and a reply time of 2 s. In this case, the participant has predicted that the reply of CFP_In2 has a low chance and it is most likely going to fail. Therefore, the CFP_In2 was postponed for later and the CFP_In4 takes its place with a remaining time of 5 s, reply time of 2 s and a prediction of a successful reply. When the participant has no other messages waiting in the queue, it starts to reply to the postponed CFP_D0. The CFP_In2 is the message to be replied at this step, which logically it should not be, because the deadline has already passed. If the postponed CFP_D0 list was not empty, then it would be inappropriate to reply to CFP_In2, because it just wastes 2 s of reply time that will delay the next postponed messages (CFP_D0). When all the CFP_D have been replied, the participant answers to the CFP_ND messages postponed earlier. The count of the successfully replied CFPs using the proposed approach is 3 out of 4 replies. In the other case, only 1 message out of 4 is surely successful because one of the replies will arrive to the initiator approximately at the same time when the deadline reaches, so it could be failed after counting initiators reading tasks.
4 Validation and discussion

To validate the proposed approach, two case studies have been used. Both of them are implementations of the Contract Net protocol under JADE platform. In each case study, different experiments have been performed under different conditions to create multiple scenarios. The same circumstances for each scenario have been replicated for the normal interaction and the proposed approach for fair comparisons.

4.1 The first case study

In each scenario of this implementation, multiple initiators are created to send CFPs to the same participant, where each CFP message may or may not have a deadline constraint (randomly). Furthermore, a time delay of 1 s has been used between initiators’ creation to reduce the load. The participant agent takes about 2 s in average to only prepare the proposal message.

In the data collection phase, the participant agent interacts in a normal CNP to register its interactions’ history. When the training set reaches 1000 instances, the participant trains multiple machine learning classifiers (training phase) offered by Weka and validates them using the 10 fold cross-validation method. The used classifiers are logistic regression, multilayer perceptron, stochastic gradient descent (SGD), simple logistic, voted perceptron, random forest, random tree, support vector machine (SMO), naïve Bayes and Bayes network.

Weka offers different metrics to evaluate the classifiers’ performance. These metrics can be calculated using the confusion matrix which helps to visualize the distribution of the correctly and misplaced instances. Weka presents the confusion matrix differently than other sources. The rows in Weka's confusion matrix represent the instances in the actual class, while the columns represent the instances in the predicted class. Since this is a binary classification, only two classes are involved which are the interaction success class (a = 1) and the interaction failure class (b = 0).

The Weka's confusion matrix definition is presented in Table 2. If we suppose that the interaction success class “a” to be the positives and the interactions failure class “b” as the negatives, then:

- TP (true positives) are the interaction correctly predicted to succeed,

- FP (false positives) are the interactions incorrectly predicted to succeed,

- TN (true negatives) are the interactions correctly predicted to fail,

- FN (false negatives) are the interactions incorrectly predicted to fail.

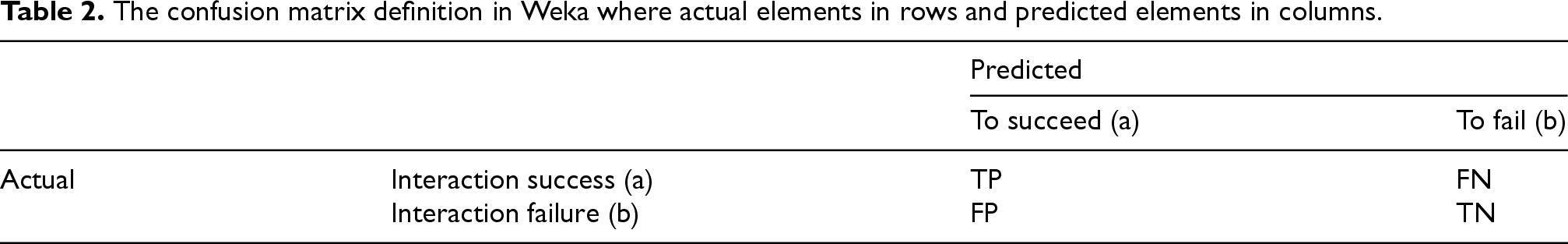

Table 2.
The confusion matrix definition in Weka where actual elements in rows and predicted elements in columns.

Predicted

To succeed (a) To fail (b)

Actual Interaction success (a) TP FN

Interaction failure (b) FP TN

		Predicted
Actual	Interaction success (a)	TP	FN
Interaction failure (b)	FP	TN

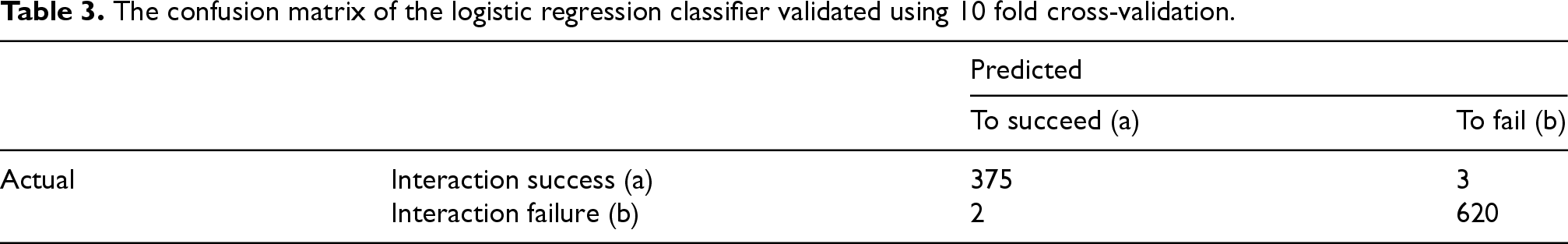

Table 3 presents the confusion matrix of the logistic regression's 10 fold cross-validation. Using this matrix, we can find the number of correctly and incorrectly predicted interactions, which leads us to the first metric called the Accuracy. This latter is the ratio of the number of correct predictions on the total number of all predictions. In the case of this classifier, accuracy is 99.5%, where 995 interactions were correctly classified and 5 interactions were incorrectly classified.

Table 3.

The confusion matrix of the logistic regression classifier validated using 10 fold cross-validation.

		Predicted
		To succeed (a)	To fail (b)
Actual	Interaction success (a)	375	3
Actual	Interaction failure (b)	2	620

Table 4 shows some detailed metrics for each class resulted from the validation of the logistic regression model using 10 fold cross-validation. The TP Rate (True Positive Rate) also called the recall or the sensitivity is the fraction of the total number of relevant instances that were actually classified. In other words, it is the number of the correct predictions in a given class divided by the total elements of that class.

Table 4.

The detailed results for the 10 fold cross-validation of the logistic regression classifier.

	TP Rate	FP Rate	Precision	Recall	F-Measure	ROC	PRC	class
	0.992	0.003	0.995	0.992	0.993	0.999	0.999	1
	0.997	0.008	0.995	0.997	0.996	0.999	0.999	0
Weighted Avg.	0.995	0.006	0.995	0.995	0.995	0.999	0.999

Weka offers the weighted average of its rates which is calculated to give a single value for both classes “equation (3)”. The weighted average is used instead of a simple average because of the imbalance that can be present in the data set. Imbalanced classes mean that a given class has more instances than the other. Therefore, the number of instances is used as weights to calculate the weighted average. In the used training set there are 378 instances labeled as class “a” (Weight_a) and 622 labeled as class “b” (Weight_b).

\begin{aligned} W e i g h t e d A v g . R e c a l l | T P R a t e = \frac{(R e c a l l_{a} \times W e i g h t_{a}) + (R e c a l l_{b} \times W e i g h t_{b})}{(W e i g h t_{a} + W e i g h t_{b})} \end{aligned}

(3)

The FP Rate (False Positive Rate) is the number of the incorrect predictions in a given class divided by the total elements of the other class. If class “a” is the positives then the FP rate is the number of interactions incorrectly predicted to succeed divided by the number of all the failed interactions.

The Precision which is also called the positive predicted value (PPV) can answer the question: how many selected elements are relevant? It is the number of the correct predictions of a class divided by the total of predictions of the same class.

The F-Measure is the harmonic mean of precision and recall which gives an overall score that depicts how well our model is performing? Weighted average F-Measure is calculated using the f-measures of both classes and not with the weighted averages of precision and recall.

Weka also offers very important metrics for each class which are the ROC (Receiver Operating Characteristic) and PRC (Precision- Recall) curves. ROC curve is constructed using TPR and FPR, when the PRC is created using precision and recall. The values presented by Weka for these metrics are called the Area Under Curve (AUC). These AUC values are obtained using the getROCArea() and getPRCArea() functions of weka.classifiers.evaluation.ThresholdCurve java class. The AUC is the probability that a classifier will predict an instance correctly.

In certain applications, one class can be more important than the other, so the classifiers must have some trade-off between metrics to be able to classify the desired class as best as possible even if the classification performance for the other class decreases to an acceptable limit (ex. healthy or diseased patient). In this study, predicting correctly in both classes is very important, because if the model classifies an actual fail interaction as a successful one then the participant will lose time in processing its CFP message, which propagates over the rest of the CFPs in the message queue. Therefore, to better describe the results of both classes in less space the weighted average of the previous metrics is presented.

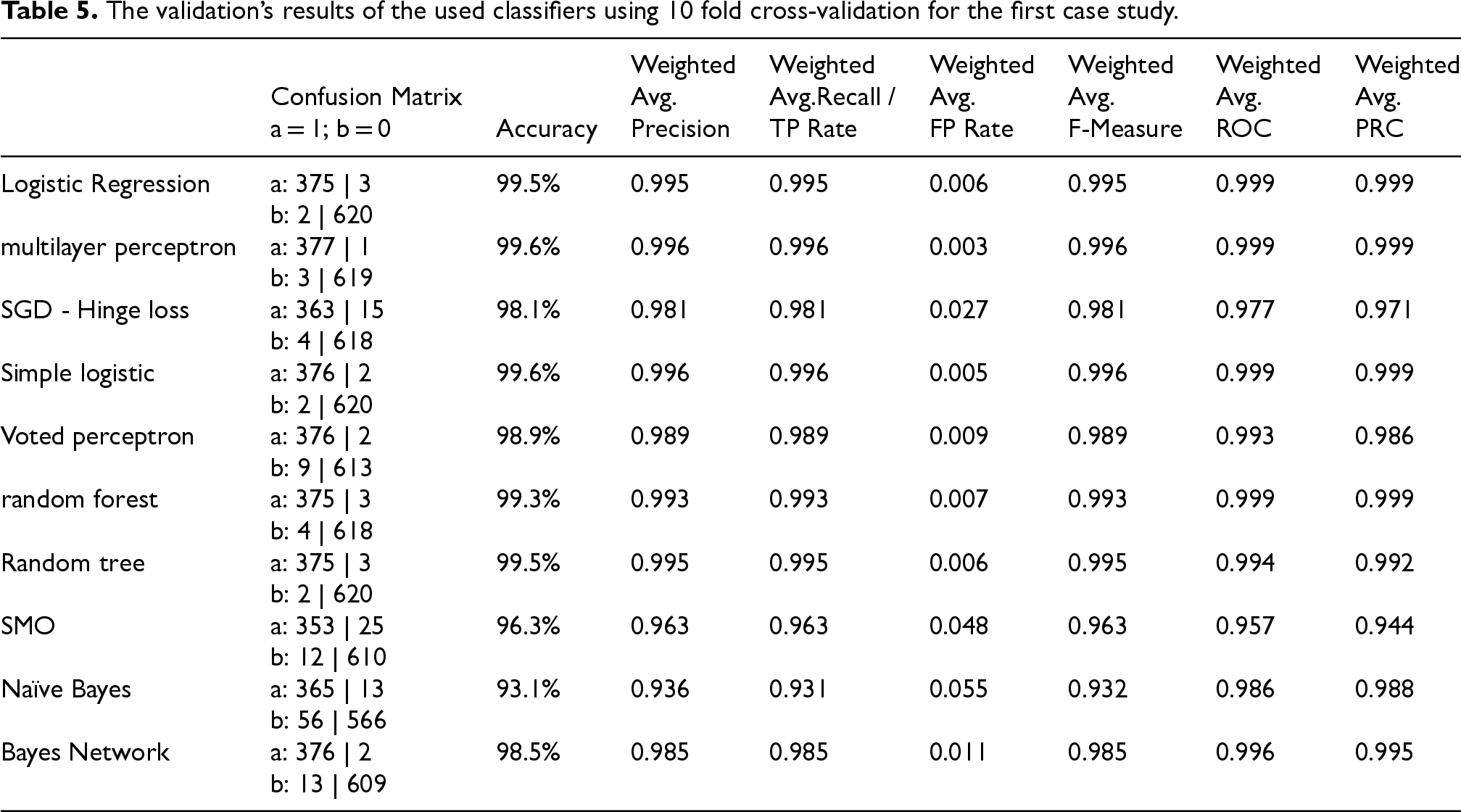

Table 5 summaries the results of the 10 fold cross-validation method applied on the selected classifiers. The accuracy of the used classifiers was very promising starting from 93.1% with the naïve Bayes algorithm to 99.6% with simple logistic and voted perceptron. As reported in previous studies, accuracy can be misleading in imbalanced datasets. Consequently, comparing classifiers using ROC and PRC is more appropriate. The ROC is based on TP rate and FP rate, the best ROC values are found with high TP rates and low FP rates which are the cases with logistic regression, multilayer perceptron, simple logistic and random forest where the TP rate is more than 99.3% and the FP rate is less than 0.7% with AUC of 0.999. The PRC is based on precision and recall, which both of them must have high values for the PRC to be good which is the case for the same classifiers with also the best ROC values where there are more than 99.3% in precision and recall and 0.999 in PRC. Other classifiers also performed very well on this validation, noting that SMO and naïve Bayes have registered more false positives and false negatives than the other classifiers but they still have very good ROC and PRC values. Since multiple classifiers have the same performance measures, the logistic regression has been selected randomly among them to be used as the model for predicting interactions outcome in the enhancement phase.

Table 5.

The validation's results of the used classifiers using 10 fold cross-validation for the first case study.

			Weighted	Weighted	Weighted	Weighted	Weighted	Weighted
	Confusion Matrix		Avg.	Avg.Recall /	Avg.	Avg.	Avg.	Avg.
	a = 1; b = 0	Accuracy	Precision	TP Rate	FP Rate	F-Measure	ROC	PRC
Logistic Regression	a: 375 \| 3	99.5%	0.995	0.995	0.006	0.995	0.999	0.999
	b: 2 \| 620
multilayer perceptron	a: 377 \| 1	99.6%	0.996	0.996	0.003	0.996	0.999	0.999
	b: 3 \| 619
SGD - Hinge loss	a: 363 \| 15	98.1%	0.981	0.981	0.027	0.981	0.977	0.971
	b: 4 \| 618
Simple logistic	a: 376 \| 2	99.6%	0.996	0.996	0.005	0.996	0.999	0.999
	b: 2 \| 620
Voted perceptron	a: 376 \| 2	98.9%	0.989	0.989	0.009	0.989	0.993	0.986
	b: 9 \| 613
random forest	a: 375 \| 3	99.3%	0.993	0.993	0.007	0.993	0.999	0.999
	b: 4 \| 618
Random tree	a: 375 \| 3	99.5%	0.995	0.995	0.006	0.995	0.994	0.992
	b: 2 \| 620
SMO	a: 353 \| 25	96.3%	0.963	0.963	0.048	0.963	0.957	0.944
	b: 12 \| 610
Naïve Bayes	a: 365 \| 13	93.1%	0.936	0.931	0.055	0.932	0.986	0.988
	b: 56 \| 566
Bayes Network	a: 376 \| 2	98.5%	0.985	0.985	0.011	0.985	0.996	0.995
	b: 13 \| 609

In the enhancement phase, different interaction scenarios have been performed to validate the proposed approach. In each scenario (iteration) there was only one participant which receives one CFP from multiple initiators. The number of CFPs was increased by 20 CFPs in each new scenario, starting with 20 initiators in the first one to 500 initiators in the last one (25 iterations). The CFPs’ deadlines were randomly generated from 0 to 14 s then saved to be used twice in the same order during the same iteration, first for normal CNP's interactions and secondly for the proposed approach's interactions (each iteration has one scenario performed twice, which means 50 experiments in total). The 25 scenarios are totally random and different than each other. The participant registers its predictions and its corresponding real outcomes, to be able to evaluate the enhancement process. During these evaluations, the registered real outcomes are not used for updating the data set or the model.

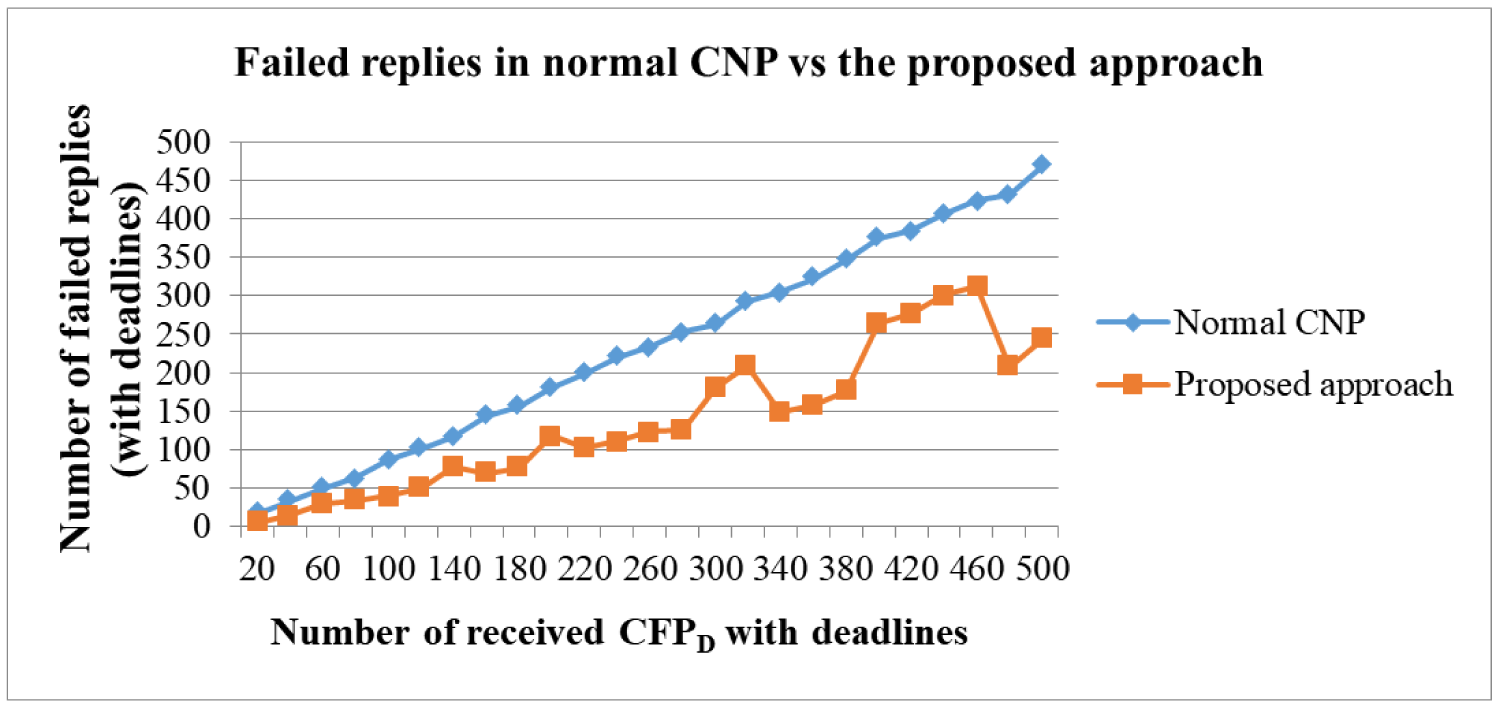

The results of the normal CNP and the proposed approach are presented in Table 6. The improvement percentage defined by equation (4) has been used for each scenario to show the impact of the proposed approach on the sociability of the participant agent.

\begin{aligned} I m r p o v e m e n t p e r c e n t a g e = (\frac{S u c c e e d e d C F P_{D} E n h a n c e d C N P - S u c c e e d e d C F P_{D} N o r m a l C N P}{S u c c e e d e d C F P_{D} N o r m a l C N P}) \times 100 \end{aligned}

(4)

Table 6.

Replied CFPs using normal CNP and the proposed approach for the first case study.

			Normal CNP			Proposed approach
	CFP_ND	CFP_D		Failed			Failed		Improvement
Number of	without	with	Succeeded	(reached after	SD_IP	Succeeded	(reached after	SD_IP	Percentage
CFPs	deadline	deadline	CFP_D	deadline)	[0–1]	CFP_D	deadline)	[0–1]	(With deadline)
20	0	20	4	16	0.20	15	5	0.75	275%
40	2	38	6	32	0.16	23	15	0.61	283%
60	4	56	8	48	0.14	26	30	0.46	225%
80	9	71	8	63	0.11	38	33	0.54	375%
100	8	92	6	86	0.07	53	39	0.58	783%
120	12	108	8	100	0.07	59	49	0.55	638%
140	16	124	8	116	0.06	47	77	0.38	488%
160	11	149	5	144	0.03	80	69	0.54	1500%
180	18	162	6	156	0.04	86	76	0.53	1333%
200	15	185	4	181	0.02	66	119	0.36	1550%
220	11	209	10	199	0.05	107	102	0.51	970%
240	16	224	5	219	0.02	113	111	0.50	2160%
260	17	243	9	234	0.04	120	123	0.49	1233%
280	19	261	8	253	0.03	136	125	0.52	1600%
300	28	272	9	263	0.03	92	180	0.34	922%
320	20	300	7	293	0.02	91	209	0.30	1200%
340	26	314	9	305	0.03	165	149	0.53	1733%
360	30	330	8	322	0.02	173	157	0.52	2063%
380	25	355	8	347	0.02	180	175	0.51	2150%
400	19	381	7	374	0.02	116	265	0.30	1557%
420	27	393	8	385	0.02	117	276	0.30	1363%
440	25	415	8	407	0.02	114	301	0.27	1325%
460	32	428	3	425	0.01	115	313	0.27	3733%
480	42	438	6	432	0.01	230	208	0.53	3733%
500	24	476	7	469	0.01	233	243	0.49	3229%

The bold columns indicate the data used to calculate the improvement percentage according to Equation (4).

As expected in both approaches, all the CFP_ND without deadlines were replied successfully. Unfortunately, this was not the case for the CFP_D. Only 1 to 15% of the CFP_D were succeeded during the majority of the normal CNP scenarios. When the number of CFPs was increased, the number of succeeded replies in the normal CNP was very low and stable during all the scenarios. This is explained in the increased count of the failed replies, where the more CFPs were involved the more fails were obtained.

Taking the 460 CFPs scenario as an example: There are 32 CFP_ND (CFPs without deadlines) that are excluded from the evaluation, because they always succeed. This leaves us with 428 CFP_D (CFPs with deadlines). From these 428 CFP_D, only 3 of them succeeded using the normal Contract Net Protocol, while 115 succeeded with the proposed approach. So, going from 3 to 115 interactions means a 37x increase which corresponds to the 3733% improvement. Even though the proposed approach still lost 313 CFPs from the 428, this is still considered a promising result compared to the normal interaction, which only succeeded in 3 interactions.

In software quality of multiagent systems’ literature, agent sociability is commonly described as the agent's capacity to interact with other agents (and possibly humans) to achieve individual or shared goals.

In this paper, sociability is addressed from interaction protocols point of view, particularly focusing on an agent's ability to respond to interaction initiations (CFPs) in limited time. While this may initially appear narrow, the interaction protocols contribute to the concept of sociability by engaging with structured, goal-oriented communication patterns, such as the FIPA Contract-Net Protocol. These protocols go beyond simple ACL message exchanges and are central to enabling the major properties of sociability: cooperation, negotiation, and communication.

We give a formal definition for sociability in the context of interaction protocols by the capacity of an agent to preserve interactions. It means that the agent commits to an interaction before its deadline, ensuring that it is not wasted at the very first stage. Therefore, we propose a new metric named Sociability Degree via Interaction Protocols (SD_IP) defined as follows:

\begin{aligned} S D_{I P} = \frac{| P |}{| I |} \end{aligned}

(5)

where:

- P is the set of all preserved interactions.

- I is the set of all interaction opportunities manifested in the number received initiations.

How can identify the preserved interactions P?

By examining the FIPA interaction protocols⁶² we can categorize these protocols into two categories. In the first category, after the participant submits a prosal, the initiator replies back, as in Contract Net protocol, FIPA Dutch Auction Interaction Protocol, FIPA English Auction Interaction Protocol.

In the second category, the initiator only sends the initial message without providing any further reply to the participant as in FIPA Propose Interaction Protocol, Request When Interaction Protocol, FIPA Request Interaction Protocol, FIPA Subscribe Interaction Protocol…etc.

Thus, for the first category where the initiator is expected to respond, it becomes possible for the participant to define and track the set of preserved interactions P, since these interactions involve a clear acknowledgment or feedback from the initiator.

Therefore, for each interaction i ∈ I, we define an indicator function R_i as:

\begin{aligned} R_{i} = {\begin{array}{ll} 1, & i f t h e i n i t i a t o r r e p l i e s (a c c e p t, r e j e c t \dots e t c .) \\ t o t h e p a r t i c i p a n t i n i n t e r a c t i o n i; \\ 0, & O t h e r w i s e . \end{array} \end{aligned}

(6)

Using this, we define the set of preserved interactions as:

\begin{aligned} P = {i \in I | R_{i} = 1} \end{aligned}

(7)

For the second category, the preserved interactions set P for a given participant must be identified by every initiator for each initiation. The condition for preserving interaction is in this case is:

\begin{aligned} t_{r e p l y}^{i} < d_{i} \end{aligned}

(8)

where:

$d_{i}$ : Deadline specified by the initiator (absolute time by which the reply must arrive).

$t_{reply}^{i}$ : Actual time the reply is received by the initiator.

this case, For each interaction i∈ I, we define an indicator function R_i as:

\begin{aligned} R_{i} = {\begin{cases} 1, & i f t_{r e p l y}^{i} < d_{i}; \\ 0, & O t h e r w i s e . \end{cases} \end{aligned}

(9)

Therefore, the SD_IP is then given by:

\begin{aligned} Sociability Degree via Interaction Protocols (S D_{I P}) = \frac{| P |}{| I |} = \frac{\sum_{i \in I} R_{i}}{| I |} \end{aligned}

(10)

This ratio quantifies the fraction of interaction opportunities that we successfully preserved by the agent, meaning the agent's proposals were actually received and answered by the initiator, thus confirming that these interactions were not wasted.

In Our Study, since that the initiator replies to the proposal of the participant then we were able to calculate the SD_IP from the participant side using only CFP_D.

In the proposed approach, the results were way better, where the participant was able to successfully reply to 30 up to 75% of the CFP_D with a mean SD_IP in all scenarios equal to 0.47. When the number of CFPs was increased, the successful replies were increased as well, even that they were sometimes decreased compared to previous iteration as shown in Figure 8. This is because each scenario has different deadlines in different order than the previous one.

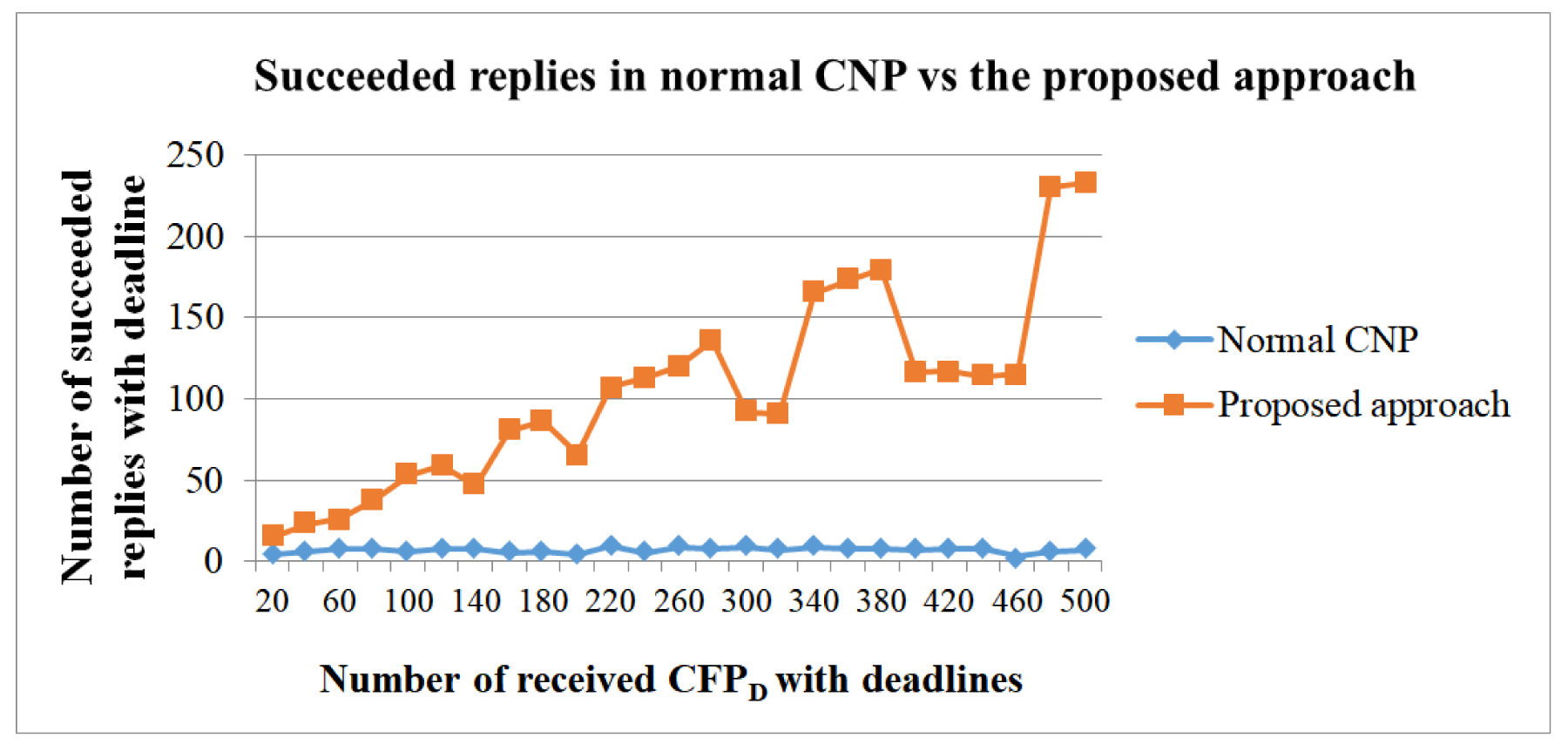

Figure 8.

Comparison of the number of succeeded replies between the normal CNP and the proposed approach for the first case study.

Compared to the normal CNP, the failed replies number has been decreased significantly as shown in Figure 9. In a percentage point of view, the participant maintained about 29% of the CFP_D as its failed replies percentage. The improvement percentages in Table 6 show the effectiveness of the proposed approach in improving agent sociability up to 3700%, especially when the received CFPs number is increased.

Figure 9.

Comparison of the number of failed replies between the normal CNP and the proposed approach for the first case study.

4.2 The second case study

In this implementation, the participant offers 3 different services. (i) A data search service which takes 10 s to perform, (ii) a file download service which takes 20 s to perform and (iii) a file upload service which takes 30 s to perform. Initiators can request only one service with 1 or 2 min as deadlines (CFP_D only). Furthermore, 10 s interval has been used between initiators’ creation (Figure 10). The validation has been performed in 8 iterations designated by CFP_D number starting from 10 to 200 CFP. Three (03) scenarios have been performed for each iteration which means 24 different scenarios. Each scenario is performed twice for the normal CNP and the proposed approach (48 experiments in total).

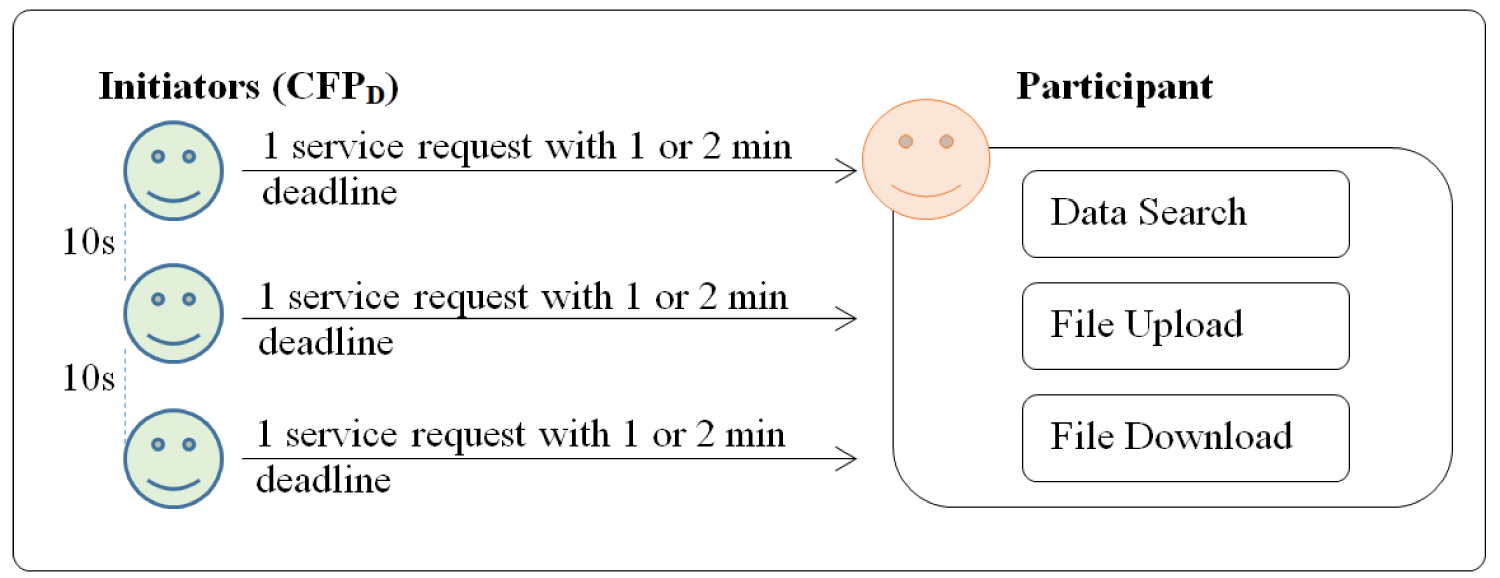

Figure 10.

A scenario of the second case study.

The previously selected classifiers were applied on this case study as well. These classifiers were validated using the 10 fold cross-validation method. This data set has 1035 instances which contain 568 instances labeled as class 0 and 467 instances labeled as class 1. Noting that the Remaining_time attribute in this case cannot predict the outcome alone because there are three different proposing times depending on the selected service. Therefore, the Reply_time attribute has more impact on the prediction process differently than the first case study. The validation results presented in Table 7 show very high performance scores in all the classifiers especially with logistic regression which is used as the prediction model for the enhancement phase.

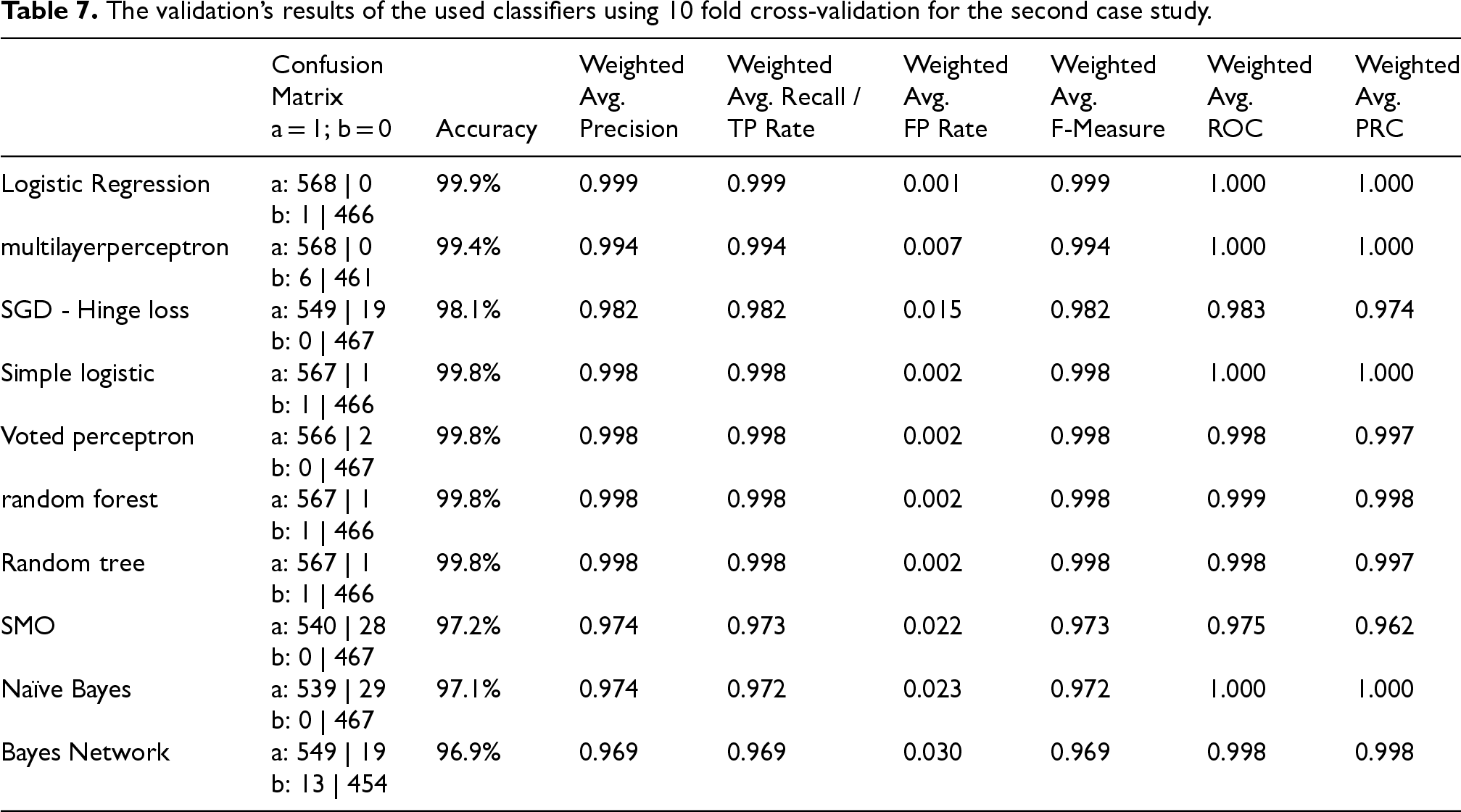

Table 7.

The validation's results of the used classifiers using 10 fold cross-validation for the second case study.

	Confusion		Weighted	Weighted	Weighted	Weighted	Weighted	Weighted
	Matrix		Avg.	Avg. Recall /	Avg.	Avg.	Avg.	Avg.
	a = 1; b = 0	Accuracy	Precision	TP Rate	FP Rate	F-Measure	ROC	PRC
Logistic Regression	a: 568 \| 0	99.9%	0.999	0.999	0.001	0.999	1.000	1.000
	b: 1 \| 466
multilayerperceptron	a: 568 \| 0	99.4%	0.994	0.994	0.007	0.994	1.000	1.000
	b: 6 \| 461
SGD - Hinge loss	a: 549 \| 19	98.1%	0.982	0.982	0.015	0.982	0.983	0.974
	b: 0 \| 467
Simple logistic	a: 567 \| 1	99.8%	0.998	0.998	0.002	0.998	1.000	1.000
	b: 1 \| 466
Voted perceptron	a: 566 \| 2	99.8%	0.998	0.998	0.002	0.998	0.998	0.997
	b: 0 \| 467
random forest	a: 567 \| 1	99.8%	0.998	0.998	0.002	0.998	0.999	0.998
	b: 1 \| 466
Random tree	a: 567 \| 1	99.8%	0.998	0.998	0.002	0.998	0.998	0.997
	b: 1 \| 466
SMO	a: 540 \| 28	97.2%	0.974	0.973	0.022	0.973	0.975	0.962
	b: 0 \| 467
Naïve Bayes	a: 539 \| 29	97.1%	0.974	0.972	0.023	0.972	1.000	1.000
	b: 0 \| 467
Bayes Network	a: 549 \| 19	96.9%	0.969	0.969	0.030	0.969	0.998	0.998
	b: 13 \| 454

The results in Table 8 show the scalability problem during the normal CNP evaluation. In this case, the participant couldn’t increase its sociability when more initiators (or CFPs) were involved. The percentage of the succeeded replies has been dropped from 70% in the first iteration to 2% and 3% in the last two iterations. In the contrary with the proposed approach, the participant has successfully replied from 50% to 70% of the received initiations during all the iterations. The improvement percentage of all the performed scenarios has been presented as well. The enhancement was noticed from the 3^rd scenario of the first iteration with 40% performance increase up to 2800% performance increase in the 2^nd scenario of the 7^th iteration.

Table 8.

The successfully replied CFPs during the second case study.

	Normal CNP			The proposed approach			Improvement percentage
Number of CFPs	1^st	2^nd	3^rd	1^st	2^nd	3^rd	1^st	2^nd	3^rd
10	7	7	5	7	7	7	0%	0%	40%
20	6	8	11	13	12	13	117%	50%	18%
30	5	13	4	20	21	16	300%	62%	300%
40	4	7	6	23	23	25	475%	229%	317%
50	6	10	7	29	26	31	383%	160%	343%
100	8	10	9	51	53	59	538%	430%	556%
150	9	3	5	82	87	88	811%	2800%	1660%
200	11	5	8	105	122	111	855%	2340%	1288%

To visualize the agent's sociability difference between the normal CNP and the proposed approach, the means of the succeeded replies’ percentages have been used (Table 9). In each iteration, the mean of the three scenarios is calculated then turned into a percentage using equation (11).

\begin{aligned} M e a n p e r c e n t a g e o f s u c c e e d d e d r e p l i e s = \frac{M e a n (1 s t, 2 n d, 3 r d)}{N u m b e r o f C F P s} \end{aligned}

(11)

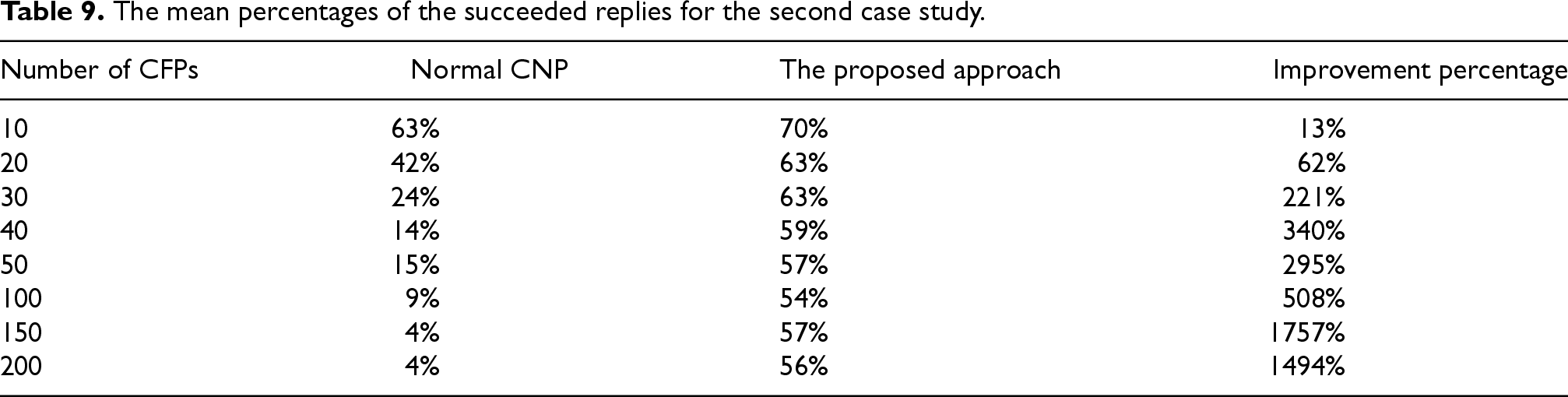

Table 9.

The mean percentages of the succeeded replies for the second case study.

Number of CFPs	Normal CNP	The proposed approach	Improvement percentage
10	63%	70%	13%
20	42%	63%	62%
30	24%	63%	221%
40	14%	59%	340%
50	15%	57%	295%
100	9%	54%	508%
150	4%	57%	1757%
200	4%	56%	1494%

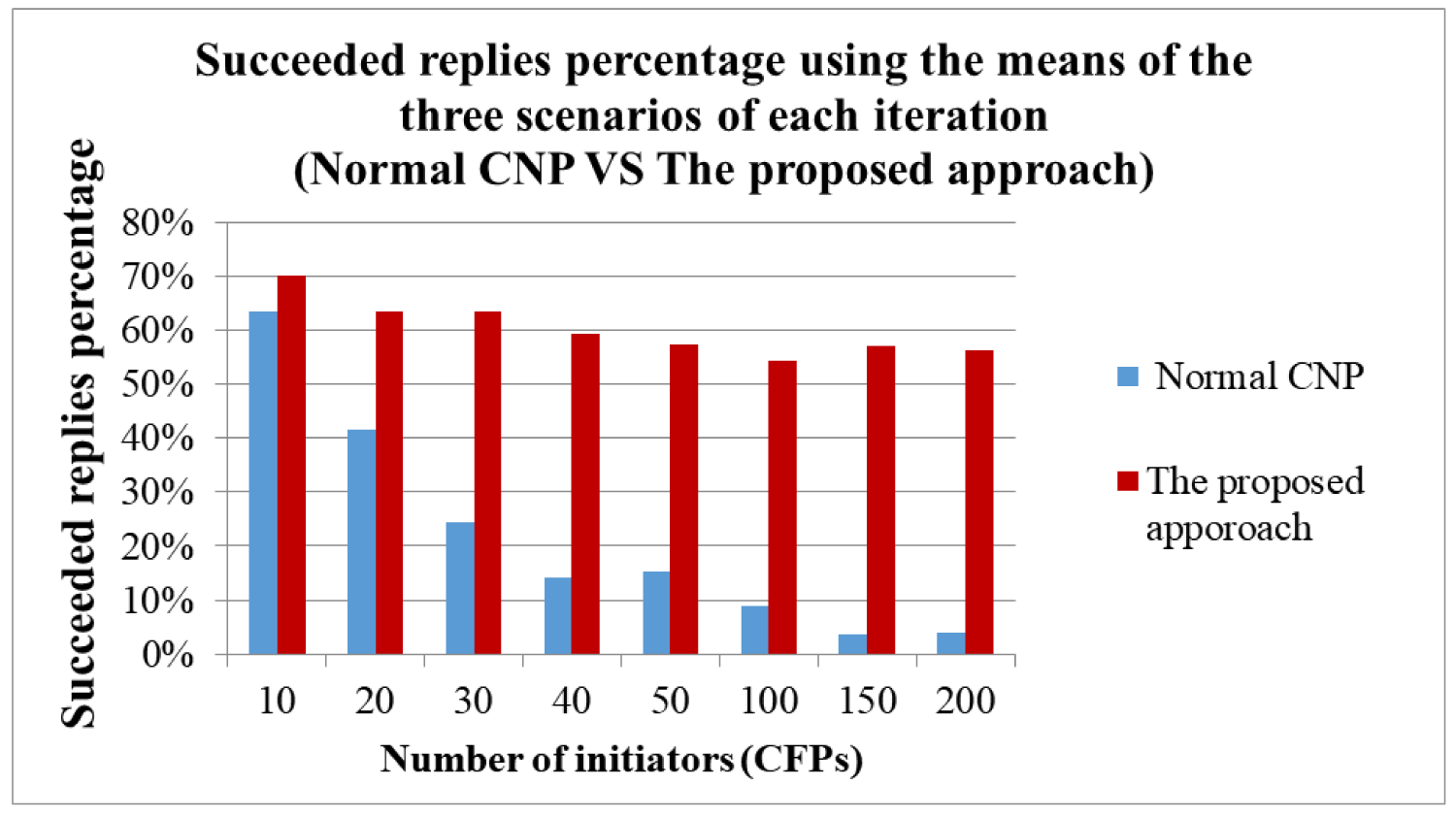

As presented in Figure 11, when the number of CFP_D was increased the normal CNP couldn’t stabilize the participant's sociability. The succeeded replies mean percentage was dropped quickly and remarkably from 63% to 4%. In the other hand, the proposed approach has recorded a slow and a slight drop in the participant's sociability which was maintained above 54% during all iterations.

Figure 11.

Comparing mean percentages of the succeeded replies for the normal CNP against the proposed approach for the second case study.

4.3 Performance measurements

In order to measure the performance of the proposed approach, a confusion matrix must be formed for all iterations using the predictedOutcome and realOutcome variables described before. Afterwards, recall, precision, accuracy and f-measure defined previously are used as performance metrics.

The obtained performance measures presented in Table 10 shows significant results in all the used metrics. Very few false positives and false negatives have been registered in this evaluation. Since the metrics are nearly stable through all interactions from 96.6% to 100% scores then the performance of the proposed approach is not affected by the increased number of messages in terms of correct predictions and not in terms of increased agent interactions. But, to evaluate the scalability and the performance limits of the proposed approach more tests are needed with higher numbers of messages.

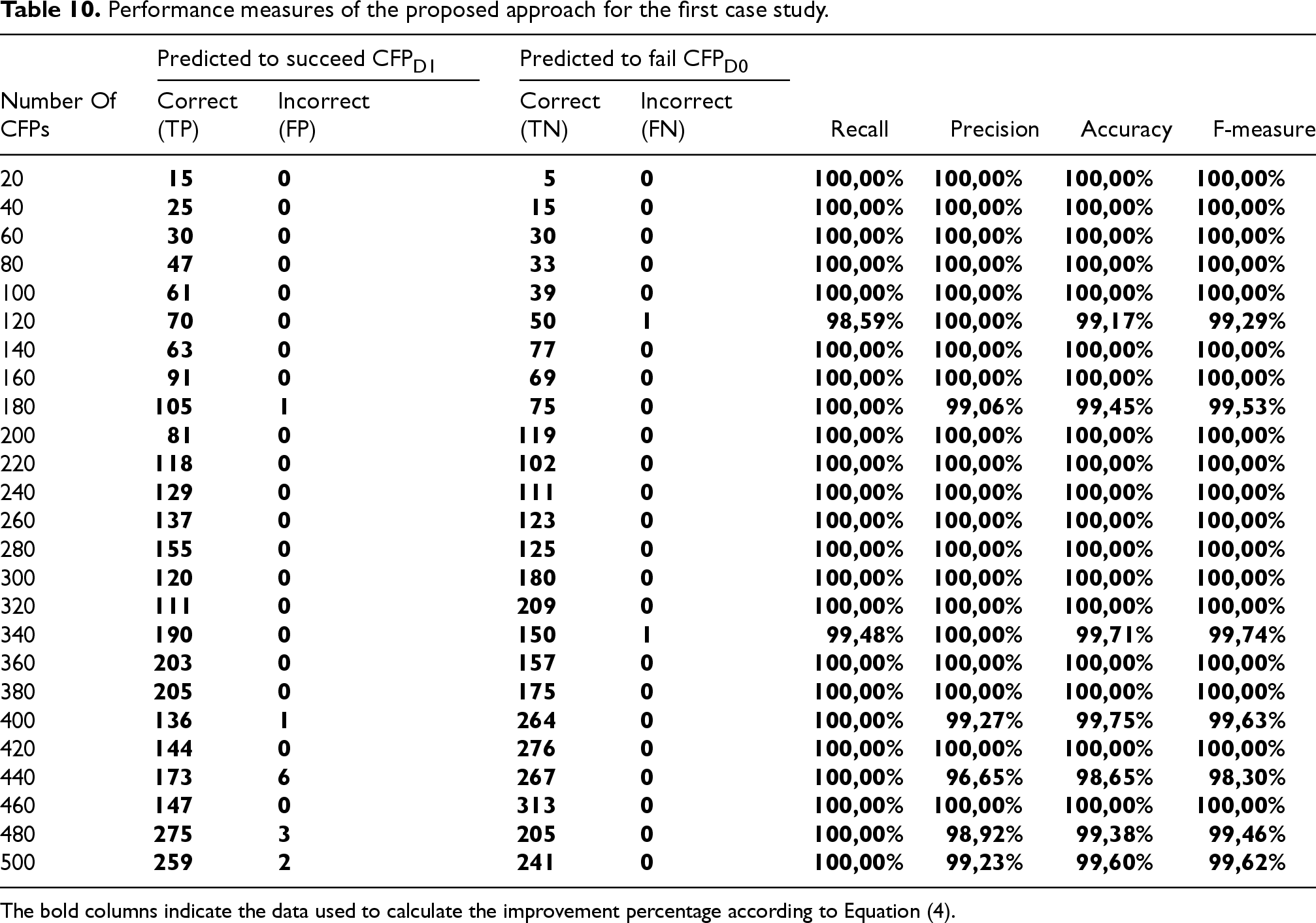

Table 10.
Performance measures of the proposed approach for the first case study.

Predicted to succeed CFP_D1 Predicted to fail CFP_D0

Number Of Correct Incorrect Correct Incorrect

CFPs (TP) (FP) (TN) (FN) Recall Precision Accuracy F-measure

20 15 0 5 0 100,00% 100,00% 100,00% 100,00%

40 25 0 15 0 100,00% 100,00% 100,00% 100,00%

60 30 0 30 0 100,00% 100,00% 100,00% 100,00%

80 47 0 33 0 100,00% 100,00% 100,00% 100,00%

100 61 0 39 0 100,00% 100,00% 100,00% 100,00%

120 70 0 50 1 98,59% 100,00% 99,17% 99,29%

140 63 0 77 0 100,00% 100,00% 100,00% 100,00%

160 91 0 69 0 100,00% 100,00% 100,00% 100,00%

180 105 1 75 0 100,00% 99,06% 99,45% 99,53%

200 81 0 119 0 100,00% 100,00% 100,00% 100,00%

220 118 0 102 0 100,00% 100,00% 100,00% 100,00%

240 129 0 111 0 100,00% 100,00% 100,00% 100,00%

260 137 0 123 0 100,00% 100,00% 100,00% 100,00%

280 155 0 125 0 100,00% 100,00% 100,00% 100,00%

300 120 0 180 0 100,00% 100,00% 100,00% 100,00%

320 111 0 209 0 100,00% 100,00% 100,00% 100,00%

340 190 0 150 1 99,48% 100,00% 99,71% 99,74%

360 203 0 157 0 100,00% 100,00% 100,00% 100,00%

380 205 0 175 0 100,00% 100,00% 100,00% 100,00%

400 136 1 264 0 100,00% 99,27% 99,75% 99,63%

420 144 0 276 0 100,00% 100,00% 100,00% 100,00%

440 173 6 267 0 100,00% 96,65% 98,65% 98,30%

460 147 0 313 0 100,00% 100,00% 100,00% 100,00%

480 275 3 205 0 100,00% 98,92% 99,38% 99,46%

500 259 2 241 0 100,00% 99,23% 99,60% 99,62%

	Predicted to succeed CFP_D1	Predicted to fail CFP_D0
20	15	0	5	0	100,00%	100,00%	100,00%	100,00%
40	25	0	15	0	100,00%	100,00%	100,00%	100,00%
60	30	0	30	0	100,00%	100,00%	100,00%	100,00%
80	47	0	33	0	100,00%	100,00%	100,00%	100,00%
100	61	0	39	0	100,00%	100,00%	100,00%	100,00%
120	70	0	50	1	98,59%	100,00%	99,17%	99,29%
140	63	0	77	0	100,00%	100,00%	100,00%	100,00%
160	91	0	69	0	100,00%	100,00%	100,00%	100,00%
180	105	1	75	0	100,00%	99,06%	99,45%	99,53%
200	81	0	119	0	100,00%	100,00%	100,00%	100,00%
220	118	0	102	0	100,00%	100,00%	100,00%	100,00%
240	129	0	111	0	100,00%	100,00%	100,00%	100,00%
260	137	0	123	0	100,00%	100,00%	100,00%	100,00%
280	155	0	125	0	100,00%	100,00%	100,00%	100,00%
300	120	0	180	0	100,00%	100,00%	100,00%	100,00%
320	111	0	209	0	100,00%	100,00%	100,00%	100,00%
340	190	0	150	1	99,48%	100,00%	99,71%	99,74%
360	203	0	157	0	100,00%	100,00%	100,00%	100,00%
380	205	0	175	0	100,00%	100,00%	100,00%	100,00%
400	136	1	264	0	100,00%	99,27%	99,75%	99,63%
420	144	0	276	0	100,00%	100,00%	100,00%	100,00%
440	173	6	267	0	100,00%	96,65%	98,65%	98,30%
460	147	0	313	0	100,00%	100,00%	100,00%	100,00%
480	275	3	205	0	100,00%	98,92%	99,38%	99,46%
500	259	2	241	0	100,00%	99,23%	99,60%	99,62%

The bold columns indicate the data used to calculate the improvement percentage according to Equation (4).

The results of the second case study were no different than the first one. Table 11 contains the confusion matrix of the three scenarios of each iteration. Only two false positives have been recorded in the first scenarios of the 5^th and the 6^th iterations and one false negative in the 3^rd scenario of the 6^th iteration. All the other outcomes were predicted correctly. The performance measurements were calculated and presented in Table 12 using the previous confusion matrices. The results are very promising showing high scores for the performance metrics in all the scenarios. These high scores do not mean that the predicting system is perfect or it is never wrong. But it means that this problem is very adequate for machine learning solutions with selecting the best model, the right attributes and a real training set gathered from experience.

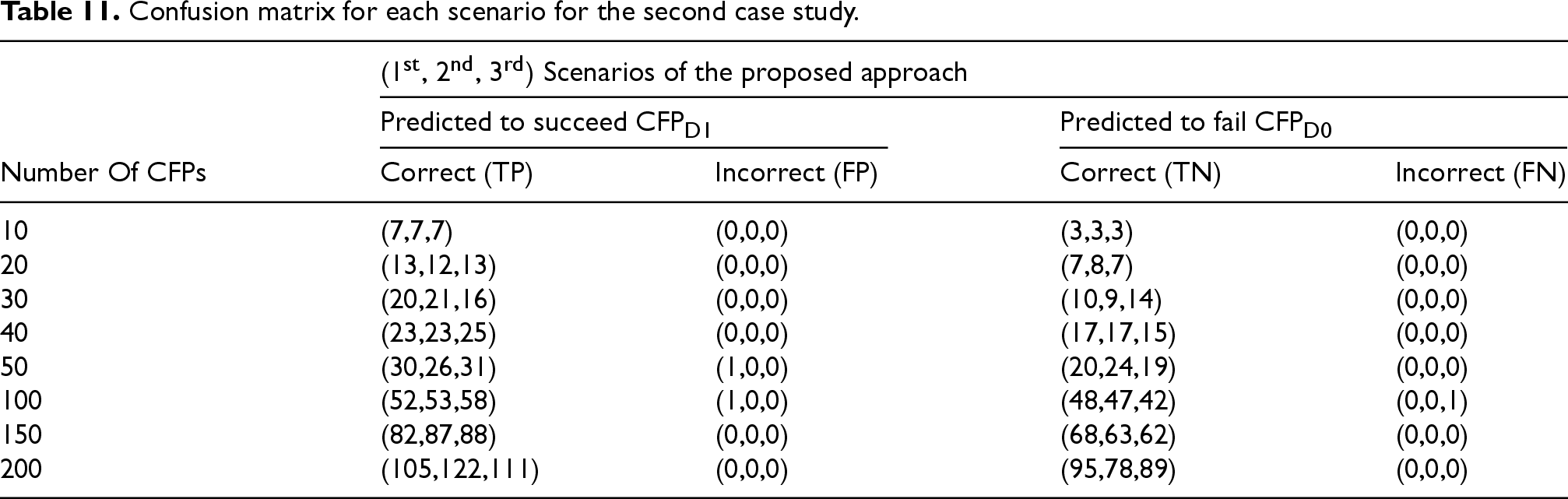

Table 11.

Confusion matrix for each scenario for the second case study.

	(1^st, 2^nd, 3^rd) Scenarios of the proposed approach
	Predicted to succeed CFP_D1		Predicted to fail CFP_D0
Number Of CFPs	Correct (TP)	Incorrect (FP)	Correct (TN)	Incorrect (FN)
10	(7,7,7)	(0,0,0)	(3,3,3)	(0,0,0)
20	(13,12,13)	(0,0,0)	(7,8,7)	(0,0,0)
30	(20,21,16)	(0,0,0)	(10,9,14)	(0,0,0)
40	(23,23,25)	(0,0,0)	(17,17,15)	(0,0,0)
50	(30,26,31)	(1,0,0)	(20,24,19)	(0,0,0)
100	(52,53,58)	(1,0,0)	(48,47,42)	(0,0,1)
150	(82,87,88)	(0,0,0)	(68,63,62)	(0,0,0)
200	(105,122,111)	(0,0,0)	(95,78,89)	(0,0,0)

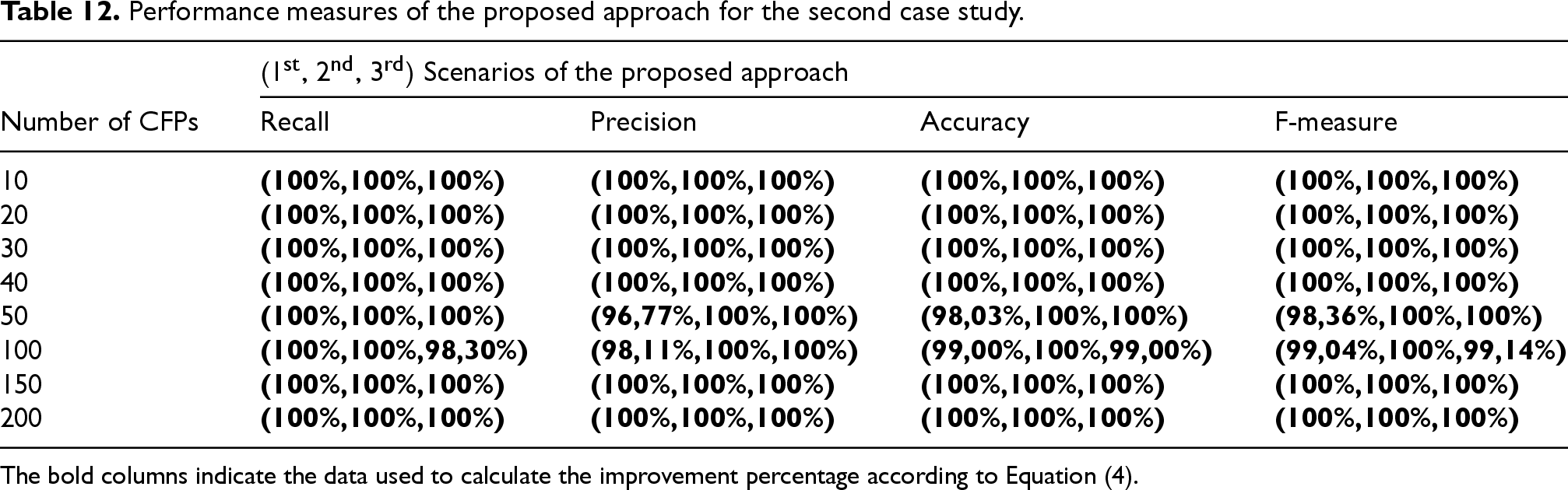

Table 12.

Performance measures of the proposed approach for the second case study.

	(1^st, 2^nd, 3^rd) Scenarios of the proposed approach
Number of CFPs	Recall	Precision	Accuracy	F-measure
10	(100%,100%,100%)	(100%,100%,100%)	(100%,100%,100%)	(100%,100%,100%)
20	(100%,100%,100%)	(100%,100%,100%)	(100%,100%,100%)	(100%,100%,100%)
30	(100%,100%,100%)	(100%,100%,100%)	(100%,100%,100%)	(100%,100%,100%)
40	(100%,100%,100%)	(100%,100%,100%)	(100%,100%,100%)	(100%,100%,100%)
50	(100%,100%,100%)	(96,77%,100%,100%)	(98,03%,100%,100%)	(98,36%,100%,100%)
100	(100%,100%,98,30%)	(98,11%,100%,100%)	(99,00%,100%,99,00%)	(99,04%,100%,99,14%)
150	(100%,100%,100%)	(100%,100%,100%)	(100%,100%,100%)	(100%,100%,100%)
200	(100%,100%,100%)	(100%,100%,100%)	(100%,100%,100%)	(100%,100%,100%)

The bold columns indicate the data used to calculate the improvement percentage according to Equation (4).

4.4 Underfitting and overfitting

In machine learning, underfitting and overfitting are two important issues that must be avoided. Underfitting occurs when a model does not fit the training data well enough, which leads to a poor prediction. Overfitting occurs when a model fits the training data very well but performs poorly on unseen data. Under these definitions, it is clear that the selected logistic regression model is far from being under fitted because it did very well with the training data, and far from being overfitted as well because it performed very well on the unseen data like it did on the training data. The 10 fold cross-validation is one of many methods that can be used to avoid these problems. Therefore, all the used classifiers during the validation phase which have good scores are neither overfitted nor underfitted. Besides, the proposed approach allows the participant agent to update its dataset overtime so that the used model is always fitted and updated.

5 Conclusion and future work

Interaction protocols are widely used in multiagent systems. Their standard implementations are not perfect and need to be extended in many situations. A problem related to initiations’ deadlines has been presented, which decreases agent's sociability, wastes valuable interactions and can lead to non-optimal results when the system scales up. This problem did not get any attention from researchers despite its importance.

We presented, in this paper, a novel approach to enhance agent sociability by extending its interactions with machine learning. The responder agent will be able to decide if an interaction initiation has to be answered immediately or postponed based on its interactions history. Several interactions’ scenarios on two case studies have been performed where different machine algorithms have been validated using the 10 fold cross-validation method. The obtained results were very promising where the number of successful interactions for the tested participant agent has been increased significantly from 225% up to 3733% in the first case study and from 18% to 2800% in the second one. Furthermore, the selected classification model has performed very well during all the scenarios in terms of precision, recall and accuracy.

As future work, we plan to: (i) replicate the study first on other case studies, (ii) Incorporate more participants to evaluate if the learning phase has an impact on the system's performance, (iii) Evaluate the proposed approach on a distributed example through WANs to investigate more the effectiveness of the Reply_time attribute on the classification, and (iv) Coding the proposed approach in one separate module using aspect oriented programming for a better reuse and maintenance.

Footnotes

ORCID iDs

Salim Zerrougui

Farid Mokhati

Mourad Badri

Mohamed Chaouki Babahenini

Funding

The authors received no financial support for the research, authorship, and/or publication of this article.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Author Biographies

Salim Zerrougui is an Assistant Professor of Computer Science in the Department of Mathematics and Computer Science at the University of Oum El-Bouaghi, Algeria, and a member of the ReLa(CS)² Laboratory. He received his PhD in computer science from the University of Oum El-Bouaghi. His research interests include agent oriented software engineering, aspect oriented programming, software maintenance and evolution as well as artificial intelligence.

Farid Mokhati is a Full Professor of Computer Science at the Department of Mathematics and Computer Science of the University of Oum El-Bouaghi in Algeria. He holds an HDR (Habilitation à Diriger des Recherches), in computer science (Distributed Artificial Intelligence) from the University of Annaba in Algeria. His main areas of interest include object and agent-oriented software engineering, and formal methods.

Mourad Badri is a Full Professor at the Department of Mathematics and Computer Science of the University of Quebec, Trois-Rivièes, Québec, Canada. He is also the director of the Software Engineering Research Laboratory. He holds a PhD in computer science (software engineering) from the National Institute of Applied Sciences in Lyon, France. His main areas of interest include object and aspect-oriented software engineering, software quality attributes, software quality assurance, software maintenance and evolution as well as aspect mining and refactoring.

Mohamed Chaouki Babahenini is currently a Full Professor at Department of Computer Science of Mohamed khider University, Biskra, Algeria, he is also researcher and head of LESIA laboratory. He received his PhD from the University of Biskra in 2006. His main research area of interest is related to Computer graphics, lighting simulation, realistic rendering, image-based rendering, 3D reconstruction, augmented virtual reality, machine learning. He was responsible of several national research projects (PRFU and PNR) and two international cooperation projects (CMEP – Tassili). He co-authored about thirty peer-reviewed articles in Springer and Elsevier, and supervised about twenty doctoral students.

References

Zambonelli

Jennings

Wooldridge

. Developing multiagent systems: the gaia methodology. ACM Trans Softw Eng Methodol 2003; 12: 317–370.

DeLoach

. Multiagent systems engineering: a methodology and language for designing agent systems. In: Agent-Oriented Information Systems (AOIS) 99, June 1999.

Gómez-Sanz

Gervais

M-P

Weiss

. A survey on agent-oriented oriented software engineering research. In: Bergenti

Gleizes

M-P

Zambonelli

(eds) Methodologies and software engineering for agent systems: the agent-oriented software engineering handbook. Boston, MA: Springer US, 2004, pp.33–62.

Kraetzschmar

. Distributed Reason Maintenance for Multiagent Systems. Berlin, Heidelberg: Springer Science & Business Media, 1997.

Islam

Katiyar

. Development of A software maintenance cost estimation model. 4th Gl Perspect 2014; 2: 4.

Jarzabek

. Effective Software Maintenance and Evolution: A Reuse-Based Approach. Boston, MA, USA: Auerbach Publications, 2007.

Alkhatib

. The maintenance problem of application software: an empirical analysis. J Software Maint 1992; 4: 83–104.

Lientz

Swanson

. Problems in application software maintenance. Commun ACM 1981; 24: 763–769.

Boehm

. Software engineering economics. In: Broy

Denert

(eds) Pioneers and Their Contributions to Software Engineering. Berlin, Heidelberg: Springer, 1984, pp.641–686. https://doi.org/10.1007/978-3-642-48354-7_5 .

10.

Lee

Nwana

Ndumu

, et al. The stability, scalability and performance of multiagent systems. BT Technol J 1998; 16: 94–103.

11.

Dastani

van der Torre

Yorke-Smith

. Commitments and interaction norms in organisations. Auton Agent Multiagent Syst 2017; 31: 207–249.

12.

Rens

Moodley

. A hybrid POMDP-BDI agent architecture with online stochastic planning and plan caching. Cogn Syst Res 2017; 43: 1–20.

13.

Yao

Logan

. Action-level intention selection for BDI agents. In: Proceedings of the 2016 International Conference on Autonomous Agents & Multiagent Systems, pp.1227–1236. Singapore: International Foundation for Autonomous Agents and Multiagent Systems.

14.

Faccin

Nunes

. Bdi-agent plan selection based on prediction of plan outcomes. In: 2015 IEEE/WIC/ACM International Conference on Web Intelligence and Intelligent Agent Technology (WI-IAT), pp.166–173. Singapore: IEEE.

15.

Wang

Zhang

, et al. Memory mechanism enhances cooperation in Mobile multiagent system. In: 2016 8th International Conference on Intelligent Human-Machine Systems and Cybernetics (IHMSC), pp.476–479. Hangzhou, China: IEEE.

16.

Zerrougui

Mokhati

Badri

, et al. A novel approach for scalability and performance enhancement in JADE. Multiagent Grid Syst 2017; 13: 177–201.

17.

Kadera

Novák

. Performance modeling extension of directory facilitator for enhancing communication in FIPA-compliant multiagent systems. IEEE Trans Ind Inf 2017; 13: 688–695.

18.

Hudaib

Qasem

Obeid

. FIPA-Based Semi-centralized protocol for negotiation. In: Silhavy

Silhavy

Prokopova

(eds) Cybernetics approaches in intelligent systems. Cham: Springer International Publishing, 2018, pp.135–149.

19.

Dam

Zhang

Ghose

. Improving the reactivity of BDI agent programs. In: International Conference on Principles and Practice of Multiagent Systems, 2013, pp.85–100. Dunedin, New Zealand: Springer.

20.

Ductor

Guessoum

. A coordination mechanism to replicate large-scale multiagent systems. In: Proceedings of the 13th International Conference on Software Engineering for Adaptive and Self-Managing Systems - SEAMS ‘18, 2018, pp.130–136. Gothenburg, Sweden: ACM Press.

21.

Karakostas

. A scalable architecture for concurrent online auctions: a scalable architecture for concurrent online auctions. Concurrency Comput Pract Exper 2014; 26: 841–850.

22.

Scerri

Vincent

Mailler

. (eds). Coordination of Large-Scale Multiagent Systems. New York: Springer-Verlag, Epub ahead of print 2006. DOI: 10.1007/0-387-27972-5.

23.

Far

Wanyama

Soueina

. A negotiation model for large scale multiagent systems. In: 2006 IEEE International Conference on Information Reuse Integration, 2006, pp.589–594.

24.

Aknine

Pinson

Shakun

. An extended multiagent negotiation protocol. Auton Agents Multiagent Syst 2004; 8: 5–45.

25.

Bellifemine

Poggi

Rimassa

. Developing multiagent systems with JADE. In: International Workshop on Agent Theories, Architectures, and Languages. ATAL 2000, pp.89–103. Boston, MA, USA: Springer.

26.

Ali

Aslam

Janjua

, et al. Methodology for performance evaluation of distributed multi agent system. The Nucleus 2017; 54: 75–82.

27.

van Lon

RRS

Holvoet

. When do agents outperform centralized algorithms?: a systematic empirical evaluation in logistics. Auton Agents Multiagent Syst 2017; 31: 1578–1609.

28.

Nguyen

Schau

Rossak

. Performance comparison of some message transport protocol implementations for agent community communication. In: IICS, 2011, pp.193–204.

29.

Zhou

Liu

, et al. A multiagent system for sharing distributed manufacturing resources. Expert Syst Appl 2018; 99: 32–43.

30.

Trejo-Sánchez

López-Martínez

García

JOG

, et al. A multiagent architecture for scheduling of high performance services in a GPU cluster. Int J Comb Optim Probl Inf 2018; 9: 12–22.

31.

Sassioui

Varisteas

, et al. Improving real-time bidding using a constrained markov decision process. In: International Conference on Advanced Data Mining and Applications, 2017, pp.711–726: Springer.

32.

Hsieh

F-S

. A hybrid and scalable multiagent approach for patient scheduling based on Petri net models. Applied Intelligence 2017; 47: 1068–1086.

33.

Guo

Chen

, et al. Optimization for accelerating large scale agent based simulation. In: Zhang

Song

(eds) Theory, methodology, tools and applications for modeling and simulation of Complex systems. Singapore: Springer Singapore, 2016, pp.165–175.

34.

Al-Yaseen

Othman

Nazri

MZA

. Exchanging large data object in multiagent systems. 2016, pp.020018.

35.

Kadera

. Performance models preventing multiagent systems from overloading computational resources. Autom Control Intell Syst 2014; 2: 105.

36.

Kensler

Agah

. Neural networks-based adaptive bidding with the contract net protocol in multi-robot systems. Appl Intell 2008; 31: 347–362.

37.

Mao

Zhang

Xiao

, et al. Learning multiagent communication with double attentional deep reinforcement learning. Auton Agent Multiagent Syst 2020; 34: 32.

38.

Nguyen

Nahavandi

. Deep Reinforcement Learning for Multiagent Systems: A Review of Challenges, Solutions and Applications. arXiv:181211794 [cs, stat], http://arxiv.org/abs/1812.11794 (2018, accessed 16 April 2024).

39.

Lewenberg

. Machine learning techniques for MultiAgent systems. 2017, pp.5185–5186.

40.

Khalil

Abdel-Aziz

Nazmy

, et al. Machine learning algorithms for multiagent systems. In: Proceedings of the International Conference on Intelligent Information Processing, Security and Advanced Communication , 2015, pp.59:1–59:5. New York, NY, USA: ACM.

41.

Khalil

Abdel-Aziz

Nazmy

, et al. MLIMAS: a framework for machine learning in interactive multiagent systems. Procedia Comput Sci 2015; 65: 827–835.

42.

Tuyls

Weiss

. Multiagent learning: basics, challenges, and prospects. AI Mag 2012; 33: 41–52.

43.

Kaur

Sehra

. Modification of contract net protocol (CNP): A rule-updation approach. arXiv preprint arXiv:13124259; 2013.

44.

Yang

W-L

Hong

C-Y

. An improvement to CNCP in large-scale muti-agent system. In: Innovative Computing Information and Control, 2008. ICICIC’08. 3rd International Conference on. IEEE , 2008, pp.147–147.

45.

Mahajan

Gupta

. Scalable contract net based resource allocation strategies for grids. In: IEEE, 2008, pp.25–32.

46.

Deshpande

Gupta

Basu

. Performance enhancement of a contract net protocol based system through instance-based learning. IEEE Trans Syst Man Cybern Part B (Cybern) 2005; 35: 345–358.

47.

Boukredera

Aknine

Maamri

. Modeling temporal aspects of contract net protocol using timed colored petri nets. In: STAIRS , 2012. https://doi.org/10.3233/978-1-61499-096-3-83

48.

Alarabiat

Alarabeyyat

Alheyasat

. Development of FIPA English auction interaction protocol for multiagent systems. Contemp Eng Sci 2014; 7: 1905–1917.

49.

Gou

Dam

Ghose

. Towards semantic merging of versions of BDI agent systems. In: Boella

Elkind

Savarimuthu

BTR

(eds) PRIMA 2013: principles and practice of multiagent systems. Berlin, Heidelberg: Springer Berlin Heidelberg, 2013, pp.437–444.

50.

Holmes

Donkin

Witten

. Weka: A machine learning workbench. 1994.

51.

Freund

Schapire

. Large margin classification using the perceptron algorithm. Mach Learn 1999; 37: 277–296.

52.

Cessie

Van Houwelingen

. Ridge estimators in logistic regression. J R Stat Soc Ser C (Appl Stat) 1992; 41: 191–201.

53.

Ruder

. An overview of gradient descent optimization algorithms. arXiv preprint arXiv:160904747, 2016.

54.

Landwehr

Hall

Frank

. Logistic model trees. Mach Learn 2005; 59: 161–205.

55.

Sumner

Frank

Hall

. Speeding up logistic model tree induction. In: Proceedings of the 9th European Conference on European Conference on Machine Learning and Principles and Practice of Knowledge Discovery in Databases. Porto, Portugal: Springer-Verlag , 2005, pp.675–683.

56.

Breiman

. Random forests. Mach Learn 2001; 45: 5–32.

57.

Drmota

. Random Trees: An Interplay between Combinatorics and Probability. 1st ed. Vienna: Springer Publishing Company, Incorporated, 2009.

58.

Platt

. Fast training of support vector machines using sequential minimal optimization. In: Advances in kernel methods: support vector learning. Cambridge, MA, USA: MIT Press, 1999, pp.185–208.

59.

Keerthi

Shevade

Bhattacharyya

, et al. Improvements to Platt’s SMO algorithm for SVM classifier design. Neural Comput 2001; 13: 637–649.

60.

John

Langley

. Estimating continuous distributions in Bayesian classifiers. In: Proceedings of the Eleventh conference on Uncertainty in artificial intelligence. Montréal, Qué, Canada: Morgan Kaufmann Publishers Inc., 1995, pp.338–345.

61.

Bouckaert

. Bayesian Network classiﬁers in Weka for version 3-5-7. Artificial Intelligence Tools 2008; 11: 369–387.

62.

FIPA Interaction Protocol Specifications, http://www.fipa.org/repository/ips.php3 (accessed 16 July 2024).

	(Hudaib et al.,	(Kaur et al.,	(Yang et al.,	(Mahajan and	(Deshpande	(Aknine et al.,	(Boukredera	The proposed
Study	2018)¹⁸	2013)⁴³	2008)⁴⁴	Gupta, 2008)⁴⁵	et al., 2005)⁴⁶	2004)²⁴	et al., 2012)⁴⁷	approach
Study with CFP Deadline	No	No	No	Yes	No	Yes	Yes	Yes
Change in the internal message sequences of the CNP	Yes	Yes	Yes	Yes	No	Yes	No	No
Simultaneous interactions by the participant	No	No	No	Yes	Yes	Yes	Yes	Yes
Large number of received CFPs	No	No	No	Yes	Yes	Yes	Yes	Yes
Increase/decrease number of participants	Decreased	Neither	Neither	Decreased	Avoided announcement	Neither	Neither	Neither
Increase/decrease the chance for better proposal	Increased	Increased	Increased	Increased	Unknown	Unknown	Neither	Increased
Blocked interaction management	No	No	Yes	No	No	Yes	Yes	No
Avoid repeating task announcement	No	Yes	No	No	No	No	No	No
Reduce CNP time	Yes	Yes	No	Unknown	Yes	Yes	No	No
Increase replies before deadlines	No	No	No	Unclear	No	No	No	Yes

	Predicted to succeed CFP_D1		Predicted to fail CFP_D0
Number Of	Correct	Incorrect	Correct	Incorrect
CFPs	(TP)	(FP)	(TN)	(FN)	Recall	Precision	Accuracy	F-measure
20	15	0	5	0	100,00%	100,00%	100,00%	100,00%
40	25	0	15	0	100,00%	100,00%	100,00%	100,00%
60	30	0	30	0	100,00%	100,00%	100,00%	100,00%
80	47	0	33	0	100,00%	100,00%	100,00%	100,00%
100	61	0	39	0	100,00%	100,00%	100,00%	100,00%
120	70	0	50	1	98,59%	100,00%	99,17%	99,29%
140	63	0	77	0	100,00%	100,00%	100,00%	100,00%
160	91	0	69	0	100,00%	100,00%	100,00%	100,00%
180	105	1	75	0	100,00%	99,06%	99,45%	99,53%
200	81	0	119	0	100,00%	100,00%	100,00%	100,00%
220	118	0	102	0	100,00%	100,00%	100,00%	100,00%
240	129	0	111	0	100,00%	100,00%	100,00%	100,00%
260	137	0	123	0	100,00%	100,00%	100,00%	100,00%
280	155	0	125	0	100,00%	100,00%	100,00%	100,00%
300	120	0	180	0	100,00%	100,00%	100,00%	100,00%
320	111	0	209	0	100,00%	100,00%	100,00%	100,00%
340	190	0	150	1	99,48%	100,00%	99,71%	99,74%
360	203	0	157	0	100,00%	100,00%	100,00%	100,00%
380	205	0	175	0	100,00%	100,00%	100,00%	100,00%
400	136	1	264	0	100,00%	99,27%	99,75%	99,63%
420	144	0	276	0	100,00%	100,00%	100,00%	100,00%
440	173	6	267	0	100,00%	96,65%	98,65%	98,30%
460	147	0	313	0	100,00%	100,00%	100,00%	100,00%
480	275	3	205	0	100,00%	98,92%	99,38%	99,46%
500	259	2	241	0	100,00%	99,23%	99,60%	99,62%

Enhancing agent sociability by extending interaction protocols using machine learning

Abstract

Keywords

1 Introduction

2 Literature review

3.1 Problem statement

3.2.3 The enhancement phase

4.1 The first case study

Table 2. The confusion matrix definition in Weka where actual elements in rows and predicted elements in columns. Predicted To succeed (a) To fail (b) Actual Interaction success (a) TP FN Interaction failure (b) FP TN

5 Conclusion and future work

Footnotes

ORCID iDs

Funding

Declaration of conflicting interests

Author Biographies

References

Table 2.
The confusion matrix definition in Weka where actual elements in rows and predicted elements in columns.

Predicted

To succeed (a) To fail (b)

Actual Interaction success (a) TP FN

Interaction failure (b) FP TN
