Establishment of energy consumption model and multi-objective optimal control method of 6-DOF robotic crusher

Abstract

In order to optimize the real-time crushing effect of 6-DOF robotic crusher, a model of energy consumption and a multi-objective optimization control method for 6-DOF robotic crusher are proposed. In optimization function, the optimization objective are total energy consumption, mass fraction of crushed products below 12 mm, energy consumption ratio, and throughput, and optimization variables are position of suspension point, rotational speed and precession angle of the moving cone. Among them, the function of total energy consumption and effective energy consumption is established and the function of total energy consumption is verified in this paper. The function of mass fraction of crushed products below 12 mm is based on previous research. Taking the full load working condition and chamber size of PYGB1821 crusher as an example. The solution of optimization is obtained. Compared with the traditional cone crusher under the same feed size distribution and chamber size, each objective can be effectively optimized, which can effectively reduce energy consumption and increase the crushing efficiency. This method is universal and can be used for the design and control of other crushing equipment.

Keywords

Distinct element method distribution of crushing stress single particle compression ratio crushing energy consumption multi-objective optimization

Introduction

The cone crusher has the main advantages of large crushing ratio, uniform product size and wide application range. It is widely used in mining, metallurgy, construction and other industries. The structure of traditional cone crusher is shown in Figure 1(a).

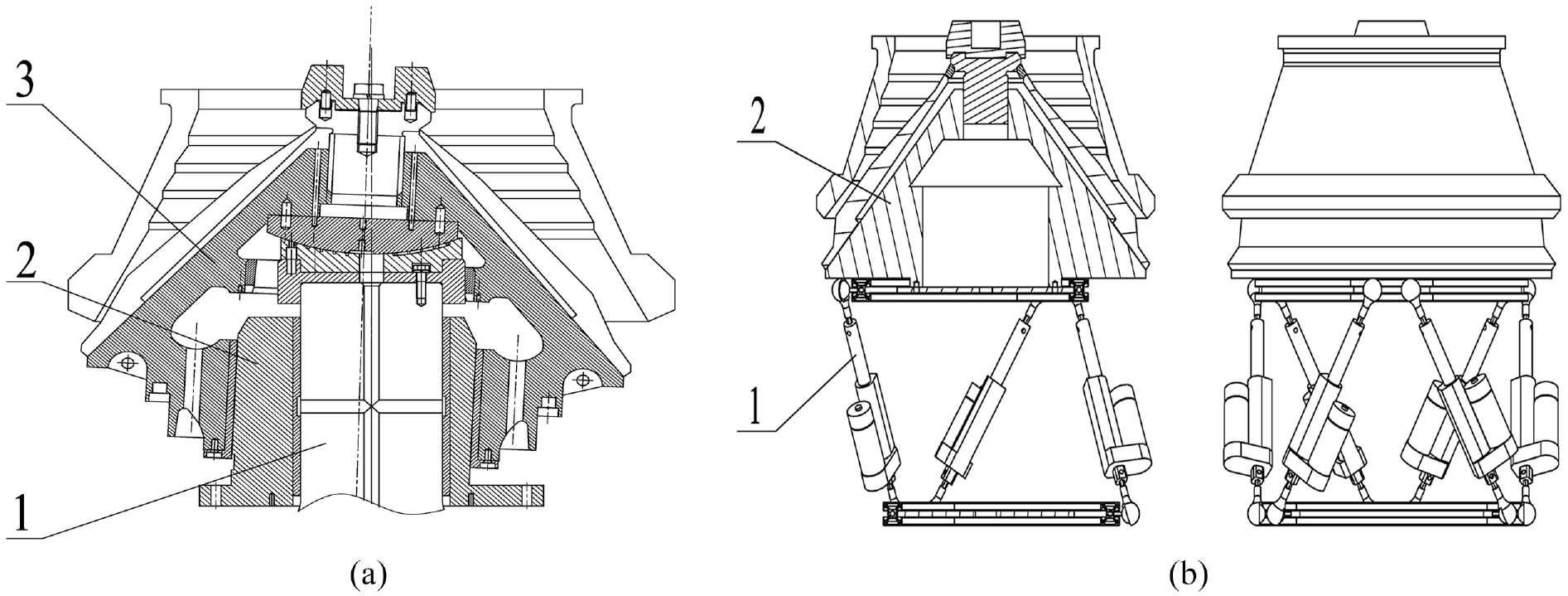

Figure 1.

Structure of the traditional cone crusher and 6-DOF robotic crusher: (a) structure of the traditional cone crusher, (b) structure of the 6-DOF robotic crusher.

Its working mode is that the spindle 1 drives the eccentric sleeve 2 to rotate eccentrically, so that the lining plate on the moving cone 3 and the fixed cone can extrude the materials in the crushing chamber. The working conditions of main parts are high speed, heavy load and vibration, so they are easy to be damaged. Therefore, its design of size, structure and strength are conservative, and it will cause high weight, high energy consumption, low efficiency and other consequences. As shown in Figure 1(b), the structure of the 6-DOF robotic crusher is obtained after the structural optimization design of the traditional cone crusher. Compared with the traditional cone crusher, the biggest difference is that the actuators with adjustable moving cone position replace the eccentric sleeve with non-adjustable moving cone position, and the compression ratio can be adjusted automatically. Its working mode is different from the traditional cone crusher. The motion mode of the traditional cone crusher is shown in Figure 2:

Figure 2.

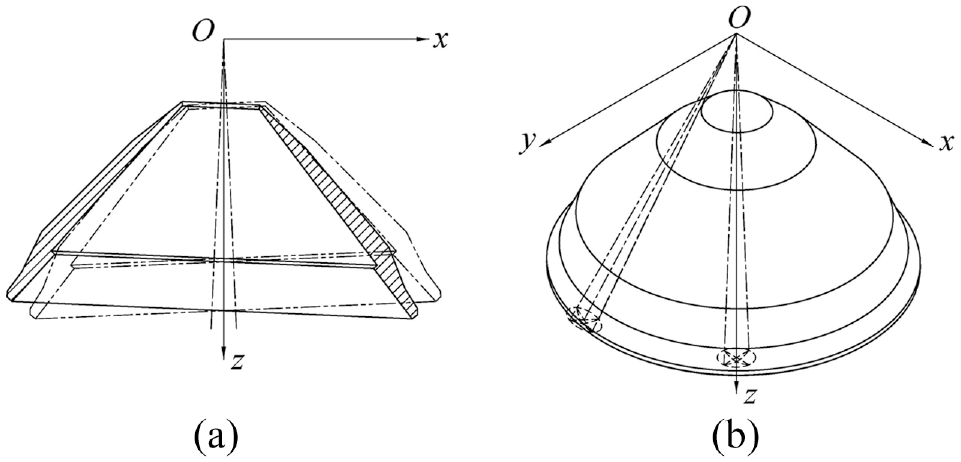

Motion mode of moving cone of cone crusher: (a) side view, (b) axonometric projection.

As shown in Figure 2(a), in the side view, the moving cone swings around the suspension point. The limit position angle of left and right swing is precession angle. As shown in Figure 2(b), the whole motion can be seen as the combination of the oscillations of the xOz plane and the yOz plane, with a phase difference of 90°. In traditional cone crusher, the relative position of main shaft, eccentric sleeve and moving cone is fixed, which cannot be adjusted when working, that is, the position of suspension point and the compression ratio of each layer are fixed. The precession angle of the cone crusher is small, so the previous research on the kinematics of the moving cone^1,2 is based on the eccentric motion of the cross section. In the 6-DOF robotic crusher, the actuators replace the above parts, and the relative position between the actuator and the moving cone is variable. That is, the compression ratio of each layer is variable, so the position of the suspension point is not fixed, and may even be located under the moving cone. The position of suspension point, rotational speed and precession angle can be adjusted in real time. So the former kinematic model is not suitable, and the corresponding kinematic and power (i.e. energy consumption) model should be established.

There are some researches on energy consumption of crusher. In terms of disc crusher, J.M. Zuñiga³ calculates the total energy consumption of disc crusher by studying the dynamics of parts. In terms of cone crusher, Liu⁴ puts forward an energy consumption model, which shows the influence of working conditions and structural parameters of crushing chamber on energy consumption. The existing researches are all aimed at the total energy consumption of crusher, rather than the effective energy consumption of particle crushing. The research on energy consumption of single particle crushing^5–7 is also limited to the process from the beginning of loading to the particle breaking, which is different from the situation that the crushed products continue to break after the particle breaking in the actual case. Therefore, it is necessary to study the effective energy consumption, that is, the energy consumption of particle crushing. The main researches on optimization aim at performance, life and strength of main parts. Zhang,⁸ Cheng,⁹ Huang,¹⁰ have researched the optimization of the dimensions of thrust plate, lining plate, wear plate and other parts. In terms of material parameters, M Bengtsson,¹¹ E Lee,¹² Wang,¹³ have researched the optimization of parameters such as output, discharge particle size, needle slice rate, etc. In terms of size, structure and shape of crushing chamber, Lee,¹⁴ Dong et al.,¹⁵ have studied about these aspects. In recent years, with the development of computer science, automatic control, machine learning, artificial intelligence have been widely used. In terms of cone crusher related aspects, Asbjörnsson¹⁶ has developed the cloud based solution to achieve stable production. Ostroukh¹⁷ has presented an automated cone crusher control system to achieve efficient operation of the technological line for the crushing and screening plant. Hulthén¹⁸ has proposed Evolutionary Operation (EVOP) to find an operating point closest to the optimal. Abuhasel¹⁹ has used adaptive neuro fuzzy inference system (ANFIS) to simulate the cone crusher output. Therefore, the intellectualization of cone crusher is an important research direction. The related research is still based on traditional cone crusher. For the 6-DOF robotic crusher, in addition to the above aspects, it also needs to optimize its unique intelligent control, so as to optimize the crushing products and energy consumption.

In this paper, the energy consumption model suitable for 6-DOF robotic crusher is established. Combined with the existing research results,²⁰ the optimization function with total energy consumption, mass fraction of crushed products below 12 mm, energy consumption ratio, and throughput as the optimization objective and position of suspension point, rotational speed and precession angle of the moving cone as the optimization variables is established. Combining the model with the experimental data of Anshan Iron and Steel Group, the optimization results are obtained by genetic algorithm. In the evaluation of optimization results, the final optimization results under different evaluation methods can be obtained by giving different weight coefficients to each optimization goal. The corresponding independent variable is the optimization result. Compared with the traditional cone crusher, each objective can be effectively optimized. The results can provide control strategy basis for 6-DOF robotic crusher control,²¹ self-adaptive adjustment strategy for high-pressure roller mill and other crushing equipment, and can be used as design reference for traditional crushing equipment.

Model of total energy consumption

Power model of moving cone

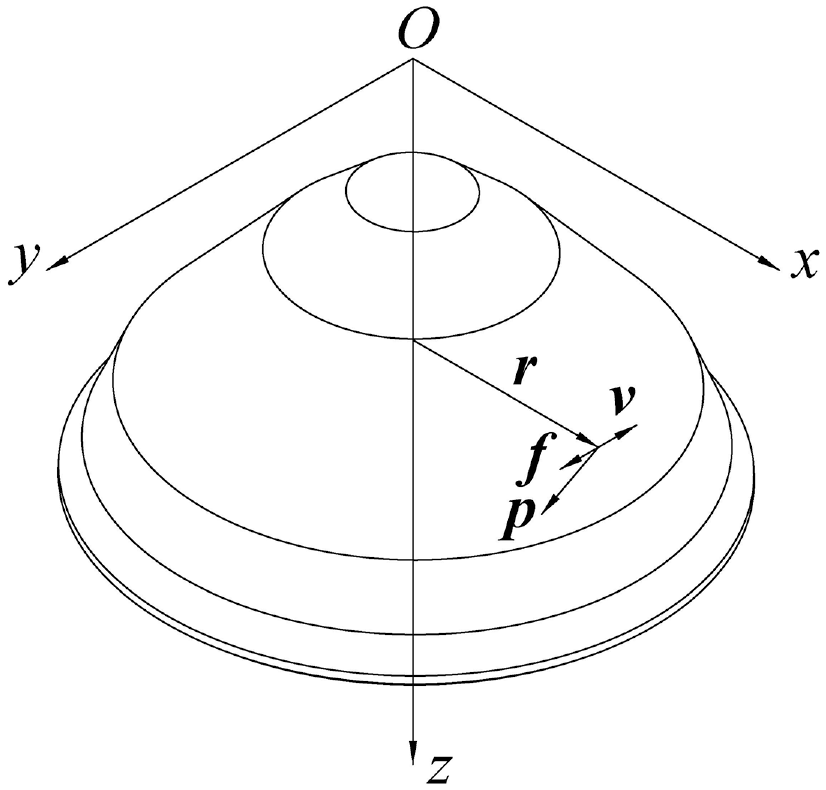

The stress and velocity at a point on the moving cone are shown in Figure 3.

Figure 3.

Stress and velocity at a point on the moving cone.

The power P at this point is

P = - (p \cdot v + f \cdot v)

(1)

Where, p is the positive force vector of a point on the moving cone, f is the tangential force vector, and v is the linear velocity. The total power P_sum is

P_{sum} = \int \int PdS

(2)

That is the surface integral of the power of each point on the surface of the moving cone, which can be calculated by using the cylindrical coordinate, so that the suspension point is 0 point in the moving cone coordinate system. The integrand function is determined by z coordinate and the polar angle θ, and the above surface integral can be converted into

P_{sum} = \int_{z_{0}}^{z_{n}} dz \int_{0}^{2 π} P (θ, z) R (z) d θ

(3)

Among them, z₀ and z_n are the z coordinate of the lowest point and the highest point of the material position, and R(z) is the function of the radius of the moving cone changing with the z coordinate.

Size parameters of moving cone and crushing chamber

The dimension parameters of crushing chamber are shown in Figure 4.

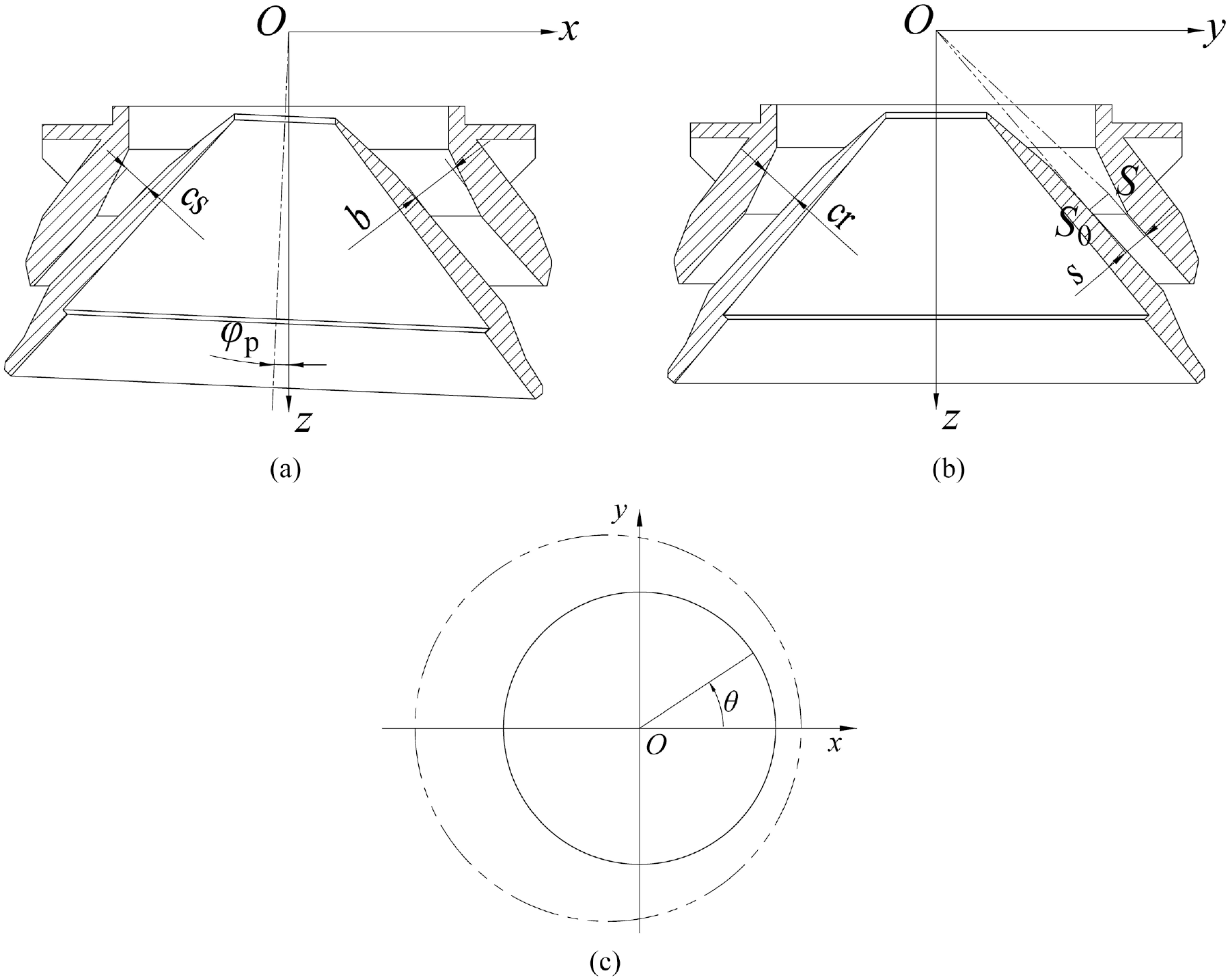

Figure 4.

Dimension parameters of crushing chamber: (a) limit position of moving cone, (b) original position of moving cone, and (c) polar coordinates of moving cone.

In Figure 4(a), b is the length of open side, cs is the length of closed side. In Figure 4(b), cr is the original compression thickness. The length of b, cs and cr is intersection between the vertical line made from a point on the moving cone contour line to the fixed cone contour line. s is the stroke on the moving cone, which is the stroke of a point on the moving cone swinging from the original position S₀ to the current position S. It is also specified that the stroke is positive when pressing and negative when loosening. In Figure 4(c), it is specified that the close side direction of the moving cone is the polar axis (x axis) direction of the polar coordinate of the moving cone, and the polar angle of any point S on the moving cone is θ. The function relationship of stroke s and polar angle θ is

s (θ) = R_{O} \sin φ_{p} \cos θ

(4)

Where, R_O is the distance between a point on the moving cone and the suspension point, $R_{O} = \sqrt{z^{2} + R {(z)}^{2}}$ . φ_p is the precession angle of moving cone. So the maximum stroke is

s_{max} (z) = R_{O} \sin φ_{p}

(5)

Compression ratio of each point η is

η (z, θ) = \frac{s (z, θ) + s_{max} (z)}{cr (z, θ) + s_{max} (z)}

(6)

Stress of a point on the moving cone

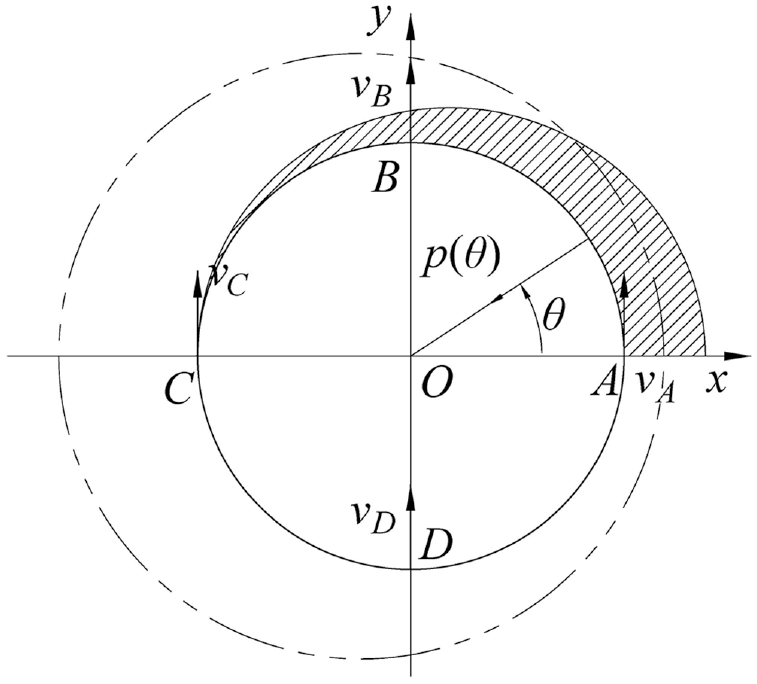

The velocity direction and the normal stress distribution of a cross section of the moving cone at a certain moment is shown in the Figure 5.

Figure 5.

Normal stress distribution of moving cone.

From Figure 4(c), the position of the closed side is the polar axis direction of the moving cone coordinate system. Then the velocity direction of each point on the moving cone is perpendicular to the polar axis as shown in Figure 5. In the moving cone coordinate system, when $θ \in [0, π)$ , the crushing chamber will tend to be compressed, and when $θ \in [π, 2 π)$ , the crushing chamber will tend to be loosened. The ore is brittle material. Its permanent deformation occurs after compression failure. Therefore, when the moving cone extrudes the material and then loosen, that is, when $θ \in [π, 2 π]$ , the material will not exert force on the moving cone. Considering the normal stress as a function of compression ratio, the normal stress of moving cone can be described by Formula (7) from the closed side to the open side.

p (θ) = {\begin{matrix} p (η (θ)), & θ \in [0, π) \\ 0, & θ \in [π, 2 π] \end{matrix}

(7)

The side view of normal stress direction is shown in Figure 6.

Figure 6.

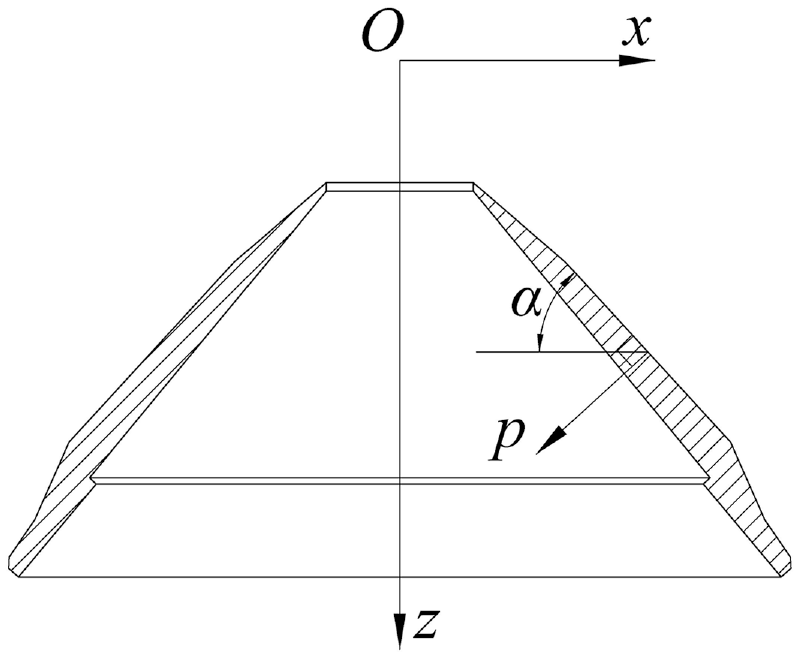

Side view of normal stress direction.

α is the angle between the tangent line of a point on the moving cone and xOy plane. So the azimuth of the normal stress is α.

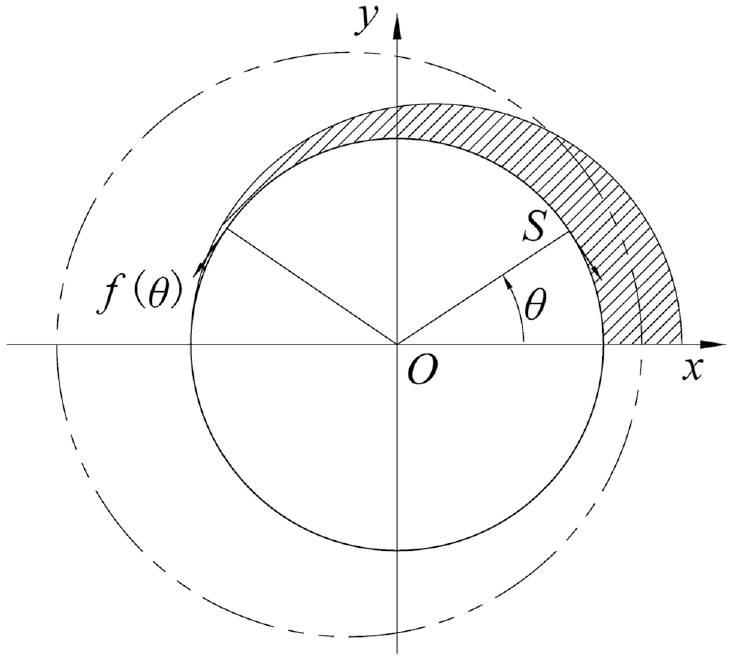

The tangential stress distribution of the moving cone is shown in Figure 7.

Figure 7.

Tangential stress distribution of moving cone.

The tangential stress is f = μp. Where, μ is the friction coefficient. The azimuth of tangential stress is the same as the linear velocity. When $θ \in [0, \frac{π}{2})$ the polar angle of tangential stress is $θ - \frac{π}{2}$ , and when $θ \in [\frac{π}{2}, π)$ ,the polar angle is $θ + \frac{π}{2}$ .

Relative velocity of any point on the moving cone and the fixed cone

The moving cone coordinate system and the fixed cone coordinate system are as shown in the Figure 8.

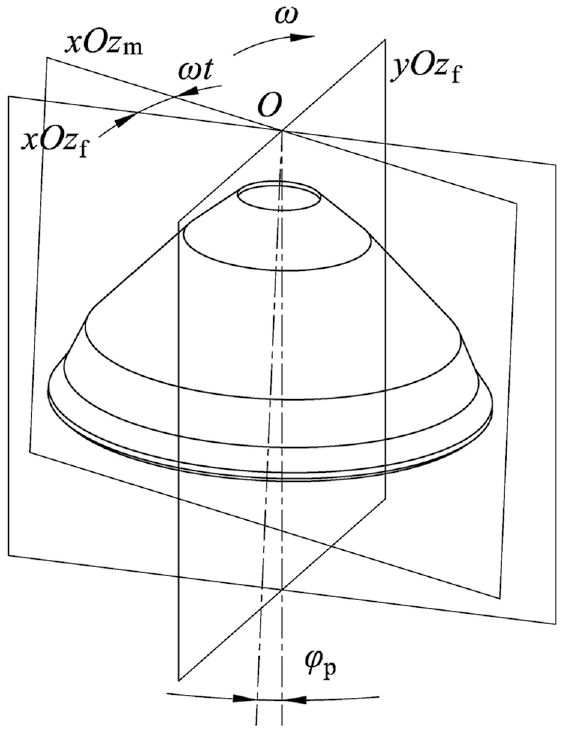

Figure 8.

Coordinate system of moving cone and fixed cone.

In Figure 8, xOz_f, yOz_f, xOz_m are xOz and yOz planes of fixed cone coordinate system and xOz plane of moving cone coordinate system respectively. When t = 0, the rotation angle between xOz_f and xOz_mθ_mf = 0, then the azimuth of the fixed cone coordinate system φ_mf = φ_p, polar angle θ_mf = ωt can get the moving cone coordinate system, where ω is angular velocity of moving cone. When the moving cone moves, each point on the moving cone moves around its balance point in a circle. The linear velocity of a point on the moving cone in the fixed cone coordinate system is R_Oωsinφ_p, the azimuth angle is φ_p, the polar angle is $ω t + \frac{π}{2}$ .

Power function of a point on a moving cone

In Formula (1), the power of normal stress P_n is

\begin{matrix} P_{n} = p \cdot v = | p | | v | \cos ∠ pv \\ = p (θ) \cdot R_{O} ω \sin φ_{p} \cos (α - (φ_{s} - φ_{P})) \\ \cos (θ + π - \frac{π}{2}) \end{matrix}

(8)

Where, φ_s is the azimuth of a point S on a moving cone in the spherical coordinate system of moving cone. According to the conversion of spherical coordinate to cylinder coordinate.

φ_{s} = \arctan \frac{R (z)}{z}

(9)

Then the power function of the normal stress can be expressed as a function of z and θ.

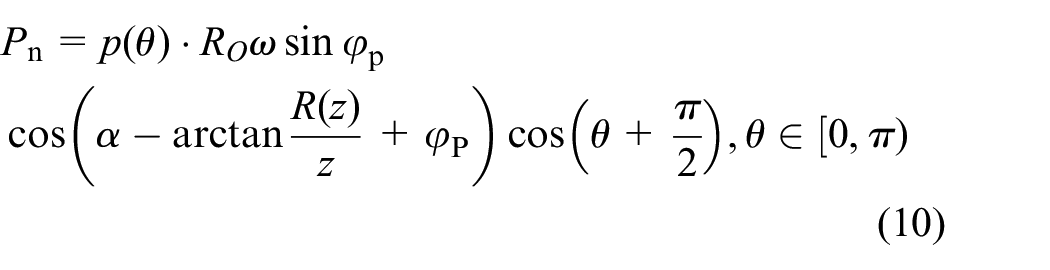

\begin{matrix} P_{n} = p (θ) \cdot R_{O} ω \sin φ_{p} \\ \cos (α - \arctan \frac{R (z)}{z} + φ_{P}) \cos (θ + \frac{π}{2}), θ \in [0, π) \end{matrix}

(10)

The power function of the tangential stress P_t is

P_{t} = f \cdot v = {\begin{matrix} μ p (θ) \cdot R ω \sin φ_{p} \cos (θ - π), θ \in [0, \frac{π}{2}) \\ μ p (θ) \cdot R ω \sin φ_{p} \cos θ, θ \in [\frac{π}{2}, π] \end{matrix}

(11)

Combined with Formulas (1) and (4), the power moving cone can be obtained.

Normal stress function of moving cone

In Formula (5), the normal stress is a function of compression ratio, so it is necessary to determine the functional relationship between normal stress and compression ratio. There have been some researches on normal stress (Bengtsson²²) and the results show that the stress is a function of compression ratio and particle size distribution coefficient. However, since the experimental condition is confining pressure loading, and the influence of moving cone size and rotating speed is not considered, so the above dimensions and material parameters need to be considered and the model need to be remodelled. EDEM has been used for eccentric compression simulation. The granular material is iron ore, the critical crushing compression ratio η_c is 0.0153. The basic conditions of simulation are as follows: rotational speed n_basic=300 rpm, particle size E_d,_basic=28 mm, material height h_basic=150 mm, moving cone diameter D_m,basic=1080 mm, actual compression ratio η_a,basic = 0.25, original compression thickness cr_basic=110 mm. The simulation is carried out by changing one condition without changing other conditions. Under this condition, the stress p_basic = 0.7102 Mpa. The simulation results show that the functional relationship between particle size E_d, actual compression ratio η_a and original compression thickness cr and stress p can be expressed as exponential function. When rotational speed n, material height h and moving cone diameter D_m changes, p will not change significantly. For eliminating the influence of order of magnitude and dimension, the relative value of each variable are introduced. Let, $p_{re} = \frac{p}{p_{basic}}$ , $E_{d, re} = \frac{E_{d}}{E_{d, basic}}$ , $c r_{re} = \frac{cr}{c r_{basic}}$ . The range of the parameters are as follows, 16 mm ≤ E_d≤ 32 mm, 0.15 ≤ η_a≤ 0.43, 80 ≤ mm cr ≤ 140 mm. After simulation, the functional relationship between the stress and the above parameters is shown in Figure 9.

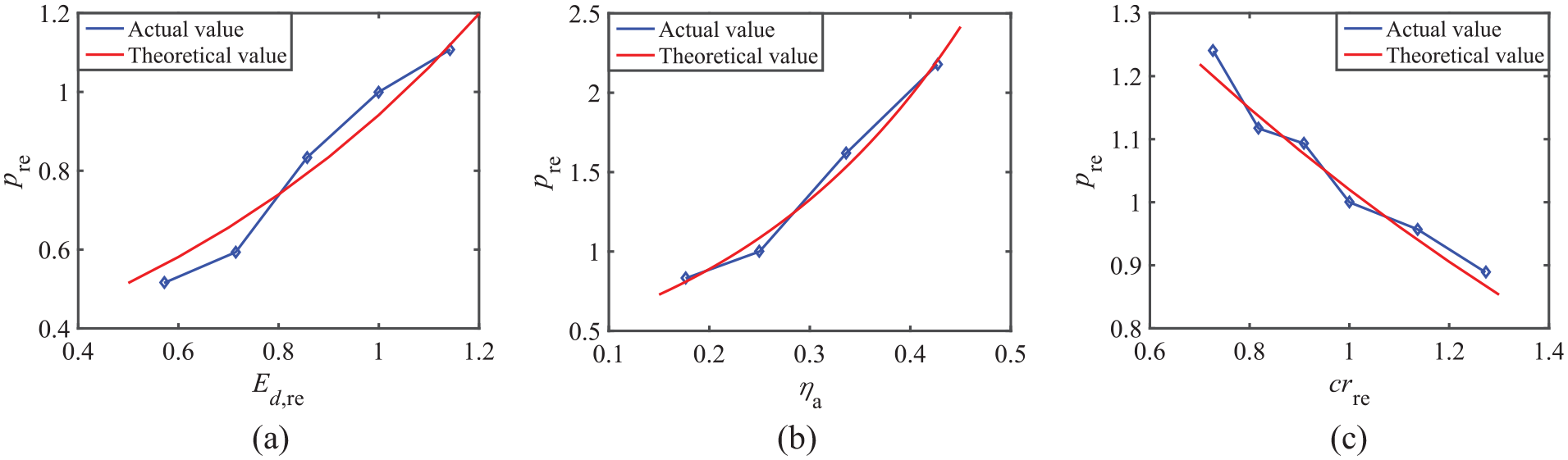

Figure 9.

Functional relationship between stress and parameters: (a) stress and particle size, (b) stress and actual compression ratio, and (c) stress and original compression thickness.

When considering the variance of particle size, the particle size distribution coefficient σ_d is introduced, $σ_{d} = \frac{D_{d}^{1 / 2}}{E_{d}}$ . Where, D_d is the variance of particle size. The functional relationship between stress and particle size distribution coefficient is shown in Figure 10.

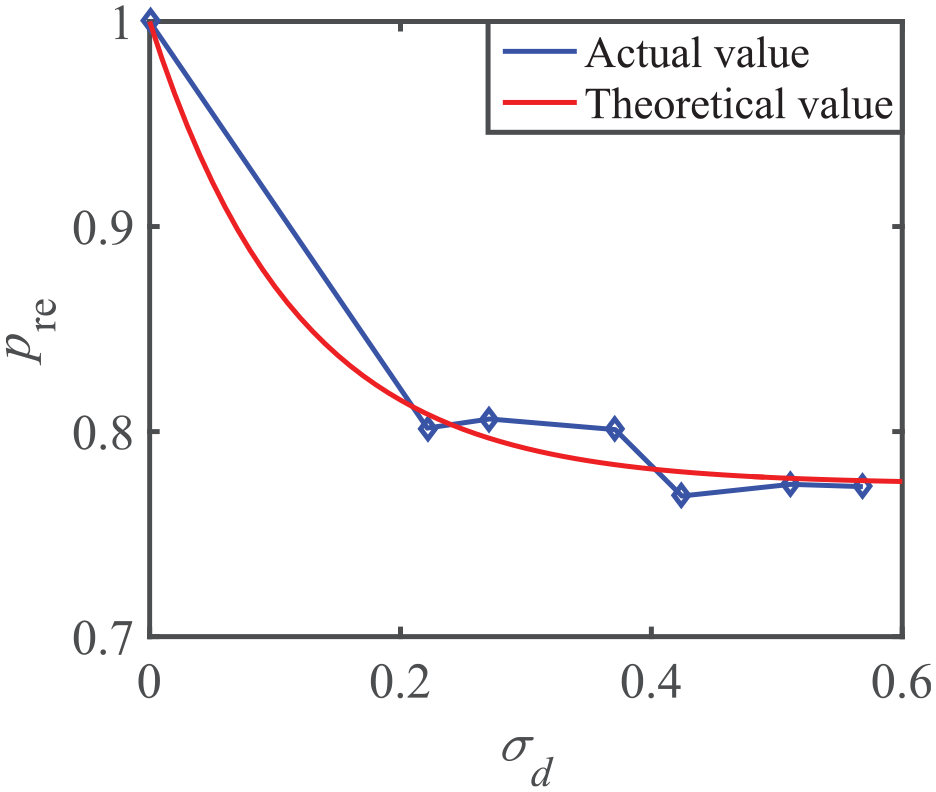

Figure 10.

Functional relationship between stress and particle size distribution coefficient.

In summary, the moving cone stress under different conditions is

\begin{matrix} p = 0.2007 \exp (1.206 E_{d, re} + 3.998 η_{a} - 0.5944 c r_{re}) \\ (0.2257 \exp (- 8.521 σ_{d}) + 0.7743) p_{basic} \end{matrix}

(12)

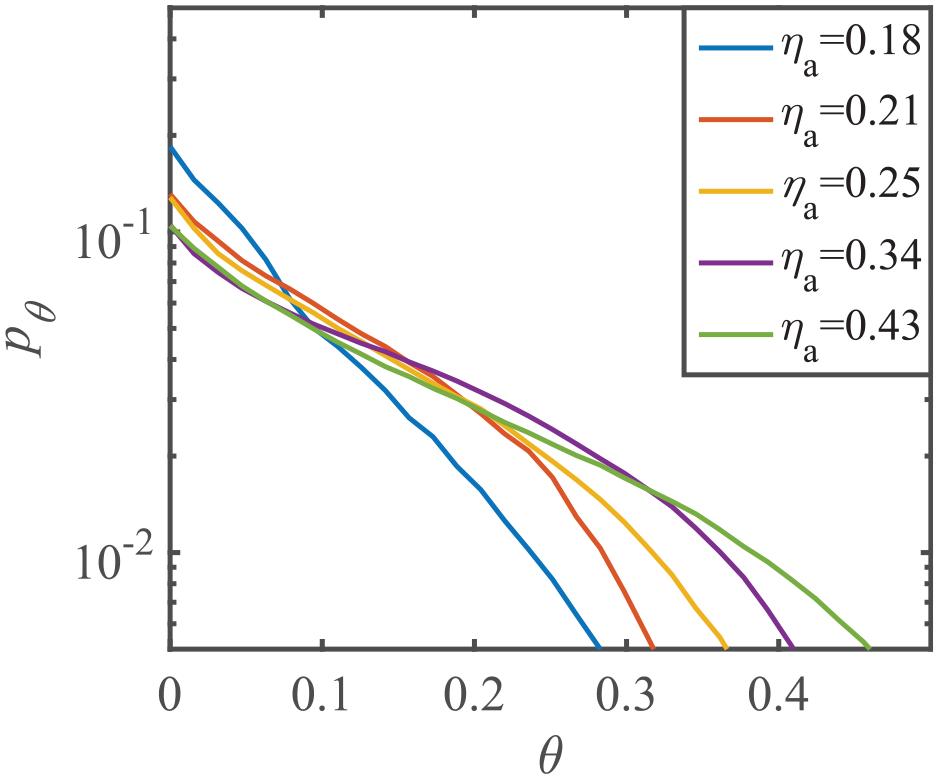

The relative stress distribution in the circumference direction is defined as p_θ(θ), where $\int_{0}^{2 π} p_{θ} d θ = 1$ . So $p \cdot p_{θ} (θ) d θ$ is the stress under different polar angles. Under different actual compression ratios, the functional relationship between relative stress distribution p_θ(θ) and polar angle θ is shown in Figure 11.

Figure 11.

Relative stress distribution under different actual compression ratios.

The distribution of stress in the circular direction and polar angle θ can be described by exponential function, that is p_θ(θ) = aexp(bθ). And $\int p_{θ} d θ = 1$ , so a = –b. The functional relationship between parameter a and the actual compression ratio η_a is shown in Figure 12.

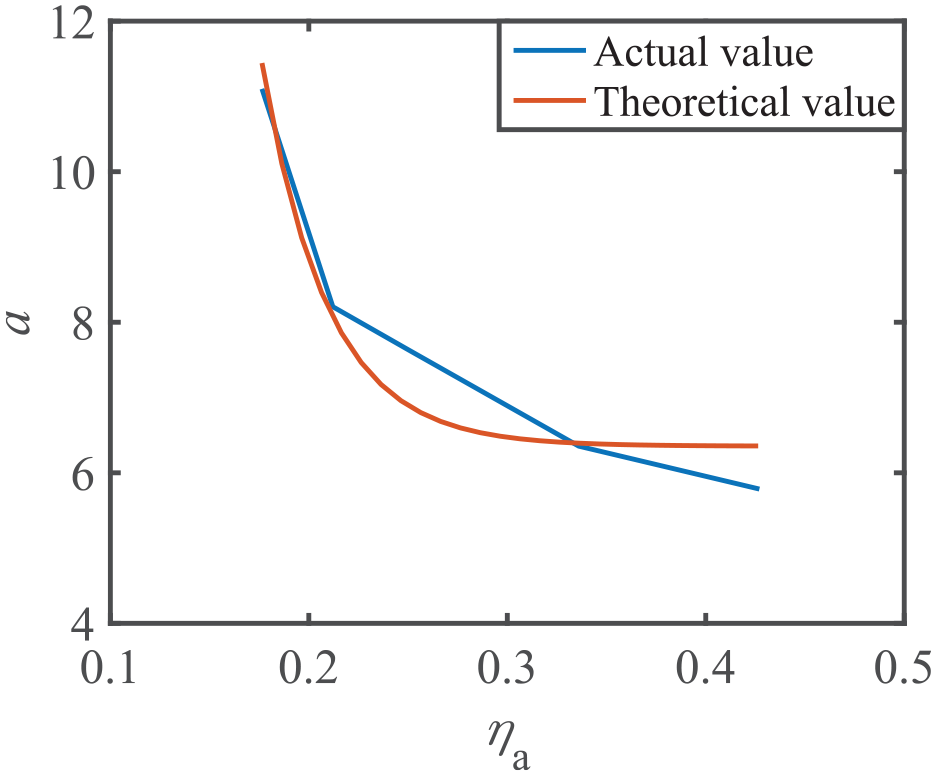

Figure 12.

The coefficient a under different actual compression ratios.

This curve can be expressed by Formula (13)

a = 1093 \exp (- 30.44 η_{a}) + 6.354

(13)

To sum up, the stress at each point on the moving cone can be obtained. Combined with section 2.1 and 2.5, the total power can be obtained when the material is iron ore.

Effective crushing energy consumption

Single particle effective crushing energy consumption

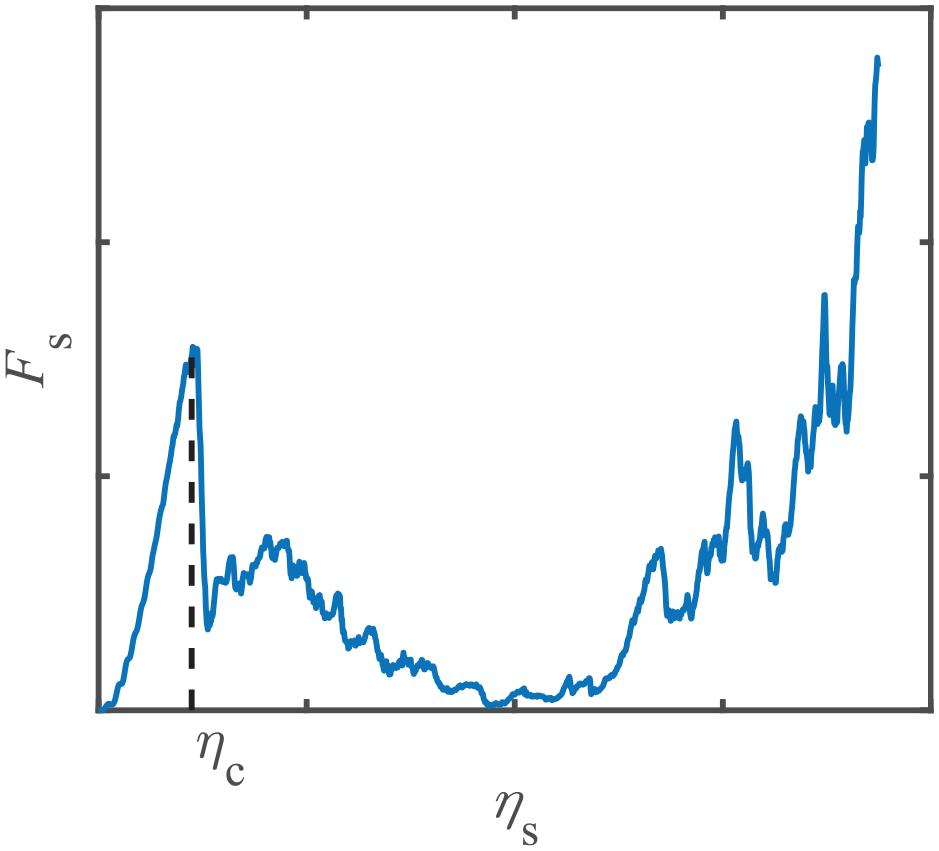

The stress in the whole process of single particle crushing is shown in Figure 13.

Figure 13.

Stress in the whole process of single particle crushing.

Where, η_s is single particle compression ratio, η_c is critical compression ratio, and F_s is the force acting on a single particle. When η_s < η_c, particles cannot be broken. Iron ore is brittle material. The stage of η_s < η_c can be simplified as elastic stage. The effective crushing stage is the stage of η_s > η_c. The energy consumption in the effective crushing stage after EDEM simulation is shown in Figure 14.

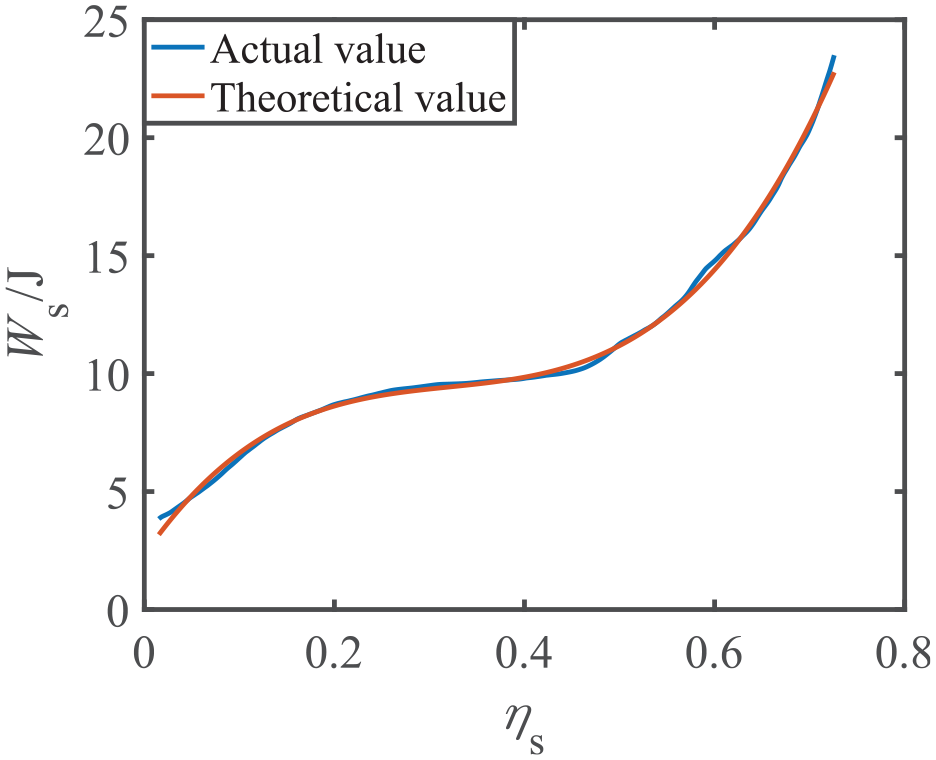

Figure 14.

Energy consumption of single particle crushing process.

Where, W_s is energy consumption of single particle crushing. The particle size d = 28 mm. The energy consumption can be described by a cubic polynomial, which is proportional to the third power of particle size d, then the energy consumption of single particle crushing is

W_{s} = (175.7 η_{s}^{3} - 169.1 η_{s}^{2} + 58.37 η_{s} + 2.326) \frac{d^{3}}{28^{3}}

(14)

Total Effective Energy Consumption

According to previous research,²⁰ the probability density function of single particle compression ratio η_s with different particle sizes d_i under the determined actual compression ratio is lognormal distribution, that is

y (d_{i}, η_{s}) = \frac{1}{\sqrt{2 π} σ_{η_{s}} η_{s}} \exp (\frac{{(\ln η_{s} - μ_{η_{s}})}^{2}}{2 σ_{η_{s}}^{2}})

(15)

After EDEM simulation under the condition in section 2.6, expectation and variance of single particle compression ratio of each size can be expressed as Formula (16).

E_{part} = 18.02 E_{basic} E_{d, re}^{2.889} η_{a}^{1.769} {cr}_{re}^{- 1.058} \exp (- 4.643 σ_{d})

(16-a)

D_{part} = 3.847 D_{basic} E_{d, re}^{6.434} {cr}_{re}^{- 0.1379} \exp (- 5.063 σ_{d})

(16-b)

Where, E_basic and D_basic is expectation and variance of single particle compression ratio under the basic conditions in section 2.6, E_basic = 7.147 × 10⁻², D_basic = 6.473 × 10⁻⁴. So $μ_{η_{s}}$ and $σ_{η_{s}}$ in Formula (15) is determined by Formula (16). According to Figure 13, when η_s > η_c, the particle is crushed, then the probability density function of mass fraction of particle size d_i breaks up p(d_i) is

p (d_{i}) = \int_{η_{c}}^{+ \infty} y (η_{s}, d_{i}) d η_{s}

(17)

The crushed mass fraction of particle size d_i is

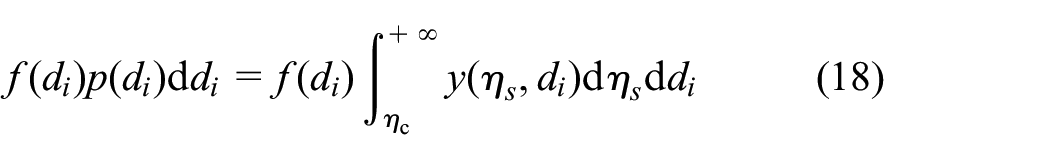

f (d_{i}) p (d_{i}) d d_{i} = f (d_{i}) \int_{η_{c}}^{+ \infty} y (η_{s}, d_{i}) d η_{s} d d_{i}

(18)

Where f(d_i) is the input particle size mass distribution function.

The crushed mass fraction of the total material M_cr is

M_{cr} = \int_{0}^{d_{i max}} f (d_{i}) \int_{η_{c}}^{+ \infty} y (η_{s}, d_{i}) d η_{s} d d_{i}

(19)

The total effective energy consumption of crushing W_eff is as follows:

W_{eff} = \int_{0}^{d_{i max}} f (d_{i}) \int_{η_{c}}^{+ \infty} y (η_{s}, d_{i}) W_{s} (η_{s}, d_{i}) d η_{s} d d_{i}

(20)

Where W_s is determined by Formula (14).

The total effective power of crushing P_eff is

P_{eff} = W_{eff} \cdot \frac{60}{n}

(21)

Experimental verification of power model

Taking PYGB1821 cone crusher as an example, rotational speed n = 300 rpm. After 10 times of crushing, the material is discharged.²³ Size parameters of each crushing layer are shown in Table 1.

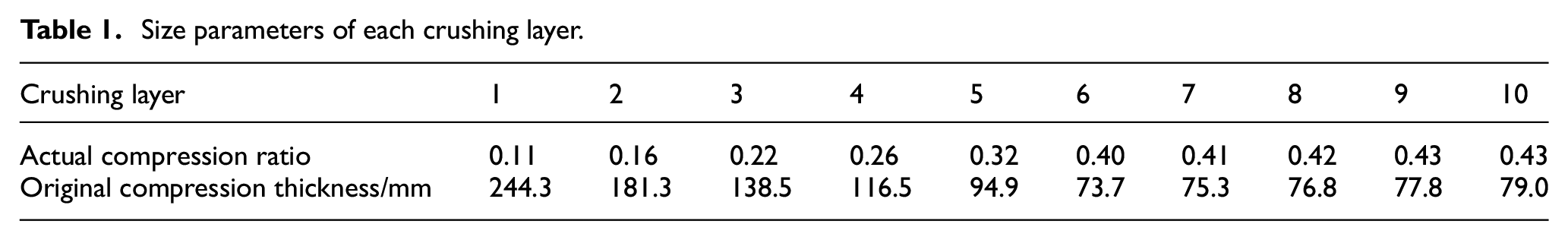

Table 1.

Size parameters of each crushing layer.

Crushing layer	1	2	3	4	5	6	7	8	9	10
Actual compression ratio	0.11	0.16	0.22	0.26	0.32	0.40	0.41	0.42	0.43	0.43
Original compression thickness/mm	244.3	181.3	138.5	116.5	94.9	73.7	75.3	76.8	77.8	79.0

Feed size distribution is shown in Table 2.²³

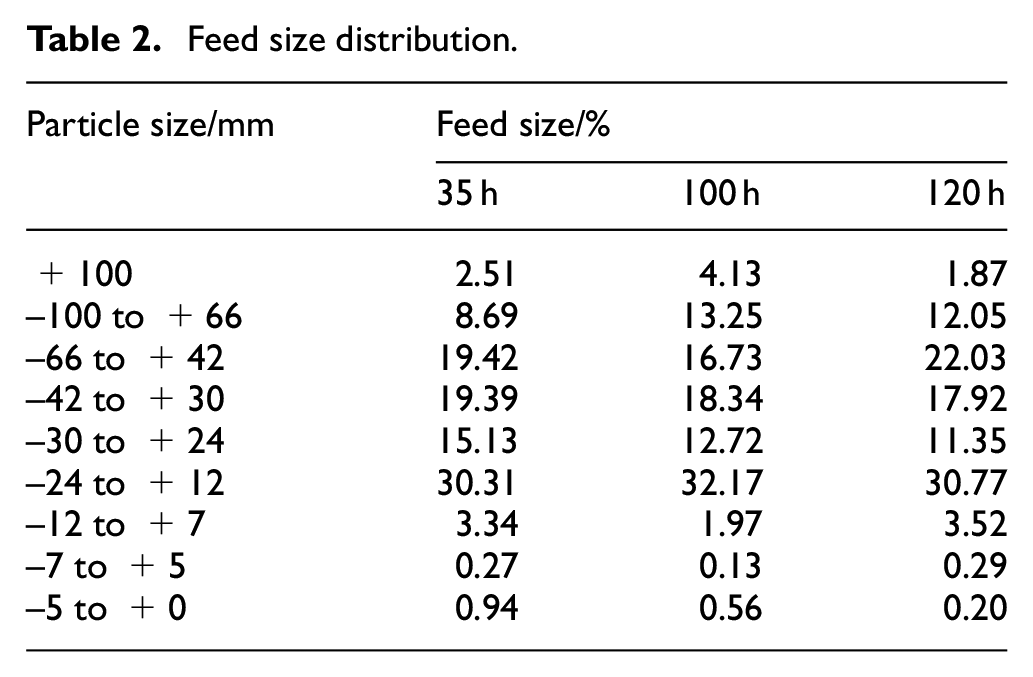

Table 2.

Feed size distribution.

Particle size/mm	Feed size/%
	35 h	100 h	120 h
+100	2.51	4.13	1.87
−100 to +66	8.69	13.25	12.05
−66 to +42	19.42	16.73	22.03
−42 to +30	19.39	18.34	17.92
−30 to +24	15.13	12.72	11.35
−24 to +12	30.31	32.17	30.77
−12 to +7	3.34	1.97	3.52
−7 to +5	0.27	0.13	0.29
−5 to +0	0.94	0.56	0.20

Using the parameters in Tables 1 and 2 and Formula (12)-(17), the crushed products size distribution of each crushing layer can be obtained. The flow chart of calculation of crushed products is shown in Figures 15 and 16.

Figure 15.

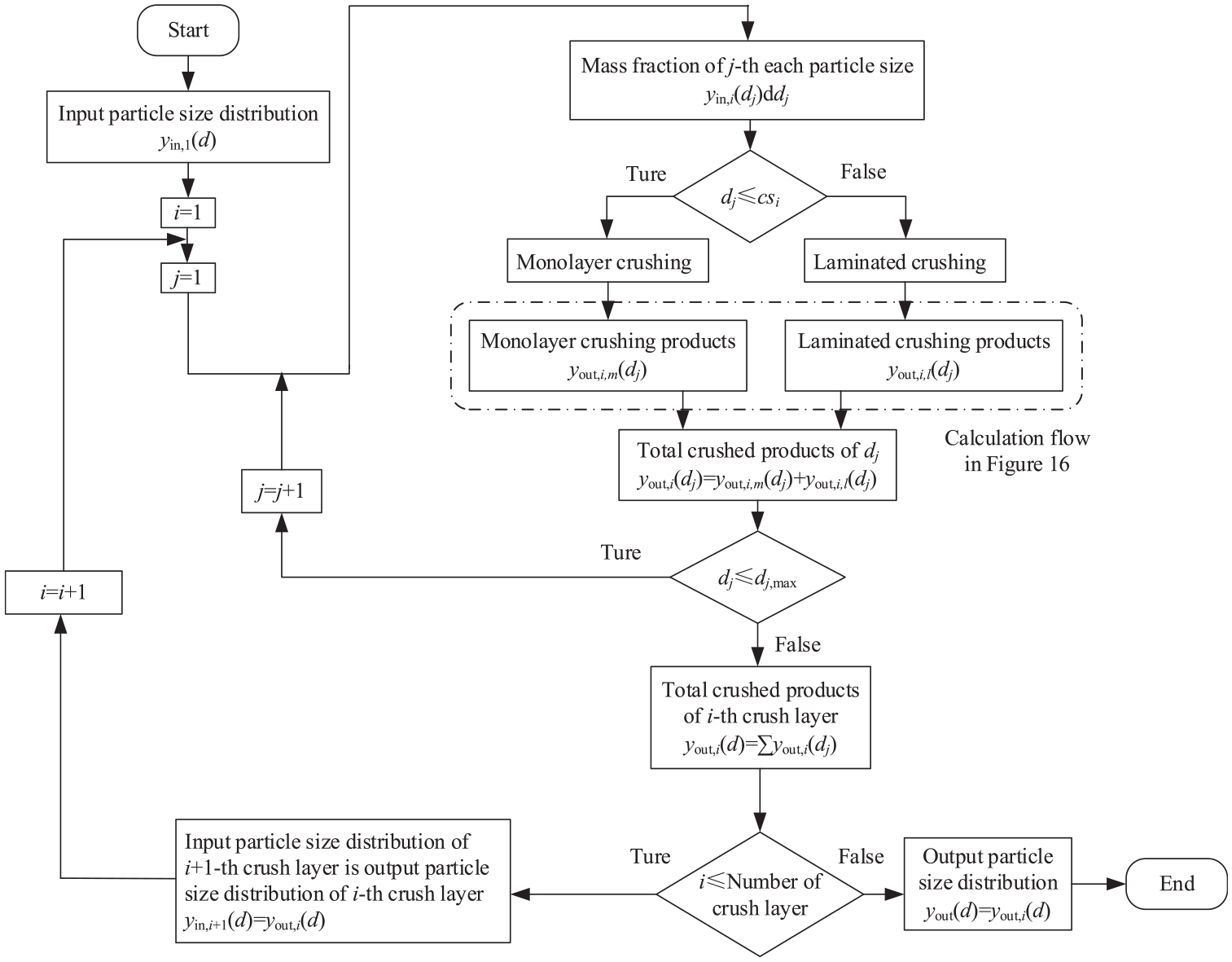

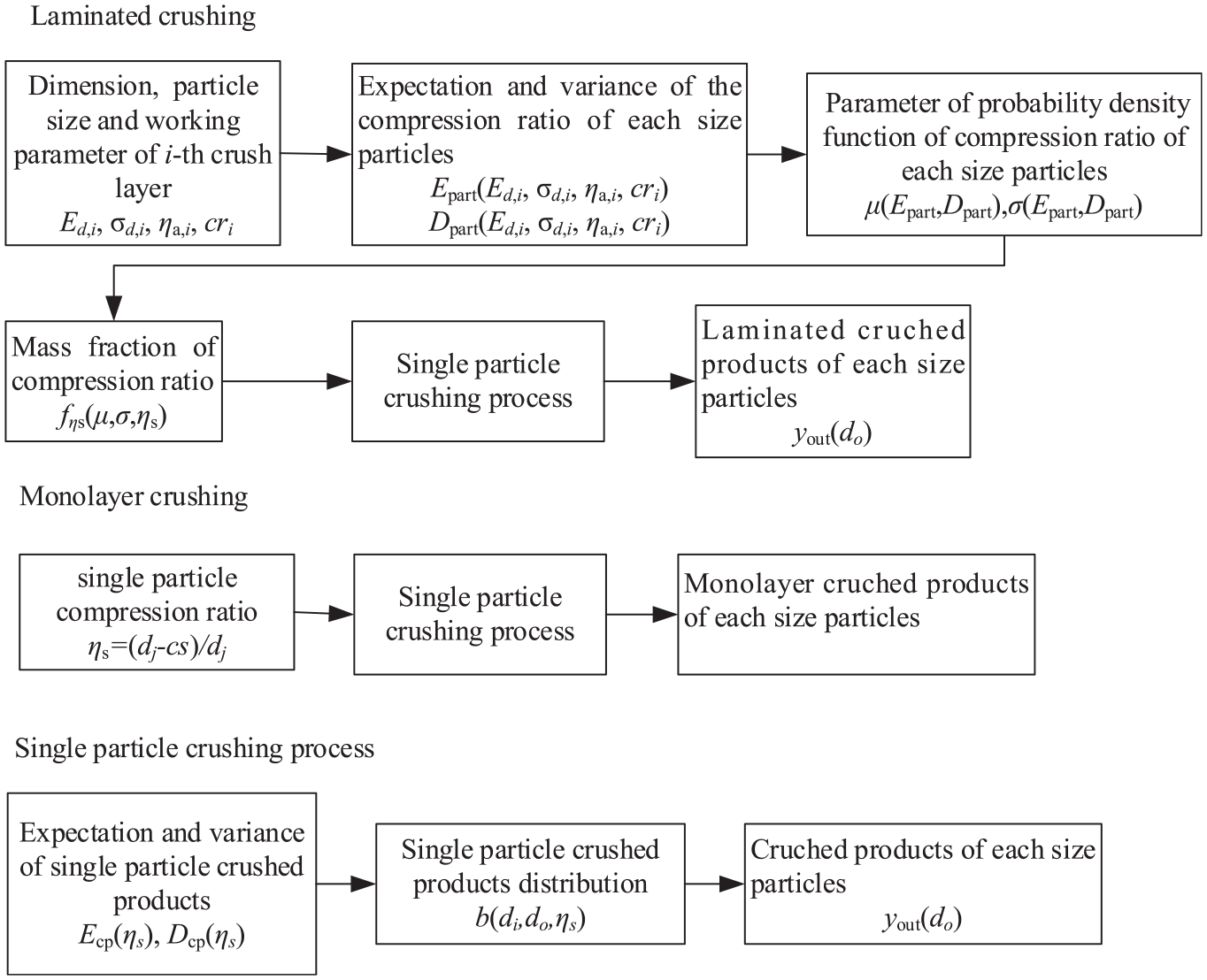

Calculation flow of crushing product distribution.

Figure 16.

Calculation flow of laminated and monolayer crushed products.

From the above calculation process, the expectation of particle size E_d and particle size distribution coefficient σ_d of each crushing layer are obtained. And E_d and σ_d changes with z coordinate can be obtained by interpolation. As shown in the Figure 17.

Figure 17.

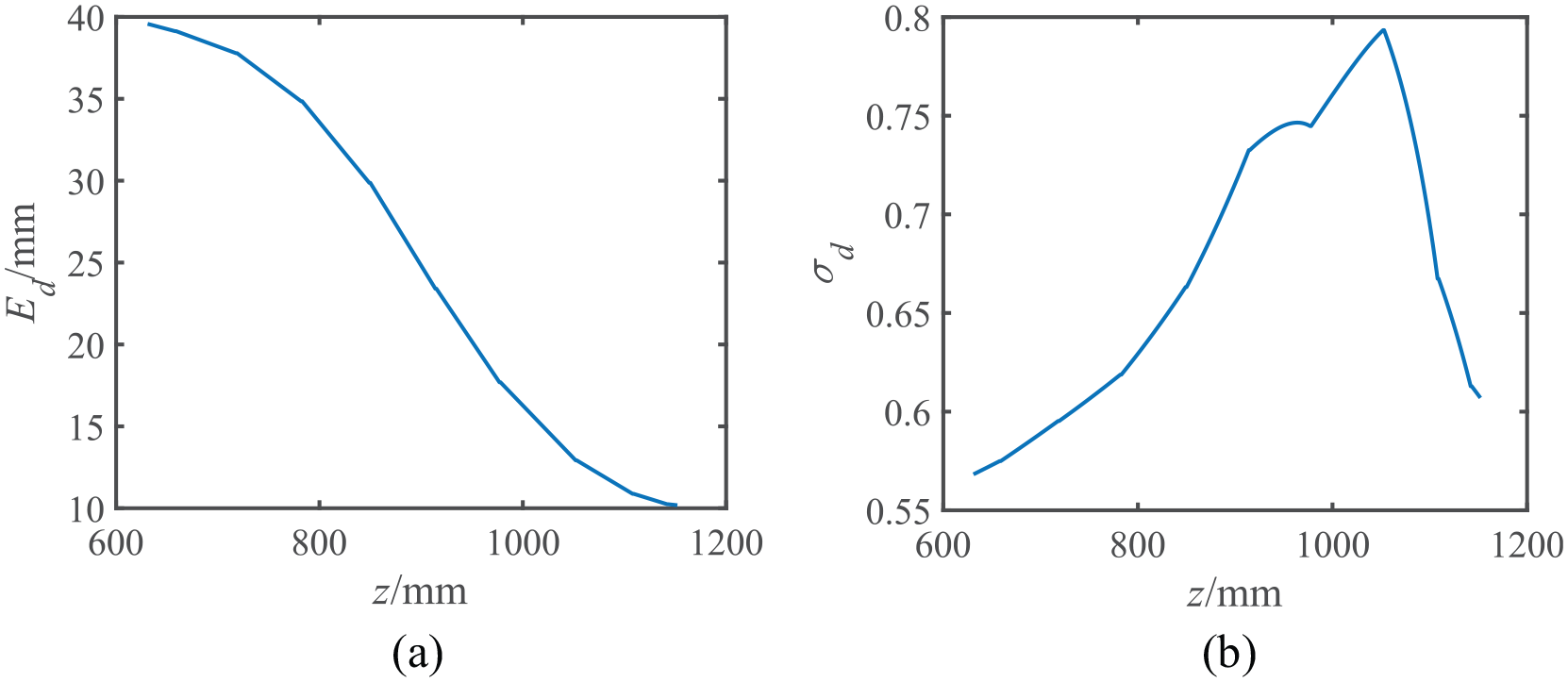

The function relationship between expectation of particle size E_d and particle size distribution coefficient σ_d and z coordinate: (a) expectation of particle size E_d and z coordinate, (b) particle size distribution coefficient σ_d and z coordinate.

The original compression thickness cr and actual compression ratio η_a changes with z coordinate as shown in the Figure 18.

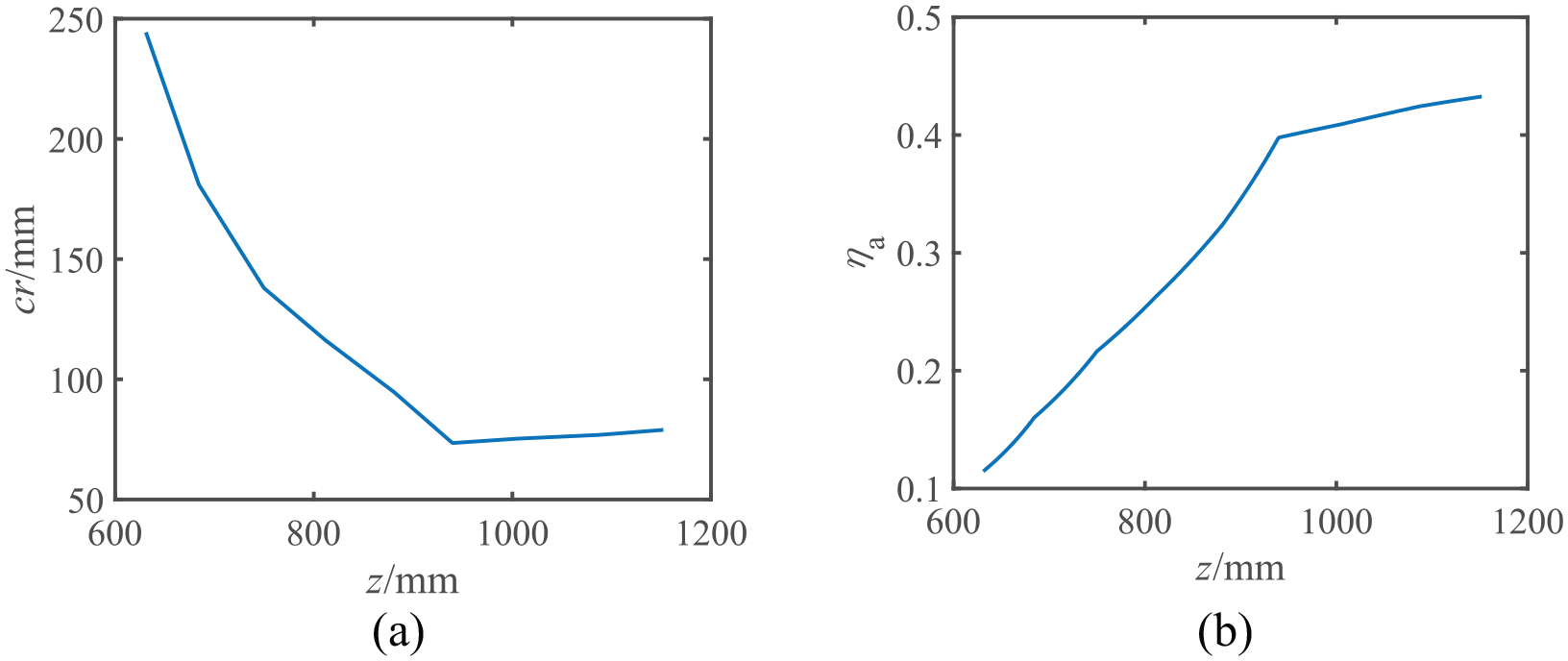

Figure 18.

The function relationship between the original compression thickness cr, actual compression ratio η_a and z coordinate: (a) original compression thickness cr and z coordinate, (b) actual compression ratio η_a and z coordinate.

According to the Formula (10)–(13), and Figures 17 and 18 the power of each point at different z coordinate and polar angle θ can be obtained as shown in the Figure 19.

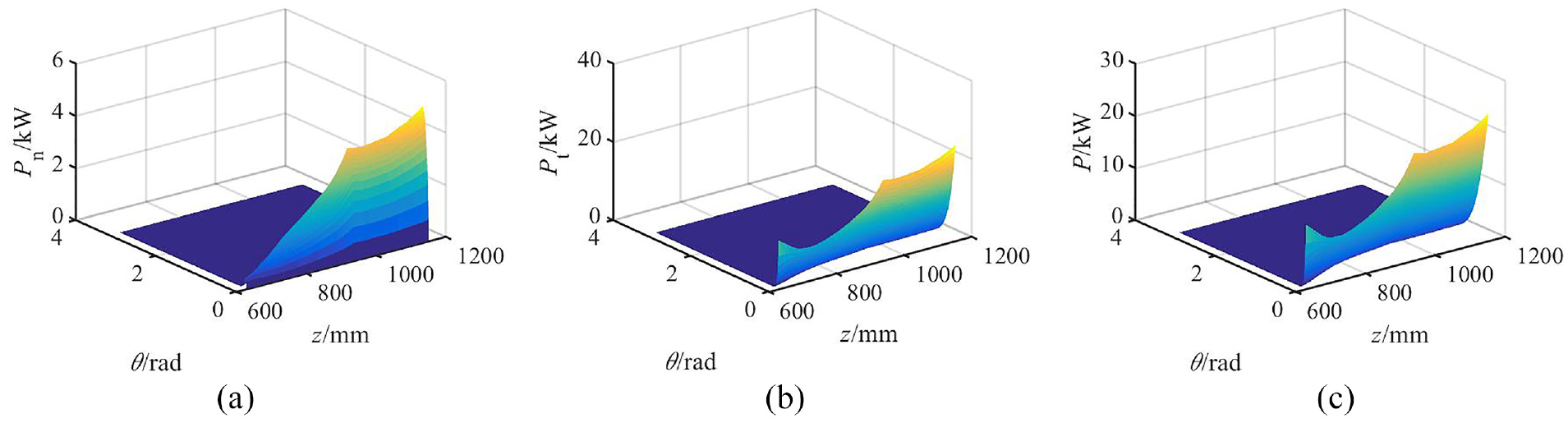

Figure 19.

The power of each point at different z coordinate and polar angle θ: (a) power of normal force P_n., (b) power of tangential force P_t, and (c) total power P.

From Section 2, theoretical total energy consumption per hour W_sum=158.0 kW. From Section 3, theoretical effective energy consumption 34.15 kW. To verify the model of energy consumption, industrial experiments were conducted on a PYGB1821 cone crusher at Anshan Iron and Steel Group Mining Co., Ltd. (Anshan, China). Energy consumption, feed size distribution, and structural parameters of the crushing chamber were measured. The actual average hourly energy consumption of empty-load is 241.06 kW, average energy consumption of full-load is 386.85 kW, maximum energy consumption of full-load is 424.33 kW, and minimum energy consumption of full-load 360.04 kW. So The actual average total energy consumption per hour is 145.79 kW, maximum total energy consumption 183.27 kW, minimum total energy consumption 118.98 kW.⁴ The relative error is 8.38% compared with the theoretical value.

Establishment of optimization function and optimization results

The purpose of optimization is to minimize the total energy consumption per hour W_sum, mass fraction of crushed products below 12 mm M₁₂, the energy consumption ratio η_W = W_eff/W_sum, and the throughput V. By adjusting the rotational speed n, the precession angle φ_p, and the relative position of the suspension point O’ (the reference is the suspension point position of PYGB1821 cone crusher), the crushing effect can be optimized, so the optimization function is established as follows:

min f (n, φ_{P}, O') = [- M_{12}, W_{sum}, - η_{W}, - V]

(22)

M ₁₂, W_sum and η_W cannot be expressed as analytic formula. The numerical solutions under different conditions are shown in the Figure 20.

Figure 20.

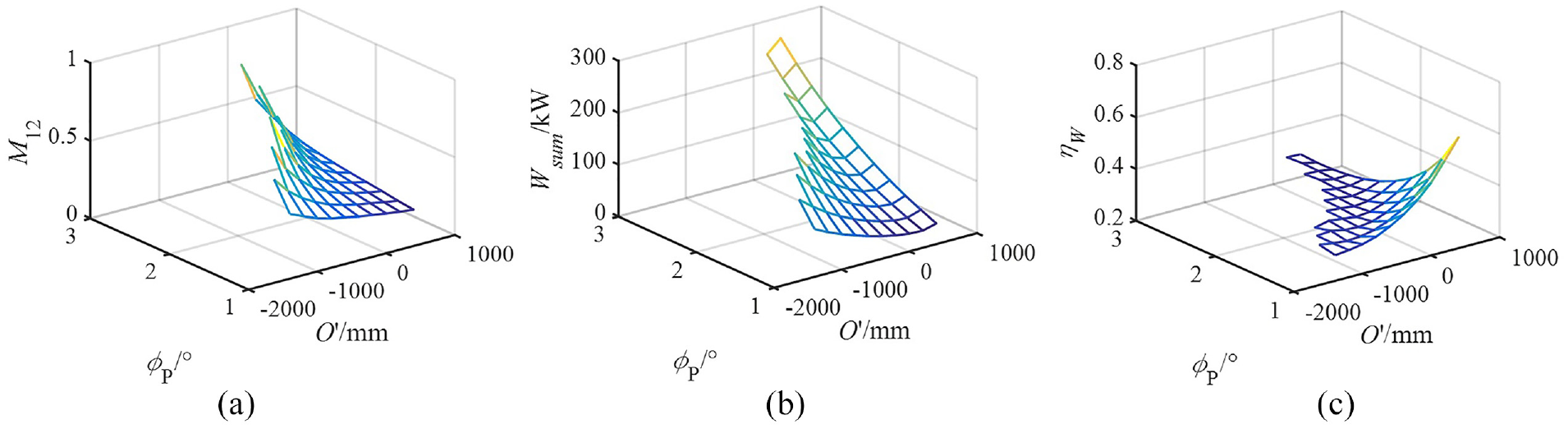

The numerical solutions of M₁₂, W_sum and η_W under different conditions (n = 340 rpm): (a) M₁₂, (b) W_sum, and (c) η_W.

The range of variables is as follows, −1600 mm ≤O’≤ 400 mm, 1°≤φ_p≤ 3°, 240 rpm ≤n≤ 340 rpm. There is a large difference in the order of magnitude of the calculation results of each objective function, so the optimization results need to be dimensionless. Based on the working conditions of PYGB1821 crusher under full load, the rotational speed n = 300 rpm, and the precession angle φ_p = 2.5°, and the relative position of suspension point O’ = 0 mm. Under the circumstances, M_12,basic=0.6285, W_sum = 158.0 kW, η_W_,basic = 0.2247. Let $M_{12, obj} = \frac{M_{12}}{M_{12, basic}}$ , $W_{sum, obj} = \frac{W_{sum}}{{W_{sum}}_{, basic}}$ , $η_{W, obj} = \frac{η_{W}}{η_{W, basic}}$ , $V_{obj} = \frac{V}{V_{basic}}$ . The optimization function is modified to

min f (n, φ_{p}, O') = [- M_{12, obj}, W_{sum, obj}, η_{W, obj}, V_{obj}]

(23)

Previous studies¹⁰ have shown that when the rotational speed n = 340 rpm, throughput V is 1.265 times of that at 300 rpm. When the rotational speed n = 240 rpm, the throughput is 0.9108 times of that at 300 rpm, which can be expressed by piecewise linear function, that is

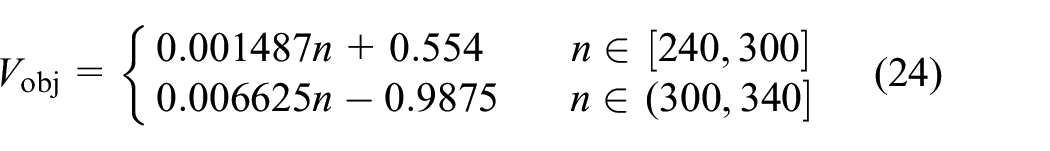

V_{obj} = {\begin{matrix} 0.001487 n + 0.554 n \in [240, 300] \\ 0.006625 n - 0.9875 n \in (300, 340] \end{matrix}

(24)

Taking 340 rpm as an example, using the genetic algorithm in MATLAB, the non-inferior solutions and Pareto front are shown in Figure 21.

Figure 21.

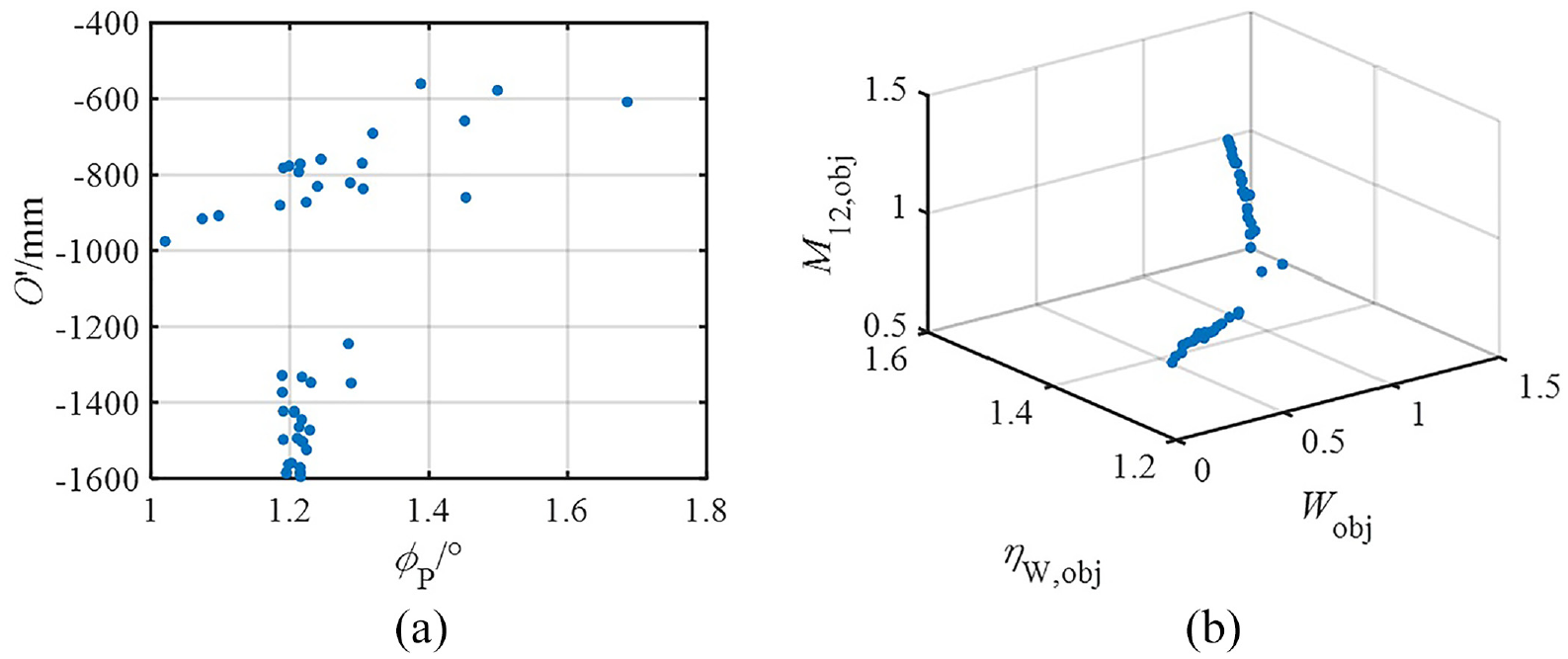

Optimization calculation results: (a) non-inferior solutions, (b) Pareto front.

The weighted method is used to verify the solutions. Formula (23) is transformed into

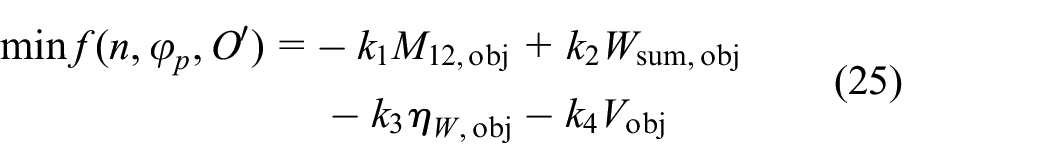

\begin{matrix} min f (n, φ_{p}, O') = - k_{1} M_{12, obj} + k_{2} W_{sum, obj} \\ - k_{3} η_{W, obj} - k_{4} V_{obj} \end{matrix}

(25)

Where k_i is the weight of each optimization objectives. In theory, there are infinite solutions about weight, and there is no algorithm to solve the general Pareto optimal solutions for all possible weightings.²⁴ When the preference is different, the weight will take different value. Taking the same importance of each optimization objective as an example, that is, k₁= k₂= k₃ = k₄ = 1. The optimal solution is n = 340 rpm, φ_p = 1.22°, O’ = −1595mm, and M_12,basic = 0.7468, W_sum = 161.57kW, η_W = 0.3065, Compared with PYGB1821 at full load, mass fraction of crushed products below 12 mm increased by 11.83%, total energy consumption of the same throughput reduced by 19.16%, the energy consumption ratio increased by 8.18%, throughput increased 26.5%.

Conclusion

The control optimization method of cone crusher is put forward, taking total energy consumption, mass fraction of crushed products below 12 mm, energy consumption ratio, and throughput as the optimization objective, the position of suspension point, rotational speed and precession angle of the moving cone as the independent optimization variables, and size of chamber as the constraint, the optimization function is established.

Based on the existing research results, the energy consumption model of 6-DOF robotic crusher is established. The experimental energy consumption data of PYGB1821 cone crusher are used to verify the theoretical energy consumption. The error of calculated theoretical energy consumption and the experimental value is within 10%.

Compared with the traditional cone crusher, under the same chamber size and particle size distribution, mass fraction of crushed products below 12 mm increased by 11.83%, total energy consumption of the same throughput reduced by 19.16%, the energy consumption ratio increased by 8.18%, throughput increased by 26.5%, which can effectively reduce the energy consumption and improve the crushing efficiency.

The results in this paper are related to the size parameters, working parameters and material parameters of the crusher. The calculation model can be extended to the intelligent control and design calculation of other crushing equipment such as jaw crusher disc roller mill and high pressure roller mill.
