A quantile variant of the expectation–maximization algorithm and its application to parameter estimation with interval data

Abstract

The expectation–maximization algorithm is a powerful computational technique for finding the maximum likelihood estimates for parametric models when the data are not fully observed. The expectation–maximization is best suited for situations where the expectation in each E-step and the maximization in each M-step are straightforward. A difficulty with the implementation of the expectation–maximization algorithm is that each E-step requires the integration of the log-likelihood function in closed form. The explicit integration can be avoided by using what is known as the Monte Carlo expectation–maximization algorithm. The Monte Carlo expectation–maximization uses a random sample to estimate the integral at each E-step. But the problem with the Monte Carlo expectation–maximization is that it often converges to the integral quite slowly and the convergence behavior can also be unstable, which causes computational burden. In this paper, we propose what we refer to as the quantile variant of the expectation–maximization algorithm. We prove that the proposed method has an accuracy of $O (1 / K^{2})$ , while the Monte Carlo expectation–maximization method has an accuracy of $O_{p} (1 / \sqrt{K})$ . Thus, the proposed method possesses faster and more stable convergence properties when compared with the Monte Carlo expectation–maximization algorithm. The improved performance is illustrated through the numerical studies. Several practical examples illustrating its use in interval-censored data problems are also provided.

Keywords

Expectation–maximization algorithm incomplete data maximum likelihood Monte Carlo expectation–maximization missing data quantile

Introduction

The analysis of lifetime or failure time data has been of considerable interest in many branches of applied engineering statistics including reliability engineering, biological sciences, etc. In reliability analysis, due to inherent limitations, or time and cost considerations on experiments, the data are said to be censored when, for certain observations, only a lower or upper bound on the lifetime is available. Thus, there is partial information in the data set that still can be used in estimation for reliability analysis. To obtain the parameter estimate, numerical optimization is often required to find the MLE. However, ordinary numerical methods such as the Gauss-Seidel iterative method and the Newton-Raphson gradient method may be very ineffective for complicated likelihood functions and these methods can be sensitive to the choice of starting values used. In this paper, unless otherwise specified, “MLE” refers to the estimate obtained by direct maximization of the likelihood function.

For censored sample problems, several approximations of the MLE and the best linear unbiased estimate (BLUE) have been studied instead of direct calculation of the MLE. For example, the problem of parameter estimation from censored samples has been treated by several authors. Gupta¹ has studied the MLE and provided the BLUE for Type-I and Type-II censored samples from a normal distribution. Govindarajulu² has derived the BLUE for a symmetrically Type-II censored sample from a Laplace distribution only for sample size up to n = 20. Balakrishnan³ has given an approximation of the MLE of the scale parameter of the Rayleigh distribution with censoring. Hassanein et al.⁴ also have given a BLUE for a Type-II censored sample from Rayleigh distribution. This BLUE, however, is limited to the case where the sample sizes are $n = 5 (1) 25 (5) 45$ and the numbers of censored observations are $r = 0, 1, \dots, n - 2$ , see Appendix F of Elsayed.⁵ Sultan⁶ has given an approximation of the MLE for a Type-II censored sample from a normal distribution. Balakrishnan⁷ has given the BLUE for a Type-II censored sample from a Laplace distribution. The BLUE needs the coefficients a_i and b_i, which were tabulated in Balakrishnan,⁷ but the table is provided only for sample size up to n = 20. In addition, the approximate MLE and the BLUE are not guaranteed to converge to the preferred MLE. The methods above are also restricted to Type-I or Type-II (symmetric) censoring for sample size up to n = 20 only.

The previously mentioned deficiencies can be overcome through the use of the EM algorithm. However, in many practical problems, the implementation of the ordinary EM algorithm is very difficult because the expectation of the log-likelihood in the E-step can be quite complex or unavailable in closed form. In order to avoid the explicit construction of the expectation in the E-step, Wei and Tanner^8,9 proposed the use of the Monte Carlo EM (MCEM) algorithm when the E-step is intractable. The MCEM algorithm uses Monte Carlo random sampling from the conditional distribution in order to construct an empirical estimate of the expected log-likelihood. However, the MCEM algorithm often presents difficulties because the convergence to the expected likelihood can often be slow and unstable. Therefore, we propose a quantile variant of the EM (QEM) algorithm that constructs the empirical estimate of the expected log-likelihood by non-random quantiles. The proposed variant is shown to have much faster convergence behavior and greater stability than the MCEM while at the same time requiring smaller sample sizes.

Moreover, in many experiments, more general incomplete observations are often encountered along with the fully observed data, where incompleteness arises due to right-censoring, left-censoring, grouping, quantal responses, etc. A general type of incomplete observations is of interval form. That is, a lifetime of a subject X_i is specified as $a_{i} \leq X_{i} \leq b_{i}$ . We deal with computing the MLE for this general form of incomplete data using the EM algorithm and its variants, the MCEM, and QEM algorithms. This interval form can handle right-censoring, left-censoring, quantal responses, and fully observed observations. This proposed method can also handle the data from intermittent inspection which are referred to as grouped data. In the grouped data case, only the number of failures in each inspection period are provided. For example, the articles^10,11 provide an example using grouped data, but they approximate the MLE and only consider the case where the lifetimes are exponentially distributed. Nelson¹² considers the maximum likelihood for grouped data but uses ordinary numerical methods which, as mentioned earlier, can often be problematic. The attractiveness of our proposed method is that it allows one to obtain the MLE using the QEM sequences under a variety of distributional assumptions. We will illustrate that it is easily applied to the cases described above and also provides more accurate estimates.

The EM and MCEM algorithms

In this section, we give a brief introduction of the EM and MCEM algorithms. Introduced by Dempster et al.,¹³ the EM algorithm is a powerful computational technique for finding the MLE of parametric models when there is no closed-form MLE, or the data are incomplete. For more details about this EM algorithm, refer to Little and Rubin,¹⁴ Tanner,¹⁵ Schafer,¹⁶ and Hunter and Lange.¹⁷

When the closed-form MLE from the likelihood function is not available, numerical methods are required to find the maximizer (i.e. MLE). However, ordinary numerical methods such as the Gauss-Seidel iterative method and the Newton-Raphson gradient method may be very ineffective for complicated likelihood functions and these methods can be sensitive to the choice of starting values used. In particular, if the likelihood function is flat near its maximum, the methods will stop before reaching the maximum. These potential problems can be overcome by using the EM algorithm.

The EM algorithm consists of two iterative steps: (i) the expectation step (E-step) and (ii) the maximization step (M-step). The advantage of the EM algorithm is that it solves a difficult incomplete data problem by constructing two relatively straightforward steps. The E-step of each iteration computes the conditional expectation of the log-likelihood with respect to the incomplete data given the observed data. The M-step of each iteration then obtains the maximizer of the expected log-likelihood constructed in the E-step. Thus, the EM sequences repeatedly maximize the log-likelihood function of the complete data given the incomplete data instead of maximizing the potentially complicated likelihood function of the incomplete data directly. An additional advantage of this method compared to other direct optimization techniques is that it is very simple and it converges reliably. In general, if it converges, it converges to a local maximum. Hence, in the case of the unimodal and concave likelihood function, the EM sequences converge to the global maximizer from any starting value. We can employ this methodology for parameter estimation for interval-censored data because interval-censored data models are special cases of incomplete (missing) data models.

Here, we give a brief introduction of the EM and MCEM algorithms. Denote the vector of unknown parameters by $θ = (θ_{1}, \dots, θ_{p})$ . Then the complete-data likelihood is

L^{c} (θ | x) = \prod_{i = 1}^{n} f (x_{i})

where

x = (x_{1}, \dots, x_{n})

and we denote the observed part of x by

y = (y_{1}, \dots, y_{m})

and the incomplete (missing) part by

z = (z_{m + 1}, \dots, z_{n})

. Denote the estimate at the sth EM sequences by

θ^{(s)}

. The EM algorithm consists of two distinct steps:

E-step: Compute $Q (θ | θ^{(s)})$

where $Q (θ | θ^{(s)}) = \int \log L^{c} (θ | y, z) p (z | y, θ^{(s)}) d z$ .

M-step: Find $θ^{(s + 1)}$

which maximizes $Q (θ | θ^{(s)})$ with respect to $θ$ .

As stated earlier, the implementation of the E-step in the EM algorithm can sometimes be quite difficult. In order to avoid this difficulty, Wei and Tanner^8,9 proposed the MCEM algorithm. In the MCEM, the expected log-likelihood in the E-step is approximated by using Monte Carlo integration. By simulating $z_{m + 1}, \dots, z_{n}$ from the conditional distribution $p (z | y, θ^{(s)})$ , the MCEM approximates the expected log-likelihood in the E-step. Let K denote the number of samples used in the Monte Carlo integration of the MCEM and denote each simulated sample by $z^{(k)} = (z_{m + 1, k}, \dots, z_{n, k})$ . Then, the Monte Carlo approximation of the expected log-likelihood is

\hat{Q} (θ | θ^{(s)}) = \frac{1}{K} \sum_{k = 1}^{K} \log L^{c} (θ | y, z^{(k)})

(1)

This method where the E-step is changed to create an empirical estimate of the expected log-likelihood is called the MCEM algorithm. Unfortunately, the major drawback to the MCEM algorithm is that it can often be very slow because it requires a large sample size for the empirical estimate to converge to the expected likelihood. In addition, the values of the parameter estimation during each run of the MCEM algorithm can vary because random samples are used in the Monte Carlo integration. In fact, the dependence of the MCEM algorithm on random sampling implies that, even when using a large number of iterations, two identical runs of the MCEM algorithm can result in different parameter estimates. These issues that arise due to the dependence of the MCEM algorithm on random sampling are avoided in the QEM algorithm through the use of deterministic sequences. In fact, random sampling is completely avoided in the QEM.

The quantile variant of the EM algorithm

The key idea underlying the QEM algorithm can be easily illustrated by the following example. The data set in the example was first presented by Freireich et al.¹⁸ and has since then been used very frequently for illustration in the reliability engineering and survival analysis literature.^19–21

Illustrative example: Length of remission of leukemia patients

An experiment is conducted to determine the effect of a drug named 6-mercaptopurine (6-MP) on leukemia remission times. Twenty-one leukemia patients (n = 21) are treated with 6-MP and the times of remission are recorded. There are nine individuals (m = 9) for whom the remission time is fully observed, and the remission times for the remaining 12 individuals are randomly censored on the right. Letting a plus (+) denote a censored observation, the remission times (in weeks) are: 6, 6, 6, $6^{+}$ , 7, $9^{+}$ , 10, $10^{+}, 11^{+}$ , 13, 16, $17^{+}, 19^{+}, 20^{+}$ , 22, 23, $25^{+}, 32^{+}, 32^{+}, 34^{+}, 35^{+}$ .

Assuming an exponential distribution for the lifetimes with the probability density function (pdf)

f (x) = \frac{1}{θ} e^{- x / θ}

we obtain the complete likelihood function

\log L^{c} (θ | y, z) = - n \log θ - \frac{1}{θ} \sum_{i = 1}^{m} y_{i} - \frac{1}{θ} \sum_{i = m + 1}^{n} z_{i}

and the conditional pdf

\begin{matrix} p (z | y, θ^{(s)}, R_{i}) = \prod_{i = m + 1}^{n} p_{z_{i}} (z_{i} | θ^{(s)}, R_{i}) \\ = \prod_{i = m + 1}^{n} \frac{1}{θ^{(s)}} e^{- (z_{i} - R_{i}) / θ^{(s)}} \end{matrix}

where z_i > R_i and R_i is a right-censoring time of the ith test unit. Using the above conditional pdf, we have the expected log-likelihood

\begin{matrix} Q (θ | θ^{(s)}) = \int \log L^{c} (θ | y, z) p (z | y, θ^{(s)}, R_{i}) d z \\ = - n \log θ - \frac{1}{θ} \sum_{i = 1}^{m} y_{i} \\ - \frac{1}{θ} \sum_{i = m + 1}^{n} \int z_{i} p_{z_{i}} (z_{i} | θ^{(s)}, R_{i}) d z_{i} \\ = - n \log θ - (n - m) \frac{θ^{(s)}}{θ} \\ - \frac{1}{θ} \sum_{i = 1}^{m} y_{i} - \frac{1}{θ} \sum_{i = m + 1}^{n} R_{i} \end{matrix}

In the Monte Carlo approximation, the term

E [z_{i} | θ^{(s)}] = \int z_{i} p_{z_{i}} (z_{i} | θ^{(s)}, R_{i}) d z_{i}

is approximated by

E [z_{i} | θ^{(s)}] = \int z_{i} p_{z_{i}} (z_{i} | θ^{(s)}, R_{i}) d z_{i} \approx \frac{1}{K} \sum_{k = 1}^{K} z_{i, k}

(2)

where a random sample

z_{i, k}

is from

p_{z_{i}} (z_{i} | θ^{(s)}, R_{i}) = \frac{1}{θ^{(s)}} e^{- (z_{i} - R_{i}) / θ^{(s)}}

Then, the Monte Carlo approximation of the expected log-likelihood is given by

\hat{Q} (θ | θ^{(s)}) = - n \log θ - \frac{1}{θ} \sum_{i = 1}^{m} y_{i} - \frac{1}{θ} \frac{1}{K} \sum_{k = 1}^{K} \sum_{i = m + 1}^{n} z_{i, k}

The key idea behind the QEM is that the approximation above can be improved by using the quantile function. Given the conditional pdf $p_{z_{i}} (z_{i, k} | θ^{(s)}, R_{i})$ , we denote the quantiles of ξ_k as

q_{i, k} = F^{- 1} (ξ_{k} | θ^{(s)}, R_{i}) = R_{i} - θ^{(s)} \log (1 - ξ_{k})

(3)

One can choose ξ_k from any form of the deterministic sequences such as k/K, $k / (K + 1), (k - \frac{1}{2}) / K$ , etc. In this paper, we use $ξ_{k} = (k - \frac{1}{2}) / K$ for $k = 1, 2, \dots, K$ . By analogy with equation (2), we can approximate the term

E [z_{i} | θ^{(s)}] = \int z_{i} p_{z_{i}} (z_{i} | θ^{(s)}, R_{i}) d z_{i}

Using the above quantiles $q_{i, k}$ in equation (3) instead of a random sample $z_{i, k}$ , we have the following approximation

E [z_{i} | θ^{(s)}] = \int z_{i} p_{z_{i}} (z_{i} | θ^{(s)}, R_{i}) d z_{i} \approx \frac{1}{K} \sum_{k = 1}^{K} q_{i, k}

(4)

It is noteworthy that a random sample $z_{i, k}$ in the Monte Carlo approximation can be generated by using the inverse transform algorithm.²² That is, the quantiles of a uniform random sample generate a random sample $z_{i, k}$ . However, the QEM uses the quantiles of the deterministic sequences $ξ_{k} = (k - \frac{1}{2}) / K$ which ensure faster and more stable convergence properties when compared with the MCEM.

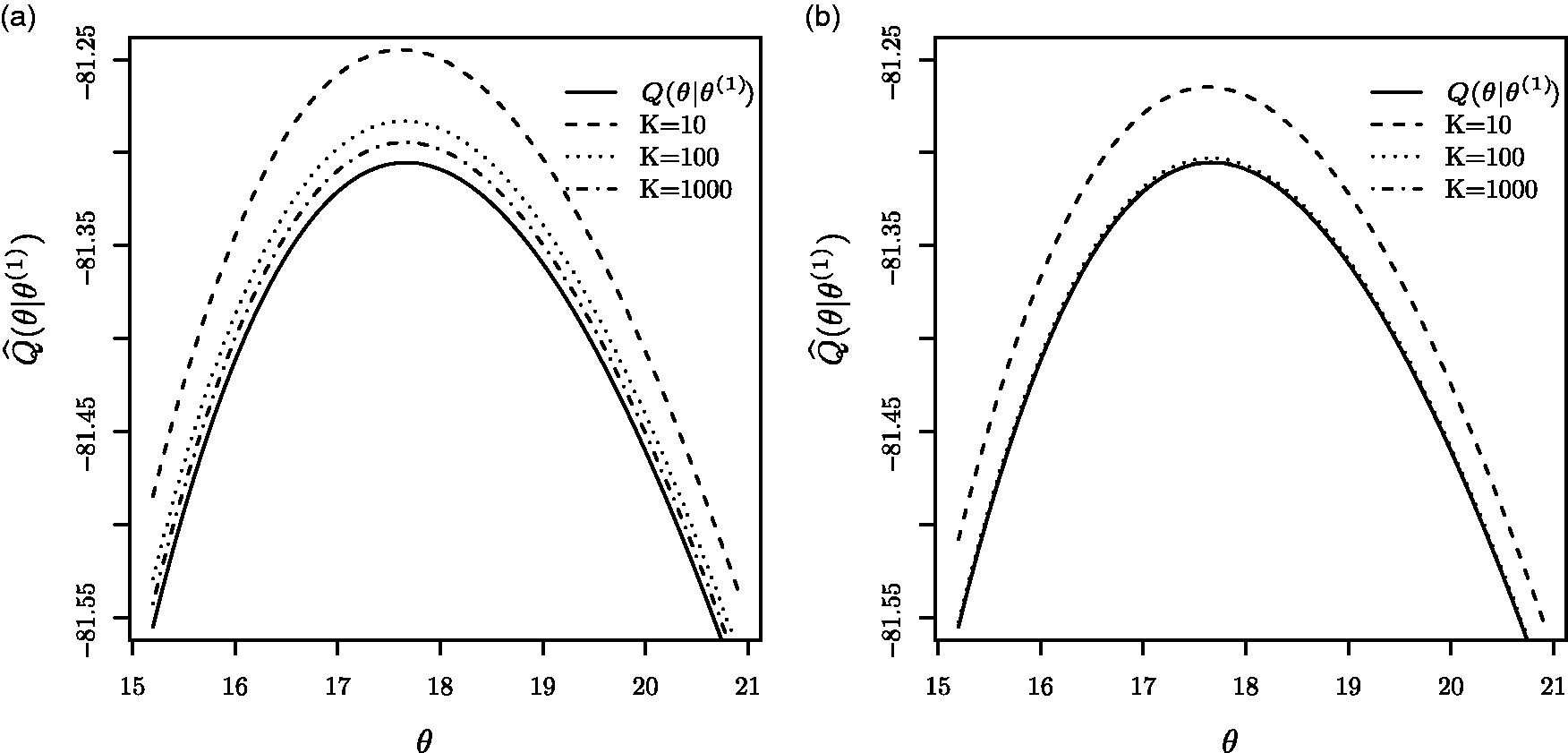

Figure 1 presents the MCEM and QEM approximations of the expected log-likelihood functions for K = 10 (dashed curve), 100 (dotted curve) and 1000 (dot-dashed curve) at the first step (s = 1), along with the exact expected log-likelihood (solid curve). The MCEM and QEM algorithms were run with starting value $θ^{(0)} = 1$ . As can be seen in Figure 1, the MCEM and QEM both successfully converge to the expected log-likelihood as K gets larger. Note that the QEM is much closer to the true expected log-likelihood for smaller values of K. As aforementioned, it should be noted again that estimates based on the MCEM can produce different values dependent on a random sample. Thus, the curves in Figure 1(a) can change for each different random sample. On the other hand, the curves in Figure 1(b) do not change because the QEM uses the deterministic sequences $ξ_{k} = (k - \frac{1}{2}) / K$ .

Figure 1.

The expected log-likelihood functions and approximations. (a) Monte Carlo approximations. (b) Quantile approximations.

The plots of the parameter estimates at each value of s for the MCEM and QEM are shown in Figure 2(a) and (b), respectively, with the horizontal lines indicating the MLE ( $\hat{θ} = 39.89$ ). We used the starting value with $θ^{(0)} = 1$ . The figures clearly show that convergence behavior of the QEM is quite stable and the number of steps required for convergence of the QEM is much smaller than that of the MCEM. For example, using K = 100 in the QEM results in faster convergence than using K = 10,000 in the MCEM.

Figure 2.

Successive parameter estimates using (a) the MCEM and (b) the QEM. The horizontal solid lines indicate the MLE ( $\hat{θ} = 39.89$ ).

Convergence properties of the MCEM and QEM algorithms

The two key questions are why the QEM is more stable and more accurate than the MCEM. Both of the questions can be answered by considering the approximation in equation (4) as an approximation to a Riemann-Stieltjes integral. For simplicity of presentation, we only consider the case where $z$ is one-dimensional, but the same argument can be used in the case where $z$ is multivariate. Denote $h (θ, z) = \log L^{c} (θ | y, z)$ and consider the following Riemann-Stieltjes sum

\frac{1}{K} \sum_{k = 1}^{K} h (θ, F^{- 1} (ξ_{k}))

(5)

Note that in the limit as $K \to \infty$ , we have

\frac{1}{K} \sum_{k = 1}^{K} h (θ, F^{- 1} (ξ_{k})) \to \int_{0}^{1} h (θ, F^{- 1} (ξ)) d ξ

(6)

Using a change-of-variable integration technique with $z = F^{- 1} (ξ)$ , we have

\int h (θ, z) d F (z) = \int h (θ, z) f (z) d z

Note that the quantile approximation on the left-hand side of equation (6) is a Riemann-Stieltjes sum which converges to the integral on the right-hand side of equation (6). In our specific case, the integral represents the expected log-likelihood which therefore proves that the QEM converges.

The next step is to show why the QEM has better accuracy when compared with the MCEM. With $ξ_{k} = (k - \frac{1}{2}) / K$ , the sum in equation (5) is also known as the extended midpoint rule which is well known to possess accuracy to the order of $O (1 / K^{2})$ .²³ Specifically, it can be easily shown that

\int h (θ, z) f (z) d z = \frac{1}{K} \sum_{k = 1}^{K} h (θ, q_{k}) + O (\frac{1}{K^{2}})

(7)

where

q_{k} = F^{- 1} (ξ_{k})

. Thus, the accuracy of the integration in the E-step of the QEM is

O (1 / K^{2})

On the other hand, the accuracy of the Monte Carlo approximation

{\bar{h}}_{K} = \frac{1}{K} \sum_{k = 1}^{K} h (θ, z_{k})

can be assessed as follows. By the central limit theorem, we have

\frac{\sqrt{K} {{\bar{h}}_{K} - E (h (θ, z))}}{\sqrt{Var (h (θ, z))}} \overset{d}{\to} N (0, 1)

(8)

which is accurate to the order of

O_{p} (1)

. Using the weak law of large numbers, we have

{\bar{h}}_{K} \overset{p}{\to} E (h (θ, z))

Using this along with equation (8) results in

\int h (θ, z) f (z) d z = \frac{1}{K} \sum_{k = 1}^{K} h (θ, z_{k}) + O_{p} (\frac{1}{\sqrt{K}})

(9)

Note that we have shown that the E-step of the QEM has accuracy of deterministic $O (1 / K^{2})$ and the E-step of the MCEM has accuracy of probabilistic $O_{p} (1 / \sqrt{K})$ . Therefore, the QEM has faster and more stable convergence properties compared to those of the MCEM.

We can generalize the above result as follows. In the E-step, using the quantiles instead of random samples, we replace the Monte Carlo approximation of the expected log-likelihood in equation (1) with the following quantile approximation

\hat{Q} (θ | θ^{(s)}) = \frac{1}{K} \sum_{k = 1}^{K} \log L^{c} (θ | y, q^{(k)})

where

\log L^{c} (\cdot)

is the complete-data log-likelihood in the EM algorithm,

q^{(k)} = (q_{m + 1, k}, \dots, q_{n, k})

with

q_{i, k} = F_{z_{i}}^{- 1} (ξ_{k} | θ^{(s)})

, and we used

ξ_{k} = (k - \frac{1}{2}) / K

as aforementioned.

Note that the approximation of the expected log-likelihood in the proposed QEM method can be viewed as being similar to a quasi-Monte Carlo approximation in the sense that the quasi-Monte Carlo approximation also uses deterministic sequences rather than a random sample. In fact, Niederreiter²⁴ shows that there exist such sequences in the normalized integration domain, which ensure accuracy on the order of $O (K^{- 1} {(\log K)}^{d - 1})$ , where d is the dimension of the integration space.²⁵ Thus, using the quasi-Monte Carlo sequences in the normalized integration domain, one can improve the accuracy of the integration in the E-step of the MCEM algorithm which leads to accuracy to the order of $O (1 / K^{1})$ with d = 1. However, we should point out that the proposed QEM method leads to accuracy to the order of $O (1 / K^{2})$ . Therefore, although using the quasi-Monte Carlo approximation can improve the convergence properties of the MCEM, the accuracy in that case will still be less than that of the proposed QEM method. Also, incorporating the quantiles from the proposed QEM method into the M-step to obtain the MLE is quite straightforward. Note also that, if the quasi-Monte Carlo sequences in the normalized integration domain are used, this operation will not have any relevance in the M-step in the sense that it still may be quite difficult to obtain a closed-form solution for the maximization.

Another way to approximate the expected log-likelihood is the use of a direct numerical integration in the E-step. For example, instead of using the approximation

\begin{matrix} E [z_{i} | θ^{(s)}] = \int z_{i} p_{z_{i}} (z_{i} | θ^{(s)}, R_{i}) d z_{i} \\ \approx (1 / K) \sum_{k = 1}^{K} z_{i, k} \end{matrix}

in equation (2), one may use

\begin{matrix} E [z_{i} | θ^{(s)}] = \int z_{i} p_{z_{i}} (z_{i} | θ^{(s)}, R_{i}) d z_{i} \\ \approx \sum_{k = 1}^{K} t_{i, k} p_{z_{i}} (t_{i} | θ^{(s)}, R_{i}) Δ t_{i} \end{matrix}

where

Δ t_{i} = t_{i, k} - t_{i, k - 1}

t_{i, 0} = a_{i}

(the lower bound of the support of z_i), and

t_{i, K} = b_{i}

(upper bound). However, if the above direct numerical integration is used instead of the MCEM approximation

(1 / K) \sum_{k = 1}^{K} z_{i, k}

or the QEM approximation

(1 / K) \sum_{k = 1}^{K} q_{i, k}

, this can create a problem in the M-step because this direct numerical integration includes the pdf term

p_{z_{i}} (t_{i} | θ^{(s)}, R_{i})

in the sum. Thus, the integral becomes much more complex and this complexity can make it difficult or even impossible to find the closed-form maximizer in the M-step. It should also be noted that the integrating domain of a direct numerical integration is the same as the support of a random variable, while the integrating domain of the QEM method is always between zero and one as shown in equation (6). If the support of a random variable is unbounded as is often the case in statistics, a numerical integration of an improper integral should be used; see Section 4.4 of Press et al.²³ Improper integrals present serious challenges in numerical integration. In order to obtain reasonable accuracy using numerical integration, great care needs to be taken and often advanced methods need to be used. Thus, the focus of the paper is to construct the EM algorithm using the quantiles so that the closed-form maximizer in the M-step can be obtained in a straightforward manner.

Likelihood construction

In this section, we develop the likelihood functions which can be conveniently used for the EM, MCEM, and QEM algorithms.

The general form of an incomplete observation is often of interval form. That is, the lifetime of a subject X_i may not be observed exactly, but is known to fall in an interval, $a_{i} \leq X_{i} \leq b_{i}$ . This interval form includes censored, grouped, quantal-response, and fully observed observations. For example, a lifetime is left-censored when $a_{i} = - \infty$ and a lifetime is right-censored when $b_{i} = \infty$ . The lifetime is fully observed when a_i = b_i.

Suppose that $x = (x_{1}, \dots, x_{n})$ are observations on random variables which are independent and identically distributed (iid) and have a continuous distribution with pdf f(x) and cumulative distribution function (cdf) F(x). Interval-censored data from experiments can be conveniently represented by pairs $(w_{i}, δ_{i})$ with $w_{i} = [a_{i}, b_{i}]$ ,

δ_{i} = {\begin{matrix} 0 & a_{i} < b_{i} \\ 1 & a_{i} = b_{i} \end{matrix} for i = 1, \dots, n

where δ_i is an indicator variable and a_i and b_i are lower and upper ends of interval observations of the ith test unit, respectively. If a_i = b_i, then the lifetime of the ith test unit is fully observed. Denote the observed part of

x = (x_{1}, \dots, x_{n})

y = (y_{1}, \dots, y_{m})

and the incomplete (missing) part by

z = (z_{m + 1}, \dots, z_{n})

with

a_{i} \leq z_{i} \leq b_{i}

. Denote the vector of unknown parameters by

θ = (θ_{1}, \dots, θ_{d})

. Then ignoring a normalizing constant, we have the complete-data likelihood function

L^{c} (θ | y, z) \propto \prod_{i = 1}^{n} f (x_{i} | θ) = \prod_{i = 1}^{m} f (y_{i} | θ) \cdot \prod_{i = m + 1}^{n} f (z_{i} | θ)

(10)

where the pdf of z_i is given by

p_{z_{i}} (z | θ) = \frac{f (z | θ)}{F (b_{i} | θ) - F (a_{i} | θ)}

(11)

for

a_{i} < z < b_{i}

Integrating $L^{c} (θ | x)$ with respect to $z$ , we obtain the observed-data likelihood

\begin{array}{l} L (θ | y) \propto \int L^{c} (θ | y, z) d z \\ = \prod_{i = 1}^{m} f (y_{i} | θ) \prod_{i = m + 1}^{n} {F (b_{i} | θ) - F (a_{i} | θ)} \end{array}

where an empty product is generally taken to be one. Using the

(w_{i}, δ_{i})

notation, we have

L (θ | w, δ) \propto \prod_{i = 1}^{n} f {(w_{i} | θ)}^{δ_{i}} {F (b_{i} | θ) - F (a_{i} | θ)}^{1 - δ_{i}}

(12)

where

w = (w_{1}, \dots, w_{n})

and

δ = (δ_{1}, \dots, δ_{n})

. Here, although we provided the likelihood function for the interval-data case, it is easily extended to more general forms of incomplete data. For more details, the reader is referred to Heitjan²⁶ and Heitjan and Rubin.²⁷

Clearly, given the complexity of the likelihood, the goal is to make an inference on $θ$ , and the EM algorithm is a tool that can be used to accomplish this goal. Then the issue here is how to implement the EM algorithm when there are interval-censored data in the sample. By treating the interval-censored data as incomplete (missing) data, it is possible to write the complete-data likelihood. This treatment allows one to fine the closed-form maximizer in the M-step. For convenience, assume that all the data are of interval form with $a_{i} \leq w_{i} \leq b_{i}$ and a_i < b_i. Then the likelihood function in equation (12) can be rewritten as

L (θ | w) \propto \prod_{i = 1}^{n} {F (b_{i} | θ) - F (a_{i} | θ)}

(13)

Then the complete-data likelihood function corresponding to equation (13) is given by

L^{c} (θ | y, z) \propto \prod_{i = 1}^{n} f (z_{i} | θ)

where the pdf of z_i is given by equation (11). Using this result, we have the following Q-function in the E-step

Q (θ | θ^{(s)}) = \sum_{i = 1}^{n} \int_{a_{i}}^{b_{i}} \log f (z_{i} | θ) \cdot p_{z_{i}} (z_{i} | θ^{(s)}) d z_{i}

It is useful to consider the integral above when $b_{i} \to a_{i}$ . For notational convenience, omitting the subject index i and letting $b = a + ϵ$ , we have

\int_{a}^{a + ϵ} \log f (z | θ) \cdot p_{z} (z | θ^{(s)}) d z

(14)

It follows from integration by parts that the integral above becomes

{[\log f (z | θ) P_{z} (z | θ^{(s)})]}_{a}^{a + ϵ} - \int_{a}^{a + ϵ} \frac{f' (z | θ)}{f (z | θ)} P_{z} (z | θ^{(s)}) d z

(15)

where

P_{z} (z | θ^{(s)}) = \frac{F (z | θ^{(s)})}{F (a + ϵ | θ^{(s)}) - F (a | θ^{(s)})}

(16)

Using equations (15) and (16), we can rewrite equation (14) as

\frac{A - B - C}{F (a + ϵ | θ^{(s)}) - F (a | θ^{(s)})}

(17)

where

\begin{matrix} A = \log f (a + ϵ | θ) F (a + ϵ | θ^{(s)}) \\ B = \log f (a | θ) F (a | θ^{(s)}) \end{matrix}

and

C = \int_{a}^{a + ϵ} \frac{f' (z | θ)}{f (z | θ)} \cdot F (z | θ^{(s)}) d z

Applying L’Hospital rule to equation (17), we obtain

\lim_{ϵ \to 0} \int_{a}^{a + ϵ} \log f (z | θ) \cdot p_{z} (z | θ^{(s)}) d z = \log f (a | θ)

Thus, in the case where all the lifetimes are fully observed, we simply use the interval $[a_{i}, a_{i}]$ notation which implies $[a_{i}, a_{i} + ϵ]$ with the limit as $ϵ \to 0^{+}$ . Using this result, all the data points considered in this paper can be viewed as data points in interval-data form without requiring the use of the indicator variable δ_i.

For notational convenience, we let $z_{1} = y_{1}, \dots, z_{m} = y_{m}$ . Then, the complete-data likelihood function corresponding to equation (10) becomes

L^{c} (θ | z) \propto \prod_{i = 1}^{n} f (z_{i} | θ)

(18)

where

z = (z_{1}, z_{2}, \dots, z_{n})

. From now, unless otherwise specified,

z

refers to

(z_{1}, z_{2}, \dots, z_{n})

instead of

(z_{m + 1}, z_{2}, \dots, z_{n})

. Thus, we use equation (18) for the complete-data likelihood function rather than equation (10).

For many distributions, it is extremely difficult or even impossible to implement the EM algorithm with interval-censored data. This is because, in the E-step, the Q-function does not integrate easily and this causes computational difficulties in the M-step. In order to avoid this problem, one can use the MCEM algorithm which reduces the difficulty in the E-step through the use of a Monte Carlo integration. As aforementioned, although it can make some problems tractable, the MCEM can be computationally very expensive and often leads to unstable estimates. Thus, we propose a quantile variant of the EM algorithm, the QEM, which alleviates the computational issues associated with the MCEM algorithm and leads to more stable estimates.

Regardless of whether one uses EM, MCEM or QEM, stopping criteria need to be defined so that the algorithm converges after some number of iterations. We define the stopping criteria as one in which the changes in successive estimates are relatively small compared to a defined precision $ϵ$ . For example, in the case of the normal distribution, we can define the stopping criteria for the QEM algorithm to occur when both

| μ^{(s + 1)} - μ^{(s)} | < ϵ μ^{(s + 1)}

and

| σ^{(s + 1)} - σ^{(s)} | < ϵ σ^{(s + 1)}

where

ϵ

is some small number which depends on one’s desired precision. For other convergence criteria, the reader may refer to Press et al.²³

In the section that follows, we maximize the likelihood function in equation (12) using the EM (when available), MCEM, and QEM algorithms under a variety of distributional assumptions.

Parameter estimation

In this section, we provide examples of parameter estimation using the EM, MCEM, and QEM algorithms under various distributional assumptions. Specifically, we consider the exponential, normal, Laplace, Rayleigh, and Weibull distributions in turn.

In the case where the exponential and normal distributions are assumed, the implementation of the EM algorithm is straightforward and there is actually no need to consider the MCEM or the QEM algorithms. Nevertheless, in order to compare the performance of the MCEM and the QEM under those distributional assumptions, we include the results of these approaches also. Also, for the details involved in generating the EM sequences of the normal distribution with interval censoring, the readers are referred to Lee and Park.²⁸

Now, in the case where we assume that the lifetimes have a Laplace distribution, the E-step computation in the EM algorithm is extremely complex so the MCEM and QEM are more appropriate and we expect the QEM to outperform the MCEM. Finally, when the Rayleigh and Weibull distributions are assumed for the lifetimes, the expected log-likelihood in the E-step of the EM does not have an explicit integration so it is not possible to apply the EM algorithm in these cases.

As aforementioned, it is noteworthy that the QEM sequences are easily obtained by replacing a random sample $z^{(k)}$ in the MCEM sequences with quantile sequences $q^{(k)}$ .

Exponential distribution

We assume that the random variables z_i are iid exponential random variables with the pdf given by $f (z | λ) = λ \exp (- λ z)$ . Using equation (18), we obtain the complete-data log-likelihood of $λ$

\log L^{c} (λ | z) = \sum_{i = 1}^{n} (\log λ - λ z_{i})

where the pdf of z_i is given by

p_{z_{i}} (z | λ) = \frac{λ \exp (- λ z)}{\exp (- λ a_{i}) - \exp (- λ b_{i})}

(19)

for

a_{i} < z < b_{i}

. When a_i = b_i, the above random variables z_i degenerate at z_i = a_i.

E-step:

When a_i < b_i, the $Q (\cdot)$ function is given by

\begin{matrix} Q (λ | λ^{(s)}) = \int \log L^{c} (λ | z) p (z | λ^{(s)}) d z \\ = n \log λ - λ \sum_{i = 1}^{n} A_{i}^{(s)} \end{matrix}

where

p (z | λ^{(s)}) = \prod_{i = 1}^{n} p_{z_{i}} (z_{i} | λ^{(s)})

and

\begin{matrix} A_{i}^{(s)} = E [z_{i} | λ^{(s)}] = \int_{a_{i}}^{b_{i}} z \cdot p_{z_{i}} (z | λ^{(s)}) d z \\ = \frac{a_{i} \exp (- λ^{(s)} a_{i}) - b_{i} \exp (- λ^{(s)} b_{i})}{\exp (- λ^{(s)} a_{i}) - \exp (- λ^{(s)} b_{i})} + \frac{1}{λ^{(s)}} \end{matrix}

Note that when a_i = b_i, we have $A_{i}^{(s)} = a_{i}$ .

M-step:

Differentiating $Q (λ | λ^{(s)})$ with respect to λ and setting this to zero, we obtain

\frac{\partial Q (λ | λ^{(s)})}{\partial λ} = \frac{n}{λ} - \sum_{i = 1}^{n} A_{i}^{(s)} = 0

Solving for λ, we obtain the $(s + 1)$ st EM sequence in the M-step

λ^{(s + 1)} = \frac{n}{\sum_{i = 1}^{n} A_{i}^{(s)}}

(20)

If we instead use the MCEM algorithm by simulating $z_{1}, \dots, z_{n}$ from the truncated exponential distribution $p (z | θ^{(s)})$ , we then obtain the MCEM sequences

λ^{(s + 1)} = \frac{n}{\sum_{i = 1}^{n} \frac{1}{K} \sum_{k = 1}^{K} z_{i, k}}

where

z_{i, k}

for

k = 1, 2, \dots, K

are from the truncated exponential distribution

p_{z_{i}} (z | λ^{(s)})

defined in equation (19). On the other hand, if we use the QEM algorithm by quantiling, we then obtain the QEM sequences

λ^{(s + 1)} = \frac{n}{\sum_{i = 1}^{n} \frac{1}{K} \sum_{k = 1}^{K} q_{i, k}}

where

q_{i, k} = F_{z_{i}}^{- 1} (ξ_{k} | λ^{(s)})

and

ξ_{k} = (k - \frac{1}{2}) / K

. It is immediate from equation (19) that

F_{z_{i}} (z | λ) = \frac{\exp (- λ a_{i}) - \exp (- λ z)}{\exp (- λ a_{i}) - \exp (- λ b_{i})}

for

a_{i} < z < b_{i}, F_{z_{i}} (z | λ) = 0

for

z \leq a_{i}

, and

F_{z_{i}} (z | λ) = 1

for

z \geq b_{i}

. Thus, the quantile sequences are explicitly obtained as

\begin{matrix} q_{i, k} = \frac{1}{λ^{(s)}} \times \log [\frac{1}{(1 - ξ_{k}) \exp (- λ^{(s)} a_{i}) + ξ_{k} \exp (- λ^{(s)} b_{i})}] \end{matrix}

It is of interest to consider the case where the data are right-censored. In this special case, the closed-form MLE is known. If the data are fully observed (i.e. $w_{i} = [a_{i}, a_{i}]$ ) for $i = 1, 2, \dots, r$ , it is easily seen from L’Hospital rule that $A_{i}^{(s)} = a_{i}$ . If the observation is right-censored (i.e. $w_{i} = [a_{i}, \infty]$ ) for $i = r + 1, \dots, n$ , we have $A_{i}^{(s)} = a_{i} + 1 / λ^{(s)}$ . Substituting these results into equation (20) leads to

λ^{(s + 1)} = \frac{n}{\sum_{i = 1}^{n} a_{i} + (n - r) / λ^{(s)}}

(21)

Note that solving the stationary-point equation $\hat{λ} = λ^{(s + 1)} = λ^{(s)}$ of equation (21) gives

\hat{λ} = \frac{r}{\sum_{i = 1}^{n} a_{i}}

As expected, the results is identical to the well-known closed-form MLE in the right-censored data case.

Normal distribution

We assume that the random variables z_i are iid normal random variables with parameter vector $θ = (μ, σ)$ . Using equation (18), we obtain the complete-data log-likelihood of $θ$

\begin{matrix} \log L^{c} (θ | z) \propto - \frac{n}{2} \log σ^{2} - \frac{n}{2 σ^{2}} μ^{2} \\ - \frac{1}{2 σ^{2}} {\sum_{i = 1}^{n} ​ z_{i}^{2} - 2 μ \sum_{i = 1}^{n} ​ z_{i}} \end{matrix}

where the pdf of z_i is given by

p_{z_{i}} (z | θ) = \frac{\frac{1}{σ} φ (\frac{z - μ}{σ})}{Φ (\frac{b_{i} - μ}{σ}) - Φ (\frac{a_{i} - μ}{σ})}

(22)

for

a_{i} < z < b_{i}

. Similarly as before, if a_i = b_i, then the random variables z_i degenerate at z_i = a_i.

E-step:

Denote the estimate of $θ$ at the sth EM sequence by $θ^{(s)} = (μ^{(s)}, σ^{(s)})$ . Ignoring constant terms, we have

\begin{matrix} Q (θ | θ^{(s)}) = \int \log L^{c} (θ | z) p (z | θ^{(s)}) d z \\ = - \frac{n}{2} \log σ^{2} - \frac{n}{2 σ^{2}} μ^{2} - \frac{1}{2 σ^{2}} \sum_{i = 1}^{n} A_{i}^{(s)} \\ + \frac{μ}{σ^{2}} \sum_{i = 1}^{n} B_{i}^{(s)} \end{matrix}

where

p (z | θ^{(s)}) = \prod_{i = 1}^{n} p_{z_{i}} (z_{i} | θ^{(s)})

A_{i}^{(s)} = E [z_{i}^{2} | θ^{(s)}]

and

B_{i}^{(s)} = E [z_{i} | θ^{(s)}]

. Using the following integral identities

\int \frac{z}{σ} φ (\frac{z - μ}{σ}) d z = μ Φ (\frac{z - μ}{σ}) - σ φ (\frac{z - μ}{σ})

and

\begin{matrix} \int \frac{z^{2}}{σ} φ (\frac{z - μ}{σ}) d z = (μ^{2} + σ^{2}) Φ (\frac{z - μ}{σ}) \\ - σ (μ + z) φ (\frac{z - μ}{σ}) \end{matrix}

we obtain

\begin{array}{l} A_{i}^{(s)} = {μ^{(s)}}^{2} + {σ^{(s)}}^{2} - σ^{(s)} \\ \times \frac{(μ^{(s)} + b_{i}) φ (\frac{b_{i} - μ^{(s)}}{σ^{(s)}}) - (μ^{(s)} + a_{i}) φ (\frac{a_{i} - μ^{(s)}}{σ^{(s)}})}{Φ (\frac{b_{i} - μ^{(s)}}{σ^{(s)}}) - Φ (\frac{a_{i} - μ^{(s)}}{σ^{(s)}})} \end{array}

and

B_{i}^{(s)} = μ^{(s)} - σ^{(s)} \times \frac{φ (\frac{b_{i} - μ^{(s)}}{σ^{(s)}}) - φ (\frac{a_{i} - μ^{(s)}}{σ^{(s)}})}{Φ (\frac{b_{i} - μ^{(s)}}{σ^{(s)}}) - Φ (\frac{a_{i} - μ^{(s)}}{σ^{(s)}})}

where a_i < b_i. It should be noted that for a_i = b_i we have

A_{i}^{(s)} = a_{i}^{2}

and

B_{i}^{(s)} = a_{i}

M-step:

Differentiating the expected log-likelihood $Q (θ | θ^{(s)})$ with respect to μ and $σ^{2}$ and solving for μ and $σ^{2}$ , we obtain the EM sequences

μ^{(s + 1)} = \frac{1}{n} \sum_{i = 1}^{n} B_{i}^{(s)}

(23)

and

σ^{2}^{(s + 1)} = \frac{1}{n} \sum_{i = 1}^{n} A_{i}^{(s)} - {μ^{(s + 1)}}^{2}

(24)

If we instead use the MCEM algorithm by simulating $z_{1}, \dots, z_{n}$ from the truncated normal distribution $p (z | θ^{(s)})$ , we then obtain the MCEM sequences

μ^{(s + 1)} = \frac{1}{n} \sum_{i = 1}^{n} \frac{1}{K} \sum_{k = 1}^{K} z_{i, k}

(25)

and

σ^{2}^{(s + 1)} = \frac{1}{n} \sum_{i = 1}^{n} \frac{1}{K} \sum_{k = 1}^{K} z_{i, k}^{2} - {μ^{(s + 1)}}^{2}

(26)

where

z_{i, k}

are from the truncated normal distribution

p_{z_{i}} (z_{i, k} | μ^{(s)}, σ^{(s)})

defined in equation (22). Note that the QEM algorithm is easily obtained by quantiling

z_{1}, \dots, z_{n}

. As illustrated in the exponential case, the quantiles are easily obtained using

q_{i, k} = F_{z_{i}}^{- 1} (ξ_{k} | μ^{(s)}, σ^{(s)})

. Thus, replacing

z_{i, k}

in equations (25) and (26) with

q_{i, k}

, we can obtain the QEM sequences.

Laplace distribution

We assume that the random variables z_i are iid Laplace random variables with parameter $θ = (μ, σ)$ whose pdf is given by

f (x | μ, σ) = \frac{1}{2 σ} \exp (- \frac{| x - μ |}{σ})

Using equation (18), we have the complete-data log-likelihood of $θ$

\begin{matrix} \log L^{c} (θ | z) = C - n \log σ - \frac{1}{σ} \sum_{i = 1}^{m} | y_{i} - μ | - \frac{1}{σ} \sum_{i = m + 1}^{n} | z_{i} - μ | \end{matrix}

where the pdf of z_i is given by

p_{z_{i}} (z | θ) = \frac{f (z | θ)}{F (b_{i} | θ) - F (a_{i} | θ)}

(27)

for

a_{i} < z < b_{i}

. Similarly as before, if a_i = b_i, then the random variables z_i degenerate at z_i = a_i.

E-step:

At the sth step in the EM sequence denoted by $θ^{(s)} = (μ^{(s)}, σ^{(s)})$ , we have the expected log-likelihood

\begin{array}{l} Q (θ | θ^{(s)}) = \int \log L^{c} (θ | z) p (z | θ^{(s)}) d z \\ = C - n \log σ - \frac{1}{σ} \sum_{i = 1}^{n} \int_{a_{i}}^{b_{i}} | z_{i} - μ | f (z_{i} | θ^{(s)}) d z_{i} \end{array}

Note that integrating the third term in the expression above is extremely complex. We can avoid this difficulty by using the MCEM algorithm or the QEM algorithm. Using the standard MCEM technique given K samples, the approximate expected log-likelihood becomes

\begin{array}{l} \hat{Q} (θ | θ^{(s)}) = \frac{1}{K} \sum_{k = 1}^{K} \log L^{c} (θ | z^{(k)}) \\ = C - n \log σ - \frac{1}{σ} \sum_{i = 1}^{n} \frac{1}{K} \sum_{k = 1}^{K} | z_{i, k} - μ | \end{array}

(28)

where

z^{(k)} = (z_{1, k}, z_{2, k}, \dots, z_{n, k})

. Therefore, we can estimate the expected log-likelihood by generating

z_{i, k}

for

k = 1, 2, \dots, K

from

p_{z_{i}} (z | θ^{(s)})

defined in equation (27). Then by replacing

z_{i, k}

in equation (28) with the quantiles

q_{i, k} = F_{z_{i}}^{- 1} (ξ_{k} | μ^{(s)}, σ^{(s)})

, the E-step for the QEM algorithm is easily obtained.

M-step:

It is straightforward to obtain the MCEM and QEM sequences which maximize equation (28)

μ^{(s + 1)} = median (z^{(1)}, \dots, z^{(K)})

(29)

and

σ^{(s + 1)} = \frac{1}{n} \sum_{i = 1}^{n} \frac{1}{K} \sum_{k = 1}^{K} | z_{i, k} - μ^{(s + 1)} |

(30)

Again, replacing $z_{i, k}$ in equations (29) and (30) with the quantiles $q_{i, k}$ provides the QEM sequences.

Note that if the direct numerical integration is used instead of the MCEM or QEM approximation, the approximate expected log-likelihood becomes

\begin{matrix} \hat{Q} (θ | θ^{(s)}) = C - n \log σ - \frac{1}{σ} \sum_{i = 1}^{n} \sum_{k = 1}^{K} | t_{i, k} - μ | f (t_{i, k} | θ^{(s)}) Δ t_{i} \end{matrix}

(31)

where

Δ t_{i} = t_{i, k} - t_{i, k - 1}, t_{i, 0} = a_{i}

and

t_{i, K} = b_{i}

. When this direct numerical integration is used, the terms,

f (t_{i, k} | θ^{(s)})

and

Δ t_{i}

, are involved inside the sum in equation (31) and these are not constant. On the other hand, the QEM and MCEM algorithms do not include these

Δ t_{i} = t_{i, k} - t_{i, k - 1}

terms. Therefore, it can be easily seen that the median of

t_{i, k}

cannot be the maximizer of equation (31) with respect to μ. To the best of our knowledge, a closed-form maximizer for equation (31) does not exist. As mentioned earlier, the use of the direct numerical integration makes it very difficult or even impossible to find the closed-form maximizer in the M-step. The point to be made here is that direct numerical integration is not useful because it is still requires an intractable or at the very least, extremely difficult, maximization in the M-step. The advantage of MCEM and QEM over direct numerical integration is that they simplify the M-step considerably.

Rayleigh distribution

Let the random variables z_i be iid Rayleigh random variables with parameter β whose pdf is given by

f (z | β) = \frac{z}{β^{2}} \exp (- \frac{z^{2}}{2 β^{2}}), z > 0, β > 0

Using equation (18), we have the complete-data log-likelihood of β

\log L^{c} (β | z) = C - 2 n \log β + \sum_{i = 1}^{n} \log z_{i} - \frac{1}{2 β^{2}} \sum_{i = 1}^{n} z_{i}^{2}

where the pdf of the random variable z_i is given by

p_{z_{i}} (z | β) = \frac{\frac{z}{β^{2}} \exp (- \frac{z^{2}}{2 β^{2}})}{\exp (- \frac{a_{i}^{2}}{2 β^{2}}) - \exp (- \frac{b_{i}^{2}}{2 β^{2}})}

(32)

for

a_{i} < z < b_{i}

. Similarly as before, if a_i = b_i, then the random variables z_i degenerate at z_i = a_i.

E-step:

At the sth step in the EM sequence denoted by $β^{(s)}$ , we have the expected log-likelihood

\begin{matrix} Q (β | β^{(s)}) = \int \log L^{c} (β | z) p (z | β^{(s)}) d z = C - 2 n \log β \\ + \sum_{i = 1}^{n} \int_{a_{i}}^{b_{i}} (\log z_{i} - \frac{1}{2 β^{2}} z_{i}^{2}) p_{z_{i}} (z_{i} | β^{(s)}) d z_{i} \end{matrix}

The calculation of the above integration part does not have a closed form. Using the MCEM, we have the approximate expected log-likelihood

\begin{array}{l} \hat{Q} (β | β^{(s)}) = \frac{1}{K} \sum_{k = 1}^{K} \log L^{c} (β | z^{(k)}) \\ = C - 2 n \log β + \frac{1}{K} \sum_{k = 1}^{K} \sum_{i = 1}^{n} \log z_{i, k} \\ - \frac{1}{2 β^{2}} \frac{1}{K} \sum_{k = 1}^{K} \sum_{i = 1}^{n} z_{i, k}^{2} \end{array}

where

z^{(k)} = (z_{1, k}, \dots, z_{n, k})

and

z_{i, k}

for

k = 1, 2, \dots, K

are from

p_{z_{i}} (z | β^{(s)})

defined in equation (32).

M-step:

We then obtain the following MCEM (or QEM) sequences by differentiating $\hat{Q} (β | β^{(s)})$

β^{(s + 1)} = \sqrt{\frac{1}{2 n} \sum_{i = 1}^{n} \frac{1}{K} \sum_{k = 1}^{K} z_{i, k}^{2}}

(33)

In the above, if the quantiles $q_{i, k}$ are used instead of a random sample $z_{i, k}$ , then the QEM sequences are obtained.

Weibull distribution

We assume that X_i are iid Weibull random variables with the pdf and cdf given by $f (x) = λ β x^{β - 1} \exp (- λ x^{β})$ and $F (x) = 1 - \exp (- λ x^{β})$ , respectively.

Using equation (18), we obtain the complete-data log-likelihood of $θ = (λ, β)$

\log L^{c} (θ) = \sum_{i = 1}^{n} {\log λ + \log β + (β - 1) \log z_{i} - λ z_{i}^{β}}

where the pdf of z_i is given by

p_{z_{i}} (z | θ) = \frac{λ β z^{β - 1} \exp (- λ z^{β})}{\exp (- λ a_{i}^{β}) - \exp (- λ b_{i}^{β})}

(34)

for

a_{i} < z < b_{i}

. Similarly as before, if a_i = b_i, then the random variables z_i degenerate at z_i = a_i.

E-step:

Denote the estimate of $θ$ at the sth EM sequence by $θ^{(s)} = (λ^{(s)}, β^{(s)})$ . It follows from $Q (θ | θ^{(s)}) = E [\log L^{c} (θ)]$ that

\begin{matrix} Q (θ | θ^{(s)}) = n \log λ + n \log β + (β - 1) \sum_{i = 1}^{n} A_{i}^{(s)} - λ \sum_{i = 1}^{n} B_{i}^{(s)} \end{matrix}

where

A_{i}^{(s)} = E [\log z_{i} | θ^{(s)}]

and

B_{i}^{(s)} = E [z_{i}^{β} | θ^{(s)}]

M-step:

Differentiating $Q (λ | λ^{(s)})$ with respect to λ and β and setting this to zero, we obtain

\frac{\partial Q (θ | θ^{(s)})}{\partial λ} = \frac{n}{λ} - \sum_{i = 1}^{n} B_{i}^{(s)} (β) = 0

(35)

and

\frac{\partial Q (θ | θ^{(s)})}{\partial β} = \frac{n}{β} + \sum_{i = 1}^{n} A_{i}^{(s)} - λ \sum_{i = 1}^{n} \frac{\partial B_{i}^{(s)} (β)}{\partial β} = 0

(36)

Solving equation (35) for λ and substituting this λ into equation (36), we obtain the following expression involving β

\frac{1}{β} + \frac{1}{n} \sum_{i = 1}^{n} A_{i}^{(s)} - \frac{\sum_{i = 1}^{n} \frac{\partial B_{i}^{(s)} (β)}{\partial β}}{\sum_{i = 1}^{n} B_{i}^{(s)} (β)} = 0

Note that the $(s + 1)$ st element of EM sequence of β is the solution of the equation above. Therefore, after finding $β^{(s + 1)}$ , we can then obtain the $(s + 1)$ st element of the EM sequence of $λ^{(s + 1)}$

λ^{(s + 1)} = \frac{n}{\sum_{i = 1}^{n} B_{i}^{(s)} (β^{(s + 1)})}

Note that, in the Weibull case, it is extremely difficult to obtain explicit expression for the expectations, $E [\log z_{i} | θ^{(s)}]$ and $E [z_{i}^{β} | θ^{(s)}]$ in the E-step. Fortunately, the quantile function of z_i at the sth step can be easily obtained, which makes the QEM particularly useful in the case of the Weibull assumption. Specifically, based on equation (34), we have

\begin{array}{l} q_{i, k} = F_{z_{i}}^{- 1} (ξ_{k} | θ^{(s)}) \\ = [- \frac{1}{λ^{(s)}} \log {(1 - ξ_{k}) \exp (- λ^{(s)} a_{i}^{β^{(s)}}) \\ + ξ_{k} \exp (- λ^{(s)} b_{i}^{β^{(s)}})]]^{1 / β^{(s)}} \end{array}

Using the above quantiles, we obtain the following QEM algorithm.

E-step:

Denote the quantile approximation of $Q (\cdot)$ by $\hat{Q} (\cdot)$ . Then, we have

\begin{array}{l} \hat{Q} (θ | θ^{(s)}) = n \log λ + n \log β \\ + (β - 1) \sum_{i = 1}^{n} \frac{1}{K} \sum_{k = 1}^{K} \log q_{i, k} - λ \sum_{i = 1}^{n} \frac{1}{K} \sum_{k = 1}^{K} q_{i, k}^{β} \end{array}

M-step:

Differentiating $\hat{Q} (λ | λ^{(s)})$ with respect to λ and β and setting this to zero, we obtain

\frac{\partial \hat{Q} (θ | θ^{(s)})}{\partial λ} = \frac{n}{λ} - \frac{1}{K} \sum_{i = 1}^{n} \sum_{k = 1}^{K} q_{i, k}^{β} = 0

(37)

and

\frac{\partial \hat{Q} (θ | θ^{(s)})}{\partial β} = \frac{n}{β} + \frac{1}{K} \sum_{i = 1}^{n} \sum_{k = 1}^{K} \log q_{i, k}

(38)

- λ \frac{1}{K} \sum_{i = 1}^{n} \sum_{k = 1}^{K} q_{i, k}^{β} \log q_{i, k} = 0

(39)

Solving equation (37) for λ and substituting this λ into equation (39), we have the equation of β

\begin{matrix} \frac{1}{β} + \frac{1}{n K} \sum_{i = 1}^{n} \sum_{k = 1}^{K} \log q_{i, k} - \frac{\sum_{i = 1}^{n} \sum_{k = 1}^{K} q_{i, k}^{β} \log q_{i, k}}{\sum_{i = 1}^{n} \sum_{k = 1}^{K} q_{i, k}^{β}} = 0 \end{matrix}

(40)

Note that the $(s + 1)$ st element of QEM sequence of β is the solution of the equation above. Therefore, after finding $β^{(s + 1)}$ , we can then obtain the $(s + 1)$ st element of the QEM sequence of $λ^{(s + 1)}$

λ^{(s + 1)} = \frac{n K}{\sum_{i = 1}^{n} \sum_{k = 1}^{K} q_{i, k}^{β^{(s + 1)}}}

We should point out that, in the M-step, we need to estimate the shape parameter β by solving equation (40) numerically. Note that upper and lower bounds for the root of equation (40) can be explicitly obtained. This implies that the solution can be obtained using only a one-dimensional root search, and the uniqueness of the solution is guaranteed. Under mild conditions, we provide a proof of the uniqueness in Appendix 1 along with the upper and lower bounds for β.

Simulation study

In order to examine the performance of the proposed QEM method, we carry out two different simulations. In the first simulation, we assume that the lifetimes are normally distributed. The second simulation assumes that the lifetimes have a Rayleigh distribution. The number of samples used for the MCEM and QEM algorithms was varied so that K = 10, 10², 10³, and 10⁴. The Monte Carlo simulations are based on 5, 000 replications. The Monte Carlo simulations are performed using the R language.²⁹

We illustrate the performance of the proposed method with the EM and MCEM estimators by computing the respective mean biases and mean square errors (MSEs). The bias is defined as the sample average of the differences between the estimates under consideration and the MLE. The MLE is obtained by solving the log-likelihood estimating equation numerically using the nlm() function in R. The MSE is defined as the sample average of the squares of the differences between the estimates under consideration and the MLE.

Note that in order to compare the efficiency of the MCEM algorithm and QEM algorithms, we used an equal and fixed number of iterations in both simulations. In this manner, we compare the accuracy when the computational burden of each algorithm is the same. Both algorithms were stopped after 10 iterations (s = 10), and the simulation results are shown in Tables 1 and 2. Rather than fixing the number of iterations, we could have taken the alternative route of using the same stopping criteria for both the QEM and MCEM algorithms. Clearly, if the QEM accuracy is greater with the iterations being fixed, then stopping criteria methodology would lead to similar accuracy, but a greater number of iterations would be required for the MCEM stopping criteria to be triggered. Therefore, the two comparison methodologies are, for all intents and purposes, equivalent and we chose the methodology in which the number of iterations are fixed to the same pre-determined value for both the MCEM and the QEM.

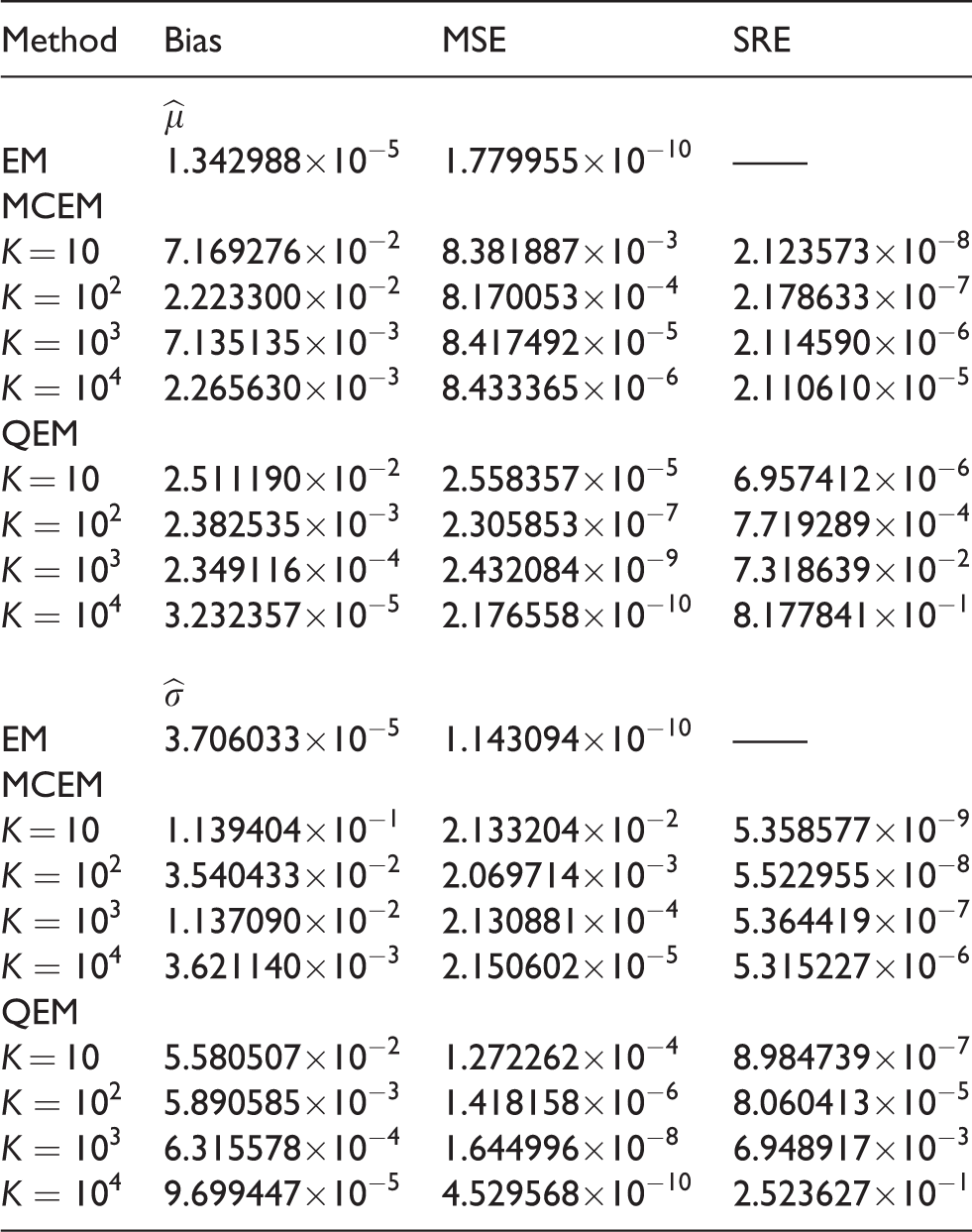

Table 1.

Estimated biases and MSEs, and SREs of the EM, MCEM and QEM estimators assuming normally distributed data with μ = 50 and σ = 5.

Method	Bias	MSE	SRE
	$\hat{μ}$
EM	1.342988 $\times 10^{- 5}$	1.779955 $\times 10^{- 10}$	——
MCEM
K = 10	7.169276 $\times 10^{- 2}$	8.381887 $\times 10^{- 3}$	2.123573 $\times 10^{- 8}$
$K = 10^{2}$	2.223300 $\times 10^{- 2}$	8.170053 $\times 10^{- 4}$	2.178633 $\times 10^{- 7}$
$K = 10^{3}$	7.135135 $\times 10^{- 3}$	8.417492 $\times 10^{- 5}$	2.114590 $\times 10^{- 6}$
$K = 10^{4}$	2.265630 $\times 10^{- 3}$	8.433365 $\times 10^{- 6}$	2.110610 $\times 10^{- 5}$
QEM
K = 10	2.511190 $\times 10^{- 2}$	2.558357 $\times 10^{- 5}$	6.957412 $\times 10^{- 6}$
$K = 10^{2}$	2.382535 $\times 10^{- 3}$	2.305853 $\times 10^{- 7}$	7.719289 $\times 10^{- 4}$
$K = 10^{3}$	2.349116 $\times 10^{- 4}$	2.432084 $\times 10^{- 9}$	7.318639 $\times 10^{- 2}$
$K = 10^{4}$	3.232357 $\times 10^{- 5}$	2.176558 $\times 10^{- 10}$	8.177841 $\times 10^{- 1}$
	$\hat{σ}$
EM	3.706033 $\times 10^{- 5}$	1.143094 $\times 10^{- 10}$	——
MCEM
K = 10	1.139404 $\times 10^{- 1}$	2.133204 $\times 10^{- 2}$	5.358577 $\times 10^{- 9}$
$K = 10^{2}$	3.540433 $\times 10^{- 2}$	2.069714 $\times 10^{- 3}$	5.522955 $\times 10^{- 8}$
$K = 10^{3}$	1.137090 $\times 10^{- 2}$	2.130881 $\times 10^{- 4}$	5.364419 $\times 10^{- 7}$
$K = 10^{4}$	3.621140 $\times 10^{- 3}$	2.150602 $\times 10^{- 5}$	5.315227 $\times 10^{- 6}$
QEM
K = 10	5.580507 $\times 10^{- 2}$	1.272262 $\times 10^{- 4}$	8.984739 $\times 10^{- 7}$
$K = 10^{2}$	5.890585 $\times 10^{- 3}$	1.418158 $\times 10^{- 6}$	8.060413 $\times 10^{- 5}$
$K = 10^{3}$	6.315578 $\times 10^{- 4}$	1.644996 $\times 10^{- 8}$	6.948917 $\times 10^{- 3}$
$K = 10^{4}$	9.699447 $\times 10^{- 5}$	4.529568 $\times 10^{- 10}$	2.523627 $\times 10^{- 1}$

MSE: mean square error; SRE: simulated relative efficiency; EM: expectation–maximization; MCEM: Monte Carlo expectation–maximization; QEM: quantile variant of the expectation–maximization.

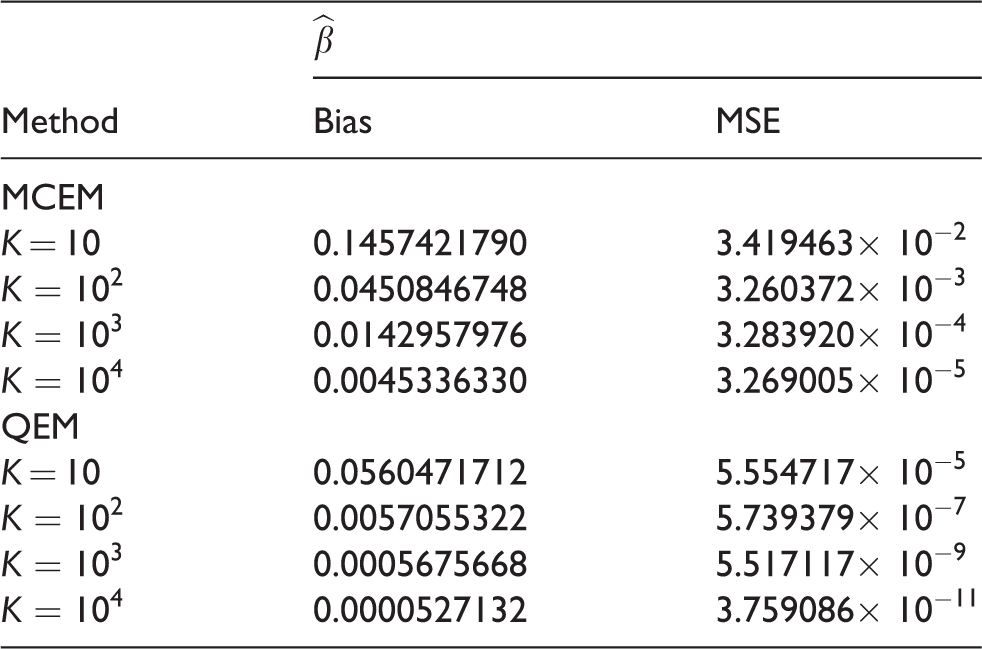

Table 2.

Estimated biases and MSEs of the MCEM and QEM estimators assuming Rayleigh distributed data with β = 10.

	$\hat{β}$
Method	Bias	MSE
MCEM
K = 10	0.1457421790	3.419463 $\times 10^{- 2}$
$K = 10^{2}$	0.0450846748	3.260372 $\times 10^{- 3}$
$K = 10^{3}$	0.0142957976	3.283920 $\times 10^{- 4}$
$K = 10^{4}$	0.0045336330	3.269005 $\times 10^{- 5}$
QEM
K = 10	0.0560471712	5.554717 $\times 10^{- 5}$
$K = 10^{2}$	0.0057055322	5.739379 $\times 10^{- 7}$
$K = 10^{3}$	0.0005675668	5.517117 $\times 10^{- 9}$
$K = 10^{4}$	0.0000527132	3.759086 $\times 10^{- 11}$

MSE: mean square error; QEM: quantile variant of the expectation–maximization; MCEM: Monte Carlo expectation–maximization.

In the first simulation, a random sample of size n = 20 was generated from the normal distribution with μ = 50 and σ = 5. Also, the largest five data points from the sample were assumed to be right-censored. In order to compare the MCEM and QEM algorithms with the EM algorithm as a reference, a univariate statistical dispersion measure based on the MSE can be used to compare algorithm efficiency. Analogous to the relative efficiency,^30–32 the simulated relative efficiency (SRE) is defined as

SRE = \frac{simulated MSE of the EM estimator}{simulated MSE under consideration}

By comparing the efficiencies in Table 1, it is clear that the EM algorithm is as efficient as the MLE. More importantly, the Table 1 indicates that the QEM results in smaller MSE and much greater efficiency compared to that of the MCEM. For example, using K = 10,000, the SRE of the MCEM is only $2.110610 \times 10^{- 5}$ for $\hat{μ}$ and $5.315227 \times 10^{- 6}$ for $\hat{σ}$ , while the SRE of the QEM is $8.177841 \times 10^{- 1}$ for $\hat{μ}$ and $2.523627 \times 10^{- 1}$ for $\hat{σ}$ . Strikingly, the QEM using only K = 100 clearly outperforms the MCEM using K = 10,000.

In the second simulation, we draw a random sample of size n = 20 from the Rayleigh distribution with β = 10. Just as was the case in the first simulation, we assume that the five largest data points from the sample were right-censored. The results are shown in Table 2. Note that in this case, we can only compare the MCEM and the QEM because the EM algorithm cannot be implemented due to its extremely complex E-step. Therefore, the SREs are excluded from Table 2. As expected, based on the E-step accuracy results developed earlier, the results in Table 2 illustrate that the QEM outperforms the MCEM. For example, the MSE of the QEM with only K = 10 is quite comparable to that of the MCEM with a random sample of size K = 10,000. This is understandable given that E-step accuracy of the QEM in this particular case is $O (1 / K^{2}) = O (1 / 100)$ with K = 10 and the E-step accuracy of the MCEM is $O_{p} (1 / \sqrt{K}) = O_{p} (1 / 100)$ with K = 10,000.

Another way of comparing the accuracies of the QEM and MCEM is to consider the ratio of the respective MSEs for a given value of K. Using the results in Tables 1 and 2, we calculated the following ratio for each of $K = 10, 10^{2}, 10^{3}, 10^{4}$ in Table 3

\frac{MSE (MCEM)}{MSE (QEM)}

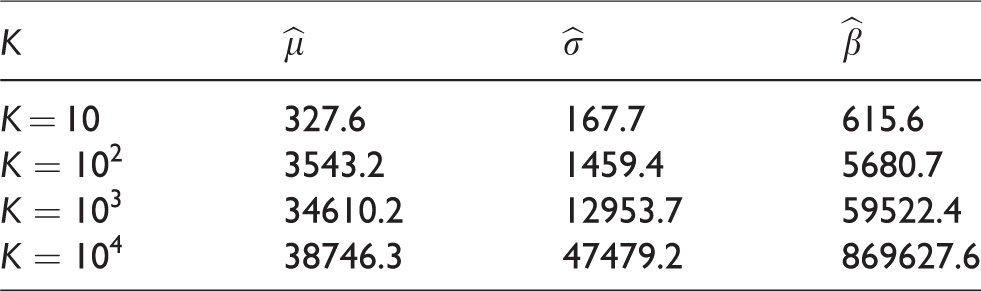

Table 3.

Ratios of MSEs, $MSE (MCEM) / MSE (QEM)$ .

K	$\hat{μ}$	$\hat{σ}$	$\hat{β}$
K = 10	327.6	167.7	615.6
$K = 10^{2}$	3543.2	1459.4	5680.7
$K = 10^{3}$	34610.2	12953.7	59522.4
$K = 10^{4}$	38746.3	47479.2	869627.6

Table 3 clearly shows that the MSE of the QEM is much smaller than that of the MCEM for a given value of K.

Next, the identical simulations for the normal and Rayleigh cases were carried out again in order to compare both the CPU and real-time performance of the QEM and MCEM algorithms. Since, in the normal distribution case, the accuracy of the QEM using K = 100 is already known to be quite comparable to that of the MCEM using K = 1,000, these respective values of K were used again. In the Rayleigh distribution case, the accuracy of the QEM with K = 10 is quite comparable to that of the MCEM with K = 10,000, so we used these respective values of K were used. The running time of the algorithms is easily measured through the use of the proc.time() function in R. This proc.time() function reports user, system, and elapsed times. The user time is the CPU time charged for the execution of the calling process, the system time is the CPU time charged for execution by the system on behalf of the calling process, and the elapsed time is the real elapsed time since the process was started. For more details regarding the proc.time() function, one is referred to its help page in R. The simulations for the running times were carried out using a Ubuntu Linux workstation with Intel Core i7–7700K CPU. The results are summarized in Table 4 and they indicate that the computations used in QEM algorithm take much less time than those used in the MCEM algorithm.

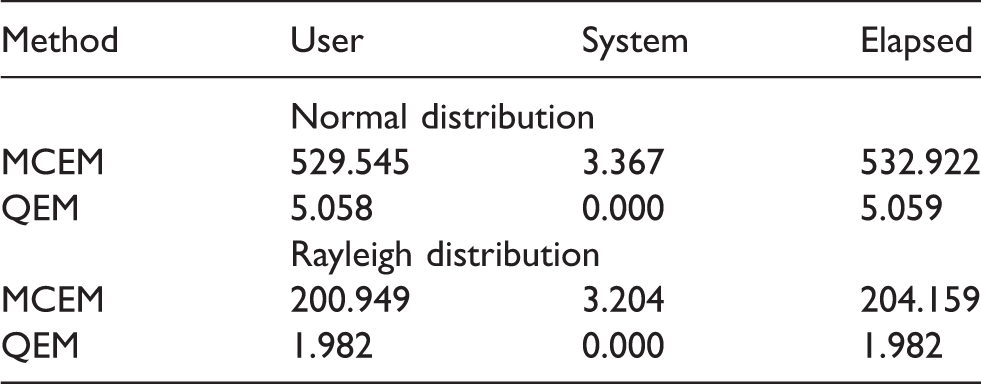

Table 4.

Comparison of running times (in seconds).

Method	User	System	Elapsed
	Normal distribution
MCEM	529.545	3.367	532.922
QEM	5.058	0.000	5.059
	Rayleigh distribution
MCEM	200.949	3.204	204.159
QEM	1.982	0.000	1.982

MCEM: Monte Carlo expectation–maximization; QEM: quantile variant of the expectation–maximization.

Examples of application of the proposed methods

In this section, we provide four numerical examples of parameter estimation using data sets from the literature in addition to artificially generated data sets. The parameters are estimated using the EM (when available), MCEM, and QEM algorithms.

Censored normal data

First, consider the data presented earlier by Gupta¹ in which the largest three out of the n = 10 observations have been censored. The Type-II right-censored observations are therefore: 1.613, 1.644, 1.663, 1.732, 1.740, 1.763, 1.778, ${1.778}^{+}, {1.778}^{+}, {1.778}^{+}$ .

The MLEs of μ and σ are $\hat{μ} = 1.742$ and $\hat{σ} = 0.079$ . We also generate the EM sequences from equations (23) and (24) in order to compare these estimates with the MLE. The starting values used for the EM algorithm were $μ^{(0)} = 0$ and $σ^{2} {(0)}^{=} 1$ . Similarly, we generate the MCEM sequences from equations (25) and (26) in order to obtain the MCEM and QEM estimates. The MCEM and QEM algorithms were run using K = 1000 and the algorithms were stopped after ten iterations. Table 5 illustrates the results for all three algorithms. Note that the EM algorithm estimate is identical to the MLE up to the third decimal point after nine iterations. Also, as would be expected on the theoretical convergence properties developed earlier, the QEM estimate is much closer to the MLE and the EM estimate than the MCEM estimate.

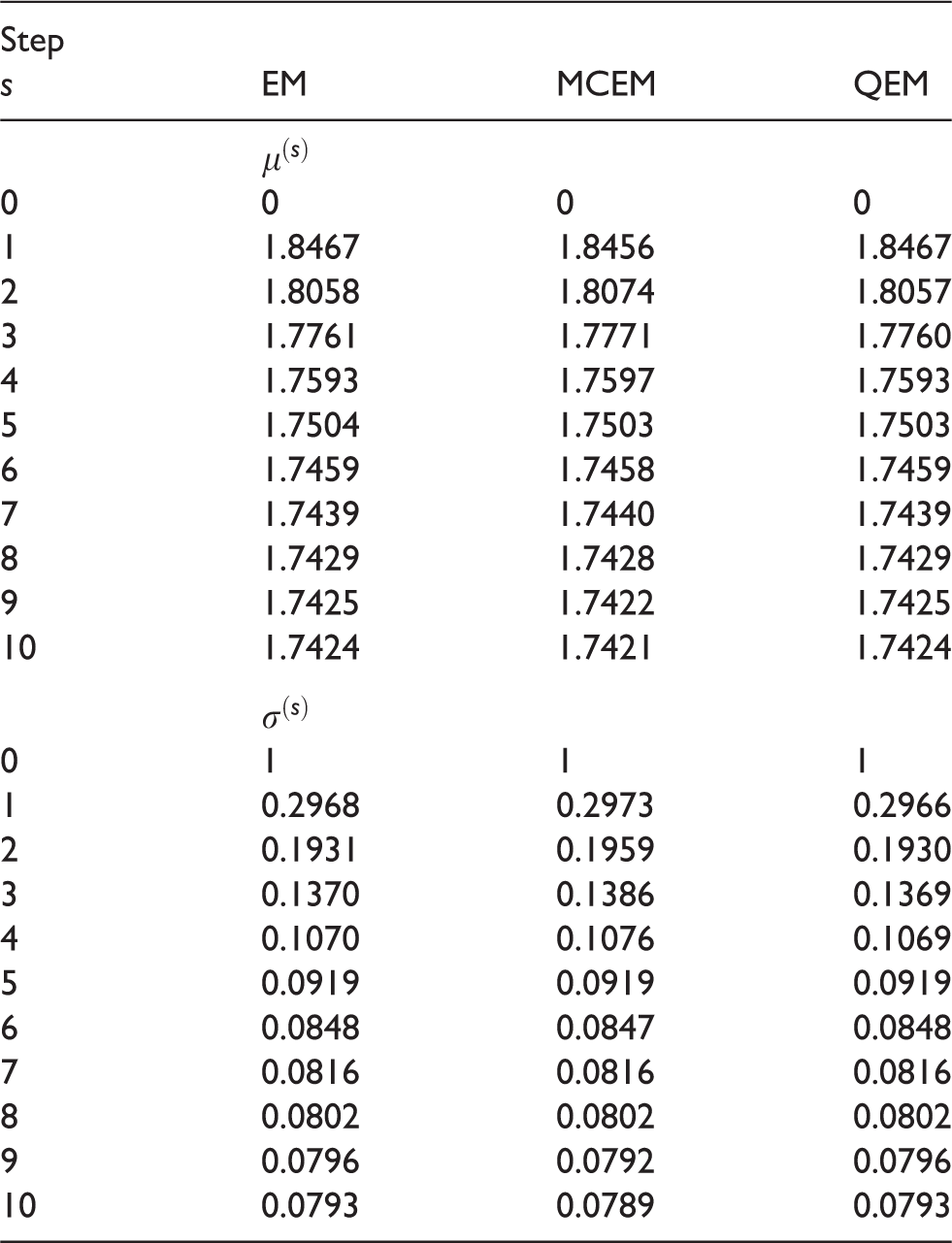

Table 5.

Iterations of the EM, MCEM, and QEM sequences using data from Gupta.¹

Step
s	EM	MCEM	QEM
	$μ^{(s)}$
0	0	0	0
1	1.8467	1.8456	1.8467
2	1.8058	1.8074	1.8057
3	1.7761	1.7771	1.7760
4	1.7593	1.7597	1.7593
5	1.7504	1.7503	1.7503
6	1.7459	1.7458	1.7459
7	1.7439	1.7440	1.7439
8	1.7429	1.7428	1.7429
9	1.7425	1.7422	1.7425
10	1.7424	1.7421	1.7424
	$σ^{(s)}$
0	1	1	1
1	0.2968	0.2973	0.2966
2	0.1931	0.1959	0.1930
3	0.1370	0.1386	0.1369
4	0.1070	0.1076	0.1069
5	0.0919	0.0919	0.0919
6	0.0848	0.0847	0.0848
7	0.0816	0.0816	0.0816
8	0.0802	0.0802	0.0802
9	0.0796	0.0792	0.0796
10	0.0793	0.0789	0.0793

EM: expectation–maximization; MCEM: Monte Carlo expectation–maximization; QEM: quantile variant of the expectation–maximization.

Censored Laplace data

Next, we consider the data presented earlier by Balakrishnan⁷ in which, out of n = 20 observations, the largest two have been censored. The Type-II right-censored observations thus obtained are: 32.00692, 37.75687, 43.84736, 46.26761, 46.90651, 47.26220, 47.28952, 47.59391, 48.06508, 49.25429, 50.27790, 50.48675, 50.66167, 53.33585, 53.49258, 53.56681, 53.98112, 54.94154, ${54.94154}^{+}, {54.94154}^{+}$ .

In this case, Balakrishnan⁷ computed the BLUE of μ and σ and obtained $\hat{μ} = 49.56095$ and $\hat{σ} = 4.81270$ . The MLE is $\hat{μ} = 49.76609$ and $\hat{σ} = 4.68761$ .

We also generated the MCEM sequences from equations (29) and (30) in order to compute the MCEM and QEM estimates. Both algorithms were run with K = 1000 for 10 iterations with starting values $μ^{(0)} = 0$ and $σ^{(0)} = 1$ . The iterations associated with the MCEM and QEM algorithms are shown in Table 6. As was expected, the QEM estimate is significantly closer to the MLE than the MCEM estimate, particularly with respect to σ. We should also note that both the MCEM and QEM estimates are closer to the MLE than the BLUE.

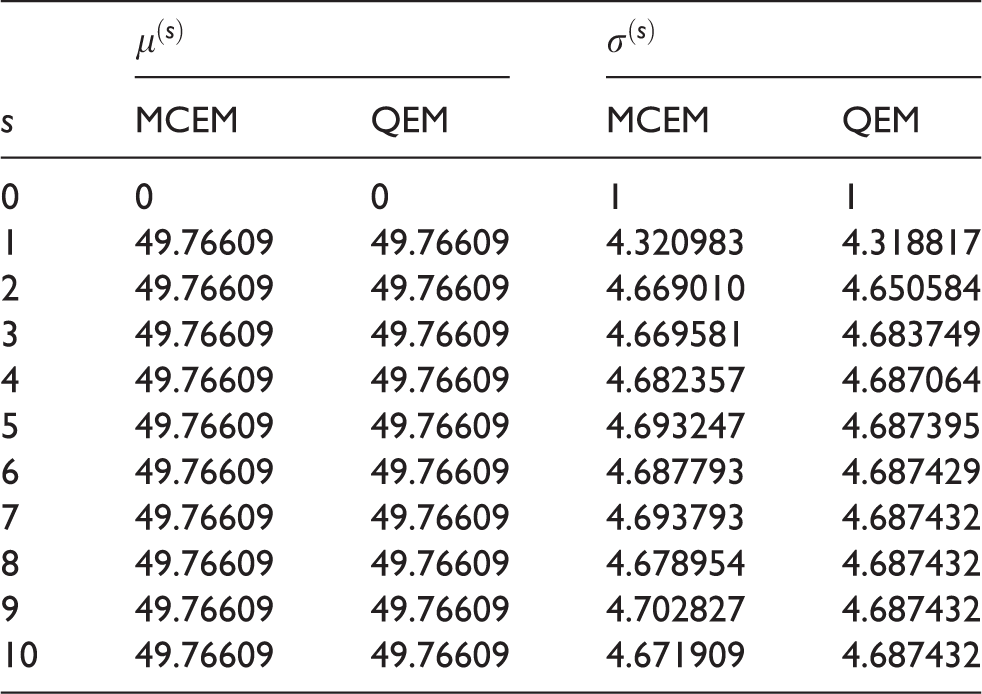

Table 6.

Iterations of the MCEM and QEM sequences using data from Balakrishnan.⁷

	$μ^{(s)}$		$σ^{(s)}$
s	MCEM	QEM	MCEM	QEM
0	0	0	1	1
1	49.76609	49.76609	4.320983	4.318817
2	49.76609	49.76609	4.669010	4.650584
3	49.76609	49.76609	4.669581	4.683749
4	49.76609	49.76609	4.682357	4.687064
5	49.76609	49.76609	4.693247	4.687395
6	49.76609	49.76609	4.687793	4.687429
7	49.76609	49.76609	4.693793	4.687432
8	49.76609	49.76609	4.678954	4.687432
9	49.76609	49.76609	4.702827	4.687432
10	49.76609	49.76609	4.671909	4.687432

MCEM: Monte Carlo expectation–maximization; QEM: quantile variant of the expectation–maximization.

Censored Rayleigh data

Next, we generated a random sample of n = 20 from the Rayleigh distribution with β = 5, and the five largest data points were considered to be right-censored. The Type-II right-censored observations thus obtained are: 1.950, 2.295, 4.282, 4.339, 4.411, 4.460, 4.699, 5.319, 5.440, 5.777, 7.485, 7.620, 8.181, 8.443, 10.627, ${10.627}^{+}, {10.627}^{+}, {10.627}^{+}, {10.627}^{+}, {10.627}^{+}$ .

We then generated the MCEM and QEM sequences from equation (33) in order to compute the MCEM and QEM estimates. Both algorithms were run with K = 1000 for 10 iterations with two different starting values, namely $β^{(0)} = 1$ and $β^{(0)} = 10$ . The iterations of the MCEM and QEM sequences are shown in Table 7. The iteration sequences illustrate the difference in the rate of convergence of the MCEM and QEM algorithms with the latter converging extremely quickly. Note that the MLE is $\hat{β} = 6.1341$ , and the QEM sequences are identical to the MLE up to the third decimal place after the sixth iteration.

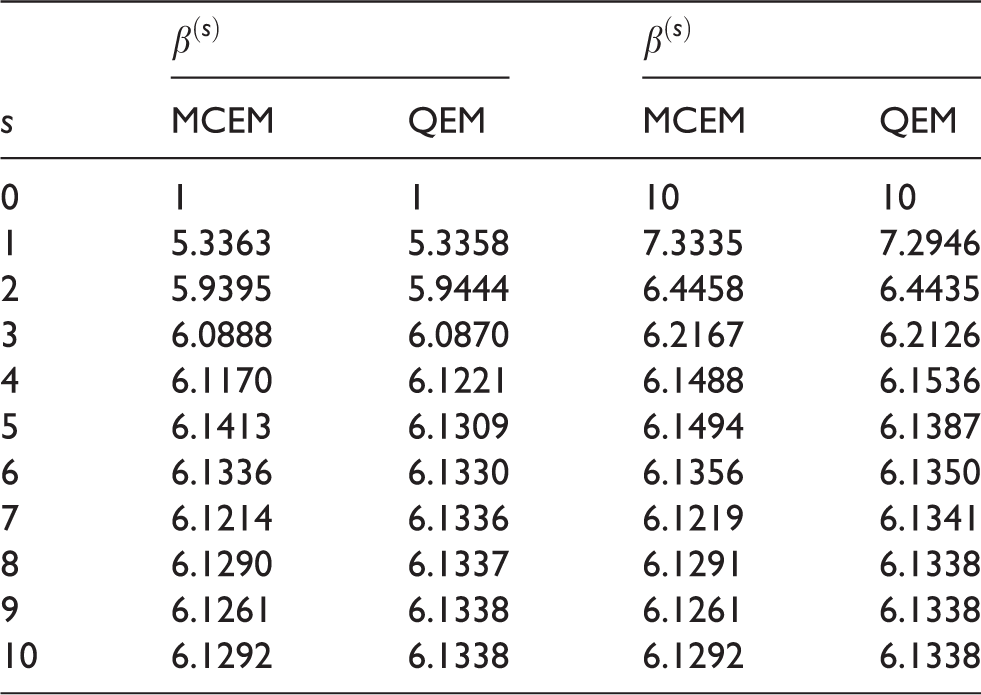

Table 7.

Iterations of the MCEM and QEM sequences using simulated data set from the Rayleigh distribution.

	$β^{(s)}$		$β^{(s)}$
s	MCEM	QEM	MCEM	QEM
0	1	1	10	10
1	5.3363	5.3358	7.3335	7.2946
2	5.9395	5.9444	6.4458	6.4435
3	6.0888	6.0870	6.2167	6.2126
4	6.1170	6.1221	6.1488	6.1536
5	6.1413	6.1309	6.1494	6.1387
6	6.1336	6.1330	6.1356	6.1350
7	6.1214	6.1336	6.1219	6.1341
8	6.1290	6.1337	6.1291	6.1338
9	6.1261	6.1338	6.1261	6.1338
10	6.1292	6.1338	6.1292	6.1338

MCEM: Monte Carlo expectation–maximization; QEM: quantile variant of the expectation–maximization.

Weibull interval-censored data

The previous examples illustrated that the QEM algorithm outperforms the MCEM both in terms of accuracy and rate of convergence. In this example, we consider a real-data example of intermittent inspection of cracked parts. This part-cracking data set in this example was originally provided by Nelson¹² and has since then been widely used for illustration in the engineering literature and software.^33–35 The 167 identical parts in a machine were intermittently inspected to obtain the number of cracked parts in each interval. The data from intermittent inspection are referred to as grouped data where only the number of failures in each inspection are provided. The data represent cracked parts and are provided in Table 8. Other examples of grouped and censored data can also be found in the statistics and engineering literature.^{10,11,28,36–40} These censored and grouped data can also be regarded as interval-censored data. Thus, the proposed method can be easily applicable to these data. Note that Seo and Yum¹⁰ and Shapiro and Gulati¹¹ have given an approximation of the MLE under the exponential distribution only.

Table 8.

Observed frequencies of intermittent inspection data.

Inspection	Observed
time	failures
0–6.12	5
6.12–19.92	16
19.92–29.64	12
29.64–35.40	18
35.40–39.72	18
39.72–45.24	2
45.24–52.32	6
52.32–63.48	17
63.48–	73

From Table 8, it becomes obvious that these grouped data can be viewed as interval-censored data so that the proposed QEM algorithm can be used to estimate the distribution parameters. The QEM algorithm was used on this data set. First, assuming that the data were exponentially distributed, the QEM algorithm was applied. Then, the QEM algorithm was run again assuming that the data had a Weibull distribution. In both cases, a stopping criterion was used with $ϵ = 10^{- 5}$ and the starting values used were $λ_{0} = 1$ (exponential) and $λ_{0} = 1$ and $β_{0} = 1$ (Weibull). In the first case, the exponential rate parameter λ was estimated as $\hat{λ} = 0.01209699$ . In the second case, the Weibull parameters were estimated as $\hat{λ} = 0.001674018$ and $\hat{β} = 1.497657$ .

Concluding remarks

In this paper, we have illustrated that the QEM algorithm offers clear advantages over the MCEM algorithm. The E-step accuracy of the QEM was shown to be $O (1 / K^{2})$ , while that of the MCEM was shown to be $O_{p} (1 / \sqrt{K})$ . Thus, compared to the MCEM, the QEM reduces the computational complexity significantly for a given value of K. Also, the QEM possesses more stable convergence properties because the E-step of the QEM has the accuracy of deterministic order while that of the MCEM has the accuracy of probabilistic order. The QEM algorithm provides a flexible and useful alternative for problems where the E-step of the EM algorithm is either extremely complex or completely intractable. Several examples were provided which illustrate the usefulness of the proposed QEM algorithm.

This paper is dedicated to the memory and honor of Professor Byung Ho Lee of Nuclear Engineering at Seoul National University. He is a man of warmth and a major contributor to the development of acoustics, creep and fatigue theory as well as nuclear engineering. The author’s interests in mathematics and engineering were formed under his strong influence. Professor Lee passed away in July 2001.

Footnotes

Acknowledgements

A part of the simulations was performed on the Fedora Linux workstation system in Department of Mathematical Sciences at Clemson University while the author has worked at Clemson University.

Declaration of Conflicting Interests

The author(s) declares no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported in part by the National Research Foundation of Korea (NRF) grant funded by the Korea government (NRF-2017R1A2B4004169).

Appendix 1

References

Gupta

AK.

Estimation of the mean and standard deviation of a normal population from a censored sample. Biometrika 1952; 39: 260–273.

Govindarajulu

Best linear estimates under symmetric censoring of the parameters of a double exponential population. J Am Stat Assoc 1966; 61: 248–258.

Balakrishnan

Approximate MLE of the scale parameter of the Rayleigh distribution with censoring. IEEE Trans Relab 1989; 38: 355–357.

Hassanein

Saleh

Brown

Best linear unbiased estimate and confidence interval for Rayleigh’s scale parameter when the threshold parameter is known for data with censored observations from the right. Report, University of Kansas Medical School, USA, 1995.

Elsayed

EA.

Reliability Engineering. 2nd ed. Hoboken, NJ: Wiley, 2012.

Sultan

AM.

New approximation for parameters of normal distribution using Type-II censored sampling. Microelectron Reliab 1997; 37: 1169–1171.

Balakrishnan

BLUEs of location and scale parameters of Laplace distribution based on Type-II censored samples and associated inference. Microelectron Reliab 1996; 36: 371–374.

Wei

GCG

Tanner

MA.

A Monte Carlo implementation of the EM algorithm and the poor man’s data augmentation algorithm. J Am Stat Assoc 1990; 85: 699–704.

Wei

GCG

Tanner

MA.

Posterior computations for censored regression data. J Am Stat Assoc 1990; 85: 829–839.

10.

Seo

Yum

BJ.

Estimation methods for the mean of the exponential distribution based on grouped & censored data. IEEE Trans Reliab 1993; 42: 87–96.

11.

Shapiro

Gulati

Estimating the mean of an exponential distribution from grouped observations. J Qual Technol 1998; 30: 107–118.

12.

Nelson

Applied life data analysis. New York: John Wiley & Sons, 1982.

13.

Dempster

Laird

Rubin

DB.

Maximum likelihood from incomplete data via the EM algorithm. J R Stat Soc B 1977; 39: 1–22.

14.

Little

RJA

Rubin

DB.

Statistical analysis with missing data. 2nd ed. New York: John Wiley & Sons, 2002.

15.

Tanner

MA.

Tools for statistical inference: methods for the exploration of posterior distributions and likelihood functions. New York: Springer-Verlag, 1996.

16.

Schafer

JL.

Analysis of incomplete multivariate data. Boca Raton, FL: Chapman & Hall, 1997.

17.

Hunter

Lange

A tutorial on MM algorithms. Am Stat 2004; 58: 30–37.

18.

Freireich

Gehan

Frei

et al . The effect of 6-Mercaptopurine on the duration of steroid-induced remissions in acute leukemia: a model for evaluation of other potentially useful therapy. Blood 1963; 21: 699–716.

19.

Leemis

LM.

Reliability. Englewood Cliffs, NJ: Prentice-Hall, 1995.

20.

Leemis .

LM.

Reliability: probabilistic models and statistical methods. 2nd ed. Williams, Virginia, 2009.

21.

Cox

Oakes

Analysis of survival data. New York: Chapman & Hall, 1984.

22.

Ross

SM.

Simulation. 5th ed. San Diego, CA: Academic Press/Elsevier, 2013.

23.

Press

Teukolsky

Vetterling

et al.

Numerical recipes in C++: the art of scientific computing. Cambridge: Cambridge University Press, 2002.

24.

Niederreiter

Random number generation and quasi-Monte Carlo methods. CBMS-NSF Regional Conference Series in Applied Mathematics, Society for Industrial and Applied Mathematics, Philadelphia, Pennsylvania, 1992.

25.

Robert

Casella

Monte Carlo statistical methods. 2nd ed. New York: Springer, 2005.

26.

Heitjan

DF.

Inference from grouped continuous data: a review (with discussion). Statist Sci 1989; 4: 164–183.

27.

Heitjan

Rubin

DB.

Inference from coarse data via multiple imputation with application to age heaping. J Am Stat Assoc 1990; 85: 304–314.

28.

Lee

Park

Development of robust design optimization using incomplete data. Comput Ind Eng 2006; 50: 345–356.

29.

R Core Team. R: A Language and Environment for Statistical Computing. Vienna, Austria: R Foundation for Statistical Computing, www.R-project.org/ (accessed 22 May 2018).

30.

Lehmann

EL.

Elements of large-sample theory. New York: Springer, 1999.

31.

Park

Leeds

A highly efficient robust design under data contamination. Comput Ind Eng 2016; 93: 131–142.

32.

Park

Ouyang

Byun

et al . Robust design under normal model departure. Comput Ind Eng 2017; 113: 206–220.

33.

Kim

Yum

BJ.

Comparisons of exponential life test plans with intermittent inspections. J Qual Technol 2000; 32: 217–230.

34.

SAS/QC 13.1 user’s guide: the reliability procedure, Version 13.1 ed.,Cary, North Carolina, 2013.

35.

ReliaSoft Corporation. Life Data Analysis Reference. Tucson, Arizona, www.ReliaSoft.com (accessed 22 May 2015).

36.

Xiong

Analysis of grouped and censored data from step-stress life test. IEEE Trans Relab 2004; 53: 22–28.

37.

Meeker

WQ.

Planning life tests in which units are inspected from failure. IEEE Trans Relab 1986; 35: 571–578.

38.

Nelson

Accelerated testing: statistical models, test plans, and data analyses. New York: John Wiley & Sons, 1990.

39.

Sun

The statistical analysis of interval-censored failure time data. New York: Springer, 2006.

40.

Park

Cho

et al . Effects of cracking test conditions on estimation uncertainty for Weibull parameters considering time-dependent censoring interval. Materials 2017; 10: 3

41.

Farnum

Booth

Uniqueness of maximum likelihood estimators of the 2-parameter Weibull distribution. IEEE Trans Relab 1997; 46: 523–525.

42.

Park

Padgett

WJ.

Analysis of strength distributions of multi-modal failures using the EM algorithm. J Stat Comput Simul 2006; 76: 619–636.
