A Framework for Human-Algorithm Teaming in Biometric Identity Workflows

Biometric System Overview

Biometric characteristics are physiological measures that differentiate one person from another. There are many biometric modalities that can be used to differentiate people, such as fingerprints, face, and iris. When discussing biometric systems, international standard ISO/IEC 19795-1 defines seven subsystems comprising a generic biometric system: data capture, transmission, signal processing, data storage, comparison, decision, and administration. To maintain a generalized model similar to ISO/IEC 19795-1, this work excludes the transmission and administration subsystems (Figure 1). The following terms will be used in describing the relevant subsystems (ISO/IEC 2382-37):

Verification and identification are two separate processes (comparison of two images and comparison of one image to many images, respectively), which occur through the same general biometric identity workflow. As previously mentioned, to maintain a general biometric workflow this analysis focuses on five subsystems: data capture, signal processing, data storage, comparison, and decision (Figure 1).

OPEN IN VIEWER

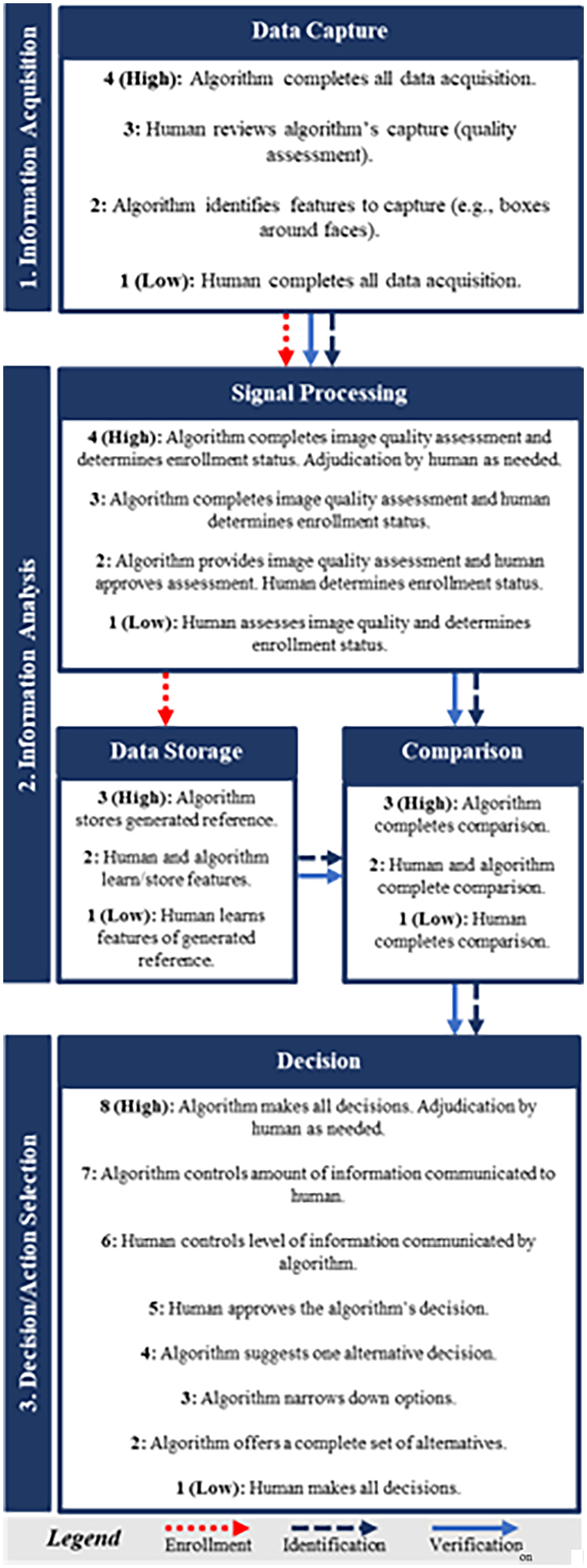

Figure 1.

Application of Parasuraman et al.’s (2000) framework to biometric subsystems as defined by ISO/IEC 19795-1. LOAs were determined based on the current state of biometric technology.

Human Processing and System Functions

Parasuraman et al. (2000) present a simplified human information processing model, which defines four stages of processing: sensory processing, perception/working memory, decision making, and response selection. These four stages of human processing are equated to four types of system functions: information acquisition, information analysis, decision and action selection, and action implementation. For each stage of processing and system function we provide examples for face and iris biometric modalities to highlight differences between humans and algorithms.

Sensory processing and information acquisition. Human sensory processing includes acquiring information through auditory, visual, and tactile cues. Similarly, the first phase of information processing for an automated system is information acquisition. At this point both the human and automated system are processing information relevant to the required task in preparation for the next phase of information processing.

Perception/memory and information analysis. Manipulation, integration, and interpretation of any acquired information will occur during the perception stage for humans. At this stage humans also store and retrieve relevant information from working and long-term memory. Automated systems perform information analysis in a similar manner, manipulating and integrating relevant data to either present to the human operator or act on itself.

Decision making and decision/action selection. At this point the human and automated system have fully processed the acquired information and are ready to select one of the available options. The number of available options can vary depending on the objectives of the system.

Response selection and action implementation. Once a decision has been made by the human or the automated system, the final phase is the execution of that decision. This process varies by task complexity and may require one or more actions from the human or automated system.

Biometric Identity Workflows and Automation Design

Our review of the general biometric system employed the four system functions model to determine appropriate task allocation between humans and algorithms for each of the defined subsystems. We found that the general biometric system incorporates three of the four system functions defined by Parasuraman et al. (2000). As previously stated, action implementation occurs outside of the biometric system once a decision outcome is established.

Each system function incorporated into the general biometric system has uniquely defined LOAs and by extension, unique task allocation between teammates depending on the biometric identity application (Parasuraman et al., 2000). Information acquisition and decision/action selection are each mapped to one biometric subsystem leading to a relatively simple breakdown of automation levels (Figure 1). Information analysis is presented with unique LOAs for each subsystem, which need to be considered separately. LOAs are defined based on the current state of the biometric identity field; however, technological advancements will alter LOAs. Selection of automation levels is dependent on the biometric modality and identity workflow. Across all subsystems, the lowest LOA is broadly defined by the human completing the task independent of the algorithm.

We defined four LOAs for data capture with the anchor of high automation defined as the algorithm completing data acquisition alone. Within information analysis, signal processing is defined by four LOAs, notably the highest LOA may still require adjudication by the human as needed. Additionally, determination of whether an individual is enrolled or unenrolled is never divided between the human and algorithm due to differences in processes. The data storage and comparison subsystems each have three LOAs. At the second LOA both the human and algorithm perform recall and complete a comparison (e.g., a security guard remembers a person they frequently see pass through an entrance with a biometric system). Lastly, we defined eight LOAs for the decision subsystem, where the highest LOA may still require adjudication by the human. At the fifth LOA, there is an increased risk of complacency since the human provides approval for a decision made by the algorithm.

Algorithms generally exhibit high accuracy within the comparison subsystem, allowing human operators to add value in a complementary manner (e.g., differentiating twins based on features the algorithm may not consider). Humans can also add value to other subsystems, leading to improvements in overall performance. For example, many operational biometric identity systems currently employ the highest LOA at the data capture stage; however, research has demonstrated that the majority of biometric system errors are due to photo capture (2021 Biometric Rally Results). Biometric systems with operators, should focus human efforts on data capture to decrease these types of errors, which could improve system performance across modalities (e.g., face, iris, fingerprints).

Automation Determination Flowchart

Based on the automation determination flowchart from Parasuraman et al. (2000) we developed a set of criteria specific to the automation of a biometric system in the context of human-algorithm teaming (Figure 2). Our flowchart highlights two sets of criteria to determine an optimal automation level for each of the identified system functions when applied to a specific type of biometric system. The first set of criteria highlights the importance of team performance including the human’s cognitive performance, and the second set of criteria focuses on broader impact criteria including organizational and societal impacts. Both sets of criteria are presented as part of an iterative process, where optimization of team performance is reached before introducing broader impact criteria.

OPEN IN VIEWER

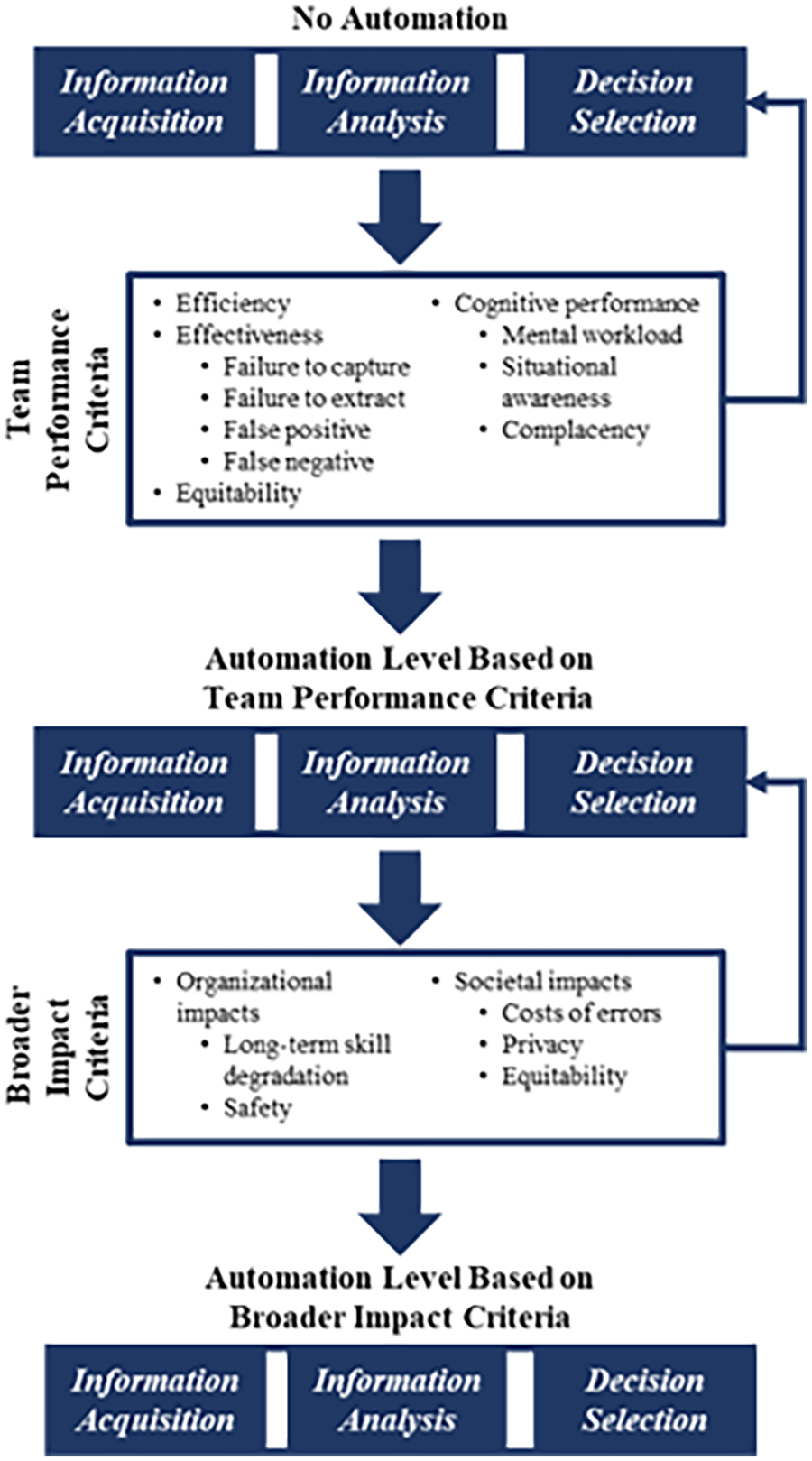

Figure 2.

Automation determination flowchart. Shows three relevant system functions and criteria for biometric systems based on a review of Parasuraman et al. (2000).

Team performance criteria

We define four categories to assess team performance: efficiency, effectiveness, equitability, and cognitive performance. These categories characterize the performance of biometric identity workflows and importantly, provide consideration of the human. Assessment of system outcomes (i.e., efficiency, effectiveness, and equitability) and the human’s cognitive state allow for optimal placement of the human within the workflow.

Efficiency is defined as the resources (e.g., time and staff) required by the biometric system to determine an individual’s identity. Effectiveness is the accuracy and completeness with which the system can determine an individual’s identity. This includes metrics such as failure to capture, failure to extract, false positives, and false negatives. Equitability is the extent to which the system performance is invariant across specific demographic categories and biological phenotypes. All these categories are focused on the overall team’s performance; however, it is also important to separately assess the human’s cognitive performance.

When incorporating the human’s cognitive performance, three key factors must be considered: mental workload, situational awareness, and complacency (Parasuraman et al., 2000). Pairing a human with an autonomous teammate does not guarantee that the human’s contributions or team performance will be improved. It is possible for the human to experience an increase in mental workload, a decrease in situational awareness, and an increase in complacency, which could all negatively impact the team’s performance. However, if each of these factors are properly assessed alongside the system outcomes of efficiency, effectiveness, and equitability then the human’s skills can be optimally placed within the workflow.

Broader impact criteria

Two main categories are defined as part of our broader impact criteria: organizational and societal impacts. Organizational impacts are defined as those which could potentially affect employees and the structure of the organization. A key factor of organizational impact is the potential for the human to experience skill degradation over an extended period if certain tasks have been allocated to the algorithm (Parasuraman et al., 2000). Additionally, in the context of a biometric identity system, the safety of employees could be jeopardized if tasks are not correctly allocated between the human and algorithm (e.g., a bad actor is allowed to enter a restricted space).

Societal impacts are defined as those which could have a wider effect on society. The cost of an error from a biometric identity system could range from minimal (e.g., additional time is needed to verify an individual resulting in increased wait times) to quite detrimental (e.g., a bad actor carries out an attack in a densely populated area). Furthermore, as biometric identity systems become more prominent, vast amounts of data will be collected, which could lead to privacy concerns such as individuals being tracked, or their data being used without their consent. Increased use of biometric identity systems could also increase equitability concerns related to how these systems are applied across different groups (Howard et al., 2021).

Both evaluation criteria are equally important but should be implemented in a serial manner. By first implementing criteria to optimize team performance, the number of errors experienced by a larger population can be mitigated.

Use Case Examples

To illustrate the proposed human-algorithm teaming framework in Figure 1, we review two use cases where LOAs can be minimized or maximized. The presented use cases focus on face recognition due to its deployment across various applications and humans’ unique ability for innate face recognition. The first use case we consider is at an airport security checkpoint where security personnel verify a traveler’s identity. In this scenario, a human operator adds value to the data capture (could be set to level 3) and signal processing (could be set to level 4) subsystems by reviewing the algorithm’s capture and image quality assessment. The algorithm adds value to the data storage, comparison, and decision subsystems (each subsystem could be set to the highest LOA). Specifically, consider when a probe image is captured in real time and compared to the presented identification card. The human operator adds value through contextual awareness by quickly recognizing and handling exceptions (e.g., confirm the individual is not wearing a mask or sunglasses, which impact biometric matching). However, humans do not perform well with unfamiliar face matching under a time constraint. The algorithm can quickly and accurately complete the comparison to the reference image on the identification card and decide if the probe is a match. In this use case, task allocation employs each teammate’s strengths to keep travelers moving through the checkpoint efficiently while maintaining a high level of security.

A contrasting use case to consider is a forensic examiner tasked with identifying a suspect based on multiple pieces of information including images of suspects captured at different angles. The data capture and data storage subsystems are out of scope for this use case. The signal processing subsystem could be set to the highest LOA. The comparison subsystem could be set to an automation level of 2, where both the human and algorithm complete the comparison. The decision subsystem could be set to level 3, the algorithm may return a candidate list of potential matches based on the facial comparison. Examiners will then follow a structured set of guidelines to determine if any of the candidates are a true match (FISWG, 2018; 2022). They may use additional information, such as distinctive scarring, tattoos, marks, or other physical features on a suspect’s arm and a timeline of relevant events. Here the human adds significant value to the subsystem’s performance due to their ability to incorporate this additional information into the final decision. Furthermore, the ability to explain the decision-making process is crucial and currently an ability unique to humans.

Conclusion

We present an automation determination framework based on Parasuraman et al.’s (2000) model and adapted it for biometric systems as defined by ISO/IEC 19795-1. We consider the entire biometric system to determine LOAs on a more granular level. The defined LOAs are based on the current state of technology and aim to optimize placement of the human within the workflow. Appropriate utilization of the human’s skills not only improves the cognitive state of the human but can also improve the overall performance of the biometric system. While biometric research has primarily focused on the forensic scenario, there is a need to address use cases which involve a large portion of the general population (e.g., airport security checkpoints, accessing restricted areas, etc.). As advancements in technology across fields continue, it is important to consider human-algorithm teams and the possibility of the human in a non-supervisory role.
