Effects of collagen/β-tricalcium phosphate bone graft to regenerate bone in critically sized rabbit calvarial defects

Abstract

Bone defects remain a significant health issue and a major cause of morbidity in elderly patients. Composites based on collagen/calcium phosphate have been widely used for bone repair in clinical applications, owing to their comparability to bone extracellular matrix. This study aimed to evaluate the effects of a scaffold of collagen/calcium phosphate (COL/β-TCP) on bone formation to assess its potential use as a bone substitute to repair bone defects. Bilateral full-thickness critically sized calvarial defects (8 mm in diameter) were created in New Zealand white rabbits and treated with COL/β-TCP or COL scaffolds. One defect was also left unfilled as a control. Bone regeneration was assessed through histological evaluation using hematoxylin and eosin and Masson’s trichrome staining after 4 and 8 weeks. Alizarin Red staining was also utilized to observe the mineralization process. Our findings indicated that COL/β-TCP implantation could better enhance bone regeneration than COL and exhibited both new bone growth and scaffold material degradation.

Keywords

β-tricalcium phosphate collagen bone substitute

Introduction

Complications associated with bone disorders induced by trauma, osteomyelitis, and osteosarcoma remain a clinically significant issue. Autologous bone grafts obtained from the rib, iliac crest, or tibia are the gold standard for bone defect repair.^1–3 However, the procedure requires additional surgery, which can cause postoperative problems and result in an insufficient amount of provided bone to restore the defects,⁴ and is also associated with complications, including limited donor tissue and donor site morbidity, pain, and infection. Allogenic bone for osteoconductive graft implantation has also been developed. However, this is accompanied by increased rates of nonunion, rejection, and possible fracture.⁵ As an alternative strategy, bone tissue engineering has gained increasing attention, owing to the disadvantages of traditional treatments, such as immune rejection, chronic inflammation, or the need for complicated surgical procedures.⁶ This technology utilizes a combination of various osteogenic cells, biocompatible scaffolds, and growth factors.

Materials used to fabricate bone grafts must be osteoinductive, osteoconductive, and biocompatible. The structure and mechanical properties of these materials should closely resemble those of natural bones.⁷ Type I collagen (COL), a major component of bone extracellular matrix, is a good candidate for bone tissue engineering, since it provides an osteoconductive environment in which cell migration, proliferation, and differentiation facilitate new bone growth. This biomaterial has also exhibited therapeutic advantages in preclinical and clinical studies.^8–13 However, pure collagen cannot be employed as a bone substitute, owing to its poor mechanical properties. Thus, increasing attention has been focused on preparing composites made of collagen and bioceramics.¹⁴ Calcium phosphate ceramics, which feature good osteoinductive ability, could enable better bone regeneration in vivo, even without the addition of cells or growth factors. It is also worth mentioning that the defect anatomy and macrostructure of the biomaterial also affect new bone formation.^15–17 For clinical bone repair, the use of calcium phosphate has proven equally effective in autologous bone grafts.¹⁸ Substitutes based on these bioceramics have been used for more than two decades as fillers or scaffolds in dentistry and orthopedics.^{19, 20} To fill bone defects, β-tricalcium phosphate (β-TCP), which has excellent resorbability, biocompatibility, and osteoconduction, has also been a focus of research. During the bone remodeling process, β-TCP is slowly degraded and replaced by newly mature bone in animal experiments.^{21, 22} It has been suggested that this ceramic could promote osteogenesis by increasing adenosine signaling in phosphate metabolism and providing osteoinductive growth factors.^23–25 Additionally, this bioceramic has been proven to facilitate osteoblast differentiation, mineralization of extracellular matrix, and subsequent bone formation.²⁶ Calcium phosphate scaffolds aid in osteogenesis and osseointegration; this facility could be related to their topography, surface charge, and chemical properties. These scaffolds contain minerals similar to those in natural bones; thus, they provide sufficient Ca²⁺ and PO₄³⁻ during the bone regeneration process.²⁷

Importantly, it is necessary to keep the composition of the bone scaffold similar to that of natural bone to provide a desirable environment for cell attachment and proliferation.²⁸ Both COL and β-TCP could mimic the basic composition of bone and have been used as bone graft substitutes, owing to their osteoconductive and biocompatible properties.^{27, 29, 30} Several products based on COL and calcium phosphate have been introduced in the market. These two materials, together or in combination with other materials, have shown potential for use as an alternative approach for bone regeneration.^{14, 31} For example, the Integra Mozaik™ (Integra LifeSciences, USA) consists of 80% β-TCP and 20% type I bovine COL. The efficacy of the osteoconductive scaffold is equivalent to that of autografting. In a clinical study, this graft was applied to patients with posterolateral lumbar fusion, and 100% fusion resulted in all single- and two-level procedures, with an overall fusion rate of 90%. This product was developed to mimic the composition and pore structure of natural human bone.³²

Successful bone grafts should be replaced by new functional bone tissue that is biocompatible with the host tissue.⁴ The ability of calcium phosphate ceramics to enhance bone formation depends highly on crystallinity, crystalline phase, and calcium/phosphorus ratio, which leads to the release of calcium and phosphate ions for bone mineralization.^{33, 34} More recently, we fabricated COL/β-TCP scaffolds with a β-TCP/COL weight ratio of four using a freeze-drying method. Comparison of the alkaline phosphatase activity showed that scaffolds containing β-TCP could significantly improve the differentiation of bone marrow-derived mesenchymal stem cells into osteoblasts compared with collagen, without the addition of growth factors. In fact, the introduction of β-TCP powder into the collagen matrix improved vascularization as well as the biological and mechanical properties of the collagen scaffold; this was consistent with previous studies.^{35, 36} Here we further evaluated the effects of a complex COL/β-TCP against those of COL scaffold on bone formation in rabbit calvarial bone defects to assess the potential use of COL/β-TCP as a bone substitute to repair bone defects.

Materials and methods

Materials

All materials and reagents were purchased from Sigma-Aldrich (Germany) unless otherwise specified.

Scaffold synthesis

The COL/β-TCP composite was prepared, as previously explained.³⁷ Briefly, collagen type I (NZA, Iran) was dispersed in diluted hydrochloric acid (pH = 2) resulting in a 1% (w/v) solution. The β-TCP powder was then added to the collagen solution while stirring. The ratio of β-TCP/COL weight was determined to be 4/1. The homogeneous suspension was poured into a plastic mold and frozen at −20 °C and −80 °C for 4 h and overnight, respectively. Then, the frozen sample was lyophilized to create a porous COL/β-TCP composite scaffold (freeze drier, ALPH1-2LD, UK). To prepare COL scaffolds, a similar protocol was repeated without β-TCP. To crosslink the obtained scaffolds, glutaraldehyde (0.5%) solution was used for 24 h. Samples were then soaked in deionized water for 4 days, with daily water refreshing to remove remnants of the glutaraldehyde, followed by lyophilization again for experimentation.

Experimental animals and surgical procedures

Animal studies were conducted according to the NIH Guidelines approved by the Ethics Committee of Tarbiat Modares University, Iran (IR.TMU.REC.1395.388). In this study, 12 New Zealand white rabbits (2.5–3 kg) were randomly divided into three experimental groups (n = 4/group) and kept in individual cages. Rabbits were controlled in a standard environment (humidity and temperature) with a 12/12 hours light/dark cycle and standard access to food and water. Animals received an intramuscular injection of xylazine (10 mg/kg) (2%, Alfasan, The Netherlands) and ketamine (90 mg/kg) (10%, Alfasan, The Netherlands). Their calvaria were then shaved, washed with 1.5% aqueous chlorhexidine digluconate, and draped, utilizing povidone iodide to sterilize the area. Calvaria were exposed via a skin incision; the muscle and periosteum of the calvarium were ablated, and three standardized full-thickness defects (8 mm in diameter) were created in the proximal-medial bone area of the calvaria using surgical trephine drills at low speed under continuous irrigation with saline buffer. Care was taken to avoid injury to the dura or midsagittal sinus. One defect was filled with COL/β-TCP scaffold (Group A). The second defect was filled with the COL scaffold (Group B), and the third was left unfilled as a negative control (Group C). The periosteum, muscle, and skin were then repositioned and sutured; subsequently, tetracycline was sprayed on the skin of the calvaria. Amoxicillin (0.1 mL/kg intramuscularly) (15%, Tolid Darou, Iran) was administered after surgery to prevent infections. Animals were protected and kept warm in individual cages until they had completely recovered. They were then sent to the holding room and had free access to water and food. To control postoperative pain, animals were administered ketorolac tromethamine (Tarasyn, Korea) for 3 days.

Clinical and histological analysis

Rabbits were killed with an overdose of anesthetics at 4 and 8 weeks after surgery. The cranial vault and attached pericranium were excised carefully to observe both the cranial and dural sides for gross inflammation and were photographed. The treated calvarium defects were subjected to microscopic studies and histological and radiological analyses.

Specimens were fixed in 10% formalin and decalcified by immersion in 10% nitric acid for 14 days; this solution was renewed every 24 h. After that, samples were dehydrated in a graded series of ethanol solution (80–100%) and cleared with toluene. Each sample was embedded in paraffin via the usual method; specimens were sectioned (5 µm) (Leica Microsystems SP 1600, Germany) and stained with hematoxylin and eosin and Masson’s trichrome. Alizarin Red staining was also utilized to observe the mineralization process. Histological evaluation consisted of examination of at least three sections of each implant under light microscopy (Leica Microsystems AG, Germany).

Results and discussion

Owing to their high biocompatibility and bioactivity, bioceramics based on β-TCP have been widely used for bone repair in clinical applications.^38–42 Some researchers have also considered β-TCP to be osteoinductive.⁴³ In this study, bone regeneration was assessed by implanting COL/β-TCP and COL disks into critically sized rabbit calvarial defects, which were then studied after 8 weeks. The anatomical and physiological characteristics of the rabbit make it especially appropriate for the study of certain human diseases. The New Zealand rabbit has been considered a suitable experimental model for analyzing the osteogenic capability of biomaterials.^44–46 By creating bilateral defects, we were able to compare the efficacy of the two scaffolds within the same animal. The scaffolds were placed in 8 mm full-thickness rabbit calvarial bone defects; one defect was left unfilled in each rabbit, as a control (Figure 1).

Figure 1.

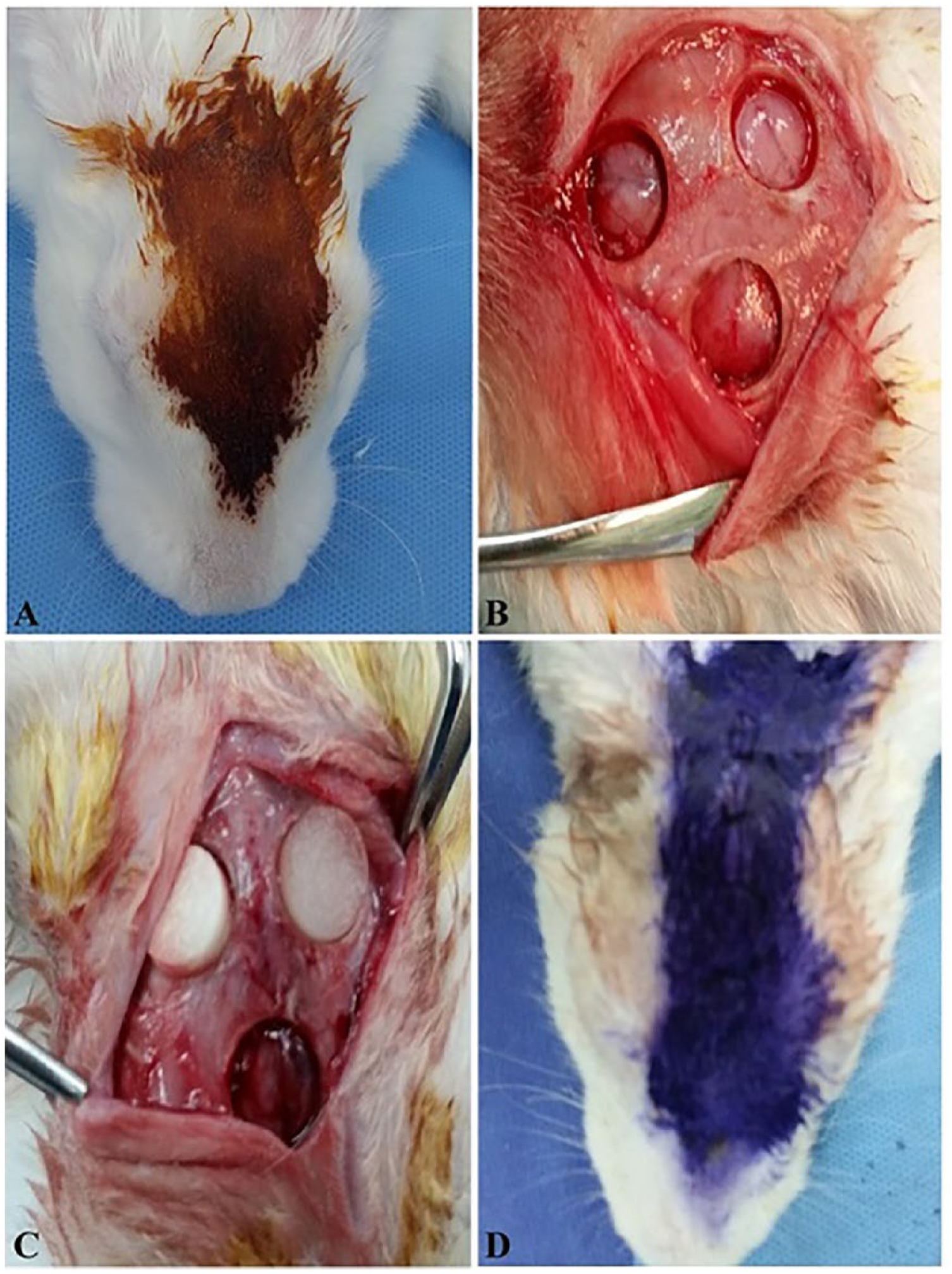

Bone graft in rabbit calvarial bone defects. A. Prepared rabbit calvarial skin. B. A 3 cm incision was made along the midline of the scalp and bilateral 8 mm full-thickness defects were made in both parietal bones. C. Scaffolds were placed directly onto the dura, leaving one defect unfilled. D. The skin was closed and sutured.

A clinical presentation of the examined groups at 4 and 8 weeks is given in Figure 2. A fibrous scar covered the entire defect area. The COL/β-TCP-filled defect appeared to be more intact than its COL-filled counterpart. No inflammation was detected in either experimental group macroscopically. Eight weeks after implantation, the scaffold-treated defects were thinner than the surrounding bone. However, those that contained COL/β-TCP were contiguous, being scarcely distinguishable from the surrounding bone tissue, and with no mobility. The COL-treated defect was thinner than the COL/β-TCP defect, macroscopically, confirming the results of a previous study.⁴⁷

Figure 2.

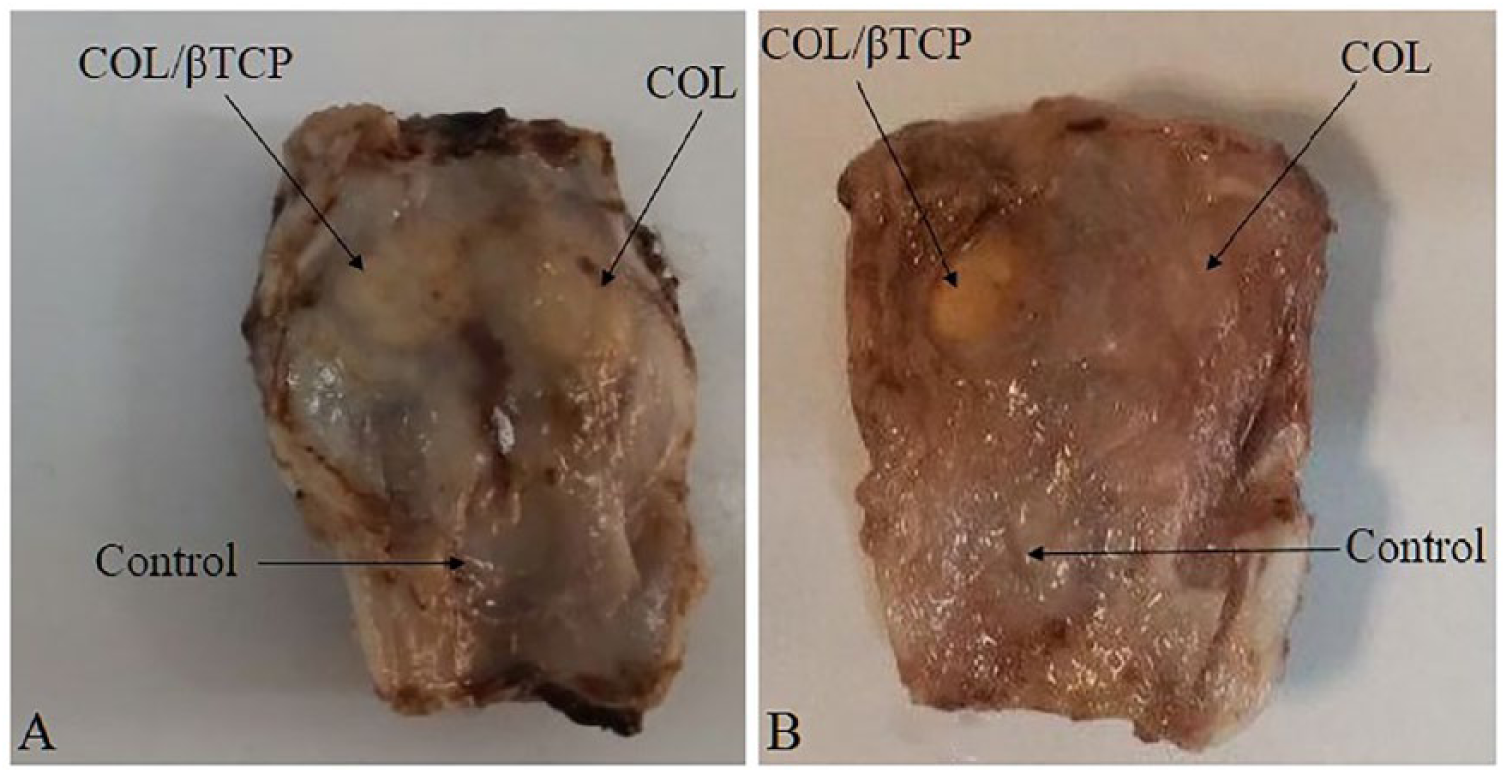

Cranial gross appearance of the defects, showing COL and COL/βTCP scaffolds and control (unfilled). A. After 4 weeks. B. After 8 weeks.

For the observations using hematoxylin and eosin staining, the specimens were examined using a light microscope at magnifications of ×40 and ×100. The defects filled with the COL/β-TCP scaffold showed immature bone formation within 4 weeks. New bone formation was observed to start bridging the defects at 8 weeks, with noticeable cell migration. It was difficult to distinguish the border of the defect from surrounding bone tissue. However, no cell permeation or bone formation was observed in COL-treated defect at 4 weeks, and the border between the original bone and the defect was not clearly linked with newly formed bone. Delayed cell penetration and the start of bone formation were observed at 8 weeks for this graft. The unfilled defect did not heal and new bone was only observed at the defect margin. Fibrous tissue covered the rest of the defect (Figure 3).

Figure 3.

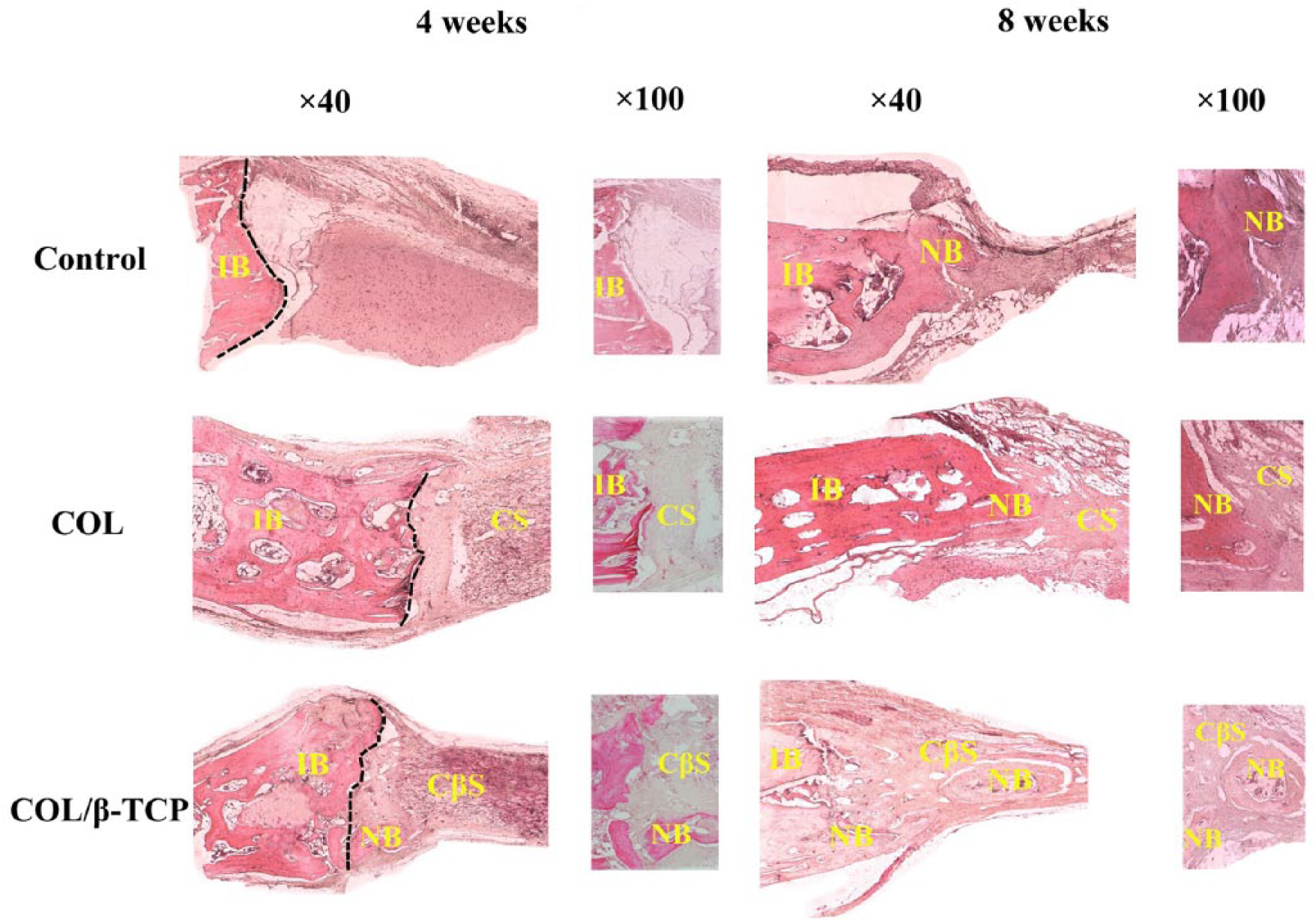

Histological findings at 4 and 8 weeks; hematoxylin and eosin stain (magnification, ×40 and 100). The dotted line indicates the border between intact bone and scaffolds.

Bone formation was further confirmed by Masson’s trichrome staining (Figure 4). The obtained data for the COL/β-TCP scaffold revealed deposition of the mature collagen at the new bone formation zone. At 4 weeks, immature bone generation was detected, followed by new bone formation after 8 weeks. However, immature bone formation was not observed in the COL and control groups after 4 weeks. In the unfilled group, fibrous tissue was observed, with new bone ingrowth around the defect margins. In the scaffold-treated groups, newly formed bone was not only on every side of the margin defect but also surrounded and was between the implanted scaffolds. However, new bone formation was more noticeable in the COL/β-TCP group than in the COL group.

Figure 4.

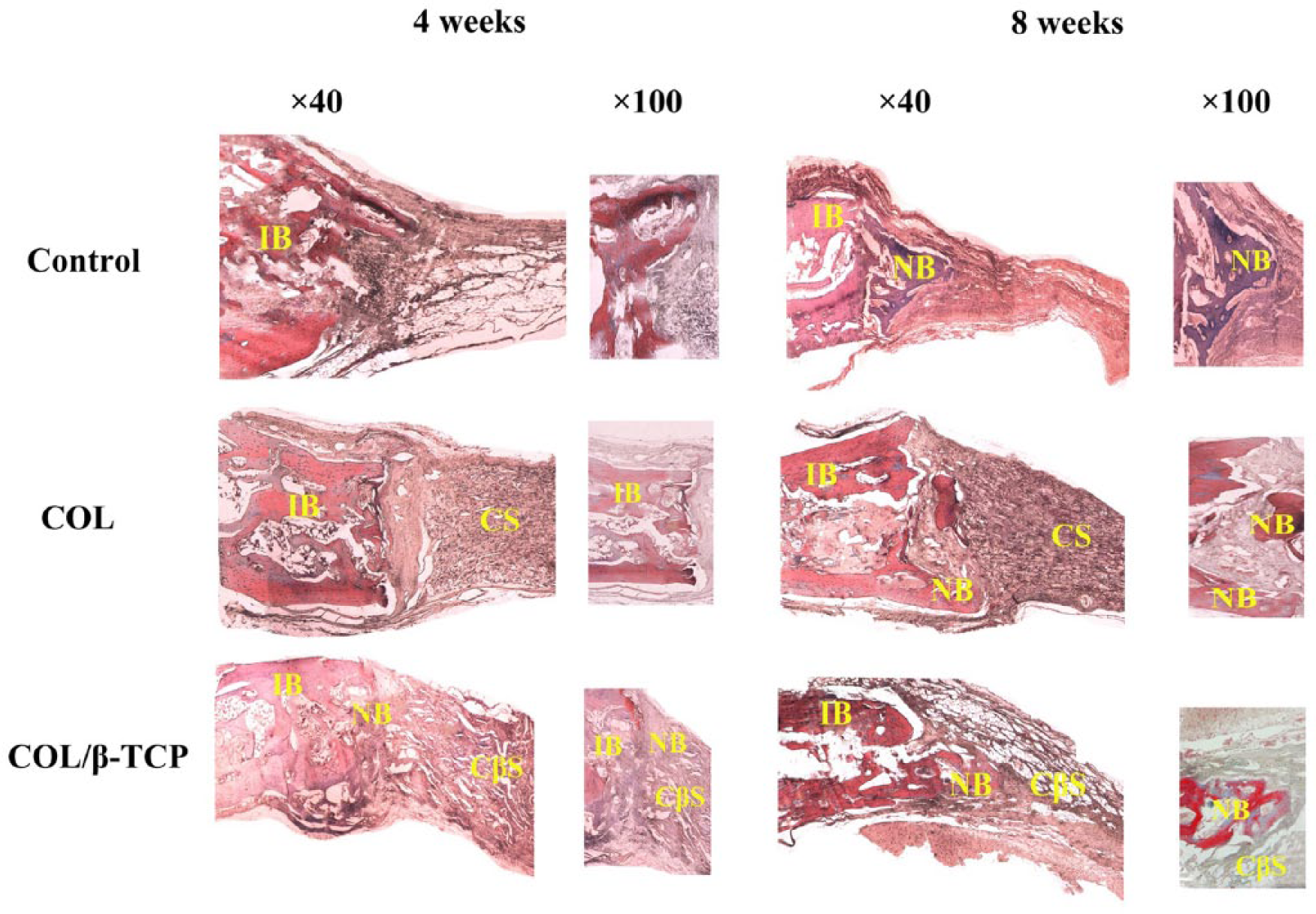

Histological findings at 4 and 8 weeks; Masson’s trichrome stain (magnification, ×40 and 100).

Alizarin Red staining was used to observe the mineralization stages of the tissue that formed at specific time points. Figure 5 shows the start of immature bone formation in the COL/β-TCP scaffolds at 4 weeks, followed by the detection of new bone formation and bridging at 8 weeks. However, the unfilled defect showed new bone only at the margin, while fibrous tissue covered the rest of the defect. For the COL group, only a little bone formation was observed and most of the defects were empty. Our findings indicated that COL/β-TCP implantation could enhance bone regeneration more effectively than COL in this model. This could be due to the high concentration of calcium and phosphate ions (Ca²⁺ and PO₄³⁻) provided by β-TCP, which creates a desirable environment for increasing the proliferation and attachment of bone marrow-derived stem cells.^48–50 The release of Ca²⁺, PO⁴³⁻, and HPO⁴²⁻ from the material into the surrounding biological fluid provides nucleation sites for the precipitation of biological carbonated apatite. Moreover, the calcium and phosphate released from the β-TCP dissociation could increase osteoblast alkaline phosphatase activity.^51–55 Increased PO₄³⁻ in the surrounding medium provides an alkaline environment, which has previously been proven to increase the alkaline phosphatase activity within human dental pulp cells⁵⁶ and might be more desirable for osteogenesis. For example, Li et al.⁵⁷ reported that the addition of β-TCP to COL/hydroxyapatite particles could result in better proliferation of adipose-derived stem cells with osteogenesis-promoting effects. Li et al.⁵⁷ also mentioned that its excellent mechanical property could both support bone formation and make the scaffold conducive for use in clinical applications. In our previous experiment,³⁷ we also showed that the presence of β-TCP in the collagen matrix could provide a much higher compressive modulus for the prepared composite than that of collagen. Moreover, the addition of β-TCP to the collagen assisted vascularization with good integration with the surrounding tissue. In fact, the rapid formation of a functional blood vasculature affects tissue engineering construct success. The good water absorbance and high porosity of this scaffold allowed blood infiltration and material exchange and promoted cell proliferation with the ability for manipulation with normal saline and blood.⁵⁷ Calcium phosphate ceramics are able to induce angiogenesis, a requirement for osteoinduction. In fact, a higher content of β-TCP phase has been proven to enhance neovascularization, a prerequisite for osteoinduction.⁵⁸

Figure 5.

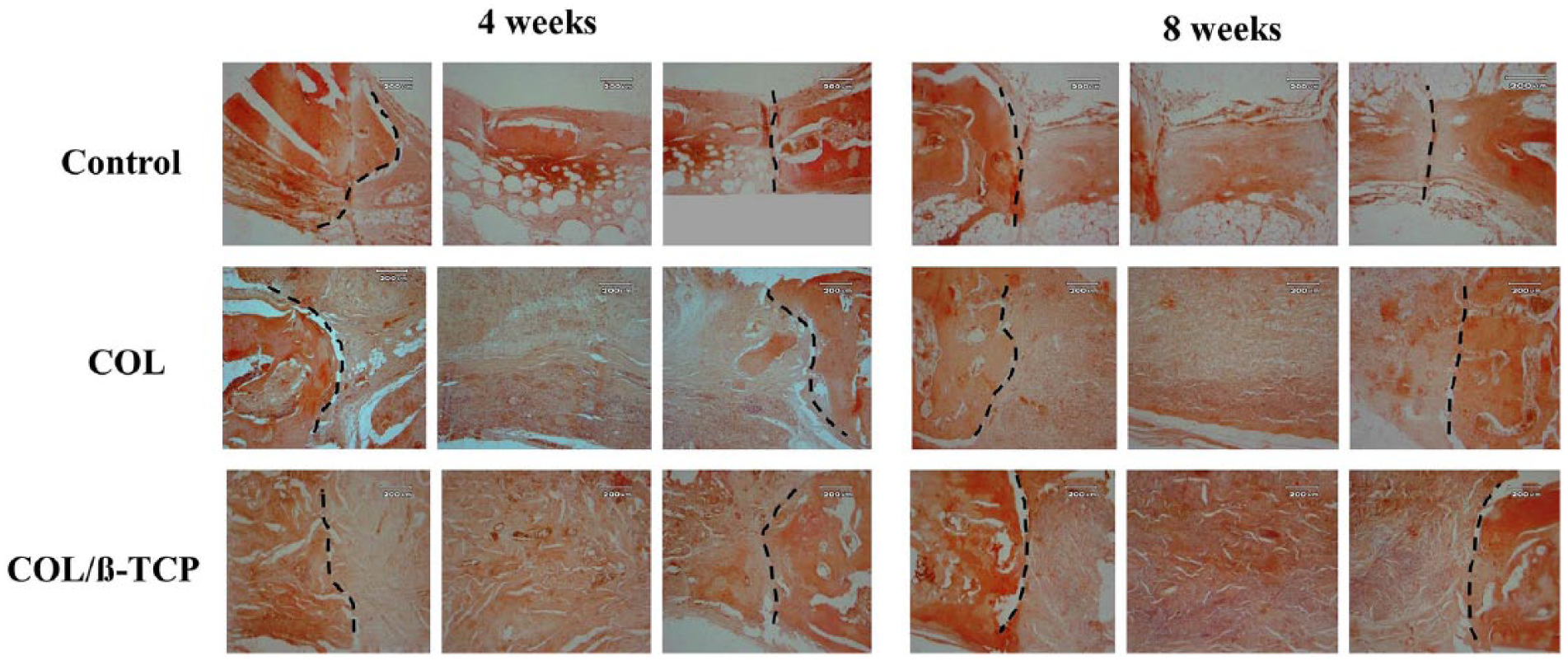

Histological findings after 4 and 8 weeks; Alizarin Red stain (magnification, ×40 and 100).

Osteoconductivity is also a useful property for synthetic bone graft substitutes. An ideal scaffold with osteoconductivity should have macropores that are 150–500 µm with 60–80% interconnected porosity.⁵⁹ We previously confirmed that prepared scaffolds exhibited interconnected macropores that were 150–200 µm in diameter, with an average porosity of 95–98%, which could provide an appropriate environment for inducing osteogenic differentiation. The obtained interconnectivity of the macropores is significant for tissue ingrowth into the material.⁶⁰ The collagen matrix also provides a template for depositing mineral crystals.⁶¹ The material’s swelling ability, which helps adsorb nutrients by maintaining the three-dimensional network, also affects cell growth and differentiation, influencing the efficacy of engineered bone constructs. We earlier found that the distribution of β-TCP within the collagen matrix of the composite could increasingly improve the stability of the composite scaffold compared with collagen, which demonstrated structural instability with a much higher swelling ratio.³⁷

Since complete biodegradation of COL/β-TCP was not confirmed in this study after 8 weeks, prolonged experiments are necessary to achieve a better understanding of the critical parameters for bone repair using this scaffold. One reason for this delay could be apatite formation on the surface of the scaffold after implantation, which hinders the release of TCP in the physiological bone remodeling.⁶² It was previously reported that the percentage of newly formed bone in a critically sized bone defect of dog calvaria by octacalcium phosphate/collagen can significantly increase between 3 and 6 months.⁶³ Therefore, it may be useful to continue our observation for 6 months to evaluate bone formation. Inzana et al.³⁰ fabricated a synthetic calcium phosphate and collagen bone graft substitute by low-temperature three-dimensional printing. They implanted scaffolds into a critically sized murine femoral defect for 9 weeks and confirmed that the scaffolds were osteoconductive and supported new bone growth but were only partly osteoinductive and unable to completely heal the defect. Inzana et al.³⁰ stated that supplementing the scaffold material with growth factors or cells to induce new bone formation could be an alternative strategy for completely healing critically sized defects using such synthetic bone graft substitutes.^{29, 30} Another report stated that β-TCP is an osteoconductive material supporting new bone formation but cannot drive cellular differentiation. Combination with bone marrow aspirate or concentrated bone marrow aspirate might be more effective.²⁹ In fact, the resorption of β-TCP, which is important for bone formation, may be promoted using such growth factors as fibroblast growth factor-2⁶⁴ or bone morphogenetic protein-2 (BMP-2).⁶⁵

Furthermore, since bones have different resorption and formation rates,⁶⁶ scaffold biodegradation might occur more rapidly in maxillary defects than in calvarial defects.⁴⁷ Thus, modifying the scaffold preparation process could be a suitable way to achieve complete scaffold resorption.⁴⁷ Walsh et al.⁶⁷ assessed the in-vivo performance of two US Federal Drug Administration-approved COL-calcium phosphate bone grafts for repairing critically sized cancellous defects in rabbits. Walsh et al.⁶⁷ stated that even in chemically virtually identical bone grafts, a different in-vivo response might be observed. This difference could be due to the collagen source (skin versus tendon) and processing (crosslinking method, washing), as well as calcium phosphate component differences (amount, porosity, or size), which influences the resorption profiles.⁶⁷

It is also worth noticing that, apart from the implant’s chemical composition and geometry, microstructural surface parameters, including grain size, roughness, specific surface area, and microporosity, are all considered important factors that affect the osteoinductive abilities of calcium phosphate ceramics.⁶⁸ In addition, β-TCP is considered to have a positive effect on BMP-2 gene expression,¹⁸ which was not assessed in this experiment. More information is still needed about the potential usefulness of the synthetic scaffold in orthopedic and dental applications.

Conclusions

Owing to the similarities between calcium phosphate ceramics and the mineral phase of bone, their ability to bond with bone tissue, and their high biocompatibility, these ceramics have been widely used as bone graft substitutes in dentistry, orthopedics, and maxillofacial surgery over the past few decades.⁶⁹ The aim of this study was to assess the efficacy of a prepared COL/β-TCP composite for new bone formation in rabbit calvarial bone defects. This study demonstrated that this scaffold might have potential for use as a bone substitute in clinical cases. The prepared composite has proven advantageous properties for use as a bone substitute, including easy handling, biodegradation properties, and replacement by newly formed bone without the use of cells or other external cytokines.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

References

Citardi

Friedman

CD.

Nonvascularized autogenous bone grafts for craniofacial skeletal augmentation and replacement. Otolaryngol Clin North Am 1994; 27: 891–910.

Lekholm

Wannfors

Isaksson

et al . Oral implants in combination with bone grafts: A 3-year retrospective multicenter study using the Brånemark implant system. Int J Oral Maxillofac Surg 1999; 28: 181–187.

Triplett

Schow

SR.

Autologous bone grafts and endosseous implants: Complementary techniques. J Oral Maxillofac Surg 1996; 54: 486–494.

Kim

et al . Effect of type I collagen on hydroxyapatite and tricalcium phosphate mixtures in rat calvarial bony defects. J Korean Assoc Oral Maxillofac Surg 2008; 34: 36–48.

Burchardt

Jones

Glowczewskie

et al . Freeze-dried allogeneic segmental cortical-bone grafts in dogs. J Bone Joint Surg Am 1978; 60: 1082–1090.

Zhang

M-L

Cheng

Xiao

Y-C

et al . Raloxifene microsphere-embedded collagen/chitosan/β-tricalcium phosphate scaffold for effective bone tissue engineering. Int J Pharm 2017; 518: 80–85.

Hutmacher

DW.

Scaffolds in tissue engineering bone and cartilage. Biomaterials 2006; 21;175–189.

Nguyen

BNB

Moriarty

Kamalitdinov

et al . Collagen hydrogel scaffold promotes mesenchymal stem cell and endothelial cell coculture for bone tissue engineering. J Biomed Mater Res A 2017; 105: 1123–1131.

Dhand

Ong

Dwivedi

et al . Bio-inspired in situ crosslinking and mineralization of electrospun collagen scaffolds for bone tissue engineering. Biomaterials 2016; 104: 323–338.

10.

Xia

Villa

Wei

A biomimetic collagen–apatite scaffold with a multi-level lamellar structure for bone tissue engineering. J Mater Chem B 2014; 2: 1998–2007.

11.

Xia

Jiang

et al . Fabrication and characterization of biomimetic collagen–apatite scaffolds with tunable structures for bone tissue engineering. Acta Biomater 2013; 9: 7308–7319.

12.

Springer

Nocini

Schlegel

et al . Two techniques for the preparation of cell-scaffold constructs suitable for sinus augmentation: Steps into clinical application. Tissue Eng 2006; 12: 2649–2656.

13.

Epstein

NE.

Pros, cons, and costs of INFUSE in spinal surgery. Surg Neurol Int 2011; 2: 10.

14.

Kuttappan

Mathew

Nair

MB.

Biomimetic composite scaffolds containing bioceramics and collagen/gelatin for bone tissue engineering — A mini review. Int J Biol Macromol 2016; 93: 1390–1401.

15.

Scarano

Perrotti

Artese

et al . Blood vessels are concentrated within the implant surface concavities: A histologic study in rabbit tibia. Odontology 2014; 102: 259–266.

16.

Song

Kim

Woo

H-M

et al . Repair of rabbit radial bone defects using bone morphogenetic protein-2 combined with 3D porous silk fibroin/β-tricalcium phosphate hybrid scaffolds. J Biomater Sci Polym Ed 2018; 29: 716–729.

17.

Wang

et al . Sheet of osteoblastic cells combined with platelet-rich fibrin improves the formation of bone in critical-size calvarial defects in rabbits. Br J Oral Maxillofac Surg 2016; 54: 316–321.

18.

Tang

Tan

et al . Comparison of ectopic bone formation process induced by four calcium phosphate ceramics in mice. Mater Sci Eng C 2017; 70: 1000–1010.

19.

Scarano

Ceccarelli

Marchetti

et al . Soft tissue augmentation with autologous platelet gel and β-TCP: A histologic and histometric study in mice. BioMed Res Int 2016; 2016: 7.

20.

Aurimas

Bushan

Hanna

et al . Calcium sulphate/hydroxyapatite carrier for bone formation in the femoral neck of osteoporotic rats. Tissue Eng Part A. Epub ahead of print 16 July 2018. DOI: 10.1089/ten.tea.2018.0075.

21.

Tanaka

Komaki

Chazono

et al . Use of a biphasic graft constructed with chondrocytes overlying a β-tricalcium phosphate block in the treatment of rabbit osteochondral defects. Tissue Eng 2005; 11: 331–339.

22.

Chazono

Tanaka

Komaki

et al . Bone formation and bioresorption after implantation of injectable β-tricalcium phosphate granules — hyaluronate complex in rabbit bone defects. J Biomed Mater Res A 2004; 70: 542–549.

23.

Hoppe

Güldal

Boccaccini

AR.

A review of the biological response to ionic dissolution products from bioactive glasses and glass-ceramics. Biomaterials 2011; 32: 2757–2774.

24.

Autefage

Briand-Mésange

Cazalbou

et al . Adsorption and release of BMP-2 on nanocrystalline apatite-coated and uncoated hydroxyapatite/β-tricalcium phosphate porous ceramics. J Biomed Mater Res B Appl Biomater 2009; 91: 706–715.

25.

Shih

Y-RV

Hwang

Phadke

et al . Calcium phosphate-bearing matrices induce osteogenic differentiation of stem cells through adenosine signaling. Proc Natl Acad Sci USA 2014; 111: 990–995.

26.

Arahira

Todo

Effects of proliferation and differentiation of mesenchymal stem cells on compressive mechanical behavior of collagen/β-TCP composite scaffold. J Mech Behav Biomed Mater 2014; 39: 218–230.

27.

Xiao

Yin

Wang

et al . Macro-porous calcium phosphate scaffold with collagen and growth factors for periodontal bone regeneration in dogs. Ceram Int 2015; 41: 995–1003.

28.

Muthukumar

Aravinthan

Sharmila

et al . Collagen/chitosan porous bone tissue engineering composite scaffold incorporated with ginseng compound K. Carbohydr Polym 2016; 152: 566–574.

29.

McDaniel

Pilia

Raut

et al . Alternatives to autograft evaluated in a rabbit segmental bone defect. Int Orthop 2016; 40: 197–203.

30.

Inzana

Olvera

Fuller

et al . 3D printing of composite calcium phosphate and collagen scaffolds for bone regeneration. Biomaterials 2014; 35: 4026–4034.

31.

Oryan

Alidadi

Moshiri

et al . Bone regenerative medicine: Classic options, novel strategies, and future directions. J Orthop Surg Res 2014; 9: 18.

32.

Mataragas

Radiographic analysis of fusion success with Integra collagen ceramic matrix, as compared to autograft use, in posterolateral lumbar spine arthrodesis. Integra Orthobiologics – Clinical Affairs White Paper, Study MOZ-US-2008-1, 2010, http://www.ossano.se/Bibliotek/Bensubstitut/Radiographic%20analysis%20of%20fusion%20success%20with%20Integra%20Collagen%20Ceramic%20Matrix_final.pdf (2010, accessed 18 February 2018).

33.

Dorozhkin

SV.

Calcium orthophosphate-based bioceramics. Materials 2013; 6: 3840–3942.

34.

Khan

Saleem

Afzal

et al . Bioactive behavior of silicon substituted calcium phosphate based bioceramics for bone regeneration. Mater Sci Eng C 2014; 35: 245–252.

35.

Tuzlakoglu

Santos

Neves

et al . Design of nano-and microfiber combined scaffolds by electrospinning of collagen onto starch-based fiber meshes: A man-made equivalent of natural extracellular matrix. Tissue Eng Part A 2010; 17: 463–473.

36.

Strocchi

Orsini

Iezzi

et al . Bone regeneration with calcium sulfate: Evidence for increased angiogenesis in rabbits. J Oral Implantol 2002; 28: 273–278.

37.

Baheiraei

Nourani

Mortazavi

SMJ

et al . Development of a bioactive porous collagen/β-tricalcium phosphate bone graft assisting rapid vascularization for bone tissue engineering applications. J Biomed Mater Res A 2018; 106: 73–85.

38.

Gasik

Keski-Honkola

Bilotsky

et al . Development and optimisation of hydroxyapatite — β-TCP functionally gradated biomaterial. J Mech Behav Biomed Mater 2014; 30: 266–273.

39.

Jang

D-W

Kim

Y-H

Lee

B-T.

Microstructure control of TCP/TCP-(t-ZrO2)/t-ZrO2 composites for artificial cortical bone. Mater Sci Eng C 2011; 31: 1660–1666.

40.

Mina

Castaño

Caicedo

et al . Determination of physical properties for β-TCP + chitosan biomaterial obtained on metallic 316L substrates. Mater Chem Phys 2015; 160: 296–307.

41.

Makarov

Cohen

Raz-Pasteur

et al . In vitro elution of vancomycin from biodegradable osteoconductive calcium phosphate–polycaprolactone composite beads for treatment of osteomyelitis. Eur J Pharm Sci 2014; 62: 49–56.

42.

Siddiqui

Pramanik

Jabbari

Osteogenic differentiation of human mesenchymal stem cells in freeze-gelled chitosan/nano β-tricalcium phosphate porous scaffolds crosslinked with genipin. Mater Sci Eng C 2015; 54: 76–83.

43.

Samavedi

Whittington

Goldstein

AS.

Calcium phosphate ceramics in bone tissue engineering: A review of properties and their influence on cell behavior. Acta Biomater 2013; 9: 8037–8045.

44.

Calvo-Guirado

Ramírez-Fernández

Delgado-Ruíz

et al . Retracted: Influence of Biphasic β-TCP with and without the use of collagen membranes on bone healing of surgically critical size defects. A radiological, histological, and histomorphometric study. Clin Oral Implants Res 2014; 25: 1228–1238.

45.

Filardo

Perdisa

Gelinsky

et al . Novel alginate biphasic scaffold for osteochondral regeneration: An in vivo evaluation in rabbit and sheep models. J Mater Sci Mater Med 2018; 29: 74.

46.

Scarano

Iezzi

Petrone

et al . Cortical bone regeneration with a synthetic cell-binding peptide: A histologic and histomorphometric pilot study. Implant Dent 2003; 12: 318–324.

47.

Tanuma

Matsui

Kawai

et al . Comparison of bone regeneration between octacalcium phosphate/collagen composite and β-tricalcium phosphate in canine calvarial defect. Oral Surg Oral Med Oral Pathol Oral Radiol 2013; 115: 9–17.

48.

Kawai

Anada

Honda

et al . Synthetic octacalcium phosphate augments bone regeneration correlated with its content in collagen scaffold. Tissue Eng A 2008; 15: 23–32.

49.

Zhang

Huang

Liao

et al . Nucleation sites of calcium phosphate crystals during collagen mineralization. J Am Ceram Soc 2003; 86: 1052–1054.

50.

Wang

Uemura

Dong

et al . Application of perfusion culture system improves in vitro and in vivo osteogenesis of bone marrow-derived osteoblastic cells in porous ceramic materials. Tissue Eng 2003; 9: 1205–1214.

51.

Suzuki

Ghayor

Guicheux

et al . Enhanced expression of the inorganic phosphate transporter pit-1 is involved in BMP-2-induced matrix mineralization in osteoblast-like cells. J Bone Miner Res 2006; 21: 674–683.

52.

Liu

Pei

et al . The effect of extracellular calcium and inorganic phosphate on the growth and osteogenic differentiation of mesenchymal stem cells in vitro: Implication for bone tissue engineering. Biomed Mater 2009; 4: 025004.

53.

Zhang

Hanagata

Maeda

et al . Porous hydroxyapatite and biphasic calcium phosphate ceramics promote ectopic osteoblast differentiation from mesenchymal stem cells. Sci Technol Adv Mater 2009; 10: 025003.

54.

Khoshniat

Bourgine

Julien

et al . Phosphate-dependent stimulation of MGP and OPN expression in osteoblasts via the ERK1/2 pathway is modulated by calcium. Bone 2011; 48: 894–902.

55.

Khoshniat

Bourgine

Julien

et al . The emergence of phosphate as a specific signaling molecule in bone and other cell types in mammals. Cell Mol Life Sci 2011; 68: 205–218.

56.

Okabe

Sakamoto

Takeuchi

et al . Effects of pH on mineralization ability of human dental pulp cells. J Endod 2006; 32: 198–201.

57.

Wang

Zhang

G-F

et al . A comparative evaluation of the mechanical properties of two calcium phosphate/collagen composite materials and their osteogenic effects on adipose-derived stem cells. Stem Cells Int 2016; 2016: 6409546.

58.

Chen

Wang

Zhu

et al . Enhanced effect of β-tricalcium phosphate phase on neovascularization of porous calcium phosphate ceramics: In vitro and in vivo evidence. Acta Biomater 2015; 11: 435–448.

59.

AbdulQader

Kannan

Ab Rahman

et al . Effect of different calcium phosphate scaffold ratios on odontogenic differentiation of human dental pulp cells. Mater Sci Eng C 2015; 49: 225–233.

60.

Choi

Zhang

MacEwan

et al . Neovascularization in biodegradable inverse opal scaffolds with uniform and precisely controlled pore sizes. Adv Healthc Mater 2013; 2: 145–154.

61.

Rashid

Shiba

Mizuno

et al . The effect of extracellular calcium ion on gene expression of bone-related proteins in human pulp cells. J Endod 2003; 29: 104–107.

62.

Kamakura

Sasaki

Honda

et al . Octacalcium phosphate combined with collagen orthotopically enhances bone regeneration. J Biomed Mater Res B Appl Biomater 2006; 79: 210–217.

63.

Kawai

Matsui

Ii buchi

et al . Reconstruction of critical-sized bone defect in dog skull by octacalcium phosphate combined with collagen. Clin Implant Dent Relat Res 2011; 13: 112–123.

64.

Lau

Perruccio

Evans

et al . Stem cell therapy for the treatment of early stage avascular necrosis of the femoral head: A systematic review. BMC Musculoskelet Disord 2014; 15: 156.

65.

Lee

Makkar

Paul

et al . Incorporation of BMP-2 loaded collagen conjugated BCP granules in calcium phosphate cement based injectable bone substitutes for improved bone regeneration. Mater Sci Eng C 2017; 77: 713–724.

66.

Wolfe

Klein

Sex differences in absolute rates of bone resorption in young rats: Appendicular versus axial bones. Calcif Tissue Int 1996; 59: 51–57.

67.

Walsh

Oliver

Christou

et al . Critical size bone defect healing using collagen–calcium phosphate bone graft materials. PLoS One 2017; 12: e0168883.

68.

Barradas

Yuan

van Blitterswijk

et al . Osteoinductive biomaterials: Current knowledge of properties, experimental models and biological mechanisms. Eur Cell Mater 2011; 21: 29.

69.

Dziadek

Stodolak-Zych

Cholewa-Kowalska

Biodegradable ceramic-polymer composites for biomedical applications: A review. Mater Sci Eng C 2017; 71: 1175–1191.
