Creating Micro-Resonator in Metallic Structure by Laser Powder Bed Fusion for Enhancing Acoustic Absorption

Specimen fabrication

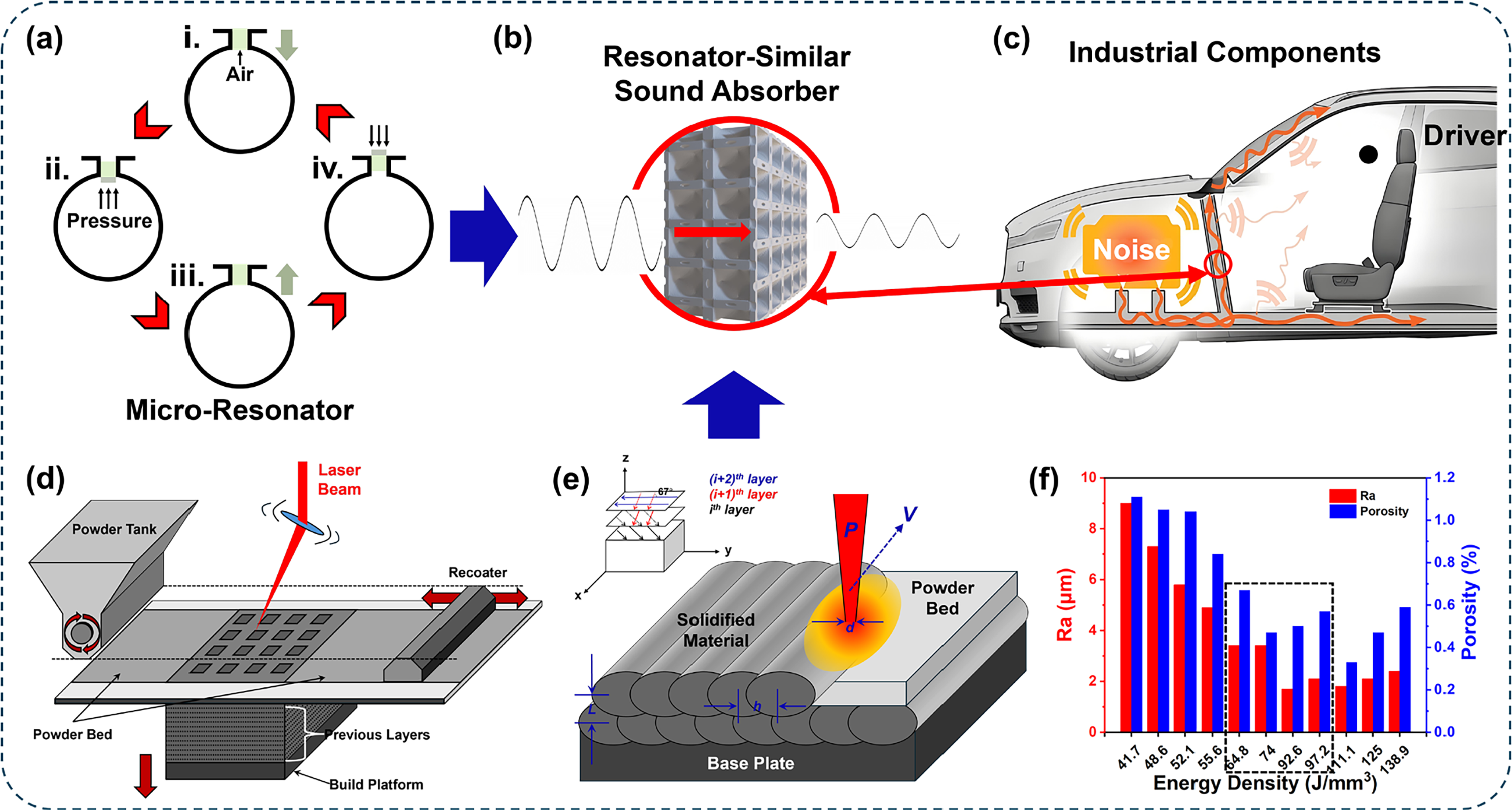

The 316L SS samples are fabricated using the powder bed fusion system SLM 280HL (Nikon SLM Solutions, Japan), which is equipped with a 400 W continuous wave IPG Ytterbium fiber laser featuring a beam diameter of 100 μm (Fig. 1d). The build chamber is purged with argon gas to prevent oxidation during the process. Various printing parameters, including laser power, scan speed, hatch distance, and layer rotation, are optimized, with the optimal settings detailed in Table 1. The energy density ( E v ) is 64.8 J/mm³, calculated using the following equation ³⁸ :

E v = Laser Power Scan Speed × Hatch Distance × Layer Thickness

OPEN IN VIEWER

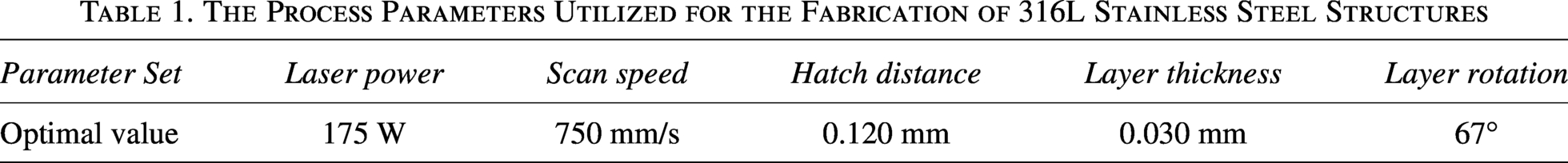

Table 1.

The Process Parameters Utilized for the Fabrication of 316L Stainless Steel Structures

Parameter Set	Laser power	Scan speed	Hatch distance	Layer thickness	Layer rotation
Optimal value	175 W	750 mm/s	0.120 mm	0.030 mm	67°

Gas atomized spherical 316L SS powder (Nikon SLM Solutions, Japan) with an average particle size from 10 to 45 μm is utilized for the selective laser melting process. The elemental composition of 316L SS powder is specified in Table 2. A wire electrical discharge machine is used to remove the as-built samples from the SS substrate. The samples are then ultrasonically cleaned with isopropyl alcohol to remove any residual powder particles and grease.

OPEN IN VIEWER

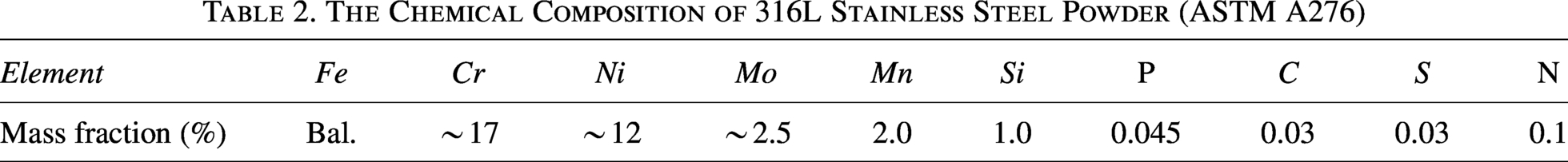

Table 2.

The Chemical Composition of 316L Stainless Steel Powder (ASTM A276)

Element	Fe	Cr	Ni	Mo	Mn	Si	P	C	S	N
Mass fraction (%)	Bal.	∼17	∼12	∼2.5	2.0	1.0	0.045	0.03	0.03	0.1

Geometry design

To investigate the impact of different principles (porous structure and Helmholtz resonator) in metallic TPMS structures on acoustic absorption properties, Gyroid and Neovius structures are designed in this study. The surfaces of these structures are represented by the following approximate equations ³⁹ :

Gyroid

∅ G = sin ⁡ x · cos ⁡ y + sin ⁡ y · cos ⁡ z + sin ⁡ z · cos ⁡ x

Neovius

∅ N = 3 cos ⁡ x + cos ⁡ y + cos ⁡ z + 4 cos ⁡ x cos ⁡ y cos ⁡ z

Models of the structures are developed using an open-source TPMS generator MSLattice software^40–43 and characterized with Materialise Magics software. This computational approach enables precise control over volume fraction, unit cell size, and design errors. Preliminary experiments on Gyroid structures with relative densities of 30%, 50%, and 70% (10 mm characteristic size) showed that 30% provided the most favorable overall performance, particularly in sound absorption. Therefore, a relative density of 30% is selected. To isolate the effect of topology on acoustic behavior, both relative density and unit cell size are fixed at 30% and 3 mm, respectively (Fig. 2).

OPEN IN VIEWER

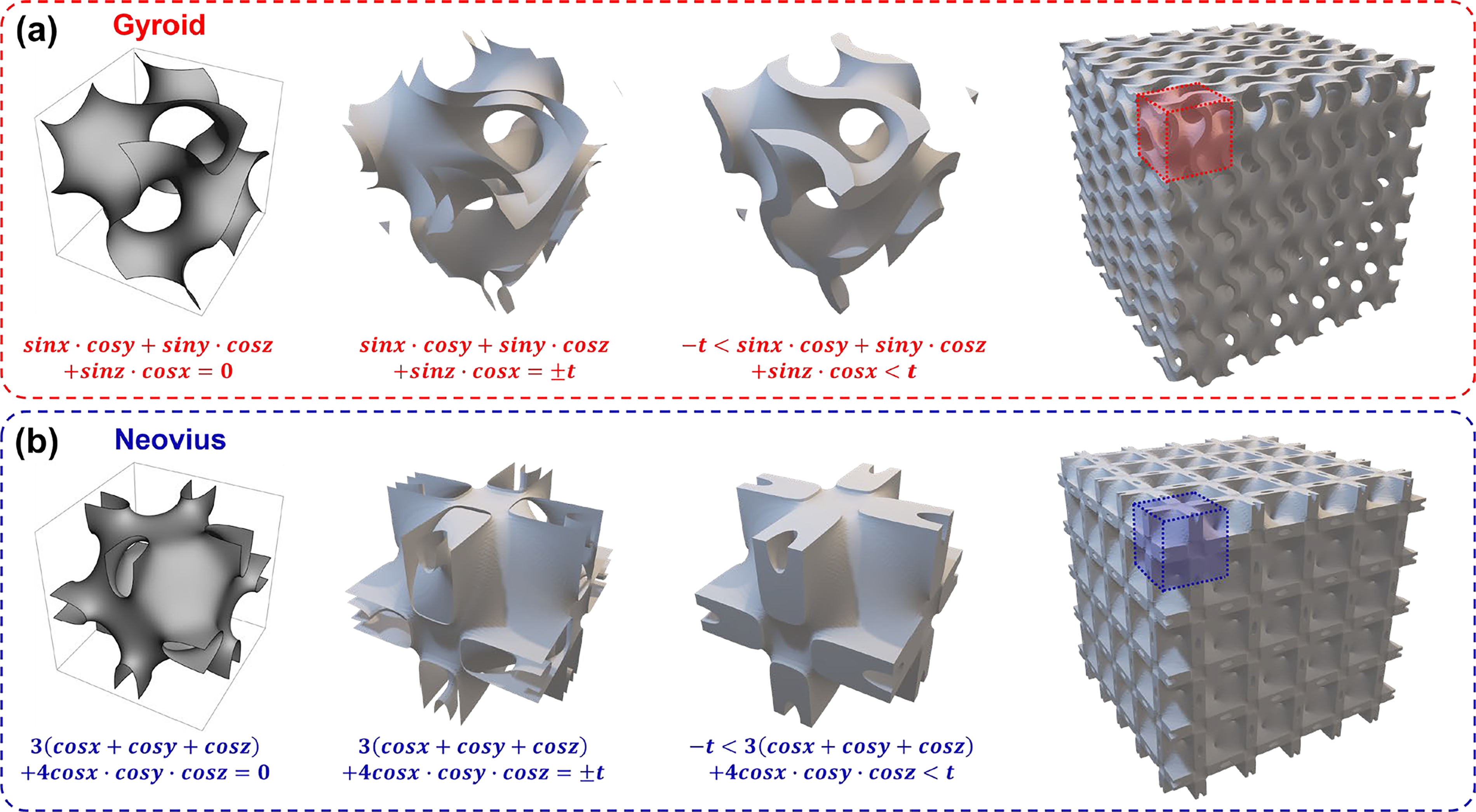

FIG. 2.

Geometric design details of (a) Gyroid structure with porous features and (b) Neovius structure with Helmholtz resonator characteristics.

Characterizations

A Schottky field-emission scanning electron microscope (SEM) model Zeiss Supra 40 is utilized to characterize the AM-ed specimens for geometrical details and any visible defects. To capture the images, an accelerating voltage of 10 keV is utilized. To calculate the porosity, the specimens are subjected to mechanical polishing until a surface finish of 0.05 μm is achieved.

All samples used for acoustic testing are cylindrical, featuring a diameter of 29 mm and a thickness of 10 mm. The sound absorption properties are assessed by measuring the sound absorption coefficient (SAC, α) through the SW4601 impedance tube kit (BSWA TECH, China), in accordance with ISO 10534-2 standards (Supplementary Fig. S1). The frequency range for testing extended from 1 to 6 kHz. Each SAC curve represents the average of at least three independent measurements, and the variation among repeated tests is small.

The compressive samples are fabricated with dimensions of 5 mm in length, 5 mm in width, and 5 mm in height. Experimental tests for compression are conducted utilizing a Shimadzu AG 25TB (Shimadzu Corporation, Japan) electromechanical loading machine, which has a load capacity of 50 kN. Quasi-static uniaxial compression experiments are executed under displacement control, maintaining a constant loading rate of 0.5 mm/min. For all samples, the testing limit is established at a force of 49 kN. The stress and strain values are calculated from the measured force and displacement data as follows:

σ 0 = P A 0

ε 0 = h - h 0 h 0

LPBF-fabricated 316L SS TPMS structures

LPBF is employed to fabricate 316L SS TPMS structures with optimized processing parameters (Fig. 1d and e). To reduce anisotropy, a layer rotation strategy of 67° is applied during the printing process. Based on preliminary optimization using solid bulk specimens (Supplementary Fig. S2), an energy density range of 64.8–97.2 J/mm³ is selected to ensure a balance among formation accuracy, porosity, and fabrication efficiency. The optimized parameters enable the successful fabrication of complex, well-designed TPMS structures (Fig. 1f). The chemical composition of the LPBF-fabricated specimens remains consistent with that of the initial powder (Supplementary Fig. S3 and Supplementary Table S1), indicating good chemical stability during processing.

Figure 2 demonstrates the geometric design details of Gyroid (red) and Neovius (blue) structures based on the principles of porous structure and Helmholtz resonator to enhance their acoustic performance. First, the corresponding surfaces are designed using mathematical formulas, Equations (2) and (3). Gyroid structure is composed of continuous simple surfaces, with the gaps between these surfaces designed to enhance sound absorption performance through the incorporation of air gaps. The Neovius structure, on the contrary, consists of a central cavity surrounded by 12 necks along its periphery, forming a complex surface configuration. The combination of these necks and the cavities creates a structure analogous to a Helmholtz resonator as a complex microscale resonator-similar absorber. ±t is defined as the offset value of the surface relative to its original position. Subsequently, solid entities are generated by filling the gaps between these offset surfaces, creating the unit cells. These unit cells are then expanded into a large structure suitable for sound absorption and compression performance testing through an array arrangement. These results demonstrate the editability of the complex structures of TPMS, which aligns with the layer-by-layer fabrication characteristics of LPBF.

Figure 3 shows the details of LPBF-fabricated 316L SS Gyroid and Neovius structures. The Neovius structural parameters are analogous to those of the Gyroid structure, with a cell size of 3 mm and a relative density of 30%. The Gyroid and Neovius structures exhibited good surface quality under the optimized fabrication parameters (Fig. 3b and e). The minimum wall thickness of the Gyroid and Neovius structures is ∼250 μm, as measured in the SEM images (Fig. 3c and f). The precise materialization of digital models reflects the uniformity of the periodic arrangement, with minimal structural deformation and no significant defects, thereby demonstrating the stability of the printing process. In this work, the wall thickness is designed to be minimized within the manufacturable limits of the LPBF process in order to fully exploit the geometric complexity enabled by AM. Reducing wall thickness increases the specific surface area and enhances viscous and thermal dissipation of acoustic energy. However, excessively thin walls may lead to instability during fabrication, such as distortion or discontinuity. Therefore, the selected thickness represents a compromise between maximizing acoustic performance and ensuring structural integrity and fabrication reliability. These structures facilitate weight reduction and enhance structural complexity while preserving the overall mechanical properties. This advancement facilitates the future design and structural control of increasingly complex sound-absorbing metallic structures. Furthermore, the LPBF technique enables stable and repeatable large-scale production, offering significant potential for practical applications.

OPEN IN VIEWER

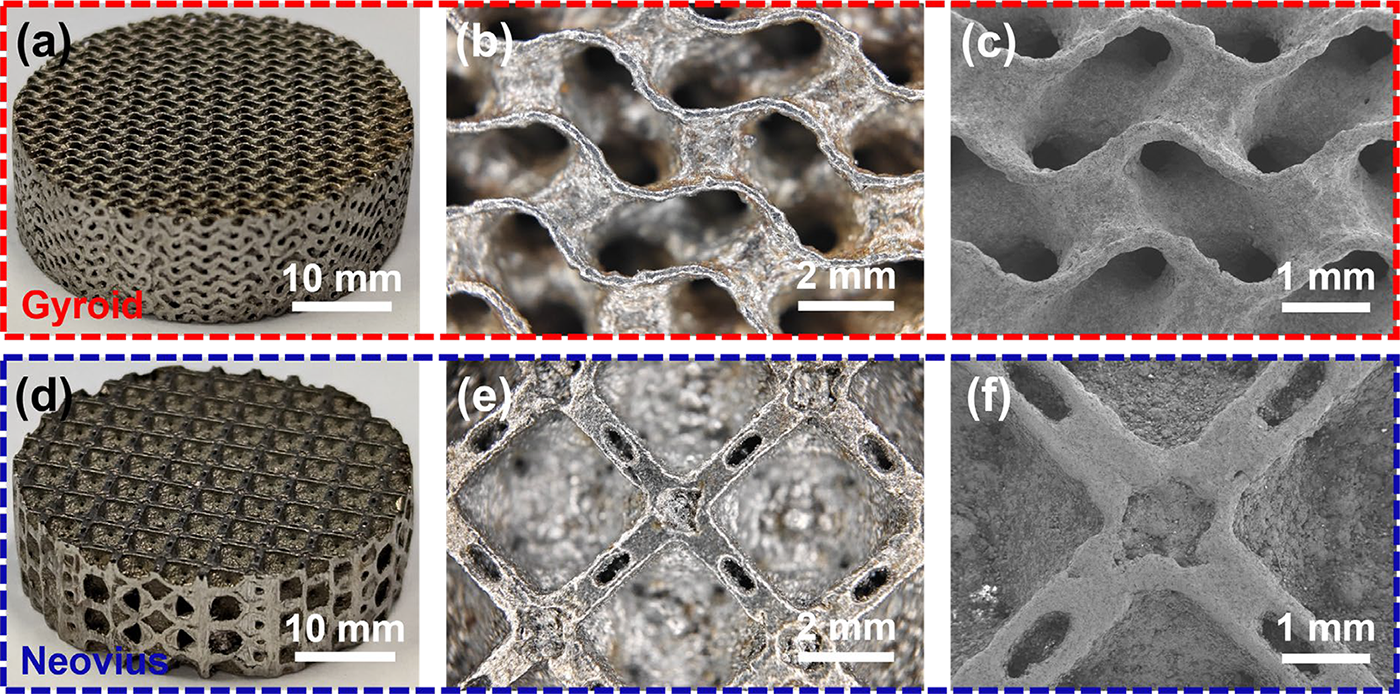

FIG. 3.

LPBF-fabricated 316L SS specimens: (a) Gyroid structure, (b) structure detail, (c) SEM image, (d) Neovius structure, (e) structure detail, and (f) SEM image. SEM, scanning electron microscope; SS, stainless steel.

Sound absorption performance

Figure 4a illustrates the sound absorption characteristics of LPBF-fabricated 316L SS with solid bulk, Gyroid, and Neovius structures across the frequency range of 1–6 kHz. It is evident that 316L SS with solid bulk exhibits a peak absorption value of 0.23 at 1907 Hz due to its inherent properties. In other frequency ranges, its SAC hovers around 0.1, particularly within the high-frequency range of 3–6 kHz, where the average SAC is measured at 0.09. This phenomenon may be attributed to the inherent properties of the metallic structure, which are not conducive to the absorption of sound waves. ³⁵ Furthermore, 316L SS with Gyroid structure does not display distinct absorption peaks within the 1–6 kHz frequency range. However, their sound absorption efficiency increases with rising frequency and notably accelerates after 5 kHz. This outcome differs from previous LPBF-fabricated structures,^36,37 as no resonance peaks are observed. The absence of a pronounced resonance peak in the Gyroid structure may be attributed to its continuous porous topology, which lacks discrete cavity–neck features. Instead, sound absorption is primarily governed by viscous losses, thermal dissipation, and boundary layer effects within the tortuous pore network. ³³ As the frequency increases, these dissipative mechanisms become more effective due to enhanced interaction between the acoustic waves and the internal surfaces, leading to a gradual increase in the SAC rather than a sharp resonance peak. The Gyroid structure achieves an absorption coefficient of 0.72 at 6000 Hz, with an average efficiency of 0.34 in the 3–6 kHz range. Primitive, I-WP, and Diamond structures, similar to Gyroid structure, are also designed (Supplementary Fig. S4), fabricated (Supplementary Fig. S5), and conducted the acoustic tests. These results indicate that the implementation of an air gap significantly enhances the sound absorption capabilities of the solid structure (Supplementary Fig. S6). In addition, the structure’s enhanced sound absorption performance at higher frequencies may be attributed to the fact that higher frequency sounds are more easily attenuated compared with lower frequency sounds. Nevertheless, the impact of the porous structure on improving the average SAC within the 3–6 kHz range is limited.

OPEN IN VIEWER

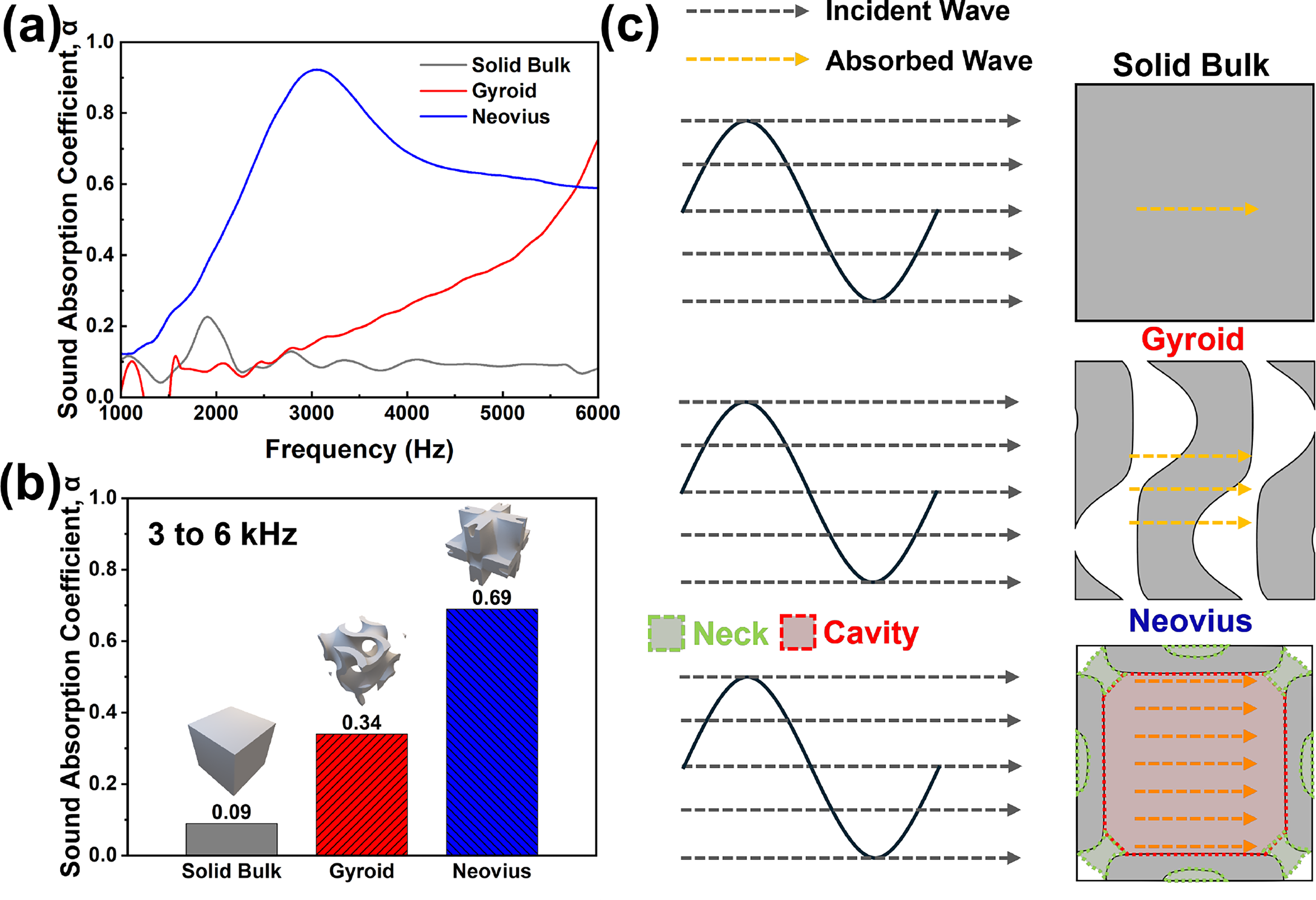

FIG. 4.

Solid bulk, Gyroid structure, and Neovius structure: (a) SAC curves within the 1–6 kHz frequency range, (b) average SAC performance within the 3–6 kHz frequency range, and (c) schematic diagram of sound absorption principles. SAC, sound absorption coefficient.

To further enhance the sound absorption performance of the absorber, the absorption characteristics of the Neovius structure, based on the Helmholtz resonator principle, are investigated. The blue line in Figure 4a illustrates the sound absorption curve of a resonator-similar structure across a frequency range of 1–6 kHz. The results indicate that the sound absorption performance of the resonator-similar structure demonstrates a pronounced resonance peak, exhibiting significant variation compared with the solid and Gyroid structures. Starting from 1 kHz, the SAC of the resonator-similar structure increases with frequency, reaching a maximum absorption efficiency of 0.92 at 3022 Hz, which is substantially higher than the Gyroid structure’s SAC of 0.7 at 6000 Hz. Subsequently, the SAC gradually declines with increasing frequency, stabilizing at ∼0.6 around 4 kHz. Consequently, the resonator-similar achieves an outstanding average SAC of 0.69 within the 3–6 kHz range, significantly exceeding the average SAC of the other structures within the same frequency band. This resonator-similar absorber exhibits better acoustic absorption performance compared with other LPBF-fabricated metallic absorbers with varying materials and structures (Supplementary Fig. S7 and Supplementary Table S2). It should be noted that all structures investigated in the present study are fabricated with the same thickness to eliminate thickness-related effects, allowing a direct comparison of the influence of structural topology on acoustic performance. However, for comparisons with previously reported LPBF absorbers, variations in specimen thickness may exist, and thus the comparison is intended to provide a qualitative reference. This superior sound absorption performance in the 3–6 kHz frequency range may be attributed to the internal structure of the Neovius topology, which behaves analogously to a Helmholtz-type resonator. It is worth noting that this behavior originates from the mathematical formulation of the Neovius surface, which results in a highly interconnected pore topology with pronounced confinement effects and higher surface curvature variation compared with the Gyroid structure. These geometric characteristics facilitate localized acoustic interactions and contribute to the observed resonance-enhanced sound absorption. To further evaluate the practical applicability, the effective absorption bandwidth is quantified based on the criterion of SAC ≥0.7. The Neovius structure maintains high absorption within a frequency range of ∼2400–4000 Hz, corresponding to an effective bandwidth of about 1600 Hz. This indicates that the enhanced performance is not limited to a narrow resonance peak but extends over a practically relevant frequency range.

As illustrated in the schematic (Fig. 4c), the green region can be equated to the air in the neck of our resonator-similar structure, whereas the red region represents the air within the resonant cavity. This cavity–neck configuration gives rise to a 3D resonator system, in which the air in the neck region compresses the cavity air under acoustic excitation, resulting in energy dissipation analogous to a spring-mass system (Fig. 5a). Each unit cell of the Neovius structure contains 12 necks (Fig. 5b), enabling substantial attenuation of sound wave transmission.^44–46 Such a multi-neck configuration enhances localized resonance and promotes repeated energy exchange between adjacent cavities, resulting in increased acoustic energy dissipation. Moreover, the intricate internal design of the resonator-similar structure significantly extends the propagation distance of sound waves, further contributing to energy dissipation. Therefore, the superior sound absorption performance of the Neovius structure can be attributed to the combined effects of geometric confinement, resonance-induced dissipation, and extended propagation pathways.

OPEN IN VIEWER

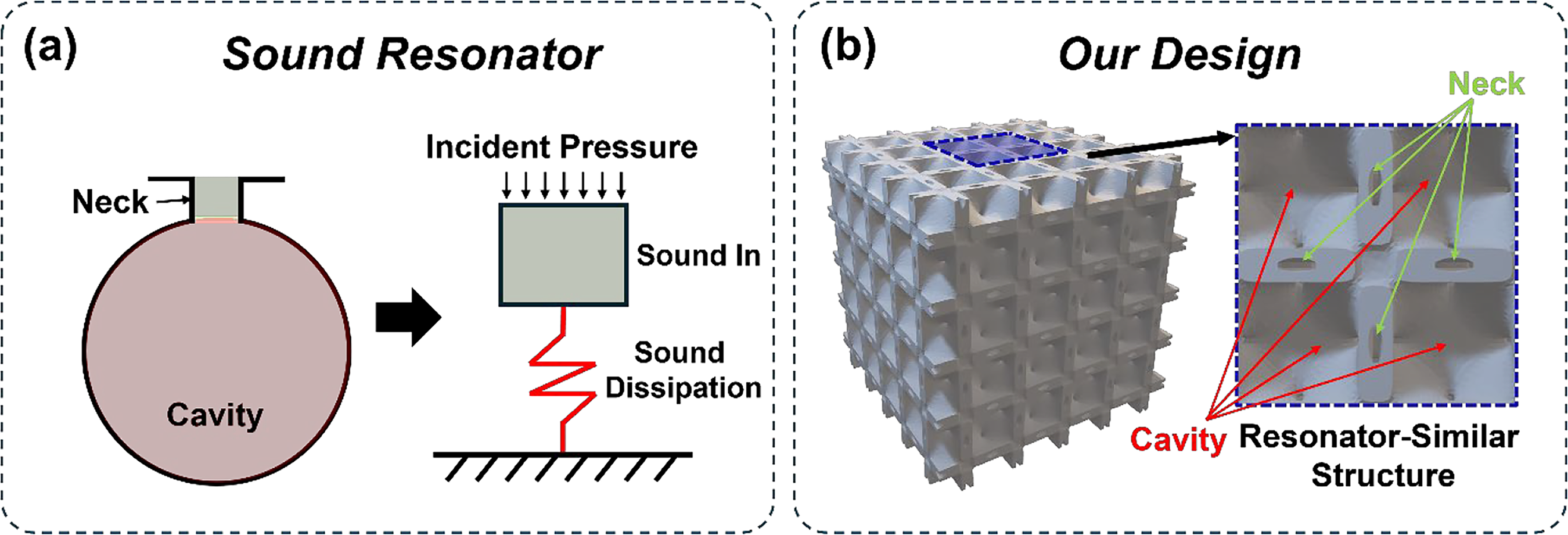

FIG. 5.

Schematic illustration of the acoustic energy dissipation mechanism in the resonator-similar Neovius structure: (a) idealized Helmholtz-type resonance mechanism and (b) corresponding cavity–neck configuration within the Neovius topology, highlighting the multi-neck feature and its role in enhancing localized acoustic dissipation.

Mechanical properties

Metal structures used for sound absorption in harsh environments, such as automobiles, factories, and workshops, not only serve their acoustic function but also contribute as structural bases. Consequently, it is essential for these materials to possess a certain degree of ductility to prevent brittle failure under external force impacts. Therefore, to demonstrate that resonator-similar metal structures exhibit good sound absorption performance in the 3–6 kHz range while maintaining a degree of ductility, this study investigates their compressive properties. Representative compressive stress-strain curves of LPBF-fabricated resonator-similar structure are illustrated in Figure 6a and b. It is noteworthy that the quasi-static compression tests are conducted on the same lattice orientation as the acoustic measurements, specifically on the (001) planar faces. The compression process can be categorized into five distinct stages: (I) primary stage, (II) elasticity stage, (III) transition stage, (IV) plateau stage, and (V) densification stage. Unlike conventional solid compression samples, this structure initially undergoes a primary stage characterized by a certain degree of yielding, which may be attributed to the unique architecture of Neovius. During the elasticity stage, the Young’s modulus is calculated to be 3.14 GPa, which falls within an acceptable range when compared with previously printed porous structures. ⁴⁷ This value is higher than some previously reported AM-fabricated 316L porous structures, which typically exhibit modulus values in the range of several hundred MPa to ∼1 GPa,^48,49 depending on relative density and architecture. The difference can be attributed to variations in structural topology and effective load-bearing pathways, indicating that the present structure provides enhanced stiffness while maintaining porosity. Following the transition stage, the sample begins to exhibit a degree of plastic deformation. Once the deformation exceeds 8%, it transitions into the plateau stage characterized by a combination of bending and buckling deformation, continuing until a strain of 61.5% is achieved. As shown in Figure 6b, the structure exhibits progressive and relatively uniform deformation from the initial to the final compressed state, without catastrophic fracture. This behavior is consistent with bending- and buckling-dominated deformation mechanisms, supporting the interpretation of ductile collapse in the plateau region. The densification strain is determined from the stress–strain curve as the point at which a sharp increase in stress occurs, indicating the transition from the plateau stage to rapid densification.^50,51 Based on this criterion, the densification strain is identified to be 61.5%. The stress–strain curve is observed as a long plateau at a high stress level throughout the deformation process, exhibiting ideal characteristics for energy absorption applications. ⁵² The areas (I, II, III, and IV) beneath the stress–strain curve represent the total energy absorbed ( E A abs ). This metric is crucial in structural design and constitutes a key characteristic of energy absorbers. ⁵³ The calculation of specific energy absorption (SEA) can be performed as follows ⁵⁴ :

Ψ S = E A abs m = ∫ 0 δ F · d δ m

OPEN IN VIEWER

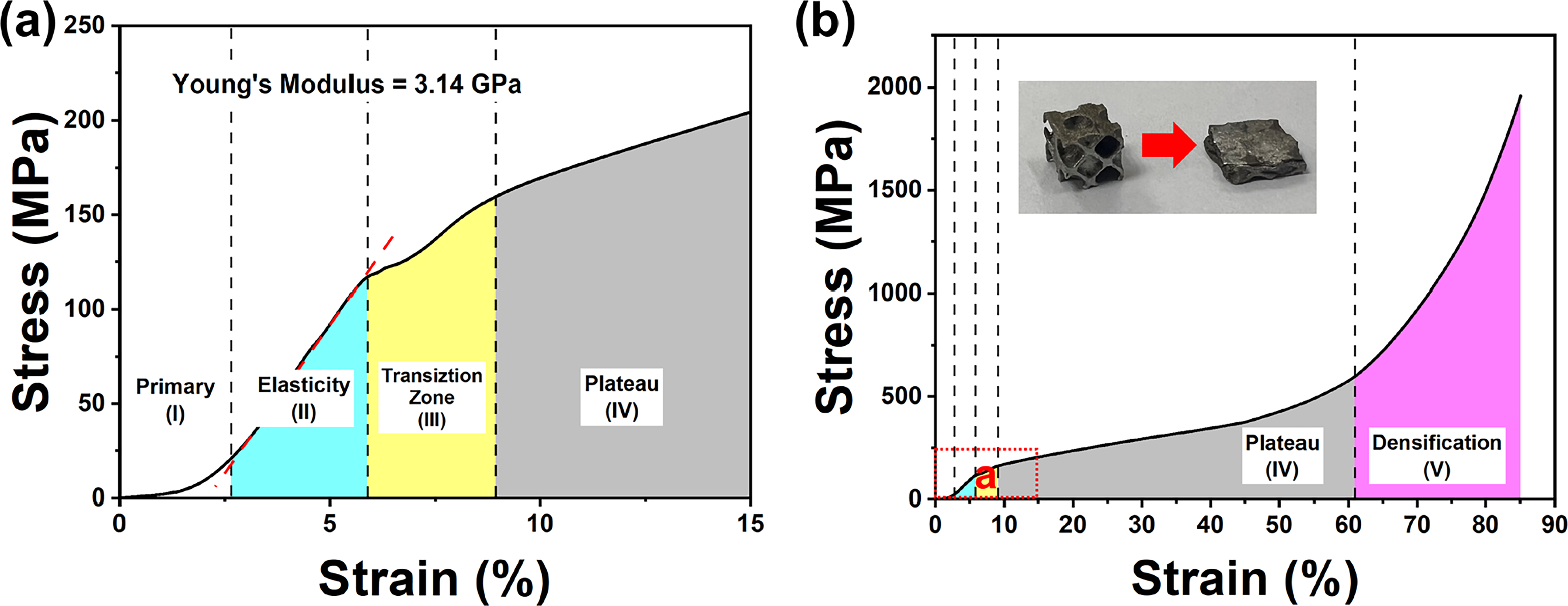

FIG. 6.

Mechanical properties of LPBF-fabricated resonator-similar structures: (a) compressive stress–strain curve (strain range: 0–15%) and (b) complete compressive stress–strain curve, illustrating progressive and relatively uniform deformation without catastrophic fracture, indicative of bending- and buckling-dominated collapse behavior in the plateau region.

Such multifunctional performance highlights strong potential for applications in industrial noise control, transportation systems, and protective structures requiring both acoustic attenuation and mechanical robustness. However, several limitations should be noted. Although strong absorption is achieved near the resonance (∼3 kHz), the performance decreases at higher frequencies, reflecting the inherently narrow-band nature of resonance-based mechanisms. In addition, the acoustic response is sensitive to geometric accuracy and LPBF-induced dimensional tolerances, and the current design is based on a fixed unit cell size, where variations in features such as neck diameter and cavity volume may affect resonance behavior. Future work will focus on broadening the effective bandwidth and optimizing structural design, including improving robustness against manufacturing variations and exploring multi-material architectures.
