Abstract
In previous work, we have established a scheme that exploits a three-dimensional heat and mass flow model to assess tool durability and define the domains of satisfactory tool life in the context of welding difficult aluminium alloys. We now apply this scheme to the friction stir welding of steel and extend the calculations to cover consequences on the microstructure of the steel while optimising tool life. This is the first published model that covers both the processing parameters and the consequences on the physical metallurgy of the steel.
Introduction
Friction stir welding (FSW) of aluminium alloys is commercially viable in part because the tools are cost effective and durable.1–5 In contrast, the much larger market for welding of steels remains largely out of the reach of FSW because of the high cost and insufficient durability of the tools.6–14 Most of the previous studies on steels6–12 were conducted on small weld lengths of specimens that precluded any rigorous evaluation of tool durability. A recent review 14 of the tool materials indicates that severe stresses and high temperatures pose a formidable challenge for the development of cost effective and durable tools for the FSW of hard alloys. As a result, the initial commercial applications of FSW to steels are likely to come from specialised, niche areas where fusion welding clearly has serious difficulties provided the required structure and properties can be achieved by FSW. 13 Improved tool durability and a metallurgical knowledge base of microstructure and properties of friction stir welded steels are important prerequisites for expanding the reach of FSW to steels.
Since FSW is difficult for hard alloys and not widely used, there is a dearth of data and theory to enable the selection of welding conditions to enhance the tool durability. During FSW of steels, both chemical and mechanical erosion are possible mechanisms of tool degradation, 15 but are not considered in the present work where the structural integrity of the tool is the primary focus. It is emphasised, therefore, that the ‘tool durability’ referred to throughout this work does not include erosion induced degradation. Nevertheless, the calculated temperatures and stresses that the tool is subjected to, are important variables in chemical and mechanical erosion and can serve as inputs into any future models dealing with progressive degradation of tools.
The experimental estimation of stresses and temperatures experienced by the tool pin during FSW remains a formidable challenge because the pin is embedded within the hot plasticised alloy and a large number of welding variables affect the process. We have recently showed that the ability of a tool to safely endure stresses at high temperatures can be analysed using a heat transfer and material flow model for the welding of 7075 aluminium alloy. 15 The results of the analysis were presented in the form of maps of the tool durability index that showed how the ratio of the shear strength of the tool material and the maximum shear stress experienced by the tool varied with welding variables. The results are made available in easy to use maps for various welding conditions on a fairly large parameter space. It was found that by selecting appropriate welding variables, it is often possible to operate FSW under safe welding conditions to avoid premature tool degradation/failure primarily due to shear. 15 This paper documents the first effort to enhance the tool durability by focusing on the severity of shear stress it experiences during FSW of a mild steel.
The reported heating and the cooling rates of alloys during FSW fall within the range of reported values in fusion welding. 16 Therefore, the anticipated phase transformations are unlikely to be significantly different from fusion welding if the cooling rate is the only factor for microstructure evolution. However, two special features distinguish the evolution of microstructure and the resulting properties of friction stir welded steels from those in fusion welding. First, the peak temperatures for FSW are lower than that for fusion welding. As a result, the grain size of austenite that forms in the heat affected zone are often not as large as those for fusion welding. 11 In addition, severe deformation and flow of plasticised steel alter the stability of austenite in the thermomechanically affected zone because of the stored energy, which affects its decomposition to daughter phases. In contrast, the austenite formed during cooling of molten weld metal in fusion welding is hardly affected by any stored energy. This paper documents the first effort to understand quantitatively, the evolution of microstructure of mild steel during FSW.
Methodology
Tool durability index
During the FSW of steels, temperature and stress can be calculated from a well tested, three-dimensional heat transfer and viscoplastic flow model. The computational model, used in the present study, solves the equations of conservation of mass, momentum and energy together with two submodels to estimate local variations in heat generation rate and viscosity.16–20 The computational model has correctly predicted independent experimentally measured results of thermal cycles,16–20,23–26 torque21–26 and traverse force21,26 in FSW of aluminium alloys,17,19,21–27 steels16,18 and a titanium alloy. 20 Full details of the computational model are available in most of these previous publications.16–27
The progressive degradation of the tool may be minimised by focusing on the relative severity of maximum shear stress and peak temperature that the tool experiences for various welding conditions. Since the goal is to compare different welding conditions, calculations are done considering only steady state operations. Vibration and other abrupt causes of tool degradation are not included for simplicity and the temporal variations of temperatures and stresses during the initial tool insertion or the final tool withdrawal period are neglected. Since the tool pins and the shoulder surface geometries differ widely, a flat shoulder geometry and a cylindrical tool pin without any thread is considered. It is important to evaluate the effects of welding conditions on tool durability before progressing toward more complex tool geometries.
Following Tresca's Yield criterion, the resultant maximum shear stress τm at any given location on the pin profile is obtained25,26 from shear stresses due to bending (τB) and torsion (τT) and the normal stress due to bending (σB)
Microstructure
The thermal cycles computed from the heat transfer and materials flow model are used to calculate the microstructure of the weld zone. For most welding conditions, austenite forms in the entire weld zone and its decomposition during cooling is modelled to determine its final microstructure. A model developed by Jones and Bhadeshia 28 and adapted later to include bainite 29 that modified the Johnson–Mehl–Avrami theory to account for the formation of various simultaneous transformation products from austenite decomposition during cooling was used for this purpose. The simultaneous formation of various phases such as the allotriomorphic ferrite, Widmanstätten ferrite and pearlite which compete for untransformed austenite was considered. The model accounts for overlapping interaction of phases such as allotriomorphic ferrite, Widmanstätten ferrite and pearlite that touch each other and the overlapping of the concentration and the temperature fields. There are submodels in the program, for each of the individual phases in terms of their atomic mechanisms of transformation. For example, the allotriomorphic ferrite and pearlite grow by diffusional transformation, whereas Widmanstätten ferrite does so by a paraequilibrium displacive transformation controlled by the partitioning of carbon. The solutes included in the composition of the steel are C, Mn, Si, Ni, Mo, Cr and V, all of which must be in solid solution when the weld is in its austenitic state. The nucleation of various phases and the change in the shape of the transformed region during the growth of Widmanstätten ferrite and the associated strain energy were considered together with the partitioning of carbon into the austenite by diffusion. The method has been validated by calculating fractions of allotriomorphic ferrite, Widmanstätten ferrite and pearlite as a function of chemical composition, austenite grain size and thermal cycles. It is important to note that the program is used in the present work without any modification, so there is no fitting involved to accommodate any difficulties in predicting structure. This is because the method has been extensively validated for wrought steels, so if there are any peculiarities of FSW, then they should be revealed by applying an unadulterated calculation.
It is emphasised that the model used here is radically different from that for welds that involve fusion, where the structure evolves from the liquid state. 30 FSW in most cases involves only the solid state, so it is appropriate to use a method28,29 based on the evolution of structure in the solid state. As will be seen later, there are complications because some parts of the friction stir weld exist in a plastically deformed state prior to the transformation of austenite, a phenomenon that has not been considered at all in the descriptions of structure of such welds, but is well established in other scenarios involving wrought steels.31–34
Results and discussion
A comparison between the calculated and the measured thermal cycle at a monitoring location 12·7 mm away from the weld centreline on the advancing side for the welding conditions reported by Lienert et al. 7 showed good agreement 16 indicating that the model can be used to calculate temperature profiles and cooling rates in FSW of 1018 C–Mn steel. Figure 1 shows that the peak temperatures at the top plane are somewhat higher than that at the bottom plane by about 150 K. However, the cooling rates did not change significantly at various locations. Data used for the calculations are presented in Table 1. Figure 2 shows that the cooling rates change significantly with the welding speed at all the monitoring locations. In contrast, the cooling rate has not changed significantly with the rotational speed, although the temperatures are somewhat higher near the shoulder at higher tool rotational speeds. This finding is consistent with the independent observation 36 that the microstructure is insensitive to changes in the tool rotational speed, but is significantly affected by welding speed for the FSW of HSLA 65 steel.

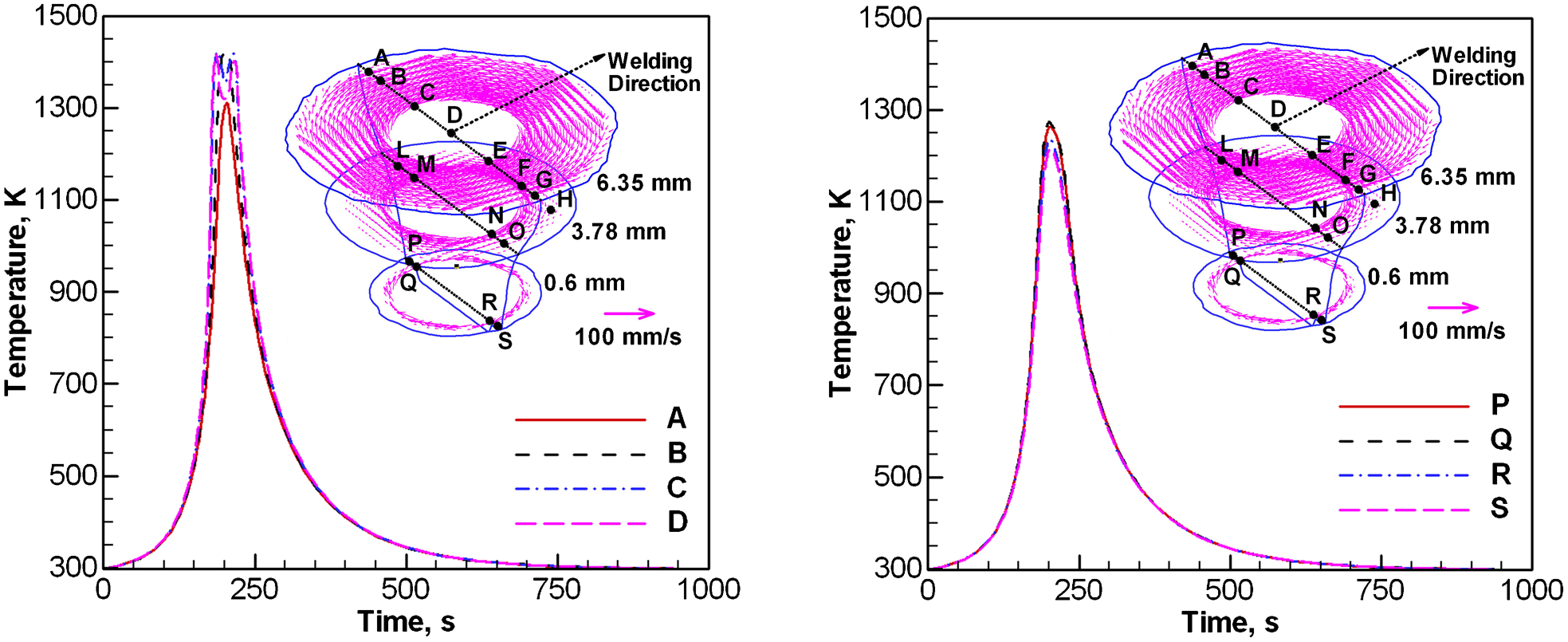

Computed thermal cycles at top and bottom planes at various monitoring locations during FSW of 1018 steel (welding speed: 0·42 mm s−1 and tool rotational speed: 450 rev min−1)

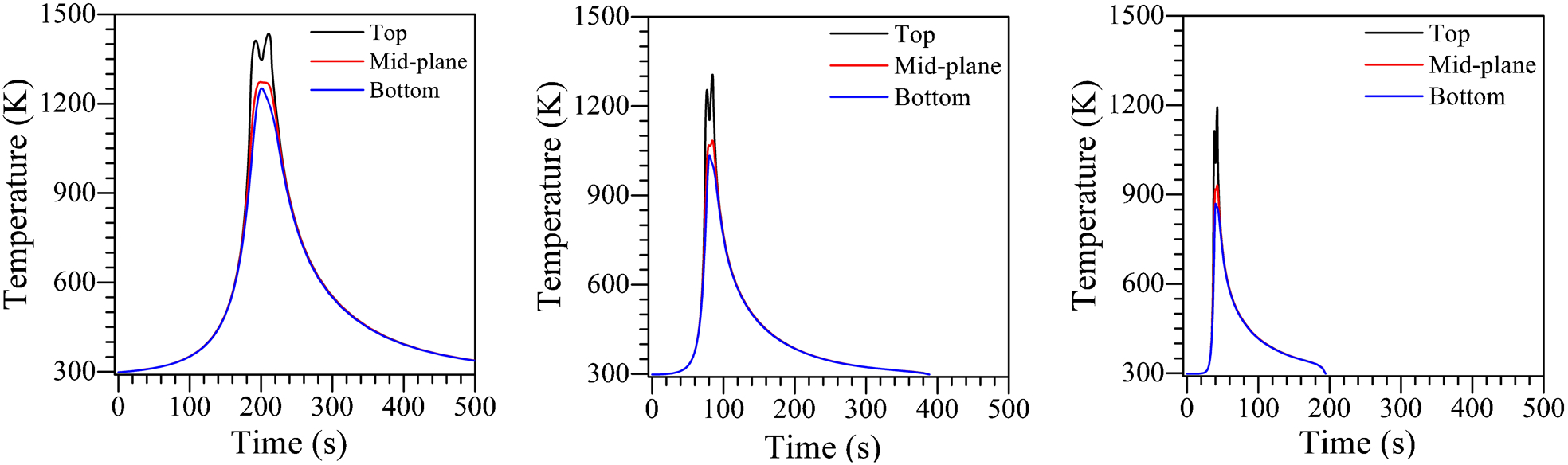

Computed thermal cycles for various welding speeds, 0·42, 1·05 and 2·1 mm s−1 from left to right during FSW of 1018 steel at tool rotational speed of 450 rev min−1

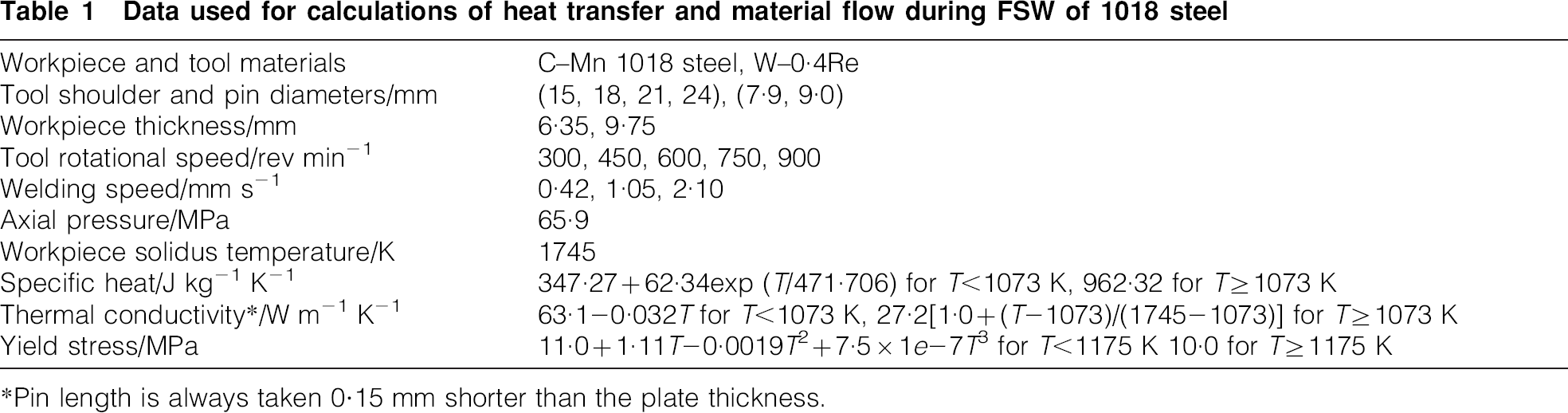

Data used for calculations of heat transfer and material flow during FSW of 1018 steel
*Pin length is always taken 0·15 mm shorter than the plate thickness.
The microstructure calculations were performed at a tool rotational speed of 300 rev min−1 and welding speed of 0·42 mm s−1, for the region next to the pin at the top and middle horizontal planes, where the cooling rates were in the range of 20 and 8 K s−1. The corresponding region at the bottom does not reach a fully austenitic state and these regions were neglected.
Our calculations considering the appropriate chemical composition (Fe–0·18C–0·82Mn, wt- 7 ), cooling rate and the austenite grain size did not generate the microstructures reported by Lienert et al. 7 for the stir zone. The microstructural study reported uses welding terminology that is different from that in phase transformation theory; thus, polygonal ferrite, ferrite side plates and ferrite carbides in Ref. 7 are here assumed to be allotriomorphic ferrite (α), a mixture of Widmanstätten ferrite and bainite (αw+αb) and residual phases such as martensite and austenite (α′+γ) respectively. It is not possible from the two micrographs available (Fig. 6, Ref. 7), to make more than a rough estimate of the phases obtained in the centre of the stir zone and at the top of that zone. These crude estimates are listed in the last two rows of Table 2, which also shows that they are quite different from the calculations in the first two rows of this table. The calculations show very little transformation during cooling at the rates expected in the two regions of the stir zone. This is because unlike fusion welds, the stir zone is in fact thermomechanically processed before transformation. Such processing introduces defects in the austenite, which then contribute to the chemical free energy change for phase transformations at elevated temperatures.31–34

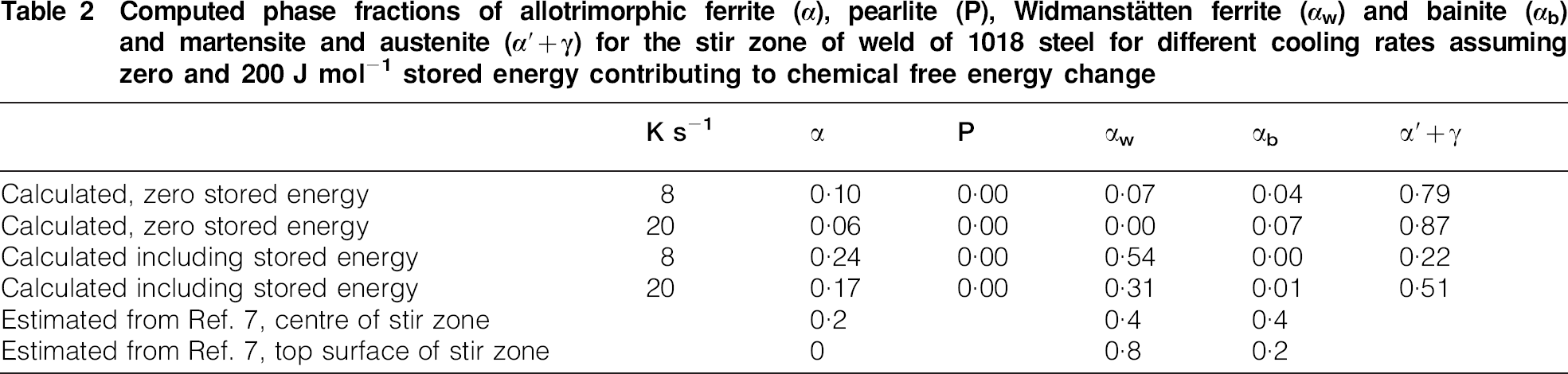

Computed phase fractions of allotrimorphic ferrite (α), pearlite (P), Widmanstätten ferrite (αw) and bainite (αb) and martensite and austenite (α′+γ) for the stir zone of weld of 1018 steel for different cooling rates assuming zero and 200 J mol−1 stored energy contributing to chemical free energy change
During the hot rolling of mild steels of the kind studied here, the stored energy due to deformation is in the range 21–60 J mol−1 as calculated in Ref. 35. We assume what might be a conservative value of 200 J mol−1 in the stir zone; in practice, there will be a complex gradient in this energy corresponding to gradients in the constitutive parameters and a balance between recovery and deformation. It is not the intention here to resolve these issues, but rather to illustrate the importance of this stored energy. Table 2 (rows 3 and 4) shows the dramatic effect on the evolution of microstructure, which is now more consistent with the observed structures.
Figure 3 shows the typical variation of various stresses during one rotation of the tool pin as a function of the orientation angle (θ) with the welding direction. The resultant maximum shear stress is influenced primarily by the shear stresses due to bending and torsion, and attains the maximum at θ = 90°, when the former is the maximum and both the shear stresses add up vectorially since they are in the same direction. A comparison of Fig 3a and b shows that both the magnitude and the fluctuation of the resultant maximum shear stress increase significantly with increasing welding speed from 0·42 to 2·1 mm s−1. An increase in the welding speed reduces the heat input per unit length resulting in lower peak temperature, higher traverse force and higher stresses on the pin.

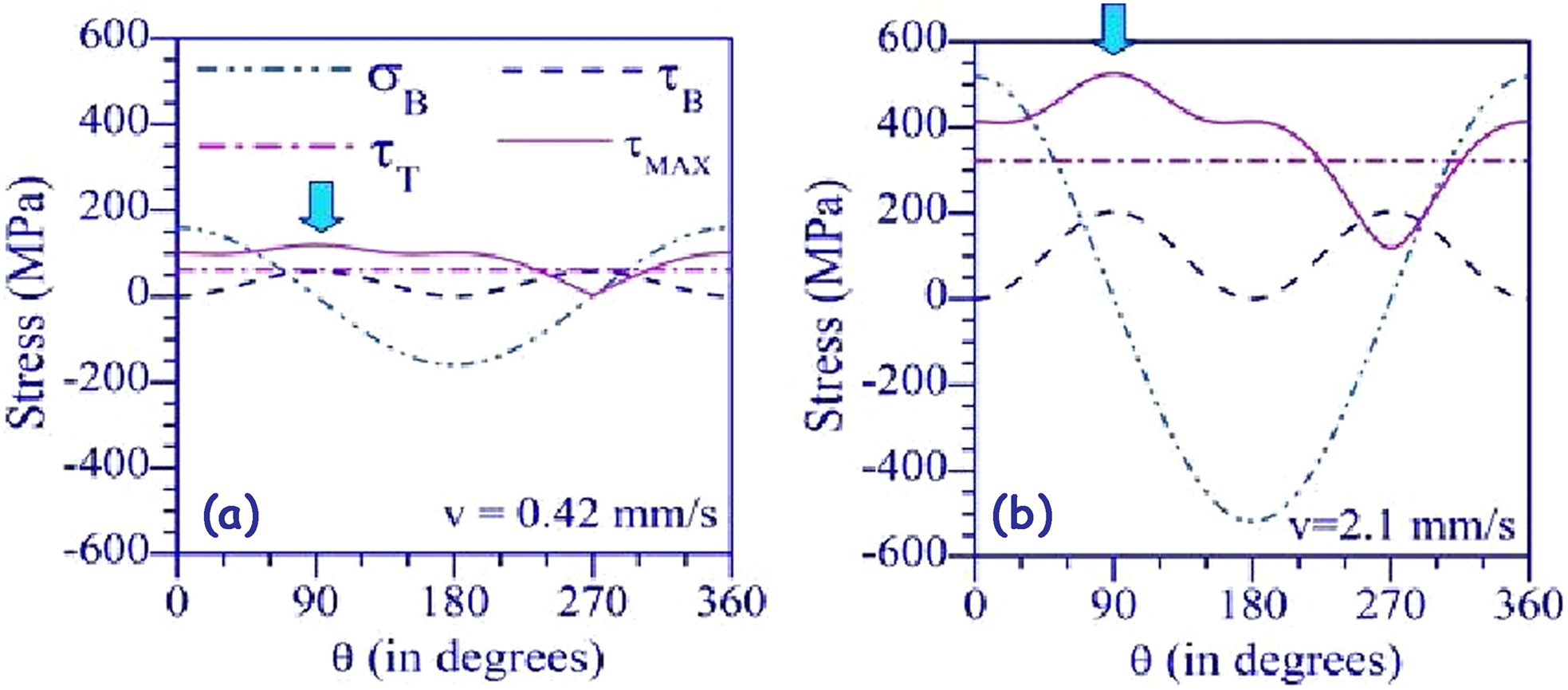

Variation of fluctuating stress components: normal (σB) and shear (τB) stresses due to bending, shear stress (τT) due to torsion, and resultant maximum shear stress (τmax) for one complete rotation of tool during FSW of 6·35 mm thick C–Mn 1018 steel at rotational speed of 450 rev min−1 and at two different welding speeds of a 0·42 mm s−1 and b 2·1 mm s−1 using straight cylindrical pin (pin length, tool shoulder and pin diameters are 6·22, 15 and 7·9 mm respectively)
Figure 4 shows the maps of peak temperatures and tool durability index for various tool shoulder diameters and rotational speed for the FSW of C–Mn 1018 steel. A comparison of the solid and dashed lines in Fig. 4a shows the effect of welding speed on the peak temperature. An increase in the welding speed reduces the rate of heat generation per unit length of weld resulting in relatively cooler and harder material around the tool pin. As a result, the stresses on the tool increase because the workpiece material becomes harder and consequently, the value of tool durability index, as shown in Fig. 4b, decreases with increasing welding speed.

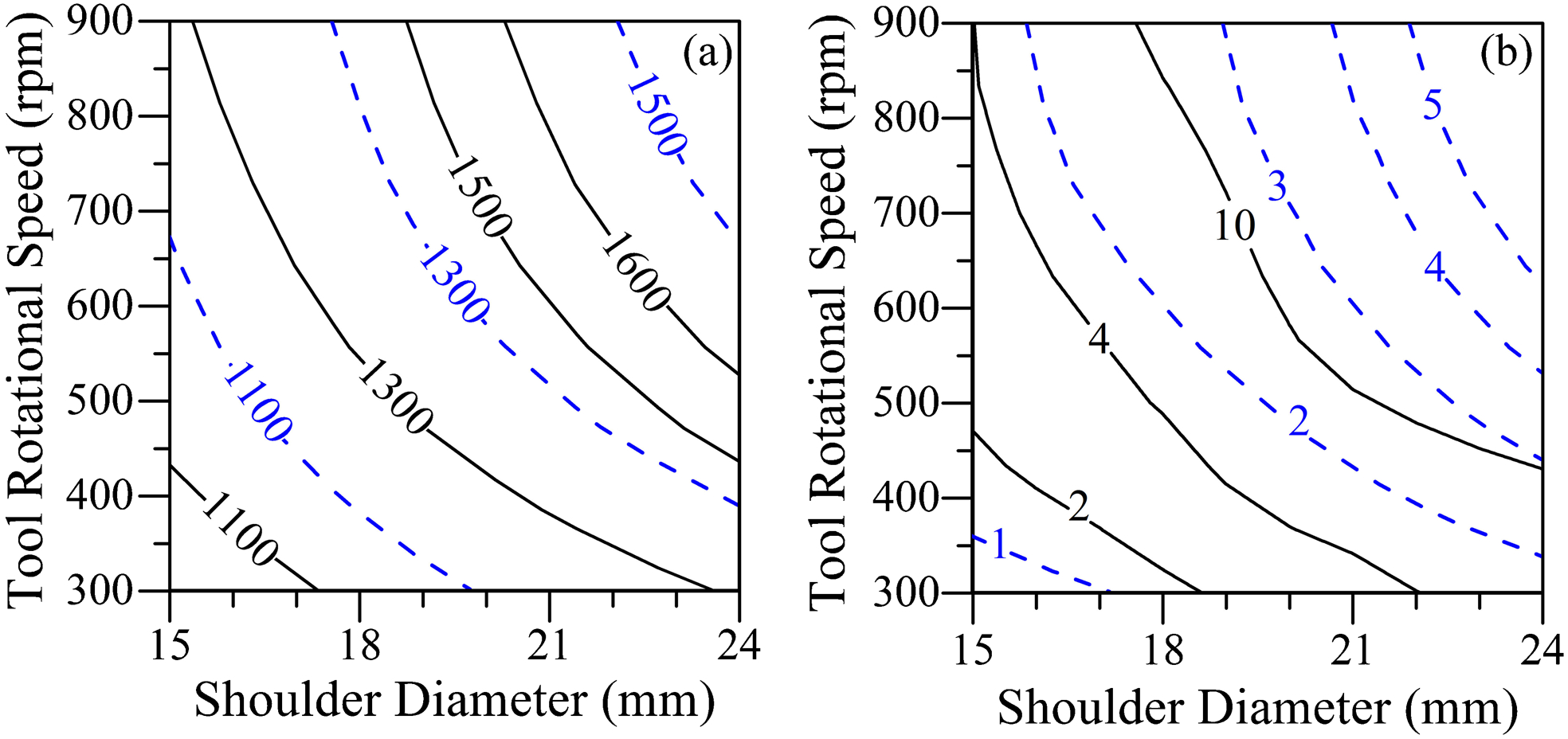

Comparison of a peak temperature (K) and b tool durability index for FSW of 6·35 mm 1018 steel at two different welding speeds 1·05 mm s−1 (solid black line) and 2·1 mm s−1 (dashed blue line)
Figure 5 shows the effect of plate thickness on the peak temperature and tool durability index. During FSW of thick plates, there is considerable decrease in temperature away from the tool shoulder and the lower part of the pin encounters cooler and stronger workpiece. The decrease in the peak temperature is shown in Fig. 5a. As a result, the tool encounters larger stresses during welding of thicker plates and thus, the tool durability index decreases with increasing plate thickness (Fig. 5b).

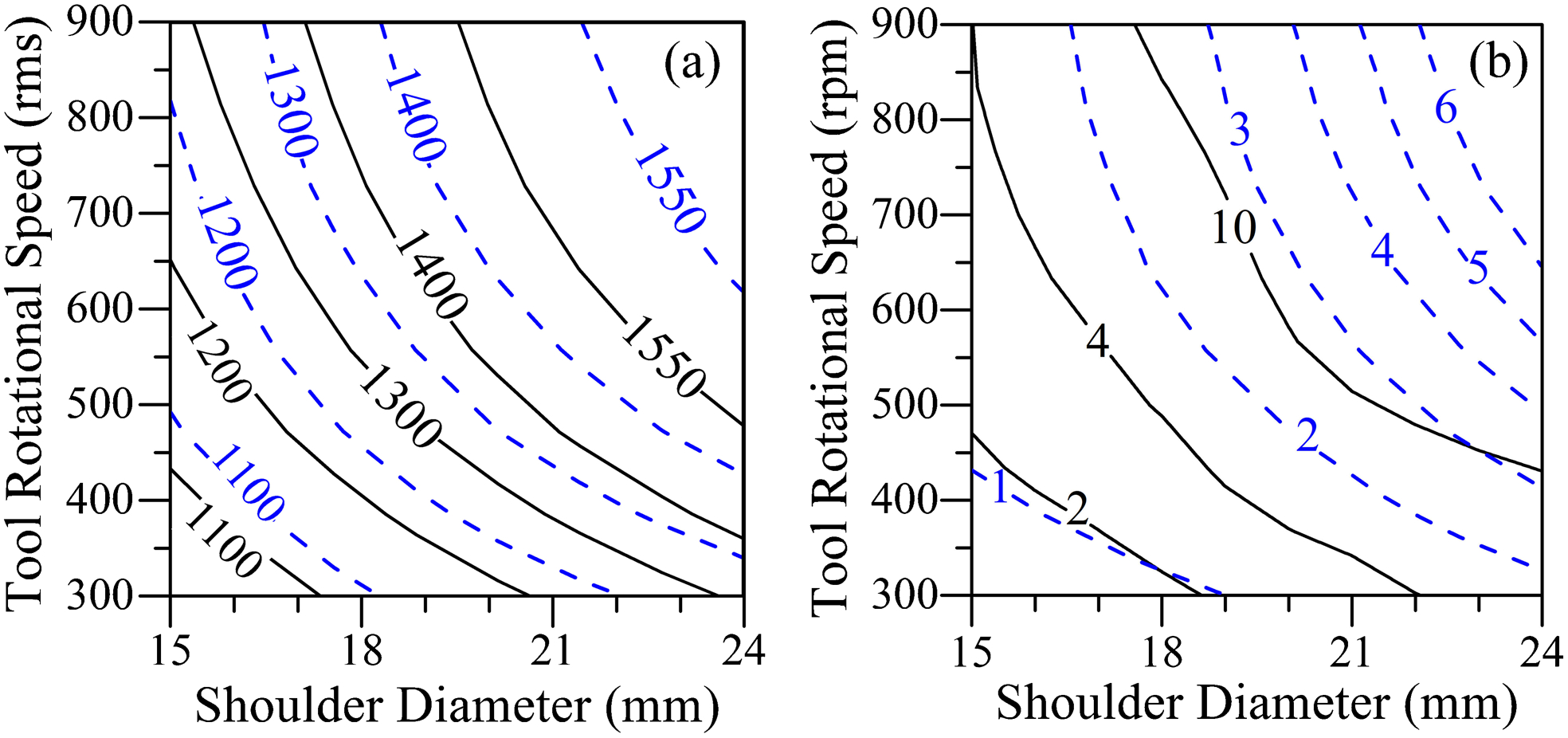

Comparison of a peak temperature (K) and b tool durability index for FSW of 1018 steel at welding speed of 1·05 mm s−1 for two different plate thicknesses 6·35 mm (solid black line) and 9·75 mm (dashed blue line)
Comparison of a peak temperature (K) and b tool durability index for FSW of 6·35 mm thick 1018 steel at welding speed of 2·1 mm s−1 for two different pin diameters 7·9 mm (solid black line) and 9·0 mm (dashed blue line)
Figure 6 shows the effect of pin diameter on the peak temperatures and tool durability index. An increase in the pin diameter increases the rate of heat generation per unit length of weld resulting in an increase of the peak temperature (Fig. 6a). As a result, the stresses on the tool decrease because the workpiece material becomes softer and thus, the value of tool durability index, as shown in Fig. 6b, increases with increasing pin diameter.
Summary and conclusions
Cooling rates during FSW of mild steel are lower than the highest cooling rates reported during GTA welding. In the 1073–773 K (800–500°C) temperature range, the cooling rates are significantly affected by the welding speed, but not by the tool rotational speed.
It has been demonstrated that the microstructure of the weld zone during FSW of 1018 steel can be estimated if account is taken of the deformation of the austenite before its transformation. This is quite unlike fusion welds where the austenite is essentially free from defects. However, the calculations highlight a need for the better quantitative characterisation of the microstructural constituents of the stir zone of friction stir welds in steels, a characterisation based on the mechanisms of transformation of the individual phases. Furthermore, this needs to be done as a function of position in the stir zone since the deformation characteristics are not expected to be uniform in that zone. Computational models are in this sense more advanced than experimental data, since the stored energy gradients within the stir zone can in principle be calculated today.
Given the absence of fusion in FSW, it is not necessary to create new schemes to calculate microstructures but to apply those already available for wrought steels. The scheme presented in Ref. 37 is ideal in the sense that the structures are defined in terms of phase transformation theory essential in the calculation of structure.
For the FSW of mild steel, an increase in either the tool shoulder diameter or the tool rotational speed increases workpiece temperature and hence, enhances tool durability. A faster welding speed reduces peak temperature, increases stresses on the tool and thus, reduces tool durability. Thicker plates also decrease tool durability for the same reasons. In contrast, thicker tool pins increase tool durability because of enhanced structural stiffness.
