Development of a Fuzzy Inference Based Solar Energy Controller for Smart Marine Water Monitoring

Abstract

Nowadays, there is a lack of smart marine monitoring systems, which have possibilities to integrate multi-dimensional components for monitoring and predicting marine water quality and making decisions for their optimal operations with minimal human intervention. This research aims to extend the smart coastal marine monitoring by proposing a solar energy planning and control component. The proposed approach involves the adaptive neuro-fuzzy inference system (ANFIS) for the wireless buoys, working online during the whole year in the Baltic Sea near the Lithuanian coast. The usage of our proposed fuzzy solar energy planning and control components allows us to prolong the lifespan of batteries in buoys, so it has a positive impact on sustainable development. The novelty and advantage of the proposed approach lie in establishing the ANFIS-based model to predict and control solar energy in a buoy for different lighting and temperature conditions depending on the four year seasons and to make a decision to transfer the collected data. The energy planning and consumption system for the wireless sensor network of buoys is carefully evaluated, and its prototype is developed. The proposed approach can be practically used for environmental monitoring, providing stakeholders with relevant and timely information for sound decision-making about hydro-meteorological situations in coastal marine water.

Keywords

marine water monitoring buoys adaptive neural fuzzy inference system (ANFIS)fuzzy controller wireless sensor network (WSN)Photovoltaic (PV) system energy optimization

1 Introduction

In recent years, increasing environmental pollution and human intervention into nature, like wastewater, urbanization, mining, industrialization, and agriculture, have increased the need to study and monitor these adverse effects in marine waters (Aghel et al., 2019; Delpla et al., 2015; Behmel et al., 2016). Consequently, smart marine water monitoring methods with application of artificial intelligence (AI) methods for realization of decision-making and analysis in the area of water quality monitoring, collecting of water samples and water analysis are needful (Demetillo et al., 2019; Ullo and Sinha, 2020). Moreover, those methods should be implemented into smart systems with combination of multi-functional nodes for obtaining of final goals of marine water quality monitoring. In this research, we understand a smart marine monitoring system as a system with additional AI components. One of the important steps in developing of such complex smart systems is the considering of the energy sources of these systems. Recently, a number of systems can operate on the basis of solar energy, like Mofijur et al. (2019), Tao et al. (2021), Kumar et al. (2020). Consequently, in this paper, we are emphasizing on the usage of solar energy for a smart fuzzy system of marine water quality monitoring.

Therefore, the aim of this research is to develop the smart fuzzy inference based solar energy planning and control component for coastal marine water monitoring. The usage of the proposed smart fuzzy inference based solar energy planning and control component (Smart-SolE) allows us to prolong the lifespan of batteries in buoys, so it has a positive impact on sustainable development that responds to the main Sustainable Development Goals (SDG) of Agenda’2030 (Colglazier, 2015), and Green Deal’2030 Strategy (European Commission, 2019).

Recently, researchers have used heuristic artificial intelligence-based algorithms that can estimate and present the potential energy of system loads from nonlinear solar energy (Sarkar et al., 2021). Liu et al. (2021) in their proposed method for power management consider the effects of variation of temperature, radiation, output load, and use Type-3 fuzzy system. For future works, authors have left the issues of stability. Padmanaban et al. (2019) have used a hybrid ANFIS-ABC swarm intelligent control for power point tracking in the photovoltaic (PV) system with grid integration, Mosavi et al. (2020) – Type-3 fuzzy system for energy/voltage management in PV/battery systems. González-Reolid et al. (2018) have proposed BUSCAMOS-RobObs for water quality monitoring in lakes and shallow coastal waters. Their proposed approach improves the autonomy in monitoring water quality parameters and avoids the deployment of a large number of buoys. In order to minimize the energy consumption, authors have used fuzzy goal management system, which considers the state of batteries and the distance to alternative exploration areas to select the next mission zone.

Recently, the fuzzy set theory has emerged as a powerful technique in the analysis and decision making in water quality analysis of open resources and hydrology (Kambalimath and Deka, 2020). It allows to consider the handling of vagueness (or ambiguity) in hydrology (Bogardi et al., 2004), like lack of data, nature causes (e.g. climate), imprecise modelling of changing phenomenon of mixing and transitional waters, etc. A number of authors in different areas of application have presented the suitability and applicability of fuzzy set theory, like Zimmermann (2001), Tamir et al. (2015), Verma and Merigó (2020), etc.

According to Ighalo et al. (2021), the Adaptive Neuro-Fuzzy Inference System (ANFIS) and Artificial Neural Networks (ANN) are the most utilized AI models for water quality monitoring and assessment systems, which include the usage of solar energy, in the last decade. The advantages of using AI methods in various monitoring and assessment application areas are that they are faster and more efficient than linear mathematical or statistical methods, low-cost, can be used for real-time monitoring (Yetilmezsoy et al., 2011; Ighalo et al., 2021; Demetillo et al., 2019), and ensure lower error values in prediction (Karaboga and Kaya, 2019).

The usage of ontologies for marine sensor networks is expanding nowadays. The joint World Wide Web Consortium (W3C) and Open Geospatial Consortium (OGC) Spatial Data on the Web (SDW) Working Group developed a set of ontologies to describe sensors, actuators, samplers, as well as their observation, actuation, and sampling activities. The ontologies have been published both as a W3C recommendation and as an OGC implementation standard. The set includes a lightweight core module called SOSA (Sensor, Observation, Sampler, and Actuator), and a more expressive extension module called SSN (Semantic Sensor Network). Together they describe systems of sensors and actuators, observations, the used procedures, the subjects and their properties being observed or acted upon, samples and the process of sampling, etc. (W3C, 2017; Haller et al., 2019). The SOSA ontology was developed based on SSN ontology and taking into account the changes in scope and target audience, technical developments, and lessons learned over the past years. It provides a formal but lightweight general-purpose specification for modelling the interaction between the entities involved in the acts of observation, actuation, and sampling (Janowicz et al., 2019). Marine ecology ontology repository is presented in Yun et al. (2015), which implements marine ecological knowledge navigation, term query, knowledge retrieval and ecological crisis early warning. Moreover, ontologies are useful in capturing domain causality as the internal domain model (Gudas, 2021), to eliminate conceptual ambiguity and semantic gap in information security (Iqbal and Matulevičius, 2020), etc.

The proposals for developing of mobile buoy systems and integrating of different kinds of sensors for hydro-meteorological monitoring purposes of marine water are presented in works (Dzemydienė et al., 2021; Gricius et al., 2015; Lin et al., 2017). The heterogeneous sensors are implemented in the buoy system and can observe the water surface elevations by providing the real-time tide and wave data in estuaries and coastal areas (Lin et al., 2017; Zoss et al., 2018). The distributed system of autonomous buoys for scalable deployment and monitoring of coastal waterbodies have had a dynamic cooperative array of mobile buoys afforded with sensing capabilities (Dzemydienė and Radzevičius, 2020; Zoss et al., 2018). The mobile buoy system, described in Helmi et al. (2014), can work remotely controlled by a computer which sends a series of commands to Intel Atom N2600 Board and microcontrollers over Global System for Mobile Communication (GSM). Authors describe the monitoring of water quality in continental, coastal areas and in lakes.

In this research, we are focusing on the solar energy usage for a smart fuzzy system of marine water monitoring of the Baltic Sea region in the coastal waters of Lithuania. The peculiarities of four seasons (winter, spring, summer, and autumn) in the Baltic Sea region are observed, i.e. air temperature, solar irradiance and their ratio change significantly. That gives the experiment its uniqueness, and requires additional testing and system calibration.

The novelty of the present research lies in establishing an ANFIS-based model to predict and control solar energy in a solar buoy for different lighting and temperature conditions depending on the four seasons (autumn, winter, spring and summer). Furthermore, the proposed model has been implemented in a smart fuzzy coastal marine water monitoring system (Smart-MarineM) for estimation of a current power of a solar battery, lighting and temperature conditions and to make a decision to transfer the data.

The structure of the paper is as follows. Section 2 presents Related works. Section 3 describes the developed smart fuzzy system of marine water monitoring including fuzzy inference based solar energy planning using ANFIS. Section 4 presents the results of the implementation of the proposed approach and experiments. Section 5 presents Discussion, and Section 6 concludes the paper.

2 Related Works

In this section, we review papers dealing with the usage of solar energy (or irradiation) for a smart marine water quality monitoring.

Vo et al. (2021) have presented a review on the Internet of Things (IoT) technologies in controlling ocean environment. They have concluded that almost all the existing ocean environment control applications gathered and analysed extensive data from the marine environment, however, marine environmental monitoring activities to protect marine ecosystems were still very limited. According to Vo et al. (2021), the usage of AI in such systems allows us to enable more accurate and flexible data collection. Moreover, the application of big data and real-time parallel with 5G network technology is convenient for marine environmental control centres to access, process, and analyse the received data with ultra-high spatial and temporal resolution so that solutions can be issued to fix unexpected events immediately.

In Cho et al. (2021), it is argued that recent demand for eco-friendly energy sources has been rapidly increasing. Therefore, the Lithium-ion battery (LIB) exposed to seawater or corroded by immersion is not suitable for marine buoys because its cobalt toxicity causes serious environmental pollution problems (Olivetti et al., 2017). Consequently, a number of authors have proposed to use seawater batteries (Cho et al., 2021; Ligaray et al., 2020; Zhang et al., 2018; Hwang et al., 2019; Kim et al., 2021) or solar batteries (Przybysz et al., 2020; Zhang et al., 2021; Trevathan and Sharp, 2020) for wireless marine buoy systems. However, as indicated in Cho et al. (2021), Demirdelen et al. (2019), there are some issues to be resolved when using those batteries as follows: 1) proper support charge during battery usage; 2) maintaining stable battery state by preventing overcharge and undercharge; 3) for lifetime or optimal replacement time estimations, the degradation progress in the battery needs to be reported. Moreover, the marine buoy needs to be self-powered with harvesting devices such as PV (Helmi et al., 2014), wind (Kesavakumar et al., 2013) and wave harvester (Li et al., 2019) for long-lasting system operation. Also, intelligent power management techniques are required, since the buoy lightening causes large power consumption.

Demirdelen et al. (2019) have reviewed different solar power prediction methods in order to obtain more accuracy. They have determined, that in real-time operation systems, i.e. buoys, a short time prediction is used.

Morón-López et al. (2020) have implemented a Remote Monitoring System (RMS) based on IoT technologies combined with satellite imagery, track harmful algae blooms (HABs) in two Spanish waters: the freshwater (Conchas Reservoir (Galicia)) and the brackish water shallow (L’Albufera Lagoon (Valencia)). The authors concentrate on data collection from two different environments, data transfer to a data management system on the cloud and their visualisation on the web interface in real time and do not describe battery power management.

Falleni et al. (2020) have proposed a Smart Buoy for real-time remote access to underwater devices and for provision of power and extended computational capabilities. Its Power Module houses a central battery unit and a solar panel that together offer the buoy long periods of autonomy while deployed. The module also includes a solar charge controller that prevents over-charging and over-discharging of the battery, and voltage regulators and electric switches that power on and off the other components while performing energy-saving when possible. Consequently, the Power Module does not have an intelligent component and is relatively simple. However, their experiments showed that the Smart Buoy operates properly.

In the proposed Floating Water Quality Monitoring using IoT System (Thamrin et al., 2021), a self-power embedded controller is used. The power storage could provide enough for the entire system to operate with optimum voltage and current for 24-hour operation.

In Sabatini et al. (2021), a sensor network for inland water monitoring based on buoys embedded with the reduced size and power consumption release of the BIONOTE-L is presented.

Darmawan et al. (2020) have designed the detection device for seawater waves with fuzzy algorithm based on IoT. Authors investigated the possibilities to combine a gyroscope, which detect and measure the angular motion of waves, an accelerometer, which measures the acceleration of the force of waves, and LoRa (i.e. Long Range and proprietary low-power wide-area network modulation technique), which became useful for developing of a low-power wireless technology that uses radio spectrum (Darmawan et al., 2020). Authors are trying to implement the fuzzy set theory to predict the tsunami waves at sea. However, they do not present a fuzzy reasoning system in details. Only fuzzy calculations are presented in the paper. Moreover, the proposed system testing during the medium and dangerous environment conditions is not clear. The observations are devoted for inland waters, but have no analysis of possibilities for developing of online working buoy systems with the implementation of solar energy in small devices.

The mobile buoy systems for water quality monitoring are presented in Zoss et al. (2018). Similar structures of systems are developed as a GNSS buoy and have possibility to observe the water surface elevations and provide the real-time tide and wave data in estuaries and coastal areas in Lin et al. (2017), Dzemydienė and Radzevičius (2020). The problem of distributing of operations is considered in Zoss et al. (2018). The system consists of a dynamic cooperative array of mobile buoys afforded with sensing capabilities. The possibilities to use the solar energy are omitted, and we see the need to apply the intelligent components like fuzzy reasoning and ANFIS for predicting, planning and maintaining the energy of a smart system.

The controller based on the adaptive fuzzy neural network to track the dynamically positioned vehicle on water with unavailable velocities and unidentified control parameters is presented by Zhang et al. (2020). Qin et al. (2019) have solved the problem of missing data due to transmission errors by using sensor’s failure and equipment’s maintenance methods in buoy-based monitoring system. Song et al. (2021) are trying to present the continuous space location model and a particle swarm Optimization-Based Heuristic Algorithm for maximizing the allocation of ocean-moored buoys.

Summing up, the topic of exploring marine environment using different smart marine water quality monitoring systems is relevant and expands in the way of using IoT and cloud technologies for better data transmission and processing. However, the topic of intelligent solar energy (or irradiation) management system for a marine water quality monitoring remains insufficiently examined. Almost all found buoy systems for marine water monitoring are equipped with linear solar power control systems. Meanwhile, while solar energy management systems based on ANFIS (Abadi et al., 2018; Viswavandya et al., 2020) are proposed in other application domains, ANFIS employment in buoys for solar energy monitoring remains little examined.

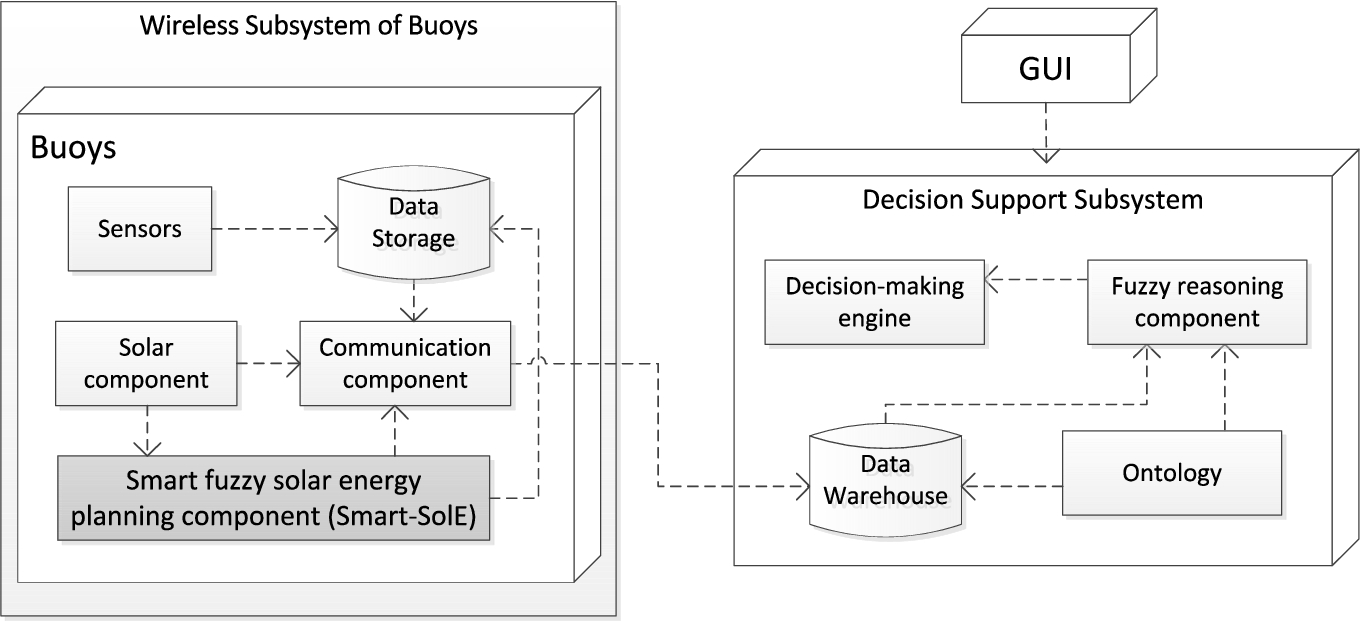

Fig. 1

The reference architecture of the smart fuzzy coastal marine water monitoring system (Smart-MarineM).

3 Development of the Smart Fuzzy System of Marine Water Monitoring

The overall reference architecture of the smart fuzzy coastal marine water monitoring system (Smart-MarineM) is presented in Fig. 1. The Smart-MarineM is designed with its main goal of coastal marine water hydro-meteorological data monitoring with the consideration that the system: 1) can measure and store information in a Data Storage in a real-time scenario; 2) adopts to the solar energy consumption (the Smart fuzzy solar energy planning and control component (Smart-SolE)); 3) is suitable for intelligent data transfer to the Smart monitoring node; 4) is suitable for smart energy planning and control using ANFIS.

3.1 The Reference Architecture of Smart-MarineM

The most important function of the system is to ensure that the data collection from the Sensors reflect the actual aquatic status and the data are transmitted and delivered to the Data Warehouse of the Decision Support Subsystem in a timely manner using Communication component. Solar component (consisting of a Solar panel – energy generator, and a battery) ensures the delivery of energy to the buoy. The Decision Support Subsystem is responsible for processing of the data from Data Warehouse using the Fuzzy reasoning component, which evaluates overall situation of water quality and transfers results to Decision-making engine. The Ontology component is used for the description of data in the Data Warehouse. The usage of Ontology in our system facilitates conceptualization and smooth mapping between concepts to assist in structuring the domain knowledge; ensures explicit domain assumptions and unambiguous interpretation of both the concepts and their interrelationships by the Fuzzy reasoning component; assists more intelligent search (e.g. generalization of queries to find nearest partial matches). With the help of Ontology, the marine water monitoring system becomes more apprehensible, better prepared to any further changes and modifications required.

The Data Storage component is used for storage of temporal data from Sensors in the case when buoys cannot transmit the data to the Data Warehouse because of low battery.

Users are gathering the information through the graphical user interface (GUI) from the Smart-MarineM about hydro-meteorological situations of coastal marine water, some kinds of decisions or/and control actions.

The hardware background of the subsystem of buoys under development consists of the following four layers (Dâmaso et al., 2014; Gricius et al., 2015; Dzemydienė and Radzevičius, 2020):

•
the network layer as a background layer of computing nodes that guarantees the ability of the system to be able of working and ensuring communication between nodes (buoys) and a master node (a stationary working host machine) in a decentralized wireless way;
•
the protocol layer, which consists of fundamental communication technologies, such as consensus algorithms, cryptography methods, ensuring that the system on-line work properly;
•
the wireless sensors network (WSN) layer that is responsible for the primary data monitoring mission by transmitting transactions securely and assures that existing system functions are working correctly;
•
the application layer, which provides APIs for the object’s usability and is responsible for interaction with the other buoys and users in the network.

An infrastructure of distributed buoys with integrated multi-function sensors should be created to support online and real-time operation of cooperative components, with limited power supply and memory capacity.

In this study we have focused on the smart fuzzy solar energy planning component, which is important for autonomous work of buoys subsystem. The prototype of smart system under development is working on the basis of WSN for continuous data transmitting. The hardware part of the subsystem of buoys is based on some sets of components which are integrated in the whole system. A possible description of components that can be integrated into the buoy system is presented in Table 1.

Table 1
Components which are integrated into the structure of buoy’s system based on WSN.

No. Name and type of component Functionality description

1 Arduino Mega control board with ATMega2560 microcontroller It works at 16 MHz clock speed and is the main block supporting the infrastructure of buoys.

2 SIM900 network module It is responsible for wireless communication and data transmission via GSM network to the monitoring station.

3 The geographical positioning system (GPS) It is used for recognition of coordinates (i.e. latitude and longitude) of buoys.

4 10 mW XBee PRO module It is responsible for providing wireless communication between individual buoys.

5 Connection of sensors (like the MPU6050 accelerometer/gyroscope pair) It is working as sensors of waviness measurements.

6 Real time control (RTC) timer It works as a timer for measuring time durations, and supports the control of working regime according to the supply energy and consumptions needs.

7 The connection structure for integration of other type sensors Heterogeneous block for connection of sensors in a buoy, like temperature, barometric pressure and other sensors.

8 Power supply block Each buoy is powered by solar energy, which can be charged in Ni-MH type batteries at the same time, allowing the buoy to operate during the dark and light hours throughout the day.

9 Global System for Mobile communication (GSM) antenna For Mobile Wi-Fi communication.

Each buoy can have from 1 to 20 sensors that gather different data at time intervals, which are defined in Smart-MarineM.
3.2 ANFIS for Solar Energy Planning

No.	Name and type of component	Functionality description
1	Arduino Mega control board with ATMega2560 microcontroller	It works at 16 MHz clock speed and is the main block supporting the infrastructure of buoys.
2	SIM900 network module	It is responsible for wireless communication and data transmission via GSM network to the monitoring station.
3	The geographical positioning system (GPS)	It is used for recognition of coordinates (i.e. latitude and longitude) of buoys.
4	10 mW XBee PRO module	It is responsible for providing wireless communication between individual buoys.
5	Connection of sensors (like the MPU6050 accelerometer/gyroscope pair)	It is working as sensors of waviness measurements.
6	Real time control (RTC) timer	It works as a timer for measuring time durations, and supports the control of working regime according to the supply energy and consumptions needs.
7	The connection structure for integration of other type sensors	Heterogeneous block for connection of sensors in a buoy, like temperature, barometric pressure and other sensors.
8	Power supply block	Each buoy is powered by solar energy, which can be charged in Ni-MH type batteries at the same time, allowing the buoy to operate during the dark and light hours throughout the day.
9	Global System for Mobile communication (GSM) antenna	For Mobile Wi-Fi communication.

3.2.1 The ANFIS Structure

The adaptive neuro fuzzy inference system (ANFIS), composed of the fuzzy inference system (FIS) and the artificial neural network (ANN), solves non-linear problems with enhanced performance. The FIS component conveys the qualitative human thinking process into the accurate quantifiable evaluation. The ANN component is responsible for learning (using training data sets) and adapts to its environment. ANFIS is based on premise and consequence parts, which are connected using IF-THEN fuzzy rules (Eq. (1)): $\begin{matrix} R_{i} : if (x_{1} is A_{1}^{i}) \dots and \dots (x_{n} is A_{n}^{i}) then f_{i} = a_{i}^{T} \cdot x + b_{i}, \end{matrix}$ (1) where $(x \in R^{n})$ are input variables of fuzzy sets $A_{1}^{i}, \dots, A_{n}^{i}$ , and ( $a_{i}, b_{i}$ ) are the design parameters that are determined during the training process using a linear Takagi–Sugeno model (Takagi and Sugeno, 1985). The ANFIS structure consists of five layers (Fig. 2).

In this study, we have used two inputs and one output of ANFIS structure. In the first layer (Layer 1, Fig. 2), two inputs ( $(x_{1}, x_{2})$ , $n = 2$ ), i.e. voltage parameter and current are fuzzified by using the triangular membership function (MF) (Eq. (2)) and provided to the second layer (Layer 2).

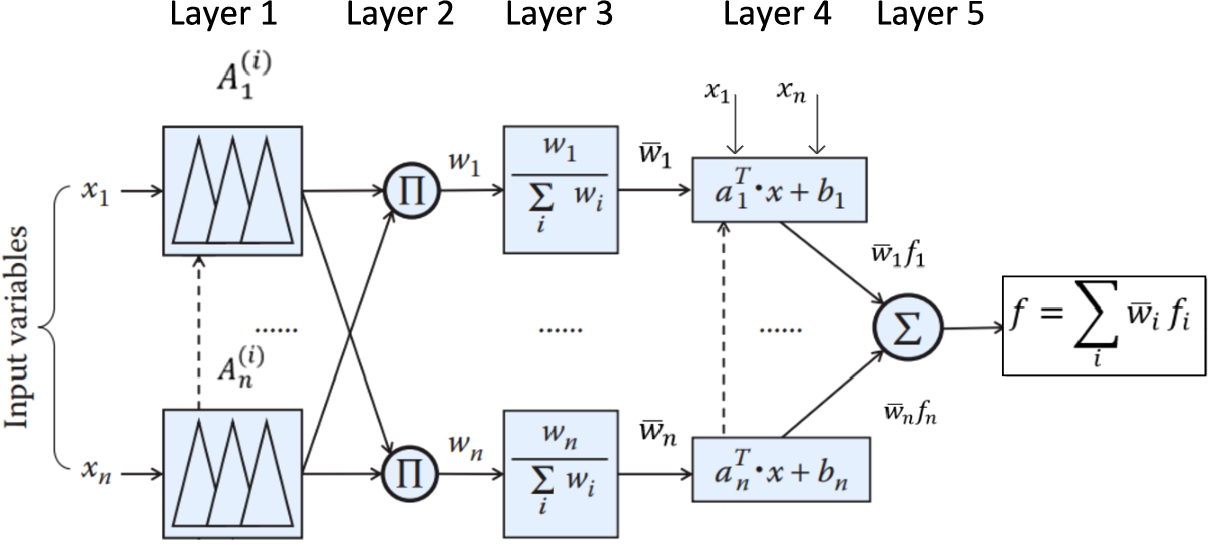

Fig. 2

The basic ANFIS structure.

In this study, we have used triangular MF, since it is easily implementable in FIS (Miliauskaitė and Kalibatiene, 2020a, 2020b; Kalibatienė and Miliauskaitė, 2021; Choi and Rhee, 2009). $\begin{matrix} μ_{A_{i}} (x) = \{\begin{array}{ll} 0, & if x < c_{1}, c_{3} ⩽ x, \\ \frac{x - c_{1}}{c_{2} - c_{1}}, & if c_{1} ⩽ x < c_{2}, \\ \frac{c_{3} - x}{c_{3} - c_{2}}, & if c_{2} ⩽ x < c_{3}, \end{array} \end{matrix}$ (2) where: $c_{1}$ , $c_{2}$ , $c_{3}$ are the adaptive parameters of the function.

The second layer (Layer 2) assesses the fuzzing inputs, evaluates the weights for the MFs and provides the strength parameters $w_{i}$ (Eq. (3)) to the third layer (Layer 3), which normalizes the weights ( ${\overline{w}}_{i}$ ) of the MF using Eq. (4). $\begin{aligned} w_{i} = \prod μ_{i} (x), \end{aligned}$ (3) $\begin{aligned} {\overline{w}}_{i} = \frac{w_{i}}{\sum_{i} w_{i}} . \end{aligned}$ (4)

The third layer (Layer 3) provides the normalized weights ( ${\overline{w}}_{i}$ ) of MFs to the fourth layer (Layer 4), which applies fuzzy rules (Eq. (1)) to obtain $f_{i}$ , performs the product of the normalized weights ( ${\overline{w}}_{i}$ ) and $f_{i}$ , and provides the final results to the fifth layer (Layer 5). In Layer 5, the global model response (f) is calculated by Eq. (5). $\begin{matrix} f = \sum_{i} {\overline{w}}_{i} f_{i} . \end{matrix}$ (5)

Training of ANFIS means determining the parameters in its structure in Layer 1 and Layer 4 using an optimization algorithm. In the training phase, Layer 1 (i.e. premise) and Layer 4 (i.e. consequence) parameters are utilized in order to obtain effective results. Different training approaches have been suggested to achieve better performance of ANFIS (Karaboga and Kaya, 2019). In our study, we have used a hybrid approach.

After the training is complete, the performance of ANFIS is determined by a set of different algorithms. In our case, we have used the mean squared error (MSE) (Eq. (6)) to measure the average of the squares of errors between the outputs $f_{i}$ and the training sets $f_{{train}_{i}}$ . $\begin{matrix} MSE = 1 / n \sum_{i = 1}^{n} {(f_{i} - f_{{train}_{i}})}^{2}, \end{matrix}$ (6) where $f_{i}$ and $f_{{train}_{i}}$ denote the ANFIS output and the measured value from the i-th element. The closer MSE is to zero, the more accurate the predicted result.

3.2.2 Smart Fuzzy Solar Energy Planning Using ANFIS

The proposed Smart fuzzy solar energy planning component (Smart-SolE) with ANFIS for solar energy usage evaluation is presented in Fig. 3.

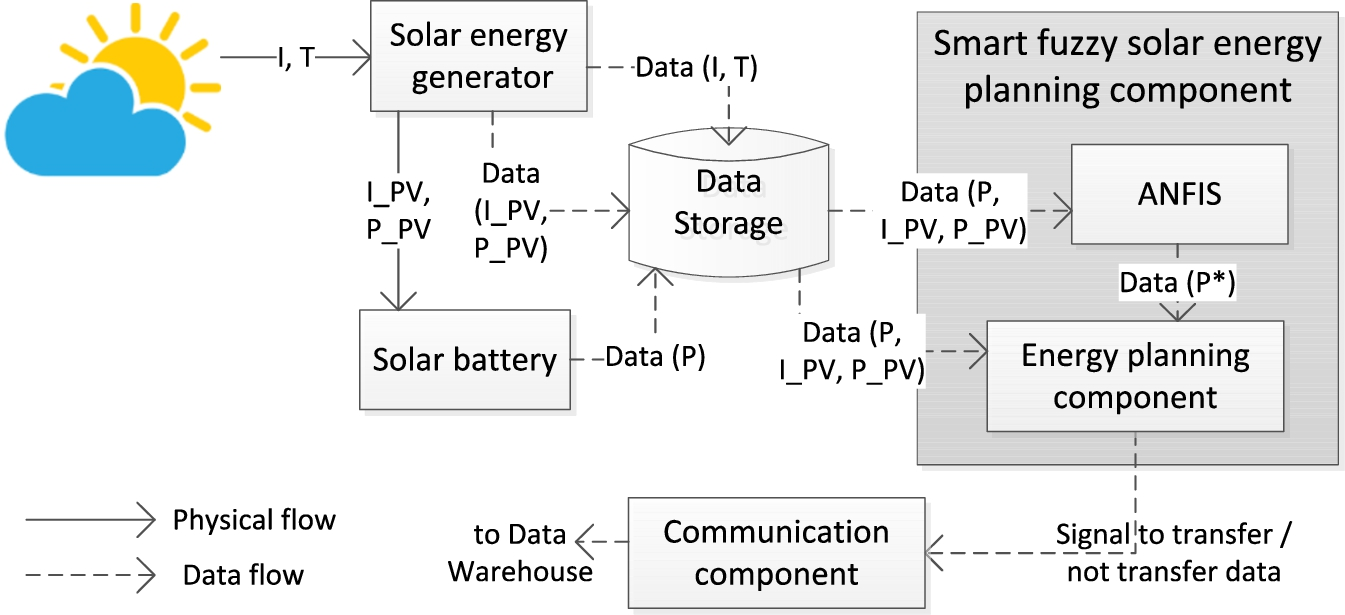

Fig. 3

The proposed Smart-SolE (I – Irradiation (W/m²), T – Temperature, °C, P – power, W, generated by Solar energy generator, P* – power, W, predicted by ANFIS, I_PV – current, A, P_PV – voltage, V).

The operation of the proposed system is presented in Fig. 4. The system starts operating within the predefined time periods. However, this interval can be changed by the administrator or the Decision Support Subsystem (see Fig. 1) in case of emergency or the need. If the Energy planning component based on the ANFIS prediction results determines that the Solar battery is charged enough, then it sends a signal to the Communication component for transfer of data collected by Sensors to the Decision Support Subsystem. If there is not enough power for data transfer, the Smart solar energy planning component is in the mode of waiting for enough power. However, in the waiting mode the newly collected portions of data by the Solar energy generator are stored in the Data Storage.

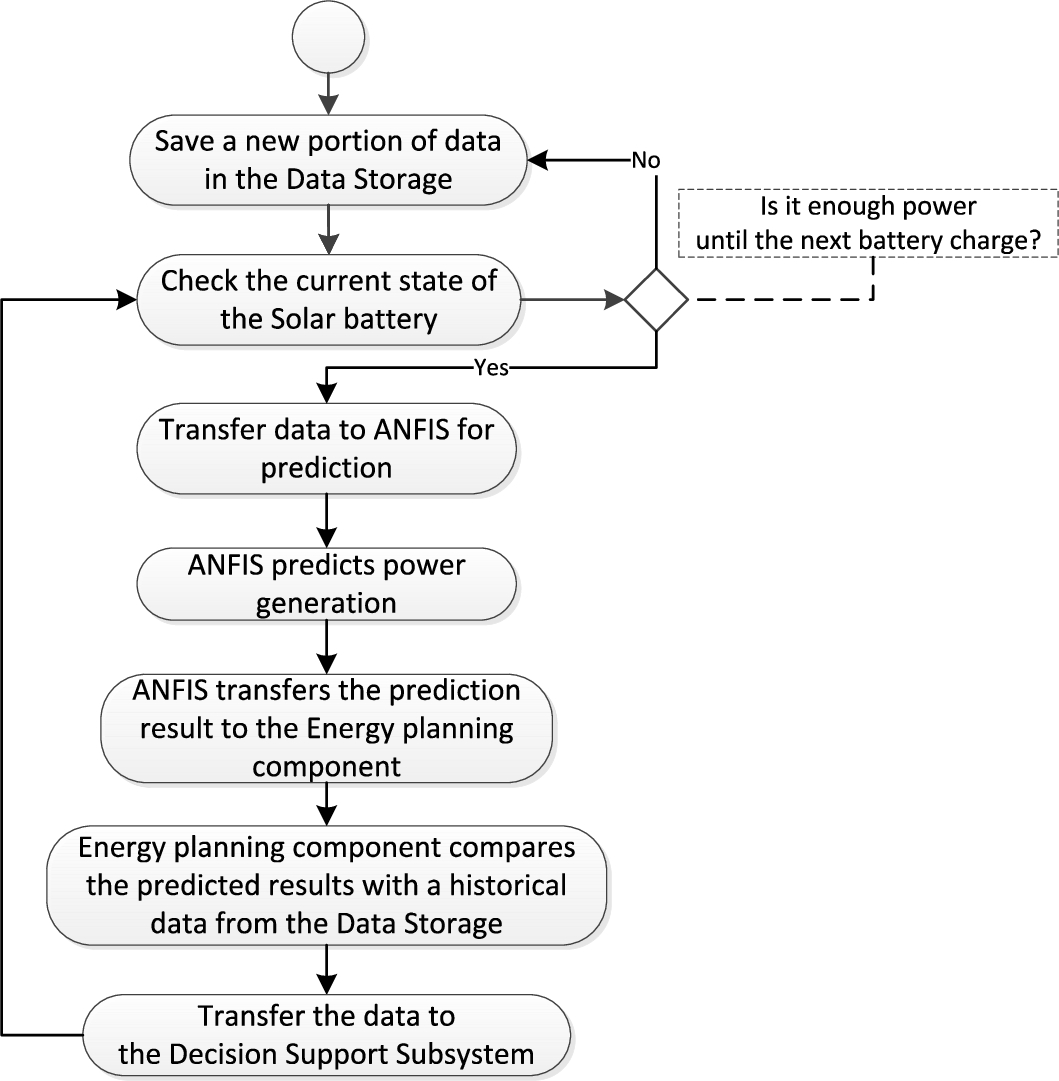

Fig. 4

The algorithm of the proposed Smart-SolE.

4 Experimental Research Results

The proposed approach was implemented into the Smart-SolE prototype for evaluation and exam using the MATLAB/Simulink 2021 software. The buoys network at the Baltic Sea and Lithuanian coastal hydro-meteorological data1 were used in the experiments. The buoys network solar module technical parameters are presented in Table 2.

Table 2
“SAM-150P” solar module specification and electrical parameters.

Parameters Specification

Cells per module (NCell) 36

Maximum power per module (P_mp) 150 W

Voltage of maximum power point (V_mp) 18.38 V

Current at maximum power point (I_mp) 8.16 A

Open circuit voltage (V_oc) 22.68 V

Short-circuit current (I_sc) 8.62 A

Temperature coefficient of V_oc and I_sc ( $% / ° C$ ) $- 0.34 / + 0.08$

Parameters	Specification
Cells per module (NCell)	36
Maximum power per module (P_mp)	150 W
Voltage of maximum power point (V_mp)	18.38 V
Current at maximum power point (I_mp)	8.16 A
Open circuit voltage (V_oc)	22.68 V
Short-circuit current (I_sc)	8.62 A
Temperature coefficient of V_oc and I_sc ( $% / ° C$ )	$- 0.34 / + 0.08$

The collected measurement data used in the experiments consists of two data sets as following: 1) a data set about weather conditions in the period of five years including four seasons¹ (temperature (°C), irradiation (W/m²)); and 2) a data set collected from the hydrographic buoy (irradiation (W/m²), temperature (°C), humidity (%), battery voltage (V)).

The Smart-SolE prototype simulated different operating conditions, i.e. various irradiation conditions depending on the seasons, and was tested to study its operation. We have examined three different working conditions as follows: 1) the high lighting conditions during the summer, when the average irradiation is 1042 W/m², and the average air temperature is +17.9 °C; 2) the partial lighting conditions during the spring and autumn, when the average irradiation¹ is 970 W/m², and the average air temperature is +9.7 °C; and 3) the least sunny conditions during the winter, when the average irradiation¹ is 538 W/m², and the average air temperature is −1.1 °C. In this paper, we present the most interesting cases (i.e. the partial lighting (Fig. 5a) and the least sunny (Fig. 5b) conditions) as follows. In figures, the x-axis shows the time of battery charging in seconds; the y-axis presents the battery charging level in percentages. Note that initial battery charging level taken in the experiment is 45%.

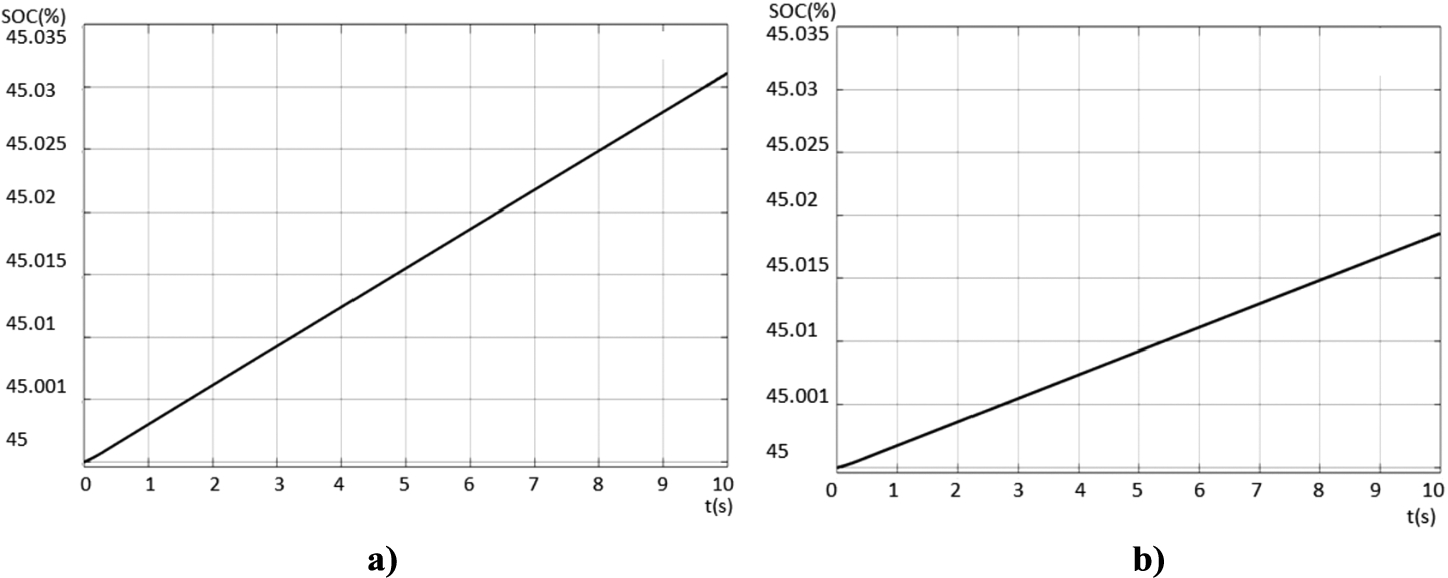

Fig. 5

The battery charging level (%): a) partial shading conditions during the spring and autumn (I = 970 W/m², T = +9.7 °C); b) the least sunny conditions during the winter (I = 538 W/m², T = −1.1 °C).

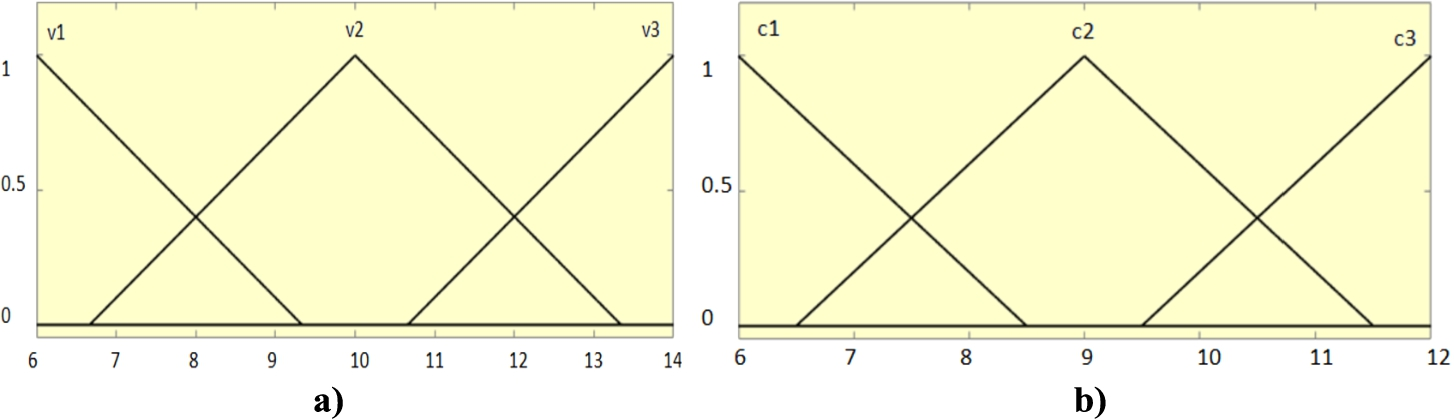

Fig. 6

The inputs: a) PV voltage (I_PV) MFs; b) PV current (P_PV) MFs.

As can be seen from Fig. 6, in the least sunny period the battery charging speed is lower. Two inputs of the form of power and voltage data (PV array), i.e. system voltage (I_PV) and current (P_PV), are provided to ANFIS (Fig. 3).

Note that voltage, current and power in the measurement stage are labelled as V, I and P, respectively; and, in Smart-SolE, they are labelled as voltage (I_PV) and current (P_PV).

We present the result of prediction during the winter, since it is the least sunny period in the year. The inputs consist of 3 MFs each, and the MFs are of triangular nature. From the training data set, it is observed that the voltage parameters vary from 6 to 14 V (Fig. 6a) and the current parameters vary from 6 to 12 A (Fig. 6b).

According to the presented input (voltage and current), ANFIS predicts power (P^*(W)), the MFs of which are presented in Fig. 7.

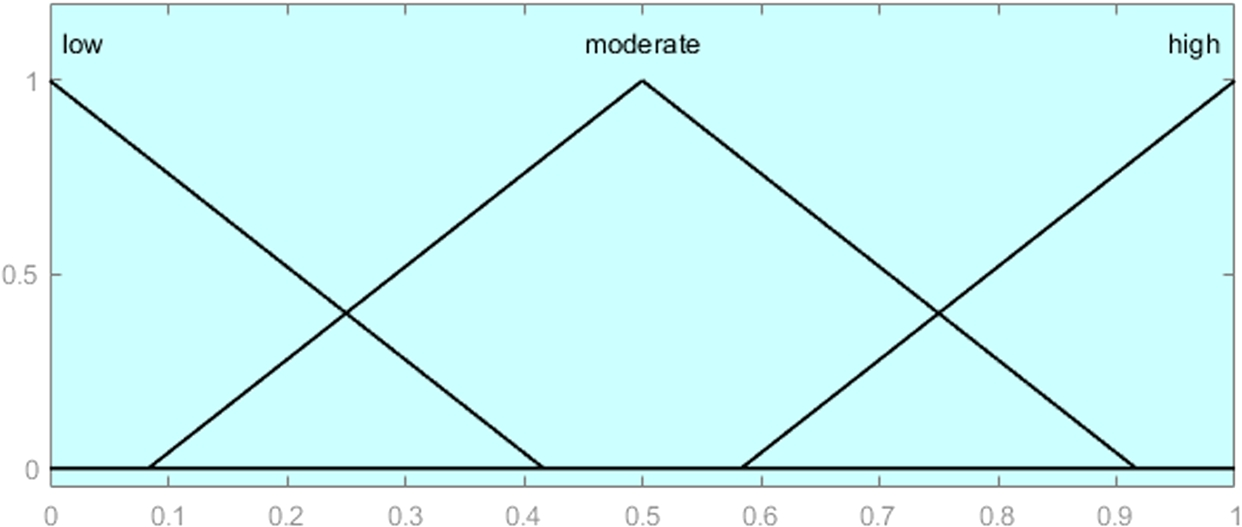

Fig. 7

The output Power (P^*) MFs.

The relationships between two-input and one-output of ANFIS can be depicted by a 3-D plot. The surface model in Fig. 8 represents the input–output dependency. The x-axis represents voltage (I_PV) (input 1), the y-axis is the current (P_PV) (input 2), and the z-axis is the value of power (output). How the output depends on the input is determined by the fuzzy rules (see the explanation below).

Fig. 8

The dependency between input (input 1 (I_PV), input 2 (P_PV)) and output Power (P^*) parameters.

In this research, using two-input parameters with three fuzzy sets per input, FIS has produced a complete rule set of 9 (3²) rules in order to build an ANFIS model. It is important to note that the partition increase of the input space exponentially increases the number of rules that influence and enormously enlarge the speed of learning and application of the system. Therefore, an effective partition of the input should be found.

Some examples of the fuzzy rules are as follows:

The ANFIS settings for this study are presented in Table 3.

Table 3

ANFIS training and testing settings.

Parameter	Description/Value
Fuzzy structure/FIS training data	Sugeno/genfis1
FIS object generation	grid partition on the data
MF type of Input/MF type of Output	trimf (triangular)/constant
Number of inputs/outputs	2/1
Number of MFs associated with each input	3
Optimization method	hybrid
Training algorithm to model the training data	least-squares and backpropagation gradient descent methods
Maximum number of training epochs	100
Initial step size	0.001
Step size decrease rate/increase rate	0.9/2
Data for training/data for testing	70/30

Figures 9 and 10 present the results of dataset processing by ANFIS during the winter. We have used 70/30 ratio for the training and testing.

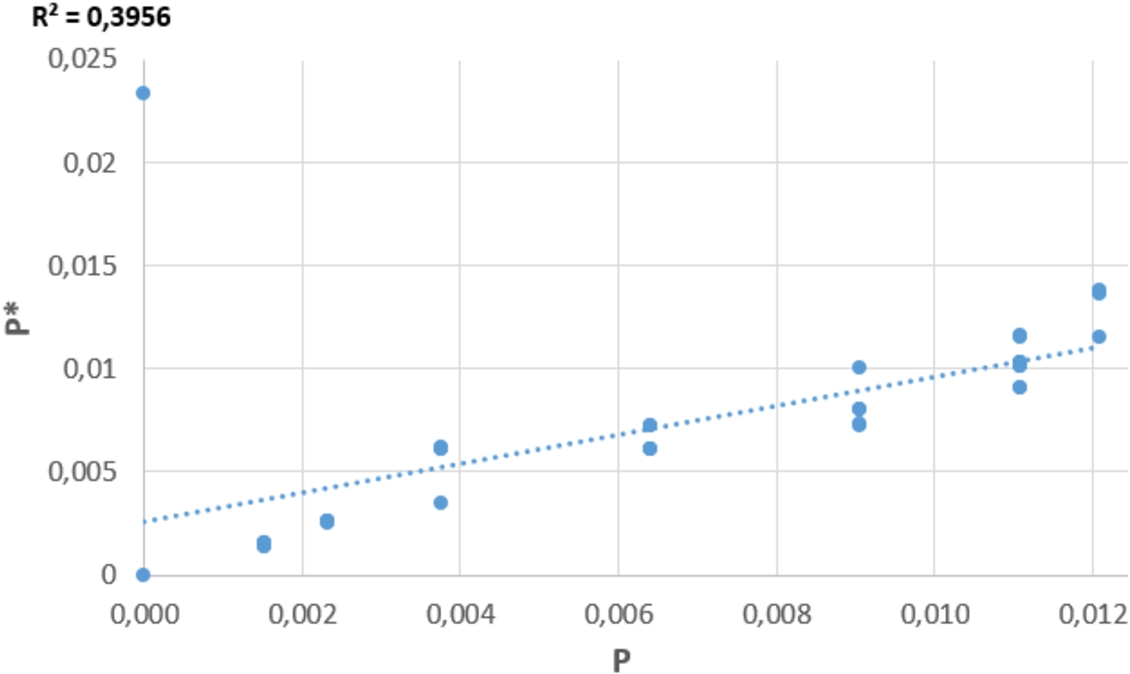

Fig. 9

The output of P^* after processing in ANFIS – results of training.

As can be seen, P* becomes more accurate after training, i.e. during training the coefficient of determination is $R^{2} = 0.3956$ , during testing $R^{2} = 0.8371$ . $R^{2}$ describes the degree of association between experimental data and those obtained by the model. In the case of $R^{2} = 1$ , the model has an exact correspondence to the experimental data. Accordingly, our testing results show high match to the obtained theoretical model during training.

After the training is complete, the performance of ANFIS is determined using MSE = 0.0032 (Eq. (6)). This small MSE shows the close finding to the line of best fit.

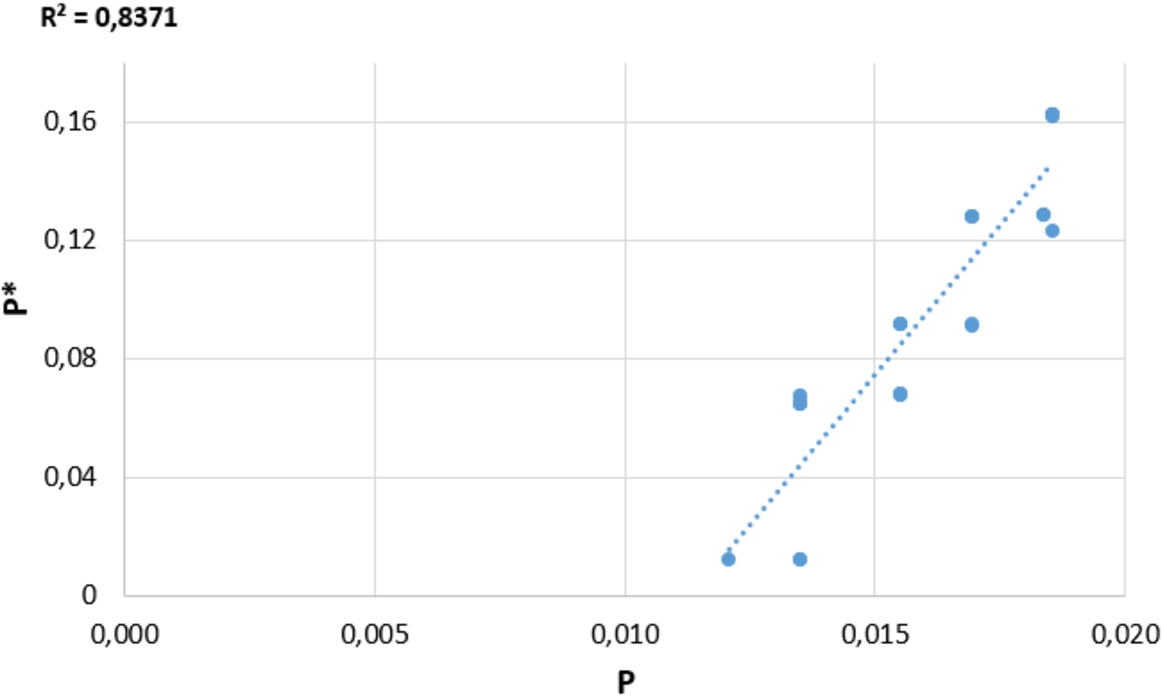

Fig. 10

The output of P^* after processing in ANFIS – results of testing.

Those ANFIS results P* are transferred to the Energy Planning Component to make a decision for data transferring to Decision Support Subsystem. The Energy Planning Component based on the input data from ANFIS (P*) and Data Storage (P, I_PV, P_PV) decides whether to send the data. The decision mechanism is the rule-based and presented by the decision tree in Fig. 11.

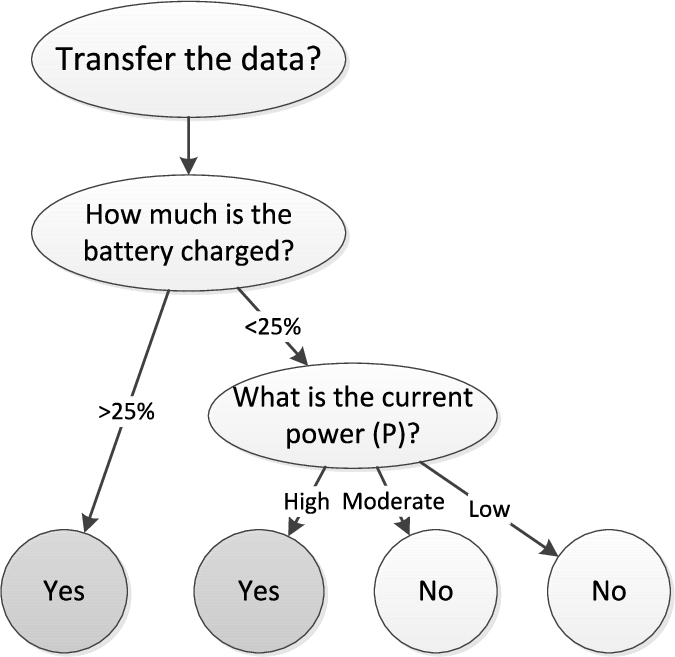

Fig. 11

The decision tree used in the energy planning component.

According to the predefined rules, the current power P is estimated based on ANFIS predictions, i.e. the current power level is determined to be high, medium, or low. The battery charging level for making the decision is chosen 25%, because this level is critical ensuring the data transfer and further operation of the entire system after the data transfer.

The snapshot of the obtained decision-making results is presented in Table 4.

Table 4

An example of the obtained decision-making results with the proposed approach (1 – transfer the data, 0 – terminate the data transfer).

P	P^*	Battery	Signal
41	Low	25%	0
47	High	55%	1
50	Moderate	70%	1
20	Moderate	42%	1
36	Low	36%	1
45	Moderate	7%	0
58	High	24%	1

The major challenge for the proposed approach and its implementation is the collection of reliable data and the ability to cope with very fast changing environmental conditions. The usage of ANFIS for Smart-SolE demonstrates flexibility of the data transfer according to different environmental conditions, like shading and seasonality.

5 Discussion

The analysis of the related works showed that marine monitoring systems, combined with AI and IoT components for the data collection, processing, transmission and overall systems operation, become more accurate and flexible. Existing approaches are utilizing ANFIS for solar energy planning in different application domains and purposes. The review of the found and analysed smart buoy systems shows that authors mainly emphasize data transmission using IoT of buoys, rather than incorporating smart solar energy planning in buoys. Therefore, we emphasize on more detailed level of smart solar energy planning in buoys.

In this paper, the smart fuzzy inference based solar energy planning and control component (Smart-SolE) for coastal marine water monitoring has been developed and examined to validate its performance. The advantage and uniqueness of the proposed approach is that we establish an ANFIS-based model to predict and control solar energy for different lighting and temperature conditions depending on the four seasons in the Baltic Sea region in the coastal waters of Lithuania. The proposed model has been implemented in a smart fuzzy coastal marine water monitoring system (Smart-SolE) for estimation of a current power of a solar battery, lighting and temperature conditions and to make a decision using the proposed decision tree to transfer the data collected by a buoy to the Decision Support Subsystem. During the experimental research it was observed that air temperature, solar irradiance and their ratio change similarly in spring and autumn; therefore, those two seasons were combined in the experiments of the proposed approach. However, the proposed approach is universal and can be used in other regions with different seasonality, only by adapting the specific solar energy supply weather conditions for recognizing the specific working modes of solar energy supply.

The study shows that ANFIS is a suitable artificial intelligence model for solar energy planning and control in the coastal marine water monitoring area. The obtained accuracy of the testing is $R^{2} = 0.8371$ that shows high match to the obtained theoretical model during training. The performance of ANFIS is MSE = 0.0032, which shows the close finding to the line of best fit.

This research focused on the use of Smart-SolE for coastal marine water monitoring, limiting research on other components, like detailed buoys’ physical characteristics, more detailed solar energy generation data and solar battery charging data. More real data is necessary for investigation. Moreover, the issues of the assessment of coastal marine water quality remain in our future plans. Based on these observations, further questions were raised regarding applying of artificial intelligence for improvement and extension of the decision-making component and making it smarter and more independent of user’s intervention.

6 Conclusions

Extensive human intervention into nature and increasing environmental pollution have increased the need to study and monitor adverse effects on marine waters. In order to solve the coastal marine water monitoring tasks, different marine water monitoring systems are proposed. Nowadays, new technologies, like IoT and machine learning, allow us to improve and extend functionality of remote marine monitoring. However, the topic of intelligent solar energy (or irradiation) systems for marine quality monitoring remains insufficiently examined. In this research, the approach for solar energy implementation in remote control monitoring system of buoys was proposed. The main focus is the development of the Smart-SolE reasoning component that is integrated into the entire Smart-MarineM. The novelty of Smart-SolE is the use of an ANFIS-based model, which enables more adaptable and continuous work of buoys in coastal marine monitoring processes.

From the study, based on the obtained accuracy, it was determined that ANFIS is a suitable AI model for solar energy planning and control in the coastal marine monitoring area. However, additional investigations with consideration of the buoys’ physical characteristics, communication protocols, and more detailed analysis of solar battery charging process are necessary.
