An Improved Rank Order Centroid Method (IROC) for Criteria Weight Estimation: An Application in the Engine/Vehicle Selection Problem

Abstract

The focus of this paper is on the criteria weight approximation in Multiple Criteria Decision Making (MCDM). An approximate weighting method produces the weights that are surrogates for the exact values that cannot be elicited directly from the DM. In this field, a very famous model is Rank Order Centroid (ROC). The paper shows that there is a drawback to the ROC method that could be resolved. The paper gives an idea to develop a revised version of the ROC method called Improved ROC (IROC). The behaviour of the IROC method is investigated using a set of simulation experiments. The IROC method could be employed in situations of time pressure, imprecise information, etc. The paper also proposes a methodology including the application of the IROC method in a group decision making mode, to estimate the weights of the criteria in a tree-shaped structure. The proposed methodology is useful for academics/managers/decision makers who want to deal with MCDM problem. A study case is examined to show applicability of the proposed methodology in a real-world situation. This case is engine/vehicle selection problem, that is one of the fundamental challenges of road transport sector of any country.

Keywords

MCDM criteria weighting approximate weighting methods ROC IROC simulation engine/vehicle selection problem public transport

1 Introduction

This paper concerns the problem of determination of numerical weights for different criteria indicating their relative importance in Multiple Criteria Decision Making (MCDM). Different methods have been suggested in the literature and can be classified very roughly into three approaches: subjective, objective and integrated (Ahn, 2011; Hatefi, 2019). The subjective methods assign the weights to the criteria solely according to the preferential judgments by the DM, for example, Direct Rating (DR) (Doyle et al., 1997), Step-Wise Weight Assessment Ratio Analysis (SWARA) (Kersuliene et al., 2010), and belief-based Best Worst Method (BWM) (Liang et al., 2021). On the other hand, in the case of objective weighting methods, the DM may not be willing or able to give any preference information on the criteria, for instance, entropy (Hwang and Yoon, 1981), Correlation Coefficient and Standard Deviation (CCSD) (Wang and Lou, 2010), and Simultaneous Evaluation of Criteria and Alternatives (SECA) (Keshavarz Ghorabaee et al., 2018). The integrated methods determine the weights of the criteria using both subjective and objective information, for instance, Simple Product Aggregation (SPA) (Hwang and Yoon, 1981), Factor Relationship (FARE) (Ginevičius, 2011), and Block-Wise Rating the Attribute Weights (BRAW) (Hatefi, 2021).

In the current paper, we put emphasis on the Barron and Barrett (1996)’s notion who stated that various subjective methods for eliciting the exact weights from the DM may suffer on several counts, because the results are highly dependent on the elicitation method and there is no agreement as to which weighting method generates more valid weights. On the other hand, we know that in recent years, the multi-criteria group decision making situations have received extensive attention (Diao et al., 2022). In such situations, reaching a consensus regarding the weights of several criteria is difficult particularly when precise weights are required from the DMs (Sureeyatanapas et al., 2018; Danielson and Ekenberg, 2016; Ahn and Park, 2008a). Furthermore, the larger the number of criteria, the lower the accuracy of their subjective evaluation (Ginevičius, 2011). On the other hand, it is much easier for the DM to prioritize the criteria rather than to give specific numerical values (Alfares and Duffuaa, 2016). To relieve such issues, a family of the integrated methods called approximate (or surrogate) weighting methods has been developed. The methods in this family are shown by typology notation I/+SW, i.e. Integrated & Surrogate Weighting (Hatefi, 2022). The approximate weighting methods assume that the exact values of the weights are not known and only a ranking structure of the criteria (i.e. ordinal information about criteria importance) is given by the DM. An approximate weighting method begins with a simple sort where the DM arranges the criteria in the order of his/her preference. Secondly, an ordinal number called rank order is assigned to each criterion ranked, starting with the highest ranked criterion as 1. Finally, the criteria weights are estimated using a predetermined function or procedure. Clearly, the approximate weighting methods convert ranks of the criteria into quantitative weights. For the ranked criteria, the weights should be according to criteria weight space as in equation (1) in which $ω_{j}$ is the weight of criterion $C_{j}$ ( $j = 1, 2, \dots, n$ ) by rank order j. $\begin{matrix} Weight space = {(ω_{1}, \dots, ω_{n}) ∣ ω_{1} ⩾ ω_{2} ⩾ \dots ⩾ ω_{n}, \sum_{j = 1}^{n} ω_{j} = 1, ω_{j} ⩾ 0} . \end{matrix}$ (1) There are several approximate weighting methods in the related literature, such as Equal Weights (EW) (Dawes and Corrigan, 1974), Rank Sum (RS), Rank Exponent (RE) and Rank Reciprocal (RR) (Stillwell et al., 1981), Rank Order Centroid (ROC) (Barron, 1992), Geometric Weights (GW) (Lootsma, 1999), Rank Order Distribution (ROD) (Roberts and Goodwin, 2002), Variable-Slope Linear (VSL) (Alfares and Duffuaa, 2008), Least Square Ordered Weighted Averaging (LSOWA) (Ahn and Park, 2008b), Maximum Entropy Ordered Weighted Averaging (MEOWA) (Ahn, 2011), Sum-Reciprocal (SR) (Danielson and Ekenberg, 2014), Generalized Rank Sum (GRS) (Wang and Zionts, 2015), Minimizing Squared Deviations from extreme points (MSD) (Ahn, 2017), Rank Order Total (ROT) (Liu et al., 2020), and Generalized Rank Order Centroid (GROC) (Hatefi and Balilehvand, 2023). Among the above methods, the ROC method is the most famous method in the state-of-the-art. The ROC method assumes that the weights are uniformly distributed on the simplex of the weight space. Many researchers affirm the superiority of the ROC method over the other relevant methods. Srivastava et al. (1995) stated that the ROC weights suggest alternatives that are highly correlated with actual choices made. Additionally, according to Katsikopoulos and Fasolo (2006), previous researches have been implied that the ROC weights produce the same preferences over alternatives as a full MCDM model in nearly 85% of cases and that, when the ROC method does not produce the same choice, the average loss is fairly small. According to Ahn (2017), the ROC method is still known to outperform the other approximate weighting methods. He stated that a common result from former studies is that the ROC method not only has an appealing theoretical rationale, but also appears to outperform the other approximate weighting methods. Sureeyatanapas et al. (2018) expressed that according to several studies focusing on decision behaviour, the ROC method due to its characteristics is likely to be mostly consistent with DM’s behaviour. They also argued that from the last studies to date in the respected literature, many comparative studies have found that the ROC method outperforms the other methods in most experimental scenarios and measures. The abovementioned consequences have been confirmed by Morais et al. (2015). Let’s review some simulation studies on the performance of the ROC method. Barron and Barrett (1996) compared the quality of four methods (the EW, RS, RR, and ROC) using the simulation approach. They deduced that the ROC method outperforms the others in most scenarios. The superiority of the ROC method over the EW, RS, and RR methods is also confirmed by Ahn and Park (2008a) under different simulation conditions. Sarabando and Dias (2009) performed a series of simulations to compare the quality of the ROC method and some decision rules. The results corroborated the ROC method is the best rule to be used particularly as the number of criteria increases. Ahn (2011) performed a simulation process to compare the performance of the EW, RS, RR, ROC, and MEOWA methods. In summary, the results showed MEOWA = ROC > RR > RS > EW.

Definitely, in situations such as time pressure, lack of enough knowledge, imprecise or incomplete DM’s information, and DM’s limited attention, an approximate weighting method could be used as a surrogate for subjective methods. In fact, an approximate weighting method generates the weights that are substitutes for the exact values that cannot be drawn out directly from the DM. Hence, the relevant researchers seek to devise new methods that generate approximate weights as close as possible to real-world exact values, and this is why several methods are investigated and suggested. There even may be a slight significant difference between the weights generated by two methods; in this regard, Bottomley and Doyle (2001) proved that whilst several weighting methods may appear to be minor variants of one another, these nuances may have substantial consequences for inference and decision making. Such a result was confirmed by Zizovic et al. (2020). As a matter of fact, although there are several methods in the literature, but a new method may generate a more appropriate weight vector which may be slightly different than the others, and this slight difference may even change decision making results. Thus in line with the abovementioned researches, the major motivation of the current paper is to improve the ROC method, and to reinforce its theoretical foundations. In Section 2, the paper explains how the ROC method can be improved to a new version called Improved ROC (IROC). In Section 3, the procedure of a methodology to employ the IROC method is offered. In the proposed methodology, we assume a group of subject matter experts (i.e. the DMs), who are faced with the problem of weighting a variety of the criteria. To overcome multiplicity of the criteria, a Criteria Breakdown Structure (CBS) is provided. The CBS is a tree-shaped (in 1st level, 2nd level, 3rd level, etc.) description of all the criteria which should be weighted. The IROC method is used in weight assignment of each level of the CBS. In Section 4, the paper applies the proposed methodology in a real-life study case taken from transportation industry. Finally, some conclusions are provided in Section 5.

2 Improved ROC (IROC)

2.1 The Proposed Idea

Definitely, each feasible point in the weight space is a solution to assign the weights to the ranked criteria. Among these solutions, the defining vertices of the convex polyhedral of the weight space can be considered as Vertex Methods (VM) which are $(1, 0, \dots, 0), (\frac{1}{2}, \frac{1}{2}, 0, \dots, 0), \dots$ , and $(\frac{1}{n}, \frac{1}{n}, \dots, \frac{1}{n})$ . The coordinates of the weight space centroid (i.e. the ROC weights) are calculated by ordinary averaging the corresponding coordinates of the VMs. As a matter of fact, as shown in equation (2), the ROC method is a convex linear combination of the VMs in which all the coefficients equal $1 / n$ . $\begin{aligned} ROC weights: (\begin{array}{c} ω_{1} \\ ω_{2} \\ \begin{array}{c} ⋮ \\ ω_{n} \end{array} \end{array}) & = \frac{1}{n} (\begin{array}{c} 1 \\ 0 \\ ⋮ \\ 0 \end{array}) + \frac{1}{n} (\begin{array}{c} 1 / 2 \\ 1 / 2 \\ 0 \\ ⋮ \\ 0 \end{array}) + \dots + \frac{1}{n} (\begin{array}{c} 1 / n \\ 1 / n \\ ⋮ \\ 1 / n \end{array}) \Rightarrow ω_{j} \\ = \frac{\sum_{r = j}^{n} (1 / r)}{n} . \end{aligned}$ (2) We interpret that the coefficients in equation (2) address the DM’s preferences on the VMs. But for example, can we usually claim that the DM’s preference on $(1, 0, \dots, 0)$ equal to that on $(\frac{1}{n}, \frac{1}{n}, \dots, \frac{1}{n})$ ? Positively, the preferential judgments of the DM on different points of the weight space maybe alike; correspondingly, setting equal coefficients for the VMs is not based on a logical assumption. Taking this issue into consideration, the new idea is to use appropriate coefficients for different VMs. In short, the notion is replacing the equal coefficients $1 / n$ by different coefficients denoted by $φ_{j n}$ . That simply means the application of weighted averaging instead of ordinary averaging in the ROC formula. We call this improved version of the ROC method “IROC method”. Equation (3) gives the IROC weights: $\begin{aligned} IROC weights: (\begin{array}{c} ω_{1} \\ ω_{2} \\ ⋮ \\ ω_{n} \end{array}) & = φ_{1 n} (\begin{array}{c} 1 \\ 0 \\ ⋮ \\ 0 \end{array}) + φ_{2 n} (\begin{array}{c} 1 / 2 \\ 1 / 2 \\ 0 \\ ⋮ \\ 0 \end{array}) + \dots + φ_{n n} (\begin{array}{c} 1 / n \\ 1 / n \\ ⋮ \\ 1 / n \end{array}) \Rightarrow ω_{j} \\ = \sum_{r = j}^{n} (φ_{r n} / r) . \end{aligned}$ (3)

2.2 Determining the IROC Coefficients

Two approaches can be used to obtain the coefficients $φ_{j n}$ $(j = 1, 2, \dots, n)$ in equation (3). An idea in point is the extraction of the coefficients from the DM’s perspectives, i.e. a subjective approach. Another notion, the focus of this paper, is to determine default coefficients, i.e. an objective approach. This approach is useful in cases where the DM has no idea or consent to propose his/her preferences on the VMs, lack of enough time, etc.

In order to estimate the coefficients, a set of systematic simulation experiments was performed, with regard to MADM problem. MADM problem refers to selecting the most appropriate candidate among m predetermined alternatives or prioritizing them in the presence of usually conflicting n criteria (Hwang and Yoon, 1981; Hatefi, 2021). Generally, a MADM problem is shown by matrix ${[a_{i j}]}_{m \times n}$ in which $a_{i j}$ ( $i = 1, \dots, m$ ; $j = 1, \dots, n$ ) is called performance score of ith alternative with respect to jth criterion. In the simulation, we use the Multi-Attribute Additive Value (MAV) function as the evaluation index to calculate the aggregated value of ith alternative. This function, with equation (4), is widely used as the underlying analysis model to calculate the overall value of the alternatives (Danielson and Ekenberg, 2016). In the MAV function, it is assumed that sum of all weights $ω_{j}$ equals one and $0 ⩽ a_{i j} ⩽ 1$ (Keeney and Raiffa, 1993). If we use the weights produced by a given method in the MAV function to select the best alternative or to prioritize the alternatives, let us call the result decision made by that given method. $\begin{matrix} {MAV}_{i} = \sum_{j = 1}^{n} ω_{j} a_{i j}, i = 1, 2, \dots, m . \end{matrix}$ (4)

The systematic simulation study was firstly proposed by Barron and Barrett (1996), and is a broadly accepted framework to address the performance of any approximate weighting method. Many investigations have employed such a simulation study, such as Hatefi (2019), Ahn (2017), and Ahn and Park (2008a). According to the basic notion of this approach, there exists a set of true weights as the reference weights in the DM’s mind which are not accessible in its pure form by any elicitation method. The decision made by the true weights is called true decision. The idea is to generate the weights by the method to be examined (herein the IROC method) as well as the true weights from an underlying random distribution and address how well the decision made by the method match the true decision in terms of a given efficacy measure. To this end, Hit Ratio (HR) and Rank order Correlation (RC) have been widely used as efficacy measures. The HR evaluates how frequently a method selects the same best alternative as the true weights. Equation (5) presents the HR function for a given method in which π is the total number of simulation runs, and γ is the number of simulation runs in which the method selects the same best alternative as the true weights do. The HR ranges from 0 to 1, in the way that 1 means the best alternative of the two rank orders are the same, throughout whole simulation runs. The RC indicates the similarity of the overall rank structures of the alternatives made by the true weights and by the method. This measure is calculated by Kendall’s formula as equation (6) (Winkler and Hays, 1985). In this function, m is the number of alternatives, and θ is the number of pairwise preference violations between the rank structures of the alternatives by the method and by the true weights. Obviously, the values range from −1 to 1 for the RC, the value 1 stands for perfect correspondence between the two rank orders. $\begin{aligned} HR = γ / π, \end{aligned}$ (5) $\begin{aligned} RC = 1 - (2 θ / m π) . \end{aligned}$ (6)

The simulation was designed with four levels of the alternatives ( $m = 3, 5, 7, 10$ ) and twenty four levels of the criteria ( $n = 2, 3, \dots, 25$ ). For each combination of the number of alternatives and the number of criteria (96 combinations), the following procedure was repeated $N = 15000$ times.

Step 1: Set $π = 1$ . In addition, lets $γ = 0$ and $θ = 0$ for the method to be examined.

Step 2: Generate a normalized random MADM matrix: Firstly, random performance scores $a_{i j}$ are generated from independent uniform distribution on interval $(0, 1)$ . These scores constitute an $m \times n$ MADM matrix. Secondly, the performance scores in each column are normalized by equation (7). In this equation, the values $a_{j}^{max}$ and $a_{j}^{min}$ are the maximum and minimum scores in column $C_{j}$ : $\begin{matrix} a_{i j}^{norm} = \frac{a_{i j} - a_{j}^{min}}{a_{j}^{max} - a_{j}^{min}}, i = 1, 2, \dots, m, j = 1, 2, \dots, n . \end{matrix}$ (7)

Step 3: Generate criteria true weights: Firstly, $n - 1$ random numbers are generated from independent uniform distribution on $(0, 1)$ . It should be noted that assuming the uniform distribution represents the DM’s uncertainty about the weights. Secondly, the generated random numbers are sorted in ascending order and named as $u_{1}, u_{2}, \dots, u_{n - 1}$ . The differences between adjacent numbers in sequence $1 > u_{n - 1} ⩾ u_{n - 2} ⩾ \dots ⩾ u_{1} > 0$ are $(1 - u_{n - 1}), (u_{n - 1} - u_{n - 2}), \dots, (u_{1} - 0)$ . Thirdly, these differences are ordered by size in descending. The outcome would be the true weights which are uniformly distributed on the weight space.

Step 4: Compute the criteria weights by the method.

Step 5: Determine the corresponding ranks of the alternatives: For the true weights and for the method, the MAV of each alternative are calculated using the MADM matrix generated in Step 2 and the weights achieved in Steps 3 and 4. Next, the alternative with the biggest MAV is placed at the first rank, one with the second biggest at the next rank, and so on.

Step 6: Compare the ranks of the alternatives by the method and by the true weights. If the method selects the identical alternative at the first rank as the true weights, then set $γ = γ + 1$ . Moreover, compare the overall rank structure of alternatives constructed by the method and by the true weights, and for any violation between these structures set $θ = θ + 1$ .

Step 7: If $π = N$ , then go to Step 8, else set $π = π + 1$ and go to Step 2.

Step 8: Use equations (5) and (6) to calculate the overall value of the HR and RC for the method. This is the stop point of the run.

The simulation experiment was conducted with the use of a Visual Basic for application in the Excel programming language on a personal computer. The simulation runs (i.e. 15000 times) were made in five rounds. Finally, the averages HR and RC of 5 rounds were considered. Calculation of the Pearson’s correlation coefficients between the HR and RC data for 96 combinations showed that the performance values for the two efficacy measures HR and RC were highly correlated, with overall average of 0.9815. Hence, we employ only the HR to derive the coefficients. We chose the HR because it is easier to understand and simpler to handle.

To calculate the coefficients of the VMs, this procedure was done: First, for each combination of the number of alternatives and the number of criteria, the HR values are normalized to add up to 1. As an instance, in combination with $m = 3$ and $n = 4$ , four HR values were obtained: 0.76933, 0.76353, 0.75947, and 0.70593 for the vertices $(1, 0, 0, 0)$ , $(\frac{1}{2}, \frac{1}{2}, 0, 0)$ , $(\frac{1}{3}, \frac{1}{3}, \frac{1}{3}, 0)$ , and $(\frac{1}{4}, \frac{1}{4}, \frac{1}{4}, \frac{1}{4})$ , respectively. Their normalized values are 0.25659, 0.25466, 0.25330, and 0.23545. Second, we know that for a given n, there are four sets of normalized HR values according to different levels of alternatives which are 3, 5, 7, and 10. The study showed that the trend of the four sets is fairly similar for any number of the criteria. Figure 1 depicts these trends for some number of the criteria.

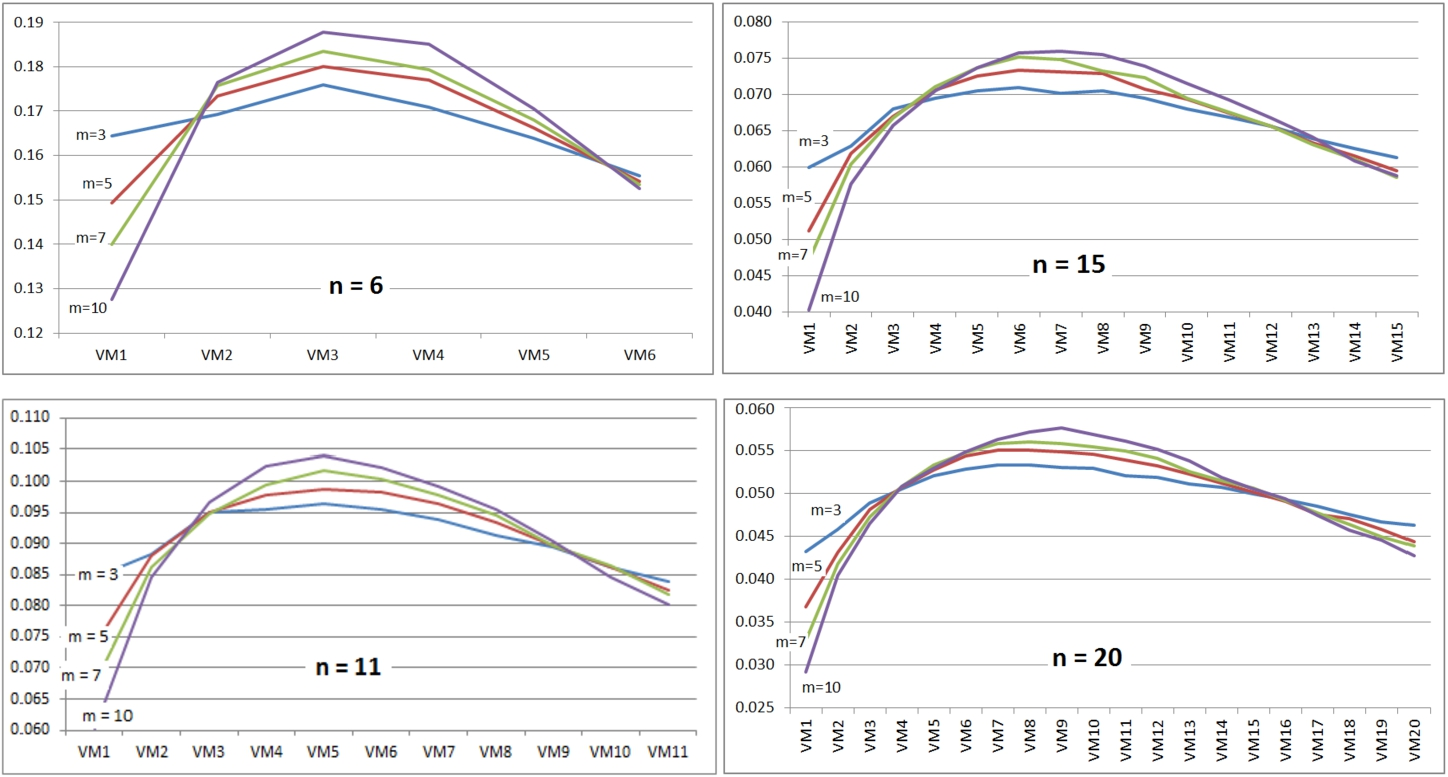

Fig. 1

Typical trends of the normalized HR at various VMs.

Correspondingly, geometric mean was then used over the combinations with identical number of the criteria. By way of example, in combinations $3 \times 4$ , $5 \times 4$ , $7 \times 4$ , and $10 \times 4$ (all with 4 criteria), the normalized HR vectors are $(0.25659, 0.25466, 0.25330, 0.23545)$ , $(0.24035, 0.26781, 0.25828, 0.23356)$ , $(0.22565, 0.27585, 0.26416, 0.23434)$ , and (0.20865, 0.27677, 0.27549, 0.23908), respectively; and the geometric means would be (0.23213, 0.26862, 0.26268, and 0.23560). Finally, to normalize the coefficients to unity, each geometric mean was divided by sum of the geometric means. Given the above-mentioned example in relation to 4 criteria, sum of the geometric means is 0.99903, thus the default coefficients would be $φ_{14} = 0.23236$ , $φ_{24} = 0.26888$ , $φ_{34} = 0.26293$ , and $φ_{44} = 0.23583$ for $(1, 0, 0, 0)$ , $(\frac{1}{2}, \frac{1}{2}, 0, 0)$ , $(\frac{1}{3}, \frac{1}{3}, \frac{1}{3}, 0)$ , and $(\frac{1}{4}, \frac{1}{4}, \frac{1}{4}, \frac{1}{4})$ , respectively. Table 1 presents the obtained coefficients for $n = 2$ to $n = 25$ .

Table 1

The default coefficients for the VMs in the weight space.

n	The coefficients $φ_{j n}$ ( $j = 1, 2, \dots, n$ ) of the vertices respectively
2	0.51150, 0.48850,
3	0.32415, 0.35529, 0.32056,
4	0.23236, 0.26888, 0.26293, 0.23583,
5	0.17918, 0.21316, 0.21710, 0.20416, 0.18639,
6	0.14482, 0.17384, 0.18191, 0.17813, 0.16733, 0.15397,
7	0.12136, 0.14634, 0.15571, 0.15561, 0.14946, 0.14063, 0.13089,
8	0.10278, 0.12579, 0.13581, 0.13710, 0.13400, 0.12837, 0.12160, 0.11456,
9	0.09000, 0.11021, 0.11944, 0.12201, 0.12101, 0.11760, 0.11215, 0.10655, 0.10102,
10	0.07919, 0.09745, 0.10607, 0.10893, 0.10985, 0.10786, 0.10405, 0.10011, 0.09575, 0.09075,
11	0.07104, 0.08682, 0.09547, 0.09880, 0.10022, 0.09916, 0.09680, 0.09375, 0.08982, 0.08595, 0.08218,
12	0.06445, 0.07851, 0.08648, 0.09051, 0.09113, 0.09129, 0.08978, 0.08800, 0.08502, 0.08182, 0.07812, 0.07490,
13	0.05837, 0.07143, 0.07857, 0.08266, 0.08450, 0.08437, 0.08405, 0.08215, 0.08000, 0.07760, 0.07482, 0.07192, 0.06955,
14	0.05322, 0.06512, 0.07230, 0.07611, 0.07829, 0.07896, 0.07866, 0.07708, 0.07549, 0.07313, 0.07147, 0.06899, 0.06680, 0.06440,
15	0.04916, 0.06070, 0.06690, 0.07044, 0.07264, 0.07378, 0.07352, 0.07305, 0.07161, 0.06962, 0.06781, 0.06597, 0.06366, 0.06155, 0.05959,
16	0.04576, 0.05618, 0.06207, 0.06556, 0.06761, 0.06870, 0.06922, 0.06853, 0.06742, 0.06609, 0.06475, 0.06314, 0.06144, 0.05971, 0.05789, 0.05595,
17	0.04233, 0.05180, 0.05767, 0.06100, 0.06332, 0.06430, 0.06497, 0.06507, 0.06417, 0.06322, 0.06213, 0.06082, 0.05920, 0.05739, 0.05582, 0.05432, 0.05247,
18	0.03955, 0.04832, 0.05372, 0.05683, 0.05941, 0.06061, 0.06123, 0.06128, 0.06081, 0.06030, 0.05948, 0.05817, 0.05703, 0.05570, 0.05409, 0.05276, 0.05106, 0.04965,
19	0.03706, 0.04535, 0.05026, 0.05364, 0.05600, 0.05729, 0.05785, 0.05823, 0.05778, 0.05759, 0.05684, 0.05593, 0.05480, 0.05350, 0.05224, 0.05097, 0.04961, 0.04807, 0.04698,
20	0.03514, 0.04276, 0.04770, 0.05077, 0.05281, 0.05424, 0.05516, 0.05540, 0.05536, 0.05496, 0.05426, 0.05360, 0.05248, 0.05134, 0.05035, 0.04925, 0.04784, 0.04670, 0.04553, 0.04435,
21	0.03302, 0.04005, 0.04460, 0.04766, 0.04987, 0.05113, 0.05218, 0.05247, 0.05278, 0.05260, 0.05203, 0.05146, 0.05056, 0.04956, 0.04861, 0.04769, 0.04678, 0.04584, 0.04485, 0.04377, 0.04249,
22	0.03132, 0.03816, 0.04228, 0.04508, 0.04729, 0.04878, 0.04965, 0.05013, 0.05031, 0.05011, 0.04979, 0.04924, 0.04869, 0.04786, 0.04699, 0.04617, 0.04540, 0.04430, 0.04341, 0.04258, 0.04172, 0.04075,
23	0.02974, 0.03638, 0.04029, 0.04292, 0.04479, 0.04650, 0.04725, 0.04770, 0.04800, 0.04810, 0.04793, 0.04743, 0.04693, 0.04634, 0.04555, 0.04478, 0.04390, 0.04301, 0.04221, 0.04144, 0.04047, 0.03964, 0.03871,
24	0.02825, 0.03455, 0.03837, 0.04084, 0.04282, 0.04410, 0.04483, 0.04575, 0.04585, 0.04610, 0.04592, 0.04545, 0.04521, 0.04457, 0.04413, 0.04336, 0.04265, 0.04198, 0.04123, 0.04035, 0.03963, 0.03890, 0.03803, 0.03714
25	0.02702, 0.03286, 0.03681, 0.03932, 0.04108, 0.04234, 0.04323, 0.04371, 0.04399, 0.04423, 0.04410, 0.04386, 0.04348, 0.04318, 0.04267, 0.04193, 0.04134, 0.04059, 0.03984, 0.03933, 0.03855, 0.03778, 0.03696, 0.03624, 0.03556

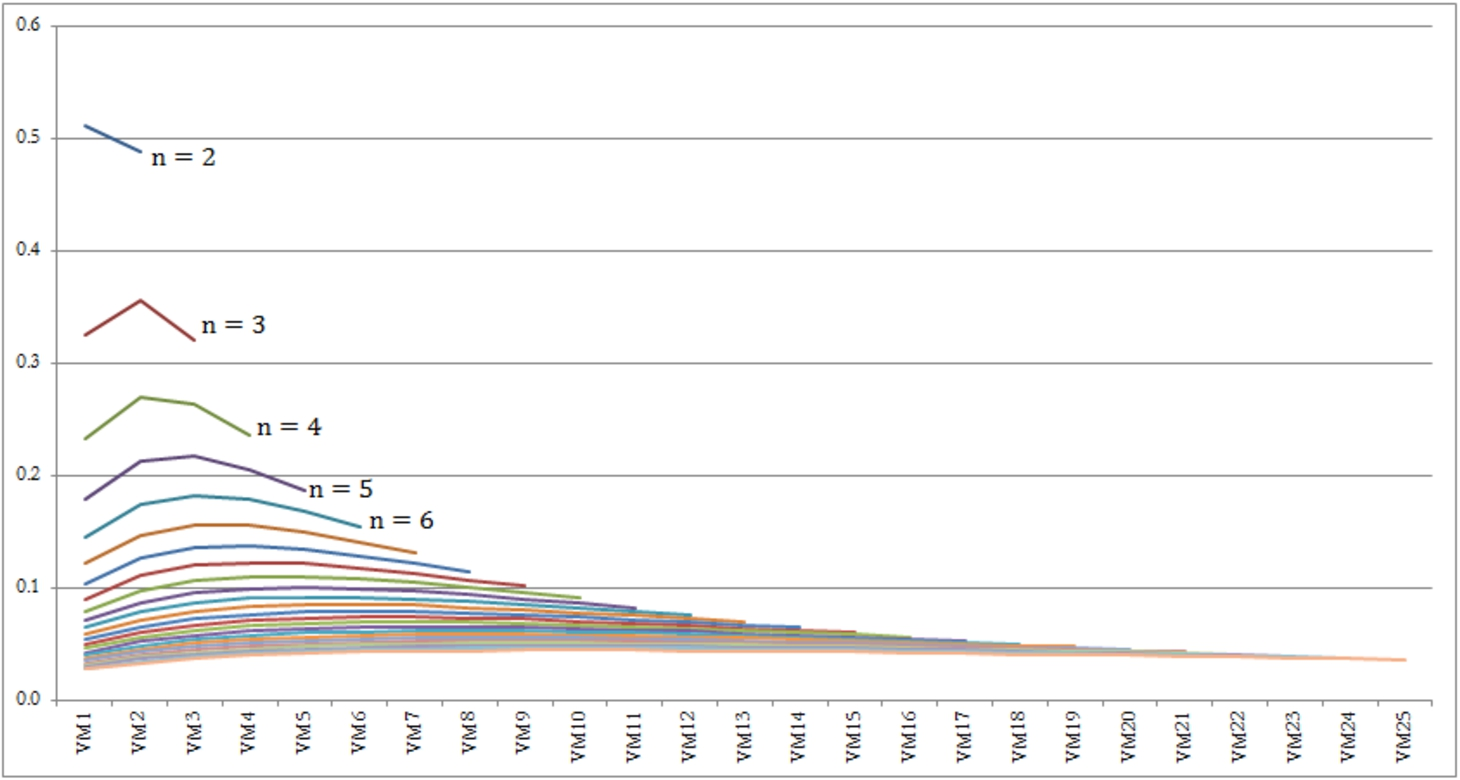

The coefficients in the IROC function have been portrayed in Fig. 2. As a major consequence from this figure, we can conclude that the curves are not uniform. Moreover, each set of the coefficients tends to follow a concave shape with the maximum at point ${VM}_{⌈ n / 2 ⌉}$ or a near point for larger number of the criteria. For example, the maximum is at ${VM}_{5}$ for $n = 10$ and at ${VM}_{9}$ for $n = 21$ . Additionally, most the curves present a little skewed to the right distribution.

Fig. 2

Variations of the IROC coefficients for different number of the criteria.

2.3 Comparison

In this section, we report a set of simulation experiments that was conducted with the purpose of comparing the behaviour of the ROC method versus the IROC method. All the characteristics of this simulation scheme were like the previous simulation experiments (described in Section 2.2), unless: (I) the two methods ROC and IROC were considered to be tested simultaneously, and (II) four levels of the alternatives ( $m = 3, 5, 7, 10$ ) and five levels of the criteria ( $n = 3, 5, 7, 10, 15$ ) are considered.

Table 2 depicts the efficacy measures data obtained from the experiments. To sum up, throughout the simulation results, we can conclude that the IROC method appears to be a better performer than the ROC method as expected. In respect to the HR, the data indicates that the IROC method outperforms the ROC method over 17 out of 20 (= 85%) cases. Among these 17 cases, in 14 cases the numerical data for the IROC method and ROC method differ only in the third decimal place, and in 3 cases ( $3 \times 5$ , $5 \times 15$ , and $10 \times 10$ ) the differences are even in the second decimal place. The same is true of the mean values of the HR (0.85924 for the ROC method versus 0.86026 for the IROC method). As regards the RC measure, like the HR, the IROC method is superior to the ROC method over 17 out of 20 combinations. Interestingly, in 6 cases out of these 17 combinations, the differences between the IROC method and ROC method data are even about 0.01 which is considerable in turn. In addition, the mean row of the table shows that the use of the IROC method leads to a mean RC of 0.46230, while the use of the ROC method yields a mean RC of 0.46488. In the table, the columns entitled improvement (%) are subtracting the ROC method performance value from the IROC method performance value, divided by the ROC method performance value. From this point of view, the numbers indicate an improvement of the IROC method over the ROC method up to about 1%.

Table 2
Simulation results of the average HR and RC measures for the ROC and IROC methods.

HR RC

Alt. Cri. ROC IROC Difference Improvement (%) ROC IROC Difference Improvement (%)

3 3 0.90312 0.90372 −0.00060 0.066% 0.75060 0.75068 −0.00005 0.011%

5 0.88866 0.89000 −0.00134 0.151% 0.71887 0.72027 −0.00140 0.195%

7 0.89232 0.89388 −0.00156 0.175% 0.72545 0.72837 −0.00292 0.403%

10 0.89836 0.89970 −0.00134 0.149% 0.73592 0.73932 −0.00340 0.462%

15 0.90692 0.90636 0.00056 −0.062% 0.76072 0.76227 −0.00155 0.203%

5 3 0.85868 0.85942 −0.00074 0.086% 0.53050 0.53127 −0.00077 0.146%

5 0.85920 0.85868 0.00052 −0.061% 0.52080 0.52058 0.00022 −0.041%

7 0.85882 0.85998 −0.00116 0.135% 0.52694 0.53037 −0.00343 0.650%

10 0.86860 0.86884 −0.00024 0.028% 0.54814 0.55313 −0.00499 0.911%

15 0.87904 0.88114 −0.00210 0.239% 0.57459 0.57854 −0.00395 0.686%

7 3 0.83384 0.83444 −0.00060 0.072% 0.36175 0.36164 0.00011 −0.032%

5 0.83800 0.83916 −0.00116 0.138% 0.35628 0.35628 0.00000 0.000%

7 0.84466 0.84542 −0.00076 0.090% 0.36715 0.37102 −0.00387 1.054%

10 0.85362 0.85372 −0.00010 0.012% 0.39131 0.39515 −0.00384 0.981%

15 0.86294 0.86418 −0.00124 0.144% 0.42541 0.43017 −0.00476 1.119%

10 3 0.81382 0.81384 −0.00002 0.002% 0.17066 0.16968 0.00098 −0.574%

5 0.82344 0.82256 0.00088 −0.107% 0.16099 0.16252 −0.00153 0.954%

7 0.82180 0.82338 −0.00158 0.192% 0.17266 0.17648 −0.00382 2.210%

10 0.83904 0.84018 −0.00114 0.136% 0.20291 0.20872 −0.00581 2.866%

15 0.84578 0.84652 −0.00074 0.087% 0.24436 0.25106 −0.00670 2.743%

Mean 0.85924 0.86026 −0.00102 0.084% 0.46230 0.46488 −0.00258 0.557%

		HR	RC
3	3	0.90312	0.90372	−0.00060	0.066%	0.75060	0.75068	−0.00005	0.011%
	5	0.88866	0.89000	−0.00134	0.151%	0.71887	0.72027	−0.00140	0.195%
	7	0.89232	0.89388	−0.00156	0.175%	0.72545	0.72837	−0.00292	0.403%
	10	0.89836	0.89970	−0.00134	0.149%	0.73592	0.73932	−0.00340	0.462%
	15	0.90692	0.90636	0.00056	−0.062%	0.76072	0.76227	−0.00155	0.203%
5	3	0.85868	0.85942	−0.00074	0.086%	0.53050	0.53127	−0.00077	0.146%
	5	0.85920	0.85868	0.00052	−0.061%	0.52080	0.52058	0.00022	−0.041%
	7	0.85882	0.85998	−0.00116	0.135%	0.52694	0.53037	−0.00343	0.650%
	10	0.86860	0.86884	−0.00024	0.028%	0.54814	0.55313	−0.00499	0.911%
	15	0.87904	0.88114	−0.00210	0.239%	0.57459	0.57854	−0.00395	0.686%
7	3	0.83384	0.83444	−0.00060	0.072%	0.36175	0.36164	0.00011	−0.032%
	5	0.83800	0.83916	−0.00116	0.138%	0.35628	0.35628	0.00000	0.000%
	7	0.84466	0.84542	−0.00076	0.090%	0.36715	0.37102	−0.00387	1.054%
	10	0.85362	0.85372	−0.00010	0.012%	0.39131	0.39515	−0.00384	0.981%
	15	0.86294	0.86418	−0.00124	0.144%	0.42541	0.43017	−0.00476	1.119%
10	3	0.81382	0.81384	−0.00002	0.002%	0.17066	0.16968	0.00098	−0.574%
	5	0.82344	0.82256	0.00088	−0.107%	0.16099	0.16252	−0.00153	0.954%
	7	0.82180	0.82338	−0.00158	0.192%	0.17266	0.17648	−0.00382	2.210%
	10	0.83904	0.84018	−0.00114	0.136%	0.20291	0.20872	−0.00581	2.866%
	15	0.84578	0.84652	−0.00074	0.087%	0.24436	0.25106	−0.00670	2.743%
Mean	0.85924	0.86026	−0.00102	0.084%	0.46230	0.46488	−0.00258	0.557%

Even though Table 2 obviously shows the superiority of the IROC method over the ROC method; two tests as equation (8) and equation (9) are built, the former to compare the ROC HR population mean and the IROC HR population mean, and the latter o compare the ROC RC population mean and the IROC RC population mean. $\begin{aligned} \{\begin{array}{l} H_{0} : μ_{ROC HR} - μ_{IROC HR} = 0, \\ H_{1} : μ_{ROC HR} - μ_{IROC HR} < 0, \end{array} \end{aligned}$ (8) $\begin{aligned} \{\begin{array}{l} H_{0} : μ_{ROC RC} - μ_{IROC RC} = 0, \\ H_{1} : μ_{ROC RC} - μ_{IROC RC} < 0 . \end{array} \end{aligned}$ (9)

Table 2 shows that the data as for the ROC HR/RC minus the IROC HR/RC are paired. In fact, there are two samples in which each observation in one sample is paired with one observation in another sample. Hence, firstly, we employ the Shapiro–Wilk tests (Shapiro and Wilk, 1965), as seen in equation (10) and equation (11), to survey whether the HR/RC differences are normally distributed. $\begin{aligned} \{\begin{array}{l} H_{0} : Differences (μ_{ROC HR} - μ_{IROC HR}) are normally distributed, \\ H_{1} : Differences (μ_{ROC HR} - μ_{IROC HR}) are not normally distributed, \end{array} \end{aligned}$ (10) $\begin{aligned} \{\begin{array}{l} H_{0} : Differences (μ_{ROC RC} - μ_{IROC RC}) are normally distributed, \\ H_{1} : Differences (μ_{ROC RC} - μ_{IROC RC}) are not normally distributed . \end{array} \end{aligned}$ (11)

In equation (10), the test statistic equals 0.9563, and the Shapiro–Wilk critical value using 99% confidence is 0.868. Because $0.9563 > 0.868$ , we conclude that the HR differences are normally distributed. In equation (11), to check the normality of the RC difference data, the Shapiro–Wilk statistic is 0.9506 that is greater than 0.868, thus at a 99% of confidence the RC differences are normally distributed.

Both the HR differences and the RC differences are normally distributed. Thus, the one-way paired t-student test is applied for the tests in equation (8) and equation (9). For equation (8), the t-student test statistic is calculated as −4.0986, and the critical range at 99% confidence level is $T < - 2.539$ . Because −4.0986 < −1.729, we reject null hypothesis in equation (8), and deduce that there is an absolutely significant difference between the two populations. In fact, the HR values in the ROC method are significantly less than that of in the IROC method. For equation (9), the statistic is equal to −5.1884, thus because −5.1884 < −1.729 we reject null hypothesis and put our trust in this fact that the IROC RC averages are significantly greater than the ROC RC averages.

The ROC and IROC weights for $n = 2$ to 15 are displayed in Table 3. The difference percentage between each two given corresponding weights is calculated as subtracting the ROC weight from the IROC weight divided by the ROC weight. Figure 3 shows how the difference percentage varies as the rank of criteria increases. For illustration, in case with 3 criteria, the ROC weights are 0.6111, 0.2778, and 0.1111, the IROC weights are 0.6086, 0.2845, and 0.1069, and the difference percentages are $(0.6086 - 0.6111) / 0.6111 = - 0.40 %$ , +2.42% and −3.83%, respectively. The curves in the figure disclose a decrease from the ROC weight to the IROC weight for the criterion at the first rank, increase from the ROC weight to the IROC weight for some criteria at the middle ranks, and decrease from the ROC weight to the IROC weight for the criteria at the tail end ranks.

Table 3

The weights produced by the ROC and IROC methods for $n = 2$ to 15.

$n :$	2	3	4	5	6	7	8	9	10	11	12	13	14	15
ROC	0.7500	0.6111	0.5208	0.4567	0.4083	0.3704	0.3397	0.3143	0.2929	0.2745	0.2586	0.2446	0.2323	0.2212
	0.2500	0.2778	0.2708	0.2567	0.2417	0.2276	0.2147	0.2032	0.1929	0.1836	0.1753	0.1677	0.1608	0.1545
		0.1111	0.1458	0.1567	0.1583	0.1561	0.1522	0.1477	0.1429	0.1382	0.1336	0.1292	0.1251	0.1212
			0.0625	0.0900	0.1028	0.1085	0.1106	0.1106	0.1096	0.1079	0.1058	0.1036	0.1013	0.0990
				0.0400	0.0611	0.0728	0.0793	0.0828	0.0846	0.0851	0.0850	0.0844	0.0834	0.0823
					0.0278	0.0442	0.0543	0.0606	0.0646	0.0670	0.0683	0.0690	0.0692	0.0690
						0.0204	0.0335	0.0421	0.0479	0.0518	0.0544	0.0562	0.0573	0.0579
							0.0156	0.0262	0.0336	0.0388	0.0425	0.0452	0.0471	0.0484
								0.0123	0.0211	0.0275	0.0321	0.0356	0.0381	0.0400
									0.0100	0.0174	0.0229	0.0270	0.0302	0.0326
										0.0083	0.0145	0.0193	0.0230	0.0260
											0.0069	0.0123	0.0165	0.0199
												0.0059	0.0106	0.0143
													0.0051	0.0092
														0.0044
IROC	0.7557	0.6086	0.5134	0.4464	0.3960	0.3574	0.3251	0.2998	0.2775	0.2591	0.2434	0.2290	0.2163	0.2057
	0.2443	0.2845	0.2810	0.2673	0.2512	0.2360	0.2223	0.2098	0.1984	0.1881	0.1789	0.1706	0.1631	0.1566
		0.1069	0.1466	0.1607	0.1643	0.1628	0.1594	0.1547	0.1496	0.1447	0.1397	0.1349	0.1305	0.1262
			0.0590	0.0883	0.1037	0.1109	0.1142	0.1149	0.1143	0.1129	0.1109	0.1087	0.1064	0.1039
				0.0373	0.0591	0.0720	0.0799	0.0844	0.0870	0.0882	0.0882	0.0880	0.0874	0.0863
					0.0257	0.0421	0.0531	0.0602	0.0651	0.0681	0.0700	0.0711	0.0717	0.0718
						0.0187	0.0317	0.0406	0.0471	0.0516	0.0548	0.0571	0.0586	0.0595
							0.0143	0.0245	0.0322	0.0378	0.0420	0.0451	0.0473	0.0490
								0.0112	0.0197	0.0260	0.0310	0.0348	0.0377	0.0398
									0.0091	0.0161	0.0215	0.0259	0.0293	0.0319
										0.0075	0.0133	0.0181	0.0220	0.0249
											0.0062	0.0113	0.0155	0.0188
												0.0054	0.0097	0.0133
													0.0046	0.0084
														0.0040

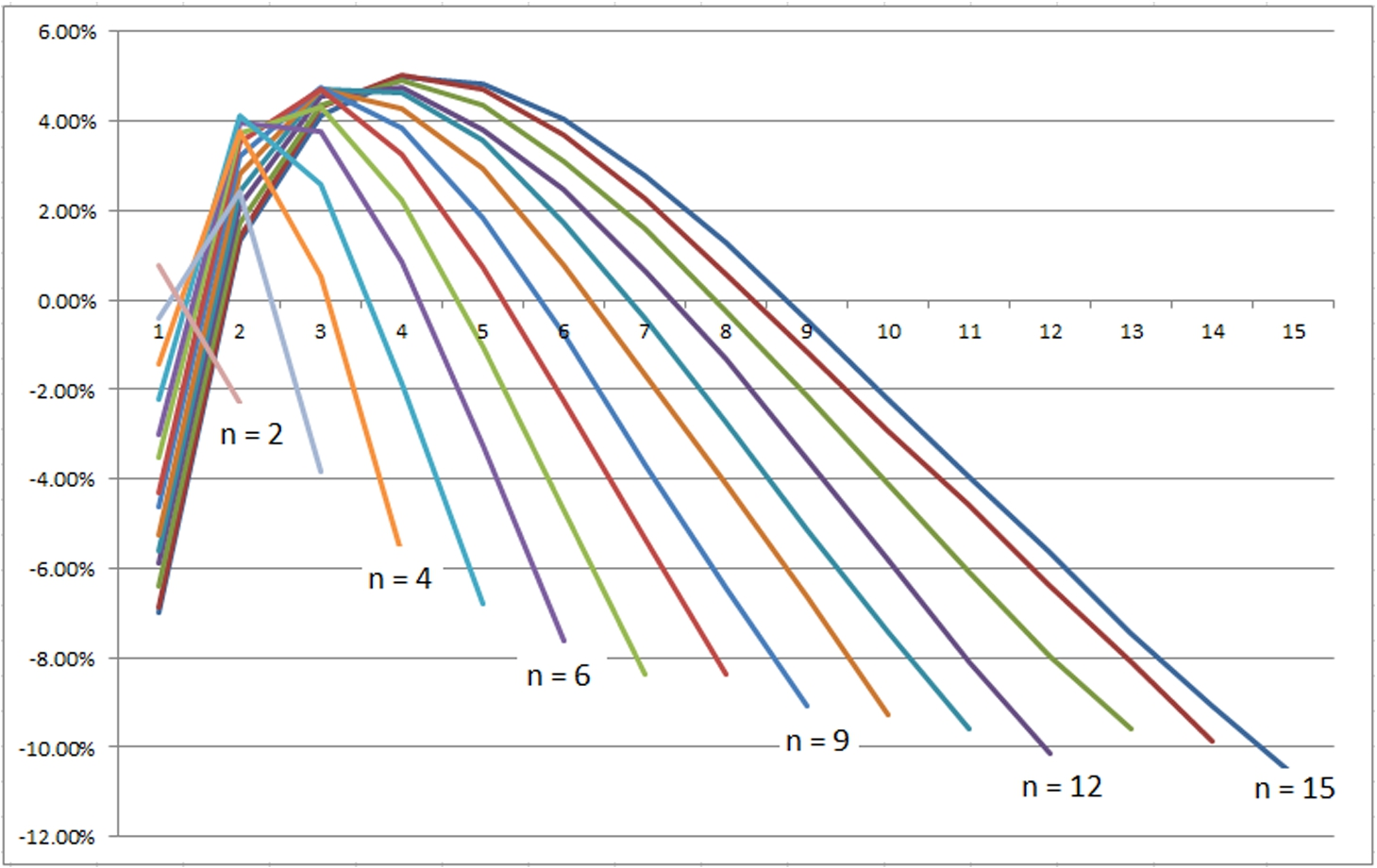

Fig. 3

Variation of the difference percentage between the ROC weights and the IROC weights.

3 The Proposed Methodology

The procedure of the proposed methodology is briefly shown as follows:

Step (A): Determine a panel of the related subject matter experts, who adequately realize the problem, and their knowledge/skills are sufficient to make proper judgments. The expert number is denoted by E ( $k = 1, \dots, E$ ).

Step (B): Draw up a Criteria Breakdown Structure (CBS). This structure is made using a Delphi method or superior documents/approvals. Figure 4 represents a schematic CBS diagram. Assume that there are P parent boxes ( $v = 1, \dots, P$ ) of the criteria in the CBS. A parent box refers a criterion which is divided into some sub-criteria. Assign numbers $1, 2, \dots, P$ to the parent boxes.

Step (C): Consider the 1st box of the CBS (i.e. $v = 1$ ).

Fig. 4

A schematic CBS.

Step (D): Assume that n criteria $(j = 1, \dots, n)$ are branched off from parent box v of the CBS. Ask each expert to relatively rank these criteria. Let’s $r_{k j}$ denotes the rank proposed by kth expert for jth criterion.

Step (E): Measure the degree of consensus among the panelists using Kendall’s coefficient of concordance (Kendall and Gibbons, 1990). The Kendall’s coefficient ranges from 0 (no agreement) to 1 (complete agreement). To calculate the coefficient, a total rank for each criterion is firstly computed by equation (12). After that, the mean value of the total ranks is computed by equation (13). Finally, the Kendall’s coefficient is defined as equation (14), where the sum of squared deviations is the numerator in equation (14). $\begin{aligned} R_{j} = \sum_{k = 1}^{E} r_{k j}, j = 1, \dots, n, \end{aligned}$ (12) $\begin{aligned} \overline{R} = \frac{\sum_{j = 1}^{n} R_{j}}{n} = \frac{E n (n + 1)}{2}, \end{aligned}$ (13) $\begin{aligned} T = 12 \frac{\sum_{j = 1}^{n} {(R_{j} - \overline{R})}^{2}}{E^{2} (n^{3} - n)} . \end{aligned}$ (14)

Table 4 shows a guideline to interpret the Kendall’s coefficient.

Step (F): If T indicates a strong or higher consensus in the ranks, go to the next step, otherwise it is necessary to revise the individual ranks by the experts in another meeting, to emerge a higher consensus. This action is repeated until a strong or higher consensus is built.

Table 4

Interpretation of the Kendall‘s coefficient.

Coefficient $(T)$	Consensus in ranks
[0.0 0.1)	Very weak
[0.1 0.3)	Weak
[0.3 0.5)	Fair
[0.5 0.7)	Strong
[0.7 0.9)	Very strong
[0.9 1.0)	Complete

Step (G): Extract the concordant ranks from the total ranks computed by equation (12). The bigger value of the total rank indicates the lower concordant rank of a criterion.

Step (H): Use the IROC method to estimate the criteria weights.

Step (I): If $v = P$ , then go to Step (J), otherwise set $v = v + 1$ , then go to Step (D).

Step (J): Use simple product formula (SPA) to determine the final weight of each criterion at the lowest level of the CBS. In point of fact, the final weight of a criterion is simply obtained by multiplying its weight by its sequential parent’s weights in the CBS.

4 Study Case

4.1 A Brief Introduction

Public transport development often requires participatory decision making procedures (Duleba et al., 2021). One of the major decision making context is energy management. Energy is the fundamental and essential core of the public transport in countries. Experts have estimated that the global need for energy may rise by more than 50% up to 2030 (Singh et al., 2018). The Energy Information Administration (EIA) outlook report 2020 shows that the public transport accounts for about 25% of all energy consumption in the world. Today, countries are faced with several technologies for their public transport vehicles. These technologies, among others, are (Sperling, 1995; Morita, 2003; Tzeng et al., 2005; Patil et al., 2010; Mousaei and Hatefi, 2015; Erdogan et al., 2019; Rani and Mishra, 2020; Andersson et al., 2020; Cui et al., 2022; Abbasi and Hadji-Hosseinlou, 2022):

•
Diesel engines/vehicles such as conventional diesel, ultra-low-sulfur diesel, bio-diesel (e.g. vegetable oil biodiesel, and animal fat biodiesel).
•
Gas engines/vehicles such as Compressed Natural Gas (CNG), Liquefied Propane Gas (LPG), Liquefied Natural Gas (LNG), Dimethyl Ether (DME), Gas-To-Liquid (GTL), and hydrogen fuel cell.
•
Blend engines/vehicles such as methanol & gasoline blend, hydrogen & CNG blend or hythane, and bio-CNG blend.
•
Electric engines/vehicles such as opportunity charging, direct electric charging, and exchangeable-battery electric.
•
Hybrid engines/vehicles such as electric & gasoline hybrid, electric & diesel hybrid, electric & CNG hybrid, and electric & LPG hybrid.

From the above list, some kind, e.g., conventional diesel engine/vehicle, are based on burning fossil fuels (Bhan et al., 2022), which generates carbon dioxide and other air pollutants such as unburned hydrocarbons and oxides of nitrogen, resulting in global warming and climate unwelcome changes. On the contrary, the modern technologies, e.g., exchangeable-battery electric engine/vehicle, have cleaner engines, which do not use fossil resources. Governments always need to choose the proper engine/vehicle technology to invest in and to develop in their public transport network. This challenge is often modelled as a MADM problem. In this regard, governments often have to respond the two following preliminary important questions:
A.
Which criteria have to be involved in the engine/vehicle selection problem?
B.
How much is the weight factor of each criterion?

The proposed methodology (explained in Section 3) is employed to answer the above questions. There are a number of researches related to the current case, most of them have determined list of the related criteria. Let’s review some samples. Poh and Ang (1999) used Analytic Hierarchy Process (AHP) in order to evaluate the transportation fuels in Singapore. Winebrake and Creswick (2003) employed the AHP method to analyse the outlook of hydrogen-based engines for transportation systems. Tzeng et al. (2005) is a seminal work in the field of the current study case. They used Technique for Order Preference by Similarity to Ideal Solution (TOPSIS) for the sake of determining the best alternative fuel buses compatible with urban area circumstances. Patil et al. (2010) developed a framework to model the interactions between different aspects of a transportation system, and showed up the strategies which affect decision making about engines/fuels with regard to public transport. For fuel selection in public transport, a fuzzy decision making framework was developed by Vahdani et al. (2011). Scott et al. (2012) carried out a review of those academic investigations attempting to deal with issues arising within the bioenergy, using MCDM techniques. Asilata and Keswani (2015) addressed a systematic analysis for selection of fuel by using the AHP method. Shah et al. (2017) presented an overview of available liquid and gaseous fuel, commonly used as transportation fuel in Bangladesh, and illustrated the potential of bio-CNG conversion from biogas. Oztaysi et al. (2017) concentrated on the alternative fuel selection problem of a company in the USA. They developed a multi-expert MCDM technique using Interval-Valued Intuitionistic Fuzzy Sets (IVIFS) with linguistic data. Erdogan and Sayin (2018) performed a study to choose the best fuel for the compression ignition engine. They employed the SWARA method to determine the criteria weights, and used Multi-Objective Optimization on the basis of Ratio Analysis (MULTIMOORA) to rank the selected fuels. Erdogan et al. (2019) used hybrid models SWARA-MOORA and ANP-MOORA to select the optimum fuel for the compression ignition engine/vehicle. Karasan and Kahraman (2020) made use of Interval-Valued Neutrosophic (IVN) ELECTRE I method to select renewable energy alternative for a municipality. Rani and Mishra (2020) proposed a novel decision making model based on the operators of q-Rung Ortho-Pair Fuzzy Sets (q-ROFSs), weighted aggregated sum product model, score function and similarity measure to deal with the alternative-fuel technology selection problem, wherein the decision experts and the criteria weights were completely unknown. Andersson et al. (2020) evaluated which criteria have an influence on the fuel choice between ethanol and gasoline for owners of Flex-Fuel Vehicles (FFVs) in Sweden. Major results showed that price, perceptions about quality, age and environmental attitudes influence the willingness to choose ethanol.
4.2 The Criteria List

This section reports findings of the criteria identification in the engine/vehicle selection problem. A complete criteria list is founded based upon both the published literature and the expert’s judgments. We did the best to extract all the criteria reported in the relevant literature, among others, Poh and Ang (1999), Winebrake and Creswick (2003), Tzeng et al. (2005), Patil et al. (2010), Vahdani et al. (2011), Scott et al. (2012), Farkas (2014), Mousaei and Hatefi (2015), Asilata and Keswani (2015), Shah et al. (2017), Oztaysi et al. (2017), Hatefi (2018), Erdogan and Sayin (2018), Erdogan et al. (2019), Karasan and Kahraman (2020), and Rani and Mishra (2020). After that, a Delphi evaluation, using 9 related participants who were experts in the field of various engines/vehicles, was preformed to reach consensus on the criteria. In each round of the process, the respondents had to answer the questions to refine the criteria, i.e. to screen, to add, to combine, or to decompose them. We made use of the advantage of being performed by email in the Delphi process. The type of attendance meeting was not selected for the reason of Covid-19 conditions. In Table 5, let’s review the final list of the criteria obtained from the above-mentioned process. This list includes main criteria (1st level) and sub-criteria (2nd level).

Table 5
The engine/vehicle selection criteria.

1st level criteria 2nd level criteria Description

Performance-based features Energy supply Yearly amount of energy which can be supplied.

Energy efficiency The efficiency of fuel/energy used in engine.

Traffic flow speed The average speed of vehicle for definite traffic.

Vehicle capabilities The capability of vehicle, such as speed and slope climbing.

Environmental features Air pollution The amount of release of pollutants into the air.

Soil pollution The amount of release of pollutants into the soil.

Water pollution The amount of release of pollutants to the water, such as organic pollutants, inorganic pollutants, pathogens, suspended solids, nutrients, and agriculture pollutants.

Noise pollution The noise made by operation of engine/vehicle.

Economical features Distance to market Average distance between the production factories and the consumption region of the related fuel.

Transportation easiness The degree of hardness of fuel/energy transportation.

Energy storage The rate of hardness of fuel/energy to be stored.

Internal consumption trend The consumption trend of fuel in the region under study.

World trend The consumption trend of fuel in the world. Specifically, the focus point of the big oil companies.

Fixed price The fixed price of fuel/energy.

Financial features Purchase cost The purchase cost of vehicle.

Maintenance cost The maintenance cost of engine/vehicle.

Infrastructural features Road infrastructures The road infrastructures required for the operation of vehicle.

Industrial infrastructures The existent industrial infrastructures to produce engine/vehicle.

Technological features Maturity of technology The maturity level of the relevant technologies.

Safety aspects The safety features of engine/vehicle.

Industrial relationships The relationship between engine/vehicle industrial system and other industrial sectors.

Social features Community acceptability The extent to which the community’s people accept vehicle.

Accessories The accessories and other options of vehicle, in order to provide sense of comfort.

Risk-based features Political risks For example, regulatory, diplomacy, and entente risks.

Economical risks For example, inflation, rent, and sanctions risks.

Social risks For example, risks concerned with culture, carriers, and psychology.

Technical risks Risks and uncertainties related to technical and operational aspects, for example, maintainability.

1st level criteria	2nd level criteria	Description
Performance-based features	Energy supply	Yearly amount of energy which can be supplied.
Energy efficiency	The efficiency of fuel/energy used in engine.
Traffic flow speed	The average speed of vehicle for definite traffic.
Vehicle capabilities	The capability of vehicle, such as speed and slope climbing.
Environmental features	Air pollution	The amount of release of pollutants into the air.
Soil pollution	The amount of release of pollutants into the soil.
Water pollution	The amount of release of pollutants to the water, such as organic pollutants, inorganic pollutants, pathogens, suspended solids, nutrients, and agriculture pollutants.
Noise pollution	The noise made by operation of engine/vehicle.
Economical features	Distance to market	Average distance between the production factories and the consumption region of the related fuel.
Transportation easiness	The degree of hardness of fuel/energy transportation.
Energy storage	The rate of hardness of fuel/energy to be stored.
Internal consumption trend	The consumption trend of fuel in the region under study.
World trend	The consumption trend of fuel in the world. Specifically, the focus point of the big oil companies.
Fixed price	The fixed price of fuel/energy.
Financial features	Purchase cost	The purchase cost of vehicle.
Maintenance cost	The maintenance cost of engine/vehicle.
Infrastructural features	Road infrastructures	The road infrastructures required for the operation of vehicle.
Industrial infrastructures	The existent industrial infrastructures to produce engine/vehicle.
Technological features	Maturity of technology	The maturity level of the relevant technologies.
Safety aspects	The safety features of engine/vehicle.
Industrial relationships	The relationship between engine/vehicle industrial system and other industrial sectors.
Social features	Community acceptability	The extent to which the community’s people accept vehicle.
Accessories	The accessories and other options of vehicle, in order to provide sense of comfort.
Risk-based features	Political risks	For example, regulatory, diplomacy, and entente risks.
Economical risks	For example, inflation, rent, and sanctions risks.
Social risks	For example, risks concerned with culture, carriers, and psychology.
Technical risks	Risks and uncertainties related to technical and operational aspects, for example, maintainability.

4.3 The Criteria Weights

A sample country is considered to be analysed using the proposed methodology. Regarding all the criteria displayed in Table 5, a decision making group including 9 experts $(E = 9)$ were prioritized the 1st level criteria $(n = 8)$ , and 2nd level criteria ( $n = 4, 4, 6, 2, 2, 3, 2$ , and 3, respectively) individually. As example, Table 6 shows the ranks for the 1st level criteria. The Kendall’s coefficients were at strong or higher level for all of the ranks. Table 7 represents the final findings. In this table, the final weight is computed by multiplying the two related columns, for instance, the weight of energy supply (= 0.0914) is obtained by $0.3251 \times 0.2810$ .

Table 6
1st level criteria ranked by 9 experts.

Ranks by the experts $R_{j}$ Overall rank

Criteria #1 #2 #3 #4 #5 #6 #7 #8 #7 #9

Performance-based features 1 2 1 1 3 1 2 1 2 1 14 1

Environmental features 4 1 2 2 2 4 5 2 1 4 23 2

Economical features 2 4 3 3 1 2 6 3 7 2 31 3

Financial features 3 3 4 8 6 3 3 7 8 3 45 4

Infrastructural features 6 5 7 6 7 5 1 6 3 6 46 5

Technological features 5 6 5 7 8 8 8 8 4 5 59 8

Social features 8 8 6 5 4 7 7 4 5 8 54 7

Risk-based features 7 7 8 4 5 6 4 5 6 7 52 6

$\overline{R} = 40.5$ , $T = 0.5309$

	Ranks by the experts	$R_{j}$	Overall rank
Performance-based features	1	2	1	1	3	1	2	1	2	1	14	1
Environmental features	4	1	2	2	2	4	5	2	1	4	23	2
Economical features	2	4	3	3	1	2	6	3	7	2	31	3
Financial features	3	3	4	8	6	3	3	7	8	3	45	4
Infrastructural features	6	5	7	6	7	5	1	6	3	6	46	5
Technological features	5	6	5	7	8	8	8	8	4	5	59	8
Social features	8	8	6	5	4	7	7	4	5	8	54	7
Risk-based features	7	7	8	4	5	6	4	5	6	7	52	6
$\overline{R} = 40.5$ , $T = 0.5309$

Table 7

The criteria weights in the study case.

1st level criteria			2nd level criteria			Final weight
Title	Rank	Weight	Title	Rank	weight
Performance-based features	1	0.3251	Energy supply	2	0.2810		0.0914
			Energy efficiency	1	0.5134	0.1669
			Traffic flow speed	4	0.0590	0.0192
			Vehicle capabilities	3	0.1466	0.0477
Environmental features	2	0.2223	Air pollution	1	0.5134	0.1141
			Soil pollution	3	0.1466	0.0326
			Water pollution	2	0.2810	0.0625
			Noise pollution	4	0.0590	0.0131
Economical features	3	0.1594	Distance to market	1	0.3960	0.0631
			Transportation easiness	2	0.2512	0.0400
			Energy storage	4	0.1037	0.0165
			Internal consumption trend	3	0.1643	0.0262
			World trend	6	0.0257	0.0041
			Fixed price	5	0.0591	0.0094
Financial features	4	0.1142	Purchase cost	1	0.7557	0.0863
Financial features			Maintenance cost	2	0.2443	0.0279
Infrastructural features	5	0.0799	Road infrastructures	2	0.2443	0.0195
Infrastructural features			Industrial infrastructures	1	0.7557	0.0604
Technological features	8	0.0143	Maturity of technology	1	0.6086	0.0087
			Safety aspects	2	0.2845	0.0041
			Industrial relationships	3	0.1069	0.0015
Social features	7	0.0317	Community acceptability	1	0.7557	0.0240
Social features			Accessories	2	0.2443	0.0077
Risk-based features	6	0.0531	Political risks	1	0.5134	0.0273
			Economical risks	2	0.2810	0.0149
			Social risks	3	0.1466	0.0078
			Technical risks	4	0.0590	0.0031

5 Conclusions

This paper focused on weighting the criteria in MCDM problem. To assign the weights to the criteria, the paper concentrated on the approximate weighting approach, in which the criteria weights are estimated based on the ranks of the criteria given by the DM. The reason for this selection is this fact that in complex MCDM models, most subjective methods for eliciting the exact weights often may cause that the DMs cannot give reliable information. Although there are various approximate weighting methods in the literature, it was shown that the ROC method is still known as the best method compared with the existent methods. Notwithstanding, the paper depicted the theoretical means of the ROC method is under an unrealistic assumption, i.e. the corner weight vectors of the weight space are equal in the DM’s preference. In order to resolve this drawback, as the major contribution of the paper, a different coefficient for each corner was obtained. Next, the ROC function was reformulated to involve the new coefficients. This new function was named the IROC method. Two series of simulation experiments were performed in this study. The first set of experiments was conducted to adjust the IROC parameters. By means of the second set of simulations, the improvement of the IROC decision quality than that of the ROC method was proved.

A group decision making methodology was suggested to estimate the criteria weights in a breakdown structure of the criteria called CBS. This methodology benefits from the IROC method. Under a real-life study case about the engine/vehicle selection problem, the paper reviewed the respected literature to extract the criteria, and conducted a Delphi analysis to finalize the criteria register including 8 criteria at the first level and 27 criteria at the second level. Later, the proposed methodology was used to estimate the criteria weights in each level.

The current paper tried to establish default values for the IROC coefficients. A future research may focus on the extraction of these coefficients from the DM’s preferences. Except for this future research direction, it is also interesting to investigate establishment of a reliable model to analytically/theoretically compare different weight approximation methods. Such a model has not been studied so far.

At the end, we hope that employing the proposed methodology helps the relevant country’s DMs to take proper policies/decisions in a productive manner.

References

Abbasi

Hadji-Hosseinlou

(2022). Assessing feasibility of overnight-charging electric bus in a real-world BRT system in the context of a developing country. Scientia Iranica, 29(6), 2968–2978.

Ahn

B.S.

(2011). Compatible weighting method with rank order centroid: maximum entropy ordered weighted averaging approach. European Journal of Operational Research, 212(3), 552–559.

Ahn

B.S.

(2017). Approximate weighting method for multi-attribute decision problems with imprecise parameters. Omega, 72, 87–95.

Ahn

B.S.

Park

K.S.

(2008a). Comparing methods for multi attribute decision making with ordinal weights. Computers & Operations Research, 35(5), 1660–1670.

Ahn

B.S.

Park

K.S.

(2008b). Least-squared ordered weighted averaging operator weights. International Journal of Intelligent Systems, 23, 33–49.

Alfares

H.K.

Duffuaa

S.O.

(2008). Assigning cardinal weights in multi-criteria decision making based on ordinal ranking. Journal of Multi-Criteria Decision Analysis, 15(5–6), 125–133.

Alfares

H.K.

Duffuaa

S.O.

(2016). Simulation-based evaluation of criteria rank weighting methods in multi-criteria decision making. International Journal of Information Technology and Decision Making, 15(1), 43–61.

Andersson

Kastensson

Warell

(2020). Transition towards sustainable transportation – what determines fuel choice? Transport Policy, 90, 31–38.

Asilata

M.D.

Keswani

I.P.

(2015). Selection of fuel by using analytical hierarchy process. Journal of Engineering Research and Applications, 5(4), 91–94.

10.

Barron

F.H.

(1992). Selecting a best multi-attribute alternative with partial information about attribute weights. Acta Psychologica, 80, 91–103.

11.

Barron

Barrett

B.E.

(1996). Decision quality using ranked attribute weights. Management Science, 42(11), 1515–1523.

12.

Bhan

Gautam

Singh

(2022). An experimental assessment of combustion, emission, and performance behavior of a diesel engine fueled with newly developed biofuel blend of two distinct waste cooking oils and metallic nano-particle (Al₂O₃). Scientia Iranica, 29(4), 1853–1867.

13.

Bottomley

P.A.

Doyle

J.R.

(2001). A comparison of three weight elicitation methods: good, better, and best. Omega, 29, 553–560.

14.

Cui

Liu

Cong

Han

Yin

(2022). Characterization and assessment of fire evolution process of electric vehicles placed in parallel. Process Safety and Environmental Protection, 166, 524–534.

15.

Danielson

Ekenberg

(2014). Rank ordering methods for multi-criteria decisions. In: Proceedings of the 14th Group Decision and Negotiation (GDN 2014), Springer.

16.

Danielson

Ekenberg

(2016). A robustness study of state-of-the-art surrogate weights for MCDM. Group Decision and Negotiation, 26, 677–691.

17.

Dawes

R.M.

Corrigan

(1974). Linear models in decision making. Psychological Bulletin, 81, 91–106.

18.

Diao

Cai

Wei

(2022). Taxonomy method for multiple attribute group decision making under the spherical fuzzy environment. Informatica, 33(4), 713–729.

19.

Doyle

J.R.

Green

R.H.

Bottomley

P.A.

(1997). Judging relative importance: direct rating and point allocation are not equivalent. Organizational Behavior and Human Decision Processes, 70(1), 65–72.

20.

Duleba

Kutlu Gundogdu

Moslem

(2021). Interval-valued spherical fuzzy analytic hierarchy process method to evaluate public transportation development. Informatica, 32(4), 661–686.

21.

Erdogan

Sayin

(2018). Selection of the most suitable alternative fuel depending on the fuel characteristics and price by the hybrid MCDM method. Sustainability, 10, 1583.

22.

Erdogan

Balki

M.K.

Aydin

Sayin

(2019). The best fuel selection with hybrid multiple-criteria decision making approaches in a CI engine fueled with their blends and pure biodiesels produced from different sources. Renewable Energy, 134, 653–668.

23.

Farkas

(2014). An interaction-based scenario and evaluation of alternative fuel modes of buses. Acta Polytechnica Hungarica, 11(1), 205–225.

24.

Ginevičius

(2011). A new determining method for the criteria weights in multi-criteria evaluation. International Journal of Information Technology & Decision Making, 10(6), 1067–1095.

25.

Hatefi

M.A.

(2018). A multi-criteria decision analysis model on the fuels for public transport with the use of hybrid ROC-ARAS method. Petroleum Business Review, 1(2), 45–55.

26.

Hatefi

M.A.

(2019). Indifference threshold-based attribute ratio analysis: a method for assigning the weights to the attributes in multiple attribute decision making. Applied Soft Computing, 74, 643–651.

27.

Hatefi

M.A.

(2021). BRAW: block-wise rating the attribute weights in MADM. Computers & Industrial Engineering, 156, 107274, 14 pages.

28.

Hatefi

M.A.

(2022). A typology scheme for the criteria weighting methods in MADM. International Journal of Information Technology & Decision Making. https://doi.org/10.1142/S0219622022500985. 50 pages.

29.

Hatefi

M.A.

Balilehvand

H.R.

(2023). Risk assessment of oil and gas drilling operation: an empirical case using a hybrid GROC-VIMUN-modified FMEA method. Process Safety and Environmental Protection, 170, 392–402.

30.

Hwang

C.L.

Yoon

(1981). Multiple Attribute Decision Making: Methods and Applications. Springer, Berlin.

31.

Karasan

Kahraman

(2020). Selection of the most appropriate renewable energy alternatives by using a novel interval-valued neutrosophic ELECTRE I method. Informatica, 31(2), 225–248.

32.

Katsikopoulos

K.V.

Fasolo

(2006). New tools for decision analysts. IEEE Transactions on Systems, Man, and Cybernetics – Part A: Systems and Humans, 36(5), 960–967.

33.

Keeney

R.L.

Raiffa

H.D.

(1993). Decision with Multiple-Objectives: Preferences and Value Tradeoffs. Cambridge University Press, New York.

34.

Kendall

Gibbons

(1990). Rank Correlation Method. Edward Arnold, London.

35.

Kersuliene

Zavadskas

E.K.

Turskis

(2010). Selection of rational dispute method by applying new Step-wise Weight Assessment Ratio Analysis (SWARA). Journal of Business Economics and Management, 11(2), 243–258.

36.

Keshavarz Ghorabaee

Amiri

Zavadskas

E.K.

Turskis

Antucheviciene

(2018). Simultaneous Evaluation of Criteria and Alternatives (SECA) for multi-criteria decision making. Informatica, 29(2), 265–280.

37.

Liang

Brunelli

Septian

Rezaei

(2021). Belief-based best worst method. International Journal of Information Technology & Decision Making, 20(1), 287–320.

38.

Liu

Liang

(2020). An integrated approach towards modelling ranked weights. Computers & Industrial Engineering, 147, 106629. 16 pages.

39.

Lootsma

F.A.

(1999). Multi-Criteria Decision Analysis via Ratio and Difference Judgment. Kluwer Academic Publishers, Dordrecht, Netherlands.

40.

Morais

D.C.

Almeida

A.T.

Alencar

L.H.

Clemente

T.R.N.

Cavalcanti

C.Z.B.

(2015). PROMETHEE-ROC model for assessing the readiness of technology for generating energy. Mathematical Problems in Engineering, 2015, 530615, 11 pages.

41.

Morita

(2003). Automotive power source in 21st century. Journal of Society of Automotive Engineers of Japan, 24, 3–7.

42.

Mousaei

Hatefi

M.A.

(2015). A Decision Support System (DSS) to select the premier fuel to develop in the value chain of Natural Gas (NG). International Journal of Oil & Gas Science and Technology, 4(3), 60–76.

43.

Oztaysi

Onar

S.C.

Kahraman

Yavuz

(2017). Multi-criteria alternative-fuel technology selection using interval-valued intuitionistic fuzzy sets. Transportation Research Part D, 53, 128–148.

44.

Patil

Herder

Brown

(2010). Investment decision making for alternative fuel public transport buses: The case of Brisbane transport. Journal of Public Transportation, 13(2), 115–133.

45.

Poh

K.L.

Ang

B.W.

(1999). Transportation fuels and policy for Singapore: An AHP planning approach. Computers and Industrial Engineering, 37(4), 507–525.

46.

Rani

Mishra

A.R.

(2020). Multi-criteria weighted aggregated sum product assessment framework for fuel technology selection using q-rung ortho-pair fuzzy sets. Sustainable Production and Consumption, 24, 90–104.

47.

Roberts

Goodwin

(2002). Weight approximations in multi-attribute decision models. Journal of Multi-Criteria Decision Analysis, 11, 291–303.

48.

Sarabando

Dias

L.C.

(2009). Multi-attribute choice with ordinal information: a comparison of different decision rules. IEEE Transactions on Systems, Man, and Cybernetics, Part A, 39(3), 545–554.

49.

Scott

J.A.

Dey

P.K.

(2012). A review of multi-criteria decision-making methods for bioenergy systems. Energy, 42(1), 146–156.

50.

Shah

M.S.

Halder

P.K.

Shamsuzzaman

A.S.M.

Hossain

M.S.

Pal

S.K.

Sarker

(2017). Perspectives of biogas conversion into bio-CNG for automobile fuel in Bangladesh. Journal of Renewable Energy, 4385295, 1–14.

51.

Shapiro

S.S.

Wilk

M.B.

(1965). An analysis of variance test for normality. Biometrika, 52(3/4), 591–611.

52.

Singh

A.P.

Agarwal

R.A.

Agarwal

A.K.

Dhar

Shukla

M.K.

(2018). Prospects of Alternative Transportation Fuels. Springer, Berlin.

53.

Sperling

(1995). Future-Drive Electric Vehicles and Sustainable Transportation. Island Press, Washington DC.

54.

Srivastava

Connolly

Beach

L.R.

(1995). Do ranks suffice? A comparison of alternative weighting approaches in value elicitation. Organizational Behavior Human Decision Process, 63(1), 112–116.

55.

Stillwell

W.G.

Seaver

D.A.

Edwards

(1981). A comparison of weight approximation techniques in multi-attribute utility decision making. Organizational Behavior and Human Performance, 28(1), 62–77.

56.

Sureeyatanapas

Sriwattananusart

Niyamosoth

Sessomboon

Arunyanart

(2018). Supplier selection towards uncertain and unavailable information: an extension of TOPSIS method. Operations Research Perspectives, 5, 69–79.

57.

Tzeng

G.H.

Lin

C.W.

Opricovic

(2005). Multi-criteria analysis of alternative fuel buses for public transportation. Energy Policy, 33, 1373–1383.

58.

Vahdani

Zandieh

Tavakkoli-Moghaddam

(2011). Two novel FMCDM methods for alternative fuel buses selection. Applied Mathematical Modelling, 35, 1396–1412.

59.

Wang

Zionts

(2015). Using ordinal data to estimate cardinal values. Journal of Multi-Criteria Decision Analysis, 22, 185–196.

60.

Wang

Y.M.

Lou

(2010). Integration of correlations with standard deviations for determining attribute weights in multiple attribute decision making. Mathematical and Computer Modeling, 51(1–2), 1–12.

61.

Winebrake

J.J.

Creswick

B.P.

(2003). The future of hydrogen fueling systems for transportation: An application of perspective-based scenario analysis using the Analytic Hierarchy Process. Technology Forecasting Social Change, 70(2), 359–384.

62.

Winkler

R.L.

Hays

W.L.

(1985). Statistics: Probability, Inference, and Decision. Holt, Rinehart and Winston New York.

63.

Zizovic

Pamucar

Cirovic

Zizovic

M.M.

Miljkovic

B.D.

(2020). Model for determining weight confidents by forming a Non-decreasing Series at Criteria Significance Levels (NDSL). Mathematics, 8, 745.

		HR				RC
Alt.	Cri.	ROC	IROC	Difference	Improvement (%)	ROC	IROC	Difference	Improvement (%)
3	3	0.90312	0.90372	−0.00060	0.066%	0.75060	0.75068	−0.00005	0.011%
	5	0.88866	0.89000	−0.00134	0.151%	0.71887	0.72027	−0.00140	0.195%
	7	0.89232	0.89388	−0.00156	0.175%	0.72545	0.72837	−0.00292	0.403%
	10	0.89836	0.89970	−0.00134	0.149%	0.73592	0.73932	−0.00340	0.462%
	15	0.90692	0.90636	0.00056	−0.062%	0.76072	0.76227	−0.00155	0.203%
5	3	0.85868	0.85942	−0.00074	0.086%	0.53050	0.53127	−0.00077	0.146%
	5	0.85920	0.85868	0.00052	−0.061%	0.52080	0.52058	0.00022	−0.041%
	7	0.85882	0.85998	−0.00116	0.135%	0.52694	0.53037	−0.00343	0.650%
	10	0.86860	0.86884	−0.00024	0.028%	0.54814	0.55313	−0.00499	0.911%
	15	0.87904	0.88114	−0.00210	0.239%	0.57459	0.57854	−0.00395	0.686%
7	3	0.83384	0.83444	−0.00060	0.072%	0.36175	0.36164	0.00011	−0.032%
	5	0.83800	0.83916	−0.00116	0.138%	0.35628	0.35628	0.00000	0.000%
	7	0.84466	0.84542	−0.00076	0.090%	0.36715	0.37102	−0.00387	1.054%
	10	0.85362	0.85372	−0.00010	0.012%	0.39131	0.39515	−0.00384	0.981%
	15	0.86294	0.86418	−0.00124	0.144%	0.42541	0.43017	−0.00476	1.119%
10	3	0.81382	0.81384	−0.00002	0.002%	0.17066	0.16968	0.00098	−0.574%
	5	0.82344	0.82256	0.00088	−0.107%	0.16099	0.16252	−0.00153	0.954%
	7	0.82180	0.82338	−0.00158	0.192%	0.17266	0.17648	−0.00382	2.210%
	10	0.83904	0.84018	−0.00114	0.136%	0.20291	0.20872	−0.00581	2.866%
	15	0.84578	0.84652	−0.00074	0.087%	0.24436	0.25106	−0.00670	2.743%
Mean		0.85924	0.86026	−0.00102	0.084%	0.46230	0.46488	−0.00258	0.557%
