Homogenization of the Poisson equation in a non-periodically perforated domain

Abstract

We study the Poisson equation in a perforated domain with homogeneous Dirichlet boundary conditions. The size of the perforations is denoted by $ε > 0$ , and is proportional to the distance between neighbouring perforations. In the periodic case, the homogenized problem (obtained in the limit $ε \to 0$ ) is well understood (see (Rocky Mountain J. Math. 10 (1980) 125–140)). We extend these results to a non-periodic case which is defined as a localized deformation of the periodic setting. We propose geometric assumptions that make precise this setting, and we prove results which extend those of the periodic case: existence of a corrector, convergence to the homogenized problem, and two-scale expansion.

Keywords

Homogenization Perforated domain Poisson equation

1. Introduction

In this article, we study the following problem: $\begin{matrix} (1.1) & \{\begin{matrix} - Δ u_{ε} = f & in Ω_{ε} \\ u_{ε} = 0 & on \partial Ω_{ε}, \end{matrix} \end{matrix}$ where f is a given smooth, compactly-supported function (this assumption may be relaxed, as we will see below in Remarks 1.4 and 2.4), and $Ω_{ε}$ is a perforated domain that we make precise in the following. Our aim is to study the asymptotic behaviour of $u_{ε}$ as $ε \to 0$ , deriving a two-scale expansion and proving convergence estimates. In [22], these results were obtained in the periodic case (that is, if the perforations are a periodic array of period ε). Here, we adapt this work to a non-periodic setting. Using Assumptions (A1) and (A2) below, which are inspired from the setting developed in [1–3], we first prove the existence of a corrector (Theorem 2.1 below). While this result is trivial in the periodic case, it is not in the present setting. Then, we prove the convergence result stated in Theorem 2.2, which is a generalization of [22, Theorem 3.1] to the present setting. We also prove such a convergence in $L^{\infty}$ norm (Theorem 2.3 below), a result which was not proved in [22]. As it is noticed in [17,25] for the periodic case, the crucial point in order to prove such results is a Poincaré inequality with an explicit scaling in ε, for functions vanishing in the perforations (see Lemma 1.1 below in the periodic case and Lemma 3.2 in the non-periodic case).

To our knowledge, the first contributions on the homogenization of elliptic problems in perforated domains are [13,24] in which qualitative results are obtained. The setting is periodic, the holes are “large” (i.e. they have the same size as the period), the equation is elliptic in divergence form and various boundary conditions are considered, such as constant Dirichlet boundary conditions on the holes and Neumann conditions. This implies that the limit is not necessarily trivial, in contrast to [22], where, as we will see below, $u_{ε} (x) \approx ε^{2} f (x) w (x / ε)$ , for some periodic function w. The case of Robin boundary conditions along the holes is addressed in [8]. In this work, an important tool to study the problem is the so-called extension operator, which is introduced in [13]. In [9,10], the case of operators in divergence form with periodic coefficients and with Robin boundary conditions is addressed, with the help of the periodic unfolding method (see [6,7]). The case of eigenvalue problems is considered in [26]. In [11,12], the geometry is periodic, the boundary conditions are of Dirichlet type but the holes are assumed to be asymptotically small compared to the period. The case of small holes with non-homogeneous Neumann boundary conditions is also developed in [14]. In [16], a perforated domain mixing large and small holes with a double periodicity structure is studied for the Poisson Equation with homogeneous Dirichlet boundary conditions. In [15], sufficient conditions on periodic holes are given which allow for homogenization. Sufficient conditions on the perforated domain are also provided in [17] for the homogenization of non-linear operators under divergence form with homogeneous Dirichlet boundary conditions.

In [5], a formalization in link with the H-convergence was proposed under general assumptions on the perforations. However, the computations are less explicit than in our setting. A general (non-periodic) perforated domain was also considered in [23]: this setting requires that, among other assumptions, the same perforation is reproduced in some cells of a periodic grid (but not necessarily all of them).

In the following subsection, we recall the results proved in the periodic setting in [22]. Then, in Section 1.2, we study the case of a locally perturbed periodic geometry. We give conditions on the perforations (inspired from [1–3]), which imply that, away from the defect, the perforations become periodic, and which allow to prove convergence results similar to those of the periodic case. In Section 2, we give the main results of the article, together with some remarks and comments. Section 3 is devoted to a Poincaré-type inequality which is crucial in our proof. Finally, Section 4 is devoted to the proofs of the results stated in Section 2.

1.1. The periodic case

We start with some notations. We consider the d-dimensional unit cube $Q =] 0, 1 [^{d}$ with $d ⩾ 2$ . Let $O_{0}^{per}$ be an open subset of Q such that $O_{0}^{per} \subset \subset Q$ and $Q ∖ \overline{O_{0}^{per}}$ is connected. For simplicity, we choose to impose that $\overline{O_{0}^{per}}$ cannot intersect the boundary of Q. Suppose, for elliptic regularity, that $O_{0}^{per}$ is a $C^{1, γ}$ domain, for some $0 < γ < 1$ .

We set, for all $k \in Z^{d}$ , $\begin{matrix} (1.2) & O_{k}^{per} = O_{0}^{per} + k and O^{per} = ⋃_{k \in Z^{d}} O_{k}^{per} . \end{matrix}$

If $k \in Z^{d}$ , we have $O_{k}^{per} \subset \subset Q_{k}$ where $Q_{k} : = Q + k$ .

Given $ε > 0$ , denote by $O_{ε}^{per}$ the set of ε-perforations: $\begin{matrix} (1.3) & O_{ε}^{per} = ⋃_{k \in Z^{d}} ε O_{k}^{per} = ⋃_{k \in Z^{d}} ε (O_{0}^{per} + k) = ε O^{per} . \end{matrix}$

We now define some useful functional spaces: $\begin{array}{l} H^{1, per} (Q ∖ \overline{O_{0}^{per}}) \\ (1.4) & : = {u \in H_{loc}^{1} (R^{d} ∖ \overline{O^{per}}) s.t. u and \partial_{i} u are Q -periodic for all i \in {1, \dots, d}} \end{array}$ and $\begin{matrix} (1.5) & H_{0}^{1, per} (Q ∖ \overline{O_{0}^{per}}) : = {u \in H^{1, per} (Q ∖ \overline{O_{0}^{per}}) s.t. u_{| \partial O_{0}^{per}} = 0} . \end{matrix}$ The two spaces defined by (1.4) and (1.5) are Hilbert spaces for the norm $\begin{matrix} ‖ u ‖_{H^{1, per} (Q ∖ \overline{O_{0}^{per}})} : = {(\int_{Q ∖ \overline{O_{0}^{per}}} | u |^{2} + \int_{Q ∖ \overline{O_{0}^{per}}} | \nabla u |^{2})}^{1 / 2} . \end{matrix}$ In the sequel, a function of $H^{1, per} (Q ∖ \overline{O_{0}^{per}})$ or of $H_{0}^{1, per} (Q ∖ \overline{O_{0}^{per}})$ will naturally be extended to $R^{d} ∖ \overline{O^{per}}$ by periodicity.

All along the paper, we will denote the $H^{1}$ -semi-norm on a set V by $| \cdot |_{H^{1} (V)}$ : $\begin{matrix} | u |_{H^{1} (V)} : = {(\int_{V} | \nabla u |^{2})}^{1 / 2} . \end{matrix}$

Let Ω be a bounded, open and connected domain of $R^{d}$ . For $ε > 0$ , denote by $Ω_{ε} : = Ω ∖ \overline{O_{ε}^{per}}$ . Note that $Ω_{ε}$ is open and bounded but may not be connected.

One has $\begin{matrix} (1.6) & Ω_{ε} = Ω \cap (⋃_{k \in Z^{d}} ε (Q_{k} ∖ \overline{O_{k}^{per}})) . \end{matrix}$ Figure 1 shows the set $Ω_{ε}$ for two values $ε_{0}$ and $ε_{1}$ satisfying $ε_{0} > ε_{1}$ . The set $Ω_{ε}$ is colored in light grey. We are interested in the Poisson problem (1.1). As we already mentioned, the source term f is supposed, as in [22], smooth and compactly supported in Ω. In fact, (see Remark 3.3 of [22]), it is sufficient to suppose that $f \in C^{m - 2} (\overline{Ω})$ and that $D^{p} f_{| \partial Ω} = 0$ for all $| p | ⩽ m - 2$ , where m is the order of the two scale expansion of $u_{ε}$ . As pointed out in [21], the assumptions on f can be weakened further (see Remark 1.4 below).

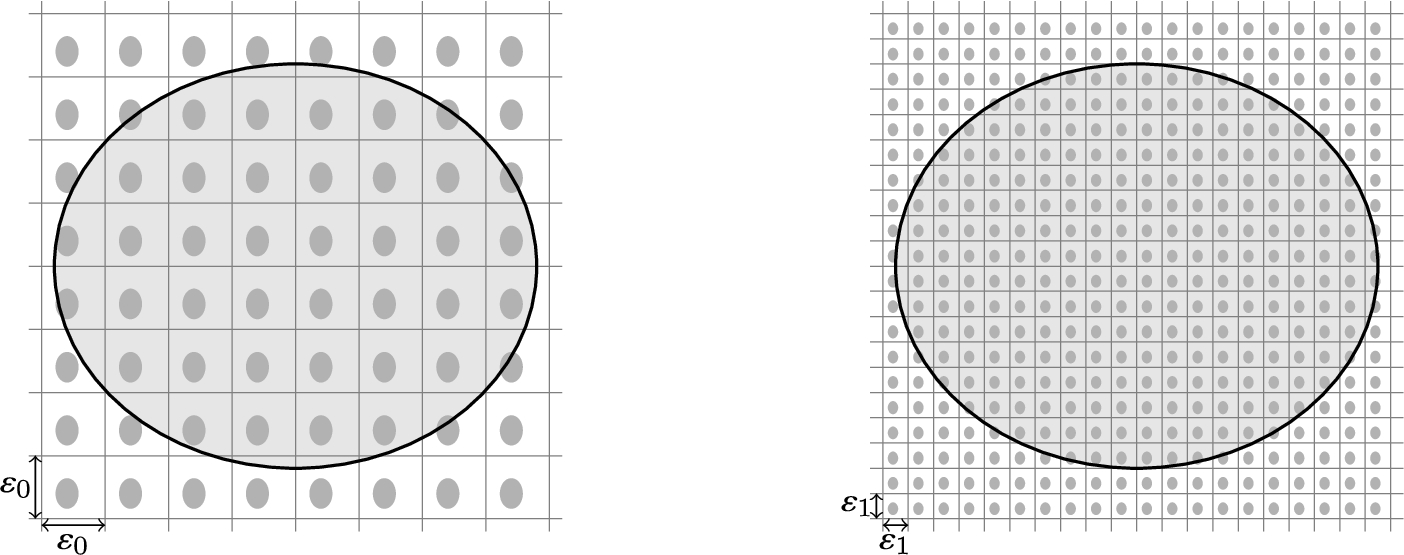

Fig. 1.

The periodic set for two choices of ε, $ε_{0}$ and $ε_{1} = ε_{0} / 2.5$ .

By a simple application of the Lax–Milgram Lemma, we have existence and uniqueness of a solution $u_{ε}$ to (1.1). In order to study the dependence of $u_{ε}$ on ε, we will need the following Lemma which is a Poincaré-type inequality in $H_{0}^{1} (Ω_{ε})$ . It is proved in [25, Lemma 1] (see also [4, Proposition 3.1]). A crucial point in the non-periodic case will be to have a similar result, with the same scaling in ε. This is why we use Assumption (A2), which allows to prove Lemma 3.2 below.

Lemma 1.1 (Lemma 1 of [25]).

There exists a constant $C_{0} > 0$ independent of ε such that $\begin{matrix} \forall u \in H_{0}^{1} (Ω_{ε}), ‖ u ‖_{L^{2} (Ω_{ε})} ⩽ C_{0} ε ‖ \nabla u ‖_{L^{2} (Ω_{ε})} . \end{matrix}$

This allows to prove Lemma 2 of [25]:

Lemma 1.2 (Lemma 2 of [25]).

The solution $u_{ε}$ of Problem ( 1.1 ) satisfies the estimates $\begin{matrix} (1.7) & ‖ u_{ε} ‖_{L^{2} (Ω_{ε})} ⩽ C ε^{2} and ‖ u_{ε} ‖_{H_{0}^{1} (Ω_{ε})} ⩽ C ε, \end{matrix}$ where C is a constant independent of ε.

Using a two-scale expansion of the form (see [22, Section 2]) $\begin{matrix} (1.8) & u_{ε} (x) = u_{0}^{per} (x, \frac{x}{ε}) + ε u_{1}^{per} (x, \frac{x}{ε}) + ε^{2} u_{2}^{per} (x, \frac{x}{ε}) + ε^{3} u_{3}^{per} (x, \frac{x}{ε}) + \dots, \end{matrix}$ where the functions $u_{i}^{per}$ are defined on $Ω \times (Q ∖ \overline{O_{0}^{per}})$ , smooth and Q-periodic in the second variable, one proves that, at least formally, $\begin{matrix} (1.9) & u_{ε} (x) = ε^{2} w^{per} (\frac{x}{ε}) f (x) + \dots, \end{matrix}$ where $w^{per}$ is the periodic solution of $\begin{matrix} (1.10) & \{\begin{matrix} - Δ w^{per} = 1, \\ w^{per} \in H_{0}^{1, per} (Q ∖ \overline{O_{0}^{per}}) . \end{matrix} \end{matrix}$ We note that Problem (1.10) is well-posed. Indeed, it suffices to apply Lax–Milgram’s Lemma to the following variational form $\begin{matrix} \forall v \in H_{0}^{1, per} (Q ∖ \overline{O_{0}^{per}}), \int_{Q ∖ \overline{O_{0}^{per}}} \nabla w^{per} \cdot \nabla v = \int_{Q ∖ \overline{O_{0}^{per}}} v . \end{matrix}$

The following convergence result is proved in [22, Theorem 3.1] (take $m = 2$ there).

Theorem 1.3 (Consequence of Theorem 3.1 of [22]).

Assume that $O_{0}^{per}$ is an open subset of Q such that $O_{0}^{per} \subset \subset Q$ . Let $f \in D (Ω)$ and $u_{ε}$ be the solution to ( 1.1 ). Then there exists a constant C independent of ε such that $\begin{matrix} (1.11) & ε^{- 1} {‖ u_{ε} - ε^{2} w^{per} (\cdot / ε) f ‖}_{L^{2} (Ω_{ε})} + {| u_{ε} - ε^{2} w^{per} (\cdot / ε) f |}_{H^{1} (Ω_{ε})} ⩽ C ε^{2}, \end{matrix}$ where $w^{per} \in H_{0}^{1, per} (Q ∖ \overline{O_{0}^{per}})$ is the unique function satisfying $- Δ w^{per} = 1$ .

Remark 1.4.
If we assume in addition that $O_{0}^{per}$ is of class $C^{1, γ}$ for some $0 < γ < 1$ , then Theorem 1.3 still holds true under the weaker hypotheses $f \in H^{2} \cap L^{\infty} (Ω)$ and $f_{| \partial Ω} = 0$ in the trace sense (see [21, Appendix A.2]). If we do not suppose that f vanishes on $\partial Ω$ , $u_{ε} - ε^{2} w (\cdot / ε) f$ does not vanish on $\partial Ω$ either and we have the weaker estimate $\begin{matrix} {‖ u_{ε} - ε^{2} w (\cdot / ε) f ‖}_{H^{1} (Ω_{ε})} ⩽ C ε^{3 / 2} N (f), \end{matrix}$ where $N (f) = ‖ f ‖_{L^{\infty}} + ‖ \nabla f ‖_{L^{2}} + ‖ Δ f ‖_{L^{2}}$ .
1.2. The non-periodic case

We aim at extending the previous results to non-periodically perforated medium, in the special case of local perturbations of the periodic structure. More precisely, we define a reference periodic configuration by (1.2)–(1.3)–(1.6), and, for each $k \in Z^{d}$ , we denote by $O_{k}$ the (non-periodic) perforation in the cell k. We assume that $O_{0}^{per}$ is of class $C^{1, γ}$ for some $0 < γ < 1$ . Our first assumption is that perforations should be sufficiently regular:

(A1) For all $k \in Z^{d}$ , $O_{k}$ is a $C^{1, γ}$ open set such that $O_{k} \subset \subset Q_{k}$ and $Q_{k} ∖ \overline{O_{k}}$ is connected.

We now introduce geometric tools. For $α > 0$ , define the Minkowski-content of $\partial O_{0}^{per}$ (i.e a widened boundary of $O_{0}^{per}$ ) by the set $\begin{matrix} U_{0}^{per} (α) : = {x \in R^{d} s.t. dist (x, \partial O_{0}^{per}) < α} . \end{matrix}$ Similarly, if $k \in Z^{d}$ and $α > 0$ , denote the set $\begin{matrix} U_{k}^{per} (α) : = {x \in R^{d} s.t. dist (x, \partial O_{k}^{per}) < α} = U_{0}^{per} (α) + k . \end{matrix}$ Now (see Fig. 2 left), we define the reduction and the enlargement of $O_{k}^{per}$ by $\begin{matrix} O_{k}^{per, -} (α) : = O_{k}^{per} ∖ \overline{U_{k}^{per} (α)} and O_{k}^{per, +} (α) : = O_{k}^{per} \cup U_{k}^{per} (α) . \end{matrix}$ One has $O_{k}^{per, -} (α) \subset O_{k}^{per, +} (α) and U_{k}^{per} (α) = O_{k}^{per, +} (α) ∖ \overline{O_{k}^{per, -} (α)}$ . We clearly have $\begin{matrix} (1.12) & O_{k}^{per, +} (α) = {x \in R^{d} s.t. dist (x, O_{k}^{per}) < α}, \end{matrix}$ and $\begin{matrix} (1.13) & O_{k}^{per, -} (α) = {x \in O_{k}^{per} s.t. dist (x, \partial O_{k}^{per}) > α} . \end{matrix}$ Assumption (A2) reads:

(A2) There exists a sequence ${(α_{k})}_{k \in Z^{d}}$ such that $α_{k} ⩾ 0$ , ${(α_{k})}_{k \in Z^{d}} \in ℓ^{1} (Z^{d})$ and $\begin{matrix} (1.14) & \forall k \in Z^{d}, O_{k}^{per, -} (α_{k}) \subset O_{k} \subset O_{k}^{per, +} (α_{k}) \end{matrix}$ i.e $O_{k}$ is between the enlargement and the reduction of $O_{k}^{per}$ .

Remark 1.5.
Assumption (A2) is a way to impose that the defect is localized. In [1–3], such an assumption is written as $a = a^{per} + \tilde{a}$ , with $\tilde{a} \in L^{q} (R^{d})$ , and $a^{per}$ is periodic, where a is the coefficient of the considered elliptic equation. Here, writing a similar condition, we impose that the characteristic function of the perforations is a perturbation (i.e, a function in $L^{q} (R^{d})$ ) of the periodic case. For a characteristic function, being in $L^{q} (R^{d})$ is equivalent to being in $L^{1} (R^{d})$ , hence the condition (A2).

Note that if $α_{k}$ is sufficiently large, $O_{k}^{per, -} (α_{k}) = \emptyset$ and $Q_{k} \subset O_{k}^{per, +} (α_{k})$ . Thus, there is potentially no restriction on (a finite number of) $O_{k}$ . Figure 2 (right) explains Assumption (A2).

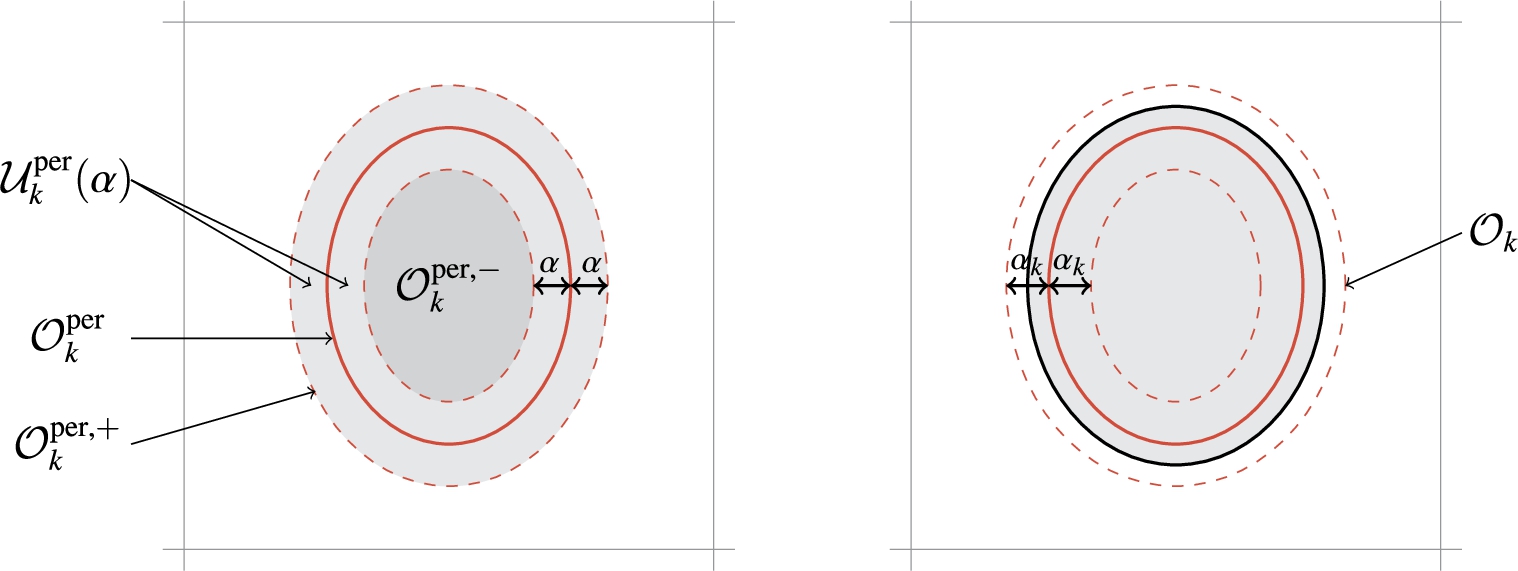

Fig. 2.
On the left, illustration of $O_{k}^{per}$ (red), its widened boundary $U_{k}^{per}$ , its enlargement $O_{k}^{per, +}$ and its reduction $O_{k}^{per, -}$ (grey). On the right, $O_{k}$ .

We define $\begin{matrix} (1.15) & O : = ⋃_{k \in Z^{d}} O_{k} . \end{matrix}$ We split the domain $R^{d} ∖ \overline{O}$ into two subdomains: $\begin{matrix} R^{d} ∖ (\overline{O \cup O^{per}}) and O^{per} ∖ \overline{O} . \end{matrix}$ Note that these domains are not necessarily connected.

We split the boundary of the domain $O^{per} ∖ O$ into two parts (the one surrounding $O^{per}$ and the one surrounding $O$ ). For $k \in Z^{d}$ , we define $\begin{matrix} (1.16) & Γ_{1}^{k} = \partial O_{k}^{per} ∖ \overline{O_{k}} and Γ_{2}^{k} = \partial O_{k} \cap O_{k}^{per} s.t. \partial (O_{k}^{per} ∖ \overline{O_{k}}) = Γ_{1}^{k} \cup Γ_{2}^{k} . \end{matrix}$ We denote by $Γ_{1}$ (resp. $Γ_{2}$ ) the union of the $Γ_{1}^{k}$ (resp. $Γ_{2}^{k}$ ), $k \in Z^{d}$ : $\begin{matrix} (1.17) & Γ_{1} = ⋃_{k \in Z^{d}} Γ_{1}^{k}, Γ_{2} = ⋃_{k \in Z^{d}} Γ_{2}^{k} . \end{matrix}$

We also split the boundary of $R^{d} ∖ (\overline{O \cup O^{per}})$ into two parts. Write $\partial (R^{d} ∖ (\overline{O \cup O^{per}})) = \partial (O \cup O^{per})$ , and define for $k \in Z^{d}$ $\begin{matrix} (1.18) & Γ_{3}^{k} = \partial O_{k} ∖ O_{k}^{per} s.t. \partial (O_{k} \cup O_{k}^{per}) = Γ_{1}^{k} \cup Γ_{3}^{k} . \end{matrix}$ Note that $\begin{matrix} \partial O_{k} = Γ_{2}^{k} \cup Γ_{3}^{k} . \end{matrix}$ $Γ_{3}$ denotes the union of the $Γ_{3}^{k}$ . Note that $Γ_{3}$ is in fact the complement of $Γ_{2}$ in $\partial O$ . Figure 3 explains the above definitions.

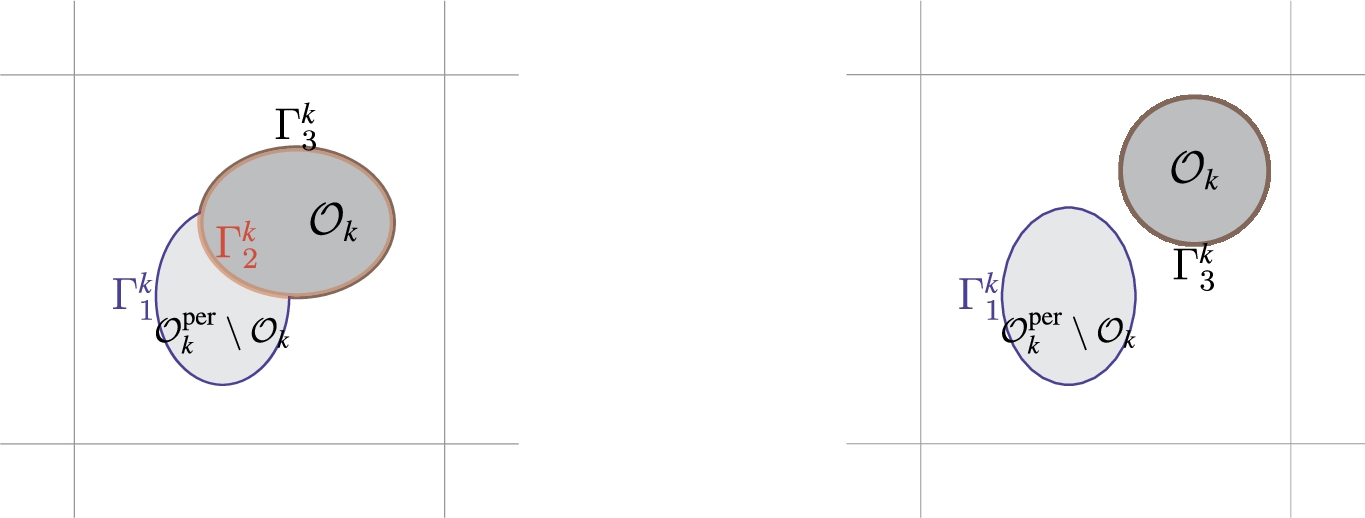

Fig. 3.
Pictures of perforated cells divided into two subdomains (white and light grey) with boundary $Γ_{i}, i = 1, 2, 3$ . Left: $O_{k} \cap O_{k}^{per} \neq \emptyset$ . Right: $O_{k} \cap O_{k}^{per} = \emptyset$ .

From Assumption (A2), we deduce Lemmas A.1, A.2 and A.3, which are stated and proved in Appendix x.
2. Results

In order to state our main result, we first need to prove that a corrector exists:

Theorem 2.1 (Existence and uniqueness of the corrector).

Let ${(O_{k})}_{k \in Z^{d}}$ be a sequence of open sets satisfying Assumptions (A1)–(A2). Let $O$ be defined by ( 1.15 ), and $\begin{matrix} g = 1_{R^{d} ∖ \overline{O^{per}}} + \tilde{g}, with \tilde{g} \in L^{2} (R^{d}) . \end{matrix}$ There exists a unique $\tilde{w} \in H^{1} (R^{d} ∖ \overline{O})$ such that $w : = w^{per} + \tilde{w} \in H^{1, per} (Q) + H^{1} (R^{d} ∖ \overline{O})$ is solution in the sense of distributions of $\begin{matrix} (2.1) & \{\begin{matrix} - Δ w = g in R^{d} ∖ \overline{O} \\ w_{| \partial O} = 0, \end{matrix} \end{matrix}$ where $w^{per} \in H_{0}^{1, per} (Q ∖ \overline{O_{0}^{per}})$ is the unique solution of the periodic corrector problem ( 1.10 ) extended by zero to $R^{d}$ .

Using Theorem 2.1 and a two-scale expansion, as it is done in the periodic case, we have the following result, which is the generalization of Theorem 1.3 to the present setting:

Theorem 2.2 (Convergence theorem in $H^{1} -$ norm).

Let ${(O_{k})}_{k \in Z^{d}}$ be a sequence of open sets satisfying Assumptions (A1)–(A2), and assume that $O$ is defined by ( 1.15 ).

Let $Ω \subset R^{d}$ be a bounded domain and define for $ε > 0$ the perforated set $Ω_{ε} : = Ω ∖ ε \overline{O}$ .

Let $f \in D (Ω)$ and $u_{ε}$ be the solution of Problem ( 1.1 ). Then there exists a constant $C > 0$ independent of ε such that $\begin{matrix} (2.2) & ε^{- 1} {‖ u_{ε} - ε^{2} w (\cdot / ε) f ‖}_{L^{2} (Ω_{ε})} + {| u_{ε} - ε^{2} w (\cdot / ε) f |}_{H^{1} (Ω_{ε})} ⩽ C ε^{2}, \end{matrix}$ where $w = w^{per} + \tilde{w} \in H^{1, per} (Q) + H^{1} (R^{d} ∖ \overline{O})$ is the unique solution of the corrector Problem ( 2.1 ) with $g = 1$ .

We note that the constant C appearing in Theorem 2.2 is independent of ε but depends on f, on the non-periodic corrector constructed in Theorem 2.1 and on the Poincaré–Friedrichs constant of $Ω_{ε}$ (denoted C in Lemma 3.2 below).

Theorem 2.2 provides an error estimate of $u_{ε} - ε^{2} w (\cdot / ε) f$ in $H^{1} (Ω_{ε})$ -norm. However, for this choice of norm, the use of a non-periodic corrector appears to be irrelevant, which means that we could also have used the periodic corrector $w^{per}$ in (2.2) without changing the rate of convergence. Indeed, we have $\begin{matrix} (2.3) & {‖ ε^{2} \tilde{w} (\frac{\cdot}{ε}) f ‖}_{H^{1} (Ω_{ε})} = O (ε^{2}) . \end{matrix}$ In order to prove (2.3), we only deal with the leading order term of the above quantity, that is, the $L^{2}$ -norm of the gradient. One has $\begin{array}{l} \int_{Ω_{ε}} {| \nabla [ε^{2} \tilde{w} (\frac{\cdot}{ε}) f] (x) |}^{2} & ⩽ 2 ε^{2} \int_{Ω_{ε}} {| \nabla \tilde{w} (\frac{x}{ε}) |}^{2} {| f (x) |}^{2} + 2 ε^{4} \int_{Ω_{ε}} \tilde{w} {(\frac{x}{ε})}^{2} {| \nabla f (x) |}^{2} \\ ⩽ C ε^{2} \int_{Ω_{ε}} {| \nabla \tilde{w} (\frac{x}{ε}) |}^{2} d x + C ε^{4} \int_{Ω_{ε}} {| \tilde{w} (\frac{x}{ε}) |}^{2} d x . \end{array}$ Thus, after the change of variable $y = x / ε$ , $\begin{matrix} \int_{Ω_{ε}} {| \nabla [ε^{2} \tilde{w} (\frac{\cdot}{ε}) f] (x) |}^{2} d x ⩽ C ε^{d + 2} \int_{R^{d} ∖ O} {| \nabla \tilde{w} (y) |}^{2} d y + C ε^{d + 4} \int_{R^{d} ∖ O} {| \tilde{w} (y) |}^{2} d y . \end{matrix}$ We thus have (2.3), which implies (since $d ⩾ 2$ ) $\begin{matrix} {‖ u_{ε} - ε^{2} w^{per} (\frac{\cdot}{ε}) f ‖}_{H^{1} (Ω_{ε})} ⩽ {‖ u_{ε} - ε^{2} w (\frac{\cdot}{ε}) f ‖}_{H^{1} (Ω_{ε})} + {‖ ε^{2} \tilde{w} (\frac{\cdot}{ε}) f ‖}_{H^{1} (Ω_{ε})} = O (ε^{2}) . \end{matrix}$ Thus, using $w^{per}$ instead of w in convergence Theorem 2.2 does not change the order $O (ε^{2})$ of the error.

The following Theorem states that the use of w instead of $w^{per}$ improves the rate of convergence in $L^{\infty}$ -norm for a non-periodic domain.

Theorem 2.3 (Convergence Theorem in $L^{\infty}$ -norm).

Let ${(O_{k})}_{k \in Z^{d}}$ be a sequence of open sets satisfying Assumptions (A1)–(A2), and assume that $O$ is defined by ( 1.15 ). Assume that the $C^{1, γ}$ norms of the charts that flatten $\partial O_{k}$ are uniformly bounded in k.

Let $Ω \subset R^{d}$ be a bounded domain and define for $ε > 0$ the perforated set $Ω_{ε} : = Ω ∖ ε \overline{O}$ .

Let $f \in D (Ω)$ and $u_{ε}$ be the solution of ( 1.1 ). Then there exists a constant $C > 0$ independent of ε such that $\begin{matrix} {‖ u_{ε} - ε^{2} w (\cdot / ε) f ‖}_{L^{\infty} (Ω_{ε})} ⩽ C ε^{3}, \end{matrix}$ where $w = w^{per} + \tilde{w} \in H_{per}^{1} (Q) + H^{1} (R^{d} ∖ \overline{O})$ is the unique solution of ( 2.1 ) with $g = 1$ .

Note that $‖ ε^{2} \tilde{w} (\cdot / ε) f ‖_{L^{\infty} (Ω_{ε})}$ is generally of order $ε^{2}$ exactly.

Fix $K \subset Ω$ . One has $\begin{matrix} {‖ [ε^{2} \tilde{w} (\frac{\cdot}{ε}) f] (ε \cdot) ‖}_{L^{\infty} (K)} \underset{ε \to 0}{\sim} ε^{2} f (0) ‖ \tilde{w} ‖_{L^{\infty} (K)} . \end{matrix}$ Besides, Theorem 2.3 implies $\begin{matrix} {‖ [u_{ε} - ε^{2} w (\frac{\cdot}{ε}) f] (ε \cdot) ‖}_{L^{\infty} (K)} ⩽ C ε^{3} . \end{matrix}$ Thus, $\begin{matrix} {‖ [u_{ε} - ε^{2} w^{per} (\frac{\cdot}{ε}) f] (ε \cdot) ‖}_{L^{\infty} (K)} \sim C ε^{2} . \end{matrix}$ We have the same results for $L^{\infty} (K)$ -norm replaced by $L^{2} (K)$ -norm. This proves that convergence of $u_{ε} / ε^{2} - w (\cdot / ε) f$ holds at the microscale in $L^{2}$ -norm when we use w. This is not the case when we use the periodic corrector $w^{per}$ .

Remark 2.4.
This Remark is analogous to Remark 1.4 in the present non-periodic setting. The condition $f \in D (Ω)$ can be weakened in Theorem 2.2 provided that we use Lemma 4.11 proved below. Under Hölder regularity conditions on the perforations, one has thanks to Lemma 4.11 that $w \in L^{\infty} (R^{d} ∖ \overline{O})$ and $\nabla w \in L^{\infty} (R^{d} ∖ \overline{O})$ . Thus, if we suppose that $f \in H^{2} (Ω)$ and $f_{| \partial Ω} = 0$ in the trace sense, we obtain (see (4.24)), $\begin{matrix} ‖ g_{ε} ‖_{L^{2} (Ω_{ε})} ⩽ 2 ‖ \nabla w ‖_{L^{\infty}} ‖ \nabla f ‖_{L^{2}} + ‖ w ‖_{L^{\infty}} ‖ Δ f ‖_{L^{2}} ⩽ C ‖ f ‖_{H^{2} (Ω)} \end{matrix}$ for $ε < 1$ . We deduce by integration by parts that $‖ u_{ε} - ε^{2} w (\cdot / ε) f ‖_{H^{1} (Ω_{ε})} ⩽ C ε^{2}$ .

If f does not vanish on $\partial Ω$ , we can prove that there exists a constant C independent of ε such that $\begin{matrix} {‖ u_{ε} - ε^{2} w (\cdot / ε) f ‖}_{H^{1} (Ω_{ε})} ⩽ C ε^{3 / 2} N (f) . \end{matrix}$ The proof is analogous to [21, Appendix A.2] provided we use Lemma 4.11 below. This requires $f \in H^{2} \cap L^{\infty} (Ω)$ .

3. Poincaré–Friedrichs inequalities

The main ingredient of the proof of Theorem 2.1 is the following Poincaré-type inequality.

Theorem 3.1.
Let Q be the unit cube of $R^{d}$ and let U be an open subset of Q containing a box $R = \prod_{i = 1}^{d} [a_{i}, b_{i}]$ . Then $\begin{matrix} (3.1) & \forall v \in H^{1} (Q ∖ \overline{U}) s.t. v_{| \partial U} = 0, \int_{Q ∖ \overline{U}} | v |^{2} ⩽ \frac{d}{| R |} \int_{Q ∖ \overline{U}} | \nabla v |^{2} . \end{matrix}$ Similarly, $\begin{matrix} \forall v \in H^{1} (Q) s.t. v_{| U} = 0, \int_{Q} | v |^{2} ⩽ \frac{d}{| R |} \int_{Q} | \nabla v |^{2} . \end{matrix}$

An important point in (3.1), is that the constant is explicit and depends only on $R$ . This crucial point will allow us, with the help of Assumption (A2), to prove Lemma 3.2 below, in which the fundamental point is that the constant does not depend on ε. We thus have an explicit scaling with respect to ε, similarly to the periodic case. This allows us to adapt the proofs of [22].
Proof.
By density, it is enough to show the result for $v \in C^{1} (Q)$ satisfying $v = 0$ on U. Fix $x \in Q$ and write $\begin{matrix} v (x) - v (\hat{x}) = \int_{0}^{1} \nabla v ((1 - t) \hat{x} + t x) \cdot (x - \hat{x}) d t, \end{matrix}$ where $\hat{x} = {(a_{i} + x_{i} (b_{i} - a_{i}))}_{1 ⩽ i ⩽ d} \in R$ . Note that $v (\hat{x}) = 0$ and $| x - \hat{x} |^{2} ⩽ d$ . Thus by the Cauchy–Schwarz inequality $| v (x) |^{2} ⩽ d \int_{0}^{1} | \nabla v ((1 - t) \hat{x} + t x) |^{2} d t$ . Integrating with respect to $x \in Q$ and exchanging the two integrals yields $\begin{matrix} \int_{Q} {| v (x) |}^{2} d x ⩽ d \int_{0}^{1} (\int_{Q} {| \nabla v ((1 - t) \hat{x} + t x) |}^{2} d x) d t \end{matrix}$ Fix $t \in [0, 1]$ and define the diffeomorphism $ϕ_{t} : Q ∋ x \mapsto (1 - t) \hat{x} + t x$ . Note that $ϕ_{t} (Q) \subset Q$ and that $| det J (ϕ_{t}) | = \prod_{i = 1}^{d} [(1 - t) (b_{i} - a_{i}) + t] ⩾ \prod_{i = 1}^{d} (b_{i} - a_{i})$ . Thus by a change of variables, $\begin{matrix} \int_{Q} {| \nabla v ((1 - t) \hat{x} + t x) |}^{2} d x ⩽ \frac{1}{\prod_{i = 1}^{d} (b_{i} - a_{i})} \int_{Q} | \nabla v |^{2} . \end{matrix}$ Integrating with respect to t concludes the proof. □

Theorem 3.1 and Assumption (A2) allow to prove the following, which is a generalization to the present setting of Lemma 1.1. Lemma 3.2 (Poincaré-type inequality in $H_{0}^{1} (Ω_{ε})$ ).

Let ${(O_{k})}_{k \in Z^{d}}$ be a sequence of open sets such that $O_{k} \subset \subset Q_{k}$ . Suppose that the sequence ${(O_{k})}_{k \in Z^{d}}$ satisfies Assumption (A2). Let Ω be an open subset of $R^{d}$ . Define for $ε > 0$ , $\begin{matrix} Ω_{ε} = Ω ∖ ε \overline{O} = Ω \cap (⋃_{k \in Z^{d}} ε (Q_{k} ∖ \overline{O_{k}})) . \end{matrix}$ There exists a constant $C > 0$ independent of ε such that $\begin{matrix} \forall u \in H_{0}^{1} (Ω_{ε}), \int_{Ω_{ε}} u^{2} ⩽ C ε^{2} \int_{Ω_{ε}} | \nabla u |^{2} . \end{matrix}$

Proof.
We first recall (see Lemma A.3 in the appendix) that $K : = {k \in Z^{d}, O_{k} \cap O_{k}^{per} = \emptyset}$ is finite. We show that there exists $\tilde{ρ} > 0$ such that for all $k \in Z^{d}$ , there exists a box $R_{k} \subset O_{k}$ satisfying $| R_{k} | ⩾ \tilde{ρ}$ . Fix $k \in Z^{d}$ , there are two cases:
Case 1: $k \in K$ (see Lemma A.1). The open set $O_{k}$ contains a ball and thus a box $R_{k}$ .

Case 2: $k \notin K$ . By Lemma A.2, there exists a ball $B_{k} \subset O_{k}$ such that $| B_{k} | ⩾ ρ$ with ρ independent of k. Thus, there exists a box $R_{k} \subset O_{k}$ such that $| R_{k} | ⩾ C (d) ρ$ where $C (d)$ is a constant depending only on d.
We define $\tilde{ρ} : = min (C (d) ρ, {min}_{k \in K} | R_{k} |) > 0$ to conclude.

We next use Theorem 3.1. We get that $\begin{matrix} \forall k \in Z^{d}, \forall w \in H_{0}^{1} (R^{d} ∖ \overline{O}), \int_{Q_{k} ∖ \overline{O_{k}}} w^{2} ⩽ \frac{d}{\tilde{ρ}} \int_{Q_{k} ∖ \overline{O_{k}}} | \nabla w |^{2} . \end{matrix}$ Summing over $k \in Z^{d}$ each inequality and defining $C : = d / \tilde{ρ}$ yields $\begin{matrix} (3.2) & \forall w \in H_{0}^{1} (R^{d} ∖ \overline{O}), \int_{R^{d} ∖ \overline{O}} w^{2} ⩽ C \int_{R^{d} ∖ \overline{O}} | \nabla w |^{2} . \end{matrix}$

Now, fix $u \in H_{0}^{1} (Ω_{ε})$ . We extend u by zero to $R^{d} ∖ ε \overline{O}$ and define $v : = u (ε \cdot)$ . It is clear that $v \in H_{0}^{1} (R^{d} ∖ \overline{O})$ and that $\begin{matrix} (3.3) & \forall y \in R^{d} ∖ \overline{O}, \nabla v (y) = ε \nabla u (ε y) . \end{matrix}$ Applying (3.2) with $w = v \in H_{0}^{1} (R^{d} ∖ \overline{O})$ and using (3.3) yields $\begin{matrix} \int_{\frac{1}{ε} Ω_{ε}} u^{2} (ε y) d y = \int_{R^{d} ∖ \overline{O}} u^{2} (ε y) d y ⩽ C ε^{2} \int_{R^{d} ∖ \overline{O}} | \nabla u |^{2} (ε y) d y = C ε^{2} \int_{\frac{1}{ε} Ω_{ε}} | \nabla u |^{2} (ε y) d y . \end{matrix}$ Making the change of variables $x = ε y$ in each integral finally concludes the proof. □

4. Proofs

4.1. Two-scale expansion

The aim of this section is to find an asymptotic equivalent of $u_{ε}$ as ε goes to zero. We begin by the two scale expansion of $u_{ε}$ . Write $\begin{matrix} u_{ε} (x) = u_{0} (x, \frac{x}{ε}) + ε u_{1} (x, \frac{x}{ε}) + ε^{2} u_{2} (x, \frac{x}{ε}) + ε^{3} u_{3} (x, \frac{x}{ε}) + \dots, \end{matrix}$ where the functions $u_{i}$ are now defined on $Ω \times (R^{d} ∖ \overline{O})$ , and are of the form $u_{i}^{per} + \tilde{u_{i}}$ . Suppose that $\tilde{u_{i}} (x, \cdot) \in H^{1} (R^{d} ∖ \overline{O})$ and use the $u_{i}^{per}$ ’s defined in Section 1.1 and extended by zero to $R^{d}$ . Because of the homogeneous Dirichlet boundary conditions on $u_{ε}$ , we impose that $u_{i} (x, y) = 0$ for $y \in \partial O$ and any $x \in Ω$ . The calculations leading to (1.9) (see [22, Section 2]) are still valid, so we have: $\begin{matrix} (4.1) & \{\begin{matrix} - Δ_{y} u_{0} = 0 \\ - Δ_{y} u_{1} - 2 (\nabla_{x} \cdot \nabla_{y}) u_{0} = 0 \\ - Δ_{y} u_{2} - 2 (\nabla_{x} \cdot \nabla_{y}) u_{1} - Δ_{x} u_{0} = f \\ - Δ_{y} u_{3} - 2 (\nabla_{x} \cdot \nabla_{y}) u_{2} - Δ_{x} u_{1} = 0 \\ \dots, \end{matrix} \end{matrix}$ where all these equations are posed on $Ω \times (R^{d} ∖ \overline{O})$ . These equations imply that $u_{0}$ and $u_{1}$ are constantly equal to zero. Indeed, fix $x \in Ω$ . Since $u_{0}^{per} \equiv 0$ , we get that $\tilde{u_{0}} (x, \cdot)$ satisfies the PDE $\begin{matrix} \{\begin{matrix} - Δ_{y} \tilde{u_{0}} = 0 in R^{d} ∖ \overline{O}, \\ {\tilde{u_{0}}}_{| \partial O} = 0 . \end{matrix} \end{matrix}$ Multiplying by $\tilde{u_{0}} (x, \cdot) \in H^{1} (R^{d} ∖ \overline{O})$ and integrating by parts yields $\tilde{u_{0}} (x, \cdot) \equiv 0$ . Thus $u_{0} \equiv 0$ . Similarly, $u_{1} \equiv 0$ . We are now left with the following equation on $u_{2}$ : $\begin{matrix} (4.2) & \{\begin{matrix} - Δ_{y} u_{2} (x, y) = f (x) & in R^{d} ∖ \overline{O} \\ u_{2} (x, y) = 0, & x \in Ω, y \in \partial O . \end{matrix} \end{matrix}$

According to (4.2), $u_{2} (x, y) = f (x) w (y)$ , where w is a solution to the corrector equation (2.1) with $g \equiv 1$ . This is why we introduced the corrector equation.

4.2. Proof of the existence of a corrector

The aim of this section is to prove Theorem 2.1. The difficulty of this theorem is that equation (2.1) is posed on an unbounded domain.

We search for w in the form $w^{per} + \tilde{w}$ , where we impose that $\tilde{w} \in H^{1} (R^{d} ∖ \overline{O})$ . We write the equation on $\tilde{w}$ and prove by energy minimization that there is a solution.

4.2.1. Perturbed corrector

The equation we want to solve for $\tilde{w}$ is $\begin{matrix} (4.3) & - Δ \tilde{w} = 1_{R^{d} ∖ {\overline{O}}_{per}} + \tilde{g} + Δ w^{per}, \end{matrix}$ where $\tilde{g} \in L^{2} (R^{d})$ and $w^{per} \in H^{1, per} (Q)$ is the solution to (1.10) defined in Section 1. We recall that $w^{per}$ is extended by zero in $O^{per}$ . We impose that $\tilde{w} = - w^{per}$ on $\partial O$ .

It is worth noticing that $w^{per} \notin H^{2} (Q)$ , and thus the right-hand side of (4.3) cannot be in $L^{2} (R^{d} ∖ \overline{O})$ . Thus the linear form of the weak formulation of (4.3) is not of the form $v \mapsto \int f v$ . In fact, we will have to deal with boundary terms along $\partial O^{per}$ . These terms express the fact that $Δ w_{per}$ is a Dirac measure on $\partial O^{per}$ (or that $w^{per}$ has normal derivative jumps along $\partial O^{per}$ ).

Notation. We denote by $\frac{\partial u}{\partial n} |_{ext}$ (resp. $\frac{\partial u}{\partial n} |_{int}$ ) the exterior normal derivative of u on the outside (resp. inside) of a piecewise smooth closed surface Γ (when it is defined i.e u is $H^{2}$ on each side of the boundary).

Definition 4.1.
We say that $\tilde{w} \in H^{1} (R^{d} ∖ \overline{O})$ is a weak solution of (4.3) if $\begin{matrix} (4.4) & \forall v \in C_{c}^{1} (R^{d} ∖ \overline{O}), \int_{R^{d} ∖ \overline{O}} \nabla \tilde{w} \cdot \nabla v + \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} v - \int_{R^{d} ∖ O} \tilde{g} v = 0, \end{matrix}$ and ${\tilde{w}}_{| \partial O} = - w_{per}$ in the trace sense.
Remark 4.2.
We could also have written equation (4.3) as a system of PDEs coupled by transmission conditions: $\begin{matrix} (4.5) & \{\begin{matrix} - Δ \tilde{w} = \tilde{g} & in R^{d} ∖ (\overline{O \cup O^{per}}) \\ - Δ \tilde{w} = \tilde{g} & in O^{per} ∖ \overline{O} \\ \tilde{w} = - w^{per} & on Γ_{2} \cup Γ_{3} \\ \frac{\partial \tilde{w}}{\partial n} |_{ext} + \frac{\partial \tilde{w}}{\partial n} |_{int} = \frac{\partial w^{per}}{\partial n} |_{ext} & on Γ_{1} \end{matrix} \end{matrix}$ The three first equations are obviously necessary. The last equation is necessary to guarantee that $w = w^{per} + \tilde{w} \in H_{loc}^{2} (R^{d} ∖ \overline{O})$ .

Using standard tools of the calculus of variations, one easily proves the following:
Lemma 4.3.
Assume that $\tilde{w} \in H^{1} (R^{d} ∖ O)$ . It is a weak solution of ( 4.3 ) in the sense of Definition 4.1 , if and only if it is a solution to the following minimization problem: $\begin{matrix} (4.6) & inf_{\tilde{w} \in V} {\frac{1}{2} \int_{R^{d} ∖ \overline{O}} | \nabla \tilde{w} |^{2} + \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} \tilde{w} - \int_{R^{d} ∖ \overline{O}} \tilde{g} \tilde{w}}, \end{matrix}$ where the minimization space V is defined by $\begin{matrix} (4.7) & V : = {\tilde{w} \in H^{1} (R^{d} ∖ \overline{O}) s.t. {\tilde{w}}_{| \partial O} = - w_{per}} . \end{matrix}$
Definition 4.4.
Let $\tilde{w} \in V$ . We denote by $\tilde{W}$ its extension to $R^{d}$ defined by $\tilde{W} = - w^{per}$ in $O$ .

The extension $\tilde{W}$ of $\tilde{w}$ satisfies $\tilde{W} \in H^{1} (R^{d})$ under Assumptions (A1)–(A2) on the sequence ${(O_{k})}_{k \in Z^{d}}$ . Figure 4 shows a function $\tilde{w} \in V$ (extended to $O$ by $- w^{per}$ ).

In order to study the minimization problem (4.6), we will need the following Poincaré type inequality in V.

Fig. 4.
Function $\tilde{w}$ (its extension $\tilde{W}$ ) on a perforated cell with and without overlapping.
Lemma 4.5 (Poincaré-type inequality in V).

Let ${(O_{k})}_{k \in Z^{d}}$ be a sequence of sets satisfying Assumptions (A1)–(A2). Define $O = ⋃_{k \in Z^{d}} O_{k}$ . Let $w^{per}$ be the periodic corrector solution to ( 1.10 ). There exist constants $C_{0} > 0$ and $C_{1} > 0$ such that for any $\tilde{w} \in V$ , $\begin{matrix} (4.8) & \int_{R^{d} ∖ \overline{O}} {\tilde{w}}^{2} ⩽ C_{0} \int_{R^{d} ∖ \overline{O}} | \nabla \tilde{w} |^{2} + C_{1} . \end{matrix}$ Denoting by $\tilde{W}$ the extension of $\tilde{w}$ (see Definition 4.4 ), we also have $\begin{matrix} \int_{R^{d}} {\tilde{W}}^{2} ⩽ C_{0} \int_{R^{d}} | \nabla \tilde{W} |^{2} + C_{1} . \end{matrix}$

Proof.
Fix $\tilde{w} \in V$ and extend $\tilde{w}$ by $- w^{per}$ in $O$ . This gives a function $\tilde{W} \in H^{1} (R^{d})$ . Note that $\begin{matrix} \forall k \in Z^{d}, \tilde{W} = 0 in O_{k} \cap O_{k}^{per} . \end{matrix}$ Fix $k \in Z^{d}$ , there are two cases:

Case 1: $k \in K$ , that is $O_{k} \cap O_{k}^{per} = \emptyset$ . Then $\tilde{w} + w^{per} = 0$ on $\partial O_{k}$ . Thus classical Poincaré inequality gives the existence of $C_{k} = C (Q_{k} ∖ \overline{O_{k}}, \partial O_{k})$ satisfying $C_{k} ⩾ 1$ such that $\begin{matrix} \int_{Q_{k} ∖ \overline{O_{k}}} {(\tilde{w} + w^{per})}^{2} ⩽ C_{k} \int_{Q_{k} ∖ \overline{O_{k}}} {| \nabla \tilde{w} + \nabla w^{per} |}^{2} . \end{matrix}$ We get $\begin{array}{l} \int_{Q_{k} ∖ \overline{O_{k}}} {\tilde{w}}^{2} & ⩽ 2 C_{k} \int_{Q_{k} ∖ \overline{O_{k}}} | \nabla \tilde{w} |^{2} + 2 C_{k} {‖ w^{per} ‖}_{H^{1} (Q_{k} ∖ \overline{O_{k}})}^{2} \\ (4.9) & ⩽ 2 C_{k} \int_{Q_{k} ∖ \overline{O_{k}}} | \nabla \tilde{w} |^{2} + 2 C_{k} {‖ w^{per} ‖}_{W^{1, \infty} (Q)}^{2} . \end{array}$ Now, the fact that $\tilde{W} = - w^{per}$ on $O_{k}$ implies $\begin{matrix} (4.10) & \int_{Q_{k}} {\tilde{W}}^{2} ⩽ 2 C_{k} \int_{Q_{k}} | \nabla \tilde{W} |^{2} + 2 C_{k} {‖ w^{per} ‖}_{H^{1} (Q_{k})}^{2} ⩽ 2 C_{k} \int_{Q_{k}} | \nabla \tilde{W} |^{2} + 2 C_{k} {‖ w^{per} ‖}_{W^{1, \infty} (Q)}^{2} . \end{matrix}$

Case 2: $k \notin K$ so that $O_{k} \cap O_{k}^{per} \neq \emptyset$ . Note that $\tilde{W} = 0$ in $O_{k} \cap O_{k}^{per}$ . We now use Lemma A.2: there exists a ball $B_{k} \subset O_{k} \cap O_{k}^{per}$ such $| B_{k} | ⩾ ρ$ and thus a box $R_{k} \subset O_{k} \cap O_{k}^{per}$ such that $| R_{k} | ⩾ C (d) ρ$ where $C (d)$ depends only on the dimension.

Theorem 3.1 gives the existence of a constant $C = C (d) / ρ$ chosen greater than or equal to one such that $\begin{matrix} (4.11) & \int_{Q_{k}} {\tilde{W}}^{2} ⩽ C \int_{Q_{k}} | \nabla \tilde{W} |^{2} . \end{matrix}$ Recall that $\int_{O_{k}} | \nabla \tilde{W} |^{2} ⩽ ‖ \nabla w^{per} ‖_{L^{\infty} (Q)}^{2} | O_{k} ∖ O_{k}^{per} | ⩽ ‖ w^{per} ‖_{W^{1, \infty} (Q)}^{2} | O_{k} ∖ O_{k}^{per} |$ . We thus have $\begin{matrix} (4.12) & \int_{Q_{k} ∖ \overline{O_{k}}} {\tilde{w}}^{2} ⩽ C \int_{Q_{k} ∖ \overline{O_{k}}} | \nabla \tilde{w} |^{2} + C {‖ w^{per} ‖}_{W^{1, \infty} (Q)}^{2} | O_{k} ∖ O_{k}^{per} | . \end{matrix}$

Define $\begin{matrix} C_{0} = max (2 max_{k \in K} C_{k}, C) and C_{1} = C_{0} {‖ w^{per} ‖}_{W^{1, \infty} (Q)}^{2} [| K | + \sum_{k \in Z^{d}} | O_{k} ∖ O_{k}^{per} |] < + \infty . \end{matrix}$ We have proved (see equations (4.9) and (4.12)) that $\begin{matrix} \forall k \in Z^{d}, \int_{Q_{k} ∖ \overline{O_{k}}} {\tilde{w}}^{2} ⩽ C_{0} \int_{Q_{k} ∖ \overline{O_{k}}} | \nabla \tilde{w} |^{2} + C_{0} {‖ w^{per} ‖}_{W^{1, \infty} (Q)}^{2} δ_{k}, \end{matrix}$ where $δ_{k} = 1$ if $k \in K$ and $δ_{k} = | O_{k} ∖ O_{k}^{per} |$ if $k \notin K$ .

Summing over k gives the desired results for $\tilde{w}$ . Equations (4.10) and (4.11) give the analogous result for $\tilde{W}$ . □

Using Lemma 4.5, we prove the following:
Lemma 4.6.
Suppose that the sequence ${(O_{k})}_{k \in Z^{d}}$ satisfies Assumption (A2). Let $\tilde{w} \in V$ and denote by $\tilde{W} \in H^{1} (R^{d})$ its extension (see Definition 4.4 ). Then, one has the following estimates: $\begin{matrix} (4.13) & | \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} \tilde{W} | ⩽ C + \frac{1}{4} ‖ \nabla \tilde{W} ‖_{L^{2} (R^{d})}^{2}, \end{matrix}$ where C is a constant independent of $\tilde{w}$ , $\begin{matrix} (4.14) & | \int_{R^{d} ∖ O} \tilde{g} \tilde{W} | ⩽ ‖ \tilde{g} ‖_{L^{2} (R^{d})} ‖ \tilde{W} ‖_{L^{2} (R^{d})} \end{matrix}$ and $\begin{matrix} (4.15) & | \int_{O^{per} ∖ O} \tilde{W} | ⩽ {| O^{per} ∖ O |}^{\frac{1}{2}} ‖ \tilde{W} ‖_{L^{2} (R^{d})} . \end{matrix}$
Proof.
Fix $\tilde{w} \in V$ . Let us first show that $\tilde{W} \in H^{1} (R^{d})$ . Write $\begin{matrix} (4.16) & \int_{O} {\tilde{W}}^{2} + \int_{O} | \nabla \tilde{W} |^{2} = \int_{O ∖ O^{per}} {(w^{per})}^{2} + \int_{O ∖ O^{per}} {| \nabla w^{per} |}^{2} ⩽ {‖ w^{per} ‖}_{W^{1, \infty} (Q)}^{2} \sum_{k \in Z^{d}} | O_{k} ∖ O_{k}^{per} | . \end{matrix}$ By Lemma A.1, we conclude that $\tilde{W} \in H^{1} (O)$ . This proves that $\tilde{W} \in H^{1} (R^{d})$ .

We now prove estimate (4.13). Standard elliptic regularity implies $\frac{\partial w^{per}}{\partial n} |_{ext} \in L^{\infty} (\partial O^{per})$ . We apply the trace theorem [18, Theorem 1, p 272] for $p = 1$ to the open subset $O_{0}^{per}$ (and thus to $O_{k}^{per}$ by periodicity with the same constant): $\begin{array}{l} | \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} \tilde{w} | & ⩽ \sum_{k \in Z^{d}} \int_{Γ_{1}^{k}} | \frac{\partial w^{per}}{\partial n} |_{ext} \tilde{w} | ⩽ \sum_{k \in Z^{d}} \int_{\partial O_{k}^{per}} | \frac{\partial w^{per}}{\partial n} |_{ext} \tilde{W} | \\ ⩽ {‖ \frac{\partial w^{per}}{\partial n} |_{ext} ‖}_{L^{\infty} (\partial O_{0}^{per})} \sum_{k \in Z^{d}} \int_{\partial O_{k}^{per}} | \tilde{W} | \\ (4.17) & ⩽ C (w^{per}, O^{per}) \sum_{k \in Z^{d}} (\int_{O_{k}^{per}} | \tilde{W} | + \int_{O_{k}^{per}} | \nabla \tilde{W} |) . \end{array}$ Now, recall that $\tilde{W} = 0$ in $O_{k} \cap O_{k}^{per}$ , so that using successively the Cauchy–Schwarz inequality and trace continuity (see [18, Theorem 1, p 272] with $p = 2$ ), we have $\begin{matrix} | \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} \tilde{W} | ⩽ C \sum_{k \in Z^{d}} {| O_{k}^{per} ∖ O_{k} |}^{1 / 2} (‖ \tilde{W} ‖_{L^{2} (O_{k}^{per})} + ‖ \nabla \tilde{W} ‖_{L^{2} (O_{k}^{per})}) . \end{matrix}$ We use the inequality $a b ⩽ D \frac{a^{2}}{2} + \frac{b^{2}}{2 D}$ with D to be chosen later: $\begin{matrix} (4.18) & | \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} \tilde{W} | ⩽ \frac{C D}{2} \sum_{k \in Z^{d}} | O_{k}^{per} ∖ O_{k} | + \frac{C}{D} \sum_{k \in Z^{d}} (‖ \tilde{W} ‖_{L^{2} (O_{k}^{per})}^{2} + ‖ \nabla \tilde{W} ‖_{L^{2} (O_{k}^{per})}^{2}) . \end{matrix}$ Thus, $\begin{matrix} | \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} \tilde{W} | ⩽ \frac{C D}{2} \sum_{k \in Z^{d}} | O_{k}^{per} ∖ O_{k} | + \frac{C}{D} (‖ \tilde{W} ‖_{L^{2} (R^{d})}^{2} + ‖ \nabla \tilde{W} ‖_{L^{2} (R^{d})}^{2}) . \end{matrix}$ Lemma 4.5 implies $\begin{matrix} \frac{C}{D} (‖ \tilde{W} ‖_{L^{2} (R^{d})}^{2} + ‖ \nabla \tilde{W} ‖_{L^{2} (R^{d})}^{2}) ⩽ \frac{2 C C_{0}}{D} ‖ \nabla \tilde{W} ‖_{L^{2} (R^{d})}^{2} + \frac{C C_{1}}{D} . \end{matrix}$ Choosing $D = 8 C C_{0}$ yields finally $\begin{matrix} (4.19) & | \int_{\partial O^{per}} \frac{\partial w^{per}}{\partial n} |_{ext} \tilde{W} | ⩽ C \sum_{k \in Z^{d}} | O_{k}^{per} ∖ O_{k} | + C + \frac{1}{4} ‖ \nabla \tilde{W} ‖_{L^{2} (R^{d})}^{2}, \end{matrix}$ with C being a constant independent of $\tilde{w}$ . We infer (4.13) thanks to Lemma A.1.

The two last estimates (4.14) and (4.15) are consequences of the Cauchy–Schwarz inequality. □
Remark 4.7.
Let $v \in H_{0}^{1} (R^{d} ∖ \overline{O})$ . Computations (4.17)–(4.18) with $\tilde{w}$ replaced by v and $D = 1$ are valid and give $\begin{matrix} | \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} v | ⩽ C | O^{per} ∖ O | + C ‖ v ‖_{H_{0}^{1} (R^{d} ∖ \overline{O})}^{2} . \end{matrix}$ Thus, the linear form $v \mapsto \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} v$ is continuous on $H_{0}^{1} (R^{d} ∖ \overline{O})$ .

First, we prove below that the minimization space V is not empty:
Lemma 4.8.
Let ${(O_{k})}_{k \in Z^{d}}$ satisfy Assumption (A1) and Assumption (A2). Then V defined by ( 4.7 ) is not empty.
Proof.
We want to build a function $ϕ \in H^{1} (R^{d} ∖ \overline{O})$ satisfying the boundary conditions $ϕ = - w^{per}$ on $\partial O$ . We will first build ϕ on each cell $Q_{k}$ .

Let $k \in Z^{d}$ . Recall that $δ_{0}^{per} = dist (O_{k}^{per}, \partial Q_{k})$ and that $δ_{0}$ is defined in Lemma A.3 of the Appendix. Set $\begin{matrix} ε_{k}^{per} = min (2 α_{k}, δ_{0}^{per} / 2) and ε_{k} = min (α_{k}, δ_{0} / 2) \end{matrix}$ and note that since $α_{k} \underset{| k | \to + \infty}{⟶} 0$ , there exists $k_{0}$ such that $\begin{matrix} \forall | k | ⩾ k_{0}, ε_{k}^{per} = 2 α_{k} and ε_{k} = α_{k} . \end{matrix}$

Define $U_{k}^{per} (ε_{k}^{per})$ (resp. $U_{k} (ε_{k})$ ) to be the $ε_{k}^{per}$ (resp. $ε_{k}$ ) Minkowski content of $\partial O_{k}^{per}$ (resp. $\partial O_{k}$ ) that is $\begin{matrix} U_{k}^{per} (ε_{k}^{per}) = {x \in R^{d} s.t. dist (x, \partial O_{k}^{per}) < ε_{k}^{per}} \subset Q_{k} \end{matrix}$ and $\begin{matrix} U_{k} (ε_{k}) = {x \in R^{d} s.t. dist (x, \partial O_{k}) < ε_{k}} \subset Q_{k} . \end{matrix}$ Denote $\begin{matrix} O_{k}^{per, +} (ε_{k}^{per}) = O_{k}^{per} \cup U_{k}^{per} (ε_{k}^{per}) = {x \in R^{d} s.t. dist (x, O_{k}^{per}) < ε_{k}^{per}} \subset Q_{k} \end{matrix}$ and $\begin{matrix} O_{k}^{+} (ε_{k}) = O_{k} \cup U_{k} (ε_{k}) = {x \in R^{d} s.t. dist (x, O_{k}) < ε_{k}} \subset Q_{k} . \end{matrix}$ Now, let $χ_{k} \in C_{c}^{\infty} (Q_{k})$ be a cut-off function satisfying $\begin{matrix} \{\begin{matrix} 0 ⩽ χ_{k} ⩽ 1 and χ_{k} \equiv 1 in O_{k} \\ supp (χ_{k}) \subset O_{k}^{+}, supp (\nabla χ_{k}) \subset U_{k} (ε_{k}) \\ | \nabla χ_{k} | ⩽ C / ε_{k} . \end{matrix} \end{matrix}$

We define $ϕ_{k} = - χ_{k} w^{per}$ . It is clear that $ϕ_{k} \in H^{1} (R^{d})$ and that $ϕ_{k} = - w^{per}$ on $\partial O_{k}$ .

One defines $\begin{matrix} ϕ (x) = \sum_{k \in Z^{d}} ϕ_{k} (x) = \sum_{k \in Z^{d}} ϕ_{k} (x) 1_{Q_{k}} (x) . \end{matrix}$ Note that since $supp (ϕ_{k}) \subset Q_{k}$ , all terms but one (which depends on x) vanish in the above sum. Thus $ϕ = - w^{per}$ on $\partial O$ .

Our goal is to prove that $ϕ \in H^{1} (R^{d} ∖ \overline{O})$ to conclude the proof. By Lemma 4.5, it is sufficient to show that $\nabla ϕ \in L^{2} (R^{d} ∖ \overline{O})$ . Showing this is equivalent to prove that $\begin{matrix} \sum_{k \in Z^{d}} ‖ \nabla ϕ_{k} ‖_{L^{2} (U_{k} (ε_{k}))}^{2} < + \infty . \end{matrix}$ We are thus left to estimate each term $‖ \nabla ϕ_{k} ‖_{L^{2} (U (ε_{k}))}$ where $k \in Z^{d}$ . We study these terms only when $| k | ⩾ k_{0}$ and $k \notin K$ where $K$ is defined in Lemma A.1 of the Appendix (there are only a finite number of terms k such that $k \in K$ and $| k | < k_{0}$ ).

Let $k \in Z^{d}$ such that $| k | ⩾ k_{0}$ and $k \notin K$ that is $O_{k} \cap O_{k}^{per} \neq \emptyset$ . One has – using Assumption (A2) – the inclusions, $\begin{matrix} (4.20) & O_{k} \subset O_{k}^{+} (α_{k}) \subset O_{k}^{per, +} (2 α_{k}) and U_{k} (α_{k}) \subset U_{k}^{per} (2 α_{k}) . \end{matrix}$ We write $\begin{array}{l} \int_{U_{k} (α_{k})} {| \nabla (χ_{k} w^{per}) |}^{2} & ⩽ 2 \int_{U_{k} (α_{k})} {| \nabla w^{per} |}^{2} | χ_{k} |^{2} + 2 \int_{U_{k} (α_{k})} {| w^{per} |}^{2} | \nabla χ_{k} |^{2} \\ ⩽ 2 {‖ \nabla w^{per} ‖}_{L^{\infty} (U_{k} (α_{k}))}^{2} | U_{k} (α_{k}) | + 2 {‖ w^{per} ‖}_{L^{\infty} (U_{k} (α_{k}))}^{2} \frac{C^{2}}{α_{k}^{2}} | U_{k} (α_{k}) | . \end{array}$ Using that $\nabla w^{per} \in L^{\infty} (R^{d})$ , $d (U_{k} (α_{k}), O_{k}^{per}) ⩽ α_{k}$ and $w^{per} = 0$ in $O_{k}^{per}$ , we infer $\begin{matrix} {‖ w^{per} ‖}_{L^{\infty} (U_{k} (α_{k}))} ⩽ 2 α_{k} {‖ \nabla w^{per} ‖}_{L^{\infty} (Q)} . \end{matrix}$ We conclude that $\begin{matrix} \int_{U_{k} (α_{k})} | \nabla ϕ_{k} |^{2} ⩽ C | U_{k} (α_{k}) | + C | U_{k} (α_{k}) | α_{k}^{2} / α_{k}^{2} ⩽ C | U_{k} (α_{k}) | . \end{matrix}$ Using (4.20), this yields $\begin{matrix} \int_{U_{k} (α_{k})} | \nabla ϕ_{k} |^{2} ⩽ C | U_{k}^{per} (2 α_{k}) | . \end{matrix}$ We deduce that for k large enough, $\int_{U_{k} (α_{k})} | \nabla ϕ_{k} |^{2} ⩽ 2 C α_{k}$ (see (A.3)). Since ${(α_{k})}_{k \in Z^{d}} \in ℓ^{1} (Z^{d})$ , one concludes that $ϕ \in H^{1} (R^{d} ∖ \overline{O})$ . □
Proposition 4.9.
Under the assumptions (A1) and (A2), the minimization Problem ( 4.6 ) has a solution.
Proof.
Let ${(\tilde{w_{n}})}_{n \in N} \subset V$ be a minimizing sequence of Problem (4.6) which exists by Lemma 4.8, that is $\begin{matrix} \frac{1}{2} \int_{R^{d} ∖ \overline{O}} | \nabla \tilde{w_{n}} |^{2} + \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} \tilde{w_{n}} - \int_{R^{d} ∖ \overline{O}} \tilde{g} \tilde{w_{n}} \underset{n \to + \infty}{⟶} inf_{u \in V} J (u) . \end{matrix}$ We extend each $\tilde{w_{n}}$ by $- w^{per}$ in the perforations and denote by $\tilde{W_{n}}$ the extension (see Definition 4.4). The sequence $\begin{matrix} \frac{1}{2} \int_{R^{d}} | \nabla \tilde{W_{n}} |^{2} + \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} \tilde{W_{n}} - \int_{R^{d} ∖ \overline{O}} \tilde{g} \tilde{W_{n}} \end{matrix}$ admits an upper bound independent of n. We first prove that $‖ \nabla \tilde{W_{n}} ‖_{L^{2} (R^{d})}$ is bounded independently of n. We use Lemma 4.5 and Lemma 4.6 to bound each term: $\begin{array}{l} | \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} \tilde{W_{n}} | ⩽ C + \frac{1}{4} ‖ \nabla \tilde{W_{n}} ‖_{L^{2} (R^{d})}^{2}, \\ | \int_{R^{d} ∖ \overline{O}} \tilde{g} \tilde{W_{n}} | ⩽ C ‖ \tilde{W_{n}} ‖_{L^{2} (R^{d})} \underset{Lemma 4.5}{⩽} C + C ‖ \nabla \tilde{W_{n}} ‖_{L^{2} (R^{d})}, \end{array}$ where C denotes various constants independent of n. Hence, one gets $\begin{array}{l} C ⩾ \frac{1}{2} \int_{R^{d}} | \nabla \tilde{W_{n}} |^{2} + \int_{\partial O^{per}} \frac{\partial w^{per}}{\partial n} |_{ext} \tilde{W_{n}} - \int_{R^{d} ∖ \overline{O}} \tilde{g} \tilde{W_{n}} ⩾ \frac{1}{4} ‖ \nabla \tilde{W_{n}} ‖_{L^{2} (R^{d})}^{2} - C ‖ \nabla \tilde{W_{n}} ‖_{L^{2} (R^{d})} - C, \end{array}$ and thus $\begin{matrix} ‖ \nabla \tilde{W_{n}} ‖_{L^{2} (R^{d})}^{2} ⩽ C ‖ \nabla \tilde{W_{n}} ‖_{L^{2} (R^{d})} + C . \end{matrix}$ This proves that $‖ \nabla \tilde{W_{n}} ‖_{L^{2} (R^{d})}$ is bounded independently of n. With Lemma 4.5, one deduces that $‖ \tilde{W_{n}} ‖_{H^{1} (R^{d})}$ is also bounded independently of n.

Thus, by weak compactness, there exists a weak limit $\tilde{W} \in H^{1} (R^{d})$ such that $\begin{matrix} \tilde{W_{n}} \underset{H^{1}}{- ⇀} \tilde{W} and \tilde{W_{n}} \underset{L_{loc}^{2}}{⟶} \tilde{W} . \end{matrix}$

Denote $\tilde{w} = {\tilde{W}}_{| R^{d} ∖ O}$ . We first show that $\tilde{w} \in V$ .

Strong convergence in $L_{loc}^{2}$ and ${\tilde{W}}_{n} = - w^{per}$ in $O_{k}$ imply $\tilde{W} = - w^{per}$ in $O_{k}$ . For the boundary $\partial O_{k}$ , recall that the trace operator $T_{k}$ (see [18, Theorem 1, p 272]) is weakly continuous from $H^{1} (O_{k})$ to $L^{2} (\partial O_{k})$ . Thus $\begin{matrix} \tilde{w} |_{\partial O_{k}} = T_{k} \tilde{W} = - T_{k} w^{per} = - w^{per} |_{\partial O_{k}} . \end{matrix}$ Since this is true for all $k \in Z^{d}$ , we have proved that ${\tilde{w}}_{| \partial O} = - w^{per}$ . Moreover, $\tilde{w} \in H^{1} (R^{d} ∖ \overline{O})$ . Thus $\tilde{w} \in V$ .

We can now pass to the limit. Since $w \in H^{1} (R^{d} ∖ \overline{O}) \mapsto \int | \nabla w |^{2}$ is convex and continuous (in the strong norm), it is weakly lower semi-continuous and thus $\begin{matrix} (4.21) & \int_{R^{d} ∖ \overline{O}} | \nabla \tilde{w} |^{2} ⩽ \underset{n \to + \infty}{lim inf} \int_{R^{d} ∖ \overline{O}} | \nabla \tilde{w_{n}} |^{2} . \end{matrix}$ By weak $H^{1}$ -convergence, since $\tilde{g} \in L^{2} (R^{d} ∖ \overline{O})$ , $\begin{matrix} (4.22) & \int_{R^{d} ∖ \overline{O}} \tilde{g} \tilde{w_{n}} \underset{n \to + \infty}{⟶} \int_{R^{d} ∖ \overline{O}} \tilde{g} \tilde{w} . \end{matrix}$

Let us treat the remaining term. We first recall (see Remark 4.7) that the linear form $v \mapsto \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} v$ is strongly and thus weakly continuous on $H_{0}^{1} (R^{d} ∖ \overline{O})$ . We apply this continuity to $v_{n} = {\tilde{w}}_{n} - ϕ$ , where ϕ was defined in the proof of Lemma 4.8. Since $\int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} ϕ = 0$ , we deduce $\begin{matrix} (4.23) & \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} \tilde{w_{n}} \underset{n \to + \infty}{⟶} \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} \tilde{w} . \end{matrix}$

Finally, collecting (4.21), (4.22)and (4.23) and letting $n \to + \infty$ , we conclude that $\begin{matrix} \frac{1}{2} \int_{R^{d}} | \nabla \tilde{w} |^{2} + \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} \tilde{w} - \int_{R^{d} ∖ \overline{O}} \tilde{g} \tilde{w} ⩽ inf_{u \in V} J (u) . \end{matrix}$ This finishes the proof of existence.

To conclude the proof, we prove uniqueness: let $\tilde{w_{1}}$ and $\tilde{w_{2}}$ be two weak solutions of (4.6) (in the sense of Definition 4.1). We have that $\begin{matrix} \forall v \in H_{0}^{1} (R^{d} ∖ \overline{O}), \int_{R^{d} ∖ \overline{O}} \nabla \tilde{w_{i}} \cdot \nabla v + \int_{Γ_{1}} \frac{\partial w^{per}}{\partial n} |_{ext} v - \int_{R^{d} ∖ \overline{O}} \tilde{g} v = 0, \end{matrix}$ for $i = 1, 2$ . Substracting the two equations yields $\begin{matrix} \forall v \in H_{0}^{1} (R^{d} ∖ \overline{O}), \int_{R^{d} ∖ \overline{O}} \nabla (\tilde{w_{1}} - \tilde{w_{2}}) \cdot \nabla v = 0 \end{matrix}$

Since $\tilde{w_{1}} - \tilde{w_{2}} \in H_{0}^{1} (R^{d} ∖ \overline{O})$ , we may choose $v = \tilde{w_{1}} - \tilde{w_{2}}$ in the previous expression. The Poincaré inequality on $Q ∖ {\overline{O}}_{0}$ with $Γ = \partial O_{0}$ implies $\tilde{w_{1}} - \tilde{w_{2}} = 0$ . □
Remark 4.10.
We could also have applied Lax–Milgram’s lemma to show that Problem (4.3) admits a weak solution. The ingredients are basically the same. Coercivity of the bilinear form is a direct consequence of Lemma 3.1 (see (3.2)). Continuity is proved using the same method as in the proof of Proposition 4.9, when passing to the limit in the minimizing sequence.
4.3. Proof of the convergence results

4.3.1. $H^{1}$ convergence

Proof of Theorem 2.2.
We first define the second order approximation of $u_{ε}$ . Let $g = 1_{R^{d} ∖ O}$ . With this choice of g, one has $\begin{matrix} \tilde{g} = 1_{O^{per} ∖ O} - 1_{O ∖ O^{per}} = \sum_{k \in Z^{d}} (1_{O_{k}^{per} ∖ O_{k}} - 1_{O_{k} ∖ O_{k}^{per}}) . \end{matrix}$ Moreover, Lemma A.1 implies that $\tilde{g} \in L^{2} (R^{d})$ . Thus we can apply Theorem 2.1 and get the existence of a unique function $\tilde{w} \in H^{1} (R^{d} ∖ \overline{O})$ such that $w : = w^{per} + \tilde{w}$ satisfies $\begin{matrix} \{\begin{matrix} - Δ w = 1 in R^{d} ∖ \overline{O} \\ w_{| \partial O} = 0 . \end{matrix} \end{matrix}$ in sense of distribution. Note that $w \in H_{loc}^{1} (R^{d} ∖ O)$ .

Now, set $\begin{matrix} ϕ_{ε} : = u_{ε} - ε^{2} w (\cdot / ε) f . \end{matrix}$ Since $f \in D (Ω)$ , $w = 0$ on $\partial O$ and $w \in H_{loc}^{1} (R^{d} ∖ O)$ , one gets that $ϕ_{ε} \in H_{0}^{1} (Ω_{ε})$ .

We have, in the sense of distributions, $\begin{matrix} (4.24) & - Δ ϕ_{ε} = f + Δ w (\frac{\cdot}{ε}) f + 2 ε \nabla w (\frac{\cdot}{ε}) \cdot \nabla f + ε^{2} w (\frac{\cdot}{ε}) Δ f = f - f + ε g_{ε} = ε g_{ε}, \end{matrix}$ where $\begin{matrix} g_{ε} = 2 \nabla w (\frac{\cdot}{ε}) \cdot \nabla f + ε w (\frac{\cdot}{ε}) Δ f . \end{matrix}$ Note that $‖ g_{ε} ‖_{L^{2} (Ω_{ε})}$ is bounded independently of ε.

Next, we multiply (4.24) by $ϕ_{ε}$ , integrate by parts and apply the Cauchy–Schwarz inequality: $\begin{matrix} \int_{Ω_{ε}} | \nabla ϕ_{ε} |^{2} = ε \int_{Ω_{ε}} g_{ε} ϕ_{ε} ⩽ C ε {(\int_{Ω_{ε}} ϕ_{ε}^{2})}^{1 / 2} . \end{matrix}$ Thanks to Lemma 3.2, one concludes that $\begin{matrix} {(\int_{Ω_{ε}} | \nabla ϕ_{ε} |^{2})}^{1 / 2} ⩽ C ε^{2} and {(\int_{Ω_{ε}} ϕ_{ε}^{2})}^{1 / 2} ⩽ C ε^{3}, \end{matrix}$ which concludes the proof. □
4.3.2. $L^{\infty}$ convergence

We first prove the following Lemma:

Lemma 4.11.

Let ${(O_{k})}_{k \in Z^{d}}$ be a sequence of open sets satisfying Assumptions (A1)–(A2). Let w be the solution to ( 2.1 ) with $g = 1$ . Then $w \in L^{\infty} (R^{d} ∖ \overline{O})$ . Moreover, if the $C^{1, γ}$ norms of the charts that flatten $\partial O_{k}$ are uniformly bounded in k, we have that $\nabla w \in L^{\infty} (R^{d} ∖ \overline{O})$ .

Proof.

Let us first prove that $w \in L^{\infty} (R^{d} ∖ O)$ . Fix $k \in Z^{d}$ and recall that $\begin{matrix} (4.25) & \{\begin{matrix} - Δ w = 1 in Q_{k} ∖ \overline{O_{k}} \\ w_{| \partial O_{k}} = 0 . \end{matrix} \end{matrix}$ There exists a constant C independent of k such that $\begin{matrix} (4.26) & ‖ w ‖_{L^{\infty} (\partial Q_{k})} ⩽ C . \end{matrix}$ Proving (4.26) is equivalent to prove that $‖ \tilde{w} ‖_{L^{\infty} (\partial Q_{k})} ⩽ C$ . Lemma A.3 implies that there exists $δ > 0$ such that for all $k \in Z^{d}$ , $\overline{O_{k} \cup O_{k}^{per}} \subset {[k + δ, k + 1 - δ]}^{d}$ . By translation invariance and since $\partial Q$ is compact, there exists $x_{1}, x_{2}, \dots, x_{ℓ} \in \partial Q$ such that $\begin{matrix} (4.27) & \forall k \in Z^{d}, \partial Q_{k} \subset ⋃_{i = 1}^{ℓ} B (x_{i} + k, δ / 2) . \end{matrix}$

On each ball $B (x_{i} + k, δ)$ , $\tilde{w}$ satisfies $- Δ \tilde{w} = 0$ . De Giorgi–Nash–Moser Theory (see [27], Theorem 4.22, p. 155) implies that there exists a constant $C = C (d, δ)$ independent of $x_{i}$ and k such that $\begin{matrix} (4.28) & sup_{B (x_{i} + k, δ / 2)} | \tilde{w} | ⩽ C (d, δ) {(\int_{B (x_{i} + k, δ)} {| \tilde{w} (x) |}^{2} d x)}^{\frac{1}{2}} ⩽ C ‖ \tilde{w} ‖_{L^{2} (R^{d} ∖ \overline{O})} . \end{matrix}$ The inclusion (4.27) together with (4.28) proves (4.26). We now apply the Maximum principle on w for each domain $Q_{k} ∖ \overline{O_{k}}$ . Let R be such that $Q_{k} \subset B (k, R)$ . The functions $\begin{matrix} w^{+} (x) : = w (x) + \frac{| x - k |^{2}}{2 d} + ‖ w ‖_{L^{\infty} (\partial Q_{k})} and w^{-} (x) = w (x) + \frac{| x - k |^{2} - R^{2}}{2 d} - ‖ w ‖_{L^{\infty} (\partial Q_{k})} \end{matrix}$ are respectively supersolution and subsolution of (4.25). Thus, thanks to (4.26), $‖ w ‖_{L^{\infty} (Q_{k} ∖ O_{k})}$ is bounded independently of k. Hence $w \in L^{\infty} (R^{d} ∖ \overline{O})$ .

For $\nabla w$ , we use Hölder Regularity results for the first derivatives. First recall that Assumption (A1) implies that $R^{d} ∖ \overline{O}$ is connected. For all $x \in R^{d} ∖ \overline{O}$ such that $dist (x, \partial O) > δ / 2$ , there exists a ball $B_{x}$ centered at x such that $dist (B_{x}, \partial O) = δ / 2$ . Interior estimates (see [20], Theorem 8.32, p. 210) give the existence of a constant $C = C (δ, d)$ independent of x such that $\begin{matrix} ‖ w ‖_{C^{1, γ} (B_{x})} ⩽ C (‖ w ‖_{L^{\infty} (R^{d} ∖ O)} + 1) ⩽ C . \end{matrix}$

We have proved that $\nabla w$ is bounded at a distance $δ / 2$ of $\partial O$ .

For the proof up to the boundary $\partial O$ , we use Corollary 8.36 p. 212 of [20] with the sets $Ω_{k} = {x s.t. dist (x, \partial O_{k}) < δ} ∖ \overline{O_{k}}$ , $Ω_{k}^{'} = {x s.t. dist (x, \partial O_{k}) < δ / 2} ∖ \overline{O_{k}}$ and $T_{k} = \partial O_{k}$ . We have $d^{'} = δ / 2$ which is independent of k and thus $\begin{matrix} ‖ w ‖_{C^{1, γ} (Ω_{k}^{'})} ⩽ C (T_{k}, δ, d) (‖ w ‖_{L^{\infty} (R^{d} ∖ O)} + 1) \end{matrix}$ where the dependence on $T_{k}$ appears through the $C^{1, γ}$ -norms of the charts that flatten $T_{k}$ (see [20], p.210). By hypothesis, we get that $C (T_{k}) ⩽ C_{0}$ . This concludes the proof. □

Proof of Theorem 2.3.

Fix $ε > 0$ and define $v_{ε} = u_{ε} (ε \cdot)$ . Then $v_{ε} \in H_{0}^{1} (\frac{1}{ε} Ω_{ε})$ and satisfies $\begin{matrix} (4.29) & \{\begin{matrix} - Δ v_{ε} = ε^{2} f (ε \cdot) & in \frac{1}{ε} Ω_{ε} \\ v_{ε} = 0 & on \partial (\frac{1}{ε} Ω_{ε}) . \end{matrix} \end{matrix}$ Define $ψ_{ε} : = v_{ε} - ε^{2} w f (ε \cdot) \in H_{0}^{1} (\frac{1}{ε} Ω_{ε})$ , and note that $\begin{matrix} - Δ ψ_{ε} = ε^{3} [2 \nabla w \cdot \nabla f (ε \cdot) + ε w Δ f (ε \cdot)] = : ε^{3} h_{ε} . \end{matrix}$ Lemma 4.11 and the fact that $f \in D (Ω)$ imply that $‖ h_{ε} ‖_{L^{\infty} (\frac{1}{ε} Ω_{ε})} ⩽ C$ for all $0 < ε < 1$ . Define $\begin{matrix} ψ_{ε}^{+} = ψ_{ε} + ε^{3} ‖ h_{ε} ‖_{L^{\infty} (\frac{1}{ε} Ω_{ε})} (w + ‖ w ‖_{L^{\infty}}) . \end{matrix}$ Then $ψ_{ε}^{+}$ is a supersolution of Problem (4.29). Thus, by the weak maximum principle (see [20] Theorem 8.1, p.179), one gets that $ψ_{ε}^{+} ⩾ 0$ on $\frac{1}{ε} Ω_{ε}$ . Similarly, $\begin{matrix} ψ_{ε}^{-} = ψ_{ε} - ε^{3} ‖ h_{ε} ‖_{L^{\infty} (\frac{1}{ε} Ω_{ε})} (w + ‖ w ‖_{L^{\infty}}) \end{matrix}$ is a subsolution of (4.29) and thus $ψ_{ε}^{-} ⩽ 0$ on $\frac{1}{ε} Ω_{ε}$ . Finally, $\begin{matrix} - ε^{3} ‖ h_{ε} ‖_{L^{\infty} (\frac{1}{ε} Ω_{ε})} (w + ‖ w ‖_{L^{\infty}}) ⩽ ψ_{ε} ⩽ ε^{3} ‖ h_{ε} ‖_{L^{\infty} (\frac{1}{ε} Ω_{ε})} (w + ‖ w ‖_{L^{\infty}}) . \end{matrix}$ The bound $‖ h_{ε} ‖_{L^{\infty} (\frac{1}{ε} Ω_{ε})} ⩽ C$ and Lemma 4.11 imply $‖ ψ_{ε} ‖_{L^{\infty} (\frac{1}{ε} Ω_{ε})} ⩽ C ε^{3}$ . Rescaling back concludes the proof. □

Footnotes

Proof of technical lemmas

Acknowledgement

We thank C. Le Bris for comments and suggestions that greatly improved the manuscript.
