ATM management prediction using Artificial Intelligence techniques: A survey

Abstract

Forecasting cash management, security, ease of use, and so on are important in the use of Automated Teller Machine (ATM). For this purpose, in this paper, we have discussed issues such as forecasting cash demand, fraud detection, ATM failure, user interface, replenishment strategy, ATM location, customer behavior, etc. Artificial Intelligence (AI) techniques are discussed for the detection of fraud, failure, replenishment and crash prediction. A number of statistical methods used to evaluate these forecasts are also covered in this paper. Moreover, we review AI techniques such as neural networks, regressions, support vector machines and their results in the form graphs in different sections. The literature covered in this paper is related to the past ten years (2006–2016). The approaches studied in this paper are compared in terms of data sets and prediction performance, accuracy and so on. We also provide a list of data sets available for the scientific community to conduct research in this field. Finally, open issues and future works in each of these items are presented.

Keywords

Automated Teller Machine Artificial Intelligence techniques forecasting performance and accuracy

1. Introduction

Automatic Teller Machines (ATM) are computerized telecommunication devices providing for financial transactions in a public space without the need for a human clerk. According to estimates of ATMIA (ATM Industry Association), there were a total of 1600000 ATMs worldwide in 2007 [1]. ATMs are devices financed and managed by financial institutions providing a simple method for conducting financial transactions in a public space for customers with almost no human intervention [2].

ATM management prediction is just one issue in this respect. Predicting cash management, fraud detection, customer behavior among other issues enable organizations to present better and efficient planning and service to their customers, especially because of competition between financial institutions to accept investments and present more cost-effective services.

In Section 2, we will discuss business categories and classify the whole papers into 7 groups: forecasting cash demand, fraud detection, ATM failure, user interface, replenishment strategy, ATM location, and customer behavior. We will talk about data sets in Section 3, introduce a few data sets, and then investigate data sets specifications and features.

Figure 1.

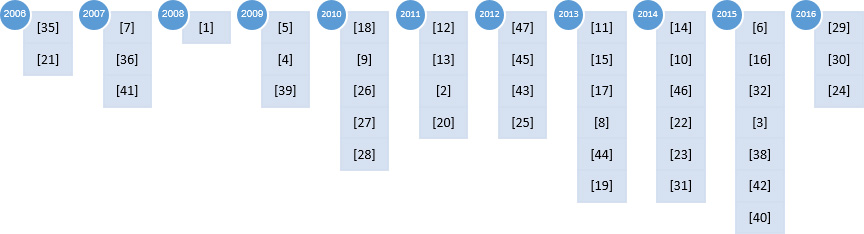

Classification of papers based on published year.

Figure 2.

Diagram of investigated papers based on year.

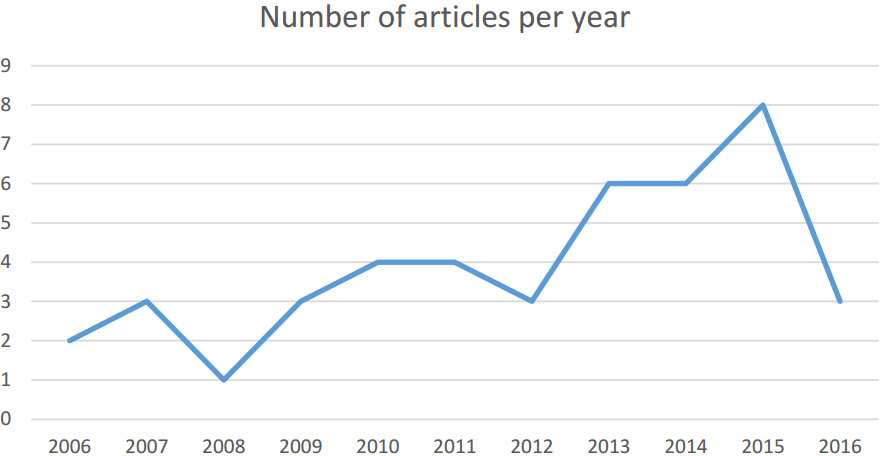

In Fig. 1, a timeline of researches in the literature is shown. Growing interest in this domain is obvious in recent years. Considering the application of AI (Artificial Intelligence) concepts in learning and knowledge extraction, the literature covered in this paper belongs to the past ten years (2006 to 2016). Moreover, Fig. 2 shows a diagram of research in recent years.

Section 4.1 introduces AI techniques applied on ATM management prediction and in Section 4.2, the literature is categorized according to techniques. We will analyze these researches in different aspects and try to provide a comprehensive overview of the literature on this subject, which can be helpful for researchers interested in this field.

Evaluation results of the studied papers are illustrated in Section 5. We have compared the AI techniques in terms of accuracy, performance, and security in ATM management. Both qualitative and quantitative results are mentioned. This section provides several valuable diagrams and tables projecting the essence of our work. In Section 6, we will pay attention to open problems and issues in this context. Finally, we will comprehensively discuss the researches and their results in Section 7. This information is collected in one table and can thus be easily compared.

2. Business categories

For better survey, ATM management can be broadly classified into seven branches, which is discussed in the following.

•
ATM failure: ATMs are widely used as self-service machines by banks to serve their customers. Due to the prevalent use of ATM machines, ad-hoc ATM failures still occur despite preventive maintenance, which will cause disruptions and inconvenience to bank customers, especially for cash withdrawal transactions and can affect the reputation of bank [3].
•
ATM location: We analyze the papers that present models for selection of ATM locations, and discuss how to find the best place to install a new machine with recognition of the already installed machines. We assume the same points for all ATMs in terms of type, price, cost of installation, and so on. However, the utility ratio of ATMs varies given the different population, traffic and commercial environment in different locations, which decide the return on investment of each ATM [4].
•
Customer behavior: Financial institutions, especially banks, used to be maintained on manual entry registers and ledgers, and the customers were served through cheques and pay orders. The number of transactions used to be limited with no or few international transactions. In the past few decades, this sector has witnessed widespread application of technologies in day-to-day functions as well as interaction with clients, including the introduction of ATMs. Through ATMs outlets, the banks are able to provide a host of banking facilities and services which otherwise would not be available for customers after usual working hours of banks. The developments in technologies such as ATMs have caused difficulties for service providers (including banks) to meet the demands and expectations of their customers, which are required to focus more on perception of customers with respect to their willingness to adopt the technology. It has been established through research that customer’s response to a specific technology depends upon the quality of the offered service [5].
•
Forecasting cash demand: The aim of cash demand forecasting research is to find the optimal cash amount required in a specific ATM during a day or week. Several factors can affect this forecast such as economic crisis, special days, climate, holidays, festivals, natural disasters, and location of the ATMs. If the forecasting results are below the demand level, cash-outs will happen that can cause dissatisfaction of the customers [6]. For efficient cash management in ATM network, the models for cash demand for every ATM must first be created using historical data about cash-in and cash-out transactions. Cash demand for a particular ATM is affected with factors such as paydays, holidays, and seasonal demand in a specific area [7].
•
Fraud detection: This is a key concern for both financial institutes and bank customers as well as ATM suppliers. ATMs are subject to various types of attacks and fraud. Common types of ATM fraud include skimming, card or cash trapping, installation of malicious software as well as various physical attacks. The automated detection of ATM fraud is a relevant research topic to prevent loss or damage [23].
•
Peak time: Payment cards allowing for transactions in ATMs have become an indispensable tool in everyday life. Nevertheless, this phenomenon is far from being well understood, probably reflecting its minor importance in the past before the sharp increase in ATM usage in early 1980s (1). Research on payment systems has attracted growing academic attention over the last 15 years, merging monetary economics and banking theory with the study of exchange mechanisms (2). At the empirical front, information on ATM transactions is far from being completely explored. These databases have typically a large coverage and are timely since they become typically available just a few days after the reference period. However, this information is currently not taken into account by statistical institutions like Central Banks and National Statistics Institutes [9].
•
Replenishment strategy: ATM cash replenishment studies focus on decisions about time schedules of ATM replenishment and the amount of money to be loaded. The studies include both forecast of cash demands and optimization of replenishment schedules. This optimization should satisfy both cost constraints of the bank and demand constraints from customers. The ATM cash replenishment is an important real-life problem. A challenge in this type of problem is quality forecast since it includes complicated and noisy data. If a forecast model has poor quality in predicting future cash demands in ATMs, the replenishment policy based on the forecasted demands will not be effective. Significance of this study stems from the fact that replenishment below the actual demand leads to customer dissatisfaction, while replenishment higher than the demand leads to high opportunity cost for the bank. Hence, a methodology to optimize the replenishment amount will be apparently useful for the banks [10].
•
User interface: Nowadays, ATMs provide significant online support to bank customers. A limitation of ATM usage is that customers often have to wait in a queue, especially at ATMs installed in busy locations. In addition, old people tend to delay ATM usage time, possibly frustrating customers in the queue. In these situations, ATMs should “adapt” to the behavior of customers to minimize the usage time [11].

Figure 3.
Paper category based on subject.

Figure 4.

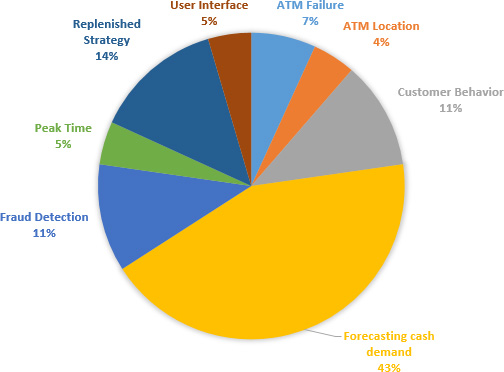

Distribution of papers based on subject.

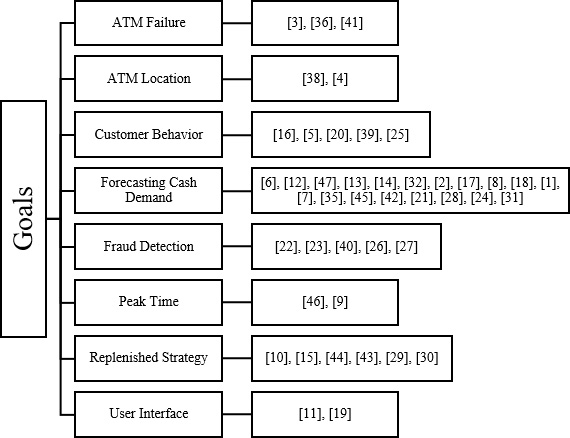

Figure 3 shows the papers according to category and in Fig. 4 we show frequency distribution of papers based on branches.

Figure 5.

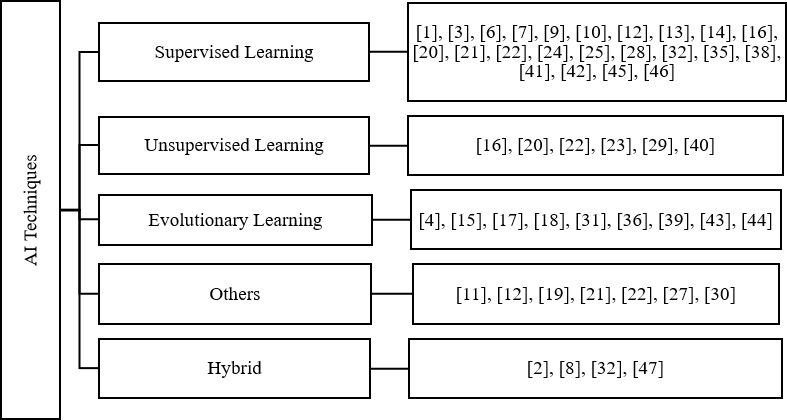

AI techniques categories used in ATM management.

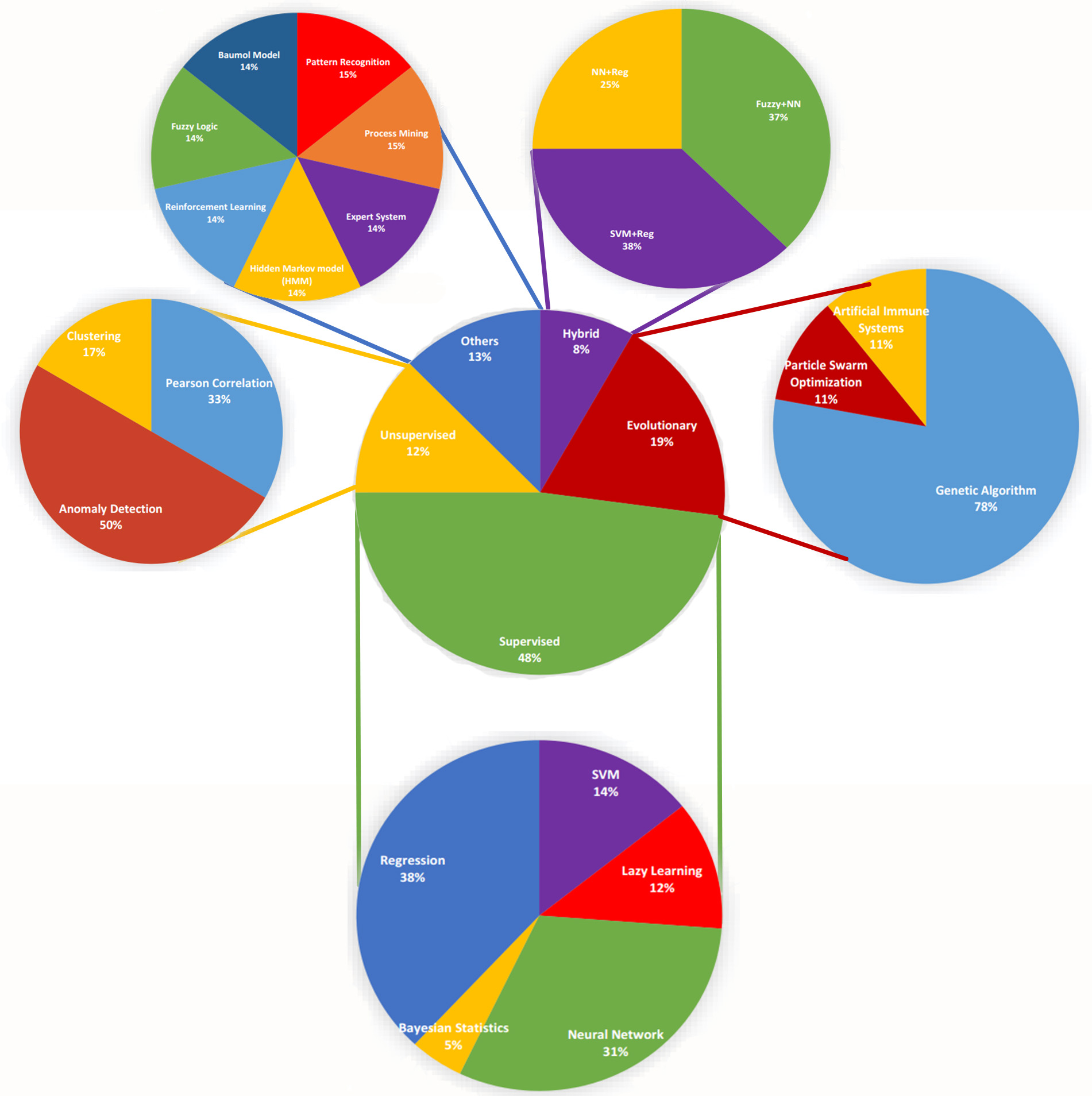

Figure 6.
Frequency of AI technique categories used in ATM management.

In Fig. 3, it can be seen that most researches address forecasting of cash demand. In ATM, while it would be devastating to run out of cash, it is important to keep cash at the right levels to meet customer demand. In such case, it becomes necessary to develop a forecasting system in order to get a clear picture of demands in advance [8].
3. Data sets

The availability of data sets is an important issue in ATM prediction and cash management research. Table 1 shows data sets used in papers. All the researches conducted on this subject used a data set to apply their approaches and achieve their analysis goals. These data are collected in one integrated table; therefore, they can be easily comparable. Accordingly, one can use these data sets for their researches and tests.

Table 1
Data sets used in researches

Data sources	Related number of records study
NN5 forecasting	[9]	735 daily withdrawal amounts from 111 ATMs in UK.
competition	[12]	A set of 111 empirical time series of daily cash withdrawals at various ATMs across England, with a prediction horizon of 56 days into the future.
	[13]	111 daily time series, representing daily cash withdrawal amounts at ATMs in various cities in the UK. All-time series have a length of two years, and the forecast horizon is 56 days.
	[14]	For each of the 111 time series, it forecasted the next cash demands as a trace forecast for a forecasting horizon of 1 week.
	[2]	NN5 time series competition includes a time series of cash withdrawals on a daily basis from ATMs located in different parts of England. All series show a strong cyclical component of 7 days, as well as some recurring seasonal periods such as summer holidays or Christmas.
International Bank based in Kuwait	[11]	216 ATM customers revealed that a majority of customers are willing to use these interfaces for minimizing their usage time.
Customers of united Band for Africa within Lagos	[16]	The operational period of 2007–2010 was chosen because it was the peak period when the ATM became prominent in Nigeria.
Using data from a Bank in Istanbul	[10]	It demonstrated information of 152 ATMs in Istanbul for 2.5 years.
Bank in Singapore	[3]	Forecast ATM failures for 14 days into the future, in 4 zones in Singapore, using 6 months of past ad-hoc ATM failure data.
Poste Italian S. P. A	[17]	As test bench a pool of 30 ATMs with different characteristics in terms of location, position, cash capacity and usage, representative of the whole set of ATMs.
	[18]	Poste Italians S.P.A. is a leading operator of postal services and an innovative and competitive player in the arena of financial and payment services. It provides the public mail service and it boasts a network of nearly 14,000 post offices and 5,900 ATMs.
Chandigarh (India) based of state Bank of India	[35]	The data collection period was from 2nd April 2004 to 30th June 2004. The values for other factor viz. holidays, Sundays, salary days etc. were also included.
Bank in Pakistan	[5]	Total information about the use of ATM in Pakistan.
Satara and Kolhapur cities of Maharashtra state in India	[20]	An empirical investigation of ATM service, a quantitative study, involving the administration of a survey was conducted in order to empirically validate the identified factors of ATM service quality. The primary data were conducted by 210 customers of public and private sector banks in Satara and Kolhapur cities of Maharashtra state in India.
Annual tourist arrival to the united states from various countries	[21]	The models’ accuracy was tested using annual tourist arrivals to the United States from various countries from 1985 to 2002. The data are posted online as part of ITA, the web site of the office of travel and tourism industries (2004).
European ATM crime report 2008	[22]	Using a real-world data set that has been recorded on a public ATM within a time period of nine weeks.
ATM in Tianjin (the third largest city in China)	[4]	50 ATMs of a bank randomly to survey, including 20 ATMs in the branch banks, 15 ATMs in the commercial district, 4 in schools, 6 in self-help banks, 1 in the community, and 4 near large-scale enterprises. It used transaction data from November 1, 2008 to November 10, 2008, during which 12652 transactions were accomplished on the 50 ATMs, the total amount is about 60 million Yuan.
Data sets recorded Wincor Nixdorf ATM	[23]	In a ten month period comprising timed sequences of more than 15 million status events in total.
Daily data for Portugal	[9]	Study the daily evolution of ATM withdrawals, using information available at the payment systems department of the Banco de Portugal, for the period from January 1st 2001 to December 31st 2008.
	[24]	The available sample period runs from the beginning of September 2000 up to the end of December 2014, comprising 5235 daily and 172 monthly observations. The ATM/POS data considered comprises all ATM cash withdrawals and POS payments by residents and is made available by Banco de Portugal.
Jordanian Bank	[25]	It aims to investigate the effect of different aspects of ATMs on the achievement of financial needs satisfaction of ATMs users in Jordan. The population of this study includes all the customers who hold an ATM along all the working banks in Jordan.

Table 1, continued
Data sources	Related number of records study
Dutch Bank	[28]	(A) Aggregate data by withdrawals per hour resulting in a data set with the ‘number of transactions per hour’ and the ‘average transaction quantity per hour’.(B) Exclude data points (i.e., records) from the data set at which the ATM was unavailable based on an analysis of the data set or by using log books depicting unavailability of the ATM.(C) Exclude data points that represent unusual demand in general such as the national holidays and surrounding days or regional events.
Netherlands ATMs	[29]	A total of 6,377 cash dispensing self-service devices, both regular and recirculation ATMs, were installed in the Netherlands in 2013. To mimic reality it have divided all RATM locations into 32 subregions, each served by a single cross-dock center, i.e., a depot, each with a maximum of 200 RATMs in order to obtain instances of similar sizes.
Using a Hungarian commercial Bank’s data	[30]	Examined the cash management optimization for ATMs using a Hungarian commercial bank’s data which owns a withdrawal ATM network replenished by an independent firm.
Iranian banks named Ayande	[15]	All transactions accomplished during the fiscal years of 2011–2012.

4. Application of AI approaches on ATM management prediction

4.1 Artificial Intelligence concepts

Artificial Intelligence (AI) is making computers modify or adapt their actions (including predictions or control of a robot) so that these actions become more accurate, where accuracy is measured by how well the chosen actions reflect the correct ones. In recent decades, AI has attracted a lot of attention in data science like diagnosis of heart diseases [37], designing software architecture [48, 49, 50], selecting design pattern [33, 34] and so on, and its techniques have been applied on almost every subject to analyze data and get accurate and reliable results based on defined goals.

Depending on the process used to extract knowledge from raw data, AI techniques can be divided into Supervised, Unsupervised, and Evolutionary Learning as shown in Fig. 5. Besides these three main categories, we can define “others” and “hybrid” categories, which complete the coverage of AI techniques used in the literature. Figure 6 shows number of each technique in this paper.

Although there exists a rich literature on different AI techniques used to predict cash management and customer behaviors, there is no comprehensive survey on the existing methods in literature. This paper aims at bridging this gap by encapsulating all the literature related to AI-based techniques for cash demand prediction, ATM failure, ATM location, listing the key data sets/sources and identifying the future trends for cash management based on AI.

A)
Supervised Learning: This category is a type of AI technique in which a training set of examples is provided with correct responses (targets), and the technique generalizes to correctly respond to all possible inputs based on this training set, which is also called learning from exemplars. This category includes several techniques such as Support Vector Machines (SVM), Lazy Learning, Neural Networks, Bayesian Statistics, and so on. Note that each of these techniques has different algorithms.
B)
Unsupervised Learning: In this category, there is no supervisor and we only have input data. The aim is to find the regularities in the input. There is a structure to the input space such that certain patterns occur more often than others, and we want to see what generally happens and what does not. In statistics, this is called density estimation. The most popular techniques in this category include clustering, Pearson Correlation and Anomaly Detection, which use different techniques such as Probabilistic Deterministic Finite Automaton (PDFA), Probabilistic Deterministic Timed-Transition Automaton (PDTTA), and so on.
C)
Evolutionary Learning: These techniques mimic natural evolution in order to optimize a solution to a problem. These techniques exploit differential fitness advantages in a population of solutions to gradually improve the status of that population. Optimization is the most important goal in evolutionary techniques, and a variety of algorithms have been developed in this category, including Genetic Algorithm (GA), Particle Swarm Optimization (PSO), and Artificial Immune Systems (AIS).
D)
Other Techniques: Some researchers used a technique for knowledge extraction that did not follow principles of the categories mentioned above, so we put them in this category. These techniques used various concepts like statistical and dimensionality reduction or numerical optimization, which is a mathematical technique.
E)
Hybrid Techniques: Although each of the above-mentioned categories has several techniques that can be used for data mining objectives, many researchers prefer to use a combination of these approaches as a new one or as a solution for different parts of their problem. Therefore, several researches have been grouped in this category, which we name “Hybrid” category.

In this paper, we review AI techniques applied on data sets to generate prediction models of ATM management. To this point in this section, we introduce different AI techniques and works in ATM management prediction.
4.2 AI techniques used in researches

4.2.1 Supervised learning

Figure 7 shows supervised techniques used for learning in the researches. In the following, the studies applying this category are reviewed individually.

The neural network, often called the multilayer perceptron, is a semi-parametric model inspired by studies on brain and the nervous system. It is an extremely flexible model; in fact, it has been proven to be a universal approximate [13]. Structure of ANN and the data necessary to train the network are important components for success of neural network solution. In [1], the authors used simulated and real data for training and evaluation of ANNs. For every ATM machine, a separate three-layer feed-forward neural network was designed. The neural network was trained using Levenberg-Marquardt optimization method and Root Mean Square (RMS) error between predicted and real value.

Figure 7.

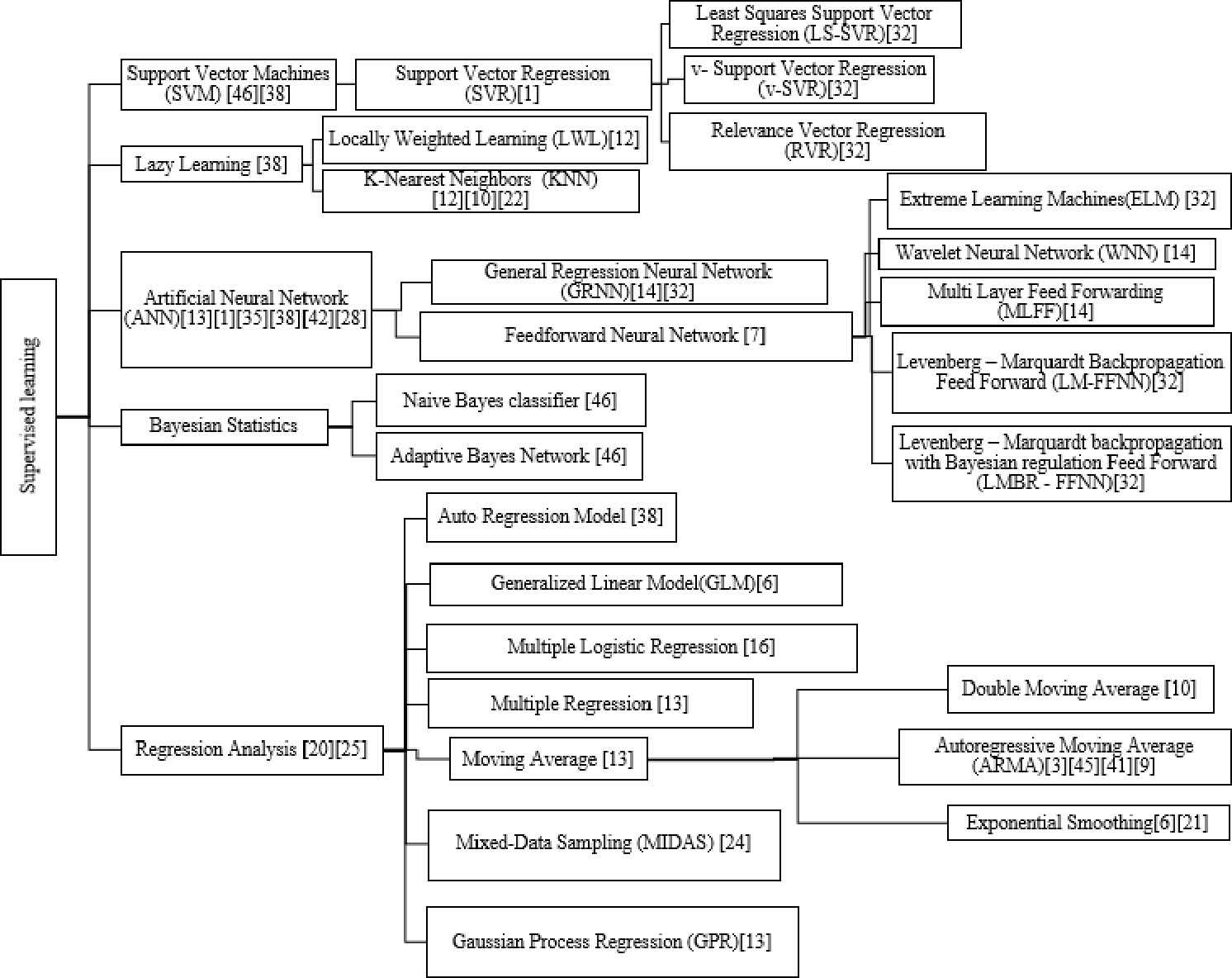

Supervised techniques used in ATM management.

In [35], a cash forecasting system for a bank branch was implemented in MATLAB. The system performs better than other systems based on time series. Its performance was also superior to an available Excel Add-in for forecasting “Alyuda Forecaster XL 2.3”. This system can be scaled for all branches of a bank in an area by incorporating historical data from these branches. Such a system will help the bank in proper and efficient cash management.

Venkatesh et al. [14] compared the results of their work with those of direct neural network based time series analysis of original data without resorting to clustering of ATM centers. In this procedure, they employed three different neural networks, viz. Multi-Layer Feed Forwarding (MLFF), Wavelet Neural Network (WNN), General Regression Neural Network (GRNN) and the traditional Auto Regressive Integrate Moving Averages (ARIMA) separately on the entire sample without resorting to clustering. The procedure employed is as follows:

The NN5 data set used in the experiments consists of a few missing values. The missing values are imputed using mean imputation technique.

Then, median-based deseasonalization method was employed to deseasonalize the data.

Later, four forecasting techniques of ARIMA, MLFF, WNN and GRNN were applied on the deseasonalized data with a time lag of 7 days.

Cheong et al. [3] used three forecasting methods to forecast the number of ad-hoc failures for March 2014 using data from five months from October 2013 to February 2014, including Stepwise Autoregressive, Exponential Smoothing and Holt-Winters Additive model. These three methods were selected since they are easy to implement and understand and do not require excessive amounts of past data. Moving the average model is not used as it cannot cater to trend component in time series. Holt-Winters Multiplicative model is not used as no multiplicative seasonality effect is observed. ARIMA forecasting technique is not used as it requires excessive amounts of data, which is not available.

In [6], all the experiments were performed on SAS software platform. SAS Enterprise Guide, SAS Forecast Server, and SAS Enterprise Miner tools were used during these experiments. Basic statistical analysis was performed using SAS Enterprise Guide. SAS Forecast Server was used to enable the application of Exponential Smoothing, ARIMA, and Unobserved Component Model (UCM) approaches on their data set. Using SAS Enterprise Miner, missing values were imputed, data partitions were performed, and neural network approaches were used, including Radial Basis Functions, Multilayer Perceptron, and Generalized Linear Model.

Figure 8.

Unsupervised techniques used in ATM management.

In [41], Zhao et al. introduced time series prediction method based on Auto-Regressive Moving Average (ARMA) model to describe the potential trends in successive history productivity data. [45] presented a two-step model aimed at reducing cash management costs in a bank’s branch. First, data mining was used to forecast daily cash demand, comparing an ARMA-ARCH model with a neural network. Secondly, a linear programming model was solved using the prior result. Optimal allocation of resources (cash collections and supplies) was estimated, indicating that the model can be a helpful tool to support determination of collections and supplies at the bank’s branch. The aim of [24] is to forecast private consumption using high frequency electronically recorded data from ATM and POS terminals. As this type of data is available at a higher frequency than quarterly private consumption, a MIDAS regression approach is considered for both monthly and daily ATM/POS data. [38] provided a general review on studies, efforts and development in ATMs location and cash management problem. Today, ATMs are not only available in bank branches but also at retail locations. Another important factor is cash management in ATMs. A cash demand model for every ATM is needed in order to have an efficient cash management system. This forecasting model is based on historical cash demand data, which is highly related to ATM location. Therefore, the location and the cash management problem should be considered together.

Zylius et al. [32] compared computational intelligence models when performing cash flow forecasting for one day. Adaptive input selection and model parameter identification were used with every forecasting model to perform a more flexible comparison. They applied and compared data based Computational Intelligence (CI) regression models for one day ahead cash demand forecasting.

Naive Bayes, Adaptive Bayesian Network (ABN) and SVM are the algorithms available for classification. Naive Bayes uses cross-validation and test model accuracy on the same data used to build the model rather than building the model on one portion of the data and testing it on different portions. This algorithm is fast and effective for a low volume of data. The volume limit will fall within 200 records, but it is not suitable to handle large volume of data.

In [46], the ABN algorithm supported the large volume of processed data and produced the result in a short period of time.

4.2.2 Unsupervised learning

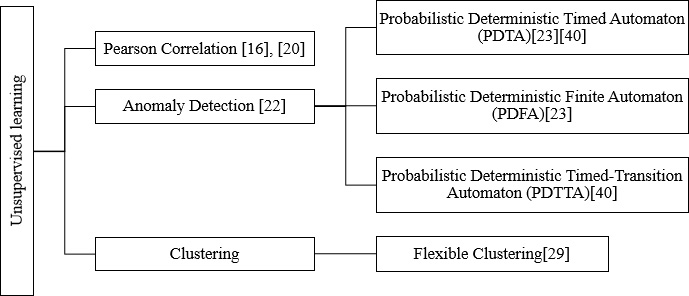

Unsupervised techniques used in ATM management papers are organized in Fig. 8 and their definitions are presented below.

In [16], the data collected was analyzed using multiple logistic regression analysis and Pearson correlation. The findings revealed that necessary input to the bank management to increase customers’ satisfaction was provided through improvement of ATM service quality. Anderka et al. [22] proposed an approach capable of detecting known as well as unknown attacks on ATMs, which does not require additional security hardware. The idea is to utilize automatic model generation techniques to learn patterns of normal behavior from the status information of standard devices comprised in an ATM, and a significant deviation from the learned behavior is indicator of a fraud attempt. They cast the identification of ATM fraud as a sequence based anomaly detection problem. In [23], Klerx et al. presented an approach to learn a tailored behavior model called Probabilistic Deterministic Timed-Transition Automaton in order to enable the detection of time-based anomalies. They also report on preliminary results of an empirical evaluation using a real-world data set recorded on a public ATM, indicating the practicality of their approach. [40] described an approach for anomaly and attack detection for ATMs. The approach works on multiple levels. First, Priesterjahn et al. used sensor fusion on low-level hardware sensors to get robust information about the device state. Second, they used a new model-based and self-learning anomaly detection method on diagnosis data of all ATM devices to robustly detect anomalies in the system, which might indicate an attack on the machine. Priesterjahn et al. [40] formulated the problem as a mixed-integer linear programming model and proposed an exact branch-and-cut algorithm for its resolution. Given the complexity of the problem, they also proposed a flexible clustering heuristic. All variables of the formulation were explicitly handled by the algorithm, but they could not generate all sub tour elimination constraints a priori, which would be dynamically generated as cuts since they are found to be violated.

4.2.3 Evolutionary learning

Figure 9 shows evolutionary techniques used for learning in the researches. In the following, the studies applying this category are reviewed individually.

Figure 9.

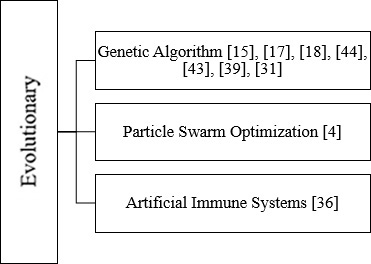

Evolutionary techniques used in ATM management.

Recently, some authors attempted to optimize the cash by modeling and forecasting the demand. However, high variance and non-stationarity of the underlying stochastic process can affect the reliability of such an approach. In [18], Armenise et al. suggested the application of genetic algorithms to search and generate optimal upload strategies, which are at the same time able to minimize the daily amount of stocked money and to assure cash dispensing service. Also, in [43], this rich vehicle routing problem was solved using genetic algorithm. The periodic vehicle routing problem can be regarded as a problem of generating a group of routes for each day of a planning horizon so that the involved constraints are satisfied and global costs are minimized. The proposed model further enables to specify cases with requirements of two replenishments of some of the customers (ATMs) per day, while other customers may need only one replenishing in two days. Chamnan and Chongstitvatana [31] investigated the optimization of ATM cash inventory by means of genetic algorithm in order to produce optimal upload strategies capable of minimizing the daily amount of stocked money, still assuring cash dispensing service.

Site selection and layout of ATMs are important components of operation and management systems of banks. Different addresses usually lead to different returns. It is difficult for us to decide which place is the best one. In [4], Li et al. investigated the factors of ATMs planning and location model to make a judgment and forecast by application of the model in which they combined Geographic Information System (GIS) technology with the mathematical model. [36] presented an immune-inspired Adaptable Error Detection (AED) framework for ATMs. This framework has two levels: one is local to a single ATM while the other is networkwide. The framework employed vaccination and adaptability analogies of the immune system.

4.2.4 Hybrid

Figure 10.

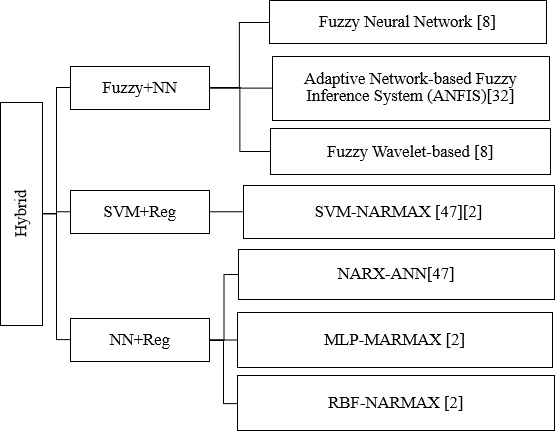

Hybrid techniques used in ATM management.

As mentioned earlier, some researchers used a combination of different categories. The main goal of these researches is to take advantage of the strengths of each technique alongside other techniques to improve the performance and efficiency of proposed approaches and find the best results. In the following, we will review these researches that are separated by the combined categories presented in Fig. 10.

The process of cash demand in ATM is highly affected by holidays as well as seasonal and calendar ceremonies. These effects can be incorporated into classical neural network models that could be used for cash demand forecasting. However, cash demand varies with time. In [32], we see that a much more flexible approach is needed to incorporate neural networks for cash demand in ATM. The advantage of popular SVMs over neural networks applied for regression was experimentally denied when cash demand forecasting was performed with training data with a long history. However, Support Vector Regression (SVR) may be more effective for data with a shorter history. An interval type-2 fuzzy neural network (IT2FNN) applied for cash demand forecasting is another approach that adapts to dynamic nature of ATM cash flow and (as author claims) is better than other systems based on time series.

In [2], Ramírez and Acuña forecasted the daily ATM cash demand using dynamic models of type Nonlinear Autoregressive Exogenous inputs (NARX) and Nonlinear Autoregressive Moving Average with Exogenous Inputs (NARMAX) performed by Neural Networks (NN) and Least Square Support Vector Machine (LS-SVM) to predict One-Step (OSA) or Multi-Step (MPO). The aim is to determine which model produces better results. In [47], we see a comparative study between NARMAX and NARX models developed with ANN and SVM when they are used to forecast cash demand for ATMs. A simple methodology was proposed for developing SVM-NARMAX models. The best results were obtained with NARX-ANN models. In addition, no significant differences were found between NARX and NARMAX for both ANN and SVM. Hence, it seems advisable to choose easier models such as NARX and a user-friendly tool like ANN at least for this particular application.

4.2.5 Others

Figure 11.

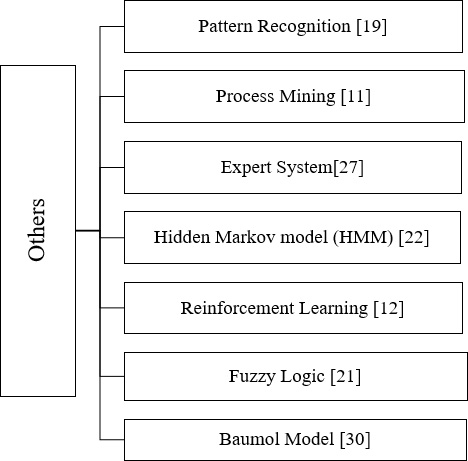

Others techniques used in ATM management.

Besides the techniques mentioned above, we have found some research efforts suggesting alternative techniques, which we categorized as “Others” shown in Fig. 11. In the following, we will consider them.

Omari and Omariba [19] used pattern recognition. A biometric system is essentially a pattern recognition system that operates by acquiring biometric data from an individual, extracting a feature set from the acquired data and comparing this feature set against the template set in the database. A limitation of ATM usage is that customers often have to wait in a queue, especially at ATMs installed at busy locations. In addition, old people tend to delay ATM usage time, possibly frustrating customers in the queue. In these situations, ATMs should “adapt” to the behavior of customers to minimize the usage time. To this end, Mahmood and Shaikh [11] applied data mining techniques to an ATM transaction data set obtained from an international bank based in Kuwait. They pre-processed this data set, and converted it into a specific XML format to mine it through the ProM (Process Mining) tool. [27] attempted to describe the application of AI techniques on the investigation of ATM fraud in Nigeria. An Expert System (ES) was proposed, which provided and supported the storage and intelligent interactive processing of the knowledge acquired as well as experience of the human expert in the domain of criminal investigation, law and justice. In order to demonstrate the practical applicability of Anderka et al. [22] approach, they implemented three specific sequence-based anomaly detection methods, each of which was based on one of the basic principles. The three methods are threshold-based sequence time delay embedding (t-stide), K-nearest neighbor approach (k-NN), and Hidden Markov model (HMM). In [12], Teddy and Ng proposed a novel local learning model of the pseudo self-evolving cerebellar model articulation controller (PSECMAC) associative memory network to produce accurate forecasts of ATM cash demands. As a computational model of the human cerebellum, our model can incorporate local learning to effectively model the complex dynamics of heteroskedastic time series. [21] focused on fuzzy time-series and grey theory models. Both were designed to handle forecasts when few past observations were available. The performance of the two AI techniques was compared to that of two simple methods of double moving average and double exponential smoothing. Instead, Agoston et al. [30] concentrated on a further possibility of cost reduction: optimizing the cash management problem as one single problem. Doing so, contractual prices between banks and the cash in transit firms can be generally modified, allowing for further cost reduction relative to individual optimizations. In order to show the pertinence of this procedure, they have determined possible Pareto-improvement re-contracting schemes based on a Baumol-type cash demand forecast for a Hungarian commercial bank, resulting in substantial cost reduction.

5. Evaluation criteria

There are several criteria to evaluate AI techniques. Some of these criteria are specific to a special technique, while others are used in general. Below, we give definitions of some criteria used in studies, and will then discuss the results obtained for two of them. At first, we should define TP, TN, FP, and FN and will then define criteria based on them.

True Positives (TP): Denotes the number of positive instances correctly classified.

True Negatives (TN): Denotes the number of negative instances correctly classified.

False Positives (FP): Denotes the number of positive instances incorrectly classified.

False Negatives (FN): Denotes the number of negative instances incorrectly classified.

MAPE: It expresses accuracy as a percentage and is calculated by the following formula where $A_{t}$ is the actual value and $F_{t}$ is the forecast value.

$\displaystyle\textit{MAPE}=\frac{1}{n}\sum\limits_{t=1}^{n}{\left|\frac{A_{t}-% F_{t}}{A_{t}}\right|}$ (1)

The difference between $A_{t}$ and $F_{t}$ is divided by the actual value of $A_{t}$ . The absolute value in this calculation is summed for every fitted or forecasted point in time and divided again by the number of fitted points $n$ . Multiplying by 100 makes it a percentage error [10].

SMAPE: All models are selected based on their accuracy on the test set. Some researchers used the Symmetric Mean Absolute Percentage Error (SMAPE) as their error measure as it is the main measure considered in competition. In order to evaluate the performance of different models, some researchers applied SMAPE parameter, which is a variation of MAPE. SMAPE formula is defined in Eq. (2). Where $X_{t}$ represents the actual value, $F_{t}$ the forecast value, and $n$ the size of the test period [6].

$\displaystyle\textit{SMAPE}_{s}=\frac{1}{n}\sum\limits_{t=1}^{n}{\frac{|X_{t}-% F_{t}|}{{(X_{t}+F_{t})}/2}\times 100}$ (2)

Sensitivity (Recall): The proportion of cases correctly classified as positive among all the observed positives, which is defined in Eq. (3).

$\displaystyle\textit{Sensitivity}=\frac{\textit{TP}}{\textit{TP}+\textit{FN}}$ (3)

Precision: It refers to the number of correctly classified instances for each of the specific predicted classes, which is defined in Eq. (4).

$\displaystyle\textit{Precision}=\frac{\textit{TP}}{\textit{TP}+\textit{FP}}$ (4)

Probability: Measures the likelihood that an event will occur.

Reliability: In statistics and psychometrics, it is the overall consistency of a measure.

IA: The index of agreement (IA) developed as a standardized measure of the degree of model prediction error, which varies between 0 and 1. A value of 1 indicates a perfect match, and 0 indicates no agreement at all. It is a dimensionless statistic and its value should be assessed based on (a) the studied phenomenon, (b) measurement accuracy and (c) the model employed. IA becomes intuitively meaningful after repeated use in a variety of problems [47].

$\displaystyle\textit{IA}=1-\frac{\sum\limits_{i=1}^{n}{(y_{i}-\widehat{y_{i}})% }^{2}}{\sum\limits_{i=1}^{n}{(|{y}_{i}^{\prime}|+|\widehat{y_{i}}^{\prime% \prime}|)}^{2}}$ (5)

With

$\displaystyle{y}_{i}^{\prime}=y_{i}-y_{m}$ $\displaystyle{\hat{y}^{\prime}}_{i}=\hat{y}_{i}-y_{m}$

Chromosome (EC & CC): A chromosome represents a possible set of rule specifications. Each specification is a point in $R\equiv C_{1}\times C_{2}\times\ldots\times C_{n}\times L$ ; therefore, it can be identified by an index $I\in 0\ldots H_{n}-1$ , assuming

$\displaystyle H_{i}=\prod\limits_{i=1}^{i}B_{i}.\quad i=1\ldots n$ (6)

$H_{0}=1$

where $B_{i}=card(C_{i})$ , Instead, we assume $K=card(L)$ . Index can be computed as

$\displaystyle I=\left(\sum\limits_{i=1}^{n}{c_{i}H_{i-1}}\right)+lH_{n}$ (7)

where $c_{i}\in 0\ldots B_{i}-1$ and $1\in 0\ldots K-1$ . Equation (7) can be inverted so that given index $I$ , it is possible to obtain the tuple $c_{1}.\ldots.c_{n}.1.$ where $l$ provides the recharge level and computed as

$\displaystyle l=I/H_{n}$ (8)

noting an integer division by the symbol. Similarly, if we assume $r_{n}+1=ImodH_{n}$ we can recursively compute

$\displaystyle c_{i}=r_{i+1}/H_{i-1}$ (9) $\displaystyle r_{i}=r_{i+1}modH_{i-1}$ (10)

Akaike information criterion (AIC): It is computed as Eq. (11).

$\displaystyle\textit{AIC}=-2\log(\hat{L})+2k$ (11)

Where $\hat{L}$ is the optimized log-likelihood function for the proportional hazards model, $k$ is the number of unknown parameters [41].

Security: It is the degree of resistance to, or protection from, harm. It applies to any vulnerable and valuable asset, such as a person, dwelling, community, item, nation, or organization.

Accessibility: It refers to the design of products, devices, services, or environments for people who experience disabilities.

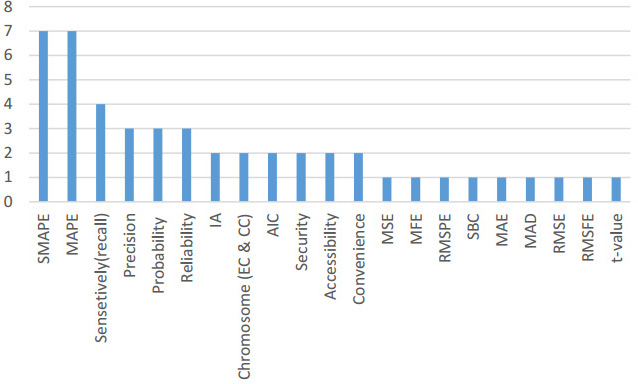

Figure 12.

Evaluation criteria chart.

Convenient: Procedures, products and services intended to increase ease in accessibility, save resources (such as time, effort and energy) and decrease frustration.

RMSE: It is an estimate of standard deviation from the random component in data and defined by the following equation:

$\displaystyle\textit{RMSE}=S=\sqrt{\textit{MSE}}$ (12)

Where MSE is the Mean Square Error or Residual Mean Square:

$\displaystyle\textit{MSE}=\frac{\textit{SSE}}{v}$ (13)

SSE is also called the summed square of residuals and is usually labelled as SSE.

Mean Forecast Error (MFE): For $n$ time periods where we have actual demand and forecast values:

$\displaystyle\textit{MFE}=\frac{\sum\nolimits_{i=1}^{n}{(e_{i})}}{n}$ (14)

Ideal value $=$ 0; MFE $>$ 0, model tends to under-forecast; MFE $<$ 0, model tends to over-forecast.

RMSPE: Root Mean Square Percentage Error is calculated according to Eq. (15):

$\displaystyle\textit{RMSPE}=\sqrt{\textit{mean}\left(100\cdot\left|p_{i}\right% |\right)^{2}.i=\overline{1.n}}$ (15)

and the median percentage error of the quadratic.

SBC: Schwartz Bayesian criterion is computed by the following equation.

$\displaystyle\textit{SBC}(k)=\ln({\textit{Var}(u)}_{k})+2((k)\ln(N))/N$ (16)

Where ${\textit{Var}(u)}_{k}$ is the sample variance estimated from residuals, $k$ the number of parameters in the model, $u$ the residuals and $N$ the sample size (length of the complete time series) [41].

MAE: Mean Absolute Error is a quantity used to measure how close forecasts or predictions are to theeventual outcomes. The mean absolute error is given by Eq. (17).

$\displaystyle\textit{MAE}=\frac{1}{n}\sum\limits_{i-1}^{n}{|f_{i}-y_{i}|}$ (17)

Where $f_{i}$ is the prediction, and $y_{i}$ is the true value.

Mean Absolute Deviation (MAD): For $n$ time periods where we have actual demand and forecast values:

$\displaystyle\textit{MAD}=\frac{\sum\nolimits_{i=1}^{n}{|e_{i}|}}{n}$ (18)

Figure 13.

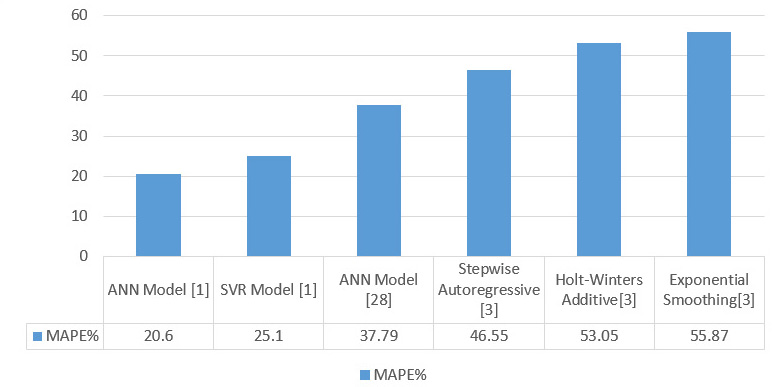

Best results of MAPE prediction.

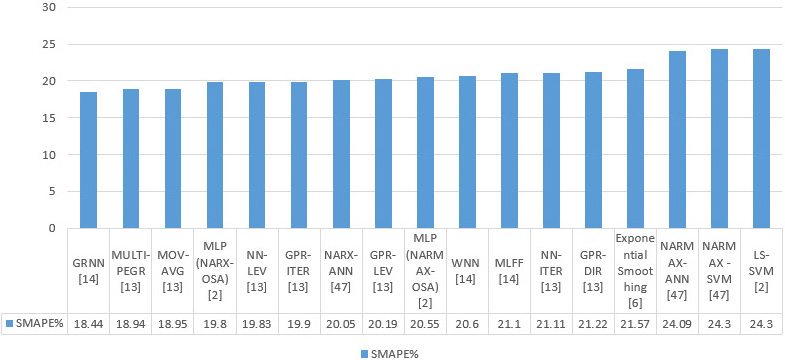

Figure 14.

Best results of SMAPE prediction.

While MAD indicates the absolute size of the errors.

RMSFE: The Root Mean Squared Forecast Error is the square root of the MS forecast error computed as Eq. (19):

$\displaystyle\textit{RMSFE}=\sqrt{E[{(Y_{T+1}-\widehat{Y}_{T+1|T})}^{2}]}$ (19)

t-Value: It is a test statistic for t-tests that measures the difference between an observed sample statistic and its hypothesized population parameter in units of standard error. Figure 12 shows frequency chart of evaluation criteria. Below, we present a definition of two of the most important criteria, including MAPE and SMAPE that were used in the studies, and will then discuss their obtained results.

The below charts in Figs 13 and 14 indicate the values reported for two criteria (MAPE and SMAPE) and indicate which technique outperformed the others based on the reported evaluation results.

The best result of MAPE (20.6%) is achieved by ANN model [1]. Using flexible ANN models, MAPE varied between 15–28% and for SVR models between 17–40% [1]. Choosing different ANN settings can obviously change the performance of ANN, but in [28], decomposition of all ANN models shows the best result (37.79%).

The best result of the study, an average SMAPE value of 18.44%, is yielded by GRNN. The initial phase of clustering similar ATM centers reduces the computational task in forecasting phase, thereby improving cash demand predictions. Furthermore, clustering followed by prediction yielded much smaller SMAPE values than the traditional approach of direct prediction on the entire sample without clustering.

From a managerial perspective, identifying ATM clusters with similar daily cash demand trends helps the bank’s top management to design similar cash replenishment plans for all ATM centers falling under the same cluster. These segment-level replenishment plans could result in saving huge operational costs for ATM centers active in a similar geographical region. For a financial-services institution having ATM centers operating in different geographical regions, such huge cost savings could also be realized if the ATM segment-level cash replenishment plan is applied within operationally meaningful regions. This means that ATM clusters with similar day-of-the week cash demand patterns are defined within each operationally meaningful region [41].

The results show that the MLP-NARX model developed here allows for a high degree of quality over 85% for long-term predictions. On the other hand, the NARMAX model shows no significant advantage over NARX; therefore, NARX is better with respect to simplicity considerations [2].

Given that the best results were exhibited by NARX ANN models, which were even more remarkable regarding SMAPE index and considering the simplicity exhibited by ANN in their training of significantly lower computational efforts to find weights than to calibrate parameters of SVM, it seems advisable to choose easier models such as NARX and a user-friendly tool like ANN at least for this particular application [47].

The next one, which is an average SMAPE value of 21.57%, was reached by Exponential Smoothing. Also, we focused on special days in the UK as well as other seasonal factors [6]. With respect to RBF networks, they are also considered as a reliable alternative to tackle these problems, while LS-SVM shows poorer results [2].

6. Open issues

ATM failure: We can forecast the number of failures for each problem category and adjust the service time required for each problem type to better plan the service engineer’s deployment [3]. Another area of research is to investigate the possibility of generating variable-length error detectors. Error detectors in the implemented framework were represented as fixed-length sequences of states that were terminated by fatal states [36]. In summary, the whole procedure provides a simplified methodology to analyze the down time of equipment failure, which can be used in the field of failure prediction and thus aid the predictive maintenance in manufacturing plant to reduce the down time cost [41].

ATM location: As mentioned earlier, there are few studies concerning ATM management. The first step is site selection and the second is cash management since these two problems are linked together [38].

Customer behavior: Future research should explore the association between age and attitude to determine its impact on ATM service quality and customers’ satisfaction. The price is an essential aspect that affects the customers’ perception of ATM service quality [16]. Several possible extensions could be conducted in future research, such as the assessment and improvement of existing ATMs as well as improvement of the graphical user interface (GUI) of GA solver to make it more accessible and user-friendly [39].

Forecasting cash demand: Cash management and forecasting is becoming an important feature of ATM networks. Generally, this problem has been studied in terms of stochastic modeling of future cash demand upon which the ATM cash upload can be sized. The majority of limitations come from high unpredictability and non-stationarity of demand [17]. The first results of ATM’s cash demand forecasting procedure showed promising results, but further experimental investigations are necessary for practical implementation of the proposed methods [7]. In the future works, we should plan to investigate the joint forecasting approach more deeply, where cash demand information of few or more ATMs is integrated or aggregated to increase forecasting accuracy. Until now, only one day ahead forecasting is contained, whereas more often multiple step ahead forecasting is needed [32].

Table 2
Best results for each category

#	Topic	Techniques	Best result
			Paper	Method	Result
1	Forecasting cash demand	Neural network, KNN, LWL-based model, ANN, SVM, multiple regression, genetic algorithm, fuzzy wavelet-based, SVR, feed-forward neural network, LS-SVM, MLP	[13]	Multiple regression	18.95% SMAPE
2	ATM location	Neural network, local learning, support vector machine, autoregressive models, particle swarm optimization	[4]	Particle swarm optimization	The transaction summit of ATM is usually between 17:00 and 21:00 every day, especially for those near the large-scale enterprises, occupying nearly about 45% of total workload in the whole day. ATMs play an important role for the extension of service time of banks. The transactions of ATMs in commercial districts increases obviously on Saturday and Sunday, which constitutes about 40% of transactions during the whole week. ATMs in other places do not fluctuate obviously
3	Fraud detection	Anomaly detection, hidden markov model (HMM), k-nearest neighbor (K-NN), self-learning detection method, empirical research, expert system	[22]	Anomaly detection	0.85 precision
4	User interface	Process mining, pattern recognition	[19]	Pattern recognition	The incorporation of biometric features will be essential to ensure that these systems are secure enough
5	Customer behavior	Multiple logistic regression analysis, pearson correlation, genetic algorithm	[20]	Correlation and regression analysis	Cost effectiveness, user friendliness, security and responsiveness influenced customer satisfaction at 36% variance
6	Replenished strategy	Nearest neighborhood, genetic algorithm, mix-i̇nteger programming model, flexible clustering heuristic	[10]	Nearest neighborhood	20% MAPE
7	ATM failure	ARMA, artificial immune systems	[41]	ARMA	2.48% Mean Absolute Error (MAE)
8	Peak time	Autoregressive moving average, adaptive bayes network, support vector machine, native bayes	[9]	ARMA	The results indicated that cash withdrawals are negatively affected the day before the holiday. This effect is even more pronounced during the holiday. Concerning the day after the holiday, the results are less general, pointing on average to a positive effect

Fraud detection: As the ATM technology is advancing, fraudsters are on drawing board to see how they come up with different fraud skills to beat the security. Various forms of fraud are perpetuated, ranging from ATM card theft, skimming, pin theft, card reader techniques, PIN pad techniques, force withdrawal and a lot more. Despite these threats, the banks devote little effort that is not proportional to rate of fraudsters work to defraud customers. The technology of ATM keeps developing, and the fraudsters keep improving criminal practices but the banks do not take sufficient control measures to avoid fraud at ATM. The security measures adopted by some banks are obsolete, making the measures less significant and allowing fraud at ATMs [26].

Peak time: Nowadays, ATMs are not subject to further analysis, which will improve the quality of ATM services. Using analysis, one can predict the ATM usage for the next step. The predictive data mining will be really helpful for analysis of the ATM data as well as processing the large set of records by a predictive mining (Weka) tool [46].

Replenishment strategy: In future works, the performance of forecasting might be further enhanced using other methods such as time-series regressions. The objective function for optimal replenishment can be broadened to include the lost opportunity by letting people use ATMs of rival banks in case the other ATMs of the same bank are far away [10].

User interface: Every day, people with disabilities encounter several barriers that prevent them from interaction with electronic devices in their surroundings. When the government agencies or commercial sector do not provide the necessary services or facilities, it may be necessary to enforce the introduction of mandatory regulation or legislation. In the area of accessibility of self-service terminals, the market is not providing terminals for which user organizations are deemed to be responsible in terms of accessibility. However, the introduction of mandatory requirements necessitates a clear set of guidelines that cover all relevant types of terminals and do not limit manufacturers in introduction of new ways to improve accessibility. It is a priority to develop a single common standard for accessibility across different application sectors so that manufacturers and service providers are justified as to what they are expected to provide. The next step would be mandatory legislation of this standard. Therefore, the financial institutions will not be left with an option to procure ATM systems that are inaccessible to the visually impaired people. Finally, it has been observed that the incorporation of biometric features will be essential to ensure that these systems are secure enough [19].

7. Conclusion

Lack of a survey on ATM management prediction in recent years motivated us to offer the present paper. Our aim was to cover every aspect of this domain. Hence, in the literature, we covered the papers on this field published in the last ten years. We performed three main tasks:

A) A)

We did a research about data sets. For better survey, we classified ATM management into seven branches. We also observed that forecasting cash demand is the most investigated branch, and 19 papers considered this topic. In this regard, we also mentioned some issues and presented our suggestions.

We explored all AI techniques, especially those applied to ATM management prediction. All the studied researches were summarized according to their categories and techniques. Experimental results stated by each research and their own criteria were reported.

Ultimately, a list of issues came to our mind, which was listed in open issues section. The greatest problem is the absence of a comparison point. Since each research is different from others in terms of used data set, the number of considered features and applied technique, it is not possible to compare their reported results. We strongly suggest presenting one data set as a benchmark. On the other hand, we figured out that some AI techniques are not used at all or have received low attention.

We show the whole investigation of all papers in Appendix 1 but as regards the overall forecasting conclusion, data for each branch are presented in Table 3.

Footnotes

Appendix 1

Overall forecasting results are presented in Table 3.

Table 3

Table of papers

Sub	No. Ref.	Title	AI technique	Quantitative analysis		Conclusion
Forecasting cash demand	[6]	Improvement of demand forecasting models with special days		SMAPE%		The best performance was achieved when exponential smoothing was used on the dataset, which included notable special days’ columns. The best performance among neural network methods was observed in GLM approach. However, its performance was not better than exponential smoothing method.
				Including special days	Not including special days
			Regression (exponential smoothing)	19.21	21.57
			Neural network (GLM)	40.64	42.52
Forecasting cash demand	[12]	Forecasting ATM cash demands using a local learning model of cerebellar associative memory network		SMAPE%		The proposed PSECMAC-based forecasting model was ranked second best amongst the evaluated techniques and the third one was LWL-based model across 111 cash demand time series of competition.
			LWL-based model	28.32%
			PSECMAC	27.28%
			KNN	26.38%
Forecasting cash demand	[47]	Comparing NARX and NARMAX models using ANN and SVM for cash demand forecasting for ATM	ANN			For ANN (MLP), there were no significant differences between NARX and NARMAX models. Concerning SVM, NARMAX slightly improved the results obtained by NARX models at least allowing to obtain a mean IA equal to that obtained by ANN. Nevertheless, only in the case of four ATMs (1, 10, 26, 30) did NARMAX significantly improve the performance of NARX (from IA $=$ 0.71 $\pm$ 0.04 to IA $=$ 0.86 $\pm$ 0.02).
			SVM
Forecasting cash demand	[13]	Forecast combinations of computational intelligence and linear models for the NN5 time series forecasting competition		SMAPE%	FRAC-BEST%
Forecasting cash demand			GPR-ITER	19.90	7.21
			GPR-DIR	21.22	3.60
			GPR-LEV	20.19	12.61
			NN-ITER	21.11	2.70
			NN-LEV	19.83	27.93
			MULTI-PEGR1	19.11	2.70
			MULTI-PEGR2	18.96	9.01
			MULTI-PEGR3	18.94	7.21
			MOV-AVG	19.55	7.21
			Combined	18.95	12.61
Forecasting cash demand	[14]	Cash demand forecasting in ATMs by clustering and neural networks		SMAPE%		The best result of the study, an average SMAPE value of 18.44%, was yielded by GRNN. This result was better than the result of Andrawis[13].
Forecasting cash demand			MLFF	21.10
			WNN	20.60
			GRNN	18.44
			GMDH	20.32

Table 3, continued
Sub	No. Ref.	Title	AI technique		Quantitative analysis		Conclusion
Forecasting cash demand	[32]	Investigation of CI forecasting algorithms for short-time cash demand in ATM network			SMAPE% 2 year training		The results revealed that on average, v-SVR was the most accurate model with two-year training/validation dataset. Also, the results suggested that using two years of historical daily data yielded the best forecasting results over all models (43.72% for v-SVR, which was the best option).
			ANFIS		44.12
			ELM		44.18
			LMBR-FFNN		44.03
			LM-FFNN		43.87
			GRNN		44.14
			LS-SVR		43.85
			v-SVR		43.72
			RVR		44.98
Forecasting cash demand	[2]	Forecasting cash demand in ATM using neural networks and least square support vector machine			SMAPE%		The results revealed that the developed MLP-NARX model allowed for predictions with a high degree of quality for long-term predictions. On the other hand, the NARMAX model showed no significant advantage over NARX; therefore, NARX was better, aiming to simplify considerations. Regarding the RBF networks, they were also considered as a reliable alternative to tackle these problems, while LS-SVM showed poorer results.
			MLP	NARX-OSA NARMAX-OSA	19.80 20.55
			RBF	NARX-OSA NARMAX-OSA	25.63 26.03
			LS-SVM	NARX-OSA	24.30
Forecasting cash demand	[17]	Optimizing ATM cash management by genetic algorithms	Genetic algorithm				Since genetic algorithms are computationally expensive, scalability was taken into account by a further experimentation, which assessed how performances are affected when the uploading strategy is determined for a single ATM, a group, or the whole network.
Forecasting cash demand	[8]	A methodology to improve cash demand forecasting for ATM network			MFE% (mean forecast error)		Comparison between the two methods and their error indicated that the employed fuzzy neural network has a smaller divergence as well as better predication than that for time series with a 13% reduction in MFE (mean forecast error).
			IT2FNN		6.566
			Fuzzy wavelet-based		19.438
Forecasting cash demand	[18]	A generative solution for ATM cash management	Genetic algorithm				In contrast to approaches based on predication of future cash demand, this approach is based on conditions, which if met suggest to refill the ATM cash. Experimental results proved that this approach is capable of suggesting reliable strategies and can improve historical cash management.
Forecasting cash demand	[1]	Cash demand forecasting for ATM using neural networks and support vector regression algorithms			MAPE%	$\sigma\%$	Despite today’s overenthusiastic beliefs about capabilities of SVR, this investigation showed that slightly better results can be achieved for this application using forecasting method based on flexible ANN.
			ANN		20.6	4.0
			SVR		25.1	5.7
Forecasting cash demand	[7]	A flexible neural network for ATM cash demand forecasting	Feed-forward neural network				The prediction results using flexible ANN were significantly better than those resulting from linear models with seasonality coefficients (5–10% prediction errors for simulated data and 25–30% prediction errors for real data).
			ANN
Forecasting cash demand	[35]	Cash forecasting: An application of artificial neural networks in Finance			MFE%		Neural network forecast results were not free from errors, but were much better than other techniques-particularly time series forecasting.
			Neural network		6.566
			Regression		19.438

Table 3, continued
Sub	No. Ref.	Title	AI technique	Quantitative analysis		Conclusion
Forecasting cash demand	[45]	Cash management cost reduction using data mining to forecast cash demand and LP to optimize resources	Neural network			Neural network model had a better performance than the ARMA-ARCH model, confirming the prior decision of choosing neural networks as the best forecasting model.
			ARMA-ARCH
Forecasting cash demand	[42]	Optimization of cash management for ATM network	Artificial neural network			The simulation results showed that artificial neural network solution allows to keep the average daily cash demands’ forecasting error under 10%.
Forecasting cash demand	[21]	Forecasting short time-series tourism demand with artificial intelligence models	Fuzzy time series and grey theory			Although fuzzy time series and DES seemed to have better forecasting accuracy in several cases, these differences were rarely statistically significant.
Forecasting cash demand	[28]	An integrative online ATM forecasting and replenishment model with a target fill rate	Proposed forecasting method decomposition and neural network	Methods	MAPE%	Computational results demonstrated that decomposition outperforms an artificial neural network approach, which is considered to be a promising new technique to forecast time-series demand figures in ATM management.
				Decomposition	37.79%
				ANN #1	42.42%
				ANN #2	49.02%
				ANN #3	44.63%
				ANN #4	42.04%
				ANN #5	40.51%
				ANN #6	41.06%
Forecasting cash demand	[24]	A mixed frequency approach to forecast private consumption with ATM/POS data	Mixed data sampling (MIDAS) regression models			It focused on nowcasting, drawing on MIDAS models seems to be advisable, which allows taking on board autoregressive dynamics delivering a better performance.
Forecasting cash demand	[31]	Optimal cash management for ATM center by genetic algorithm	Genetic algorithm	Month	Criteria of fault (MAPE%)	By applying Genetic Algorithm to forecast the cash demand of ATMs with 37 cabinets in the first quarter of 2014, the bank can reduce the amount of cash reserve by almost 20 percent. It can be concluded that the optimization method of the refilled ATM produces a very good result. The bank can save the “waste” cash because the forecast of the usage is reasonably accurate.
				January	19.26%
				February	17.01%
				March	102.35%
				Total	138.62%
ATM location	[38]	ATM location problem and cash management in automated teller machines	Neural network, local learning, SVM, ARMA			It intended to have two-stage solution procedures: the first stage is site selection and the second cash management as these two problems are linked together. It is believed that cash management policy should be established preemptively according to the ATMs locations.
ATM location	[4]	Sites selection of ATMs based on particle swarm optimization	Particle swarm optimization			Based on the advanced PSO algorithm, the statistics constructed an experimental system by combining the GIS technology with mathematical mode.
Fraud detection	[22]	Automatic ATM fraud detection as a sequence- based anomaly detection problem		Sequence length, $w$	Precision/recall	Independent of the sequence length, the reported F-measure values achieved by k-NN method were relatively low, ranging from 0.07 to 0.21. By contrast, t-stide and HMM achieved quite good F-measure values for certain sequence lengths, i.e. 0.85 for $w=$ 2 and 0.84 for $w=$ 8, respectively.
			Anomaly detection	3	0.85
			K-NN	4	0.21
			HMM	8	0.84

Table 3, continued
Sub	No. Ref.	Title	AI technique	Quantitative analysis		Conclusion
Fraud detection	[40]	Generalized ATM fraud detection		Test set where the ratio of artificial anomalies is 10%		It automatically learned a behavior model from ATM event logs, which was then used during operation to identify abnormal behavior that indicated fraud or manipulation. The experimental results showed that the selected PDTTA model can outperform the state-of-the-art anomaly detection methods.
			F-measure	Event-based	Sequence-based
			PDFA	0.63	0.51
			PDTTA	0.9	0.71
Fraud detection	[23]	On the usage of behavior models to detect ATM fraud	Probabilistic deterministic timed-transition automaton (PDTTA)			The threshold $c$ allowed for controlling the precision/recall tradeoff: for higher values of $c$ , not only more anomalies were detected (increasing recall), but also more normal sequences were falsely labeled as anomaly (decreasing precision).
Fraud detection	[26]	Challenges of Automated Teller Machine (ATM) usage and fraud occurrences in nigeria – a case study of selected banks in minna metropolis	Data mining (empirical research)			Research showed that customers are much comfortable with the electronic banking system, among which ATM is just one component out of various services of e-banking. As the usage of ATM is increasing, its openness to security threat is ascending.
Fraud detection	[27]	A framework for computer aided investigation of ATM fraud in Nigeria	Expert system			The interactive processing considered a number of key factors that can be related, weighted and alternative deductive reasoning evaluated with the intention of identifying the set of culprits involved in a given case.
User interface	[11]	Adaptive Automated Teller Machines	Process mining			The results revealed that the majority of representative ATM users (more than 70%) were willing to employ the first, second and fourth interfaces.
User interface	[19]	Investigating ATM system accessibility for people with visual impairments	Pattern recognition			The financial institutions will not be left with an option to procure ATM systems inaccessible to the visually impaired. Finally, it is seen through this paper that the incorporation of biometric features will be essential to ensure that these systems have sufficient security.
Customer behavior	[16]	An empirical study of Automated Teller Machine service quality on customer satisfaction	Multiple logistic regression analysis			The result of the tested hypothesis showed that there was a positive relationship between accessibility and convenience; therefore creating an accessible point of ATM use will make transaction convenient for the customers.
			Pearson correlation
Customer behavior	[5]	Evaluating customer perceptions towards ATM services in financial institutions; a case study of Pakistani banks	Data mining			As a result of increase in the number of ATMs, the number of transactions also witness a phenomenal increase. The customer’s personality characteristics were also found to have a positive influence on the use of ATMs.
Customer behavior	[20]	Factors affecting on customers’ satisfaction an empirical investigation of ATM service	Correlation and Regression analysis			The results showed that cost effectiveness of ATM service was a core service quality dimension and significantly affected the overall customer satisfaction in ATM service provided by commercial banks.

Table 3, continued
Sub	No. Ref.	Title	AI technique	Quantitative analysis	Conclusion
Customer behavior	[25]	Customers’ financial needs satisfaction and self-service technology banking: The case of automatic teller machines (ATMs) in Jordan	Regression analysis		The result indicated that which factor impact on the achievement of customers’ financial needs satisfaction.
Customer behavior	[39]	Allocation of heterogeneous Banks’ automated teller machines	Genetic algorithm		It is strongly believed that such a solver will aid banks in finding the best assignment of heterogeneous ATM machines to banks’ locations. Also, it can be used to obtain other information, such as whether banks should lease or buy ATMs.
Replenished strategy	[10]	Optimization of ATM cash replenishment with group-demand forecasts	Nearest neighborhood		From the past cash demand forecasting, it was observed that MAPE ranged from 20% to 45%. This study has an average MAPE of 20% or lower, which shows reasonably better performance than the ones given by the literature.
Replenished strategy	[15]	ATM cash management using genetic algorithm	Genetic algorithm		Based on analysis, the banks managers disagreed to select one or three days per week for their ATMs cash charges.
Replenished strategy	[44]	Routing optimization for ATM cash replenishment	Genetic algorithm		Deriving the optimal cash deployment strategy for a network of ATMs involves the analysis of logistics costs, inventory policies as well as routing of replenishment vehicles. The optimal cash deployment strategy focuses on reduction of cash-related expenses while guaranteeing that ATMs do not run out of cash.
Replenished strategy	[43]	Modeling and optimization of ATM cash replenishment	Genetic algorithm		The optimal cash deployment strategy focused on reduction of cash-related expenses provided that ATMs do not run out of cash. The periodic vehicle routing problem can be seen as a problem of generating a group of routes for each day of a planning horizon so that the constraints involved are satisfied and global costs are minimized.
Replenished strategy	[29]	An inventory-routing problem with pickups and deliveries arising in the replenishment of Automated Teller Machines	Mix-integer programming model, flexible clustering heuristic		Solving the problem with the proposed clustering procedure yielded better upper bounds for all instances, with average improvements of 29.94% and attaining 47.17% improvement in one case.
Replenished strategy	[30]	Pareto improvement and joint cash management optimization for banks and cash-in-transit firms	Pareto-improvement re-contracting schemes based on a Baumol-type cash demand forecast		For enhanced predictive power, the representative ATM model was dropped in favour of different ATMs with different turnovers and loading frequencies – and with customers who withdraw cash randomly but with a systematic seasonality. However, unlike the representative ATM model, it does not allow for finding Pareto optimal points through closed mathematical formulae – hence, the deterministic nature of the simulation model.
ATM failure	[3]	Ad-hoc automated teller machine failure forecast and field service optimization	Autoregressive moving average (ARMA)		By recommending to deploy the maximum number of engineers in each zone for the entire 2-week schedule, the number of unattended ATM failures drops to zero with a surplus of 269 idle hours. These surplus hours are very small as compared to the bank’s current practice and represents a cost savings of 28.6%.

Table 3, continued
Sub	No. Ref.	Title	AI technique		Quantitative analysis		Conclusion
ATM failure	[36]	Immune-inspired adaptable error detection for Automated Teller Machines	Classification (artificial immune systems E-mail classification (AISEC) algorithm)		Classification accuracy		The results showed that during the offline training phase, classification performance of the static AISEC algorithm with the evolutionary process was not better than the static AISEC algorithm without the evolutionary process. For the online testing phase of AISEC algorithm, it was confirmed that the incorporation of novel fatal sequences of states improved the classification performance of the AISEC algorithm, which was in contrast to the exploratory evolutionary process. This led to the conclusion that the continuous learning used by AED is associated with improvement in its detection capability.
					Dataset A	Dataset B
				Static AISEC	93.33%	90.53%
				Static AISEC Evolutionary process	83.11%	90.53%
				online AISEC Evolutionary process	85.78%	89.93%
				Static AISEC incorporational of fatal sequences	86.67%	91.53%
ATM failure	[41]	Equipment fault forecasting based on ARMA model	Auto-regressive moving average (ARMA) model		Mean Absolute Error (MAE)		The comparison between forecasting values and actual values as well as Mean Absolute Error (MAE) comparison between the proposed method and ARMA model method showed that the proposed method has high accuracy.
			Auto-regressive moving average (ARMA) model		Forecasting by proposed method	Forecasting by ARMA model only
					2.48%	3.78%
Peak time	[46]	ATM service analysis using predictive data mining	Adaptive Bayes network, support vector machine, naive Bayes				• The ATM usage for every location was calculated. Further decision about providing service to the customer was left to the bank management. • The location of ATM, which provided service to the customer, was determined with their usage level.
Peak time	[9]	Calendar effects in daily ATM withdrawals	Regression				In general, the results indicated that cash withdrawals were negatively affected the day before holiday. This effect is even more pronounced during the holiday. Concerning the day after the holiday, the results are less general, pointing on average to a positive effect. This type of profile is clearly stronger and statistically relevant in the Christmas and New Year periods. The results point to the presence of important calendar effects.

References

Simutis

Dilijonas

Bastina

. Cash demand forecasting for ATM using neural networks and support vector regression algorithms. 20th International Conference, EURO Mini Conference, “Continuous Optimization and Knowledge-Based Technologies” (EurOPT-2008), Selected Papers, Vilnius 2008; 416-421.

Ramírez

Acuña

. Forecasting cash demand in ATM using neural networks and least square support vector machine. Progress in Pattern Recognition, Image Analysis, Computer Vision, and Applications 2011; 515-522.

Cheong

Koo

Babu

. Ad-hoc automated teller machine failure forecast and field service optimization. Automation Science and Engineering (CASE), 2015 IEEE International Conference on IEEE 2015; 1427-1433.

Sun

Zhang

. Sites selection of ATMs based on particle swarm optimization. Information Technology and Computer Science, 2009, ITCS 2009, International Conference on IEEE 2009; 2: 526-530.

Khawaja

Manarvi

. Evaluating customer perceptions towards ATM services in financial institutions; A case study of Pakistani Banks. Computers & Industrial Engineering, 2009, CIE 2009, International Conference on IEEE 2009; 1440-1445.

Catal

Fenerci

Ozdemir

Gulmez

. Improvement of Demand Forecasting Models with Special Days. Procedia Computer Science 2015; 59: 262-267.

Simutis

Dilijonas

Bastina

Friman

. A flexible neural network for ATM cash demand forecasting. Proceedings of the Sixth WSEAS International Conference on Computational Intelligence, Man-Machine Systems and Cybernetics (CIMMACS 07) 2007; 162-165.

Darwish

. A methodology to improve cash demand forecasting for ATM network. International Journal of Computer and Electrical Engineering 2013; 5(4): 405.

Rodrigues

Esteves

, et al. Calendar effects in daily ATM withdrawals. Economics Bulletin 2010; 30(4): 2587-2597.

10.

Ekinci

Duman

. Optimization of ATM cash replenishment with group-demand forecasts. Expert Systems with Applications 2015; 42(7): 3480-3490.

11.

Mahmood

Shaikh

. Adaptive automated teller machines. Expert Systems with Applications 2013; 40(4): 1152-1169.

12.

Teddy

. Forecasting ATM cash demands using a local learning model of cerebellar associative memory network. International Journal of Forecasting 2011; 27(3): 760-776.

13.

Andrawis

Atiya

El-Shishiny

. Forecast combinations of computational intelligence and linear models for the NN5 time series forecasting competition. International Journal of Forecasting 2011; 27(3): 672-688.

14.

Venkatesh

Ravi

Prinzie

Van den Poel

. Cash demand forecasting in ATMs by clustering and neural networks. European Journal of Operational Research 2014; 232(2): 383-392.

15.

Ghodrati

Abyak

Sharifihosseini

. ATM cash management using genetic algorithm. Management Science Letters 2013; 3(7): 2007-2041.

16.

Olusanya

Fadiya

. An empirical study of automated teller machine service quality on customer satisfaction (a case study of united bank of africa [uba]). International Journal of Scientific Research in Information Systems and Engineering (IJSRISE) 2015; 1(1): 61-68.

17.

Armenise

Birtolo

Sangianantoni

Troiano

. Optimizing ATM cash management by genetic algorithms. International Journal of Computer Information Systems and Industrial Management Applications 2012; 4: 598-608.

18.

Armenise

Birtolo

Sangianantoni

Troiano

. A generative solution for ATM cash management. Soft Computing and Pattern Recognition (SoCPaR), 2010 International Conference of IEEE 2010; 349-356.

19.

Omari

Omariba

. Investigating ATM system accessibility for people with visual impairments. Journal of Computer Engineering 2013; 15(5): 13-18.

20.

Kumbhar

. Factors affecting on customers’ satisfaction: An empirical investigation of ATM service. International Journal of Business Economics and Management Research 2011; 2(3): 144-156.

21.

Zvi

. Forecasting short time-series tourism demand with artificial intelligence models. Journal of Travel Research 2006; 45(2): 194-203.

22.

Anderka

Timo

Steffen

Hans

. Automatic ATM fraud detection as a sequence-based anomaly detection problem. ICPRAM 2014; 759-764.

23.

Klerx

Maik

Hans

. On the usage of behavior models to detect ATM fraud. ECAI 2014; 1045-1046.

24.

Duarte

Paulo

Rua

. A mixed frequency approach to forecast private consumption with ATM/POS data. 2016; w201601.

25.

Al Sawalqa

. Customers’ financial needs satisfaction and self-service technology banking: The case of automatic teller machines (ATMs) in Jordan. International Journal of Business and Social Science 2012; 3(9).

26.

Adepoju

Alhassan

. Challenges of automated teller machine (ATM) usage and fraud occurrences in nigeria-a case study of selected banks in minna metropolis. Journal of Internet Banking and Commerce 2010; 15(2): 1.

27.

Ayofe

Adebayo

Ajetola

Abdulwahab

. A framework for computer aided investigation of ATM fraud in Nigeria. International Journal of Soft Computing 2010; 5(3): 78-82.

28.

Van Anholt

Vis

. An integrative online atm forecasting and replenishment model with a target fill rate. Proceedings of The International Conferene on Logistics and Maritime Systems, at Busan, Korea 2010; 1-10.

29.

Van Anholt

Coelho

Laporte

Vis

. An inventory-routing problem with pickups and deliveries arising in the replenishment of automated teller machines. Transportation Science 2016; 50(3): 1077-1091.

30.

Ágoston

Benedek

Gilányi

. Pareto improvement and joint cash management optimisation for banks and cash-in-transit firms. European Journal of Operational Research 2016; 254(3): 1074-1082.

31.

Chamnan

Chongstitvatana

. Optimal cash management for ATM center by genetic algorithm. The 29th International Technical Conference on Circuit/Systems Computers and Communications (ITC-CSCC), Phuket, Thailand 2014.

32.

Zylius

Vaitkus

Simutis

. Investigation of CI forecasting algorithms for short-time cash demand in ATM network. Proceedings on the International Conference on Artificial Intelligence (ICAI). The Steering Committee of The World Congress in Computer Science, Computer Engineering and Applied Computing (WorldComp) 2015; 491.

33.

Hasheminejad

SMH

Jalili

. Selecting proper security patterns using text classification. Computational Intelligence and Software Engineering, 2009, CiSE 2009. International Conference on IEEE 2009; 1-5.

34.

Hasheminejad

SMH

Jalili

. Design patterns selection: An automatic two-phase method. Journal of Systems and Software 2012; 85(2): 408-424.

35.

Kumar

Walia

. Cash forecasting: An application of artificial neural networks in Finance. IJCSA 2006; 3(1): 61-77.

36.

De Lemos

Timmis

Ayara

Forrest

. Immune-inspired adaptable error detection for automated teller machines. IEEE Transactions on Systems, Man, and Cybernetics, Part C (Applications and Reviews) 2007; 37(5): 873-886.

37.

Homayounfar

Sepehri

Hasheminejad

Ghobakhloo

. Designing a chronological based framework for condition monitoring in heart disease patients-a data mining approach (DM-PTTD). Iranian Journal of Medical Informatics 2014; 3(3).

38.

Genevois

Celik

Ulukan

. ATM location problem and cash management in automated teller machines. World Academy of Science, Engineering and Technology, International Journal of Social, Behavioral, Educational, Economic, Business and Industrial Engineering 2015; 9(7): 2543-2548.

39.

Qadrei

Habib

. Allocation of heterogeneous banks’ automated teller machines. Intensive Applications and Services, 2009, INTENSIVE’09. First International Conference on IEEE 2009; 16-21.

40.

Priesterjahn

Anderka

Klerx

Mönks

. Generalized ATM fraud detection. ICDM 2015; 166-181.

41.

Zhao

Liu

. Equipment fault forecasting based on ARMA model. Mechatronics and Automation, 2007, ICMA 2007, International Conference on IEEE 2007; 3514-3518.

42.

Simutis

Dilijonas

Bastina

Friman

Drobinov

. Optimization of cash management for ATM network. Information Technology and Control 2015; 36(1).

43.

Kurdel

Sebestyenova

. Modeling and optimization of ATM cash replenishment. Proceeding of conference in Latest Trends in Information Technology 2012; 322-327.

44.

Kurdel

Sebestyénová

. Routing optimization for ATM cash replenishment. International Journal Of Computers 2013; 7(4): 135-44.

45.

Cardona

Moreno

. Cash management cost reduction using data mining to forecast cash demand and LP to optimize resources. Memetic Computing 2012; 2(4): 127-134.

46.

Madhavi

Abirami

Bharathi

Ekambaram

Sankar

Nattudurai

, et al. ATM service analysis using predictive data mining. World Academy of Science, Engineering and Technology, International Journal of Computer, Electrical, Automation, Control and Information Engineering 2014; 8(2): 311-315.

47.

Acuña

Ramirez

Curilem

. Comparing NARX and NARMAX models using ANN and SVM for cash demand forecasting for ATM. Neural Networks (IJCNN), The 2012 International Joint Conference on IEEE 2012; 1-6.

48.

Hasheminejad

SMH

Jalili

. SCI-GA: Software component identification using genetic algorithm. Journal of Object Technology 2013; 12(2): 3-1.

49.

Hasheminejad

SMH

Jalili

. An evolutionary approach to identify logical components. Journal of Systems and Software 2014; 96: 24-50.

50.

Hasheminejad

SMH

Jalili

. CCIC: Clustering analysis classes to identify software components. Information and Software Technology 2015; 57: 329-351.

ATM management prediction using Artificial Intelligence techniques: A survey

Abstract

Keywords

1. Introduction

Table 1 Data sets used in researches

4.1 Artificial Intelligence concepts

4.2.1 Supervised learning

4.2.3 Evolutionary learning

Table 2 Best results for each category

Footnotes

Appendix 1

References

Table 1
Data sets used in researches

Table 2
Best results for each category
