Associations Between Microstructure,Amyloid,and Cognition in Amnestic Mild Cognitive Impairment and Dementia

Abstract

Background:

Although amyloid-β (Aβ) and microstructural brain changes are both effective biomarkers of Alzheimer’s disease, their independent or synergistic effects on cognitive decline are unclear.

Objective:

To examine associations of Aβ and brain microstructure with cognitive decline in amnestic mild cognitive impairment and dementia.

Methods:

Restriction spectrum imaging, cerebrospinal fluid Aβ, and longitudinal cognitive data were collected on 23 healthy controls and 13 individuals with mild cognitive impairment or mild to moderate Alzheimer’s disease. Neurite density (ND) and isotropic free water diffusion (IF) were computed in fiber tracts and cortical regions of interest. We examined associations of Aβ with regional and whole-brain microstructure, and assessed whether microstructure mediates effects of Aβ on cognitive decline.

Results:

Lower ND in limbic and association fibers and higher medial temporal lobe IF predicted baseline impairment and longitudinal decline across multiple cognitive domains. ND and IF predicted cognitive outcomes after adjustment for Aβ or whole-brain microstructure. Correlations between microstructure and cognition were present for both amyloid-positive and amyloid-negative individuals. Aβ correlated with whole-brain, rather than regional, ND and IF.

Conclusion:

Aβ correlates with widespread microstructural brain changes, whereas regional microstructure correlates with cognitive decline. Microstructural abnormalities predict cognitive decline regardless of amyloid, and may inform about neural injury leading to cognitive decline beyond that attributable to amyloid.

Keywords

Aging Alzheimer’s disease amyloid cognitive decline dementia diffusion imaging magnetic resonance imaging memory mild cognitive impairment

INTRODUCTION

In Alzheimer’s disease (AD), amyloid-β (Aβ) burden becomes abnormally elevated up to a decade prior to dementia diagnosis [1], suggesting that it is an early step in the progressive neurodegenerative cascade. On the backdrop of Aβ accumulation, the disease course is accompanied by cytoarchitectural changes, including neurite and synapse loss, demyelination, gliosis, and cell death [2-5]. Whereas Aβ levels rise before observable neurodegeneration, atrophy corresponds more closely with cognitive symptoms [6]. If white matter changes are more sensitive to early cognitive deficits than gray matter atrophy as has been suggested [7], they may better track cognitive decline than amyloid, though few studies have directly compared these biomarkers. The closer correspondence of structural changes than amyloid neuropathology to cognitive symptoms implies that, even if amyloid is an early disease trigger, the ensuing neurodegeneration may diverge along a distinct pathogenic avenue. However, the unique contributions of Aβ and cytoarchitectural change to cognitive decline, and any synergistic effects between them, remain unclear.

Diffusion tensor imaging (DTI) studies have identified associations between Aβ and degenerative microstructural changes. In cognitively normal older adults, higher Aβ burden correlates with reduced fractional anisotropy (FA) of the fornix and corpus callosum [8, 9], and amyloid-positive individuals demonstrate higher white matter axial diffusivity [10] and accelerated decline in parahippocampal cingulum FA [11]. Induced Aβ pathology in mice reduced the apparent diffusion coefficient [12] and increased white matter radial diffusivity in conjunction with axonal and myelin loss [13], suggesting that Aβ may directly alter cell organization. Alternatively, Aβ may exacerbate injury from concomitant factors that compromise cytoarchitectural integrity. Reports that Aβ and tau propagation are associated with genes related to dendrites and axons, respectively [14], suggest that neuropathological spread of these proteins could elicit distinct effects on neurites.

Others have reported absent or unexpected links between Aβ and microstructural change, and inconclusive findings regarding their effects on cognitive function. For instance, in AD, tau, but not Aβ, is associated with FA and mean diffusivity (MD) and corresponding cognitive deficits [15], and microstructure predicts cognitive decline regardless of Aβ [16]. Other studies reported no difference in FA between amyloid-positive and negative controls [11], and no correlation between FA and Aβ [17]. Another found associations between Aβ and higher axial diffusivity, but no other DTI measures [10]. Paradoxically, one study reported increased FA and reduced MD, typically interpreted as preserved cell integrity, with elevated amyloid burden [18]. Incongruence across prior findings may stem from the aggregate influence of an array of cytoarchitectural properties on conventional diffusion imaging metrics. Thus, examining more refined measures of brain microstructure may clarify the nuanced relationship between neuropathological burden and neural injury.

Advanced diffusion MRI methods have improved our ability to characterize complex cell architecture beyond the resolution of DTI. Restriction spectrum imaging (RSI) uses a multi-shell, multi-direction acquisition to integrate length-scale and diffusion orientation information into the same tissue model. RSI thus enables separation of restricted, hindered, and free water diffusion, which histological studies suggest correspond respectively with intra-neurite, extra-neurite, and cerebrospinal fluid (CSF) compartments [19]. We recently reported that RSI measures of restricted and free water diffusion are sensitive to cognitive impairment [20] and predict cognitive decline [21] in prodromal AD. Further, we observed associations of Aβ with neurite density (ND) and isotropic free water (IF), but not with conventional DTI measures [20], suggesting that RSI may better identify subtle neuropathology-related cytoarchitectural change that is undetectable by DTI.

Here, we expanded upon our previously reported correlation between Aβ and brain microstructure to investigate the role of Aβ in the association between microstructure and cognitive decline across the AD spectrum. We hypothesized that RSI measures would correlate with Aβ, but that RSI would predict cognitive impairment and longitudinal cognitive change regardless of Aβ. We therefore also expected that associations between brain microstructure and cognitive decline would not depend upon amyloid.

MATERIALS AND METHODS

Participants

Participants were recruited from the UC San Diego Shiley-Marcos Alzheimer’s Disease Research Center (ADRC) and underwent standardized clinical evaluation by the ADRC Clinical Core. Participants were given a consensus diagnosis of heathy control (HC), AD, according to INCDS-ADRDA criteria [22], or amnestic or multi-domain mild cognitive impairment (MCI), according to criteria outlined by Petersen et al. [23]. Participants were excluded if they had safety contraindications for MRI, uncorrected vision or hearing loss, significant illness, substance abuse, or major psychiatric or neurologic illness. Additional exclusion criteria for HC included taking psychotropic or cognitive enhancing medications, or a Mattis Dementia Rating Scale (DRS)<130 [24] or Clinical Dementia Rating score greater than zero. Mini-Mental State Examination (MMSE) scores were 25 or greater for HC and MCI, indicating absence of dementia, and 18 or greater for AD, indicating mild to moderate dementia.

Data from 36 participants (23 HC, 7 amnestic MCI, 6 mild AD) who completed clinical evaluation, cognitive assessment, lumbar puncture, and neuroimaging at baseline (2013-2016), and whose imaging data were free of significant artifact, were included for analysis. An average of 3.5±0.9 (range 1.0-5.3) years post-baseline, 33 participants returned for follow-up clinical and cognitive evaluation.

Study procedures were approved by the UC San Diego human subjects’ protection program and participants provided informed, written consent prior to participation. Surrogate consent was provided for participants with advanced cognitive impairment.

Cognitive assessment

At baseline and follow-up, a neuropsychological test battery [25] was administered by a trained examiner in a quiet room. The MMSE and DRS are cognitive screening tools that respectively test global cognition [26] and declining cognitive status [27]. The Trail-Making Test measures psychomotor processing speed and executive function [28]; we subtracted the Part A score from the Part B score to evaluate executive function, controlling for processing speed. Animal naming evaluates verbal semantic fluency, and requires participants to name as many unique animals as possible within one minute [29]. The WMS-R Logical Memory subtest prompts participants to report details of a passage, immediately and after delay (Wechsler, 1987). The California Verbal Learning Test (CVLT) evaluates recall from a list of categorized words; this study analyzed immediate and delayed free recall [30]. Different versions (CVLT-I and CVLT-II) were administered at baseline and follow-up, with the exception of one participant who received CVLT-II at both assessments separated by a 3.3-year interval, which reduced the likelihood of significant practice effects. The Consortium to Establish a Registry for Alzheimer’s Disease (CERAD) test assesses word list delayed recall [31].

Imaging data acquisition and processing

MRI data were acquired on one of two 3.0 Tesla Discovery 750 scanners (GE Healthcare, Milwaukee, WI, USA) with an eight-channel phased array head coil at the UC San Diego Center for Functional MRI. The MRI sequences included a three-plane localizer; a sagittal 3D fast spoiled gradient echo T1-weighted volume optimized for maximum gray/white matter contrast (TE = 3.2 ms, TR = 8.1 ms, inversion time = 600 ms, flip angle = 8°, FOV = 24 cm, frequency = 256, phase = 192, voxel size = 1×1×1.2 mm, scan time 8 : 27); and an axial 2D single-shot pulsed-field gradient spin-echo echo-planar imaging sequence (45-directions, b-values=0, 500, 1500, 4000 s/mm² and 15 gradient directions for each non-zero b-value; TE = 80.6 ms, TR = 8 s, frequency = 96, phase = 96, FOV = 240, slice thickness = 2.5 mm, scan time 6 : 34).

As previously described [20, 21], the automated processing stream integrated FreeSurfer (http://surfer.nmr.mgh.harvard.edu) with additional tools developed in-house. RSI data were corrected for motion and eddy current [32], B0 susceptibility [33], and gradient nonlinearity [34] distortions. Images were inspected and data containing uncorrectable artifacts were excluded. Images were automatically registered to T1-weighted structural images [35], and white matter tracts were labeled using a probabilistic atlas (AtlasTrack) [36]. Gray matter, white matter, and CSF boundaries were delineated and cortical regions of interest were defined according to the Desikan-Killiany atlas [37]. To minimize partial volume effects, voxels containing primarily gray matter or CSF were excluded from white matter tracts, and voxels containing primarily white matter or CSF were excluded from gray matter measures [38]. ND, a composite of all restricted diffusion (presumed intraneurite [19]), and IF (presumed in CSF) were calculated within regions of interest previously demonstrating microstructural changes in mild AD [20, 21]. ND was computed in fornix, parahippocampal cingulum, uncinate, inferior longitudinal fasciculus (ILF), inferior fronto-occipital fasciculus (IFOF), and arcuate. ND and IF were computed in hippocampal gray matter and entorhinal cortex white matter. Global RSI measures were computed as the averages across all fibers, all gray matter, and all cortical white matter.

Amyloid-β quantification

Lumbar puncture was performed by a neurologist, using a Sprotte atraumatic 24-gauge needle, in the morning after the participant had fasted overnight. Approximately 15–20 ml of CSF was gently mixed, centrifuged in a polypropylene conical tube at 1500 rpm for 10 min, then aliquoted into Sarstedt 0.5-ml cryotubes, snap-frozen immediately, and stored at –80°C until assayed. Levels of Aβ₄₀ and Aβ₄₂ were measured using mass spectrometry (Quest Diagnostics). CSF samples with gross blood contamination or with red blood cell counts > 10/ml were not used. Participants were classified as amyloid-positive using an Aβ_42/40 ratio cutoff < 0.16 based on discrimination between AD and HC in a previous independent sample [39].

Data analysis

Longitudinal cognitive change was computed as the raw follow-up cognitive test score minus the raw baseline score, divided by years of follow-up, to yield a score of points of change per year. MMSE change scores were excluded from analysis due to ceiling effects.

Differences in demographics, Aβ, and cognitive function between HC, MCI, and AD groups, and between amyloid-positive and amyloid-negative participants, were assessed using Kruskal-Wallis tests for continuous variables and Fisher’s exact tests for categorical variables. Post-hoc comparisons were corrected for multiple comparisons with Bonferroni correction.

Partial correlations were computed between Aβ₄₂ and baseline cognitive function, annualized cognitive change, and RSI measures, across all participants. Differences in RSI measures were compared between amyloid-positive and amyloid-negative participants using univariate ANOVA.

Across all participants, partial correlations were computed between RSI and cognitive function or decline, and RSI variables that significantly correlated with cognitive measures were input as candidate predictors in stepwise linear regressions for each cognitive outcome. Regressions were repeated with adjustment for Aβ₄₂, and again with adjustment and for the respective global RSI measure for each regional regressor (i.e., global ND for fiber tract ND, global cortical gray matter ND or IF for hippocampal ND or IF, and global cortical white matter IF for entorhinal IF). Correlations between RSI measures and cognitive function or cognitive change were repeated, stratified by amyloid status. Sensitivity analyses were conducted on amyloid-stratified correlations after excluding one AD participant classified as amyloid-negative. For correlations that reached significance within either amyloid group, group differences in correlation strengths were compared using Fisher r-to-z transformation.

Cognitive measures were adjusted for age, sex, and education, and annualized change scores were additionally adjusted for baseline cognitive score. RSI measures were adjusted for scanner. Significance was set to p < 0.05. p-values for ND and IF were Bonferroni corrected for multiple comparisons across eight and two regions, respectively (p < 0.00625 for ND, p < 0.025 for IF). Data were analyzed using SPSS version 25.0 (IBM Corp, Armonk, NY, USA).

RESULTS

Participant characteristics

Baseline demographics according to diagnosis and amyloid status are presented in Table 1. Participants ranged in age from 63-91 (mean±SD, 74.5±6.6) years and 64% were women. MCI and AD groups contained a greater proportion of men than HC (p = 0.005). HC, MCI, and AD participants did not differ by age, education, length of cognitive follow-up, or interval between lumbar puncture and MRI.

Table 1

Participant characteristics at baseline, by diagnosis or amyloid status

	HC (N = 23)	MCI (N = 7)	AD (N = 6)	Amyloid-(N = 20)	Amyloid+ (N = 16)
Age	74.5 ± 5.2	72.3 ± 7.8	77.0 ± 10.2	75.0 ± 6.7	73.8 ± 6.7
[Range]	[65-82]	[63-84]	[64-91]	[65-91]	[63-84]
Sex (% women)^a	83	29	33	60	69
Education (y)	16.0 ± 2.0	17.9 ± 1.5	15.0 ± 2.8	16.1 ± 2.0	16.4 ± 2.4
Cognitive follow-up (y)	3.6 ± 0.8	3.4 ± 0.7	2.7 ± 1.4	3.5 ± 0.7	3.4 ± 1.2
Difference between lumbar puncture and MRI (y)	1.3 ± 1.2	1.3 ± 1.2	1.7 ± 1.4	1.4 ± 1.2	1.3 ± 1.3
MMSE^a,b	29.5 ± 1.1	27.3 ± 1.9	22.7 ± 3.3	29.2 ± 1.5	26.3 ± 3.6
[Range]	[26–30]	[25–30]	[18–27]	[24–30]	[18–30]
Fiber ND^a	0.78 ± 0.03	0.76 ± 0.03	0.72 ± 0.04	0.77 ± 0.04	0.76 ± 0.04
Gray matter IF^a,b	0.44 ± 0.04	0.45 ± 0.02	0.50 ± 0.03	0.44 ± 0.04	0.47 ± 0.04
White matter IF^b	0.21 ± 0.03	0.24 ± 0.04	0.26 ± 0.03	0.22 ± 0.04	0.23 ± 0.03
Amyloid-positive (%)	30	57	83	0	100
Aβ₄₂ (ng/ml)^b	2.9 ± 1.1	2.0 ± 0.8	2.1 ± 1.1	3.1 ± 1.1	1.9 ± 0.7

^ap < 0.05, difference among HC/MCI/AD (Kruskal-Wallis or Fisher’s exact test). ^bp < 0.05, difference between amyloid- and amyloid+ (Kruskal-Wallis or Fisher’s exact test). Mean ± SD unless otherwise noted. MMSE scores are adjusted for age, sex and education. ND and IF measures are adjusted for scanner.

Seven HC (30%), four MCI (57%), and five AD (83%) were classified as amyloid-positive. Age, sex, education, cognitive follow-up period, and interval between lumbar puncture and baseline MRI did not differ by amyloid status.

Cognitive function by diagnosis and amyloid status

Participants demonstrated significant decline in CVLT and CERAD delayed recall (one-sampled t-test versus zero, ps < 0.01). Baseline cognitive performance and annualized cognitive decline by diagnosis and amyloid status are shown in Supplementary Table 1. Diagnostic groups differed at baseline on all cognitive tests except Trails B-A; MCI scored worse than HC on the CVLT and CERAD tests, and AD scored worse than HC on all tests except Trails B-A and worse than MCI on the MMSE (ps < 0.05). Amyloid-positive individuals scored lower on MMSE, DRS, logical memory, CVLT and CERAD, and declined more rapidly on logical memory, than amyloid-negative individuals (ps < 0.05).

Aβ₄₂ positively correlated with baseline performance on the MMSE (r = 0.48, p = 0.005) and DRS (r = 0.42, p = 0.01), and with delayed recall on logical memory (r = 0.40, p = 0.03), CVLT (r = 0.41, p = 0.02) and CERAD (r = 0.44, p = 0.009). Aβ₄₂ positively correlated with annualized change on logical memory immediate recall (r = 0.43, p = 0.03).

Associations between amyloid-β and microstructure

Aβ₄₂ positively correlated with global ND (r = 0.43, p = 0.01), and negatively correlated with global gray (r=-0.41, p = 0.01) and white (r=-0.45, p = 0.007) matter IF (Table 2A, Fig. 1). Regionally, Aβ₄₂ positively correlated with arcuate ND (r = 0.52, p = 0.001), and negatively correlated with entorhinal IF (r=-0.42, p = 0.01), but these correlations were no longer significant after controlling for global ND or IF, respectively (ps > 0.05). Amyloid-positive individuals had higher gray and white matter IF than amyloid-negative individuals (p < 0.05).

Table 2

Partial correlations between global RSI measures (adjusted for scanner) and (A) Aβ₄₂, (B) baseline cognitive function (adjusted for age, sex, education), or (C) annualized cognitive change (adjusted for age, sex, education, baseline score)

		Fiber ND	Gray matter IF	White matter IF
A.	Aβ₄₂	0.43 *	–0.41 *	–0.45 **
B.	MMSE	0.69 ***	–0.51 **	–0.52 **
	DRS	0.65 ***	–0.55 **	–0.52 **
	Trails B-A	–0.34	0.25	0.41 *
	Verbal fluency	0.56 ***	–0.55 **	–0.43 *
	LM-Immediate	0.44 *	–0.46 **	–0.43 *
	LM-Delayed	0.47 **	–0.41 *	–0.36 *
	CVLT-Immediate	0.27	–0.32	–0.35
	CVLT-Delayed	0.36	–0.34	–0.40 *
	CERAD	0.64 **	–0.54 **	–0.49 **
C.	DRS	–0.01	–0.37	–0.18
	Trails B-A	–0.46 *	0.33	0.34
	Verbal fluency	0.43 *	0.06	–0.06
	LM-Immediate	0.18	–0.36	–0.31
	LM-Delayed	0.20	–0.43 *	–0.36
	CVLT-Immediate	0.36	0.04	–0.19
	CVLT-Delayed	0.02	0.12	0.03
	CERAD	–0.04	–0.05	–0.23

*p<0.05, **p<0.01, ***p<0.001. MMSE, Mini-Mental State Examination; DRS, Dementia Rating Scale; LM, logical memory; CVLT, California Verbal Learning Test; CERAD, Consortium to Establish a Registry for Alzheimer’s Disease.

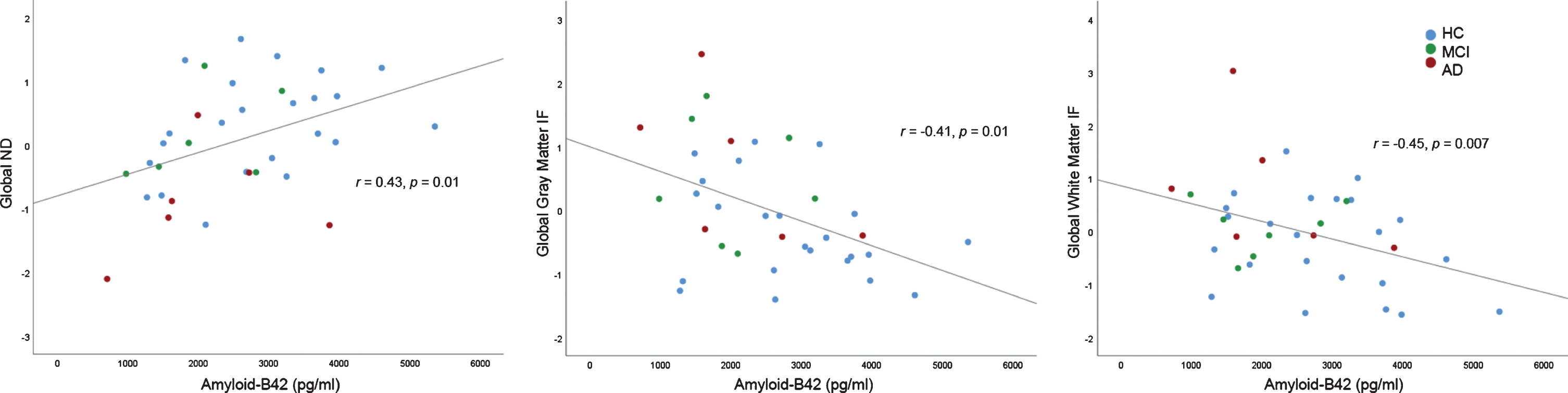

Fig.1

Correlations between global RSI measures and Aβ₄₂. RSI measures are adjusted for scanner (standardized residuals).

Associations between microstructure and baseline cognitive function

MMSE, DRS, verbal fluency, logical memory, and CERAD scores correlated with all global RSI measures, and Trails B-A and CVLT delayed recall correlated with global white matter IF (Table 2B). Table 3A and Figure 2A present results from linear regression models to predict baseline cognitive scores from regional RSI measures (candidate RSI variables significantly correlated with cognitive performance are presented in Supplementary Table 2). Higher fornix ND predicted better performance on MMSE, DRS, logical memory, and CERAD tests. Higher arcuate ND predicted better MMSE and DRS scores, and higher uncinate ND predicted better verbal fluency. Lower hippocampal IF predicted better Trails B-A and CVLT immediate and delayed recall, and lower entorhinal IF predicted better CVLT and CERAD delayed recall. When Aβ₄₂ or the respective global RSI measure were included as covariates, models were essentially unchanged (Table 3A).

Table 3

Significant predictors from stepwise linear regression models combining RSI measures to predict (A) baseline cognitive test scores (adjusted for age, sex, education, and scanner) or (B) cognitive decline (additionally adjusted for baseline cognitive function)

A. BASELINE	RSI measure	Standardized β	Standardized β adjusted for Aβ₄₂	Standardized β adjusted for global ND or IF
MMSE	Arcuate ND	0.60 ***	0.56 **	0.68 **
	Fornix ND	0.43 *	0.43 *	0.48 *
DRS	Arcuate ND	0.55 **	0.52 **	0.62 *
	Fornix ND	0.40 *	0.40 *	0.44 *
Trails B-A	Hippocampal IF	0.34 *	0.33 *	0.34 *
Verbal fluency	Uncinate ND	0.72 ***	0.67 ***	0.58
LM-Immediate	Fornix ND	0.87 ***	0.84 ***	0.99 ***
LM-Delayed	Fornix ND	0.75 ***	0.67 ***	0.76 **
CVLT-Immediate	Hippocampal IF	–0.54 ***	–0.52 ***	–0.49 ***
CVLT-Delayed	Hippocampal IF	–0.43 **	–0.40 **	–0.39 **
	Entorhinal IF	–0.28 *	–0.17	–0.26
CERAD	Fornix ND	0.71 ***	0.67 ***	0.60 **
	Entorhinal IF	–0.31 *	–0.26	–0.27
B. ANNUALIZED CHANGE
Verbal fluency	IFOF ND	0.77 **	0.87 **	1.32 *
LM-Immediate	Hippocampal IF	–0.46 *	–0.42 *	–0.38 *

*p < 0.05, ** p < 0.01, *** p < 0.001. MMSE, Mini-Mental State Examination; DRS, Dementia Rating Scale; LM, logical memory; CVLT, California Verbal Learning Test; CERAD, Consortium to Establish a Registry for Alzheimer’s Disease; IFOF, inferior fronto-occipital fasciculus.

Fig.2

RSI measures that best predicted baseline cognitive performance (A) or annualized cognitive change (B) in linear regression models. RSI measures are adusted for scanner, baseline cognitive tests scores are adjusted for age, sex, and education, and annualized change scores are additionally adjusted for baseline test score (all variables are standardized residuals).

Regional microstructure significantly correlated with DRS, verbal fluency, Trails B-A, logical memory, CVLT, and CERAD scores for amyloid-negative participants, and with MMSE, DRS, and Trails B-A for amyloid-positive participants (Supplementary Table 3A). Results were essentially unchanged after excluding one amyloid-negative AD participant. Fornix ND more strongly correlated with CVLT immediate recall for amyloid-negative than amyloid-positive participants (z = 2.14, p = 0.03; Fig. 3A). In contrast, IFO ND (z = 2.81, p = 0.005) and entorhinal IF (z = 2.52, p = 0.01) more strongly correlated with Trails B-A for amyloid-positive than amyloid-negative individuals (Fig. 3B).

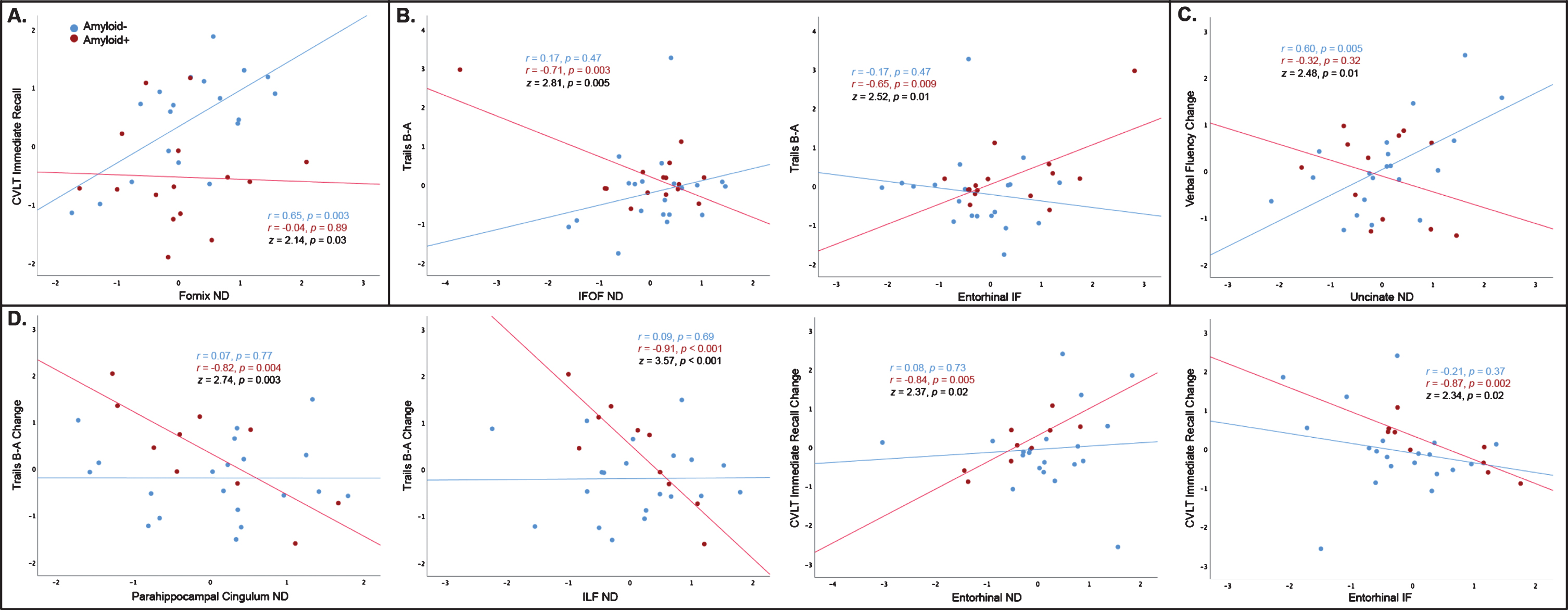

Fig.3

Regional RSI measures are shown for which correlations with baseline cognitive function (A, B) or annualized cognitive change (C, D) were stronger for amyloid-negative than amyloid-positive (A, C), or amyloid-positive than amyloid-negative (B, D) participants (Fisher r-to-z, p < 0.05). RSI measures are adjusted for scanner, baseline cognitive tests scores are adjusted for age, sex, and education, and annualized change scores are additionally adjusted for baseline test score (all variables are standardized residuals).

Associations between microstructure and cognitive decline

Lower global ND predicted faster verbal fluency and Trails B-A decline, and higher global gray matter IF predicted faster logical memory delayed recall decline (Table 2 C). Table 3B and Figure 2B present linear regression models predicting cognitive decline from regional RSI measures. Lower IFOF ND (r = 0.57, p = 0.002) predicted more rapid verbal fluency decline and higher hippocampal IF predicted more rapid logical memory immediate recall decline (r=-0.48, p = 0.01). All RSI predictors remained significant after adjustment for Aβ₄₂ or their respective global RSI measure (Table 3B).

Regional RSI measures significantly predicted verbal fluency decline within amyloid-negative participants, and decline in Trails B-A and CLVT immediate recall within amyloid-positive participants (Supplementary Table 3B). Lower uncinate ND predicted more rapid verbal fluency decline for amyloid-negative than amyloid-positive individuals (z = 2.48, p = 0.01; Fig. 3 C). Lower parahippocampal cingulum (z = 2.74, p = 0.003) and ILF (z = 3.57, p < 0.001) ND predicted more rapid decline on Trails B-A, and lower entorhinal ND (z = 2.37, p = 0.02) and higher entorhinal IF (z = 2.34, p = 0.02) predicted more rapid CVLT immediate recall decline, for amyloid-positive than amyloid-negative participants (Fig. 3D).

DISCUSSION

In this study of older adults across the spectrum from HC to mild dementia, we observed associations of abnormal Aβ₄₂ with reduced whole-brain neurite density and increased isotropic free water diffusion, pointing to a globally deleterious effect of amyloid pathology on cytoarchitectural integrity. However, amyloid was insufficient to explain effects of regional microarchitectural injury on cognitive performance, as anatomically-specific RSI measures predicted cognitive impairment and decline regardless of Aβ levels. Microstructure predicted cognitive outcomes for individuals with both high and low amyloid levels, and associations between microstructural injury and cognitive impairment did not systematically differ by pathology, further implicating amyloid-independent pathways by which cognitive decline follows microstructural compromise.

As previously reported in this sample [20, 21], lower ND and higher IF predicted poorer performance and more rapid decline across multiple cognitive domains. Here, we further report that although abnormal Aβ also correlated with cognitive impairment and decline, these relationships were restricted to the memory domain, expanding upon prior evidence that Aβ is more weakly linked with cognitive decline than neurodegeneration [6]. Critically, prediction of performance and decline on all cognitive tests by RSI was robust to adjustment for Aβ, aligned with previous findings that reduced FA predicts cognitive decline regardless of amyloid [16]. Thus, it appears unlikely that Aβ is the primary driver of cognitive decline mediated by microarchitectural damage in all cases examined here. Parallel pathophysiological processes related to concomitant risk factors and pathology, such as neurofibrillary tangles, neuroinflammation, or cerebrovascular, metabolic or immune dysfunction, may additionally mediate cytoarchitectural damage underlying cognitive decline [15 , 41]. Subgroup analyses revealed that brain microstructure predicted cognitive performance and rates of cognitive decline for both amyloid-positive and amyloid-negative individuals, with no systematic difference in the strength of these correlations by amyloid status. These findings offer further evidence that cytoarchitectural damage predicts risk for cognitive impairment even for individuals at low pathologically-determined risk for AD. Broadly, these observations point to separable pathways leading to cognitive dysfunction across the spectrum from healthy aging to mild and moderate AD, including some mediated by and others independent of Aβ.

Correlations between regional RSI measures and cognitive function were largely robust to adjustment for global microstructure. The anatomic specificity of these associations contrasts with prior findings that global, rather than tract-specific, FA, predicted cognitive decline independently of amyloid [16]. This difference may derive from the improved power of RSI over DTI to elucidate tissue microarchitecture. Regions in which ND and IF predicted cognitive performance were generally consistent with their previously reported involvement in the respective cognitive functions. For instance, lower fornix ND and higher hippocampal and entorhinal IF predicted greater dementia severity and poorer global cognitive function and memory, as well as more rapid logical memory decline, corroborating the established role of medial temporal and limbic regions in episodic memory [42]. Higher hippocampal IF also predicted worse executive function, which could stem from disrupted hippocampal-prefrontal circuits supporting working memory [43]. Lower arcuate ND predicted greater global cognitive impairment and dementia severity, consistent with prior reports of compromised arcuate integrity in MCI and AD [44]. Reduced uncinate and IFOF ND predicted verbal fluency performance and decline. Damage to these association tracts may disrupt mnemonic processes integratively supporting verbal recall and semantic assessment. This mapping of regional microstructural alterations onto established functions suggests that RSI may be sensitive to disruption of neural circuits essential to normal cognitive processing.

In contrast to the regional associations of RSI with cognitive function, Aβ levels correlated with whole-brain microstructure. Several prior DTI studies reporting correlations between CSF Aβ levels and regional microstructural compromise [8 , 11] did not report whether such correlations were widespread throughout the brain. Although CSF Aβ may be more sensitive to early pathological changes than amyloid PET [45], CSF measures are blind to deposition topography. Given that regional associations between amyloid and DTI measures have been inconsistent [9 , 18], further investigation integrating amyloid-PET with advanced diffusion imaging techniques will help to clarify whether foci of high neuropathological burden correspond with microstructural compromise.

A strength of this study was the availability of neuroimaging, comprehensive longitudinal cognitive evaluation, and CSF data on a cohort spanning a clinical spectrum from cognitively normal to mild dementia. Applying RSI in a sample with CSF measures and longitudinal cognitive follow-up of up to five years provided a rare opportunity to examine interactive effects of amyloid pathology and refined microstructural properties on cognitive decline, a more sensitive measure of clinical prognosis than concurrent cognitive status. However, our relatively small sample may have limited power to detect subtle effects, particularly on rates of cognitive decline, which may proceed slowly in preclinical stages. This small sample precluded comparison of associations between RSI and cognitive measures by amyloid status within cognitively normal participants; probing the relationship between microstructural change and cognitive decline in preclinical AD will be an important arena for further investigation. We note that three MCI and one AD participant did not meet criteria for amyloid-positivity. However, dichotomized AD risk has recently been questioned [46], as biomarker sensitivity may improve when assessed as a continuum, with even subthreshold amyloid levels predicting subsequent AD pathology [47]. Though we cannot rule out the presence of non-AD etiology, or subthreshold AD pathology, in our amyloid-negative group, this would not preclude our finding that microstructure predicts cognitive impairment regardless of amyloid. Finally, although our results implicate independent pathways by which Aβ and cytoarchitectural injury may impair cognitive function, future longitudinal studies may shed light on the temporal relationships between these factors and their respective influences on disease progression.

In summary, anatomically-specific cytoarchitectural changes estimated with RSI are more sensitive to cognitive decline than is Aβ. Abnormal amyloid levels did not account for the associations between microstructure and cognitive decline, implicating predominantly amyloid-independent pathways by which cell damage leads to cognitive dysfunction. Associations between microstructure and cognitive impairment did not systematically differ by amyloid status, further suggesting that RSI may be an informative marker of disease symptoms regardless of amyloid neuropathology. RSI-based metrics of microstructural compromise appear sensitive to amyloid-independent pathways leading to cognitive decline, and may be of greater prognostic value than amyloid for predicting dementia onset and disease progression.

Footnotes

ACKNOWLEDGMENTS

This work was supported by American Federation for Aging Research award 20190572; donors of Alzheimer’s Disease Research, a program of BrightFocus Foundation; NIA grant P30 AG062429; and U.S. Department of Veterans Affairs CSR&D Merit Award 5I01CX000565.

Authors’ disclosures available online ().

The supplementary material is available in the electronic version of this article: .
