Low Doses of Ionizing Radiation as a Treatment for Alzheimer’s Disease: A Pilot Study

INTRODUCTION

Alzheimer’s disease (AD) is a neurodegenerative disorder that primarily affects older adults. It acc-ounts for more than 50%of the cases of dementia and is one of the leading sources of morbidity and mortality in the aging population. While treatments are available that can ameliorate some symptoms of the illness, there is no cure or disease-modifying therapy currently available, and the disease inevitably progresses in all patients. The survival after diagnosis ranges from 3 to 20 years, with an average life exp-ectancy of 8 to 10 years. Patients with advanced AD are admitted to hospice for palliative care as their end-of-life approaches. Because the changes in the brain are associated with the accumulation of amyloid-β plaques and tau protein, many clinical trials have been evaluating anti-amyloid therapies. However, autopsy data suggest that symptomatic AD will not occur in every patient with amyloid in the brain [1].

The primary goal of a therapy for old adults with AD should be to improve the quality of their lives by optimizing their well-being, staying brain health, and restoring communication with family and friends to avoid social isolation, loneliness, and under stimulation. Old adults should be able to recognize their spouse, children, and grandchildren.

A recent review article made a strong case to try radiation therapy (RT) for AD, based on its history of success in treating systemic amyloidosis and the preclinical studies carried out on a transgenic murine model [2]. At this time, four clinical trials are registered on the application of low doses of ionizing radiation (LDIR), 2 Gy each, to treat systemic amyloid deposits and chronic inflammatory disease using oncological RT [3–8]. The results of recent precli-nical studies [9] suggested that this therapy can modulate the polarization of microglia; LDIR directly induced phenotype switching in the brain from pro-inflammatory M1 to anti-inflammatory M2.

The single-arm pilot clinical trial described in this paper is different from the trials that remove amyloid plaque. It was conducted to repeat treatments of much lower doses of ionizing radiation in severe AD, after a case treated in 2015 reported remarkable increases in cognition, speech, movement, and appetite follo-wing standard CT scans of the brain. Each scan, prescribed by the patient’s physician, delivered a dose of 40 mGy within 10 s. Two were given on July 23, and surprising changes were observed by the caregiver on the next day. Additional scans were given on August 6, August 20, and October 1 to amplify and prolong the effect. The improvements were so mom-entous that the patient was moved on November 20 from hospice to a home for seniors with a stimulating day program [10]. The 81-year-old woman had been examined on May 21, 2015 by a neuropsychologist who found her “completely nonresponsive.” After the treatments, a neuropsychologist examined her on October 12 and re-examined her on April 15, 2016. He noted that she “was able to give simple verbal responses to direct, simple questions. Not all of her responses were related to the direct questions, but she seemed to be reacting appropriately to the prosody and nonverbal cues of those around her. This represents some improvement from October 12, 2015, when I last saw her [11].” She received a “booster” treatment on February 24, 2016 and others in 2016 and 2017, to enhance and prolong the induced changes. Also, living in a home for seniors with a stimulating day program likely contributed to her improved state. However, her condition began to decline and on March 6, 2017 she was returned to hospice care [12]. She died on May 18, 2018.

The objective of this single-arm study was to determine whether the reported benefits of LDIR therapy in a single case with severe AD [10–12] could be observed again in others with severe AD when the same treatments are repeated. Data on qualitative obs-ervations of communication and behavior by close relatives were collected; quantitative measures of cognition and behavior were administered pre and post LDIR treatments.

LDIR therapy is controversial because it is generally accepted that ionizing radiation is a significant cause of DNA mutations and increases cancer risk. Most people are unaware that the rate of DNA damage due to natural background radiation is negligible compared to the rate of DNA alterations caused by the endogenous production of reactive oxygen species [13]. “Oxidative stress is a common denominator in the pathology of neurodegenerative disorders such as Alzheimer disease, Parkinson’s disease, Huntington’s disease, amyotrophic lateral sclerosis, and multiple sclerosis, as well as in ischemic and traumatic brain injury. The brain is highly vulnerable to oxidative damage due to its high metabolic demand. However, therapies attempting to scavenge free radicals have shown little success [14].”

Organisms require redox cell-signaling agents in order to function, and there are multiple sources of these vital agents [15–18]. To cope with oxidative and all other causes of damage, all organisms have enormously powerful innate adaptive protection systems (APS), which produce antioxidant enzymes, repair DNA breaks and other molecular damage, kill and scavenge unrepaired cells, and restore good health (Fig. 1) [13]. However, APS potency progressively weakens with age, becoming less capable in remediating the damaging effects of ongoing oxidative distress [19].

OPEN IN VIEWER

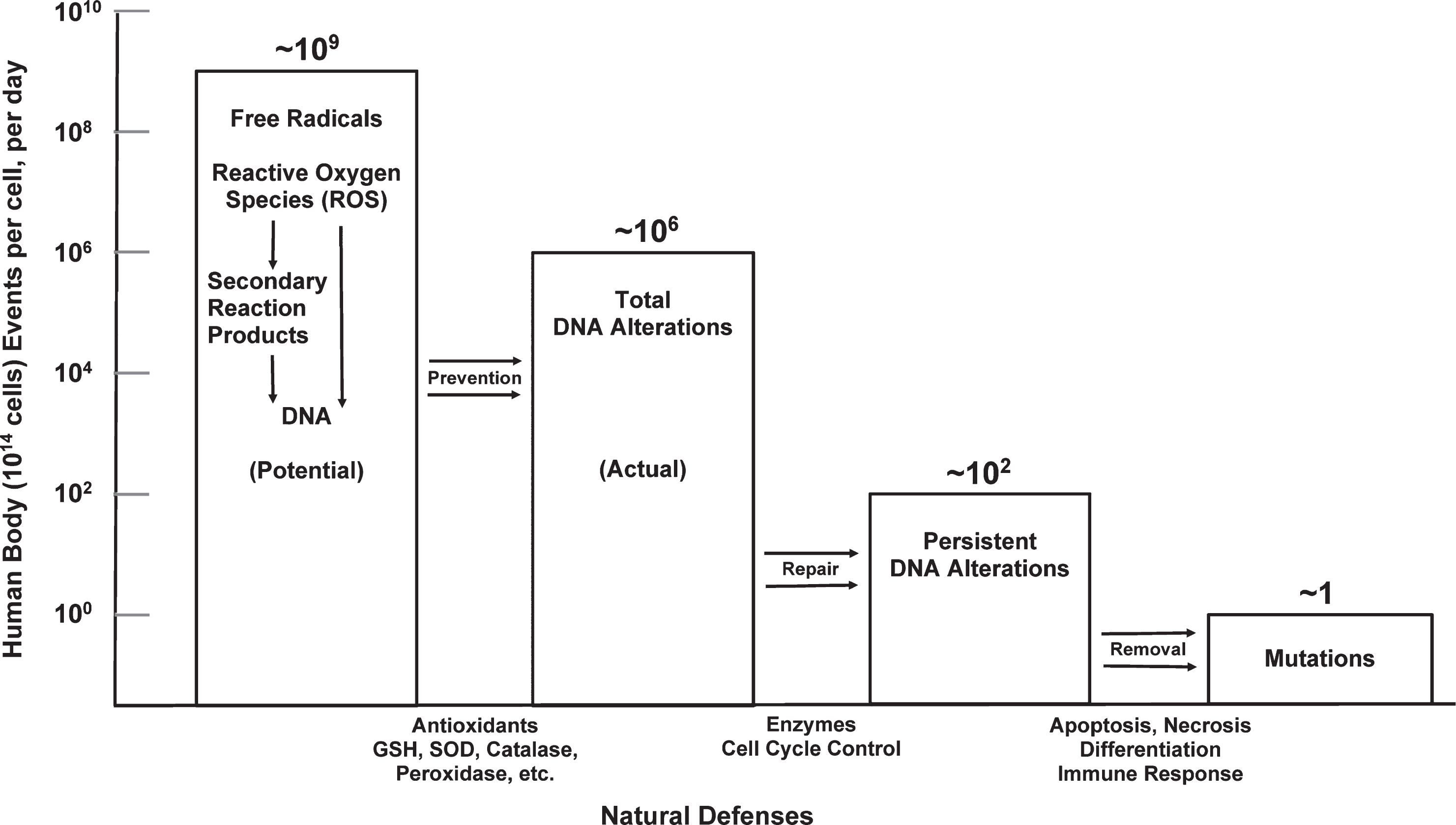

Fig. 1

Natural defenses act against endogenous DNA damage. A 100 kg person contains about 10¹⁴ cells (avg. cell wt.∼10^-9 g). Free radical production would cause∼10⁹ DNA alterations per cell per day; however, antioxidant production lowers the actual rate to∼10⁶ DNA alterations per cell per day. The damage-repair defense lowers the incidence of persistent DNA alterations to∼10² per cell per day, and the damaged-cell removal defence results in the natural occurrence of one mutation per cell per day. (The ratio of metabolic DNA damage to radiation-induced DNA damage by 0.1 cGy/year natural background radiation is about 10 million.) Reprinted with permission from Pollycove M, Feinendegen LE [13], © 2003 SAGE Publications and adapted for this publication.

A brief exposure to ionizing radiation damages biomolecules, including DNA, directly by “hits” on atoms and indirectly by the reactive oxygen species from radiolysis of water. The burst of damage events triggers an APS response that is biphasic, as shown in Fig. 2. A high dose, above the threshold for the onset of lasting harmful effects, inhibits or damages the APS. Based on radiotherapy for cancer, this threshold is about 3 Gy. On the other hand, a low dose of radiation, i.e., below 3 Gy, stimulates the APS to overrespond [20]. After a low dose, there is remediation not only of the radiation-induced damage but also damage resulting from both endogenous and exogenous factors such as natural oxidative aging, pathogens, toxins, and injuries. There is an immediate response and a delayed response because of cellular signaling [19, 21].

OPEN IN VIEWER

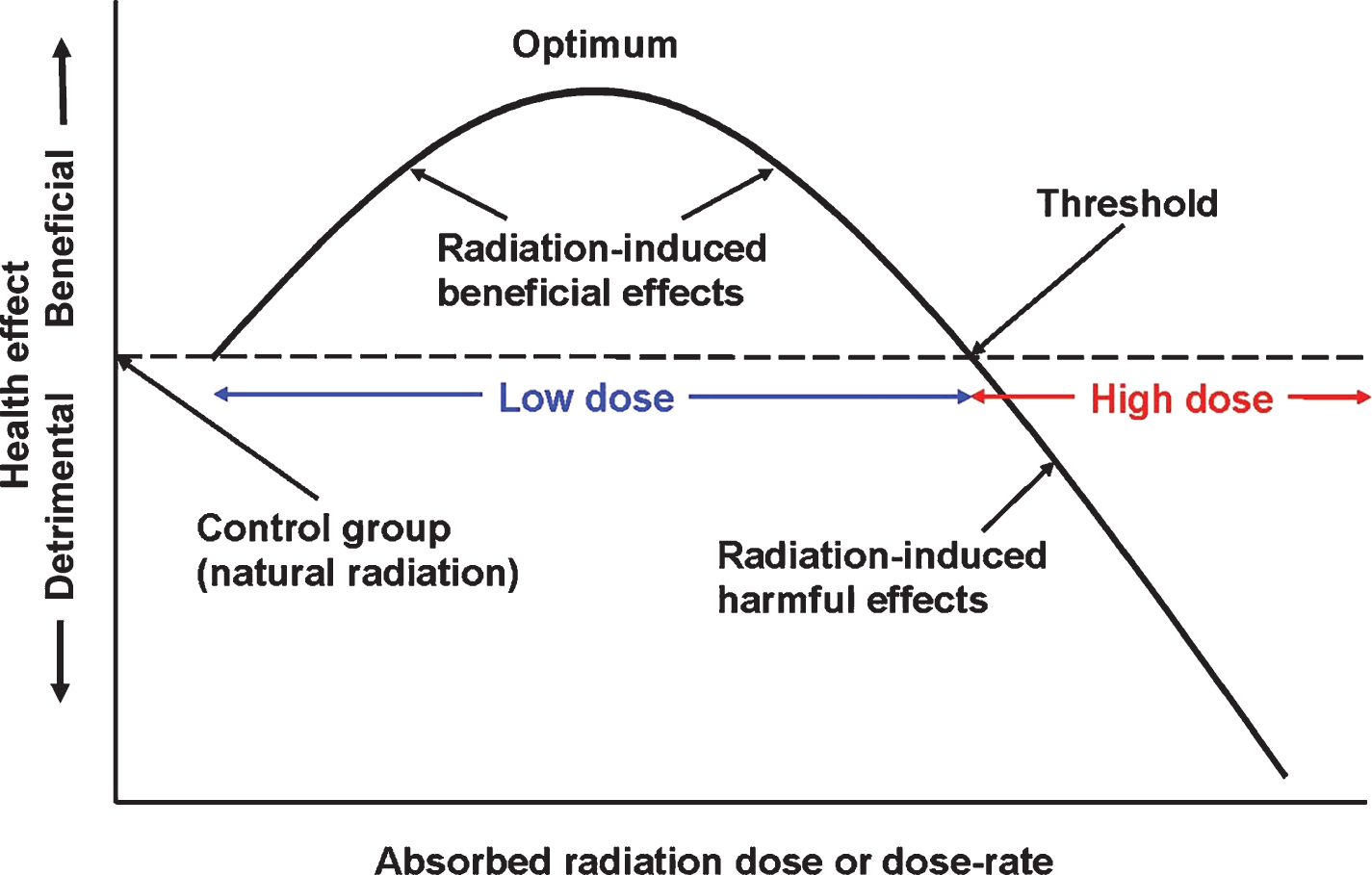

Fig. 2

The biphasic dose-response model and the definition of a low dose of radiation. Reprinted with permission from Cuttler JM [20], © 2020 SAGE Publications and adapted for this publication. Reference [35], Fig. 1 suggests that optimal radiation-induced stimulation of the protection systems occurs when the dose is between 0.1 to 0.5 Gy. The threshold for adverse effects due to an acute exposure (dose fraction) of the brain is about 3 Gy.

A recent study demonstrated X-ray-induced res-toration of cognitive performance in transgenic mice deficient of DNA glycosylases [22]. This genetic cha-nge, which impaired the removal of oxidative damage, caused low spatial learning and poor memory. After a 0.5 Gy dose of X-rays, their early-phase learning ability and memory equaled that of normal mice for weeks.

In this study, LDIR therapy of AD is based on the hypotheses that oxidative stress is a major factor in the development of AD and that stimulation of the APS in the brain by the low radiation dose of a CT scan will reverse or delay progression of this disorder. The LDIR doses that were employed in this study are the same as those that were administered in 2015 [10].

METHODS

The study was approved by the Baycrest Research Ethics Board (REB) and Sunnybrook Health Sciences Centre REB. The trial was registered in July 2018 [23]. Informed consent was obtained from substitute decision makers. Participants received standard CT brain scans at Sunnybrook, each a CTDI_vol dose of 40 mGy. (CTDI_vol is volume computed tomography dose index [24].) The investigators judged that repeating the initial three treatments of the case report [10] would be adequate to determine whether the previously reported benefits could be observed again. The first was a double scan because the originally reported case received a second scan during the same treatment session after moving during the first one.

CT was performed on a General Electric LightSpeed VCT 64 detector scanner. Helical mode was used. Slice thickness was 2.5 mm. Detector coverage was 40.0 mm. Pitch was 0.969:1. Speed was 19.37 mm per rotation. Rotation time was 1.0 second; kV was 120. The automatic mA selection setting was utilized.

We studied four participants who were residents in long-term care at Baycrest Health Sciences and who had advanced dementia (MMSE < 12; ages 81–90; males/females = 3/1), presumed to be primarily due to AD [25]. All were clinically stable for at least three months. Those taking a cholinesterase in-hibitor and/or memantine were on a stable dose for at least 60 days prior to participation in the study. Exclusion criteria were history of malignancy, radiotherapy, neurological disorder other than AD, stroke, and active major depression, bipolar affective disorder, or psychosis within the previous 90 days. None of the participants were receiving experimental treatments.

As in the previous case report, qualitative data on patient communication and interaction with family members and caregivers were obtained by requesting verbal and written feedback, and by careful observation during visits when they were present with each patient. These data were reproduced verbatim in study documents.

In addition, three quantitative outcome measures were employed in this study to assess neurocognitive capacity, behavioral symptoms, and functional ability. The Severe Impairment Battery (SIB) [26] was chosen to measure cognition because it is the only available tool designed to “characterize the neuropsychological profile of severely demented patients” who are otherwise unable to engage in such testing due to impairment severity. The Cohen-Mansfield Agitation Index (CMAI) [27] was chosen to measure behavioral symptoms of dementia because it is considered the gold standard in assessing the frequency of responsive behaviors in the elderly. It was developed for use in nursing homes. Functional status was evaluated by the Alzheimer Disease Functional Assessment and Change Scale (ADFACS) [28], a tool designed to assess functional capacity in individuals with various stages of dementia. In our study population, we expected significant limitations in ability to carry out both instrumental activities of daily living (e.g., medication management), and basic activities of daily living (e.g., personal grooming and toileting) due to cognitive deficits resulting from advanced disease progression. The ADFACS was specifically chosen because it measures functional capacity in both areas, in a 16-item informant-based questionnaire. It is widely used in clinical research and has good diagnostic and concurrent validity [28].

The ADFACS and SIB instruments were administered by neurology fellows before the treatments and for eight weeks after the final treatment. The CMAI was administered or supervised by a neuropsychologist. The neurology fellows obtained and maintained all the data.

Table 1 lists the dates and doses of the LDIR treatments.

RESULTS

Table 2 shows the pre- and post-treatment scores on the outcome measures. Supplementary Table 1 lists the CMAI assessment scores for the four participants.

DISCUSSION

Four participants with advanced AD were treated with LDIR. Severe cases who were clinically stable were selected for this small, single arm trial with the objective of repeating the case of a patient with advanced AD [10]. Each participant received three treatments as planned. As in the case report, qualitative data (descriptions, photos, and videos) from immediate relatives and others suggested remarkable improvements in cognition and behavior. Moreover, there was no evidence of deterioration following LDIR in any of the cases. In addition, Case 3’s daughter was so impressed with her father’s improvement that she requested ongoing treatments for him. Surprisingly, there were few meaningful improvements on the three quantitative outcome measures.

Improvements in cognition and behavior were apparent within one day of treatment. Although the degree of recovery was relatively small, a therapy consisting of multiple treatments at the optimal dose, separated by the optimal time interval, may produce a much greater and long-lasting recovery from symptoms of AD. Figure 3 shows this concept—a large increase in the level of homeostasis that lasts for months [19, 29–31]. While the observations in this small study support the underlying biological hypothesis for LDIR therapy, adequately powered double-blind placebo-controlled trials are required to determine the efficacy of this therapy and its limitations. Trials in participants with less advanced AD should also be considered. It is important to identify objective measures that are sensitive to the beneficial changes induced by LDIR treatments in severe cases of AD. The SIB, CMAI, and ADFACS measures were not sufficiently sensitive for patients with severe AD, but remarkable qualitative changes were observed subjectively.

OPEN IN VIEWER

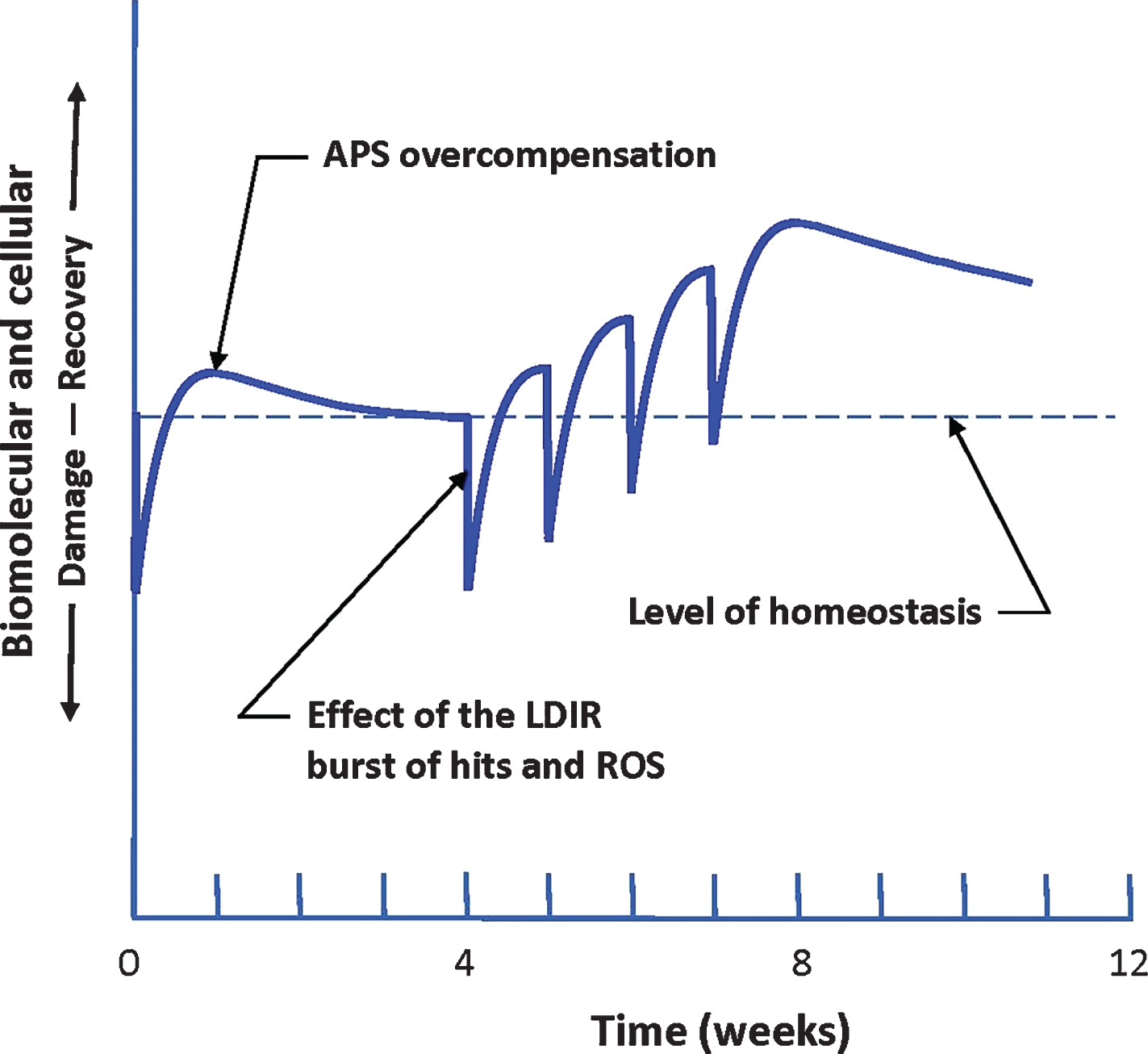

Fig. 3

Response of the patient to a burst of damage caused by an LDIR treatment. Repeated treatments result in a hypothesized strengthening of the performance of the adaptive protection systems (APS) as they adapt to repeated bursts of LDIR damage. These stronger systems produce some recovery from the buildup of endogenous oxidative damage that causes Alzheimer’s disease. Their enhanced performance is expected to last for months [19, 29–31].

Objective, quantitative evidence in support of the underlying biological hypothesis for LDIR therapy was identified in the introduction, namely the study on transgenic mice deficient of DNA glycosylases that demonstrated X-ray-induced restoration of cognitive performance [22].

Future studies on LDIR therapy for AD should employ biological markers to objectively measure quantitative changes following each treatment. F2-isoprostanes in cerebrospinal fluid have been found to be a good marker of oxidative stress that is associated with AD [32–34].

Although a CT scanner was used in this study to repeat treatments described in the previous case report [10], a simpler, less costly device may be appropriate for LDIR therapy of AD in future studies to deliver the desired radiation dose. Use of this device would allow treatments to be given in any hospital, eliminating the effect of transportation and change of environment on patient behavior.

Of the two doses applied, 80 and 40 mGy, a greater improvement was observed after the 80 mGy treatment. It began to appear within hours and peaked in about 5 days. In future studies, doses from 50 to 500 mGy should be assessed to determine the optimal dose and the optimal interval between treatments. These are expected to be the same for all humans; however, the amount of benefit will depend on individual genetics, age, and health status [29, 30]. Figure 1 in the cancer RT study by Tubiana et al. [35] suggests that a dose in the range from 100 to 500 mGy may induce the optimal APS response. It also suggests that the threshold dose for the onset of adverse health effects is about 3 Gy.

Of 134 Chernobyl emergency workers who were heavily irradiated acutely, 28 died within several weeks. Biological dosimetry established they each received a dose above 5 Gy. The 106 who recovered, in about one year, were studied for 30 years. They showed no evidence of radiation-induced delayed health effects, compared with unexposed workers [20]. This evidence suggests that the whole-body dose threshold for onset of long-term harm may be about 5 Gy. Patients with brain cancer may receive a whole brain dose of 30 Gy in 10 daily fractions of 3 Gy to “minimize early and late adverse effects of therapy [36].” The four clinical trials on LDIR therapy for AD, mentioned in the introduction of this paper, will employ oncological RT to remove amyloid plaque. They will use daily fractions of 2 Gy; three will give 5 treatments and one will give 10 treatments [3–6]. Success in these trials may lead to acceptance of LDIR therapy as a means for removing amyloid plaque in the brain and remediating AD.

Limitations of this pilot study include small sample size, lack of a quantitative measure of improvement, lack of biological markers, lack of a placebo group, and open label design. Future research involving double-blind placebo-controlled trials using LDIR therapy are needed to demonstrate whether this is an effective therapy for AD. Biological markers of oxidative stress should be sampled as a measure of the response to LDIR treatment. In this study, we selected clinically stable cases with severe AD. This may have limited the effects of LDIR treatment. It may thus be beneficial for future studies to include patients with milder disease.

In conclusion, this pilot study indicates that LDIR may be a promising therapy for AD. Moreover, the rationale for this therapy, stimulation of innate adaptive protection systems against oxidative distress, suggests it might be effective in treating other neurodegenerative diseases.
