Effect of nighttime UV-C irradiation of strawberry plants on phenolic content of fruit: Targeted and non-targeted metabolomic analysis

Abstract

BACKGROUND:

The new approach of using UV-C irradiation followed by a specific dark period to control plant diseases has the potential to become a mainstream treatment in the production of strawberries and other fruits and vegetables. Thus, it is imperative to study the effects of this treatment on fruit quality.

METHODS:

In this study, short-day ‘Chandler’ strawberry plants grown in growth chamber from bloom to harvest were irradiated twice a week with nighttime UV-C light (253 nm peak value 12.36 J m^–2 and the total dose of 50 J m^–2 in the range of 240 –260 nm). The effects on the content of key phenolic compounds in mature fruit were studied with targeted analysis and a non-targeted metabolomic approach based on ultra-high performance liquid chromatography high resolution mass spectrometry (UHPLC-HRMS). Analysis of variance-principal component analysis (ANOVA-PCA) was used to associate variance with different experimental factors.

RESULTS:

Results indicate that the content of anthocyanins, glucosides and glucuronides of quercetin and kaempferol, catechin, pelargonidin rutinoside, and ellagic acid was not affected by UV-C treatment. ANOVA-PCA analysis of the metabolomic dataset showed no significant differences in composition and content of strawberry metabolites between UV-C and control groups; however, differences were observed between harvest times.

CONCLUSIONS:

Our findings strongly indicate that UV-C treatment of 50 J/m² twice per week did not affect nutritional values of strawberry fruit. The metabolomic approach combined with ANOVA-PCA used to evaluate strawberry fruit quality after UV-C irradiation proved to be a very powerful tool in providing an overall insight into fruit quality and accurately determines the influence of each experimental factor.

Keywords

preharvest anthocyanins

1 Introduction

Strawberry (Fragaria×ananassa Duch.) is the fourth most consumed fruit, after bananas, apples and grapes in the United States [1]. The fruit is valued for its culinary as well as health benefits [2]. Strawberries sold in supermarkets come mostly from open field farms in California, Florida, and Mexico, of which 89% are produced in California [3]. However, a confluence of factors unique to the strawberry industry is making its future quite uncertain. High up-front costs, labor shortages, increased pesticide regulation, the cost of land, and the impacts of climate change, including hotter and drier conditions have had adverse impacts on the strawberry industry in California and other major production areas that have relied heavily on pre-plant fumigation to obtain high yields and to use same fields to grow strawberries year after year. These days, berry producers are embracing innovations, including organic alternatives to chemical fumigants, soilless growing systems, and breeding for disease resistance to develop more sustainable, resilient strawberry production technologies. Currently in the United States, strawberries harvested from plants in protected environments such as high tunnels and greenhouses supply less than 0.01% of annual consumption. Control of diseases and pests is the major challenge to growing strawberry both in the open field as well as in protected environment systems. Fungicides are routinely used to control disease; however, they are becoming less effective due to the development of resistance in the pathogens [4, 5]. In addition, a growing demand for produce free of pesticides is creating needs for alternative disease control strategies.

Gray mold of strawberry fruit caused by Botrytis cinerea is one of the most important diseases of this crop and as much as 80% of the fruit decays originate from flower infections, therefore, control of the disease that is manifested at and after harvest must start at bloom time [6]. Nevertheless, several attempts have been made to control this decay after harvest with UV-C irradiation. So far, the success has been limited. Only a moderate reduction in strawberry gray mold was observed from postharvest treatment with UV-C doses of 0.5 –1.00 kJ m^-2 and it was attributed mainly to induction of host resistance responses. The direct effect on the external contamination with the pathogen was not excluded [7]. Similarly, B. cinerea growth on inoculated strawberries was significantly reduced with doses of 0.05–0.1 J cm ^-2 (= 0.5–1.00 kJ m^-2) and the onset of observed fungal growth was delayed by only 1-2 d [8, 9]. At higher doses damage to sepals was observed [10]. In vitro studies showed that a heat treatment (40°C) of conidia prior to UV-C irradiation improved killing of the conidia [11]. But this does not appear to have a practical application for the strawberry cold and retail supply chain. In general, attempts to control plant diseases using UV-C either as a pre- or post-harvest treatment have not been successful because of the phytotoxicity at doses required for killing pathogens. This has changed recently after Janisiewicz et al. [12, 13], showed that a specific dark period (depending on pathogen) immediately after UV-C treatment enhanced the killing power of the UV-C. Apparently, the dark period prevents pathogens from activation of light-induced enzymes involved in repairing damaged DNA as a result of UV-C irradiation. This allows effective doses below phytotoxic levels and made the use of UV-C treatment for control of plant disease practical. Nighttime UV-C irradiation of strawberry plants with reduced doses of 50 J m^–2 every 3-4 d from bloom until harvest has been used successfully to reduce not only gray mold, anthracnose, and powdery mildew but arthropod pests as well [14].

Now that UV-C irradiation is being considered for sterilizing the surfaces of fruits and vegetables, there is the need to evaluate the positive and negative aspects of this treatment on phytonutrients including polyphenols. Phenolics impact fruit and vegetable quality by effecting organoleptic properties and having beneficial effects on human health [15]. This has inspired many researchers to explore various avenues to manipulate phenolics content in different fruits and vegetables. Increases in total phenolic content or variety of different phenolics were observed after irradiation with hermetic doses of UV-C in winter jujube [16], rocket salads [17], lettuce [18] or spinach [19]. UV-C irradiation was shown to increase stilbenoids, catechins and trans-resveratrol in grape berries irradiated 3 d before or 2 d after harvest [20, 21]. A pulsed UV-C irradiation of harvested table grapes increased resveratrol in berries suggesting a novel approach in the development “functional” fruit [22]. However, UV-C irradiation was not effective for the enhancement of polyphenol, β-carotene, ascorbic acid, or chlorophyll in persimmon and cucumber [23].

In strawberry, preharvest UV-C treatment has been reported to increase a variety of phenolic compounds [24 –30]. Treatment of fruits at different stages of maturity with UV-C had various effects on phenolic content such as transient effect on content of anthocyanins in harvested large green strawberries [31] and a higher ellagic acid content in strawberry fruit harvested from plants irradiated twice a week from the onset of flowering until harvest with 60 mJ cm^-2 (= 0.6 kJ m^-2) [32]. As the ellagic acid concentration of strawberries declines with fruit maturation [33], the UV-C treatment can have a positive effect on maintaining a high level of this health beneficial compound [32, 34]. A recent study indicates the potential to stimulate the accumulation of phenolic compounds in ripe strawberry fruit following UV-C irradiation of plants during the entire process of fruit development. However, the changes in phenolics were often cultivar dependent and they were also influenced by the season and growing conditions [25, 35]. UV-C irradiation increased the level of polyphenols and gene expression of the flavonoid pathway. Several genes, i.e. FaCHS1, FaCHI, FaFHT, FaDFR, FaFLS, and FaFGT, were upregulated at the low (9.6 kJ m^–2) and middle (15 kJ m^-2) doses while the early stage genes were not affected by the high dose (29.4 kJ m^-2) [26]. Considering these investigations, the interaction between different experimental factors, such as UV-C irradiation, harvest time, and growing conditions needs further evaluation.

The major compounds of strawberry fruits include sugars, anthocyanins, amino acids, vitamins, proanthocyanins, flavonols, ellagic acid and derivatives of hydroxycinnamic acids [36 –42]. In the previous studies of UV-C irradiated strawberries, the nutrient evaluation was mostly based on several major phenolic compounds such as pelargonidin-3-O-glucoside, pelargonidin-3-O-rutinoside, cyanidin-3-O-glucoside, ellagic acid and quercetin/kaempferol glucosides by targeted analysis [25, 43].

A metabolomic strategy has been used to determine the comprehensive composition of metabolites in strawberries from different genotypes grown under different agronomic conditions [44] or management [45]. To gain a more comprehensive insight of chemical composition of strawberry fruit treated and untreated with UV-C, a non-targeted metabolomic analysis based on ultra-high performance liquid chromatography high resolution mass spectrometry (UHPLC-HRMS) was used to determine differences in the strawberry fruit nutrient content. In metabolomic studies, chemometric approaches such as principal component analysis (PCA) and partial least squares discriminant analysis (PLS-DA) are widely used to understand how different experimental factors affect the occurrence of plant secondary metabolites. However, this approach may be problematic when the variance may come from different sources and may not be directly related to the experimental design, especially when a multiple-factor experimental design is used. To solve this problem, Harrington et al. combined analysis of variance (ANOVA), which is the well-recognized methodology for separation of the different sources of data variation, with PCA [46]. ANOVA–PCA was then employed for differentiation of food or botanicals with different sources of variance such as species [47], cultivar [48], growing conditions [49] and growing locations [50].

It appears that the UV-C irradiation followed by a dark period is becoming adopted by other research groups and may become a mainstream technology in strawberry production, in protective culture of high tunnels and greenhouses as well as in open field production [14 , 51–56]. It is imperative that the effects of this treatment on fruit quality are thoroughly investigated. The objective of this study was to determine the effect of the UV-C/dark treatment on changes in the content of major phenolic compounds of short-day ‘Chandler’ strawberries grown in protective culture. In this study, we used an ANOVA-PCA approach on metabolomic data to determine which experimental factor, exposure to UV-C, conditions in growth chamber or harvest time, caused the most variance in the nutrient compounds in strawberry fruit. The application of ANOVA-PCA to metabolomic analyses of strawberry fruit could identify and quantify all the constituents in the fruit and contributes to providing an informative insight of the nutrient value of strawberry fruit.

2 Materials and methods

2.1 Plants and growth chamber

‘Chandler’ is a short-day strawberry cultivar released in 1984 by the University of California (U.S. Plant Pat. No. 5,262). In October 2018, cold-stored, bare-root transplants of ‘Chandler’ strawberry were obtained from a commercial nursery (Lassen Canyon Nursery, Redding, CA) and established in 16.25 cm (6.5 in) standard TEKU round pots (Pöppelmann GmbH & Co., Lohne, Germany) filled with Sun Gro peat-based growing medium (Sun Gro Horticulture Inc., Agawam, MA).

Strawberries were grown in a glass-glazed greenhouse at Appalachian Fruit Research Station, Kearneysville, WV (lat. 39.4 °N, long. 77.5 °W) with exhaust fan and evaporative-pad cooling, and radiant hot water heating controlled by an environmental control system (Johnson Controls, Cork, Ireland). The greenhouse air temperature set point was a constant 20°C under natural daylengths. Plants were maintained on a greenhouse bench from October 2018 to February 2019. Plants were watered daily and flowers and runners removed at 2-week intervals.

Strawberry plants were removed from the greenhouse bench in February 2019 and placed on wire shelving units (2 shelving units per chamber) in 3 separate growth chambers within the greenhouse. Eight pots were placed along the center of a shelf in the midline of shelving unit on top of inverted TEKU round pots to elevate the plants and prevent fruit from hanging on/through shelves. Open flowers were removed from all plants at the beginning of the experiment.

2.2 UV-C/dark treatment

The UV-C irradiation equipment consisted of 8 GermAwayUV disinfection lamps (55Watt UV-C lamps, Philips Model TUV PL-L 55/HF, CureUV, Delray Beach, FL) installed with an electronic brightener reflector surface housing. The lamps were positioned along the side of the plant row, four below and four above plant at a 30 cm distance from plants (Fig. 1). Plants were irradiated for 60 sec at night (11:00 pm) every 3 d, resulting in irradiation dose of 12.36 J m^–2 at 253±1 nm for a total dose of 50 J m^–2 after integration of the entire peak with the base ranging from 240 to 260 nm. Plants were randomized within each treatment group and shelves were repositioned within chambers weekly. Plants were watered every second day with 100 mL water increasing to 250 mL after 4 weeks. Control (no UV-C treatment) plants were kept on separate wire shelving units in each of the 3 growth chambers. The shelving unit containing control plants in the same chamber as the UV-C apparatus was separated from irradiated plants by black fabric in the late afternoon to block UV-C from control plants during nighttime irradiation. The fabric was removed early in the morning the following day.

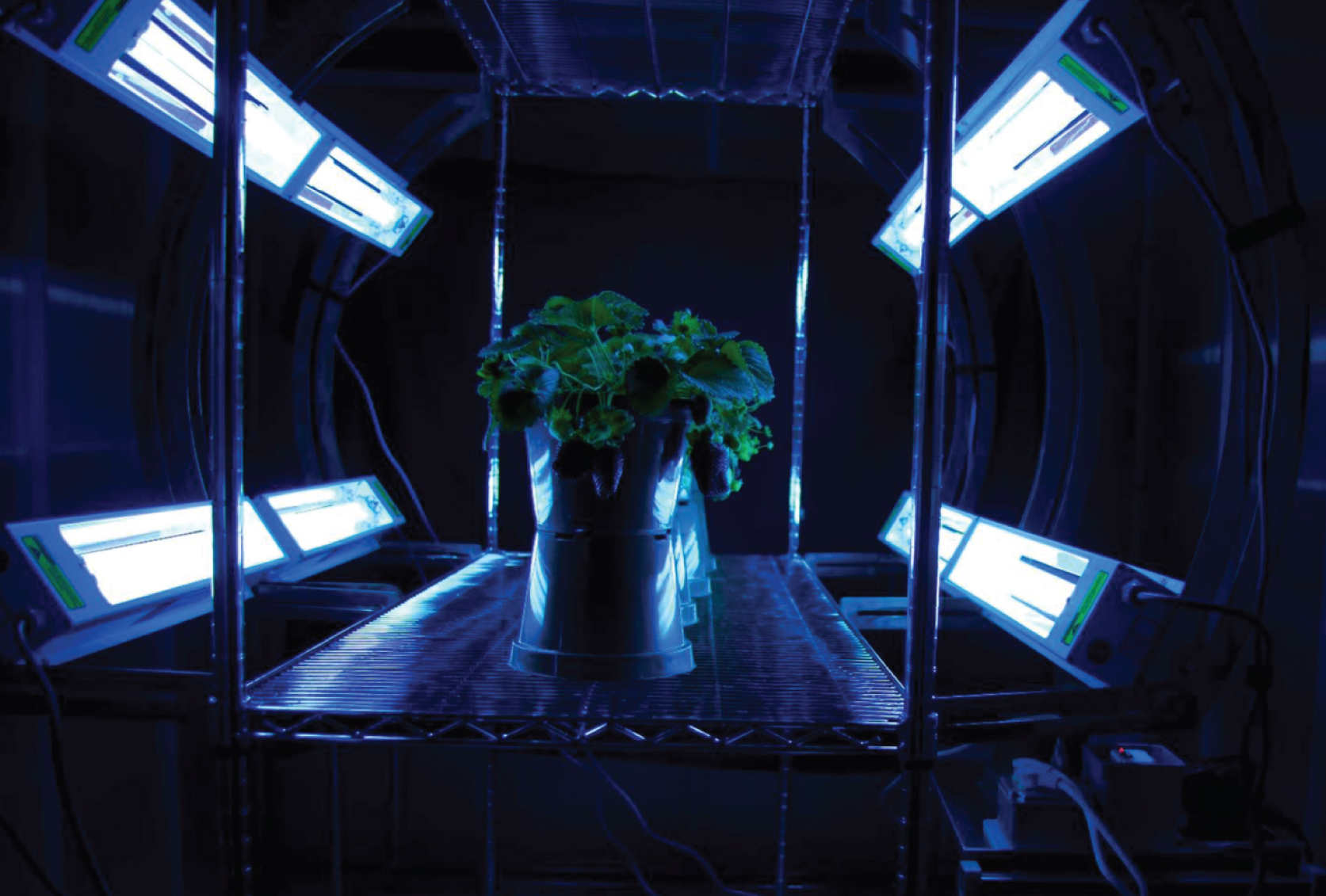

Fig. 1

Nighttime UV-C irradiation of strawberry plants with multidirectional positioned lamps to maximize penetration into plant canopy.

2.3 Fruit sampling

Uniformly red-colored strawberry fruit were harvested as they ripened in 3 to 4 d intervals for five weeks. Ripe fruit were cut from the plant leaving approximately 0.7-cm-long pedicel attached, placed in labeled weigh boats and taken to the lab. The pedicel and sepals were removed by hand by grasping all the sepals and stem together and twisting gently. The fruit was sliced to fit and placed in individual 50 mL conical tubes (labeled with treatment ID, fruit number and date) and weighed (wet weight). The flesh in the tubes was flash frozen with liquid nitrogen and placed in a –20°C freezer to allow for evaporation of liquid nitrogen. The samples were lyophilized and stored at –20°C for the analysis.

2.4 Freeze-drying samples

The samples were moved from –20°C freezer for freeze-drying. Four tubes per jar were placed on the lyophilizer (Freezemobile 24, The Virtis Company, Gardiner, NY) for 4 d. When samples were dry, the jars were removed, lids were replaced, and dry weight was determined. Tubes were wrapped at lid-tube juncture with Parafilm and stored at –20°C until their transport on ice to USDA-ARS Food Composition and Methods Development Lab in Beltsville, MD for analysis.

2.5 Chemicals

HPLC grade methanol, acetonitrile, and formic acid were purchased from Sigma-Aldrich (St. Louis, MO). Pelargonidin-3-O-glucoside, cyanidin-3-O-glucoside, quercetin-3-O-glucoside and kaempferol-3-O-glucoside were purchased from Chromadex (Irvine, CA). Ellagic acid, quercetin, and (+) catechin were purchased from Sigma Aldrich (Irvine, CA).

2.6 Sample preparation for chemical composition analysis in strawberry

Two hundred milligrams of each freeze-dried sample was extracted with 5 mL of methanol/water/formic acid; 70:30:1 v/v/v by sonication in an ultrasound bath for 2 h (Branson 3200, Danbury, CT). The slurries were then centrifuged at 5,000 g for 10 min (IEC Clinical Centrifuge, Needham Heights, MA). The upper layer was filtered through a 0.22μm PTFE filter, transferred into a 2 mL HPLC vial, and 2μL were injected for UHPLC-HRMSⁿ analysis.

2.7 UHPLC-HRMS conditions

The UHPLC-HRMS (Thermo Scientific, Waltham, MA) system consists of an Orbitrap ID-X tribrid mass spectrometer with a Vanquish UHPLC including a high-pressure binary pump, thermostatting column temperature control compartment, and an HL Diode Array Detector. The separation was carried out on an Agilent Poroshell 120 EC-C₁₈ column (4.6 mm×50 mm, 2.7μm particle size, Agilent, Palo Alto, CA) with a flow rate of 0.6 mL/min. The mobile phases A and B were H₂O (0.1% formic acid) and acetonitrile (0.1% formic acid), respectively. The linear gradient was 2% to 50% B (v/v) from 0 to 5 min, to 95% B at 8 min, with a flow rate of 0.6 mL/min. A post-column splitter was used to divert the fluent to diode array detector and mass spectrometer at 1:3 ratio. The re-equilibration time was 2 min. The column temperature was set at 60 °C and the UV/Vis spectra were recorded between 200–700 nm. Accurate mass measurements were carried out under both positive and negative ionization modes. The MS conditions were set as follows: sheath gas at 50 (arbitrary units), auxiliary gas at 10 (arbitrary units), and sweep gas at 1(arbitrary units), spray voltage at 3.5 kV for positive ionization mode and 3 kV for negative ionization mode, ion transfer tube temperature at 325°C, vaporizer temperature at 350°C, RF lens at 60%. The full scan mass range was from 100 to 1000 m/z with a resolution of 60,000, AGC target value of 200,000 in full scan and 10,000 FTMS/MS, and max ion injection time of 50 ms. The most intense ion was selected for the data-dependent scan with normalization collision energy at 30% in HCD. Anthocyanins were monitored at 504 nm and quantified as pelargonidin-3-O-glucoside. Ellagic acids derivatives were quantified as ellagic acid, proanthocyanins were quantified as (+) catechin and flavanols were quantified as quercetin-3-O-glucoside using high resolution selected ion chromatogram (HR-SIM). Data were collected using the Xcalibur 4.1 (Themo Scientific, Waltham, MA).

2.8 Statistical analysis

All the Student’s t-tests were performed using Excel 2016 (Microsoft, Seattle, WA). For metabolomic study, raw files were converted using Compound Discoverer 3.0 (Thermo Scientific, Waltham, MA). A data matrix was generated including variable index (paired m/z-retention time), sample names and peak area were exported from Compound Discoverer for further statistical analysis. ANOVA-PCA was performed with in-house scripts compiled in Matlab R2012b (MathWorks Inc., Natick, MA). Principle component analysis (PCA) was performed on the output table using SIMCA 13 (Umetrics, Sartorium Stedim Biotech, Umeå, Sweden).

3 Results and discussion

3.1 Strawberry metabolites

Overall, 32 metabolites were identified (Table 1) and typical total ion chromatograms from analysis of UV-C treated and untreated strawberries are presented in Fig. 2. The phenolic compounds of ‘Chandler’ strawberry include anthocyanins, proanthocyanindins, flavonols, O-acyl carbohydrates and derivatives of hydroxycinnamic and ellagic acid, which is consistent with previous reports [36 –42]. Other compounds such as amino acids and nucleosides were also found. Compounds identification was carried out by comparison between MS data (accurate masses, isotopic distribution, and MS/MS fragmentation behaviors) and the spectra archived in mzCloud [57] in-house databases and previously published MS data for strawberry [36 –42].

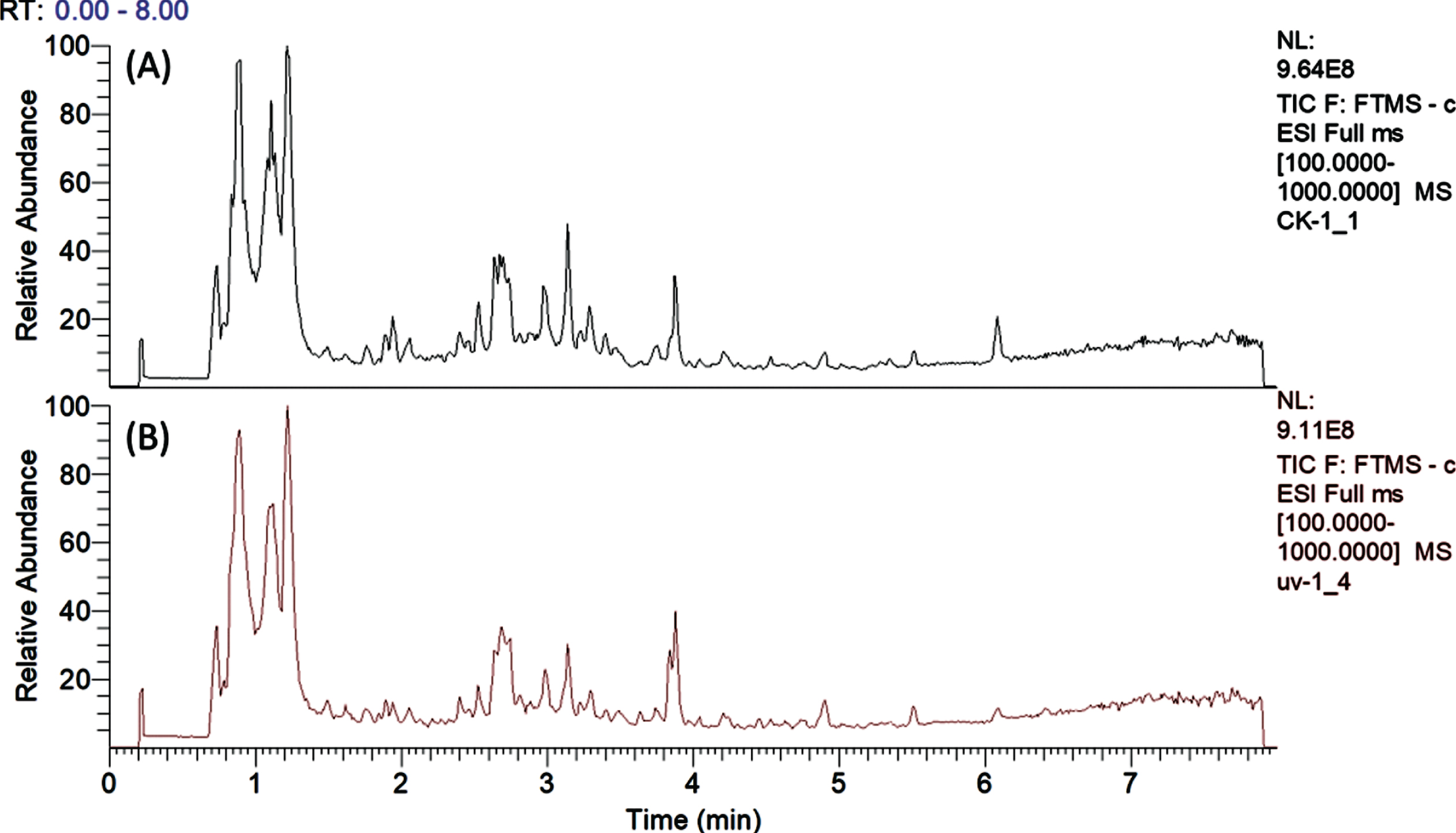

Fig. 2

Total ion chromatogram of strawberry fruit harvested from control (A) and UV-C treated plants (B).

Table 1

Major compounds identified in short day ‘Chandler’ strawberry fruit from plants in growth chambers using UHPLC-HRMS data

Compound name	Formula	Mass to charge ratio (m/z) of [M-H]- or M+_,[M + H]⁺ ions	Rt (min)	Error (ppm)	Major product ions
Glucose	C₆H₁₂O₆	179.0561	0.20	0.16	MS2[179]: 179(100), 161(22), 143(16), 125(11)
di-Saccharide	C₁₂H₂₂O₁₁	341.1091	0.88	0.57	MS2[341]: 341(15), 179(41), 161(19), 149(12), 143(14), 131(16), 119(100), 113(71), 101(80)
Ascorbic acid	C₆H₈O₆	175.0249	0.96	0.28	MS2[175]: 175(14), 157(100), 131(13), 127(9), 117(12), 115(71), 113(41)
Citric acid or Isocitric acid	C₆H₈O₇	191.0196	1.10	–0.71	MS2[191]: 191(14), 111(100)
Glutathione	C₁₀H₁₇O₆N₃S	308.0917*	1.21	2.00	MS2[308]: 245(10), 233(15), 215(8), 187(8), 179(32), 170(10), 162(100), 144(38), 142(20), 130(39), 116(37)
Aconitic acid	C₆H₆O₆	173.0092	1.28	0.23	MS2[173]: 129(10), 111(100)
Adenosine	C₁₀H₁₂N₅O₄	268.1049*	1.63	3.20	MS2[268]: 136(100)
Procyaninin C1	C₄₅H₃₈O₁₈	865.1991	1.93	0.65	MS2[865]: 695(40), 577(32), 451(35), 425(31), 407(73), 405(32), 289(69), 287(100), 243(36), 125(59)
bis-HHDP-glucose	C₂₄H₂₄O₂₂	783.0698	2.05	1.42	MS2[783]: 783(25), 481(11), 301(100), 275(36)
Proanthocyanidin B1	C₃₀H₂₆O₁₂	577.1356	2.40	0.71	MS2[577]: 451(6), 425(8), 407(83), 339(7), 289(100), 287(6), 273(6), 245(17), 161(12), 125(37)
DL-Tryptophan	C₁₁H₁₂O₂N₂	203.0825	2.42	0.35	MS2[203]: 203(17), 159(9), 142(36), 116(100)
Cyanidin-3-O-glucoside	C₂₁H₂₁O₁₁	449.1090**	2.53	2.78	MS2[449]: 287(100)
HHDP-galloylglucoside	C₂₇H₂₂O₁₈	633.0733	2.53	–0.58	MS2[633]: 633(40), 463(11), 301(100), 275(7)
(+) Catechin	C₁₅H₁₄O₆	289.0713	2.63	–0.49	MS2[289]: 289(67), 245(100), 221(25), 205(53), 203(81), 187(21), 179(32), 165(21), 161(22), 151(38), 137(30), 125(55), 123(26), 109(53)
Pelargonindin-3-O-glucoside	C₂₁H₂₁O₁₀	433.1137**	2.67	2.02	MS2[433]: 271(100)
Coumaroyl-glucose	C₁₅H₁₈O₈	325.0927	2.74	–0.65	MS2[325]: 163(8), 145(100)
2-Isopropylmalic acid	C₇H₁₂O₅	175.0612	2.81	0.92	MS2[175]: 175(8), 115(100)
Ellagic acid glucose	C₂₀H₁₆O₁₃	463.0521	2.87	0.60	MS2[463]: 463(67), 301(100), 300(21), 283(7), 271(10)
Pelargonindin-3-O-rutinoside	C₃₀H₂₇O₁₂	579.1512**	2.93	2.56	MS2[579]: 271(100)
Ellagic acid	C₁₄H₆O₈	300.9986	2.99	–1.30	MS2[301]: 301(100),284(2), 257(2), 229(2), 201(13), 185(2)
Agrimoniin	C₈₂H₅₂O₅₄	934.0726***	3.13	–0.42	MS2[934]: 935(37), 934(7), 897(29), 783(17), 633(15), 613(10), 301(100)
Ellagic acid pentose	C₂₀H₁₆O₁₂	447.0573	3.22	–0.85	MS2[447]: 447(76), 301(100), 300(73)
Galloyl-glucose	C₁₇H₁₆O₇	331.0825	3.25	0.53	MS2[331]: 331(22), 271(7), 211(5), 169(100), 168(5), 161(3), 125(8)
Pelargonidin-3-O-acetylglucoside	C₂₃H₂₃O₁₁	475.1248**	3.30	2.68	MS2[475]: 475(3), 271(100)
Quercetin-3-O-glucuronide	C₂₁H₁₈O₁₃	477.0679	3.41	0.92	MS2[477]: 477(2), 301(100), 179(2), 151(2)
Quercetin-3-O-glucoside	C₂₁H₂₀O₁₂	463.0886	3.49	0.71	MS2[463]: 463(30), 301(63), 300(100), 179(2)
Kaempferol-3-O-glucuronide	C₂₁H₁₈O₁₂	461.0728	3.76	0.50	MS2[461]: 461(2), 285(100), 257(2), 113(7)
Kaempferol-3-O-glucoside	C₂₁H₂₀O₁₁	447.0934	3.86	0.21	MS2[447]: 447(81), 327(4), 285(53), 284(100), 256(2), 255(4), 151(3)
Feruloyl-glucose	C₁₆H₂₀O₉	355.1032	3.87	–0.61	MS2[355]: 161(2), 147(100)
Syringin	C₁₇H₂₄O₉	371.1348	4.21	0.04	MS2[417]: 251(2), 209(100)
(±)-Abscisic acid	C₁₅H₂₀O₄	263.1290	4.74	0.33	MS2[263]: 219(65), 204(59), 201(27), 163(13), 153(100), 152(12), 151(11), 138(13)
Methylsyringin	C₁₈H₂₆O₉	385.1704	4.87	–0.12	MS2[309]: 309(13), 225(19), 205(100)

*[M + H]⁺_, ** M+, ***[M-2H]^2 - Compounds written in bold font were confirmed with reference standards.

Four major anthocyanins were found in all samples (cyanidin-3-O-glucoside, pelargonidin-3-O-glucoside, pelargonidin-3-O-rutinoside and pelargonidin-3-O-acetylgluoside) with monitor set at 504 nm (Fig. 3A). MS/MS product ion spectra of these 4 anthocyanins are presented in Fig. 3B. At peak 1, with M+ at m/z 449.1088 (C₂₁H₂₁O₁₁, –1.12 ppm), loss of one hexosyl group (C₆H₁₀O₅) was observed. The major product ion at m/z 287.0551 (C₁₅H₁₁O₆, 0.12 ppm) suggested the anthocyanin aglycone is cyanidin. This peak was identified as cyanidin-3-O-glucoside (C3G) and confirmed with a reference standard. Peak 2 was the major anthocyanin peak with M+ at m/z 433.1135 (C₂₁H₂₁O₁₀, 2.09 ppm) and m/z 271.0821 (C₂₁H₁₅O₇, 3.07 ppm) is the major product ion, this peak was identified and confirmed as pelargonidin-3-O-glucoside (P3G). Similarly, Peak 3 was identified as pelargonidin-3-O-rutinoside (P3R, m/z 579.1719, C₂₇H₃₁O₁₄, 1.84 ppm). Peak 4 with M+ at m/z 475.1248 (C₂₃H₂₃O₁₁, –2.77 ppm) and the major product ion at m/z 271 was produced via the loss of an acetyl and a hexose moiety, thus this peak was identified as pelargonidin-3-O-acetyl glucoside (P3AG).

Typical flavonols were found to be quercetin-3-O-glucoside (Q3G), kaempferol-3-O-glucoside (K3G), quercetin-3-O-glucuronide (Q3GR) and kaempferol-3-O-glucurondie (Q3GR). For these compounds, the typical MS² product ion at m/z 301 and m/z 285 were used to confirm the flavonol glycosides with quercetin and kaempferol aglycone, respectively. The Q3G and K3G were also confirmed by reference standards. Ellagic acid (EA) and its derivatives were another major kind of phenolic compound found in both UV-C treated and control groups of strawberry. A diagnostic product ion at m/z 300.9987(C₁₄H₅O₈), corresponding to deprotonated form of ellagic acid, was used as diagnostic ion to confirm ellagic acid hexoside and pentoside. It is worth noting that ellagic acid glucoside and quercetin glucoside in strawberry share the same nominal mass of m/z 463 in full scan and product ion of m/z 301 in the MS/MS spectra under negative ionization mode. They might be mis-identified as one another if only using a nominal mass spectrometer because of its insufficient resolving power. However, as shown in Fig. 4, these two compounds were easily differentiated using a high-resolution mass spectrometer. Ellagic acid glucoside has an elemental composition of C₂₀H₁₆O₁₃ ([M-H]^-, 463.0515, –0.591 ppm) while quercetin has an elemental composition of C₂₁H₂₀O₁₂ ([M-H]^-, 463,0883, 0.196 ppm) in the full scan. Though these two compounds exhibit very similar fragment behavior with the neutral loss of a glucosyl unit, the m/z 151 and m/z 179 were only observed in quercetin-3-O-glucoside, in addition to the elemental composition differences of the two aglycone ions. This strategy can be also used for the differentiation of kaempferol glucoside and ellagic acid pentoside.

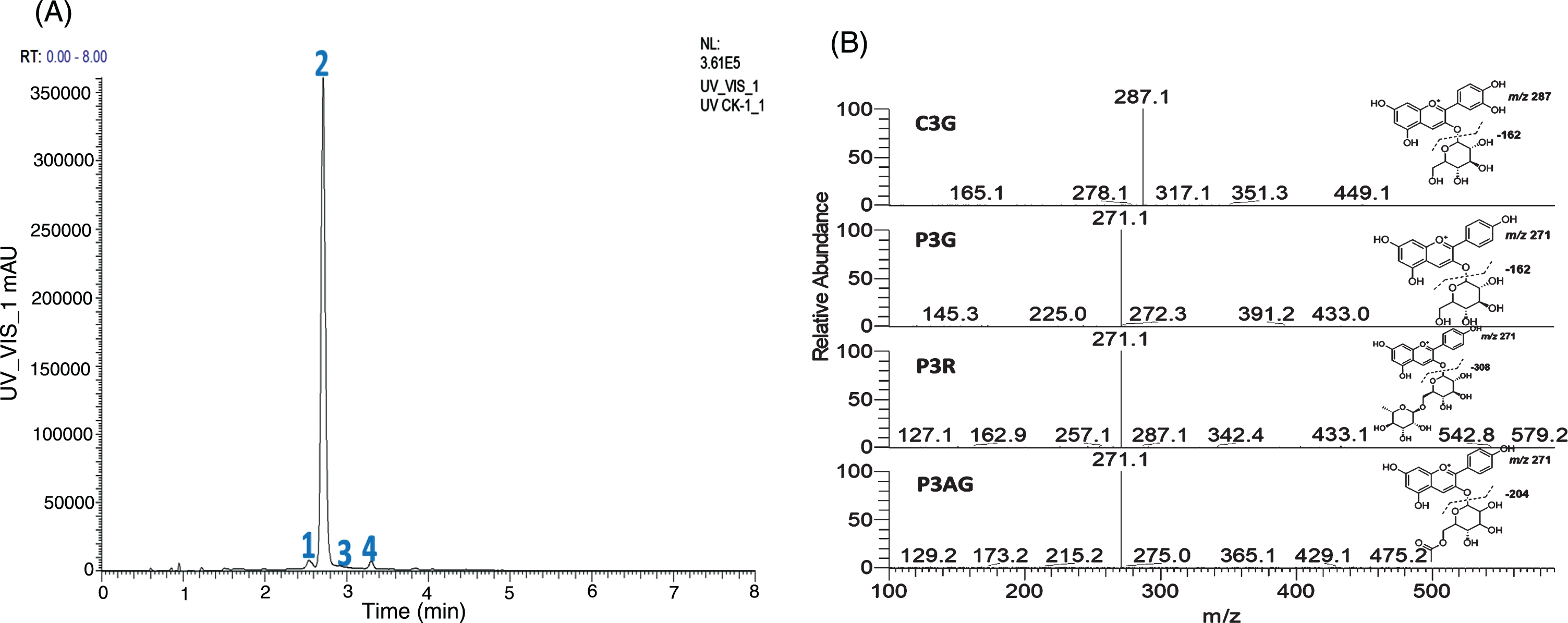

Fig. 3

The HPLC chromatogram (504 nm) of four major anthocyanins: 1 = C3G, 2 = P3G, 3 = P3R, and 4 = P3AG (A), and MS/MS spectra of C3G, P3G, P3R, and P3AG (B). C3G = cyanidin-3-O-glucoside, P3G = pelargonidin-3-O-glucoside, P3R = pelargonidin-3-O-rutinoside, and P3AG = pelargonidin-3-O-acetylgluoside.

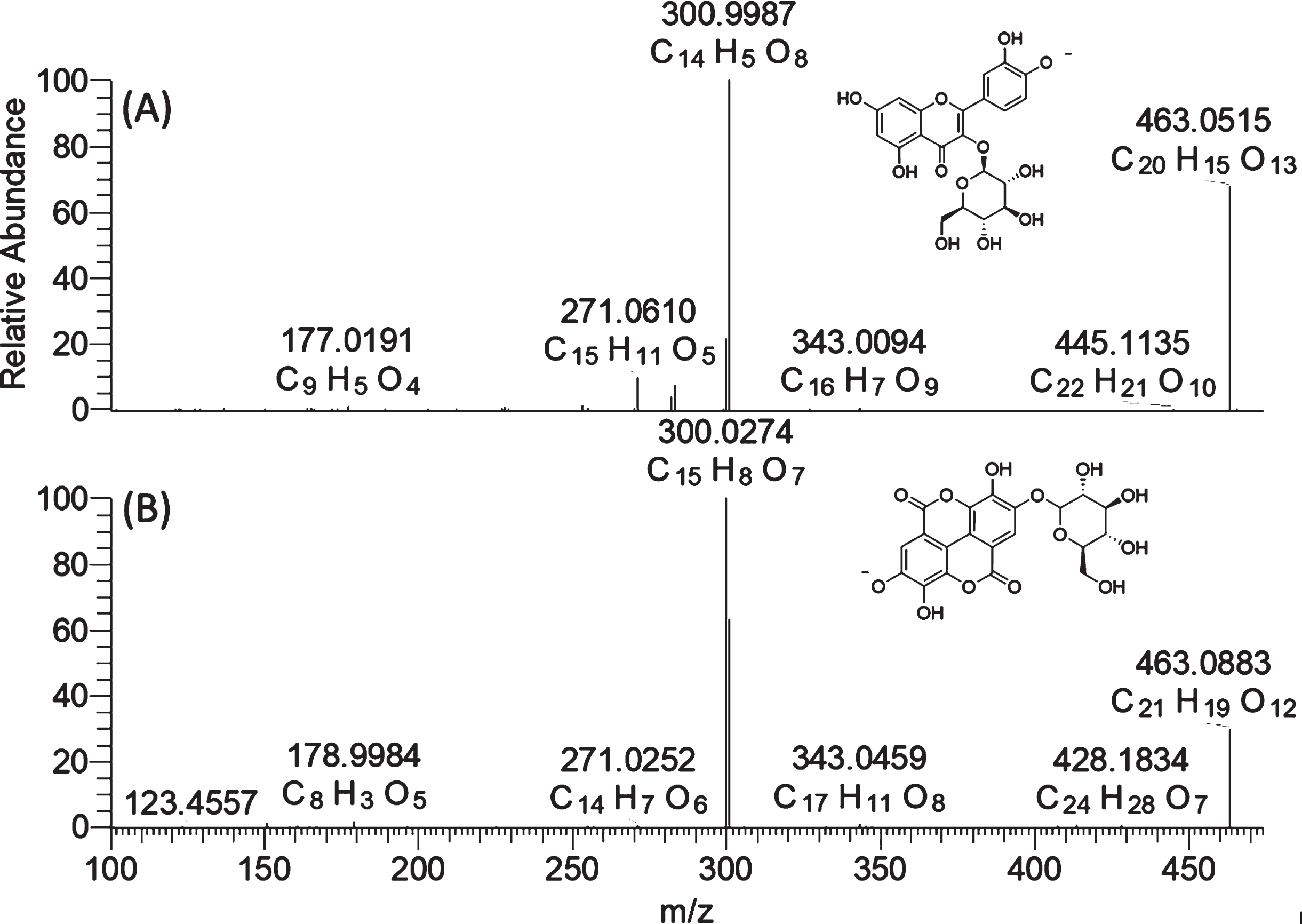

Fig. 4

High-resolution mass spectra (MS²) of quercetin-3-O-glucoside (A) and ellagic acid glucoside (B).

3.2 Effect of UV-C on anthocyanins and other phenolic compounds

Anthocyanins concentrations were quantified based on the P3G content using the HPLC-UV peak area under 504 nm, and P3G was found to be the most abundant anthocyanin in ‘Chandler’ strawberry and was about 40, 60 and 140 times more abundant than C3G, P3AG and P3R, respectively, in both UV-C treated and not treated strawberries. The levels from irradiated strawberry did not differ from the non-irradiated control group at all three harvest dates. The individual anthocyanin concentrations were not significantly (P > 0.05) influenced by UV-C treatments, except for a minor anthocyanin, C3G, which was slightly different (0.41 vs 0.50μmol/g dry weight) in the fruit from the first harvest (Table 2).

Table 2
Quantitation of individual and total anthocyanins in short day ‘Chandler’ strawberry fruit harvested at three different times from plants that were treated or not treated (Control) with UV-C

Harvest Treatment C3G P3G P3R P3AG Total Anthocyanins

1 UV-C (n = 20) 0.41±0.03* 20.70±5.79 0.14±0.03 0.29±0.11 21.54±6.01

03/28/19 Control (n = 23) 0.50±0.11 19.89±5.00 0.14±0.03 0.30±0.10 20.83±5.19

2 UV-C (n = 22) 0.45±0.11 21.16±3.44 0.17±0.03 0.32±0.07 22.10±3.57

04/01/19 Control (n = 22) 0.45±0.13 19.87±4.49 0.17±0.04 0.32±0.07 20.81±4.65

3 UV-C (n = 19) 0.47±0.13 22.41±4.20 0.15±0.03 0.31±0.06 23.30±4.35

04/04/19 Control (n = 20) 0.52±0.11 20.25±5.11 0.14±0.04 0.28±0.08 21.19±5.26

Harvest	Treatment	C3G	P3G	P3R	P3AG	Total Anthocyanins
1	UV-C (n = 20)	0.41±0.03*	20.70±5.79	0.14±0.03	0.29±0.11	21.54±6.01
03/28/19	Control (n = 23)	0.50±0.11	19.89±5.00	0.14±0.03	0.30±0.10	20.83±5.19
2	UV-C (n = 22)	0.45±0.11	21.16±3.44	0.17±0.03	0.32±0.07	22.10±3.57
04/01/19	Control (n = 22)	0.45±0.13	19.87±4.49	0.17±0.04	0.32±0.07	20.81±4.65
3	UV-C (n = 19)	0.47±0.13	22.41±4.20	0.15±0.03	0.31±0.06	23.30±4.35
04/04/19	Control (n = 20)	0.52±0.11	20.25±5.11	0.14±0.04	0.28±0.08	21.19±5.26

Concentrations are expressed as mean±standard deviation in μmol g^–1 dry weight (DW); * indicates significant differences (P < 0.05) between the UV-C and control group with the same harvest time by Student’s t-test. C3G = cyanidin-3-O-glucoside, P3G = pelargonidin-3-O-glucoside, P3R = pelargonidin-3-O-rutinoside, and P3AG = pelargonidin-3-O-acetylhexoside.

Besides anthocyanidins, we found that the UV-C irradiation did not cause significant changes in individual phenolic compounds including ellagic acid (EA), (+) catechin (C), quercetin 3-O-glucoside (Q3G), quercetin 3-O-glucuronide (Q3GR), kaempferol-3-O-glucoside (K3R), and kaempferol 3-O-glucuronide (K3GR). The quantitative analysis showed that in ‘Chandler’ strawberry C and EA were two major phenolic compounds (Table 3). The concentration of glucuronides of quercetin and kaempferol were 5 to 15 times higher than the related glucosides in both groups.

Table 3

Content of phenolic compounds in strawberries from different harvest dates from plants that were treated or not treated (Control) with UV-C

Harvest	Treatment	C	EA	Q3G	Q3GR	K3G	K3GR
1	UV-C (n = 20)	1313.5±197.3	579.0±200.4	49.0±18.4	257.5±22.4	7.0±2.5	102.2±21.7
03/28/19	Control (n = 23)	1355.1±17.9	687.0±175.2	52.8±14.9	246.1±30.3	7.0±2.6	114.4±23.7
2	UV-C (n = 22)	1313.6±432.2	598.9±303.7	49.2±16.0	259.7±26.5	8.5±2.3	65.5±40.8
04/01/19	Control (n = 22)	1152.6±404.8	622.2±256.0	48.3±15.1	241.1±36.5	7.7±2.7	85.0±40.9
3	UV-C (n = 19)	1340.2±445.2	495.6±204.5	37.6±13.9	288.8±70.8	8.3±3.2	43.5±43.2
04/04/19	Control (n = 20)	1405.1±217.6	527.4±201.4	40.3±14.2	271.3±31.8	10.0±4.1	55.5±38.6

Concentrations are expressed as mean±standard deviation in nmol g^–1 dry weight (DW). C = (+) catechin, EA = ellagic acid, Q3G = quercetin-3-O-glucoside, Q3GR = quercetin-3-O-glucuronide, K3GR = kaempferol-3-O-glucuronide, and K3G = kaempferol-3-O-glucoside.

3.3 Principal component analysis and ANOVA-PCA of metabolomic data

The original UHPLC-HRMS raw data were deconvoluted using Compound Discoverer 3.0 (Thermo Scientific, Waltham, MA) and it led to the extraction of 2,617 ion features (m/z, retention time, intensity) and 2,019 ion features under positive and negative ionization modes, respectively, from the 126 fruit samples analyzed. First PCA was used on these two datasets and we established that the variance found may not be attributed to UV-C treatment, which was consistent with our targeted analysis (Fig. 5). The PC1/PC2 score plot shows that samples from first harvest were clustered together. Samples from the second and third harvests formed a separate cluster; however, no separation was observed between UV-C treated and untreated (control) groups using both positive and negative ionization data. This suggests that other environmental factors, such as light intensity, day length and daily light interval influenced the composition of the metabolites in this short-day strawberry cultivar. This agrees with recent reports that found that seasonal and growing conditions can affect the composition of strawberry metabolites rather than the pre-harvest treatment with UV-C [25, 35]. The non-targeted metabolomics analysis can provide a complimentary comparison of treated and not treated strawberry based on all metabolites detected by UHPLC-HRMS method. It can determine any potential differences between two groups of strawberry, especially for possible minor metabolites changes. As all the metabolite information from the raw data was used in non-targeted metabolomic study, it provided a more comprehensive picture than using only major metaboloites identified in the targeted analysis.

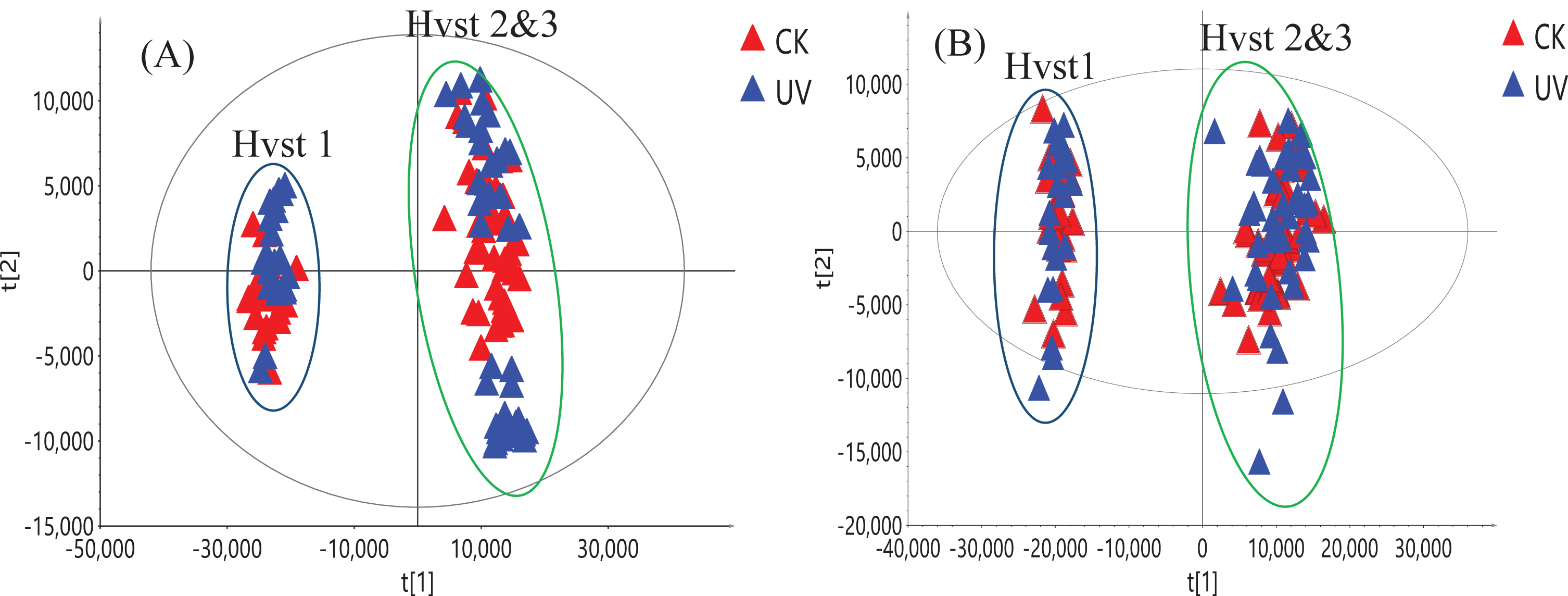

Fig. 5

PCA score plot of 126 strawberry samples from three harvests (Hvst1-3) using positive ionization (A) and negative ionization data (B). Blue triangles represent samples from strawberries treated with UV-C and red triangles are from the control (CK) samples.

As all experimental factors may contribute to variability, other factors such as growth chamber and harvest time also may have an effect in addition to UV-C treatment. ANOVA-PCA was subsequently used to isolate and identify the contribution of each experimental factor. The raw data were deconvoluted into 8 sub-matrices; means and residuals for irradiation (I), growth chamber (G), harvest time (T), plus factor interaction (I×G×T) and the factor interaction residual matrix (FIres). The ANOVA data computed for preprocessed data showed that iradiation (I), harvest time (T), and growth chamber (G) accounted for 2.5, 25.7 and 8.7% of the total variance, respectively, for positive ionization data. For negative ionization data, these three experimental factors accounted for 1.0, 48.7 and 1.9% of the total variance, respectively. The separation was not observed on the score plots of UV-C irradiation mean matrix plus the factor interaction residual matrix (I + FIres, Fig. 6A and D) and growth chamber mean matrix plus interaction residual matrix (G + FIres, Fig. 6C and F). However, obvious separation was observed for the harvest time mean plus interaction residual matrix (T + FIres, Fig. 6B and E) for both positive and negative ionization data. ANOVA-PCA confirmed that the highest experimental variance was explained by harvest time, while UV-C irradiation did not affect the kind and concentration of secondary metabolites.

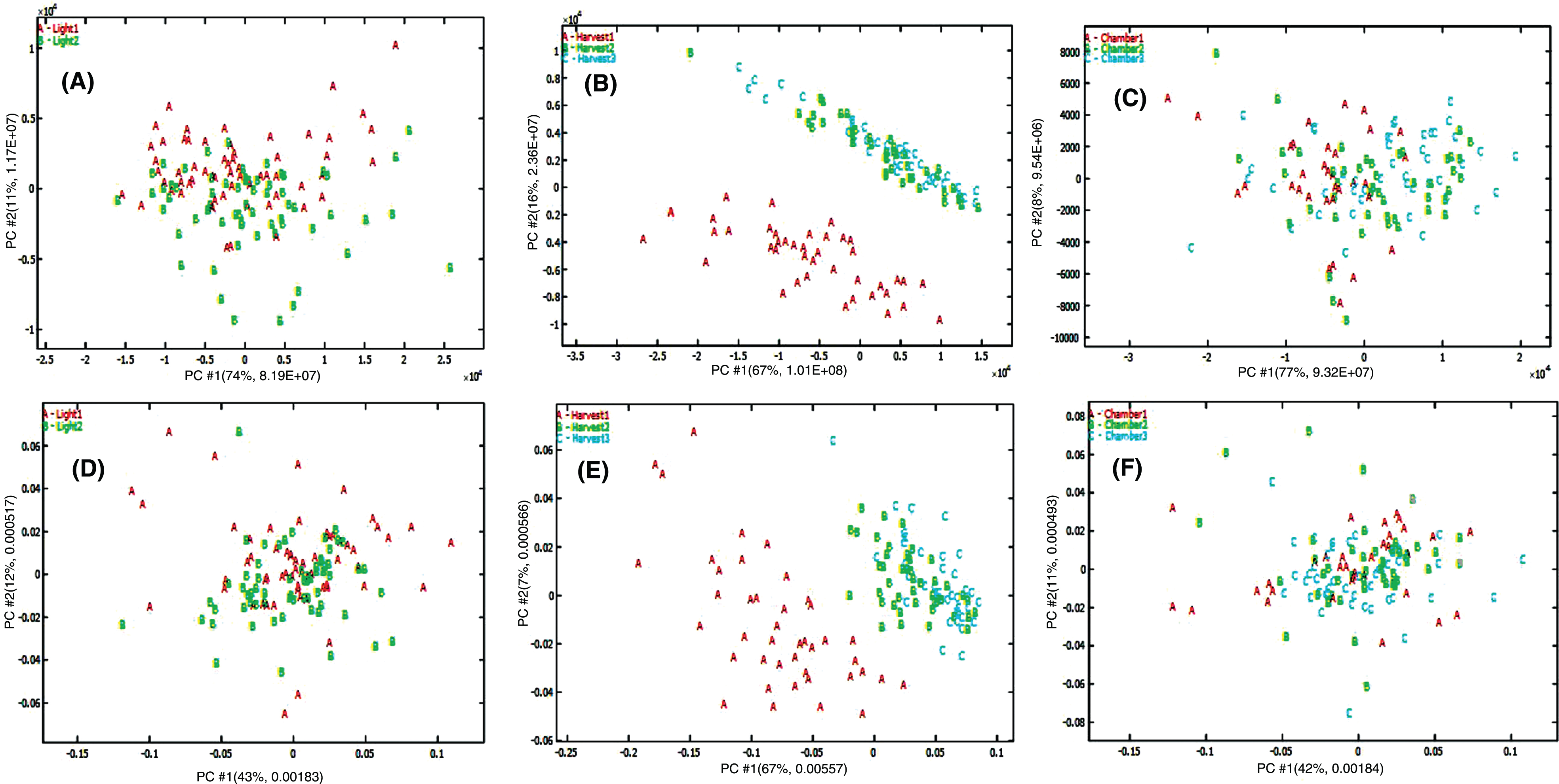

Fig. 6

Score plot from ANOVA-PCA on metabolomic data based on different experimental factors: Irradiation factor (A, D), harvest time factor (B, E) and growth chamber factor (C, F) using positive (A, B, C) and negative (D, E, F) ionization metabolomic data sets.

4 Conclusions

UV-C treatment is considered an environmentally friendly approach for controlling undesirable microbes including plant pathogens. In order to make UV-C technology acceptable for commercial strawberry production, its effect on fruit quality, especially on compounds of nutraceutical value, needs to be examined. In the current work, the effects of preharvest UV-C irradiation on the composition and content of major phenolic compounds of strawberries was determined. No deleterious effects on the secondary metabolites of strawberry fruit were detected after UV-C irradiation of plants during the entire production cycle. Neither the kind nor the level of anthocyanins, glucosides and glucuronides of quercetin and kaempferol, catechin, or ellagic acid were affected by UV-C irradiation, as demonstrated by targeted quantitative analysis and non-targeted metabolomic analysis. For the first time, metabolomic approach combined with ANOVA-PCA was used to evaluate strawberry fruit quality after repeated UV-C irradiation of plants during the entire production cycle. We demonstrated that this approach is very powerful in providing an overall insight into fruit quality and pinpoints the influence of each experimental factor.

Funding

The authors report no funding.

Conflict of interest

The authors have no conflict of interest to report.

Footnotes

Acknowledgments

This research was supported by the Agricultural Research Service of the U.S. Department of Agriculture (USDA) and an Interagency Agreement with the Office of Dietary Supplements (ODS) of the National Institutes of Health (NIH).
