Genome-wide identification and analysis of the MADS-box gene family and its potential role in fruit ripening in black raspberry ( Rubus occidentalis L.)

Abstract

BACKGROUND:

Black raspberry is a vital fruit crop with a high antioxidant function. MADS-box genes play an important role in the regulation of fruit development in angiosperms.

OBJECTIVE:

To understand the regulatory role of the MADS-box family, a total of 80 MADS-box genes were identified and analyzed.

METHODS:

The MADS-box genes in the black raspberry genome were analyzed using bioinformatics methods. Through an analysis of the promoter elements, the possible functions of different members of the family were predicted. The spatiotemporal expression patterns of members of the MADS-box family during black raspberry fruit development and ripening were systematically analyzed.

RESULTS:

The genes were classified into type I (Mα: 33; Mβ: 6; Mγ: 10) and type II (MIKC^*: 2; MIKC^C: 29) genes. We also obtained a complete overview of the RoMADS-box gene family through phylogenetic, gene structure, conserved motif, and cis element analyses. The relative expression analysis showed different expression patterns, and most RoMADS-box genes were more highly expressed in fruit than in other tissues of black raspberry.

CONCLUSIONS:

This finding indicates that the MADS-box gene family is involved in the regulation of fruit ripening processes in black raspberry.

Keywords

Gene family analysis gene structure conserved motif expression pattern

1 Introduction

Rosaceae is an important angiosperm family that consists of more than 100 genera and 3000 species, including many economically important species, such as apple, pear, strawberry and rose [1]. Rosaceae also contains plants with highly unique fruits, such as drupe, kernel, and achene. Rubus is one of the largest and most diverse genus in this family, and its fruits are characterized by the aggregation of small drupes on the receptacle [2]. Specifically, black raspberry (Rubus occidentalis L.) is a vital fruit crop native to eastern North America [3]. Black raspberry is valued for its unique flavor and exhibits potential health benefits [4]. Black raspberry fruits contain anthocyanins and other phenolic compounds at higher concentrations than those found in fruits of red raspberry and blackberry [5 –7]. The demand for this fruit crop as a rich source of antioxidants is increasing [7 –9]. Despite the importance of black raspberry, little is known about the molecular and genetic mechanisms that control fruit development and ripening in this fruit crop. The fruit ripening process involves a series of physiological and biochemical changes, such as the accumulation of pigments, the softening of the fruit, and the formation of aroma and flavor substances [6]. A study of the MADS-box family in black raspberry will facilitate further studies on the molecular mechanisms of development and ripening of black raspberry fruit.

MADS-box genes play an important role in ovule development, flower organ characteristics, fruit maturation, plant growth and development and signal transduction processes in eukaryotes, particularly the regulation of flower organs and fruit development in angiosperms [10 –13]. Among them, Lyu [12] had found two artificially selected MADS genes that control meristem maturation and inflorescence development. Dong et al. [13] showed that a tomato MADS-box transcription factor, SlDADS, acts as a negative regulator of fruit ripening. MADS-box family proteins can be roughly divided into two types according to their structure and evolutionary developmental states: type I and II proteins. Type I proteins are divided into Mα, Mβ, and Mγ. In general, type II proteins consist of six introns and seven exons, and the proteins encoded by MIKC-type genes mainly include four domains, namely, the highly conserved MADS (M) domain, the moderately conserved keratin-like (K) domain, the more conserved intervening (I) domain, and a changeable C-terminal (C) end [11, 14]. According to differences in their gene sequence and structure, structural MIKC-type MADS-box genes can be further divided into MIKC^* and MIKC^c types [15].

Previous genomic studies have provided an understanding of the roles of the MADS-box family in Arabidopsis [16], rice [17], soybean [18], cucumber [19], and poplar [20], but the role of MADS-box genes in black raspberry has not been reported. The black raspberry genome was recently published [4], which provides an opportunity to analyze the MADS-box gene family and its role in fruit development and ripening. Studying MADS-box transcription factors in black raspberry is conducive to exploring and analyzing the mechanism regulating the physiological development and maturity of fruits and can provide valuable information for the biotechnological breeding of Rosaceae plants and other species.

2 Materials and methods

2.1 Identification, distribution and characterization of MADS-box genes in black raspberry

The black raspberry genome was downloaded from the Genome Database for Rosaceae (Rubus occidentalis whole genome v3.0 assembly & annotation) (https://www.rosaceae.org/analysis/268) [21]. Using the hidden Markov model (HMM), files corresponding to MADS-box sequences (PF00319) in both FASTA and Stockholm formats were downloaded from the Pfam database (http://pfam.xfam.org/). To obtain candidate proteins, an alignment of MADS-box seed sequences in Stockholm format was generated using a tool in the HMMER program (hmmbuild), and all black raspberry proteins in the generated HMM model were searched using another tool (hmmsearch) with the default parameters [22]. Additionally, the FASTA profile downloaded from the Pfam website was aligned with black raspberry protein sequences using the BLASTP (e-value = 1^-3) method [23]. Candidate black raspberry MADS-box genes were obtained by taking the union set and removing duplicates from the above-mentioned two sets of results. To further verify the accuracy of the results, the obtained candidate MADS-box gene sequences were submitted to the SMART website (http://smart.embl.de/) to confirm that the conserved MADS-box domain was present in each protein sequence [24]. Genes without the M domain or with an incomplete M domain were then eliminated. Moreover, for the prediction of gene amplification, the similarity among the aligned regions was set to≥70%.

The distributions of all identified MADS-box genes were plotted on black raspberry chromosomes using MapInspect software. A conserved sequence logo (60 aa) was generated from the candidate black raspberry MADS-box genes using the web-based application WebLogo3.7.4 (http://weblogo.threeplusone.com) with the default parameters [25]. In addition, the sequence length, molecular weight (MW), theoretical isoelectric point (PI), instability index and grand average of hydropathicity (GRAVY) for these Rubus occidentalis MADS-box (RoMADS) genes were obtained using the ExPASy ProtParam tool (https://web.expasy.org/protparam/). We also used the SOPMA program (https://npsa-prabi.ibcp.fr/cgi-bin/npsa_automat.pl?page=npsa_sopma.html) to predict the secondary structure of each protein.

2.2 Phylogenetic, conserved motif and gene structure analyses of the RoMADS-box gene family

In general, all MADS-box genes can be divided into two categories (type I: M-type and type II: MIKC-type). To better classify these genes by subgroup, a multiple sequence alignment of various sequences, including MADS-box genes from Arabidopsis thaliana [26] and conserved RoMADS-box domain-containing proteins, was performed using Muscle, and a neighbor-joining tree with 1000 bootstrap replicates was then built using MEGA 7.0 based on the alignment. To better reveal the structural features of RoMADS proteins, we predicted the conserved motifs in full-length RoMADS proteins using the Multiple Expectation Maximization for Motif Elicitation (MEME) online tool (http://meme-suite.org/) with the default parameters, with the exception that the number of motifs was set to 10 [27]. Moreover, the intron-exon structures of all black raspberry genes were contained in the file “Rubus_occ_V3.genes.gff3”. An intron-exon structure diagram of all RoMADS-box genes was obtained from the online tool GSDS (http://gsds.cbi.pku.edu.cn/).

2.3 Promoter and protein-protein interaction analyses of RoMADS-box genes

TBtools software [28] was used to extract the 2000-bp sequence upstream of the coding sequence (ATG), and the extracted sequence was analyzed using the online software PlantCARE (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/) [29]. The DNA sequences of cis-acting elements on the side of the target genes that can be identified and specifically bound by transcription factors were then predicted. Protein-protein interaction (PPI) data were obtained from the online database STRING (https://string-db.org/cgi/info.pl) [30].

2.4 Plant material and RNA extraction

Stems, leaves, apex, and fruits at different developmental stages (green, red and purple-black stages) were collected from three different black raspberry plants of ‘Bristol’, which were used as biological replicates, from the Nanjing Lishui White Horse Industrial Park of the Institute of Botany (Jiangsu Province, Chinese Academy of Sciences). The plant materials were stored at –80°C for RNA extraction. Total RNA was extracted using the Universal Plant Total RNA Extraction Kit (Bioteke, Beijing, China). After the quality and purity were checked, the total RNA was reverse-transcribed using the HiFiScript cDNA Synthesis Kit (CWBIO, Shanghai, China) according to the manufacturer’s instructions. The resulting cDNA was used for further experiments.

2.5 Expression analysis of RoMADS-box genes

We used Oligo 6.0 to design primers specific for RoMADS-box genes, and the details of this process are provided in Table S1. The relative expression levels were calculated using the 2^–ΔΔCT method. Each 15-μL reaction volume consisted of 7.5μL of TB Green Premix Ex Taq II, each primer at a concentration of 10μM, 0.4μL of ROX Reference Dye II, and 1μL of cDNA template, and the remaining volume was composed of ddH₂O and TB Green Premix Ex Taq II (Tli RNaseH Plus) (Takara, Dalian, China). qRT-PCR was performed using an ABI ViiA 7 real-time PCR platform according to the following cycling protocol: denaturation at 95°C for 30 s, 40 cycles of 95°C for 3 s and 60°C for 30 s, 95°C for 10 s, 65°C for 5 s and 95°C for 5 s. All data analyses were performed using data from three biological replicates and IBM SPSS Statistics version 22.

3 Results

Forty-nine RoMADS-box genes were classified as type I, and the remaining 31 RoMADS-box genes were type II. All (80) MADS-box genes were distributed across the seven chromosomes of the black raspberry genome and named RoMADS1 to RoMADS80 based on their position on the chromosomes (Fig. 1). A high frequency of segmental duplication was observed, and a total of six genes contained corresponding homologous segments (Fig. 1). The pI values varied greatly from 4.58 to 10.67 (Table 1). Seven MADS-box proteins (RoMADS13, RoMADS14, RoMADS19, RoMADS27, RoMADS41, RoMADS42, and RoMADS63) were stable, and all remaining 73 proteins were unstable, which indicated that most of the MADS-box proteins are unstable.

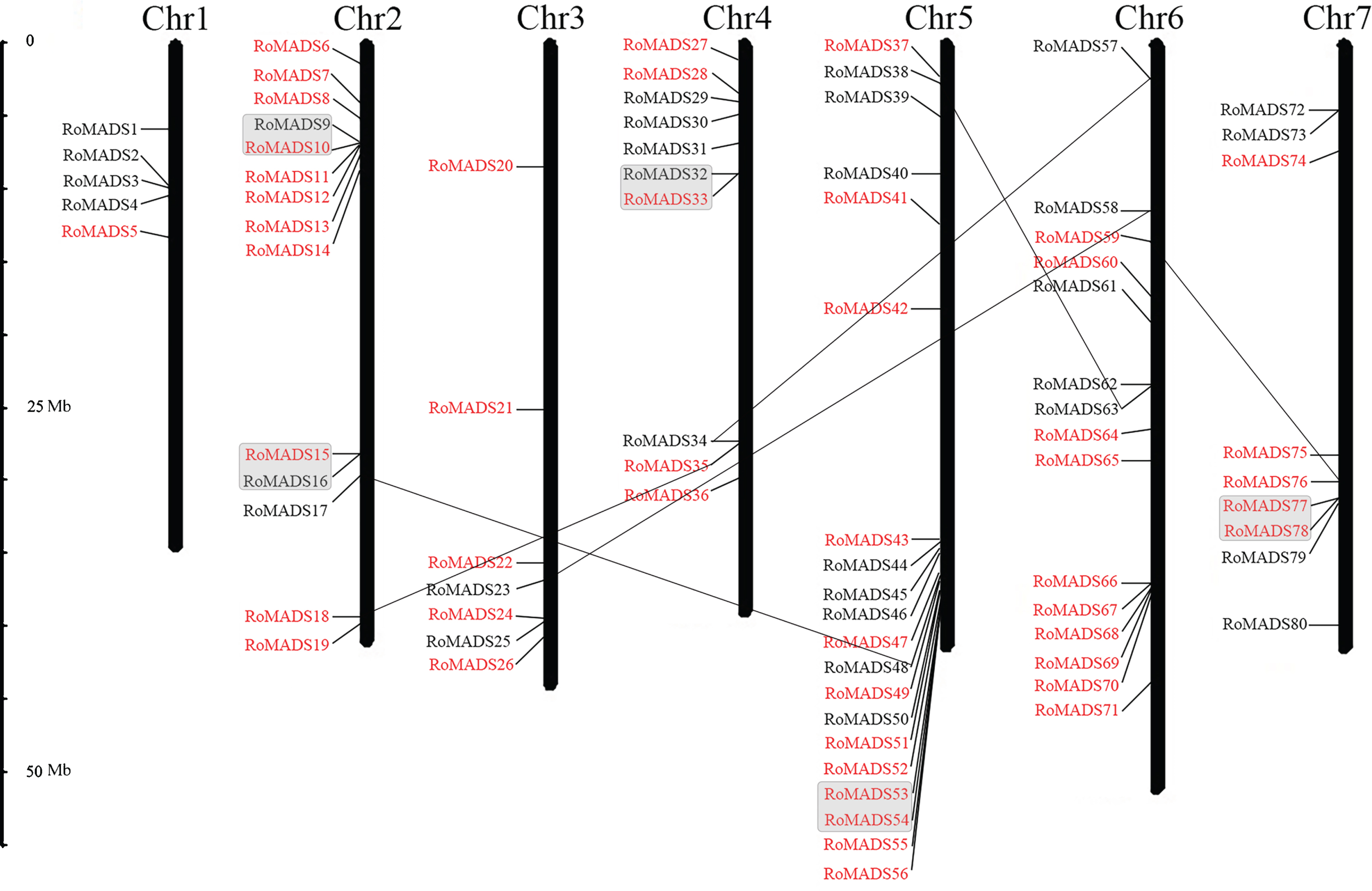

Fig. 1

Chromosomal locations of the MADS-box genes on the seven chromosomes of the black raspberry genome. Chrs1–7 represent the seven chromosomes. The positions of the chromosomes at which each MADS-box gene is located are displayed proportionately. The black lines on bars indicate the locations of MADS-box genes. The type I and II MADS-box genes are shown in red and black, respectively. The tandemly duplicated genes are joined with a gray box. Genes that show segmental duplications are indicated by black lines.

Table 1

Physicochemical characteristics of MADS-box genes in black raspberry

Gene	Sequence ID	Length (aa)	MW (kDa)	PI	Instability index	Aliphatic index	GRAVY	Hh (%)	Ee (%)	Cc (%)
RoMADS1	Ro01_G01137	262	30.10	8.49	44.92	88.36	–0.82	47.96	13.90	31.34
RoMADS2	Ro01_G11210	207	23.43	6.14	72.49	78.26	–0.53	54.59	12.08	29.95
RoMADS3	Ro01_G11221	210	24.18	8.23	58.31	84.48	–0.66	57.62	14.29	23.33
RoMADS4	Ro01_G18500	228	26.00	6.73	51.2	87.68	–0.77	63.16	9.21	24.56
RoMADS5	Ro01_G11640	262	29.74	8.56	40.97	98.24	–0.11	50.00	16.41	27.48
RoMADS6	Ro02_G34836	228	26.60	9.07	52.34	78.25	–0.81	48.68	18.42	24.56
RoMADS7	Ro02_G00539	264	30.16	8.99	55.28	92.23	–0.52	35.61	14.02	45.45
RoMADS8	Ro02_G04540	980	111.18	7.58	55.21	58.19	–0.86	24.49	8.16	63.67
RoMADS9	Ro02_G35014	143	16.29	9.04	42.63	83.22	–0.74	54.55	17.48	17.48
RoMADS10	Ro02_G35013	91	10.43	9.81	43.18	87.8	–0.56	37.36	26.37	18.68
RoMADS11	Ro02_G01485	298	34.29	9.53	56.04	70.74	–0.77	59.73	8.05	29.19
RoMADS12	Ro02_G35017	384	43.71	7.67	47.86	71.88	–0.55	34.64	9.11	53.39
RoMADS13	Ro02_G07025	116	12.52	9.41	38.56	69.83	–0.29	39.66	24.14	27.59
RoMADS14	Ro02_G09696	396	44.66	4.58	33.66	67.7	–0.75	40.15	13.89	36.87
RoMADS15	Ro02_G35585	157	17.62	9.43	44.87	84.46	–0.52	50.96	15.29	30.57
RoMADS16	Ro02_G24103	271	30.72	9.31	58.97	91.07	–0.35	66.05	9.23	22.88
RoMADS17	Ro02_G25777	248	28.51	9.12	48.87	88.06	–0.74	56.85	12.10	27.82
RoMADS18	Ro02_G08057	473	52.83	9.03	49.6	74.04	–0.44	47.15	14.80	31.50
RoMADS19	Ro02_G36054	392	43.52	8.87	39.72	70.51	–0.46	49.23	12.5	33.67
RoMADS20	Ro03_G02186	299	32.91	5.91	41.85	70.1	–0.68	41.81	15.38	38.80
RoMADS21	Ro03_G27408	215	24.64	8.62	57.84	81.67	–0.77	67.91	5.12	25.12
RoMADS22	Ro03_G15828	190	22.03	4.95	53.49	72.37	–0.88	48.95	12.11	33.16
RoMADS23	Ro03_G05866	238	27.89	6.27	54.04	77.86	–0.66	55.88	11.76	28.15
RoMADS24	Ro03_G13433	156	17.59	9.48	46.53	84.94	–0.21	51.28	16.67	24.36
RoMADS25	Ro03_G05331	287	32.84	9.60	52.03	80.98	–0.77	49.83	11.85	34.49
RoMADS26	Ro03_G05170	70	8.36	9.09	65.07	100.29	–0.02	47.14	32.86	12.86
RoMADS27	Ro04_G00433	219	24.56	6.46	37.76	76.03	–0.38	48.40	10.50	35.16
RoMADS28	Ro04_G00052	413	47.20	8.08	58.12	75.30	–0.53	37.05	14.53	43.83
RoMADS29	Ro04_G02528	499	57.49	7.67	51.93	81.70	–0.72	60.52	8.82	26.85
RoMADS30	Ro04_G36209	281	31.13	5.28	36.52	94.70	–0.34	58.36	13.17	24.56
RoMADS31	Ro04_G07112	244	28.01	8.81	40.95	80.74	–0.71	54.10	9.43	31.97
RoMADS32	Ro04_G36356	157	17.89	6.75	60.18	94.39	–0.55	63.69	11.46	20.38
RoMADS33	Ro04_G36357	104	12.25	10.26	62.61	100.29	–0.30	46.15	19.23	20.19
RoMADS34	Ro04_G12651	183	20.91	9.08	53.35	89.45	–0.58	62.84	14.75	15.85
RoMADS35	Ro04_G22394	85	9.48	10.19	41.5	71.18	–0.31	27.06	25.88	31.76
RoMADS36	Ro04_G16981	348	38.87	7.70	44.89	70.34	–0.60	35.34	11.78	47.99
RoMADS37	Ro05_G03263	388	43.56	6.28	40.21	73.61	–0.66	33.25	13.40	49.23
RoMADS38	Ro05_G03365	541	61.80	8.85	50.2	82.29	–0.72	55.64	7.39	31.98
RoMADS39	Ro05_G01909	205	23.18	9.84	54	90.44	–0.25	56.10	16.10	24.88
RoMADS40	Ro05_G14876	223	25.35	5.94	54.5	72.15	–0.84	57.40	8.97	30.94
RoMADS41	Ro05_G07411	316	34.18	9.07	37.45	72.18	–0.46	38.61	12.03	45.25
RoMADS42	Ro05_G19371	183	20.99	5.62	37.83	68.2	–0.96	52.46	9.84	33.33
RoMADS43	Ro05_G12604	225	26.08	9.92	58.4	100.44	–0.12	58.22	8.44	28.89
RoMADS44	Ro05_G12575	216	24.69	6.33	75.14	77.69	–0.65	51.85	11.57	33.80
RoMADS45	Ro05_G22454	245	28.00	9.33	44.88	89.59	–0.58	59.59	15.51	20.00
RoMADS46	Ro05_G26898	211	23.67	8.73	59.73	99.86	–0.25	58.29	11.37	24.64
RoMADS47	Ro05_G21769	112	12.95	9.51	50.18	94.02	–0.30	53.57	9.82	33.04
RoMADS48	Ro05_G21778	227	26.62	9.77	50.47	88.46	–0.71	66.96	10.57	15.86
RoMADS49	Ro05_G31618	57	6.48	10.51	42.23	97.54	–0.19	40.35	28.07	26.32
RoMADS50	Ro05_G31625	201	22.38	4.84	58.38	87.36	–0.55	59.70	10.45	28.86
RoMADS51	Ro05_G31621	70	7.68	7.89	67.28	105.71	0.32	28.57	38.57	27.14
RoMADS52	Ro05_G31626	111	12.55	10.38	44.08	89.64	–0.38	35.14	27.93	28.83
RoMADS53	Ro05_G31623	68	7.38	10.67	63.25	77.35	–0.21	23.53	29.41	32.35
RoMADS54	Ro05_G31624	68	7.38	10.67	63.25	77.35	–0.21	23.53	29.41	32.35
RoMADS55	Ro05_G31622	63	6.77	10.02	61.95	102.06	0.22	28.57	38.1	25.40
RoMADS56	Ro05_G22077	341	38.32	5.49	63.4	78.62	–0.64	38.12	9.38	47.51
RoMADS57	Ro06_G03786	290	33.76	7.71	42.53	79.62	–0.77	59.66	14.83	21.38
RoMADS58	Ro06_G23873	274	31.87	5.97	57.29	79.74	–0.71	56.20	13.87	24.82
RoMADS59	Ro06_G12352	345	39.14	9.30	53.48	98.61	–0.08	39.42	17.10	36.81
RoMADS60	Ro06_G11106	227	25.60	8.81	52.61	67.05	–0.70	40.09	14.98	38.77
RoMADS61	Ro06_G09924	327	37.48	9.13	64.58	79.94	–0.59	44.95	12.54	39.45
RoMADS62	Ro06_G28654	246	28.24	9.96	59.15	75.33	–0.87	47.97	9.76	38.21
RoMADS63	Ro06_G04893	250	28.98	8.72	35.18	80.76	–0.71	53.60	7.60	36.00
RoMADS64	Ro06_G08206	368	42.68	8.27	53.12	73.37	–0.76	44.84	17.39	30.71
RoMADS65	Ro06_G08380	295	33.60	9.30	54.47	56.27	–0.75	51.19	9.49	35.93
RoMADS66	Ro06_G07564	230	26.42	9.02	40.41	85.52	–0.54	46.09	18.70	29.13
RoMADS67	Ro06_G07563	300	33.75	6.42	56.61	70.23	–0.71	39.33	8.33	47.33
RoMADS68	Ro06_G11373	193	22.16	9.28	58.99	75.23	–0.80	58.03	10.36	24.35
RoMADS69	Ro06_G11372	219	24.50	5.91	46.62	63.7	–0.78	45.21	12.79	34.70
RoMADS70	Ro06_G11360	263	29.39	6.28	52.43	88.21	–0.46	60.84	9.13	24.71
RoMADS71	Ro06_G19741	277	31.47	8.74	68.58	74.33	–0.92	43.32	13.00	40.43
RoMADS72	Ro07_G21930	214	24.78	7.73	56.22	75.65	–0.84	67.29	9.35	19.16
RoMADS73	Ro07_G21927	247	28.34	9.04	47.19	78.26	–0.75	54.66	9.31	31.58
RoMADS74	Ro07_G17536	181	20.85	9.20	55.52	70.55	–0.82	60.77	9.39	27.07
RoMADS75	Ro07_G25428	251	28.91	9.25	63.24	79.24	–0.79	50.20	9.16	39.84
RoMADS76	Ro07_G09562	1379	154.68	6.30	40.78	83.31	–0.24	49.17	13.85	28.50
RoMADS77	Ro07_G13031	887	100.09	8.80	42.49	82.33	–0.30	54.00	7.78	28.86
RoMADS78	Ro07_G13016	191	21.17	9.40	57.83	69.53	–0.67	31.41	12.04	50.26
RoMADS79	Ro07_G23853	268	30.50	9.18	51.62	81.87	–0.75	43.28	13.43	39.93
RoMADS80	Ro07_G09508	234	26.94	9.36	61.83	79.62	–0.73	57.26	9.40	30.77

Notes: MW, molecular weight; pI, theoretical isoelectric point; GRAVY, grand average of hydropathicity; Hh, alpha helix; Ee, extended strand; Cc, random coil.

According to the presence or absence of the K-box domain, MADS-box family members were divided into two types (types I and II). A phylogenetic tree of these two types of MADS-box protein sequences in black raspberry and A. thaliana was constructed using the neighbor-joining method (Fig. 2). Based on the phylogenetic tree analysis, the 49 type I RoMADS-box genes were divided into three clades: Mα, Mβ, and Mγ. Clade I (Mα) contained 33 type I RoMADS-box genes, clade II (Mβ) contained six type I RoMADS-box genes, and clade III (Mγ) contained 10 type I RoMADS-box genes. Moreover, the type II genes could be divided into two clades: MIKC^*, which contained two type II RoMADS-box genes, and MIKC^C, which contained 29 type II members.

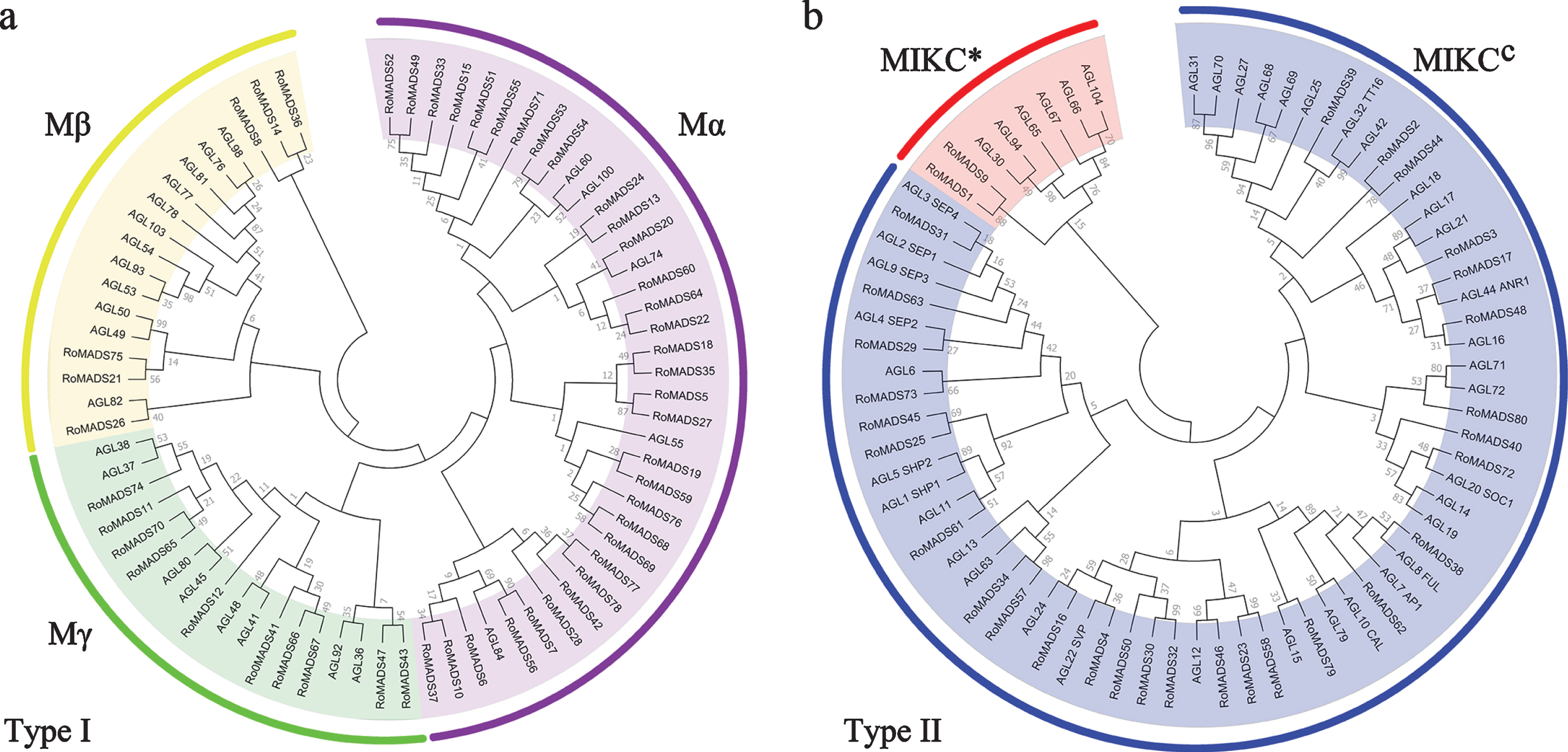

Fig. 2

Phylogenetic tree analysis of type I (a) and type II (b) MADS-box genes. These genes from black raspberry and Arabidopsis thaliana were analyzed using MEGA 7.0 software with the neighbor-joining method and 1000 bootstrap replicates.

In addition, we compared the number of RoMADS-box gene family members in black raspberry with those in other species and found that several angiosperms, including monocotyledons such as rice and dicotyledons such as Arabidopsis, tobacco, poplar and apple, contained a higher number of members of the MADS-box gene family than gymnosperms (Table 2). Thus, the number of MADS-box gene family members varies greatly among different species.

Table 2

Number of MADS-box genes in different species

Phylum	Species	Total	Type I	Type II	Reference
Angiosperms	Malus domestica	146	64	82	Tian et al. [31]
	Populus trichocarpa	105	48	57	Leseberg et al. [20]
	Arabidopsis thaliana	107	62	45	Parenicová et al. [16]
	Salix suchowensis	60	22	38	Qu et al. [32]
	Morella rubra	95	54	41	Zhao et al. [33]
	Nicotiana tabacum	168	74	94	Bai et al. [34]
	Lactuca sativa	82	23	59	Ning et al. [35]
	Prunus mume	80	48	32	Xu et al. [36]
	Oryza sativa	75	32	43	Arora et al. [17]
Gymnosperms	Picea sitchensis	17	1	16	Qu et al. [32]
	Ginkgo biloba	15	2	13	Dong et al. [37]

3.1 Conserved motif and exon-intron structure analyses of MADS-box family genes

Phylogenetic trees were constructed (Fig. 3a), and conserved motifs were identified (Fig. 3b) using type I and II MADS-box protein sequences. We then used the corresponding nucleic acid sequences for the analysis of RoMADS-box gene structures. To further investigate the characteristic regions of RoMADS proteins, the conserved motifs among the 80 RoMADS proteins were analyzed using the online program MEME. We constructed a schematic diagram of 10 conserved motifs to characterize the structures of the RoMADS proteins. The results from the motif analysis showed that motifs 1 and 2 in type I proteins and motifs 1 and 3 in type II proteins were highly conserved. Motif 1 represents a typical MADS-box domain (Fig. S2).

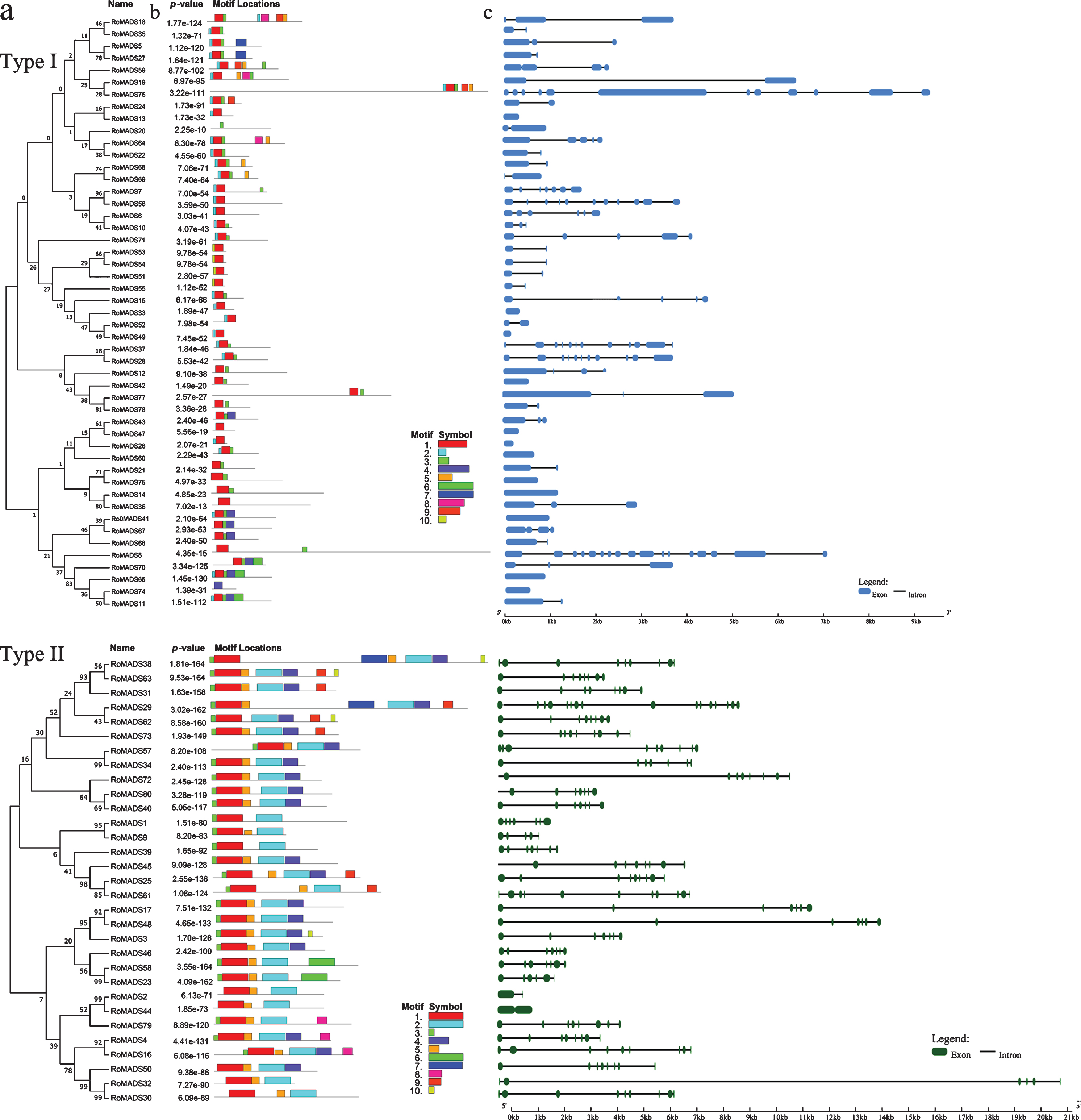

Fig. 3

Phylogenetic relationship (a), conserved motif (b) and exon-intron structure (c) analyses of RoMADS-box proteins. Motifs 1 to 10 are indicated by differently colored boxes. The black lines represent nonconserved sequences, and 10 conserved motifs are indicated by different colors with numbered boxes. Exons and introns are represented by boxes and lines, respectively.

To better understand the structural components of RoMADS-box genes, various exon and intron structures were obtained through comparison with the corresponding genomic DNA sequences. We obtained the structure of each gene by comparing its open reading frame with the corresponding genomic sequence. In general, the closest genes exhibited similar exon/intron structures in terms of exon/intron number (Fig. 3c). With the exception of RoMADS2 and RoMADS44, both of which contained one intron and two exons, other type II RoMADSs contained more than two exons (Fig. 3c). The average number of exons in type II RoMADSs was 7.7, which was significantly higher than the average number of exons in type I genes (3.5), and this finding indicated that type II MADS-box genes might be more complex.

3.2 Cis element analysis of RoMADS-box gene promoters

The promoter of a gene is an important factor in determining the initiation of gene transcription, and its sequence contains some basic elements that can reflect the potential function of the gene. To further explore the function of RoMADS-box genes, the promoter elements upstream of these genes were predicted and analyzed using PlantCARE software. The results showed that all of the cis elements contained in the MADS-box transcription factor family could be roughly divided into eight categories (Table 3). Light-responsive elements, including parts of a light-responsive element, Box 4, the GT1 motif, the G box and ACE, were the most commonly found category. We identified several plant hormone-responsive elements, such as the TGA element, TCA element, TCTC box, P box, ABRE, TGACG motif and CGTCA motif. Interestingly, most of the RoMADS-box transcription factors contain hormone-related response elements, which can be divided into five categories based on the hormone to which they respond: auxin (IAA, TGA element), gibberellic acid (GA, P box or TATC box), salicylic acid (SA, TCA element), abscisic acid (ABA, ABRE), and methyl jasmonate (MeJA, TGACG or CGTCA motif). Among these, IAA, GA and SA are factors that promote fruit growth and development, and ABA and MeJA are factors that promote fruit ripening.

Table 3
Conservation of cis-acting elements in MADS-box genes in black raspberry

cis elements Component name Number Frequency (%)

Abiotic stress-responsive elements LTR 18 22.50

TC-rich repeats 10 12.50

GC motif 1 1.25

ARE 32 40.00

Plant hormone-responsive elements TGA element 18 22.50

TCA element 14 17.50

TATC box 11 13.75

P box 17 21.25

TGACG or CGTCA motif 31 38.75

ABRE 34 42.50

Light-responsive elements Part of a light-responsive element 41 51.25

Box 4 32 40.00

GT1 motif 30 37.50

G box 32 40.00

ACE 6 7.50

Core promoter elements TATA box 36 45.00

CAAT box 36 45.00

A box 7 8.75

Tissue-specific elements AACA motif or NON box 2 2.5

HD-Zip 3 3.75

GCN4 motif or RY element 12 15.00

CAT box 11 13.75

O2 site 12 15.00

Protein-binding sites AT-rich element 10 12.50

Box III or HD-Zip 3 6 7.50

CCAAT box 8 10.00

MRE 16 20.00

MBSI 2 2.50

MRE 18 22.50

Circadian-responsive elements AucRR core 4 5.00

Biotic stress-responsive elements WUN motif 6 7.50

Cell cycle regulation MAS-like 2 2.50

cis elements	Component name	Number	Frequency (%)
Abiotic stress-responsive elements	LTR	18	22.50
	TC-rich repeats	10	12.50
	GC motif	1	1.25
	ARE	32	40.00
Plant hormone-responsive elements	TGA element	18	22.50
	TCA element	14	17.50
	TATC box	11	13.75
	P box	17	21.25
	TGACG or CGTCA motif	31	38.75
	ABRE	34	42.50
Light-responsive elements	Part of a light-responsive element	41	51.25
	Box 4	32	40.00
	GT1 motif	30	37.50
	G box	32	40.00
	ACE	6	7.50
Core promoter elements	TATA box	36	45.00
	CAAT box	36	45.00
	A box	7	8.75
Tissue-specific elements	AACA motif or NON box	2	2.5
	HD-Zip	3	3.75
	GCN4 motif or RY element	12	15.00
	CAT box	11	13.75
	O2 site	12	15.00
Protein-binding sites	AT-rich element	10	12.50
	Box III or HD-Zip 3	6	7.50
	CCAAT box	8	10.00
	MRE	16	20.00
	MBSI	2	2.50
	MRE	18	22.50
Circadian-responsive elements	AucRR core	4	5.00
Biotic stress-responsive elements	WUN motif	6	7.50
Cell cycle regulation	MAS-like	2	2.50

Note: The frequency of occurrence is the ratio of genes containing cis-acting elements to the total number of RoMADS-box genes.

3.3 Analysis of RoMADS-box protein interactions

To explore the potential molecular mechanisms of RoMADS-box proteins, we constructed a PPI network using protein expression patterns in the STRING database. The interaction analysis revealed that directly linked genes might exhibit a tight functional connection (Fig. 4). In the network, thicker connecting line indicated a stronger interaction between the two corresponding proteins. Markov clustering revealed three distinct groups, and the largest group was associated with MADS-box proteins (part of the red) and exhibited strong interactions (AGL6, 8, 15, 16, 20, 24, SVP and AP1) corresponding to predicted RoMADS-box orthologs (RoMADS73, 38, 79, 48, 72, 16, 4 and 31, respectively) (Fig. 4). The SEP3, STK, TT16, AGL4, and SEP4 proteins (green) showed strong interactions with the predicted orthologs RoMADS63, 39, 61, 29 and 31, respectively. These specific associations suggest that these proteins jointly contribute to a shared cis or trans function in plants. The AGL12 protein exhibited a strong interaction with AGL21. Accordingly, the RoMADS46 and RoMADS3 genes might have similar functions.

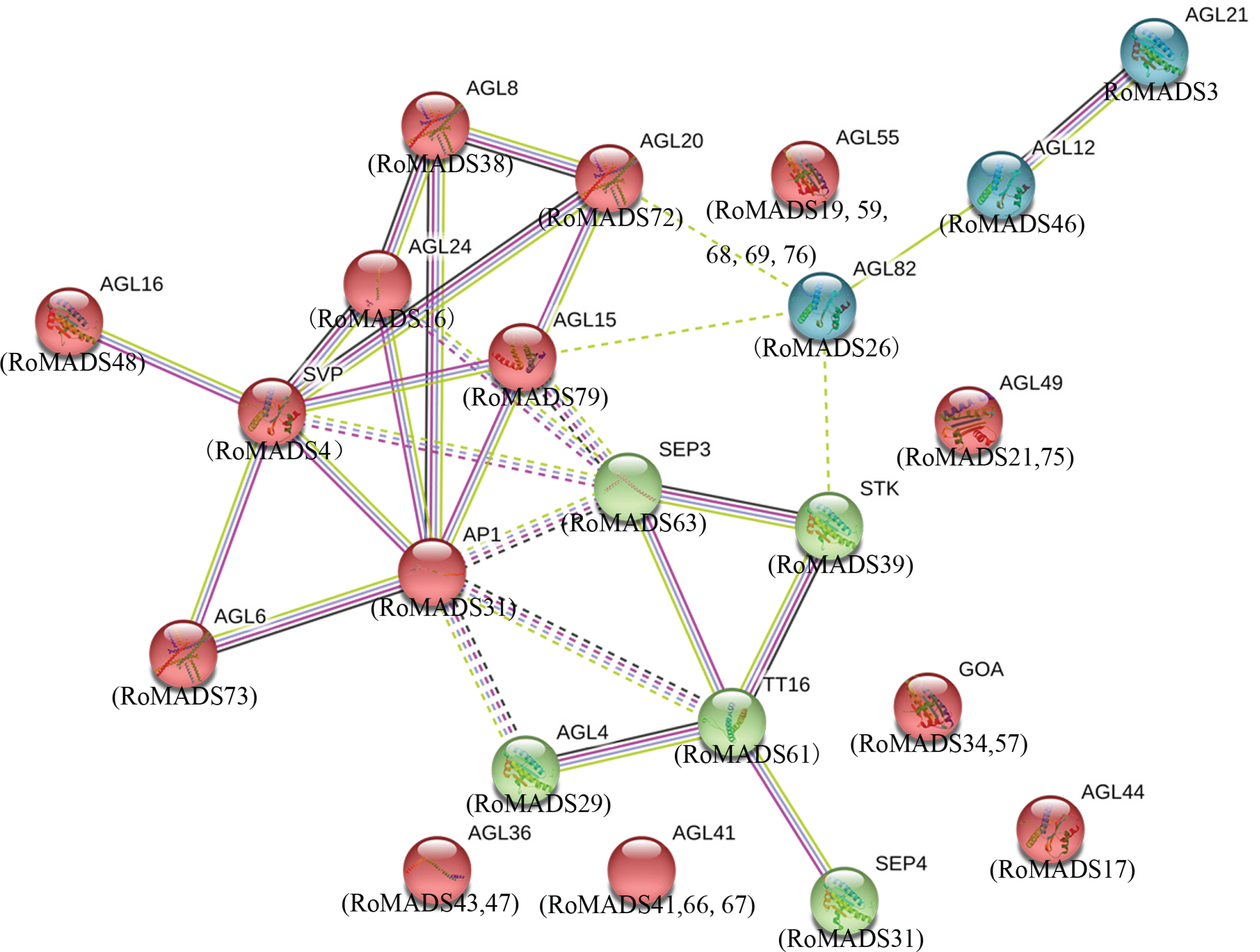

Fig. 4

Protein-protein interactions between RoMADS-box transcription factors based on predicted AtMADS orthologs.

3.4 Expression analysis of RoMADS-box genes

We investigated the spatial expression of MADS-box genes in black raspberry leaf, stem, and apex tissues and in the fruit at different stages of development. As shown in Fig. 5, 20 RoMADS-box genes (some of these 20 genes had tandem or diffuse repeats) were selected for analysis of their expression patterns in different tissues of black raspberry by qRT-PCR. These RoMADS-box genes showed different expression patterns in different tissues. The majority of the RoMADS-box genes showed higher expression in fruit than in other tissues, which was consistent with the original identification of MADS-box genes as genes that regulate fruit ripening. In particular, the RoMADS35 and RoMADS58 genes showed extremely high expression in purple fruit and might be associated with the regulation of fruit development and ripening. An expression analysis revealed that the expression of RoMADS9, RoMADS32, and RoMADS59 decreased during fruit ripening, which indicated that these genes might be negatively involved in fruit development or anthocyanin accumulation.

Fig. 5

Expression analysis of RoMADS-box genes. The expression patterns of 20 selected RoMADS-box genes in different tissues of black raspberry were determined by qRT-PCR. Mean expression values were calculated from three independent replicates. The vertical bars indicate standard deviations.

4 Discussion

The MADS-box family consists of important transcription factors uniquely found in plants that play an important regulatory role in many aspects of plant growth and development. Different species contain different MADS-box family members with specific functional differences. MADS-box transcription factors underwent many gene duplication events during the evolution of plants (particularly angiosperms) and form a multigene family [38]. Gene replication events are thought to be an important source of biological evolution. The presence of two or more homologous genes on a single chromosome is defined as a tandem repeat event, whereas the distribution of homologous genes on different chromosomes is known as a diffuse repeat event. Herein, we identified repeat events among 11 homologous gene pairs (22 RoMADS-box genes). Among these events, five were tandem repeat events, and six were diffuse repeat events, which indicated that the expression of RoMADS-box gene family members might be affected by homologous genes. In addition, clusters of multiple copies of some genes on chromosomes might facilitate the rapid synthesis of a large number of transcription products. Some of these clusters confer a certain selective advantage in the evolutionary process. However, the distribution of gene clusters on chromosomes is irregular, and relevant studies have shown that the exact locations and directions of members in gene clusters are not well conserved [39]. Through phylogenetic tree and conserved motif analyses, we found that the RoMADS-box genes clustered in the same subgroup harbored an essentially conserved motif, which indicated that members of the same subgroup might exhibit functional similarity. In general, a large number of motifs with different structures and functions are found in the RoMADS-box gene family, which indicates that MADS-box genes play a variety of important roles in the regulatory network of black raspberry genes. To further understand the structural diversity among black raspberry MADS-box genes, we analyzed the distribution of introns and exons in the RoMADS-box genes. With the exception of the type II genes that contain fewer introns (RoMADS2 and RoMADS44), other type II genes contain more introns, which is consistent with the general rule [17–20 , 31].

Studies have found that the genomes of gymnosperms are generally larger than those of angiosperms, but gymnosperms contain fewer MADS-box gene family members than angiosperms, which might be due to the fact that the MADS-box gene family mainly functions in the growth and development of flower organs because gymnosperms have no obvious flowers [32, 40]. Gymnosperms have fewer flowering organs than angiosperms, and thus, gymnosperms have fewer MADS-box genes. In general, functional studies of the MADS-box gene family in gymnosperms are less comprehensive than those in angiosperms.

Further study of the expression levels of RoMADS-box genes in different black raspberry tissues indicated that the majority of RoMADS-box genes were more highly expressed in fruit than in other tissues, which is consistent with the original identification of MADS-box genes as genes that regulate fruit ripening [41, 42]. In particular, the RoMADS35 and RoMADS58 genes exhibited extremely high expression in purple fruit. Vrebalov et al. [43] found that the mutation of one MADS-box gene in tomato resulted in fruit abortion. Liu et al. [41] obtained one MADS-box gene encoding a transcription factor from banana that plays an important role in the regulation of the fruit ripening process during climacteric respiration. Seymour et al. [42] silenced the FaMADS9 gene in strawberry and found that this gene is an upstream regulator of strawberry fruit ripening and is involved in the simultaneous ripening of fruit during both climacteric and nonclimacteric respiration. Thus, the specific regulatory role of the RoMADS-box genes examined in this study on the development of black raspberry fruit remains to be further studied. The analysis of transcription factor promoter elements provides important reference information for predicting the potential function of genes and an important theoretical basis for determining the mechanism of action of genes. Most RoMADS-box transcription factor promoter elements were found to contain hormone-responsive elements, which indicates that members of the MADS-box family might play different regulatory roles in fruit development and maturation processes by responding to different hormone signals. The ethylene-free homeopathic elements in the RoMADS-box promoter might be due to the nonclimacteric respiration of black raspberry. Ethylene might not participate or play a major role in the ripening process, but ABA might initiate and participate in the black raspberry fruit ripening process. Previous studies have shown that GA, IAA and cytokinin can promote fruit growth and development but delay fruit color transformation and ripening [44]. Furthermore, ethylene, MeJA, and ABA can promote fruit color and ripeness [45]. The inhibition or promotion of fruit ripening is mainly determined by the interaction between endogenous and exogenous hormones in fruit, and this effect is ultimately the result of the spatiotemporal expression of endogenous genes in fruit [46].

Through an analysis of the promoter elements of members of the MADS-box family, the possible functions of different members of the family were predicted. The spatiotemporal expression patterns of members of the MADS-box family during black raspberry fruit development and ripening were systematically analyzed, and the possible roles of members of different groups within this family in fruit development were suggested or proposed. This study lays an important foundation for obtaining a more in-depth understanding of the regulatory functions of MADS-box genes in fruit development and ripening.

Footnotes

Acknowledgments

This research was supported by the Jiangsu Agricultural Science and Technology Innovation Fund (No. CX(19)2013) and the National Natural Science Foundation of China (No. 31600553).

Conflict of interest

The authors have no conflicts of interest to report.

The supplementary material is available in the electronic version of this article: .

References

Soundararajan

, Won

, Kim

. Insight on rosaceae family with genome sequencing and functional genomics perspective. Biomed Res Int. 2019;2019:7519687.

Alice

, Campbell

. Phylogeny of Rubus (rosaceae) based on nuclear ribosomal DNA internal transcribed spacer region sequences. Am J Bot. 1999;86(1):81–97.

VanBuren

, Bryant

, Bushakra

, Vining

, Edger

, Rowley

, et al. The genome of black raspberry (Rubus occidentalis). Plant J. 2016;87(6):535–47.

Jibran

, Dzierzon

, Bassil

, Bushakra

, Edger

, Sullivan

, et al. Chromosome-scale scaffolding of the black raspberry (Rubus occidentalis L.) genome based on chromatin interaction data. Hortic Res. 2018;5:8.

Dossett

, Finn

. Identification of resistance to the large raspberry aphid in black raspberry. J Am Soc Hortic Sci.. 2010;135(5):438–44.

Lee

. Rosaceae products: anthocyanin quality and comparisons between dietary supplements and foods. NFS J. 2016;4:1–8.

Wang

, Lin

. Antioxidant activity in fruits and leaves of blackberry, raspberry, and strawberry varies with cultivar and developmental stage. J Agric Food Chem. 2000;48(2):140–6.

Dossett

, Lee

, Finn

. Inheritance of phenological, vegetative, and fruit chemistry traits in black raspberry. J Am Soc Hortic Sci. 2008;133(3):408–17.

Moyer

, Hummer

, Finn

, Frei

, Wrolstad

. Anthocyanins, phenolics, and antioxidant capacity in diverse small fruits: vaccinium, rubus, and ribes. J Agric Food Chem. 2002;50(3):519–25.

10.

Lalusin

, Nishita

, Kim

, Ohta

, Fujimura

. A new MADS-box gene (IbMADS10) from sweet potato (Ipomoea batatas (L.) Lam) is involved in the accumulation of anthocyanin. Mol Genet Genom. 2006;275(1):44–54.

11.

Theissen

, Melzer

, Rümpler

. MADS-domain transcription factors and the floral quartet model of flower development: linking plant development and evolution. Development. 2016;143(18):3259–71.

12.

Lyu

. Tomato development: MADS-box engineering. Nat Plants. 2017;3:17122.

13.

Dong

, Hu

, Deng

, Wang

, Zhu

, Zhang

, Chen

. A tomato MADS-box transcription factor, SlMADS1, acts as a negative regulator of fruit ripening. Plant Physiol. 2013;163:1026–36.

14.

Kaufmann

, Melzer

, Theissen

. MIKC-type MADS-domain proteins: structural modularity, protein interactions and network evolution in land plants. Gene. 2005;347(2):183–98.

15.

Alvarez-Buylla

, Pelaz

, Liljegren

, Gold

, Burgeff

, Ditta

, et al. An ancestral MADS-box gene duplication occurred before the divergence of plants and animals. Proc Natl Acad Sci U S A. 2000;97(10):5328–33.

16.

Parenicová

, de Folter

, Kieffer

, Horner

, Favalli

, Busscher

, et al. Molecular and phylogenetic analyses of the complete MADS-box transcription factor family in Arabidopsis: new openings to the MADS world. Plant Cell. 2003;15(7):1538–51.

17.

Arora

, Agarwal

, Ray

, Singh

, Tyagi

, et al. MADS-box gene family in rice: genome-wide identification, organization and expression profiling during reproductive development and stress. BMC Genom. 2007;8:242.

18.

Shu

, Yu

, Wang

, Guo

. Genome-wide survey and expression analysis of the MADS-box gene family in soybean. Mol Biol Rep. 2013;40(6):3901–11.

19.

, Liu

. Genome-wide analysis of the MADS-box gene family in cucumber. Genome. 2012;55(3):245–56.

20.

Leseberg

, Li

, Kang

, Duvall

, Mao

. Genome-wide analysis of the MADS-box gene family in Populus trichocarpa. Gene. 2006;378:84–94.

21.

VanBuren

, Wai

, Colle

, Wang

, Sullivan

, Bushakra

, et al. A near complete, chromosome-scale assembly of the black raspberry (Rubus occidentalis) genome. Gigascience. 2018;7(8):1–9.

22.

Eddy

. Profile hidden Markov models. Bioinformatics. 1998;14(9):755–63.

23.

Camacho

, Coulouris

, Avagyan

, Ma

, Papadopoulos

, Bealer

, et al. BLAST⁺: architecture and applications. BMC Bioinform. 2009;10:421.

24.

Letunic

, Bork

. 20 years of the SMART protein domain annotation resource. Nucleic Acids Res. 2017;46(D1):D493–6.

25.

Crooks

, Hon

, Chandonia

, Brenner

. WebLogo: a sequence logo generator. Genome Res. 2004;14(6):1188–90.

26.

Martinez-Castilla

, Alvarez-Buylla

. Adaptive evolution in the Arabidopsis MADS-box gene family inferred from its complete resolved phylogeny. Proc Natl Acad Sci U S A. 2003;100(23):13407–12.

27.

Bailey

, Williams

, Misleh

, Li

. MEME: discovering and analyzing DNA and protein sequence motifs. Nucleic Acids Res. 2006;34(Web Server issue):W369–73.

28.

Chen

, Chen

, Zhang

, Thomas

, Frank

, He

, et al. TBtools: an integrative toolkit developed for interactive analyses of big biological data. Mol Plant. 2020;3(8):1194–202.

29.

Lescot

, Déhais

, Thijs

, Marchal

, Moreau

, Van de Peer

, et al. PlantCARE, a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences. Nucleic Acids Res. 2002;30(1):325–7.

30.

Szklarczyk

, Franceschini

, Wyder

, Forslund

, Heller

, Huerta-Cepas

, et al. STRING v10: protein-protein interaction networks, integrated over the tree of life. Nucleic Acids Res. 2015;43(Database Issue):D447–52.

31.

Tian

, Dong

, Ji

, Chi

, Cong

, Zhou

. Genome-wide identification and analysis of the MADS-box gene family in apple. Gene. 2015;555(2):277–90.

32.

, Bi

, He

, Ye

, Yin

, Xu

. Genome-wide identification and characterization of the MADS-box gene family in Salix suchowensis. PeerJ. 2019;7:e8019.

33.

Zhao

, Jia

, Wang

, Zhou

, Jia

, et al. Genome-wide identification and analysis of the MADS-box gene family and its potential role in fruit development and ripening in red bayberry (Morella rubra). Gene. 2019;717:144045.

34.

Bai

, Yang

, Cao

, Yao

, Zhang

, Chen

, et al. Genome-wide identification, gene structure and expression analysis of the MADS-box gene family indicate their function in the development of tobacco (Nicotiana tabacum L.). Int J Mol Sci. 2019;20(20):5043.

35.

Ning

, Han

, Chen

, Luo

, Wang

, Zhang

, et al. Genome-wide analysis of MADS-box family genes during flower development in lettuce. Plant Cell Environ. 2019;42(6):1868–81.

36.

, Zhang

, Sun

, Du

, Cheng

, Pan

, et al. Genome-wide identification, characterisation and expression analysis of the MADS-box gene family in Prunus mume. Mol Genet Genom. 2014;289(5):903–20.

37.

Dong

, Liu

, Li

, Wang

, He

, Cai

, et al. Gene expression and phylogenetic analysis of MADS-box family genes in Ginkgo biloba. Plant Physiol J. 2018;54(6):1055–63.

38.

Becker

, Theissen

. The major clades of MADS-box genes and their role in the development and evolution of flowering plants. Mol Phylogenetics Evol. 2003;29(3):464–89.

39.

Lee

, Sonnhammer

. Genomic gene clustering analysis of pathways in eukaryotes. Genome Res. 2003;13(5):875–82.

40.

Gramzow

, Weilandt

, Theißen

. MADS goes genomic in conifers: towards determining the ancestral set of MADS-box genes in seed plants. Ann Bot. 2014;114(7):1407–29.

41.

Liu

, Xu

, Hu

, Li

, Su

, Wu

, et al. Involvement of a banana MADS-box transcription factor gene in ethylene-induced fruit ripening. Plant Cell Rep. 2009;28(1):103–11.

42.

Seymour

, Ryder

, Cevik

, Hammond

, Popovich

, King

, et al. A SEPALLATA gene is involved in the development and ripening of strawberry (Fragaria x ananassa Duch.) fruit, a non-climacteric tissue. J Exp Bot. 2011;62(3):1179–88.

43.

Vrebalov

, Ruezinsky

, Padmanabhan

, White

, Medrano

, Drake

, et al. A MADS-box gene necessary for fruit ripening at the tomato ripening-inhibitor (rin) locus. Science. 2002;296(5566):343–6.

44.

Han

, Lee

. The effects of GA3, CPPU and ABA applications on the quality of kyoho (Vitis vinifera L.X V. Labrusca L.) grape. Acta Hortic. 2004;653:193–7.

45.

Sandhu

, Gray

, Lu

, Gu

. Effects of exogenous abscisic acid on antioxidant capacities, anthocyanins, and flavonol contents of muscadine grape (Vitis rotundifolia) skins. Food Chem. 2011;126(3):982–8.

46.

Böttcher

, Burbidge

, Boss

, Davies

. Interactions between ethylene and auxin are crucial to the control of grape (Vitis vinifera L.) berry ripening. BMC Plant Biol. 2013;13:222.
